How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

Today, I am going to show you how to configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC.

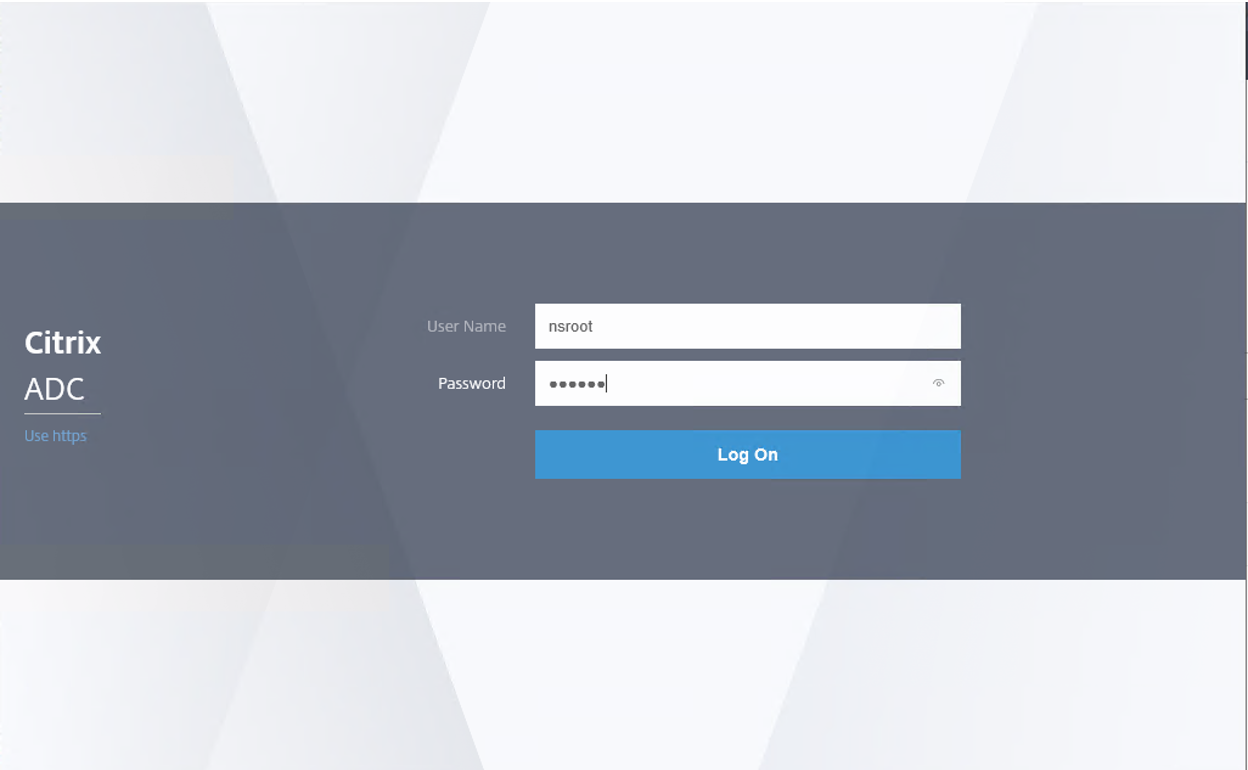

1.Type the IP address of Citrix ADC in a Web browser to access the virtual appliance.

101220 0325 HowtoConfig1 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

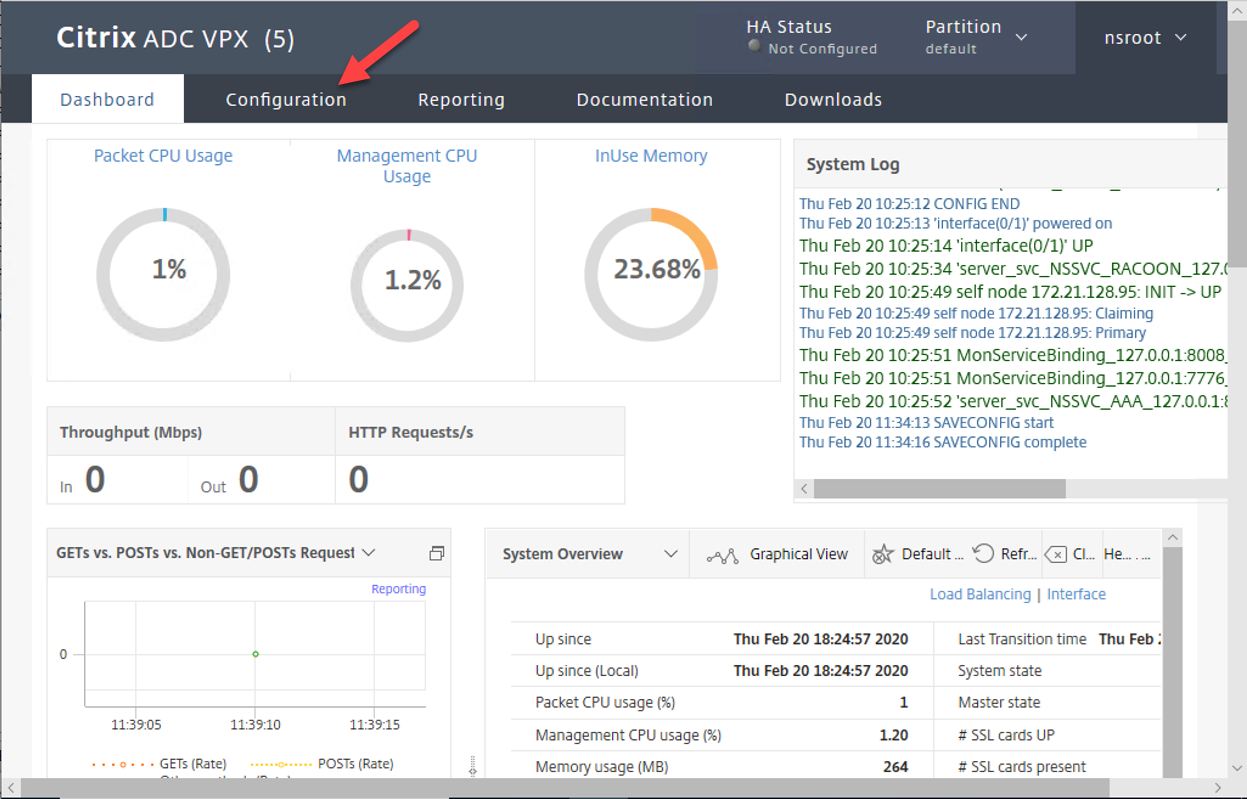

2.On the Citrix ADC page, select Configuration.

101220 0325 HowtoConfig2 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

3.On the Configuration page, select Authentication.

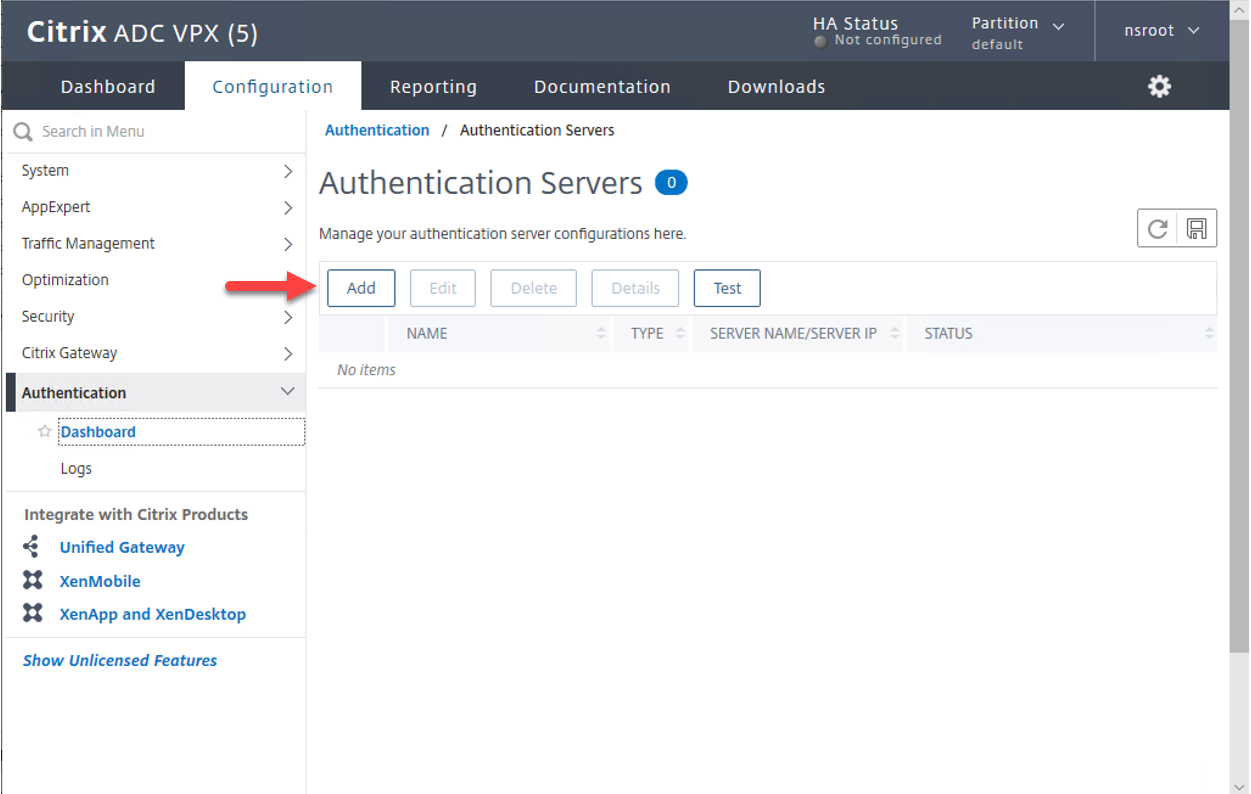

4.On the Authentication Servers page, select Dashboard, click Add.

101220 0325 HowtoConfig3 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

5.On the Create Authentication Server page, configure setting values as below, click Create.

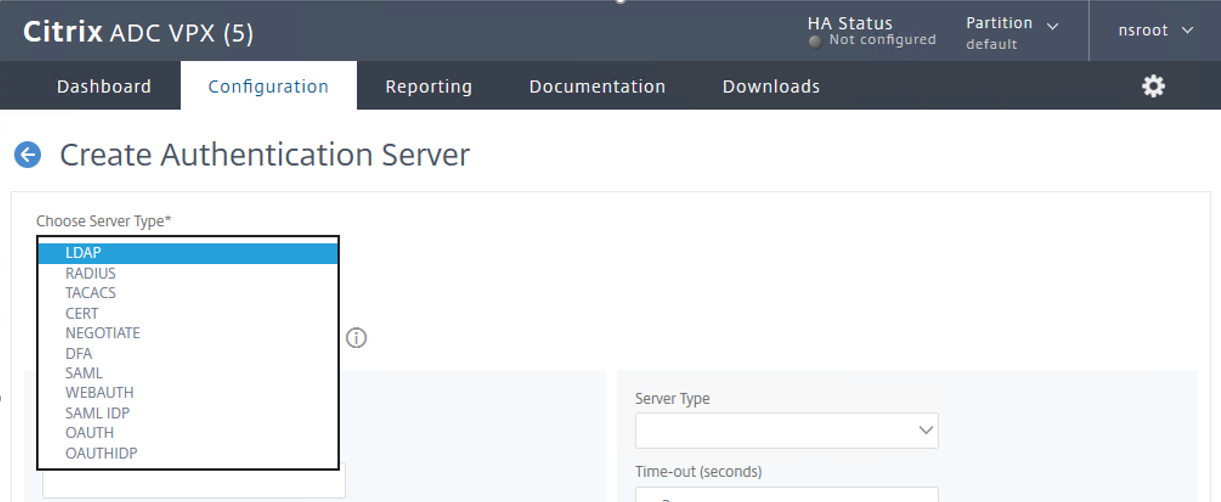

  • Choose Server Type: Select LDAP.

101220 0325 HowtoConfig4 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

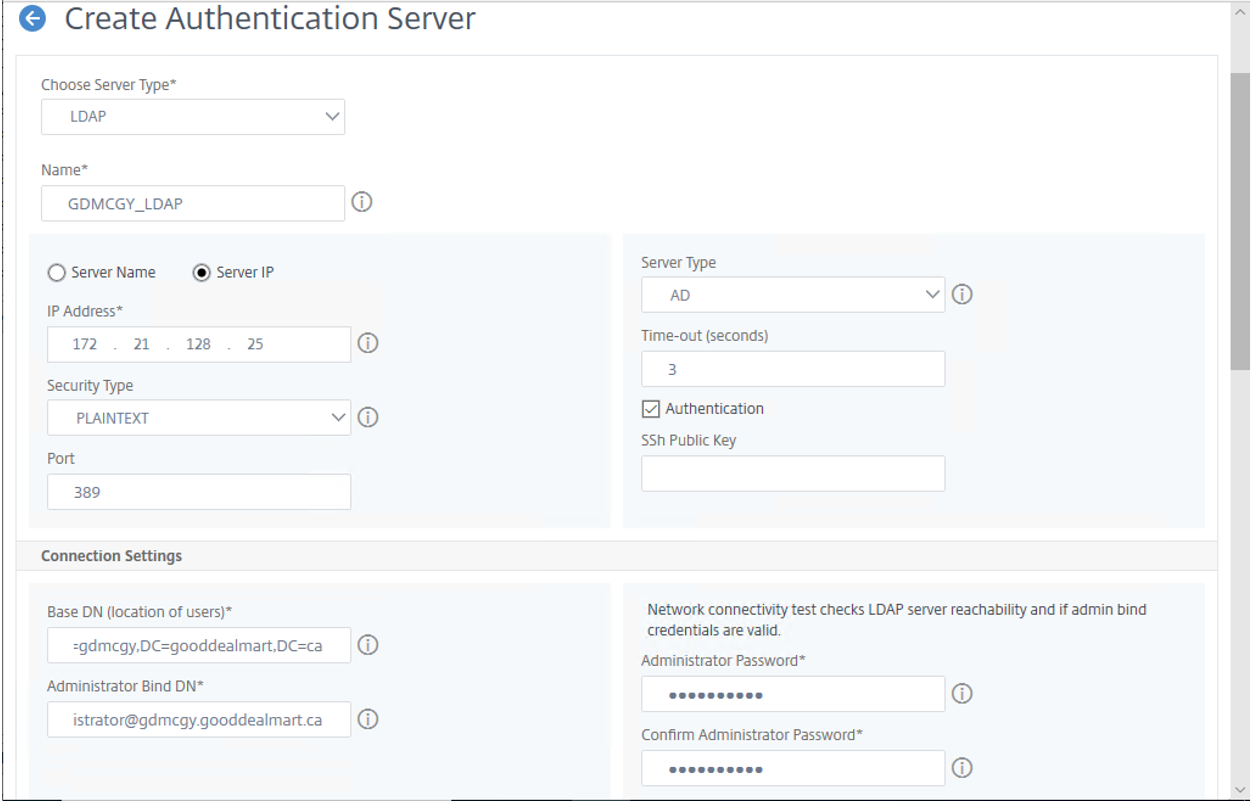

  • Name: Type Authentication server name, in my case is GDMCGY_LDAP.
  • Select Server IP.
  • IP Address: Type IP address of the domain controller server.
  • Security Type: Select PLAINTEXT.
  • Port: Type 389.
  • Server Type: Select AD.
  • Time-out (seconds): Type 3.
  • Select Authentication

Connection Settings

  • Base DN (location of users): In my case is DC=gdmcgy,DC=gooddealmart,DC=ca.
  • Administrator Bind DN: In my case is administrator@gdmcgy.gooddealmart.ca.
  • Administrator Password: Type the administrator password.
  • Confirm Administrator Password: Type administrator password.

101220 0325 HowtoConfig5 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

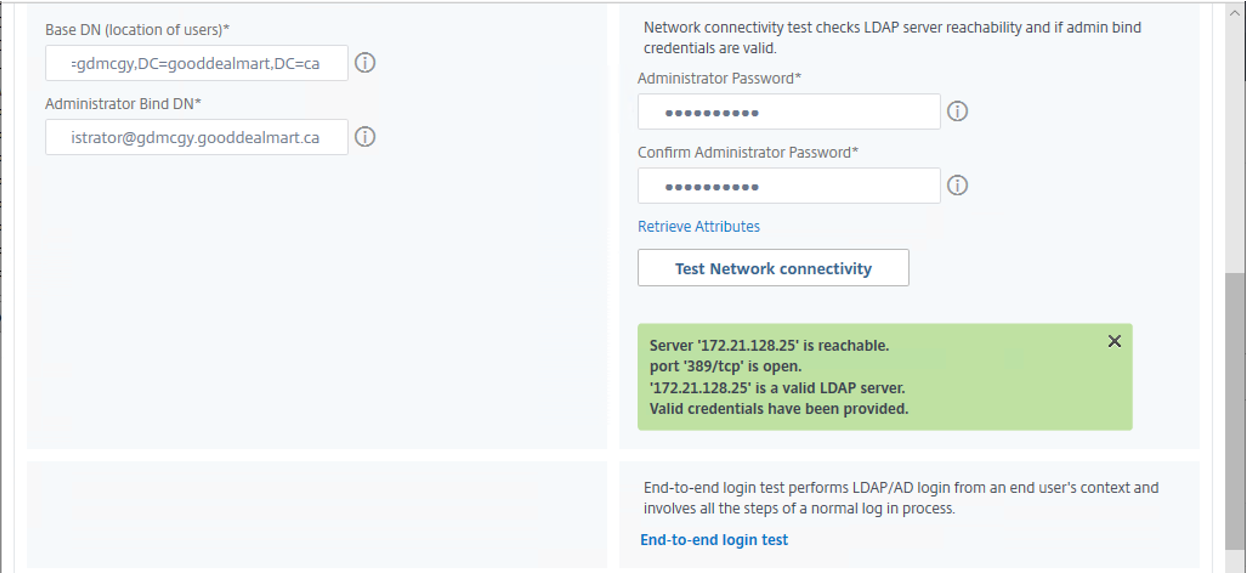

Click Test Network connectivity to verify the server is reachable.

101220 0325 HowtoConfig6 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

Other Settings

  • Server Logon Name Attribute: Select sAMAccountName.
  • Group Attribute: Select memberOf.
  • Sub Attribute Name: Select New, enter cn.
  • SSO Name Attribute: Select New, enter sAMAccountName.
  • Select User Required.
  • Maximum Referral Level: Type 1
  • Referral DNS Lookup: Select A-REC

101220 0325 HowtoConfig7 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

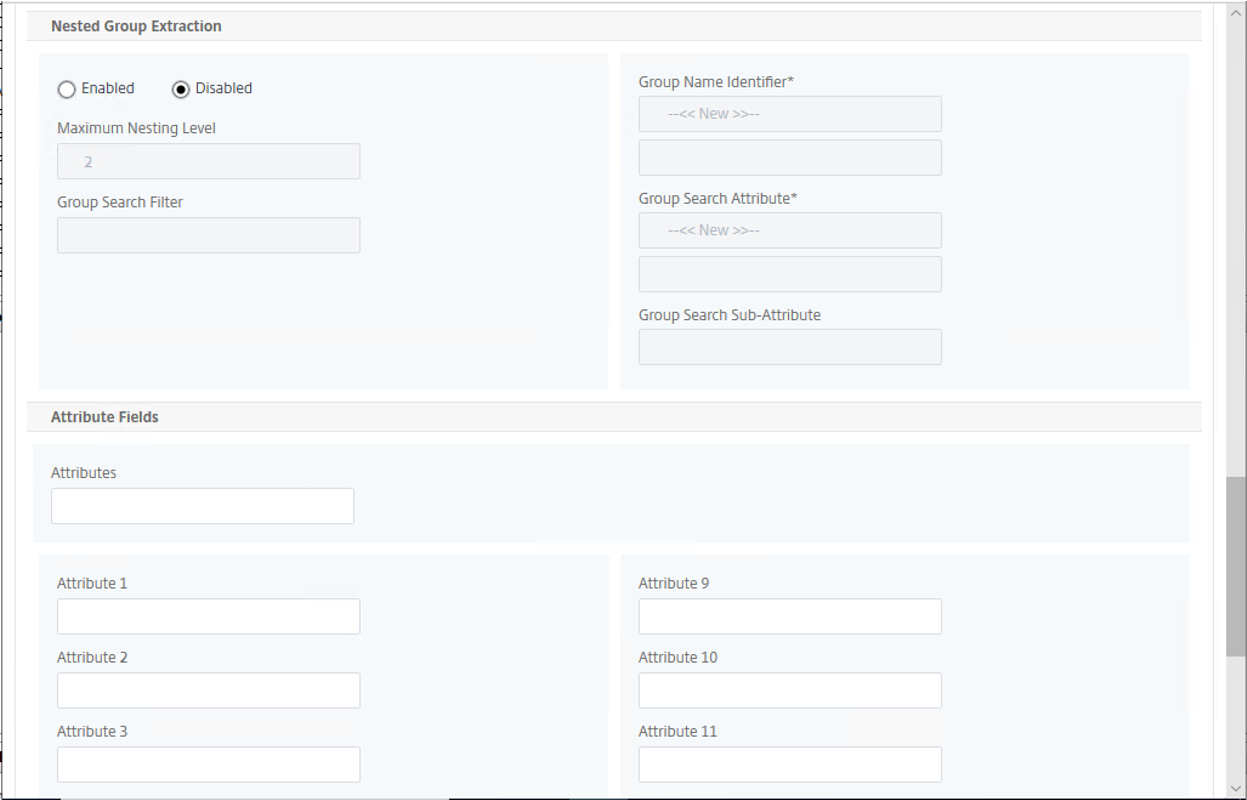

Nested Group Extraction

  • Select Disabled.

101220 0325 HowtoConfig8 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

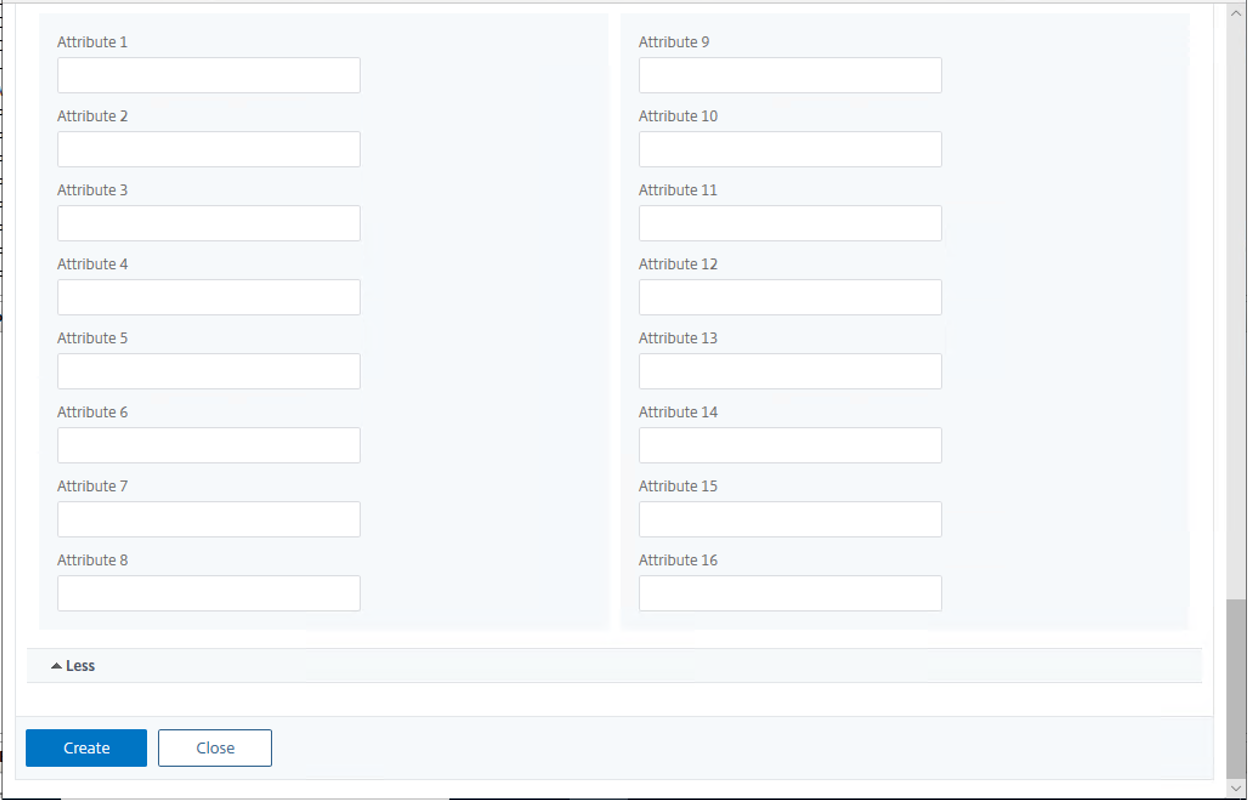

Click Create.

101220 0325 HowtoConfig9 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC

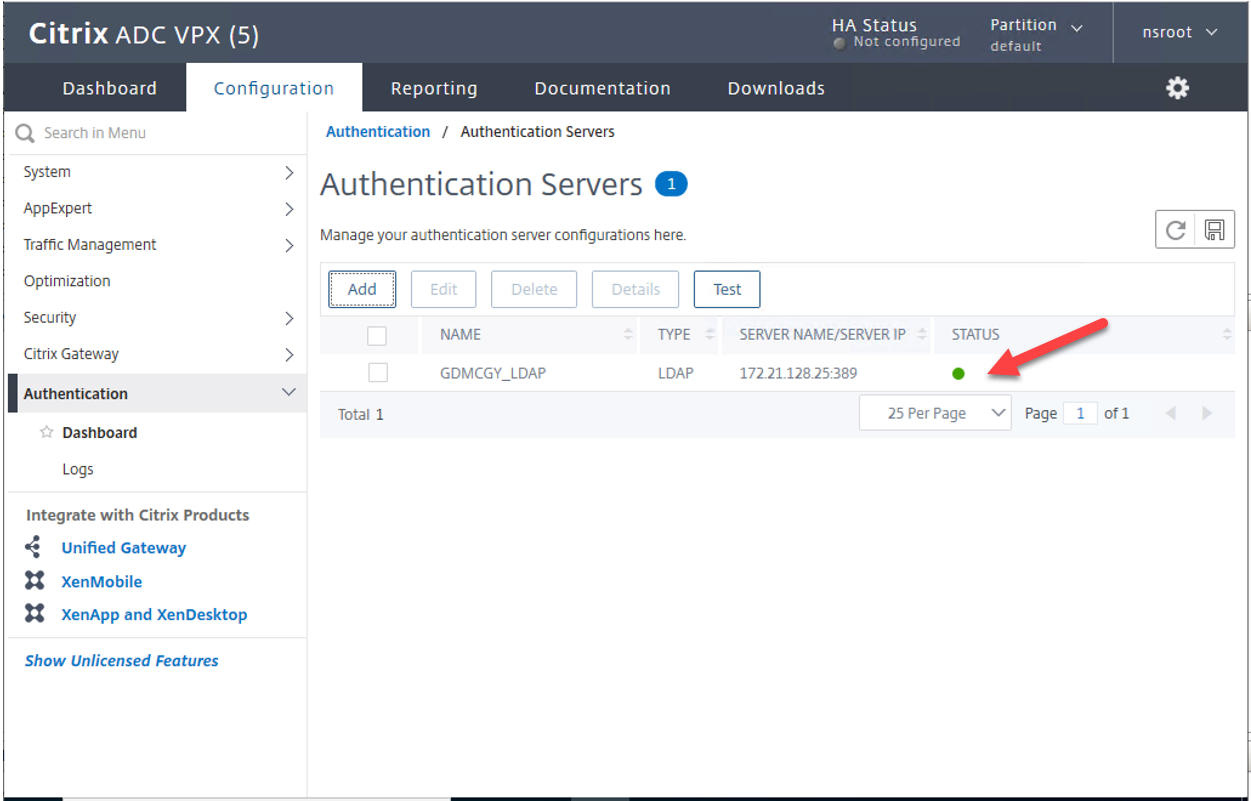

6.On the Authentication Servers page, verify the new LDAP authentication server create succeeded and its status light is green.

101220 0325 HowtoConfig10 - How to Configure the Microsoft Active Directory Domain Controller as Authentication Server at Citrix ADC
