You will use both Veeam Backup account and Azure AD application for authentication if you add an organization using the modern authentication method with legacy protocols allowed. Veeam Backup for Microsoft 365 uses Veeam Backup account and an application to establish a connection to your Microsoft 365 organizations with disabled security defaults and maintain data transfer during backup and restore sessions.

You will use both Veeam Backup account and Azure AD application for authentication if you add an organization using the modern authentication method with legacy protocols allowed. Veeam Backup for Microsoft 365 uses Veeam Backup account and an application to establish a connection to your Microsoft 365 organizations with disabled security defaults and maintain data transfer during backup and restore sessions.

Backup account permissions requirements:

When you add Microsoft 365 organization using basic authentication, you use Veeam Backup account. Also you use Veeam Backup account for on-premises Microsoft Exchange and on-premises Microsoft SharePoint organizations.

To provide Veeam Backup for Microsoft 365 with the ability to work with Microsoft Exchange organizations, Microsoft SharePoint and OneDrive for Business organizations, and protect Microsoft Teams data, you must grant the requirement permissions to the Veeam Backup account.

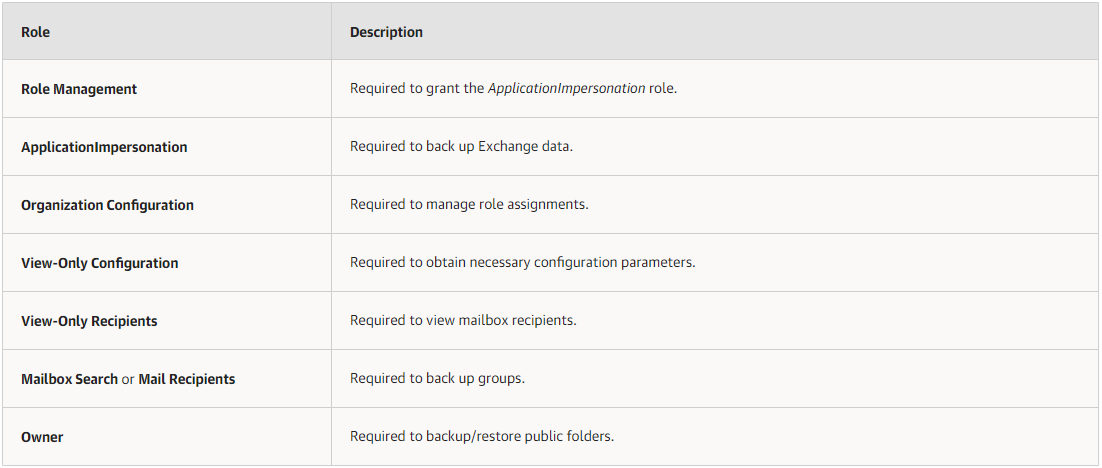

Microsoft Exchange Organizations permissions requirement:

  • The account you are using to add an organization must be a member of this organization
  • The account you are using to add an organization is not required to have a mailbox in such an organization
  • If you are backing up public folder mailboxes, the Veeam Backup account must have a valid Exchange Online license and an active mailbox within the Microsoft 365 organization

042722 1600 Howtoaddorg1 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Microsoft SharePoint and OneDrive for Business permissions requirement:

  • On-Premises Microsoft SharePoint Organizations
Role Description Misc.
Site Collection Administrator Required to back up Microsoft SharePoint Sites. The account must be a member of the Farm Administrator group.
  • Microsoft SharePoint Online Organizations
Role Description Misc.
SharePoint Admin Required to back up Microsoft SharePoint Sites. You can assign the Global Admin role that overrides these roles.
View-only Configuration Required to get a list of available groups and users.
View-Only Recipients
  • Microsoft Teams
    • The account must have a Microsoft 365 license that permits access to Microsoft Teams API. The minimum sufficient license is Microsoft Teams Exploratory experience
    • The account must have the Team Administrator role assigned

Note:

  • In case you add an organization in Veeam Backup for Microsoft 365 using the modern authentication method with legacy protocols allowed, and specify different accounts to connect to Microsoft Exchange and Microsoft SharePoint, the required license and role must be assigned to the account used to connect to Microsoft SharePoint.
  • When backing up Microsoft Teams data in an organization added using the basic authentication, Veeam Backup for Microsoft 365 at first adds a service account to every team and then removes it.

The detail permissions requirement as link.

https://helpcenter.veeam.com/docs/vbo365/guide/permissions_veeam_backup_account.html?ver=60

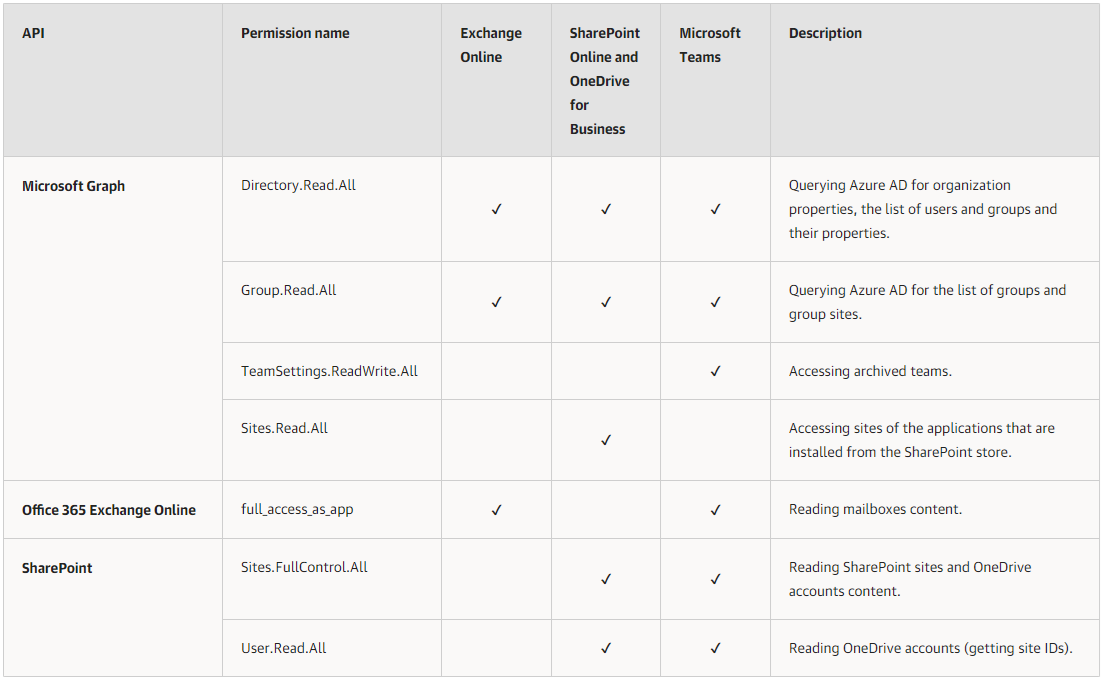

Azure AD Application Permissions for Modern Authentication and Legacy Protocols requirement

All listed permissions are of the Application type and required for data backup

042722 1600 Howtoaddorg2 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

1.Login to Veeam Backup for Microsoft 365 Manager server.

2.Open PowerShell as Administrator.

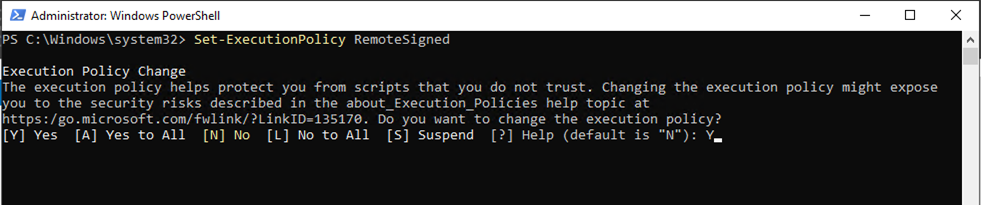

3.In a PowerShell window, run below command, type Y and then press Enter.


Set-ExecutionPolicy RemoteSigned

042722 1600 Howtoaddorg3 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

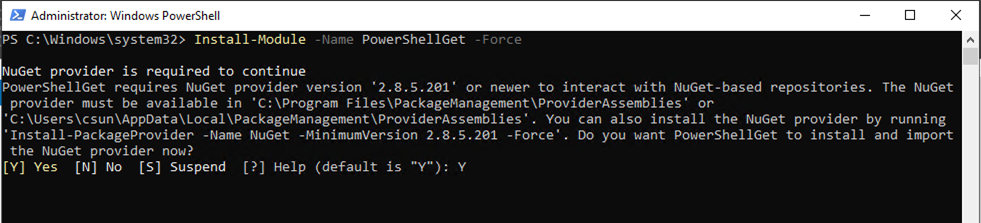

4.Run below command, type Y and then press Enter.


Install-Module -Name PowerShellGet -Force

042722 1600 Howtoaddorg4 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

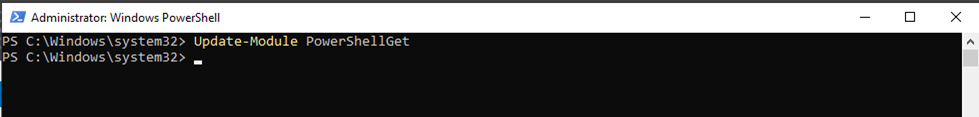

5.Run below command to make sure the module is up to dat, type Y and then press Enter.


Update-Module -Name PowerShellGet

042722 1600 Howtoaddorg5 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Assign Exchange Online permissions to backup service account

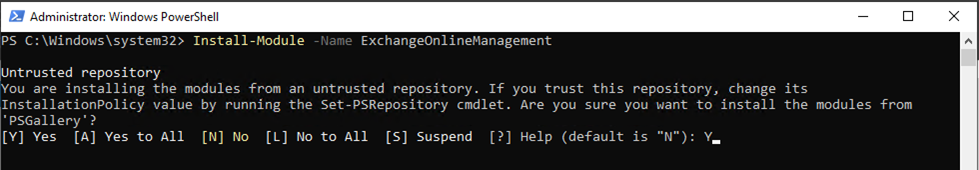

6.Run below command to install the latest Exchange Online PowerShell Module, type Y and then press Enter.


Install-Module -Name ExchangeOnlineManagement

042722 1600 Howtoaddorg6 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

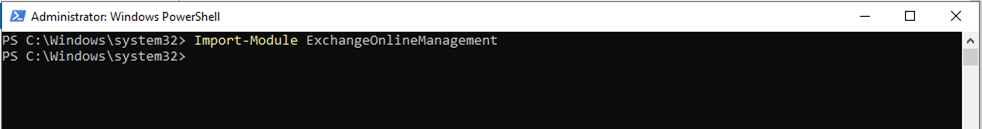

7.Run below commands to load the EXO V2 module.


Import-Module ExchangeOnlineManagement

042722 1600 Howtoaddorg7 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

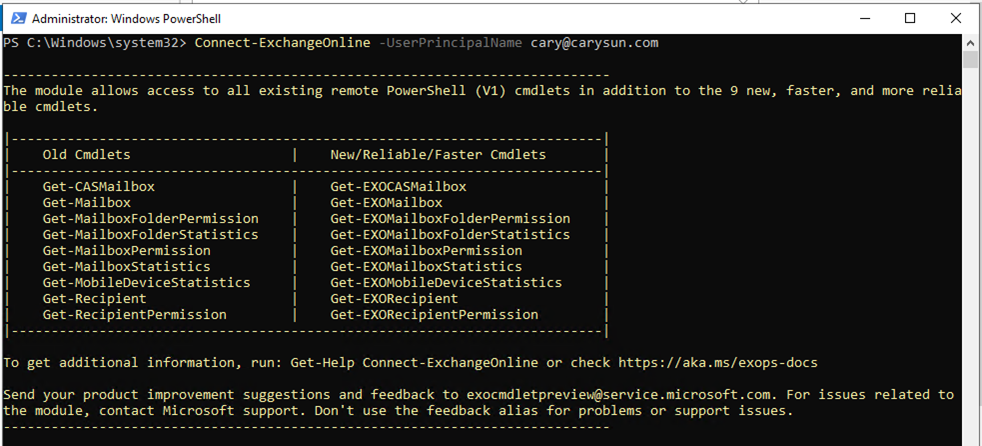

8.Run below commands to connect to ExchangeOnline.


Connect-ExchangeOnline -UserPrincipalName navin@contoso.com.

042722 1600 Howtoaddorg8 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

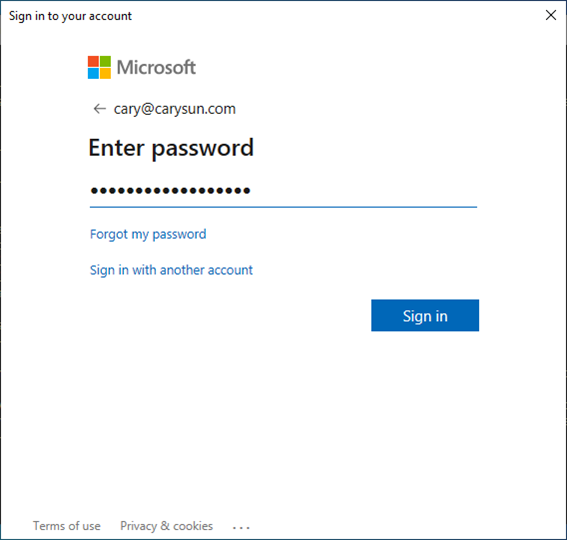

9.On the sign-in window that opens, enter your password, and then click Sign in.

042722 1600 Howtoaddorg9 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

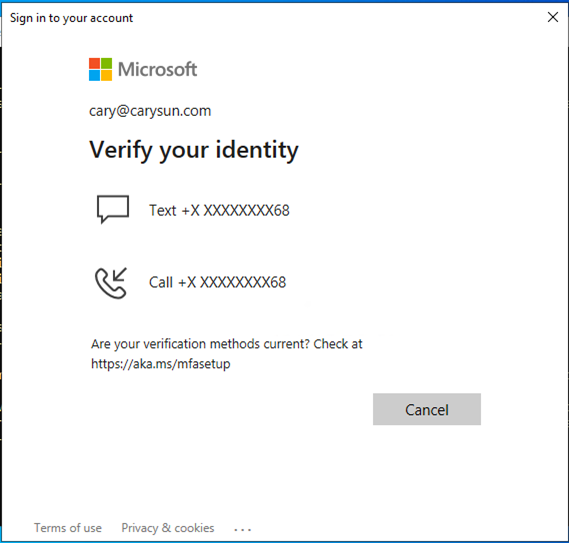

10.Select your verification Method.

042722 1600 Howtoaddorg10 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

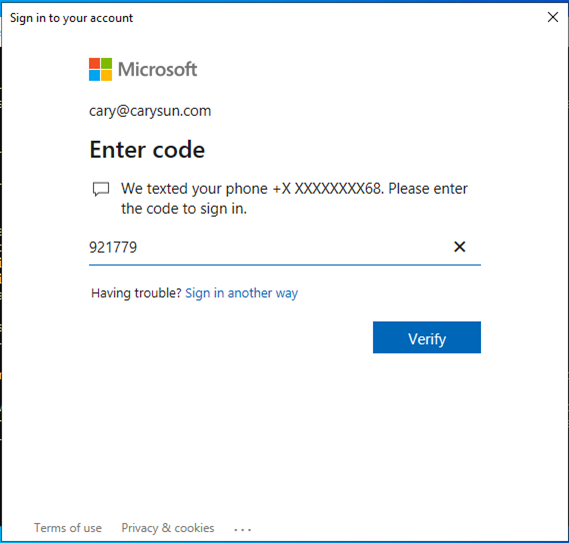

11.Enter the code, click Verify.

042722 1600 Howtoaddorg11 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

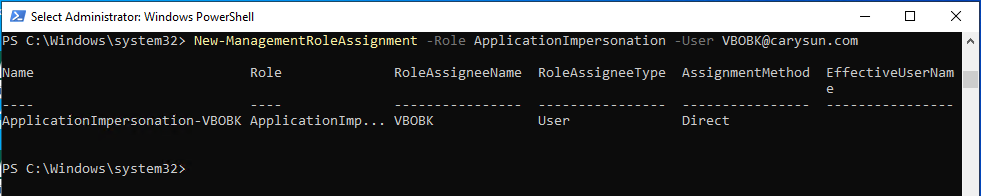

12.Run the following cmdlet to grant ApplicationImpersonation role for backup account.


New-ManagementRoleAssignment –Role ApplicationImpersonation –User user.name@domain.com

042722 1600 Howtoaddorg12 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

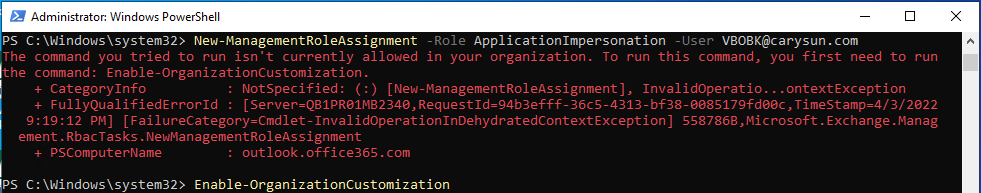

13.If it happened error message as below, you need to run following command first and then re-run above command.


Enable-OrganizationCustomization

042722 1600 Howtoaddorg13 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

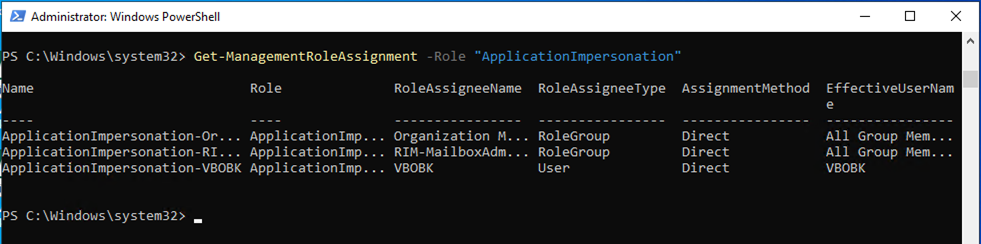

14.Run Below command to obtain the list of users whom the ApplicationImpersonation role has already been granted.


Get-ManagementRoleAssignment -Role "ApplicationImpersonation"

042722 1600 Howtoaddorg14 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

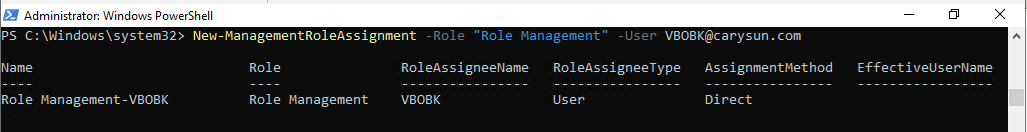

15.Run the following cmdlet to grant Role Management role for backup account.


New-ManagementRoleAssignment –Role "Role Management" –User user.name@domain.com

042722 1600 Howtoaddorg15 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

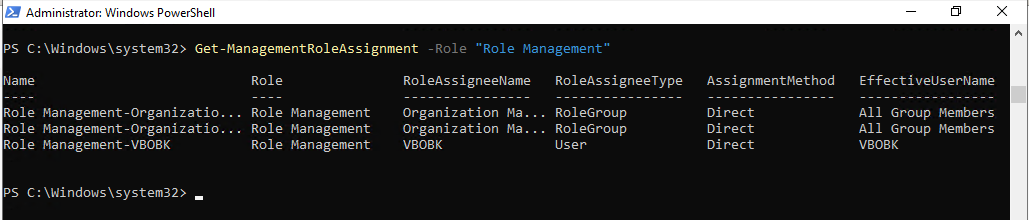

16.Run Below command to obtain the list of users whom the Role Management role has already been granted.


Get-ManagementRoleAssignment -Role "Role Management"

042722 1600 Howtoaddorg16 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

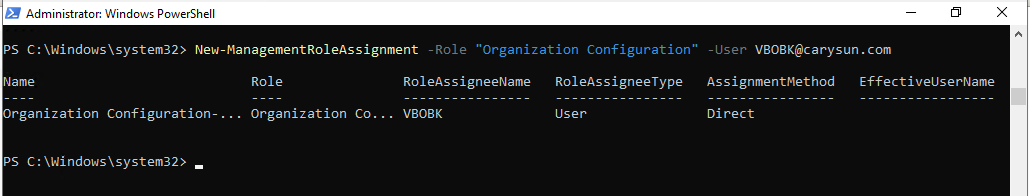

17.Run the following cmdlet to grant Organization Configuration role for backup account.


New-ManagementRoleAssignment –Role "Organization Configuration" –User user.name@domain.com

042722 1600 Howtoaddorg17 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

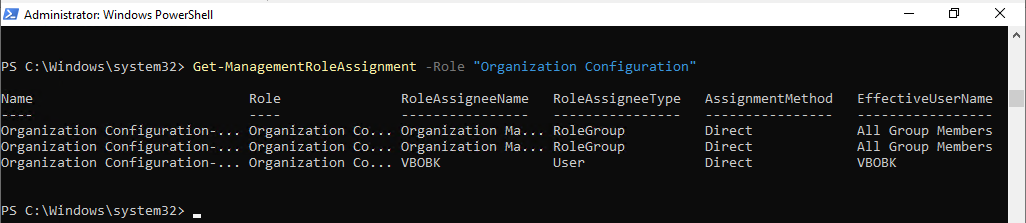

18.Run Below command to obtain the list of users whom the Organization Configuration role has already been granted.


Get-ManagementRoleAssignment -Role "Organization Configuration"

042722 1600 Howtoaddorg18 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

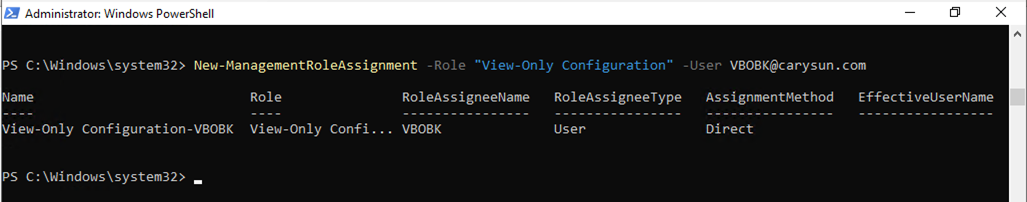

19.Run the following cmdlet to grant View-Only Configuration role for backup account.


New-ManagementRoleAssignment –Role "View-Only Configuration" –User user.name@domain.com

042722 1600 Howtoaddorg19 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

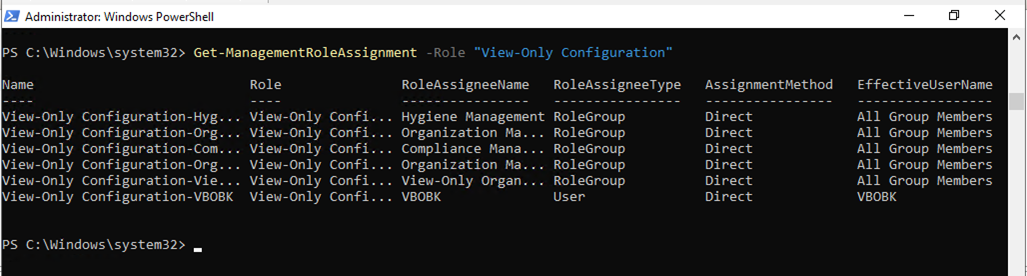

20.Run Below command to obtain the list of users whom the View-Only Configuration role has already been granted.


Get-ManagementRoleAssignment -Role "View-Only Configuration"

042722 1600 Howtoaddorg20 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

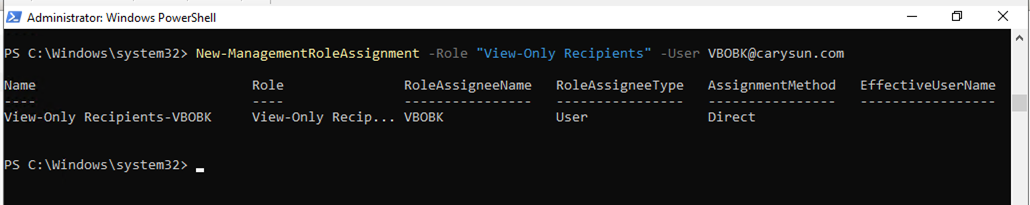

21.Run the following cmdlet to grant View-Only Recipients role for backup account.


New-ManagementRoleAssignment –Role "View-Only Recipients" –User user.name@domain.com

042722 1600 Howtoaddorg21 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

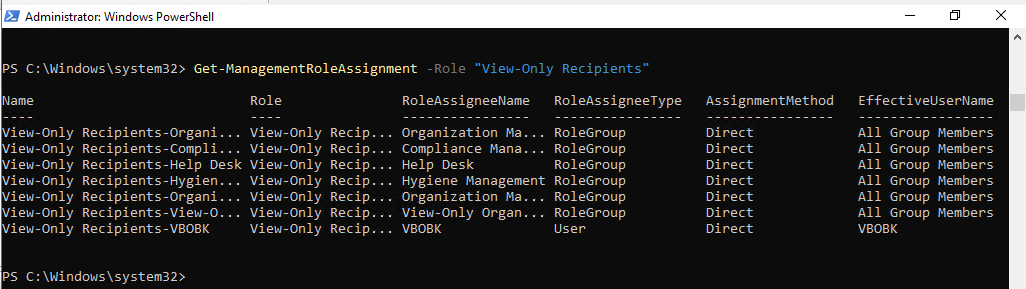

22.Run Below command to obtain the list of users whom the View-Only Recipient role has already been granted.


Get-ManagementRoleAssignment -Role "View-Only Recipients"

042722 1600 Howtoaddorg22 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

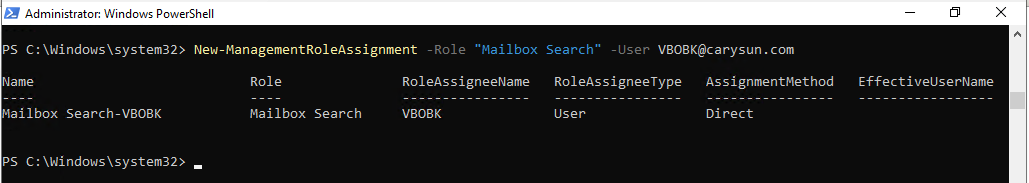

23.Run the following cmdlet to grant Mailbox Search role for backup account.


New-ManagementRoleAssignment –Role "Mailbox Search" –User user.name@domain.com

042722 1600 Howtoaddorg23 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

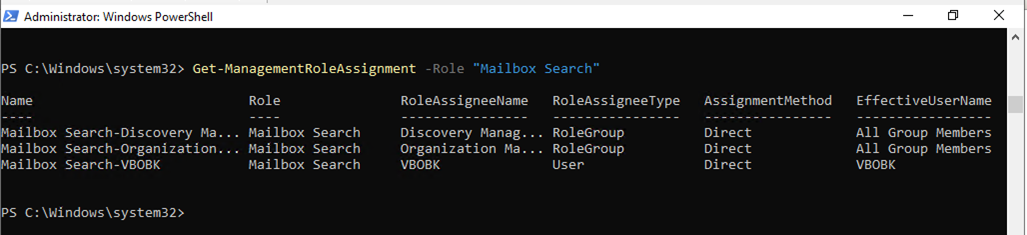

24.Run Below command to obtain the list of users whom the Mailbox Search role has already been granted.


Get-ManagementRoleAssignment -Role "Mailbox Search"

042722 1600 Howtoaddorg24 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

25.if you are using public folder and would like to backup/restore public folders, you need to assign Owner role to folder permission of public folder.

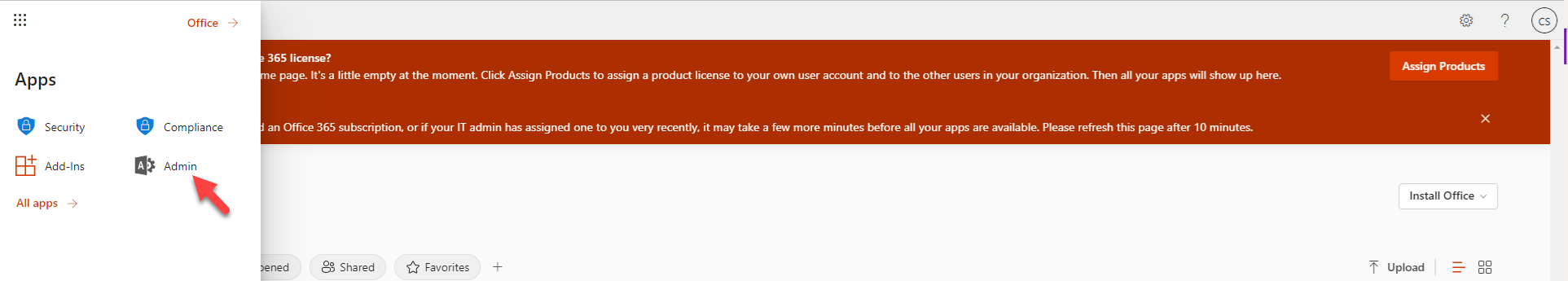

26.Sign in office365 with global admin account, open office 365 admin center.

042722 1600 Howtoaddorg25 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

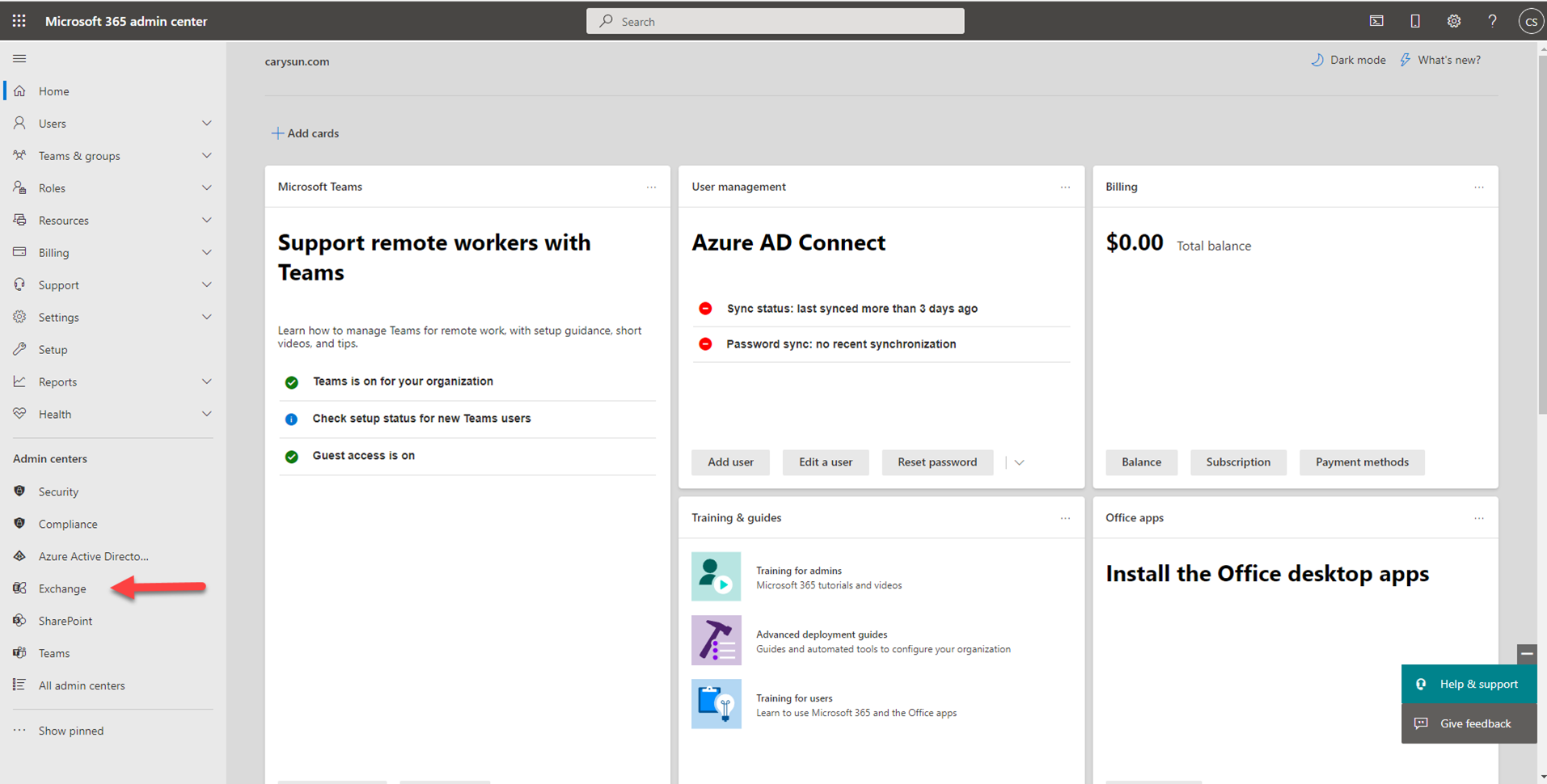

27.On the Microsoft 365 admin center page, select Exchange.

042722 1600 Howtoaddorg26 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

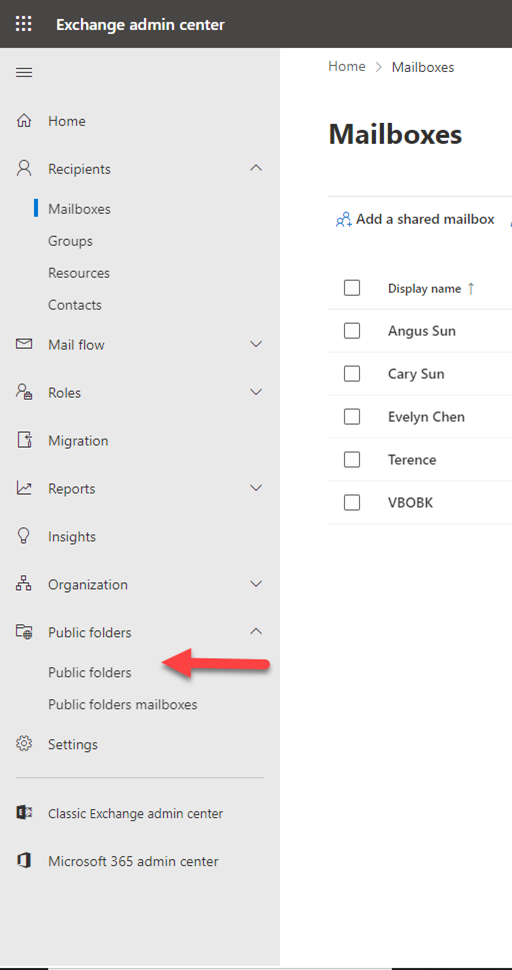

28.In the Exchange admin center (EAC), navigate to Public folders.

29.In the list view, select the public folder.

042722 1600 Howtoaddorg27 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

30.In the details pane, under Folder permissions, click Manage.

31.In Public Folder Permissions, click Add +.

32.Click Browse to select a user (backup service account, in my case is VBOBK)

33.In the Permission level list, select a level. At least one user should be an Owner.

34.Click Save.

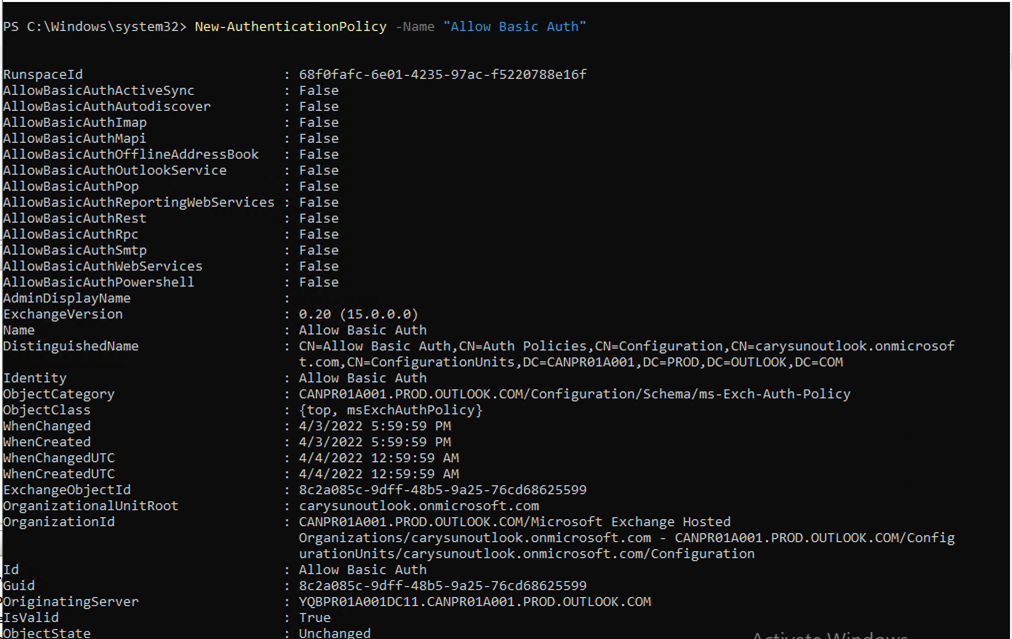

35.To protect your Microsoft 365 organization data properly when you add an organization using either modern authentication with legacy protocols allowed or basic authentication, Run below commands to create a new authentication policy with the AllowBasicAuthPowershell and AllowBasicAuthWebService parameters enabled for the Veeam Backup account.


New-AuthenticationPolicy -Name "Allow Basic Auth"

042722 1600 Howtoaddorg28 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

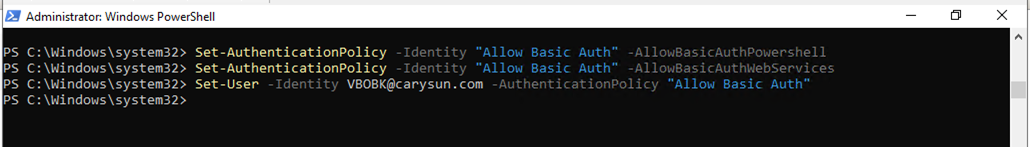

Set-AuthenticationPolicy -Identity "Allow Basic Auth" -AllowBasicAuthPowershell

Set-AuthenticationPolicy -Identity "Allow Basic Auth" -AllowBasicAuthWebService

Set-User -Identity <VeeamBackupAccount> -AuthenticationPolicy "Allow Basic Auth"

042722 1600 Howtoaddorg29 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

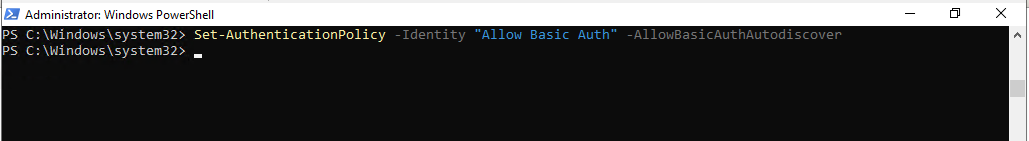

36.Run below command to back up public folder mailboxes correctly, enable the AllowBasicAuthAutodiscover parameter for the created authentication policy.


Set-AuthenticationPolicy -Identity "Allow Basic Auth" -AllowBasicAuthAutodiscover

042722 1600 Howtoaddorg30 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Assign SharePoint Online Permissions to backup service account

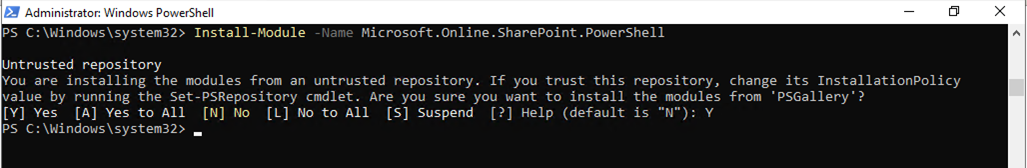

37.Run below command to install the latest SharePoint Online PowerShell Module, type Y and then press Enter.


Install-Module -Name Microsoft.Online.SharePoint.PowerShell

042722 1600 Howtoaddorg31 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

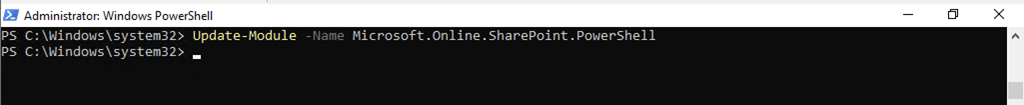

38.Run below command to make sure the module is up to dat, type Y and then press Enter.


Update-Module -Name Microsoft.Online.SharePoint.PowerShell

042722 1600 Howtoaddorg32 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Assign SharePoint Online Permissions to backup service account

31.Run below commands to connect to SharePoint Online.


Connect-SPOService -Url <a href="https://%3cyour">https://&lt;your</a> tenant id&gt;-admin.sharepoint.com/

042722 1600 Howtoaddorg33 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

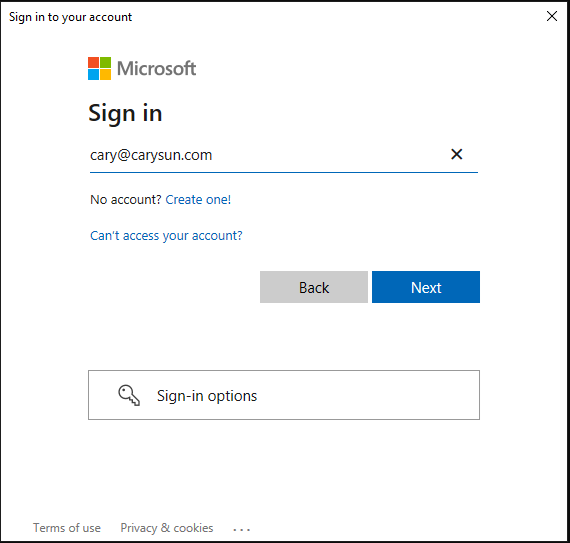

32.On the sign-in window, enter the account name, and then click Next.

042722 1600 Howtoaddorg34 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

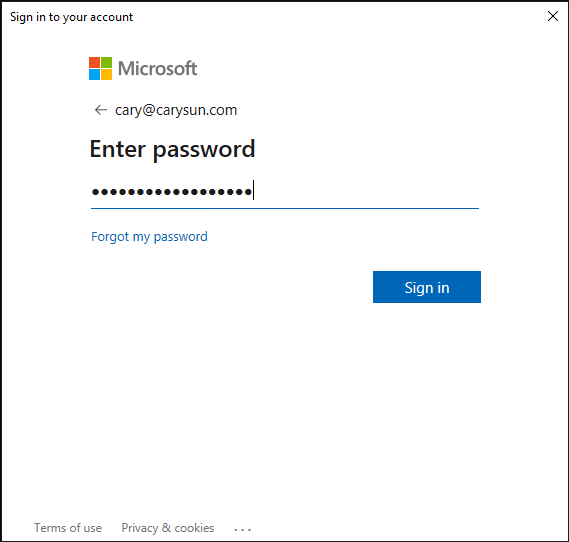

33.On the Enter Password window, enter password of the account, and then click Sign in.

042722 1600 Howtoaddorg35 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

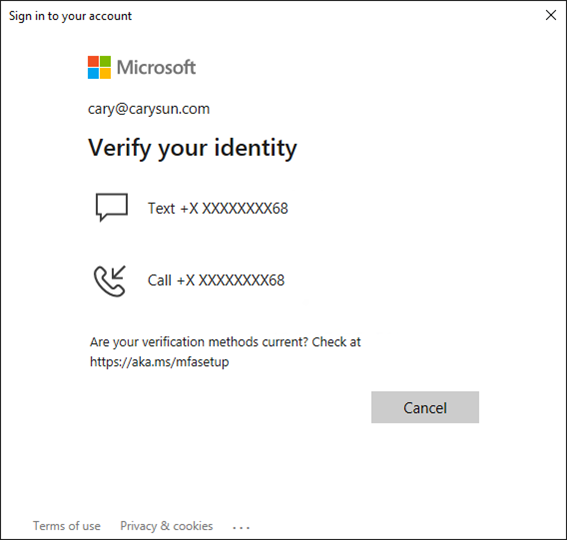

34.Select your verification Method.

042722 1600 Howtoaddorg36 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

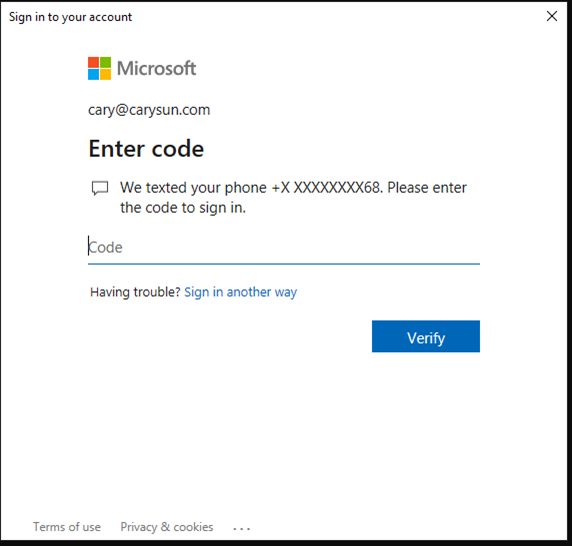

35.Enter the code, click Verify.

042722 1600 Howtoaddorg37 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

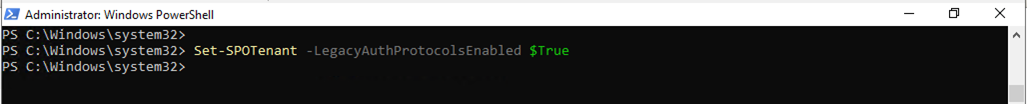

36.Run below command to add Microsoft SharePoint Online organizations, make sure that the LegacyAuthProtocolsEnabled setting is enabled.


Set-SPOTenant -LegacyAuthProtocolsEnabled $True

042722 1600 Howtoaddorg38 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

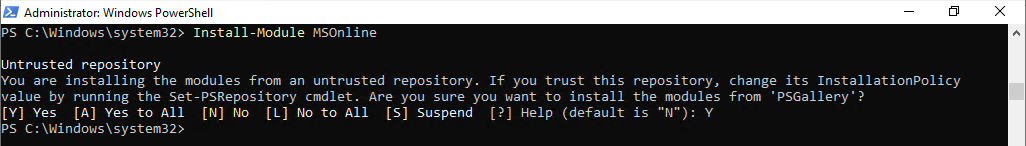

37.Run below command to install the Azure AD Module, type Y and then press Enter..


Install-Module MSOnline

042722 1600 Howtoaddorg39 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

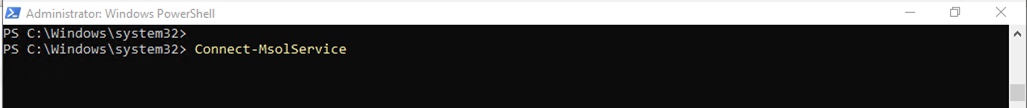

38.Run below commands to connect to Azure AD service.


Connect-MsolService

042722 1600 Howtoaddorg40 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

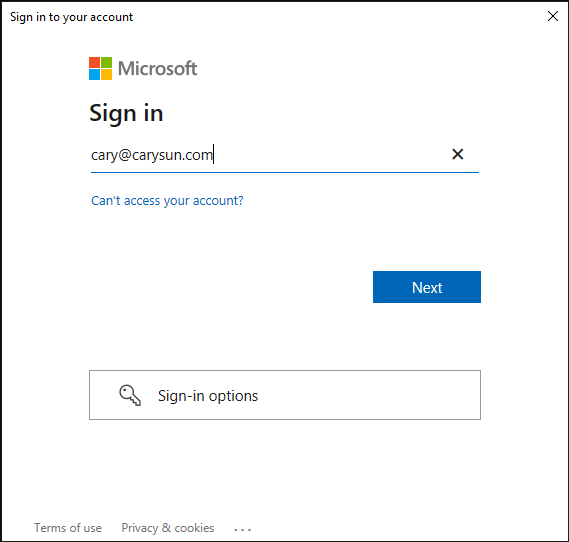

39.On the sign-in window, enter the account name, and then click Next.

042722 1600 Howtoaddorg41 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

40.On the Enter Password window, enter password of the account, and then click Sign in.

042722 1600 Howtoaddorg42 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

41.Select your verification Method.

042722 1600 Howtoaddorg43 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

42.Enter the code, click Verify.

042722 1600 Howtoaddorg44 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

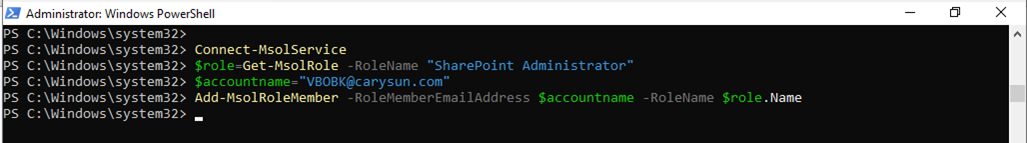

43.Run below commands to grant the SharePoint Administrator role to backup account (for Microsoft SharePoint Online organizations).


$role=Get-MsolRole -RoleName "SharePoint Administrator"

$accountname="example@domain.com"

Add-MsolRoleMember -RoleMemberEmailAddress $accountname -RoleName $role.Name

042722 1600 Howtoaddorg45 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Assign Teams Online Permissions to backup service account

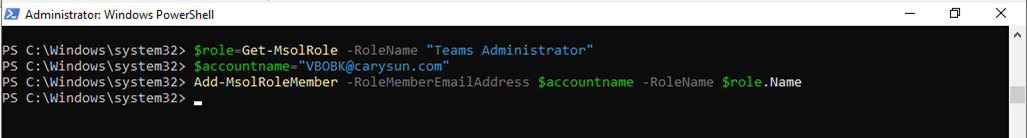

1.Run below commands to grant the Teams Administrator role to backup account (for Microsoft Teams Online organizations).


$role=Get-MsolRole -RoleName "Teams Administrator"

$accountname="example@domain.com"

Add-MsolRoleMember -RoleMemberEmailAddress $accountname -RoleName $role.Name

042722 1600 Howtoaddorg46 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Add Organization for Veeam Backup for Microsoft Office 365 with Modern Authentication and Legacy Protocols

1.Open Veeam Backup for Microsoft Office 365 console.

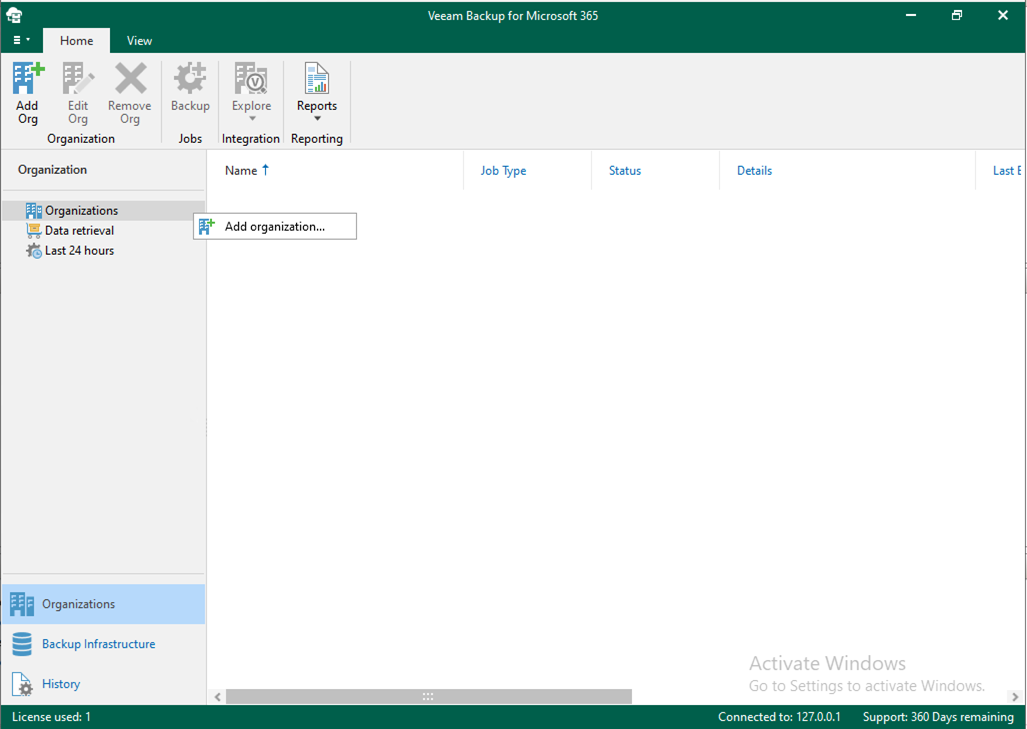

2.On the Veeam Backup for Microsoft Office 365 console page, right-click Organizations, select Add organization.

042722 1600 Howtoaddorg47 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

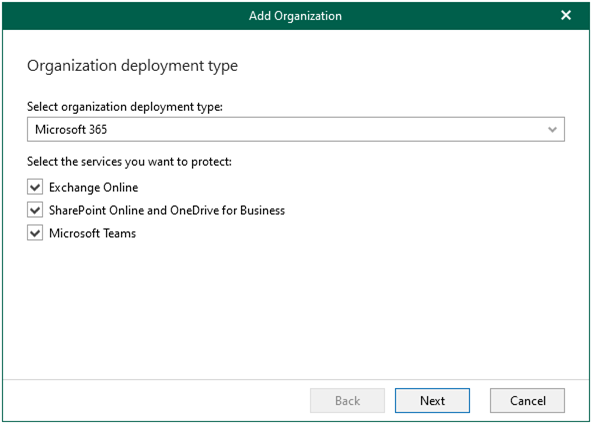

3.On the Organization deployment type, select Microsoft 365 as organization type, select all services as you want to protect, click Next.

042722 1600 Howtoaddorg48 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

4.On the Microsoft 365 connection settings page, select Default as Region, select the Modern authentication option and the Allow for using legacy authentication protocols , click Next.

042722 1600 Howtoaddorg49 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

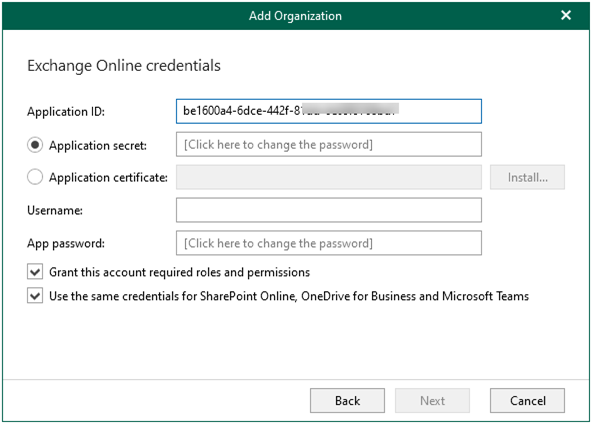

5.On the Exchange Online credentials page, In the Application ID field, specify an identification number of your Azure AD application.

042722 1600 Howtoaddorg50 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

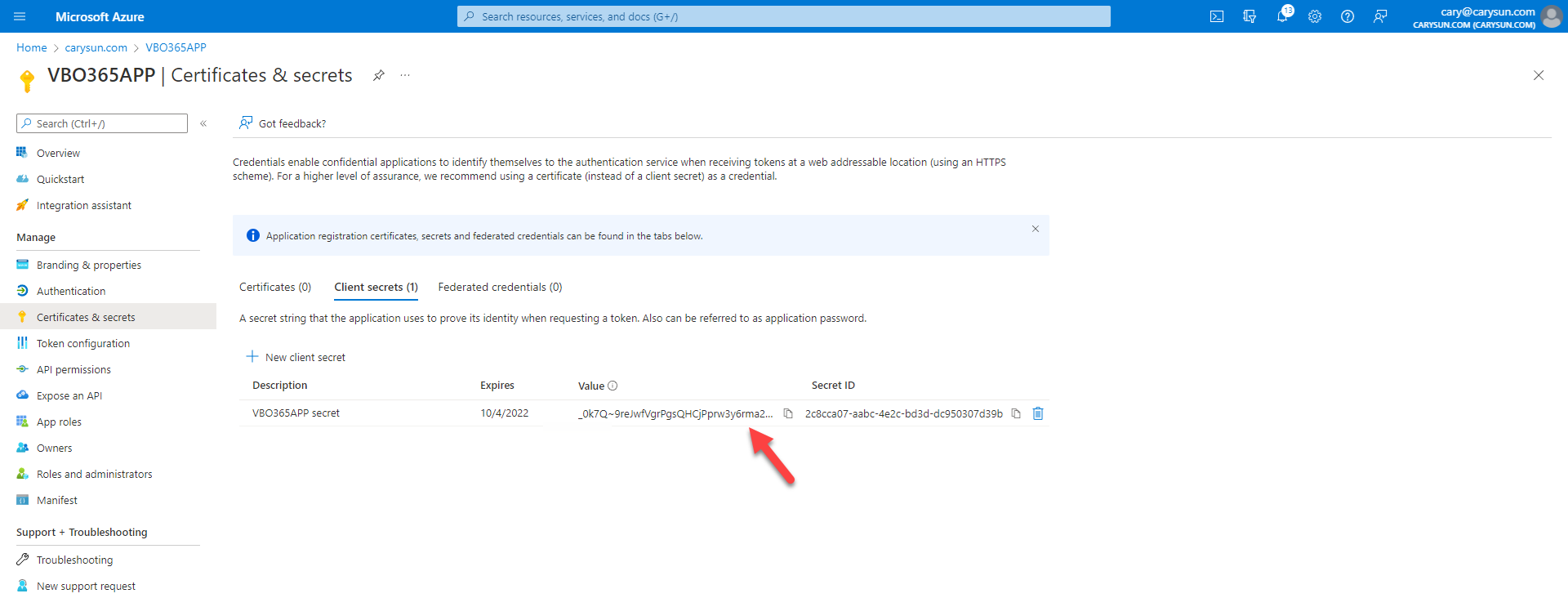

6.To use a secret key, select the Application secret option and enter a secret key in the field, you can obtain a secret key if you created at Certificate & secrets settings of Azure API App.

042722 1600 Howtoaddorg51 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

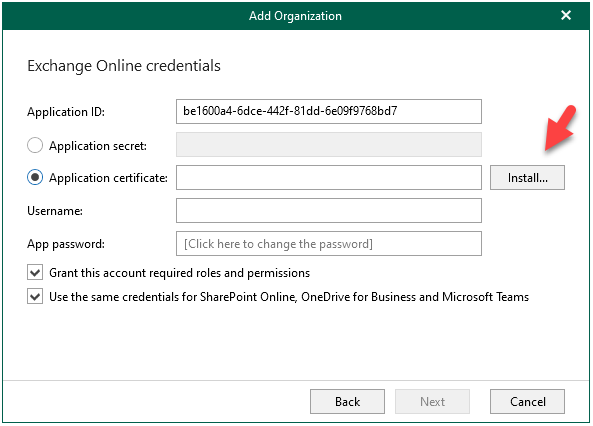

7.To use a certificate, select the Application certificate option and click Install.

042722 1600 Howtoaddorg52 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

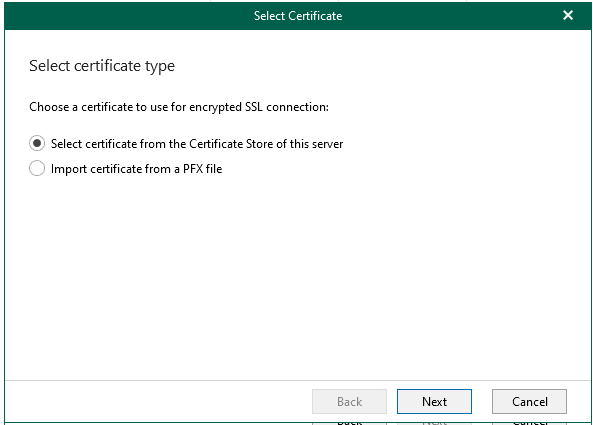

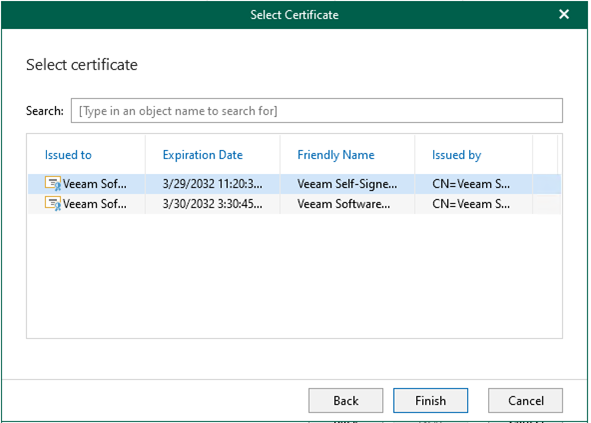

8.On the Select certificate type page, select Select certificate from the Certificate Store of this server, click Next.

042722 1600 Howtoaddorg53 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

9.On the Select certificate, click Finish after selected certificate.

042722 1600 Howtoaddorg54 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

10.In the Username and App password fields, enter the backup service account as Username, enter App password (it’s not user account password) as App password, click Next.

042722 1600 Howtoaddorg55 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

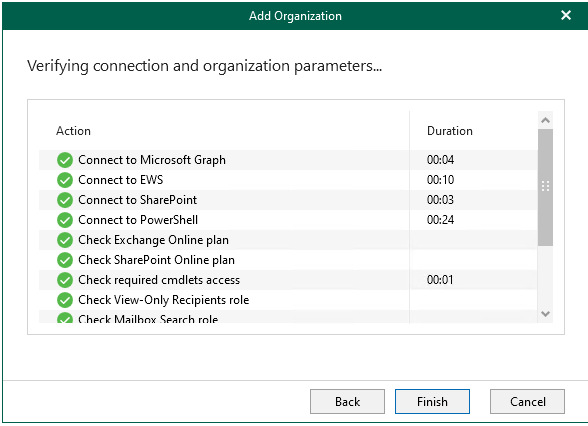

11.On the Verifying connection and organization parameters page, make sure each connections with issues, click Finish.

042722 1600 Howtoaddorg56 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

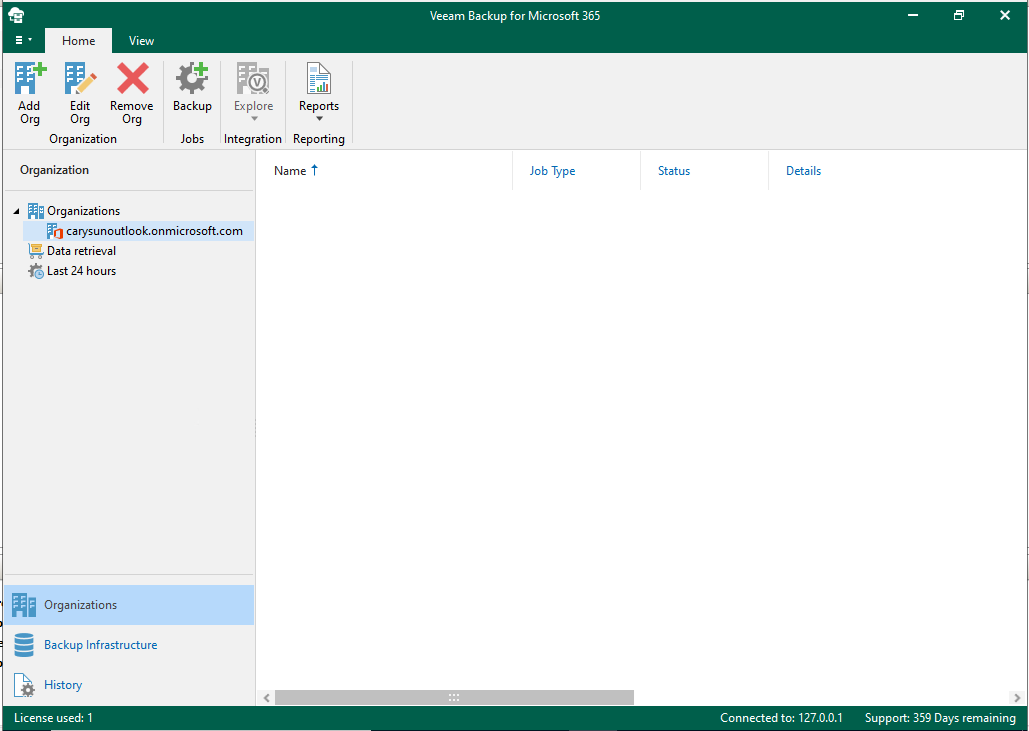

12.Verify the Office 365 organization add successfully.

042722 1600 Howtoaddorg57 - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Hope you enjoy this post.

Cary Sun

Twitter: @SifuSun

Web Site: carysun.com

Blog Site: checkyourlogs.net

Blog Site: gooddealmart.com

ca16fbd3199de5f66b829b87082fb970?s=80&d=retro&r=g - How to add organizations with Modern Authentication and Legacy Protocols at Veeam Backup for Microsoft 365

Author: Cary Sun

Cary Sun has a wealth of knowledge and expertise in data center and deployment solutions. As a Principal Consultant, he likely works closely with clients to help them design, implement, and manage their data center infrastructure and deployment strategies.
With his background in data center solutions, Cary Sun may have experience in server and storage virtualization, network design and optimization, backup and disaster recovery planning, and security and compliance management. He holds CISCO CERTIFIED INTERNETWORK EXPERT (CCIE No.4531) from 1999. Cary is also a Microsoft Most Valuable Professional (MVP), Microsoft Azure MVP, Veeam Vanguard and Cisco Champion. He is a published author with several titles, including blogs on Checkyourlogs.net, and the author of many books.
Cary is a very active blogger at checkyourlogs.net and is permanently available online for questions from the community. His passion for technology is contagious, improving everyone around him at what they do.

Blog site: https://www.checkyourlogs.net
Web site: https://carysun.com
Blog site: https://gooddealmart.com
Twitter: @SifuSun
in: https://www.linkedin.com/in/sifusun/
Amazon Author: https://Amazon.com/author/carysun
