042522 1826 Howtoaddorg4 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365
When you add an organization using the modern app-only authentication method, you are required to provide Azure AD application settings. Please reference following link to create and configure Azure AD Application permissions.

When you add an organization using the modern app-only authentication method, you are required to provide Azure AD application settings. Please reference following link to create and configure Azure AD Application permissions.

How to configure Azure AD Application Permissions for Modern App-Only Authentication of Veeam Backup for Microsoft 365 – CarySun

Veeam Backup for Microsoft 365 uses such an application to establish a connection to your Microsoft 365 organizations with enabled security defaults and maintain data transfer during backup and restore sessions.

With modern app-only authentication, you cannot use Veeam Backup account; only communications through Azure AD application is possible.

Required User Account Roles for Azure AD Applications

Azure AD application uses a user account to log in to Microsoft 365. This user account must be assigned the following roles:

  • Global Administrator — required for adding organizations with modern app-only authentication, creating backup applications, registering Azure AD application for Restore Portal and creating Azure AD application for the Microsoft Azure service account.
  • ApplicationImpersonation and Global Administrator or Exchange Administrator — required for data restore with Veeam Explorer for Microsoft Exchange.
  • Global Administrator or SharePoint Administrator — required for data restore with Veeam Explorer for Microsoft SharePoint and Veeam Explorer for Microsoft OneDrive for Business.
  • Global Administrator or Teams Administrator — required for data restore with Veeam Explorer for Microsoft Teams.
  • Global Administrator — required for establishing a connection to a service provider in the Microsoft 365 Backup as Service scenario.

1.Login to Veeam Backup for Microsoft 365 Manager server.

2.Open Veeam Backup for Microsoft Office 365 console.

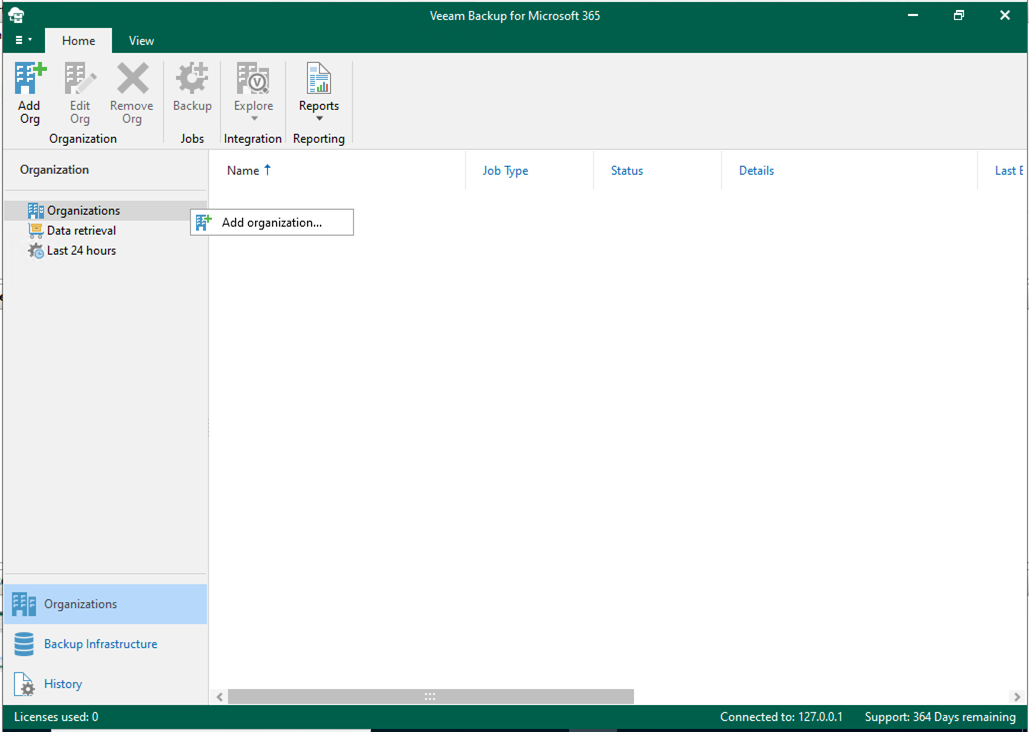

3.On the Veeam Backup for Microsoft Office 365 console page, right-click Organizations, select Add organization.

042522 1826 Howtoaddorg1 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

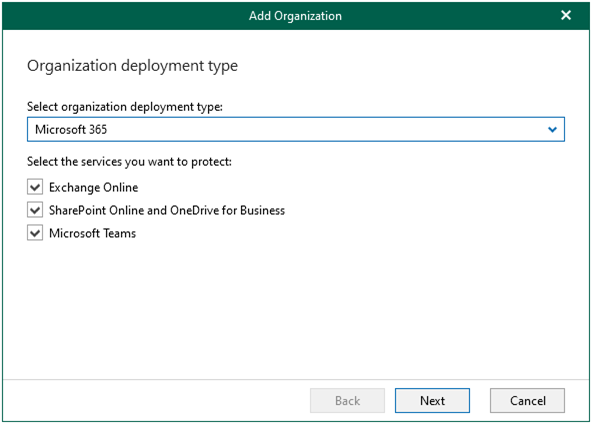

4.On the Organization deployment type, select Microsoft 365 as organization type, select all services as you want to protect, click Next.

042522 1826 Howtoaddorg2 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

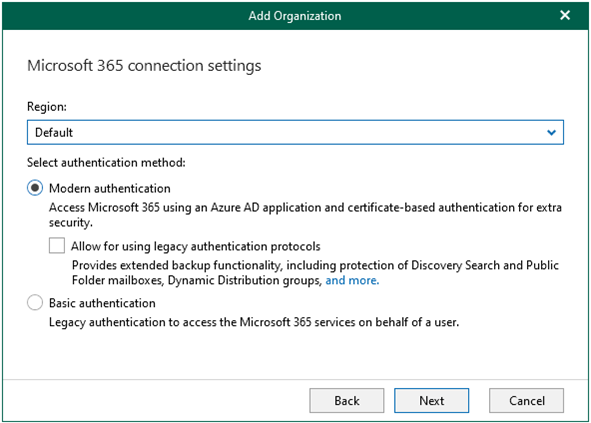

5.On the Microsoft 365 connection settings page, select Default as Region, select Modern authentication as authentication method, click Next. Make sure to leave the Allow for using legacy authentication protocols check box cleared. This check box allows you to add an Microsoft 365 organization with disabled security defaults.

042522 1826 Howtoaddorg3 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

6.On the Microsoft 365 connection settings page, select Use a existing Azure AD application automically, click Next.

042522 1826 Howtoaddorg4 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

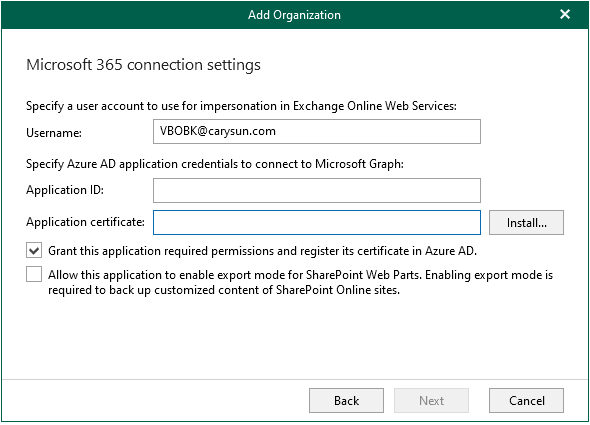

8.On the Exchange Online credentials page, In the Username field, specify user account as Username.

You can enter any account that belongs to your Microsoft 365 organization using the following format: name@<domain_name>.<domain>. For example, user@abc.com.

Note:

If you select only SharePoint Online and OneDrive for Business services to protect at the Select Organization Deployment Type step, Veeam Backup for Microsoft 365 displays the Specify organization name field instead. In this field, specify a domain name of your Microsoft 365 organization without the user name. For example, abc.com

042522 1826 Howtoaddorg5 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

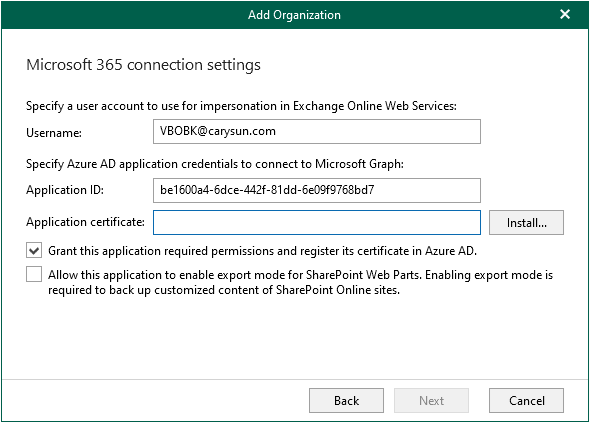

9.In the Application ID field, specify an identification number of your Azure AD application.

042522 1826 Howtoaddorg6 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

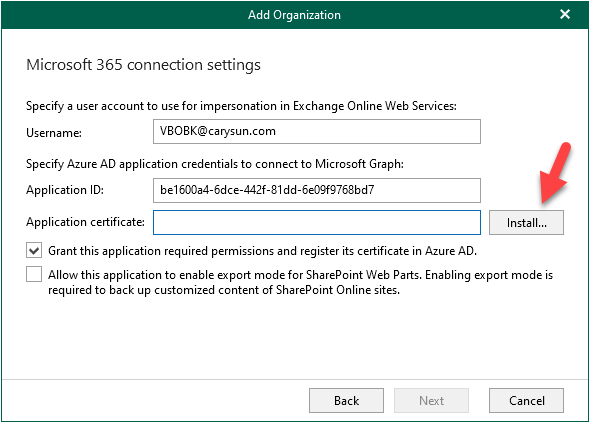

10.In the Application certificate field, click Install.

042522 1826 Howtoaddorg7 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

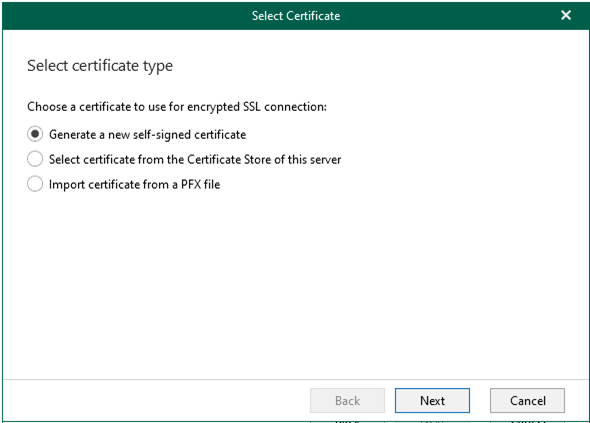

11.On the Select certificate type page, select Generate a new self-signed certificate, click Next.

When generating a new self-signed certificate, Veeam Backup for Microsoft 365 will register it automatically.

042522 1826 Howtoaddorg8 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

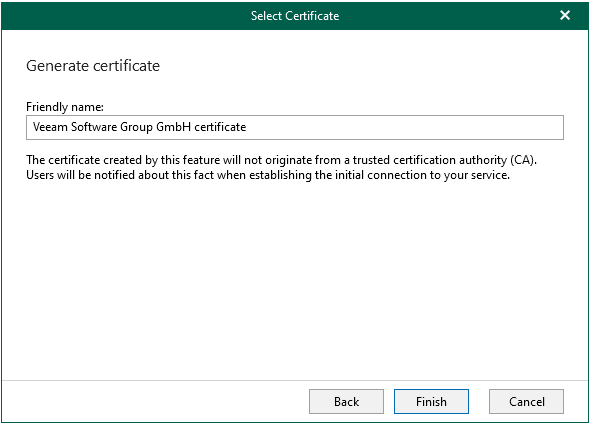

12.On the Generate certificate page, click Finish.

042522 1826 Howtoaddorg9 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

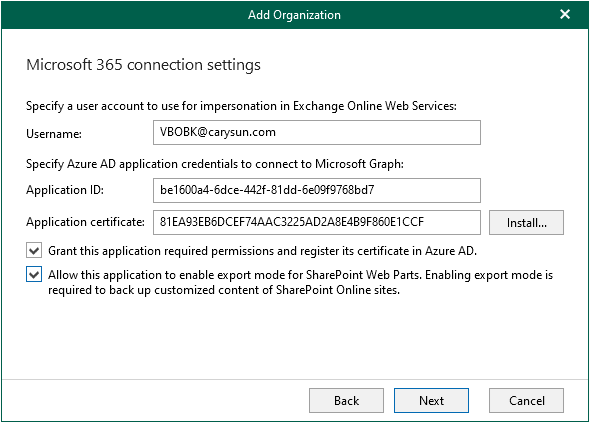

13.Select the Allow this application to enable export mode for SharePoint Web Parts check box to allow Veeam Backup for Microsoft 365 to back up web parts of your Microsoft SharePoint websites, click Next.

Veeam Backup for Microsoft 365 automatically alters the allowexport property of each web part and sets this property to true. After the allowexport property is set to true, a web part can be backed up without any limitations

042522 1826 Howtoaddorg10 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

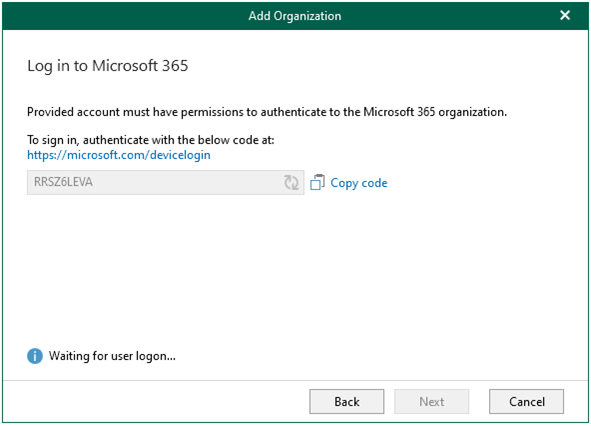

14.On the Log in Microsoft 365 page, click copy code, click the sign in link.

042522 1826 Howtoaddorg11 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

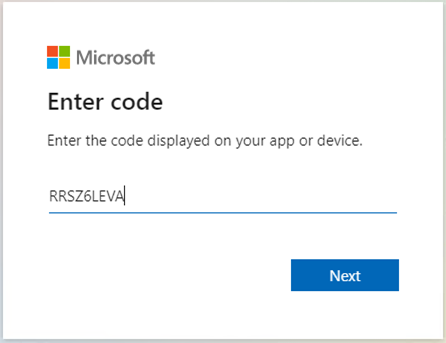

15.Enter code, click Next.

042522 1826 Howtoaddorg12 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

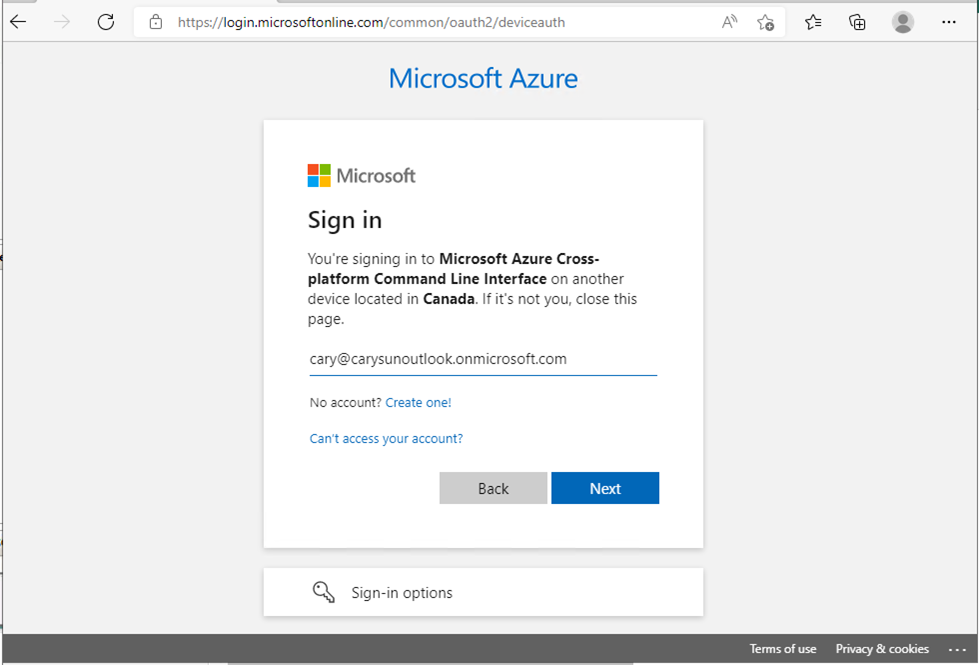

16.Enter your account name, click Next. Make sure to sign in with the user account that has the Global Administrator role.

042522 1826 Howtoaddorg13 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

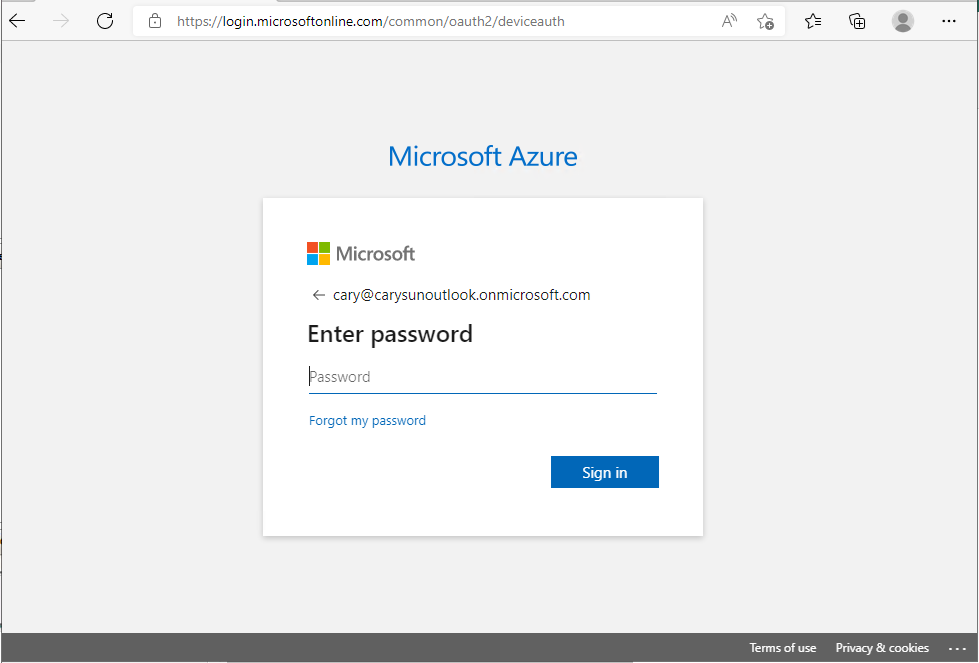

15.Enter password, click Sign in.

042522 1826 Howtoaddorg14 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

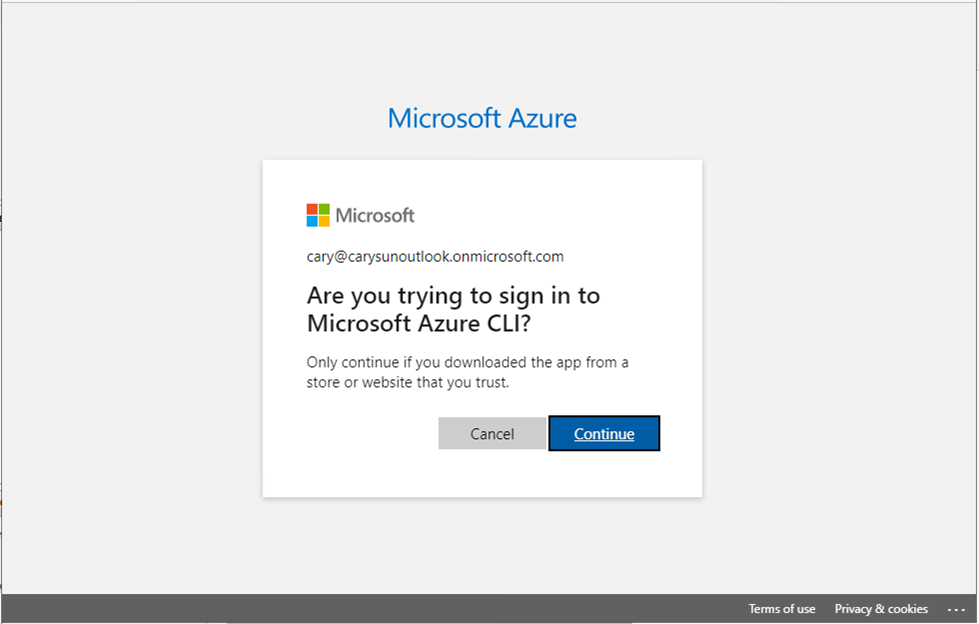

16.On the sign in confirm page, click Continue.

042522 1826 Howtoaddorg15 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

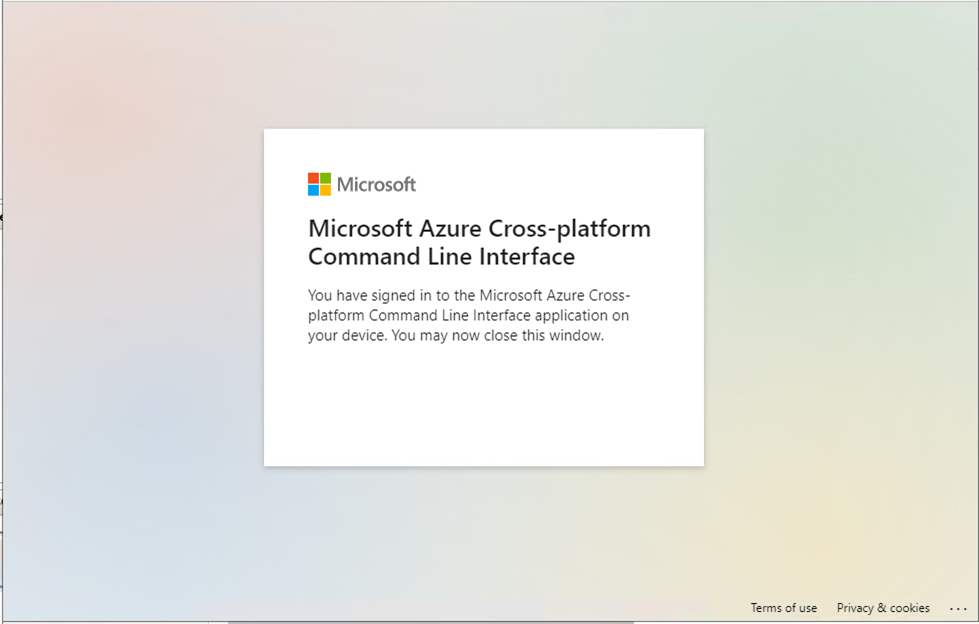

17.Close sign in window after make sure signed in successfully.

042522 1826 Howtoaddorg16 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

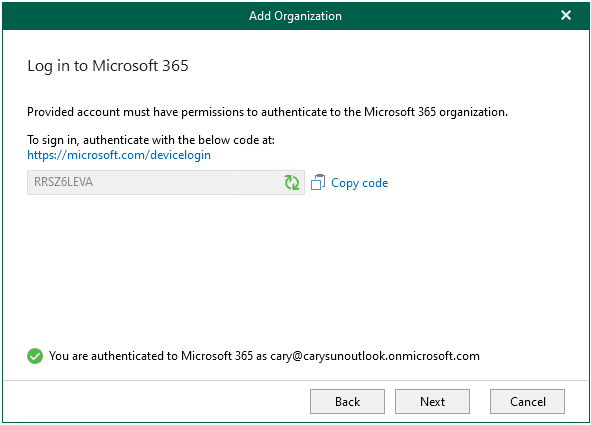

18.On the Log in to Microsoft 365 page, make sure your are authenticated to Microsoft 365, click Next.

042522 1826 Howtoaddorg17 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

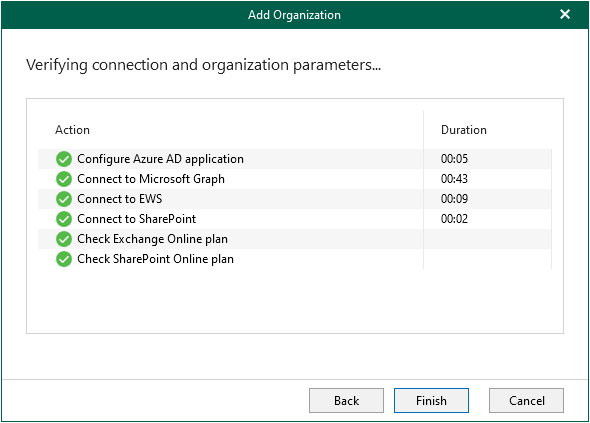

19.Make sure connection to be established, click Finish.

042522 1826 Howtoaddorg18 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365

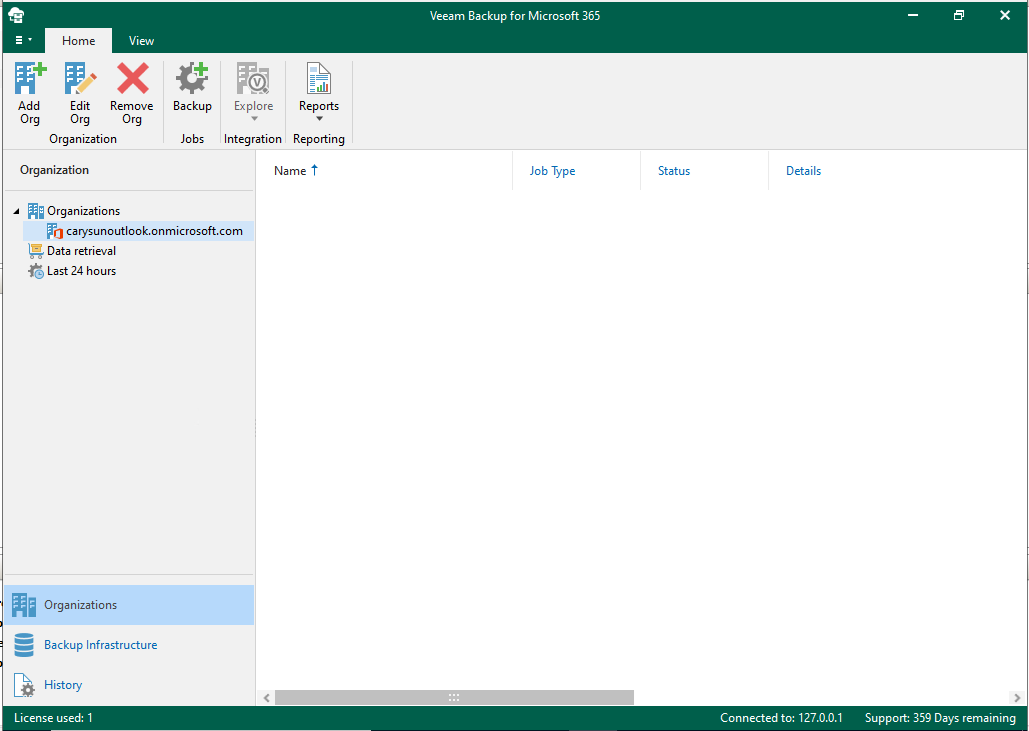

20.Verify the Office 365 organization add successfully.

042522 1826 Howtoaddorg19 - How to add organization with modern app-only authentication and use an existing Azure AD application at Veeam Backup for Microsoft 365
