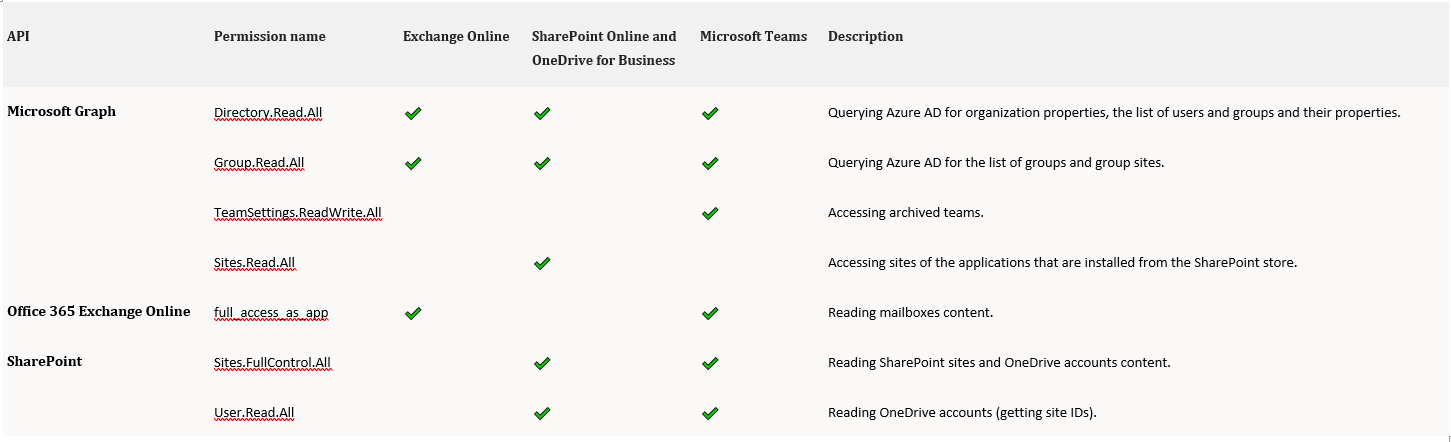

Veeam Backup for Microsoft 365 Modern Authentication and Legacy Protocols Authentication requires that you grant permissions to Azure AD applications to back up and restore data from/to your Microsoft 365 organizations.

Veeam Backup for Microsoft 365 Modern Authentication and Legacy Protocols Authentication requires that you grant permissions to Azure AD applications to back up and restore data from/to your Microsoft 365 organizations.

042222 1711 Howtoconfig1 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

1.Sign in Azure portal with Global Admin account.

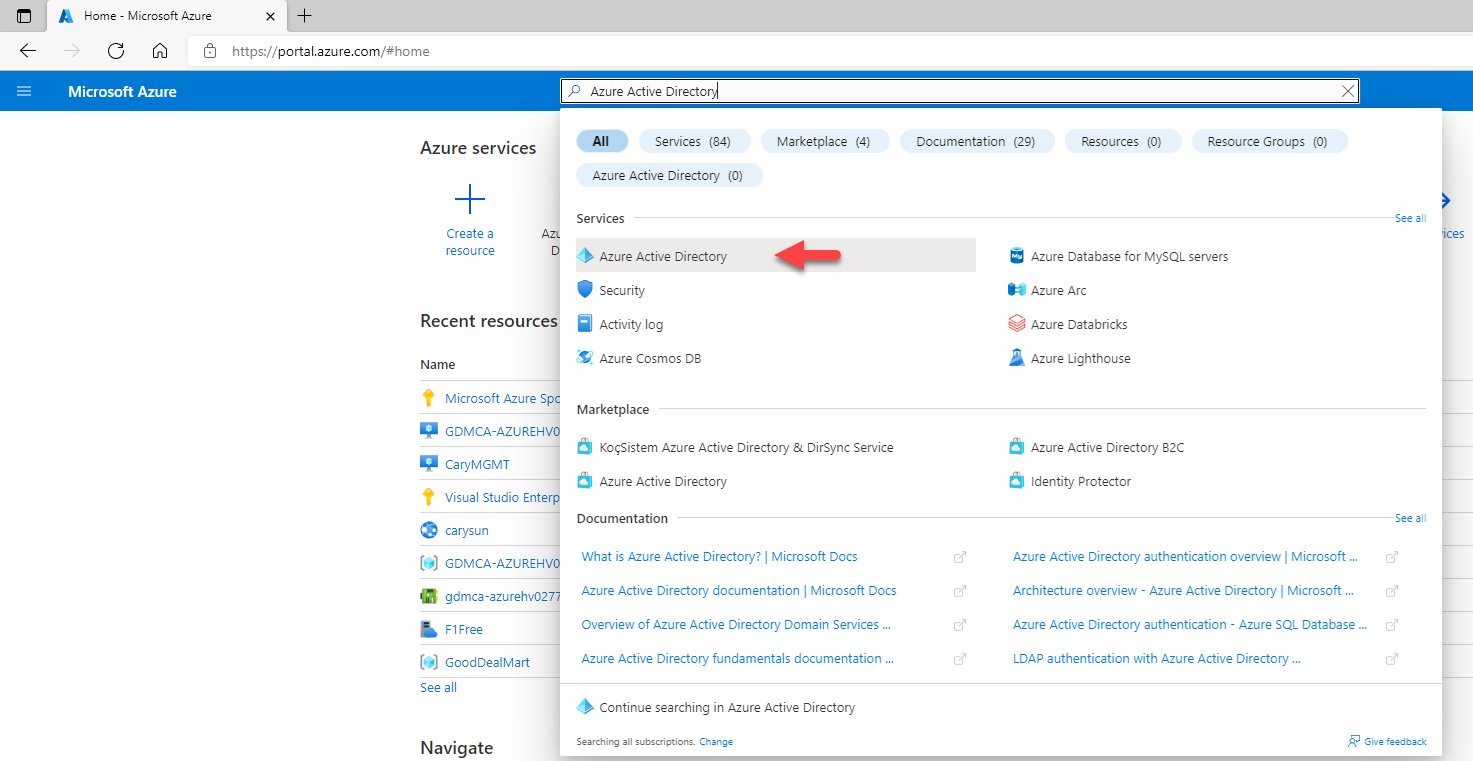

2.Search for and select Azure Active Directory.

042222 1711 Howtoconfig2 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

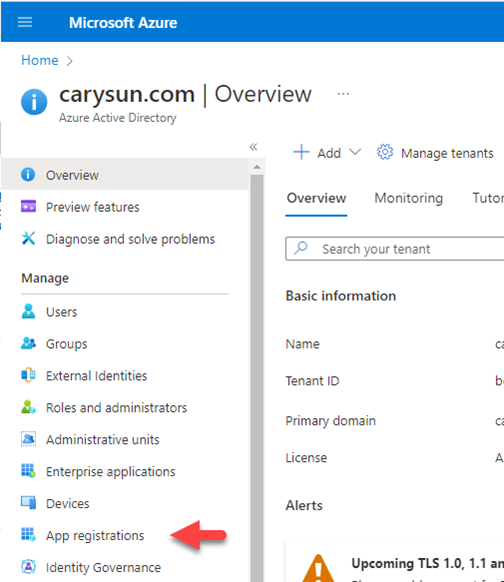

3.Under Manage, select App registrations.

042222 1711 Howtoconfig3 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

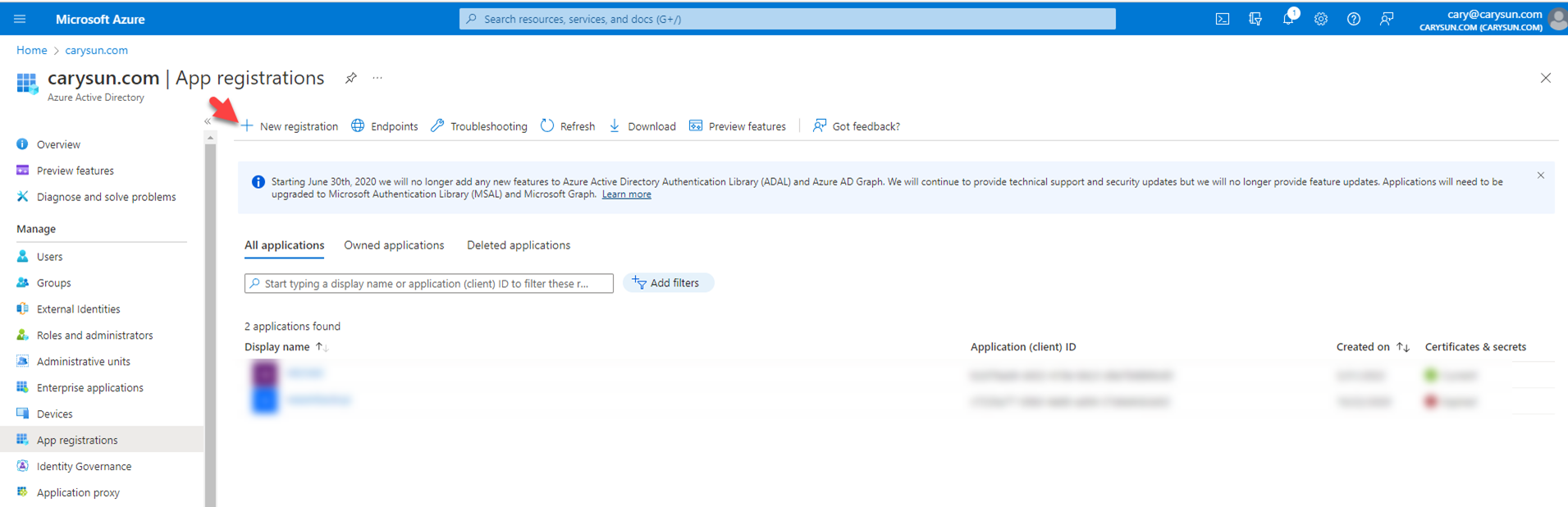

4.On the App registrations page, select +New registration.

042222 1711 Howtoconfig4 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

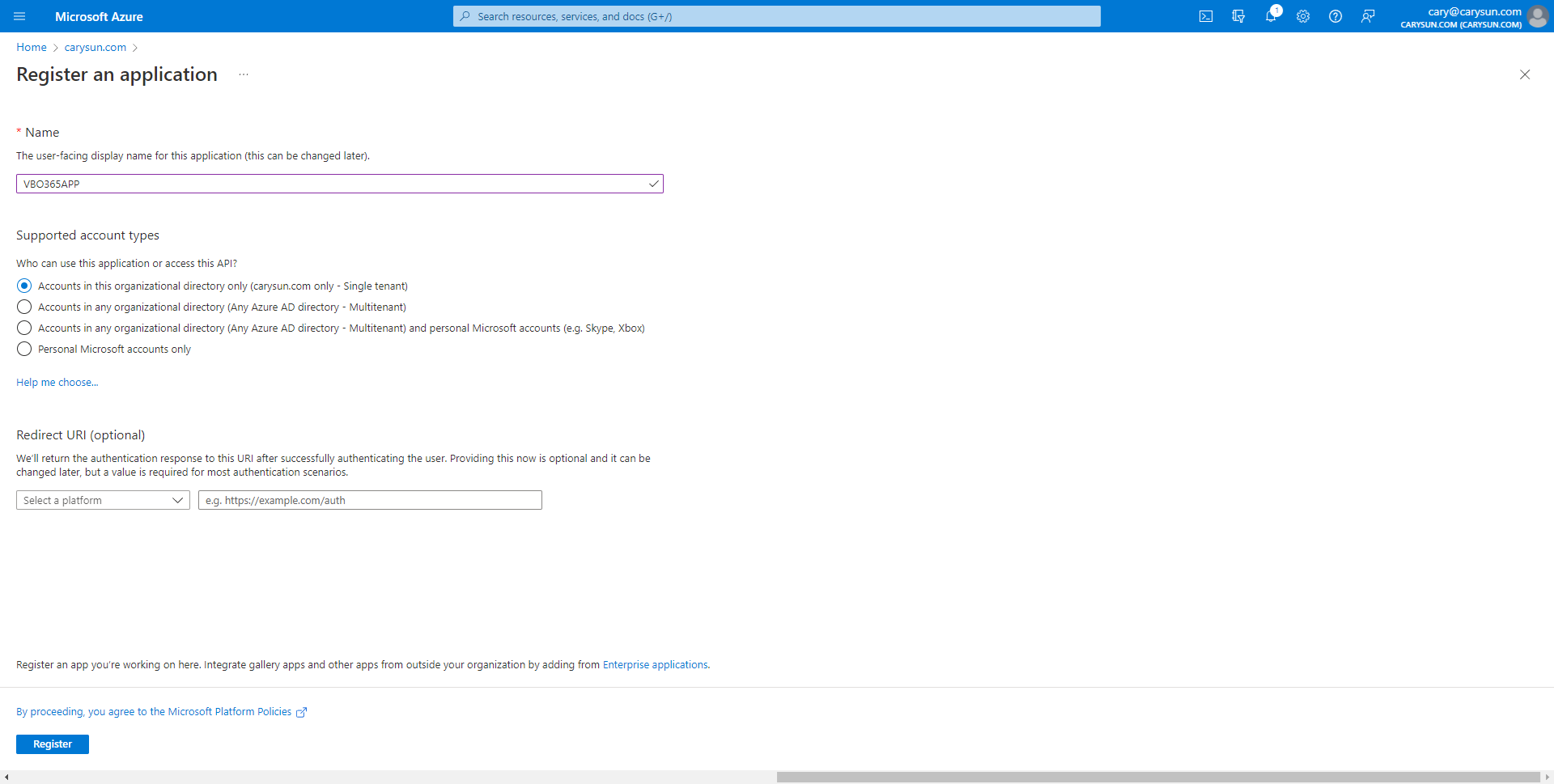

5.On the Register an application page, type VBO365APP as application Name, select Accounts in this organization directory only, click Register.

042222 1711 Howtoconfig5 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

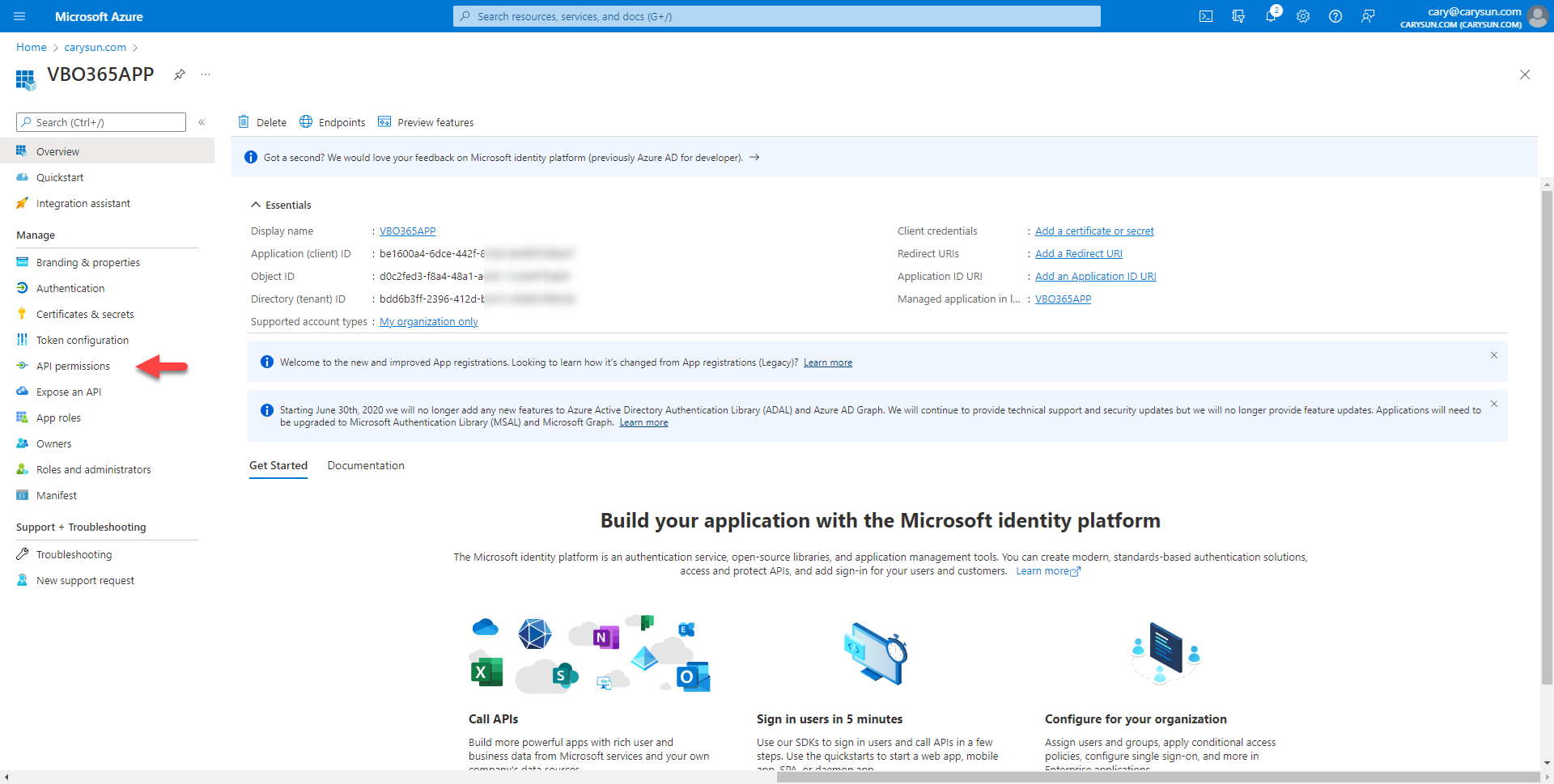

6.When registration finishes, the Azure portal displays the app registration’s Overview pane. You see the Application (client) ID. Also called the client ID, this value uniquely identifies your application in the Microsoft identity platform, select API permissions.

042222 1711 Howtoconfig6 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

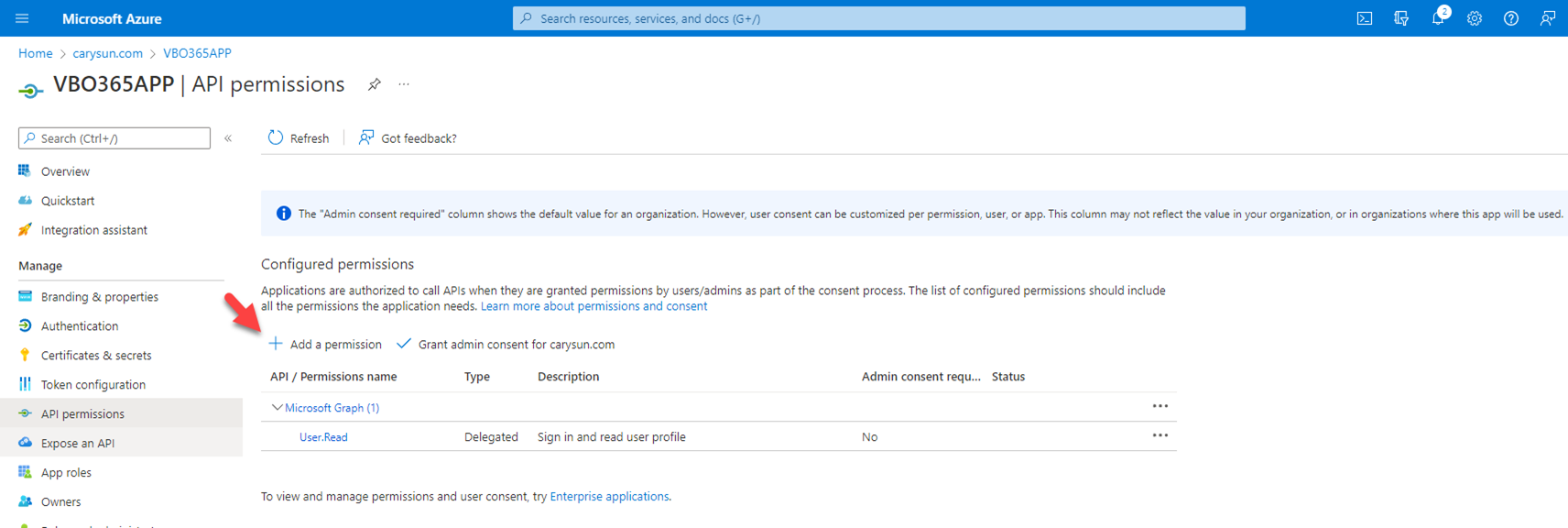

7.On the Configured permissions page, select +Add permission.

042222 1711 Howtoconfig7 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

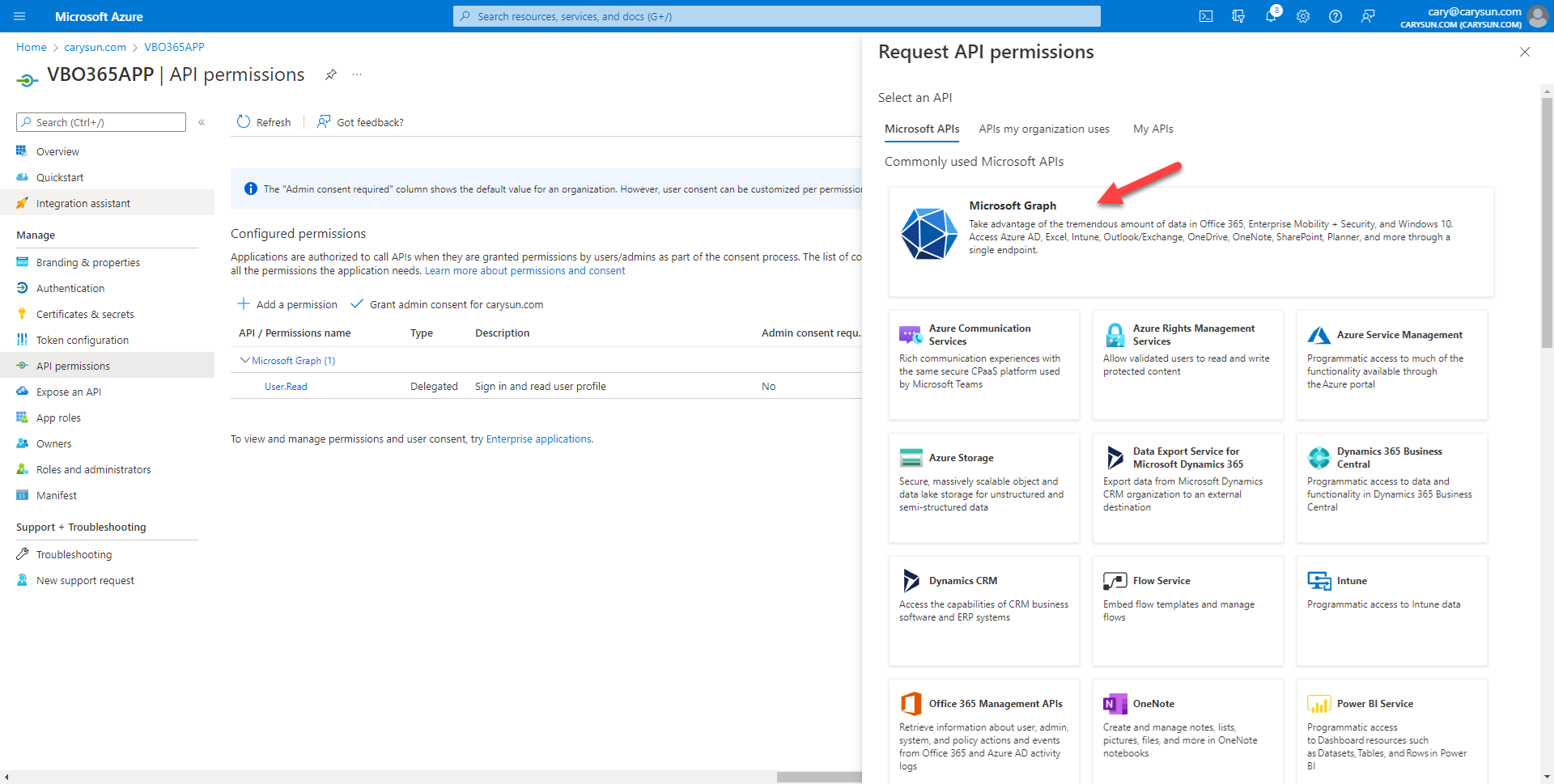

8.On the Request API permissions page, select Microsoft Graph.

042222 1711 Howtoconfig8 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

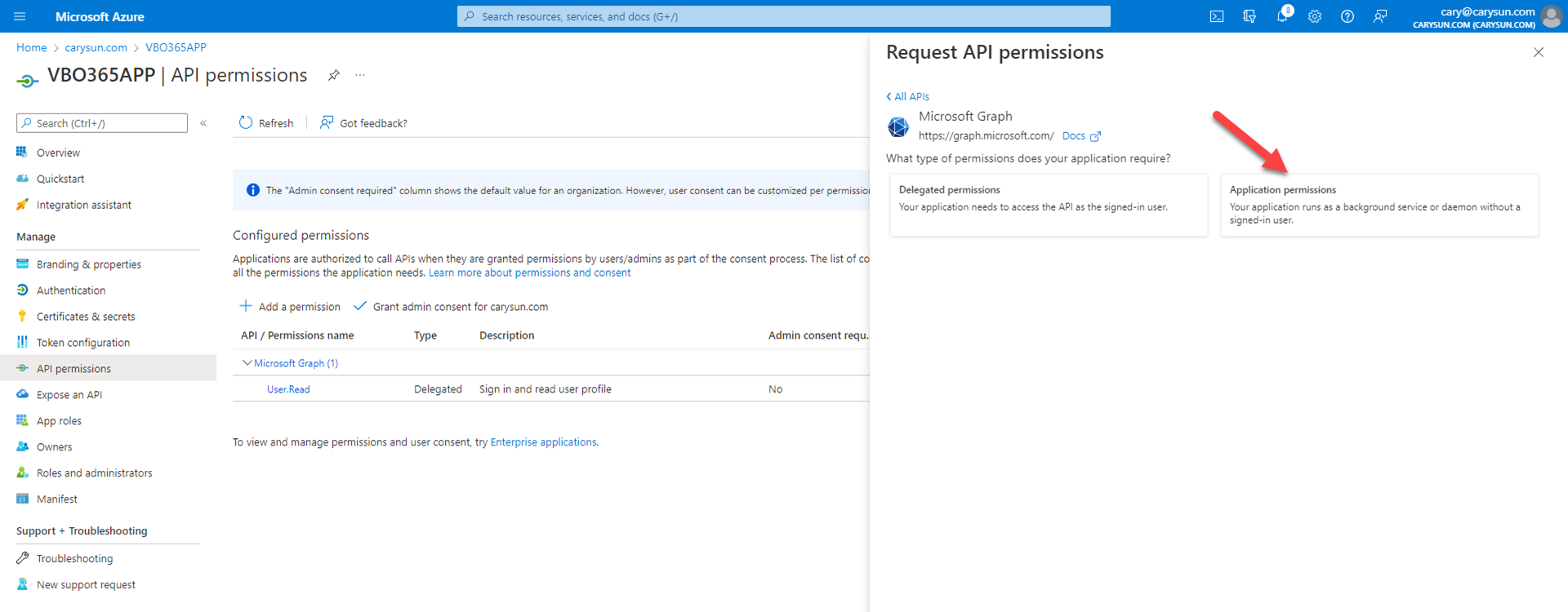

9.On the Microsoft Graph page, select Application permissions.

042222 1711 Howtoconfig9 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

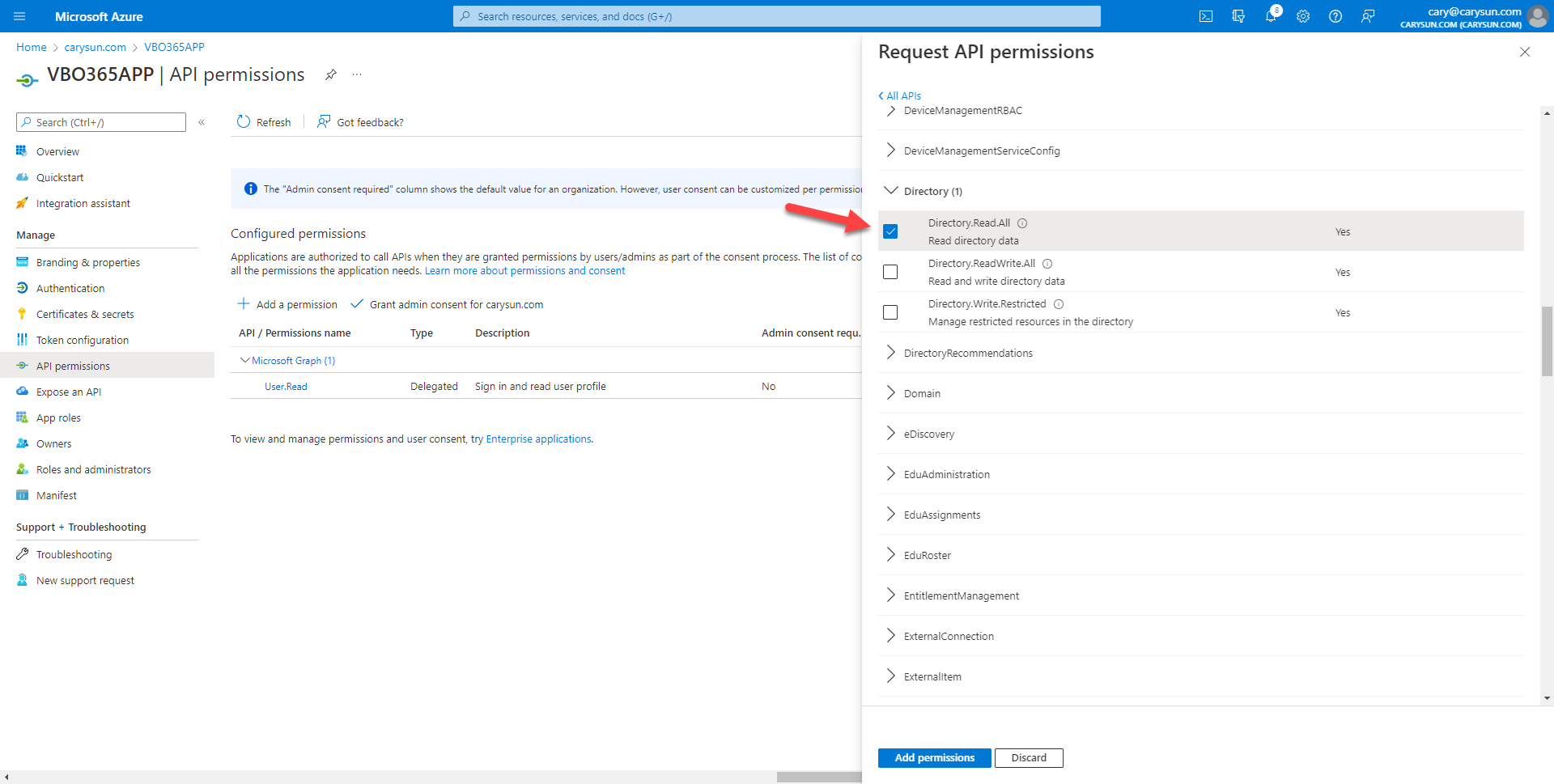

10.On the Select permission page, expend Directory, select Directory.Read.All.

042222 1711 Howtoconfig10 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

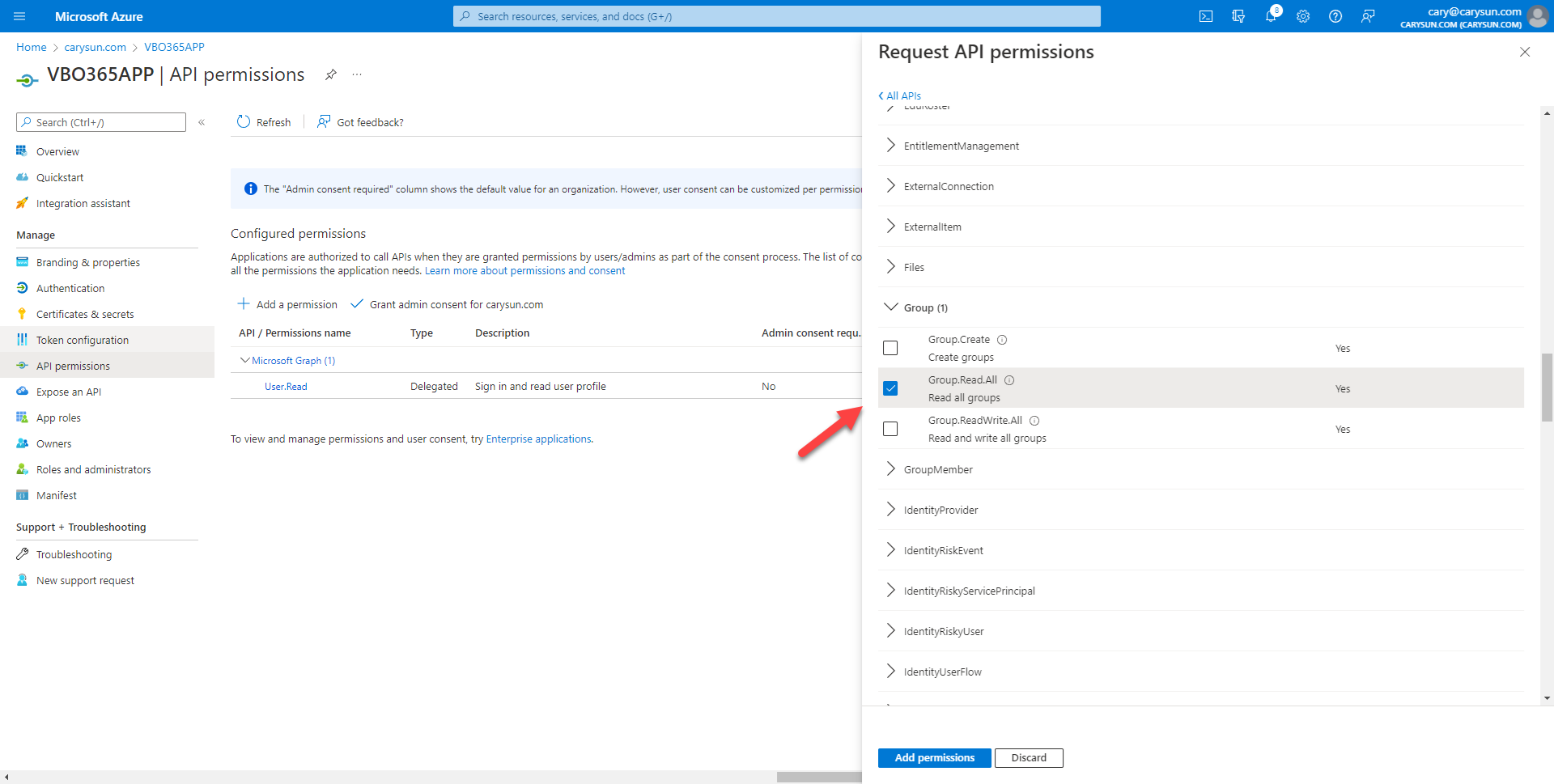

11.On the Select permission page, expend Group, select Group.Read.All.

042222 1711 Howtoconfig11 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

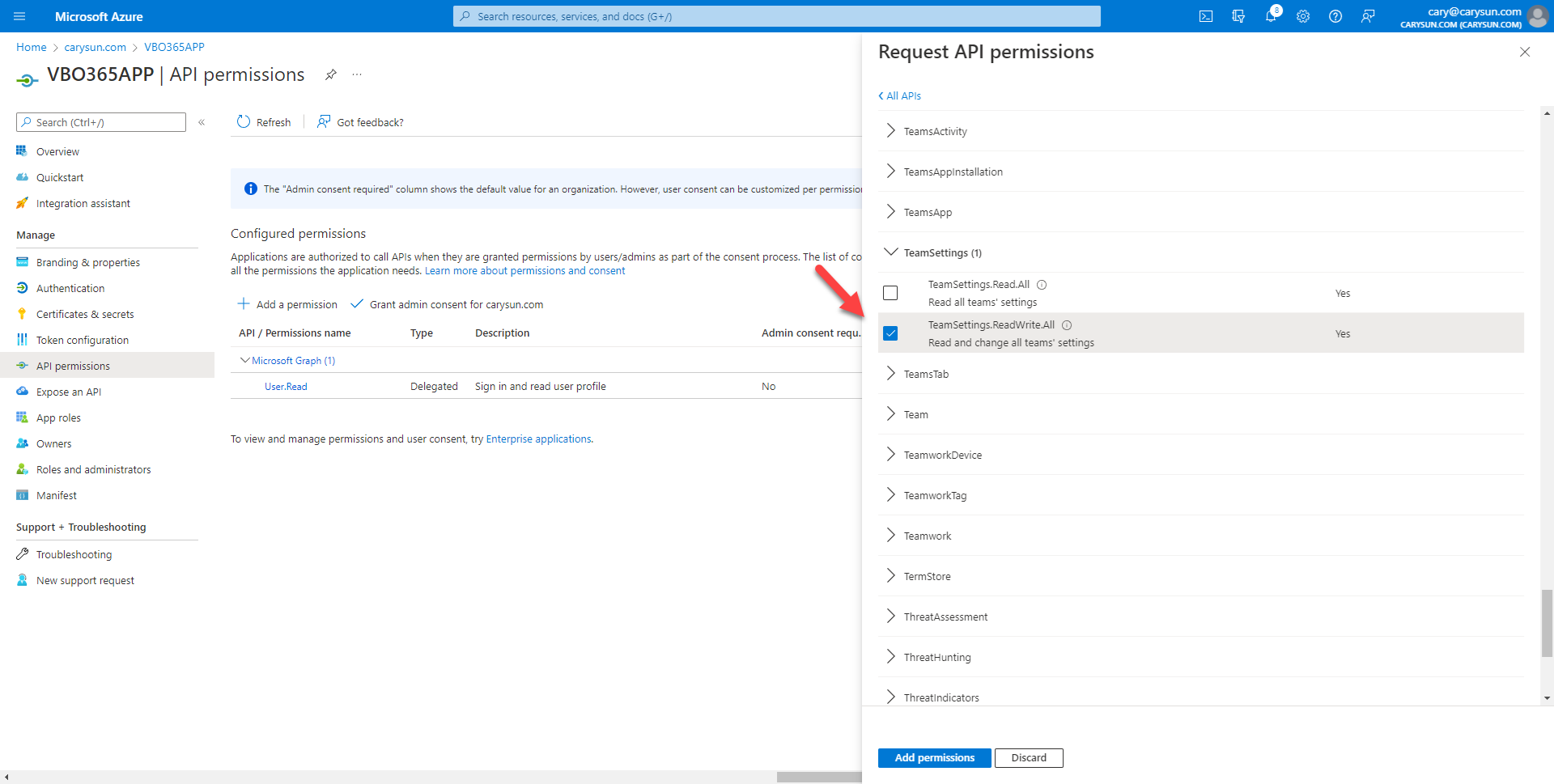

12.On the Select permission page, expend TeamSettings, select TeamSettings.ReadWrite.All.

042222 1711 Howtoconfig12 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

13.On the Select permission page, expand Sites, select Sites.Read.All, click Add permissions.

042222 1711 Howtoconfig13 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

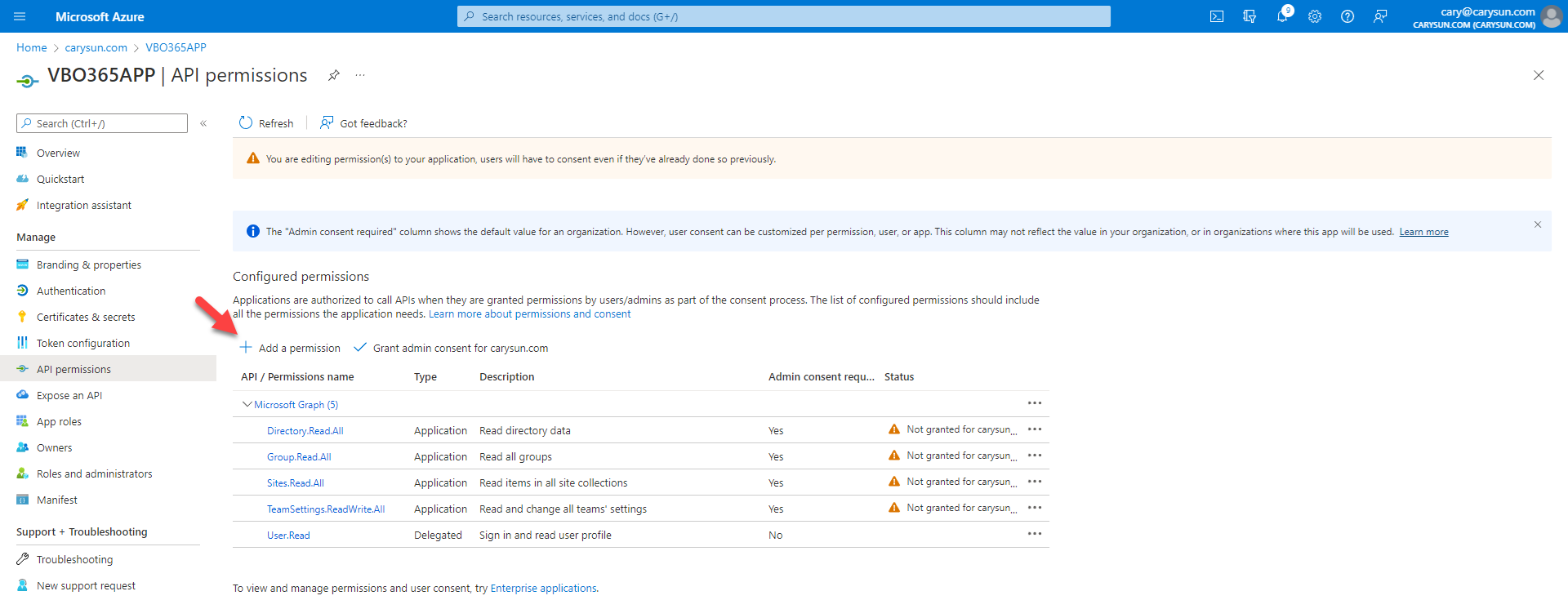

14.On the Configured permissions page, select +Add permission.

042222 1711 Howtoconfig14 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

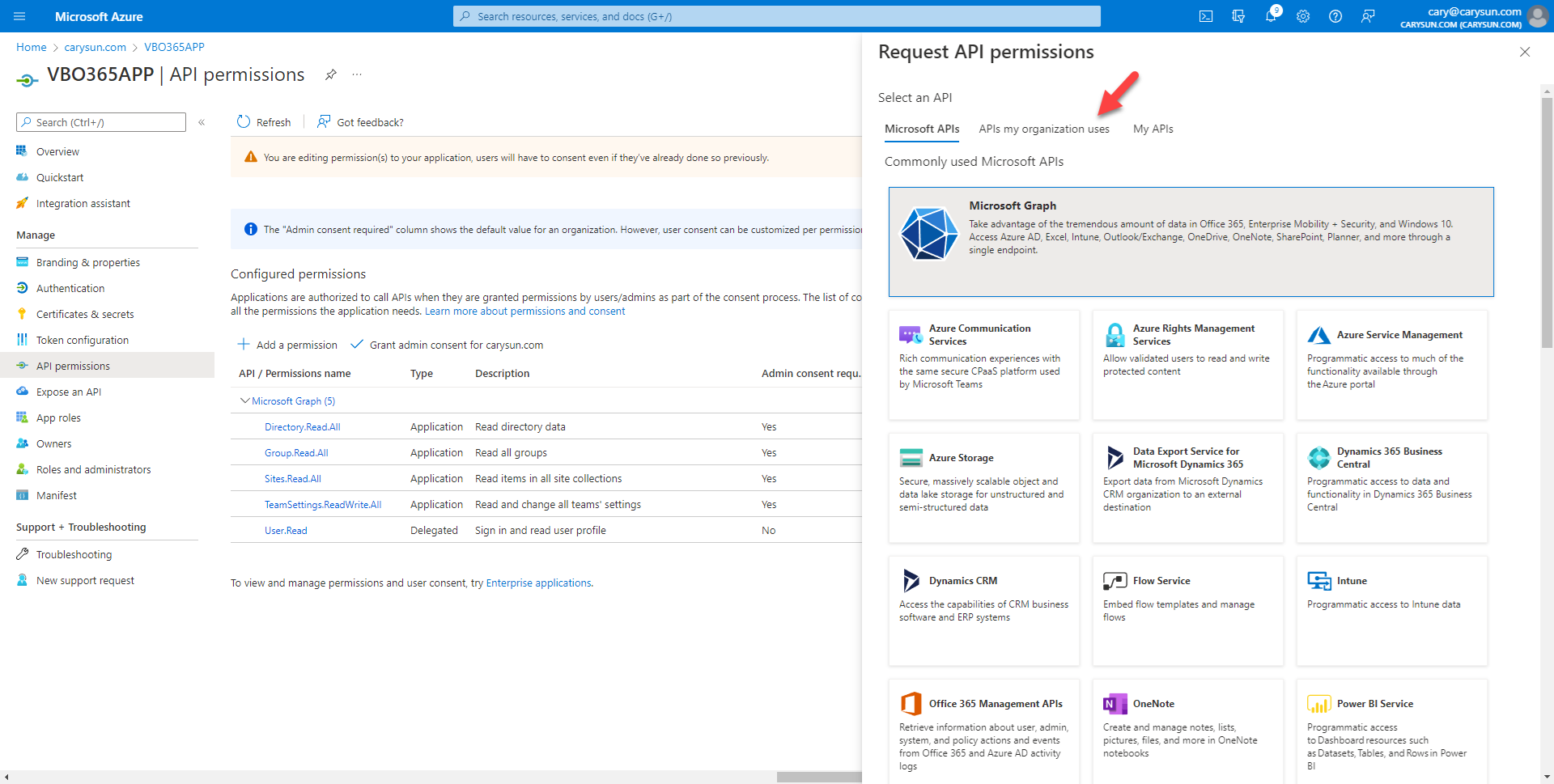

15.On the Request API permissions page, select APIs my organization uses.

042222 1711 Howtoconfig15 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

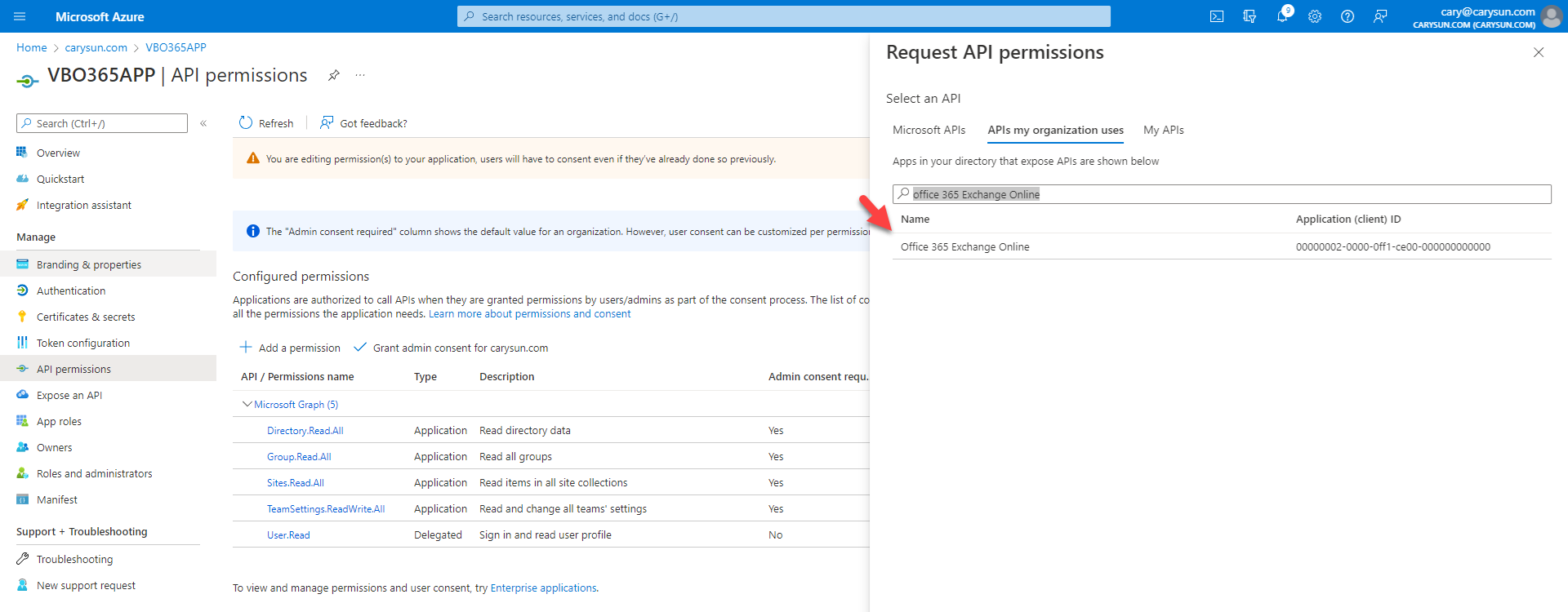

16.On the API my organization uses page, search and select Office 365 Exchange Online.

042222 1711 Howtoconfig16 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

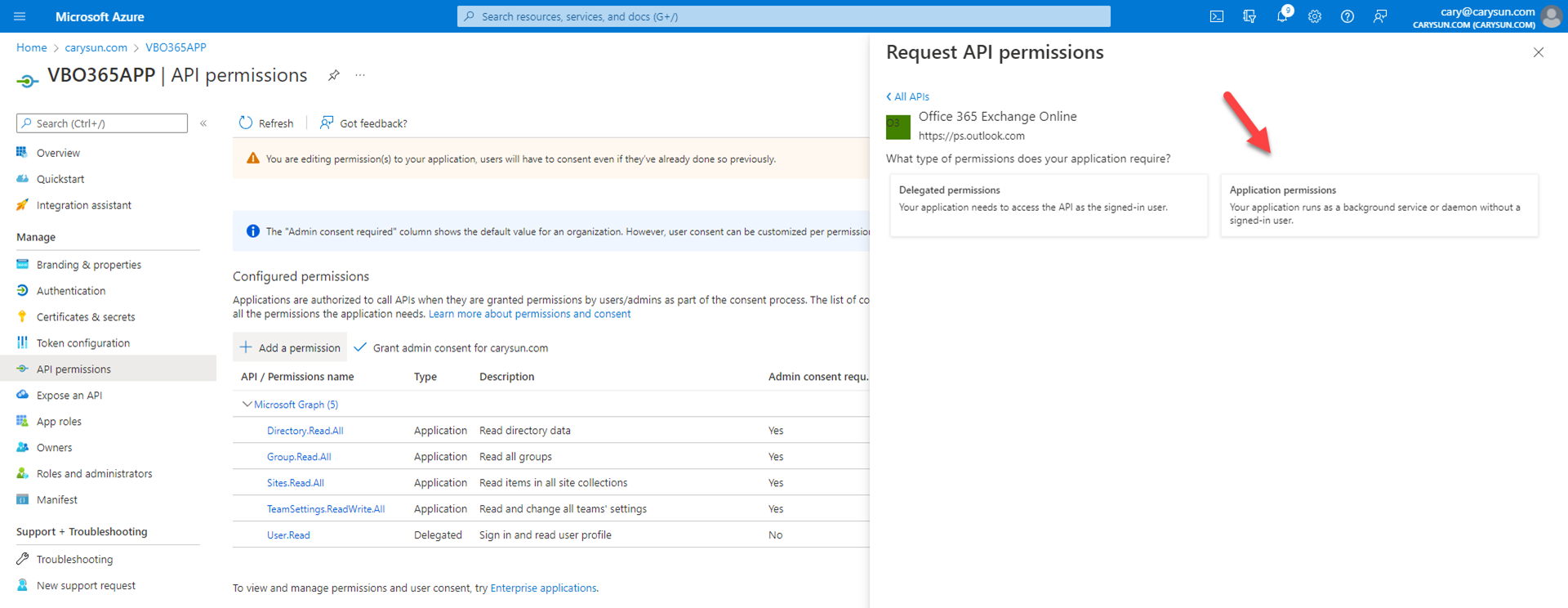

17.On the Office 365 Exchange Online page, select Application permissions.

042222 1711 Howtoconfig17 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

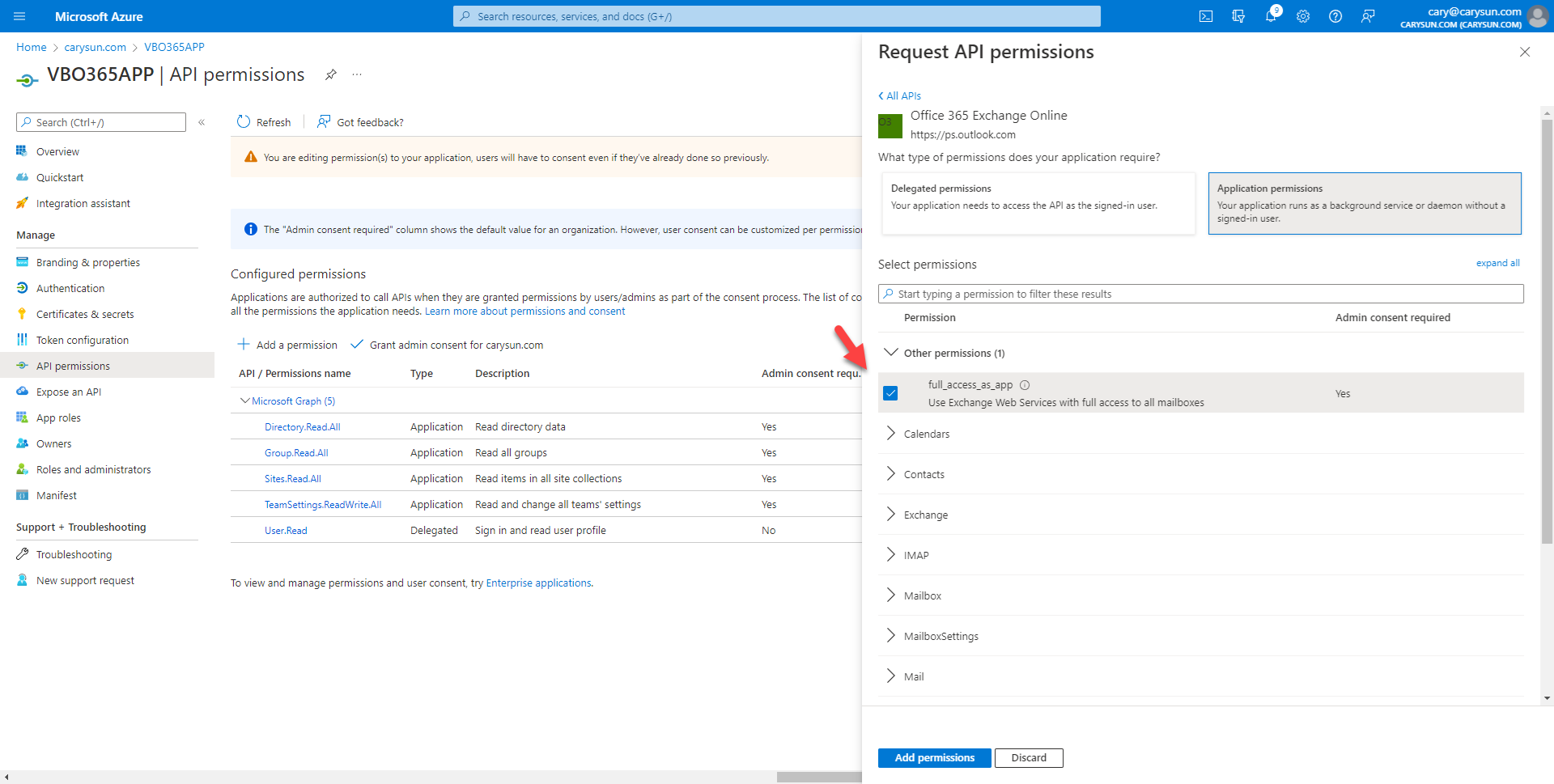

18.On the Select permission page, select full_access_as_app, click Add permissions.

042222 1711 Howtoconfig18 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

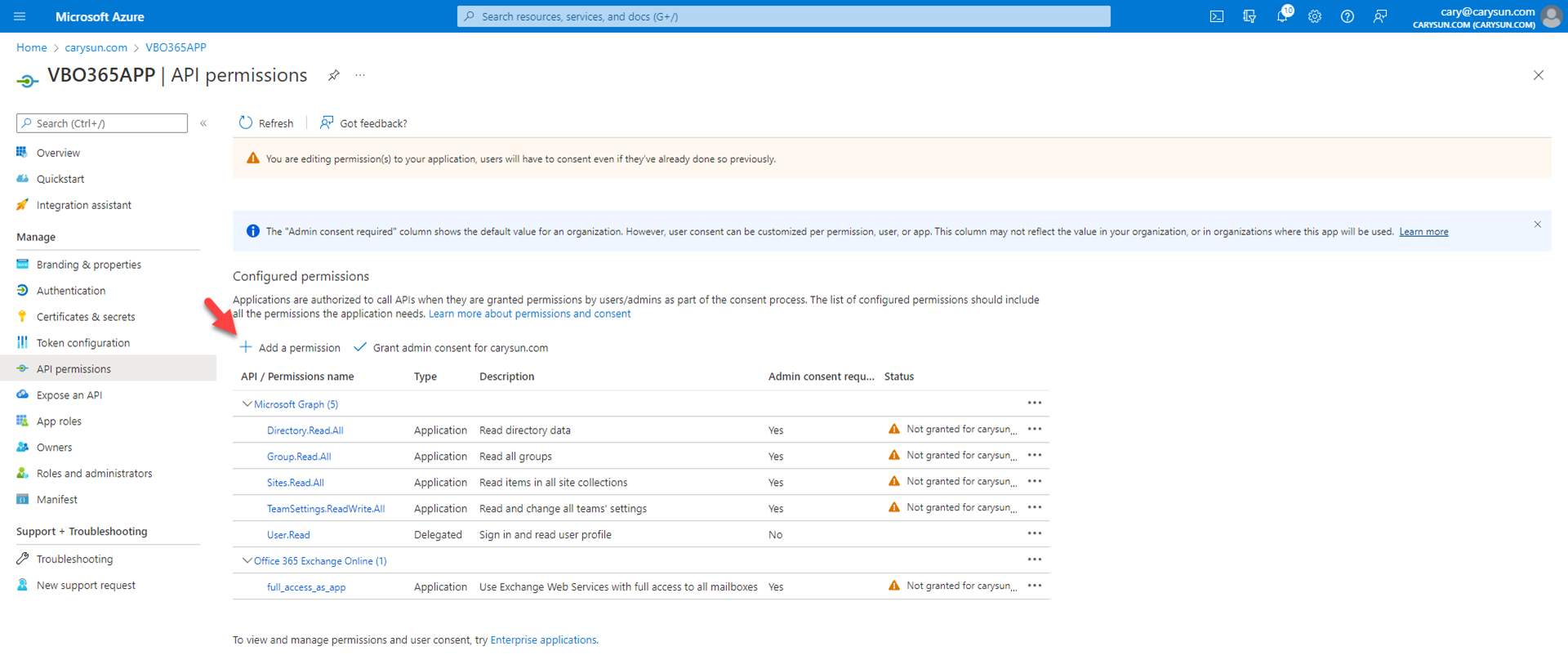

19.On the Configured permissions page, select +Add permission.

042222 1711 Howtoconfig19 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

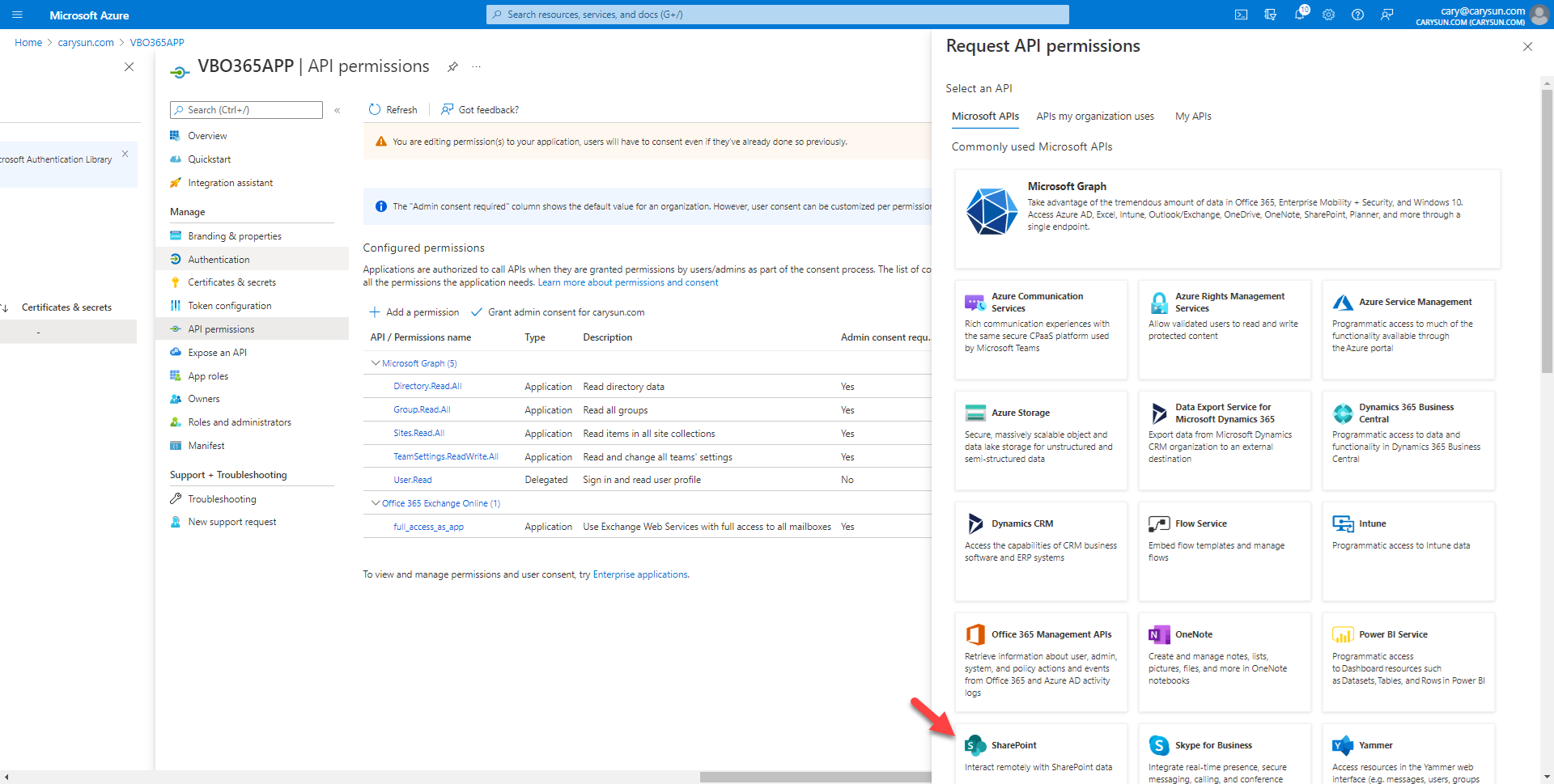

20.On the Request API permissions page, select Microsoft APIs, click SharePoint

042222 1711 Howtoconfig20 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

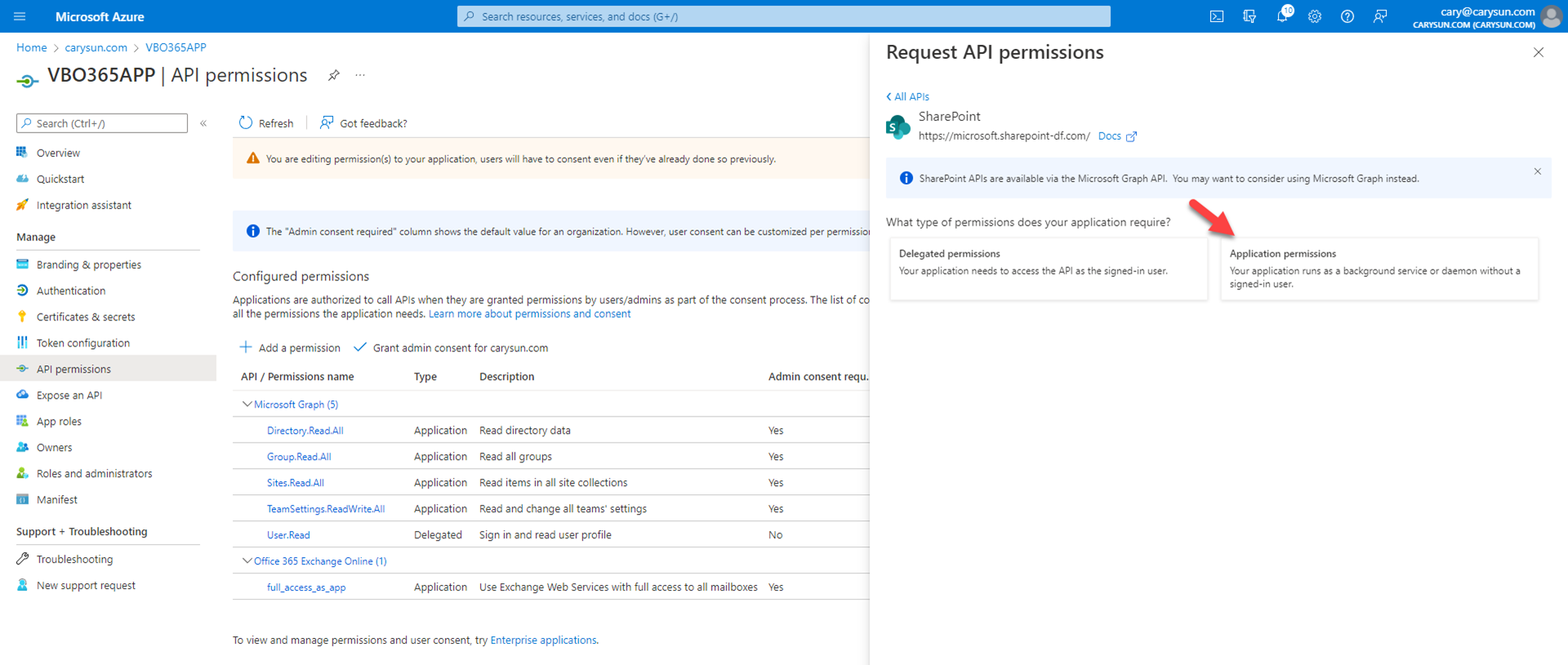

21.On the SharePoint page, select Application permissions.

042222 1711 Howtoconfig21 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

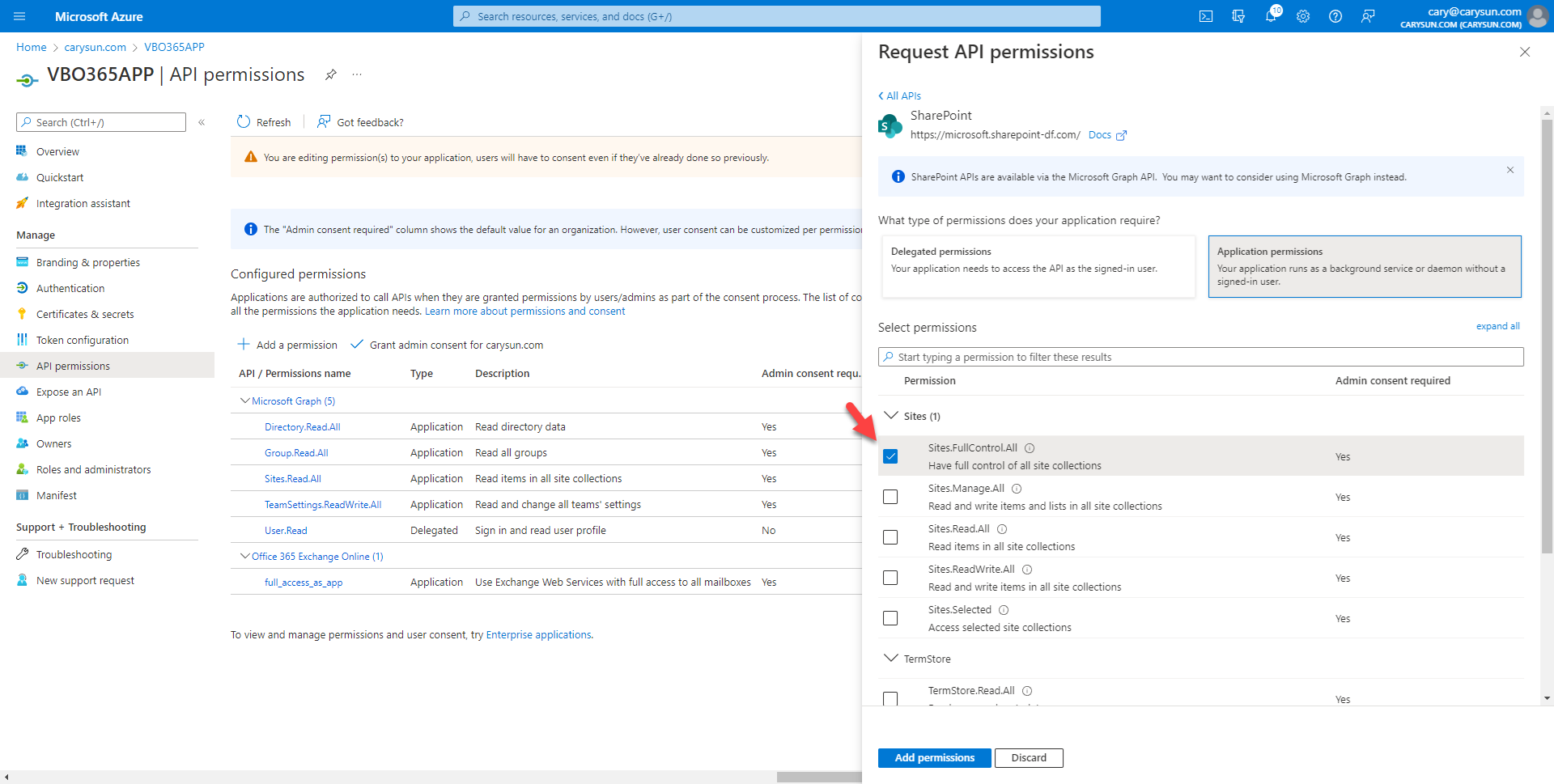

22.On the Select permission page, expand Sites, select Sites.FullControl.All.

042222 1711 Howtoconfig22 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

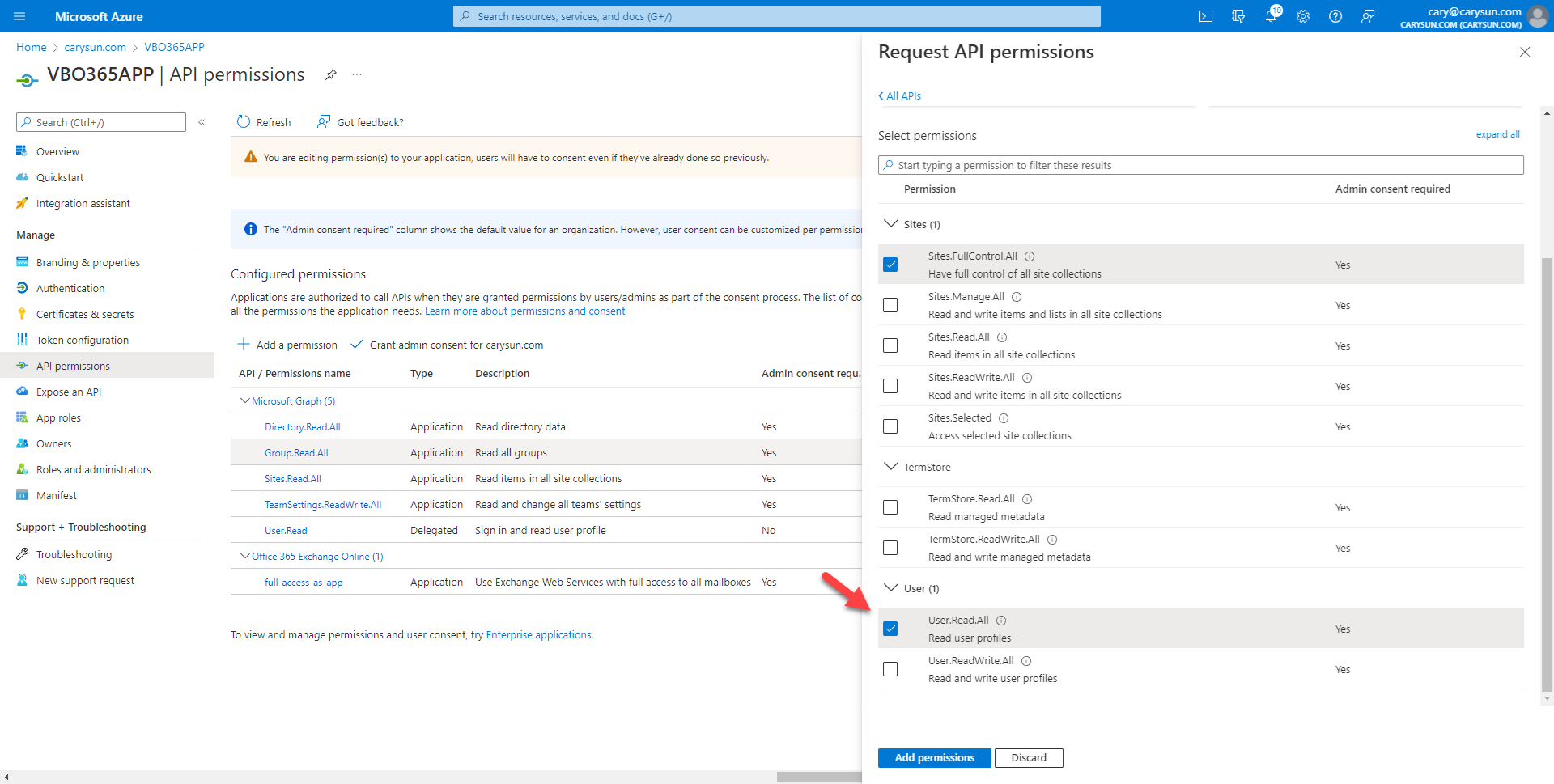

23.On the Select permission page, expand Users, select User.Read.All, click Add permissions.

042222 1711 Howtoconfig23 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

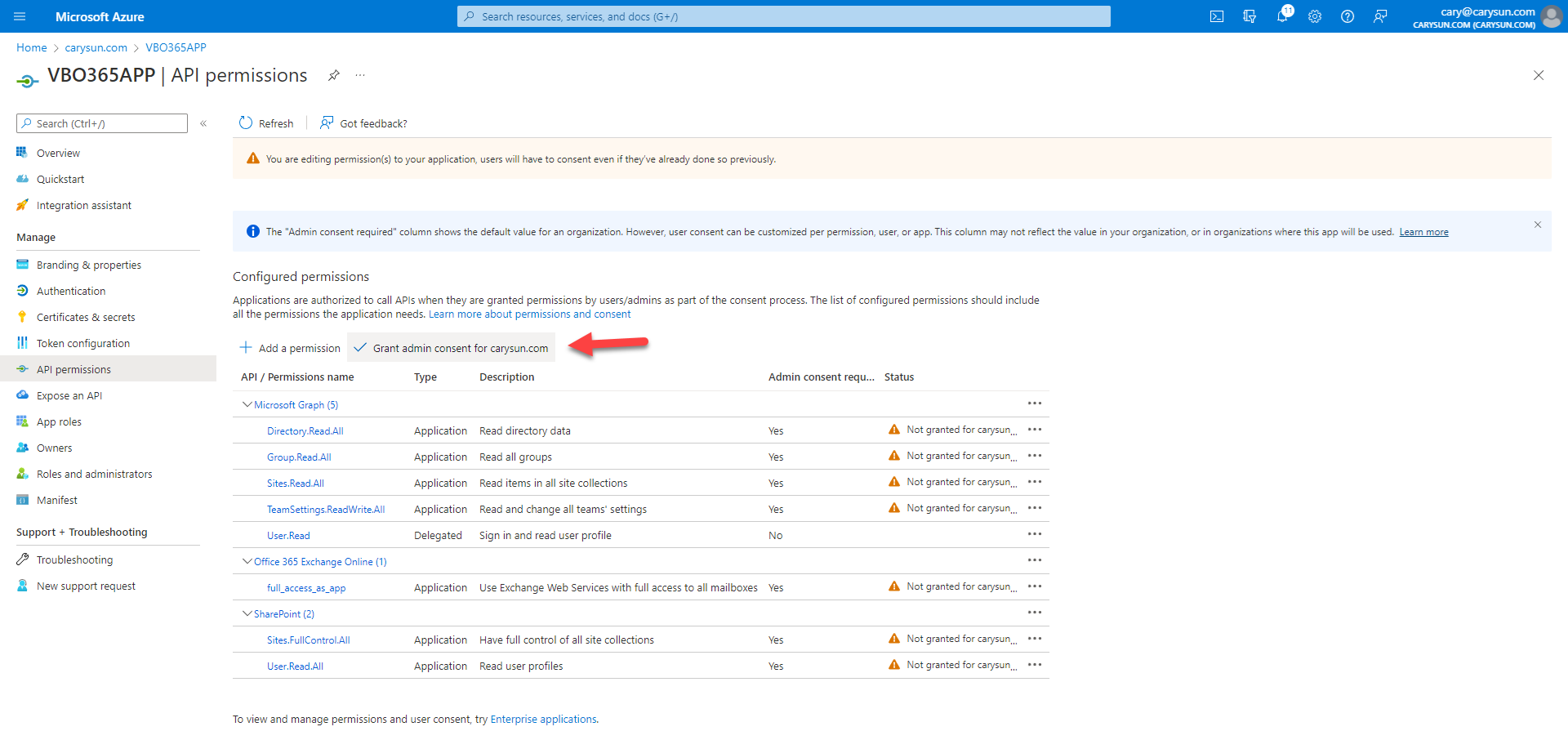

24.On the Configured permissions page, click Grant admin consent for domain name (in my case is carysun.com).

042222 1711 Howtoconfig24 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

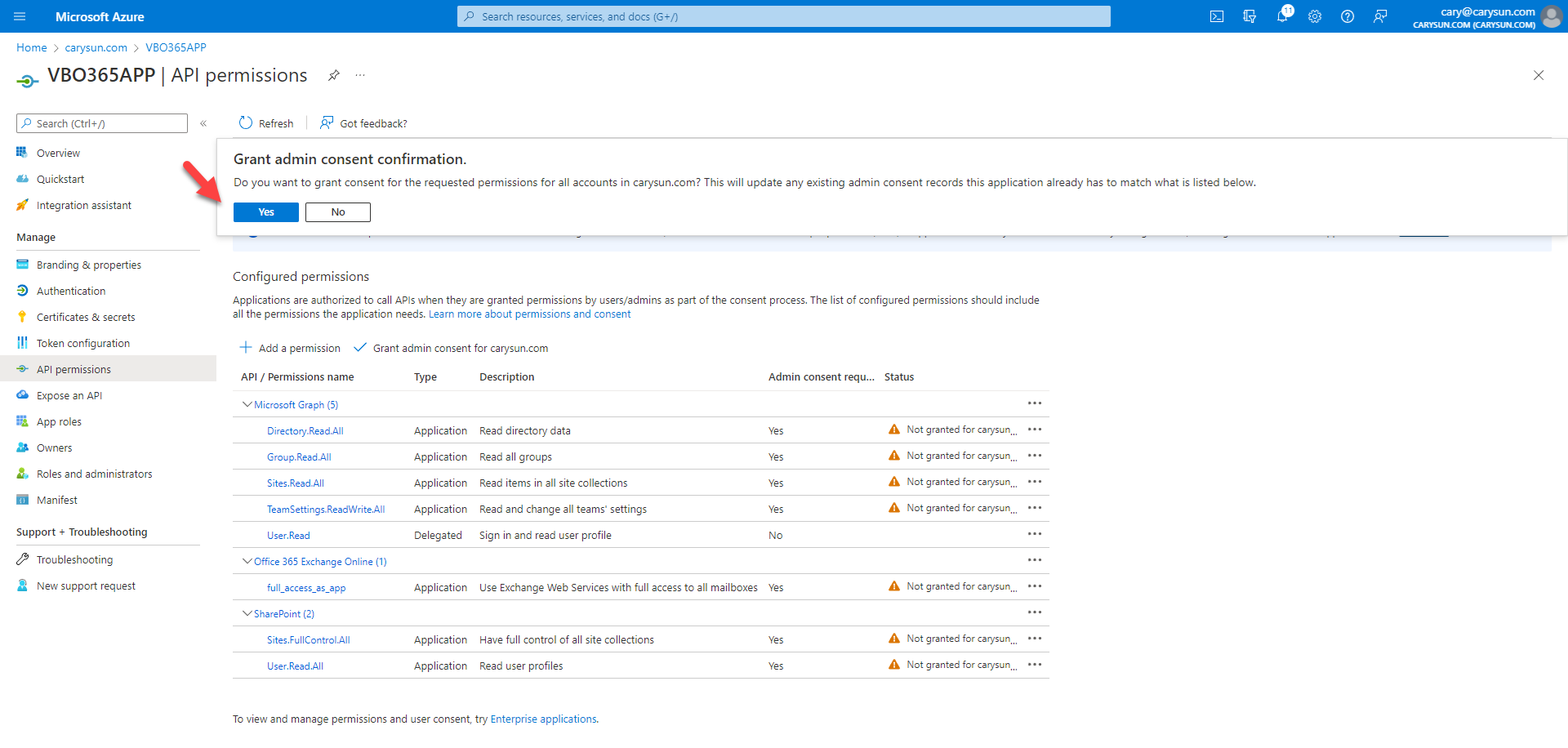

25.On the Grant admin consent confirmation page, click Yes.

042222 1711 Howtoconfig25 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

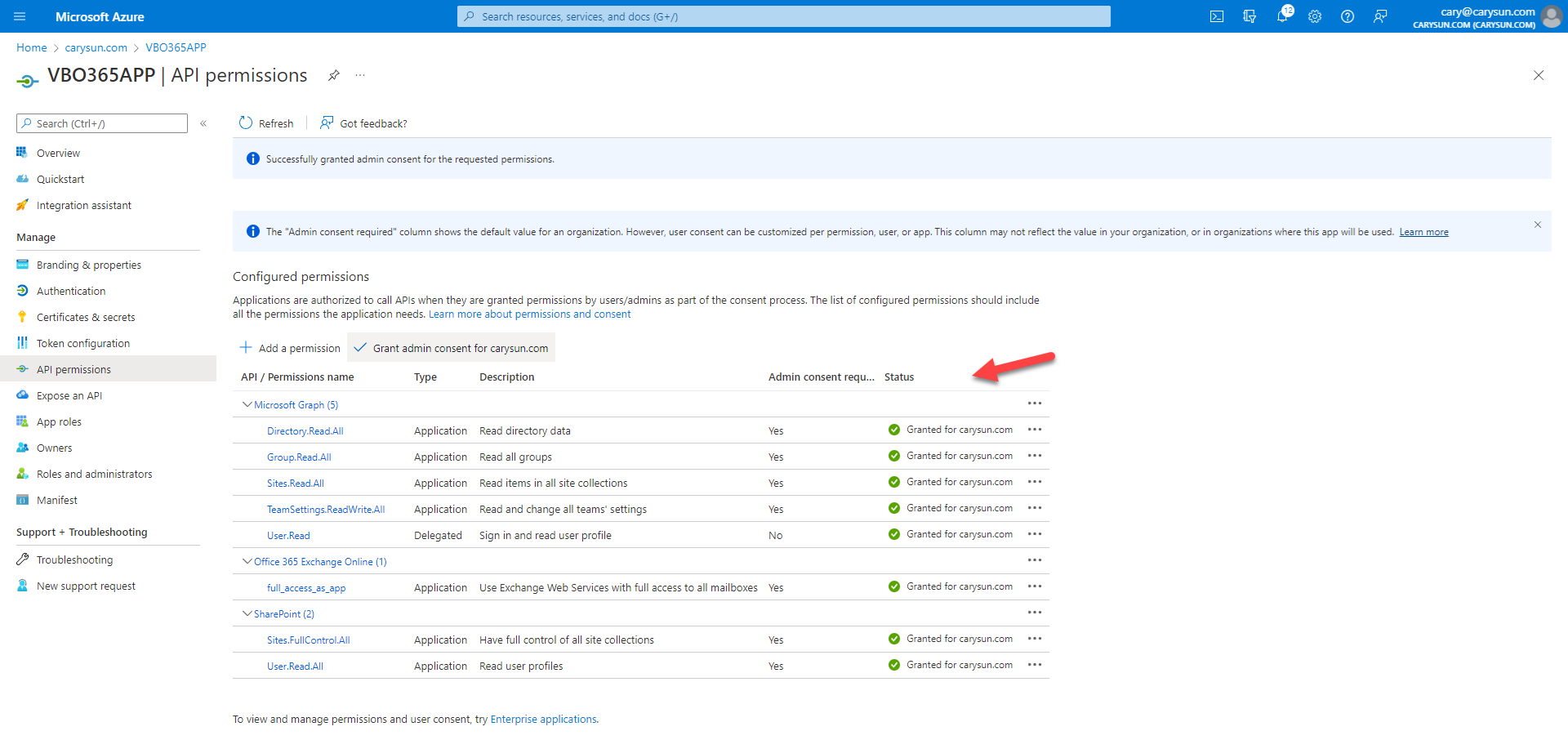

26.Verify status of all API without warning.

042222 1711 Howtoconfig26 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

Create Application secrets (Optional)

If you would like to use Application secret on Exchange Online credentials settings of VBO365, you need to create Application secret from Certificate & secrets settings.

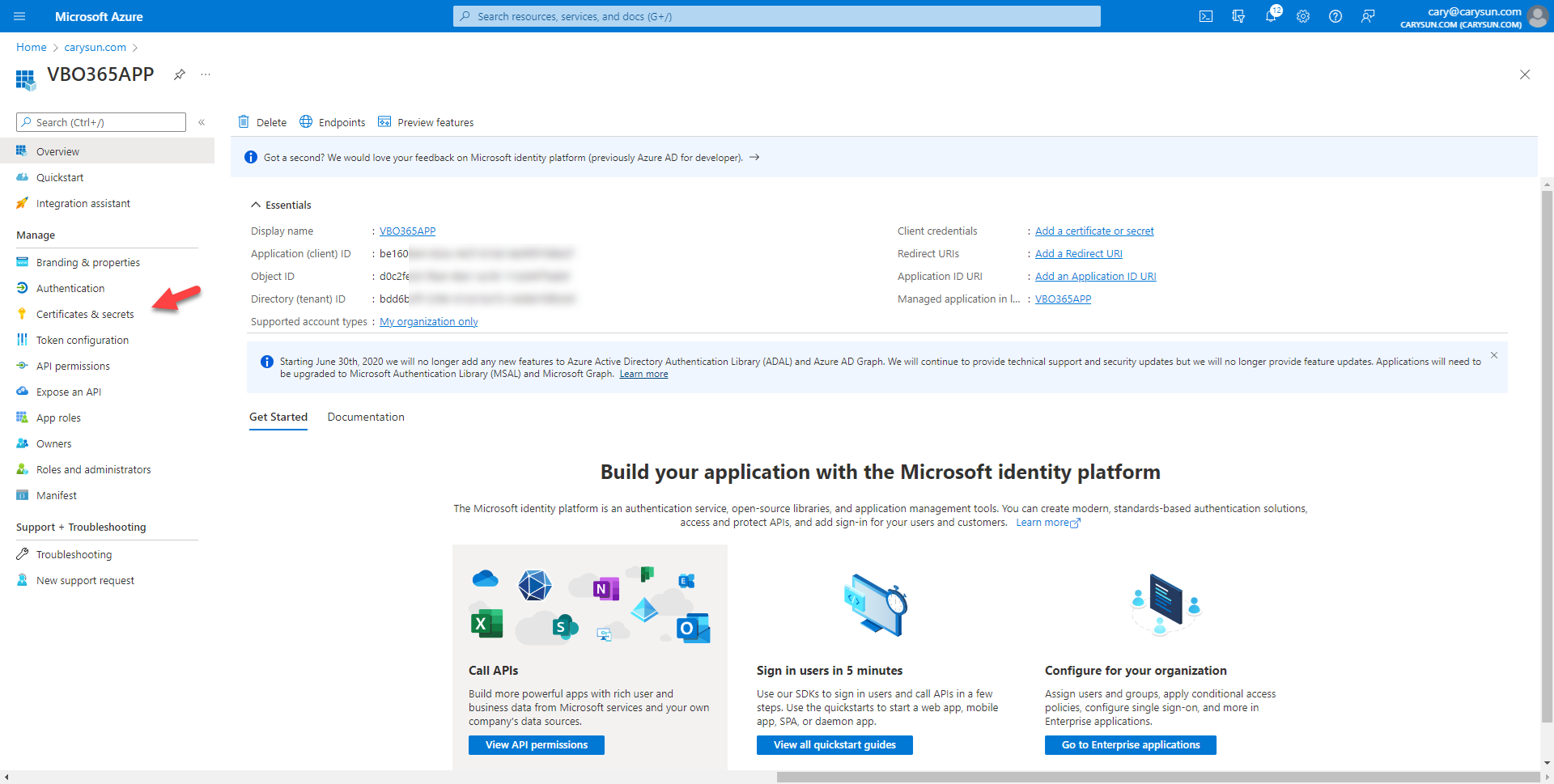

1.On the Application page, select Certificates & Security.

042222 1711 Howtoconfig27 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

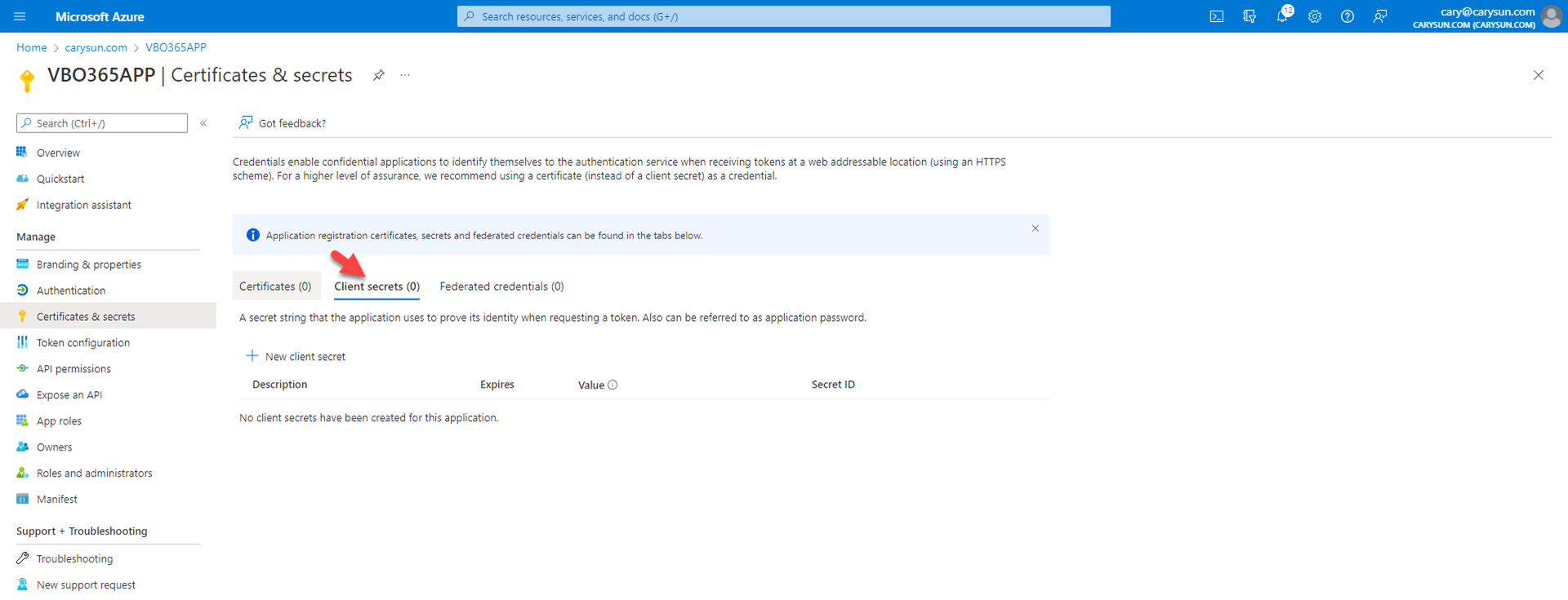

2.On the Certificates & secrets page, select Clients secrets.

042222 1711 Howtoconfig28 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

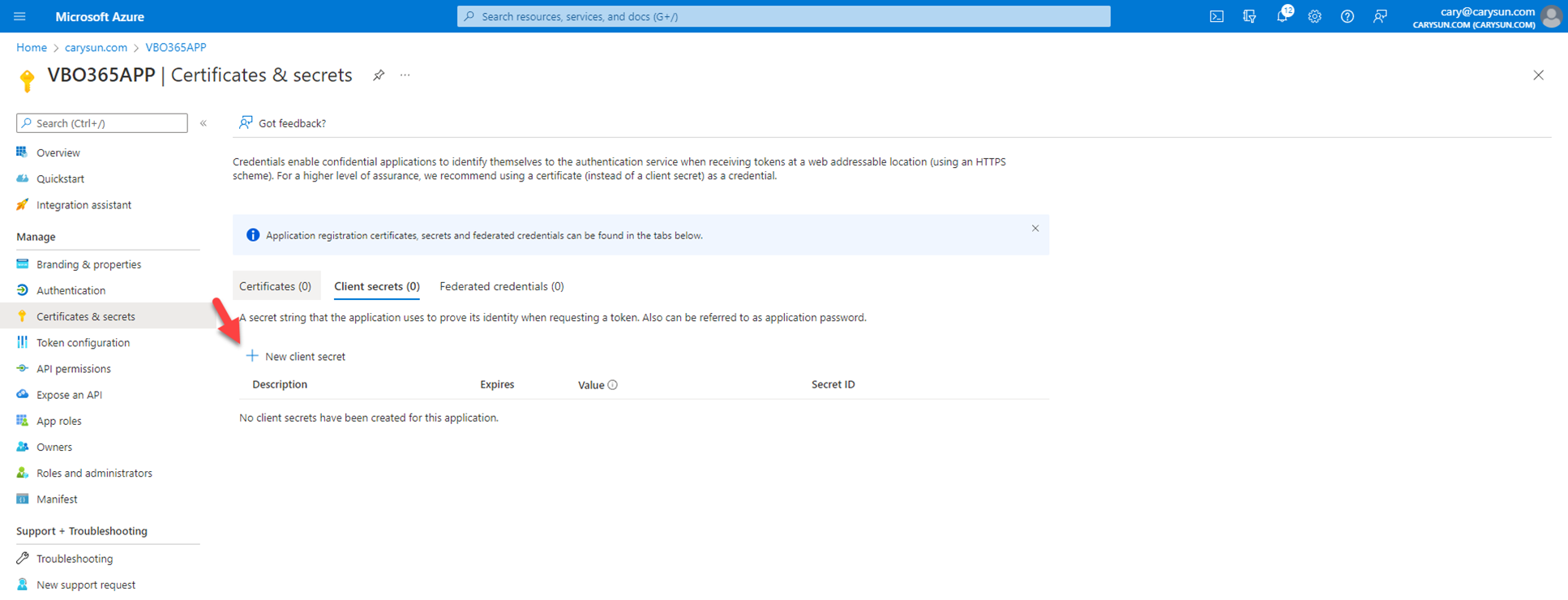

3.On the Client secrets page, select +New client secret.

042222 1711 Howtoconfig29 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

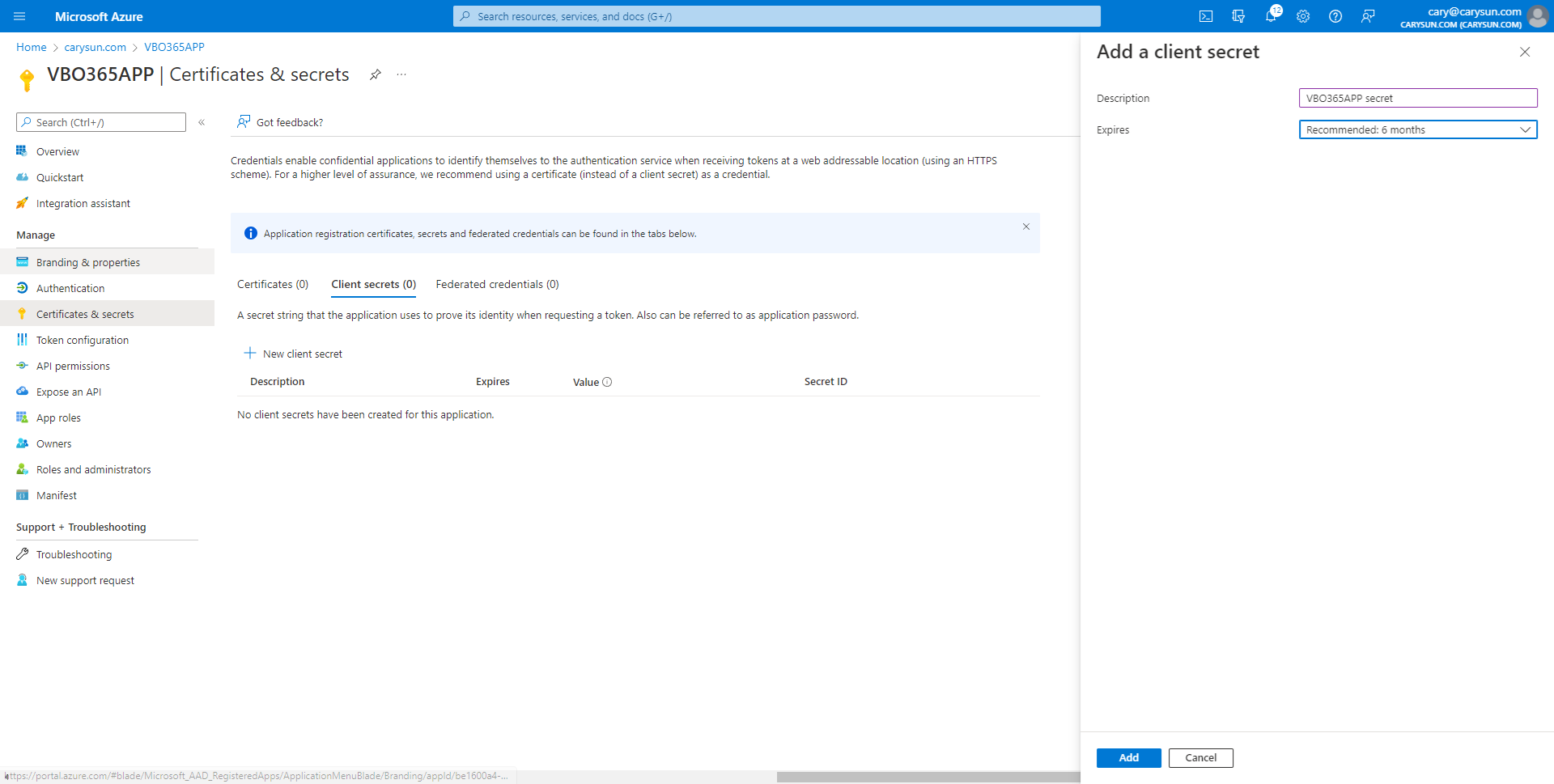

4.On the Add a client secret page, enter information for the secret description, select Expires period, click Add.

042222 1711 Howtoconfig30 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365

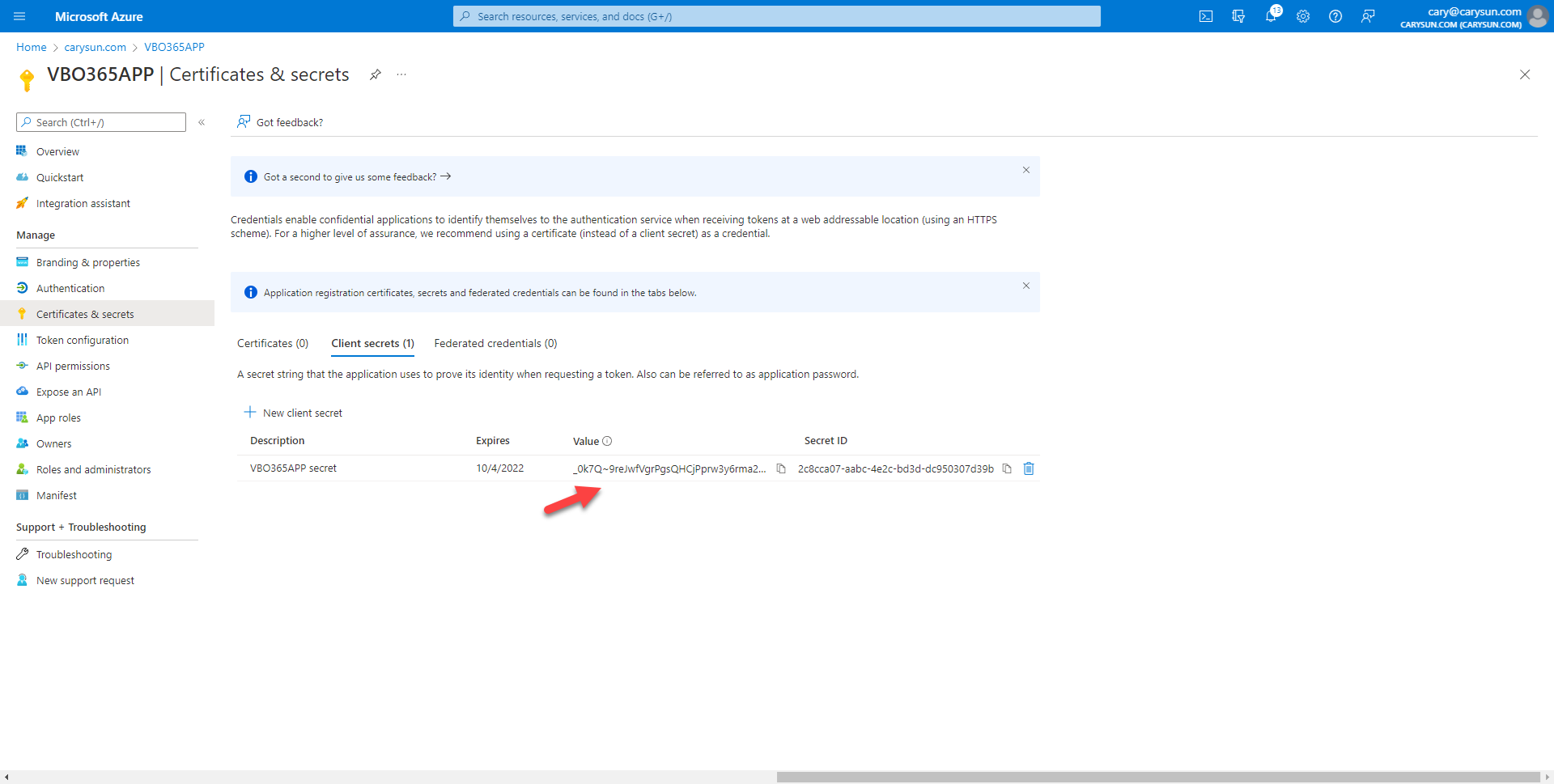

5.Copy the Value, it will be as the Application secret of VBO settings.

042222 1711 Howtoconfig31 - How to configure Azure AD Application Permissions for Modern Authentication and Legacy Protocols Authentication of Veeam Backup for Microsoft 365
