082623 1711 Howtoconfig21 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12
A Group Managed Service Account (gMSA) is a domain account that can be configured on the server. The Microsoft Windows operating system manages the password, so the administrator does not need to manage the password. Complex passwords are generated randomly and changed every 30 days, reducing the risk of brute force and dictionary attacks.

A Group Managed Service Account (gMSA) is a domain account that can be configured on the server. The Microsoft Windows operating system manages the password, so the administrator does not need to manage the password. Complex passwords are generated randomly and changed every 30 days, reducing the risk of brute force and dictionary attacks.

gMSA has the following requirements and limitations:

  • Microsoft Windows Server 2012 and later support gMSAs.
  • Backups of Linux target machines that are members of an Active Directory domain are not supported by gMSAs.
  • Because gMSAs require a connection to the domain controller, these accounts can only be accessed via the network.
  • If you use a gMSA to back up a machine, both the backup proxy and the target machine must have access to the domain controller to obtain the gMSA password. The gMSA must be added to a member of the Administrators group on the target machine (local or domain). Add to the member if Domain Administrator is only required for Microsoft Active Directory backups and local Administrator permissions are sufficient for all other supported applications.

Note:

gMSA is supported for application-aware processing for backups or replicas of VMs running Microsoft Active Directory (domain controllers), Microsoft Exchange, Microsoft SQL Server, and Oracle 12c Release 2 and later. The gMSA cannot back up or replicate VMs that run Microsoft SharePoint.

1. Log in to the domain controller server.

2. Open Windows PowerShell and run as administrator.

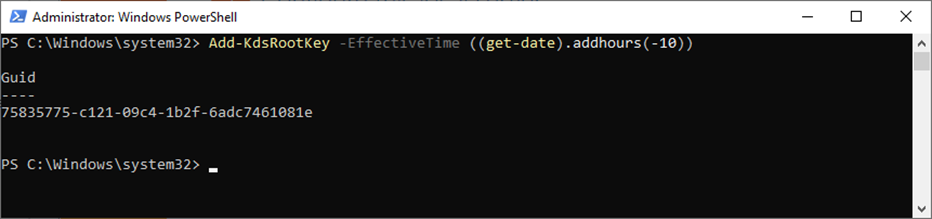

3. Run the cmdlet below to generate a root key.

Add-KdsRootKey –EffectiveTime ((get-date).addhours(-10))

082623 1711 Howtoconfig1 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

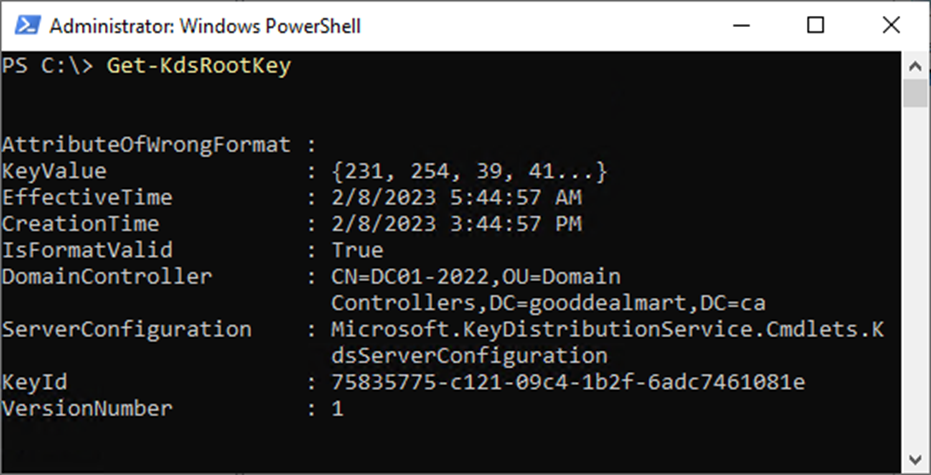

4. Run the cmdlet below to ensure the KDS root key has been created successfully.

Get-KdsRootKey

082623 1711 Howtoconfig2 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

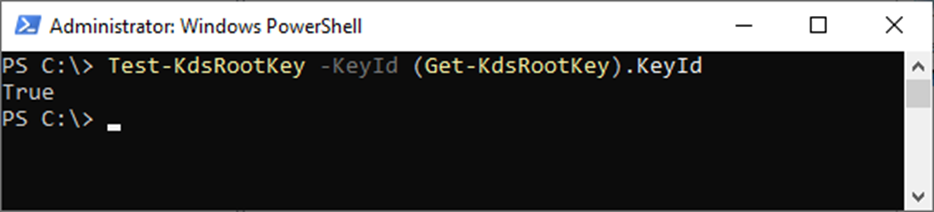

5. Run the cmdlet below to check the KDS key.

Test-KdsRootKey -KeyId (Get-KdsRootKey).KeyId

082623 1711 Howtoconfig3 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

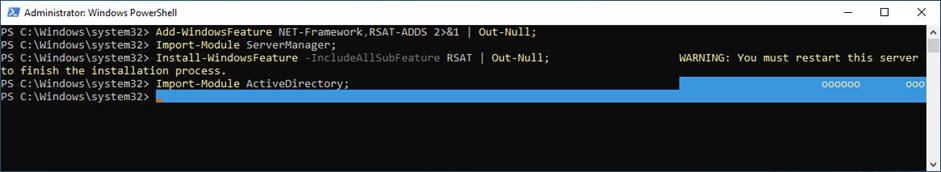

6. Run the below cmdlet to enable gMSA.

Add-WindowsFeature NET-Framework, RSAT-ADDS 2>&1 | Out-Null
Import-Module ServerManager
Install-WindowsFeature -IncludeAllSubFeature RSAT | Out-Null
Import-Module ActiveDirectory

082623 1711 Howtoconfig4 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

7. Restart the domain controller server.

8. Login to the domain controller server.

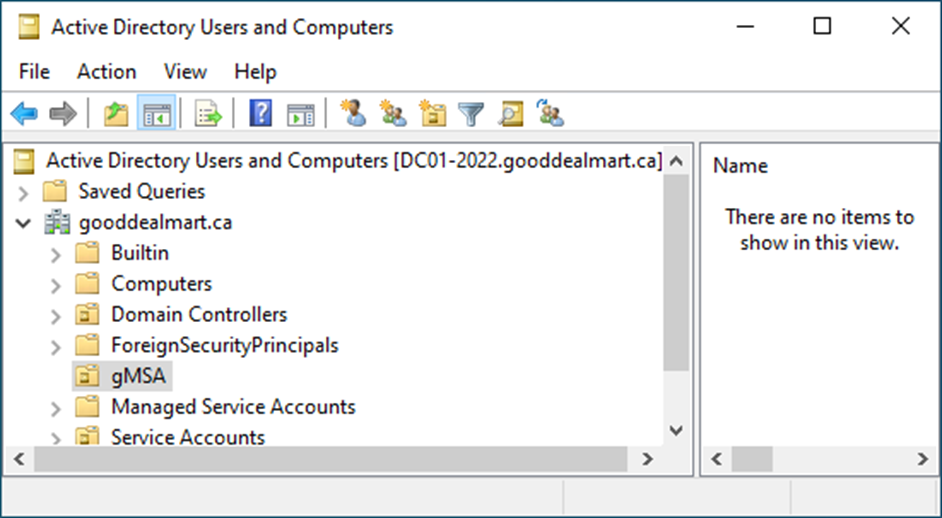

9. Select the Active Directory Users and Computers item from the Tools drop-down list on the Server Manager page.

10. Create a new Active Directory OU.

082623 1711 Howtoconfig5 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

Note:

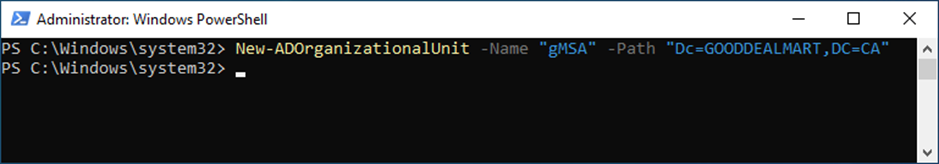

New-ADOrganizationalUnit -Name "gMSA" -Path "DC=GOODDEALMART, DC=CA"

082623 1711 Howtoconfig6 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

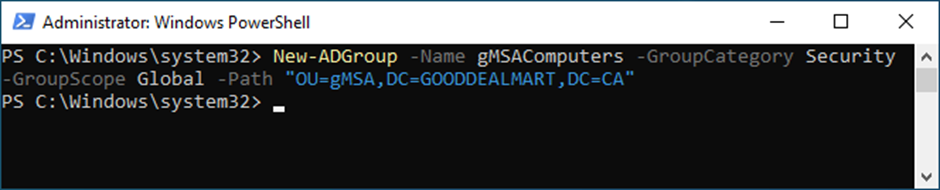

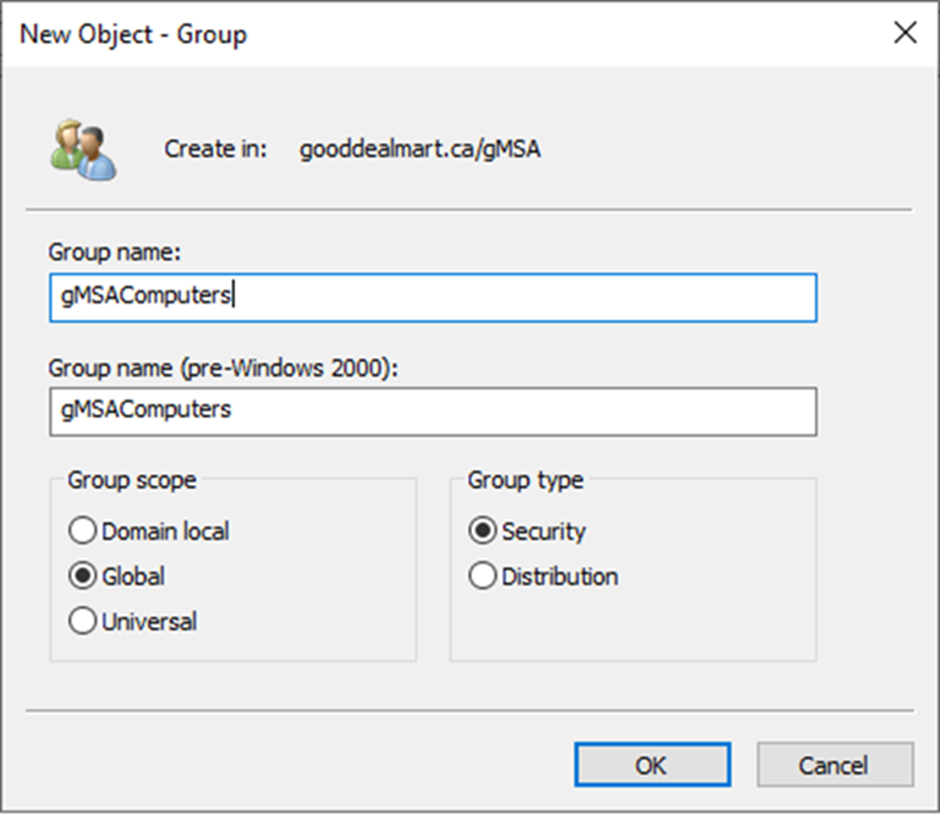

11. Create a new security group for gMSA computers.

082623 1711 Howtoconfig7 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

Note:

New-ADGroup -Name gMSAComputers -GroupCategory Security -GroupScope Global -Path "OU=gMSA, DC=GOODDEALMART, DC=CA"

082623 1711 Howtoconfig8 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

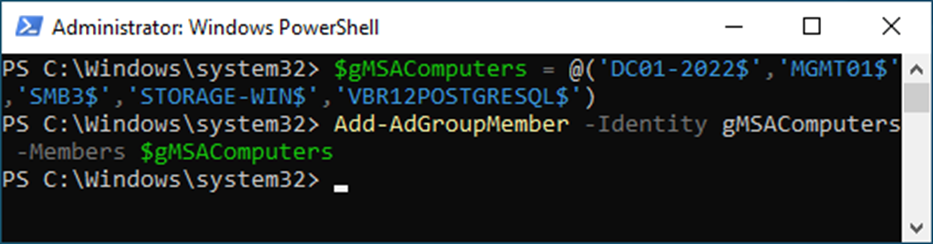

12. Add computer objects to the new security group. These computer objects will be allowed to use gMSA.

082623 1711 Howtoconfig9 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

Note:

$gMSAComputers = @('DC01-2022$','MGMT01$','SMB3$','STORAGE-WIN$','VBR12POSTGRESQL$')
Add-AdGroupMember -Identity gMSAComputers -Members $gMSAComputers

082623 1711 Howtoconfig10 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

13. Open Windows PowerShell and run as administrator.

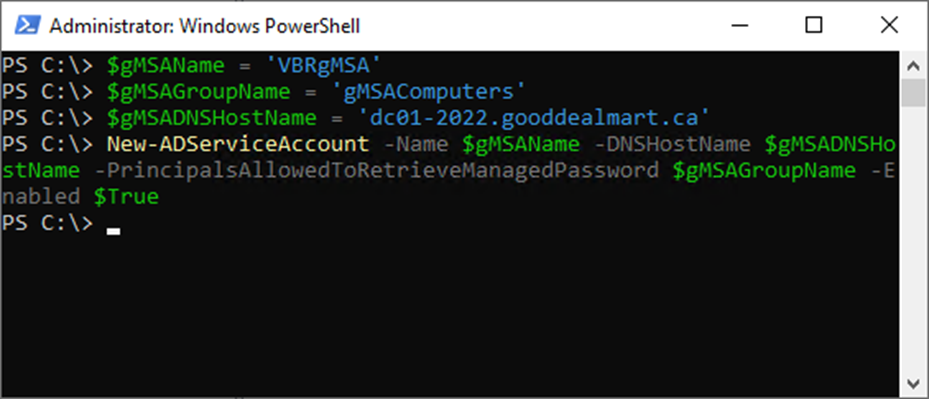

14. Run the below cmdlet to create a gMSA account.

$gMSAName = 'VBRgMSA'
$gMSAGroupName = 'gMSAComputers'
$gMSADNSHostName = 'dc01-2022.gooddealmart.ca'
New-ADServiceAccount -Name $gMSAName -DNSHostName $gMSADNSHostName -PrincipalsAllowedToRetrieveManagedPassword $gMSAGroupName -Enabled $True

082623 1711 Howtoconfig11 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

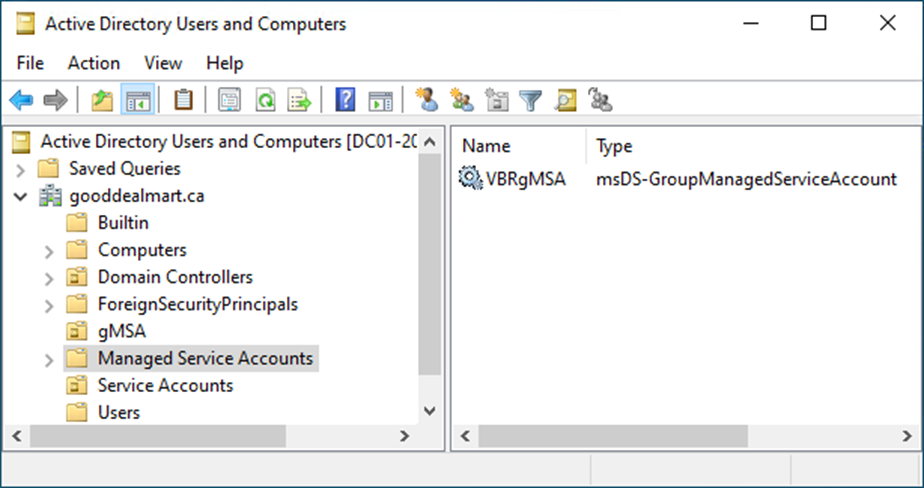

15. Select the Active Directory Users and Computers from the Tools drop-down list on the Server Manager page.

16. Ensure the newly created VBRgMSA service account is shown in the Managed Service Accounts OU.

Note:

Use separate gMSAs accounts for critical backup infrastructure components to provide a more secure environment.

082623 1711 Howtoconfig12 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

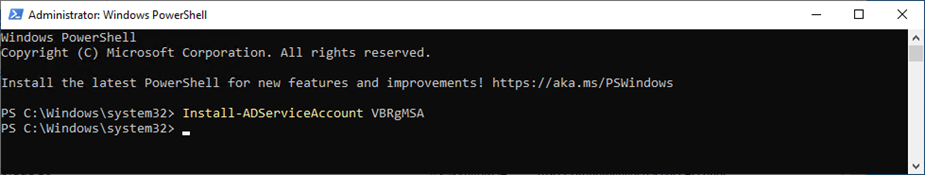

17. Run the below cmdlet to install gMSA on the domain controller as the target machine.

Install-ADServiceAccount VBRgMSA

082623 1711 Howtoconfig13 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

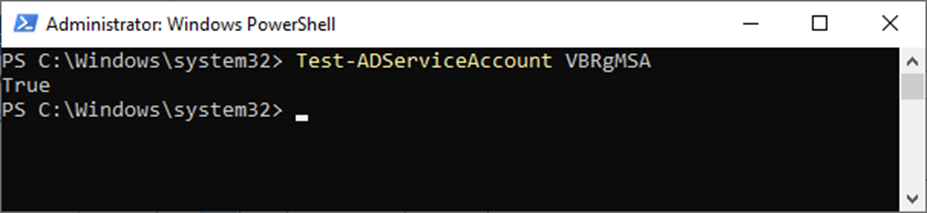

18. Run the below cmdlet to ensure that the gMSA was successfully installed.

Test-ADServiceAccount VBRgMSA

082623 1711 Howtoconfig14 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

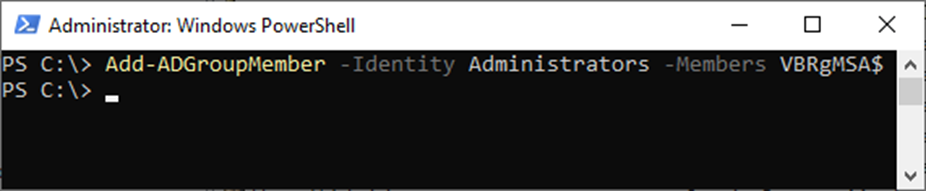

19. Run the below cmdlet to Add the VBRgMSA service account to the domain Admins group.

Add-ADGroupMember -Identity Administrators -Members VBRgMSA$

082623 1711 Howtoconfig15 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

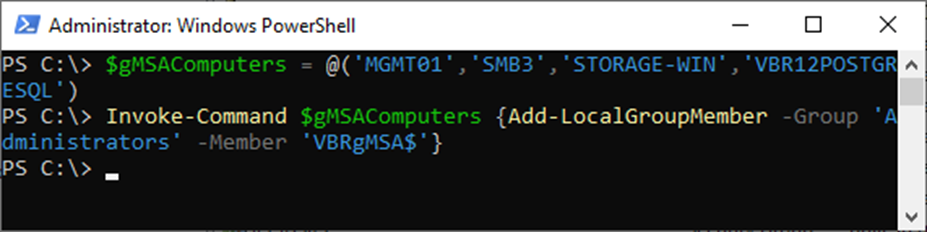

20. Run the below cmdlet to Add the VBRgMSA service account to the Local Administrators group.

$gMSAComputers = @('MGMT01','SMB3','STORAGE-WIN','VBR12POSTGRESQL')
Invoke-Command $gMSAComputers {Add-LocalGroupMember -Group 'Administrators' -Member 'VBRgMSA$'}

082623 1711 Howtoconfig16 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

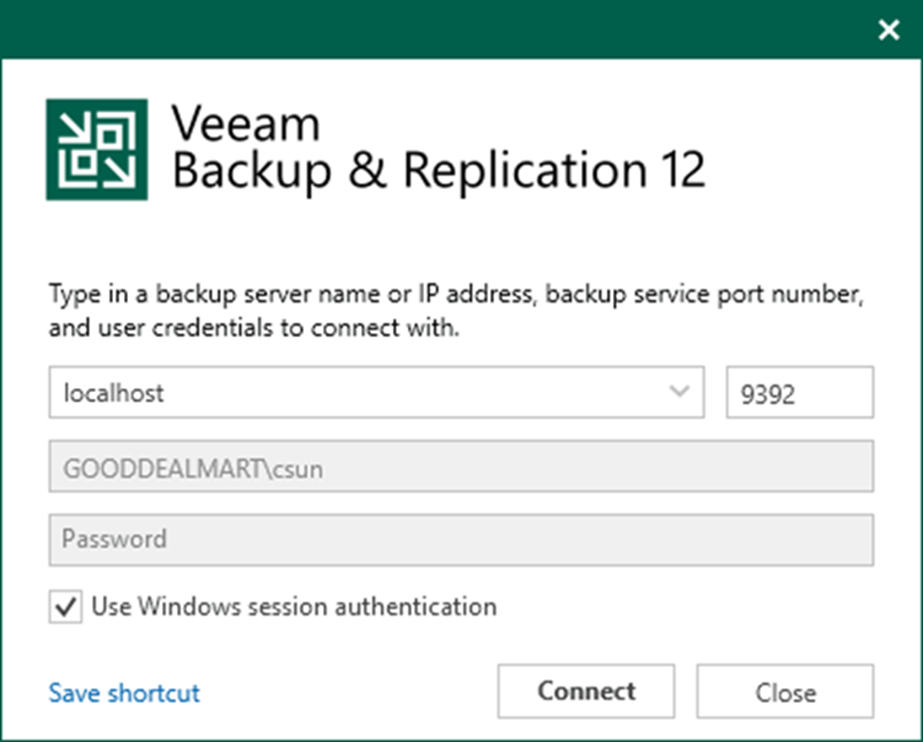

21. Login to the Veeam Backup and replication manager server.

22. Open the Veeam Backup & Replication Console and click Connect.

082623 1711 Howtoconfig17 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

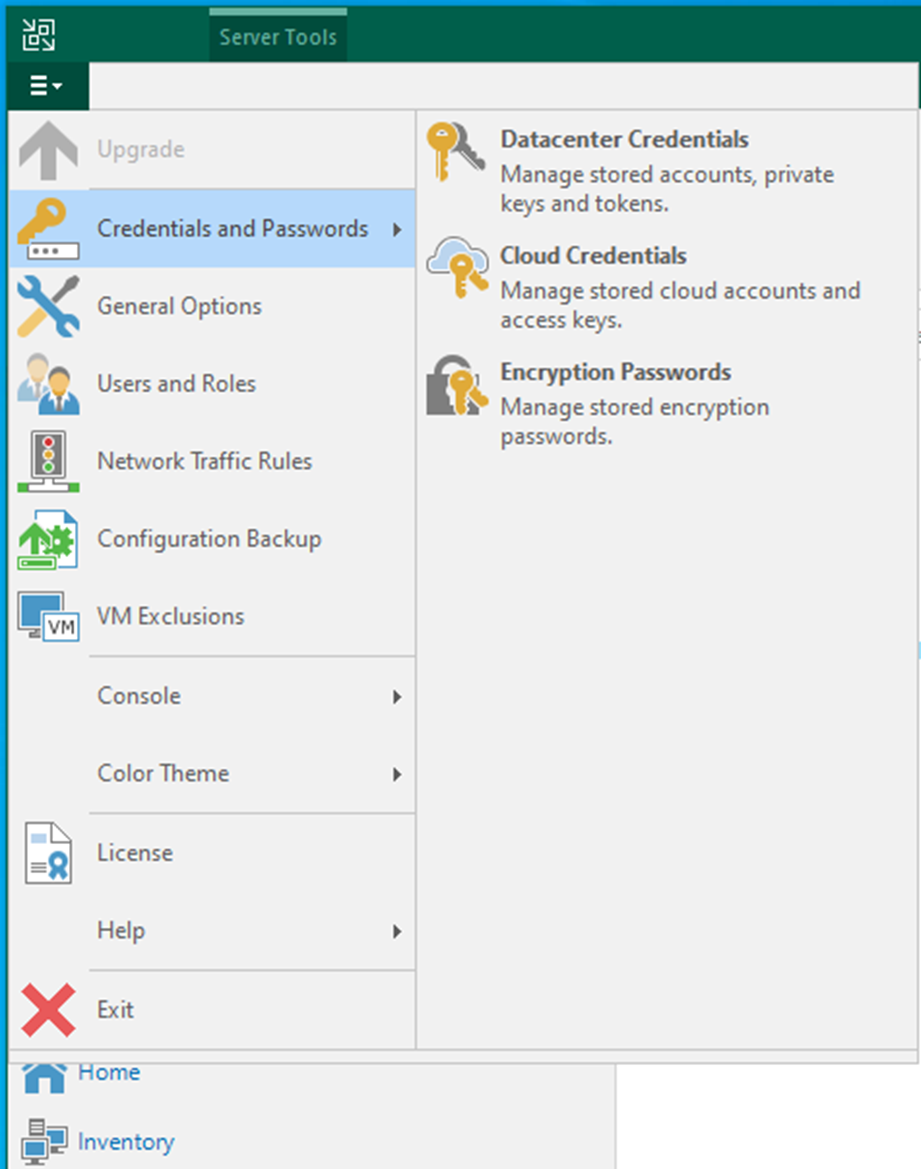

23. Select Credentials and Passwords from the main menu.

24. Select Datacenter Credentials.

082623 1711 Howtoconfig18 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

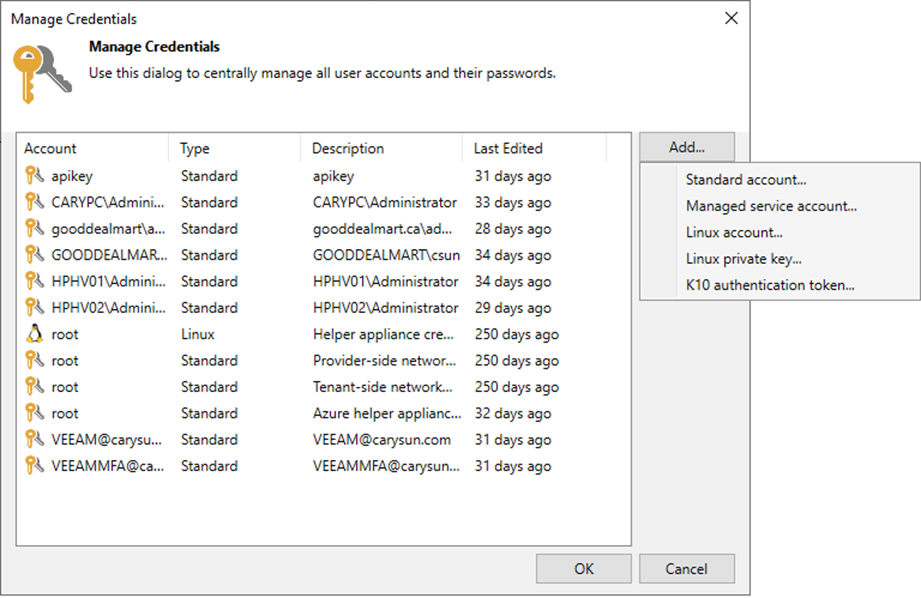

25. Click Add on the Manage Credentials page and select Managed service account.

082623 1711 Howtoconfig19 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

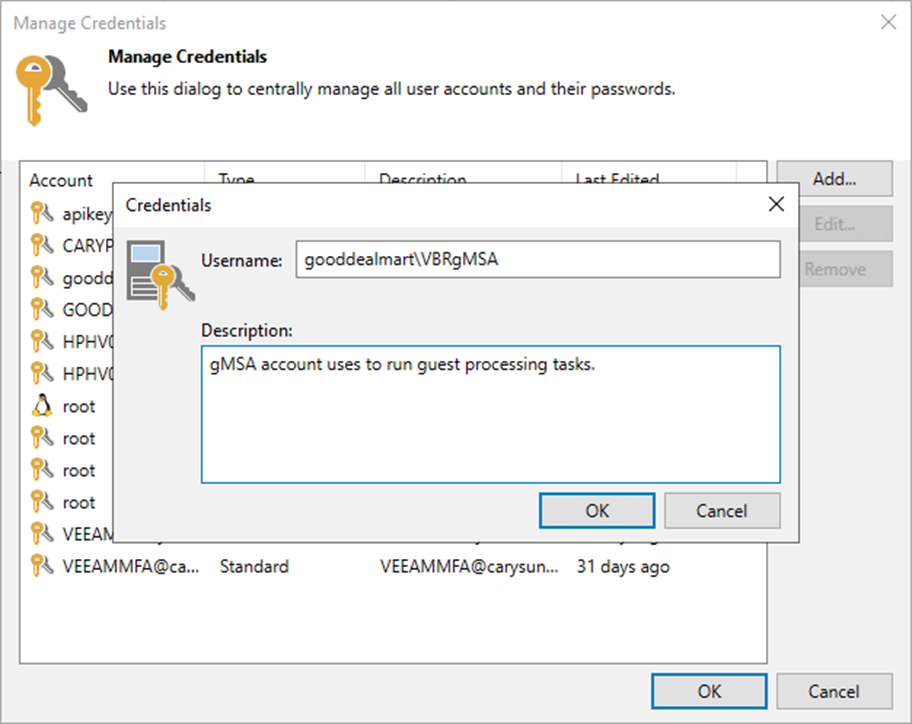

26. Enter the new gMSA account in the Username field on the Credentials page.

27. Give a brief description in the Description field for future reference and click OK.

082623 1711 Howtoconfig20 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

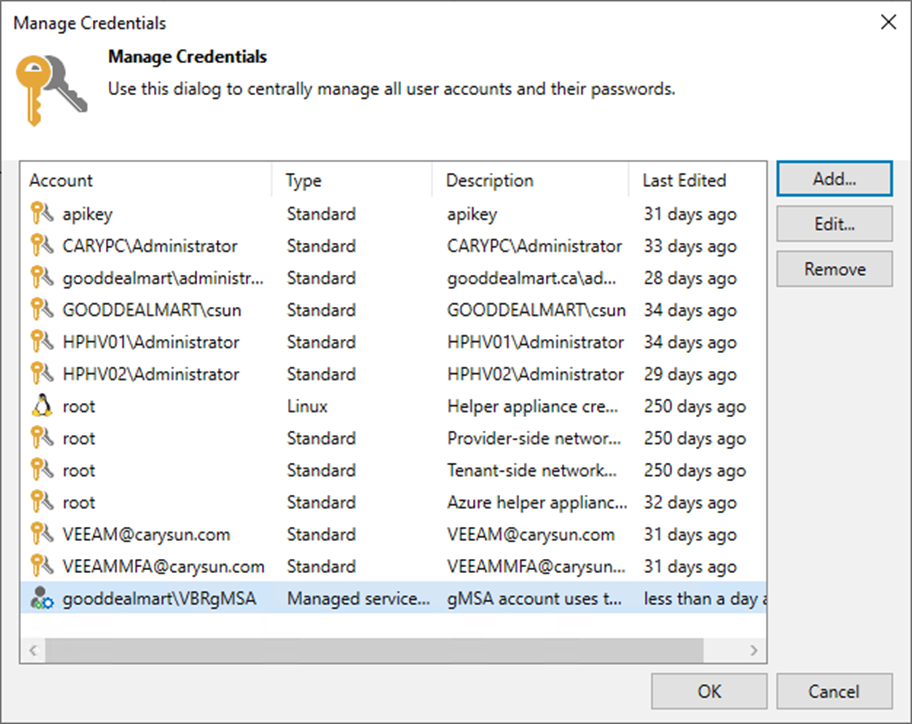

28. Ensure the gMSA account is added to the Manage Credentials page and click OK.

082623 1711 Howtoconfig21 - How to configure Group Managed Service Accounts (gMSA) at Veeam Backup and Replication v12

I hope you enjoy this post.
