You can configure the SendGrid account as an SMTP relay for notification settings if you want Veeam Backup & Replication to send email notifications about backup job results.

You can configure the SendGrid account as an SMTP relay for notification settings if you want Veeam Backup & Replication to send email notifications about backup job results.

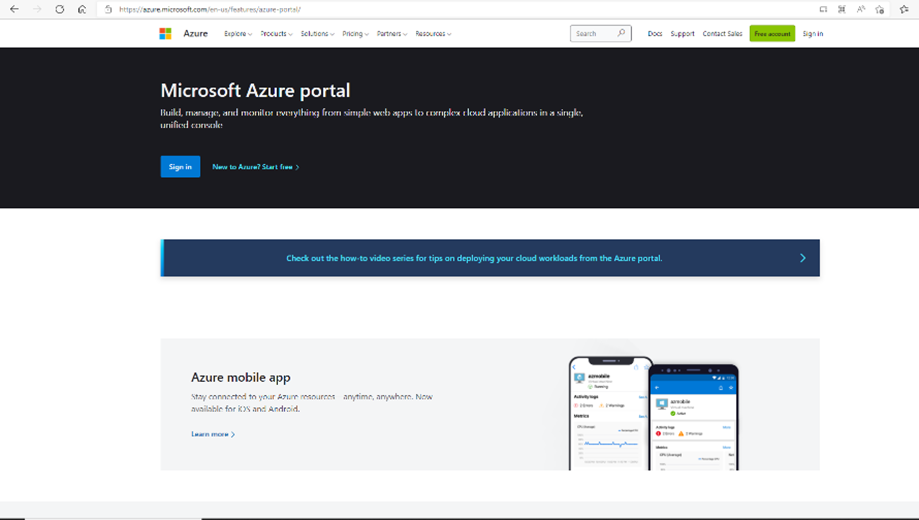

1. Sign in Azure portal with a global admin account.

https://portal.azure.com

082723 1811 Howtoconfig1 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

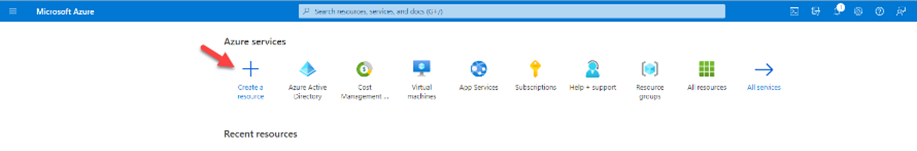

2. On the Azure services page, select +Create resource.

082723 1811 Howtoconfig2 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

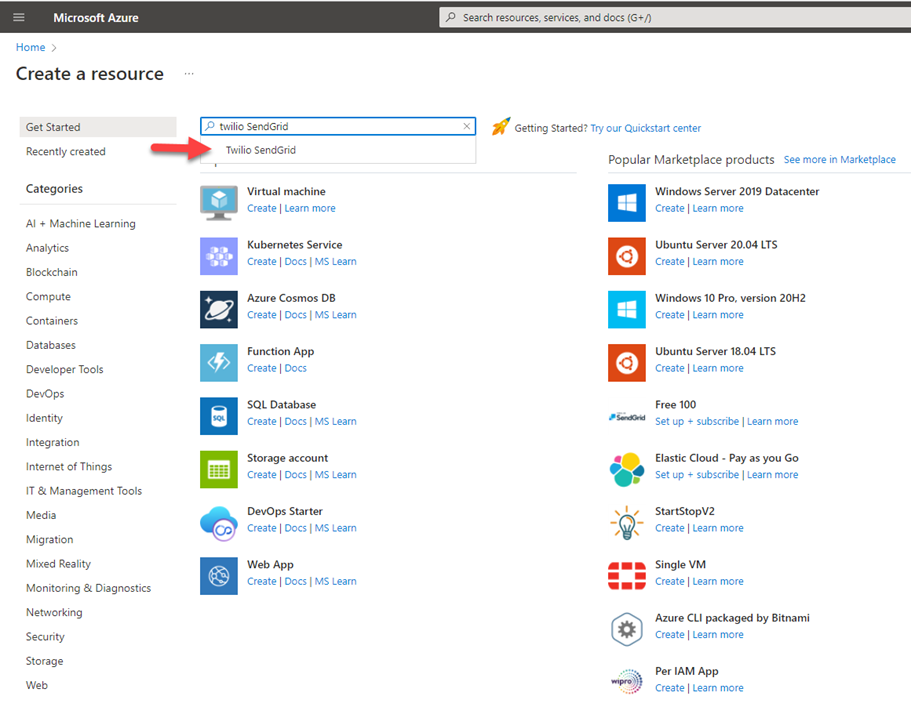

3. On the Create a resource page, search and select Twilio SendGrid.

082723 1811 Howtoconfig3 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

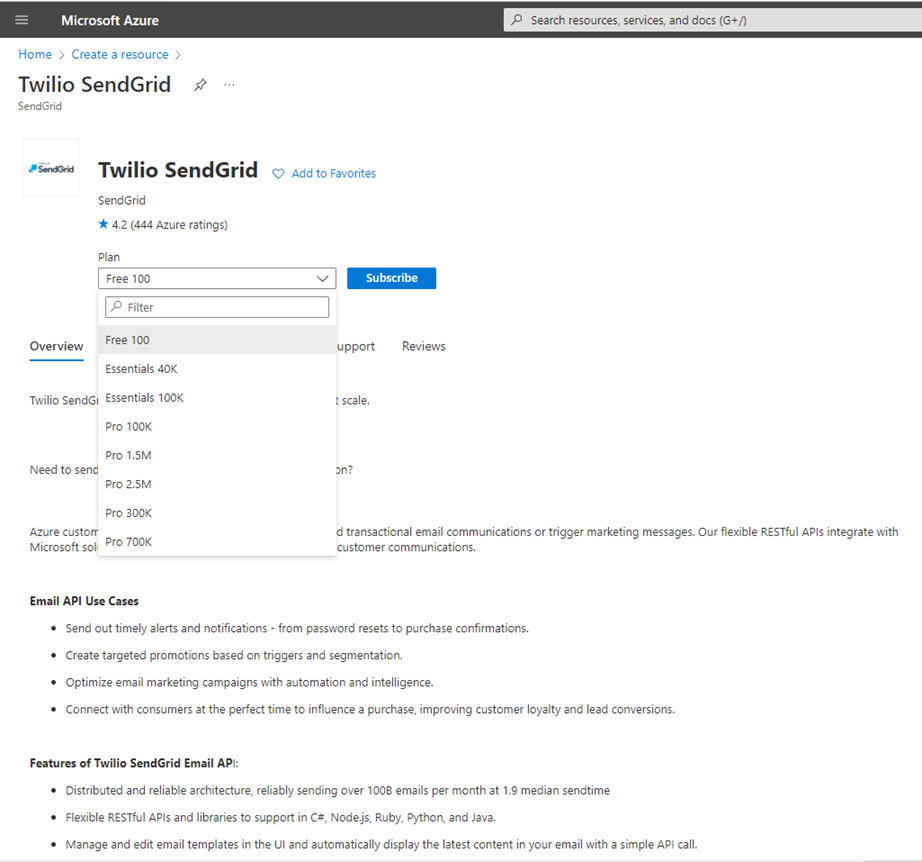

4. On the Create Twilio SendGrid page, select subscribe Plan and click Subscribe.

082723 1811 Howtoconfig4 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

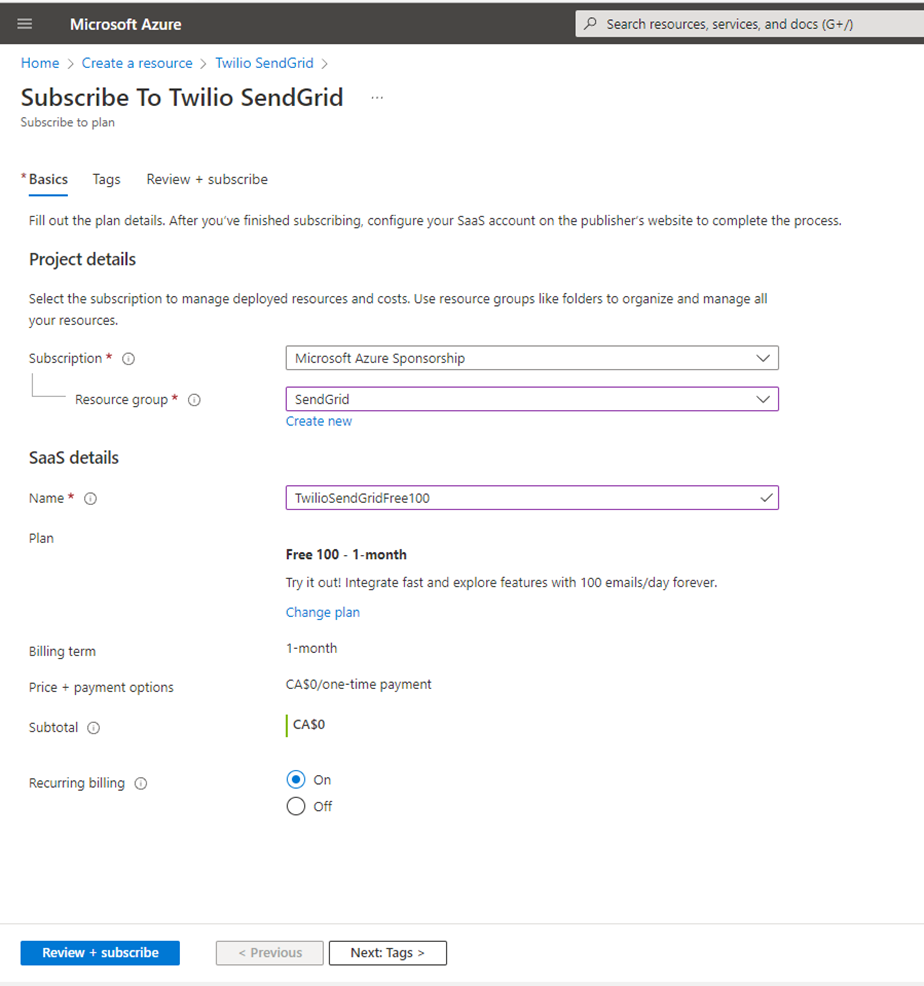

5. On the Create SendGrid Account page, select Basics, file in all the information and then click Next: Tags.

082723 1811 Howtoconfig5 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

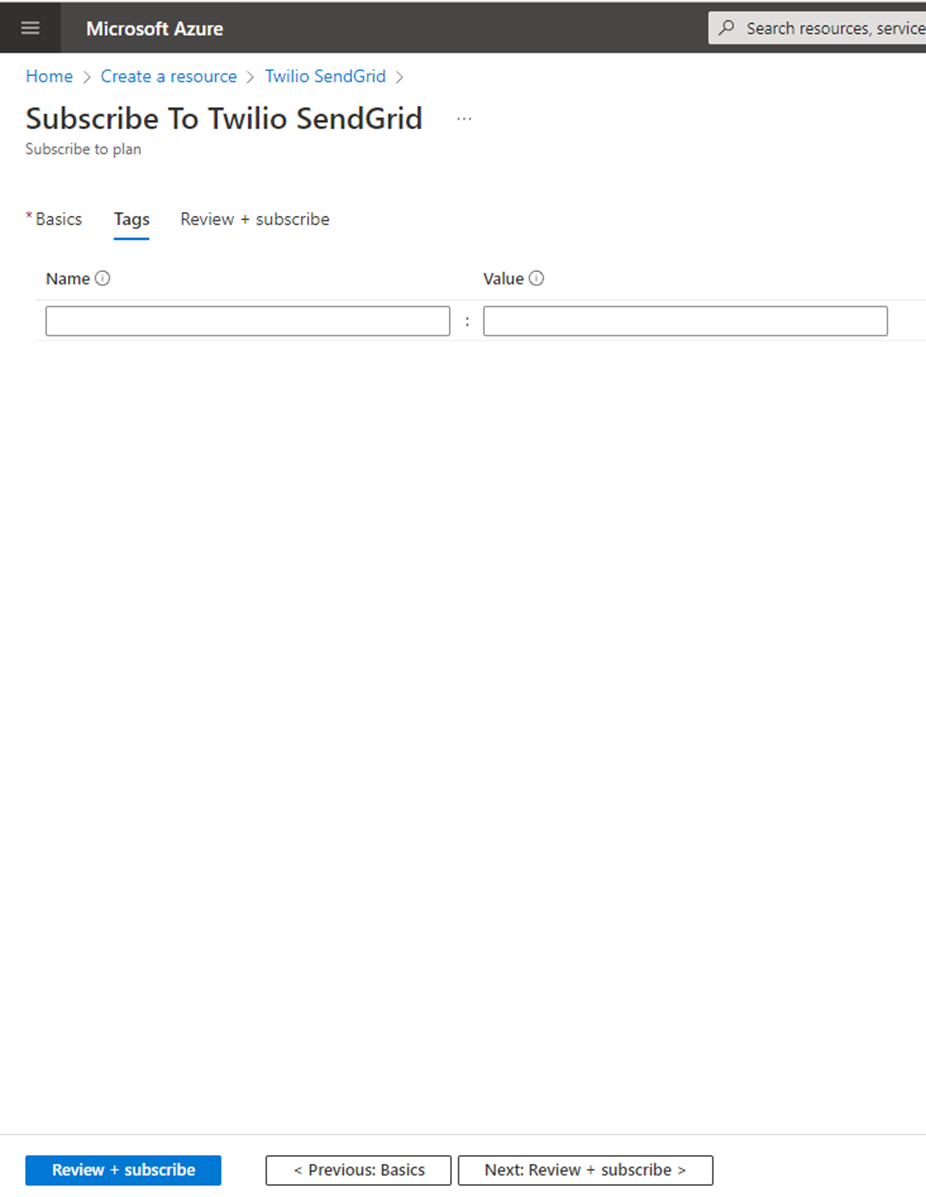

6. On the Tags page, click Next: Review + subscribe.

082723 1811 Howtoconfig6 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

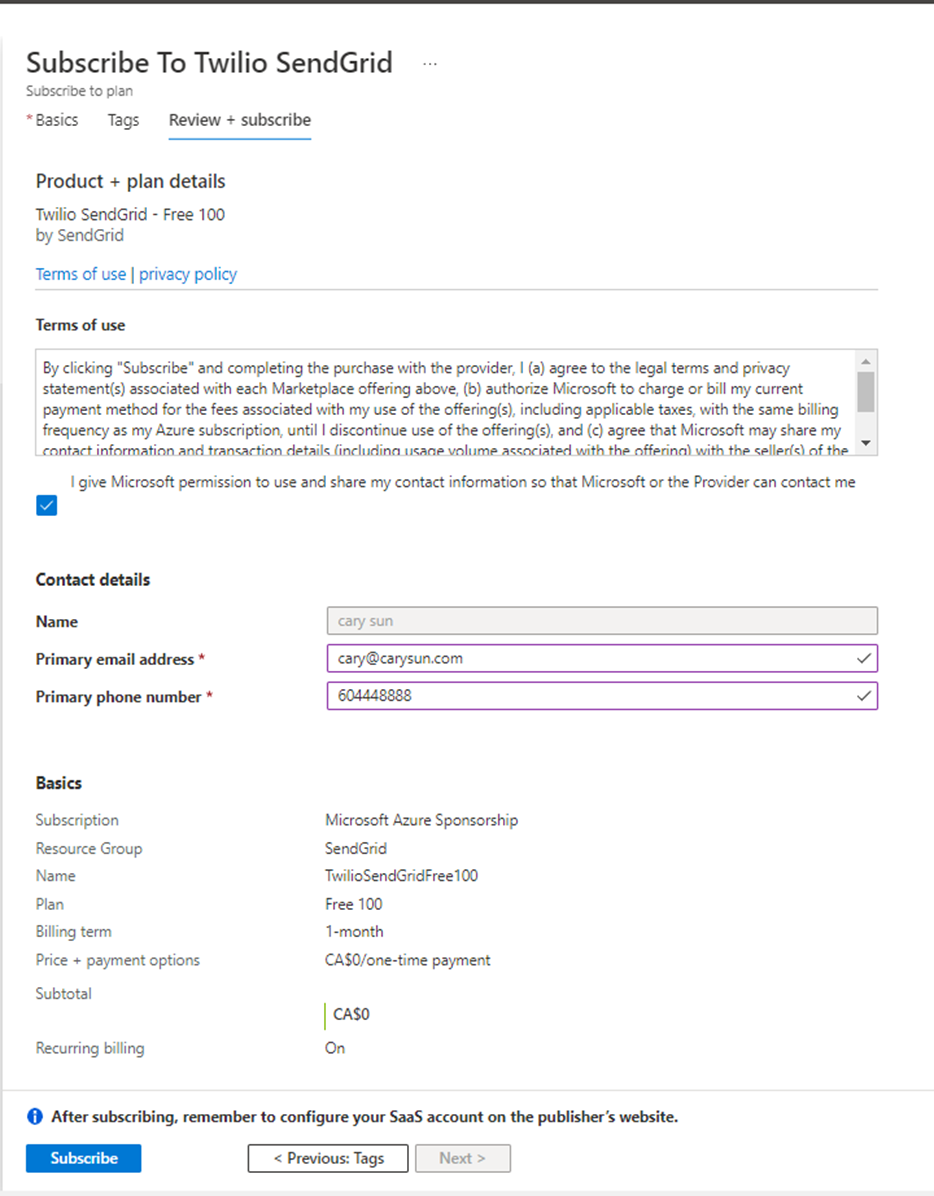

7. On the Review + subscribe page, select I give Microsoft permission to use and share my contact information so that Microsoft or the provider can contact me.

082723 1811 Howtoconfig7 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

8. On the Configure SaaS account page, click Configure account now.

082723 1811 Howtoconfig8 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

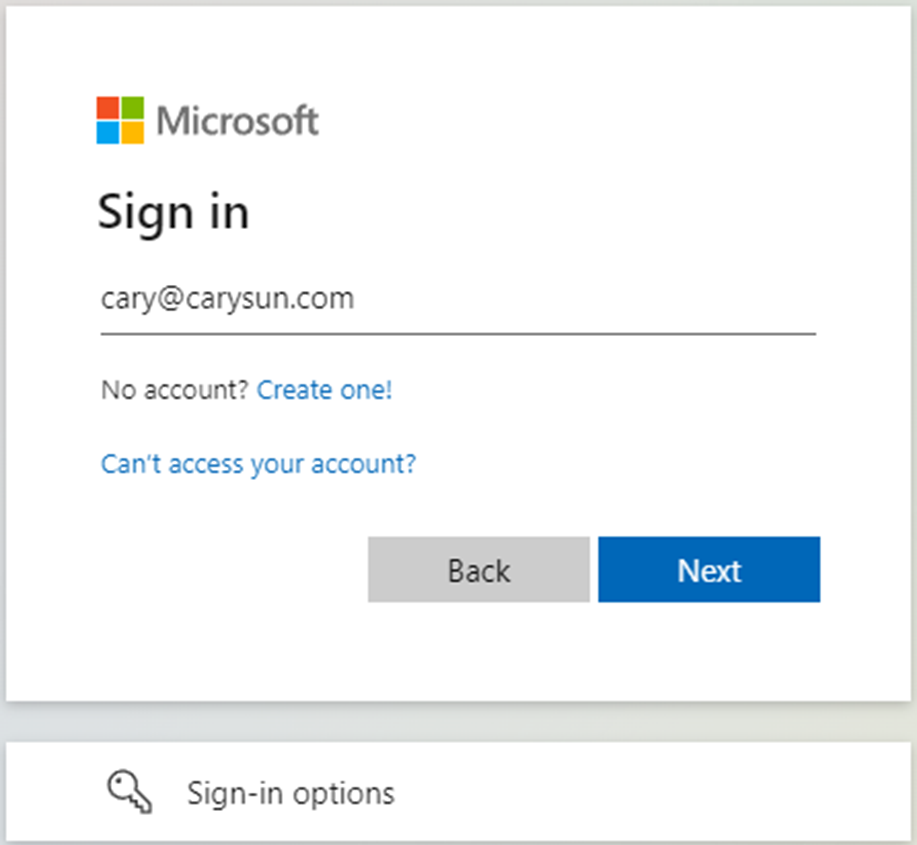

9. On the Microsoft Sign-in page, enter your account name and click Next.

082723 1811 Howtoconfig9 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

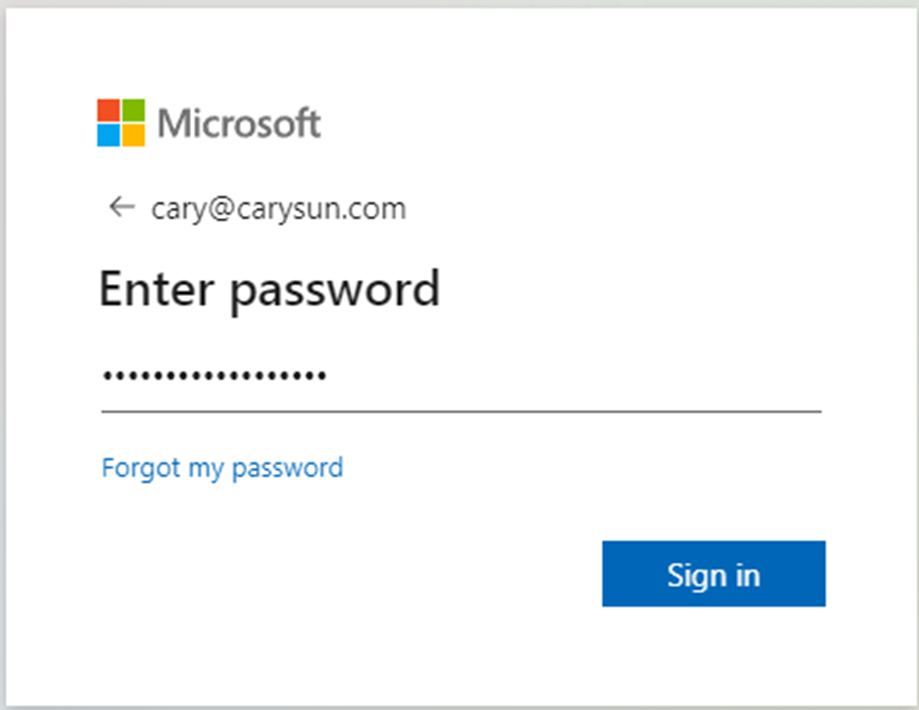

10. Enter a password, and click Sign in.

082723 1811 Howtoconfig10 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

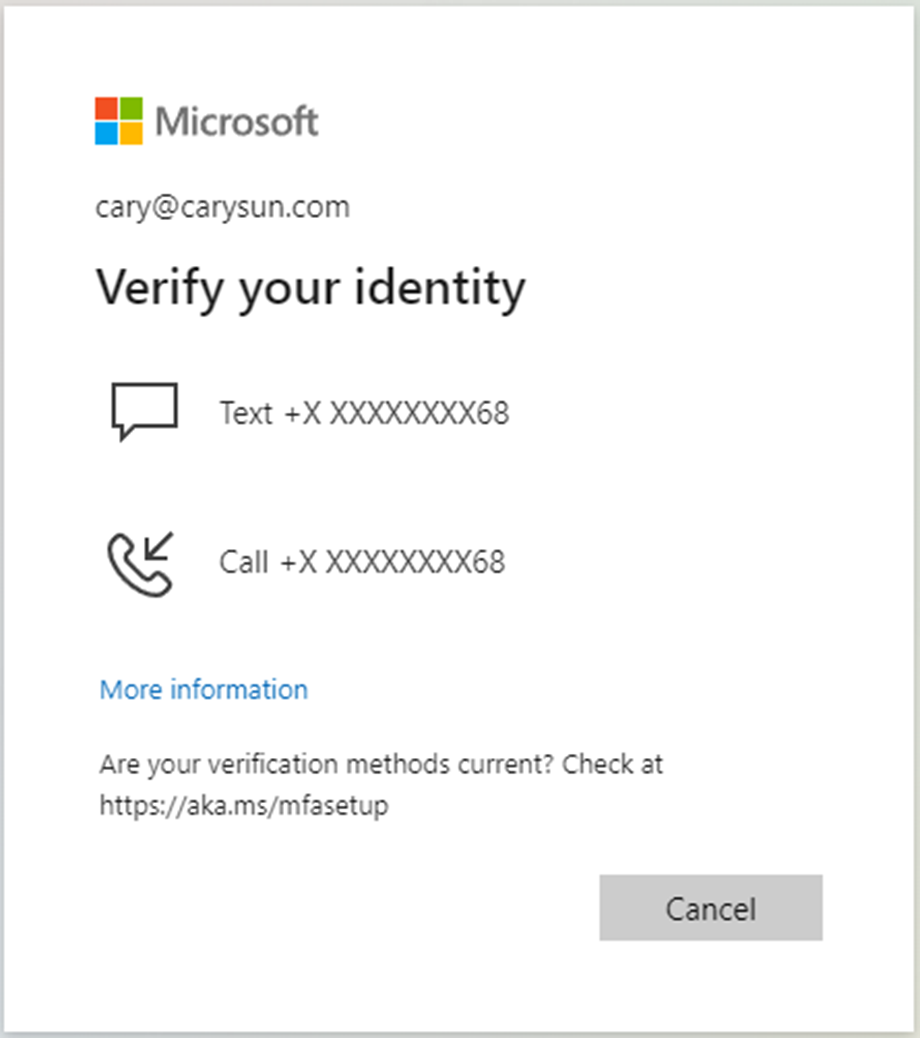

11. On the Verify your identity page, select the identity method.

082723 1811 Howtoconfig11 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

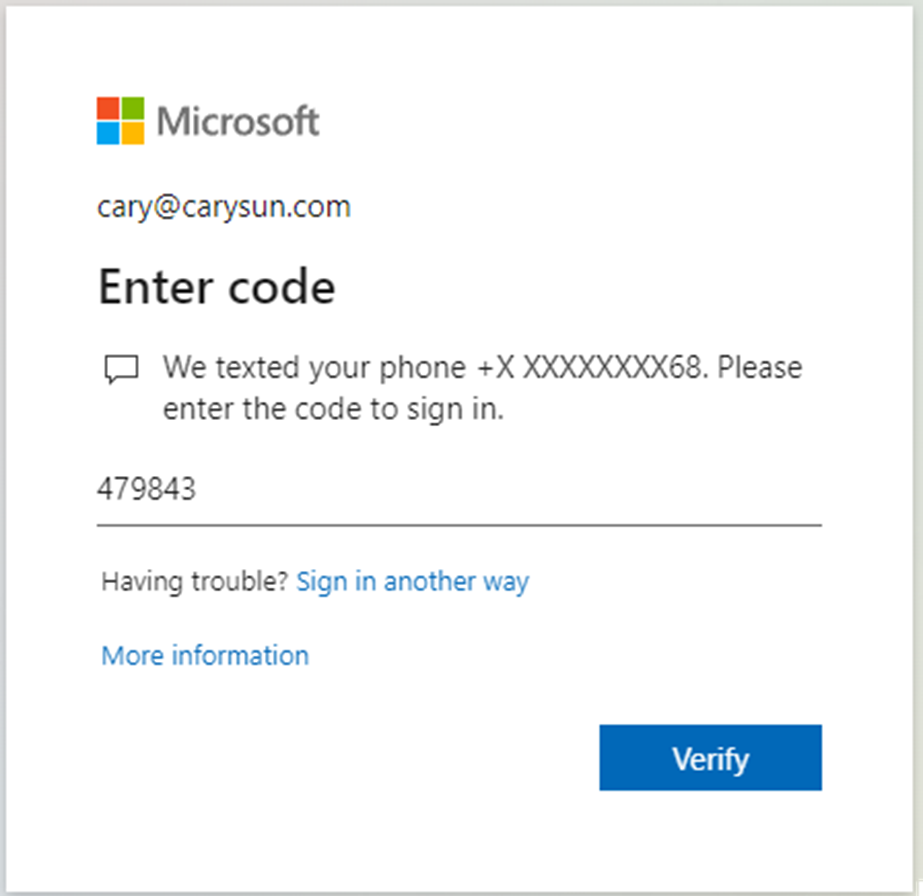

12. Enter the code and click Verify.

082723 1811 Howtoconfig12 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

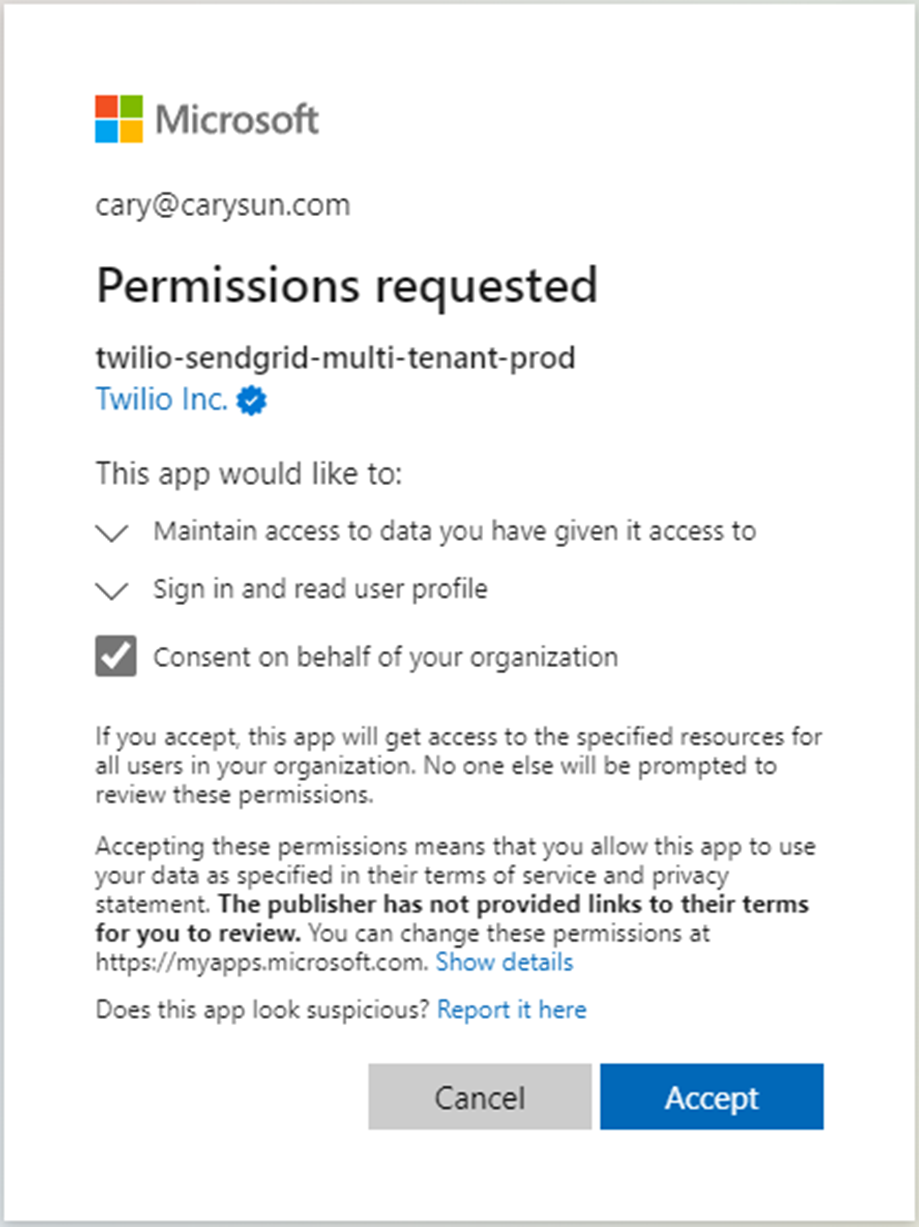

13. On the Permissions requested page, select Consent on behalf of your organization and click Accept.

082723 1811 Howtoconfig13 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

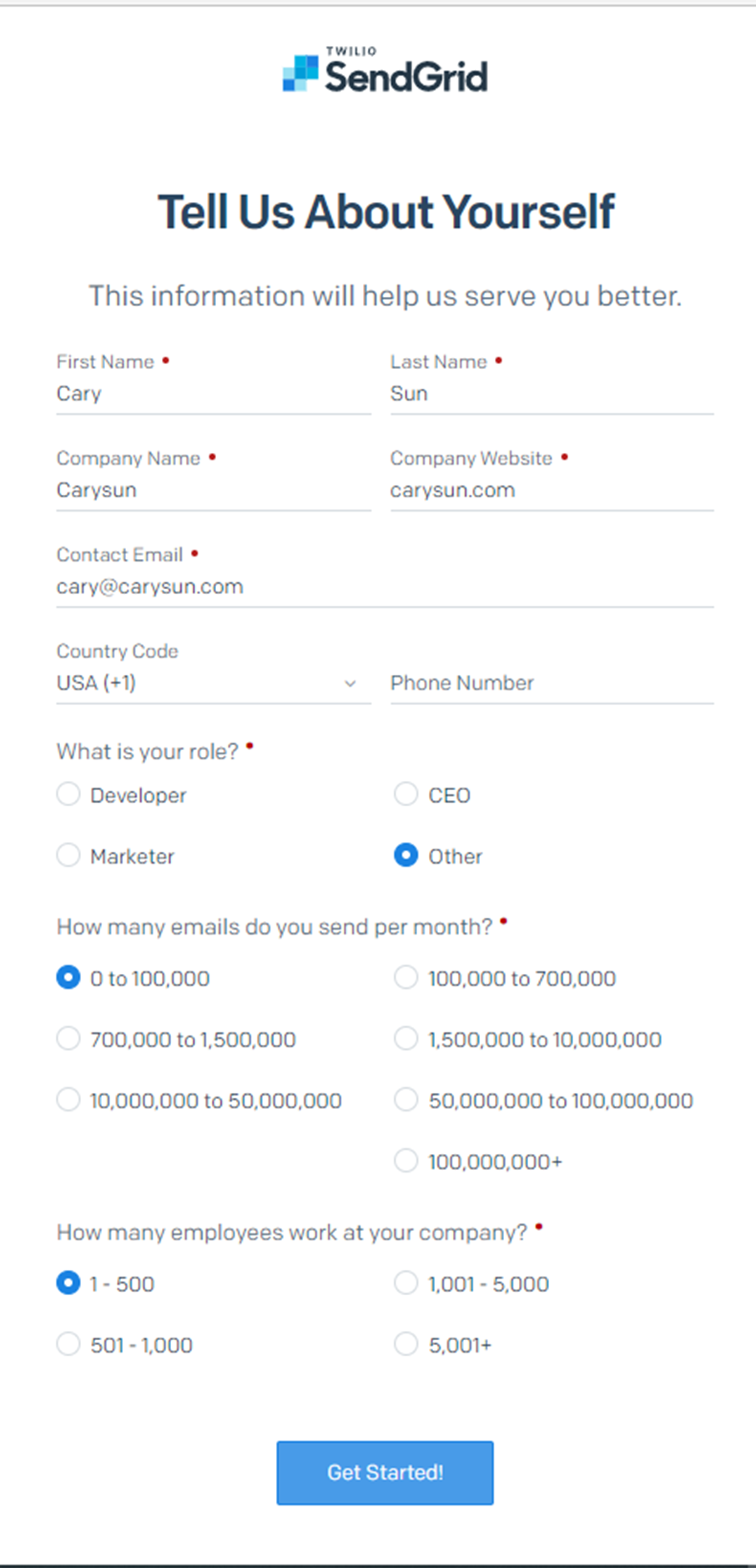

14. Fill in the information and click Get Started!

082723 1811 Howtoconfig14 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

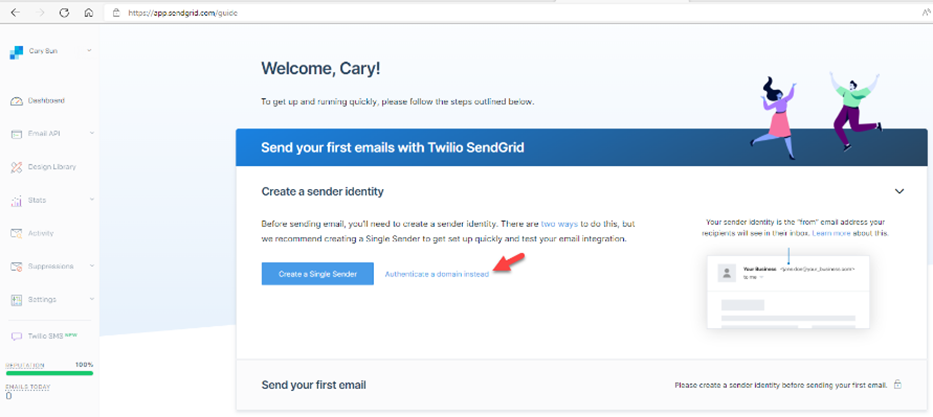

15. On the SendGrid Welcome page, select Authentication a domain instead.

082723 1811 Howtoconfig15 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

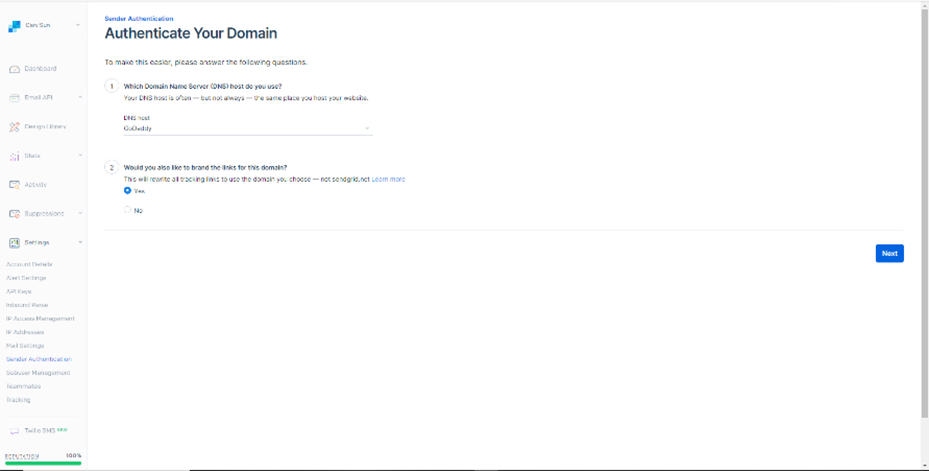

16. On the Authenticate Your Domain page, select your DNS host, select Yes to rewrite all tracking links to use your chosen domain –not sendgrid.net, and click Next.

082723 1811 Howtoconfig16 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

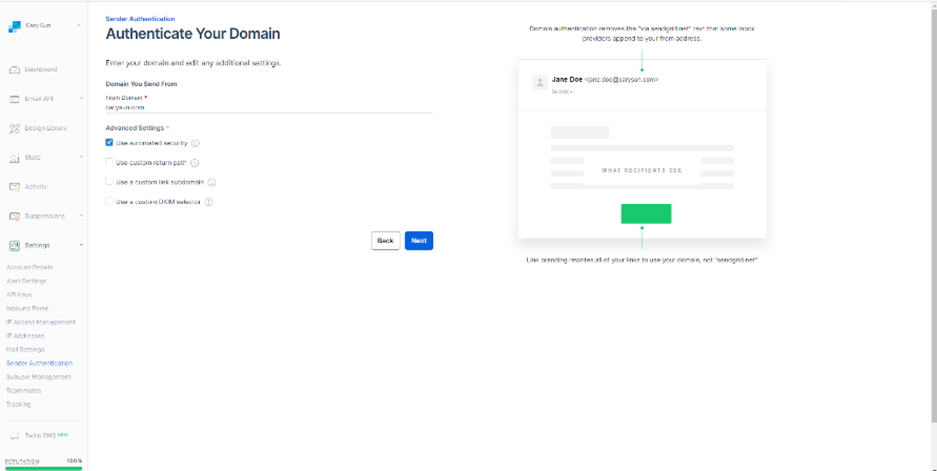

17. Enter your domain name on the Domain You Send From page and click Next.

082723 1811 Howtoconfig17 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

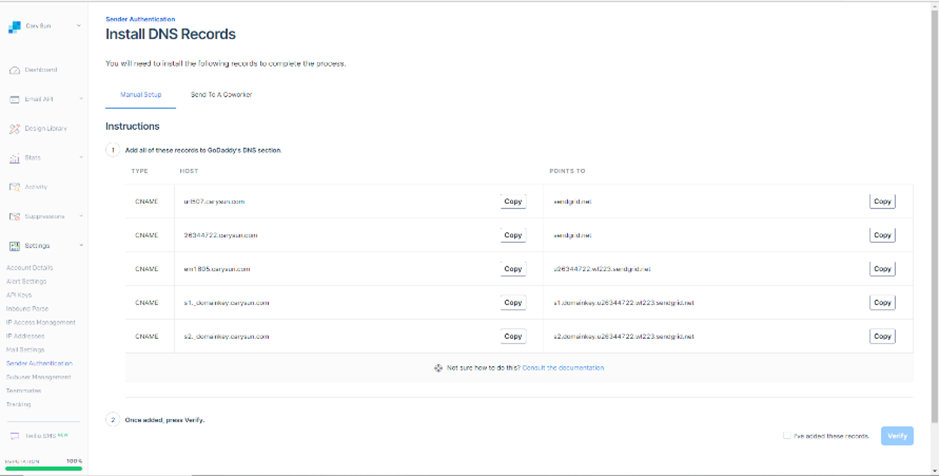

18. On the Install DNS Records page, copy and add all these records to your External DNS records.

082723 1811 Howtoconfig18 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

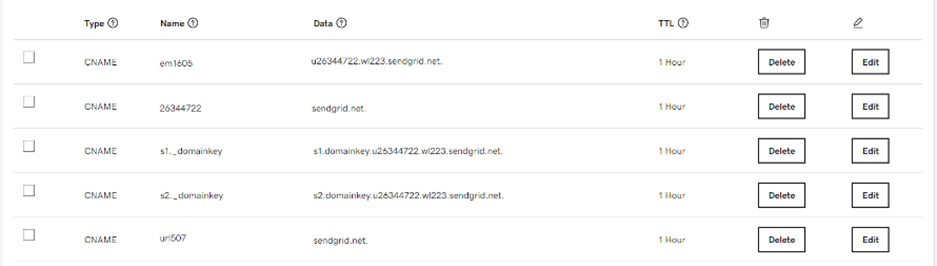

19. In my case, add them to GoDaddy.

082723 1811 Howtoconfig19 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

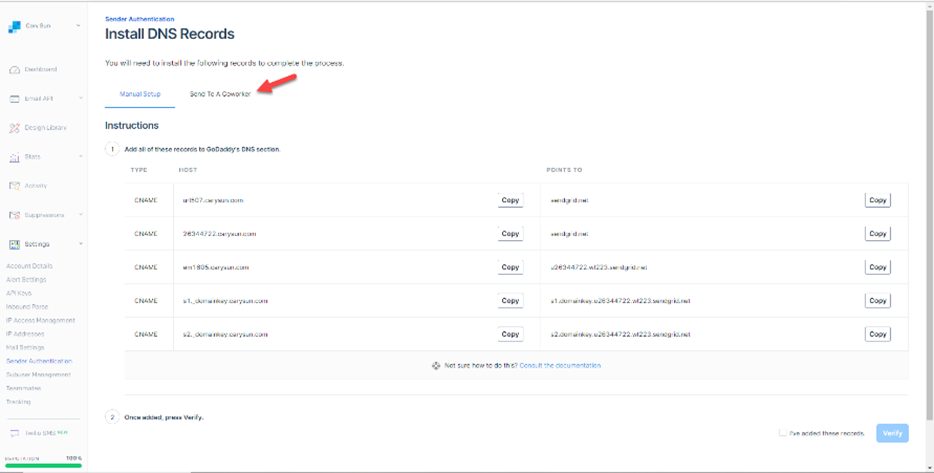

20. If you cannot add DNS records, select Send To A Coworker.

082723 1811 Howtoconfig20 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

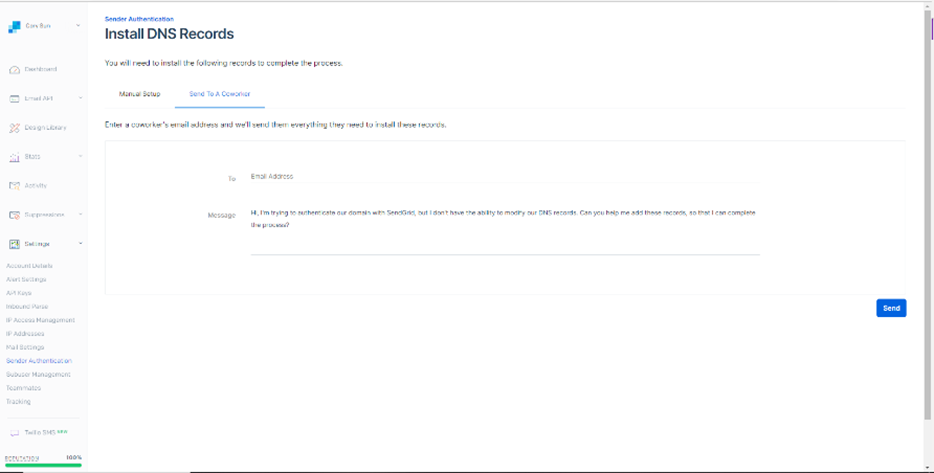

21. Type your coworker’s email address and click Send. Ask your coworker to add these DNS records.

082723 1811 Howtoconfig21 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

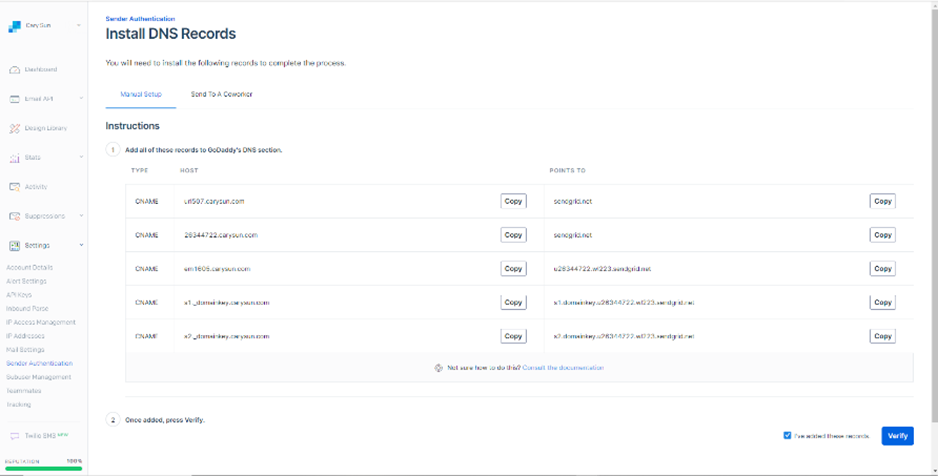

22. On the Install DNS Records page, select I’ve added these records, click Verify.

082723 1811 Howtoconfig22 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

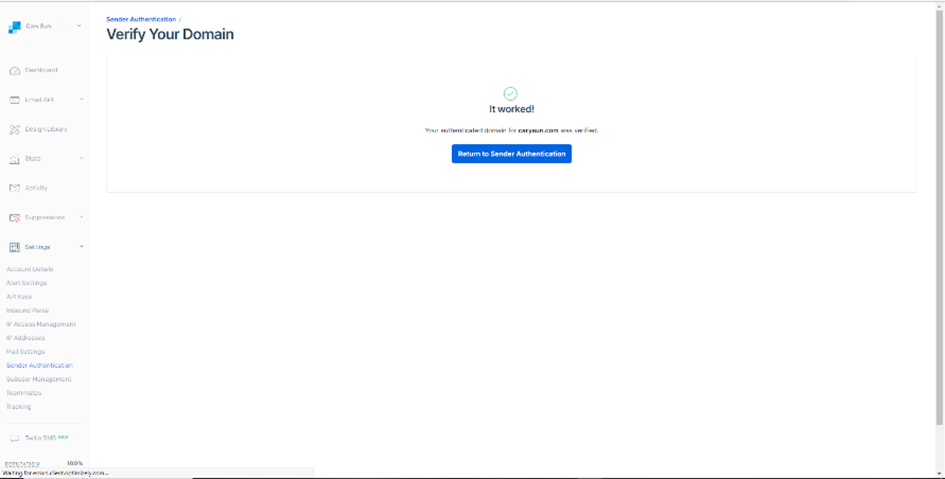

23. On the Verify Your Domain page, make sure your authenticated domain for the domain name was verified without issues and click Return to Sender Authentication.

082723 1811 Howtoconfig23 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

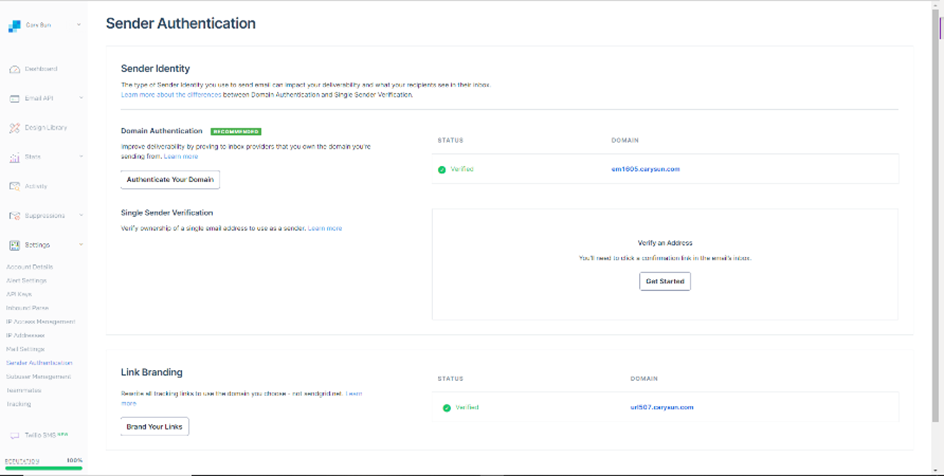

24. On the Sender Authentication page, ensure Domain Authentication and link Branding status is Verified.

082723 1811 Howtoconfig24 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

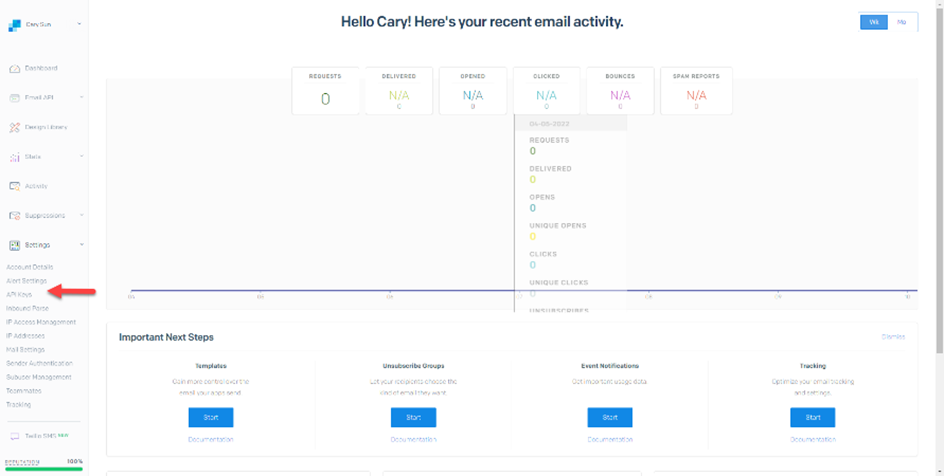

25. Under the Settings page, select API Keys.

082723 1811 Howtoconfig25 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

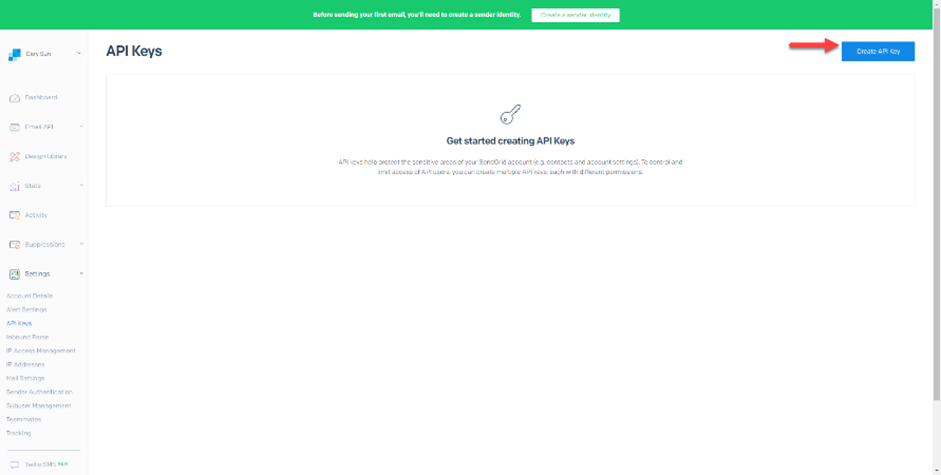

26. On the API Keys page, select Create API Key.

082723 1811 Howtoconfig26 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

27. On the Create API Key page, type the API Key Name and select Restricted Access as API Key Permissions.

082723 1811 Howtoconfig27 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

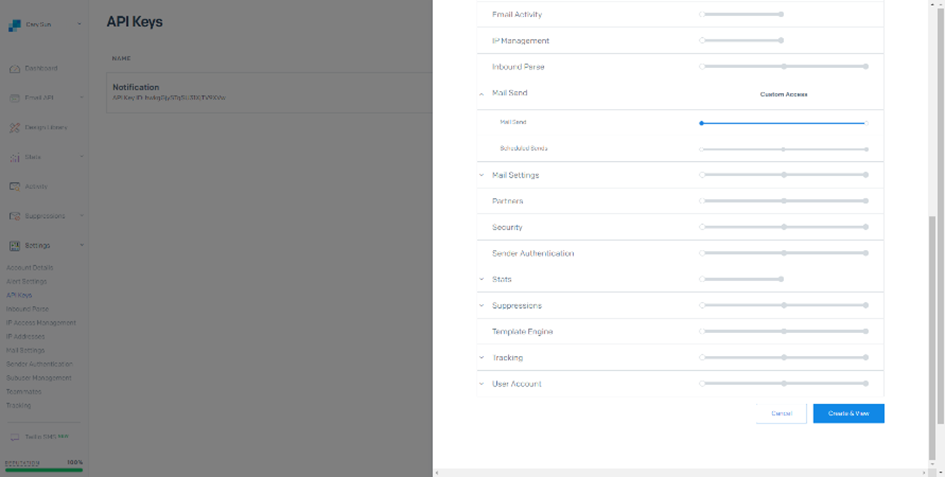

28. Enable Mail Activity as Access Details, click Create & View.

082723 1811 Howtoconfig28 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

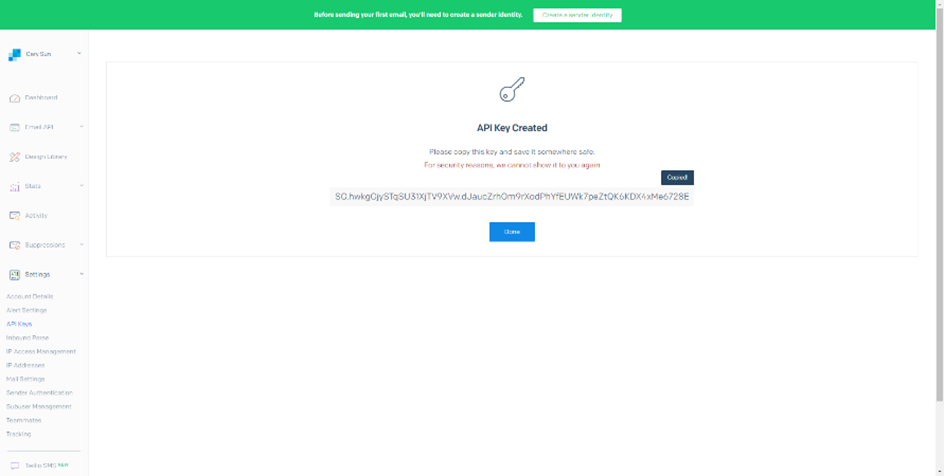

29. Copy the key on the API Key Created page, save it, and click Done.

082723 1811 Howtoconfig29 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

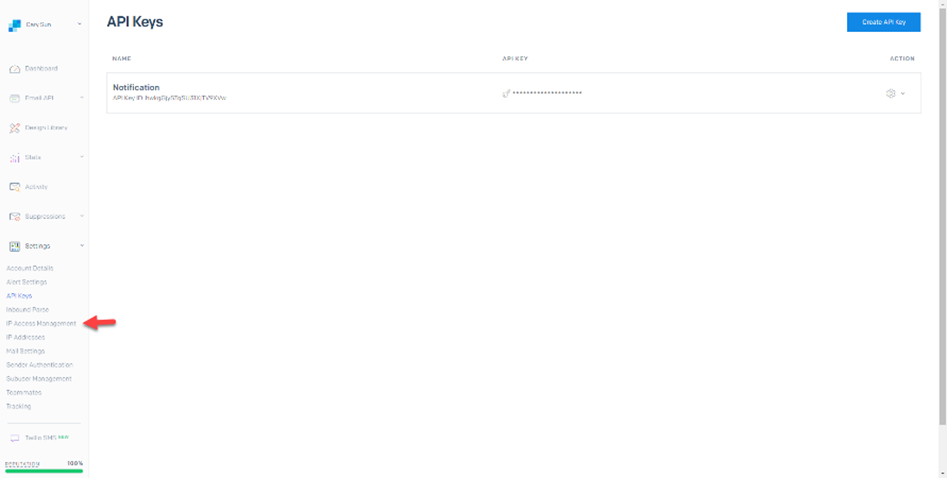

30. Under settings, select IP Access Management.

082723 1811 Howtoconfig30 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

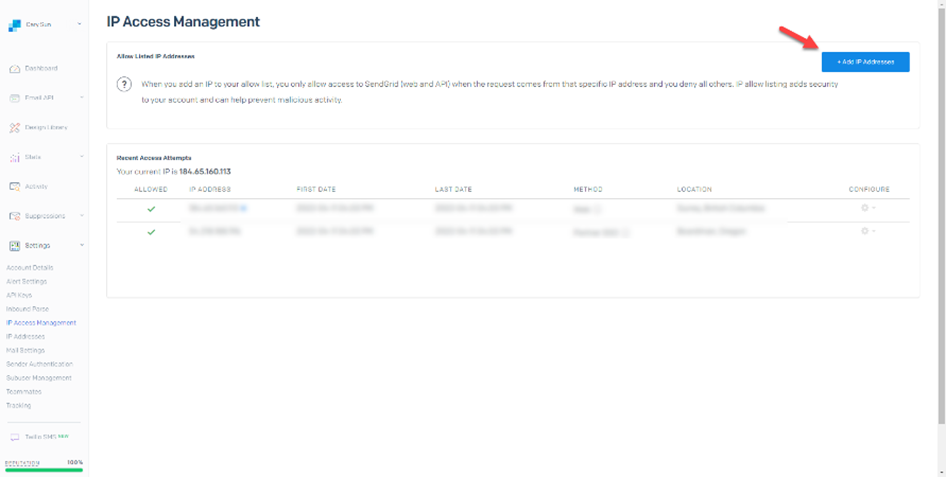

31. On the IP Access Management page, click +Add UP Address.

082723 1811 Howtoconfig31 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

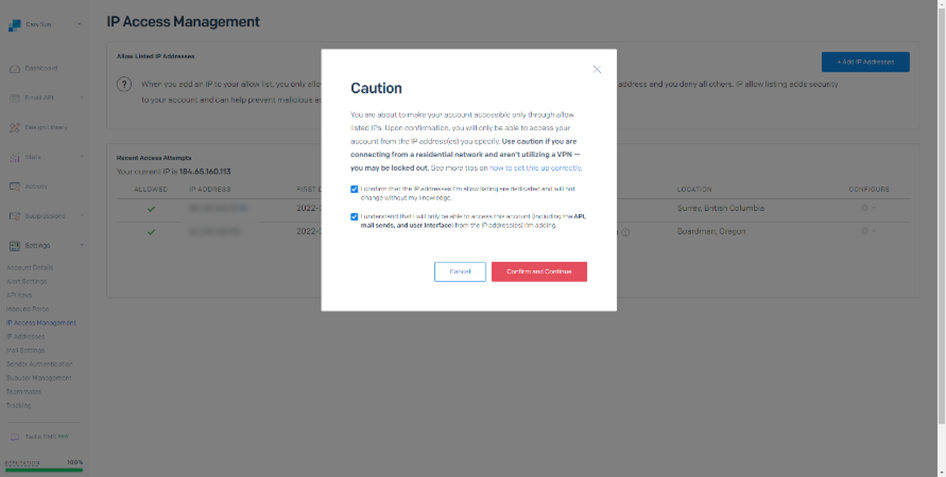

32. On the Caution page, select I confirm that the IP addresses I’m allow listing are dedicated and will not change without my knowledge.

33. Select I understand that I will only be able to access this account (including the API, mail sends, and user interface) from the IP address(es) I’m adding.

34. Click Confirm and Continue.

082723 1811 Howtoconfig32 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

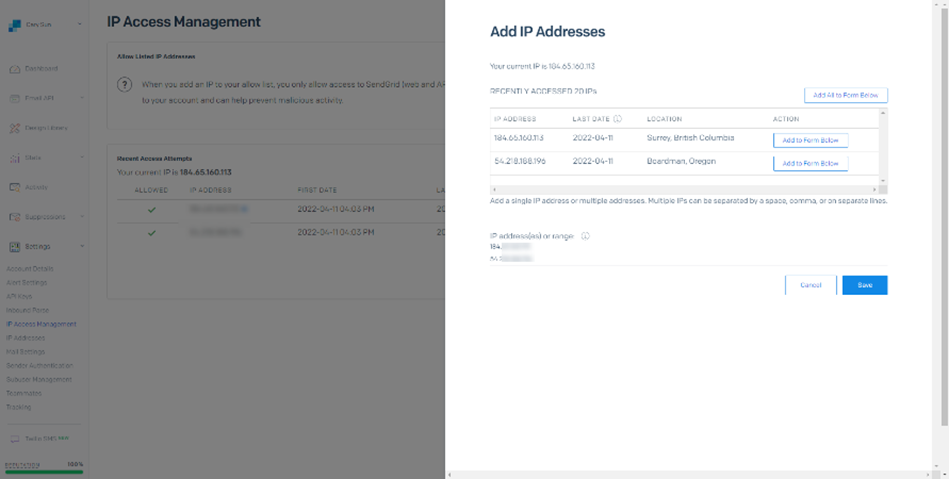

35. On the Add IP Addresses page, add IP addresses or ranges you would like to allow access to SendGrid. Make sure to include the public IP address of the Veeam management server and click Save.

082723 1811 Howtoconfig33 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

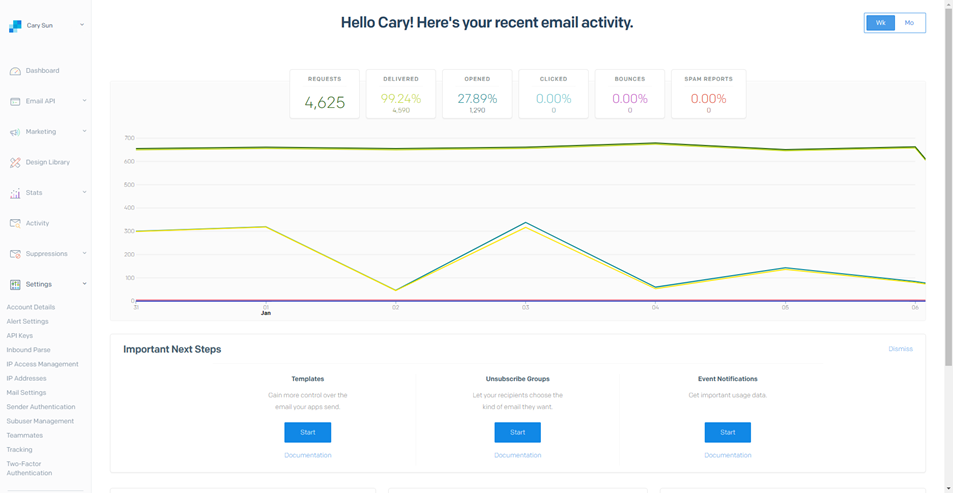

36. On the Home page, expand Settings and click Sender Authentication.

082723 1811 Howtoconfig34 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

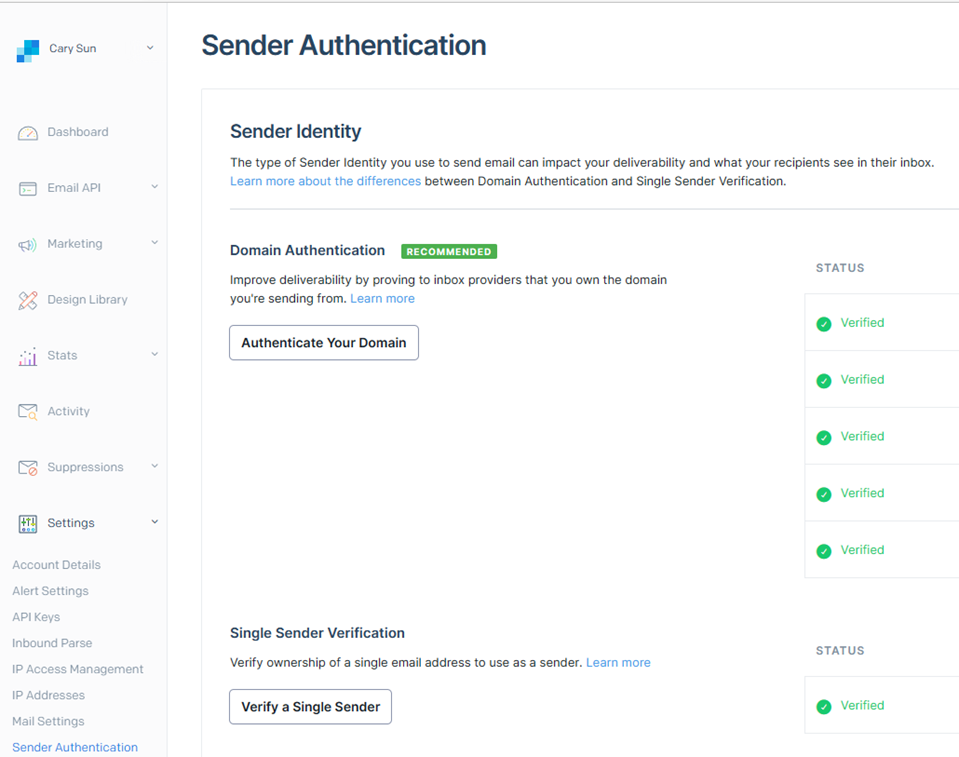

37. On the Sender Authentication page, click Authenticate Your Domain.

082723 1811 Howtoconfig35 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

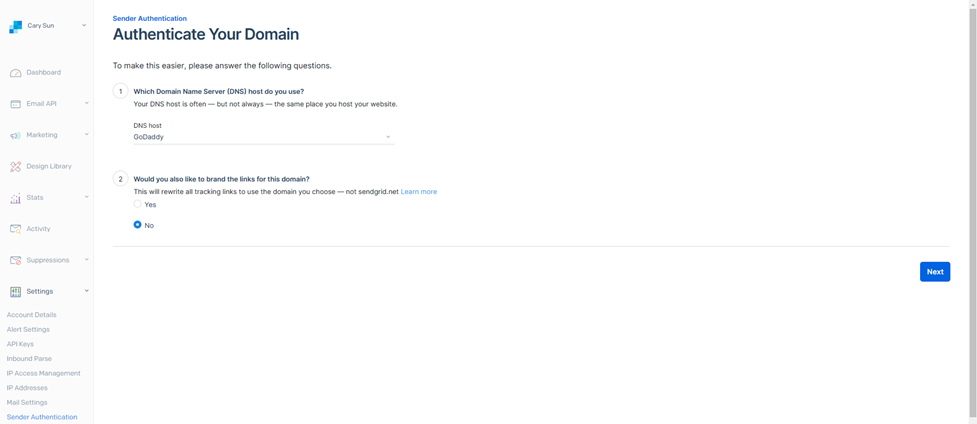

38. Specify your DNS host from the drop-down list on the Authentication Your Domain page.

39. Select No Would you also like to brand the links for this domain?

40. Click Next.

082723 1811 Howtoconfig36 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

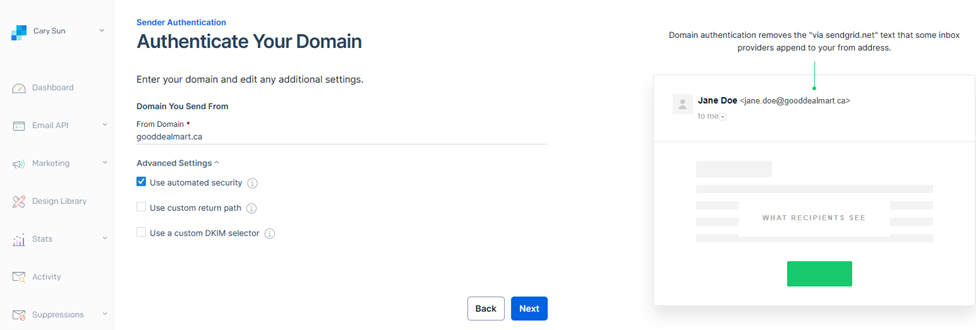

41. On the Domain You send From page, specify your FQDN name, and click Next.

082723 1811 Howtoconfig37 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

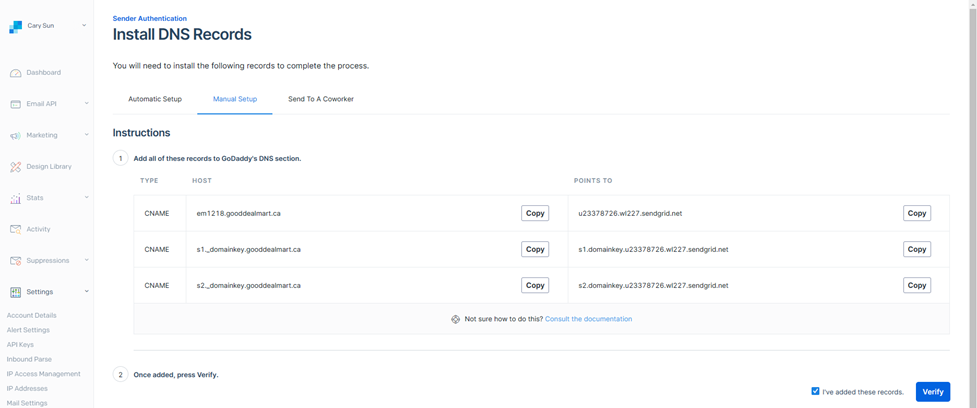

42. Add those CNAME records to your domain on the Install DNS Records page, select I’ve added these records, and click Verify.

082723 1811 Howtoconfig38 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

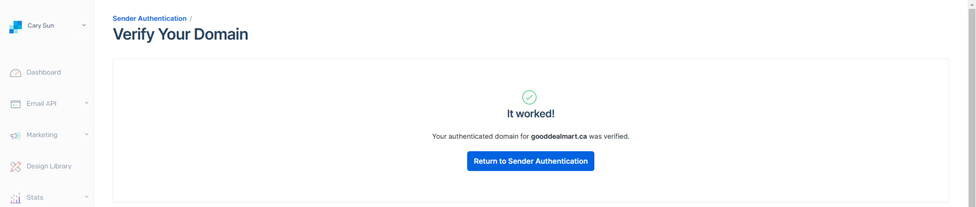

43. On the Verify Your Domain page, ensure verification is successful and click Return to Send Authentication.

082723 1811 Howtoconfig39 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

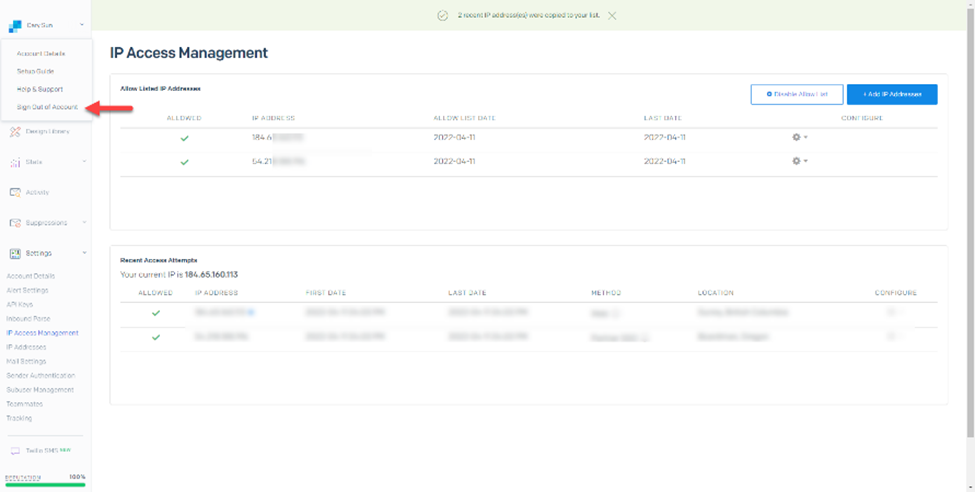

44. Sign Out of Account.

082723 1811 Howtoconfig40 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

45. Login to the Veeam Backup and replication manager server.

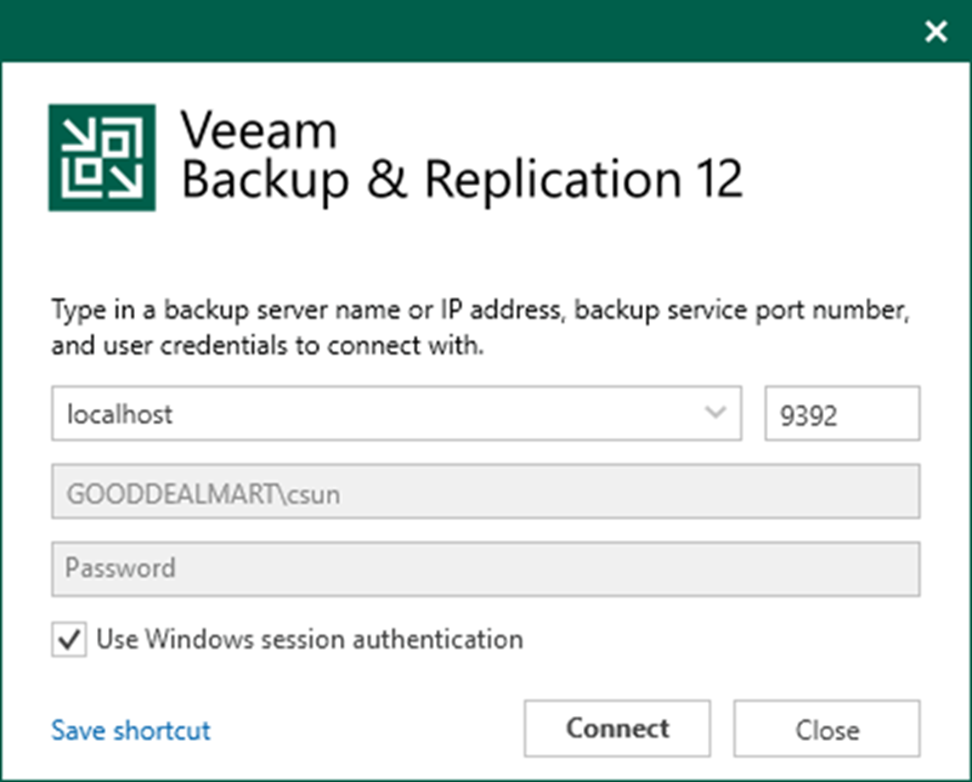

46. Open the Veeam Backup & Replication Console and click Connect.

082723 1811 Howtoconfig41 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

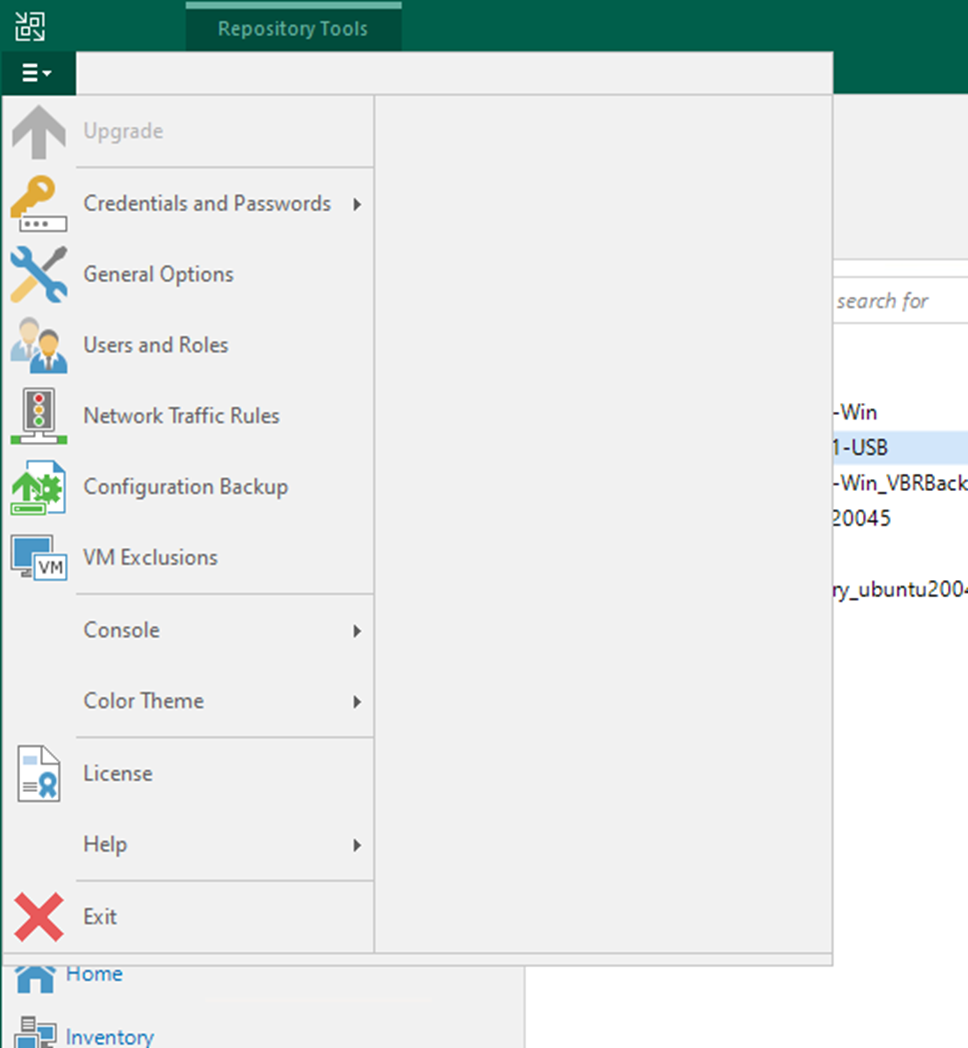

47. Select General Options from the main menu.

082723 1811 Howtoconfig42 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

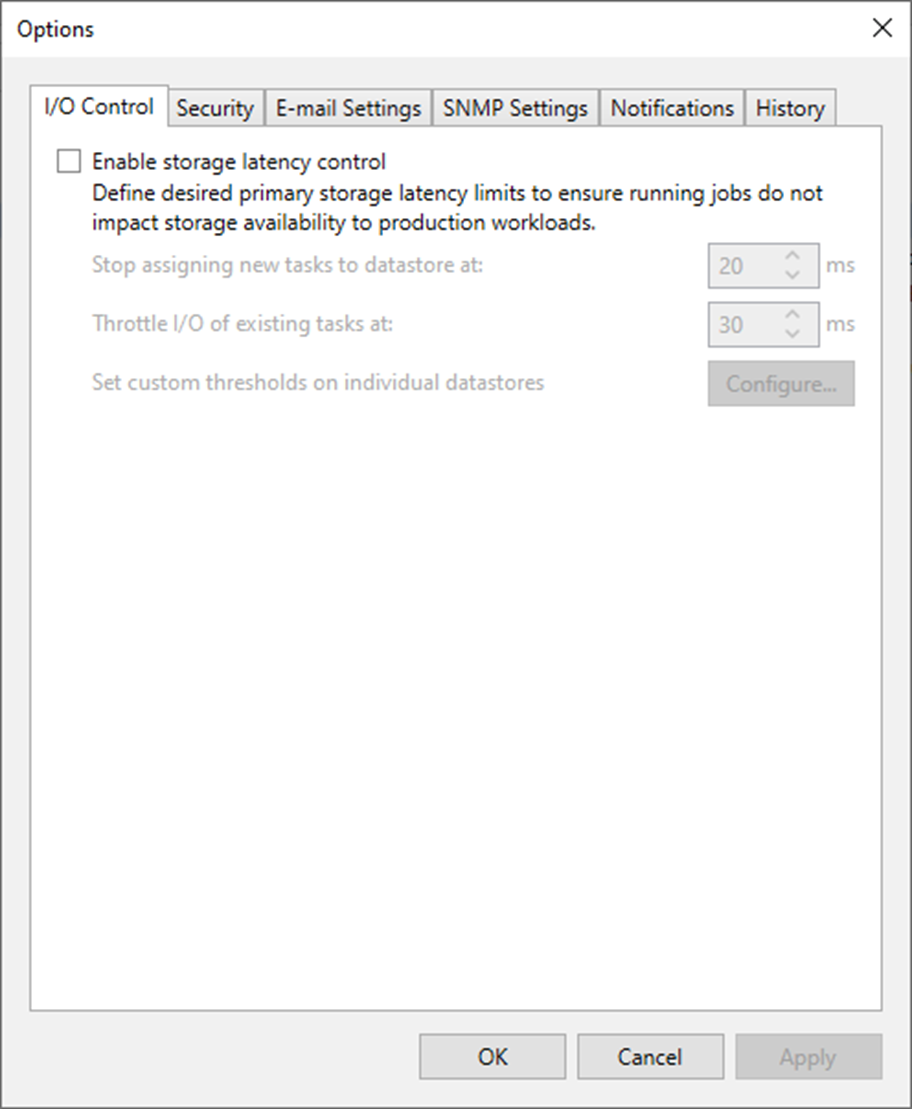

48. On the Options page, select Email Settings.

082723 1811 Howtoconfig43 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

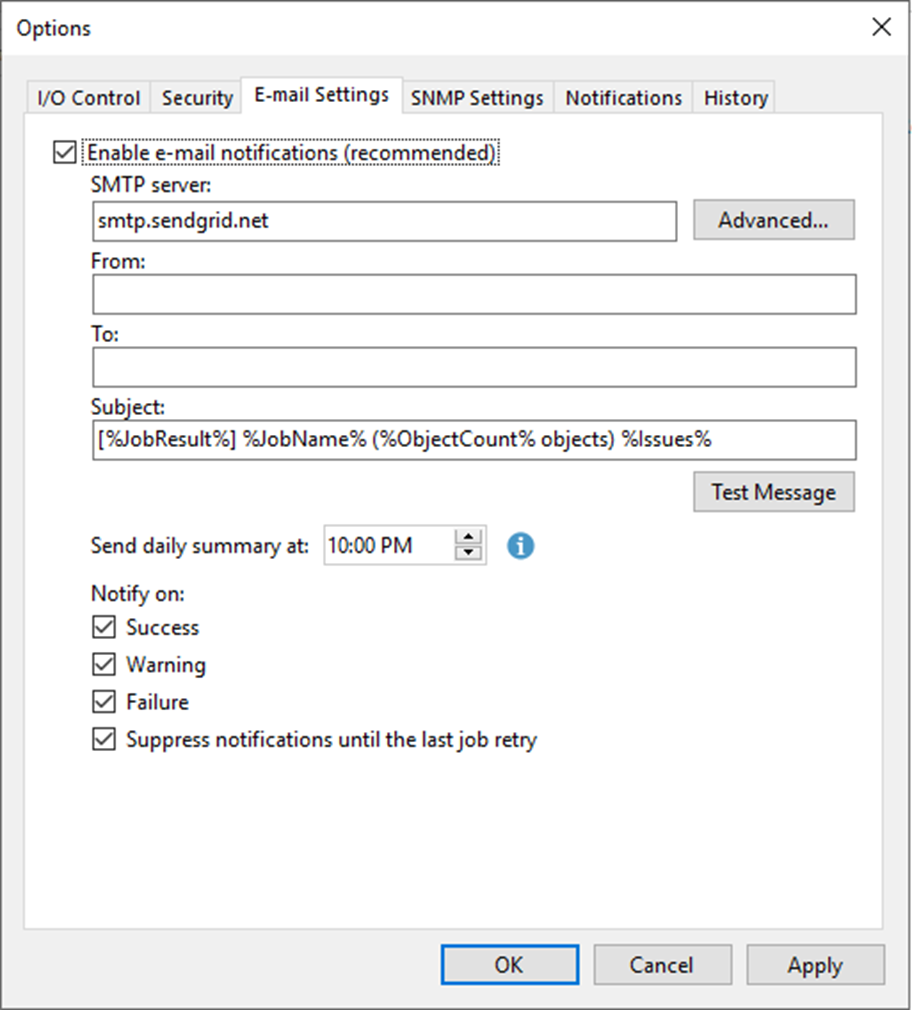

49. Select Enable e-mail notification (recommend) on the Email Settings page.

50. In the SMTP server field, enter smtp.sendgrid.net, and click Advanced.

082723 1811 Howtoconfig44 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

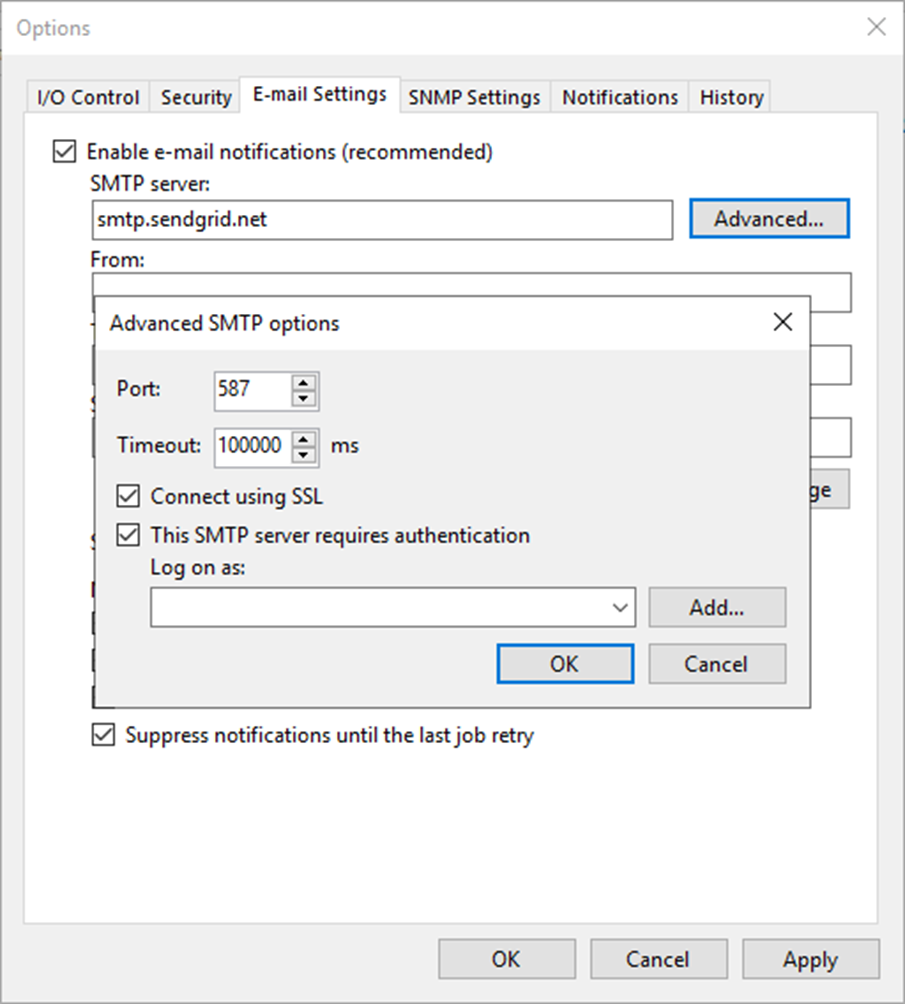

51. On the Advanced SMTP options page, type 587 in the Port field.

52. Use 100000 milliseconds as the Timeout.

53. Select Connect using SSL.

54. Select This SMTP server requires authentication.

55. Click Add to add a credential as Log on as account.

082723 1811 Howtoconfig45 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

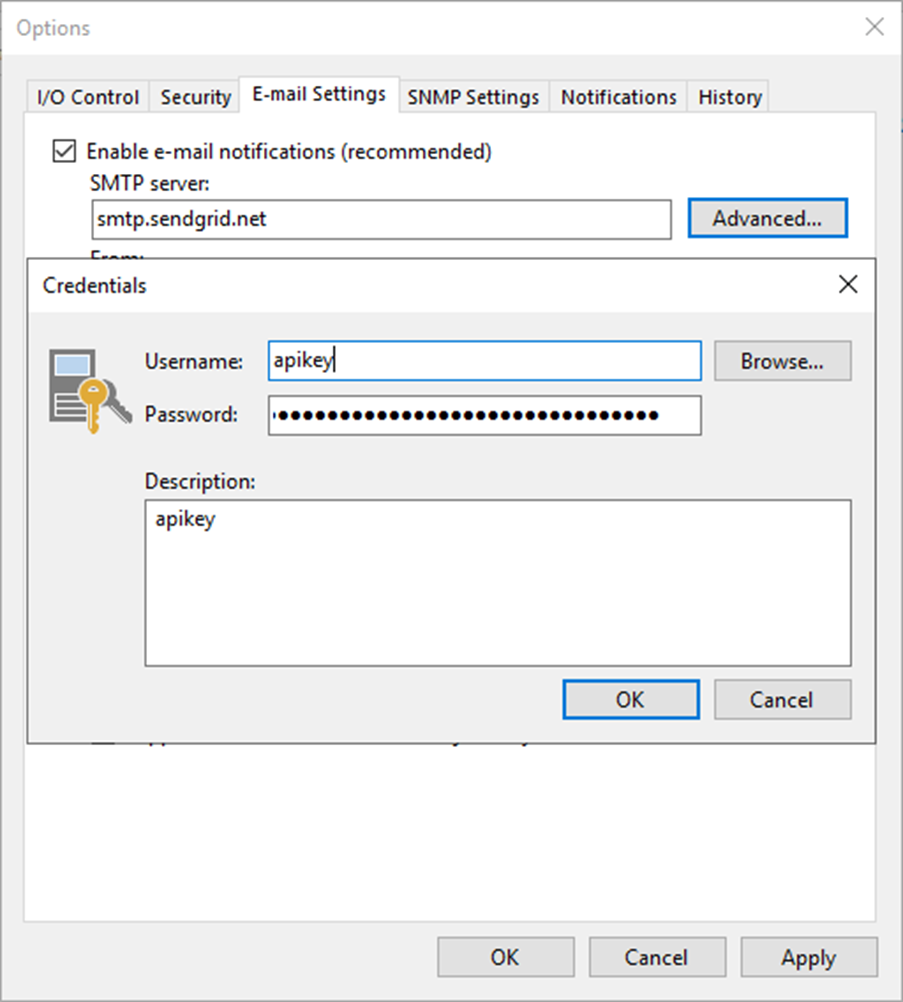

56. Type apikey as Username.

57. Paste the apikey number as a password.

58. Click OK.

082723 1811 Howtoconfig46 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

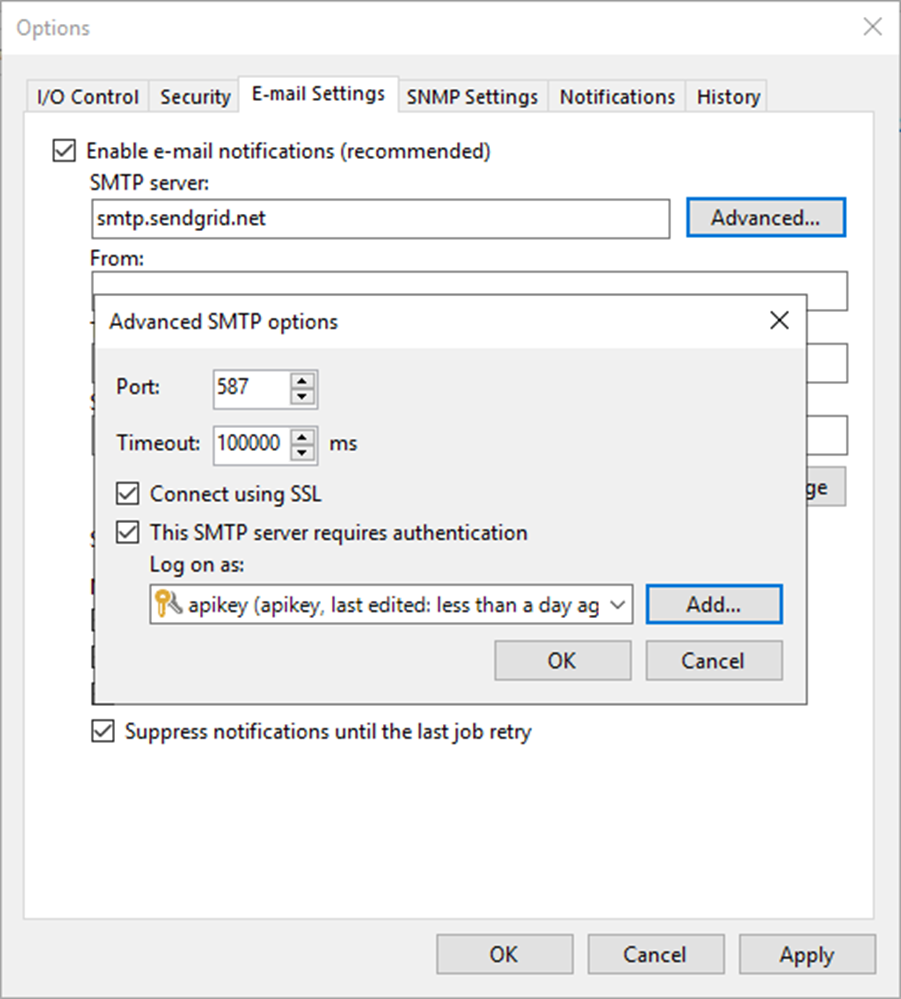

59. On the Advanced SMTP options page, click OK.

082723 1811 Howtoconfig47 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

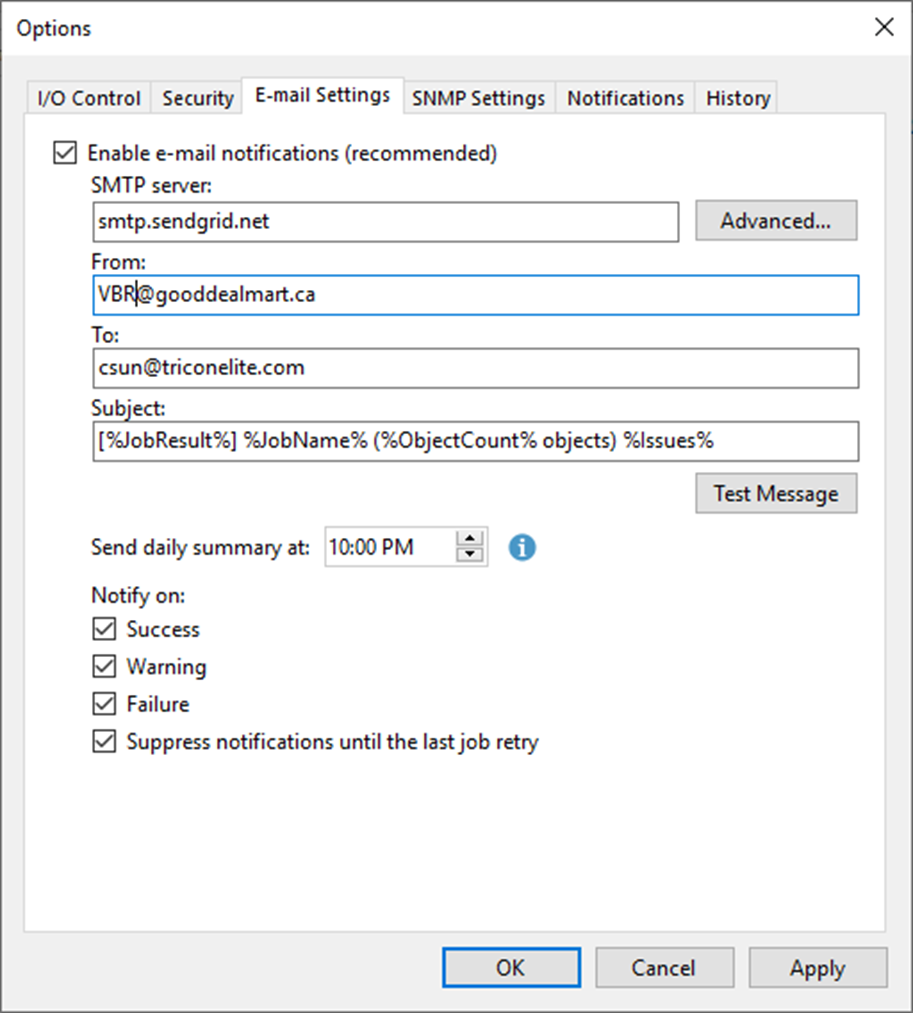

60. In the From field, enter an email address you want to use as a sender.

61. In the To field, enter an email address of a notification recipient. To specify multiple email addresses, use a semicolon.

62. Click Test Message.

082723 1811 Howtoconfig48 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

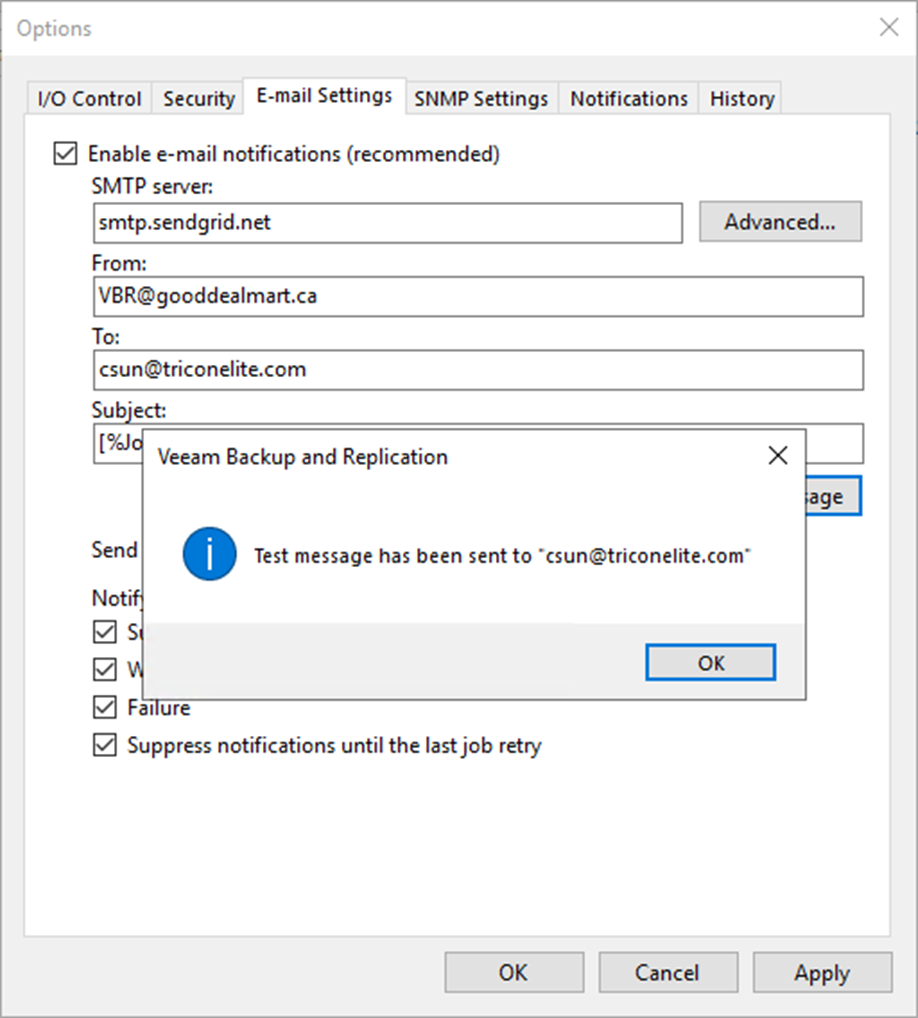

63. Verify the test message sent successfully and click OK.

082723 1811 Howtoconfig49 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

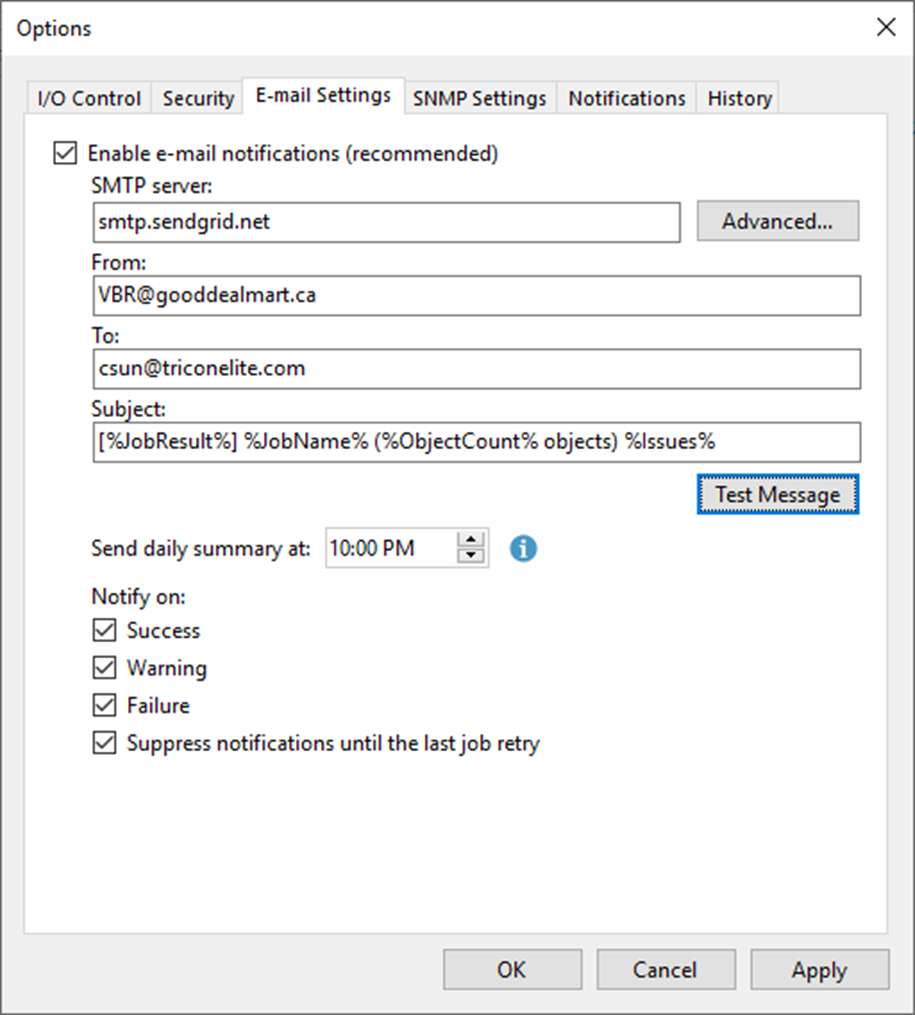

64. On the Options page, click OK.

082723 1811 Howtoconfig50 - How to configure Notification with Free SendGrid Account of Azure at Veeam Backup and Replication v12

I hope you enjoy this post.
