082223 1833 Howtoinstal15 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)
You can choose Microsoft SQL as a Veeam Backup & Replication database. You were installing a Microsoft SQL Server (or Express), either locally on the backup manager server or remotely. If Microsoft SQL Server is not already installed. In that case, the Veeam Backup & Replication won't install the Microsoft SQL Server Express Edition on the backup server automatically. You must install it before installing Veeam Backup and Replication v12 version.

When you install Veeam Backup & Replication, the Veeam Backup & Replication console is automatically installed on the backup server.

You can choose Microsoft SQL as a Veeam Backup & Replication database. You were installing a Microsoft SQL Server (or Express), either locally on the backup manager server or remotely. If Microsoft SQL Server is not already installed. In that case, the Veeam Backup & Replication won’t install the Microsoft SQL Server Express Edition on the backup server automatically. You must install it before installing Veeam Backup and Replication v12 version.

Microsoft SQL Server Express has a configuration data storage limit of 10 GB. The Express Edition is sufficient for the evaluation and small environments (500 VMs).

1. Ensure the Microsoft SQL Server or Microsoft SQL Server Express is installed locally or remotely.

2. Log in to the Veeam Backup and Replication manager server.

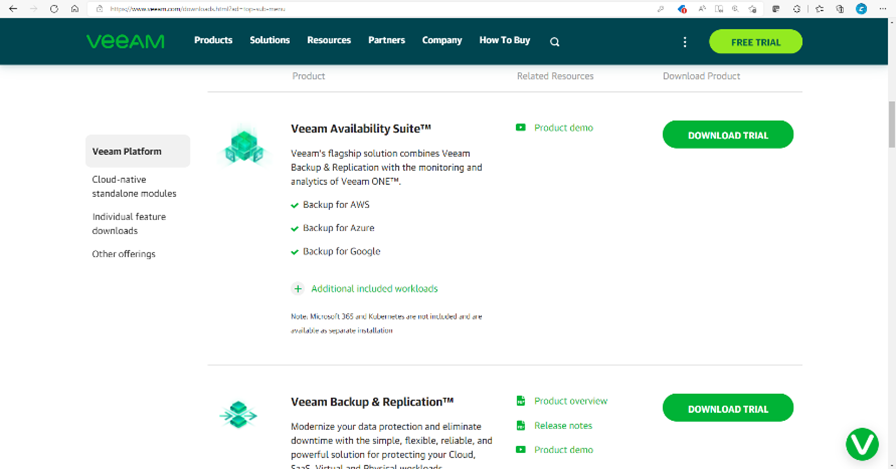

3. Download the Veeam Backup and Replication v12 ISO image file from the Veeam website sign-in required).

082223 1833 Howtoinstal1 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

4. Mount the Veeam Backup and Replication v12 iso image file.

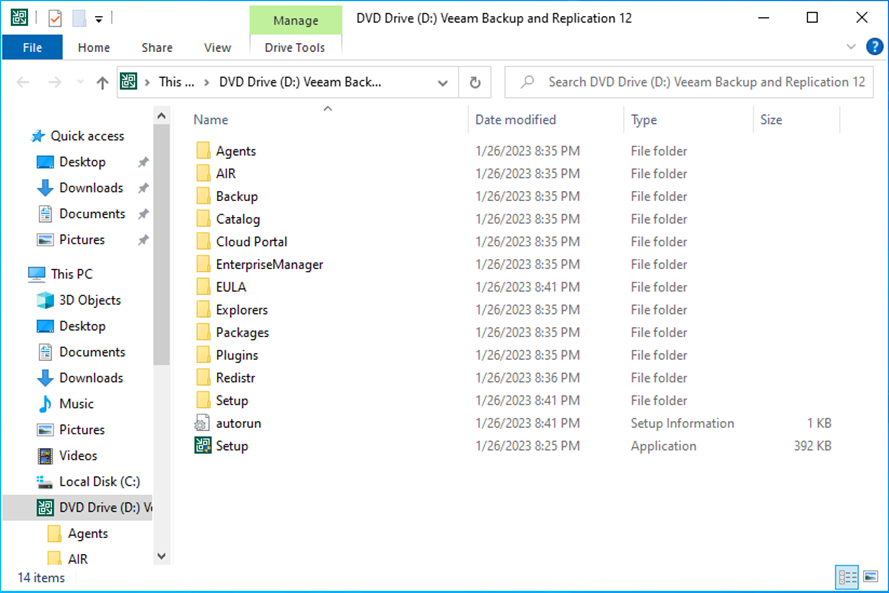

5. Run Setup.exe.

082223 1833 Howtoinstal2 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

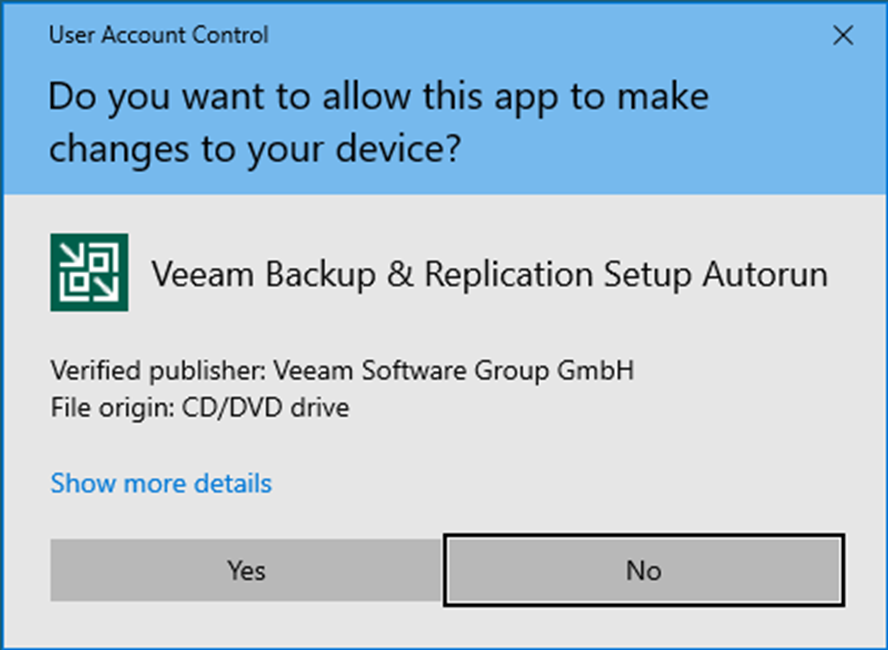

6. On the User Access Control page, click Yes.

082223 1833 Howtoinstal3 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

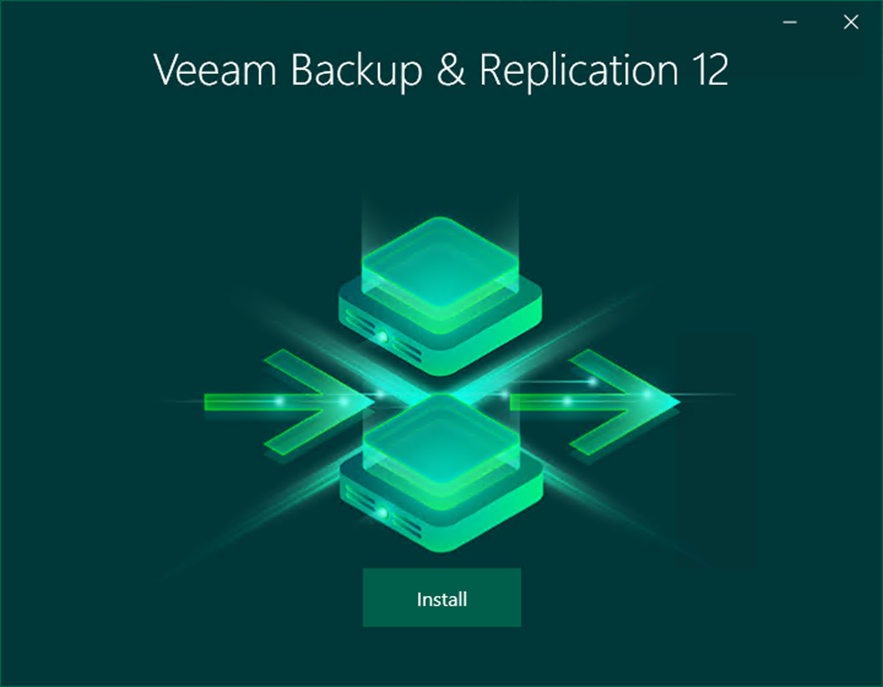

7. On the Veeam Backup & Replication 12 page, click Install.

082223 1833 Howtoinstal4 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

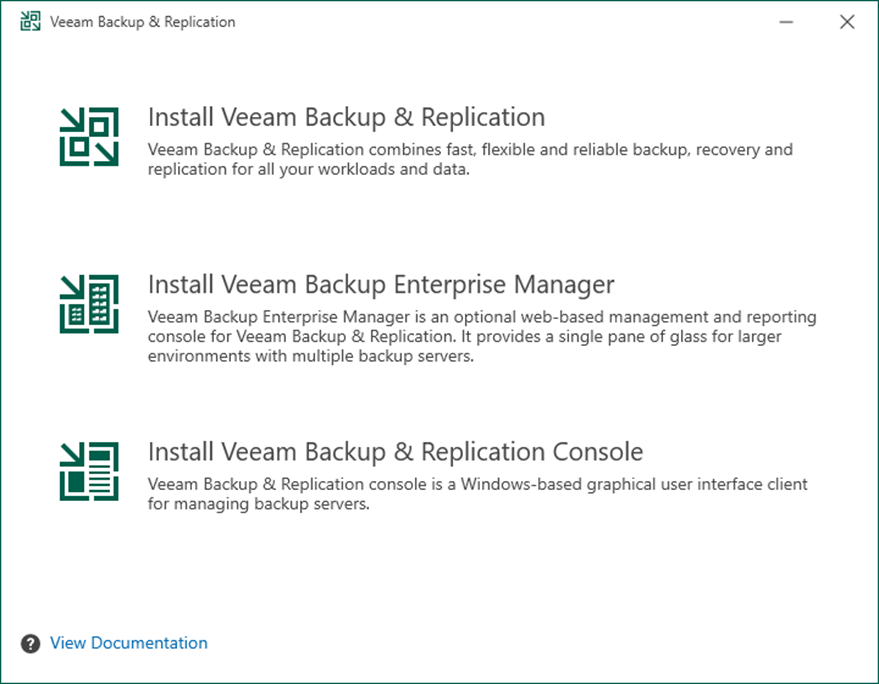

8. Select Install Veeam Backup & Replication on the Veeam Backup & Replication page.

082223 1833 Howtoinstal5 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

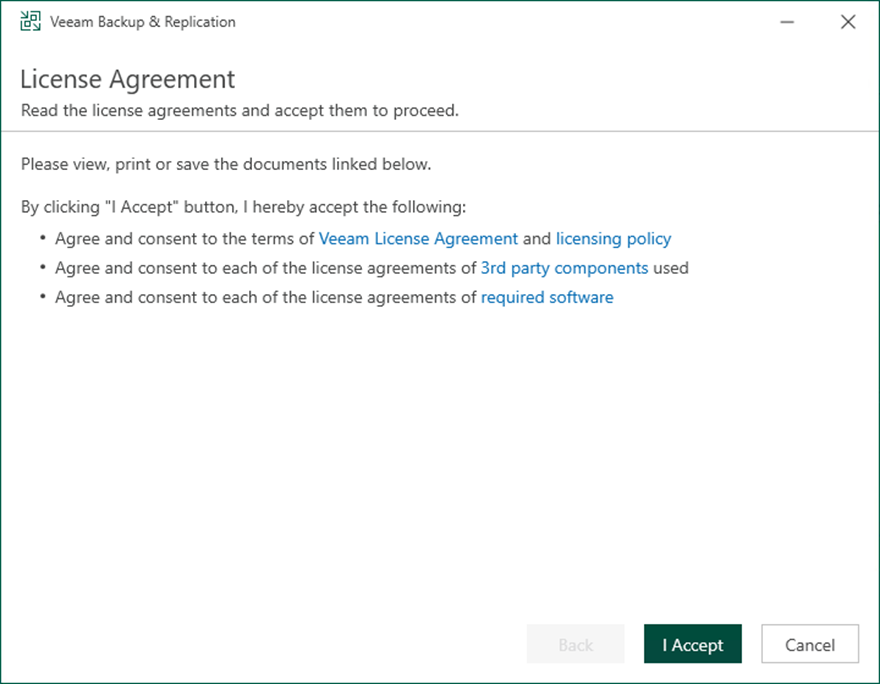

9. Click I Accept on the License Agreement page.

082223 1833 Howtoinstal6 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

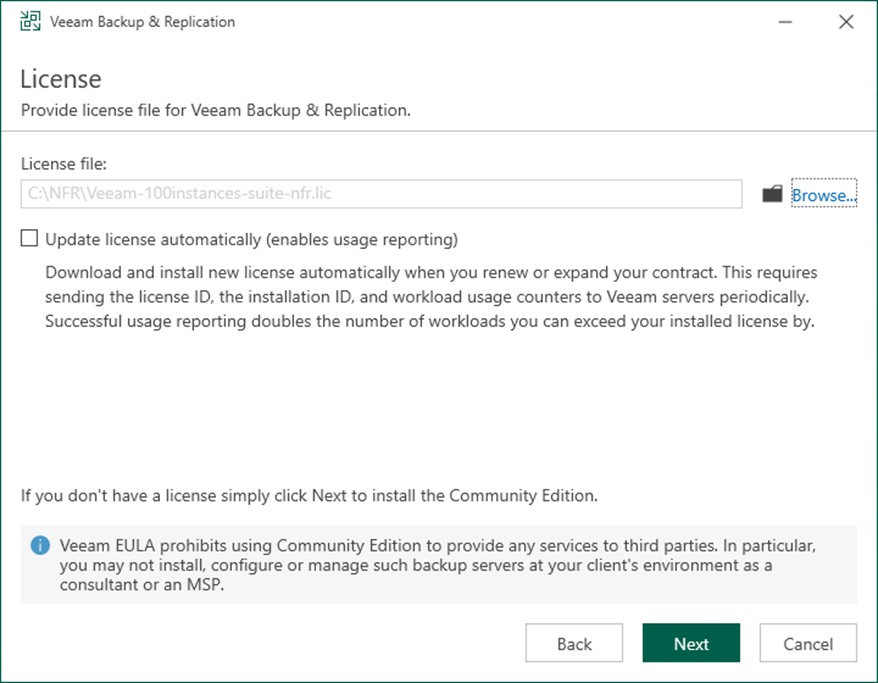

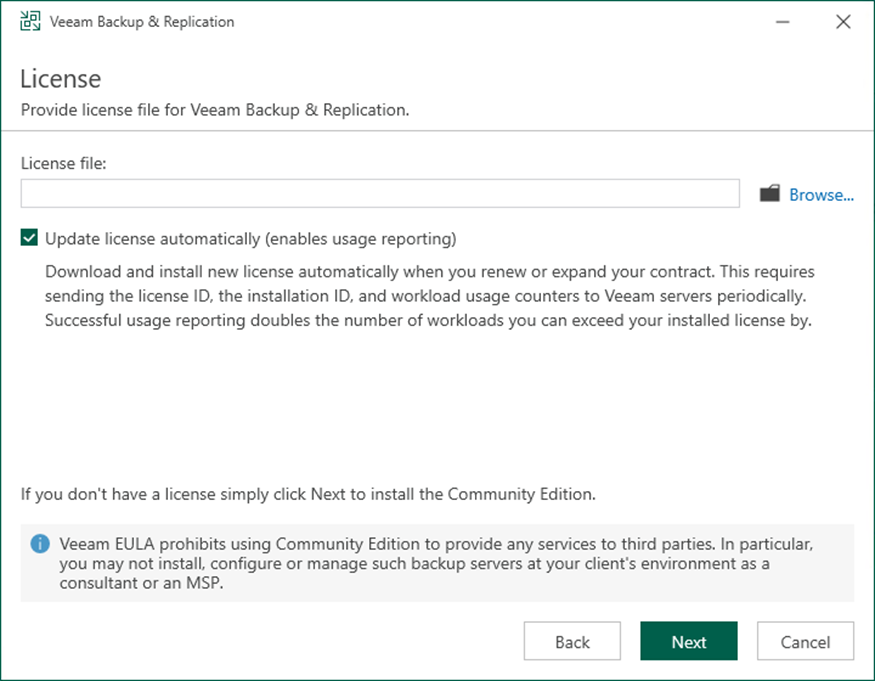

10. Click Browse on the License page.

082223 1833 Howtoinstal7 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

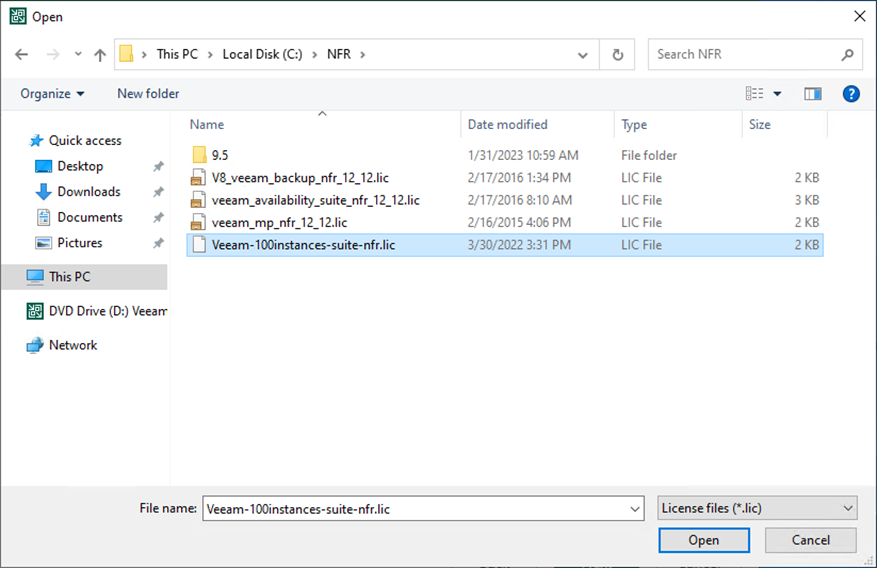

11. Select a license file for Veeam Backup & Replication and click Open.

082223 1833 Howtoinstal8 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

12. On the License page, select Update license automatically (enable usage reporting). It will automatically download and install a new license when you renew or expand your contract.

13. Click Next.

082223 1833 Howtoinstal9 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

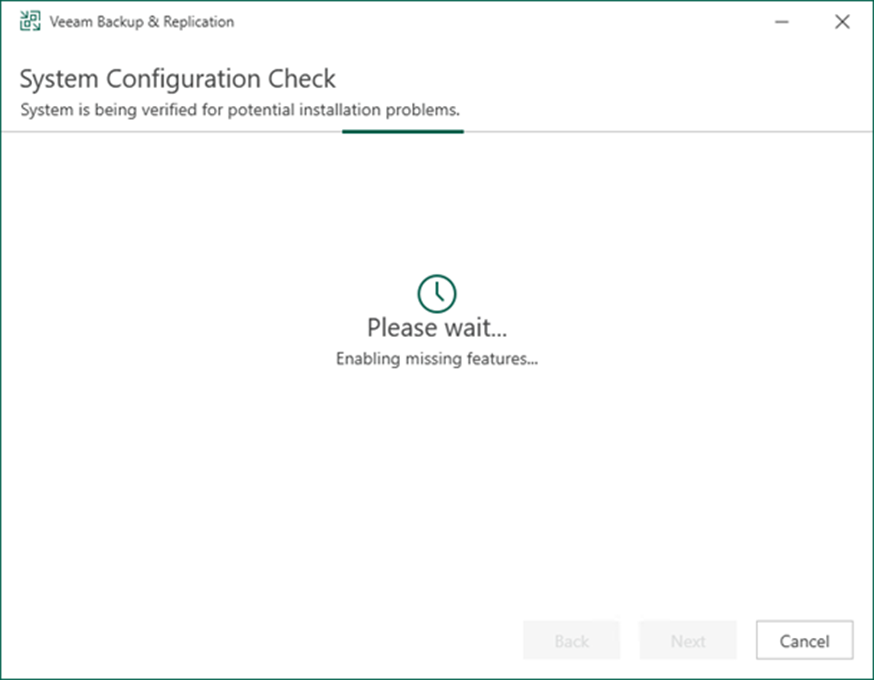

14. The setup wizard checks if the required software is installed on the machine during the System Configuration Check step. If required components are missing, the setup will attempt to install them independently. Rebooting is required after the components have been successfully installed. Click Reboot to restart the machine.

082223 1833 Howtoinstal10 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

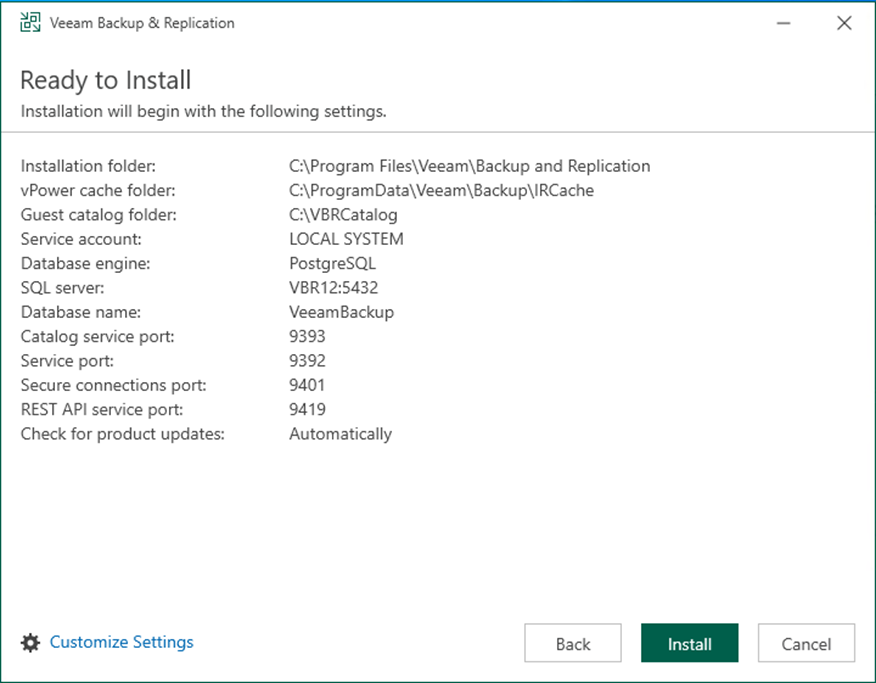

15. Click Customize Settings on the Ready to Install page.

082223 1833 Howtoinstal11 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

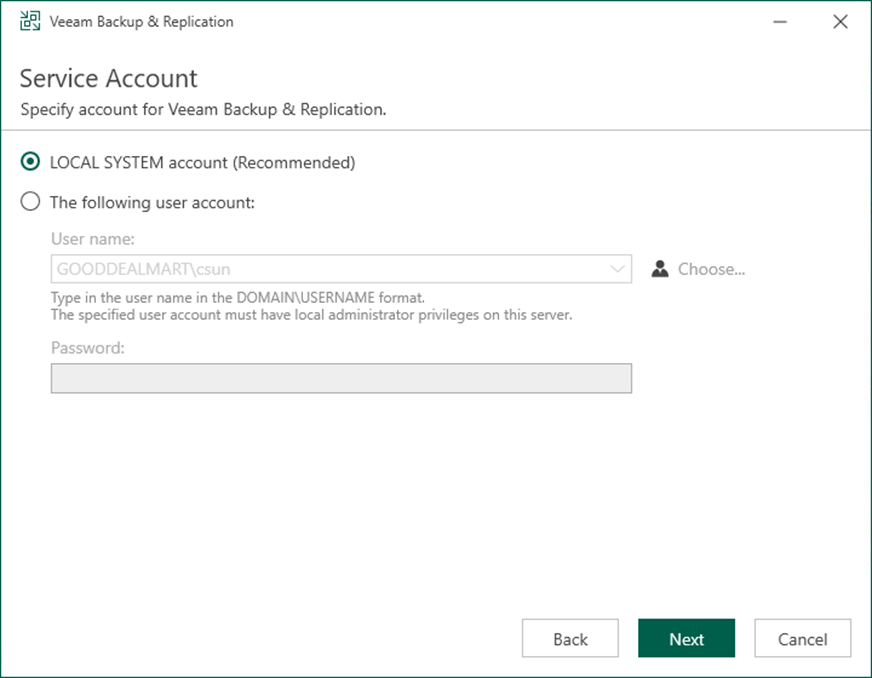

16. On the Service Account page, select LOCAL SYSTEM account and click Next.

082223 1833 Howtoinstal12 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

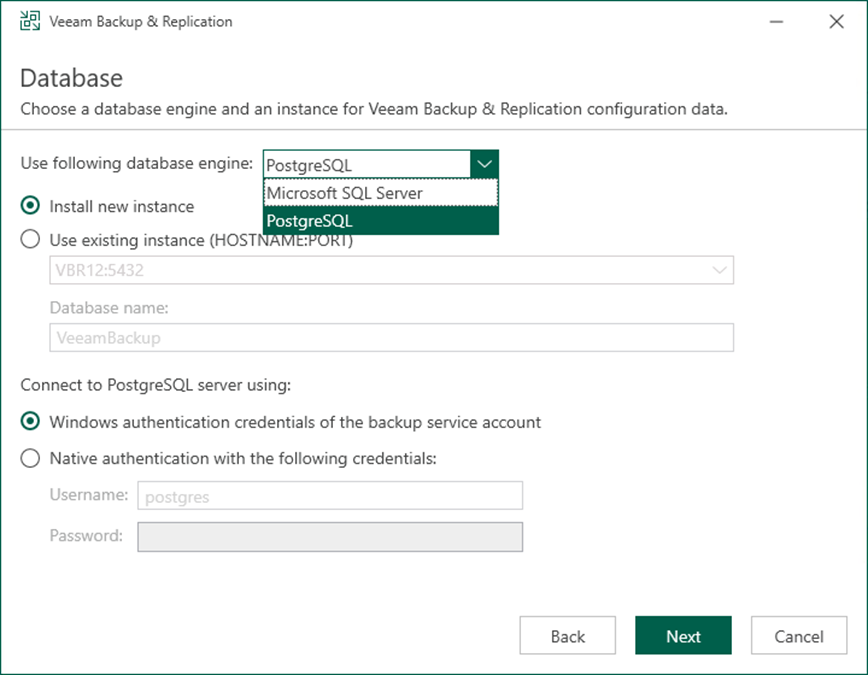

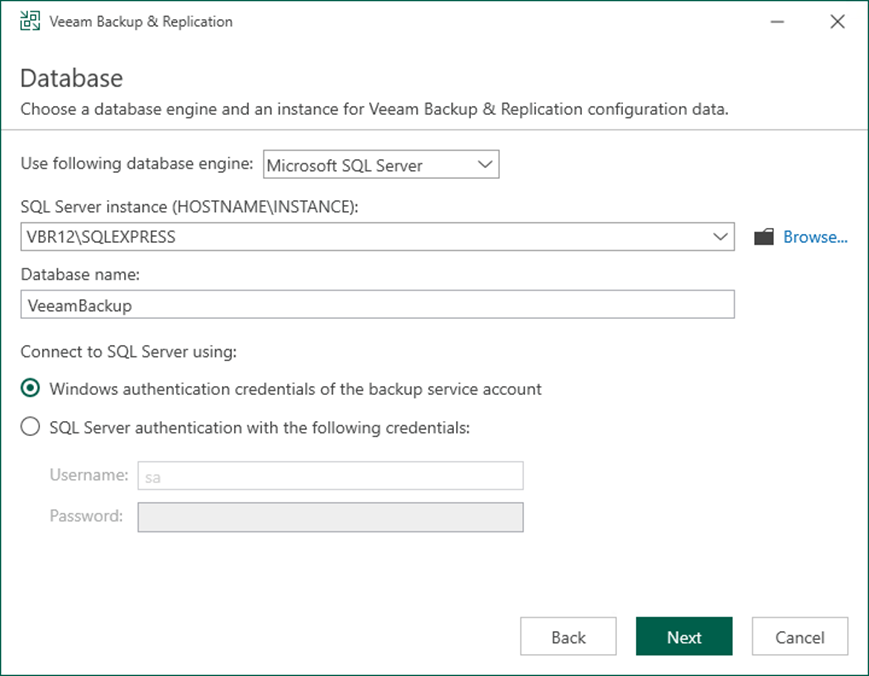

17. On the Database page, select the Microsoft SQL Server from the database engine drop-down list.

082223 1833 Howtoinstal13 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

18. Click Browse to select the SQL server and instance on the SQL Server instance session.

19. Select Windows authentication credentials of the backup service account to connect to SQL Server.

20. Click Next.

082223 1833 Howtoinstal14 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

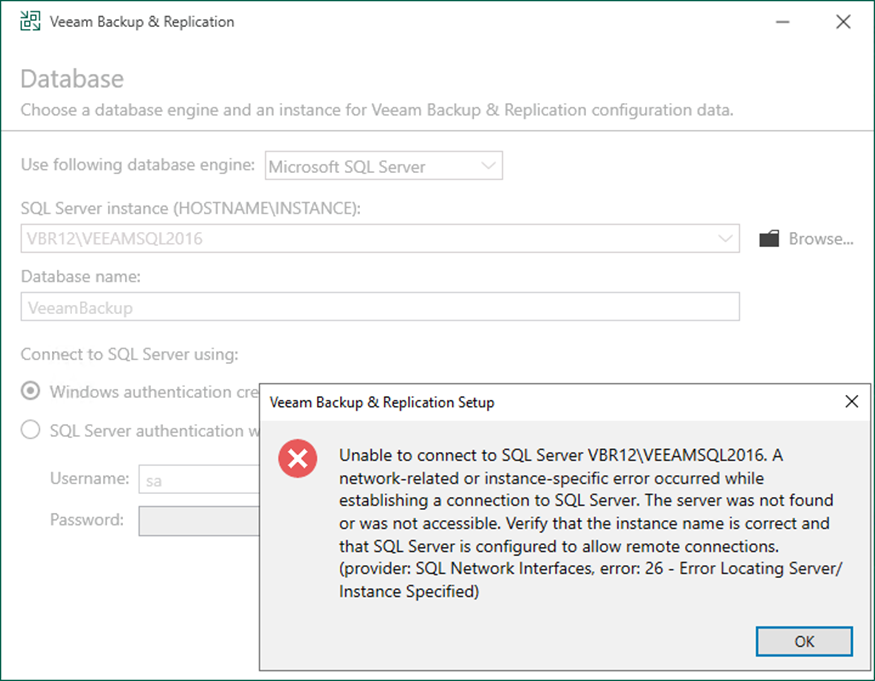

21. The error message will pop up if the Microsoft SQL Server or Microsoft SQL Server Express does not install locally or remotely.

082223 1833 Howtoinstal15 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

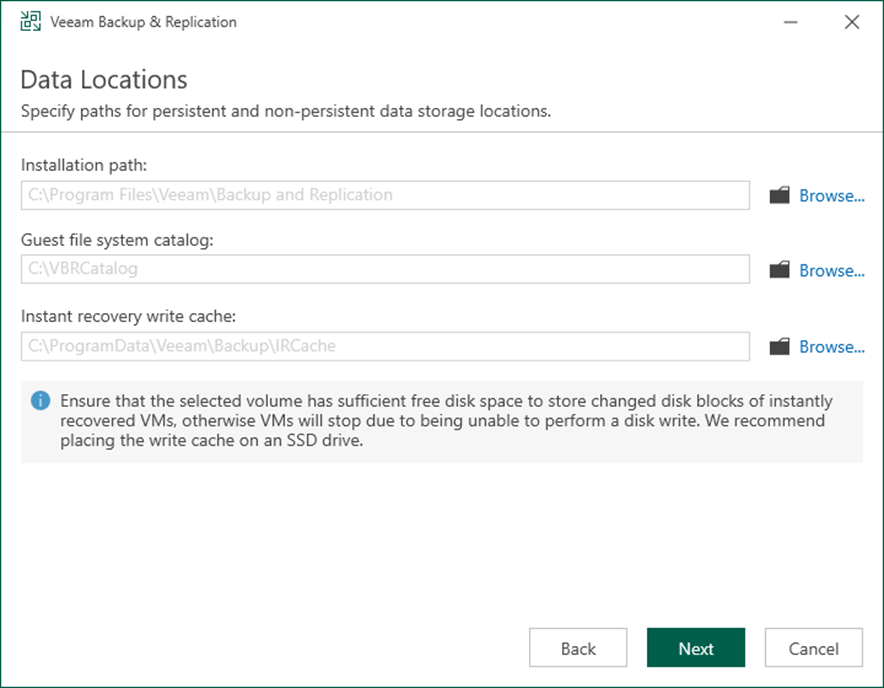

22. On the Data locations page, click Browse and select the path in the Installation path field.

23. Click Browse and select the path in the Guest file system catalog: field.

24. Click Browse and select the path in the Instant recovery write cache field.

25. Click Next.

082223 1833 Howtoinstal16 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

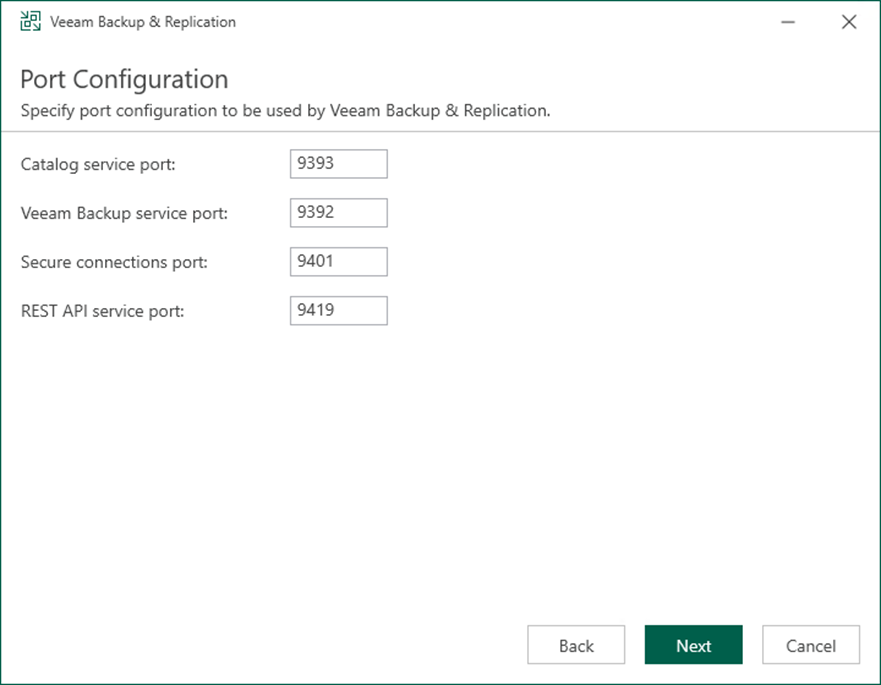

26. On the Port Configuration page, specify the port configuration to be used by Veeam Backup and Replication and click Next.

082223 1833 Howtoinstal17 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

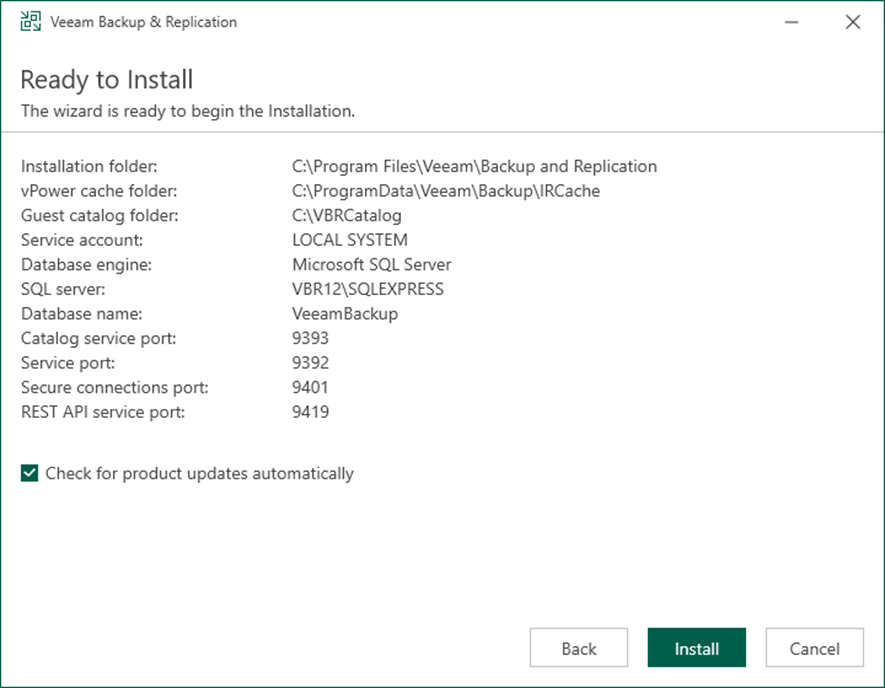

27. Click Install on the Ready to Install page.

082223 1833 Howtoinstal18 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)

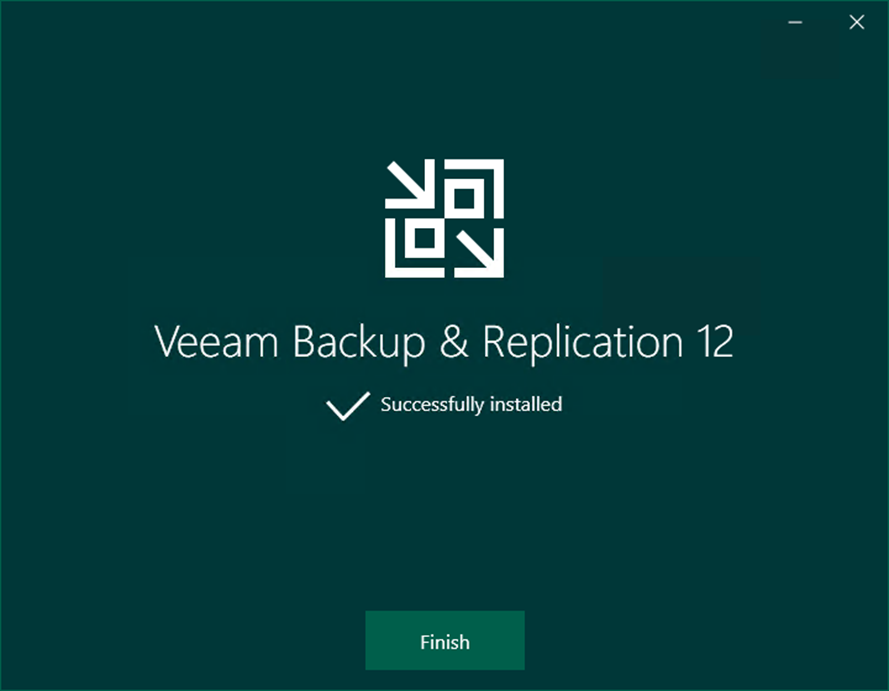

28. Click Finish on the Veeam Backup & Replication 12 Successfully installed page.

082223 1833 Howtoinstal19 - How to install Veeam Backup and Replication v12 with Microsoft SQL (or Express)
