010824 1952 HowtouseQNA4 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup
QNAP QuObjects application is free and certificated for objects with immutability, which means you can use it as object storage within Veeam for a backup repository that supports their immutability feature.

QNAP QuObjects application is free and certificated for objects with immutability, which means you can use it as object storage within Veeam for a backup repository that supports their immutability feature.

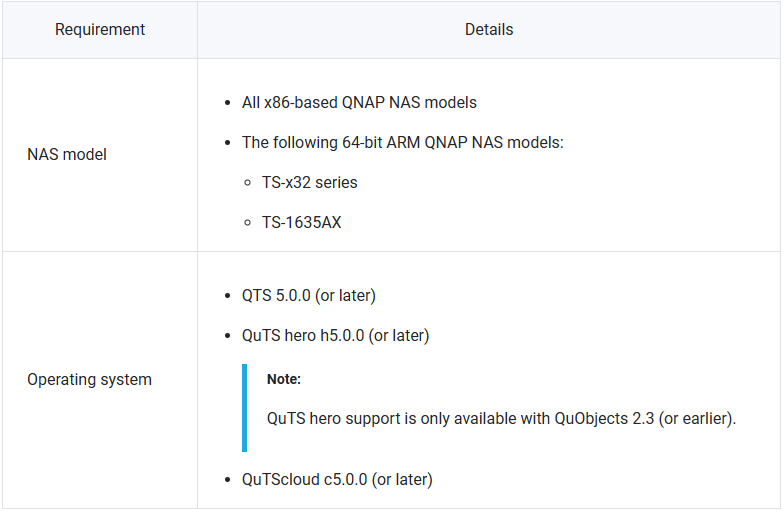

QNAP QuObjects Requirements:

010824 1952 HowtouseQNA1 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

1.Log on to the NAS as an administrator.

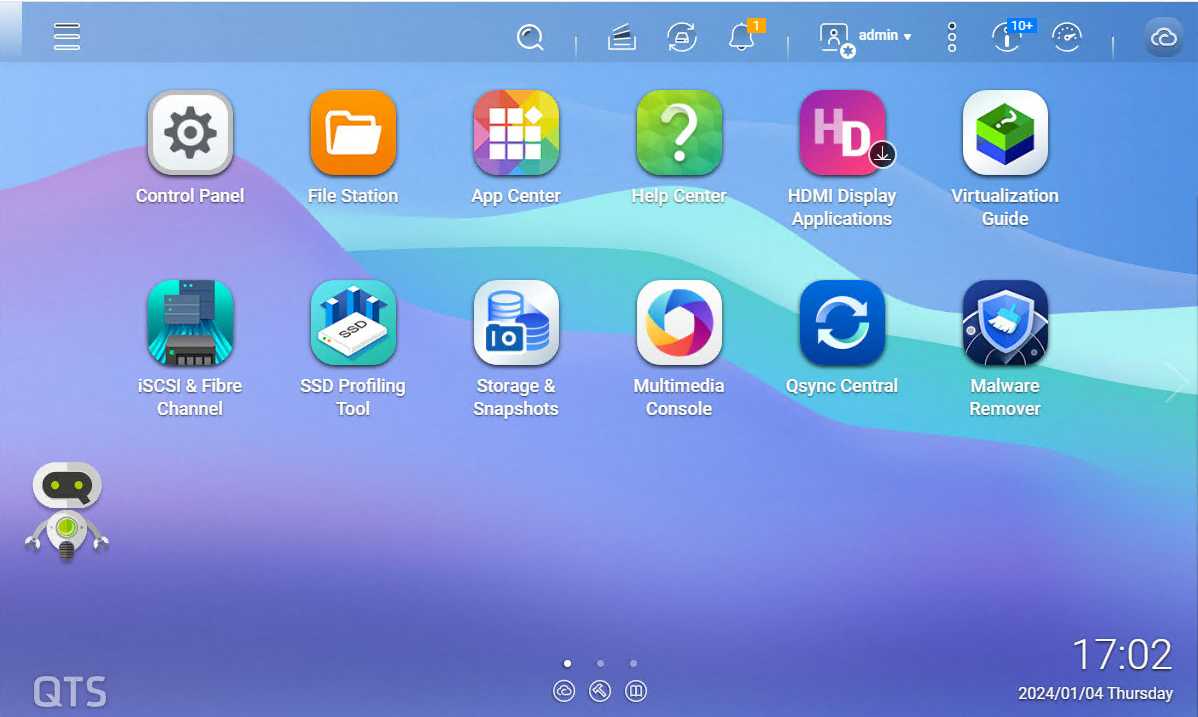

2.Select App Center.

010824 1952 HowtouseQNA2 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

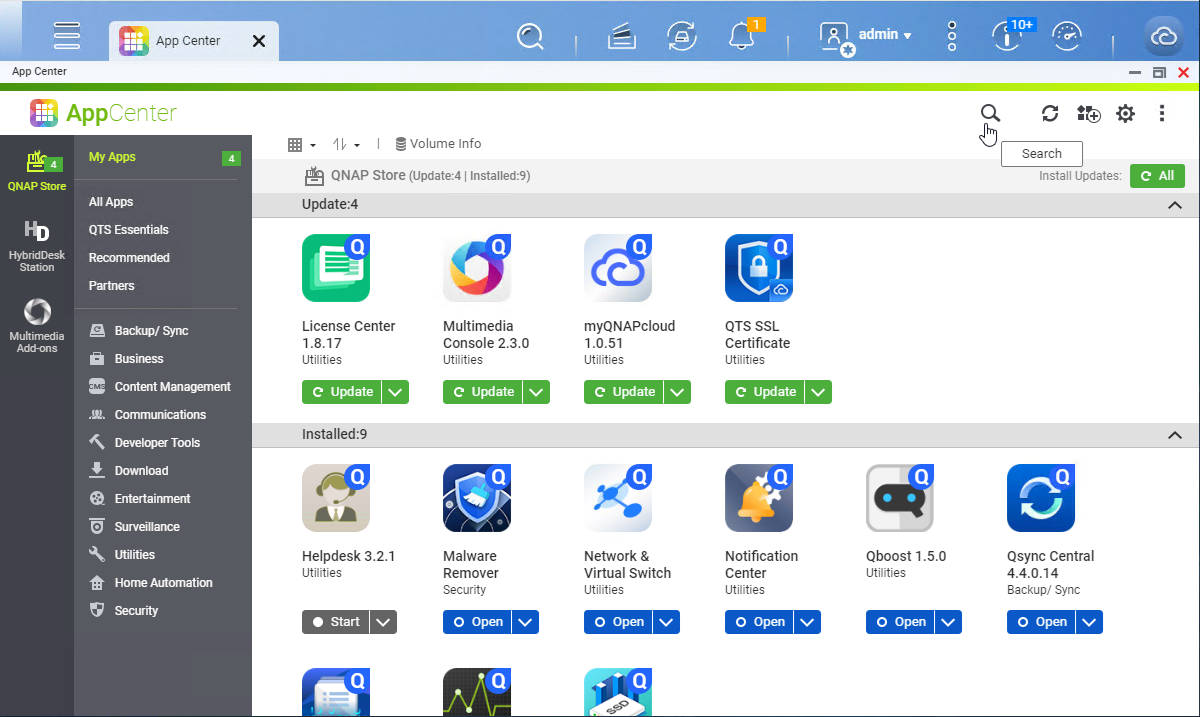

3.Click the Search icon on the App Center page.

010824 1952 HowtouseQNA3 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

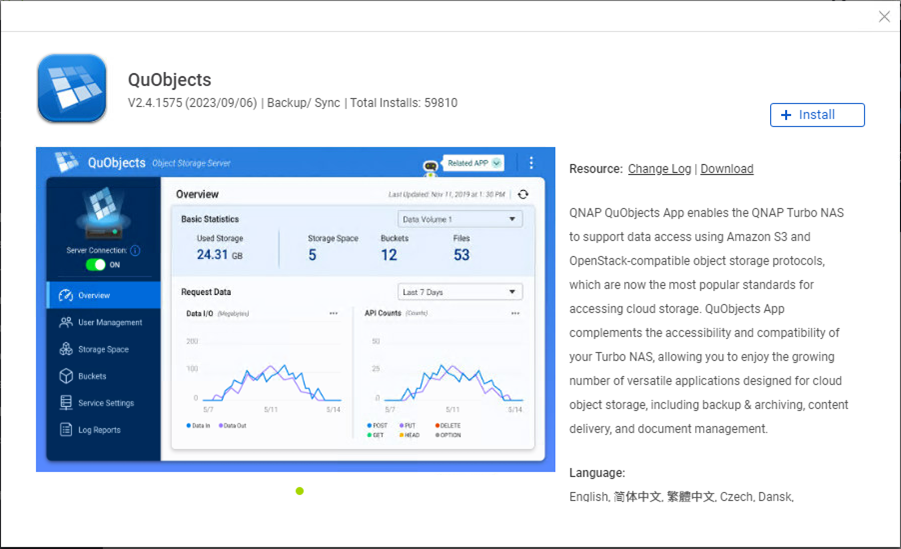

4.Enter QuObjects and select the QuObjects and click Install.

010824 1952 HowtouseQNA4 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

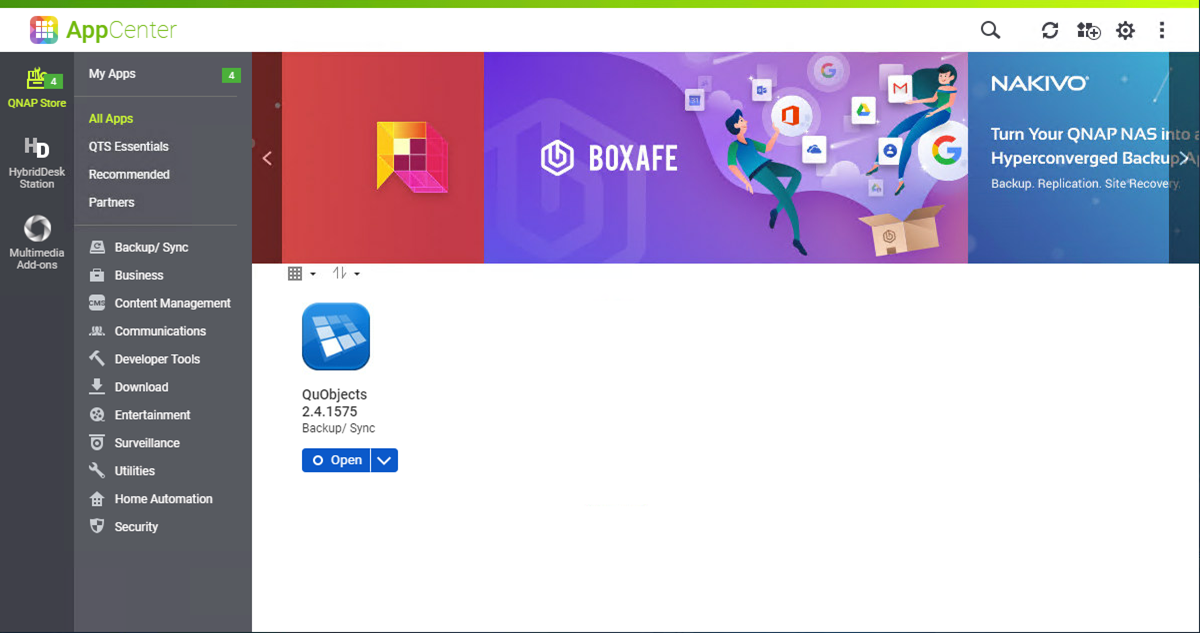

5.Click Open after Installation completed.

010824 1952 HowtouseQNA5 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

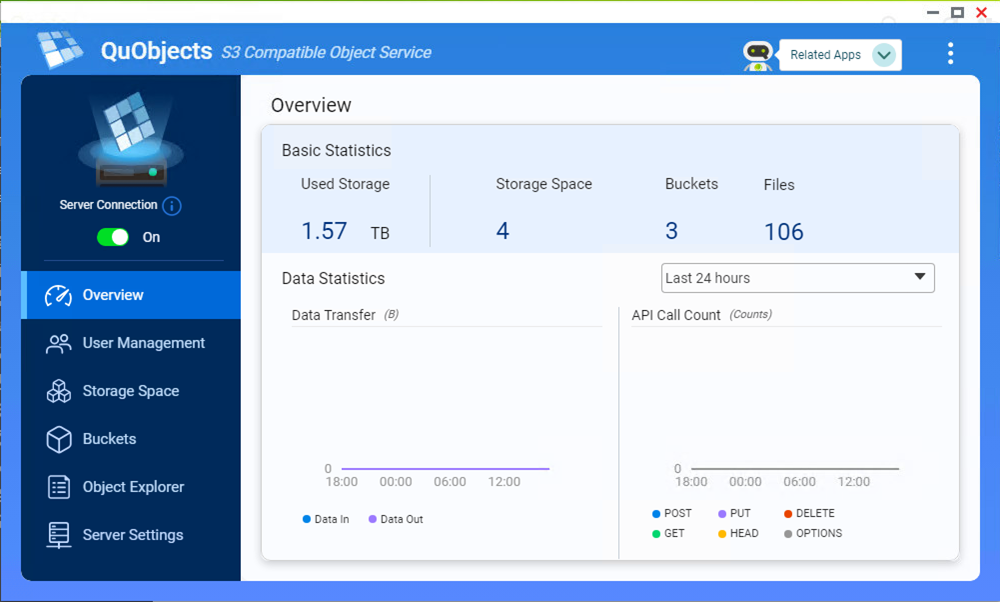

6.Ensure turn on Server Connection on the QuObjects S3 Compatible Object Service page and select User Management.

010824 1952 HowtouseQNA6 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

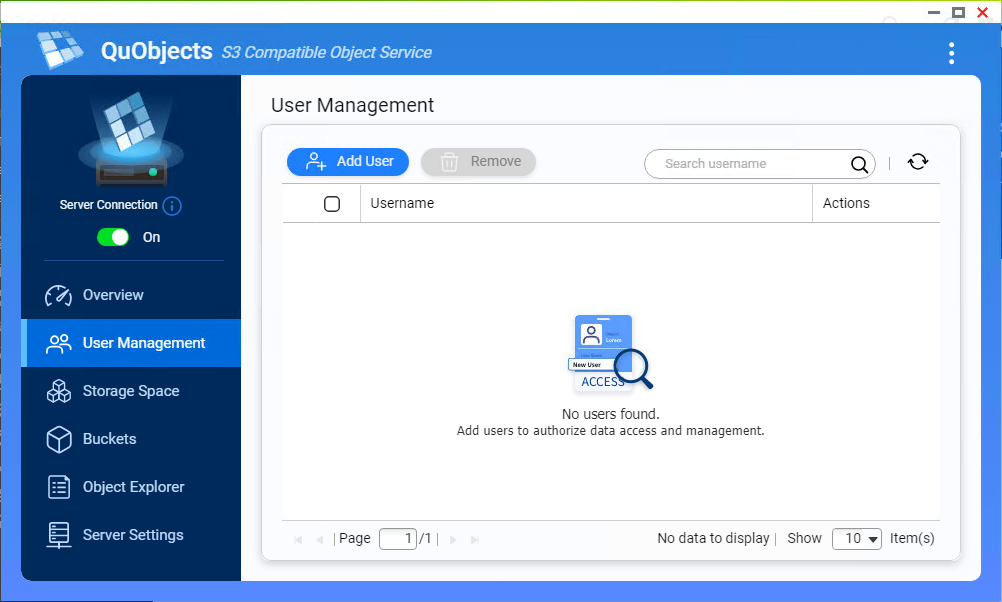

7.Click Add User on the User Management page.

010824 1952 HowtouseQNA7 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

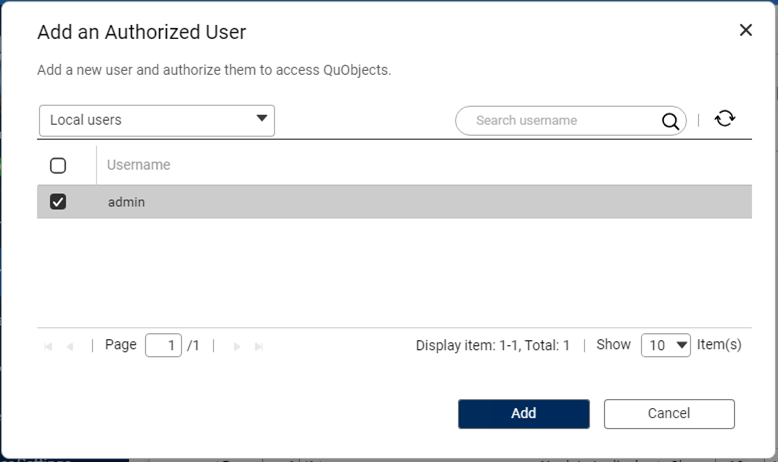

8.Select a user on the Add an Authorized User page and click Add.

010824 1952 HowtouseQNA8 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

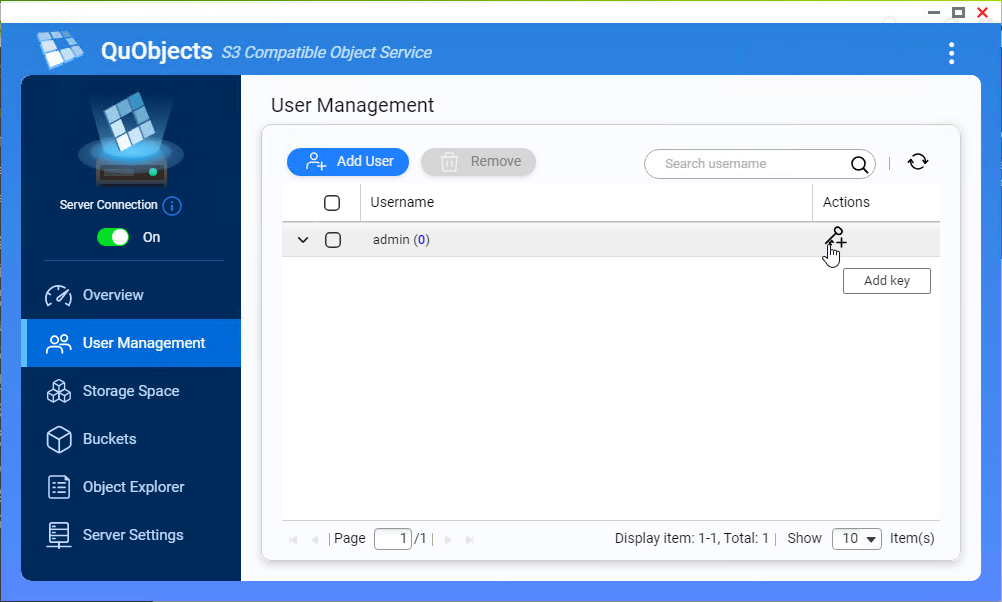

9.Click the Add key icon on the User Management page.

010824 1952 HowtouseQNA9 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

10.Ensure QuObjects creates an access key for the user and select Storage Space.

010824 1952 HowtouseQNA10 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

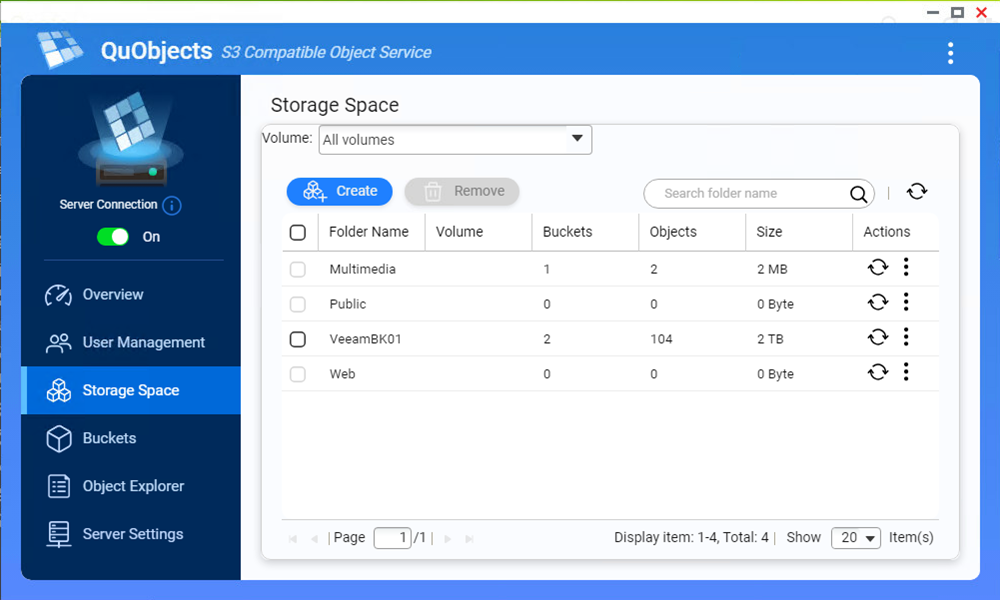

11.Click Create on the Storage Space page.

010824 1952 HowtouseQNA11 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

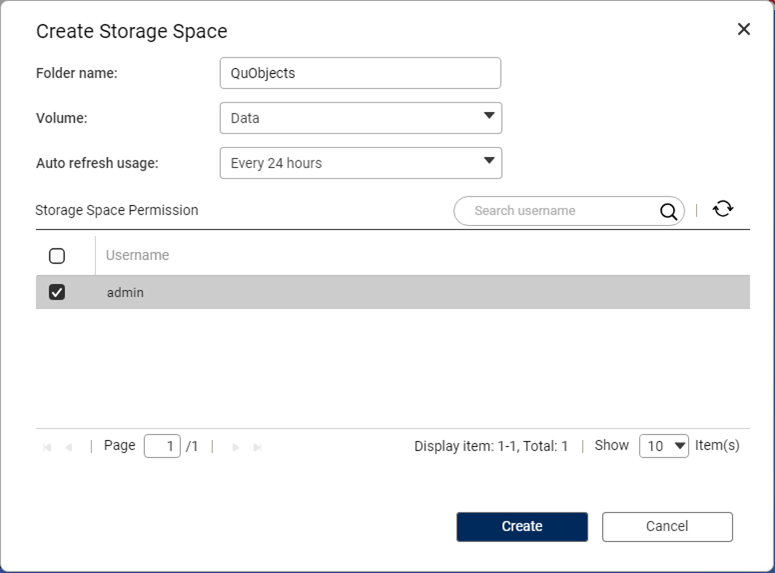

12.Enter the storage space name in the Folder Name field on the Create Storage Space page, select the user and click Create.

010824 1952 HowtouseQNA12 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

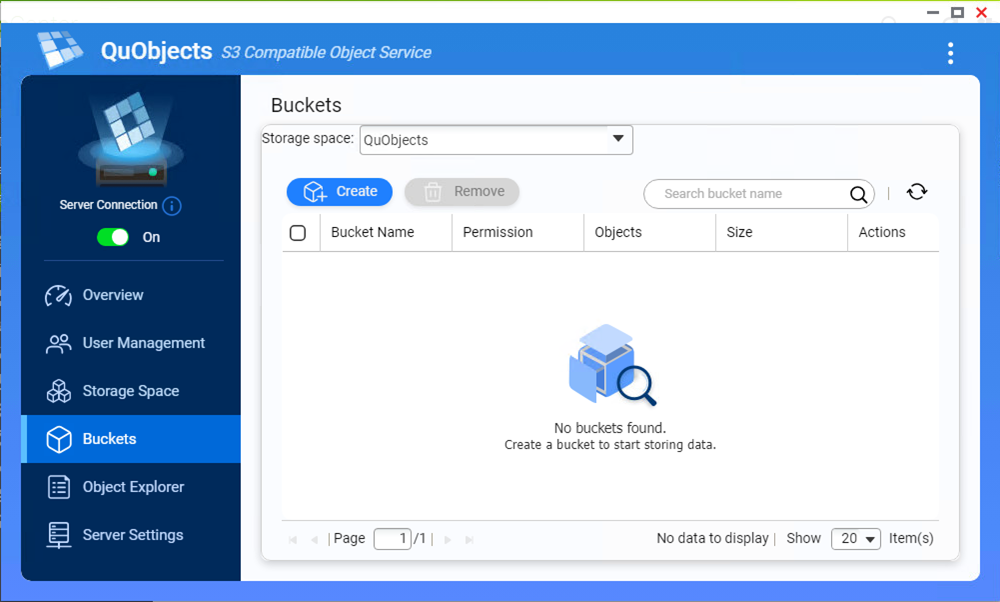

13.Select the new created storage space name from the drop-down list and click Create.

010824 1952 HowtouseQNA13 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

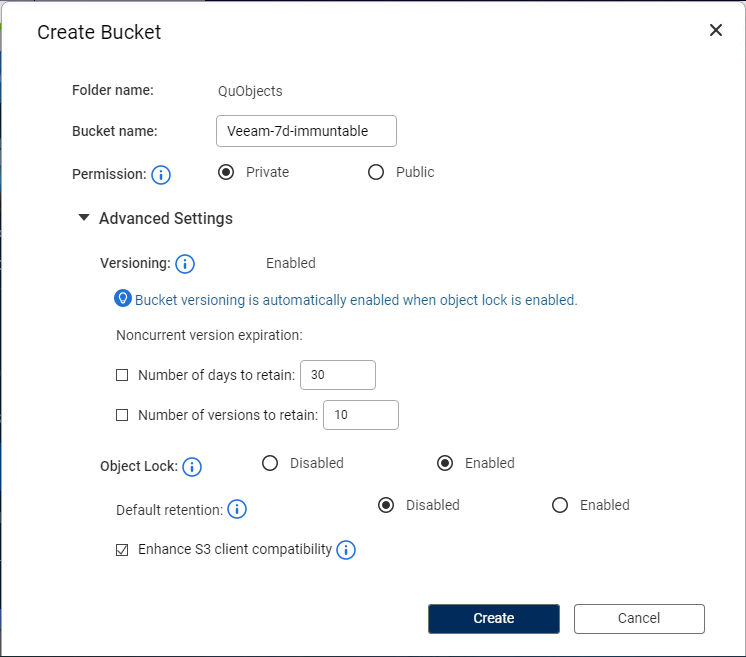

14.On the Create Bucket page, enter the name in the Bucket name field and select Private as Permission.

15. Select Enabled for the Versioning and Object Lock in the Advance Settings.

16. Don’t select the number of days and versions to retain in the Versioning.

17.In the Object Lock, select Disabled as Default retention, select Enhance S3 client compatibility and click Create.

010824 1952 HowtouseQNA14 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

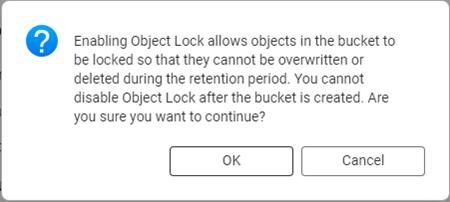

18.Click OK to ensure you want to continue.

010824 1952 HowtouseQNA15 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

19.Log on to the Veeam and Replication 12.1 manager server.

20.Open Veeam and Replication 12.1 Console.

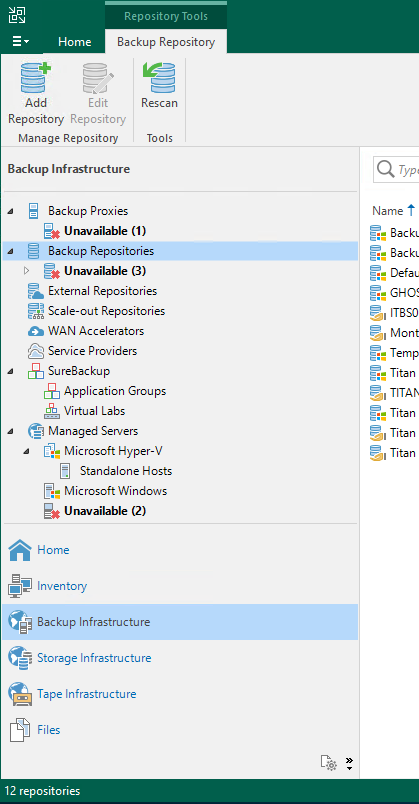

21.Select Backup Infrastructure and click Add Repository.

010824 1952 HowtouseQNA16 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

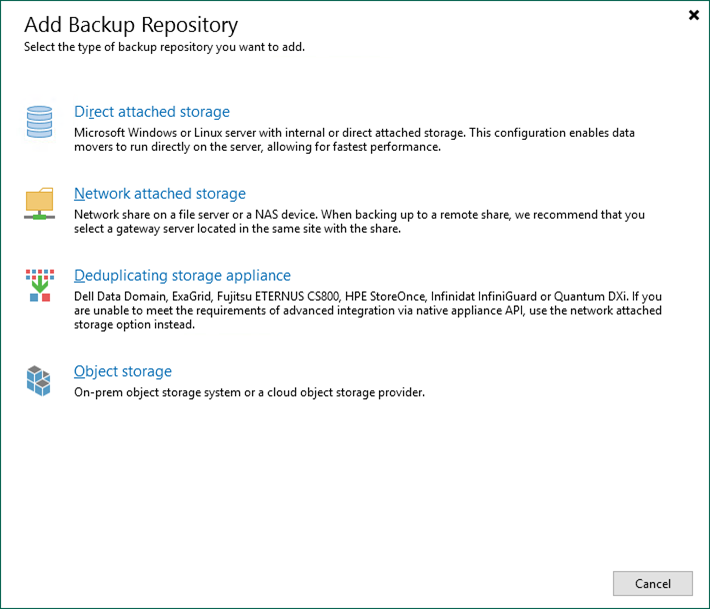

22.Select Object storage on the Add Backup Repository.

010824 1952 HowtouseQNA17 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

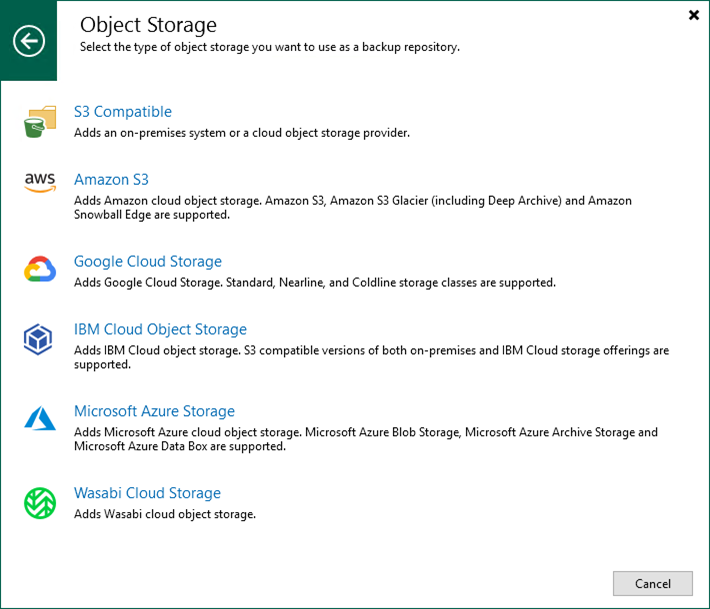

23.Select S3 Compatible on the Object Storage.

010824 1952 HowtouseQNA18 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

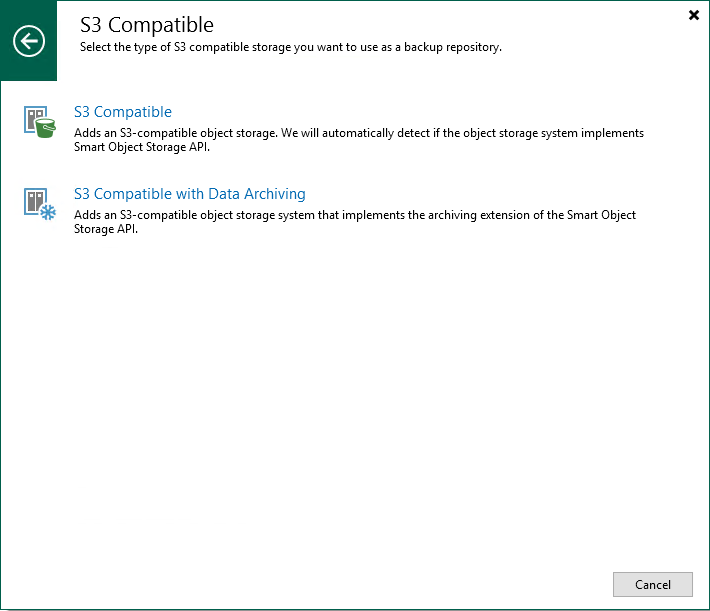

24.Select S3 Compatible on the S3 Compatible page.

010824 1952 HowtouseQNA19 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

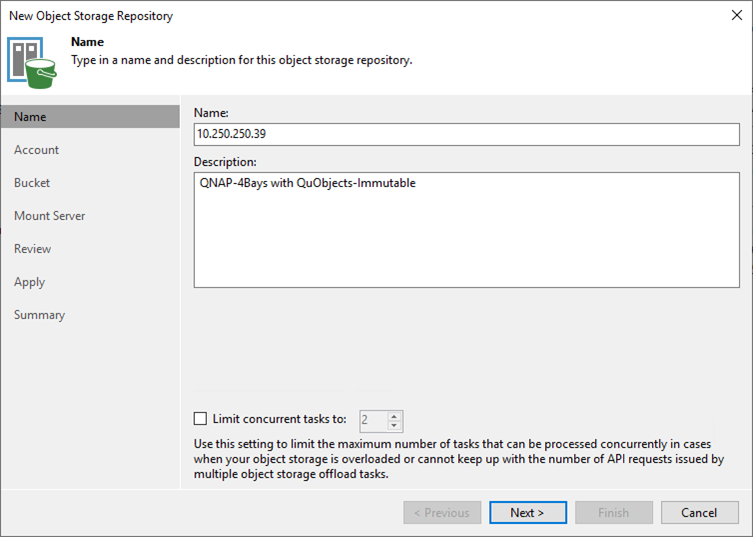

25.On the Name page, enter the IP Address or DNS name in the Name field and click Next.

010824 1952 HowtouseQNA20 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

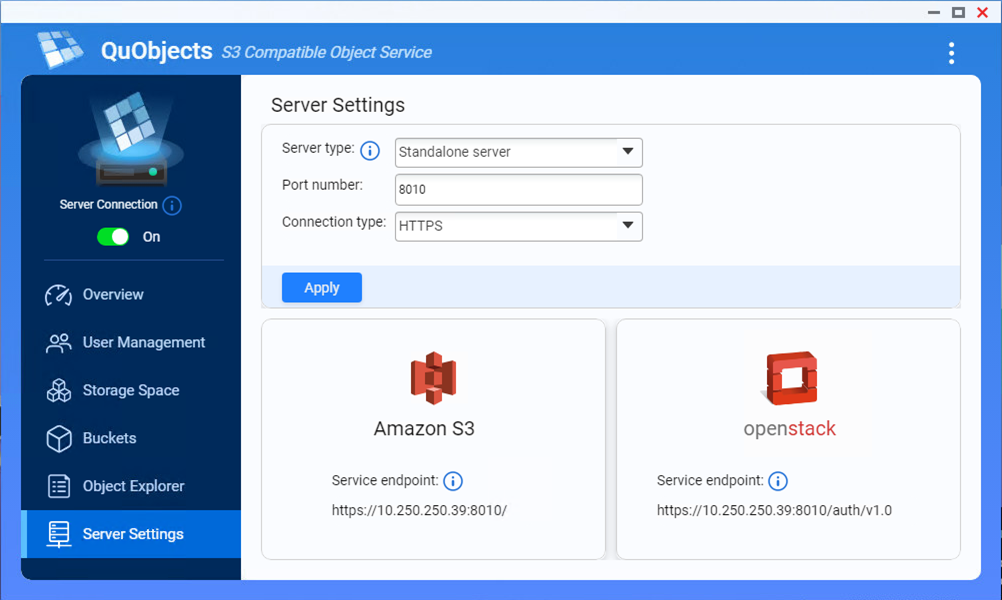

26.On the Account page, enter the Amazon S3 Service endpoint of QuObjects in the Service Point field. The Amazon S3 Service endpoint name is at Server Settings of QuObjects.

010824 1952 HowtouseQNA21 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

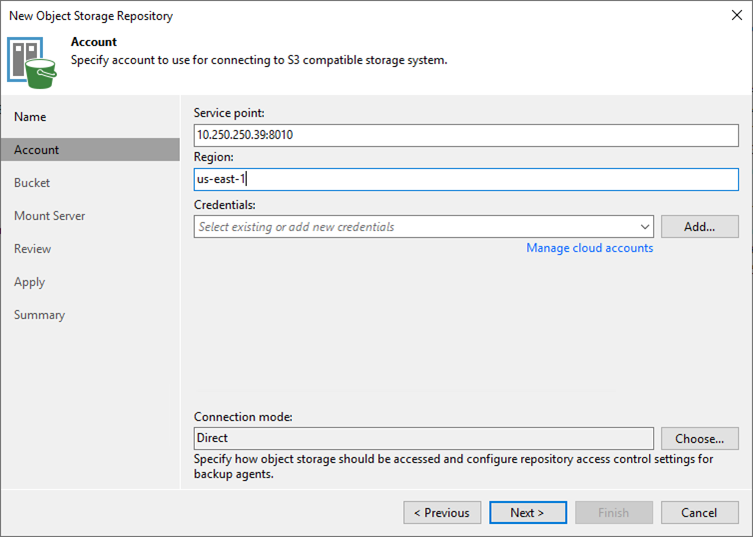

27.You can enter the QNAP device location as region.

28.Click Add to create a Credential.

010824 1952 HowtouseQNA22 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

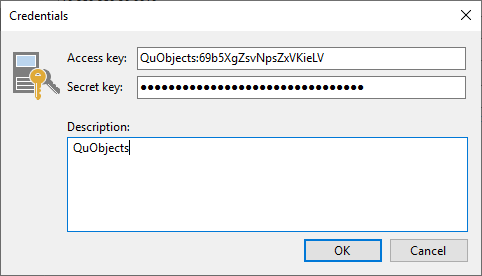

29.On the Credentials page, click OK after enter the Access key and Secret key.

010824 1952 HowtouseQNA23 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

30.The Access and Secret key is at User Management settings of QuObjects.

010824 1952 HowtouseQNA24 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

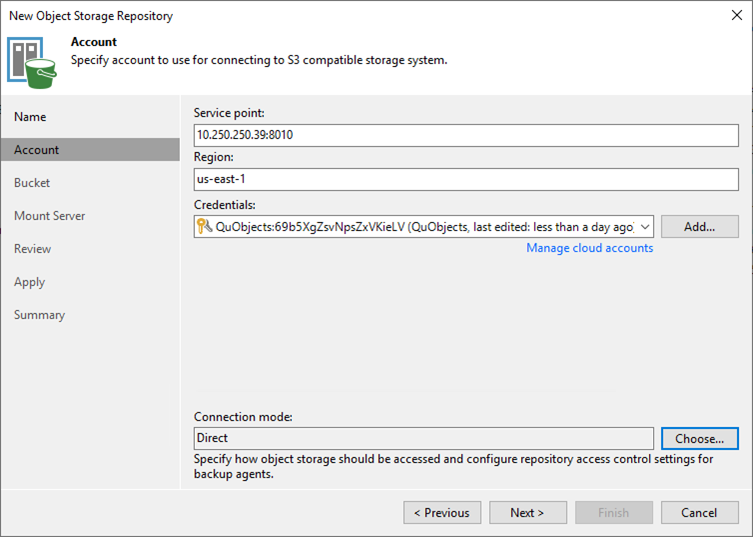

31.Key the Direct as Connection mode and click Next.

010824 1952 HowtouseQNA25 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

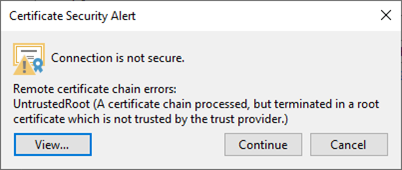

32.Click Continue Security Alert on the Certificate Security Alert page.

010824 1952 HowtouseQNA26 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

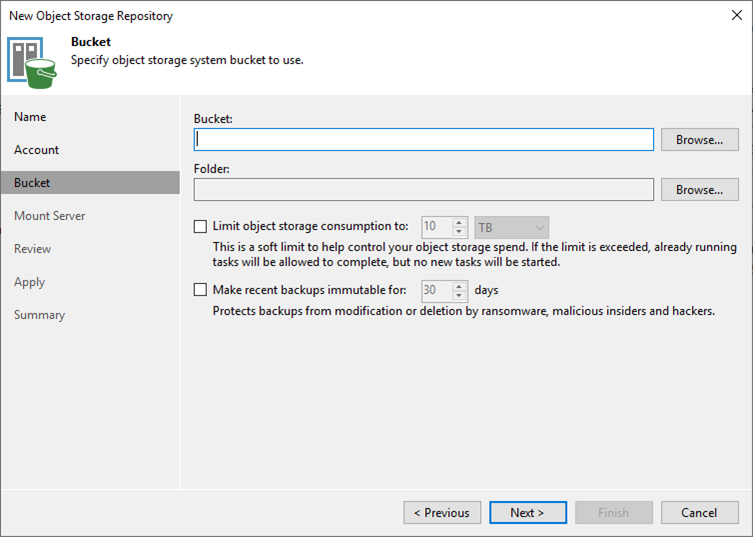

33.On the Bucket page, click Browse in the Bucket field.

010824 1952 HowtouseQNA27 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

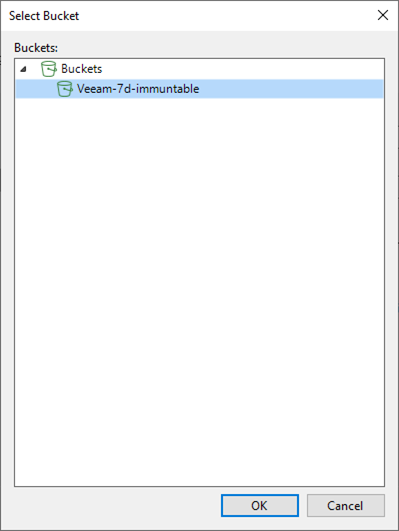

34.Select the Bucket that we created it from QuObjects settings on the Select Bucket page and click OK.

010824 1952 HowtouseQNA28 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

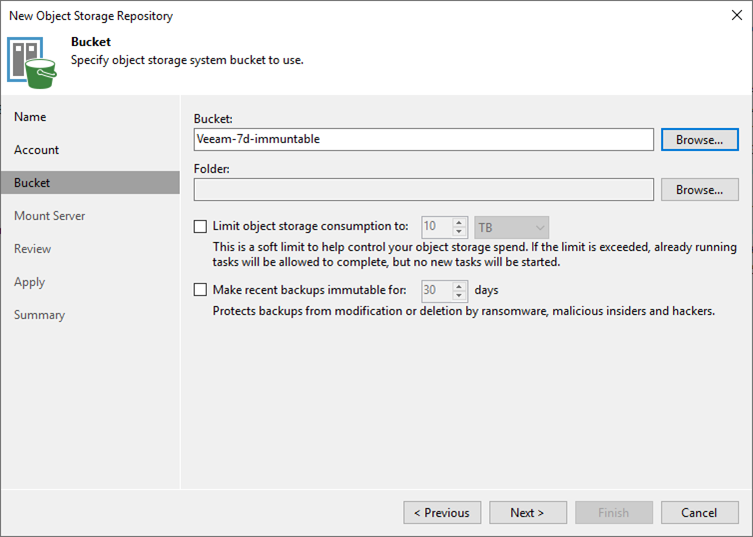

35.Click Browse in the Folder field.

010824 1952 HowtouseQNA29 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

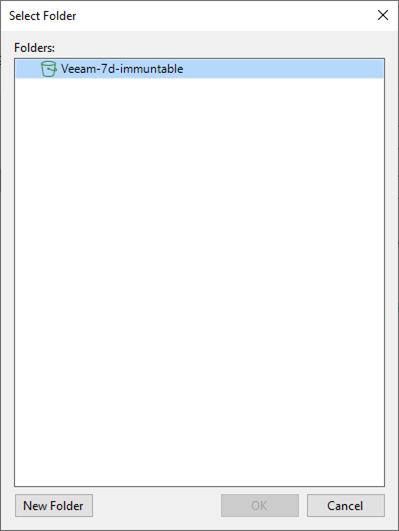

36.Click New Folder on the Select Folder page.

010824 1952 HowtouseQNA30 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

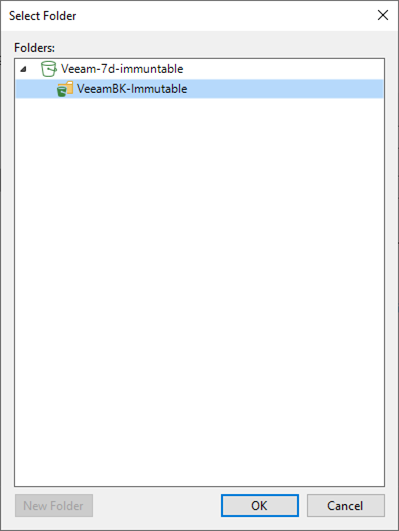

37.Enter the folder name and click OK.

010824 1952 HowtouseQNA31 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

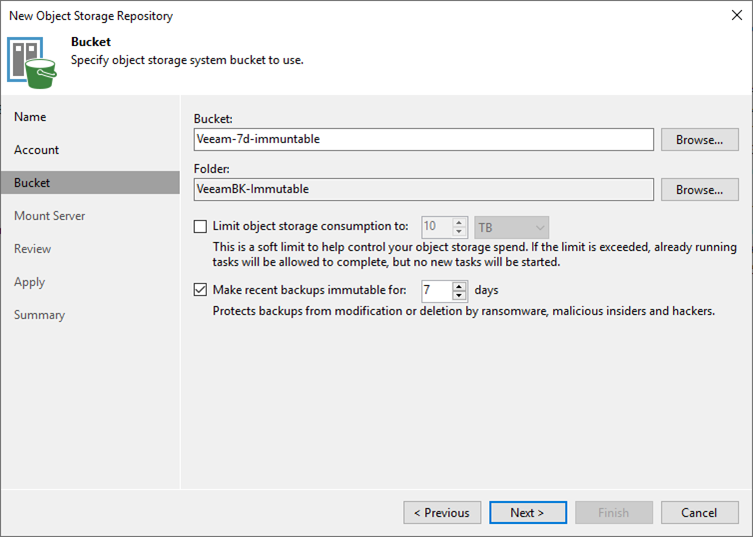

38.On the Bucket page, select Make recent backups immutable and change the days as you need, click Next.

010824 1952 HowtouseQNA32 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

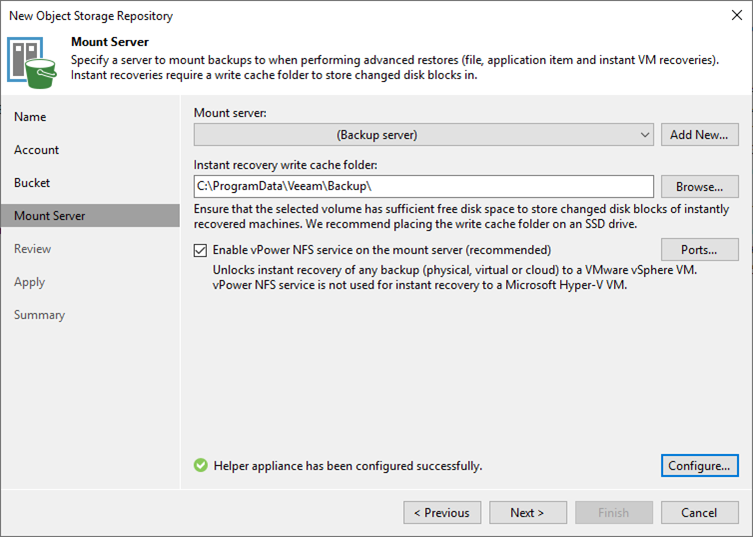

39.On the Mount Server page, keep the default settings and click Next.

010824 1952 HowtouseQNA33 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

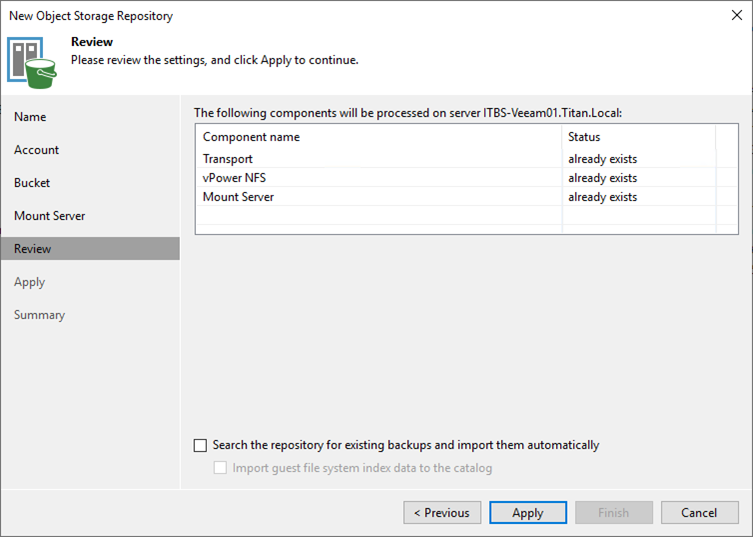

40.Click Apply on the Review page.

010824 1952 HowtouseQNA34 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

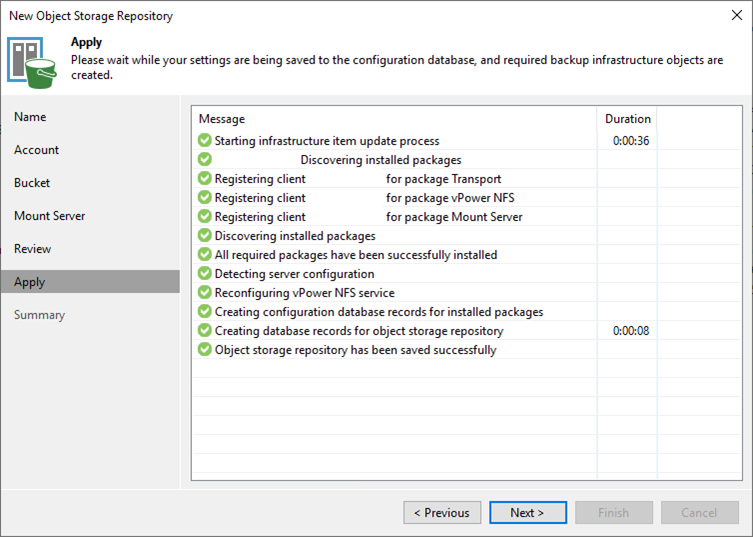

41.Click Next on the Apply page.

010824 1952 HowtouseQNA35 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

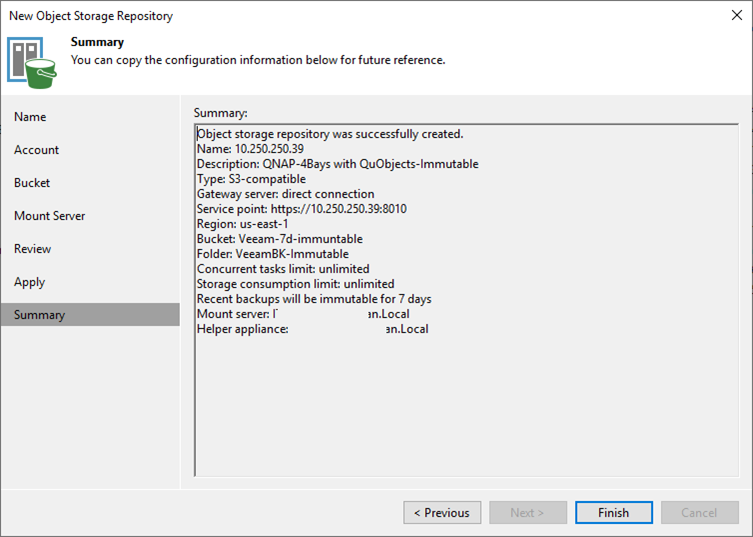

42.Click Finish on the Summary page.

010824 1952 HowtouseQNA36 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

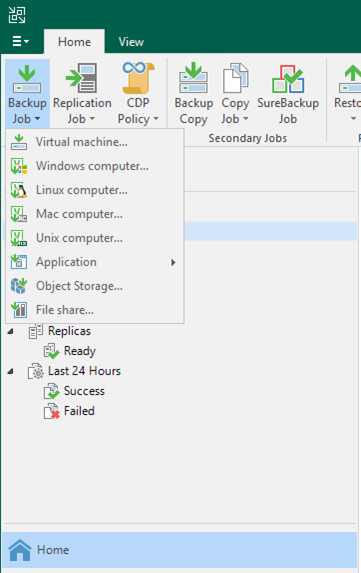

43.On the Home page, select Virtual Machine from the drop-down list of Backup Job.

010824 1952 HowtouseQNA37 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

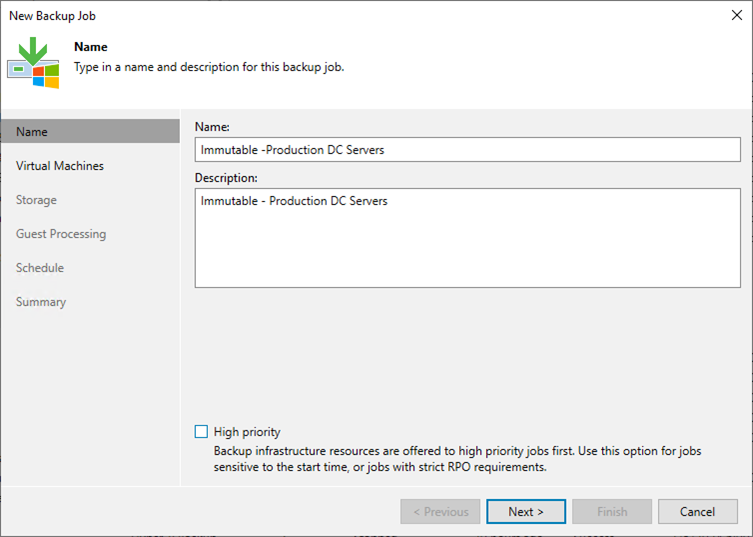

44.On the Name page, enter specific job name in the name field and click Next.

010824 1952 HowtouseQNA38 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

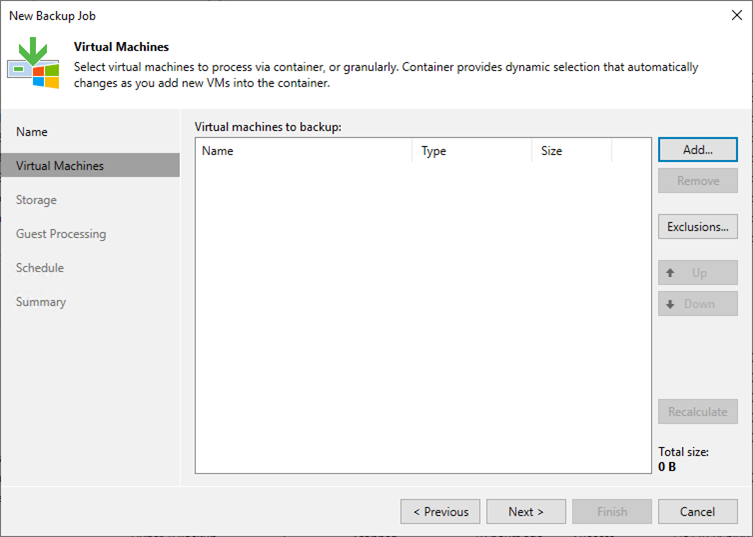

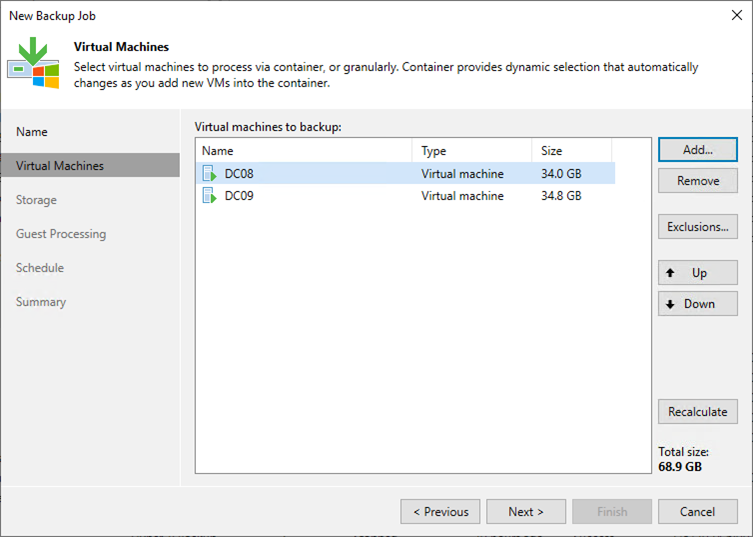

45.Click Add on the Virtual Machines page.

010824 1952 HowtouseQNA39 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

46.Add the Virtual Machines and click Next.

010824 1952 HowtouseQNA40 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

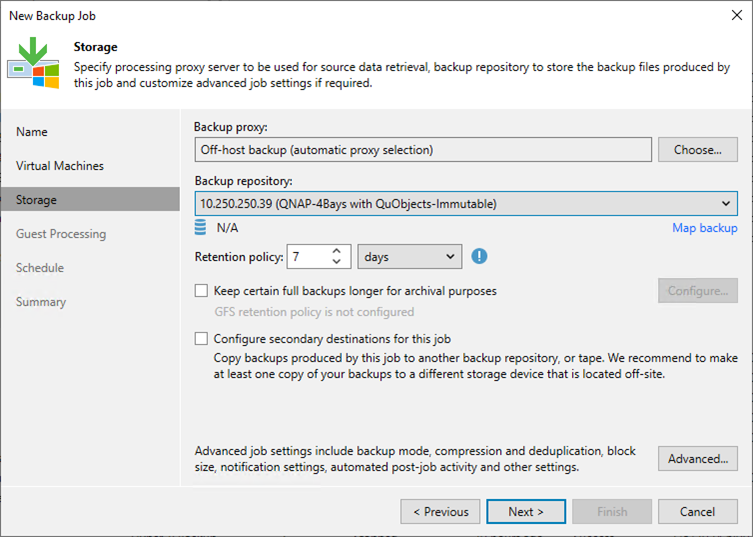

47.Select the new immutable storage from the drop-down list of Backup repository on the Storage page.

48.Change the Retention policy as you need and click Next.

010824 1952 HowtouseQNA41 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

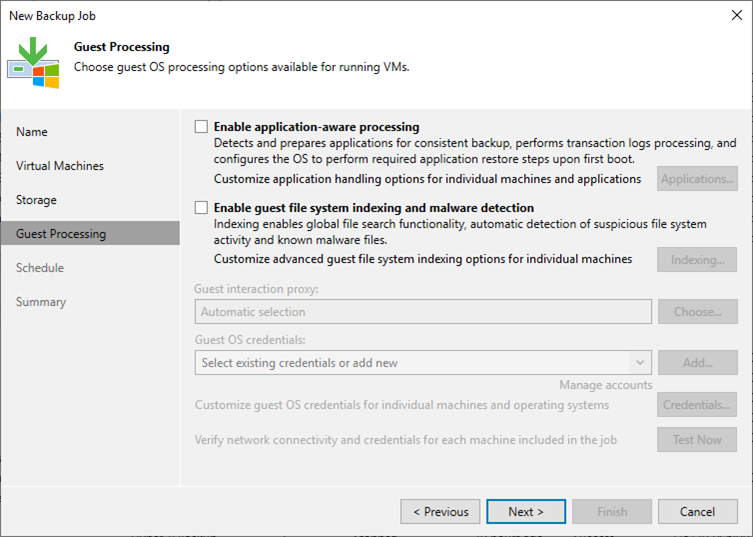

49.Click Next on the Guest Processing page.

010824 1952 HowtouseQNA42 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

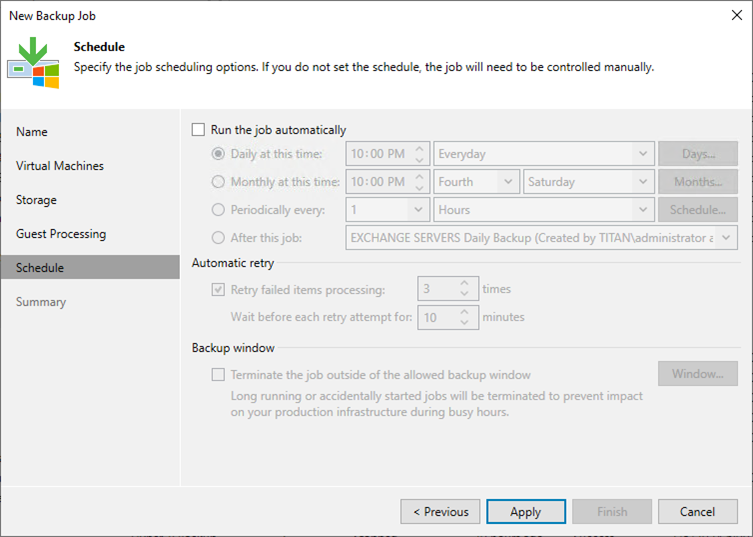

50.On the Schedule page, configure the schedule settings and click Apply.

010824 1952 HowtouseQNA43 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

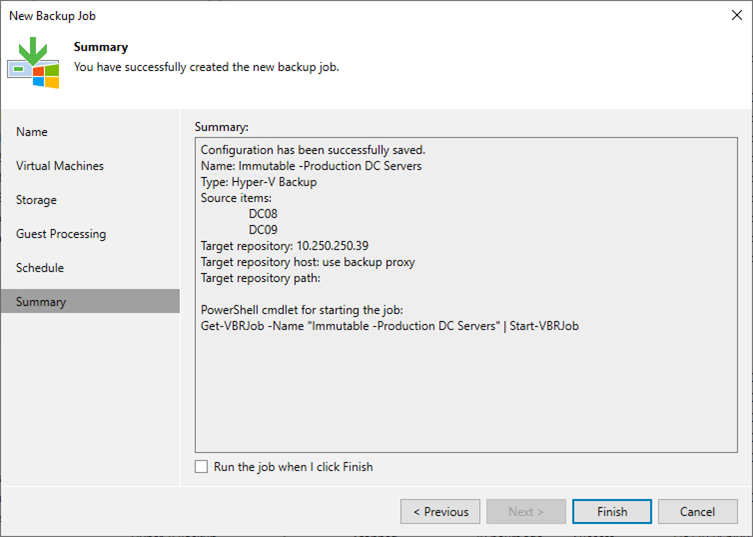

51.Click Finish on the Summary page and run the backup job.

010824 1952 HowtouseQNA44 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

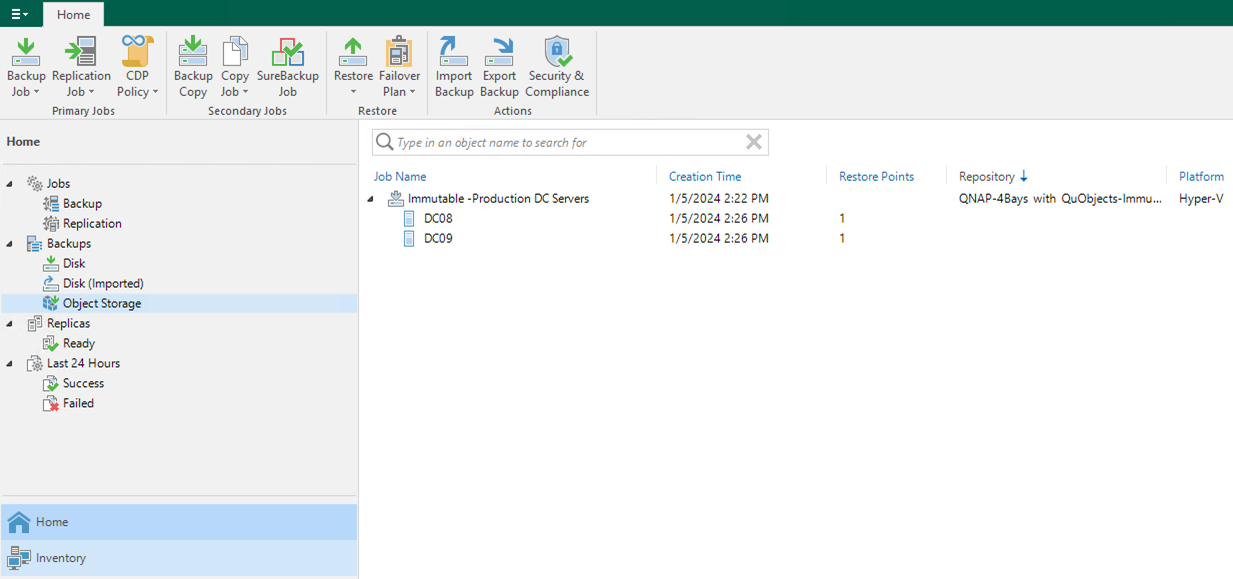

52.Verify the backup result in the Object Storage.

010824 1952 HowtouseQNA45 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

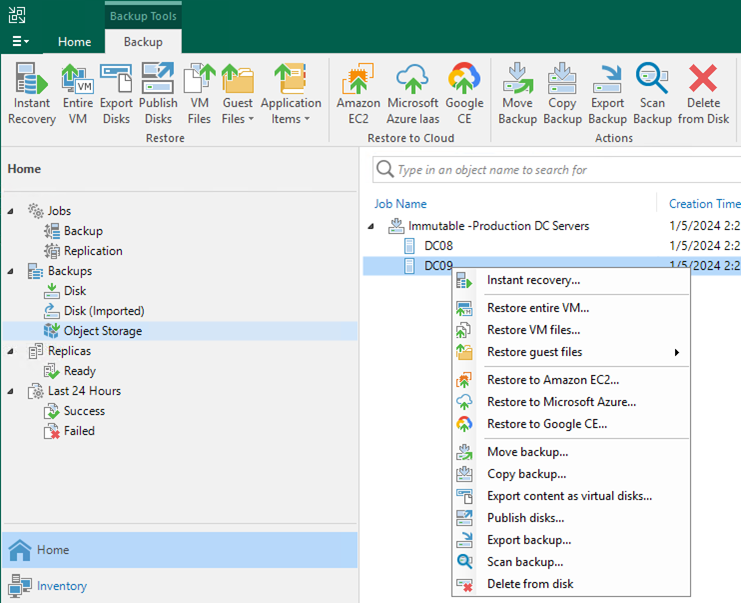

53.If you try to select Delete from disk and it will fail.

010824 1952 HowtouseQNA46 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup

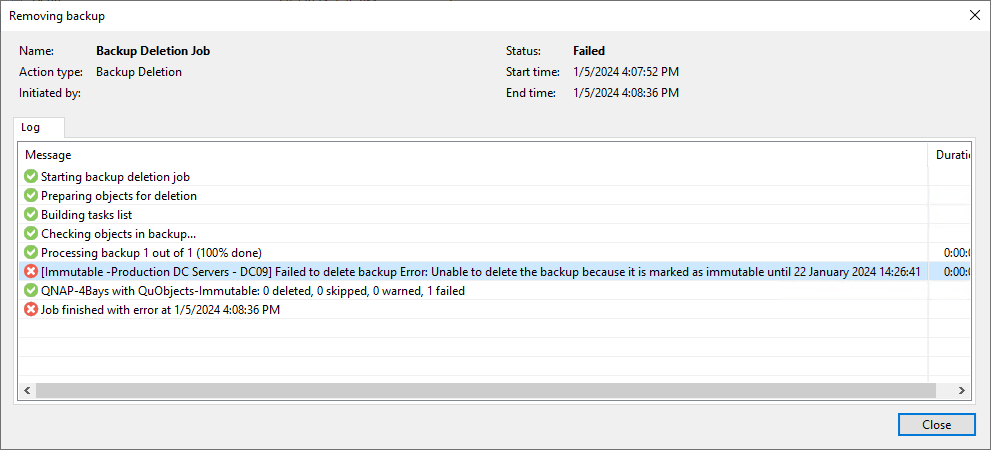

54.The error message is Failed to delete backup Error: Unable to delete the backup because it is marked as immutable until 22 January 2024 14:26:41.

010824 1952 HowtouseQNA47 - How to use QNAP as Object Storage for Veeam Backup and Replication 12.1 with Immutability Backup
