March 19, 2024
052422 1513 AzureActive6 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast
Microsoft is ending support for the Azure Active Directory Graph API. To allow for continued service, if your application providers migrate all Azure Active Directory Synchronization integrations to the MS Graph API, you need to change your API permissions.

Microsoft is ending support for the Azure Active Directory Graph API. To allow for continued service, if your application providers migrate all Azure Active Directory Synchronization integrations to the MS Graph API, you need to change your API permissions.

In my case, Mimecast will migrate all Azure Active Directory Synchronization integrations to the MS Graph API. For Mimecast to do so, you need to grant the required API permissions to the Azure application you created for the Azure Active Directory Synchronization to your Mimecast account. This action must be completed as soon as possible and no later than June 14, 2022, to avoid the risk of service disruption.

1. log in to the Azure portal with a global admin account.

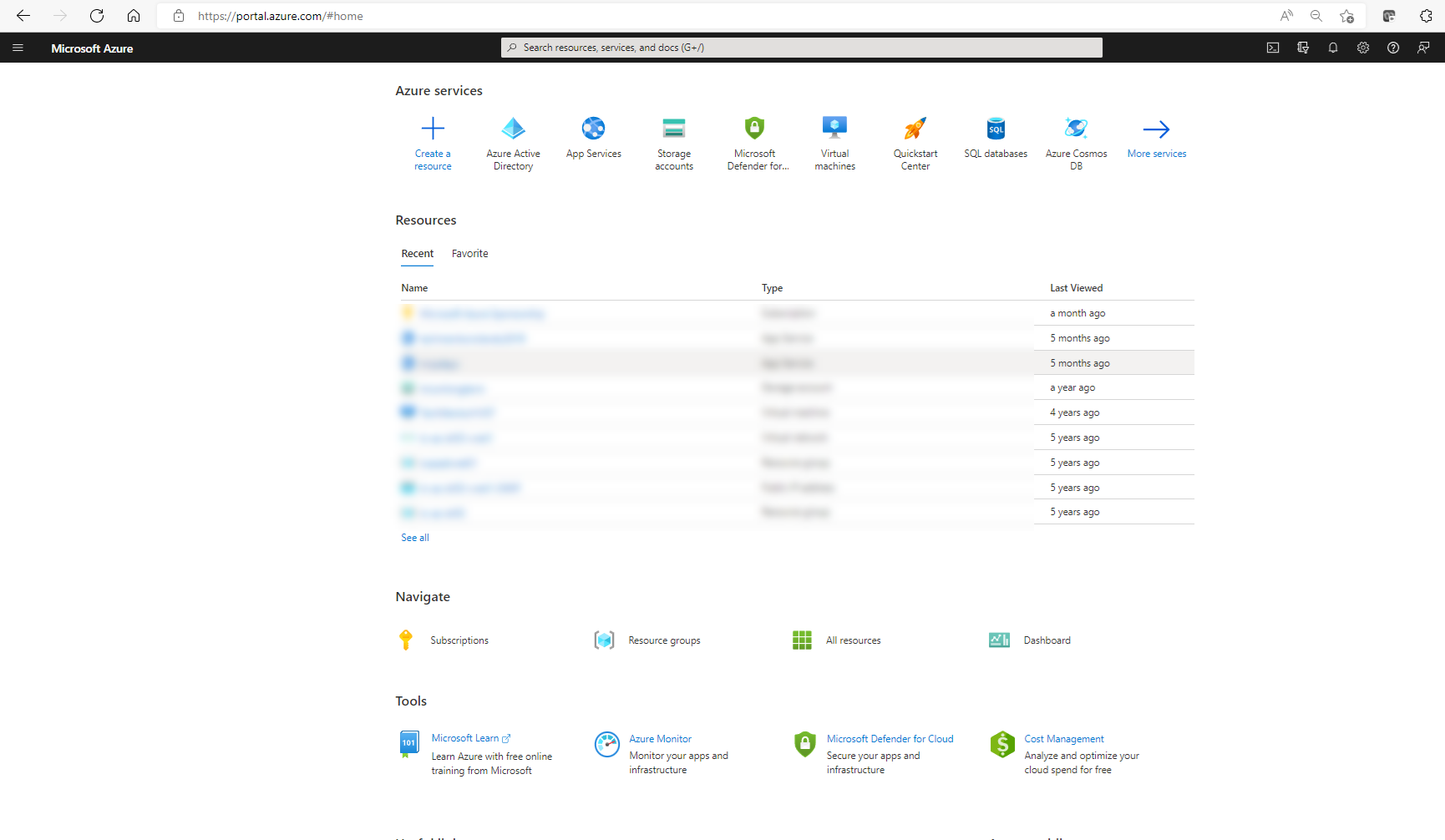

2. On the Azure portal home page, select Azure Active Directory.

052422 1513 AzureActive1 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

3. On the Azure Active Directory page, select App registrations.

052422 1513 AzureActive2 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

4. On the App registrations page, Click the application created for Azure Directory Synchronization to your Mimecast account, in my case is Mimecast Directory Sync.

052422 1513 AzureActive3 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

5. On the Mimecast Directory Sync page, select the API permissions.

052422 1513 AzureActive4 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

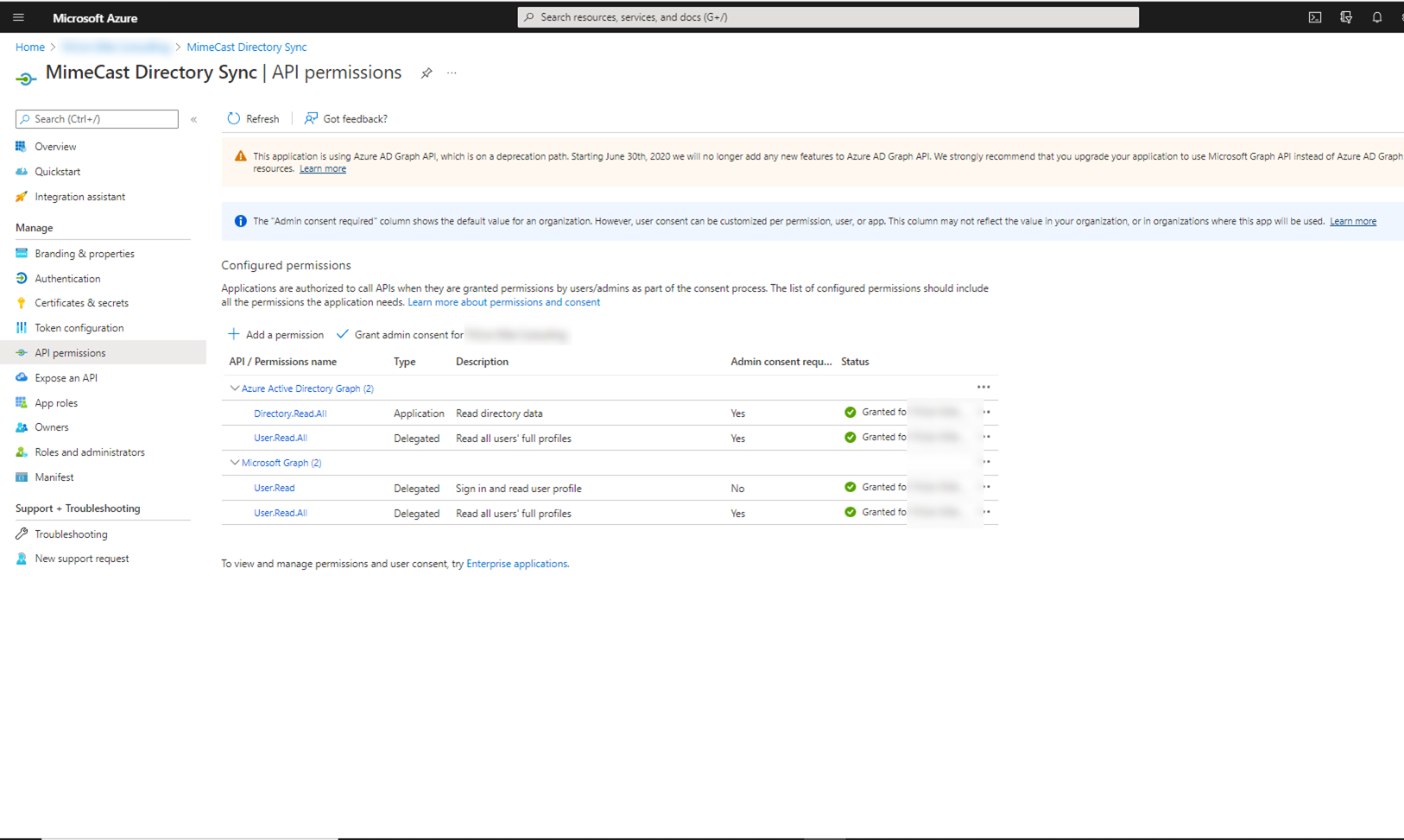

6. On the Configured permission page, click Add a permission.

052422 1513 AzureActive5 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

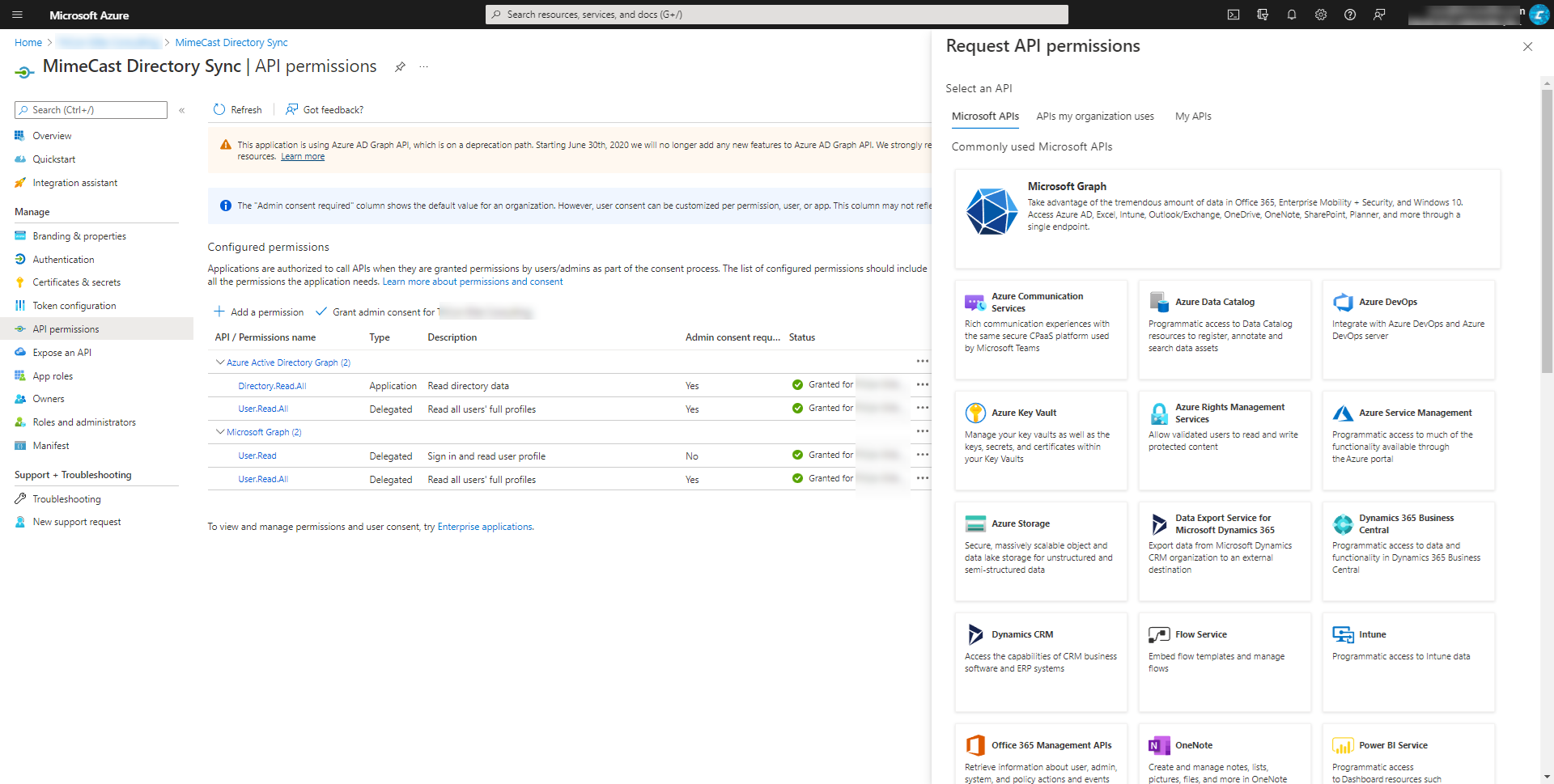

7. On the Request API permissions page, select APIs my organization users.

052422 1513 AzureActive6 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

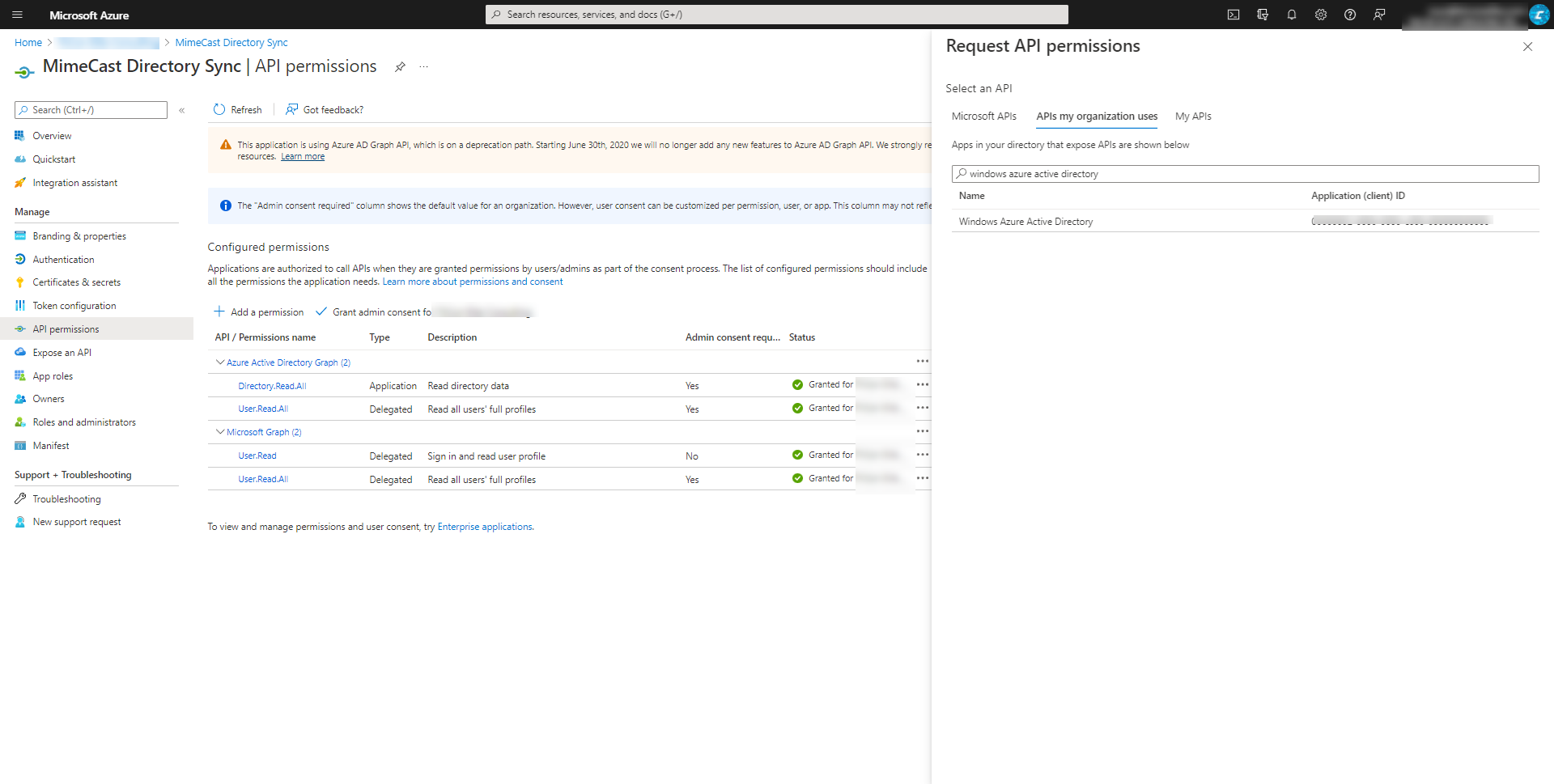

8. On the APIs my organization users page, search for and select the Windows Azure Active Directory item.

052422 1513 AzureActive7 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

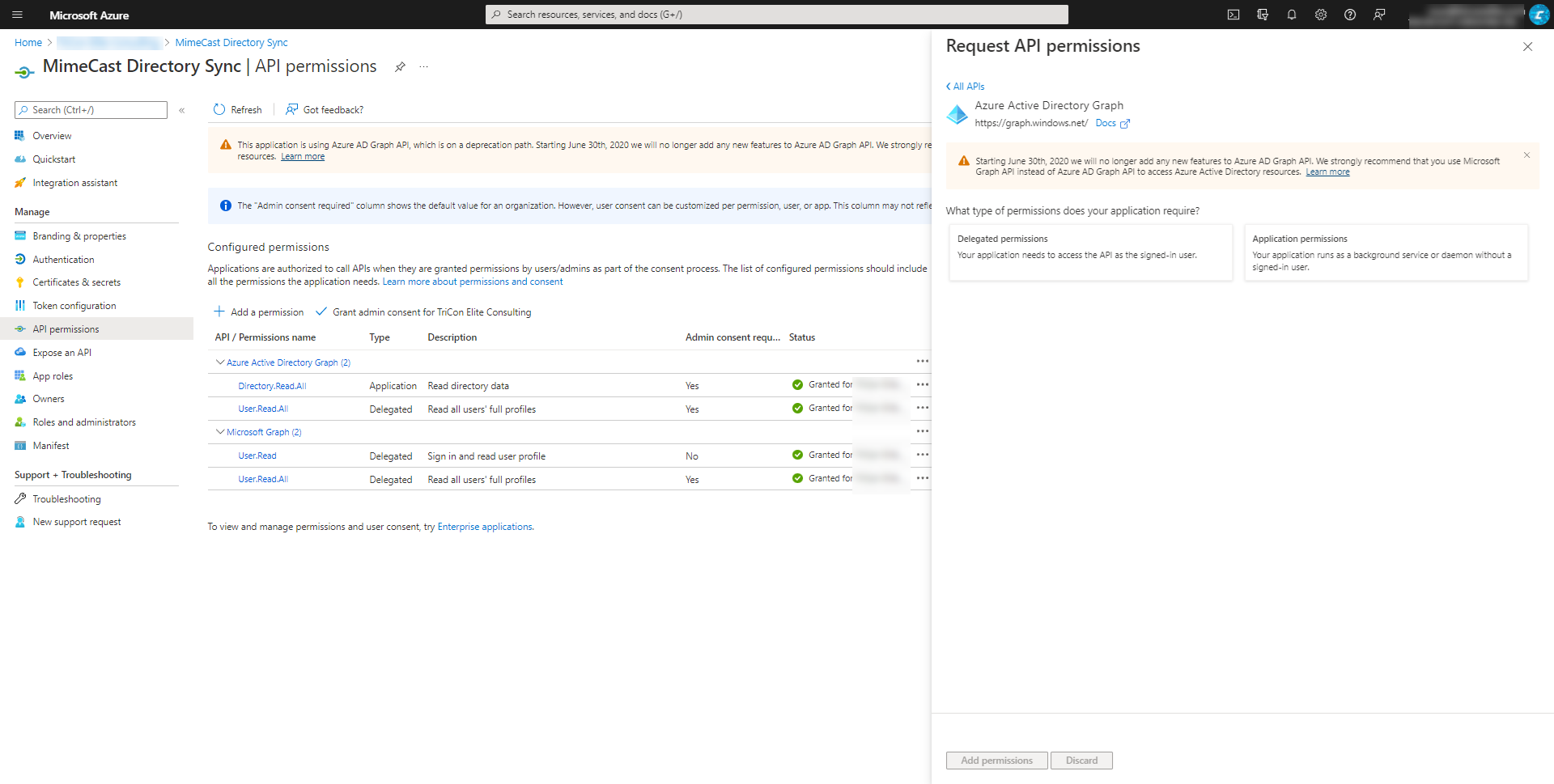

9. On the Azure Active Directory Graph page, select Application permissions.

052422 1513 AzureActive8 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

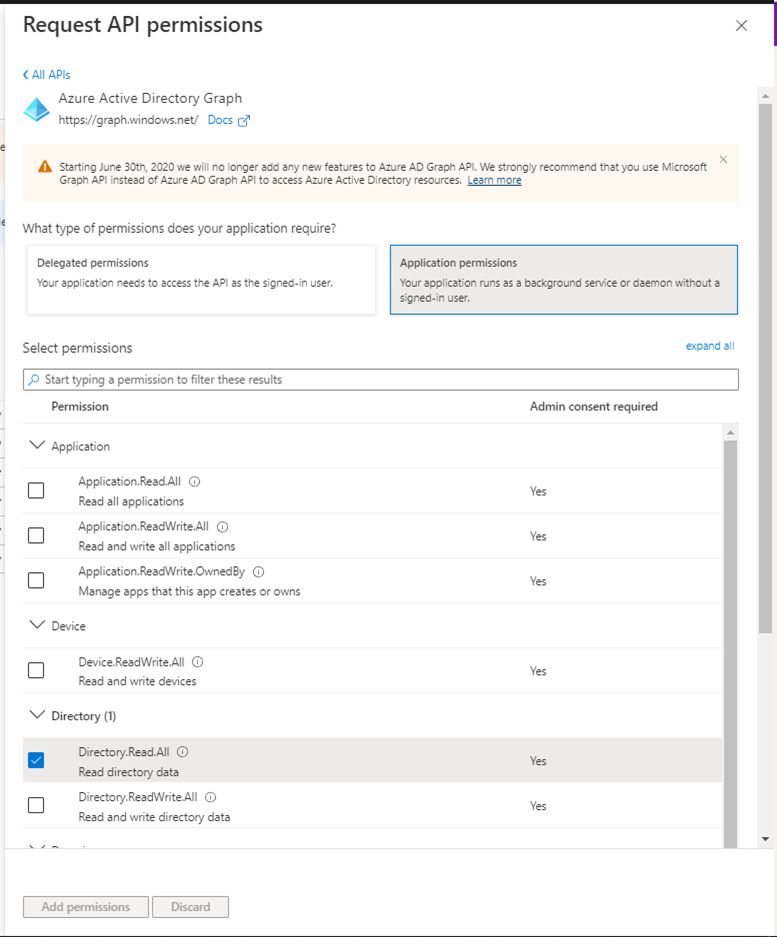

10. On the Select permissions page, expand the Directory section.

052422 1513 AzureActive9 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

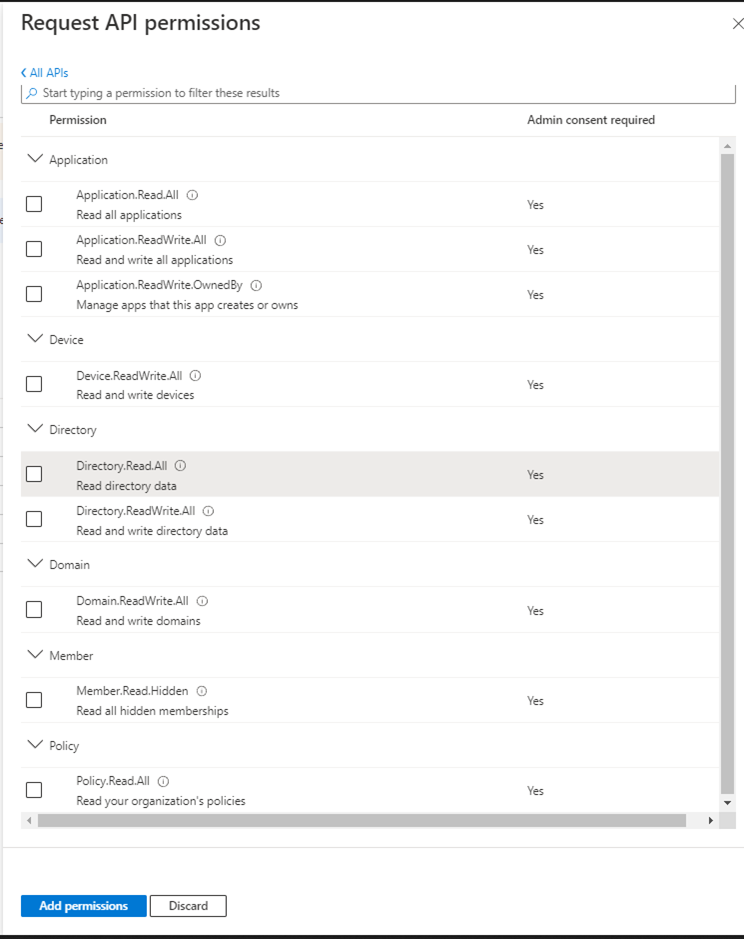

11. Select the Directory.Read.All, click on the Add permissions.

052422 1513 AzureActive10 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

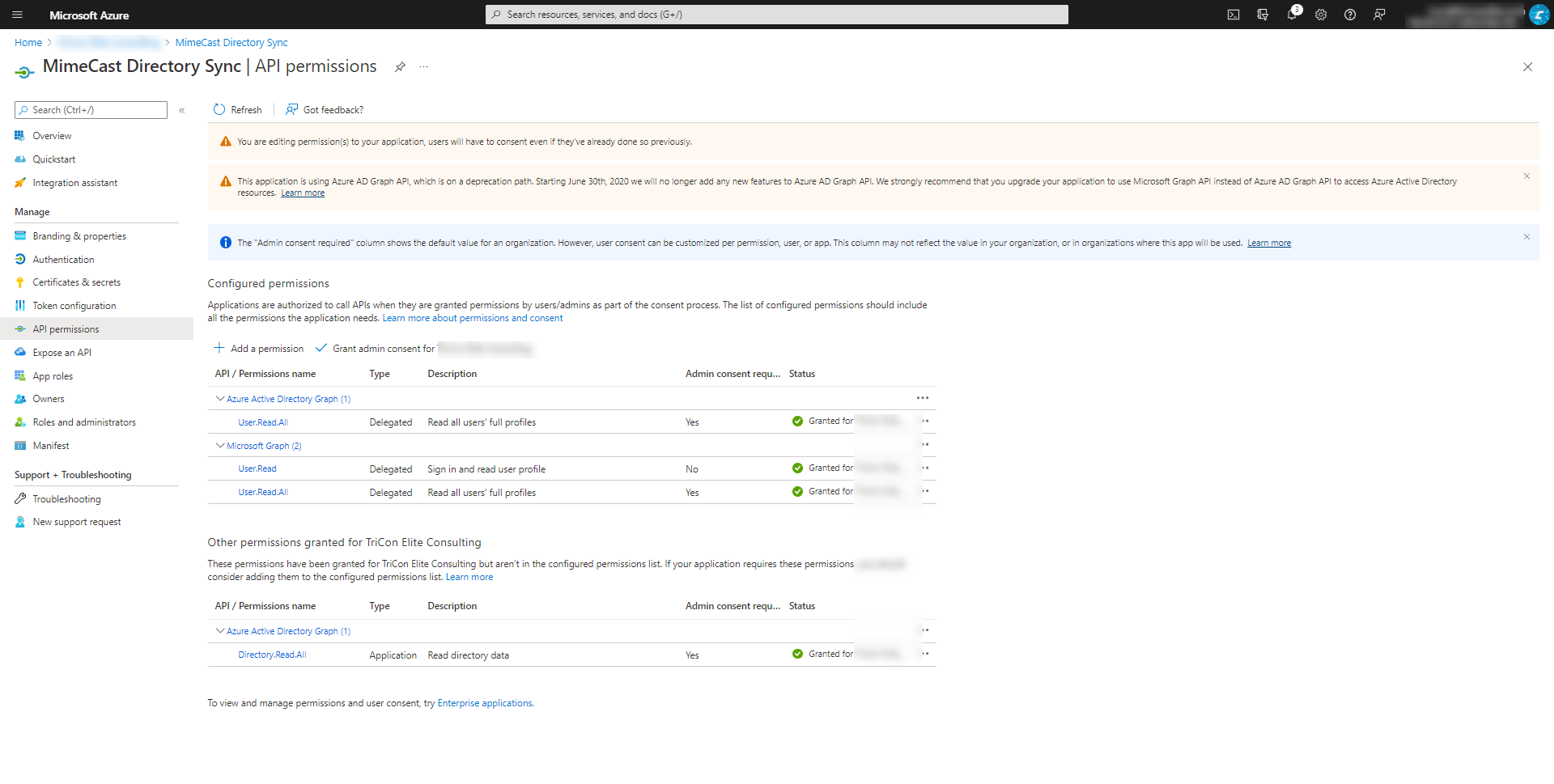

12. On the Configured permissions page, click Add a permission.

052422 1513 AzureActive11 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

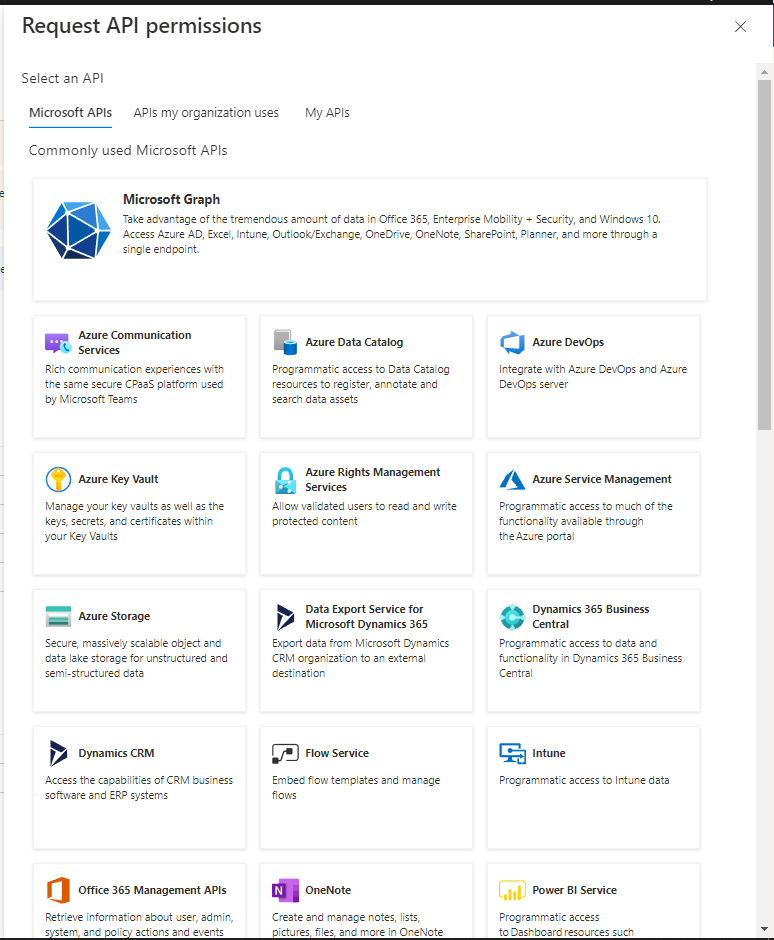

13. On the Select an API page, select Microsoft APIs and click Microsoft Graph.

052422 1513 AzureActive12 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

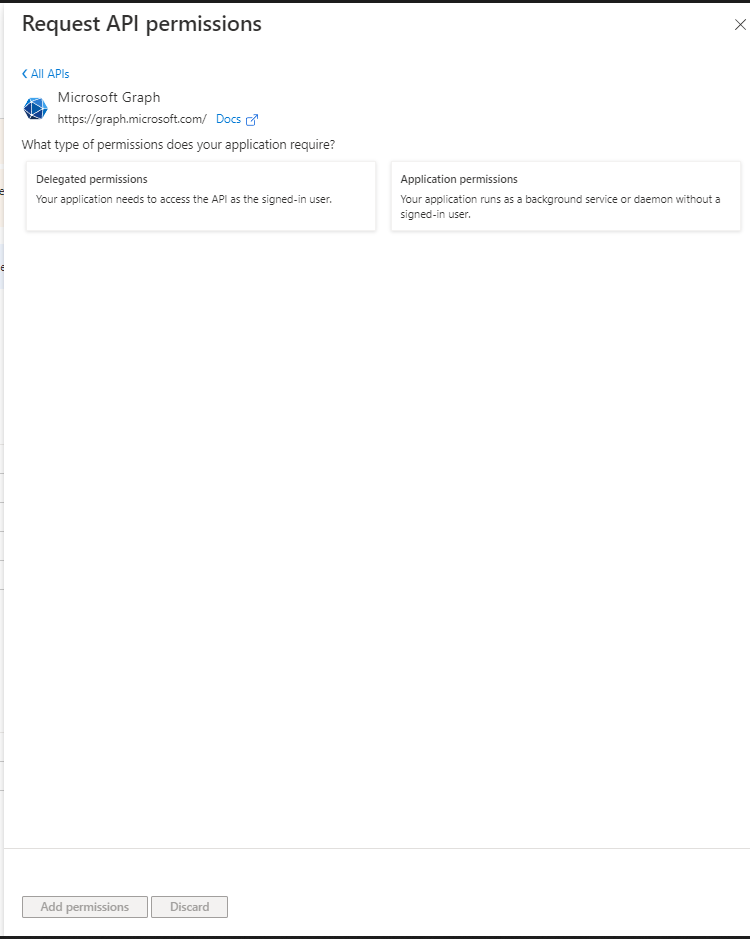

14. On the Microsoft Graph page, select Application permissions.

052422 1513 AzureActive13 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

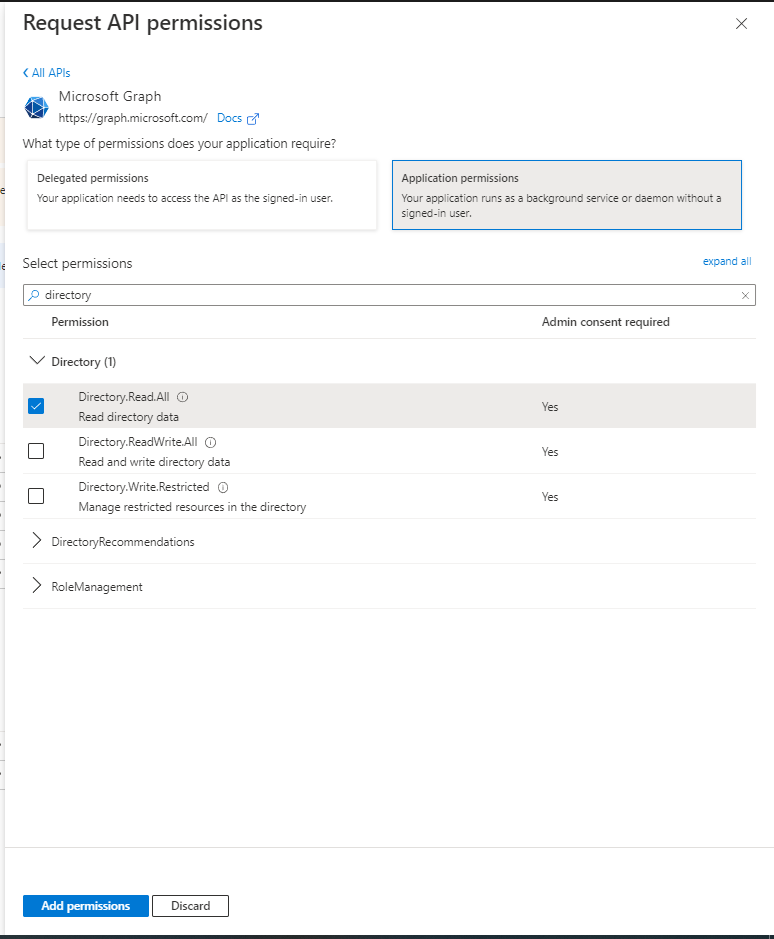

15. On the Select permissions page, search and expand Directory, select the Directory.Read.All.

052422 1513 AzureActive14 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

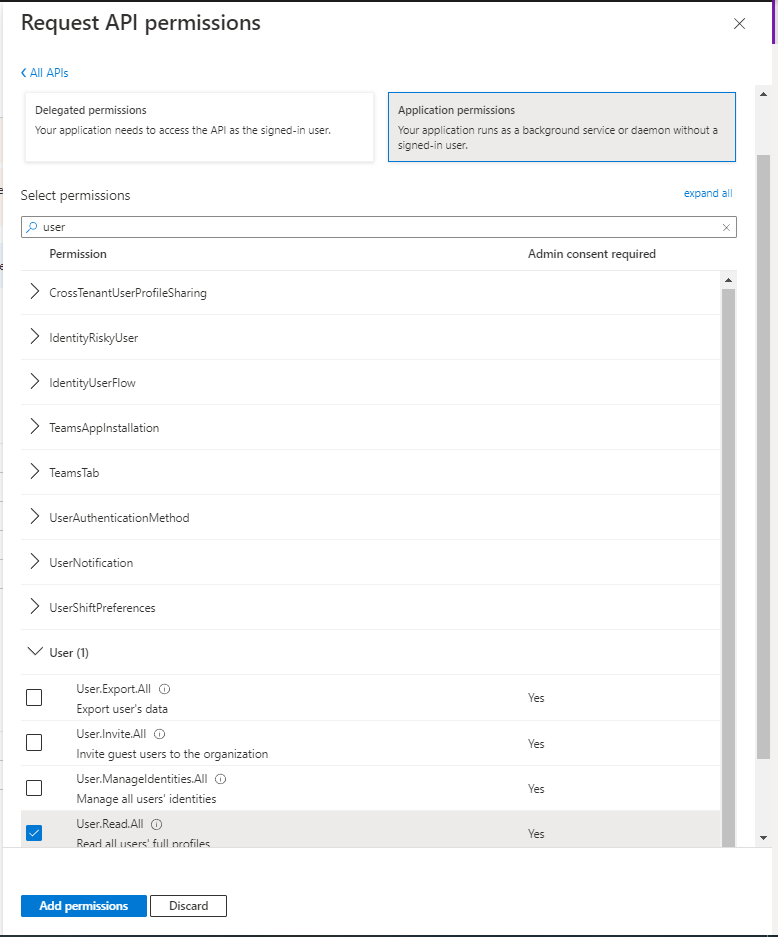

16. Search and expand the Directory, select the User.Read.All, click Add permissions.

052422 1513 AzureActive15 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

17. On the Configured permissions page, click Grant admin consent for …

052422 1513 AzureActive16 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

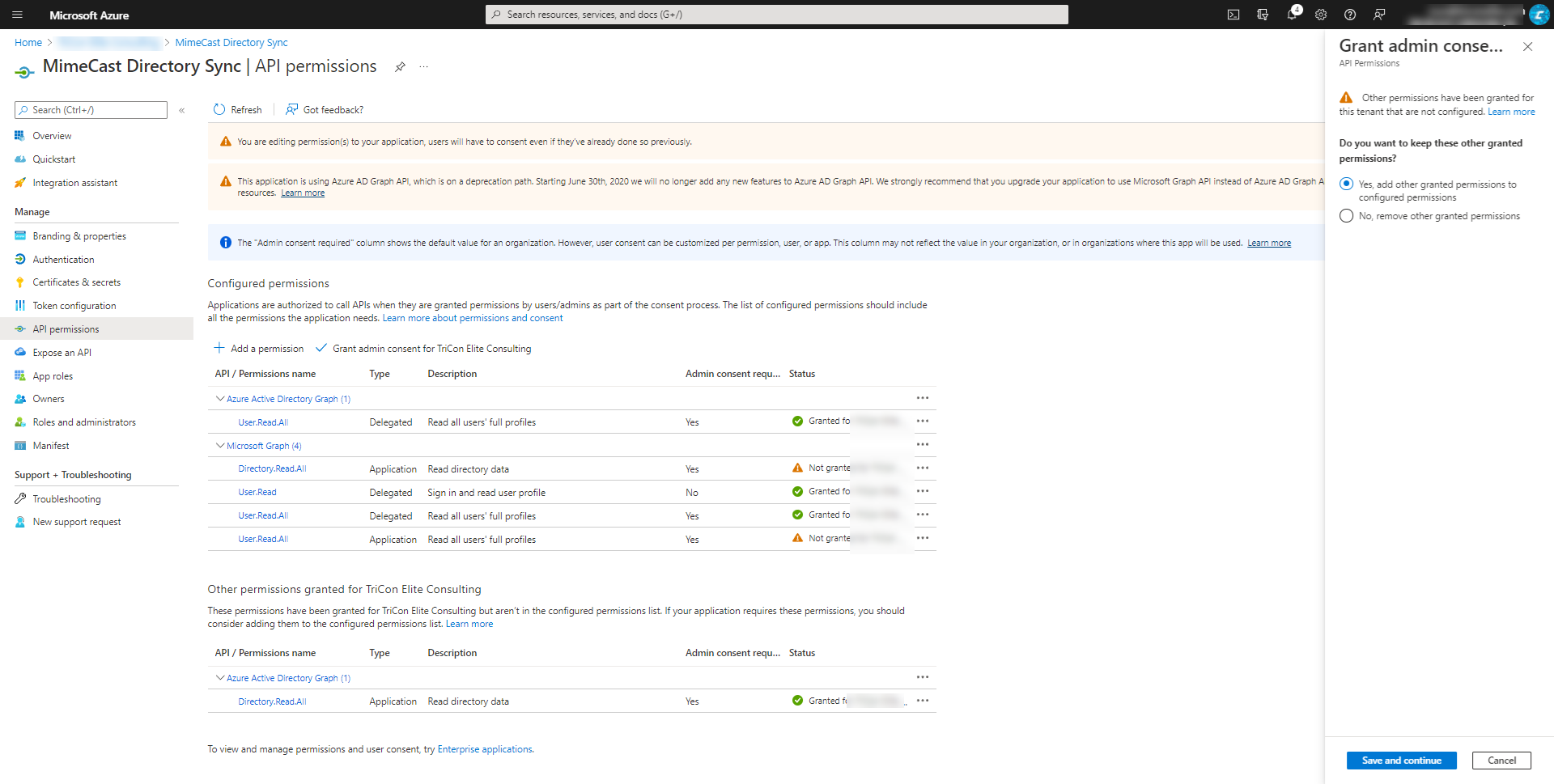

18. On the API permissions page, select Yes, add other grant permissions to configured permissions, click Save and continue.

052422 1513 AzureActive17 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

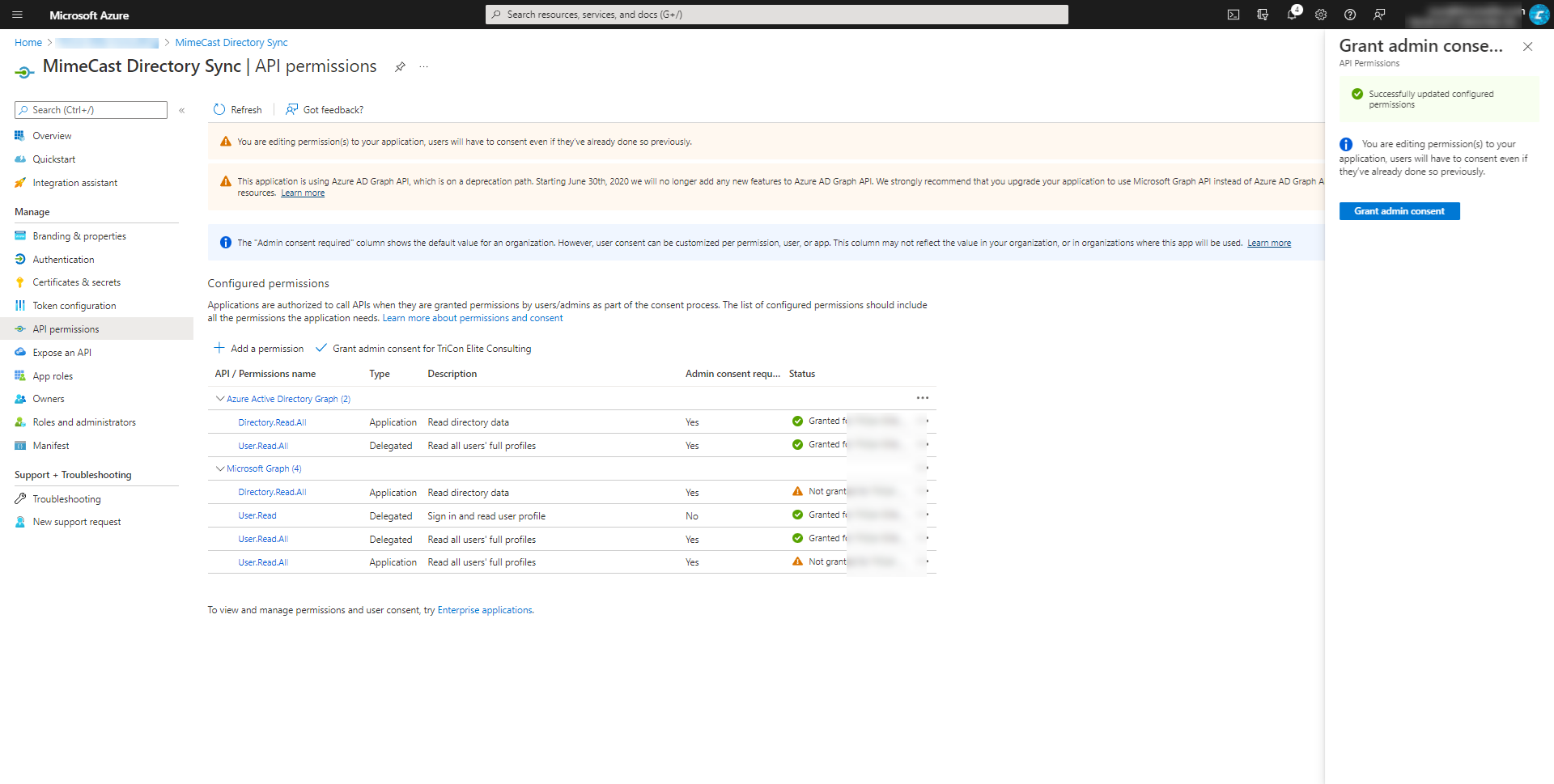

19. On the API Permissions page, click Grant admin consent.

052422 1513 AzureActive18 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

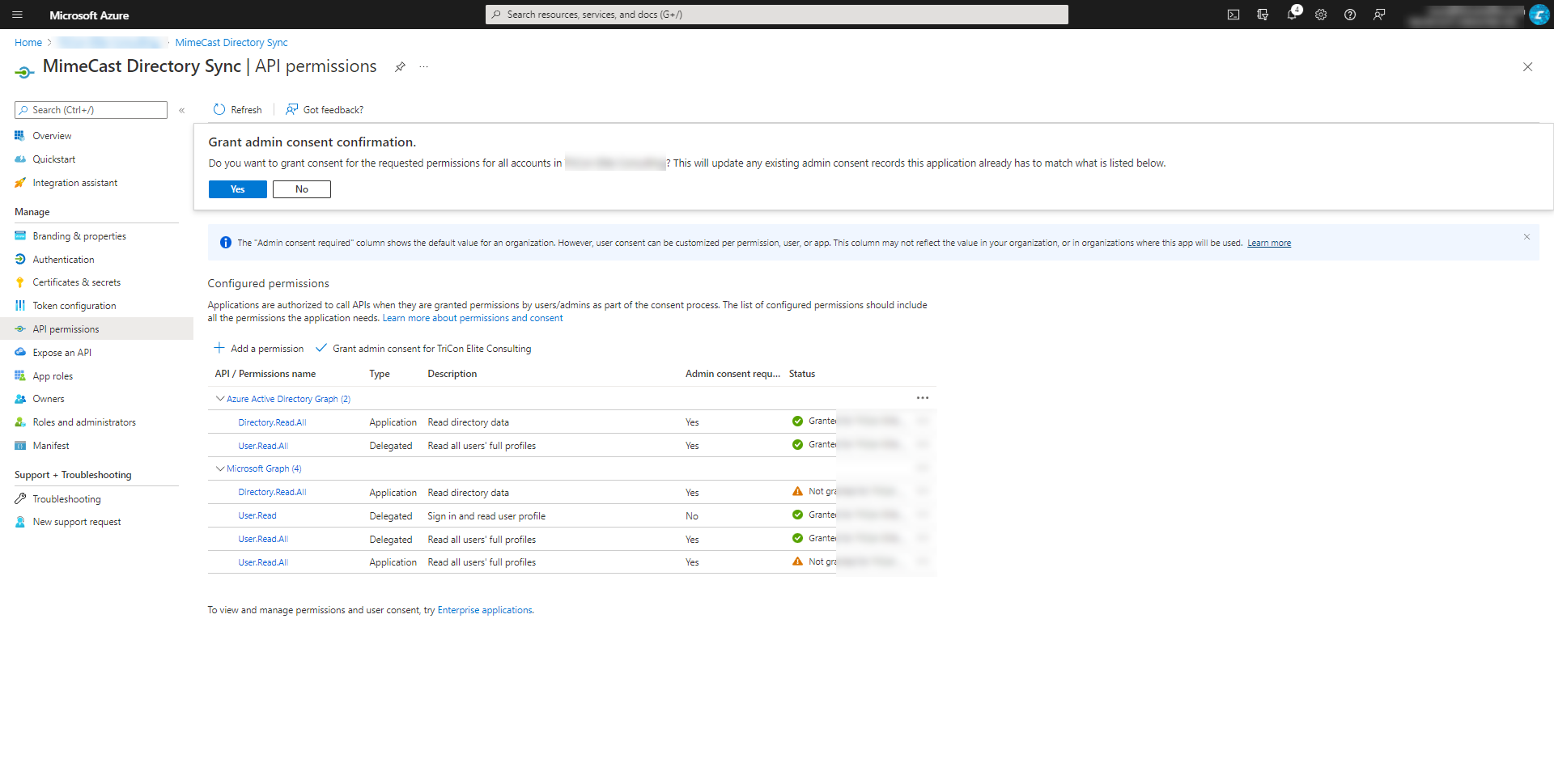

20. On the Grant admin consent confirmation page, click Yes.

052422 1513 AzureActive19 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

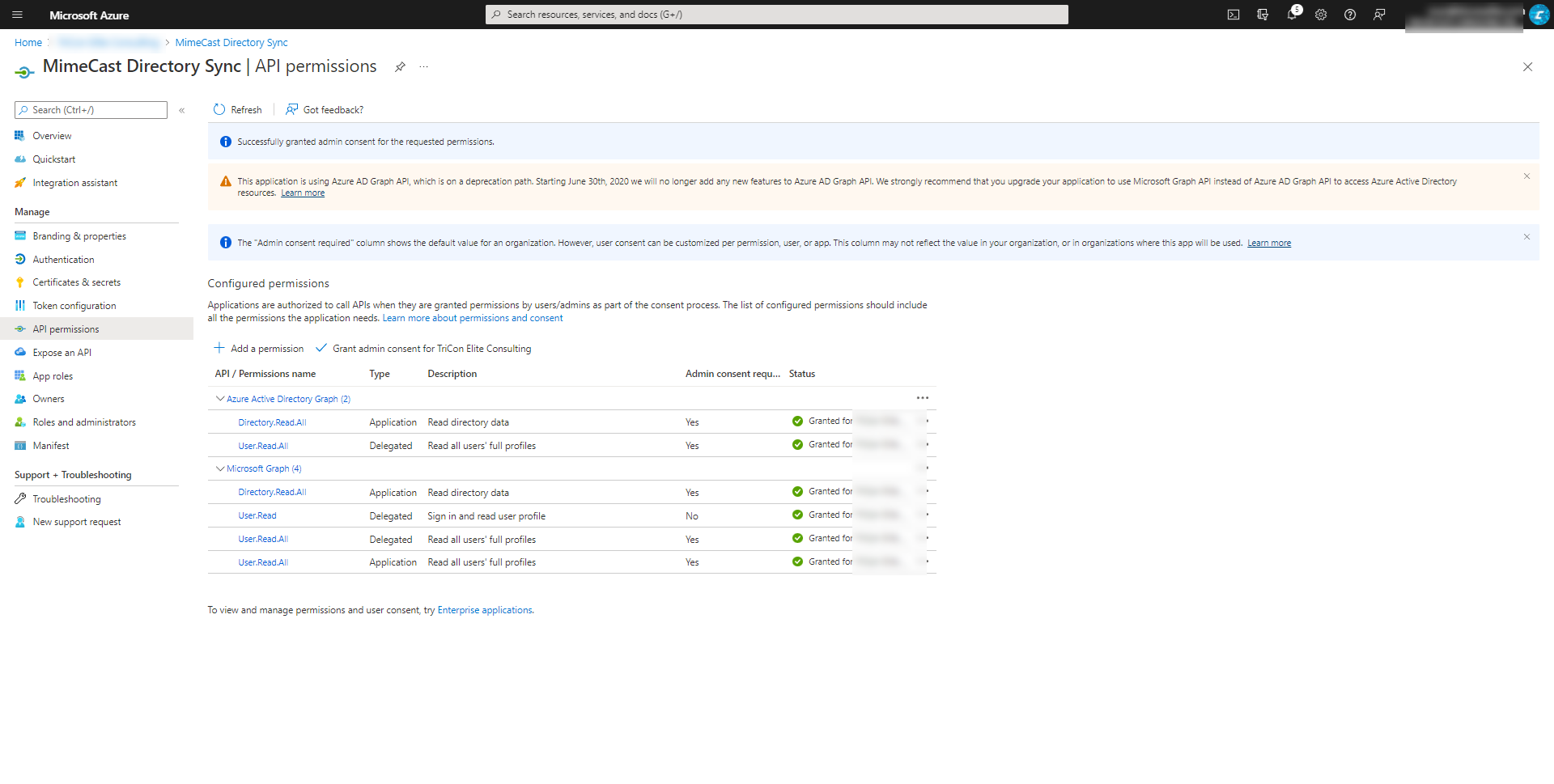

21. Verify the status of API/Permissions.

052422 1513 AzureActive20 - Azure Active Directory Synchronization Migration to MS Graph API at Mimecast

Hope you enjoy this post.
