When you try to extend the C drive from the Disk Manager tool but the Extend volume greys out, the recovery partition prevents the C drive from extending the volume.

When you try to extend the C drive from the Disk Manager tool but the Extend volume greys out, the recovery partition prevents the C drive from extending the volume.

Today, I will show you how to solve it.

122023 1828 FixWindowsS1 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

1. Mount the Windows Server 2022 (2019) ISO image file.

2. Open the Command Prompt as administrator.

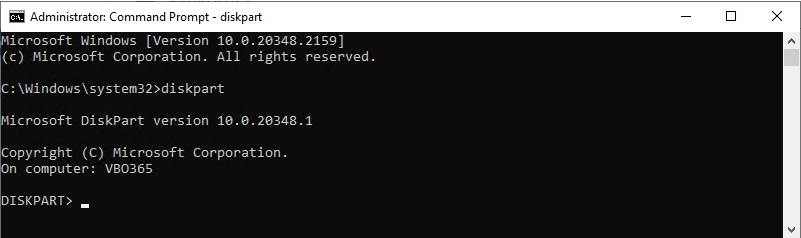

3. Type diskpart and press the Enter key.

122023 1828 FixWindowsS2 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

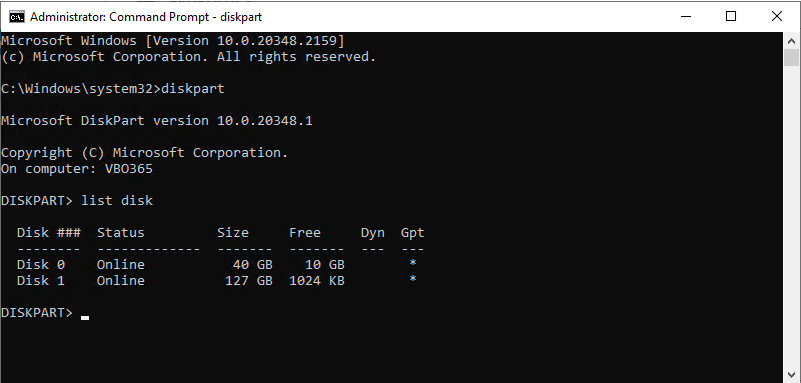

4. Type list disk and press the Enter key.

122023 1828 FixWindowsS3 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

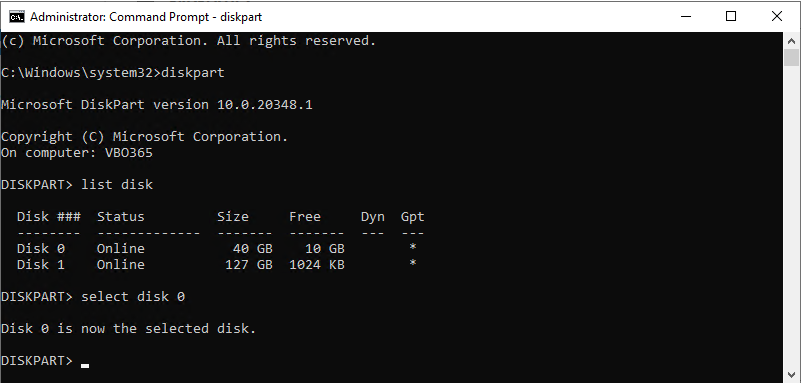

5. Type select disk 0 and press the Enter key.

122023 1828 FixWindowsS4 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

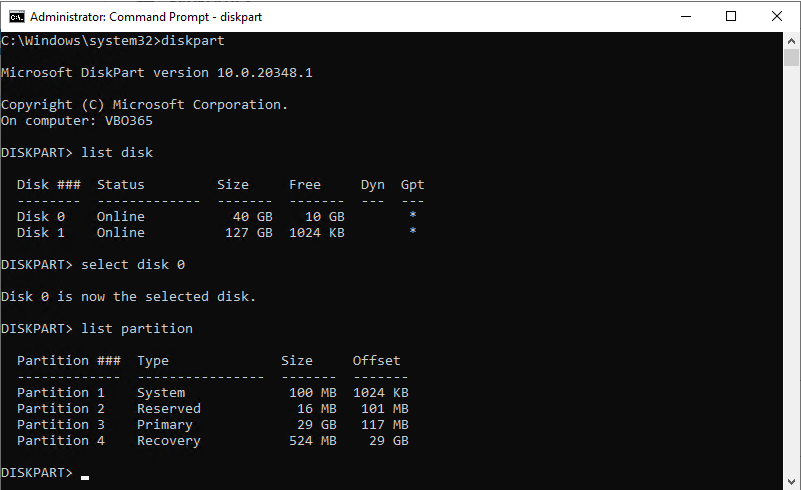

6. Type list partition and press the Enter key.

122023 1828 FixWindowsS5 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

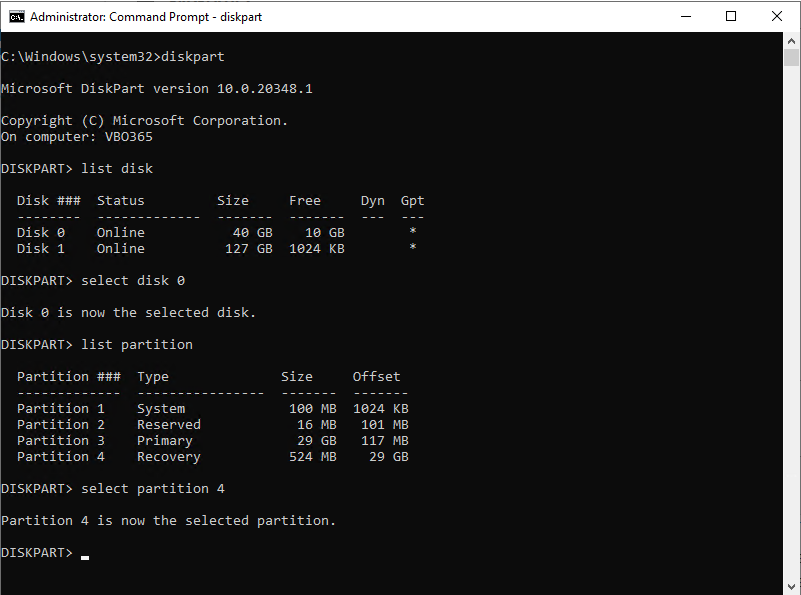

7. Type Select Partition 4 and press the Enter key.

122023 1828 FixWindowsS6 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

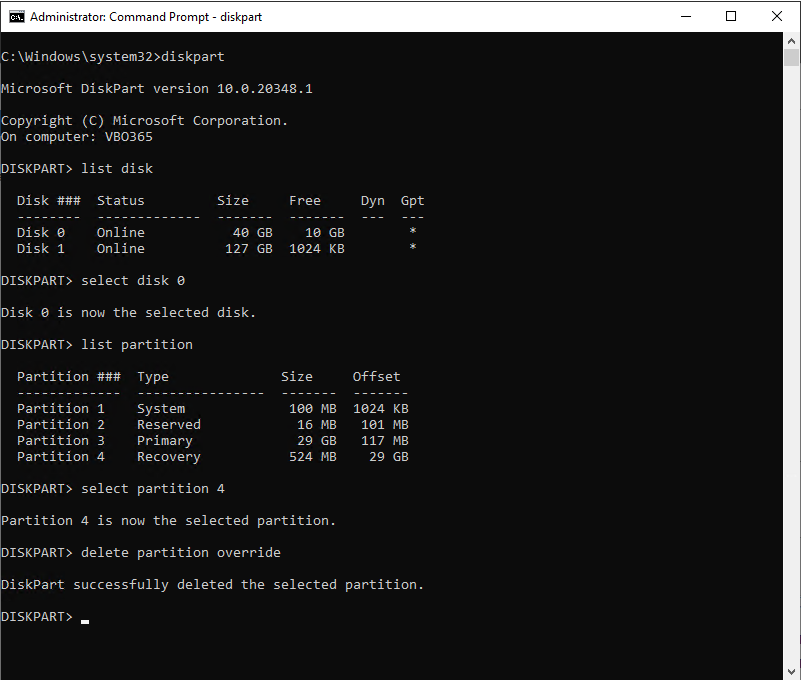

8. Type delete partition override and press the Enter key.

122023 1828 FixWindowsS7 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

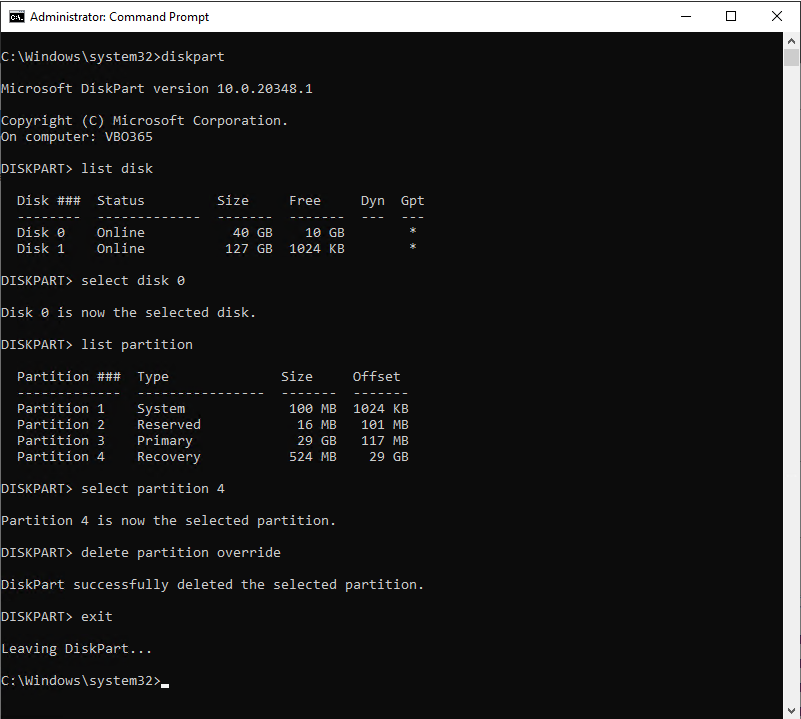

9. Type exit to leave DiskPart and press the Enter key.

122023 1828 FixWindowsS8 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

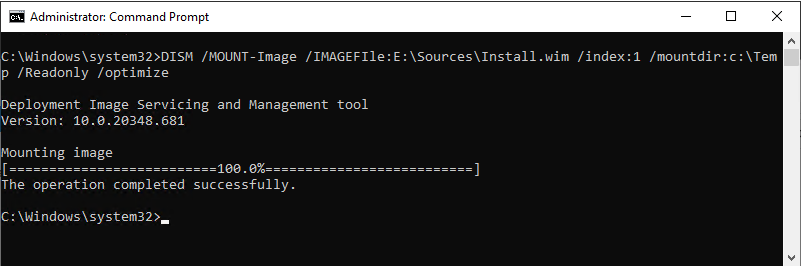

10. Type the below command to mount the deployment image and management tool, and press the Enter key.

DISM /MOUNT-Image /IMAGEFIle:E:\Sources\Install.wim /index:1 /mountdir:c:\Temp /Readonly /optimize

Note:

You need to create the Temp folder manually.

122023 1828 FixWindowsS9 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

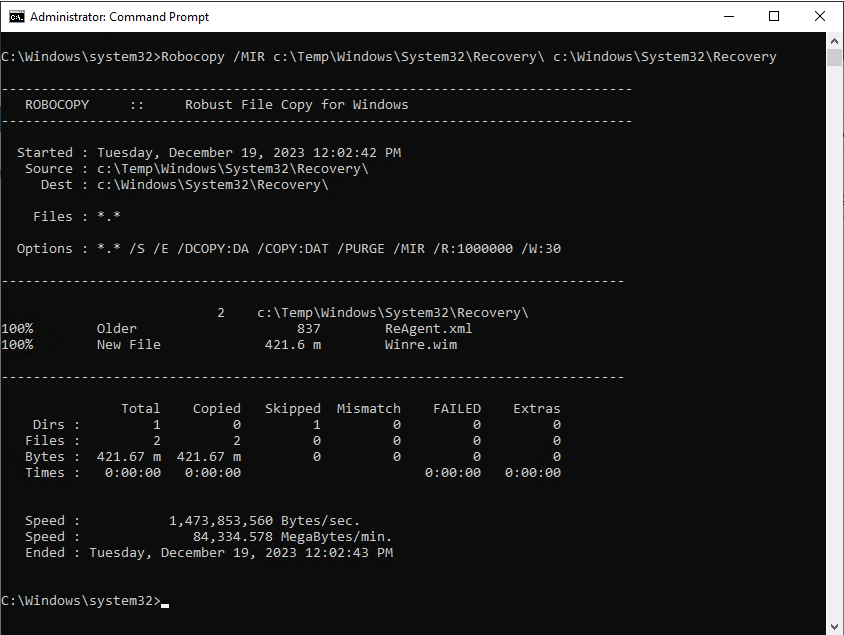

11. Type the below command to Robocioy the Recovery data.

Robocopy /MIR c:\Temp\Windows\System32\Recovery\ c:\Windows\System32\Recovery

122023 1828 FixWindowsS10 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

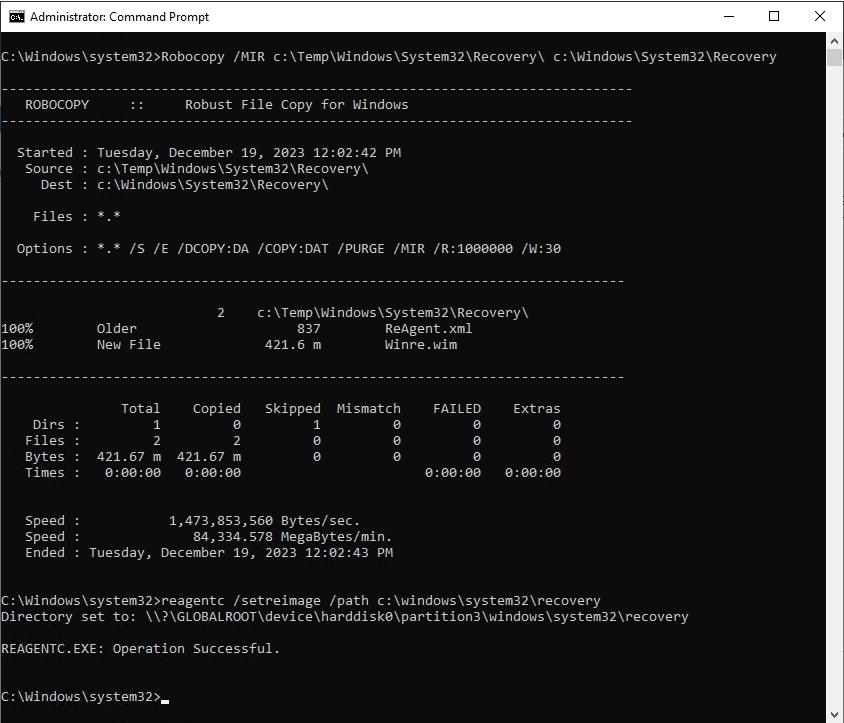

12. Type the below command to reset the recovery image.

reagentc /setreimage /path c:\windows\system32\recovery

122023 1828 FixWindowsS11 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

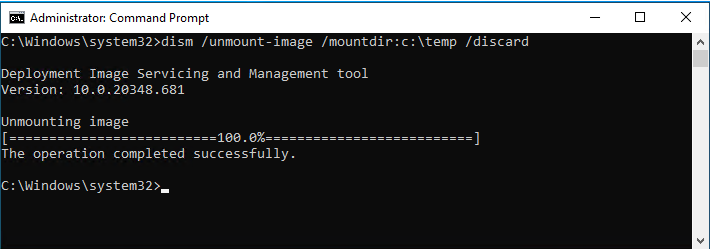

13. Type the below command to unmount the deployment image and management tool.

122023 1828 FixWindowsS12 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

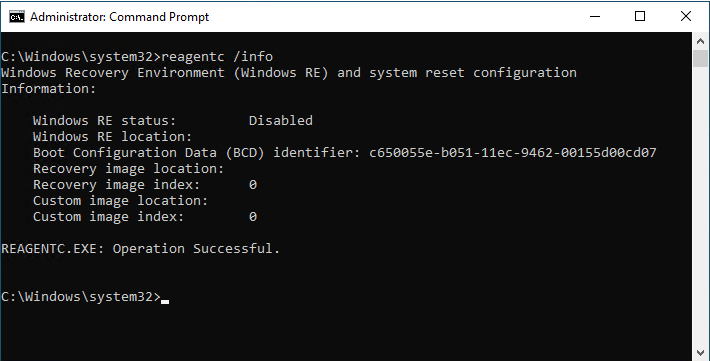

14. Type the below command to check the Windows RE and system configuration.

122023 1828 FixWindowsS13 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

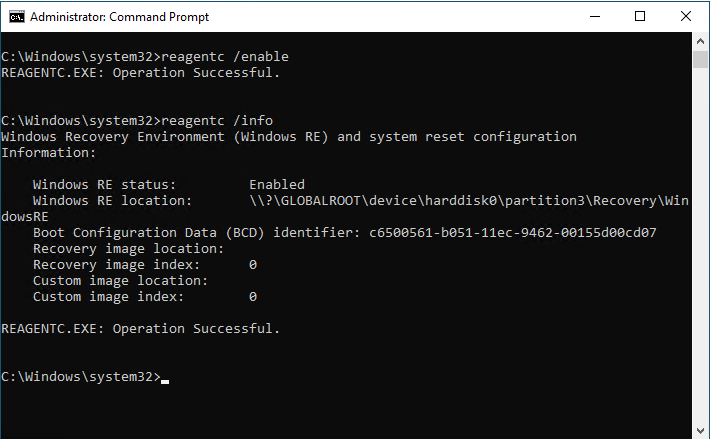

15. Type the below command to enable the Windows RE.

reagentc /enable

122023 1828 FixWindowsS14 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

16. Type the below command to review the status.

122023 1828 FixWindowsS15 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

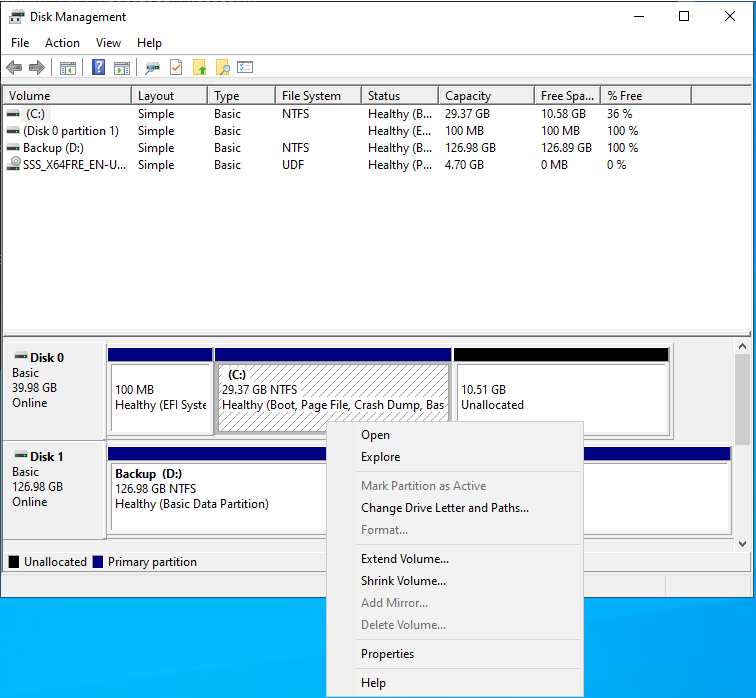

17. Open the Disk Management tool and right-click C drive. You can now select Extend Volume for C drive.

122023 1828 FixWindowsS16 - Fix Windows Server 2022 (2019) Recovery partition to prevent C drive extend volume issues

I hope you enjoy this post.
