You can add a hardened repository based on a Linux server to your backup infrastructure to protect your backup files from loss due to malware activity or unplanned actions.

You can add a hardened repository based on a Linux server to your backup infrastructure to protect your backup files from loss due to malware activity or unplanned actions. The hardened repository supports the following features:

  • Immutability: You specify the period when you add a hardened repository, and backup files must be immutable.
  • Single-use credentials: Credentials will only be used once to add the Linux server to the backup infrastructure. The backup infrastructure does not store these credentials. The attacker cannot access the hardened repository even if the Veeam Backup & Replication server is compromised.

1. Login to the Veeam Backup and replication manager server.

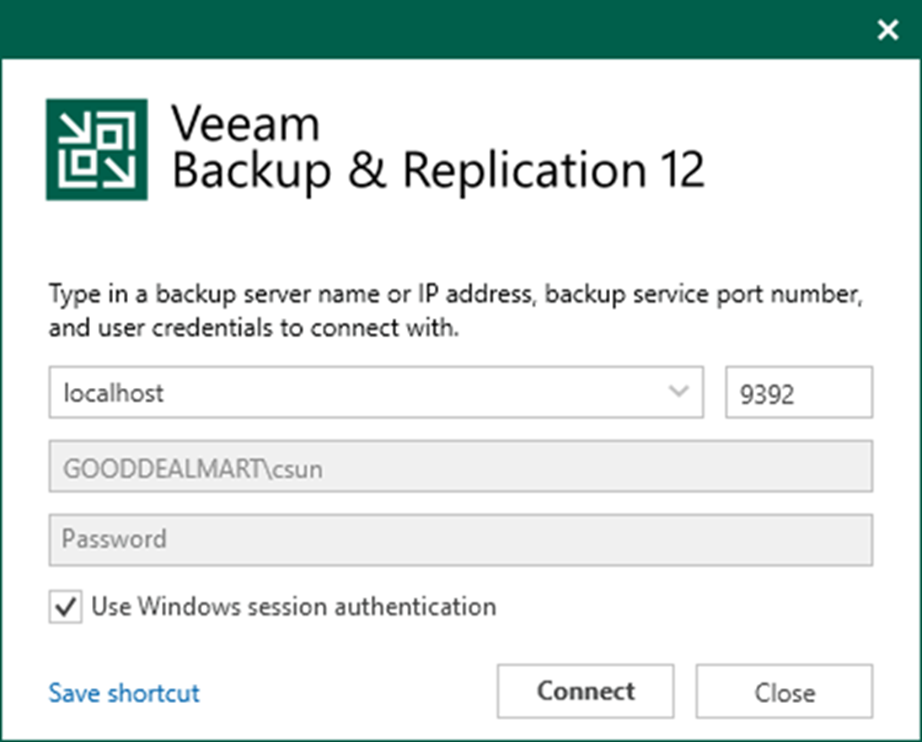

2. Open the Veeam Backup & Replication Console and click Connect.

082523 1748 Howtoaddthe1 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

3. On the Home page, select Backup Infrastructure.

4. On the Backup Infrastructure page, select Backup Repositories.

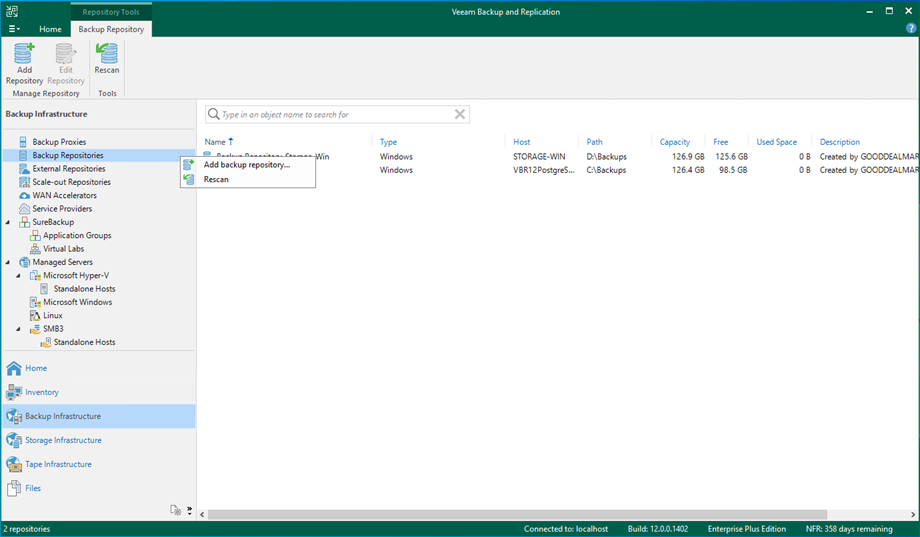

5. Right-click Backup Repositories and select Add backup repository.

082523 1748 Howtoaddthe2 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

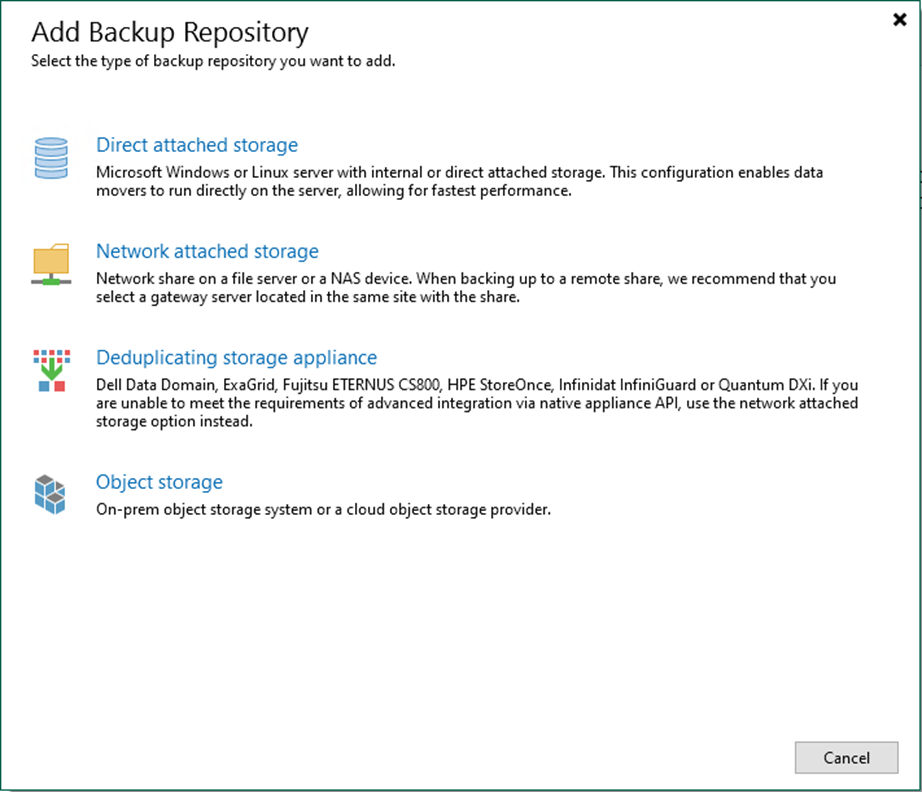

6. Select Direct attached storage on the Add Backup Repository page.

082523 1748 Howtoaddthe3 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

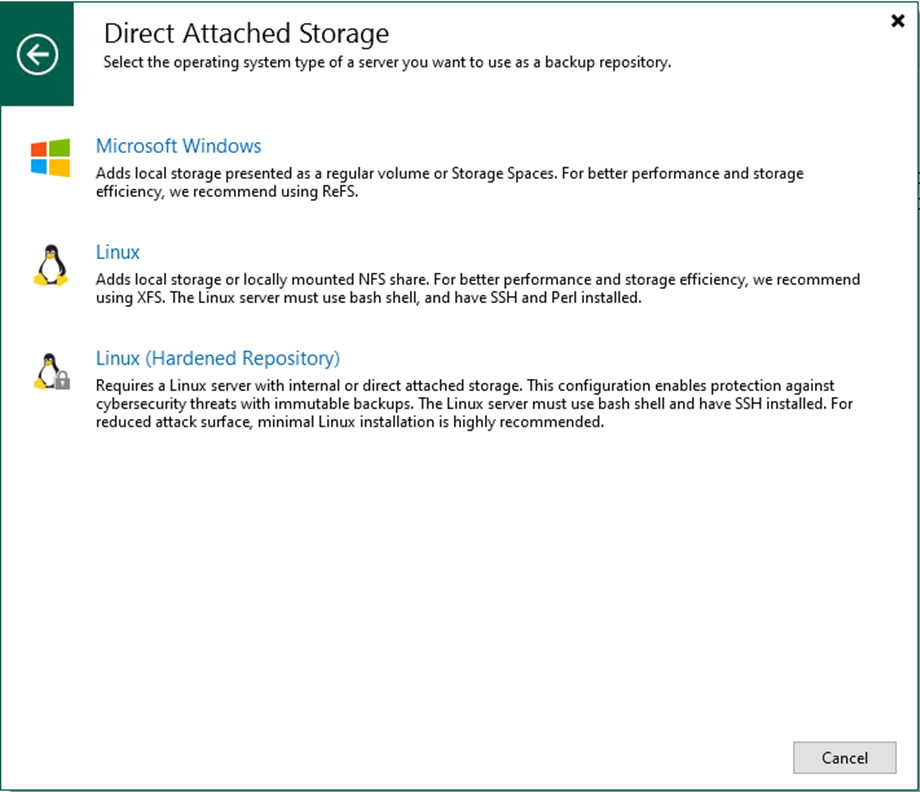

7. Select Linux (Hardened Repository) on the Direct Attached Storage page.

082523 1748 Howtoaddthe4 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

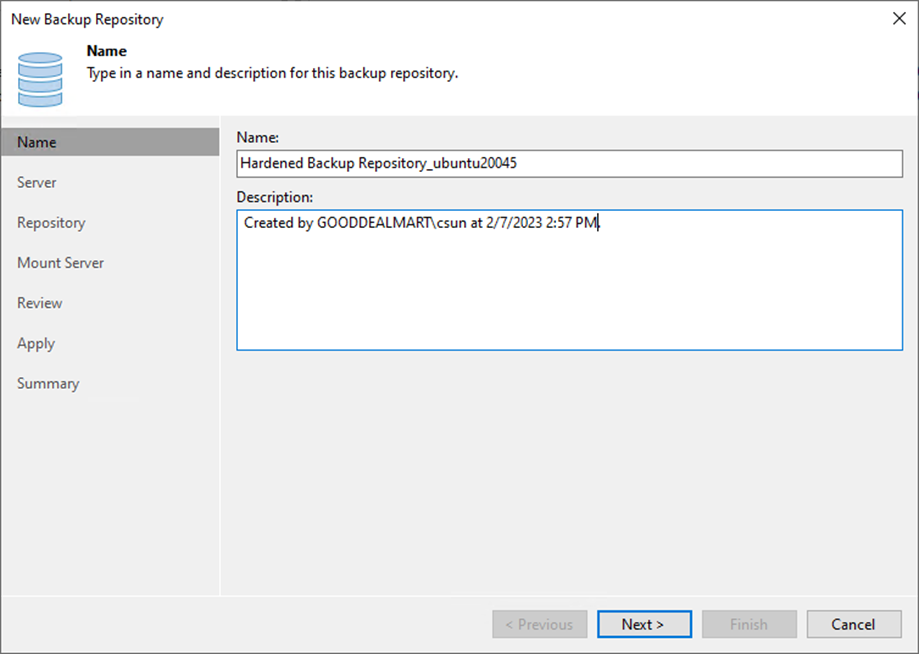

8. On the Name page, specify a Backup Repository name.

9. Give a brief description in the Description field for future reference and click Next.

082523 1748 Howtoaddthe5 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

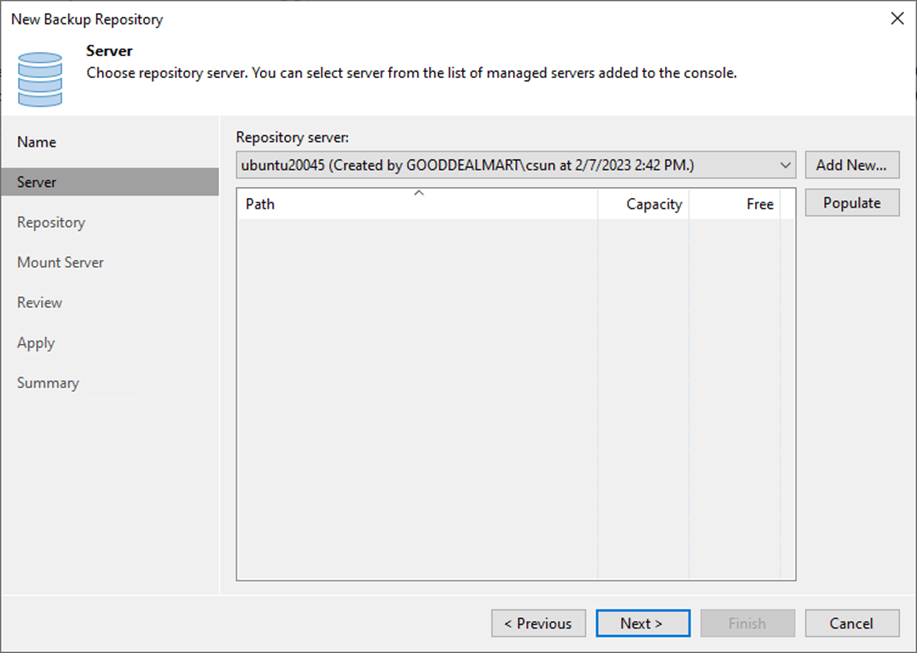

10. On the Server page, select the Linux server from the Repository server drop-down list and click Populate.

082523 1748 Howtoaddthe6 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

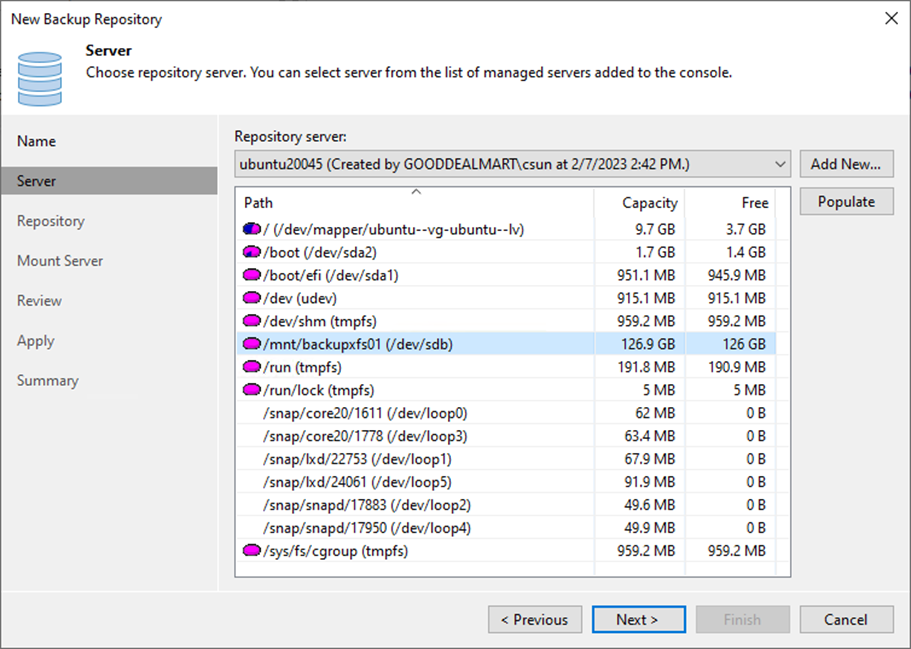

11. Select the disk and click Next.

082523 1748 Howtoaddthe7 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

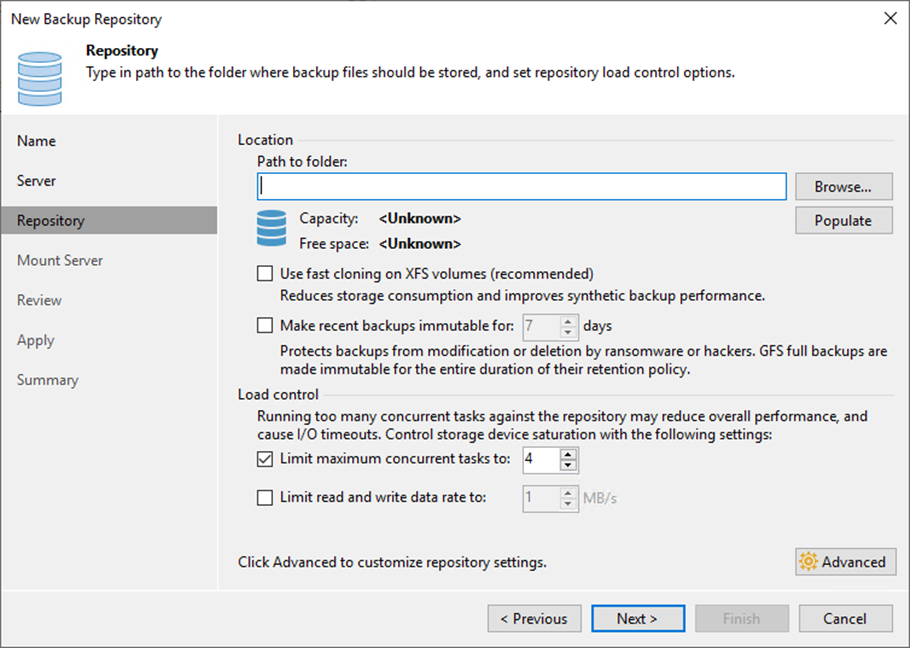

12. On the Repository page, click Browser for Path to folder.

082523 1748 Howtoaddthe8 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

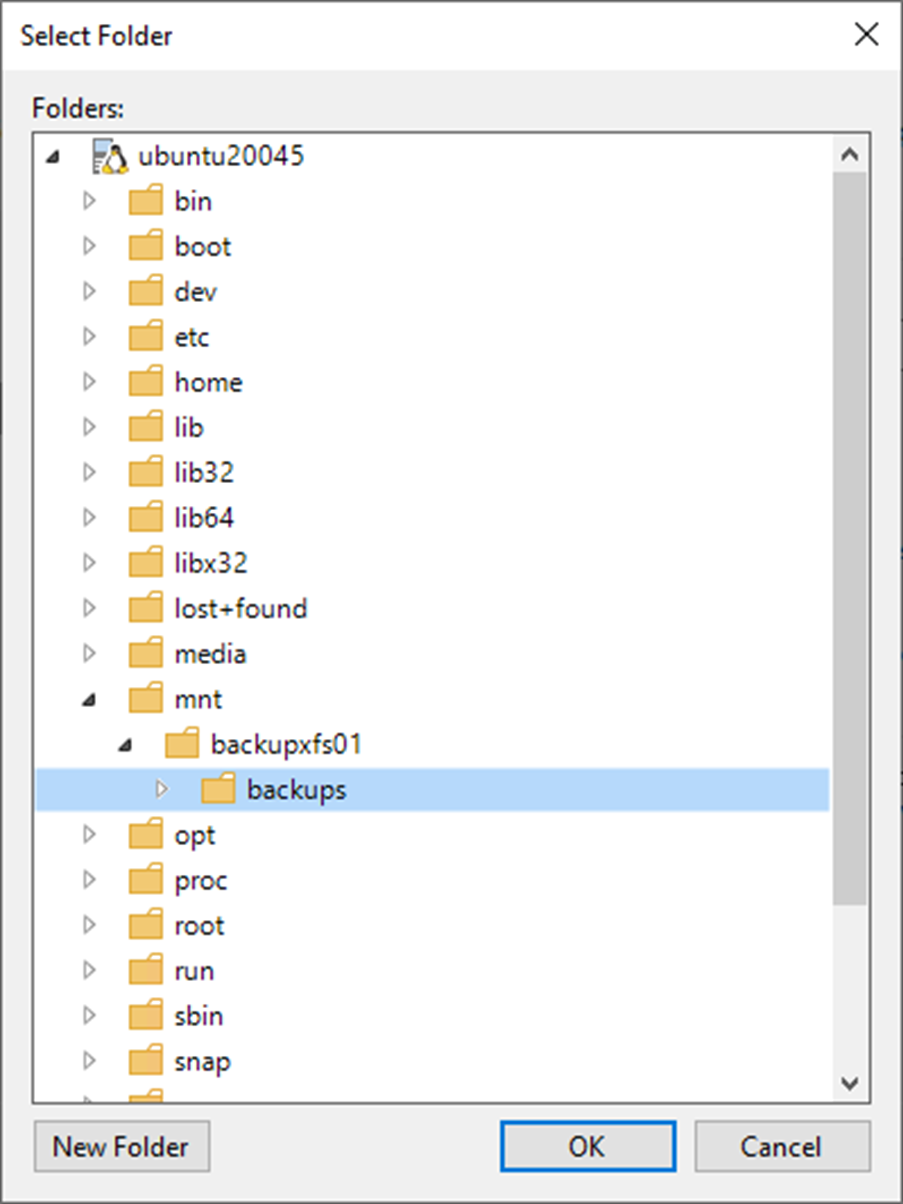

13. On the Select Folder page, expand the server.

14. Select the backup folder and click OK.

082523 1748 Howtoaddthe9 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

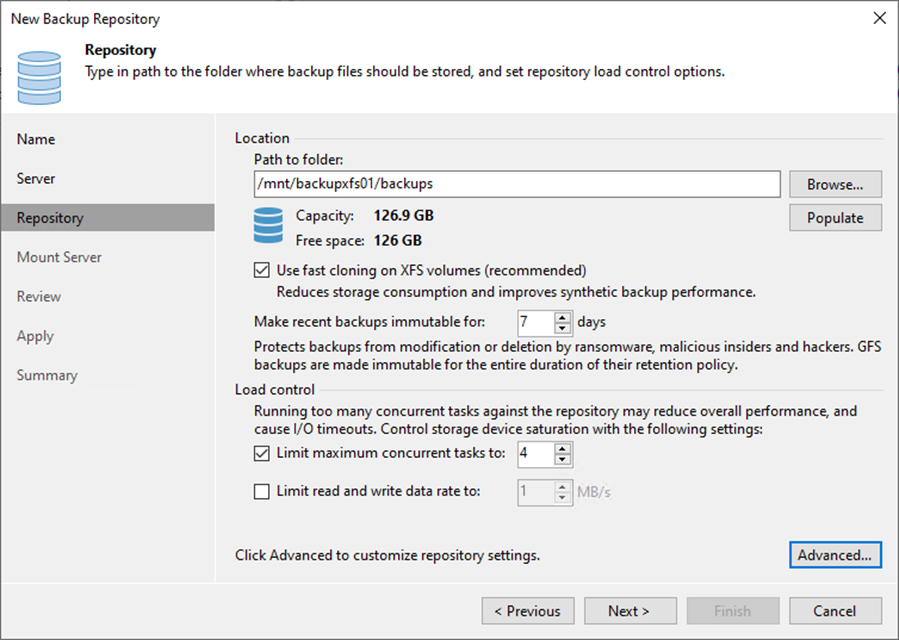

15. On the Repository page, click Populate.

082523 1748 Howtoaddthe10 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

16. On the Repository page, select Use fast closing on XFS volumes.

17. Select Make recent backup immutable for 7 days. It depends on your requirement.

18. Use the Load control settings to manage the load on the backup repository and avoid storage I/O timeouts.

19. Click Advanced.

082523 1748 Howtoaddthe11 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

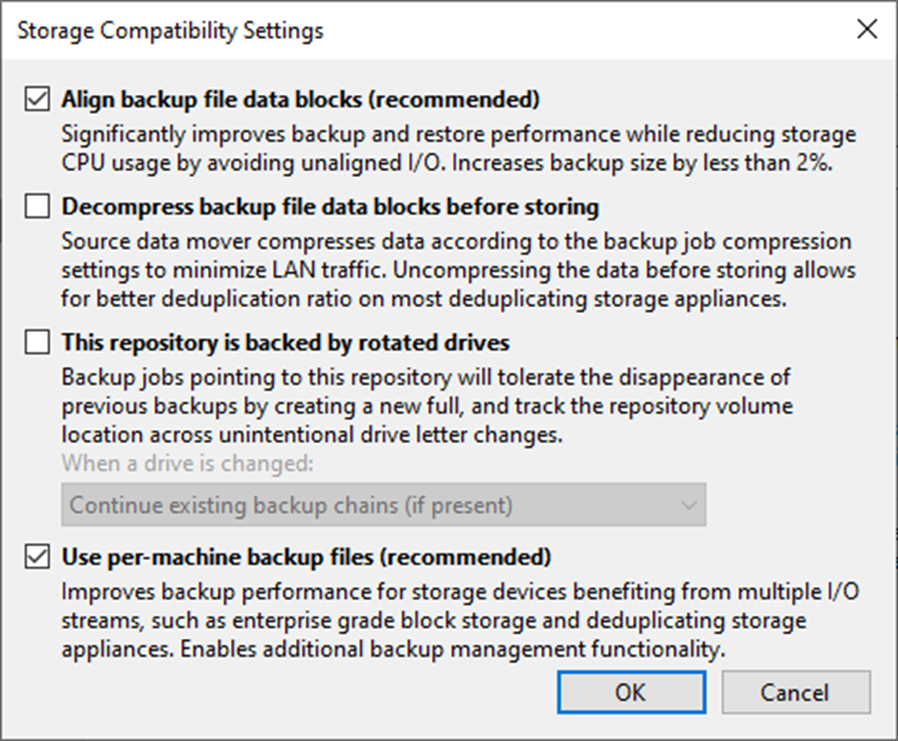

20. On the Storage Compatibility Settings, select Align backup file data blocks (recommended) checkbox.

21. Select Use per-machine backup files and click OK.

082523 1748 Howtoaddthe12 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

Note:

Select Decompress backup file data blocks before storing if you use a deduplicating storage feature or appliance.

22. On the Repository page, click Next.

082523 1748 Howtoaddthe13 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

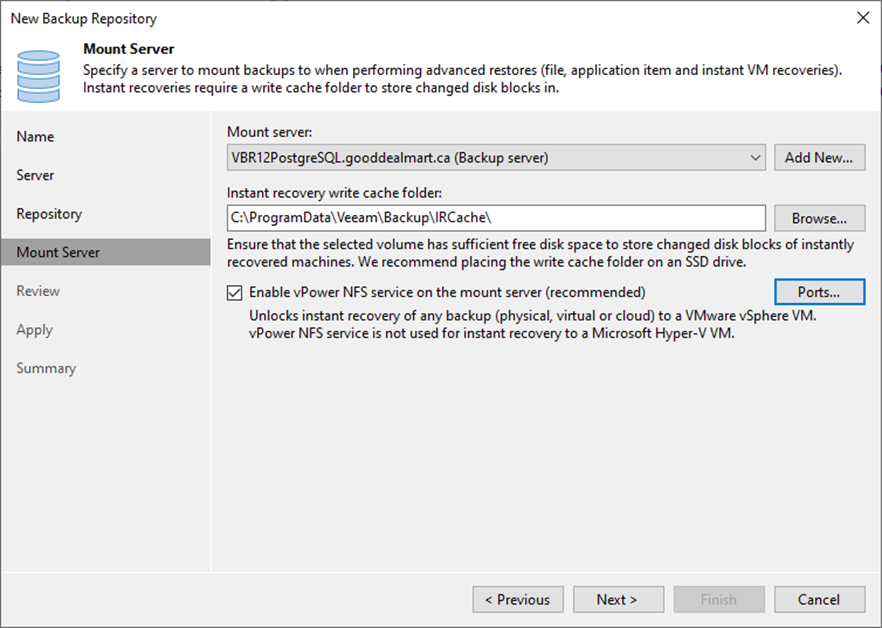

23. Select a mount server from the Mount server drop-down list on the Mount Server page.

24. Select a folder in the Instant recovery write cache folder field for writing cache during mount operations.

25. Select Enable vPower NFS service on the mount server (recommend) and click Ports.

082523 1748 Howtoaddthe14 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

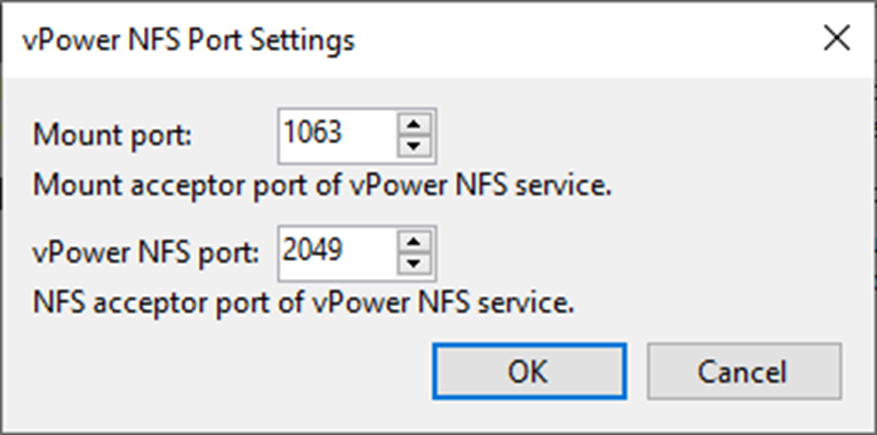

26. Review the ports settings on the vPower NFS Port Settings page and click OK.

082523 1748 Howtoaddthe15 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

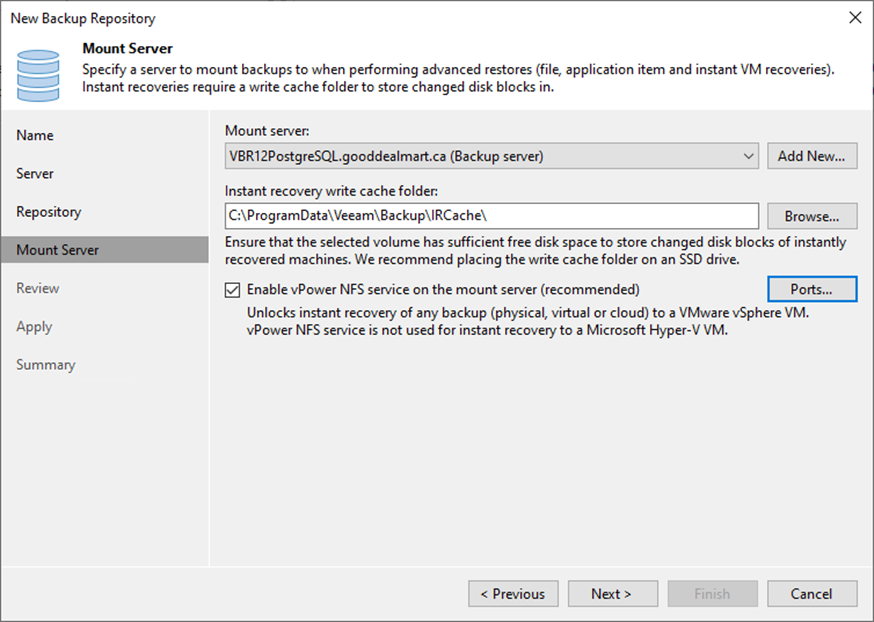

27. Click Next on the Mount Server page.

082523 1748 Howtoaddthe16 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

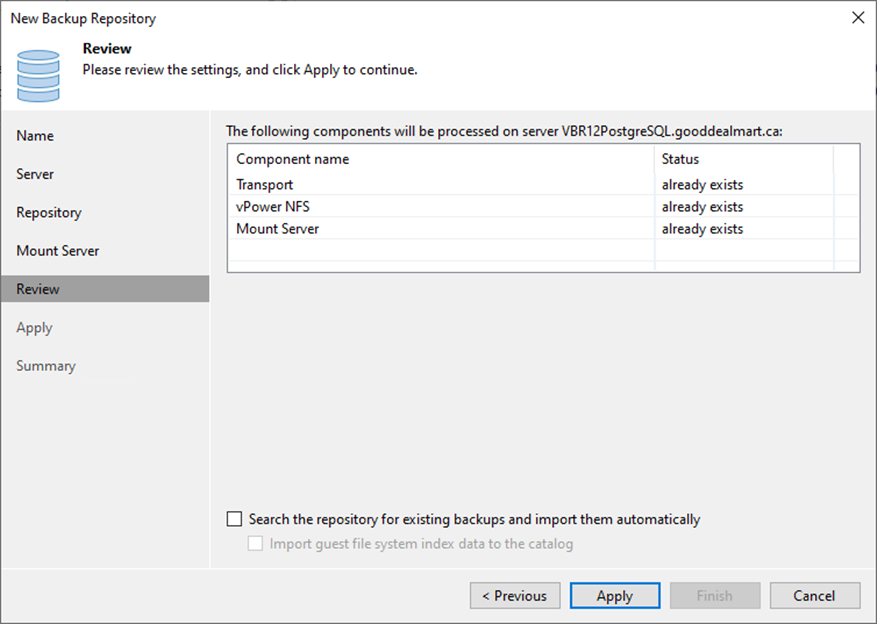

28. On the Review page, click Apply.

29. Select the Search the repository for existing backups and import them automatically checkbox if the backup repository contains backups previously created with Veeam Backup & Replication.

30. Select the Import guest file system index data to the catalog checkbox if the backup repository contains guest file system index files previously created by Veeam Backup & Replication.

082523 1748 Howtoaddthe17 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

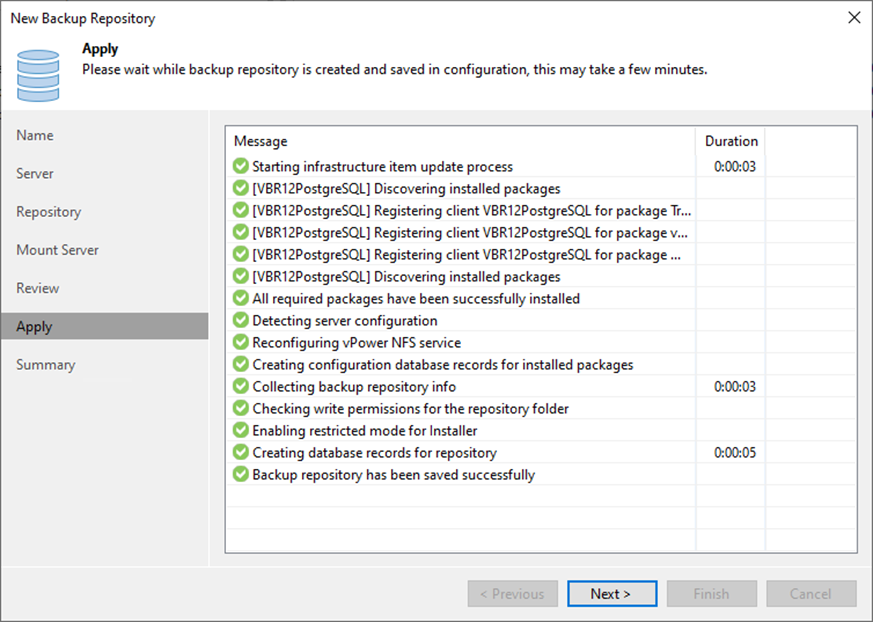

31. Click Next on the Apply page.

082523 1748 Howtoaddthe18 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

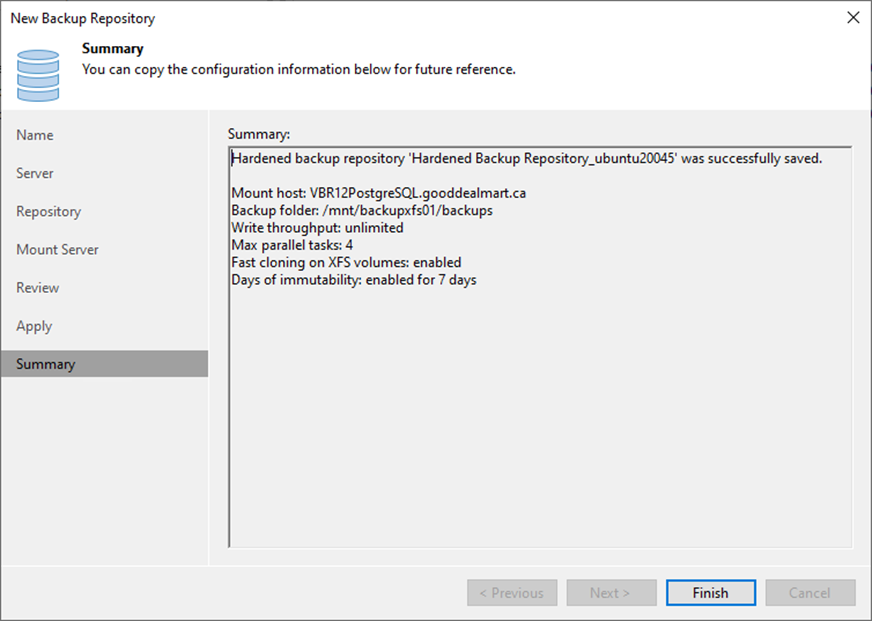

32. Click Finish on the Summary page.

082523 1748 Howtoaddthe19 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12

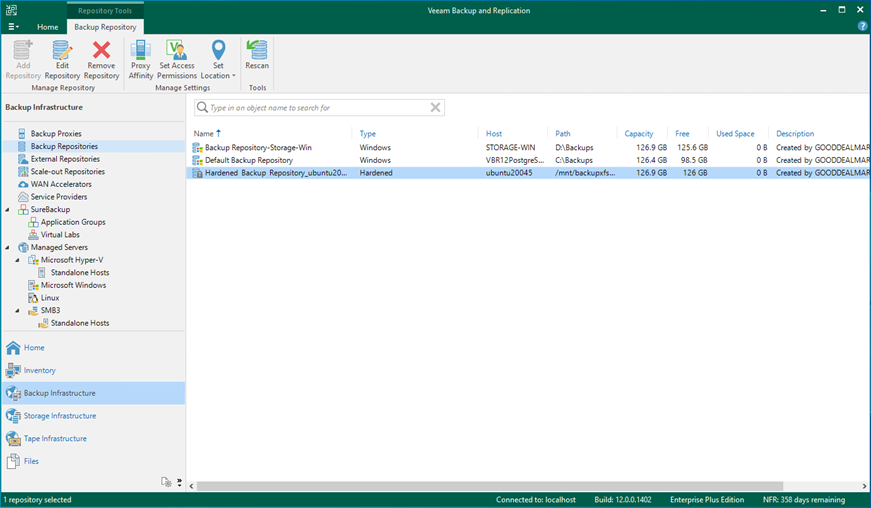

33. Verify that the Hardened Backup Repository has been added.

082523 1748 Howtoaddthe20 - How to add the Linux Server’s local directory as a Hardened Backup Repository at Veeam Backup and Replication v12
