You can add the following types of storage to the Linux server as a backup repository

You can add the following types of storage to the Linux server as a backup repository:

  • A local disk.
  • A directly attached disk-based storage (such as a USB hard drive).
  • NFS share.
  • SCSI/FC SAN LUN in case the server is connected to the SAN fabric.

1. Login to the Veeam Backup and replication manager server.

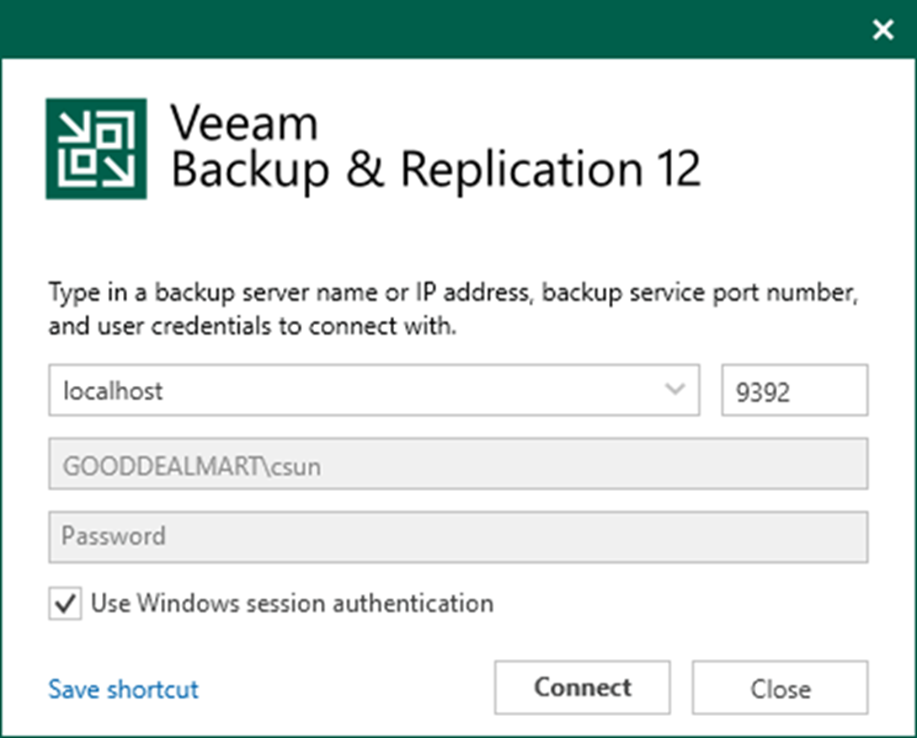

2. Open the Veeam Backup & Replication Console and click Connect.

082523 1716 Howtoaddthe1 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

3. On the Home page, select Backup Infrastructure.

4. On the Backup Infrastructure page, select Backup Repositories.

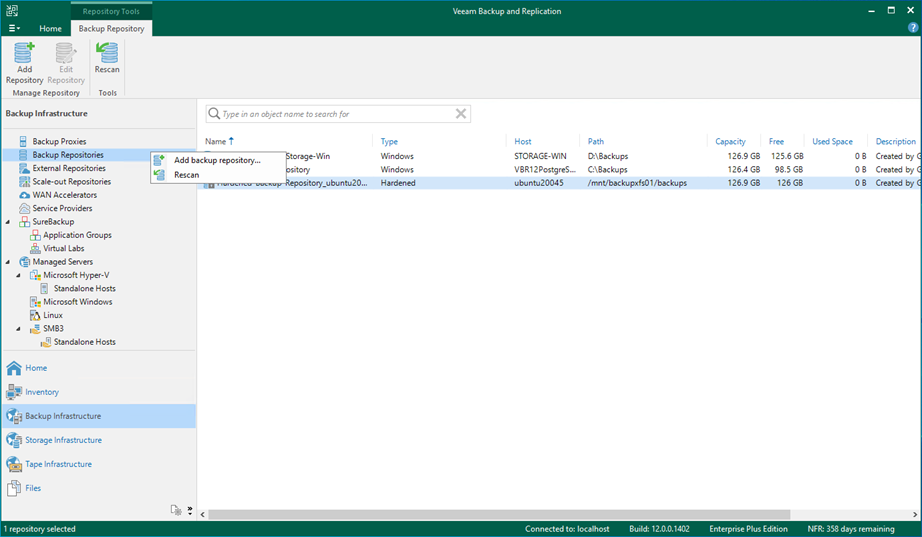

5. Right-click Backup Repositories and select Add backup repository.

082523 1716 Howtoaddthe2 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

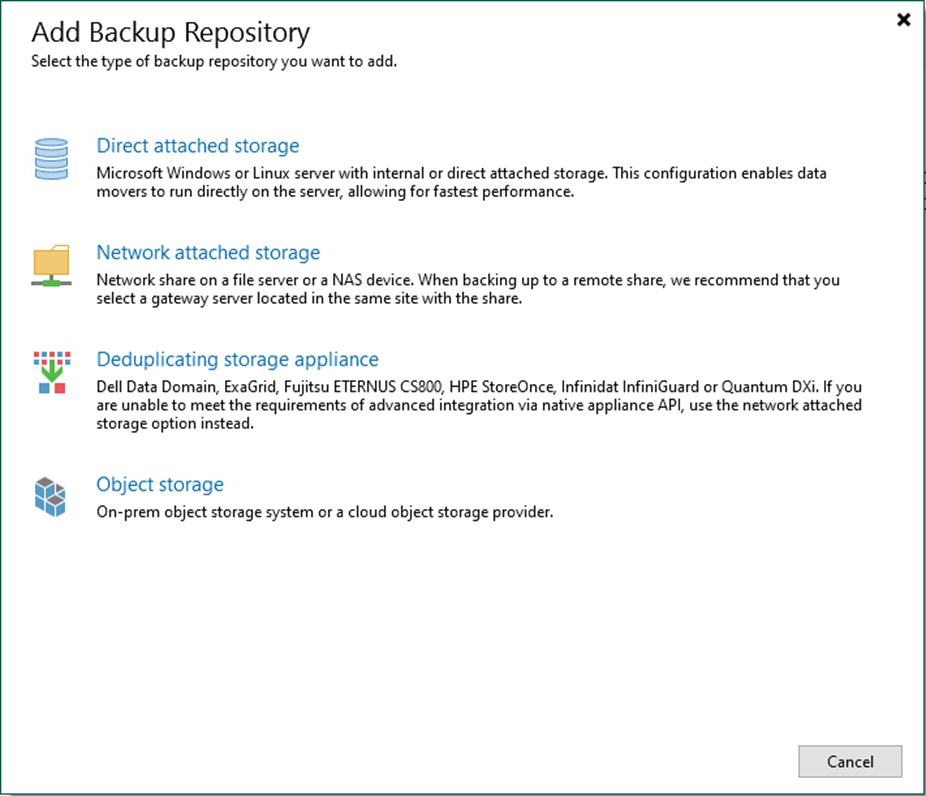

6. Select Direct attached storage on the Add Backup Repository page.

082523 1716 Howtoaddthe3 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

7. Select Linux on the Direct Attached Storage page.

082523 1716 Howtoaddthe4 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

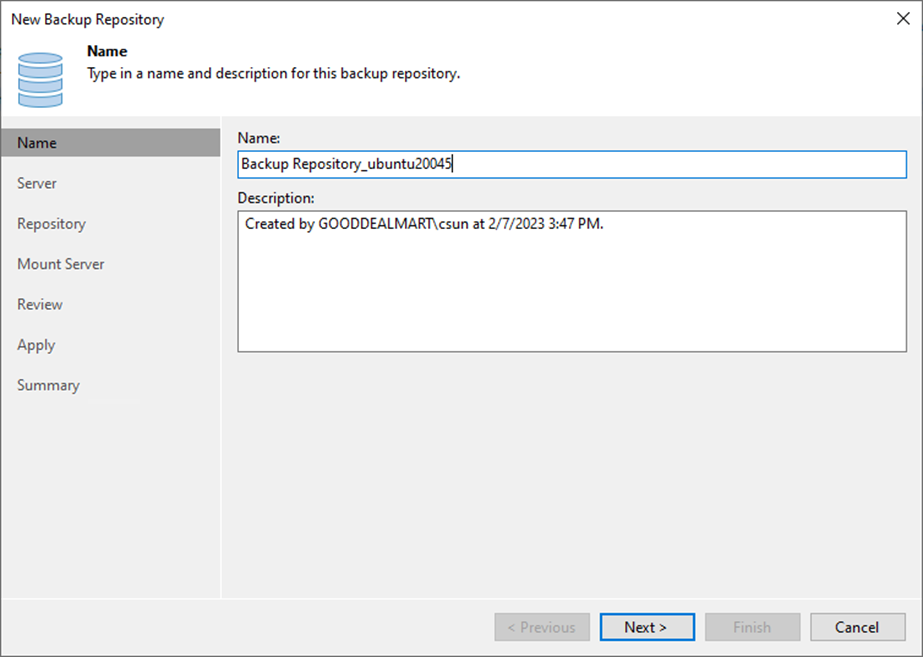

8. On the Name page, specify a Backup Repository name.

9. Give a brief description in the Description field for future reference and click Next.

082523 1716 Howtoaddthe5 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

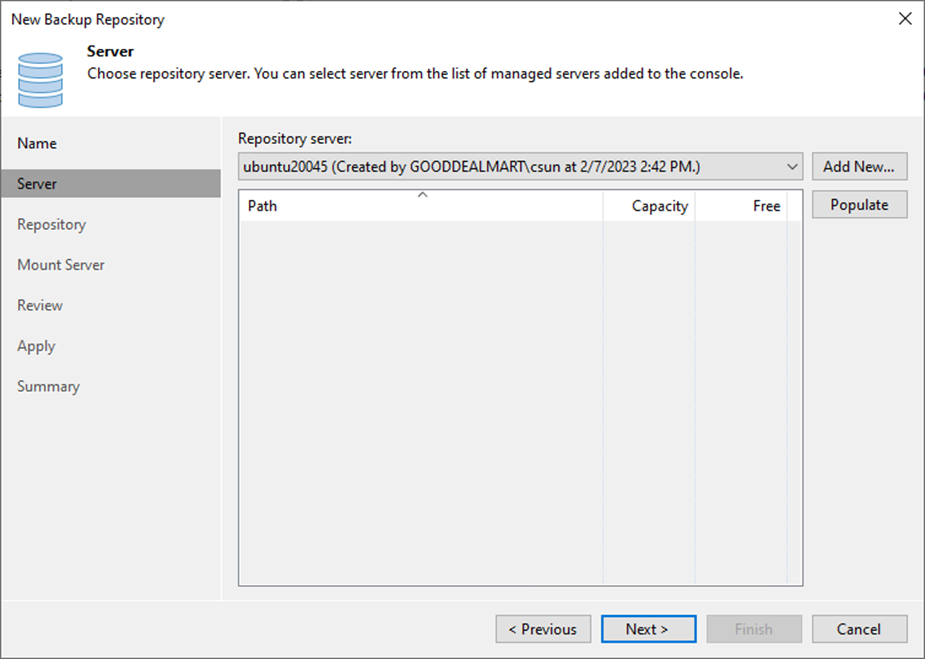

10. On the Server page, select the Linux server from the Repository server drop-down list and click Populate.

082523 1716 Howtoaddthe6 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

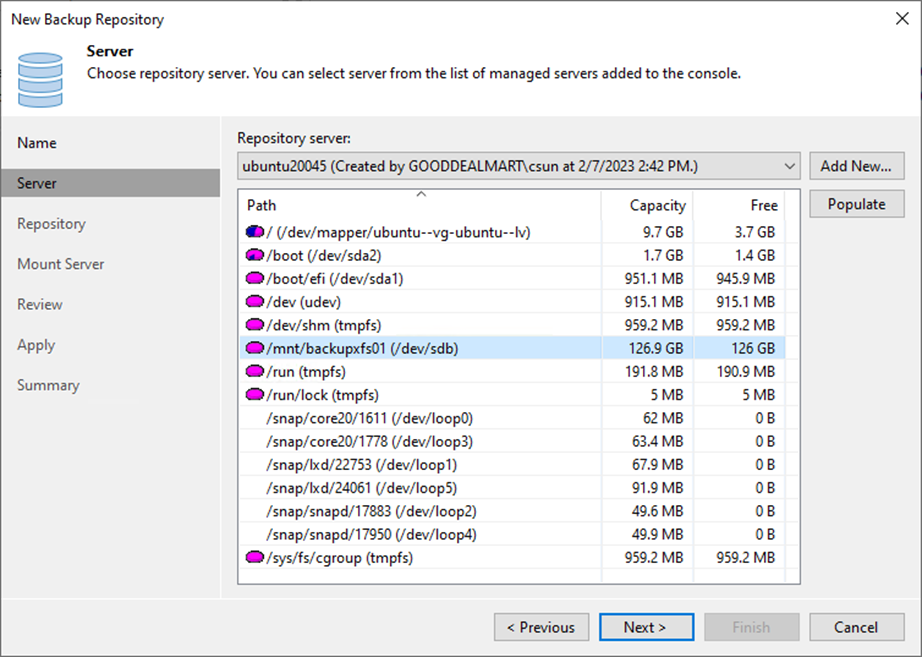

11. Select the disk and click Next.

082523 1716 Howtoaddthe7 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

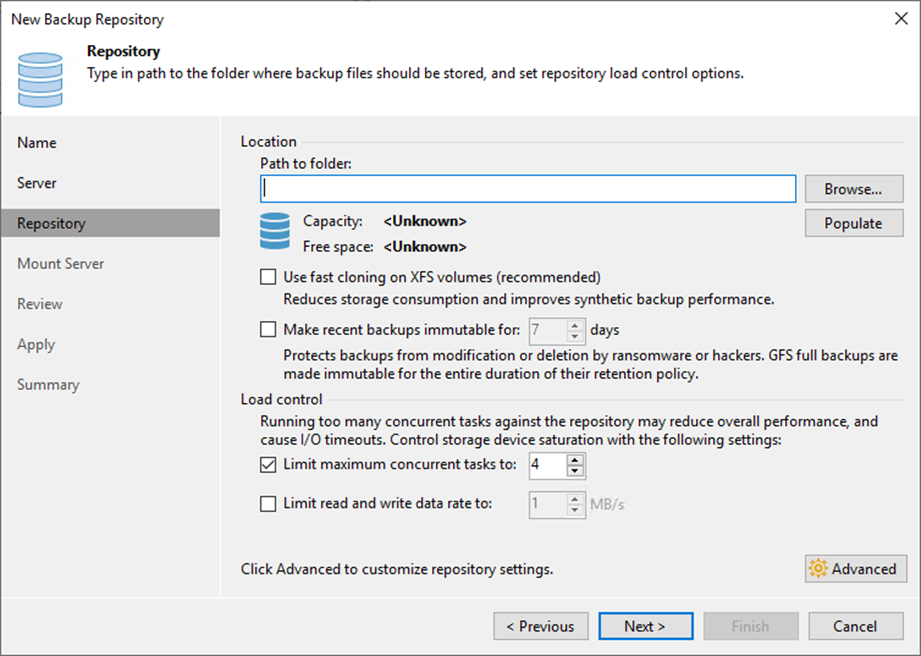

12. On the Repository page, click Browser for Path to folder.

082523 1716 Howtoaddthe8 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

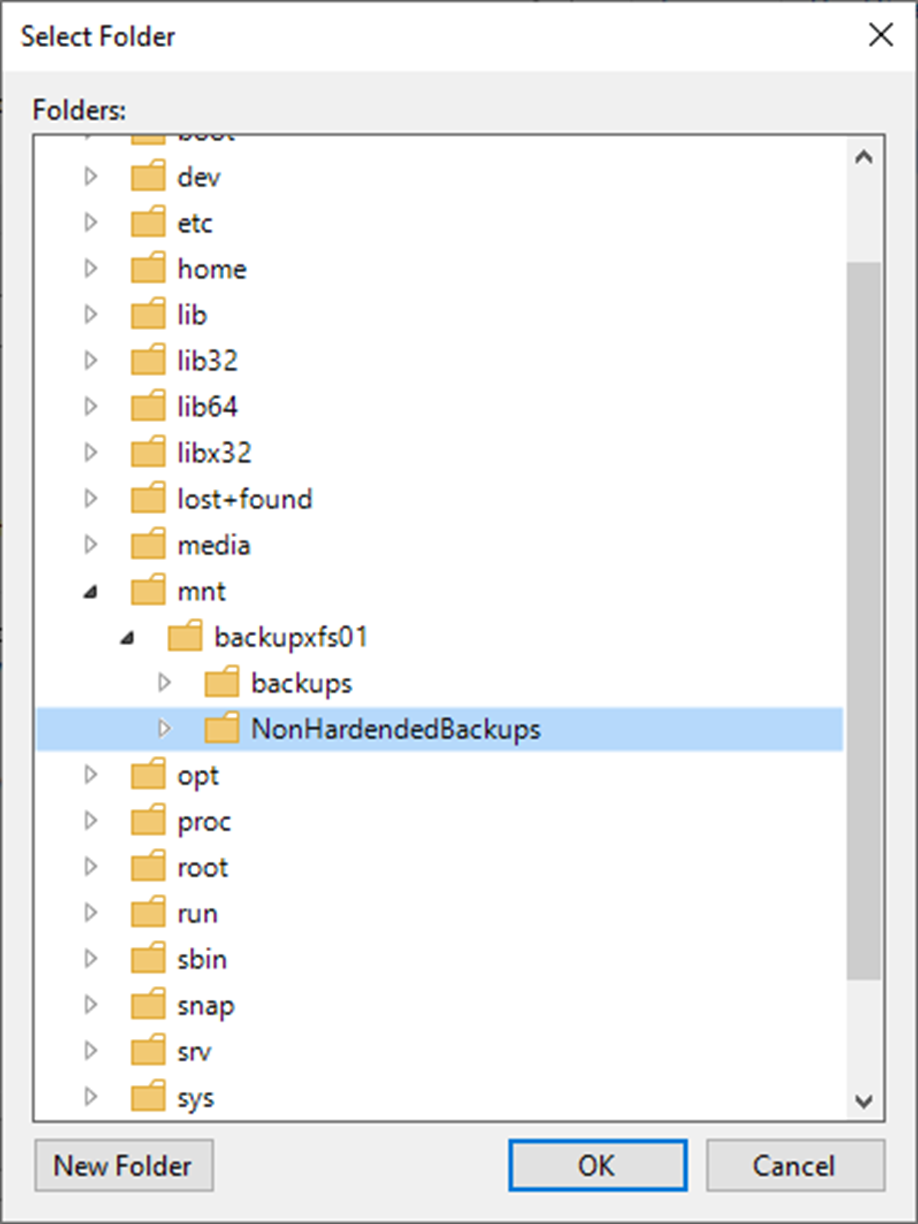

13. On the Select Folder page, expand the server.

14. Select the NonHardenedBackups folder and click OK.

082523 1716 Howtoaddthe9 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

15. On the Repository page, click Populate.

082523 1716 Howtoaddthe10 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

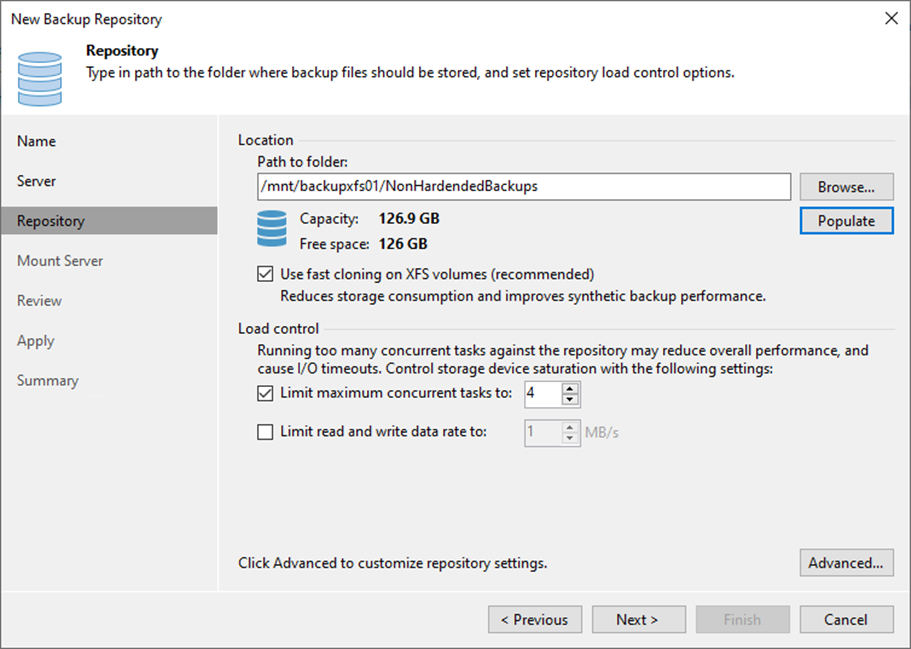

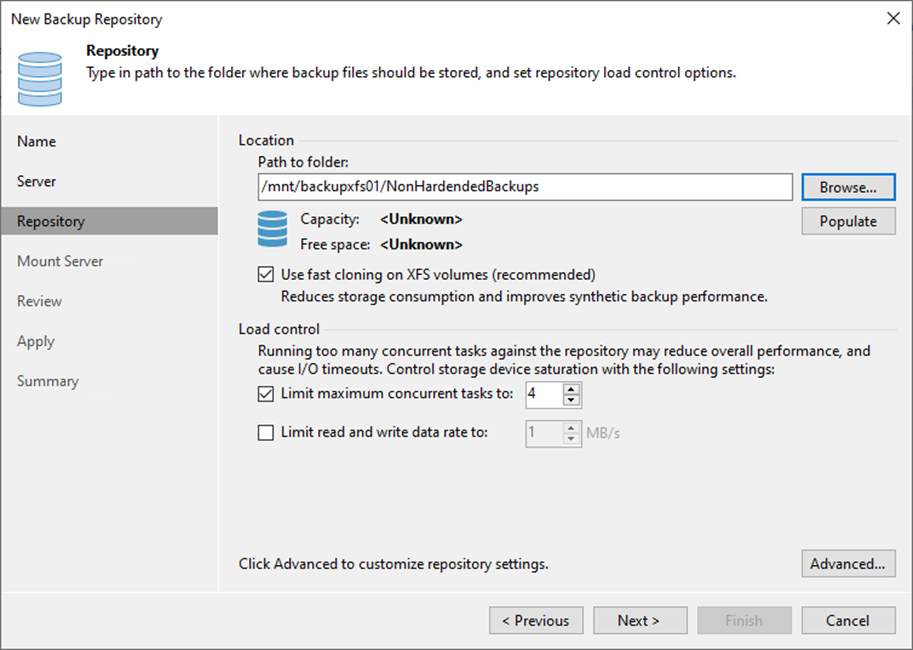

16. On the Repository page, select Use fast closing on XFS volumes.

17. Use the Load control settings to manage the load on the backup repository and avoid storage I/O timeouts.

18. Click Advanced.

082523 1716 Howtoaddthe11 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

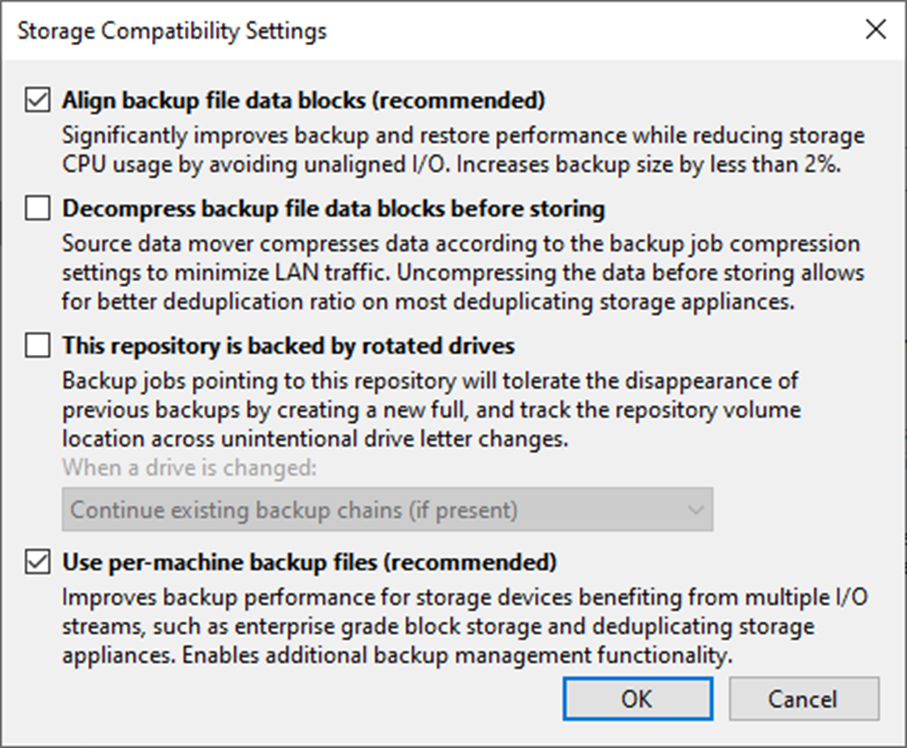

19. On the Storage Compatibility Settings, select Align backup file data blocks (recommended) checkbox.

20. Select Use per-machine backup files and click OK.

082523 1716 Howtoaddthe12 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

Note:

Select Decompress backup file data blocks before storing if you use a deduplicating storage feature or appliance.

21. On the Repository page, click Next.

082523 1716 Howtoaddthe13 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

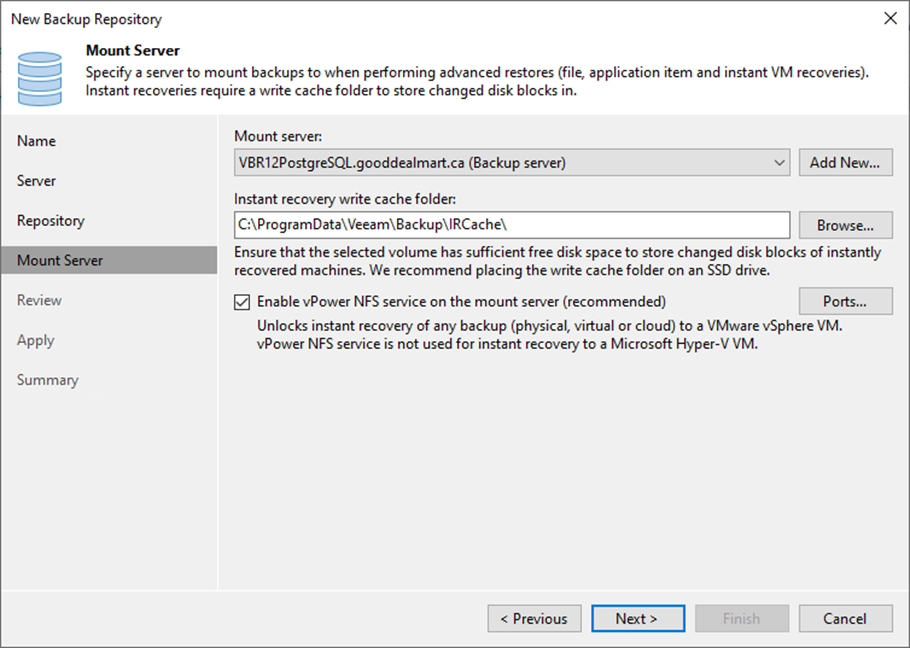

22. Select a mount server from the Mount server drop-down list on the Mount Server page.

23. Select a folder in the Instant recovery write cache folder field for writing cache during mount operations.

24. Select Enable vPower NFS service on the mount server (recommend) and click Ports.

082523 1716 Howtoaddthe14 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

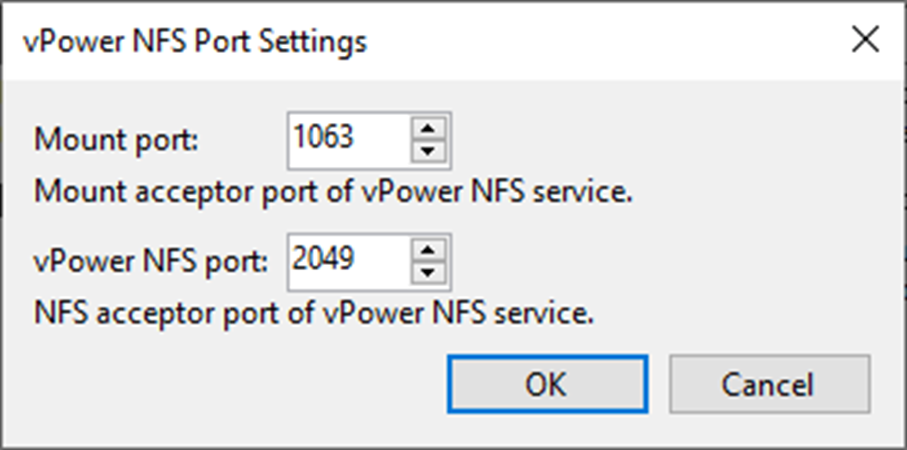

25. Review the ports settings on the vPower NFS Port Settings and click OK.

082523 1716 Howtoaddthe15 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

26. Click Next on the Mount Server page.

082523 1716 Howtoaddthe16 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

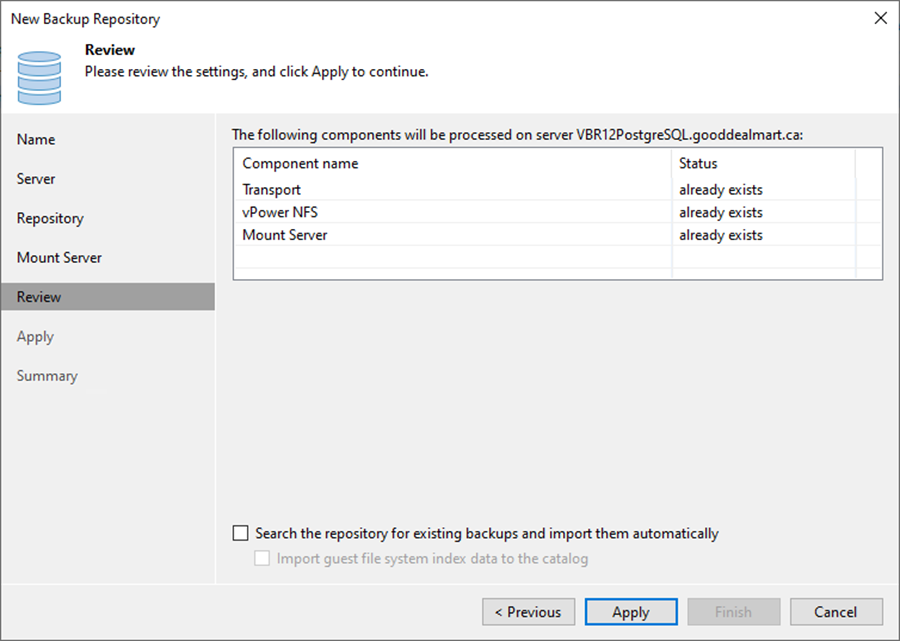

27. Click Apply on the Review page.

28. Select the Search the repository for existing backups and import them automatically checkbox if the backup repository contains backups previously created with Veeam Backup & Replication.

29. Select the Import guest file system index data to the catalog checkbox if the backup repository contains guest file system index files previously created by Veeam Backup & Replication.

082523 1716 Howtoaddthe17 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

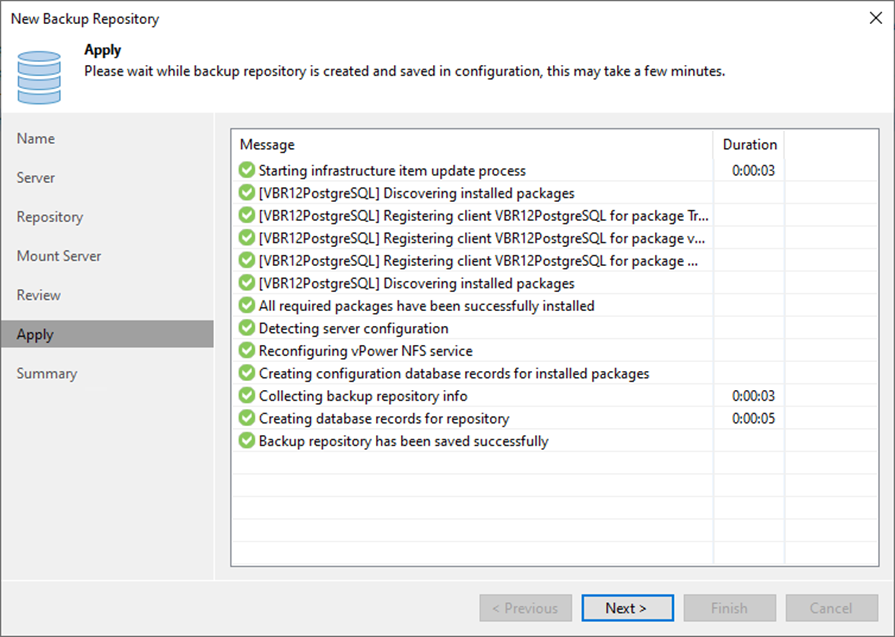

30. Click Next on the Apply page.

082523 1716 Howtoaddthe18 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

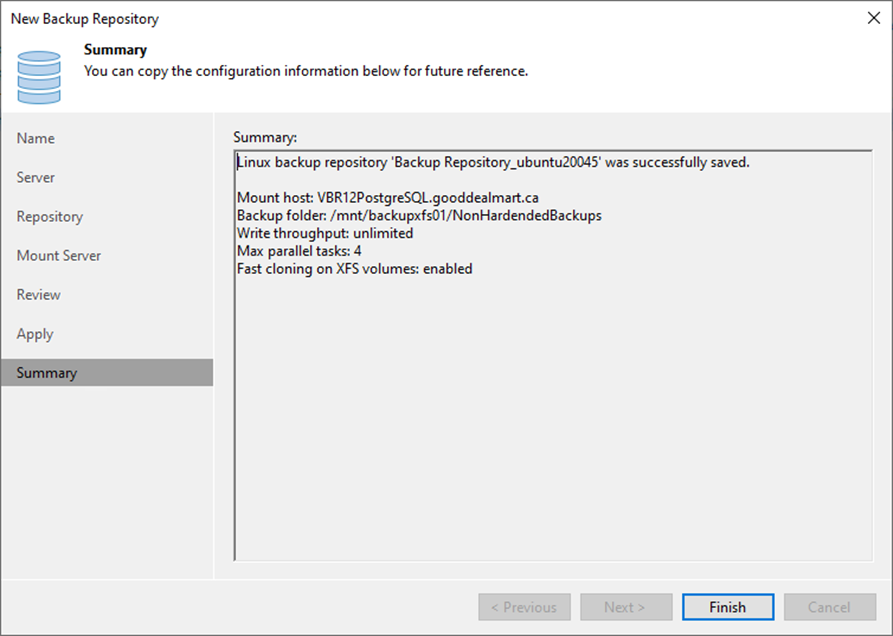

31. Click Finish on the Summary page.

082523 1716 Howtoaddthe19 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12

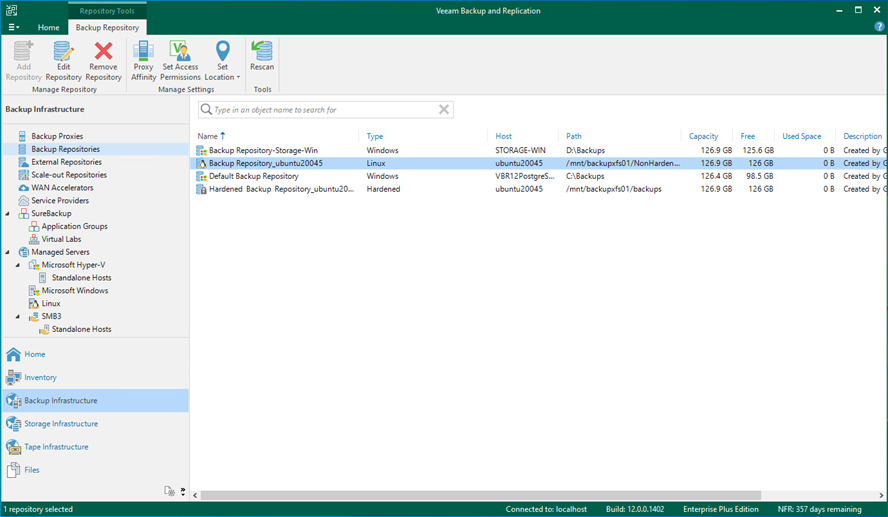

32. Verify that the Linux Backup Repository has been added.

082523 1716 Howtoaddthe20 - How to add the Linux Server’s local directory as a Backup Repository at Veeam Backup and Replication v12
