You can use network-attached storage (SMB or CIFS Shares) as backup repositories with Veeam Backup and Replication. A network-attached storage (NAS) device can be a shared folder on your computer or any other physical device accessed via the Server Message Block (SMB) protocol.

You can use network-attached storage (SMB or CIFS Shares) as backup repositories with Veeam Backup and Replication. A network-attached storage (NAS) device can be a shared folder on your computer or any other physical device accessed via the Server Message Block (SMB) protocol.

Note:

  • You must deploy a gateway server because an SMB share cannot host Veeam Data Movers. Veeam Backup & Replication will automatically deploy a Veeam Data Mover on this gateway server.
  • It is recommended that you deploy an additional gateway server in the remote site, closer to the SMB repository, if you plan to move VM data to an off-site SMB repository over a WAN link.

1. Log in to the Veeam Backup and replication manager server.

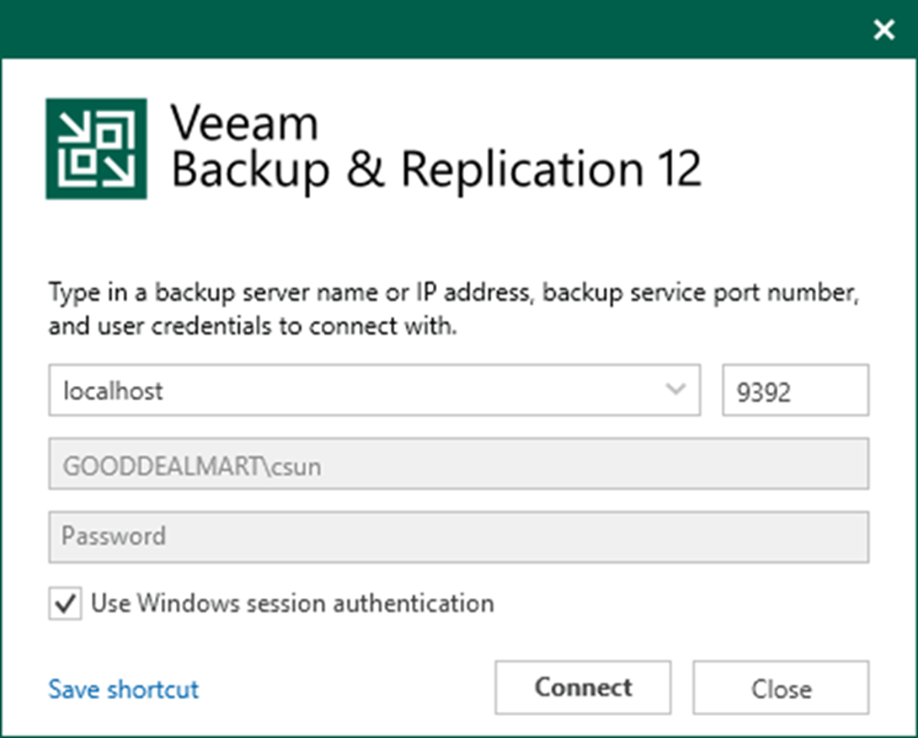

2. Open the Veeam Backup & Replication Console and click Connect.

082523 1819 Howtoaddthe1 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

3. Select Backup Infrastructure on the Home page.

4. Select Backup Repositories on the Backup Infrastructure page.

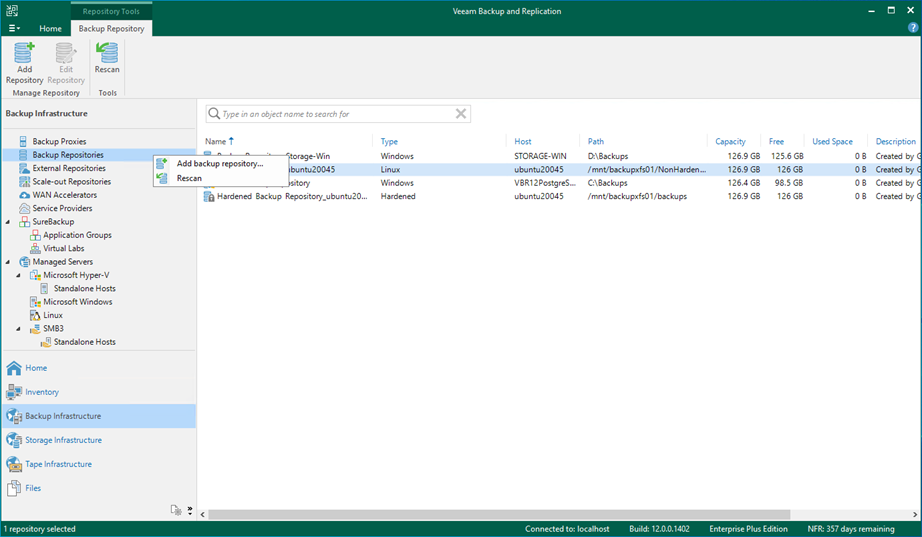

5. Right-click Backup Repositories and select Add backup repository.

082523 1819 Howtoaddthe2 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

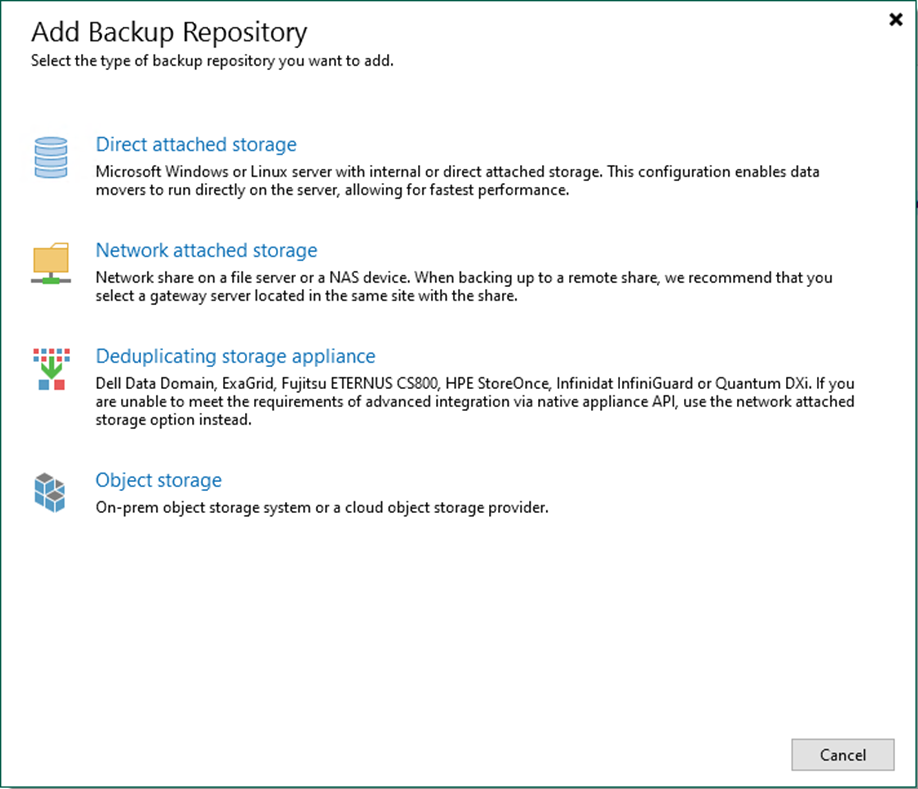

6. On the Add Backup Repository page, select Network attached storage.

082523 1819 Howtoaddthe3 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

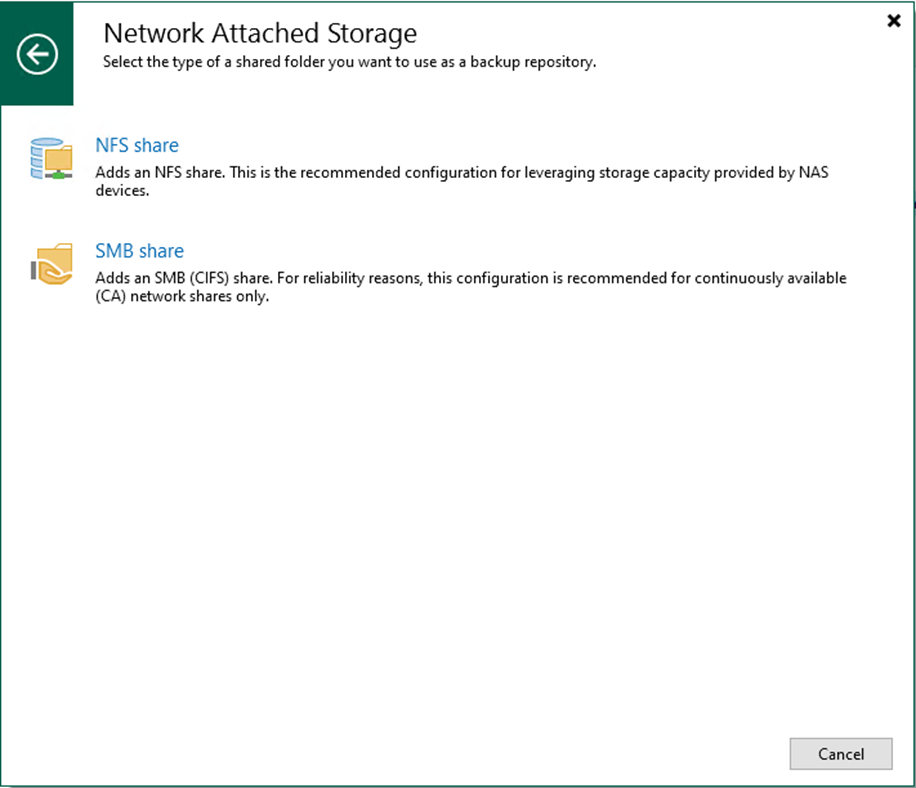

7. Select SMB share on the Network Attached Storage.

082523 1819 Howtoaddthe4 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

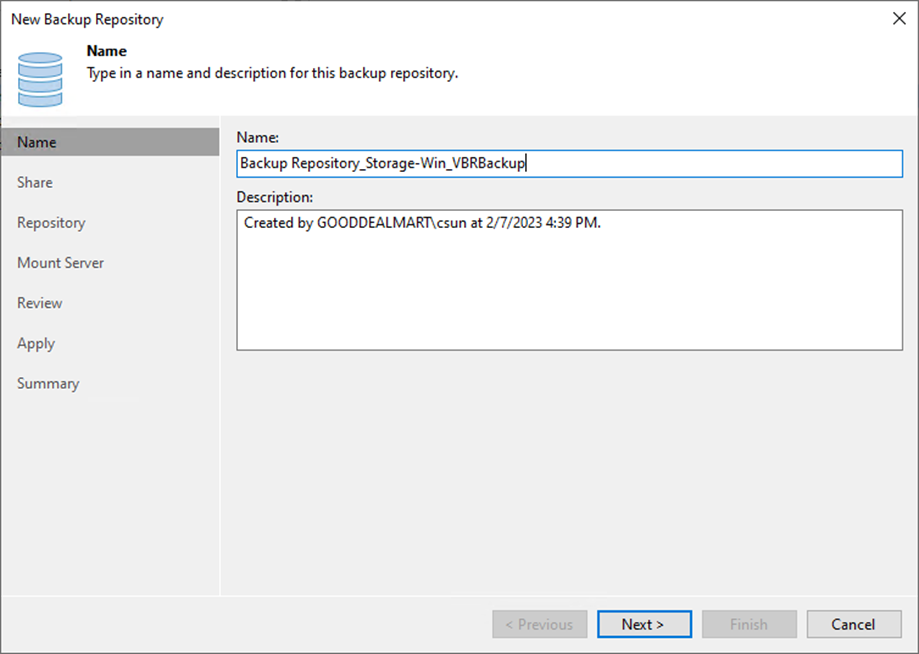

8. On the Name page, specify a Backup Repository name.

9. Give a brief description in the Description field for future reference and click Next.

082523 1819 Howtoaddthe5 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

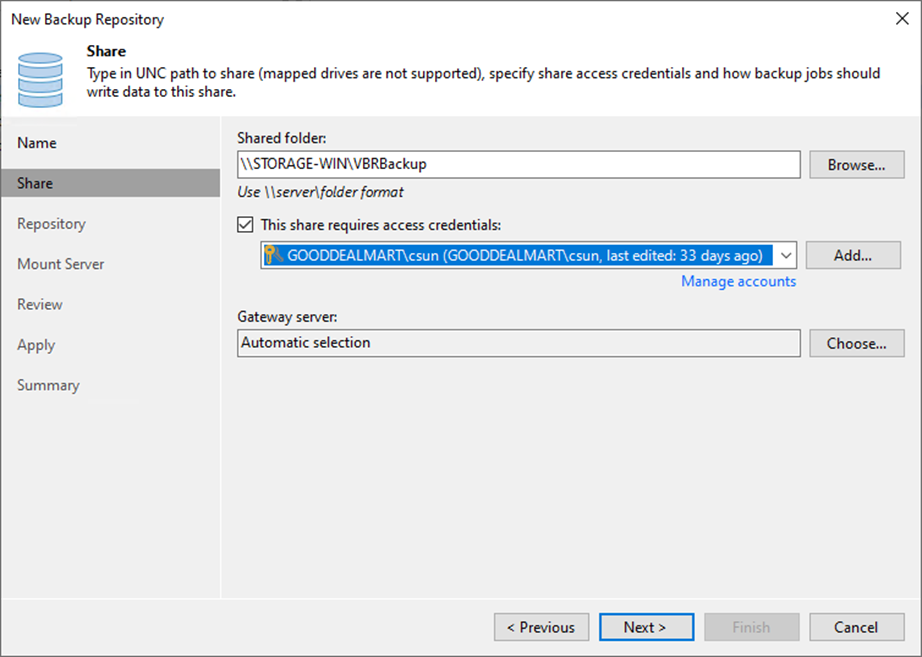

10. On the Share page, enter the share folder name in the Share folder field.

11. Select This share requires access credentials checkbox and select a credential from the drop-down list.

12. Select Automatic selection or click Choose to select the Gateway server.

13. Click Next.

082523 1819 Howtoaddthe6 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

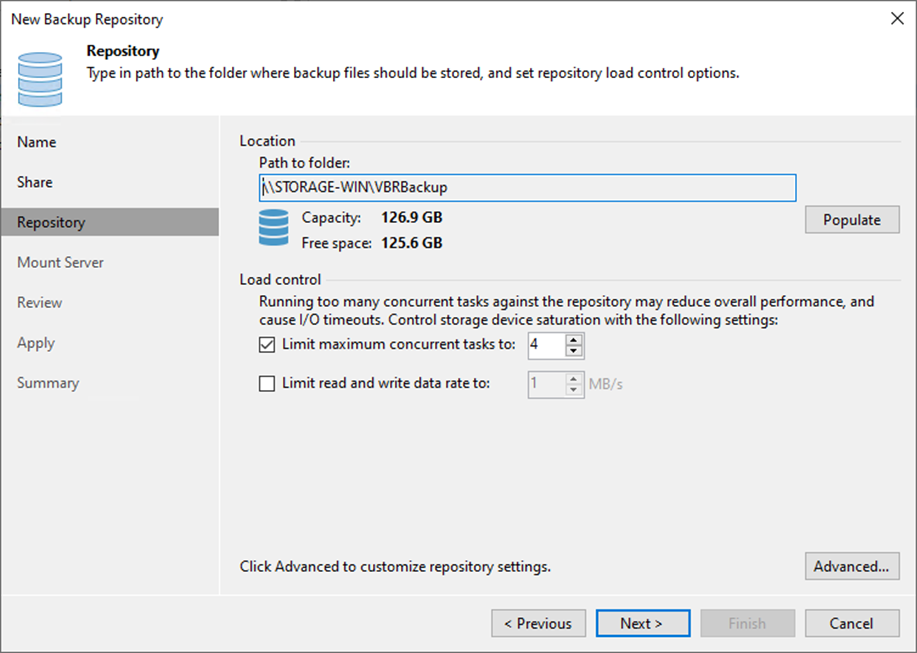

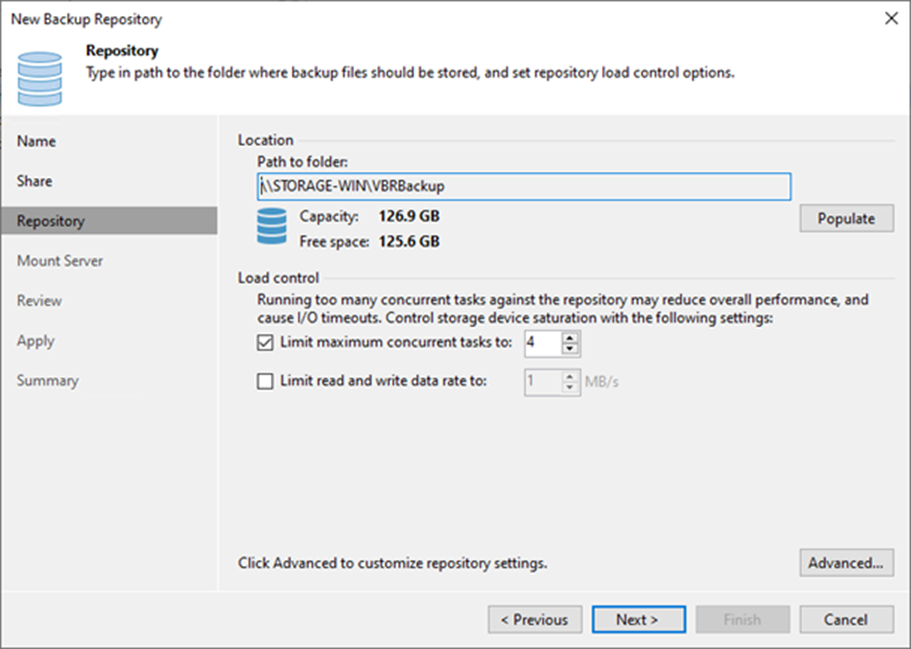

14. Use the Load control settings to manage the load on the backup repository and avoid storage I/O timeouts.

15. Click Advanced.

082523 1819 Howtoaddthe7 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

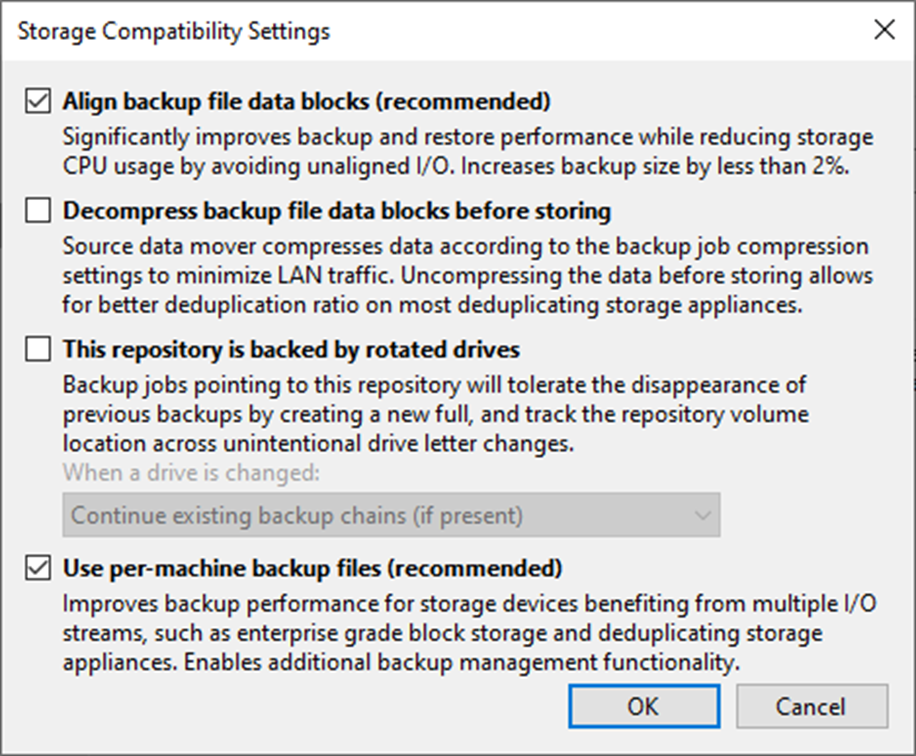

16. On the Storage Compatibility Settings, select Align backup file data blocks (recommended) checkbox.

17. Select Use per-machine backup files and click OK.

082523 1819 Howtoaddthe8 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

Note:

Select Decompress backup file data blocks before storing if you use a deduplicating storage feature or appliance.

18. Click Next on the Repository page.

082523 1819 Howtoaddthe9 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

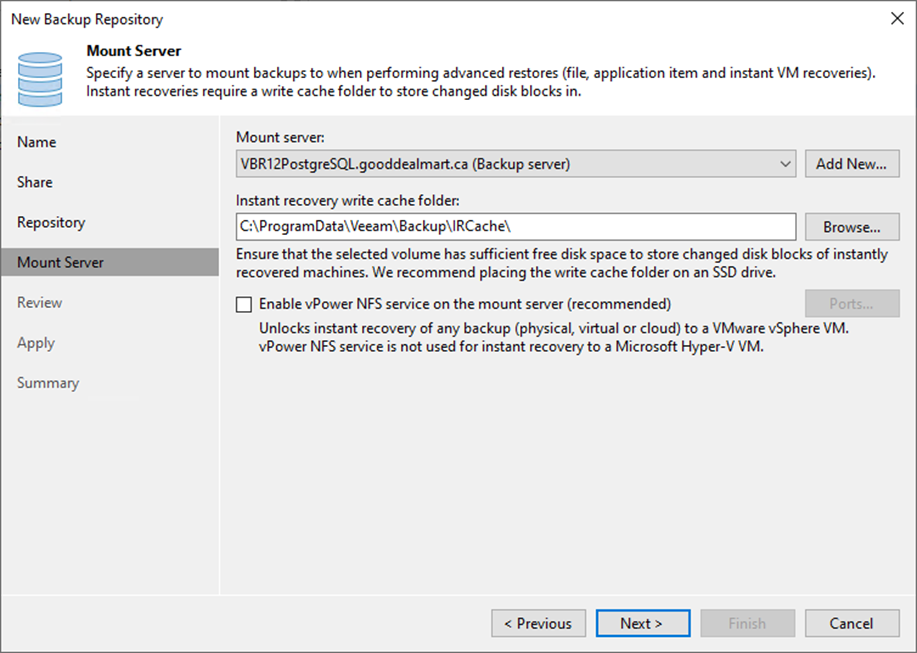

19. Select a mount server from the Mount server drop-down list on the Mount Server page.

20. Select a folder in the Instant recovery write cache folder field for writing cache during mount operations.

21. Unselect Enable vPower NFS service on the mount server because the vPower NFS service is not used for instant recovery to a Microsoft Hyper-V VM.

22. Click Next.

082523 1819 Howtoaddthe10 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

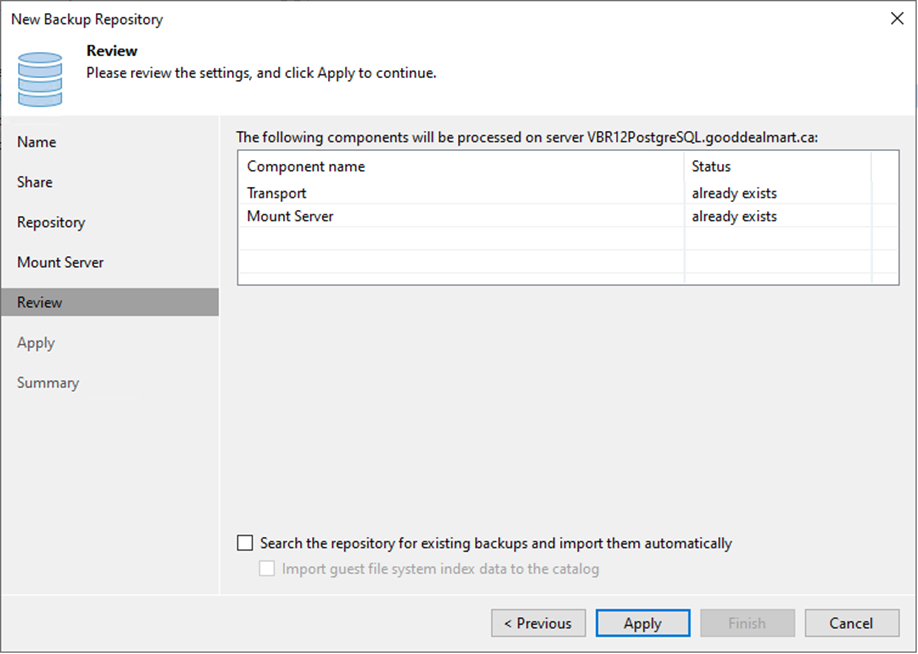

23. Click Apply on the Review page.

24. Select the Search the repository for existing backups and import them automatically checkbox if the backup repository contains backups previously created with Veeam Backup & Replication.

25. Select the Import guest file system index data to the catalog checkbox if the backup repository contains guest file system index files previously created by Veeam Backup & Replication.

082523 1819 Howtoaddthe11 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

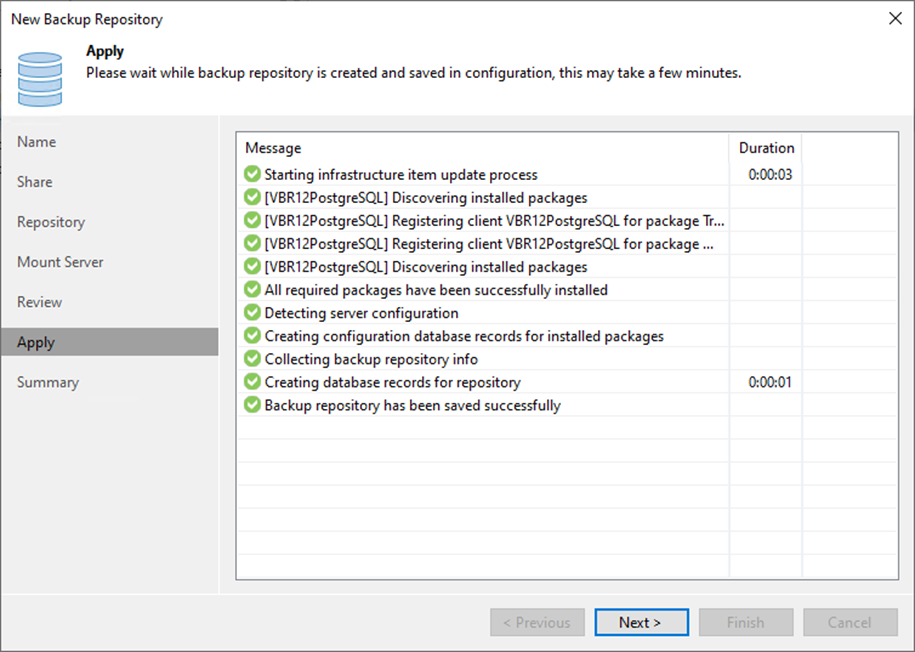

26. Click Next on the Apply page.

082523 1819 Howtoaddthe12 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

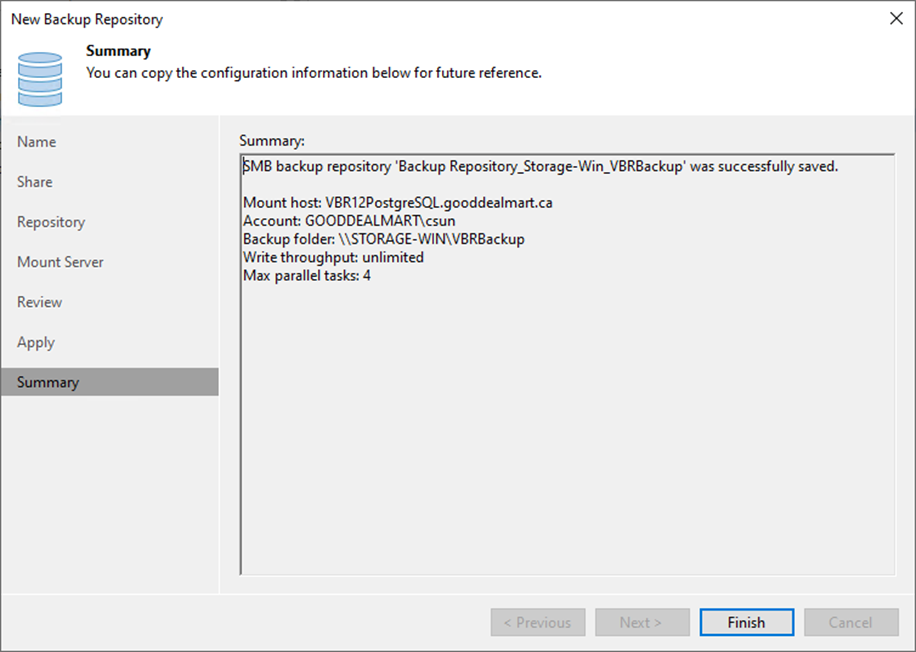

27. Click Finish on the Summary page.

082523 1819 Howtoaddthe13 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

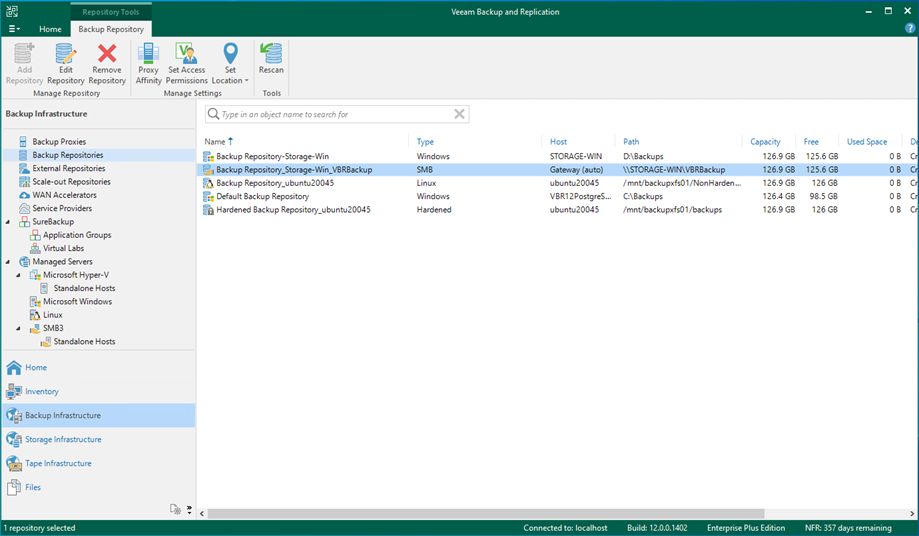

28. Verify that the Backup Repository has been added.

082523 1819 Howtoaddthe14 - How to add the Network Attached Storage (SMB or CIFS Shares) as a Backup Repository at Veeam Backup and Replication v12

I hope you enjoy this post.
