December 1, 2024
This scenario is useful if you want to store backups on multiple external hard drives that you intend to move between locations. The drives that are rotated can be detachable USB or eSATA hard drives.

This scenario is useful if you want to store backups on multiple external hard drives that you intend to move between locations. The drives that are rotated can be detachable USB or eSATA hard drives.

There are some limitations as below:

  • Only one repository with rotated drives can be created on a single managed server.
  • You cannot store archive full backups (GFS backups) created with backup jobs or backup copy jobs in backup repositories with a rotated drive.
  • You cannot store per-machine backup files in backup repositories with rotated drives.
  • You cannot rescan backup repositories with rotated drives.
  • Scale-out backup repositories do not support rotated drives.
  • Repositories with rotated drives are not supported as primary backup repositories, archive repositories, and secondary target repositories for NAS backup.

1. Login to the Veeam Backup and replication manager server.

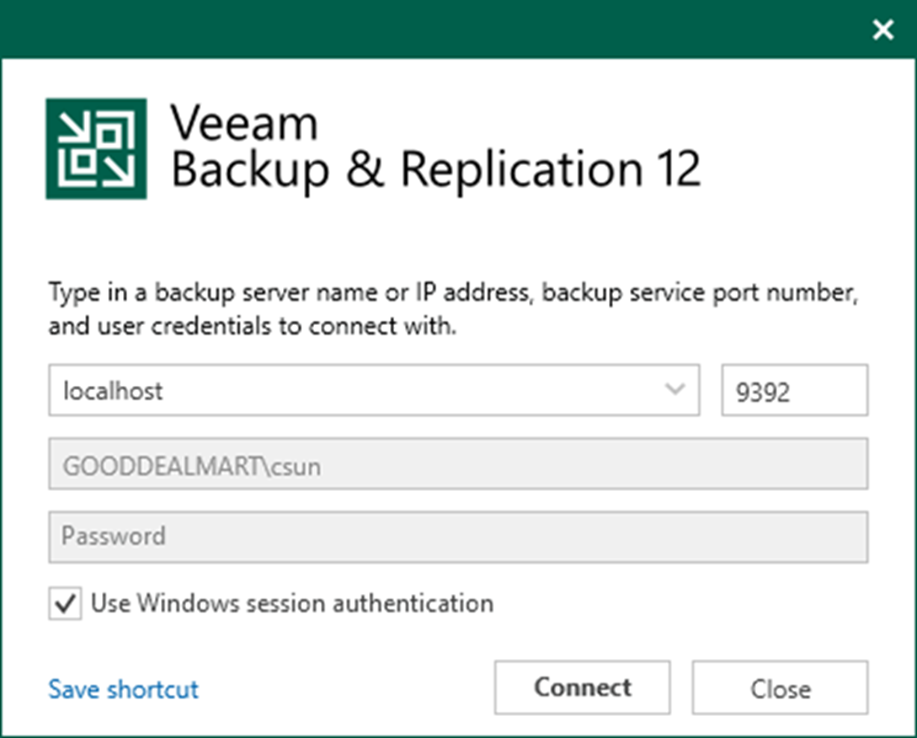

2. Open the Veeam Backup & Replication Console and click Connect.

082523 1900 Howtoaddthe1 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

3. Select Backup Infrastructure on the Home page.

4. Select Backup Repositories on the Backup Infrastructure page.

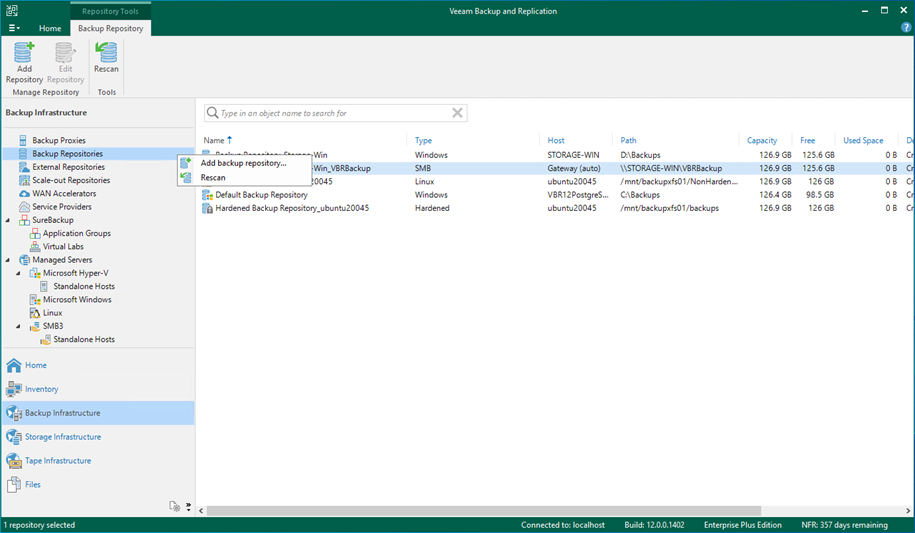

5. Right-click Backup Repositories and select Add backup repository.

082523 1900 Howtoaddthe2 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

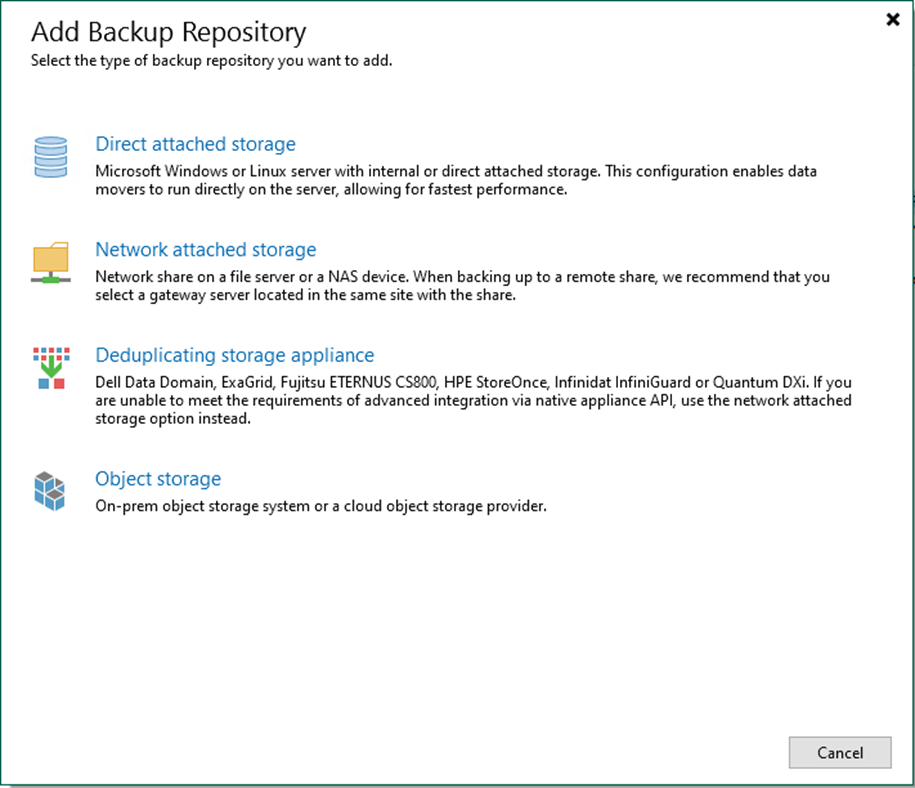

6. Select Direct attached storage on the Add Backup Repository page.

082523 1900 Howtoaddthe3 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

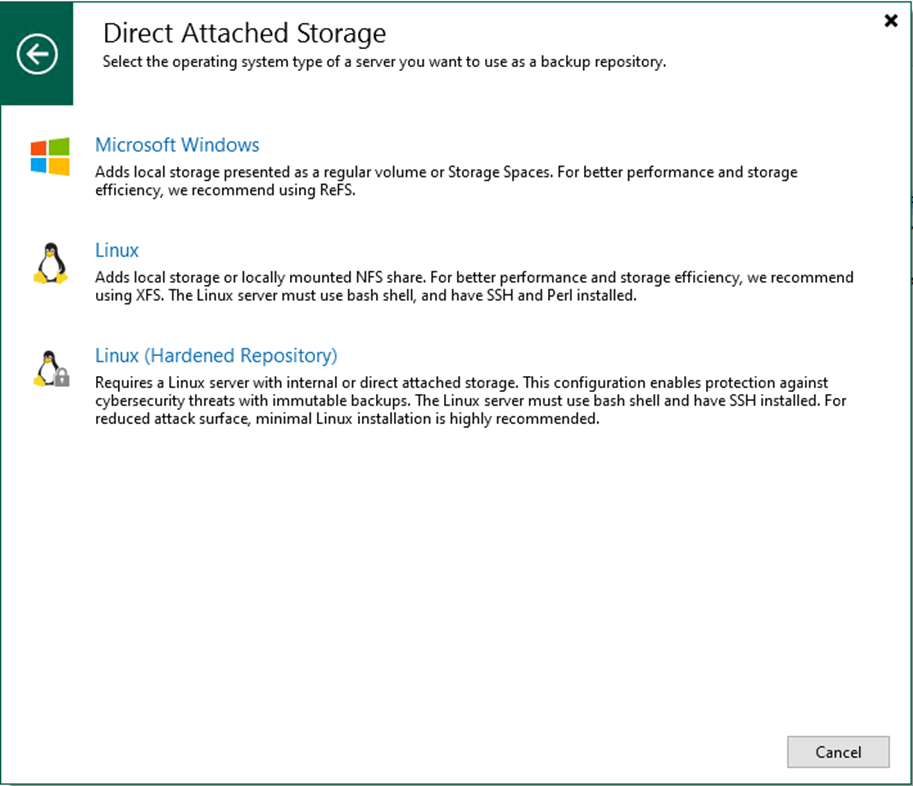

7. Select Microsoft Windows on the Direct Attached Storage page.

082523 1900 Howtoaddthe4 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

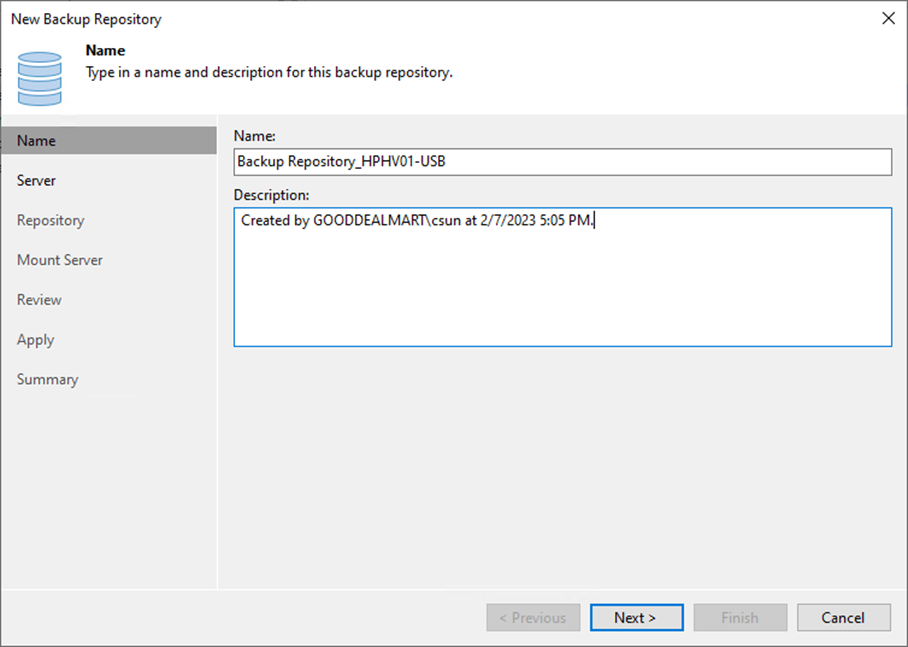

8. On the Name page, specify a Backup Repository name.

9. Give a brief description in the Description field for future reference and click Next.

082523 1900 Howtoaddthe5 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

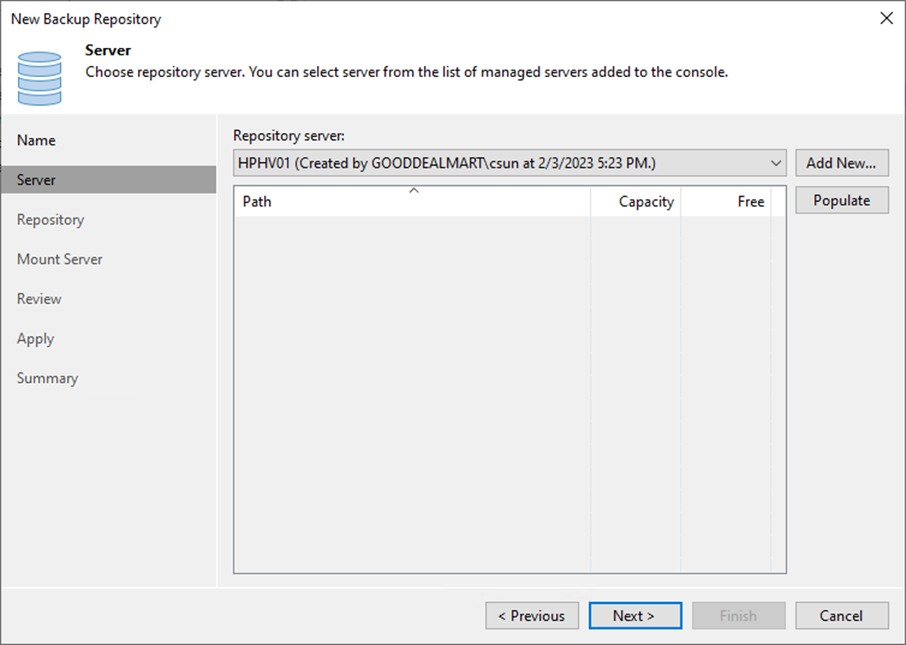

10. On the Server page, select the Microsoft Windows server from the Repository server drop-down list and click Populate.

082523 1900 Howtoaddthe6 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

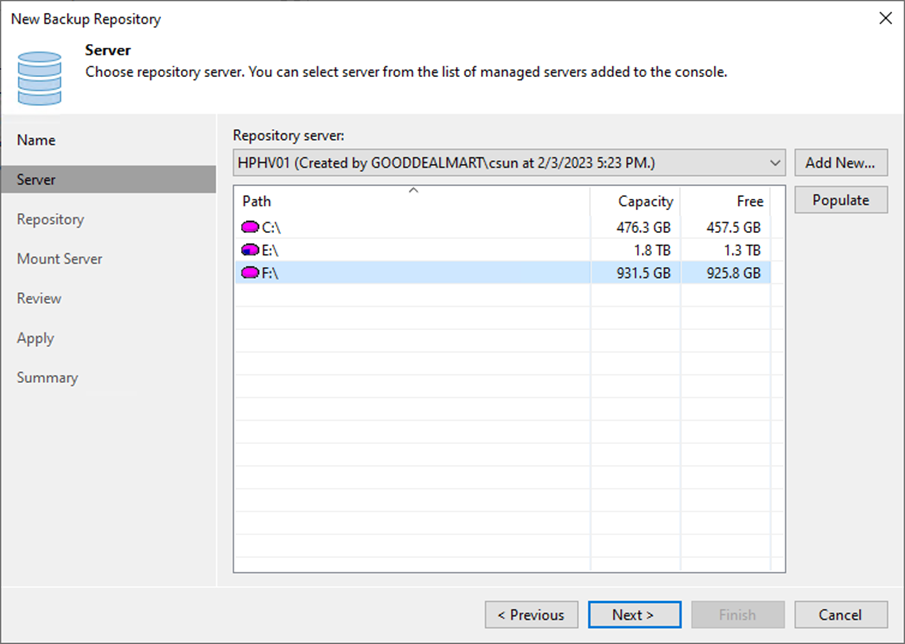

11. Select the disk and click Next.

082523 1900 Howtoaddthe7 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

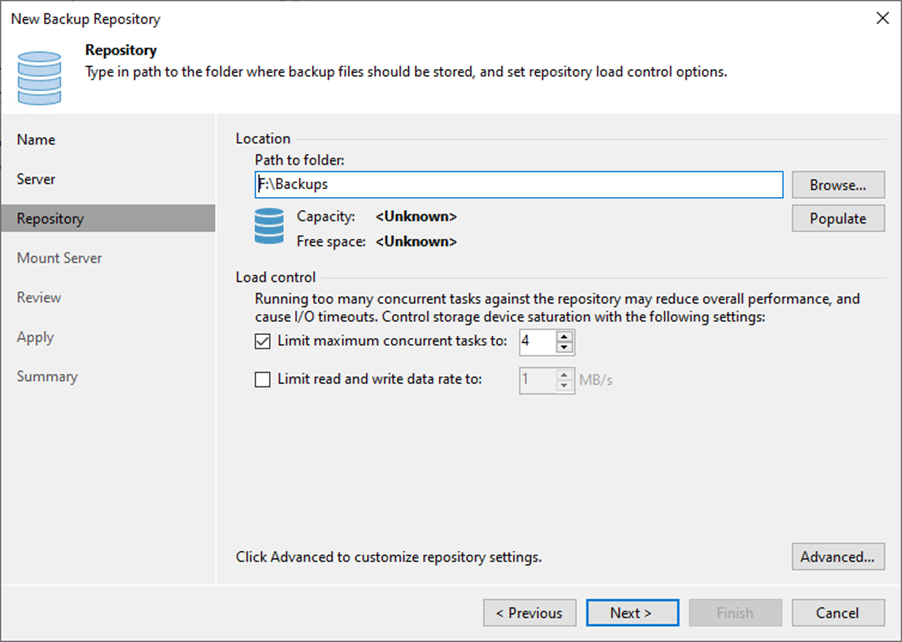

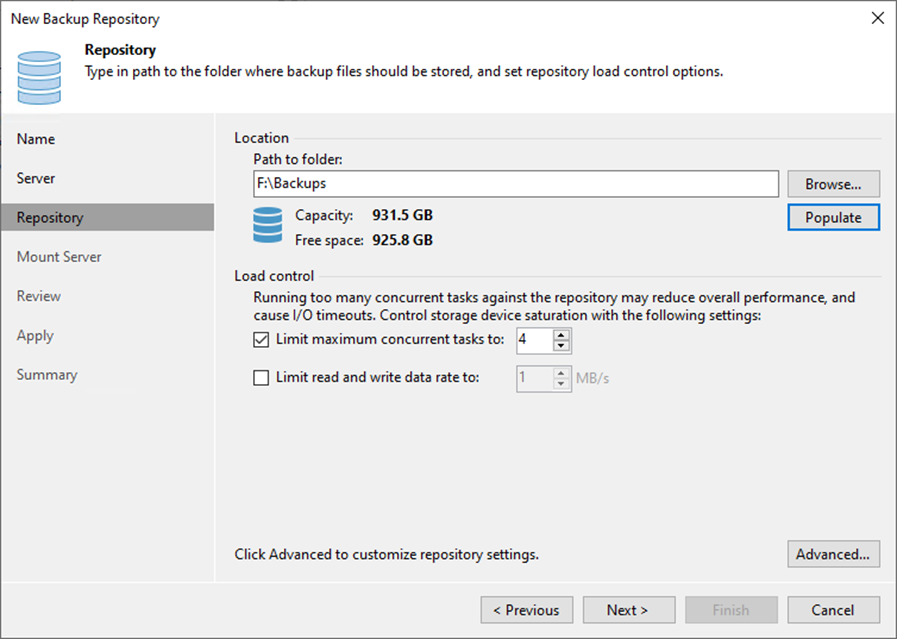

12. On the Repository page, click Populate to review the disk capacity and free space.

082523 1900 Howtoaddthe8 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

13. Use the Load control settings to manage the load on the backup repository and avoid storage I/O timeouts.

14. Click Advanced.

082523 1900 Howtoaddthe9 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

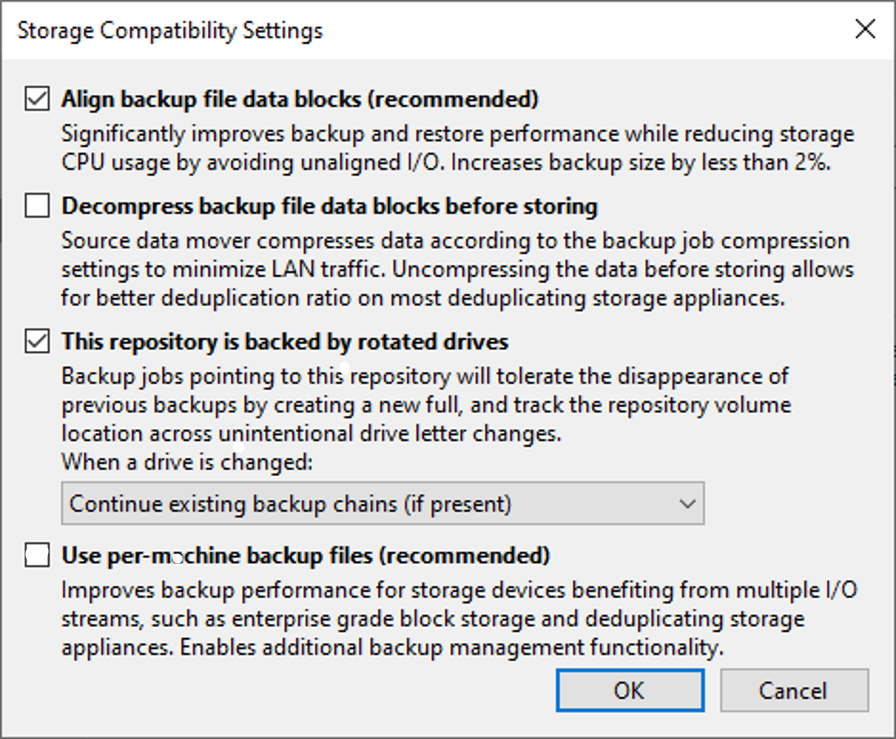

15. On the Storage Compatibility Settings, select Align backup file data blocks (recommended) checkbox.

16. Select This repository is backed by rotated drives checkbox and Specify how Veeam Backup & Replication should react when a drive is swapped.

17.Click OK.

082523 1900 Howtoaddthe10 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

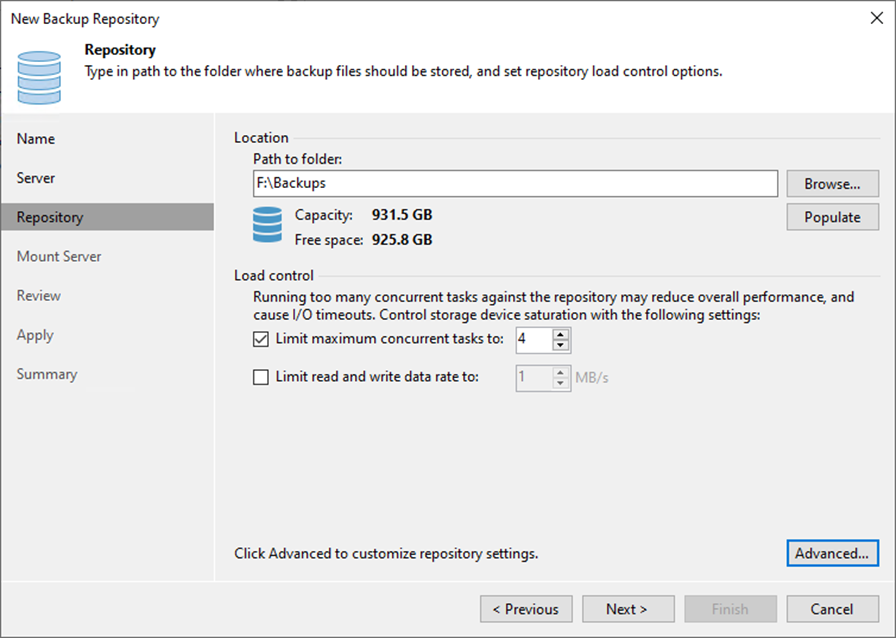

18. Click Next on the Repository page.

082523 1900 Howtoaddthe11 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

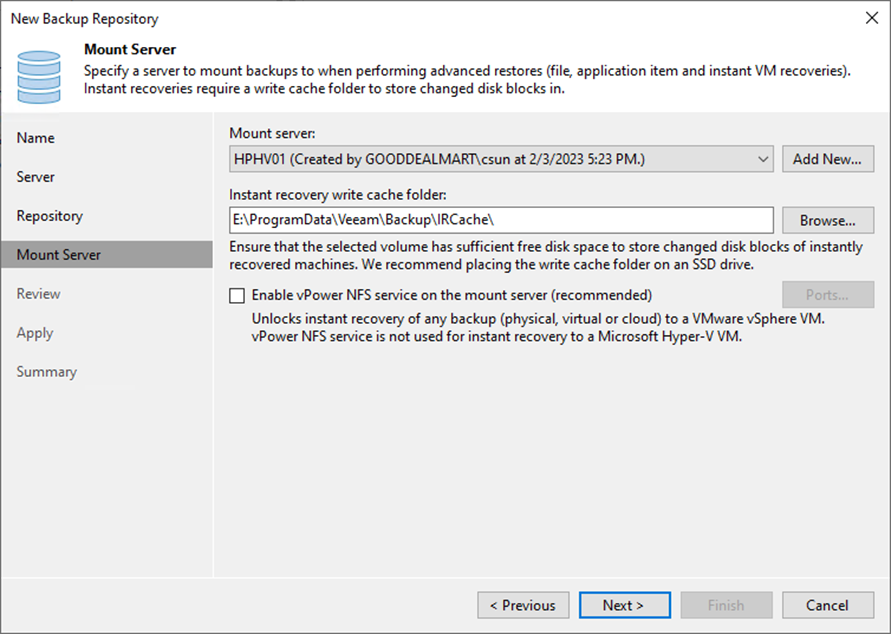

19. Select a mount server from the Mount server drop-down list on the Mount Server page. The mount server is required for file-level and application items restoration.

20. Select a folder in the Instant recovery write cache folder field for writing cache during mount operations.

21. Unselect Enable vPower NFS service on the mount server because the vPower NFS service is not used for instant recovery to a Microsoft Hyper-V VM.

22. Click Next.

082523 1900 Howtoaddthe12 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

23. Click Apply on the Review page.

24. Select the Search the repository for existing backups and import them automatically checkbox if the backup repository contains backups previously created with Veeam Backup & Replication.

25. Select the Import guest file system index data to the catalog checkbox if the backup repository contains guest file system index files previously created by Veeam Backup & Replication.

082523 1900 Howtoaddthe13 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

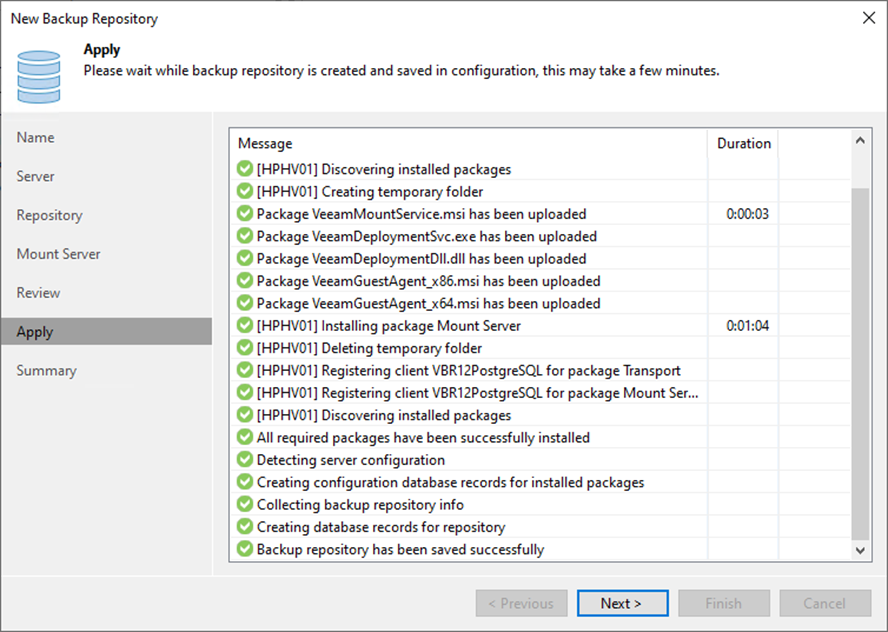

26. Click Next on the Apply page.

082523 1900 Howtoaddthe14 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

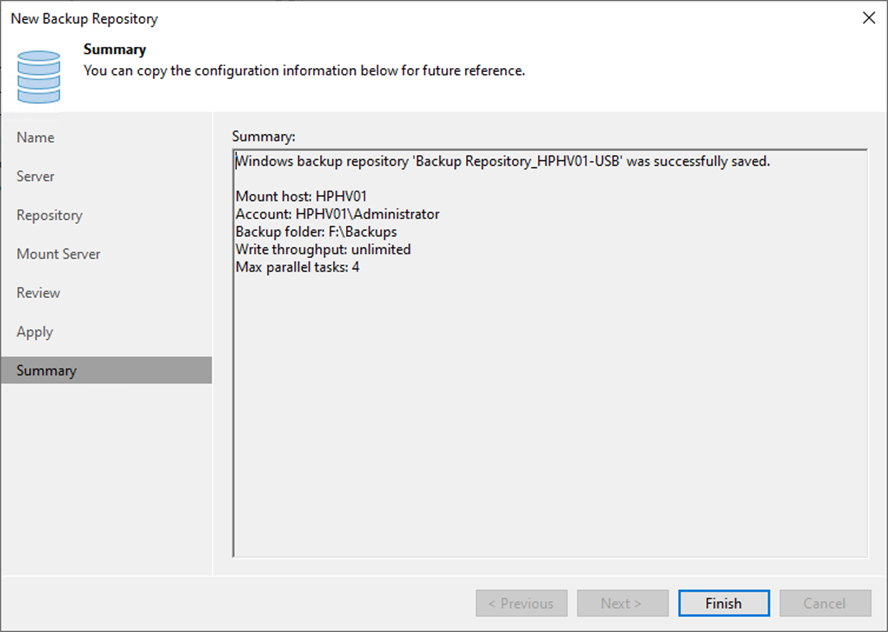

27. Click Finish on the Summary page.

082523 1900 Howtoaddthe15 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12

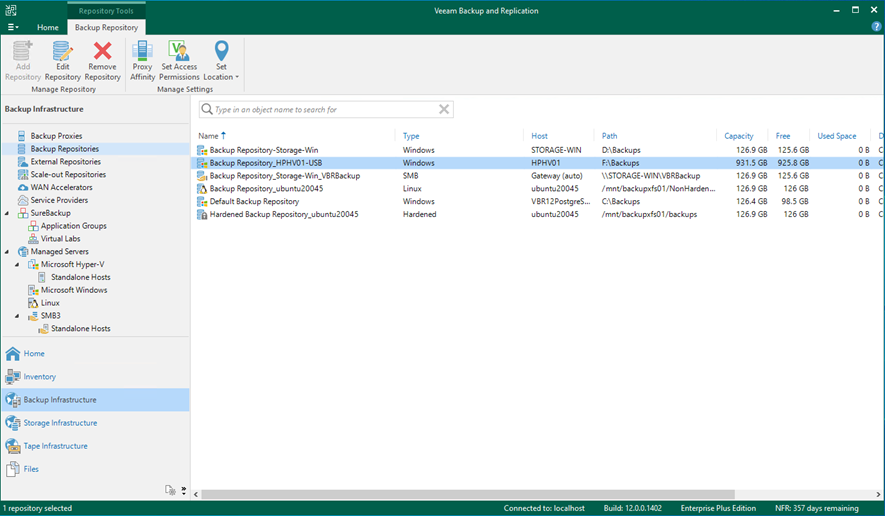

28. Verify that the Rotated Drives Backup Repository has been added.

082523 1900 Howtoaddthe16 - How to add the Microsoft Windows Server’s Rotated Drive as a Backup Repository at Veeam Backup and Replication v12
