How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) – nFactor

      Comments Off on How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) – nFactor

To add Duo two-factor authentication to your Citrix Gateway with nFactor you’ll configure the Duo Authentication Proxy as a secondary RADIUS authentication server. Primary authentication happens directly between the Citrix Gateway and your Active Directory, LDAP, or other identity store, which enables additional features such as AD password resets.

Before starting, make sure that Duo is compatible with your Citrix Gateway device. Log on to your Citrix Gateway via the web interface and verify that your Citrix Gateway firmware is version 12.1-51.16 or later and your Citrix Receiver or Citrix Workspace clients support 12.1 or later.

Also verify that your Citrix Gateway is licensed for Advanced Authentication Policy. As of Citrix Gateway release 13.0-67.x, the “Standard” license also includes nFactor for Gateway/VPN, while Citrix ADC requires an “Advanced” or “Premium” license to use nFactor.

031422 2212 Howtodeploy1 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

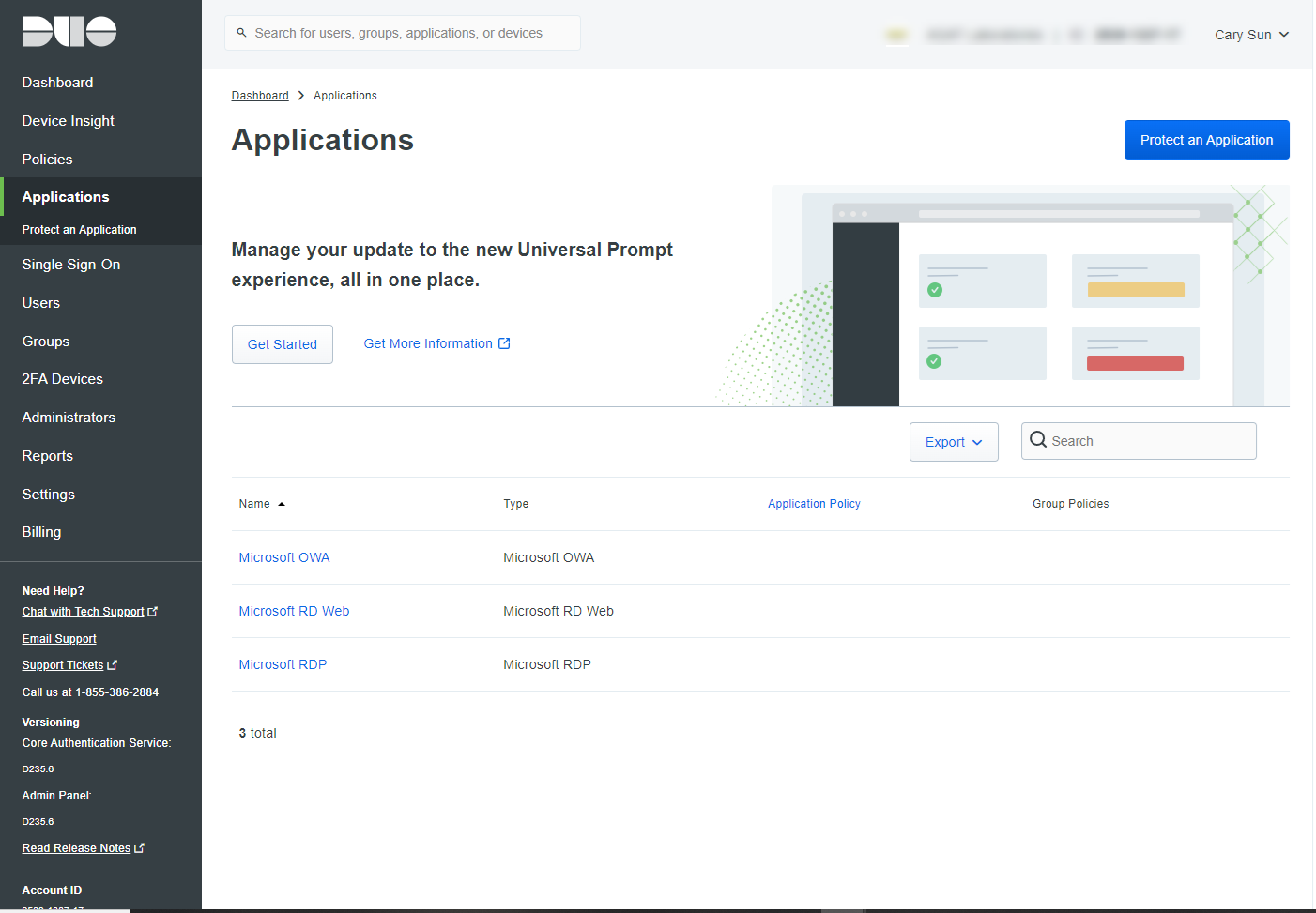

1.Log in to the Duo Admin Panel and navigate to Applications.

031422 2212 Howtodeploy2 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

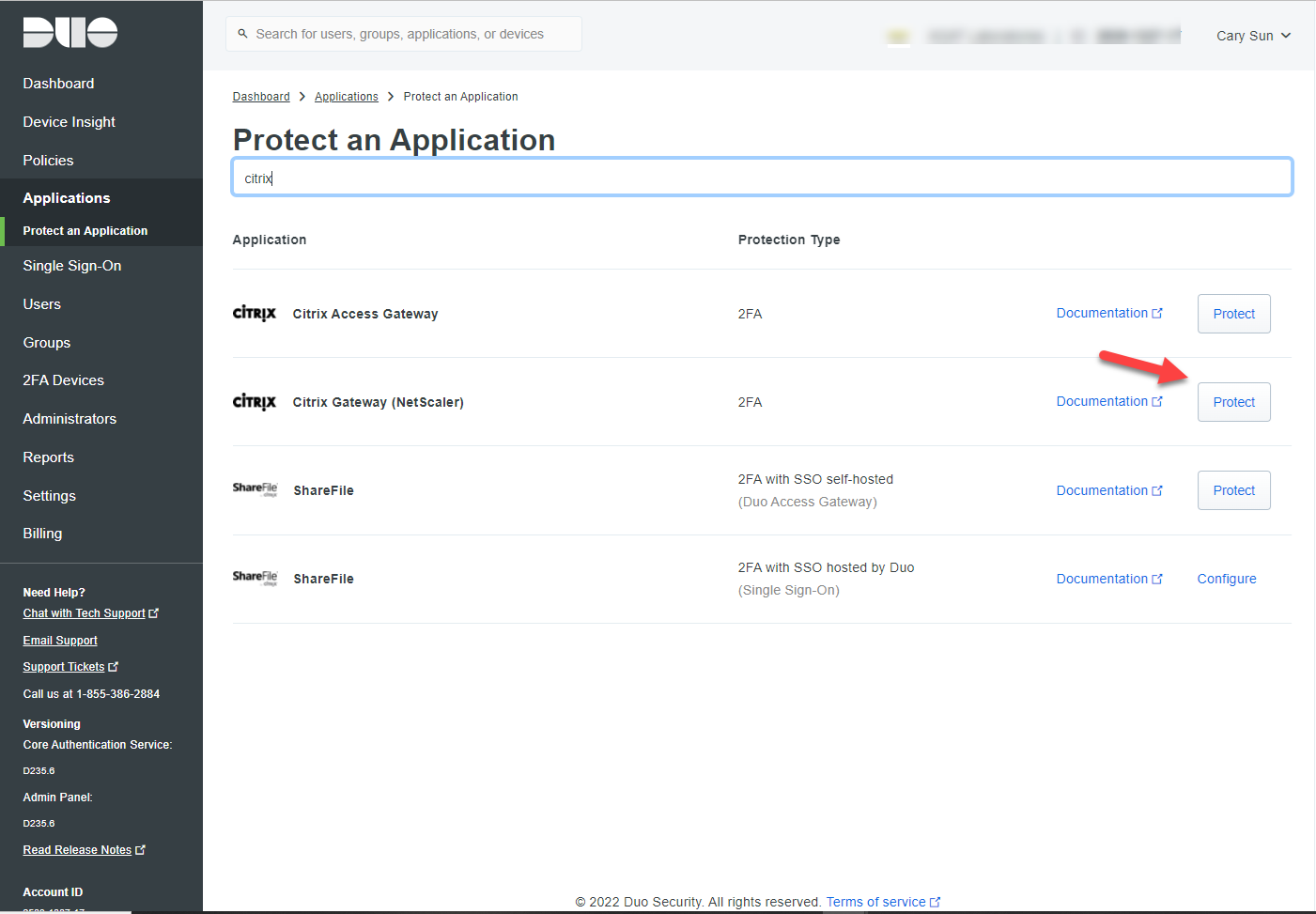

2.Click Protect an Application and locate Citrix Gateway (NetScaler) in the applications list.

031422 2212 Howtodeploy3 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

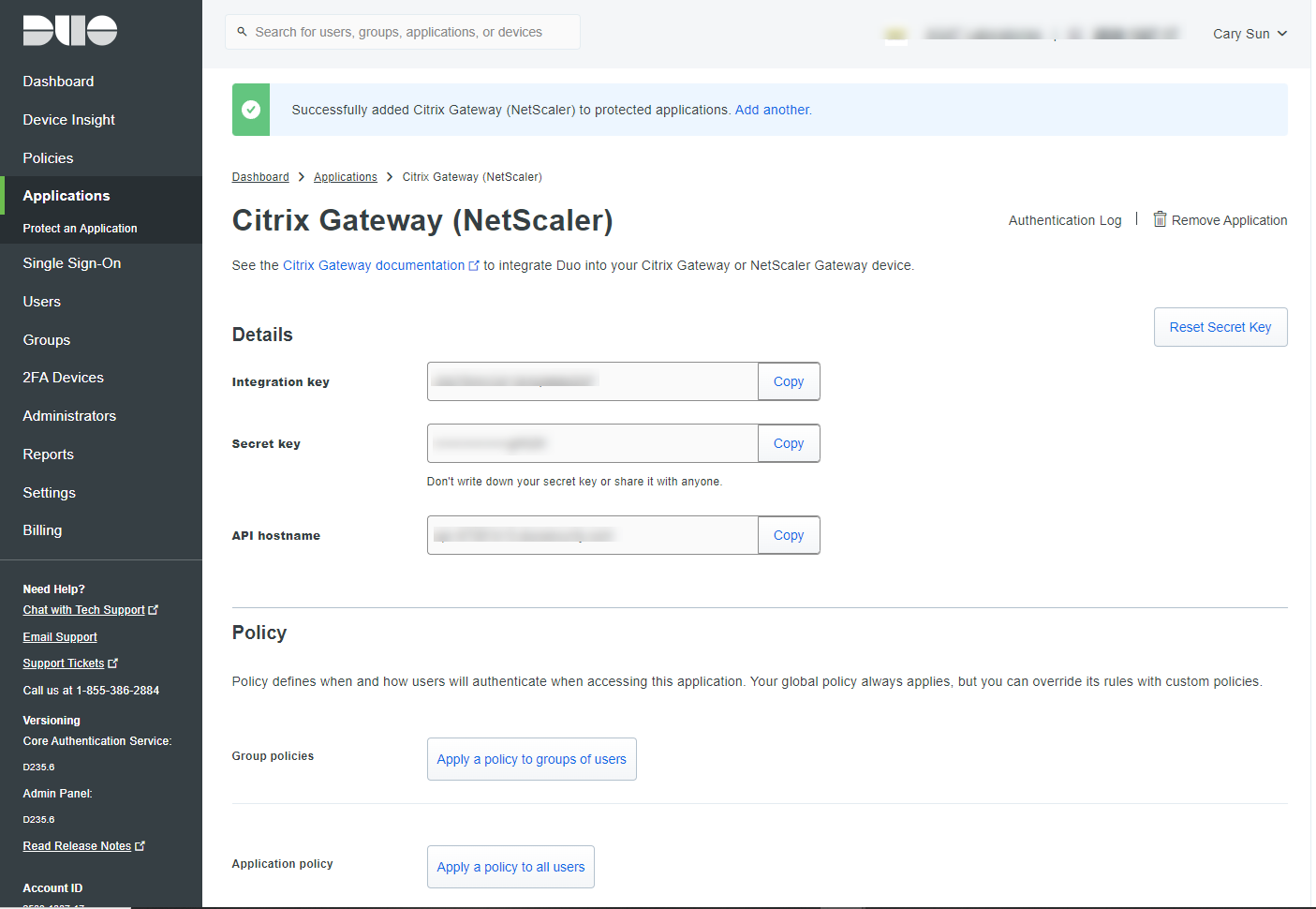

3.Click Protect to get your integration key, secret key, and API hostname. You’ll need this information to complete your setup.

031422 2212 Howtodeploy4 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

4.Install the Duo Authentication Proxy

Download the most recent Authentication Proxy for Windows from  https://dl.duosecurity.com/duoauthproxy-latest.exe.

Note that the actual filename will reflect the version.

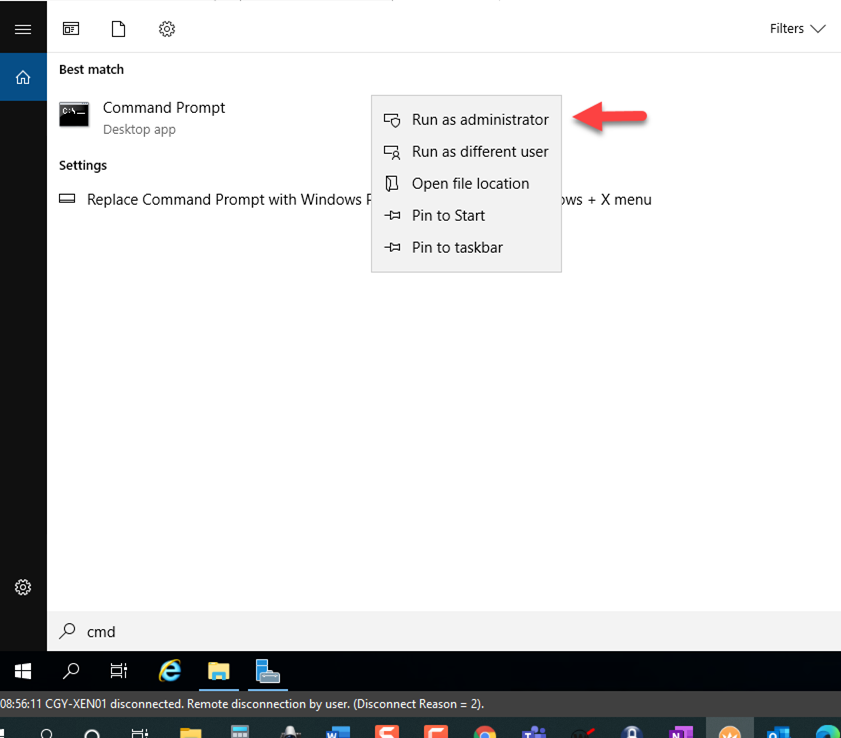

5.Launch the Authentication Proxy installer on the target Windows server as a user with administrator rights and follow the on-screen prompts

031422 2212 Howtodeploy5 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

6.On the User Account Control page, click Yes.

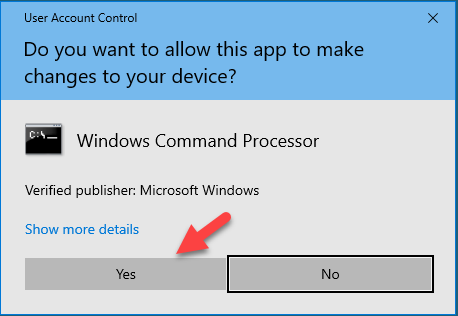

031422 2212 Howtodeploy6 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

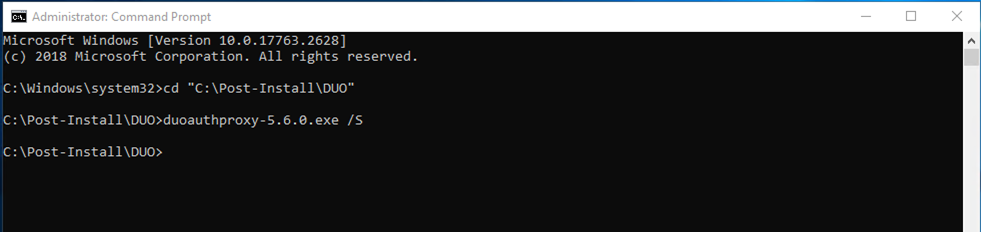

7.Run following command:

Duoautoproxy-5.6.0.exe /S

031422 2212 Howtodeploy7 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

8.Configure the Proxy

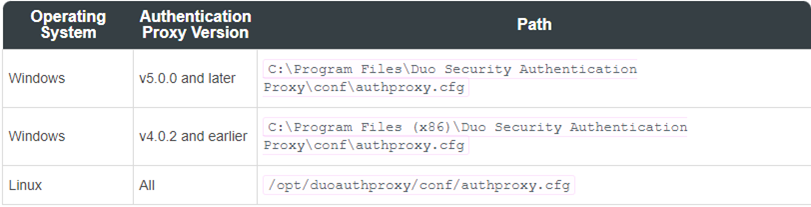

The Duo Authentication Proxy configuration file is named authproxy.cfg, and is located in the conf subdirectory of the proxy installation. With default installation paths, the proxy configuration file will be located at:

031422 2212 Howtodeploy8 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

8.You also can use Duo Authentication Proxy Manager to modify files.

The Duo Authentication Proxy Manager is a Windows utility for managing the Authentication Proxy installation on the Windows server where you install the Authentication Proxy. The Proxy Manager comes with Duo Authentication Proxy for Windows version 5.6.0 and later.

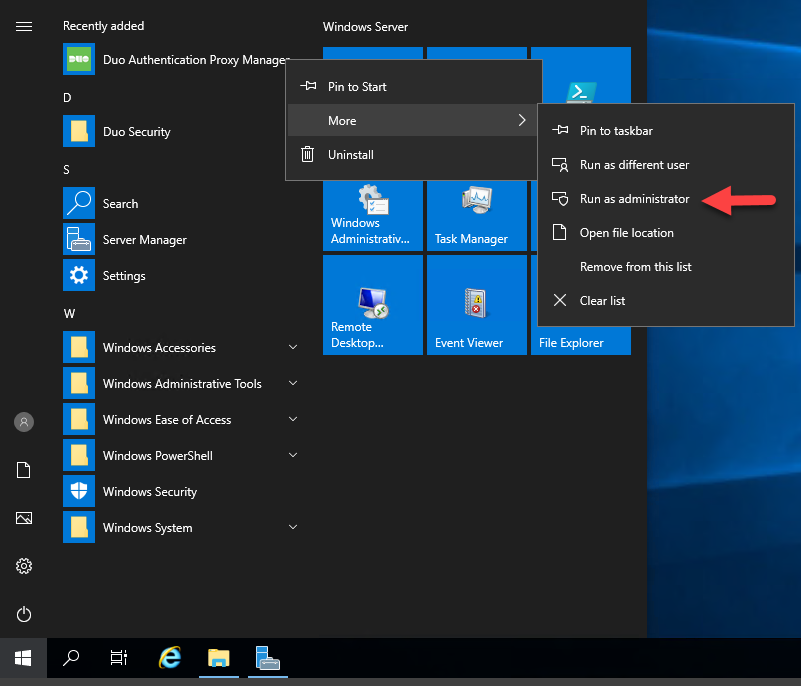

9.Open the Start Menu and go to Duo Security.

10.Click the Duo Authentication Proxy Manager icon to launch the application. You must have administrative privileges on the Windows server and accept the prompt for elevation.

031422 2212 Howtodeploy9 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

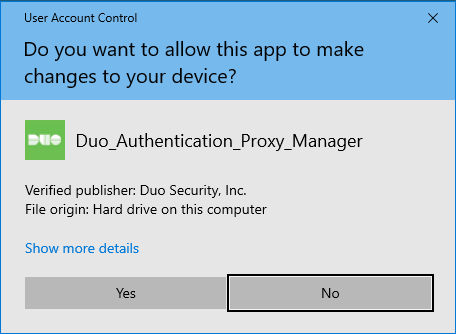

11.On the User Account Control page, click Yes.

031422 2212 Howtodeploy10 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

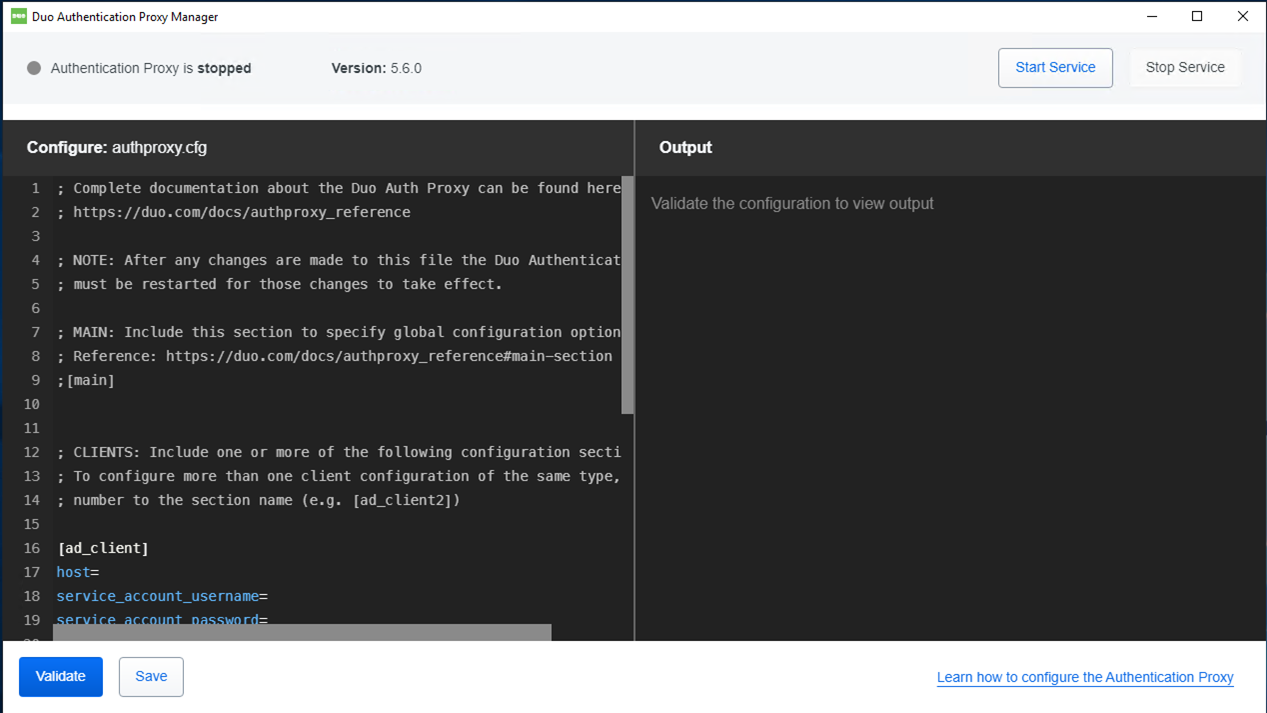

12.The Proxy Manager launches and automatically opens the %ProgramFiles%\Duo Security Authentication Proxy\conf\authproxy.cfg file for editing

031422 2212 Howtodeploy11 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

13.Configure the Proxy for Duo Only Authentication

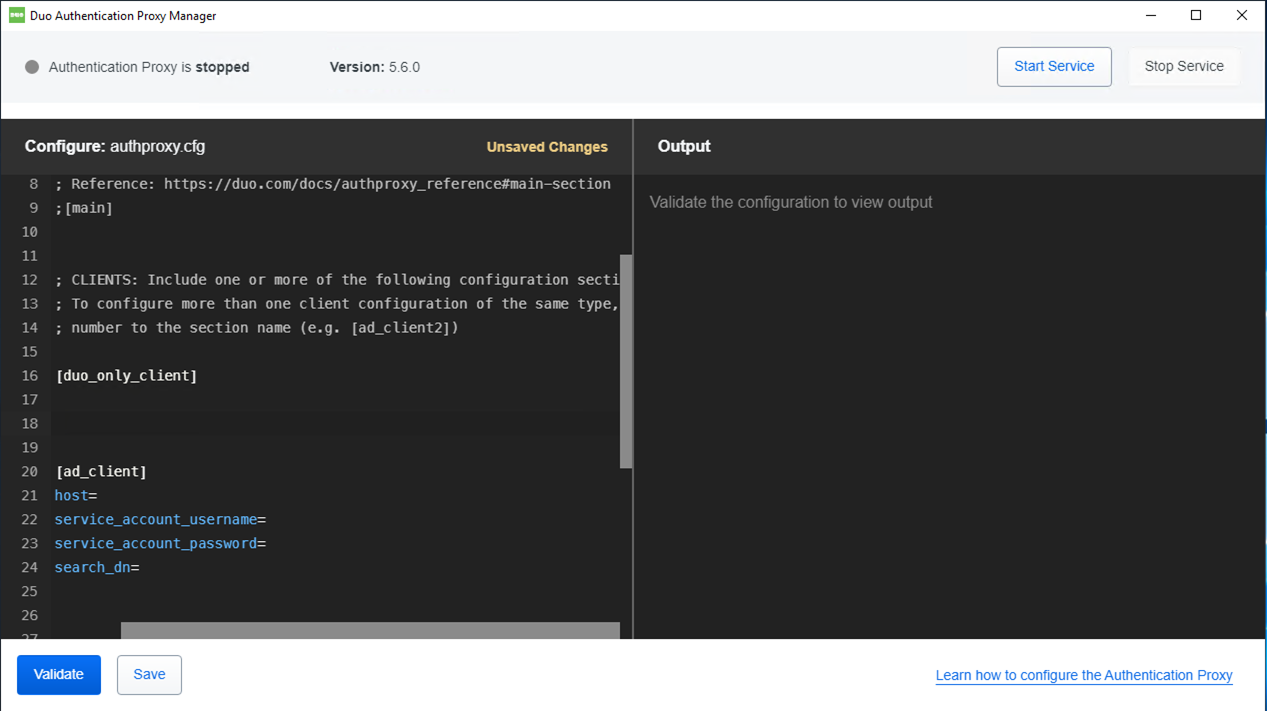

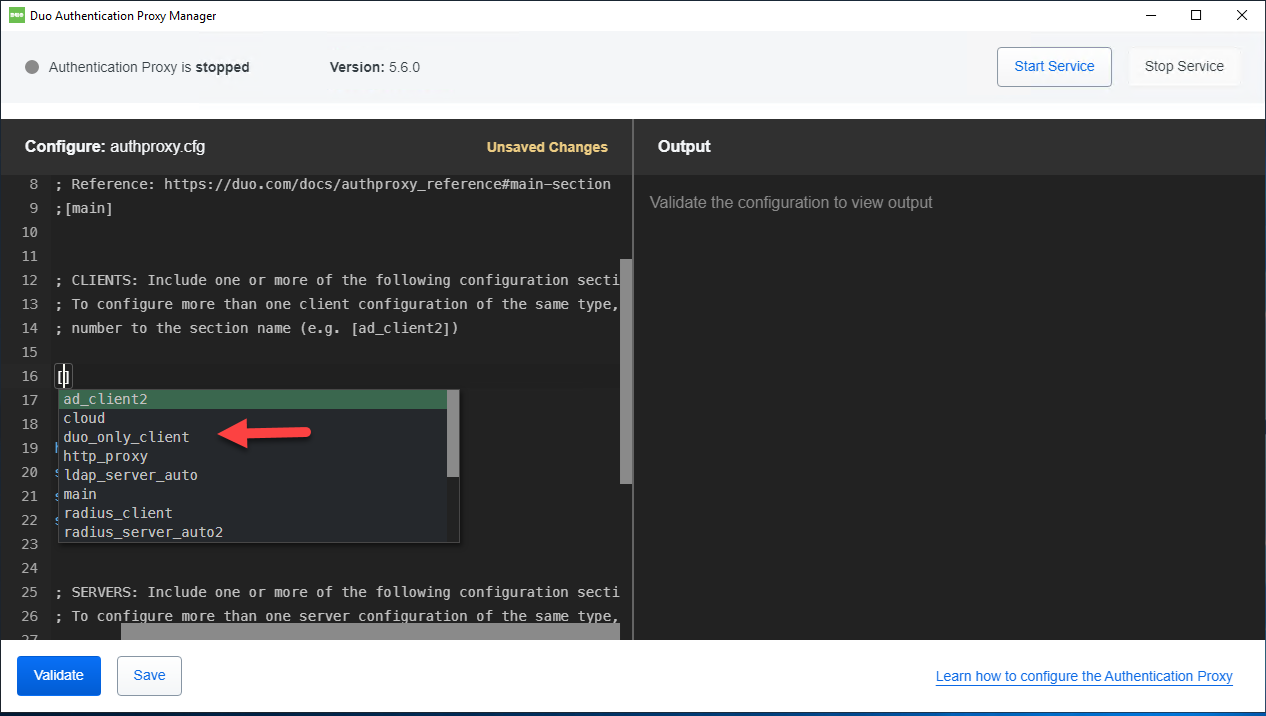

At the top of your authproxy.cfg, create a [duo_only_client] section. This section has no additional parameters to configure.

031422 2212 Howtodeploy12 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

14.When using the [duo_only_client] configuration, the Authentication Proxy will ignore primary credentials and perform Duo factor authentication only.

031422 2212 Howtodeploy13 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

15.Configure the Proxy for Your Citrix Gateway

you need to set up the Authentication Proxy to work with your Citrix Gateway or NetScaler. Create a [radius_server_iframe] section and add the properties listed below.

type: Set to citrix_netscaler_rfwebui. Requires Authentication Proxy v3.1.0 and NS build 12.1-51.16 or later.

api_host: Your API hostname (i.e. api-XXXXXXXX.duosecurity.com)

ikey: Your Duo Citrix NetScaler integration key

skey: Your Duo Citrix NetScaler secret key

failmode: Either safe or secure. safe-In the event that Duo’s service cannot be contacted, users’ authentication attempts will be permitted if primary authentication succeeds. (Default); secure-In the event that Duo’s service cannot be contacted, all users’ authentication attempts will be rejected.

client: duo_only_client

radius_ip_1: A secret to be shared between the proxy and your (first) Citrix Gateway or NetScaler

radius_secret_1: A secret to be shared between the proxy and your (first) Citrix Gateway or NetScaler

radius_ip_X: Optional) IP addresses of additional Citrix Gateway or NetScaler management hosts (specified as radius_ip_2, radius_ip_3, etc.)

radius_secret_X: (Optional) Secrets shared with additional Citrix Gateways or NetScalers (specified as radius_secret_2, radius_secret_3, etc.)

port: Port on which to listen for incoming RADIUS Access Requests. If you have multiple RADIUS server sections you should use a unique port for each one. Default: 1812.

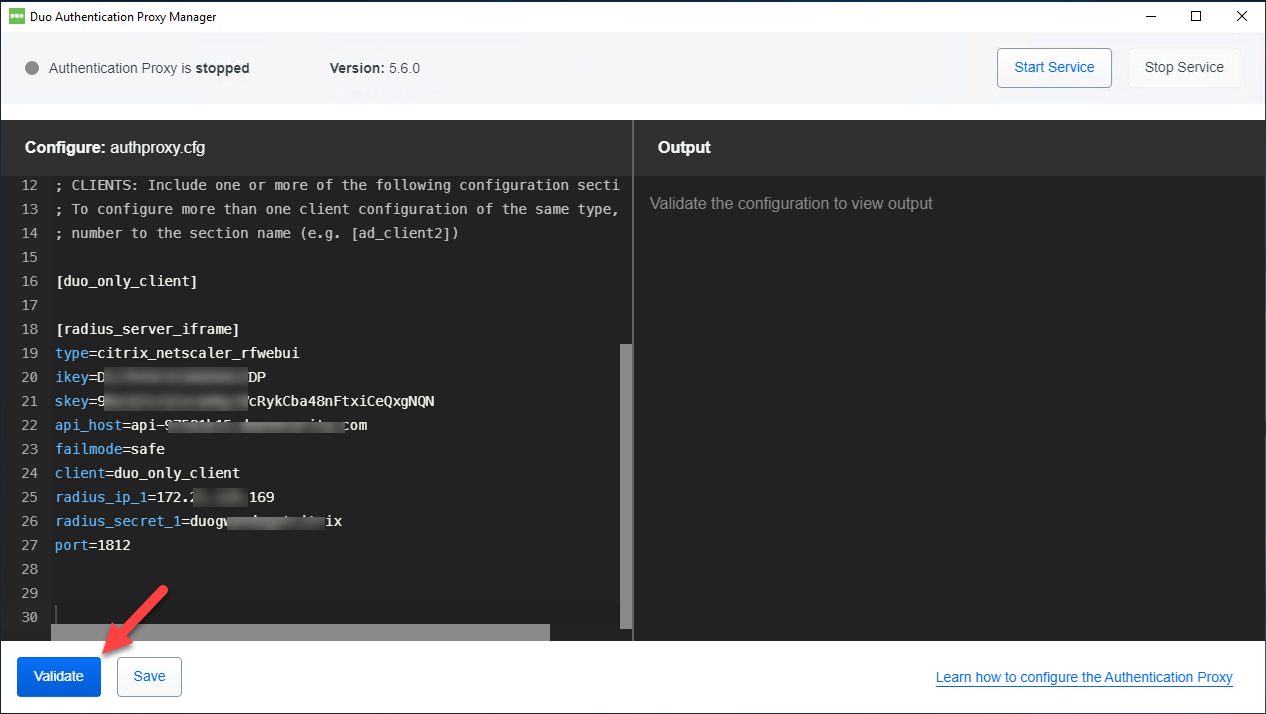

16.Click Validate after you set up the Authentication Proxy.

031422 2212 Howtodeploy14 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

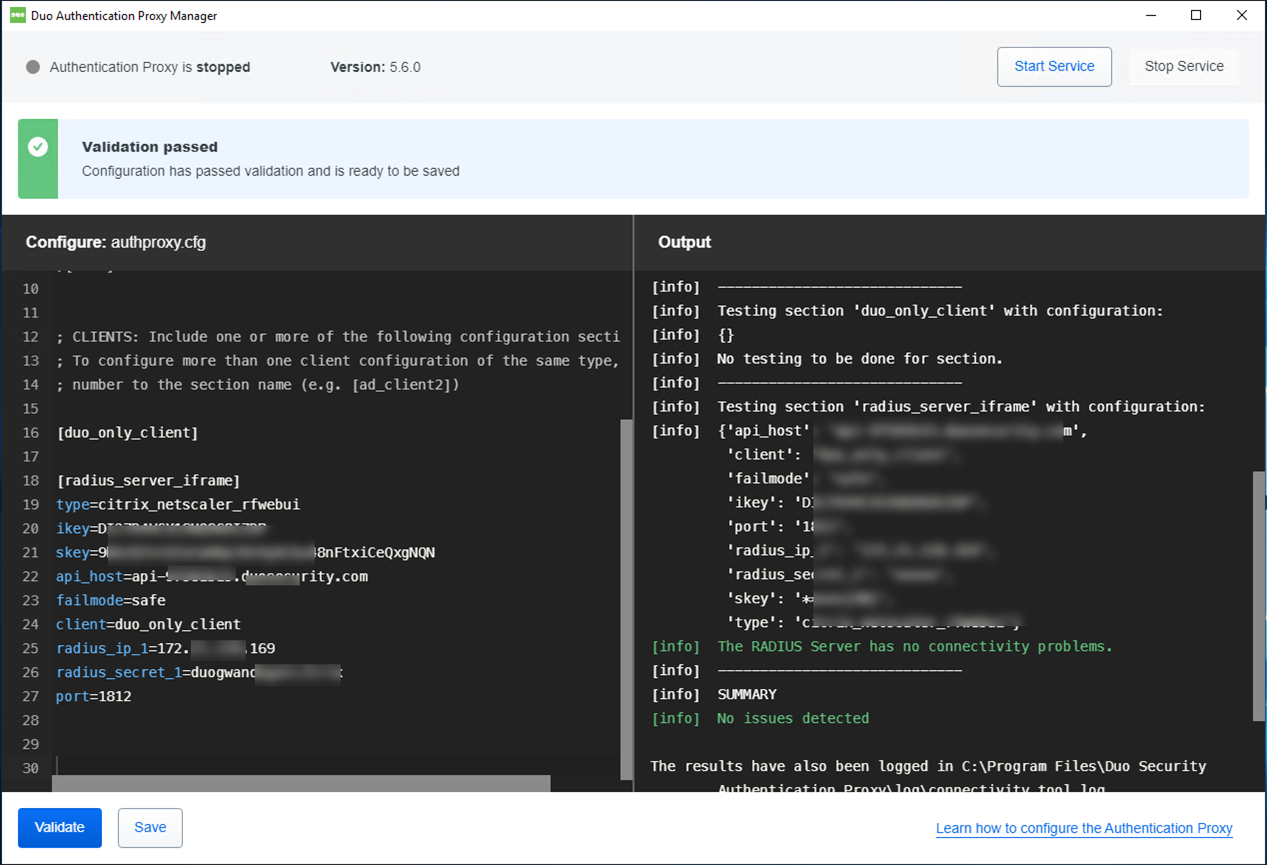

17.To make sure validation passed.

031422 2212 Howtodeploy15 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

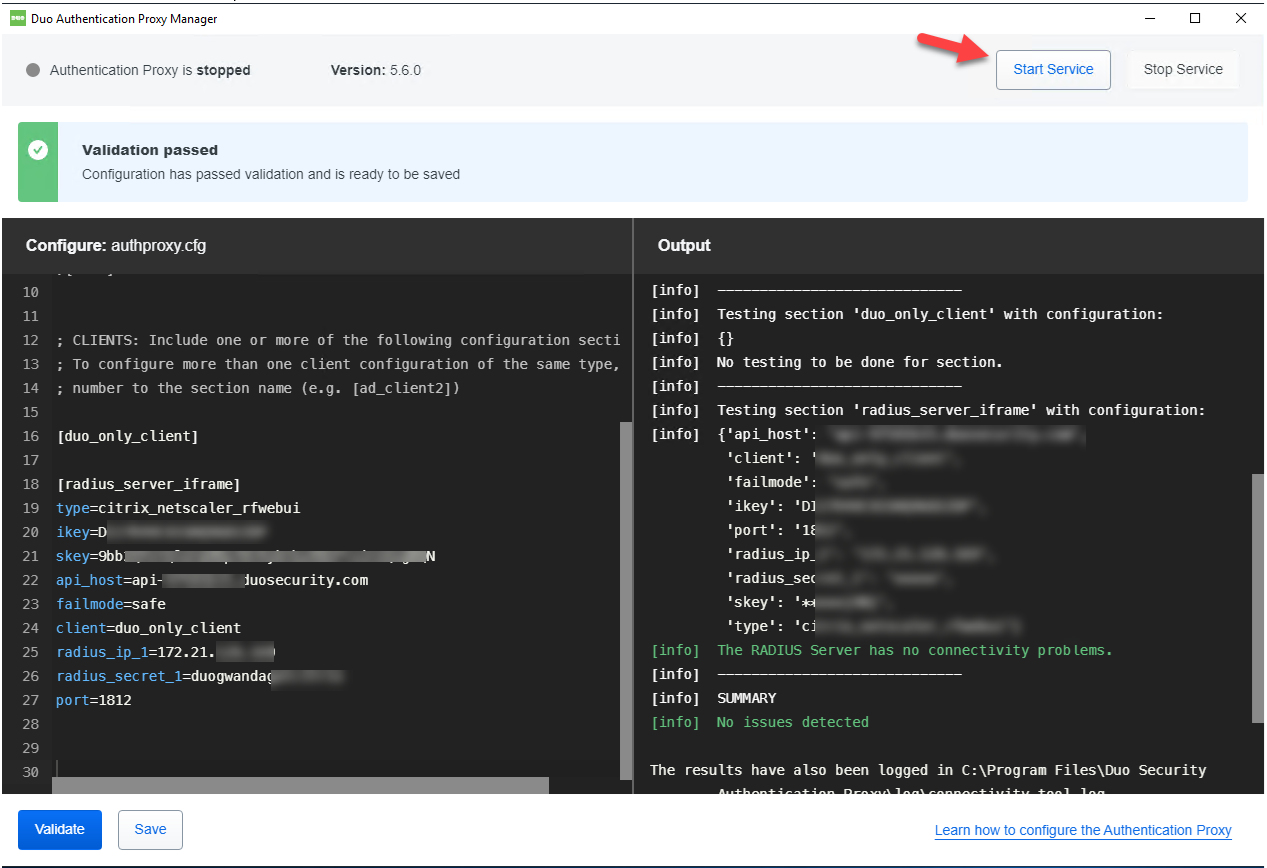

18.Click Start Services to start the Proxy.

031422 2212 Howtodeploy16 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

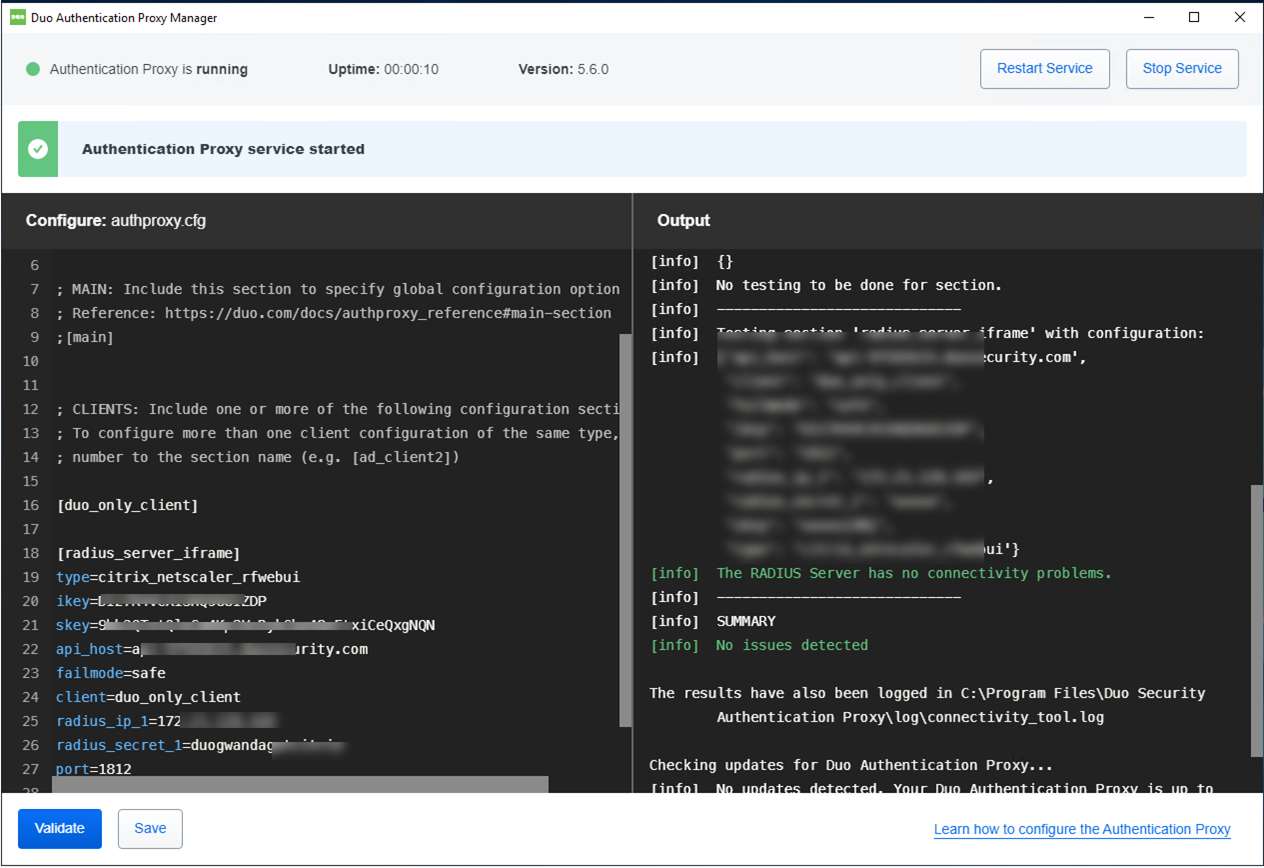

19.To make sure Authentication Proxy service started.

031422 2212 Howtodeploy17 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

20.Configure Your Citrix Gateway

Log in to the Citrix ADC administrative interface

031422 2212 Howtodeploy18 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

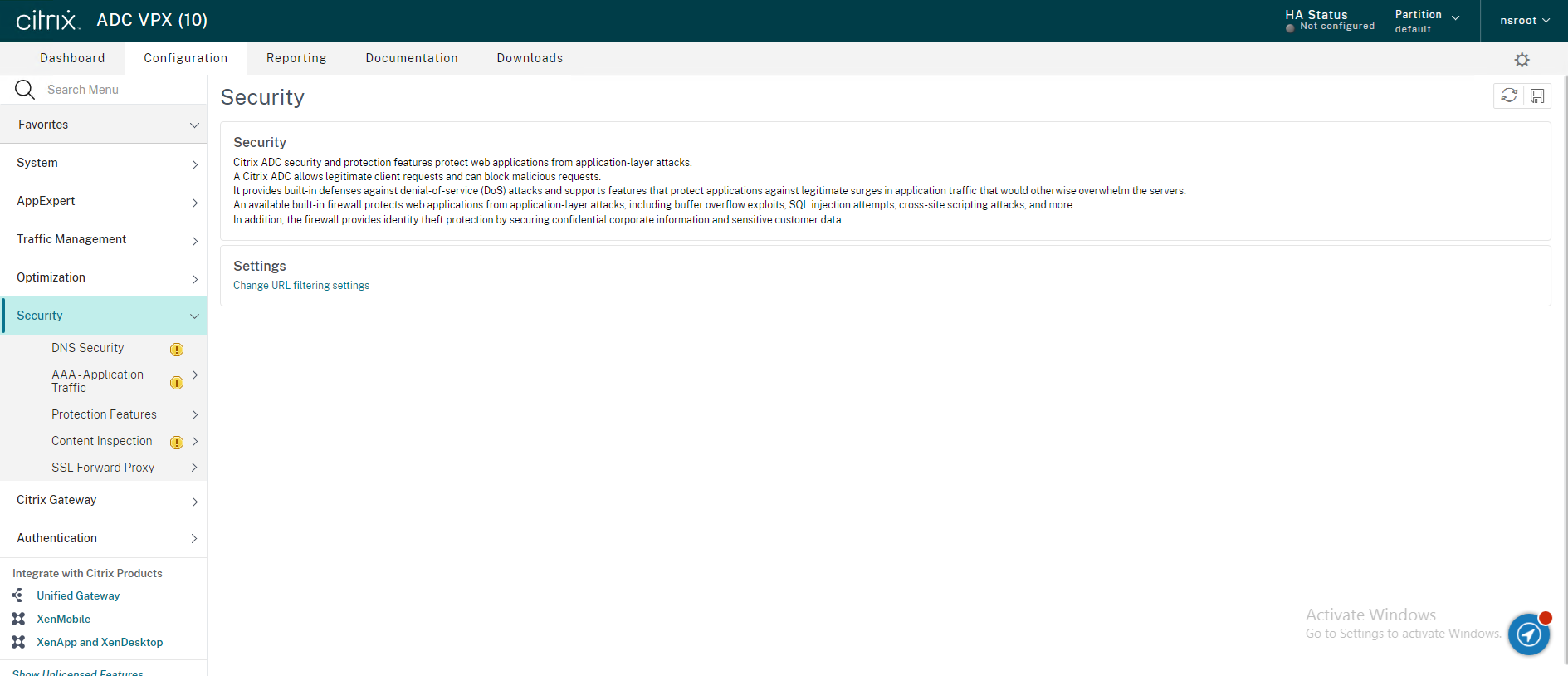

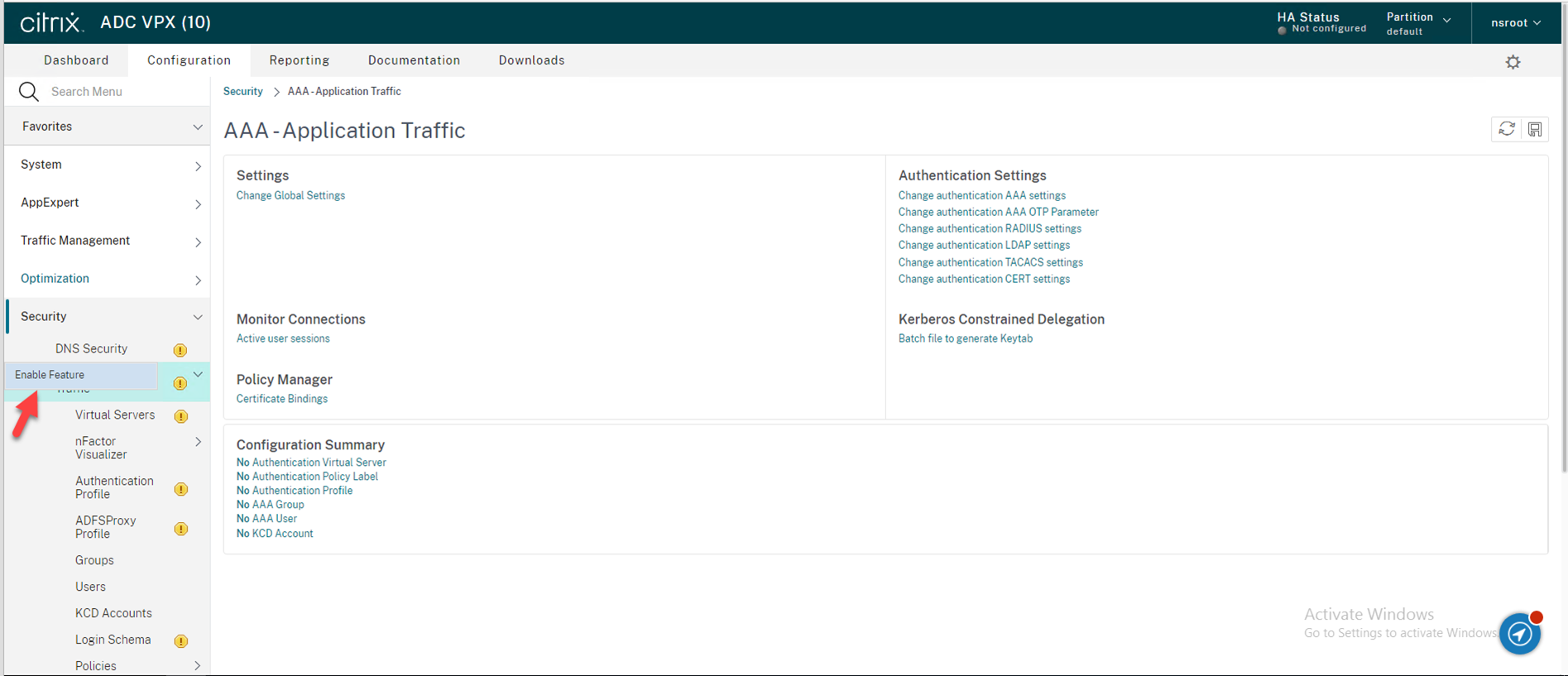

21.Expending Security, right-click AAA-Application Traffic, select Enable Feature.

031422 2212 Howtodeploy19 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

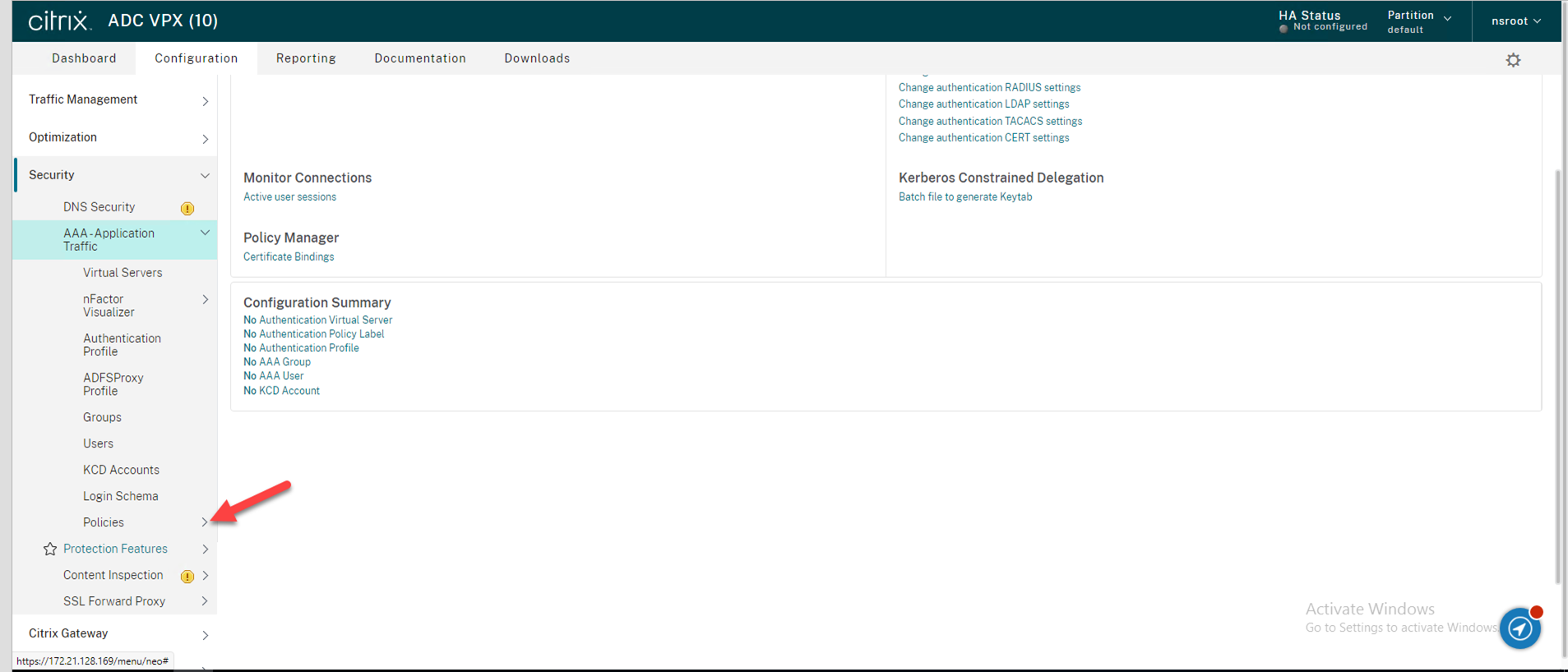

22.Expending AAA-Application Traffic, Expend Policies,

031422 2212 Howtodeploy20 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

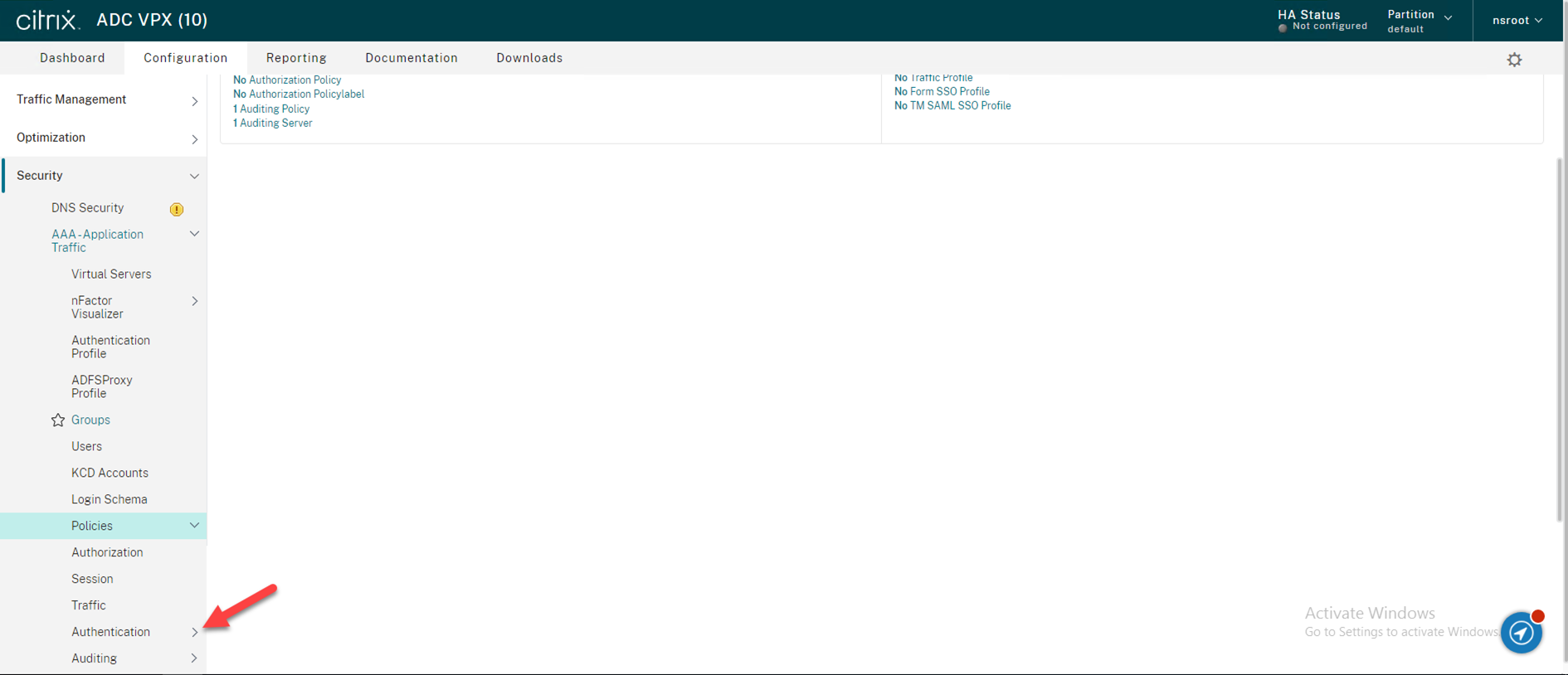

23.Expending Authentication.

031422 2212 Howtodeploy21 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

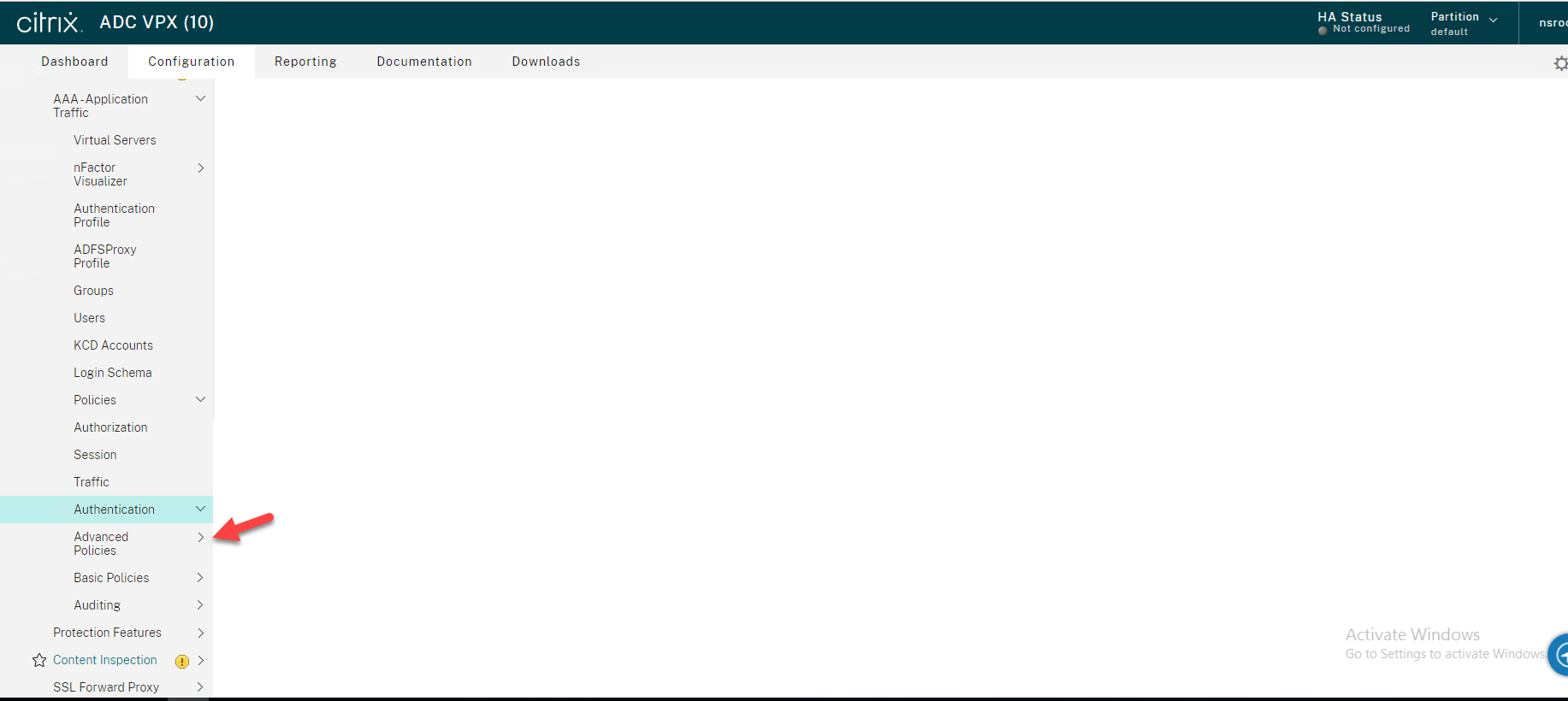

24.Expending Advanced Policies.

031422 2212 Howtodeploy22 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

25.Expending Actions.

031422 2212 Howtodeploy23 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

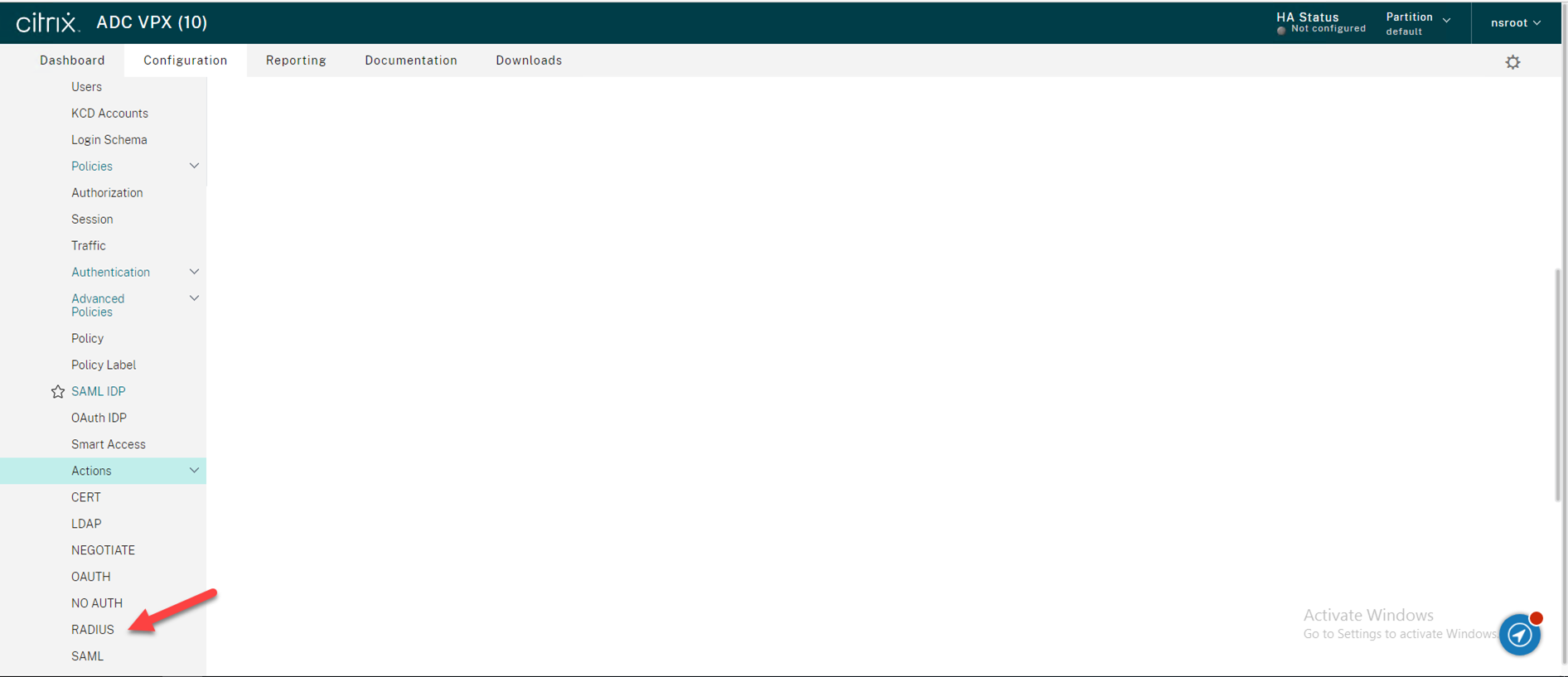

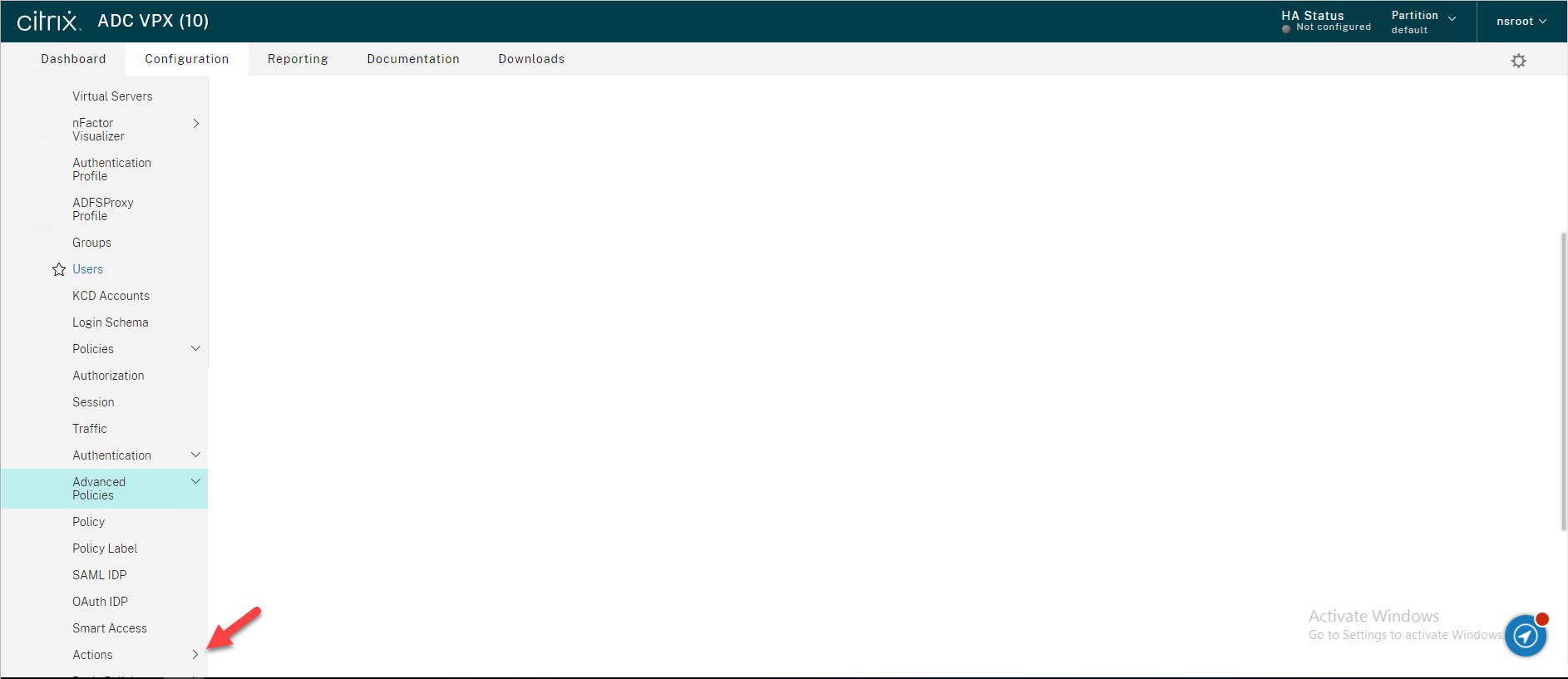

26.Select RADIUS.

031422 2212 Howtodeploy24 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

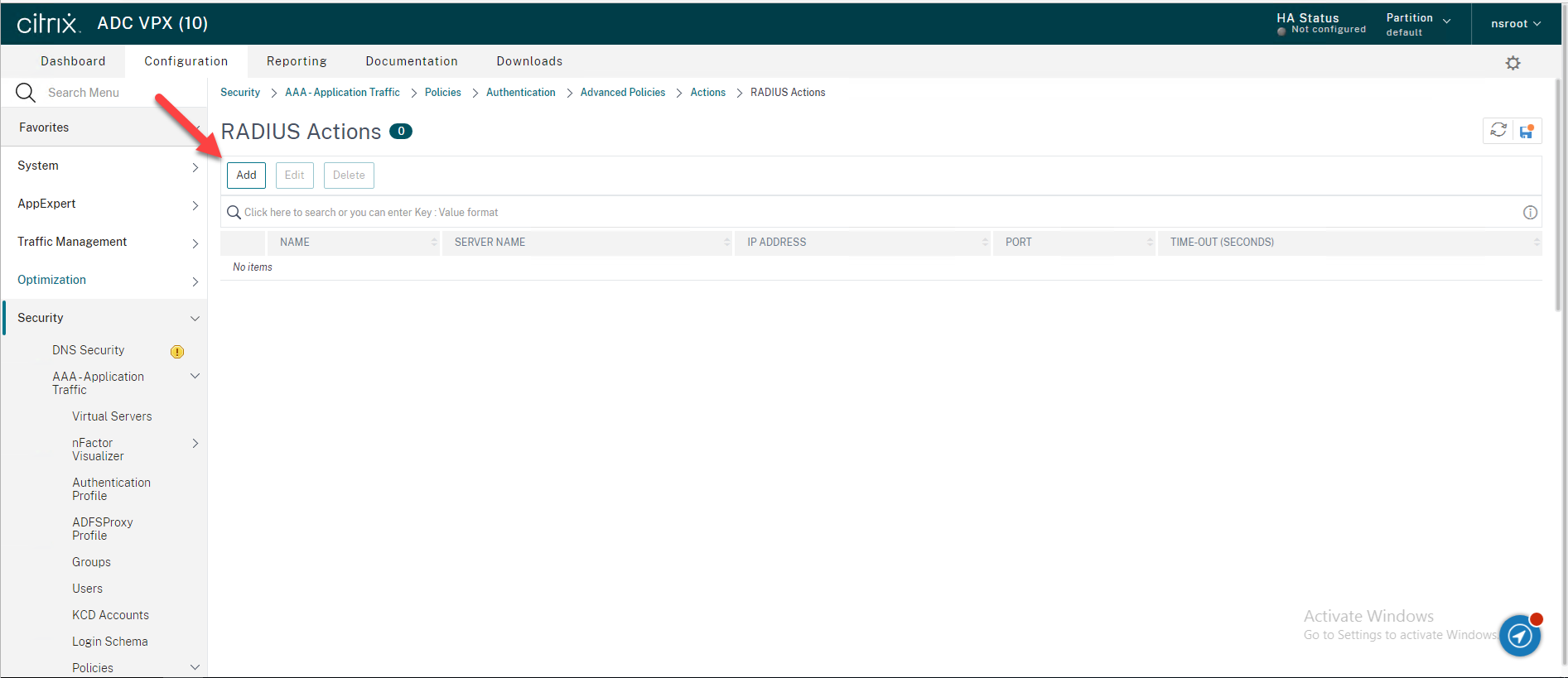

27.On the RADIUS Actions page, click Add to add your Duo Authentication Proxy server as an Authentication RADIUS server.

031422 2212 Howtodeploy25 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

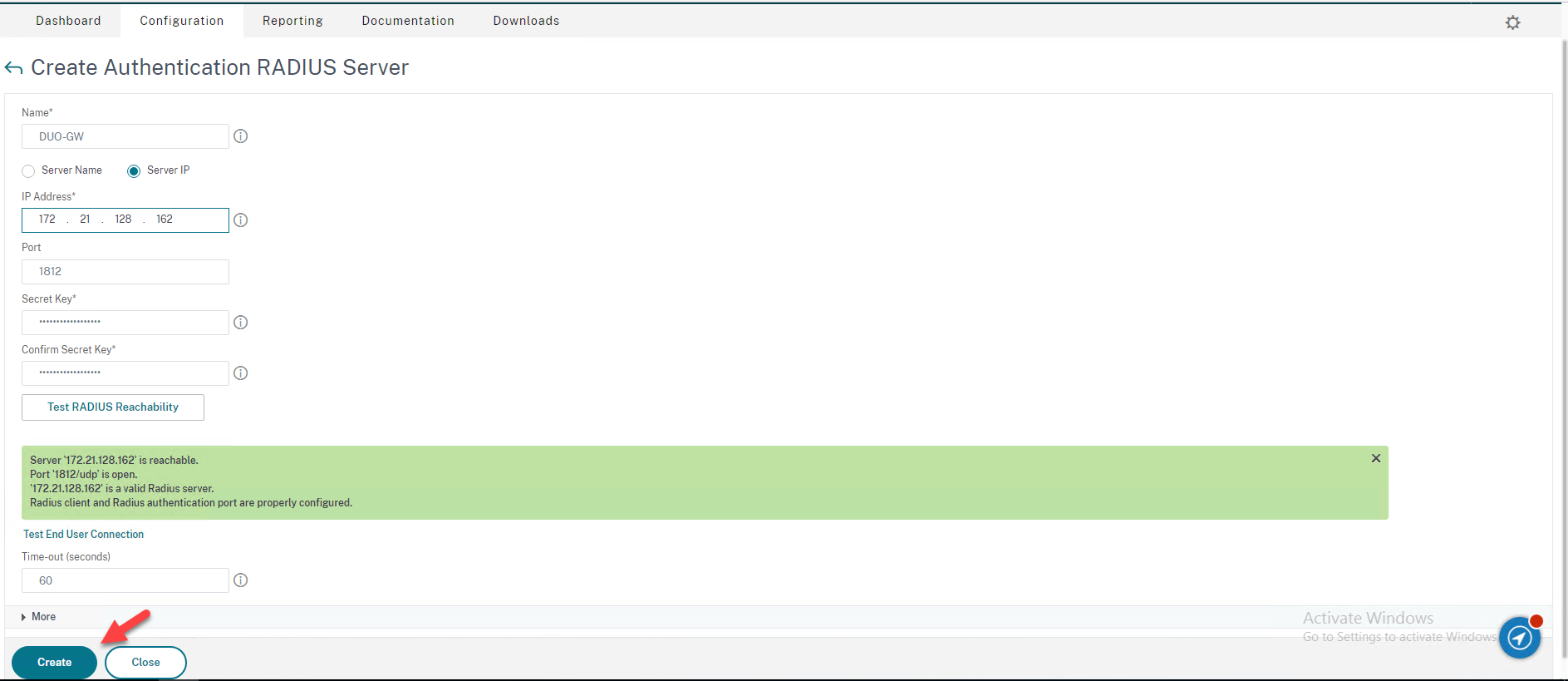

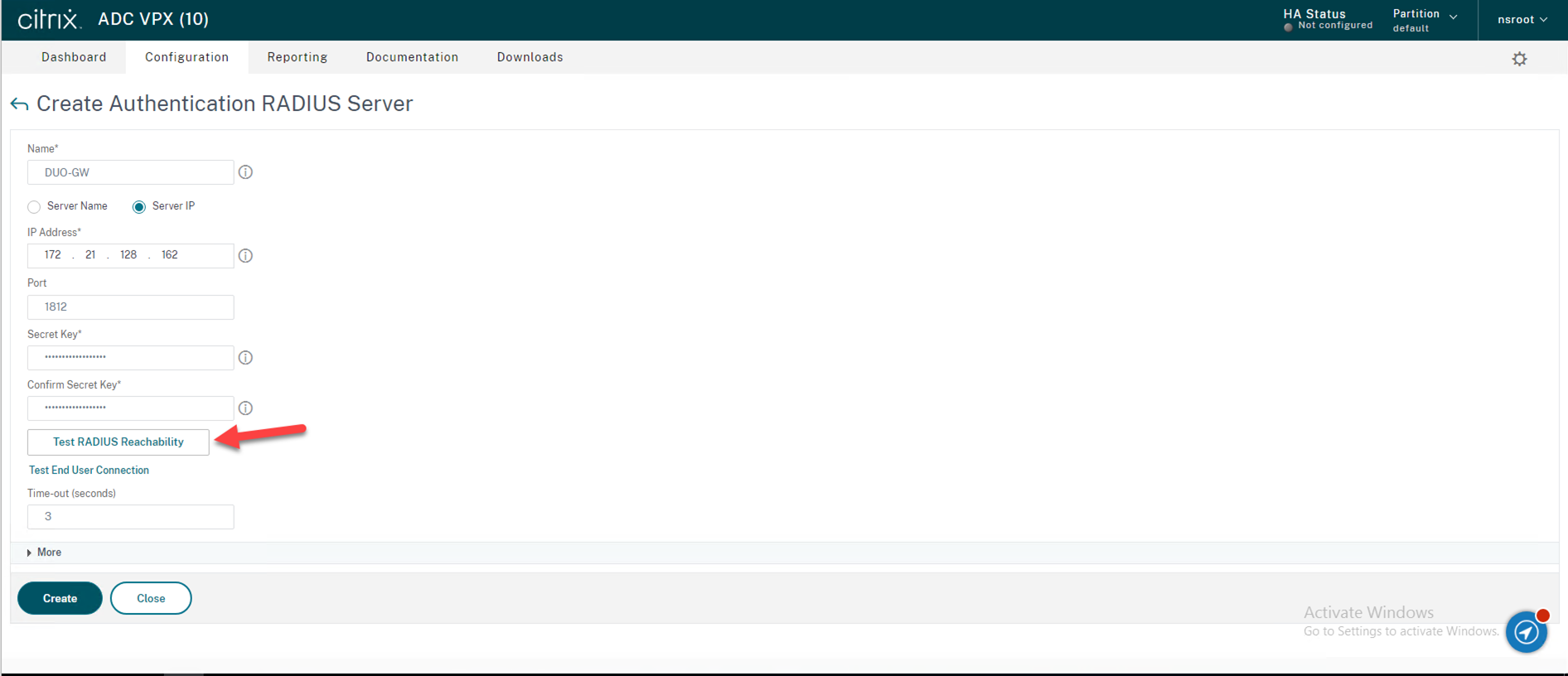

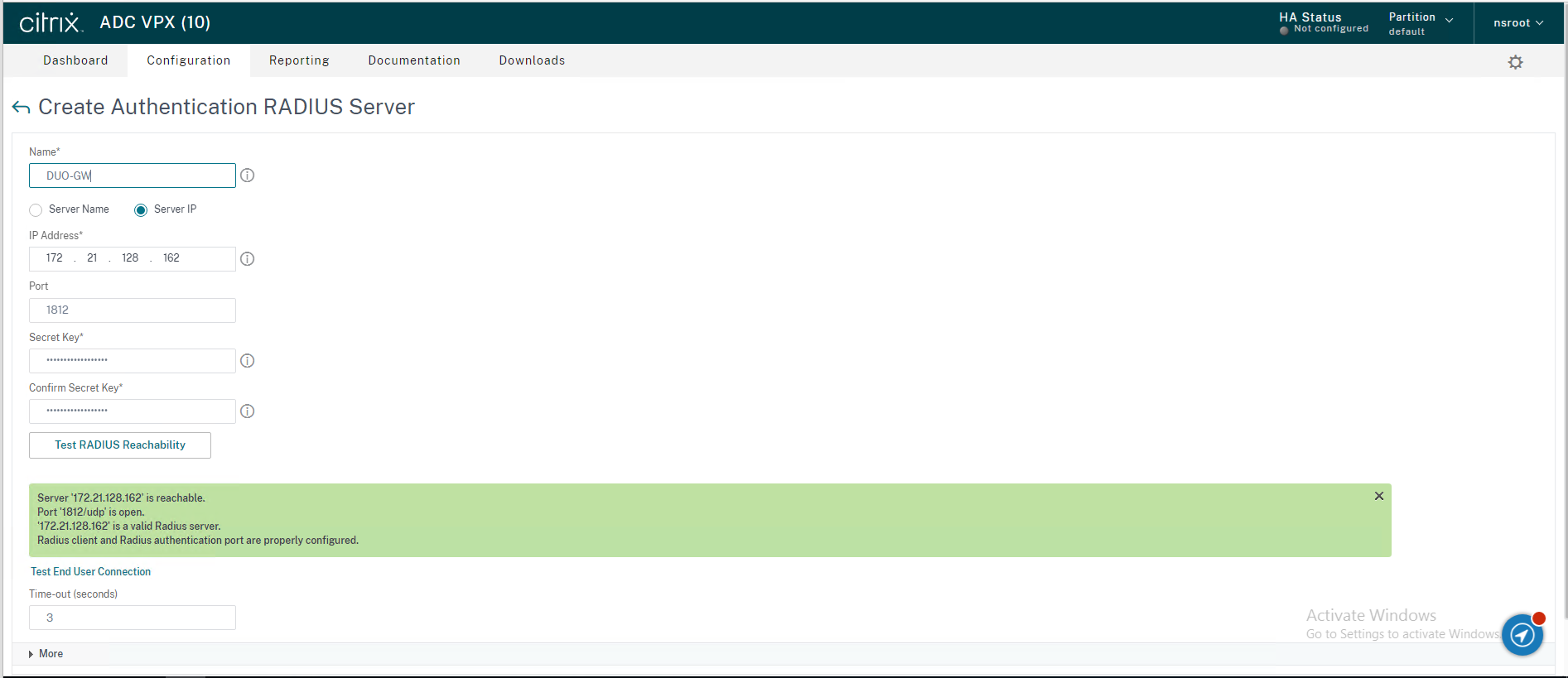

28.On the “Create Authentication RADIUS Server” page, enter the information for your Duo Authentication Proxy server, click Test RADIUS Reachability.

031422 2212 Howtodeploy26 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

29.To make sure the RADIUS is reachable.

031422 2212 Howtodeploy27 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

30.Click Create.

031422 2212 Howtodeploy28 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

31.Configure Authentication Policies

Navigate to Security → AAA – Application Traffic → Policies → Authentication → Advanced Policies → Policy in the left panel of the administrative interface, on the Authentication Policies page, click Add.

031422 2212 Howtodeploy29 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

32.On the Create Authentication Policy page, enter the information for your LDAP Authentication Policy, click Create.

031422 2212 Howtodeploy30 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

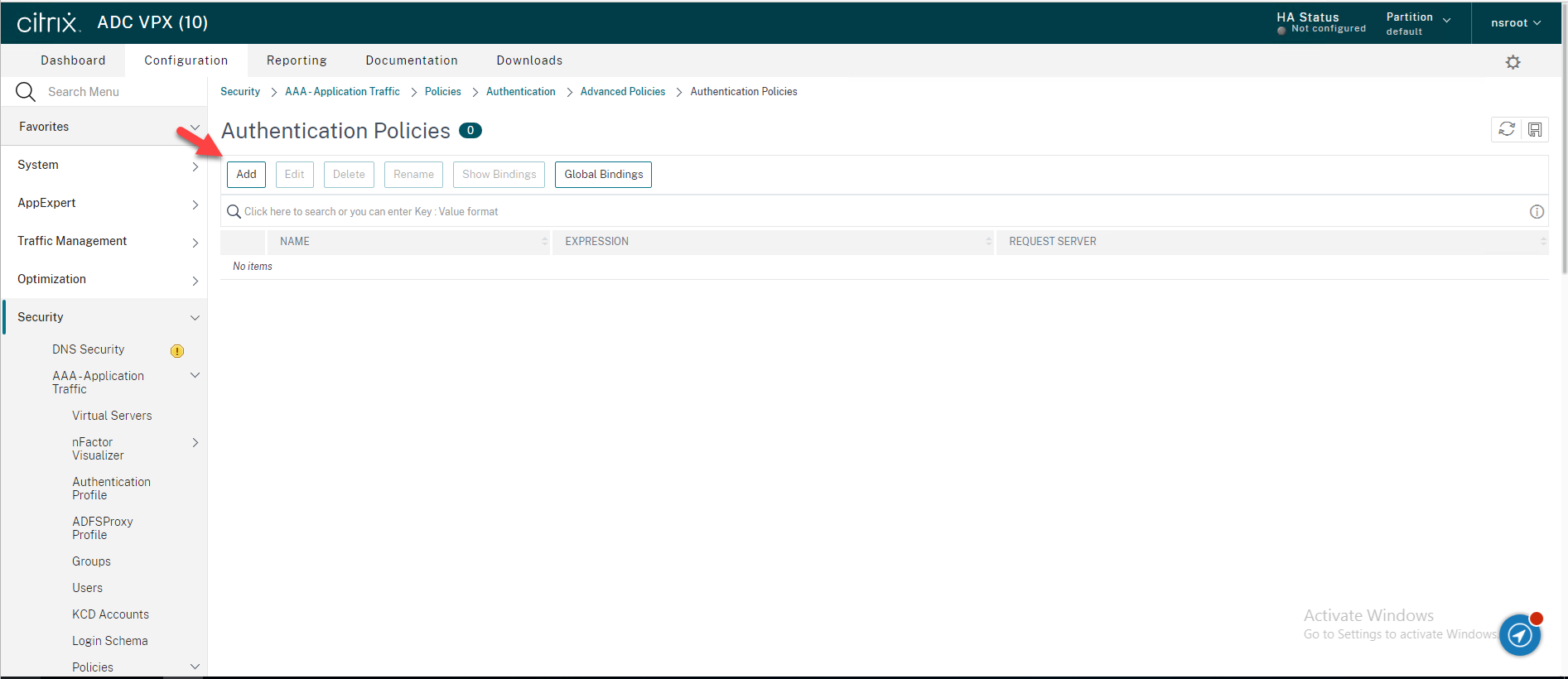

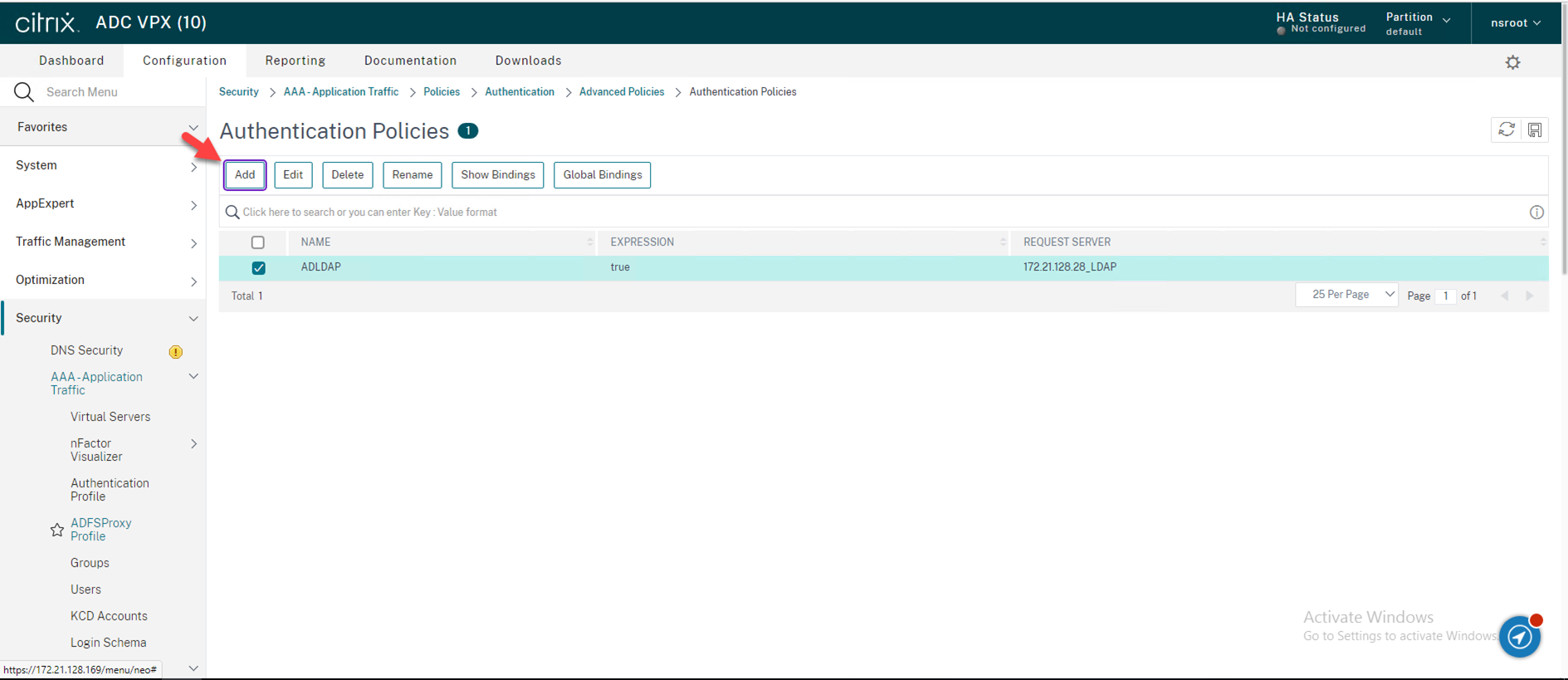

33.On the Authentication Policies page, click Add.

031422 2212 Howtodeploy31 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

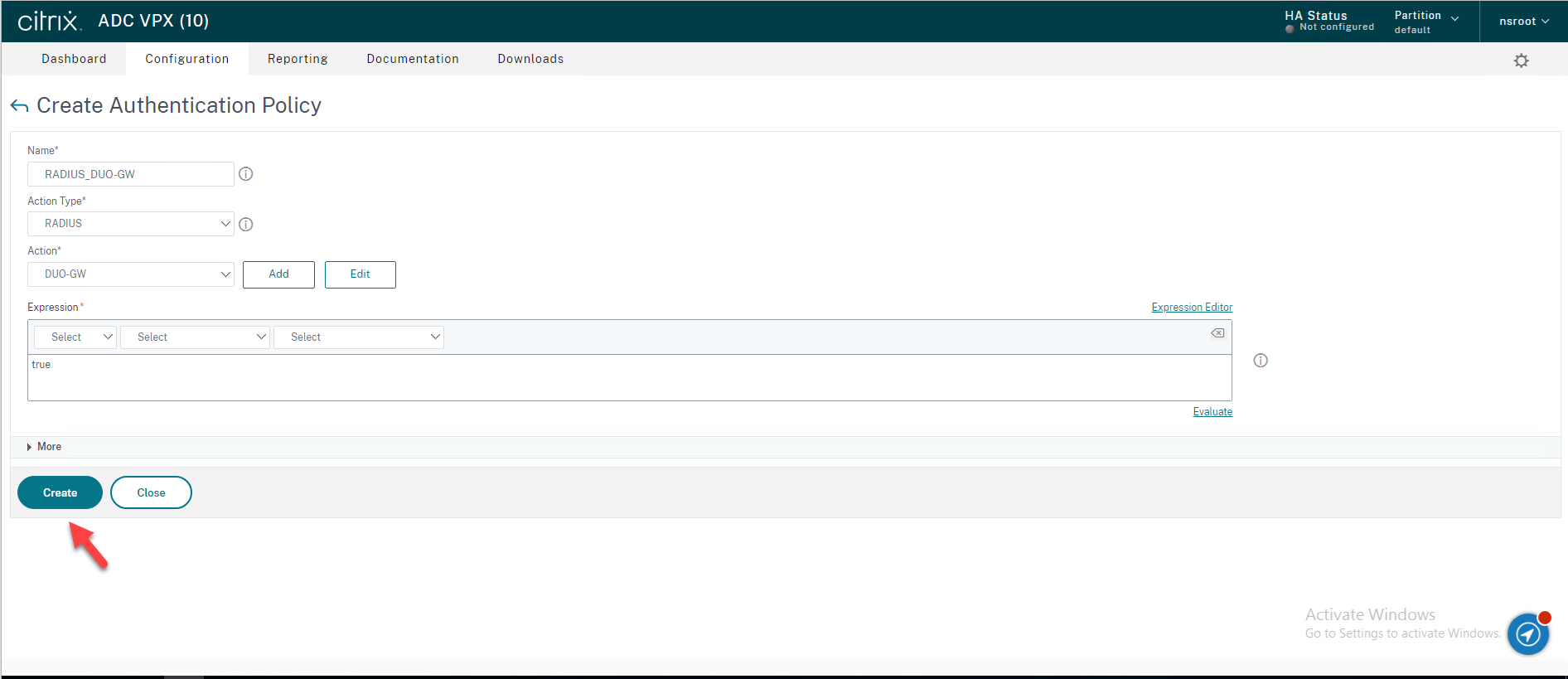

34.On the Create Authentication Policy page, enter the information for your RADIUS Authentication Policy, click Create.

031422 2212 Howtodeploy32 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

35.Configure Policy Labels

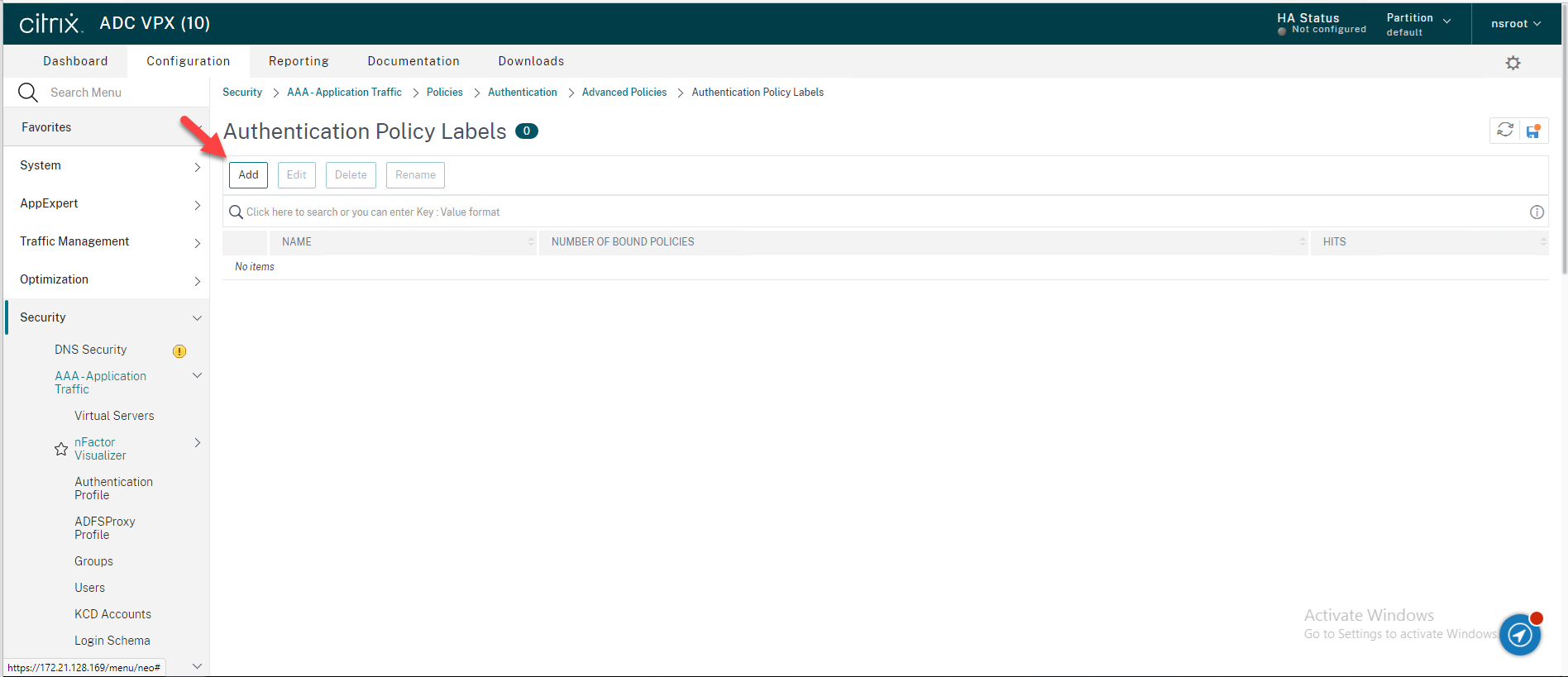

Navigate to Security → AAA – Application Traffic → Policies → Authentication → Advanced Policies → Policy Label in the left panel of the administrative interface, on the Authentication Policy Labels page, click Add.

031422 2212 Howtodeploy33 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

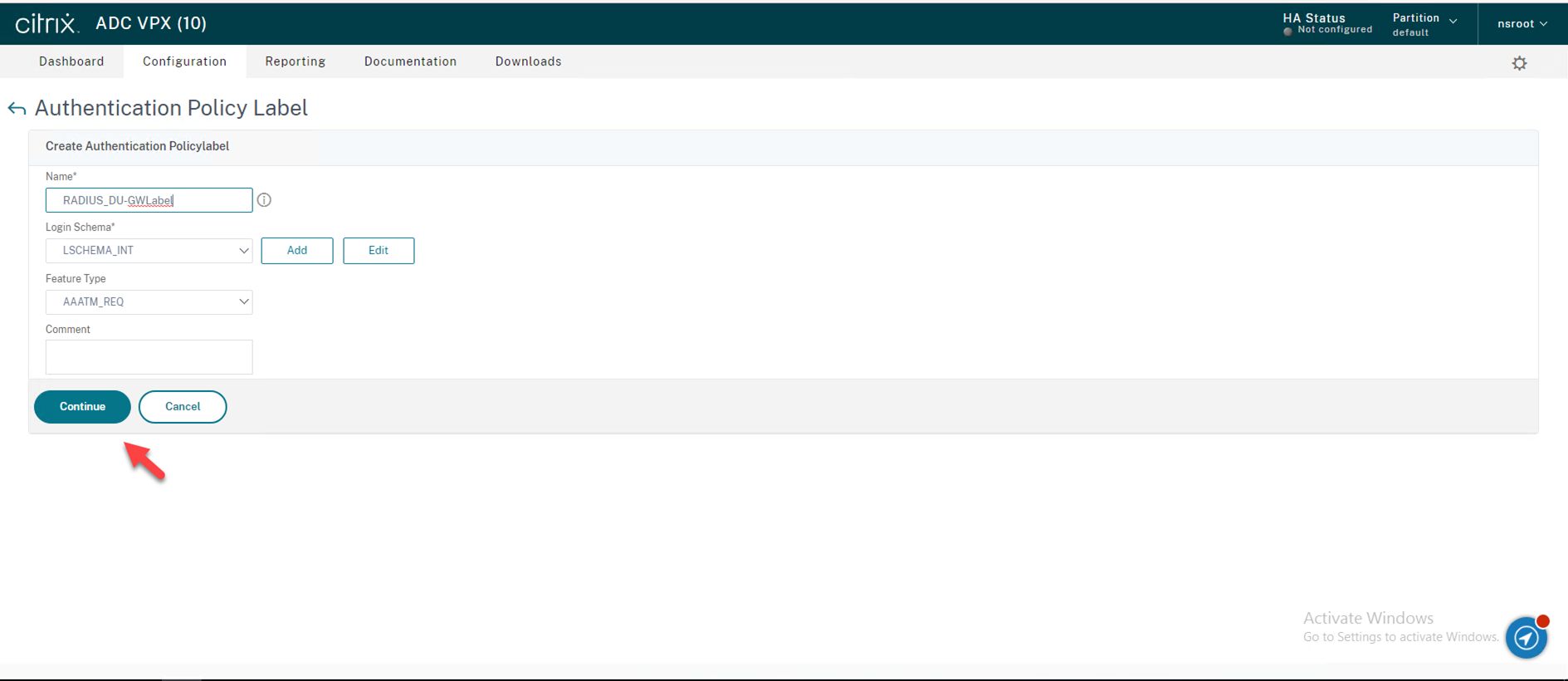

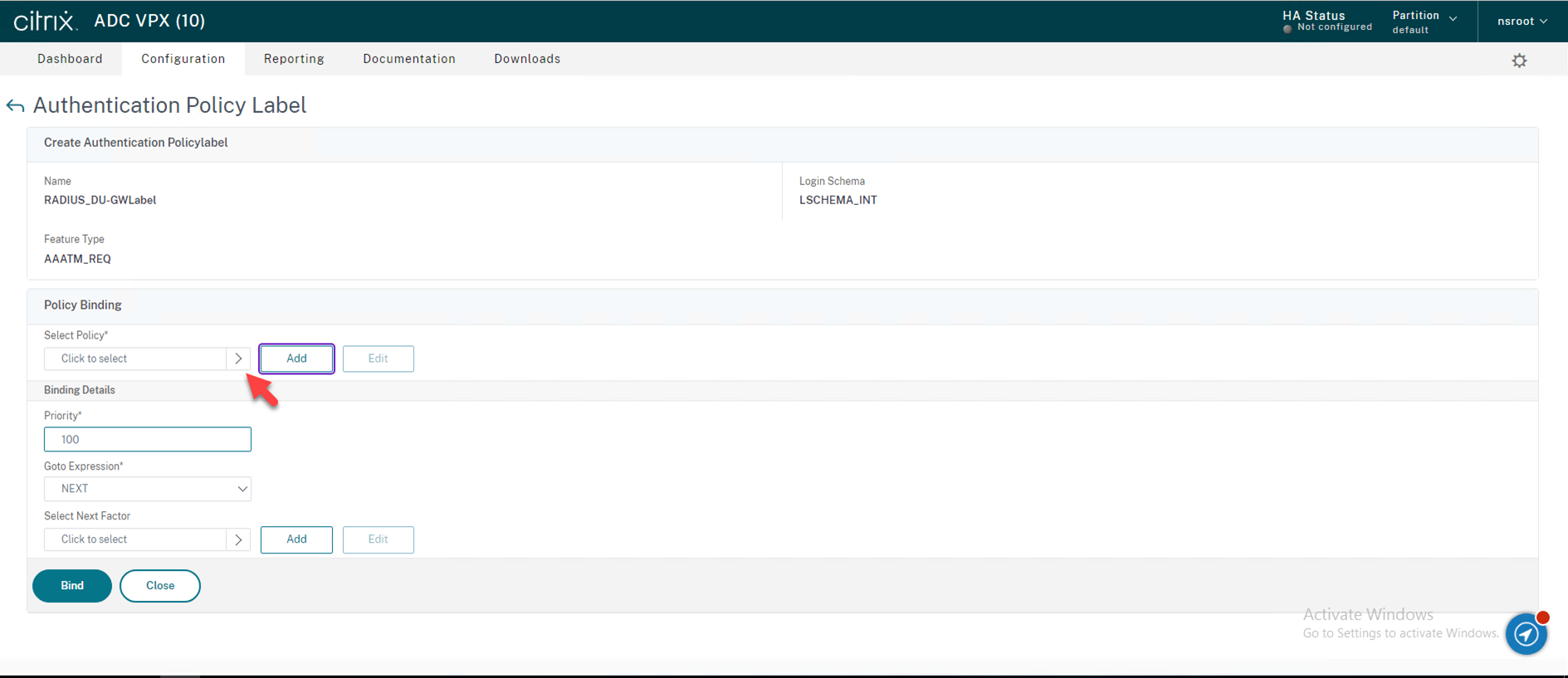

36.On the Authentication Policy Label page, enter the information for your RADIUS Authentication Policy label, click Continue.

031422 2212 Howtodeploy34 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

37.On the Policy Binding click Click to select to select policy.

031422 2212 Howtodeploy35 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

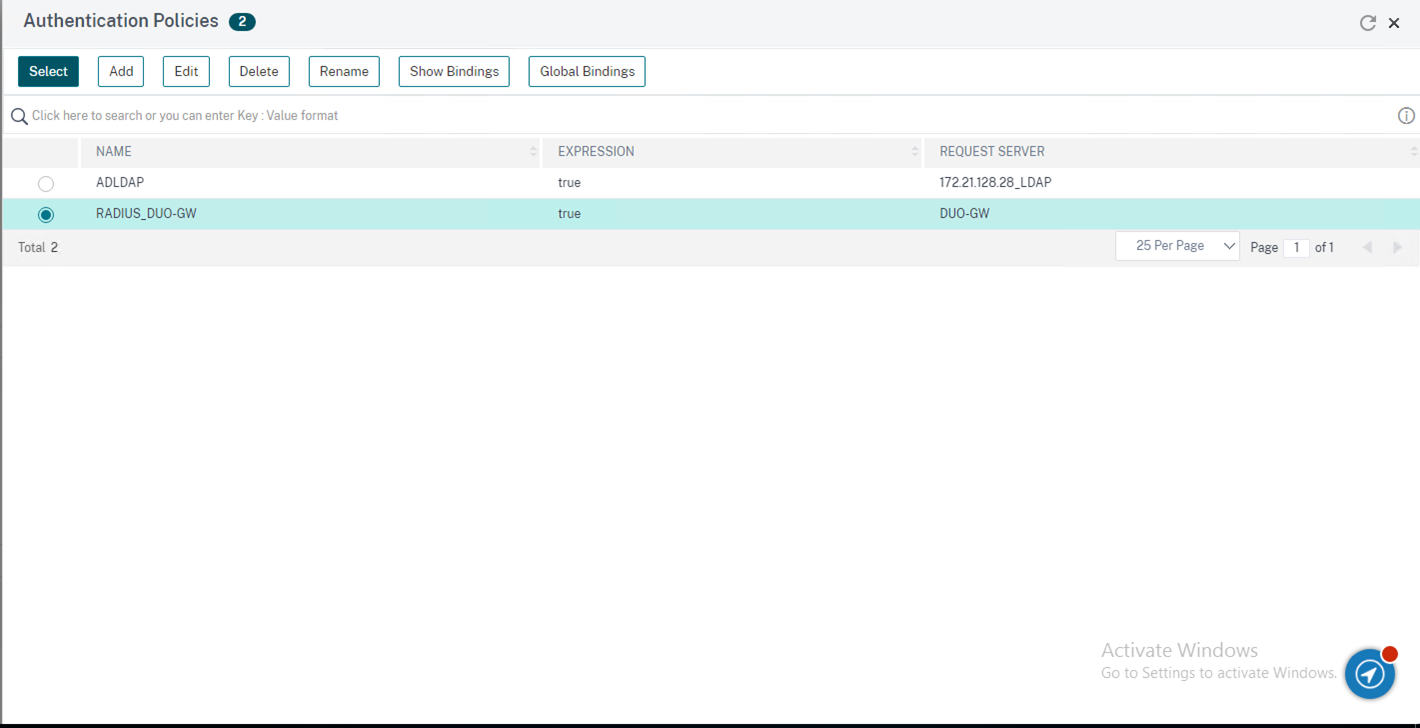

38.On the Authentication Polices page, select RADIUS policy, click Select.

031422 2212 Howtodeploy36 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

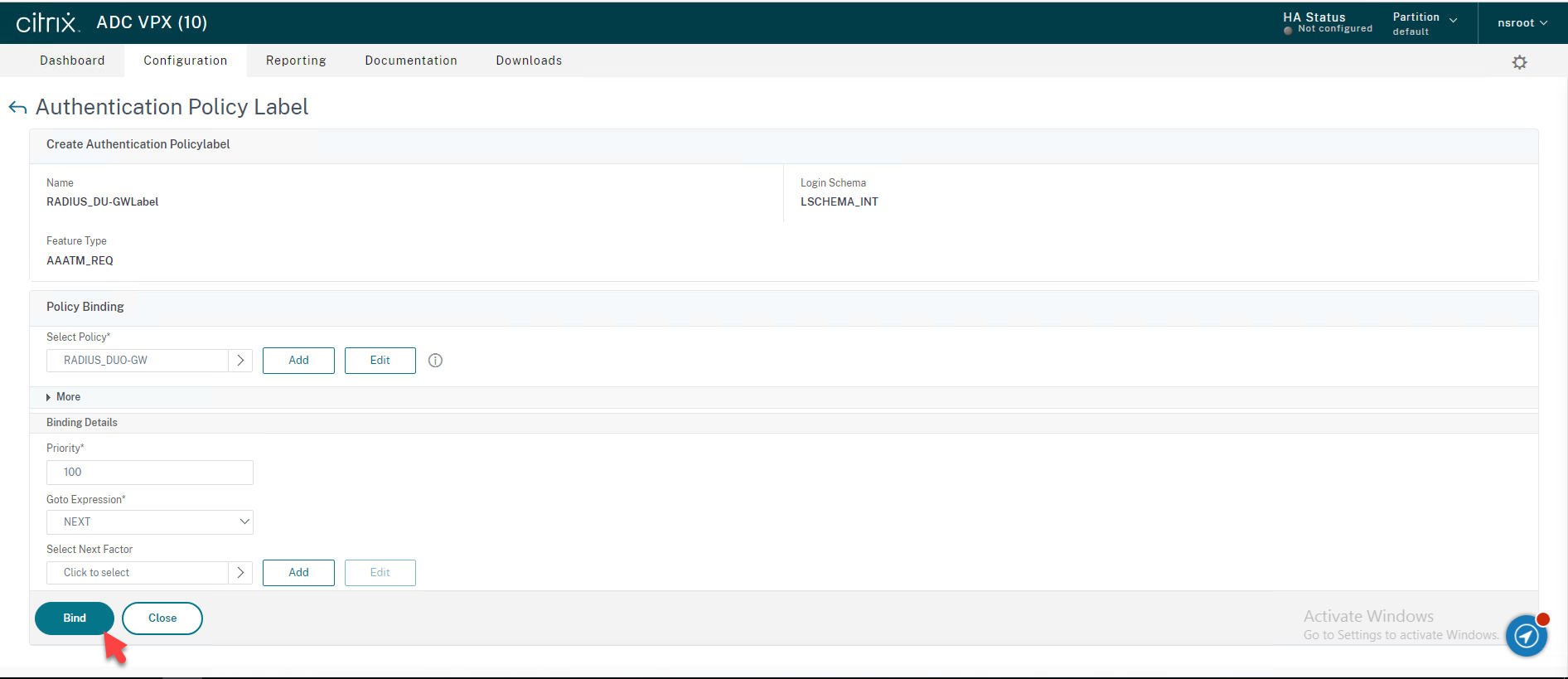

39.On the Create Authentication Policy Label page, click Bind.

031422 2212 Howtodeploy37 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

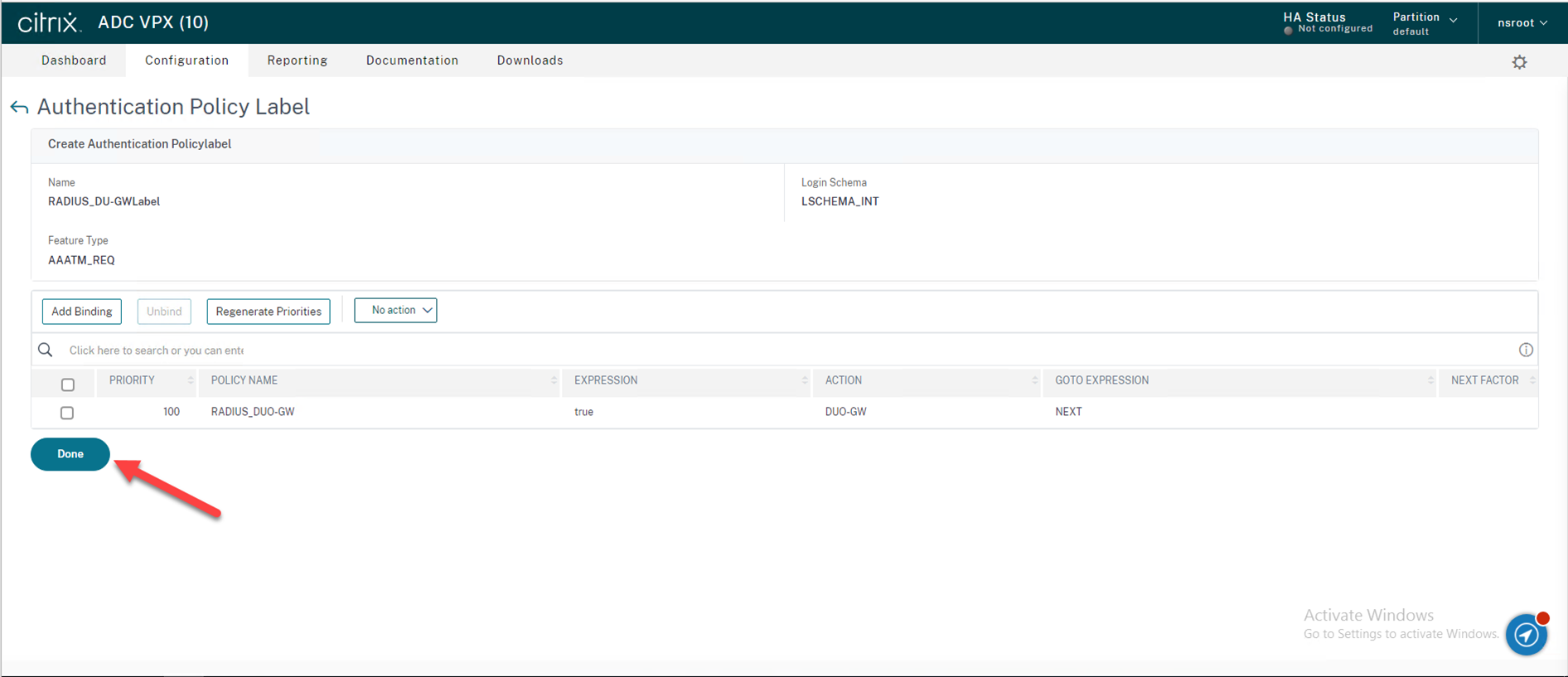

40.On the Create Authentication Policy Label page, click Done.

031422 2212 Howtodeploy38 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

41.Create an Authentication Virtual Server

Navigate to Security → AAA – Application Traffic → Virtual Servers in the left panel of the administrative interface, on the Authentication Virtual Server page, click Add.

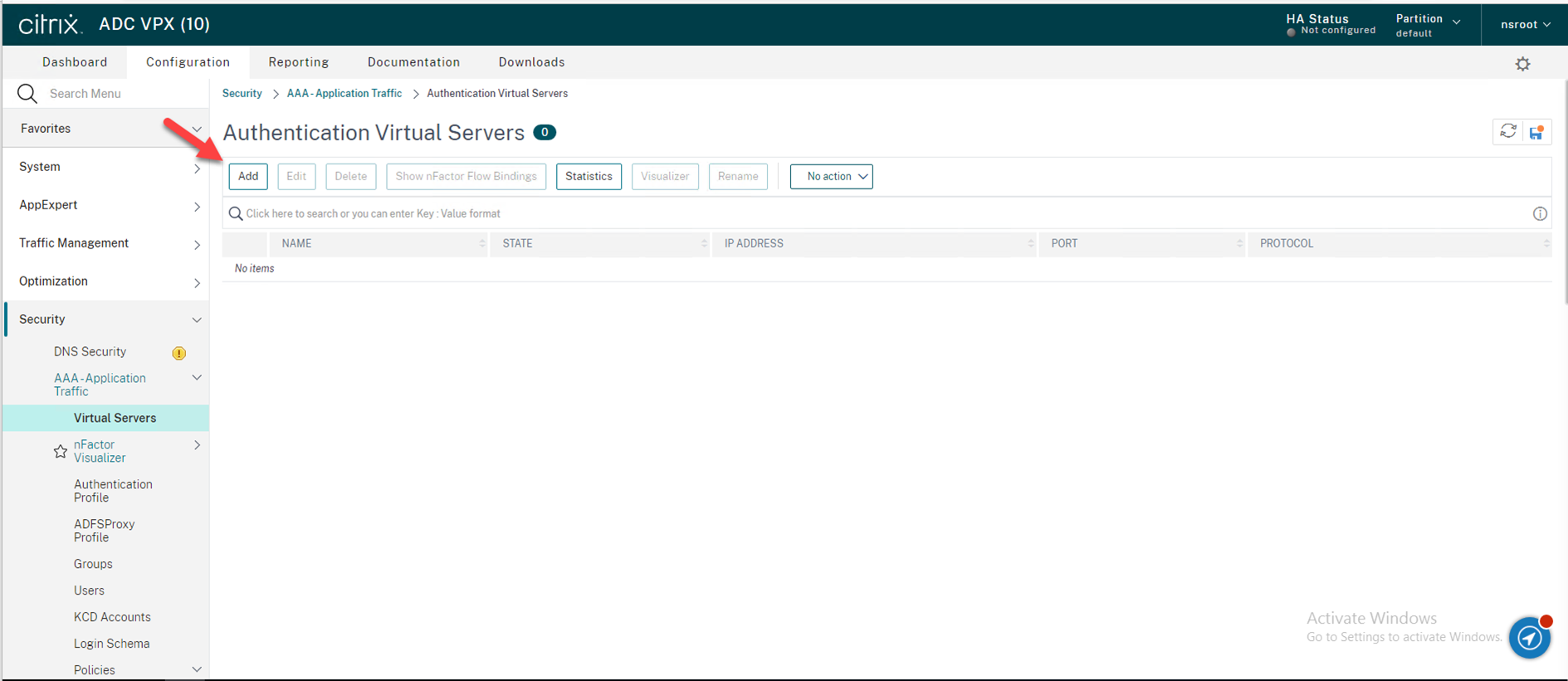

031422 2212 Howtodeploy39 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

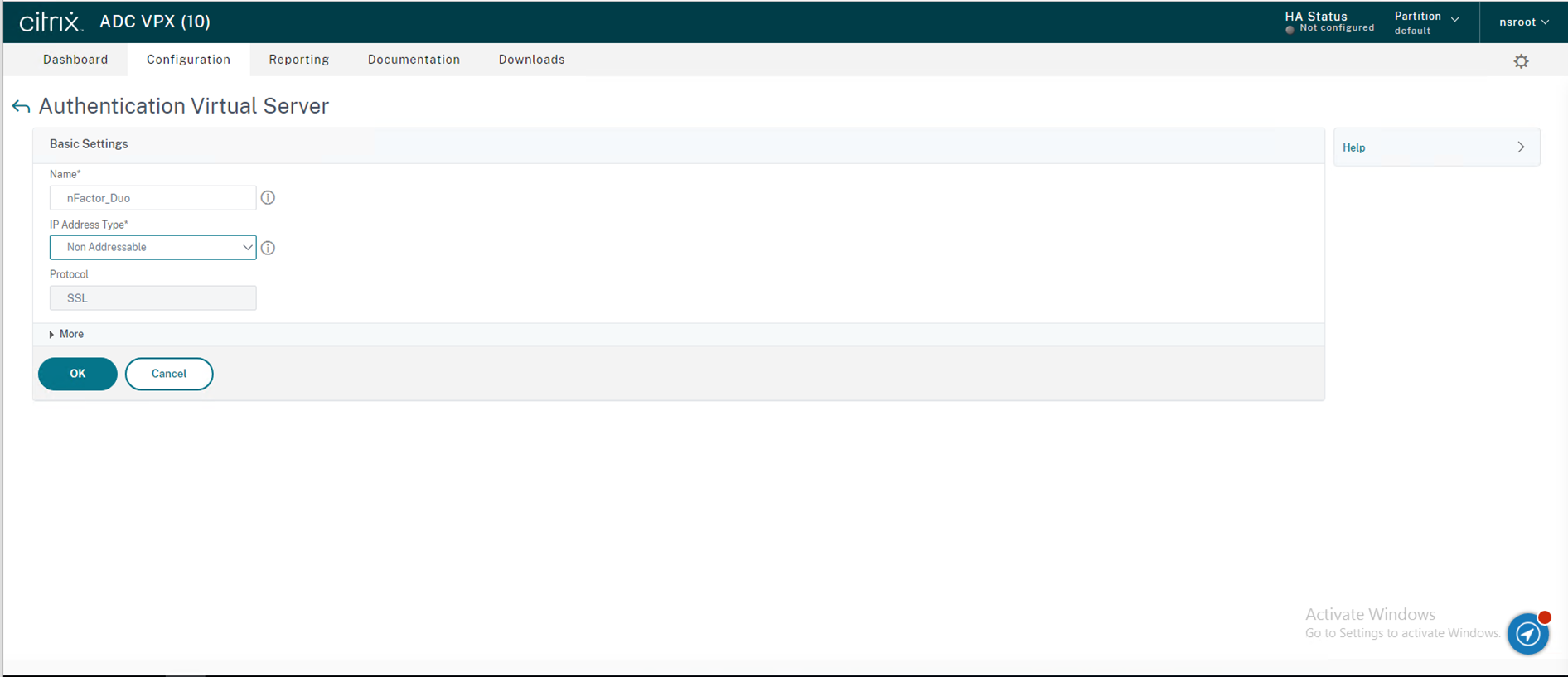

42.On the Basic Settings page, Name the Authentication Virtual Server nFactor_Duo, select Non Addressable as your “IP Address Type” and click OK.

031422 2212 Howtodeploy40 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

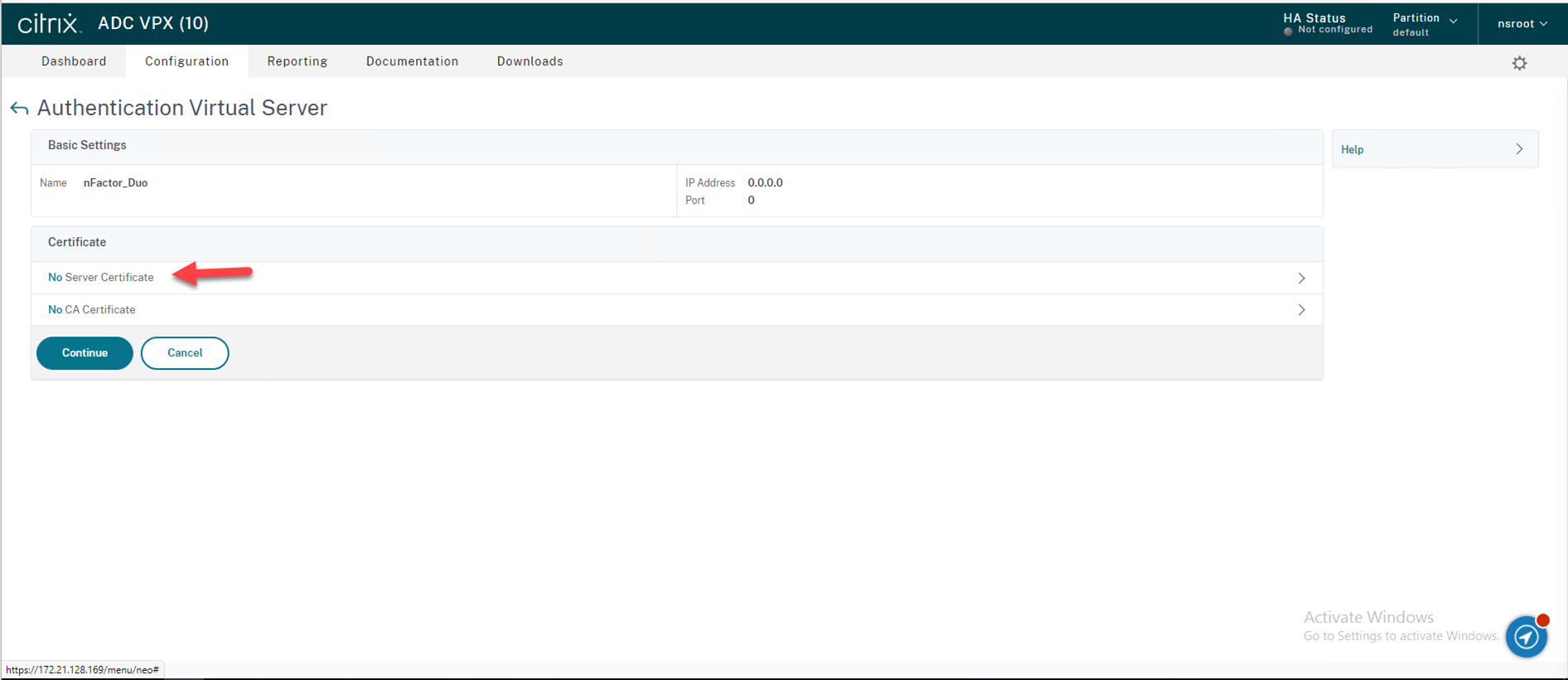

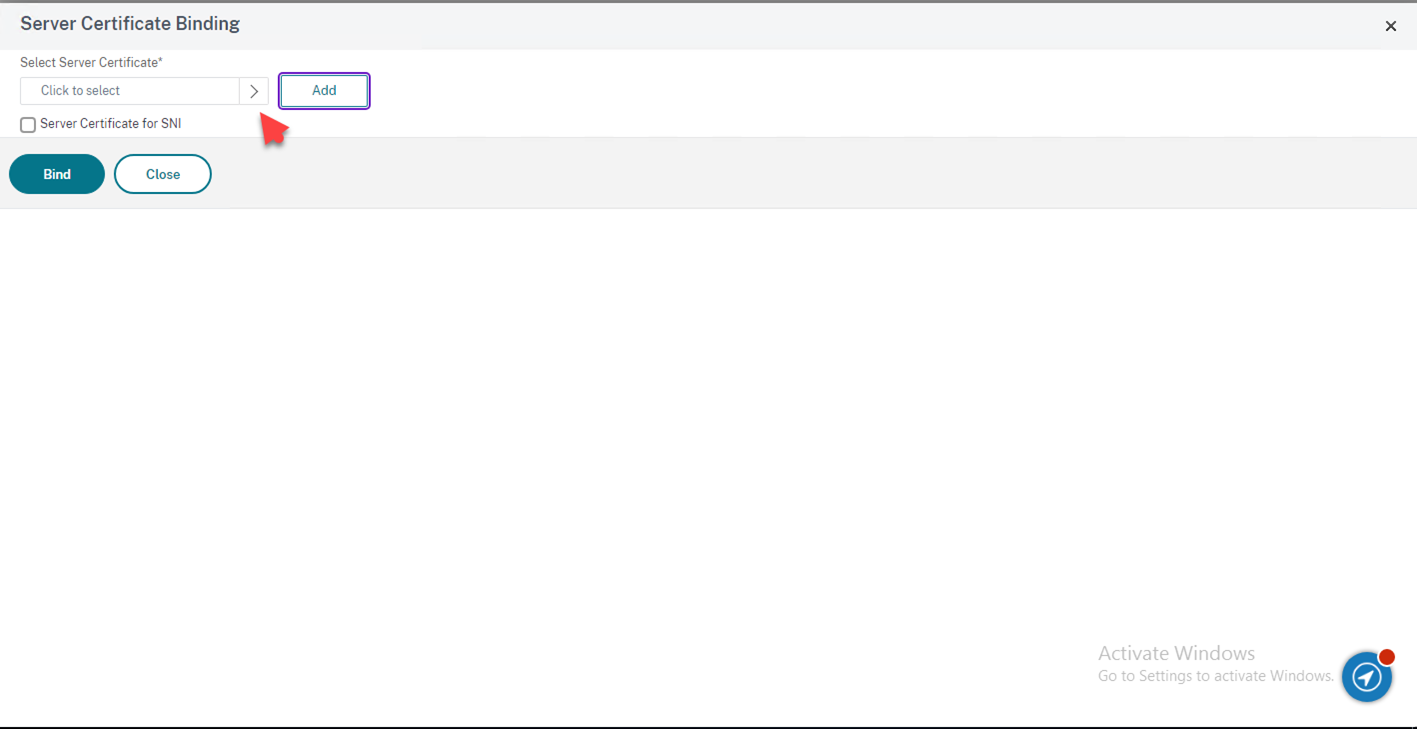

43.On the Certificate, select Server Certificate.

031422 2212 Howtodeploy41 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

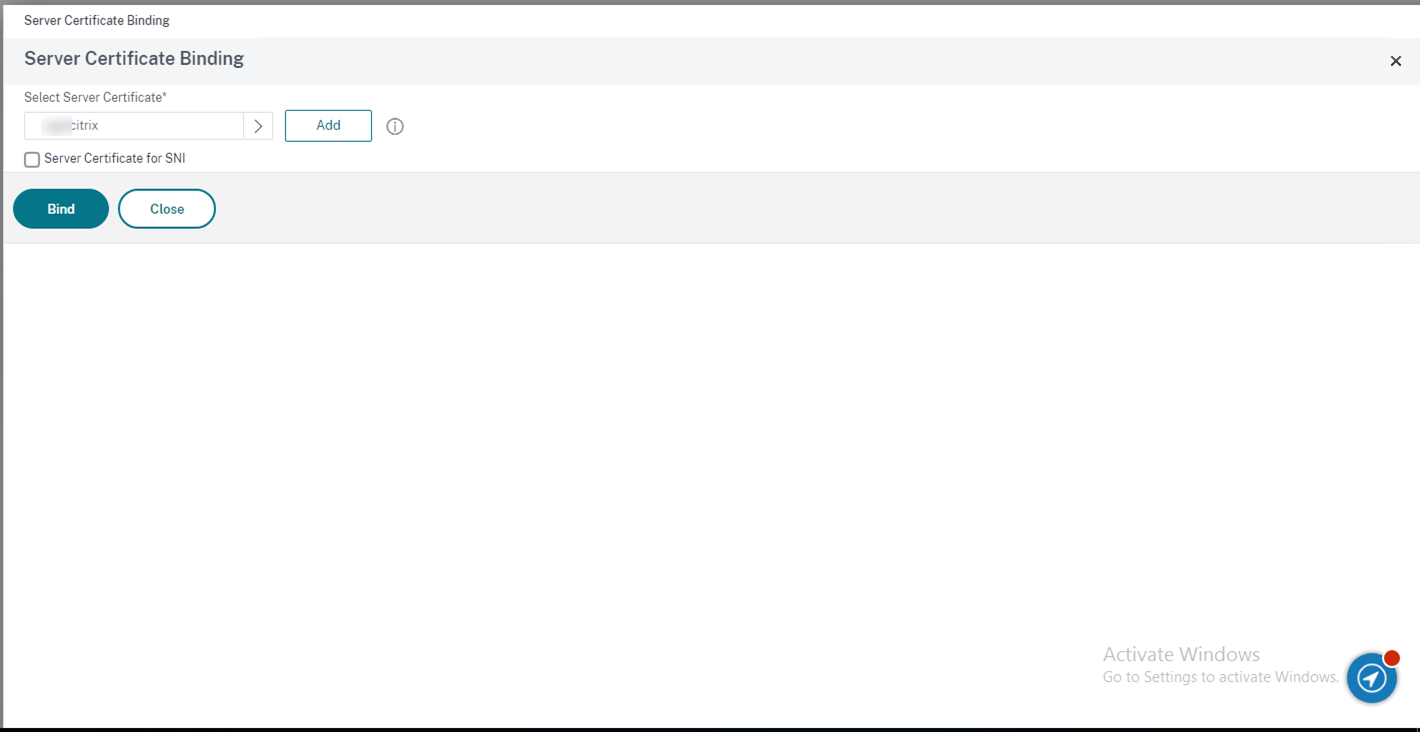

44.On the Server Certificate Binding page, click Click to select at Select Server Certificate.

031422 2212 Howtodeploy42 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

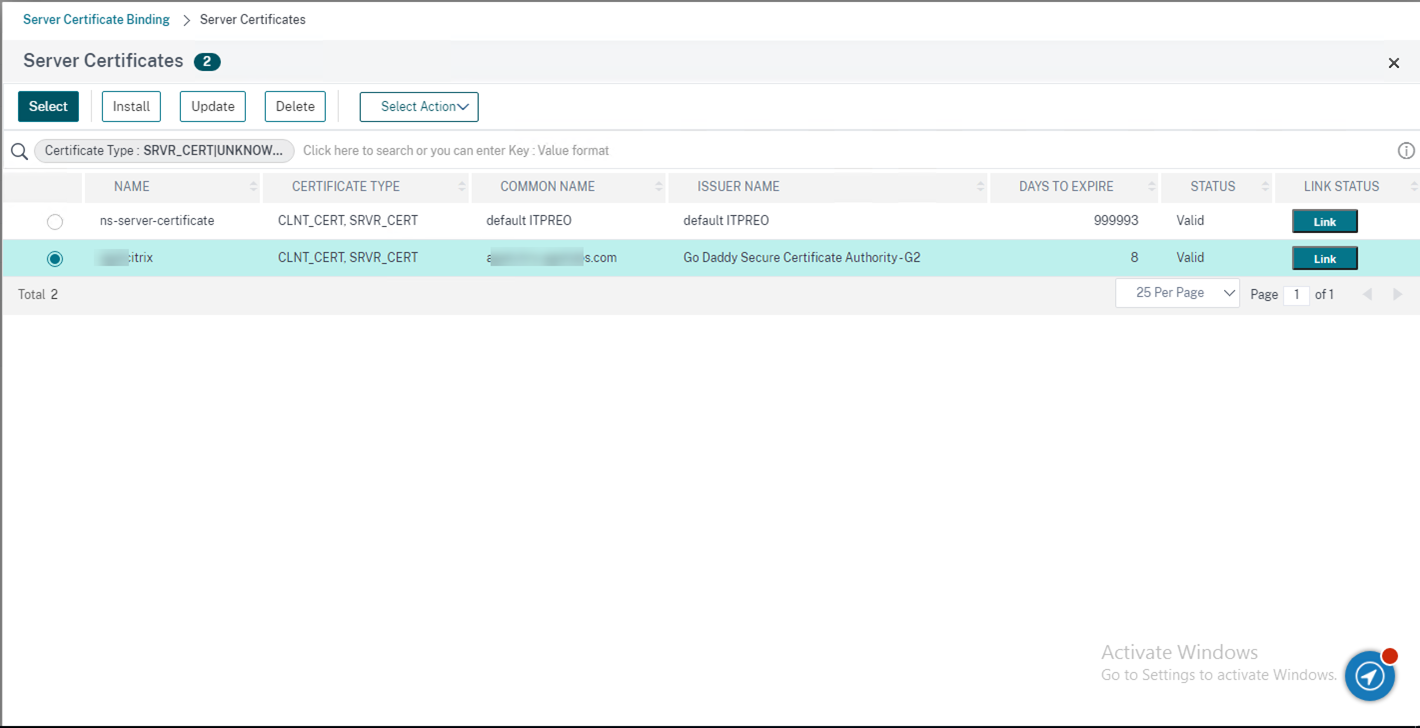

45.Select the public server certificate, click Select.

031422 2212 Howtodeploy43 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

46.On the Server Certificate Binding page, click Bind.

031422 2212 Howtodeploy44 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

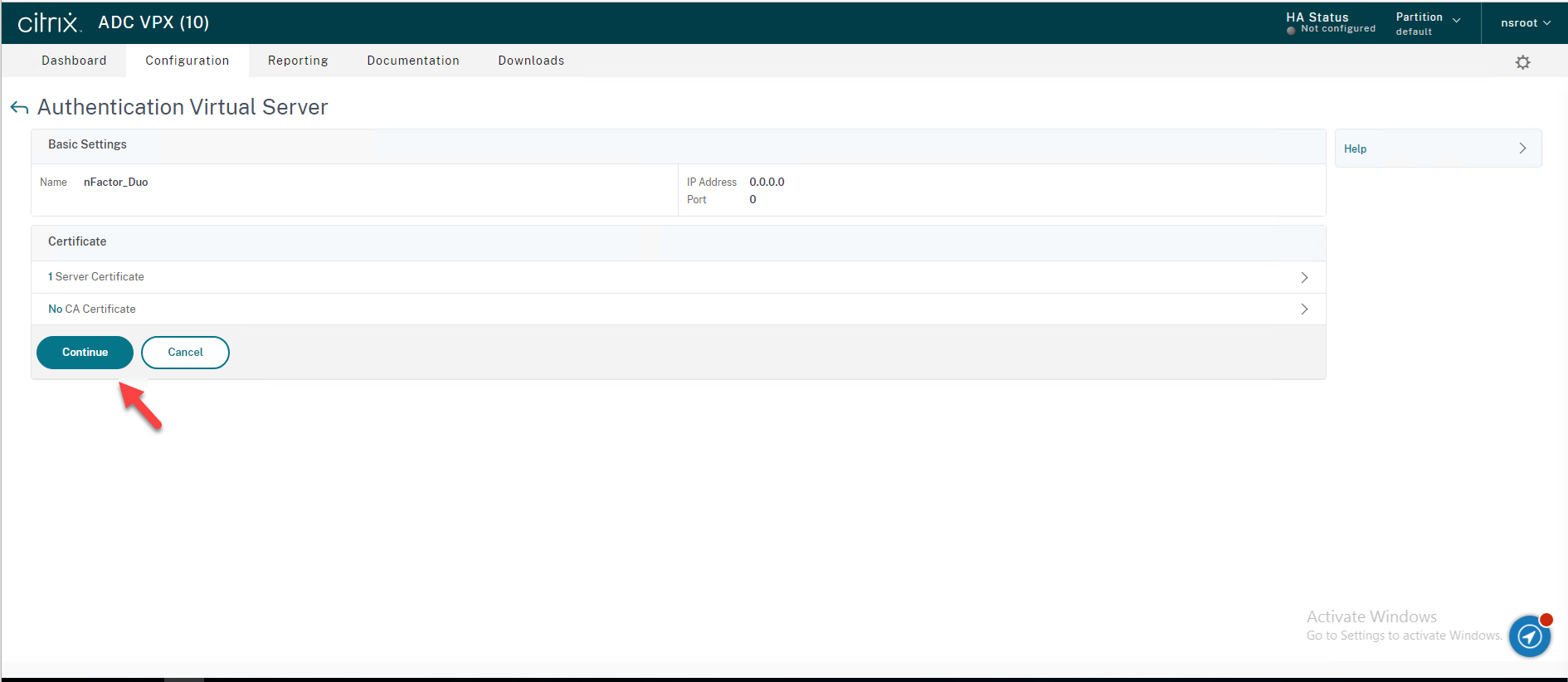

47.On the Certificate page, click Continue.

031422 2212 Howtodeploy45 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

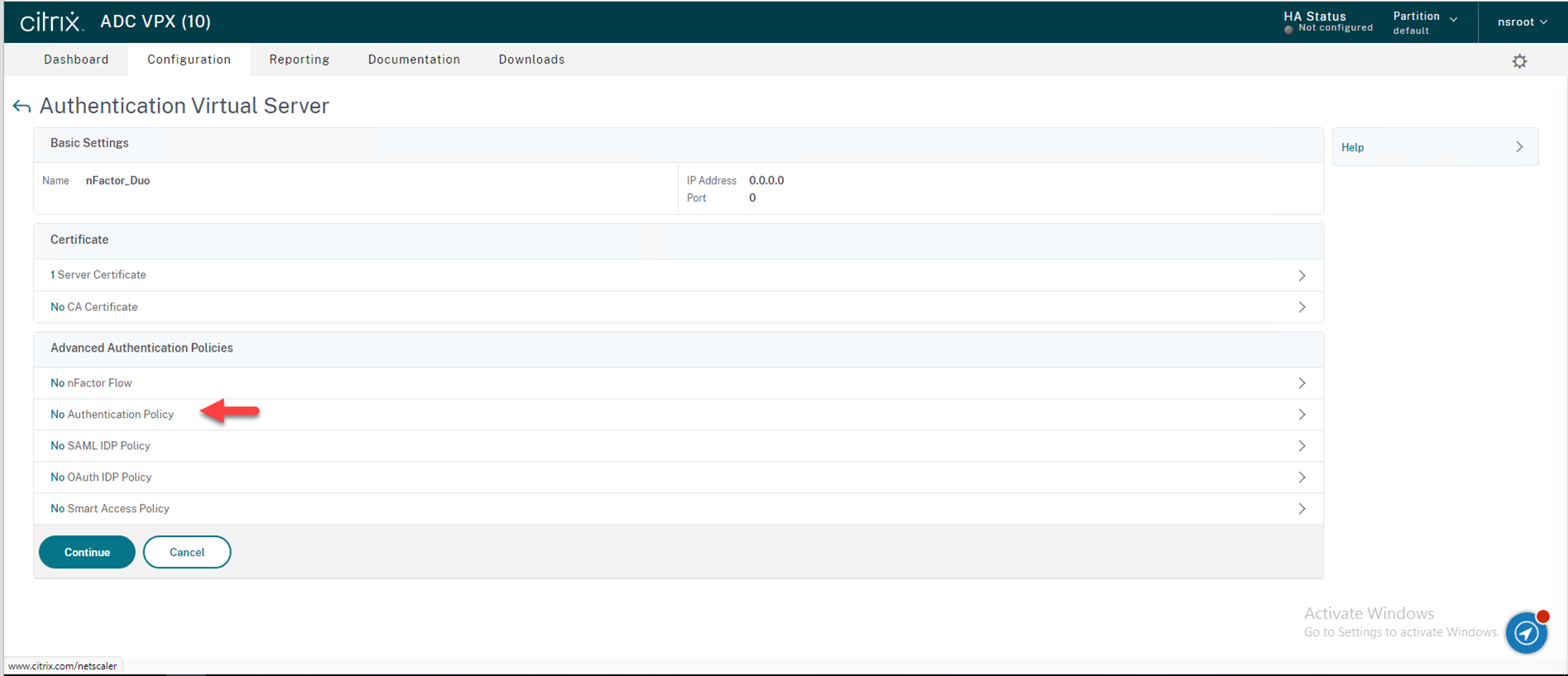

48.On the Advanced Authentication Policies page, click Authentication Policy.

031422 2212 Howtodeploy46 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

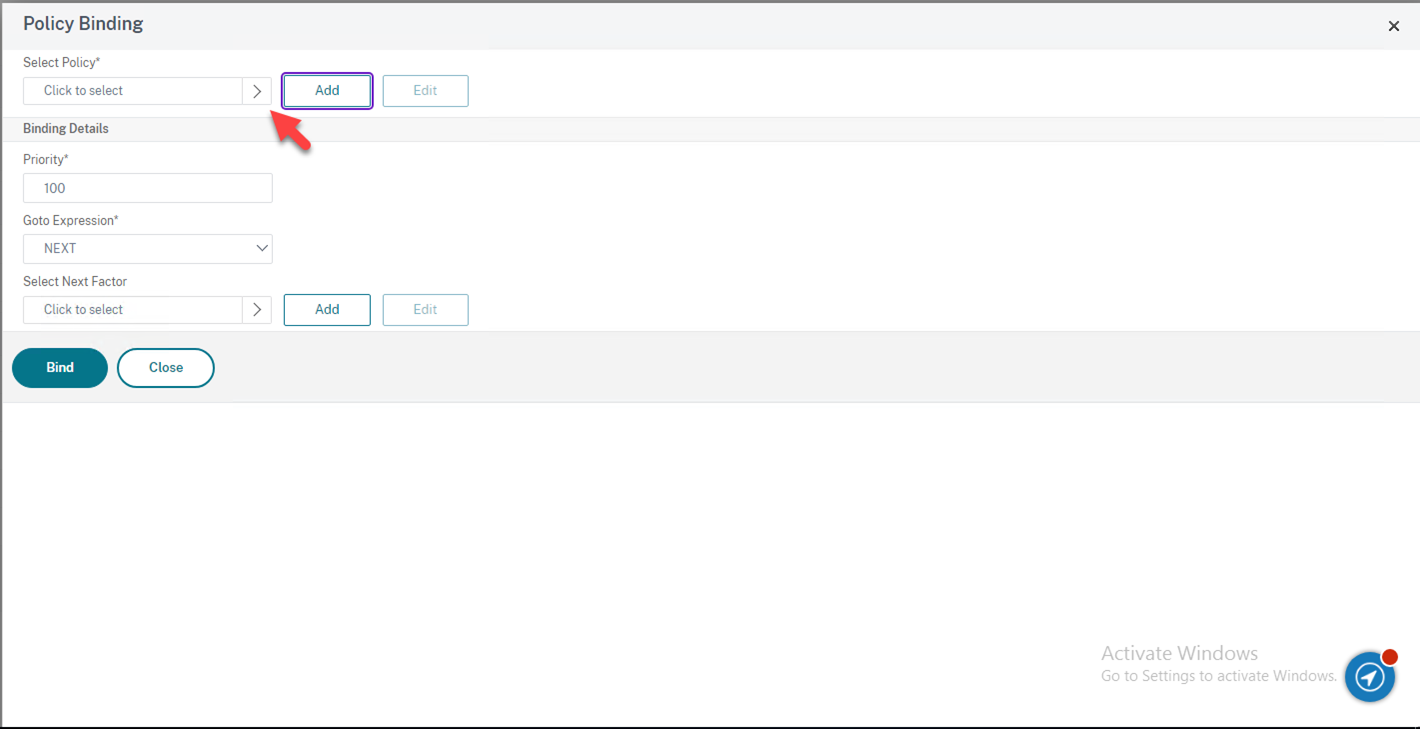

49.On the Policy Binding page, click Click to select under the Select Policy.

031422 2212 Howtodeploy47 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

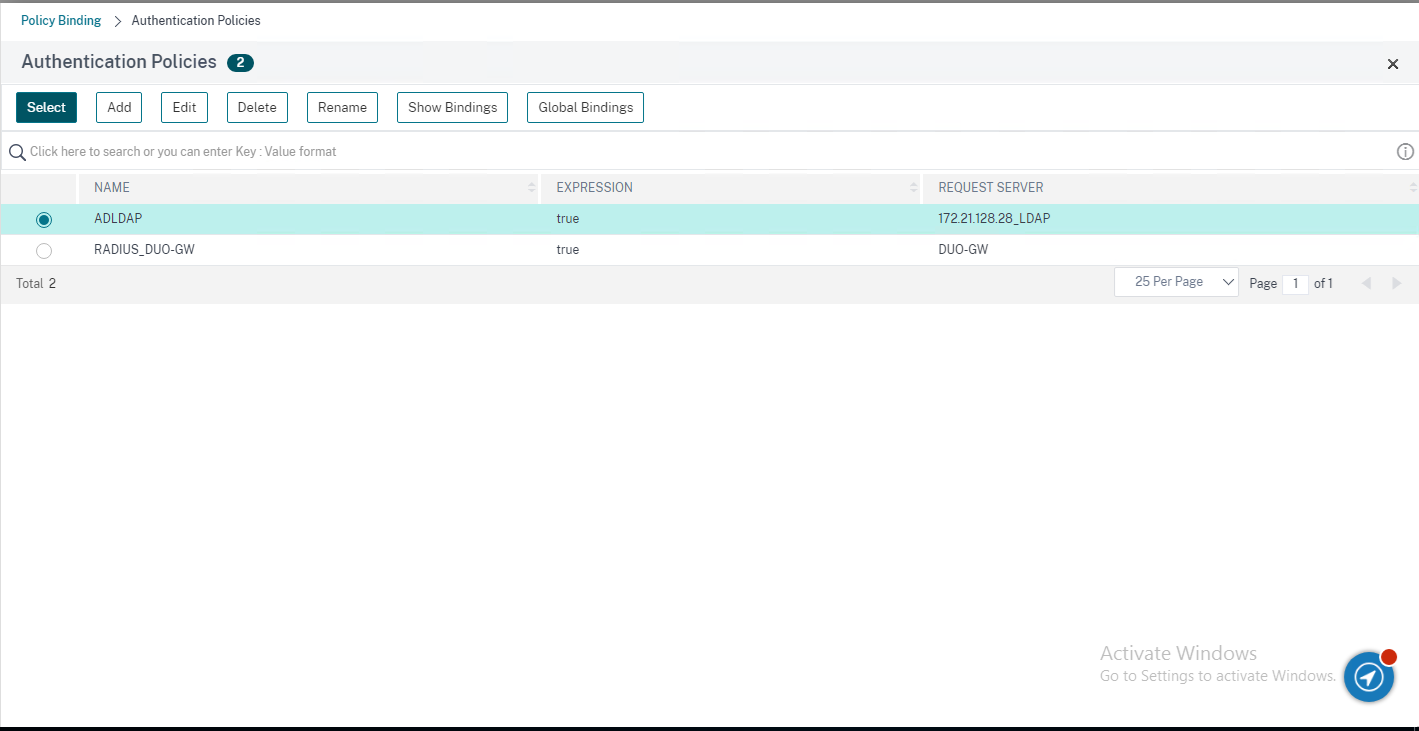

50.On the Authentication Policies page, select ldap policy, click Select.

031422 2212 Howtodeploy48 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

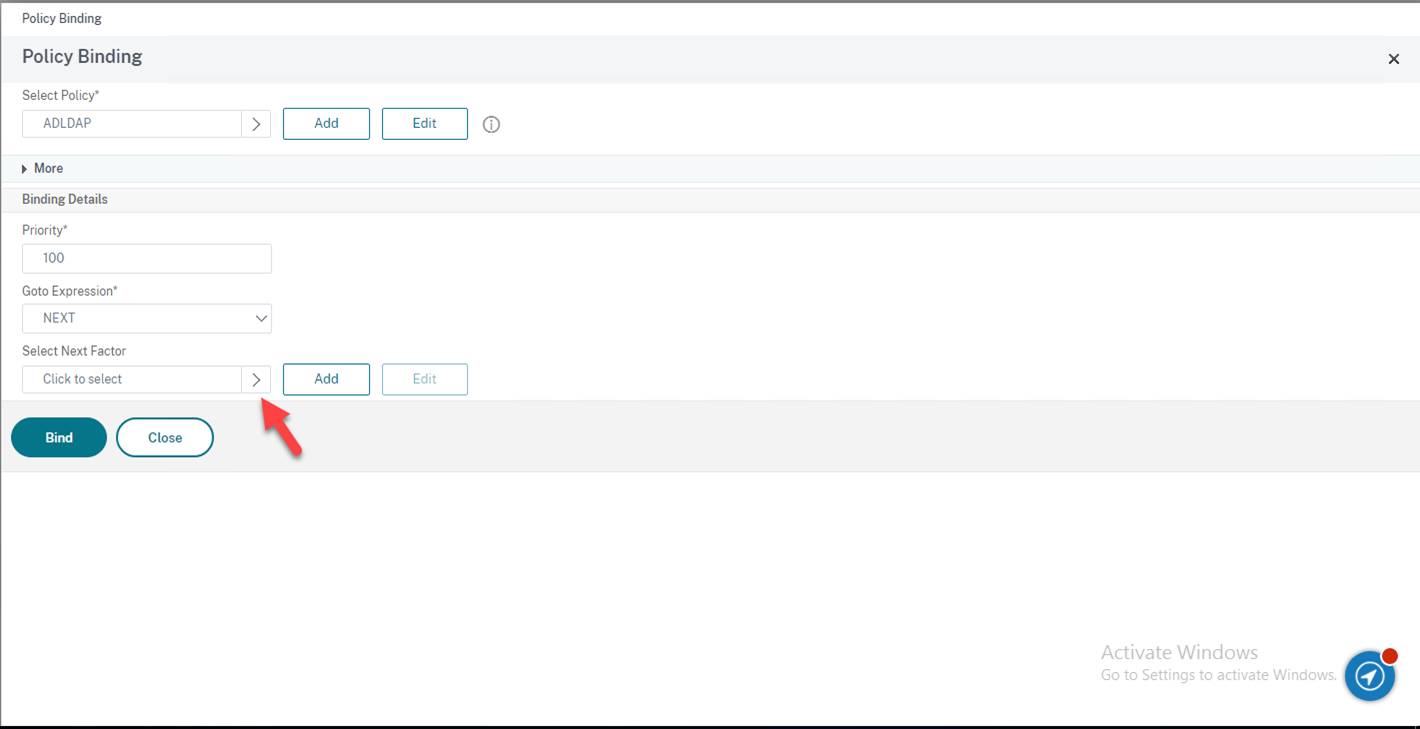

51.On the Policy page, click Click to select under Select Next Factor.

031422 2212 Howtodeploy49 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

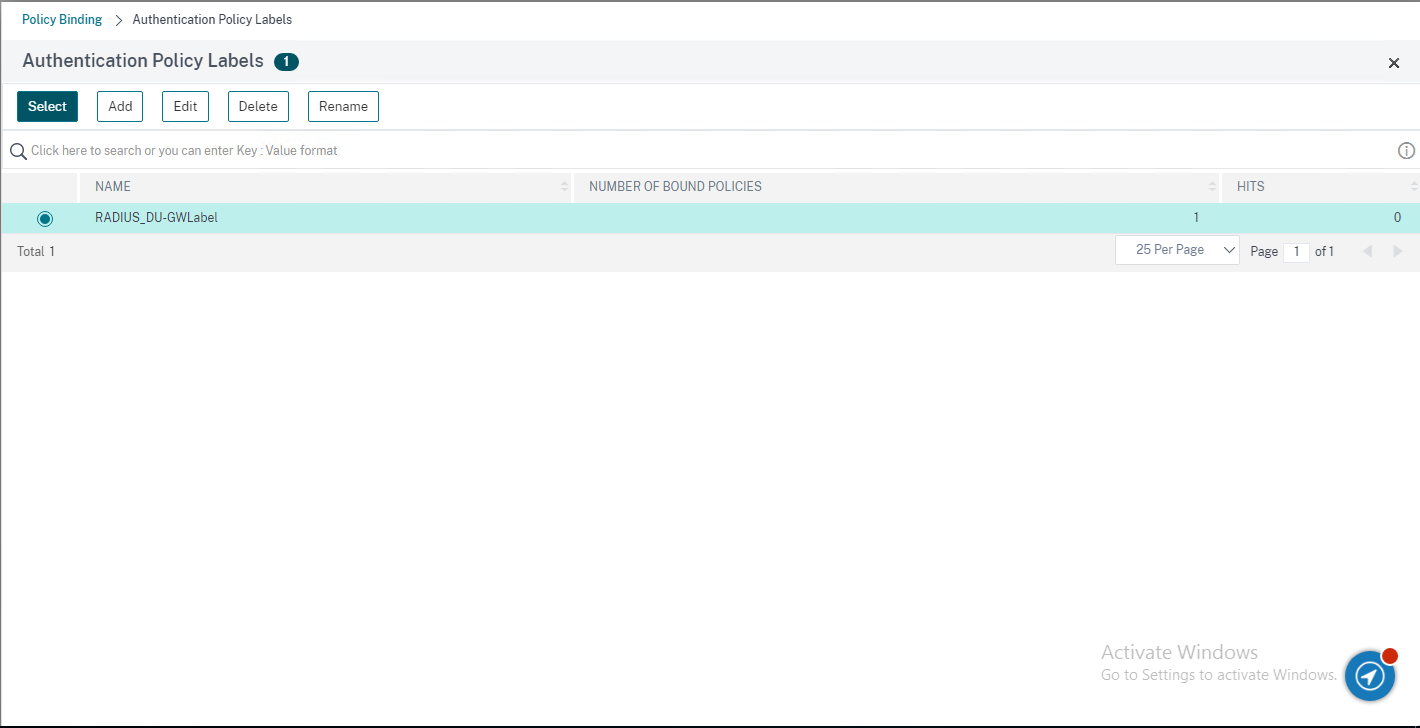

52.On the Authentication Policy Labels page, select RADIUS label, click Select.

031422 2212 Howtodeploy50 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

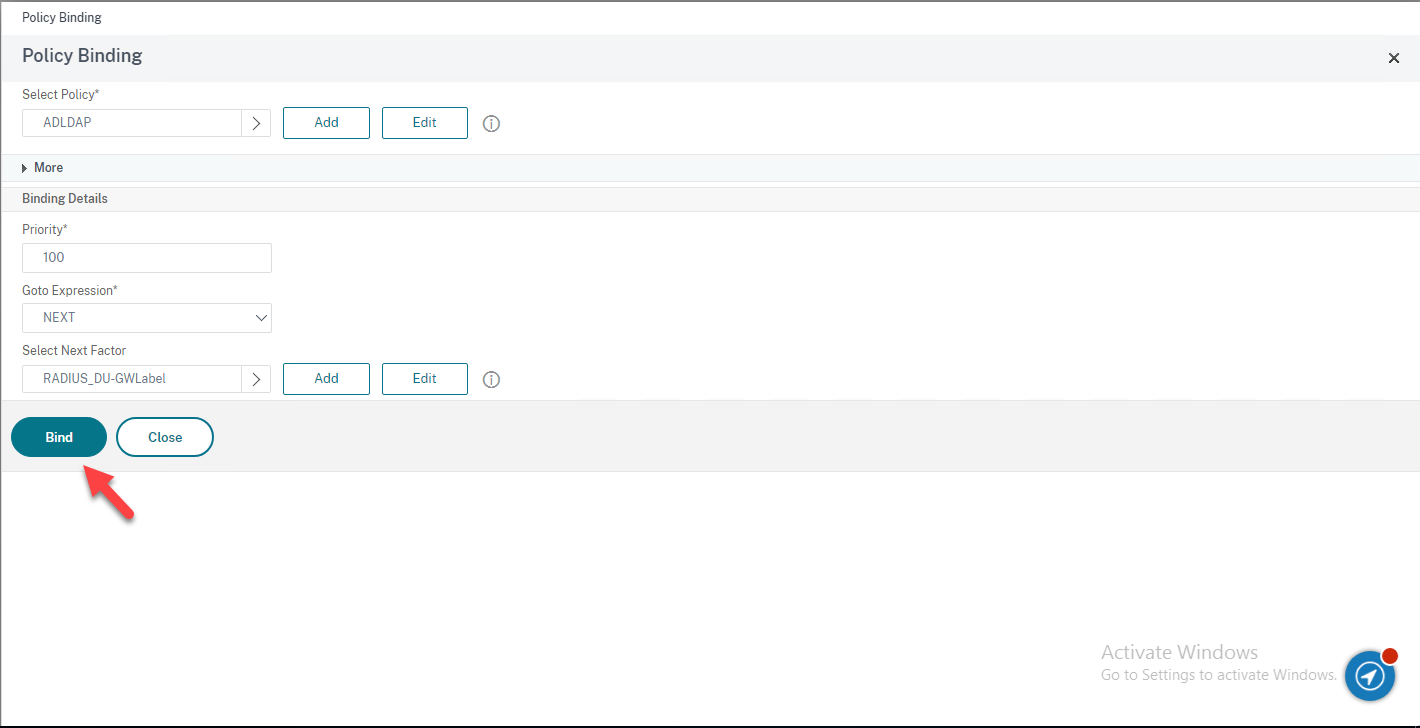

53.On the Policy Binding page, click Bind.

031422 2212 Howtodeploy51 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

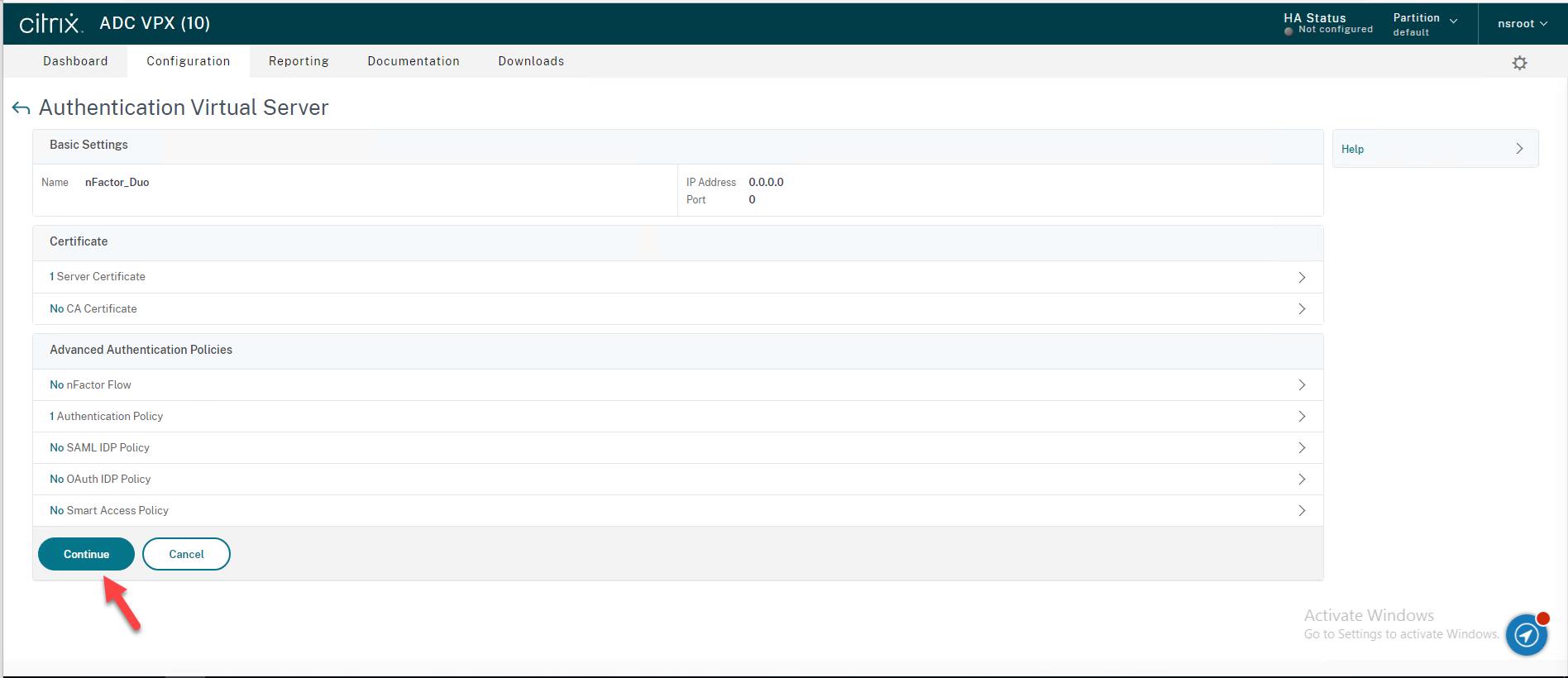

54.On the Advanced Authentication Policies page, click Continue.

031422 2212 Howtodeploy52 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

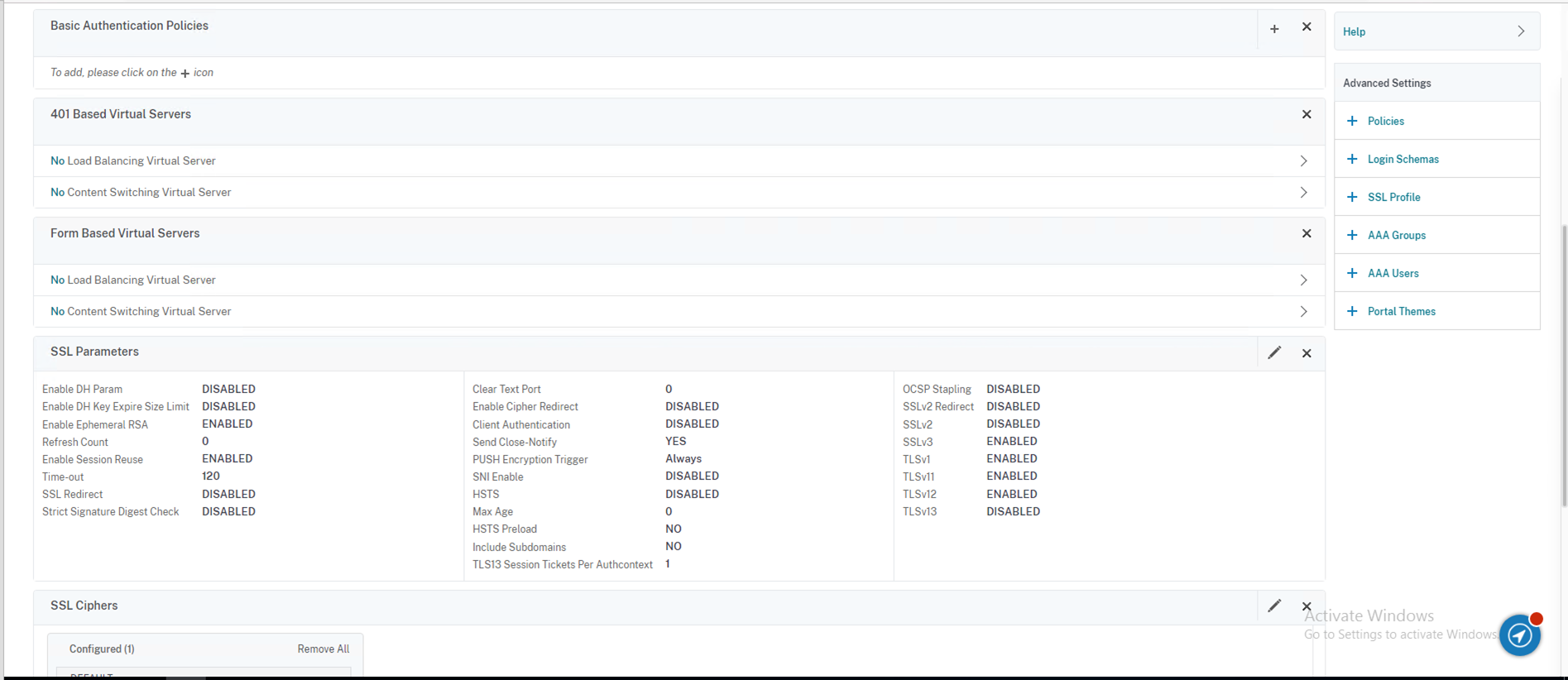

55.Click Done.

031422 2212 Howtodeploy53 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

031422 2212 Howtodeploy54 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

56.Create an Authentication Profile

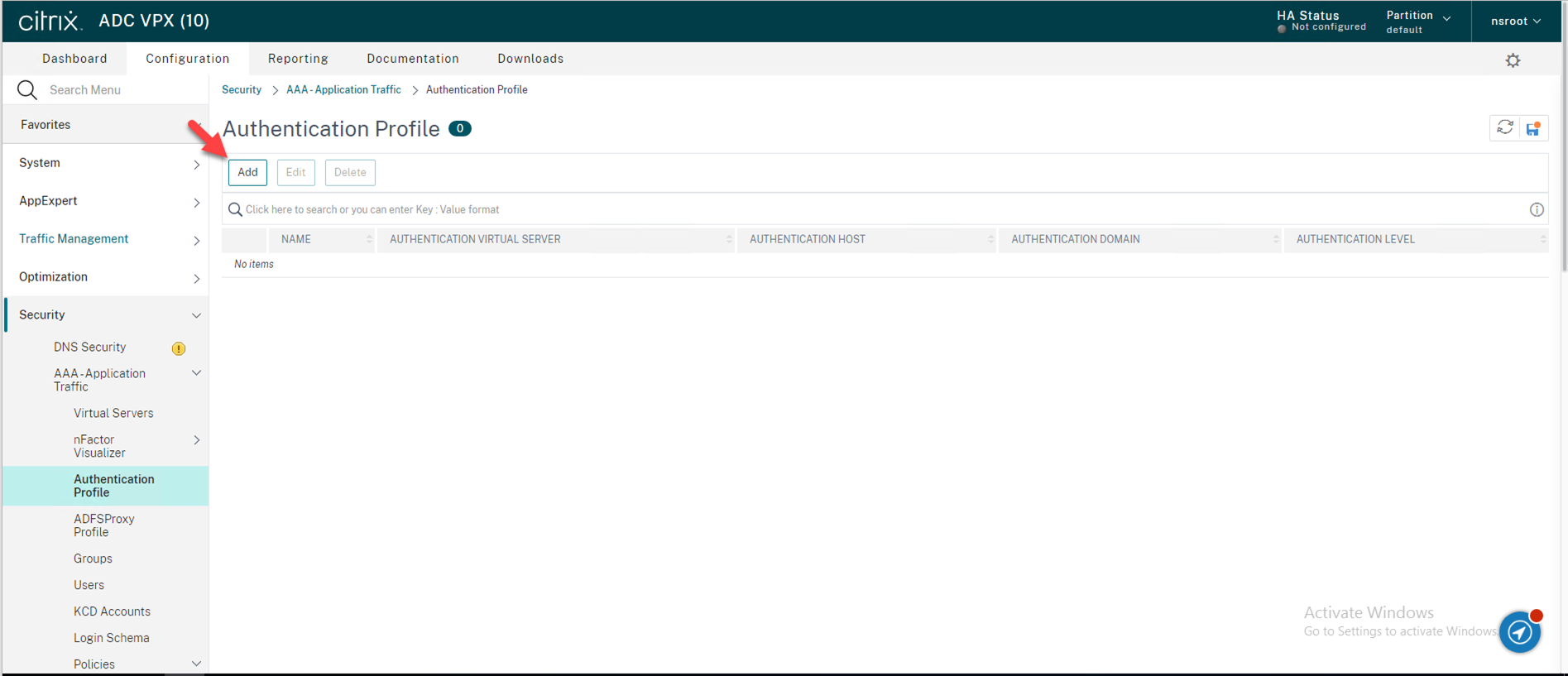

Navigate to Security → AAA – Application Traffic → Authentication Profile in the left panel of the administrative interface, on the Authentication Profile page, Click Add.

031422 2212 Howtodeploy55 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

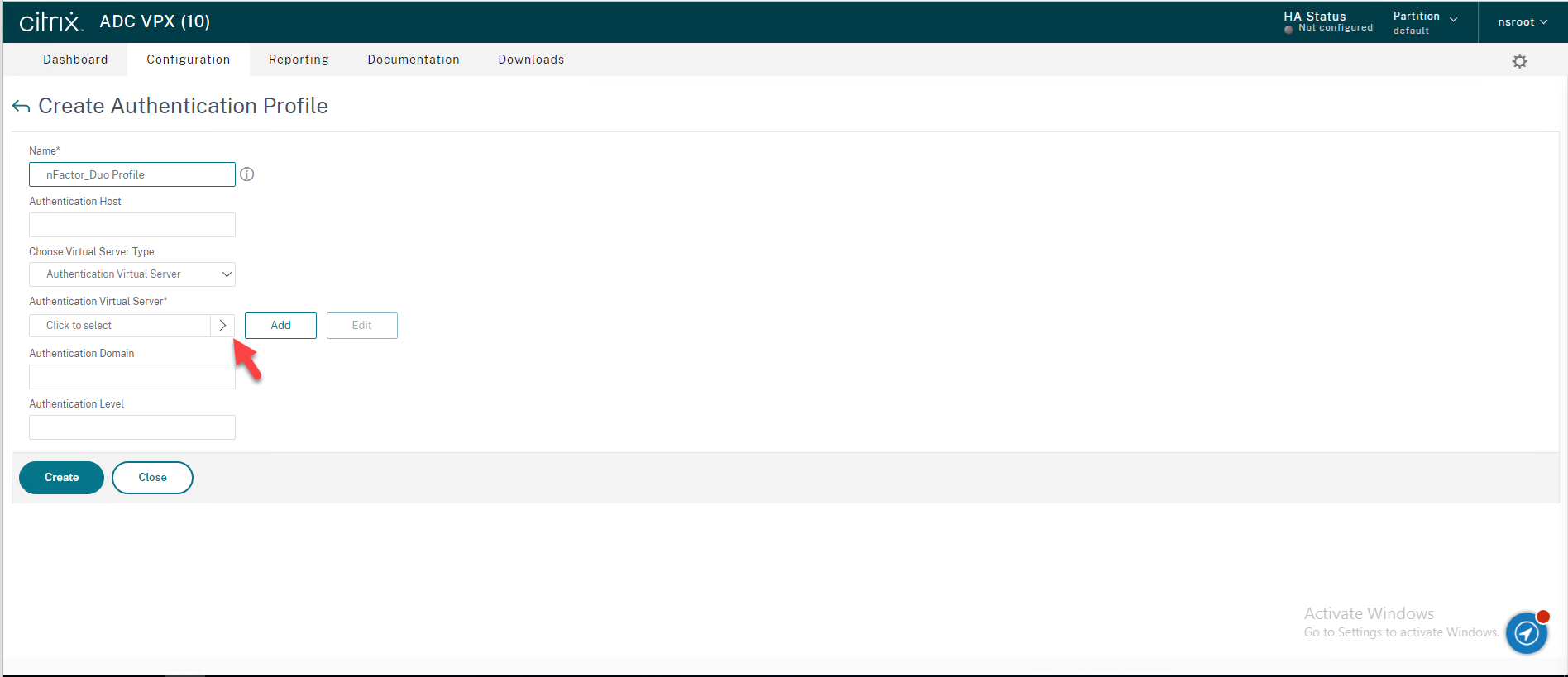

57.Enter nFactor_Duo Profile as your Name of Authentication Profile, click Click to select under Authentication Virtual Server.

031422 2212 Howtodeploy56 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

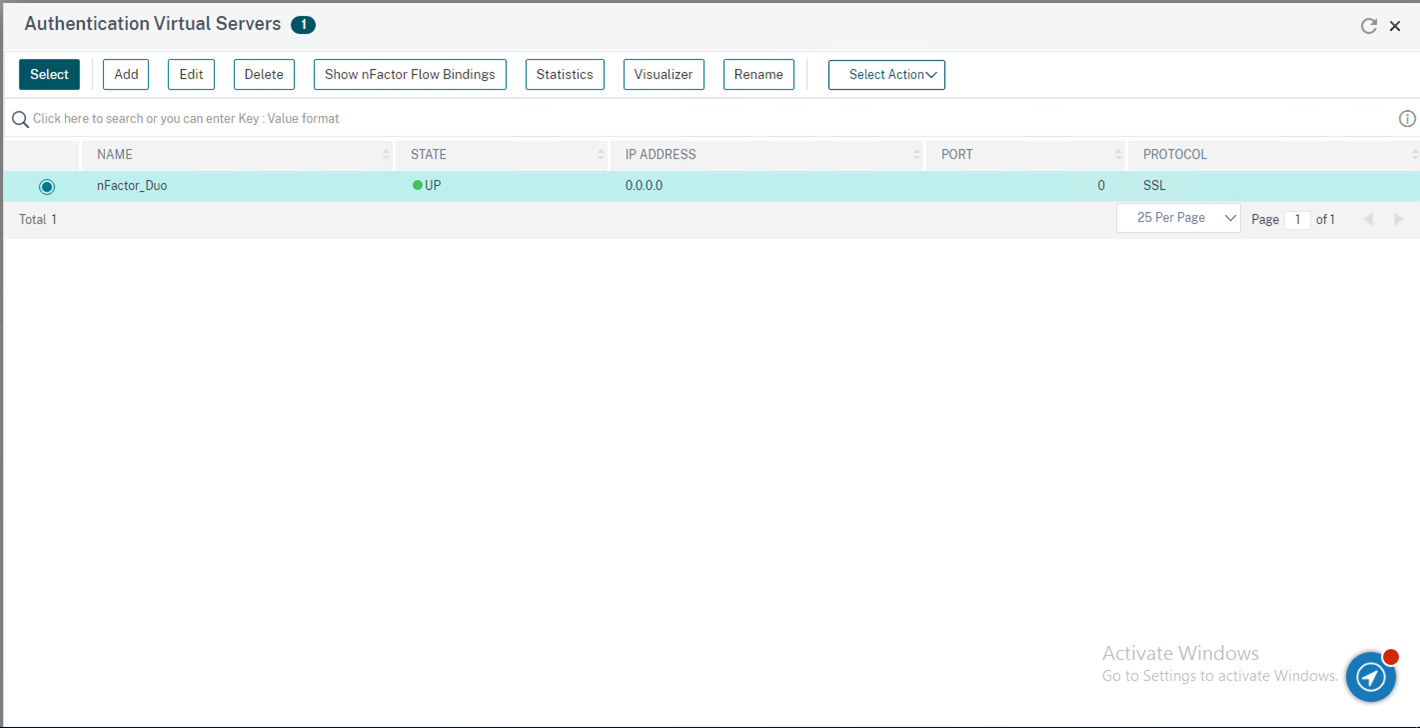

58.On the Authentication Virtual Servers page, select nFactor_duo which you just created previsoully, click Select.

031422 2212 Howtodeploy57 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

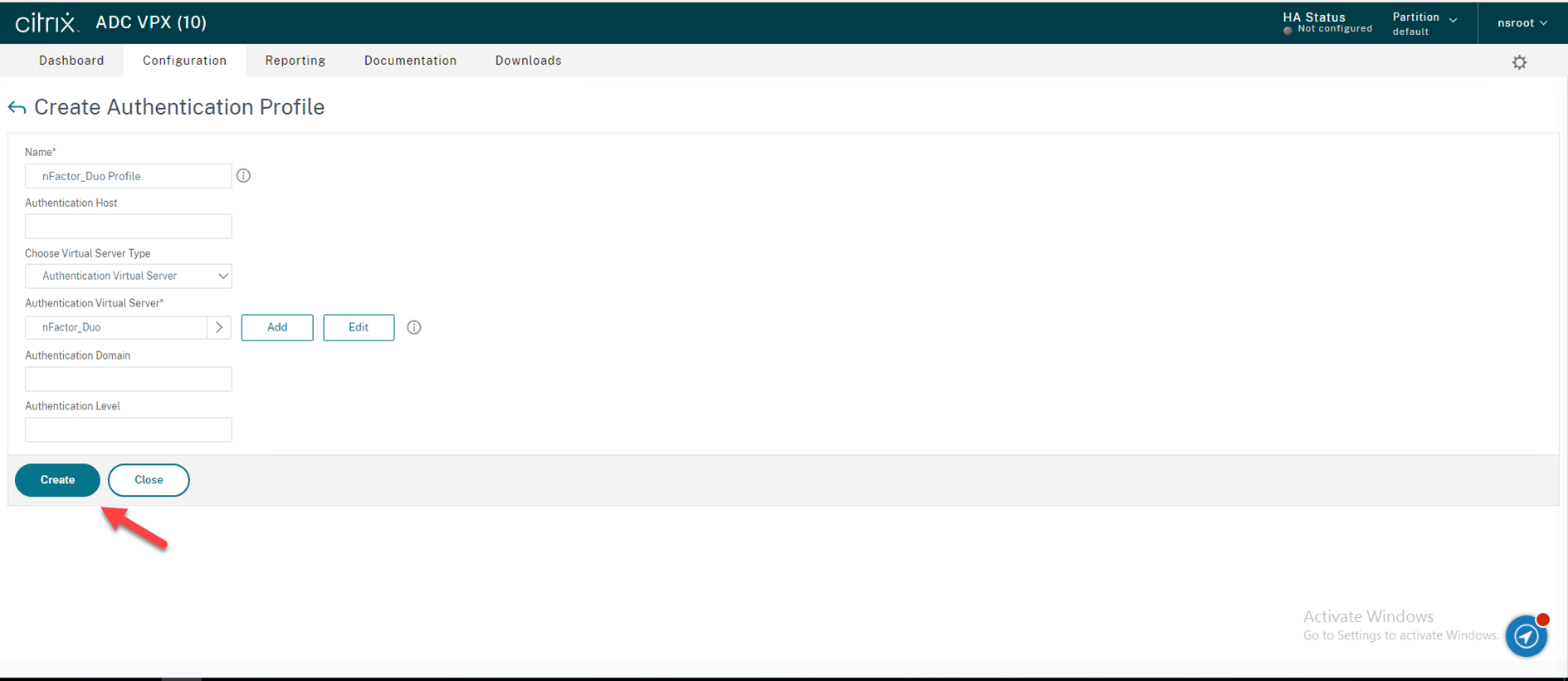

59.On the Create Authentication Profile page, click Create.

031422 2212 Howtodeploy58 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

60.Add Authentication Profile to Unified Gateway

Navigate to Citrix Gateway → Virtual Servers in the left panel of the administrative interface.

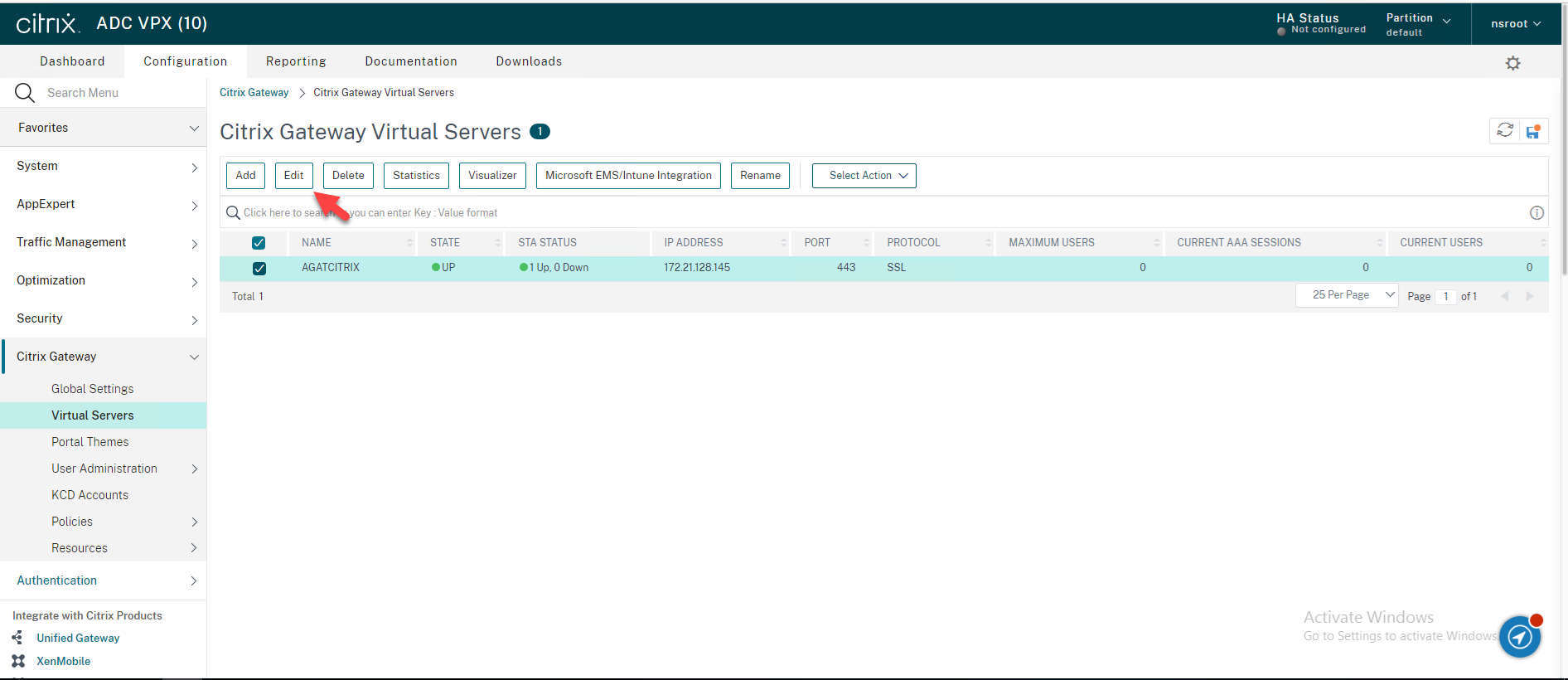

Select your existing Citrix Gateway Virtual Server, and then click Edit

031422 2212 Howtodeploy59 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

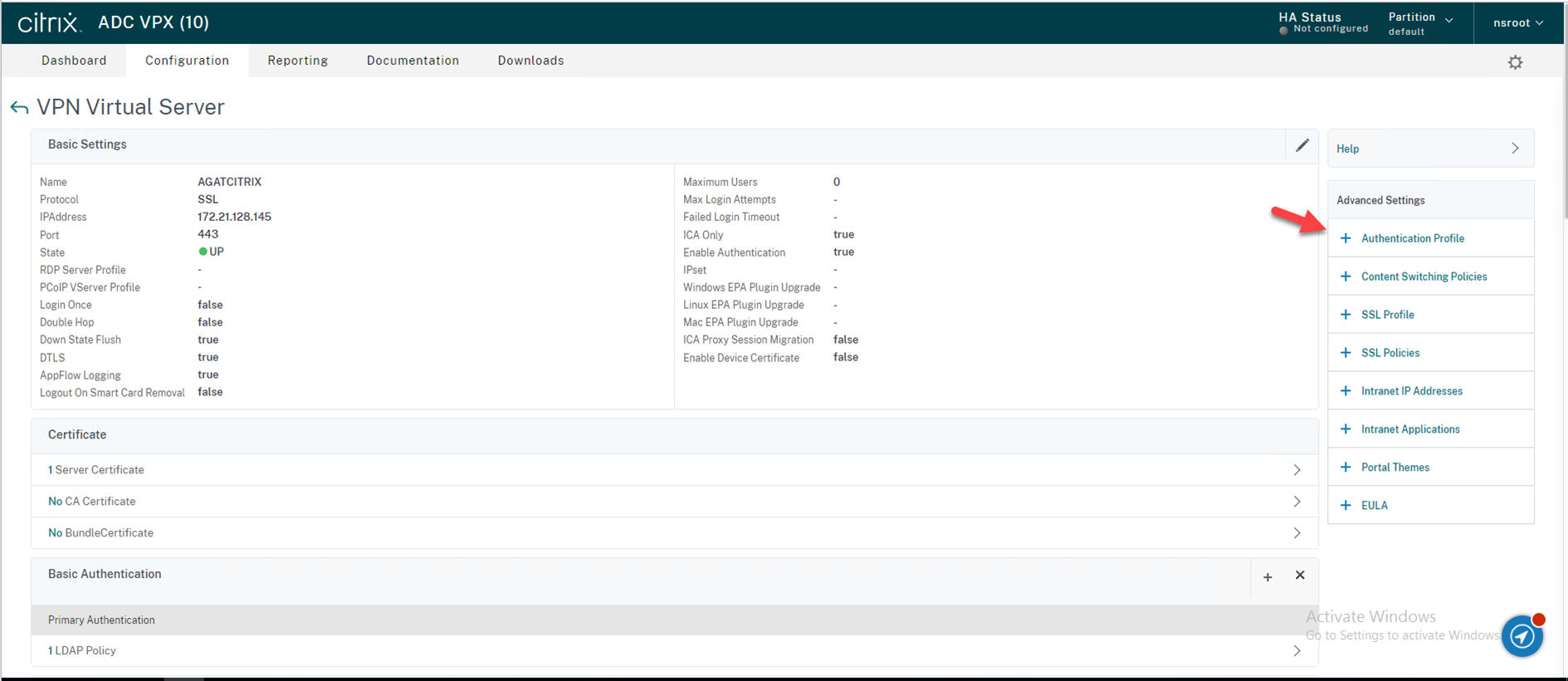

61.Click Authentication Profile within Advanced Settings in the right panel of the administrative interface, click Authentication Profile.

031422 2212 Howtodeploy60 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

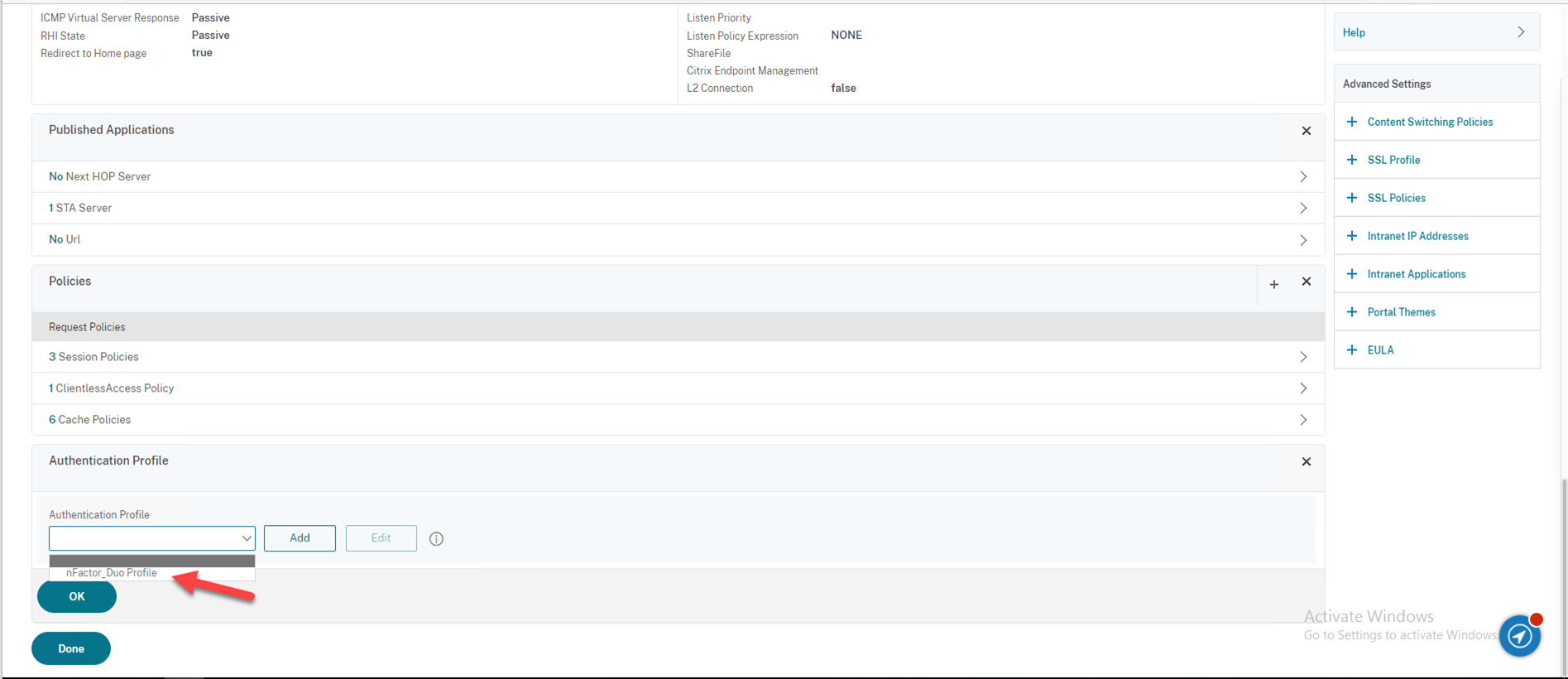

62.Select nFactor_Duo as your “Authentication Profile”

031422 2212 Howtodeploy61 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

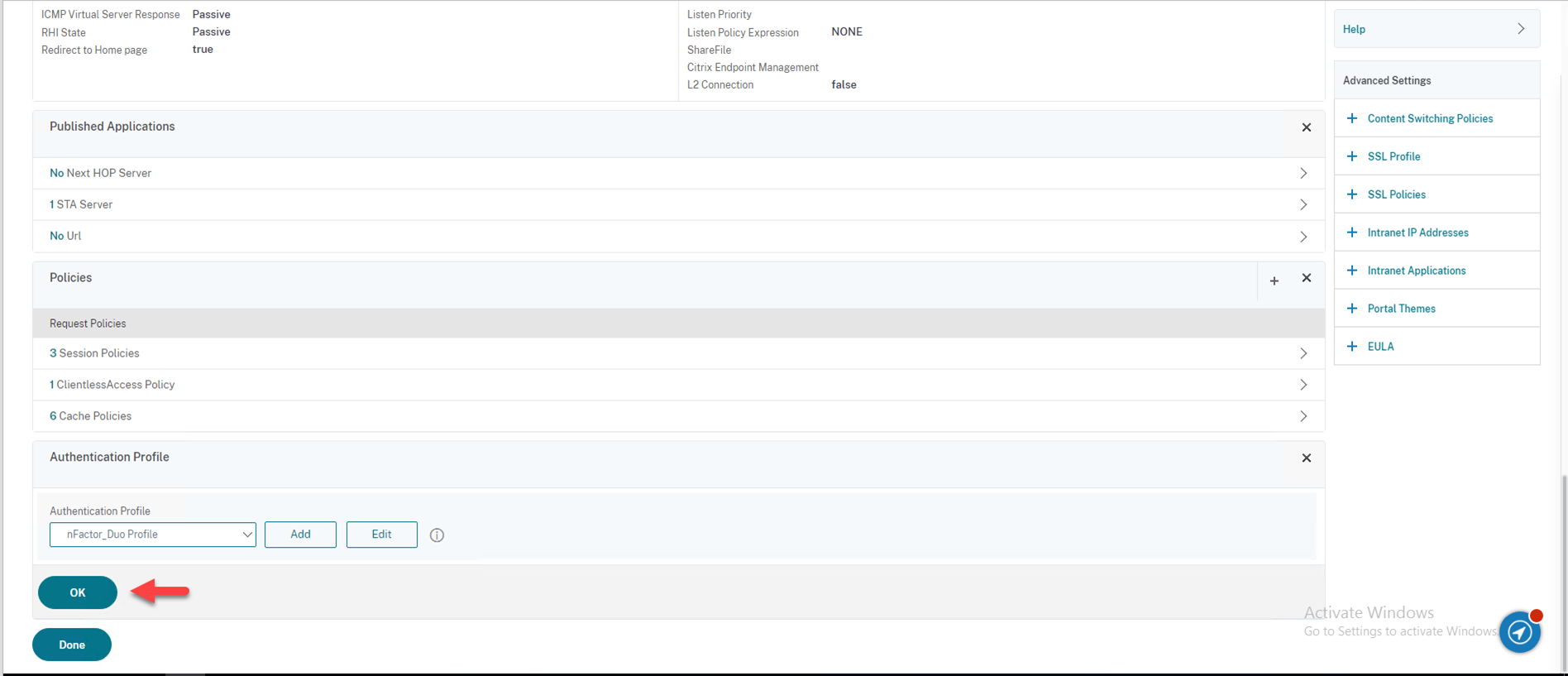

63.Click OK.

031422 2212 Howtodeploy62 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

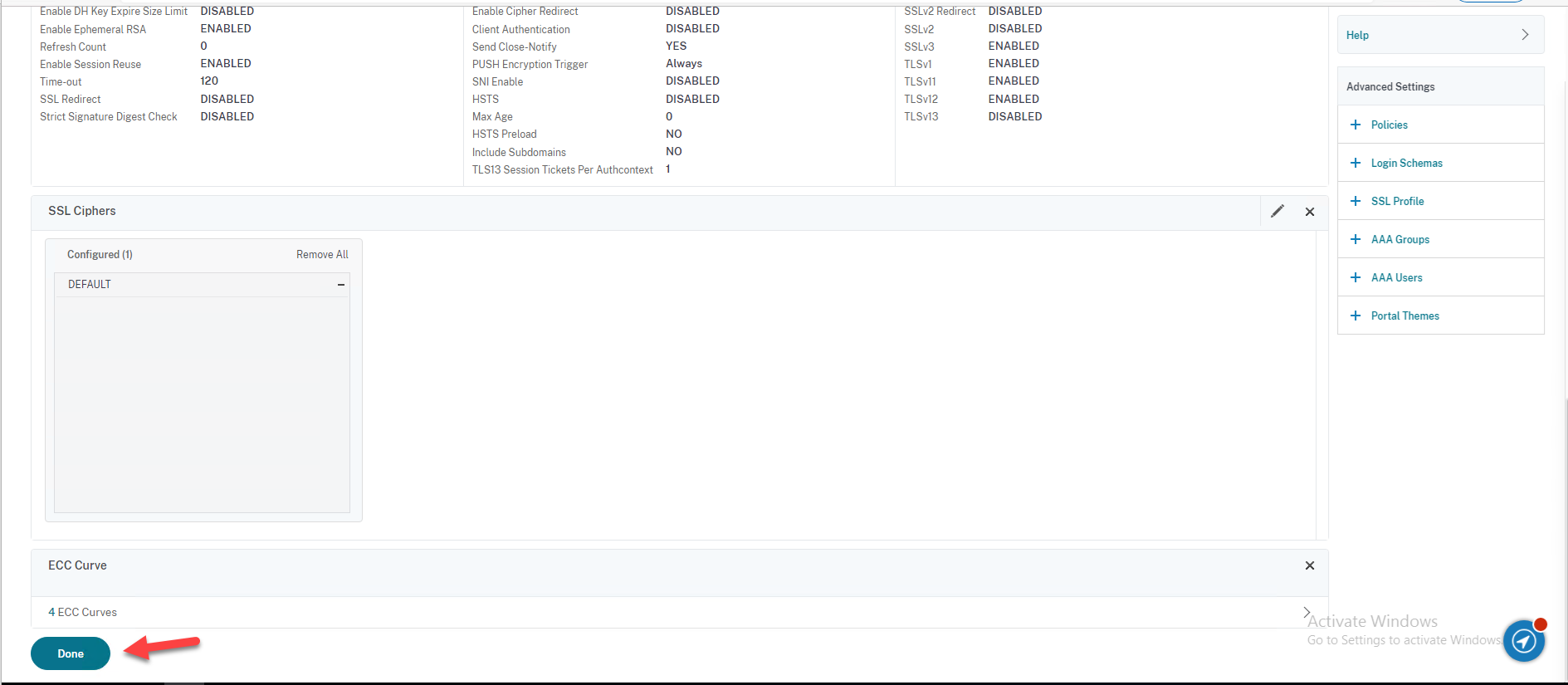

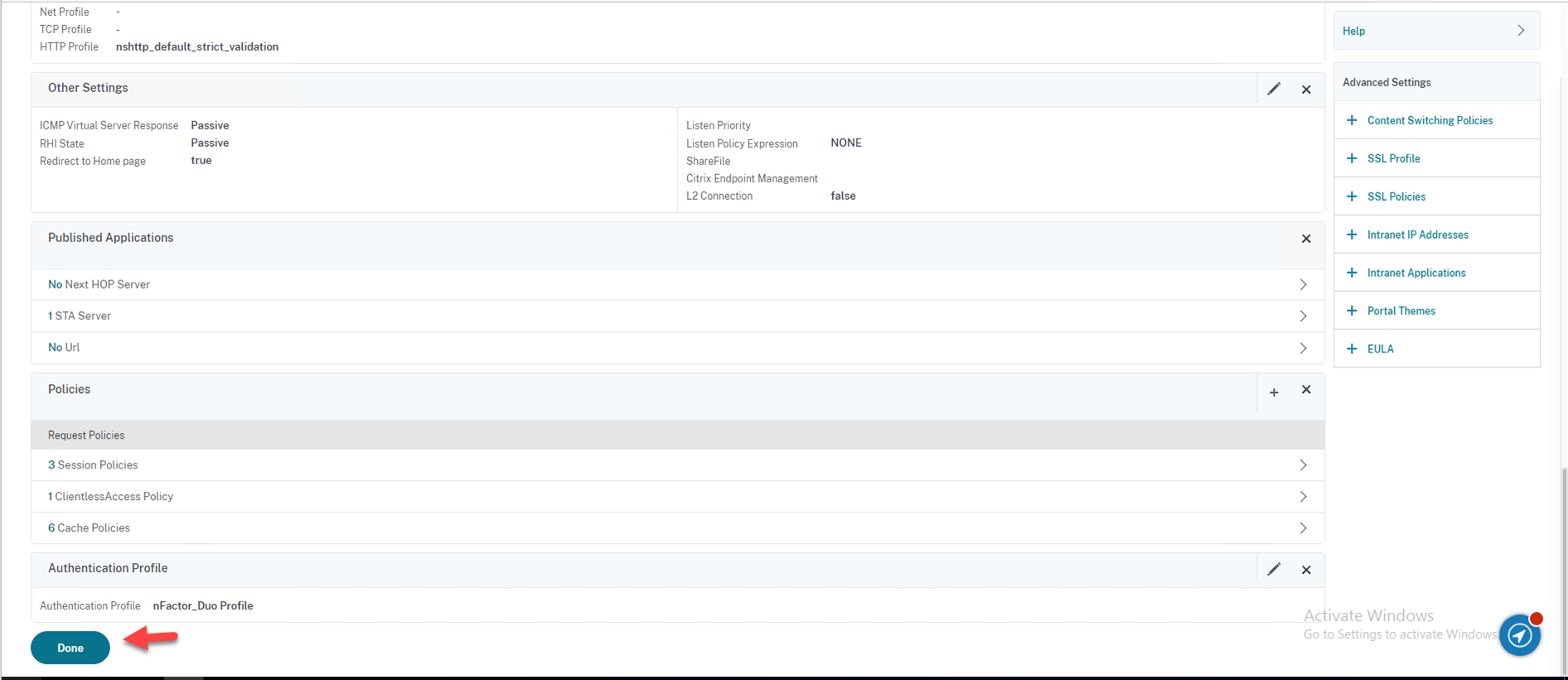

64.Click Done.

031422 2212 Howtodeploy63 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

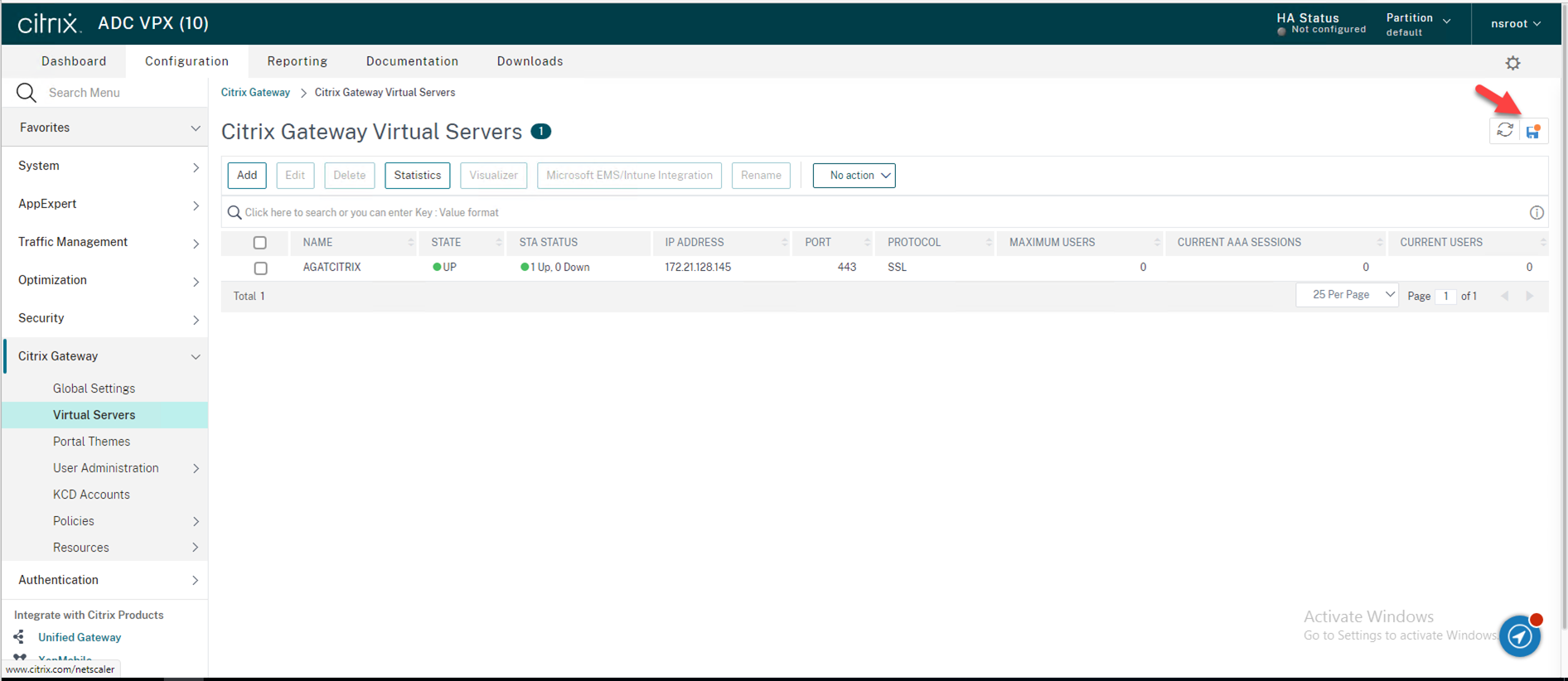

65.Save all of the changes made to the running config.

031422 2212 Howtodeploy64 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

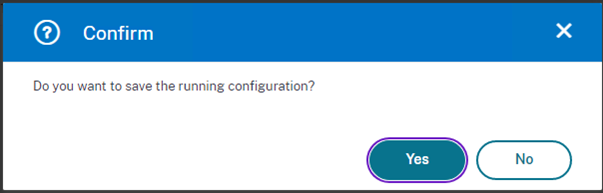

66.On the Confirm page, click Yes.

031422 2212 Howtodeploy65 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

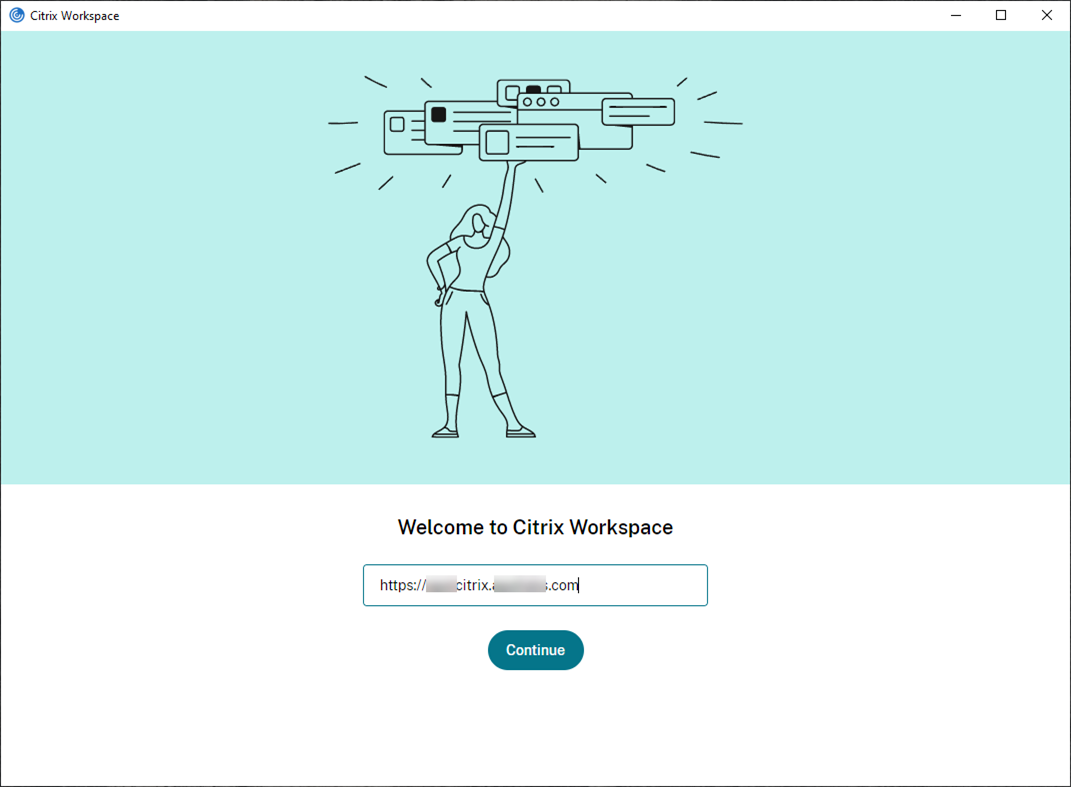

67.On the remote client machine, run Citrix Workspace, enter the citrix farm URL.

031422 2212 Howtodeploy66 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

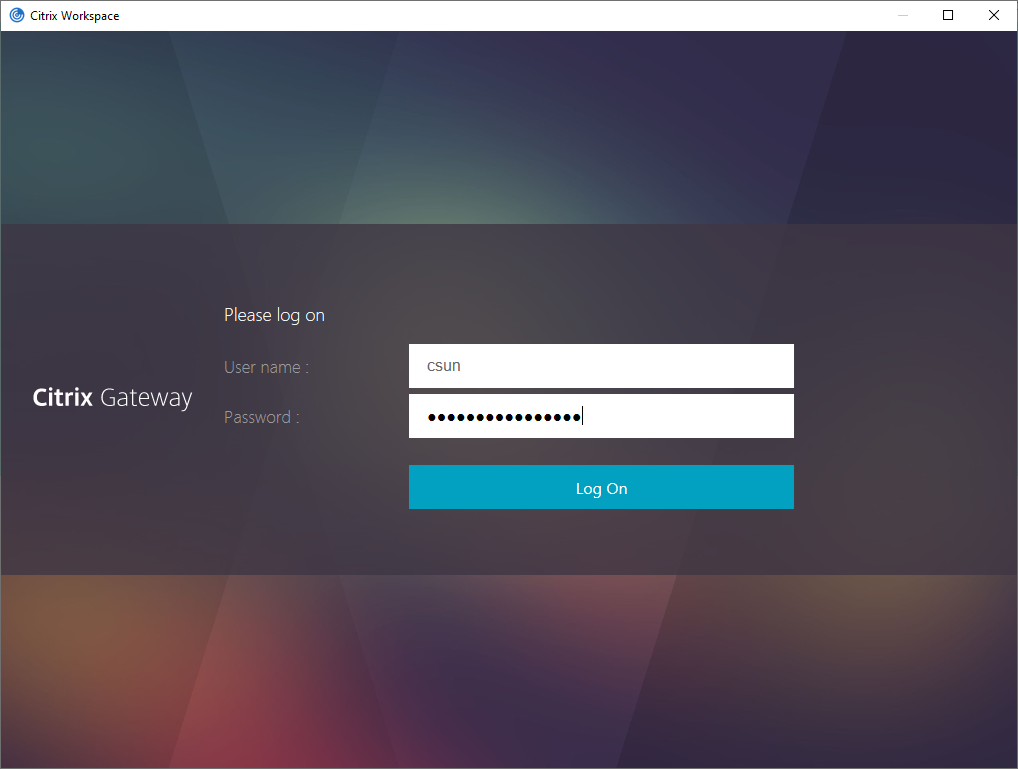

68.enter user name and password.

031422 2212 Howtodeploy67 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

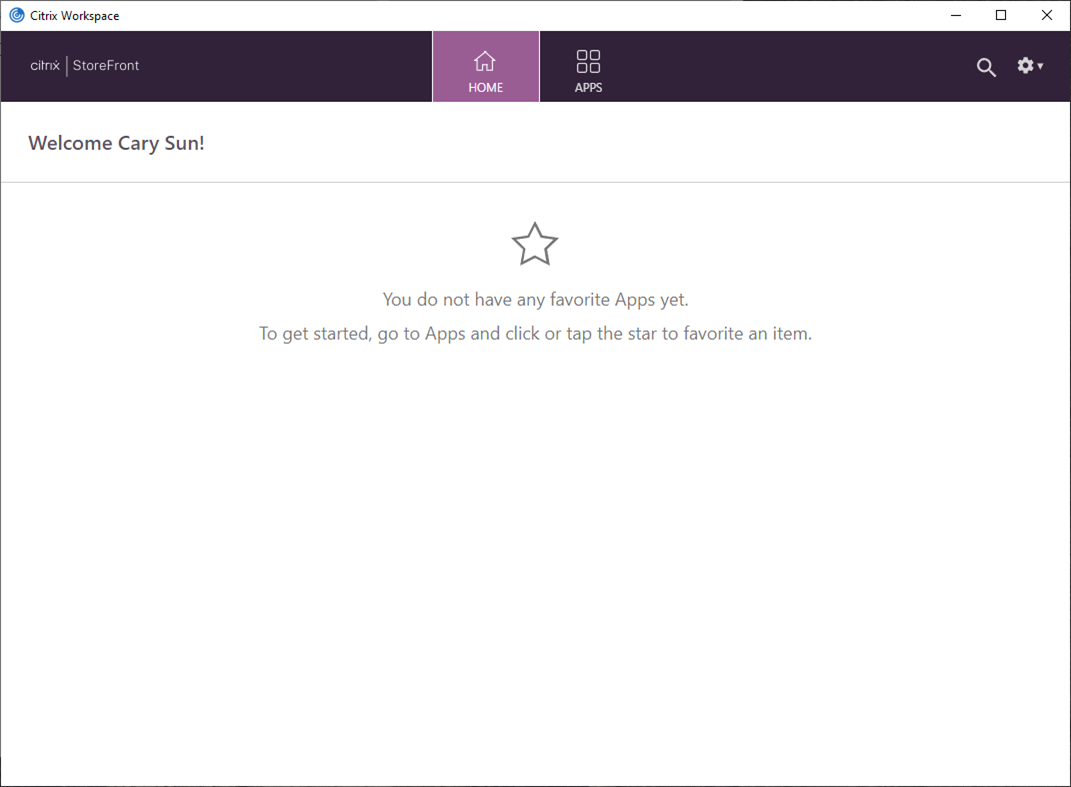

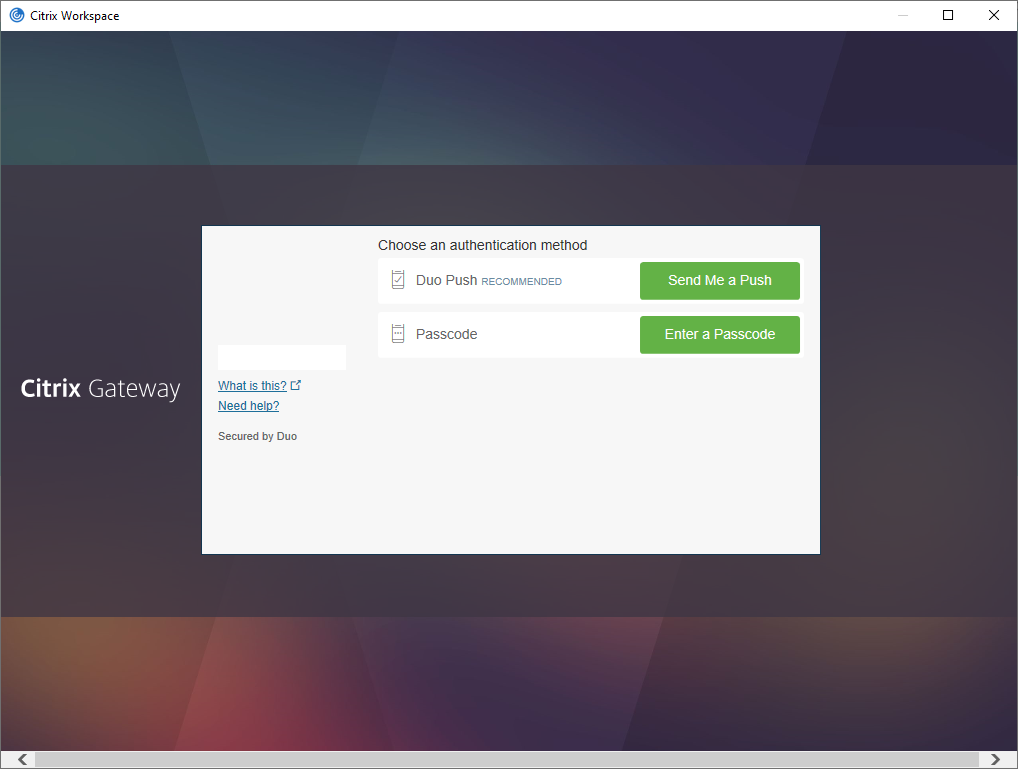

69.After you complete primary authentication, the Duo enrollment/login prompt appears, click Send Me a Push, click Approve from Duo App of your phone.

031422 2212 Howtodeploy68 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor

You will succeed to sign in and see the Welcome page.

031422 2212 Howtodeploy69 - How to deploy Cisco Duo for Citrix (NetScaler) Gateway (Citrix ADC) - nFactor
