December 3, 2024
Today, I will show you how to migrate Microsoft Entra Connect (Azure AD Connect) to v2.

Microsoft change the Azure Active Directory (Azure AD) name to Microsoft Entra ID from July, 2023. A key component of Microsoft Entra Connect is the Microsoft Entra Connect synchronisation services (Microsoft Entra Connect Sync). It handles the procedures associated with synchronising identity data across your on-premises environment and Microsoft Entra ID. With the Microsoft Entra Connector enabled, Microsoft Entra Connect Sync is the replacement to DirSync, Azure AD Sync, and Forefront Identity Manager.

Today, I will show you how to migrate Microsoft Entra Connect (Azure AD Connect) to v2.

1. Login to the existing Azure AD Connect server.

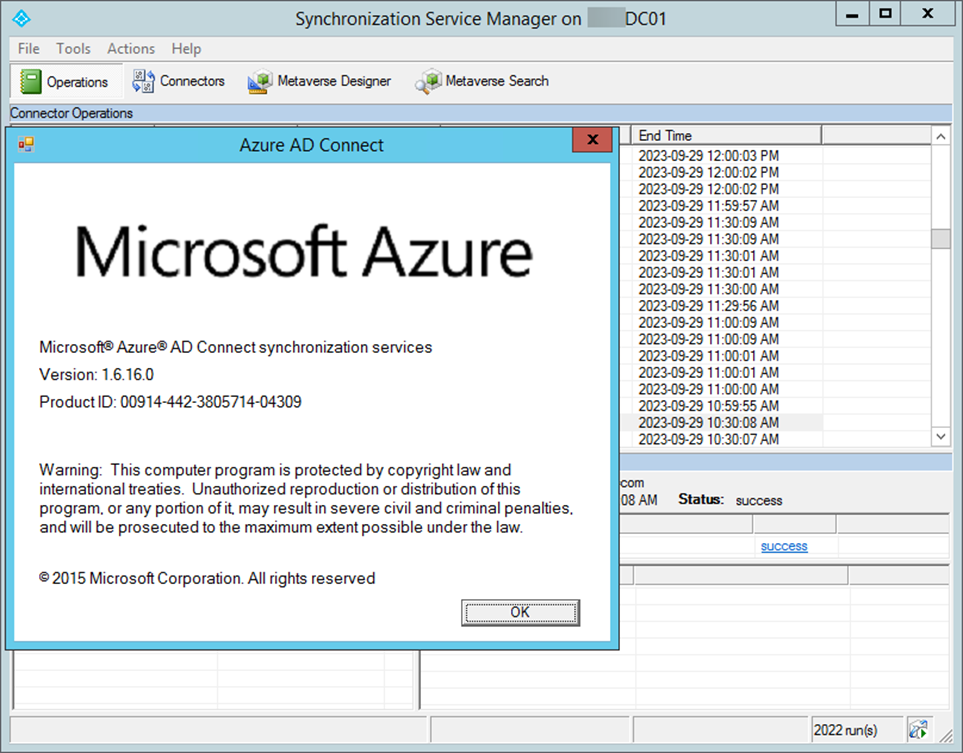

2. Open Synchronization Service Manager to verify the exiting Azure AD connect version.

100323 1702 HowtoMigrat1 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

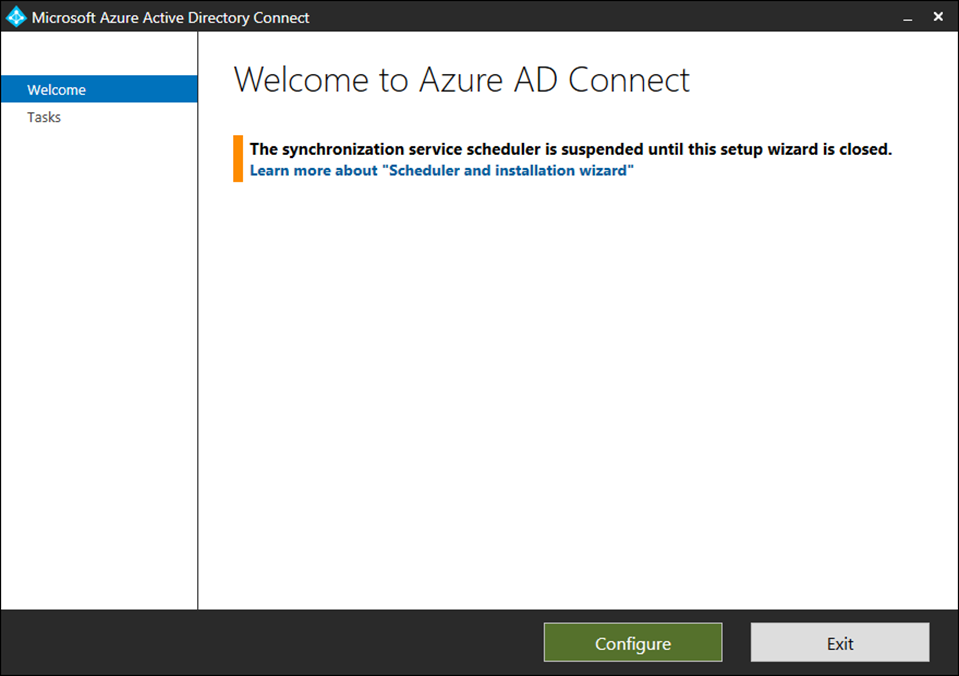

3. Open Azure AD Connect and click Configure.

100323 1702 HowtoMigrat2 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

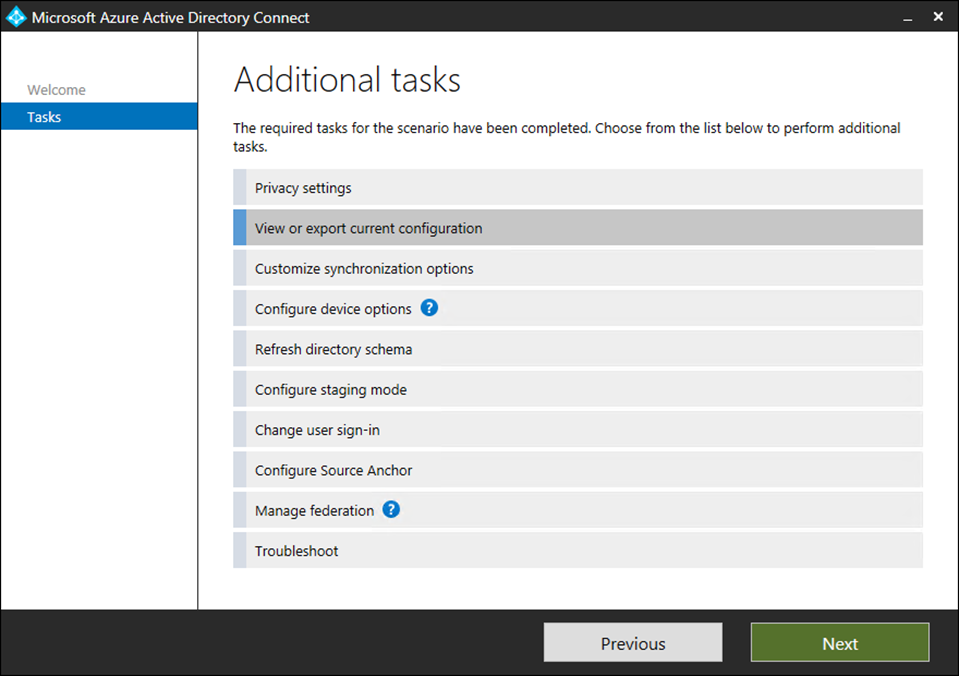

4. Select View or export current configuration on the Tasks page and click Next.

100323 1702 HowtoMigrat3 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

5. On the Review your solution page, click Export Settings.

100323 1702 HowtoMigrat4 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

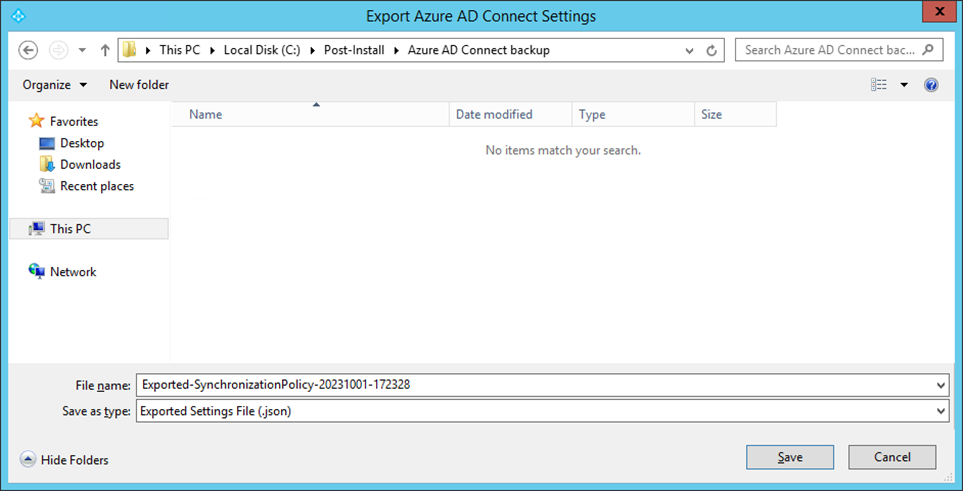

6. Save the .jason file and copy it to the new server.

100323 1702 HowtoMigrat5 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

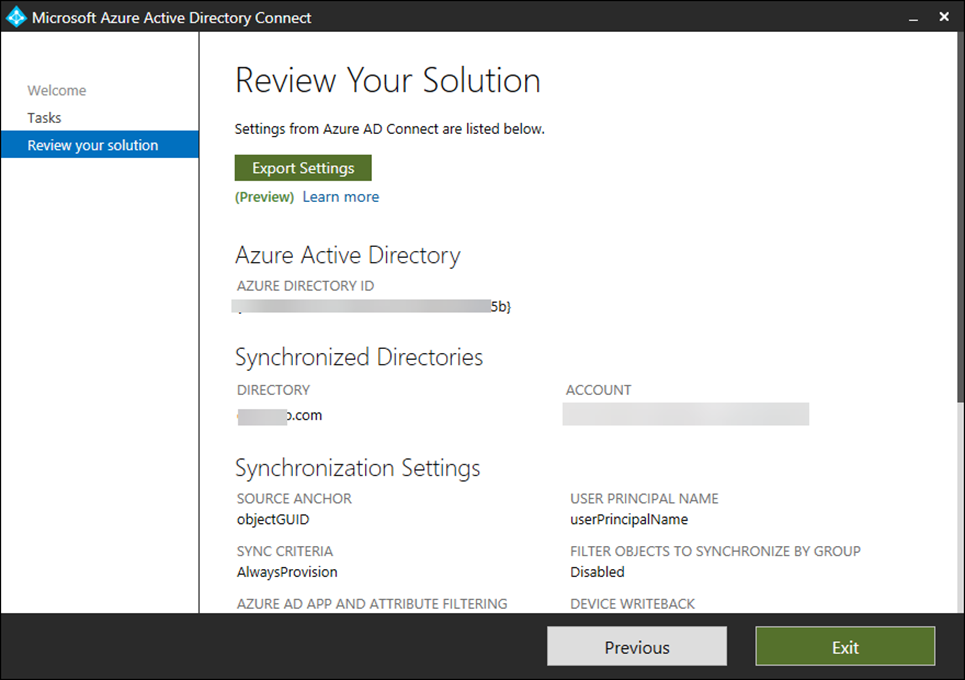

7. On the Review your solution page, click Previous.

100323 1702 HowtoMigrat6 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

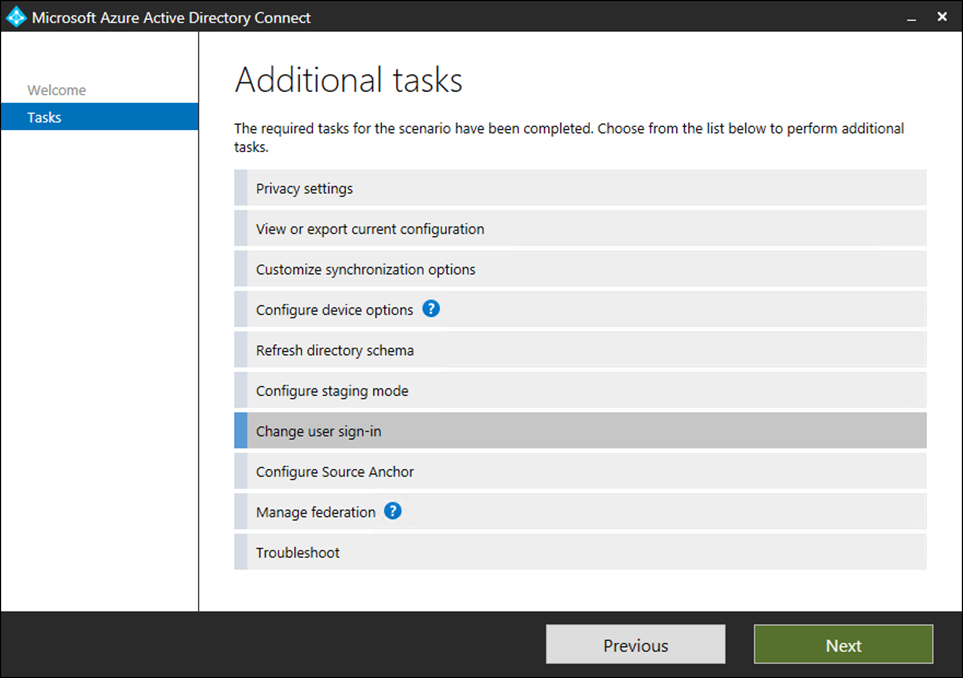

8. Select Change user sign-in on the Tasks page and click Next.

100323 1702 HowtoMigrat7 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

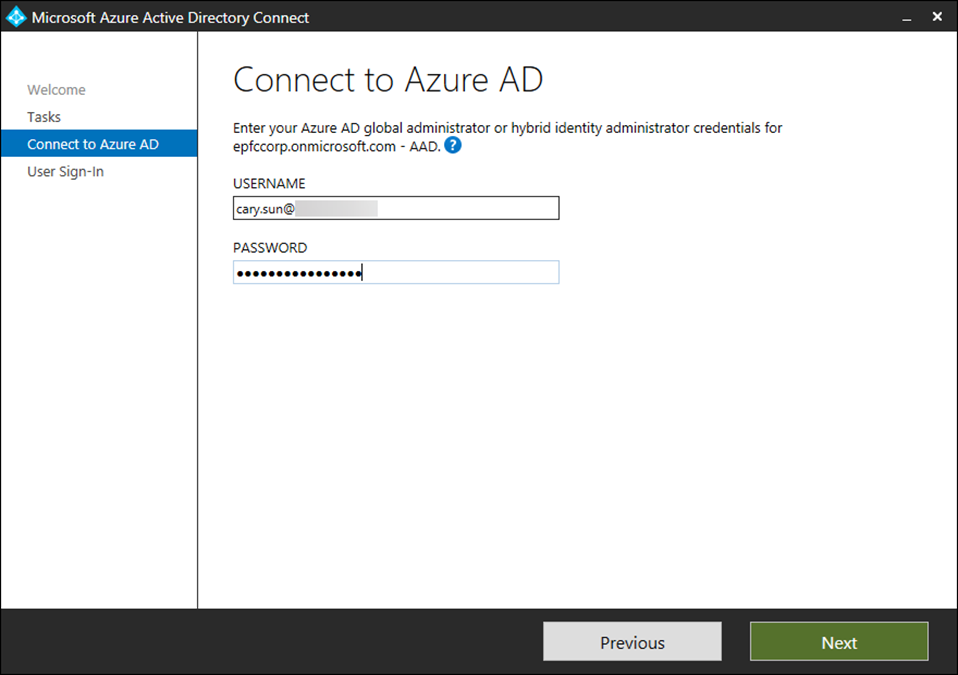

9. Enter your Username and password on the Connect to Azure AD page.

100323 1702 HowtoMigrat8 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

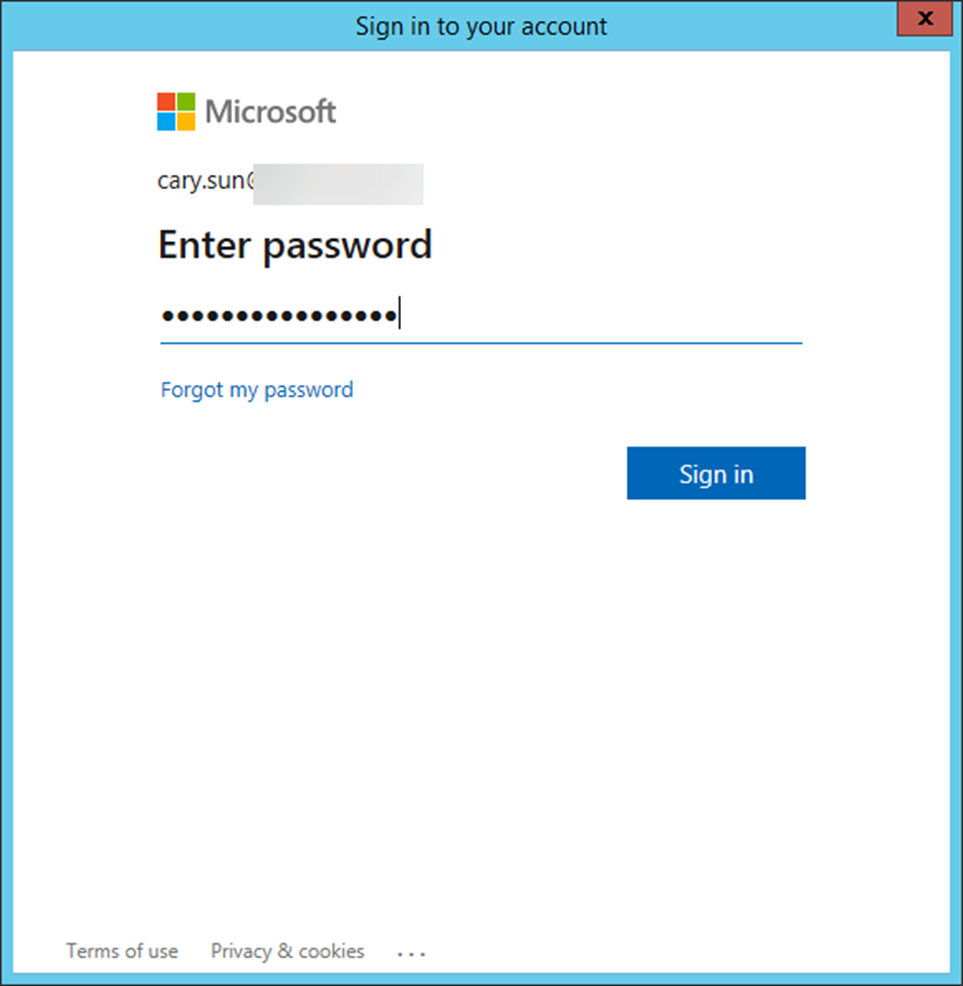

10. Enter the password and click Sign in.

100323 1702 HowtoMigrat9 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

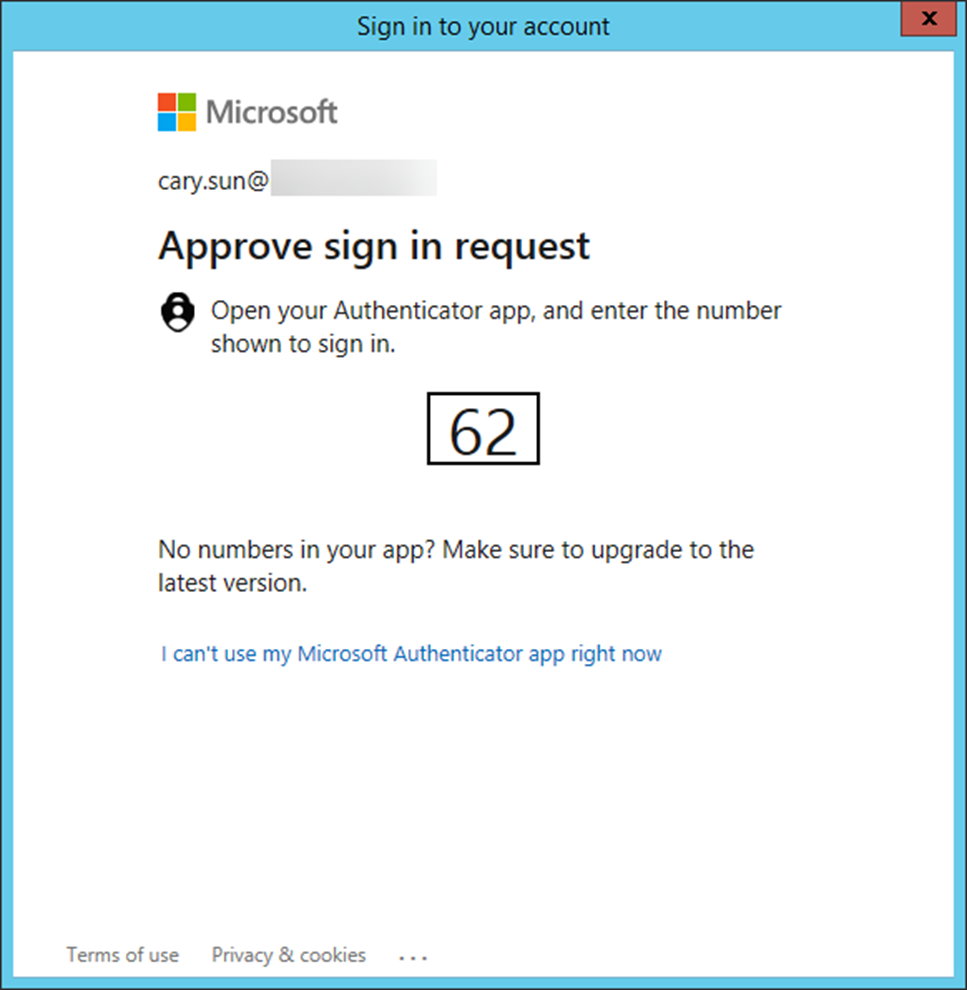

11. Open your authentication app and enter the number, click Yes.

100323 1702 HowtoMigrat10 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

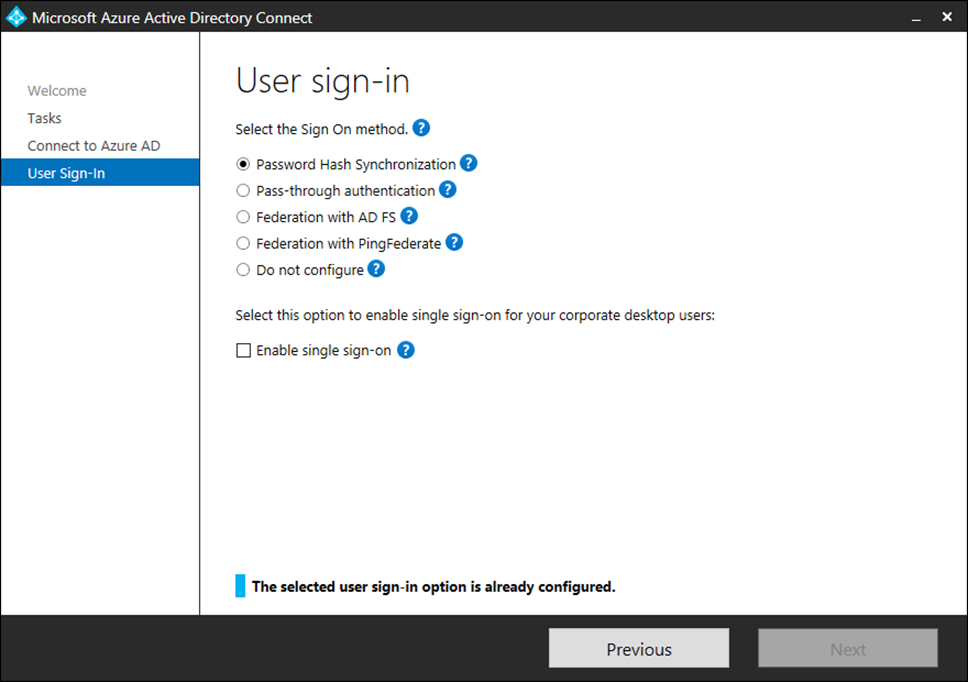

12. Take a note of the User Sign-in settings, they need to match the settings on the new server, close Azure AD Connect.

100323 1702 HowtoMigrat11 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

13. Login to the new server.

14. You need to enable TLS 1.2 on the new server before installing Microsoft Entra Connect V2.

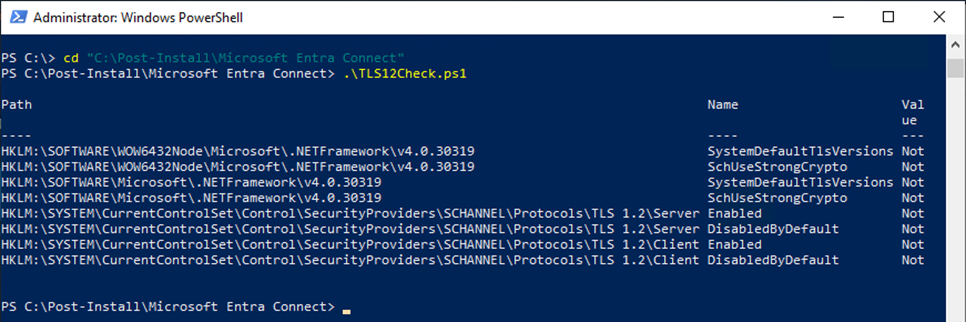

15. Download and run the TLS12Check.ps1 script to check TLS 1.2 registries.

https://github.com/sifusun/AD

100323 1702 HowtoMigrat12 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

16. If TLS 1.2 is not enabled, download, and run the TLS12Enable.ps1 script to enable TLS 1.2.

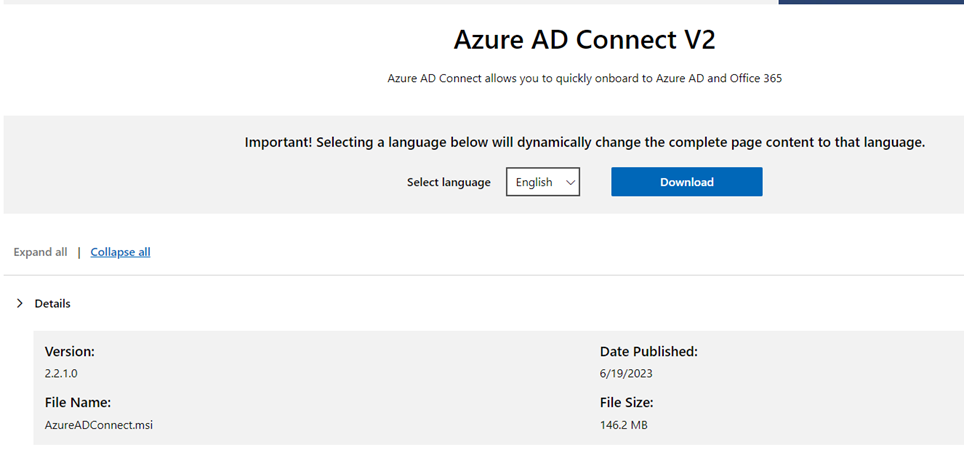

17. Download the Microsoft Entra Connect Azure AD Connect V2).

https://go.microsoft.com/fwlink/?LinkId=615771

100323 1702 HowtoMigrat13 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

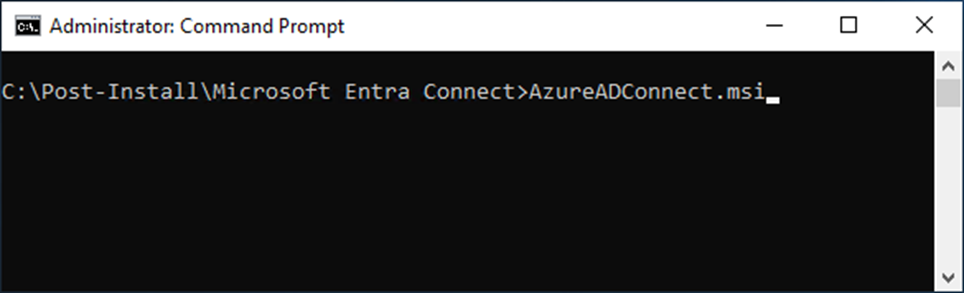

18. Open Command Prompt as Administrator.

19. Run AzureADConnect.msi to install Microsoft Entra V2.

100323 1702 HowtoMigrat14 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

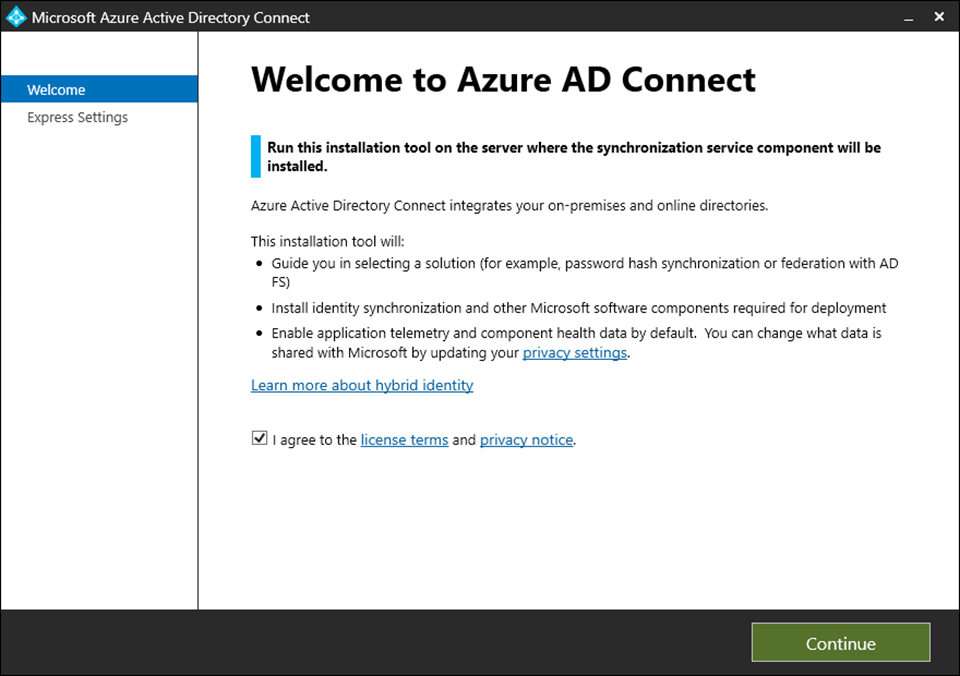

20. Select I agree to the license terms and privacy notice on the Welcome page, click Continue.

100323 1702 HowtoMigrat15 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

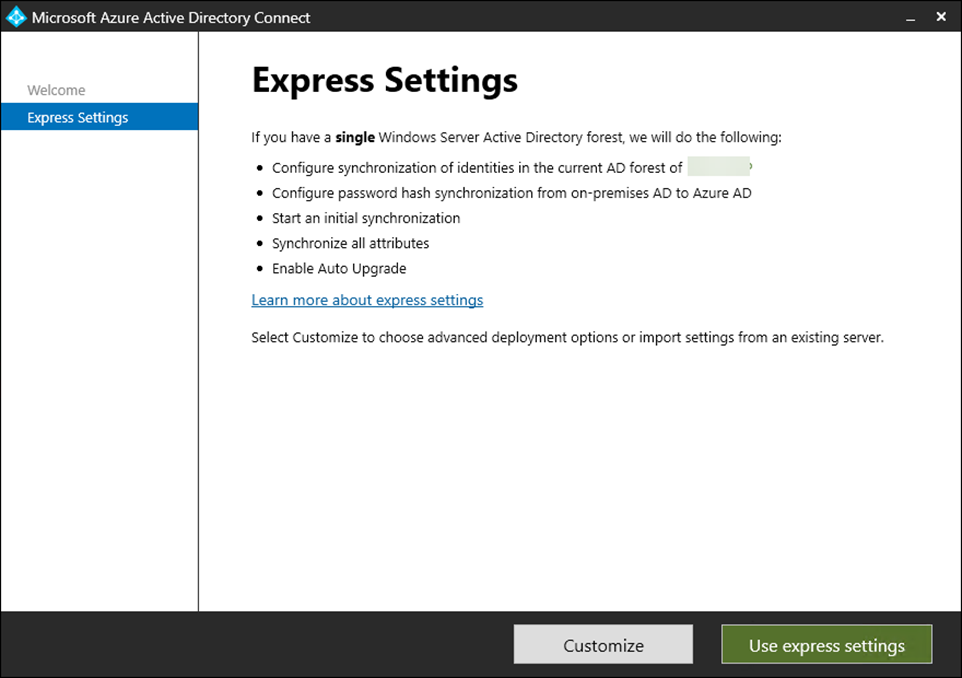

21. Click Customize on the Express Settings page.

100323 1702 HowtoMigrat16 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

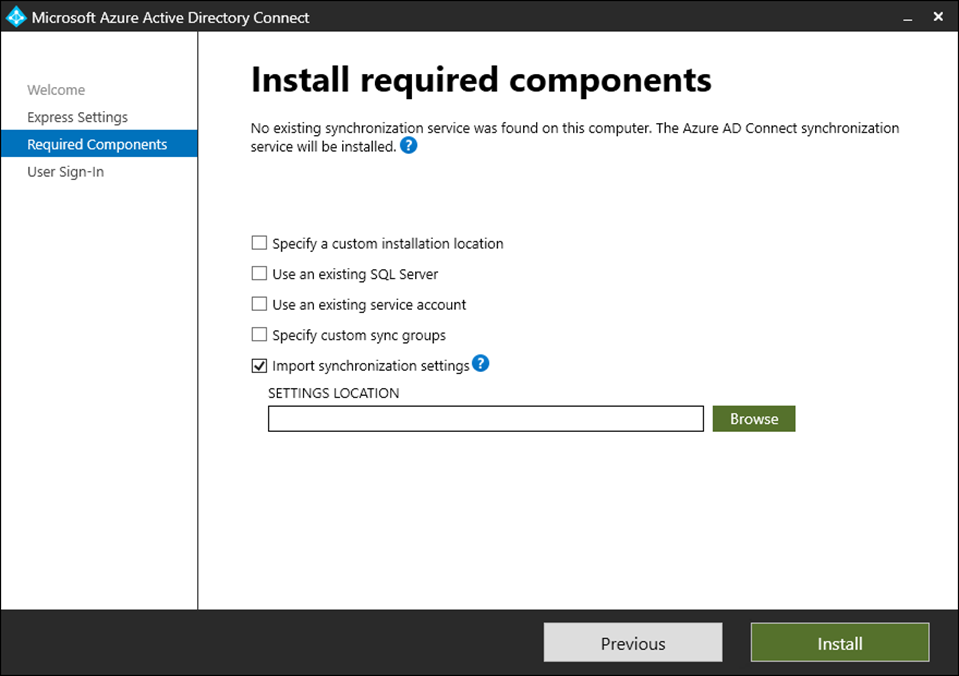

22. On the Install required components page, select Import synchronization settings and click Browse.

100323 1702 HowtoMigrat17 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

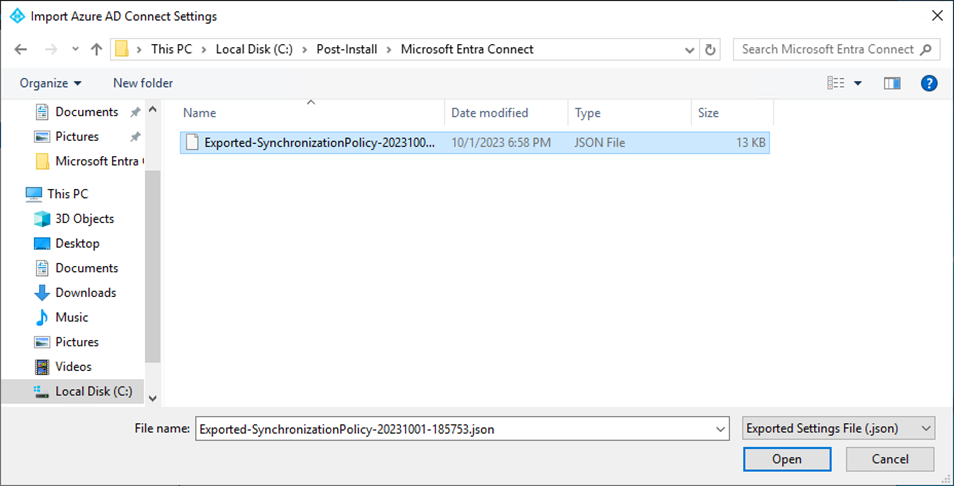

23. Select the backup file that is copied from the old Azure AD Connect server, click Open.

100323 1702 HowtoMigrat18 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

24. Click Install on the Install required components page.

100323 1702 HowtoMigrat19 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

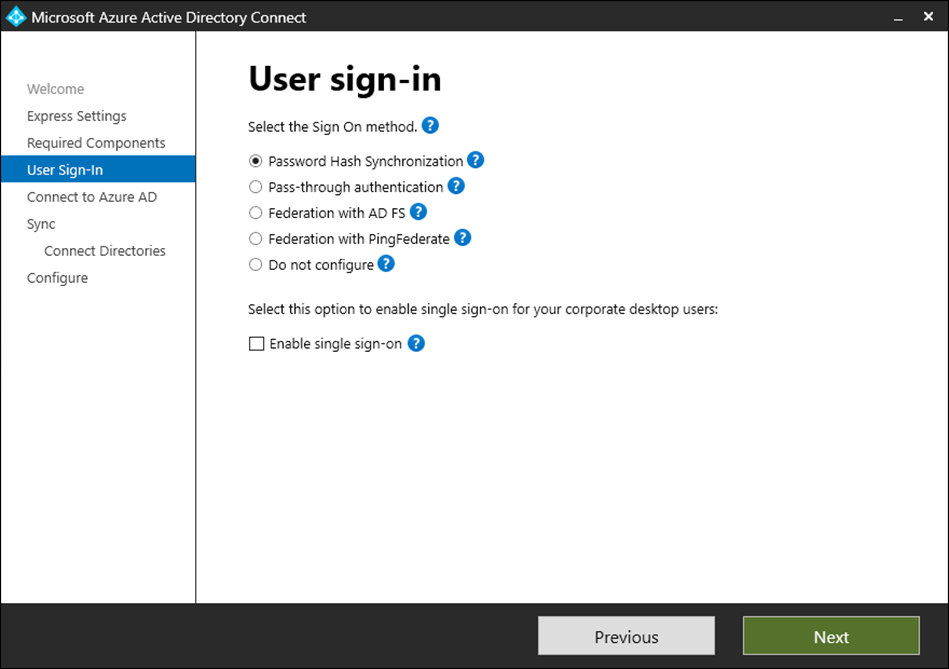

25. On the User sign-in page, ensure the settings are the same as the old server and click Next.

100323 1702 HowtoMigrat20 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

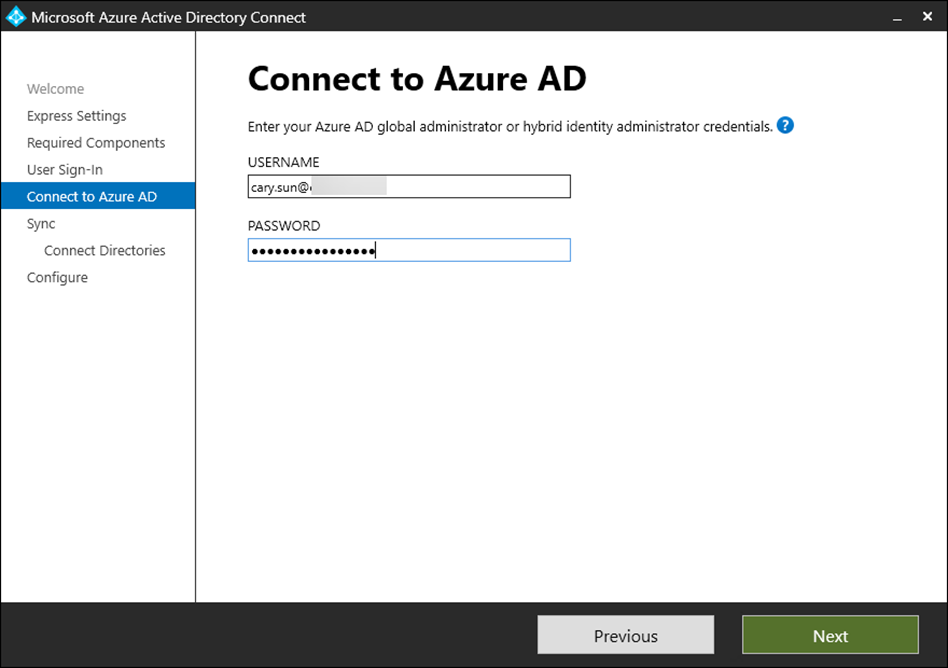

26. On the Connect to Azure AD page, enter the Azure AD global administrator or hybrid identity administrator credentials, and click Next.

100323 1702 HowtoMigrat21 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

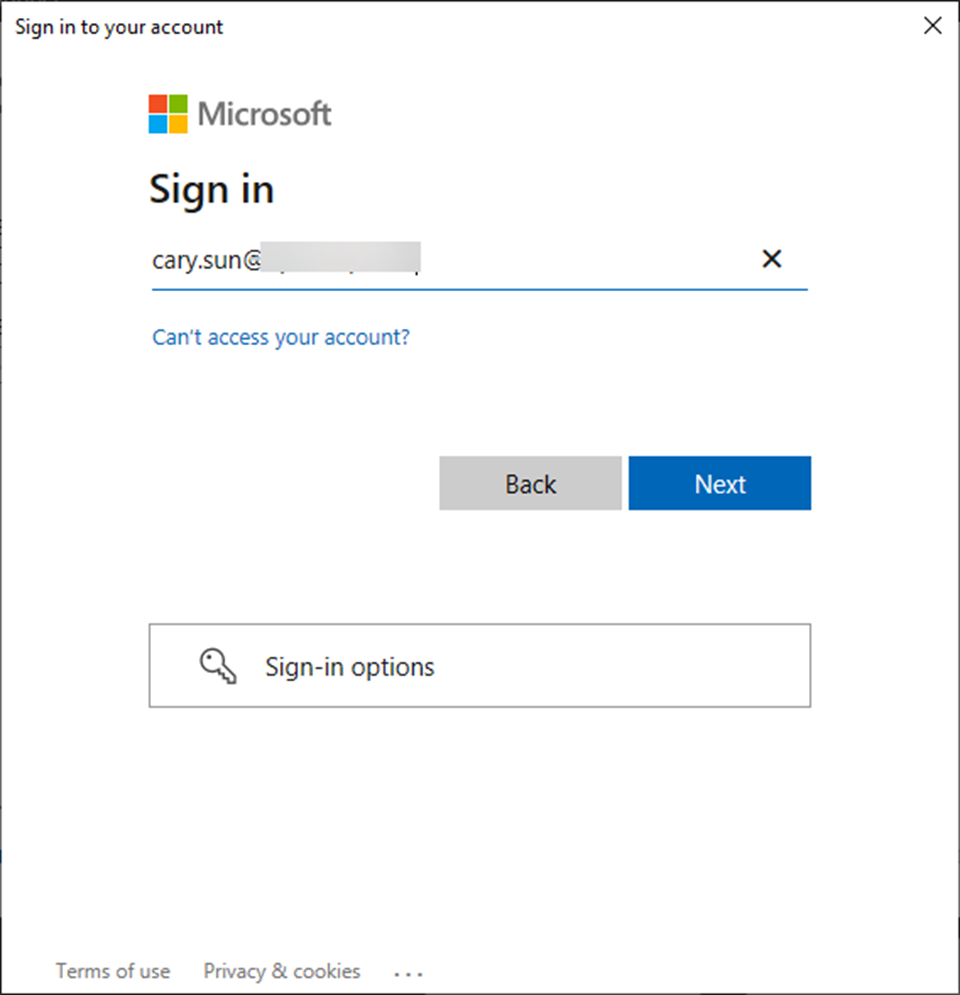

27. Enter username on the Sign in page and click Next.

100323 1702 HowtoMigrat22 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

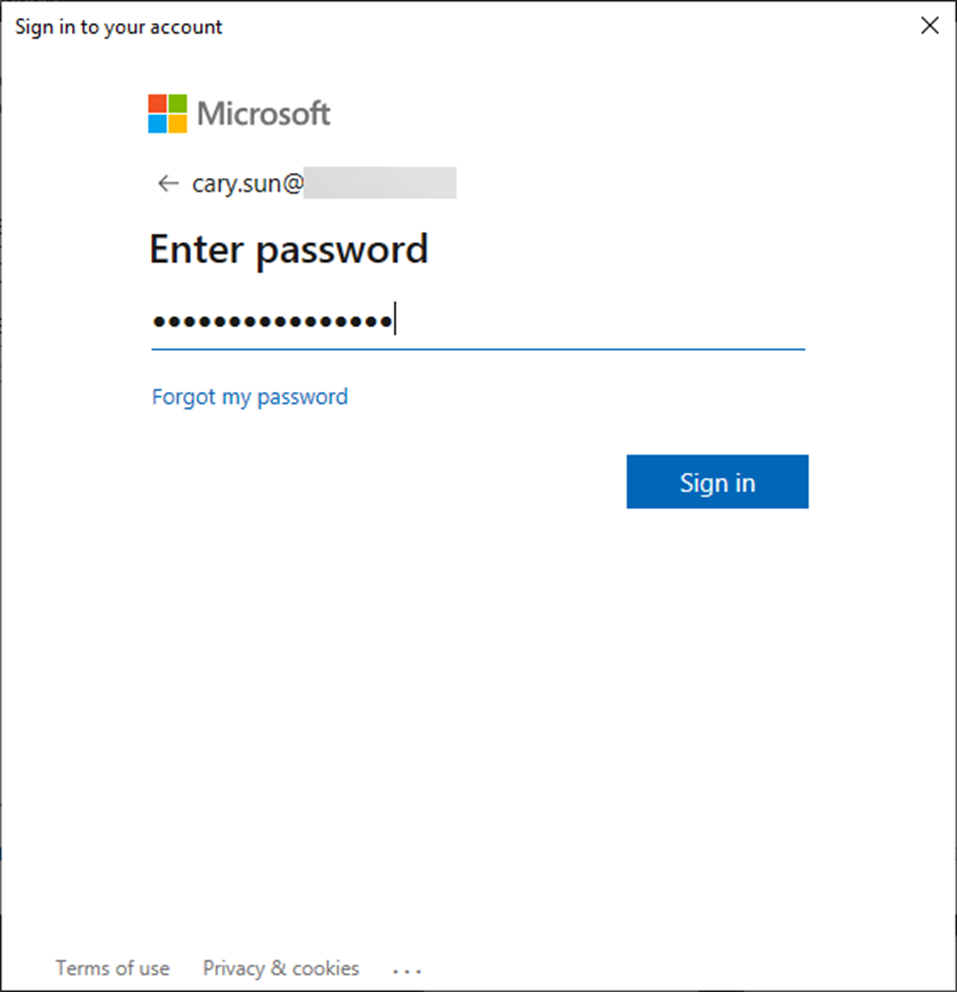

28. Enter password and click Sign in.

100323 1702 HowtoMigrat23 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

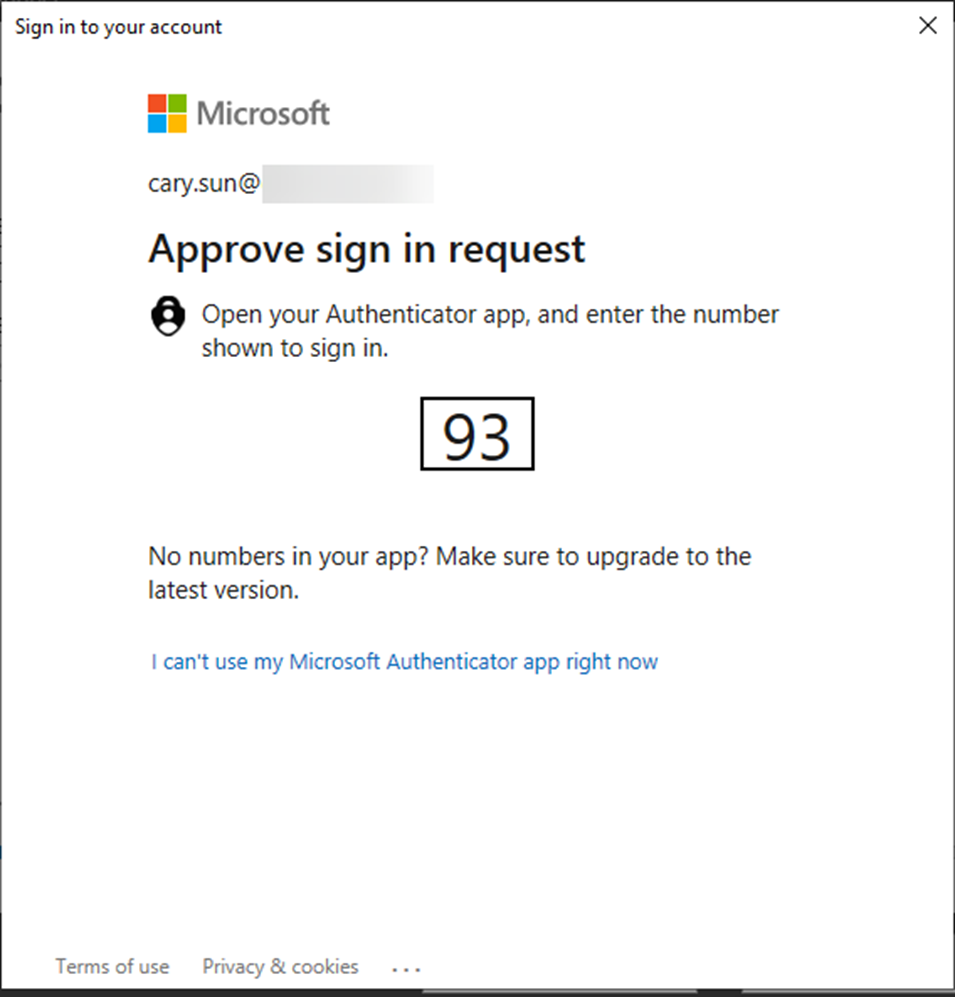

29. Open your authentication app and enter the number, click Yes.

100323 1702 HowtoMigrat24 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

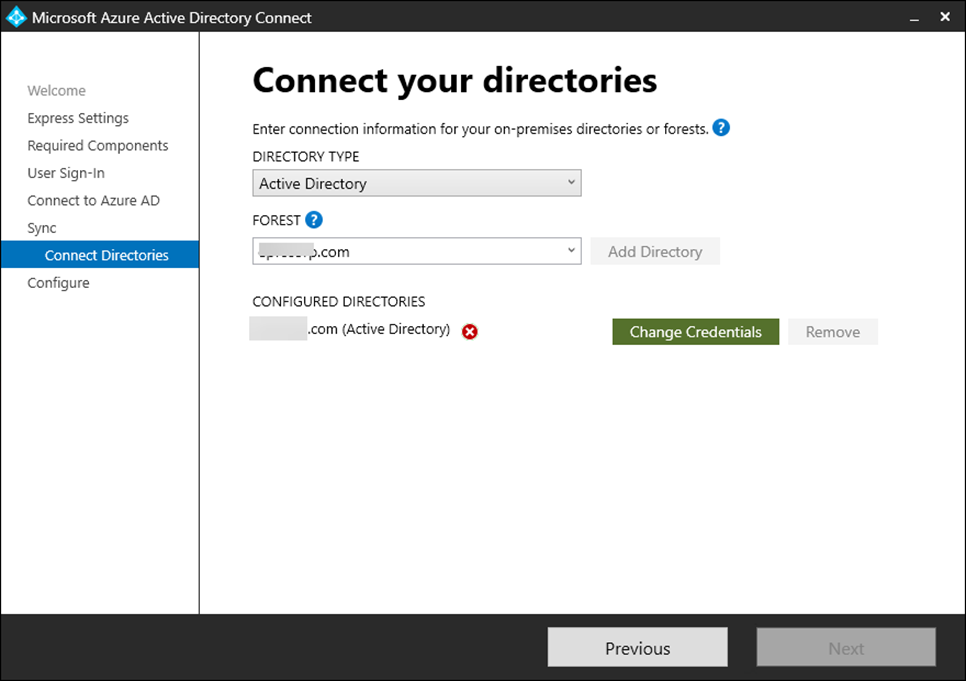

30. On the Connect Directories page, click Change Credentials.

100323 1702 HowtoMigrat25 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

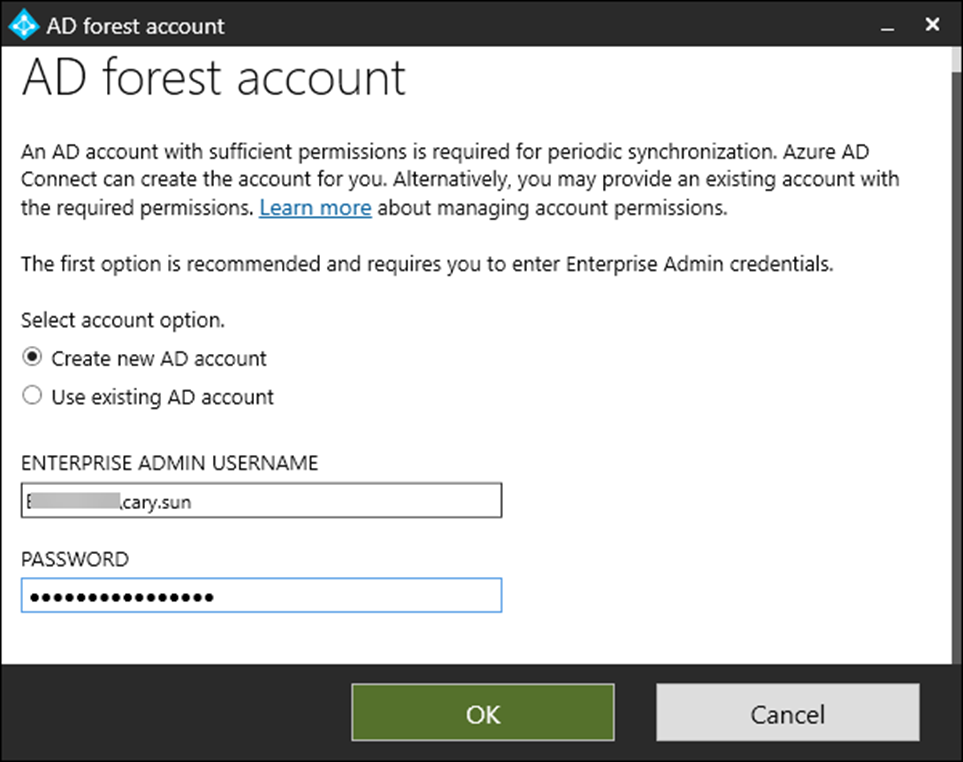

31. On the AD forest account page, select Create new AD account, enter the enterprise admin username and password, and click OK.

100323 1702 HowtoMigrat26 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

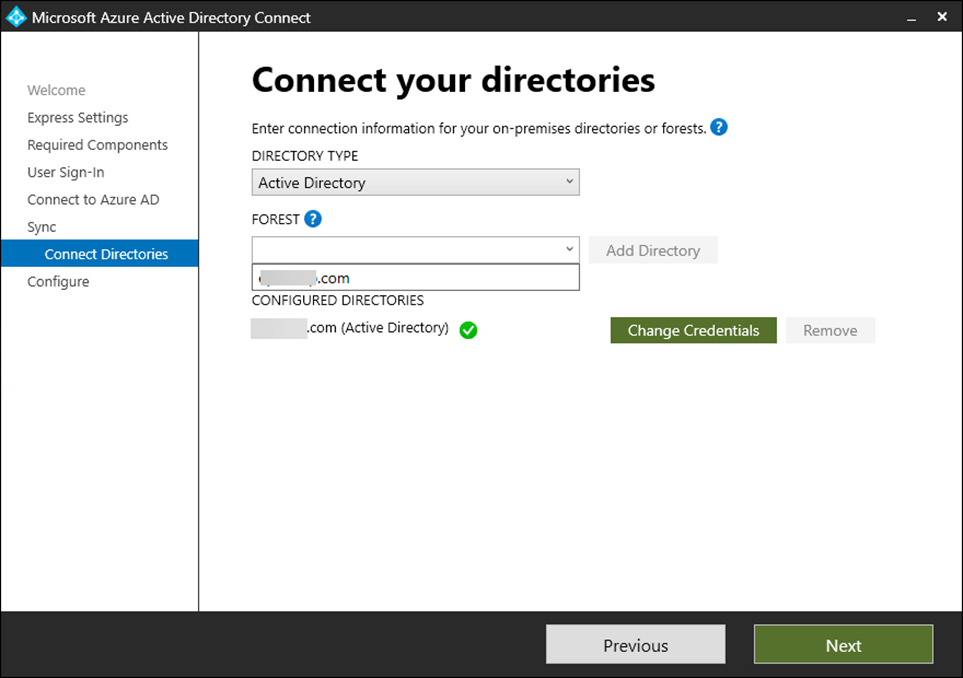

32. Select the domain forest from the FOREST drop-down list on the Connect Directories page and click Next.

100323 1702 HowtoMigrat27 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

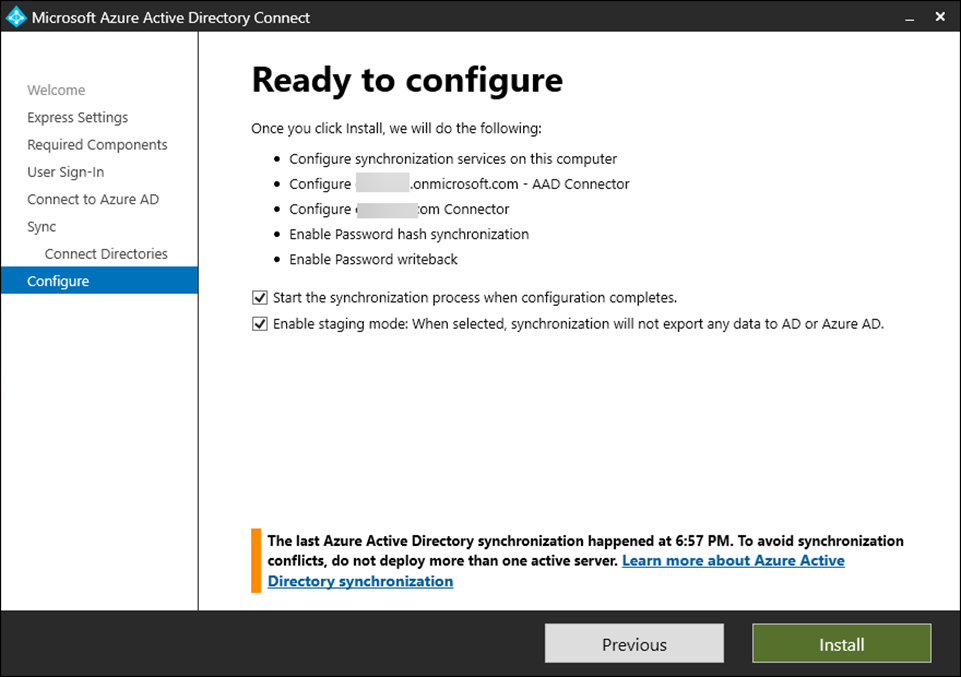

33. On the Configure page, select Start the synchronization process when the configuration completes.

34. Select Enable staging mode: When selected, synchronization will not export any data to AD or Azure AD, click Install.

100323 1702 HowtoMigrat28 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

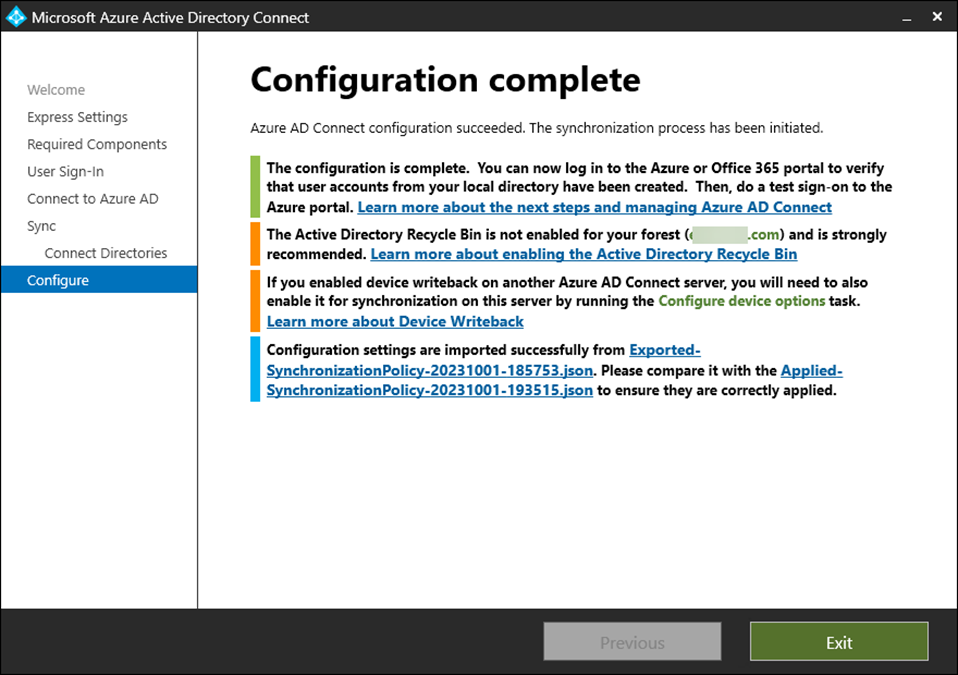

35. Click Exit on the Configuration complete page.

100323 1702 HowtoMigrat29 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

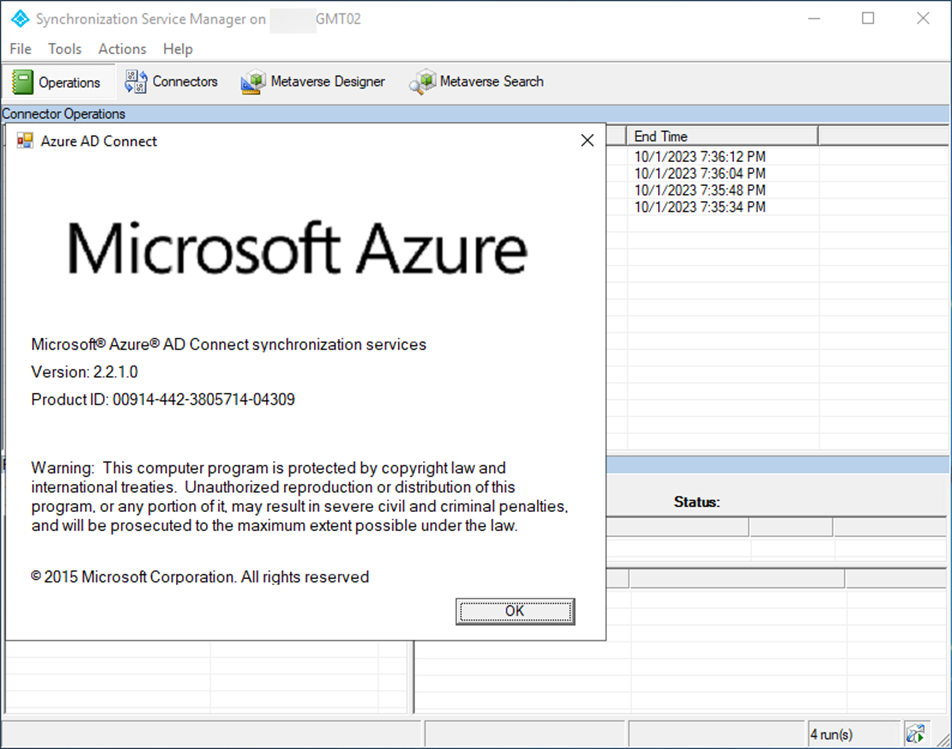

36. Open Synchronization Service and verify the Microsoft Entra Connect version.

100323 1702 HowtoMigrat30 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

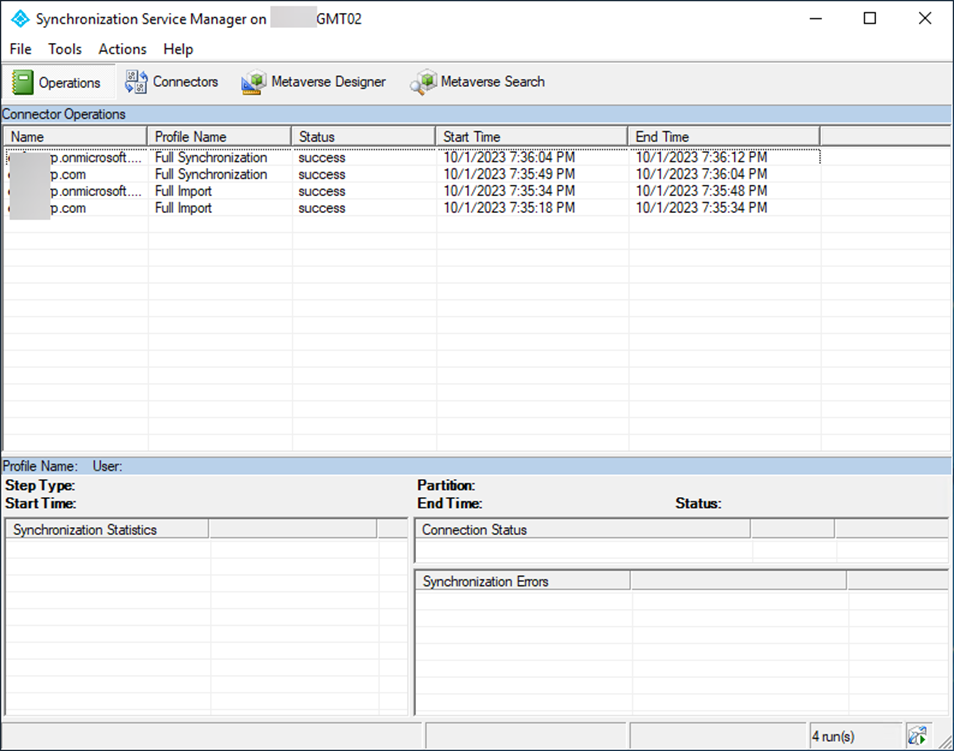

37. Ensure all synchronization status shows success.

100323 1702 HowtoMigrat31 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

38. Login to the old server.

39. Open Azure AD Connect and click Configure.

100323 1702 HowtoMigrat32 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

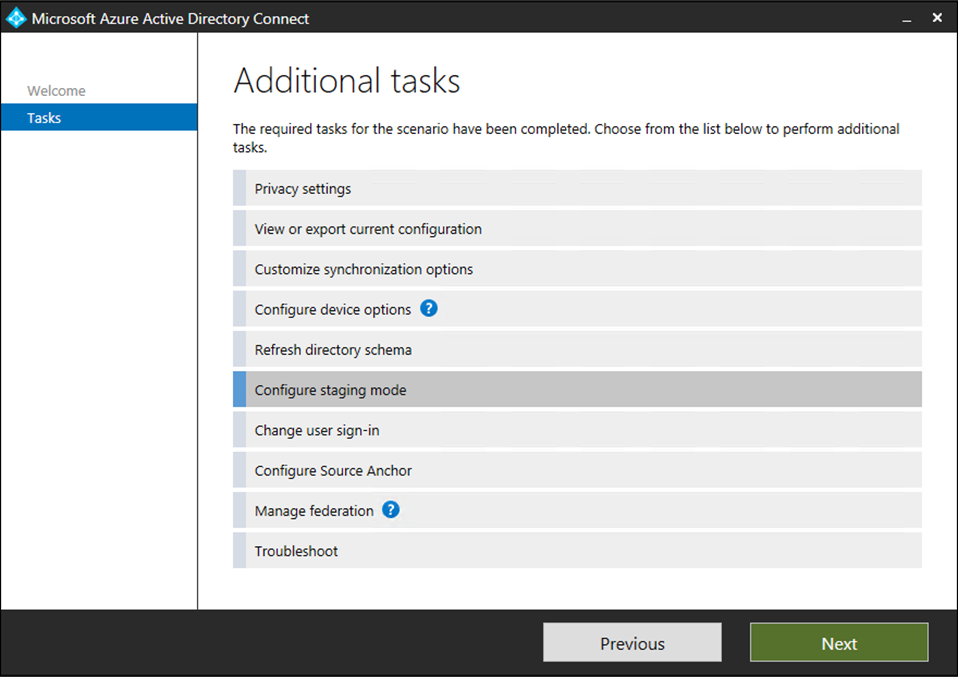

40. On the Tasks page, select Configure staging mode and click Next.

100323 1702 HowtoMigrat33 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

41. On the Connect to Azure AD page, enter the Azure global admin account and password, click Next.

100323 1702 HowtoMigrat34 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

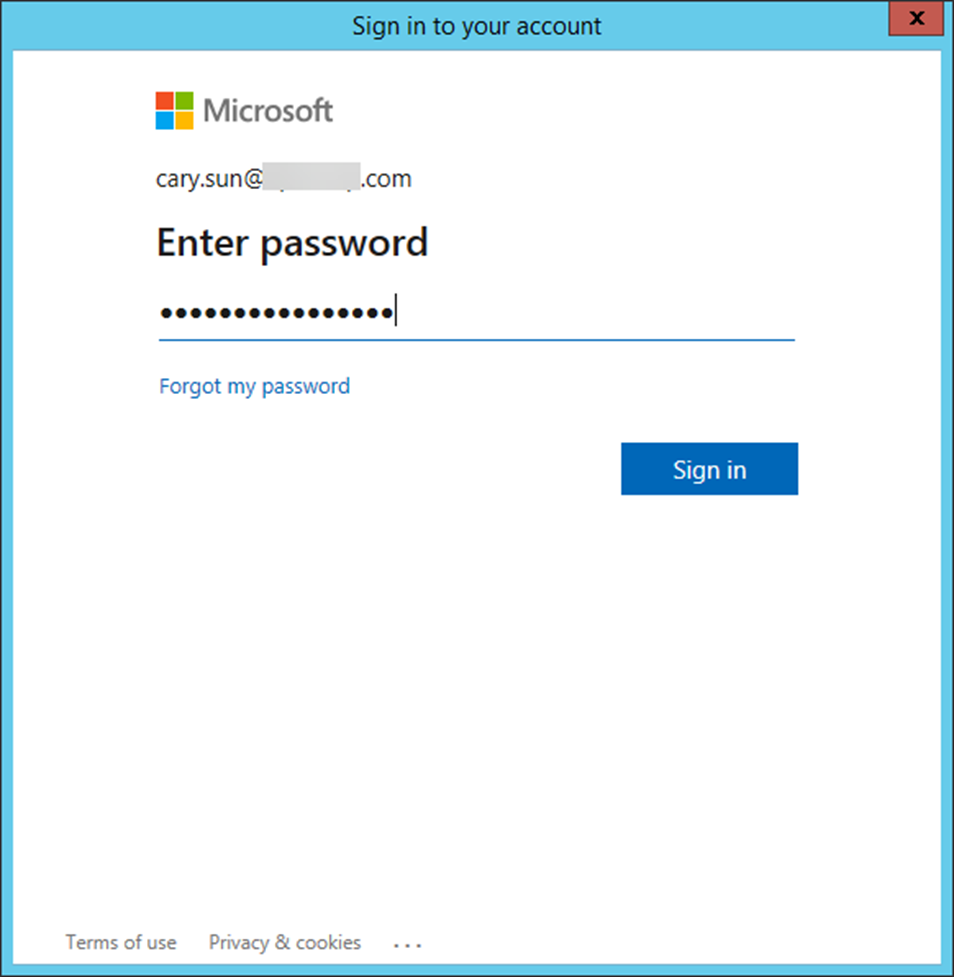

42. Enter password and click Sign in.

100323 1702 HowtoMigrat35 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

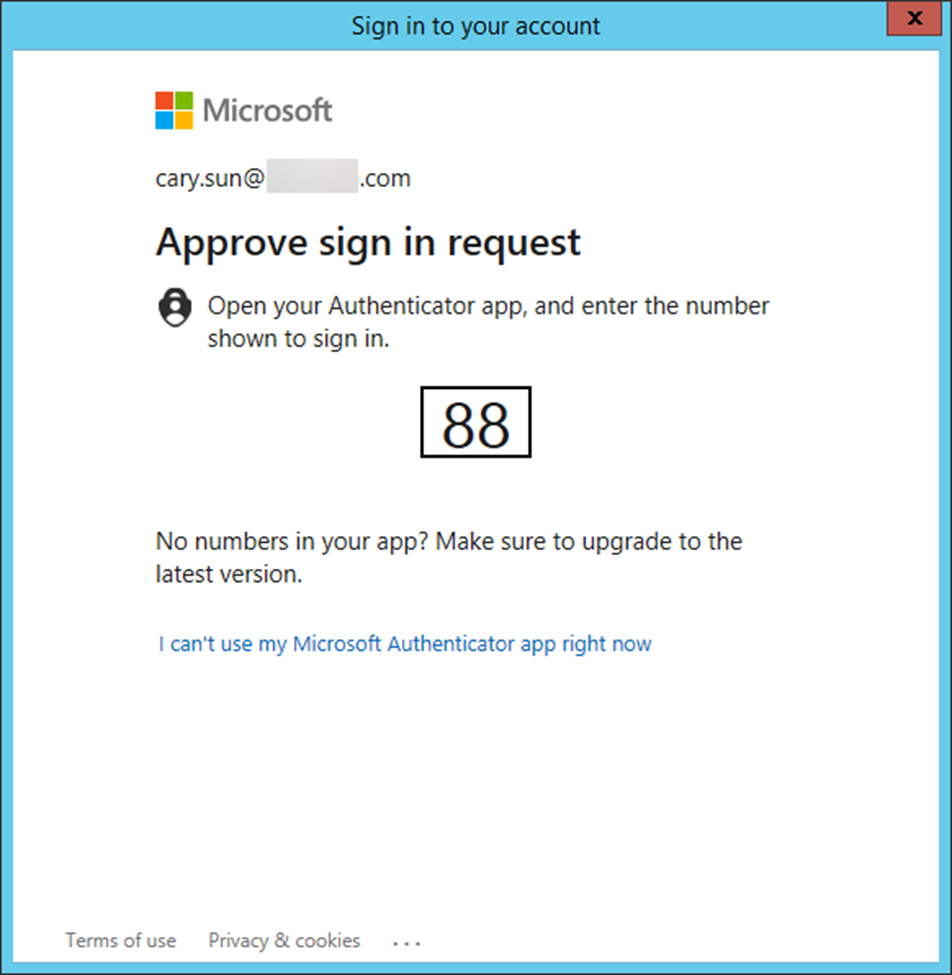

43. Open your authentication app and enter the number, click Yes.

100323 1702 HowtoMigrat36 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

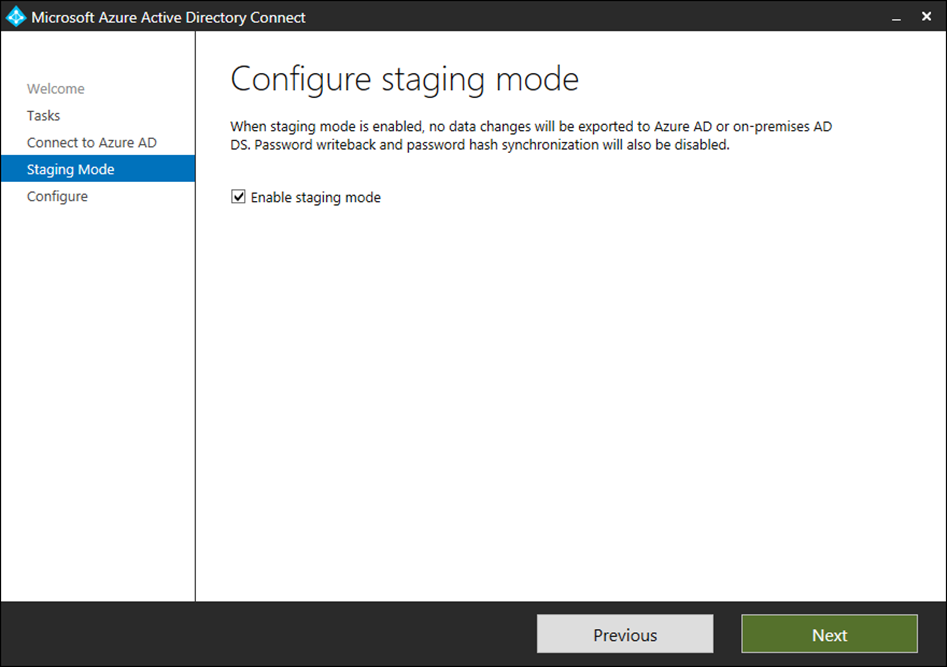

44. On the Configure staging mode page, select Enable staging mode and click Next.

100323 1702 HowtoMigrat37 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

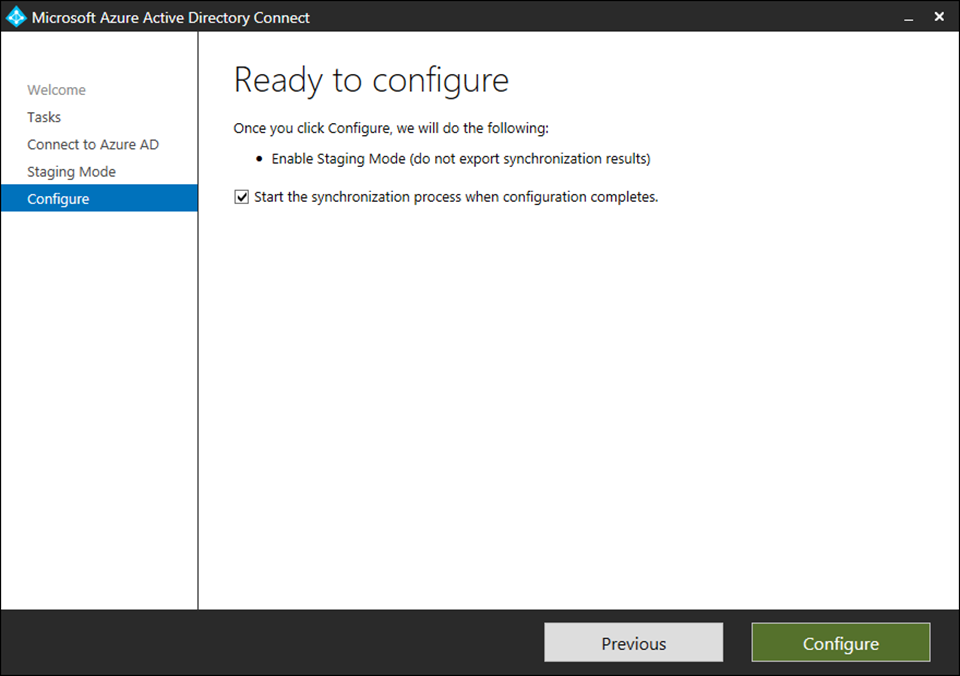

45. On the Ready to configure page, select Start the synchronization process when configuration completes and click Configure.

100323 1702 HowtoMigrat38 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

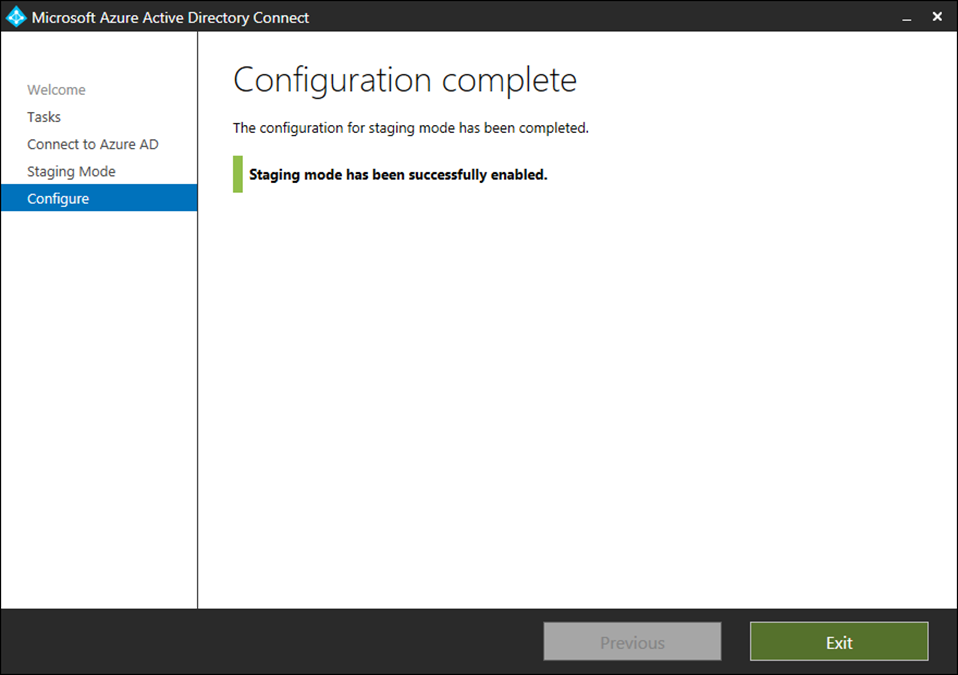

46. Click Exit on the Configuration complete page.

100323 1702 HowtoMigrat39 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

47. Login to the new server.

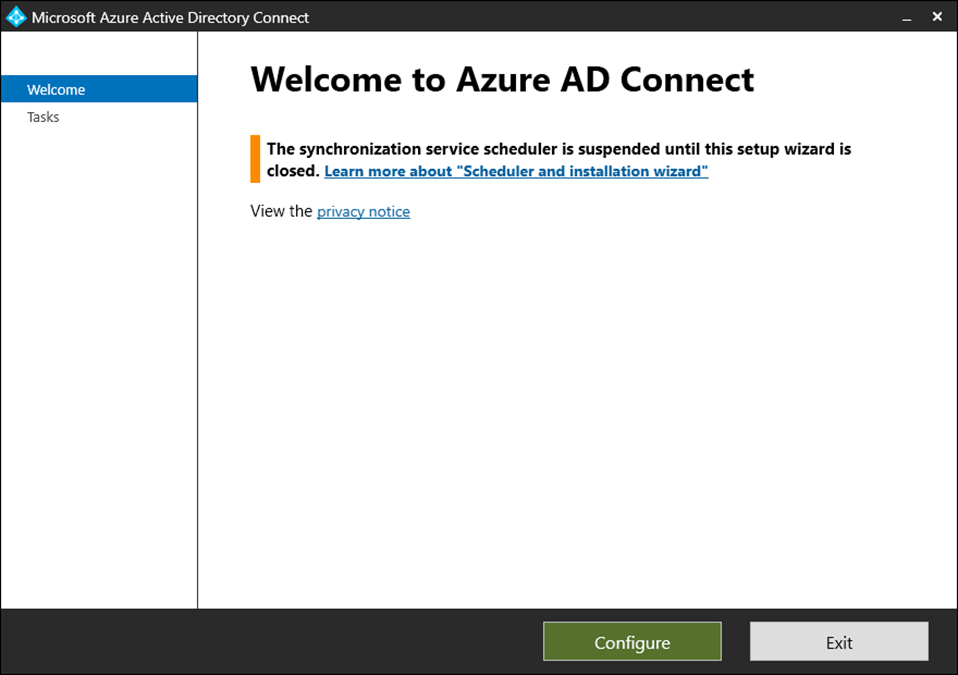

48. Open the Azure AD Connect and click Configure.

100323 1702 HowtoMigrat40 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

49. Select Configure staging mode on the Additional tasks page and click Next.

100323 1702 HowtoMigrat41 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

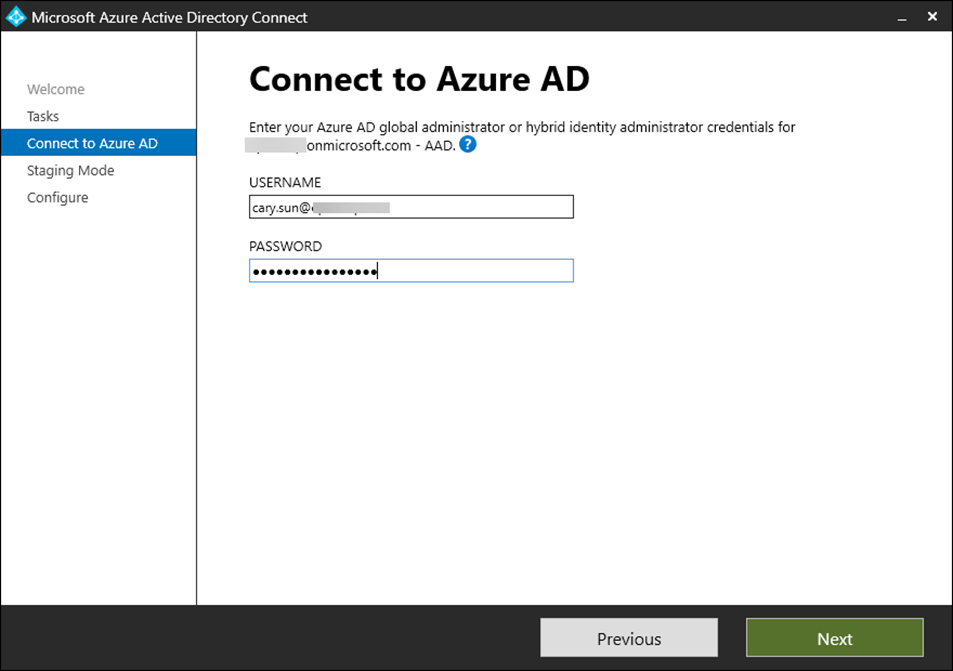

50. On the Connect to Azure AD page, enter the Azure AD global administrator or hybrid identity administrator credentials, click Next.

100323 1702 HowtoMigrat42 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

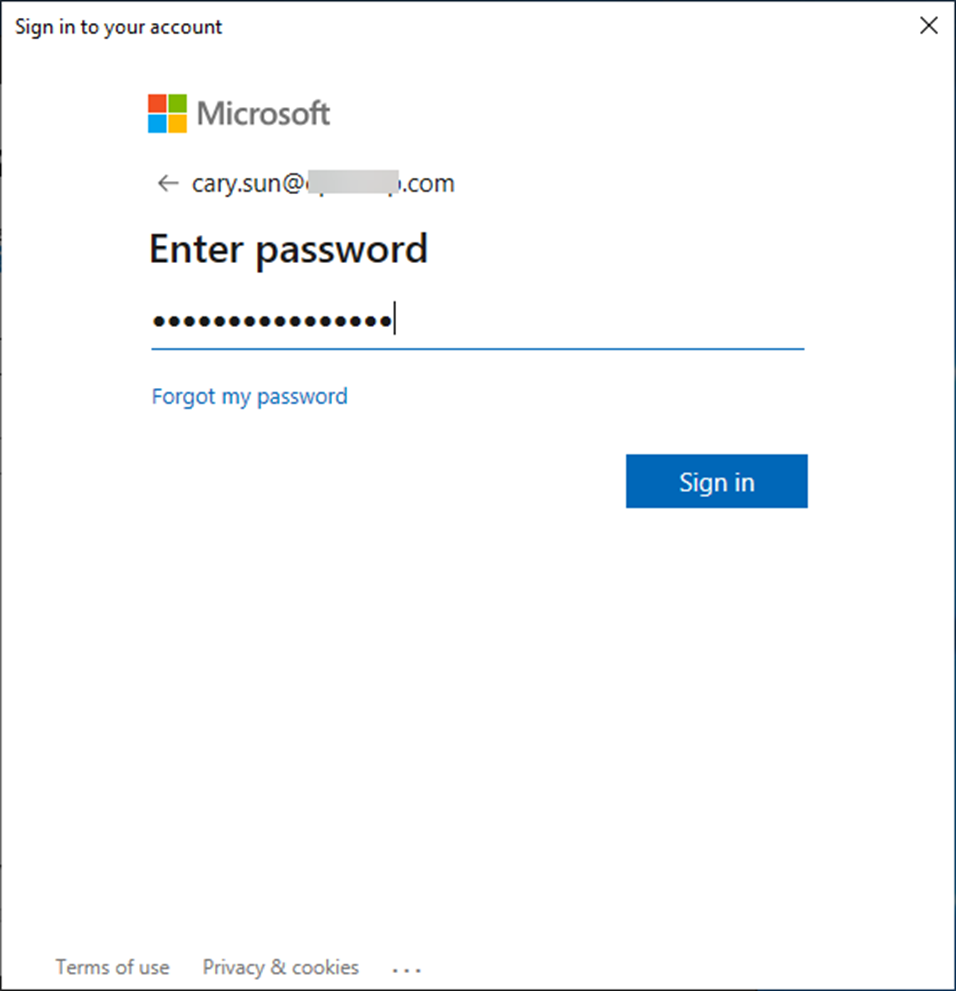

51. Enter password and click Sign in.

100323 1702 HowtoMigrat43 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

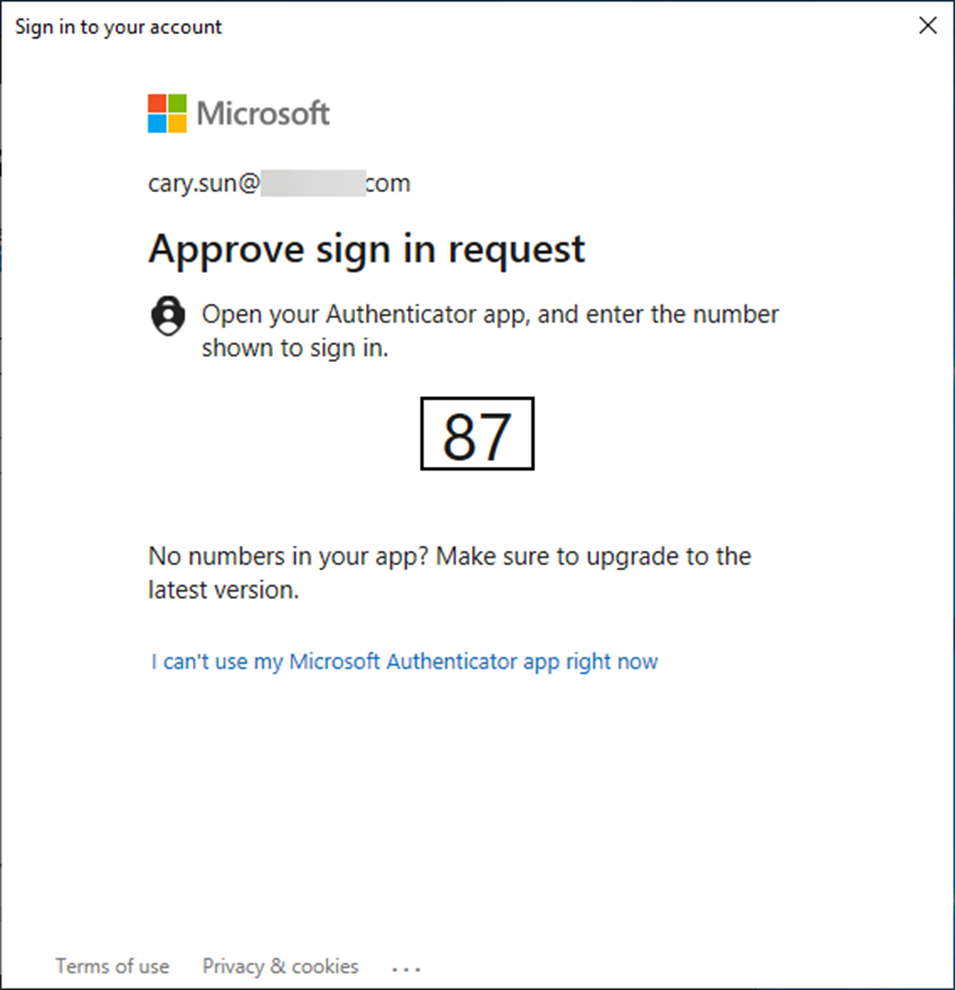

52. Enter the number at Authenticator app and click Yes.

100323 1702 HowtoMigrat44 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

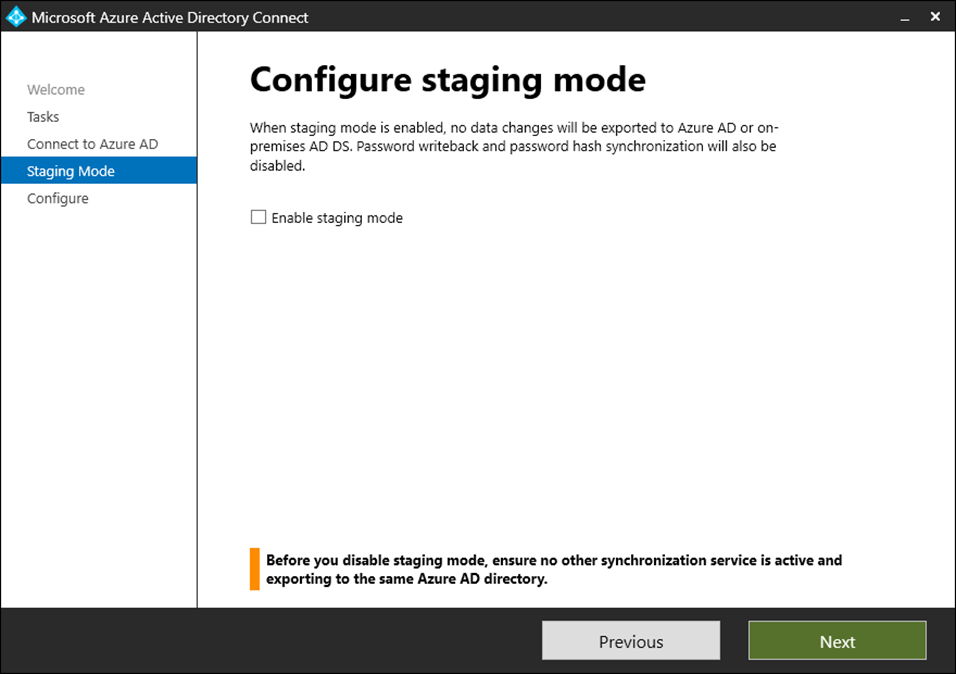

53. Unselect Enable staging mode on the Configure staging mode page and click Next.

100323 1702 HowtoMigrat45 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

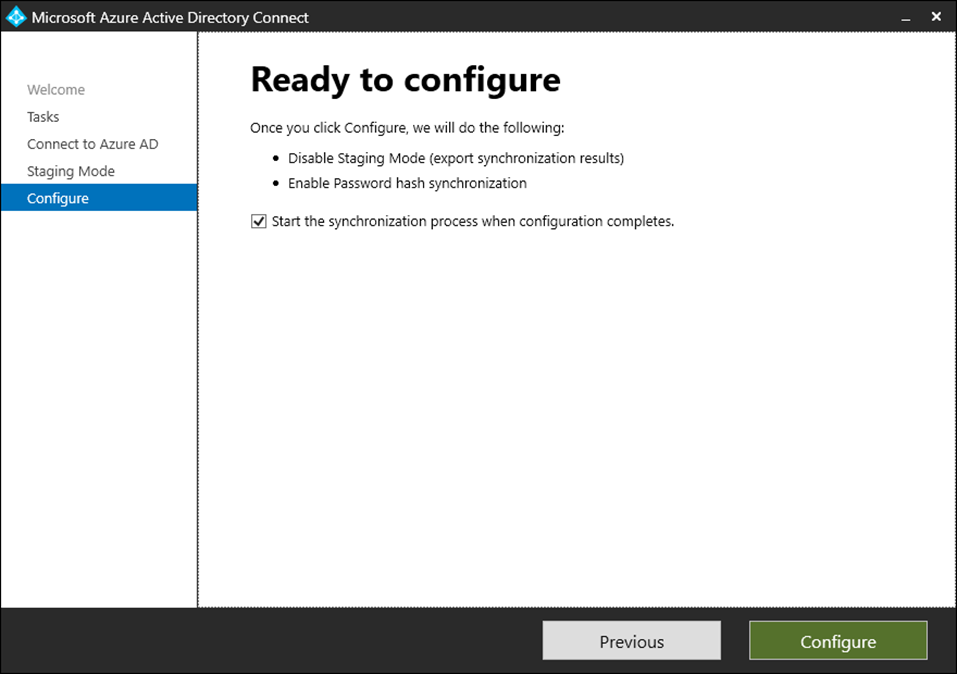

54. Select Start the synchronization process when configuration completes on the Ready to configure page and click Configure.

100323 1702 HowtoMigrat46 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

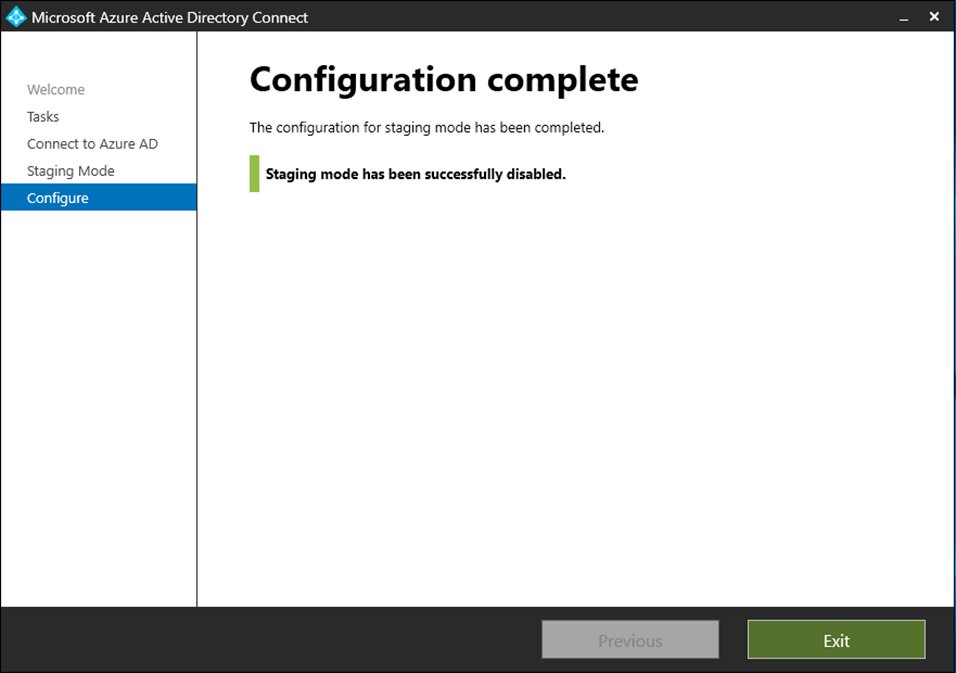

55. Click Exit on the Configuration complete page.

100323 1702 HowtoMigrat47 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

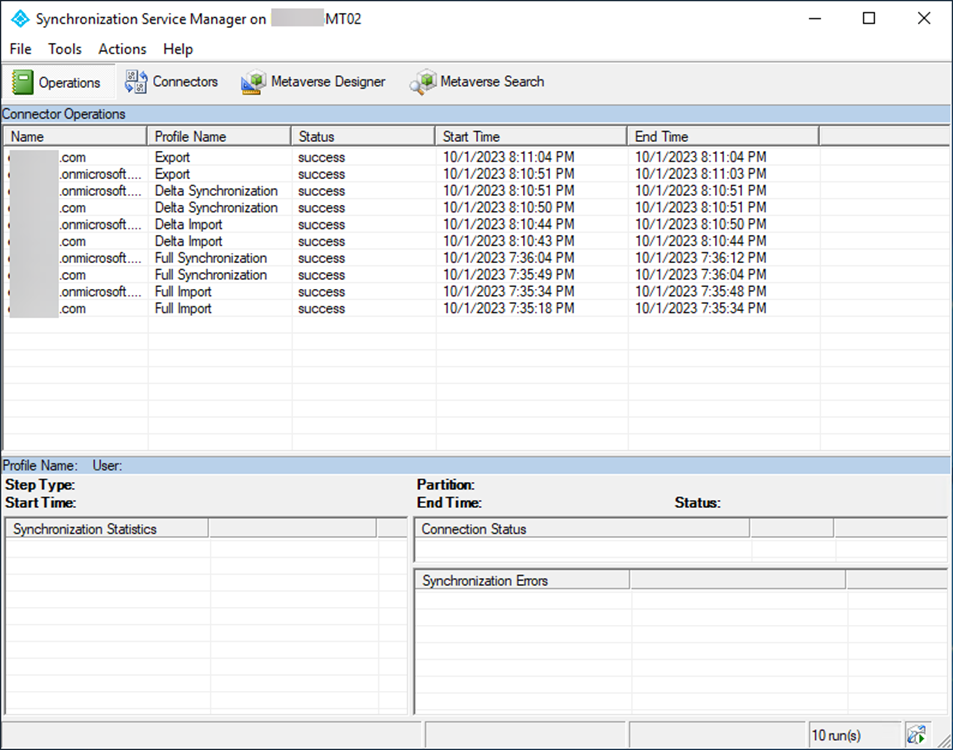

56. Open Synchronization Service Manager and ensure all status show success.

100323 1702 HowtoMigrat48 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

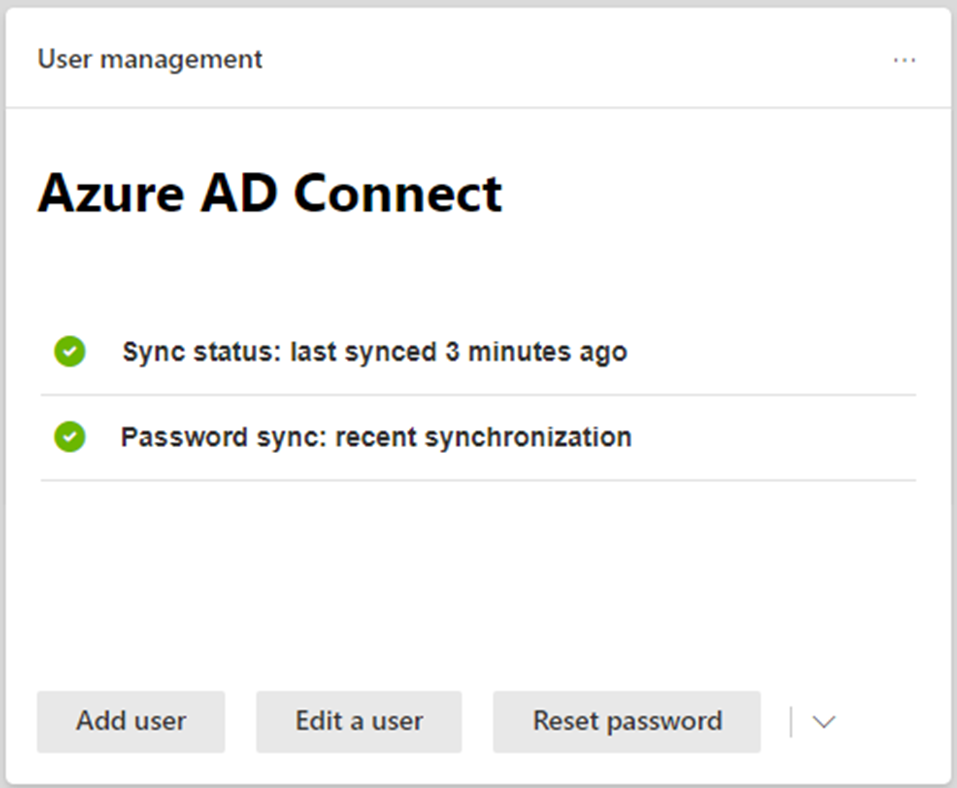

57. Sign into the Microsoft 365 admin center and ensure Azure AD Connect sync status are good.

100323 1702 HowtoMigrat49 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

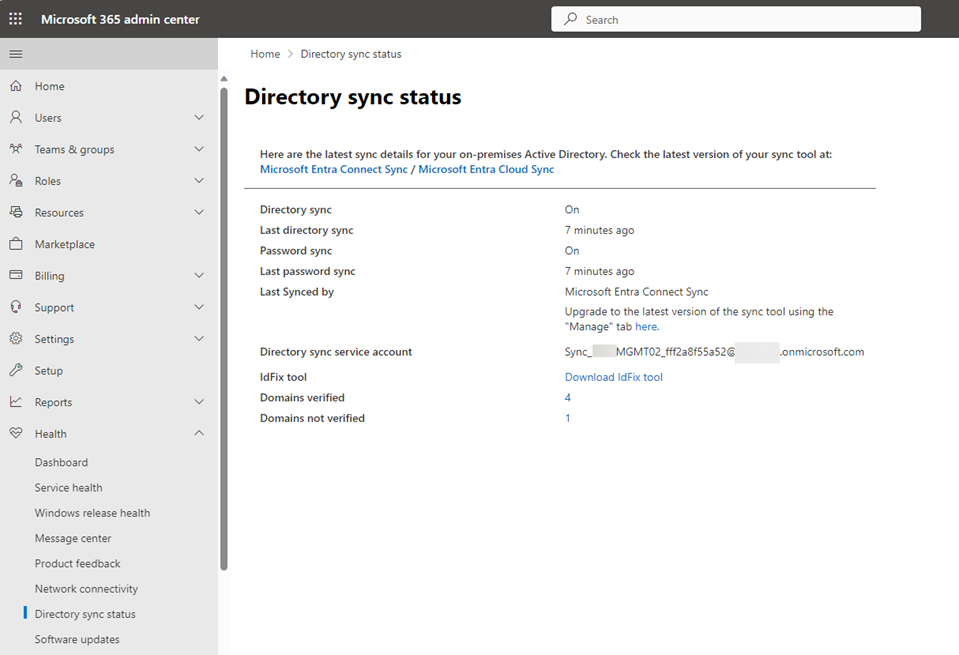

58. Verify Directory sync status.

100323 1702 HowtoMigrat50 - How to Migrate Microsoft Entra Connect (Azure AD Connect) to v2

59.Shut down the old server for a few days and then uninstall Azure AD Connect.
