December 13, 2024
Planned failover is the smooth manual switching from a primary VM to its replica with minor downtime. Planned failover is proper when you know primary VMs are planning to go offline, and you need to switch the workload from the original VMs to their replicas as soon as possible. For example, you can use planned failover to perform data center migration, maintenance, or software upgrades on primary VMs. You can also perform planned failover if you see signs of an impending disaster.

Planned failover is the smooth manual switching from a primary VM to its replica with minor downtime. Planned failover is proper when you know primary VMs are planning to go offline, and you need to switch the workload from the original VMs to their replicas as soon as possible. For example, you can use planned failover to perform data center migration, maintenance, or software upgrades on primary VMs. You can also perform planned failover if you see signs of an impending disaster.

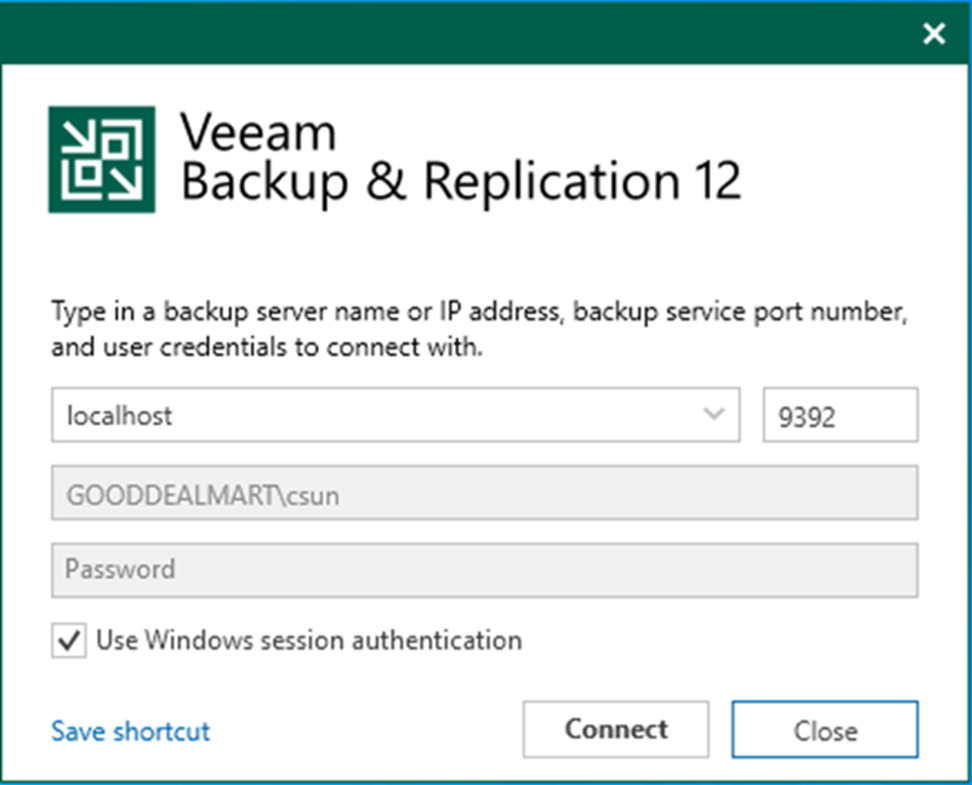

1. Login to the Veeam Backup and replication manager server.

2. Open the Veeam Backup & Replication Console and click Connect.

093023 1905 HowtoPlanFa1 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

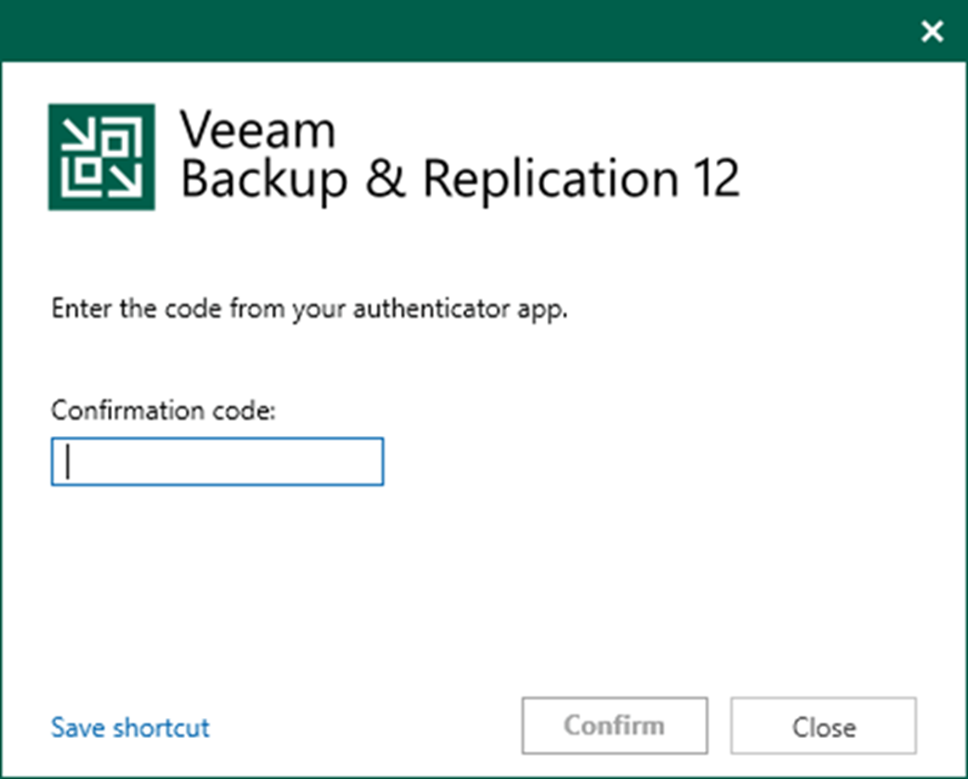

3. Enter the MFA Confirmation code and click Confirm.

093023 1905 HowtoPlanFa2 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

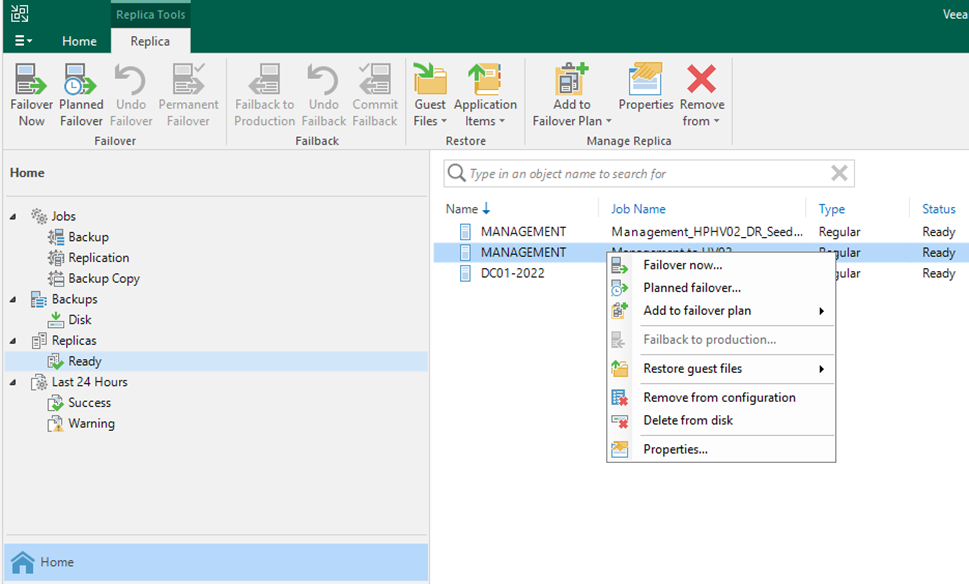

4. On the Home page, expand Replicas. Select Ready.

5. Right-click the virtual machine and select Planned failover.

093023 1905 HowtoPlanFa3 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

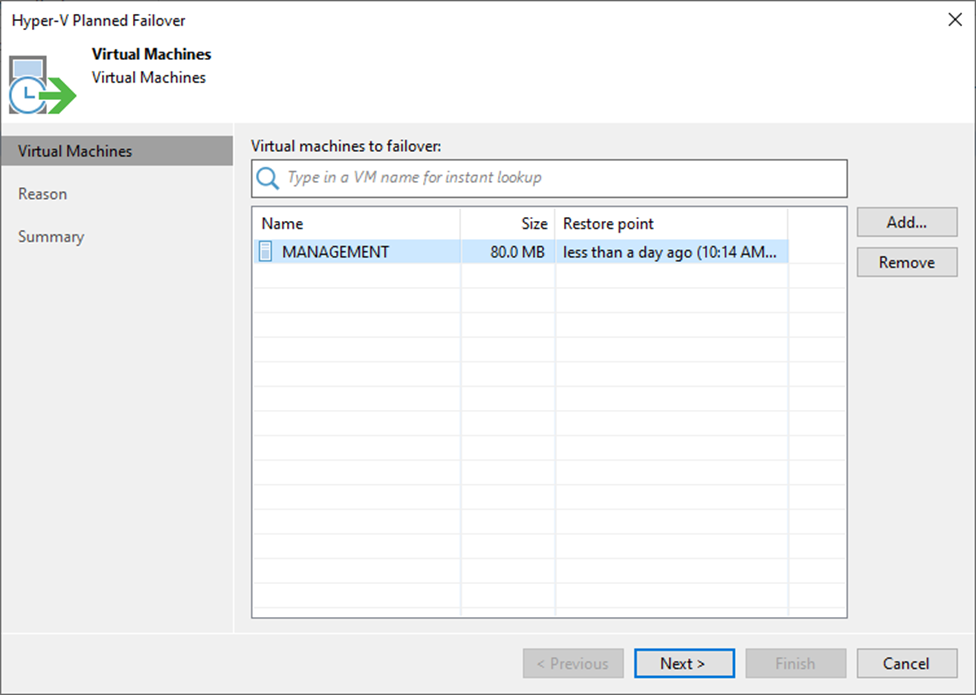

6. On the Virtual Machines page, click Next.

093023 1905 HowtoPlanFa4 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

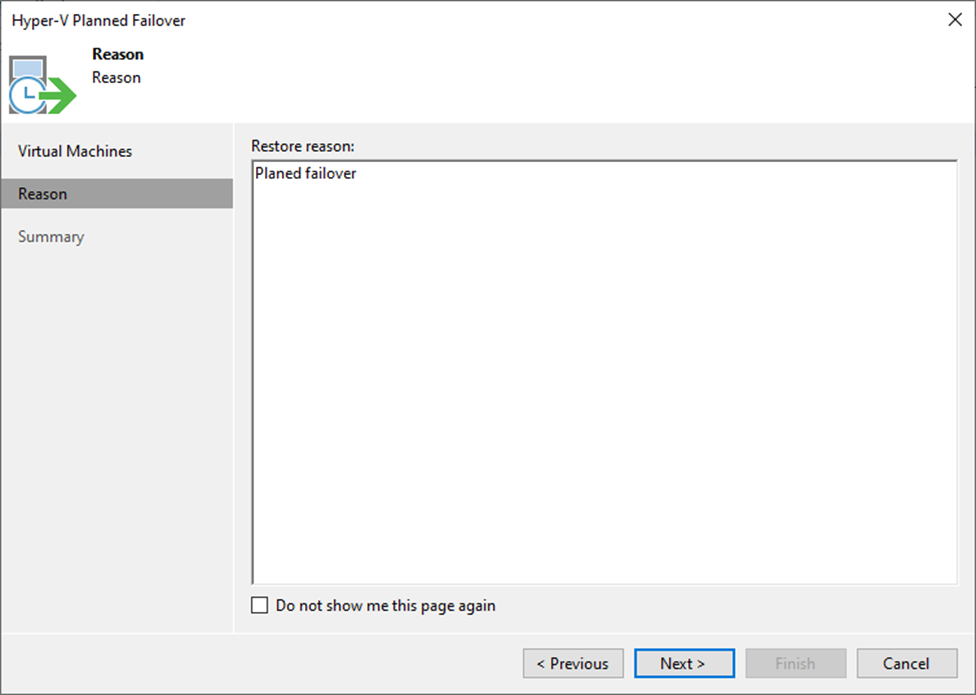

7. On the Reason page, the Restore reason, click Next.

093023 1905 HowtoPlanFa5 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

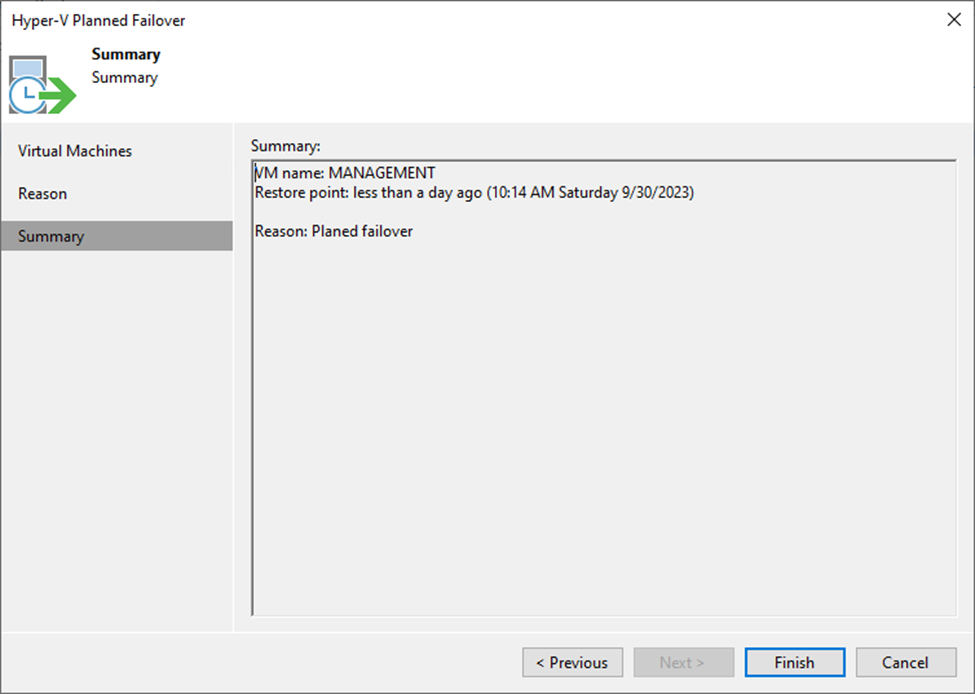

8. On the Summary page, click Finish.

093023 1905 HowtoPlanFa6 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

9. On the Restore Session page, select log.

10. It performs replication before power off the virtual machine.

11. It performs replication again after power off the virtual machine.

12. Ensure the processes the planned failover completed successfully and click Closed.

093023 1905 HowtoPlanFa7 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

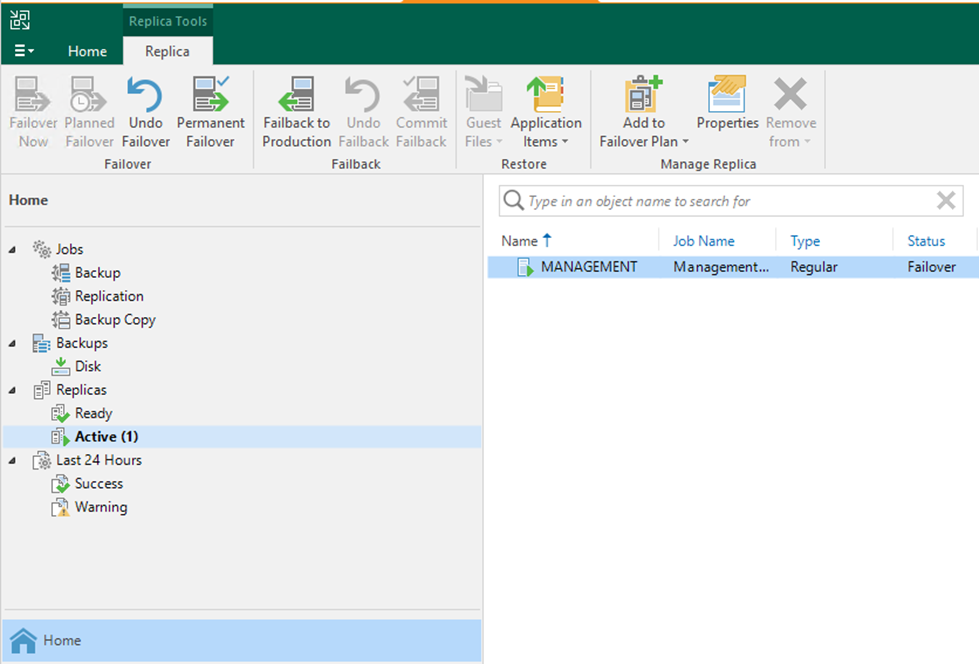

13. On the Home page, expend Replicas and select Active. The virtual machine status shows Failover.

093023 1905 HowtoPlanFa8 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12

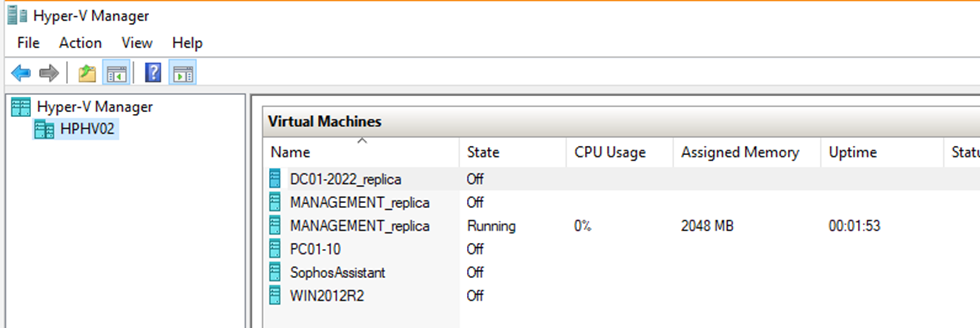

14. The Machine is failover and run on the DR Host (HV02) now.

093023 1905 HowtoPlanFa9 - How to Plan Failover virtual machine to Disaster Recover Site at Veeam Backup and Replication v12
