December 1, 2024
Failback is returning operations to the primary site after a disaster recovery event. It reverses the failover process by replicating any changes made to the virtual machine during the Failover state back to the primary site and then redirecting users and applications back to the primary site.

Failback is returning operations to the primary site after a disaster recovery event. It reverses the failover process by replicating any changes made to the virtual machine during the Failover state back to the primary site and then redirecting users and applications back to the primary site.

Veeam Backup & Replication provides the following failback options:

  • Failback to the original VM in the original location.
  • Failback to a VM already recovered to a new location. This VM must be retrieved before you perform failback.
  • Failback to a VM from a replica in a different location or to any site with different settings. During the failback process, the VM will be recovered from the replica.

Because Veeam Backup & Replication only needs to transfer differences between the original/recovered VM and VM replica, the Failback to the original VM in the original location option helps reduce recovery time and network traffic.

1. Login to the Veeam Backup and replication manager server.

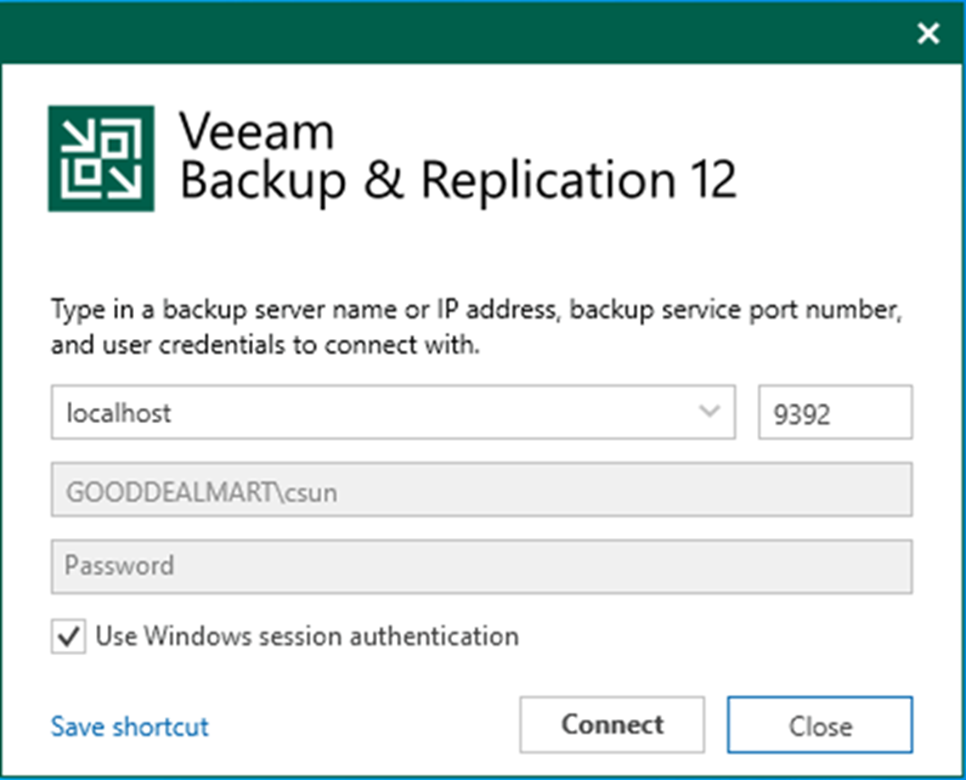

2. Open the Veeam Backup & Replication 12 Console and click Connect.

093023 2106 Howtofailba1 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

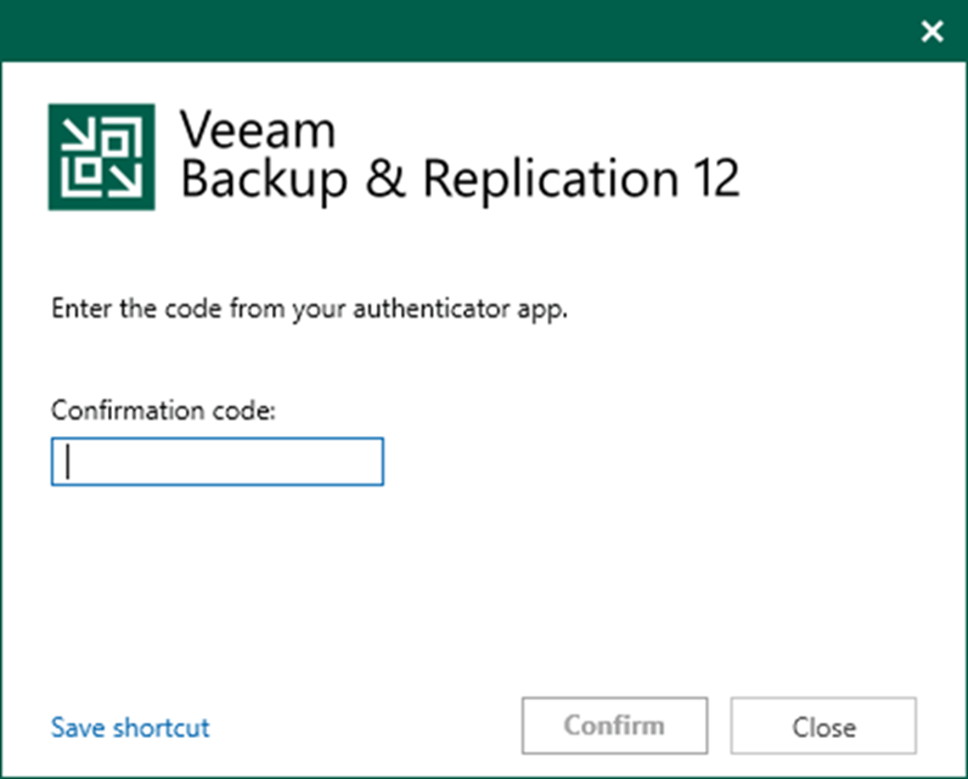

3. Enter the MFA Confirmation code and click Confirm.

093023 2106 Howtofailba2 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

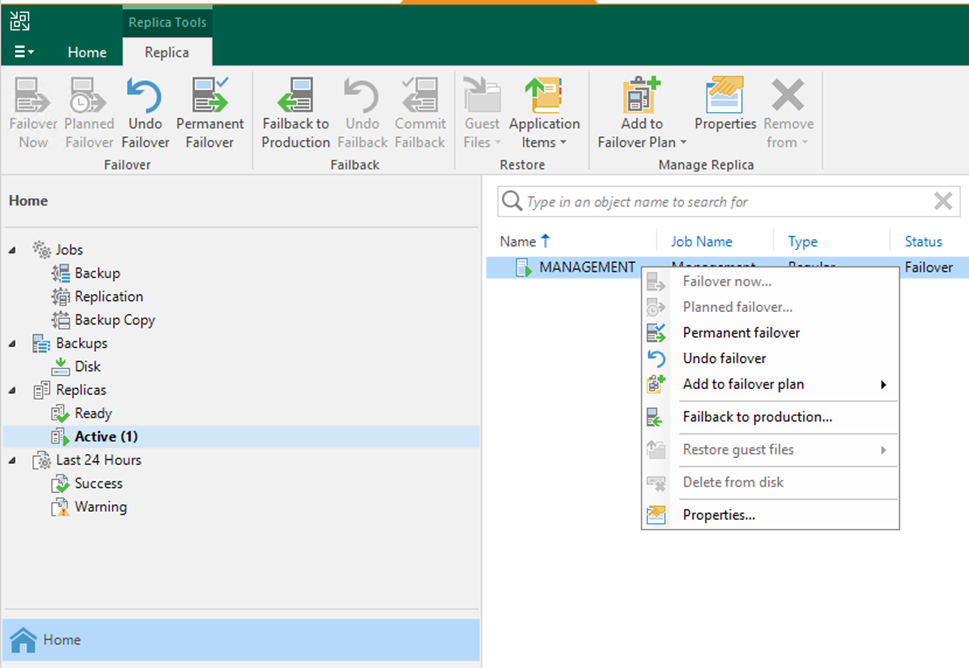

4. On the Home page, expand Replicas. Select Active.

5. Right-click the virtual machine and select Failback to production.

093023 2106 Howtofailba3 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

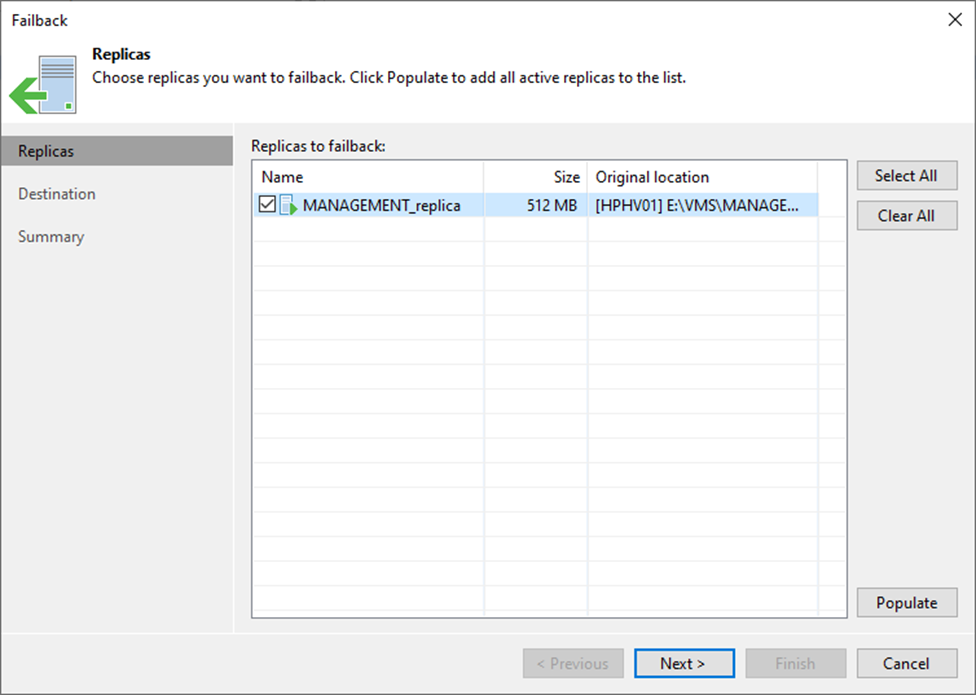

6. Click Populate on the Virtual Machine page to update the replicas ready for the failback list.

7. Select the replicas and click Next.

093023 2106 Howtofailba4 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

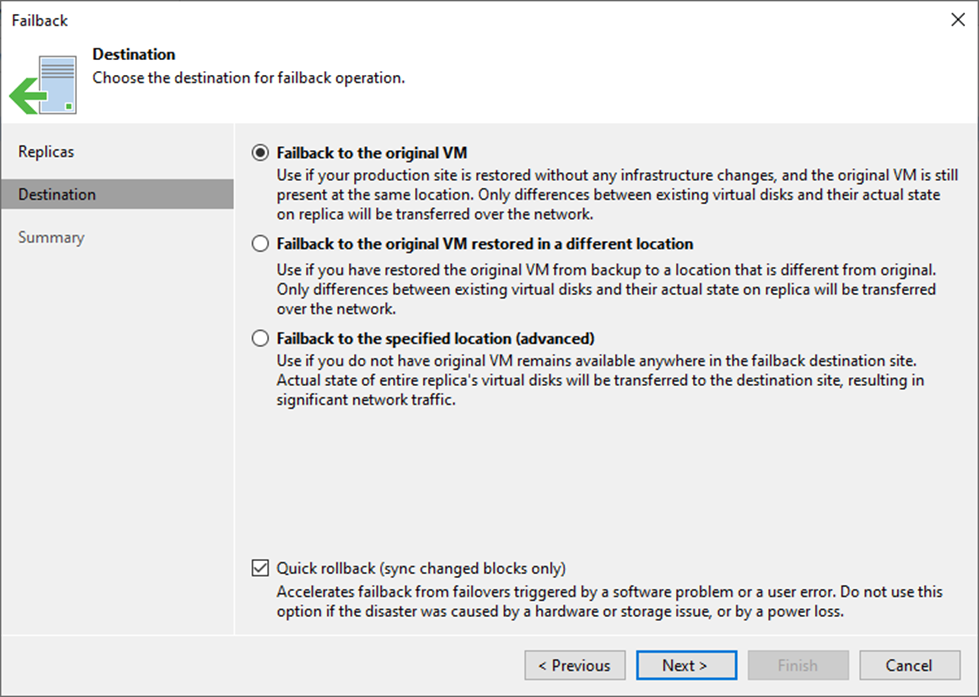

8. On the Destination page, select Failback to the original VM.

9. Select Quick rollback (sync changed blocks only) If you want to fasten failback, and the original VMs had problems at the guest OS level.

10. Click Next.

093023 2106 Howtofailba5 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

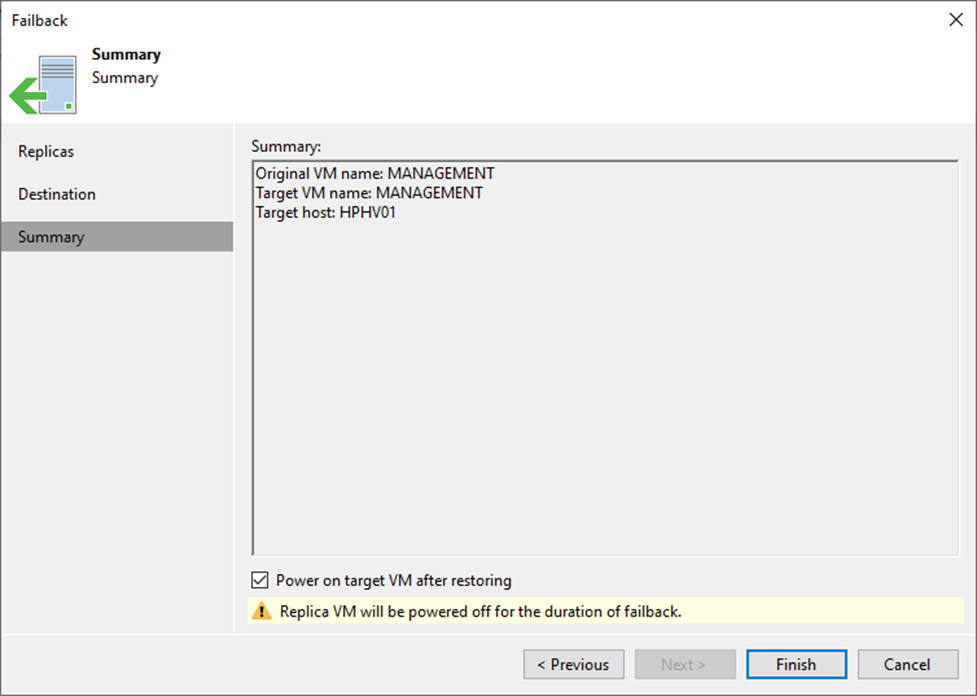

11. Select Power on the target VM after restoring and click Finish on the Summary page.

093023 2106 Howtofailba6 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

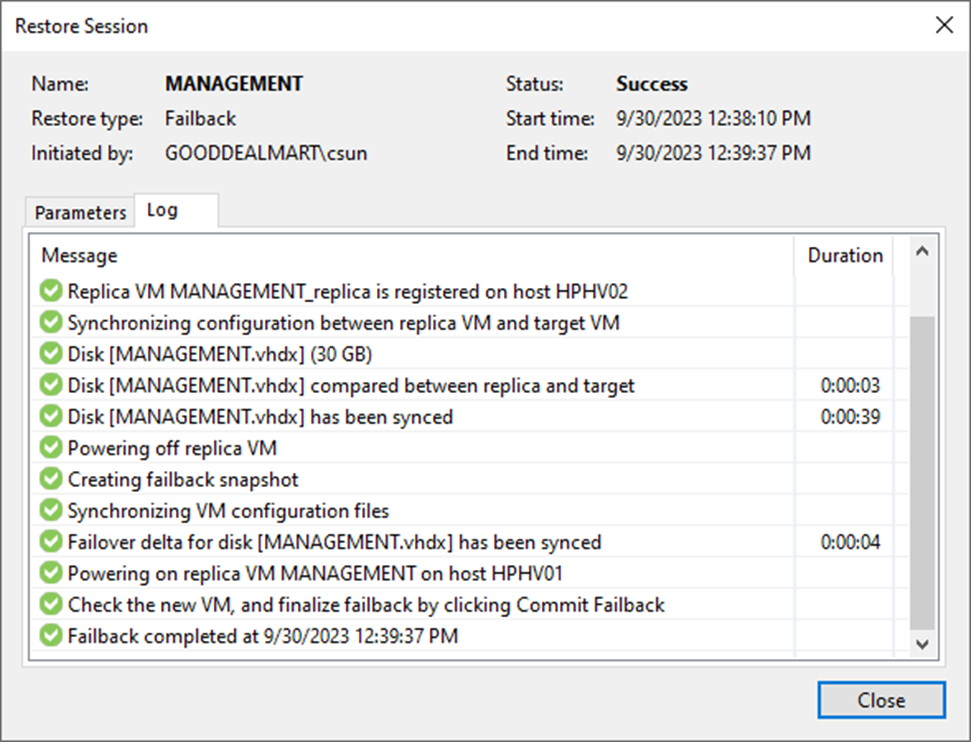

12. On the Restore Session page, select Log.

13. Ensure the failback is completed successfully and click Closed.

093023 2106 Howtofailba7 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

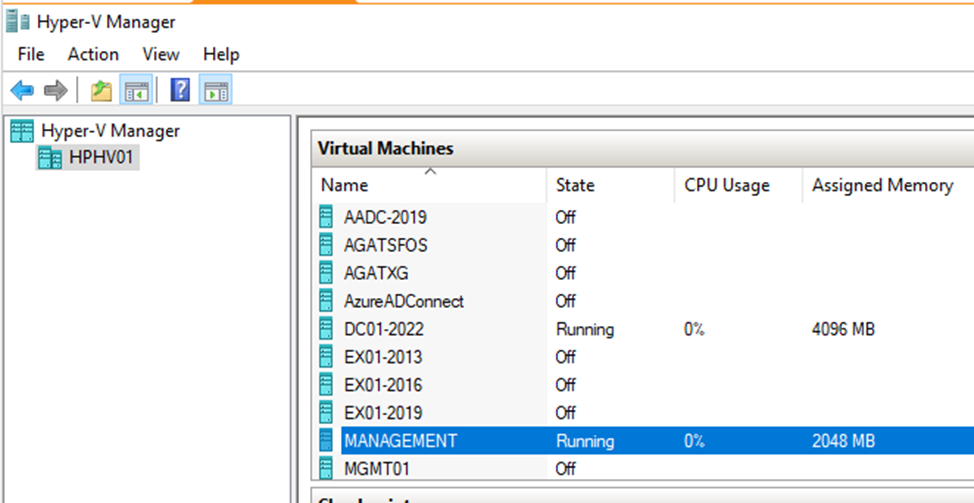

14. The virtual machine is running on the production site host. Ensure the virtual machine functions are working properly.

093023 2106 Howtofailba8 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

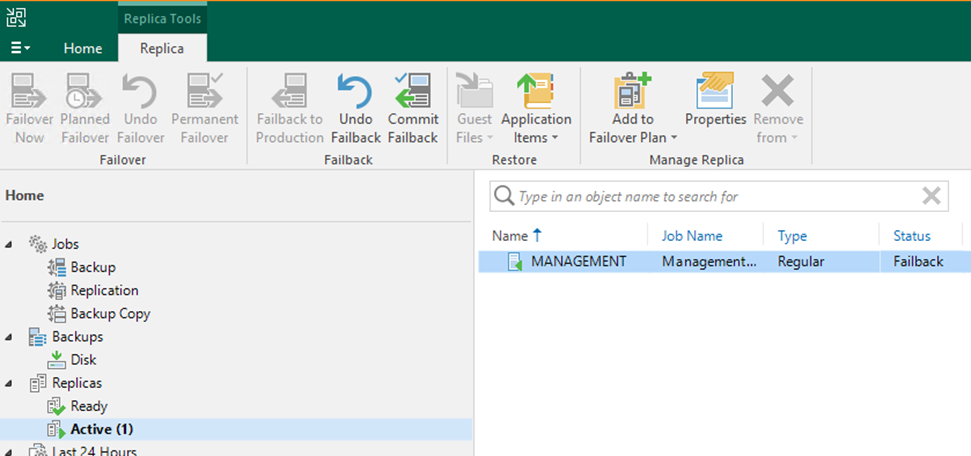

15. On the Home page, expend Replicas and select Active.

16. The VM status changed from Failover to Failback.

093023 2106 Howtofailba9 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

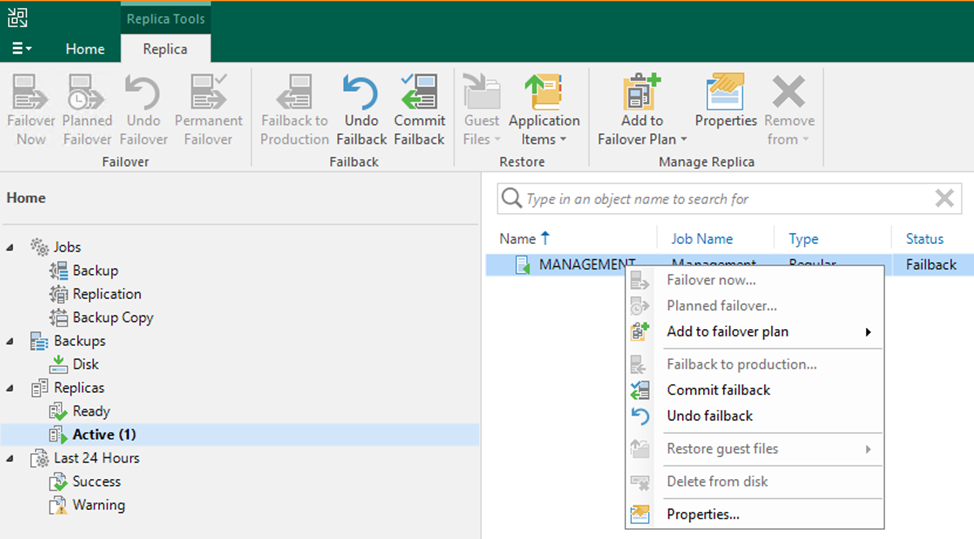

17. Right-click the VM and select Commit failback.

093023 2106 Howtofailba10 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

Note:

Select Undo failback if the virtual machine is not working properly.

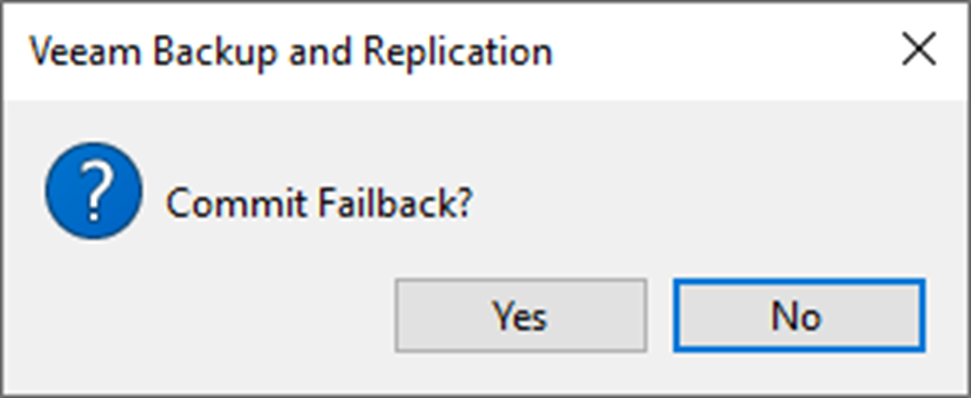

18. Click Yes in the Commit Failback display windows.

093023 2106 Howtofailba11 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

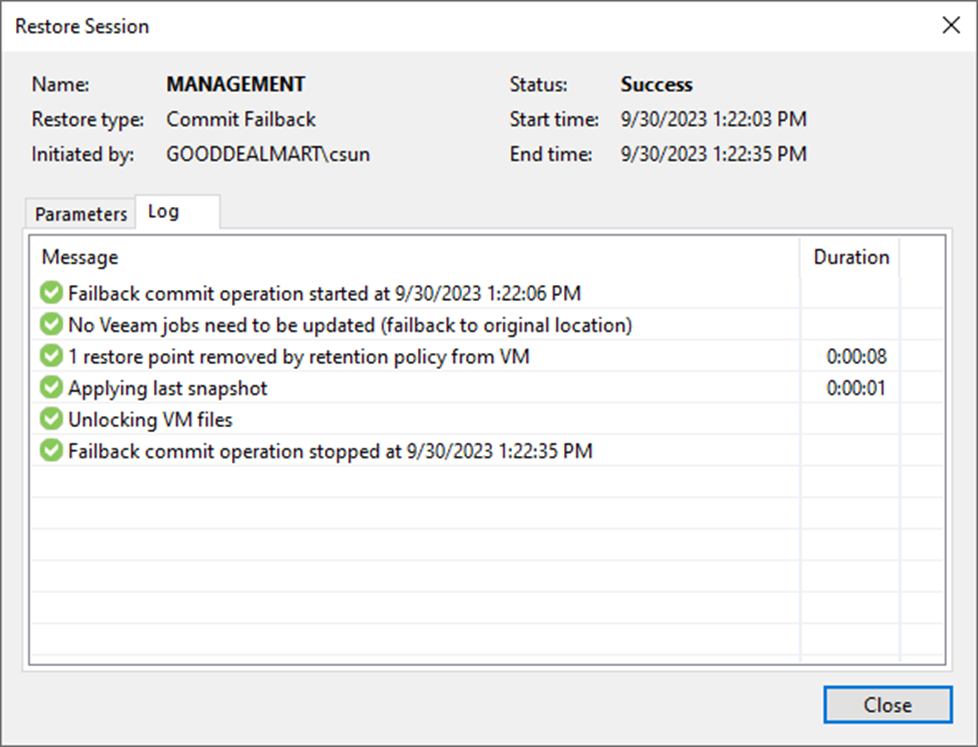

19. On the Restore Session page, select log, make sure the Commit failback is completed successfully, click Closed.

093023 2106 Howtofailba12 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12

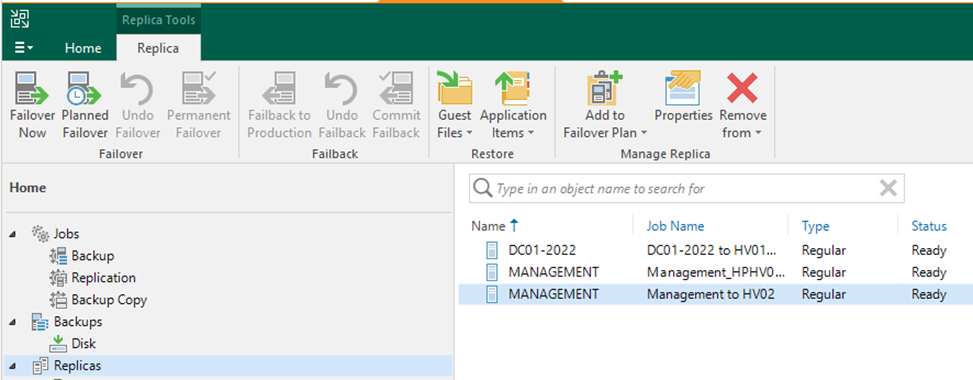

20. On the Home page, expend Replicas and the virtual machine back to regular type and Ready status.

093023 2106 Howtofailba13 - How to failback to the original virtual machine of the Production Site at Veeam Backup and Replication v12
