December 3, 2024
If the original VM fails, you can use Veeam Backup & Replication to restore an entire VM from a backup file to the most recent state or a previous point.

If the original VM fails, you can use Veeam Backup & Replication to restore an entire VM from a backup file to the most recent state or a previous point.

Before the entire VM restore can occur, the VM image must be fully extracted to the production storage. Veeam Backup & Replication copies the VM data from the backup repository to the chosen storage, registers the VM on the desired Hyper-V host, and, if necessary, powers it on.

Veeam Backup & Replication supports secure restore, which involves scanning machine data with antivirus software before restoring the computer to the production environment.

1. Login to the Veeam Backup and replication manager server.

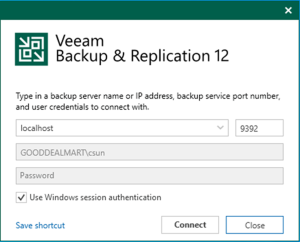

2. Open the Veeam Backup & Replication 12 Console and click Connect.

Picture1 300x242 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

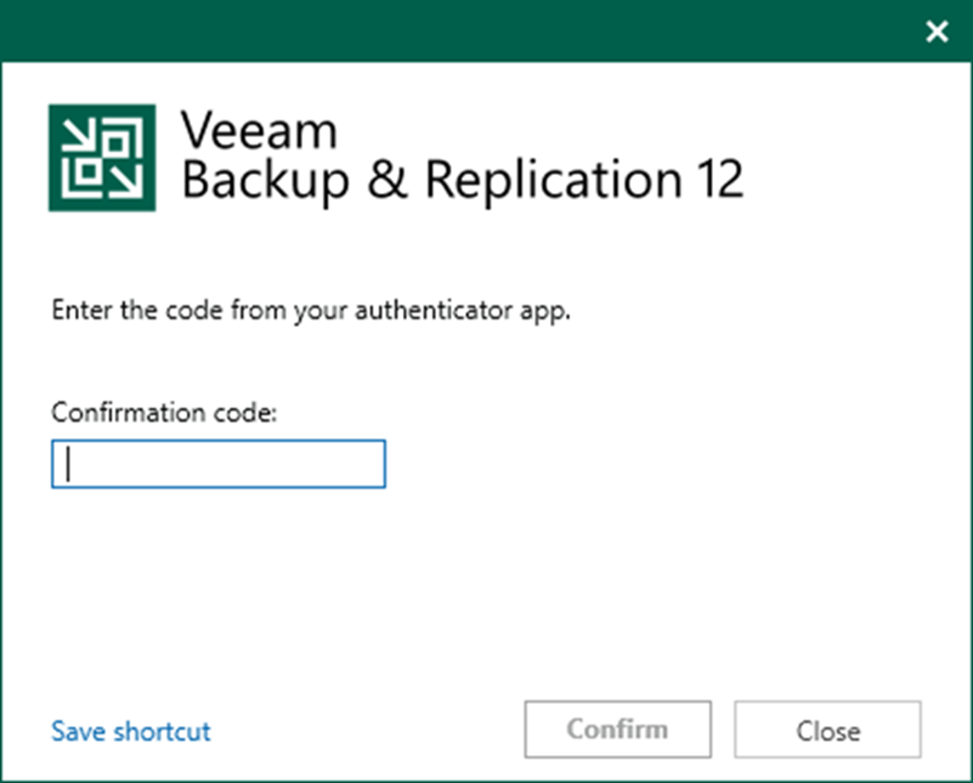

3. Enter the MFA Confirmation code and click Confirm.

100923 0315 Howtorestor2 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

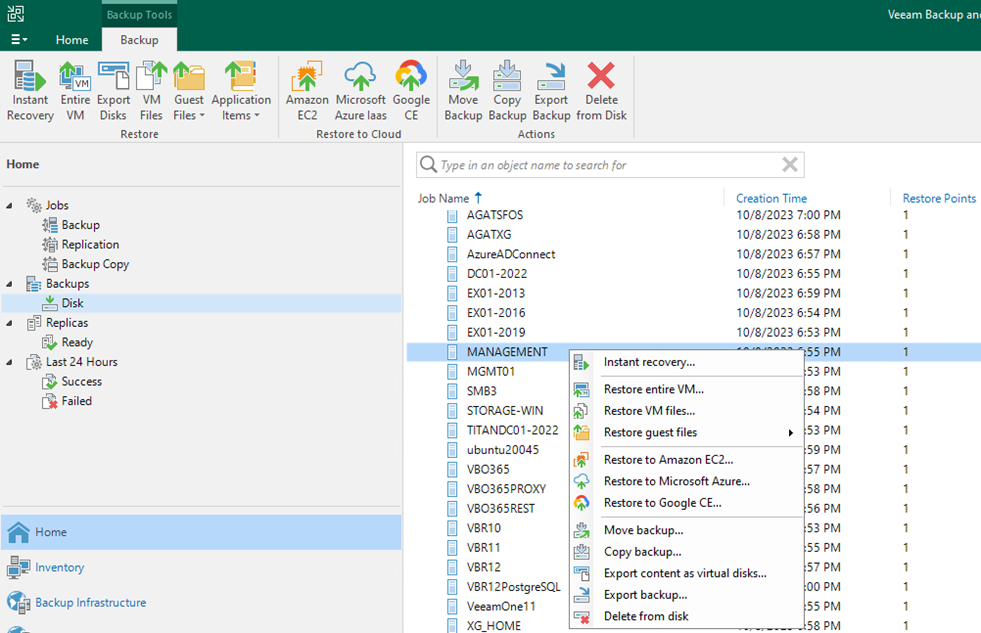

4. On the Home page, expand Backups. Select the Disk.

5. Expand the backup job name, right-click the virtual machine, and select Restore the entire VM.

100923 0315 Howtorestor3 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

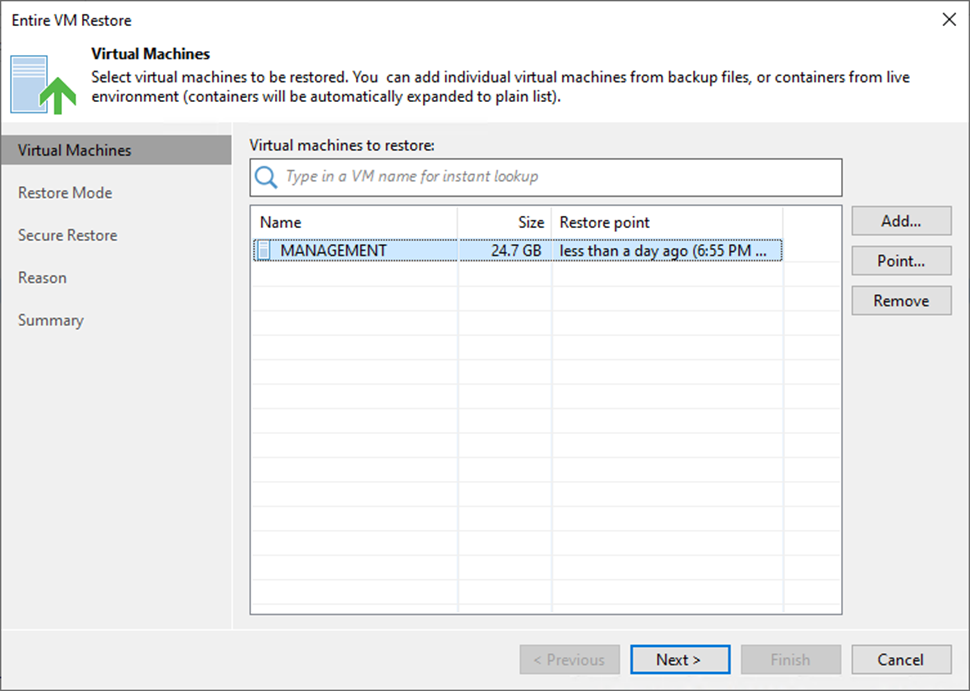

6. Select the virtual machine and click Point on the Virtual Machine page.

100923 0315 Howtorestor4 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

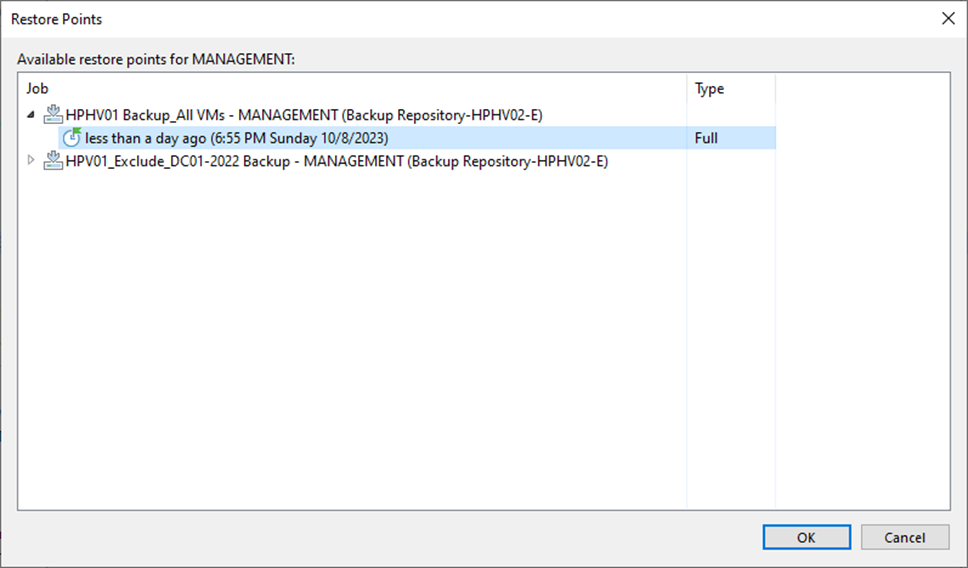

7. Expand the backup job on the Restore Point page, select the restore point, and click OK.

100923 0315 Howtorestor5 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

8. On the Virtual Machines page, click Next.

100923 0315 Howtorestor6 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

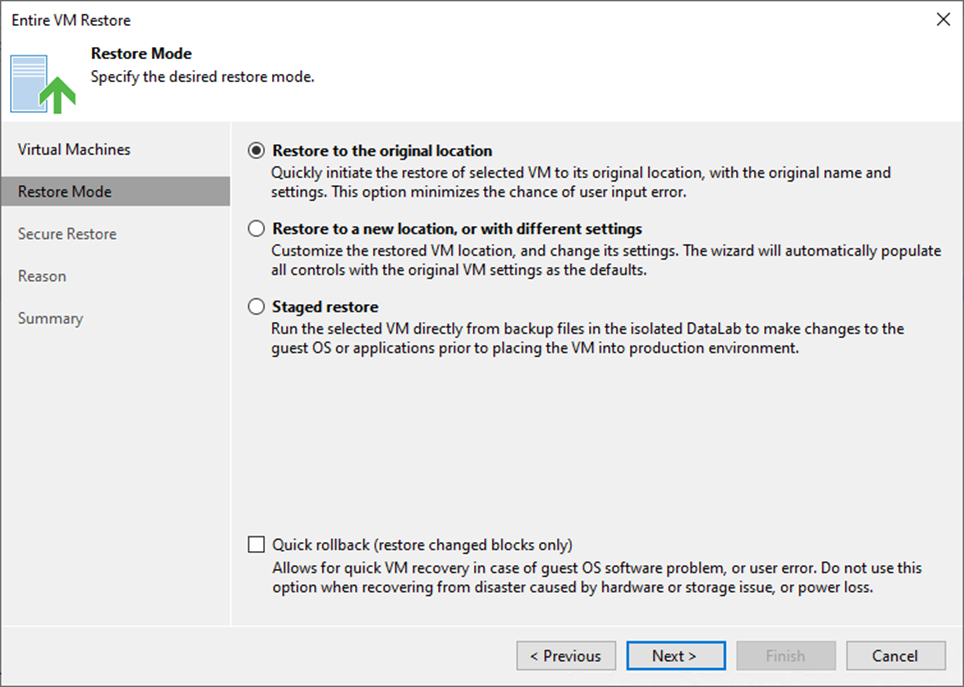

9. On the Restore Mode page, select Restore to the original location.

10. Select the Quick rollback (restore changed blocks only) checkbox If you restore a VM following a problem that occurred at the VM guest OS level.

11. Click Next.

100923 0315 Howtorestor7 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

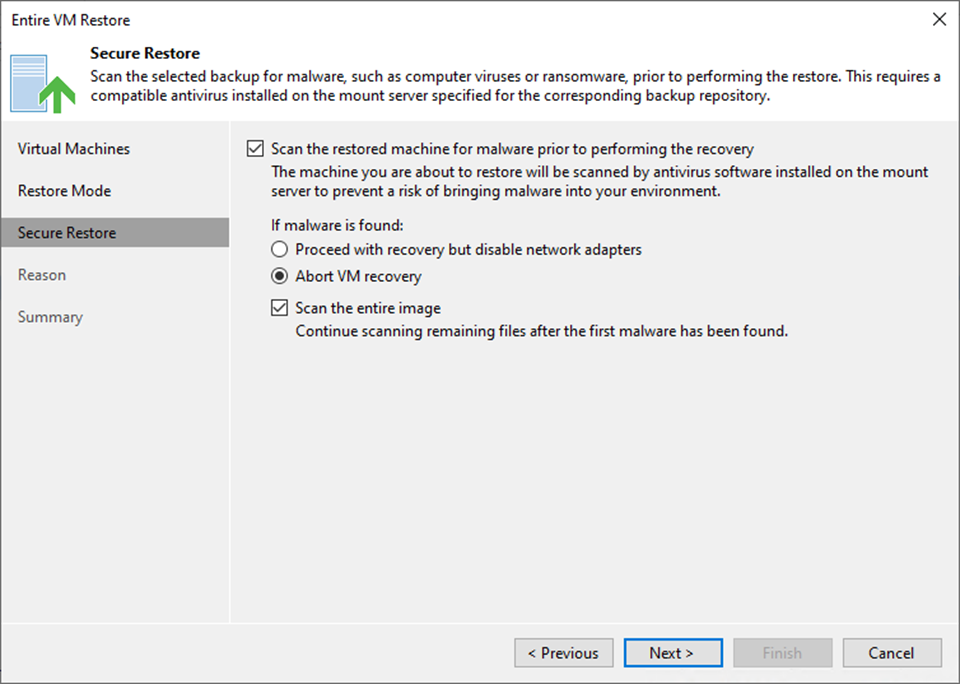

12. Select the Scan the restored machine for malware before performing the recovery checkbox.

13. Select Abort VM recovery if malware is found.

14. Select Scan the entire image checkbox.

15. Click Next.

100923 0315 Howtorestor8 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

Note:

  • Support Microsoft Windows only.
  • The antivirus software must be installed on the mount server and support the command line interface (CLI).
  • The antivirus configuration file must be configured on the mount server.
  • Veeam Backup & Replication does not perform malware scans for disks or volumes that cannot be mounted to the mount server.

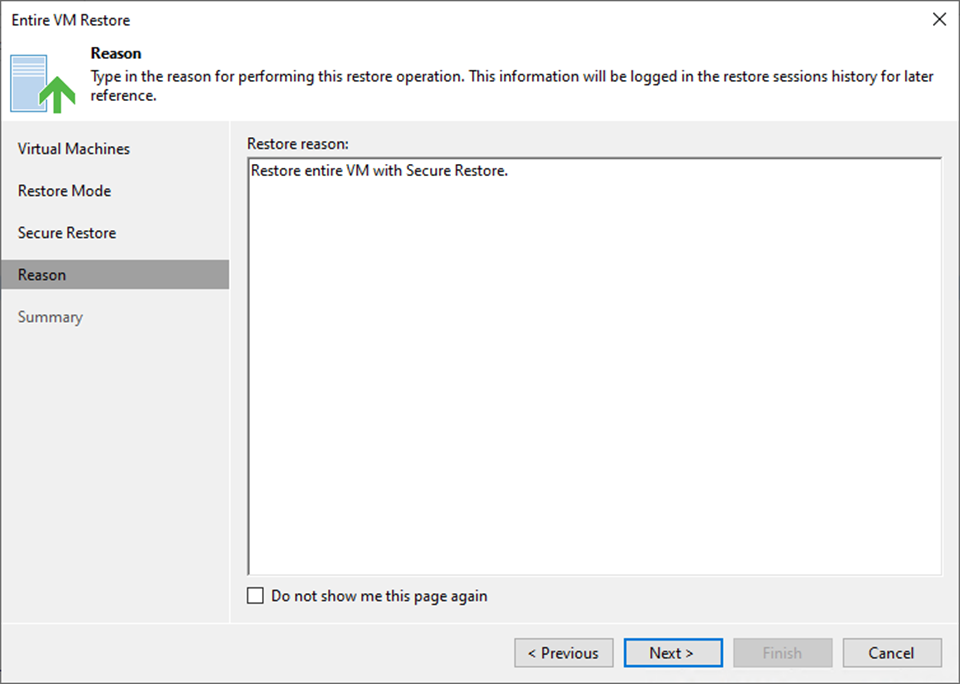

16. On the Reason page, enter a reason for restoring the selected VMs.

100923 0315 Howtorestor9 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

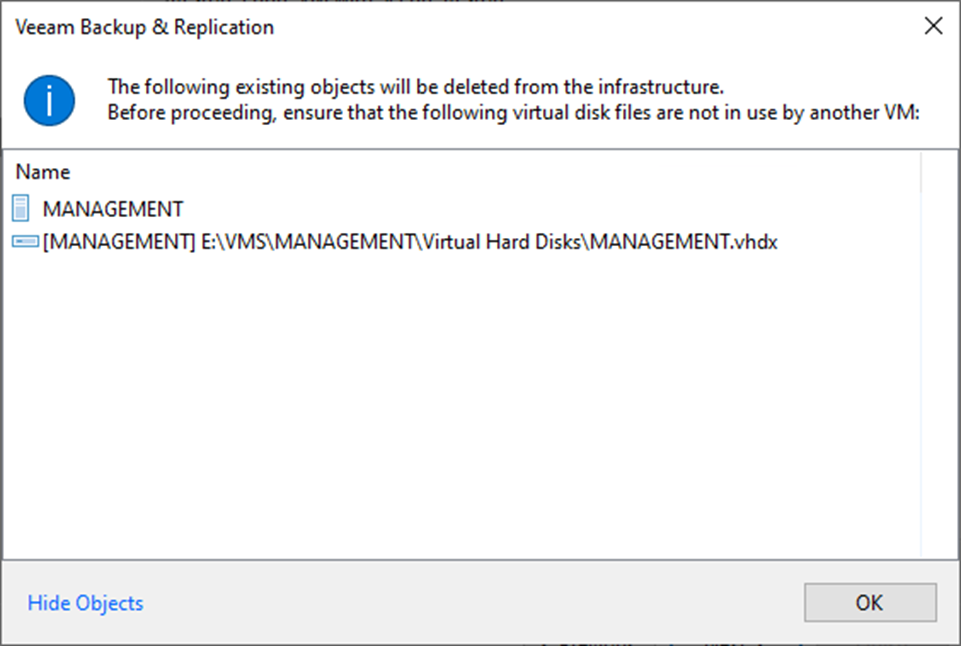

17. Click OK on the object will be deleted the warning message.

100923 0315 Howtorestor10 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

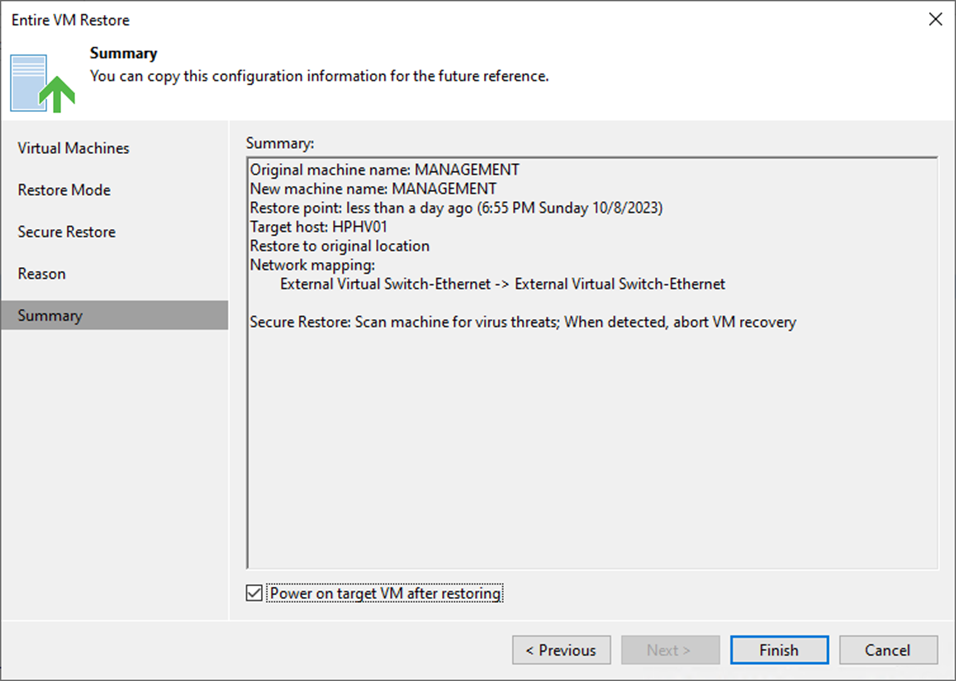

18. Select Power on the target VM after restoring and click Finish on the Summary page.

100923 0315 Howtorestor11 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

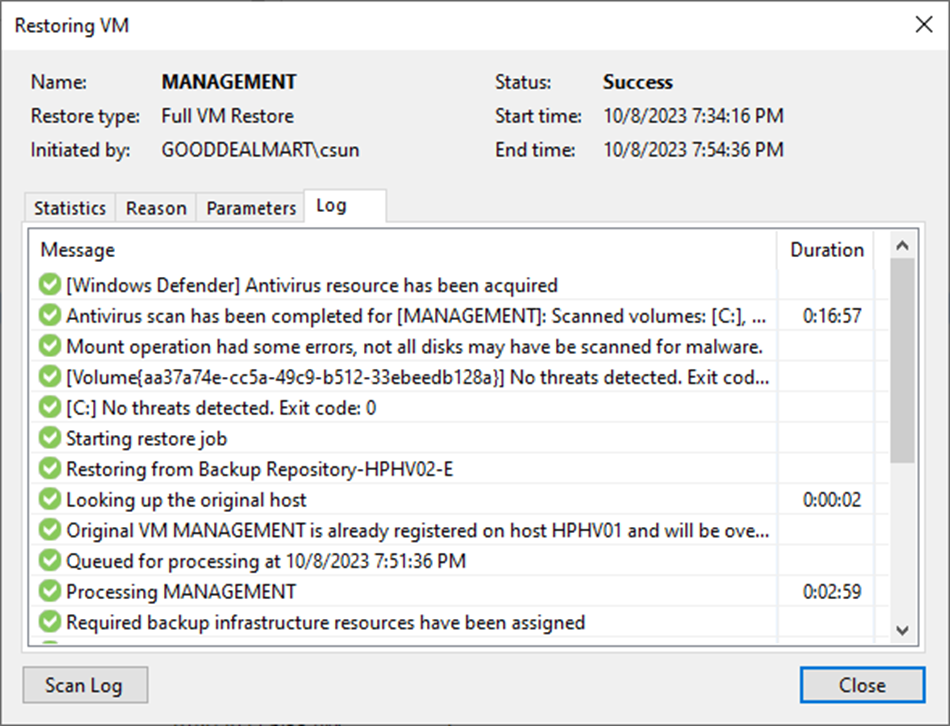

19. On the Restoring VM page, select Log.

20. Ensure the restore VM is completed without threats detected and click Closed.

100923 0315 Howtorestor12 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

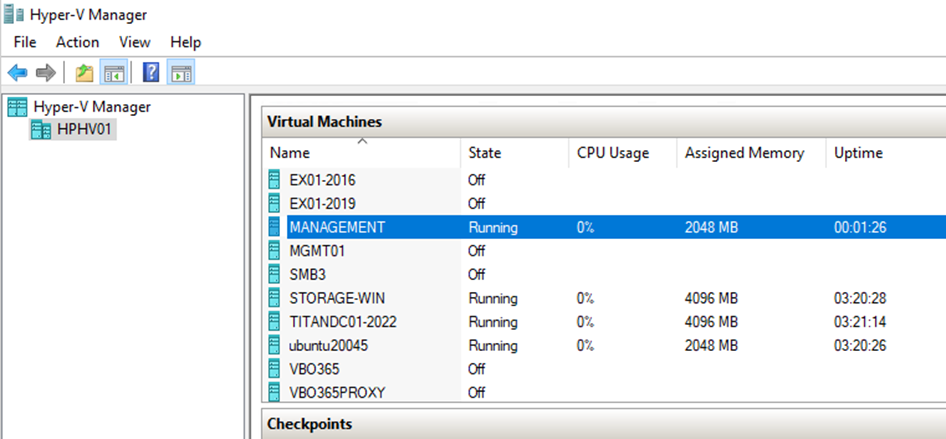

21. Verify the VM is up and running.

100923 0315 Howtorestor13 - How to restore the Entire VM to the Original Location with Secure Restore at Veeam Backup and Replication v12

I hope you enjoy this post.
