Today, I am going to show you how to upgrade the existing Citrix Virtual Apps servers to Citrix Virtual Apps 7 2109.

Today, I am going to show you how to upgrade the existing Citrix Virtual Apps servers to Citrix Virtual Apps 7 2109.

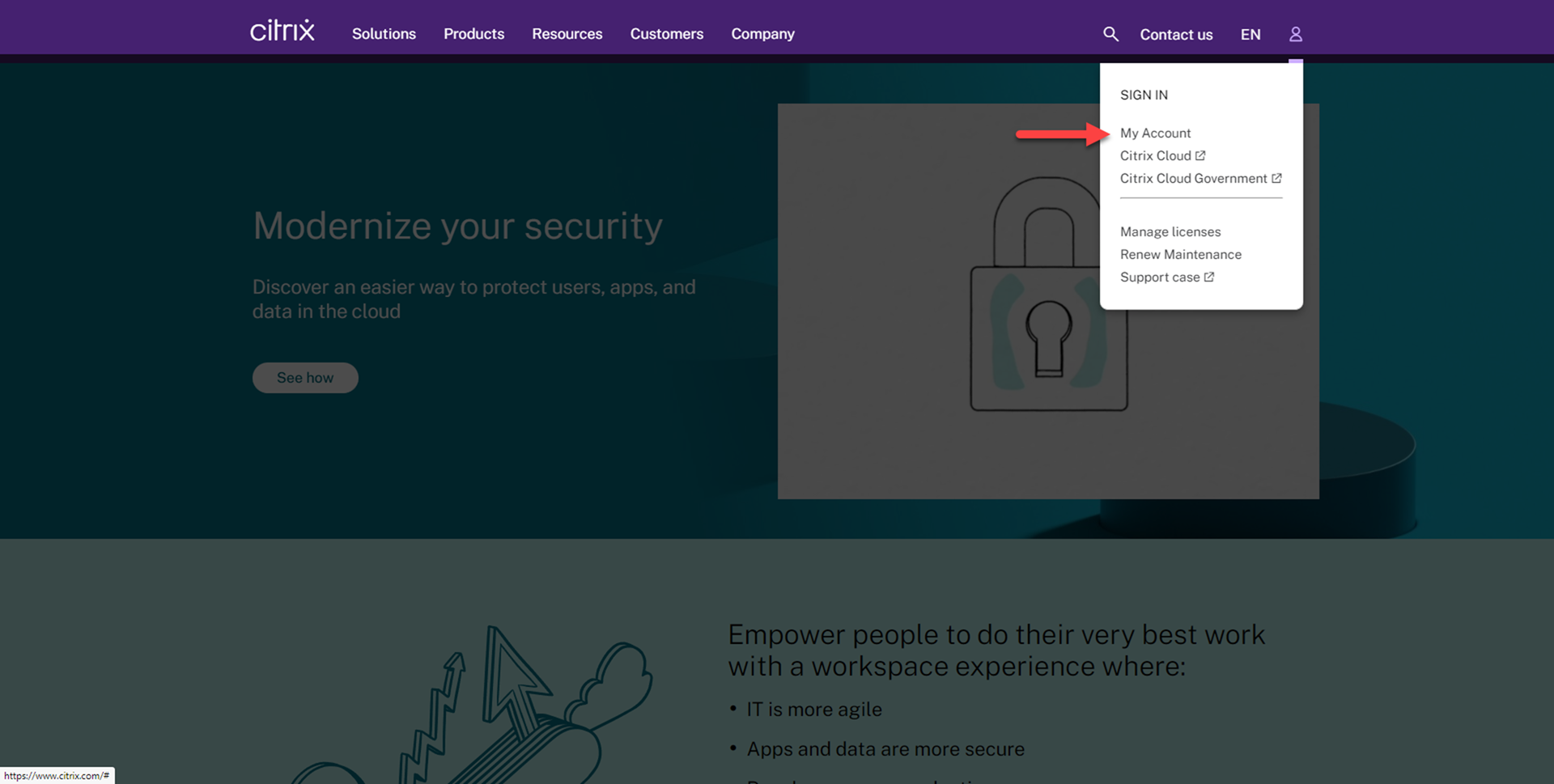

1.Sign in your Citrix account from citrix.com.

011422 2304 Howtoupgrad1 - How to upgrade to Citrix Virtual Apps 7 2109

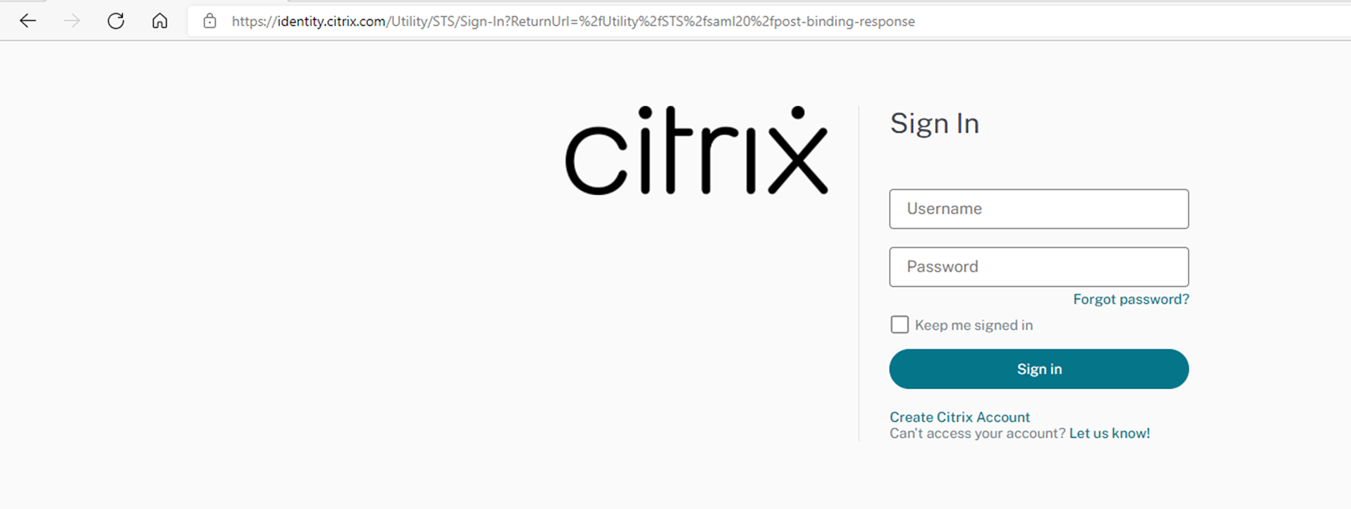

2. Enter your user name and password, click Sign in.

011422 2304 Howtoupgrad2 - How to upgrade to Citrix Virtual Apps 7 2109

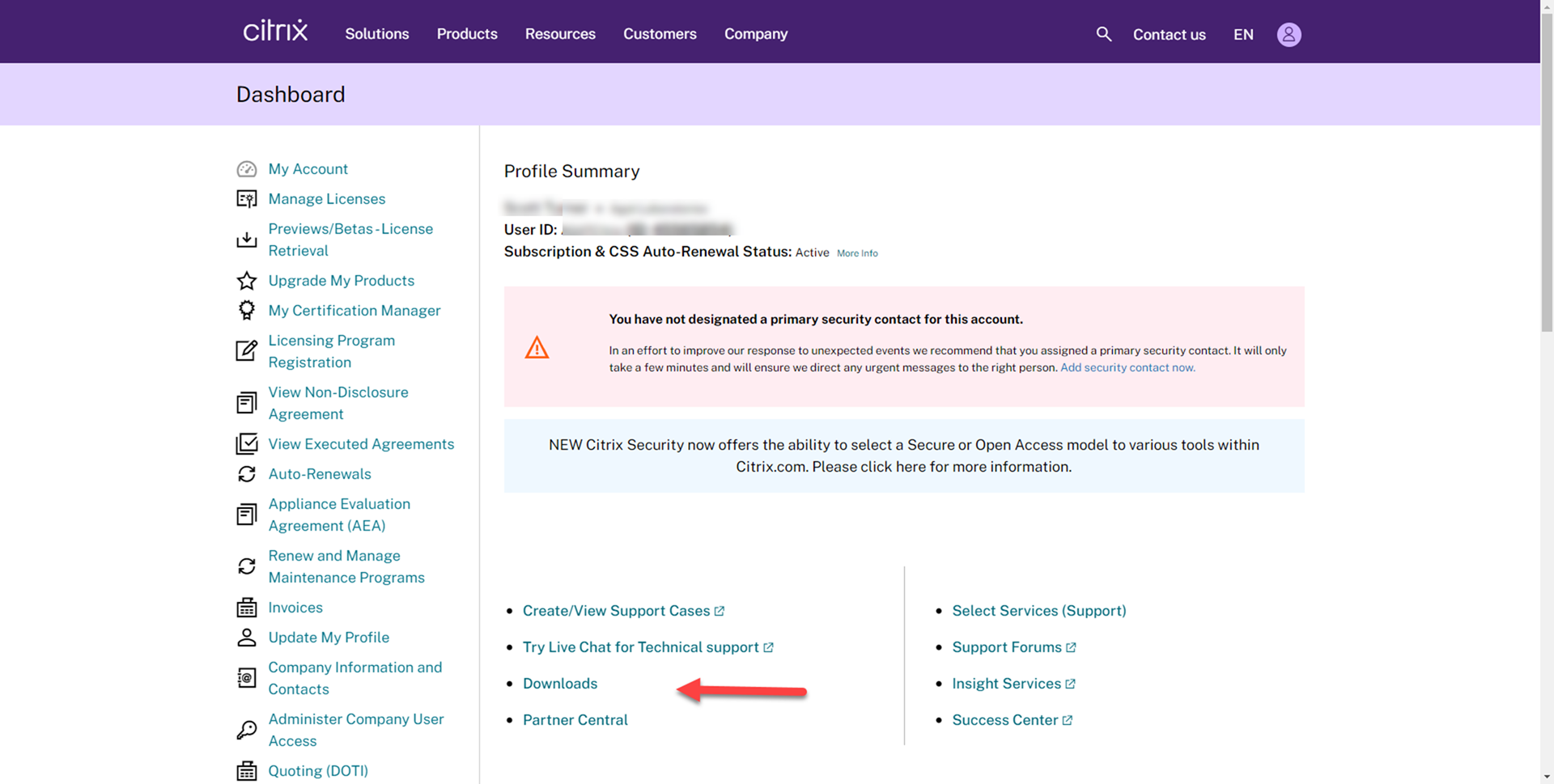

3. On the Dashboard page, select Downloads.

011422 2304 Howtoupgrad3 - How to upgrade to Citrix Virtual Apps 7 2109

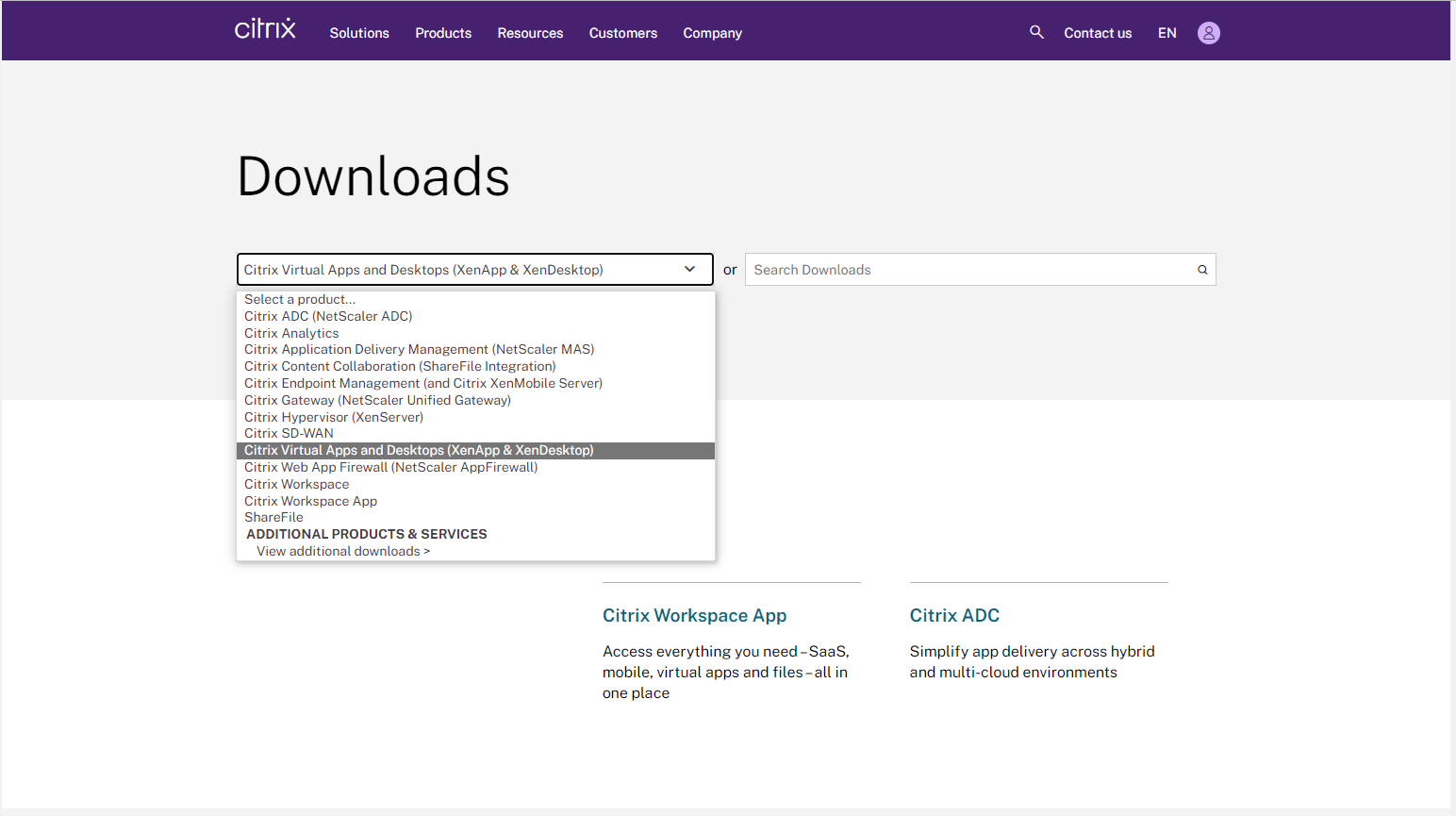

4. On the Download page, select Citrix Virtual Apps and Desktops (XenApp & XenDesktop).

011422 2304 Howtoupgrad4 - How to upgrade to Citrix Virtual Apps 7 2109

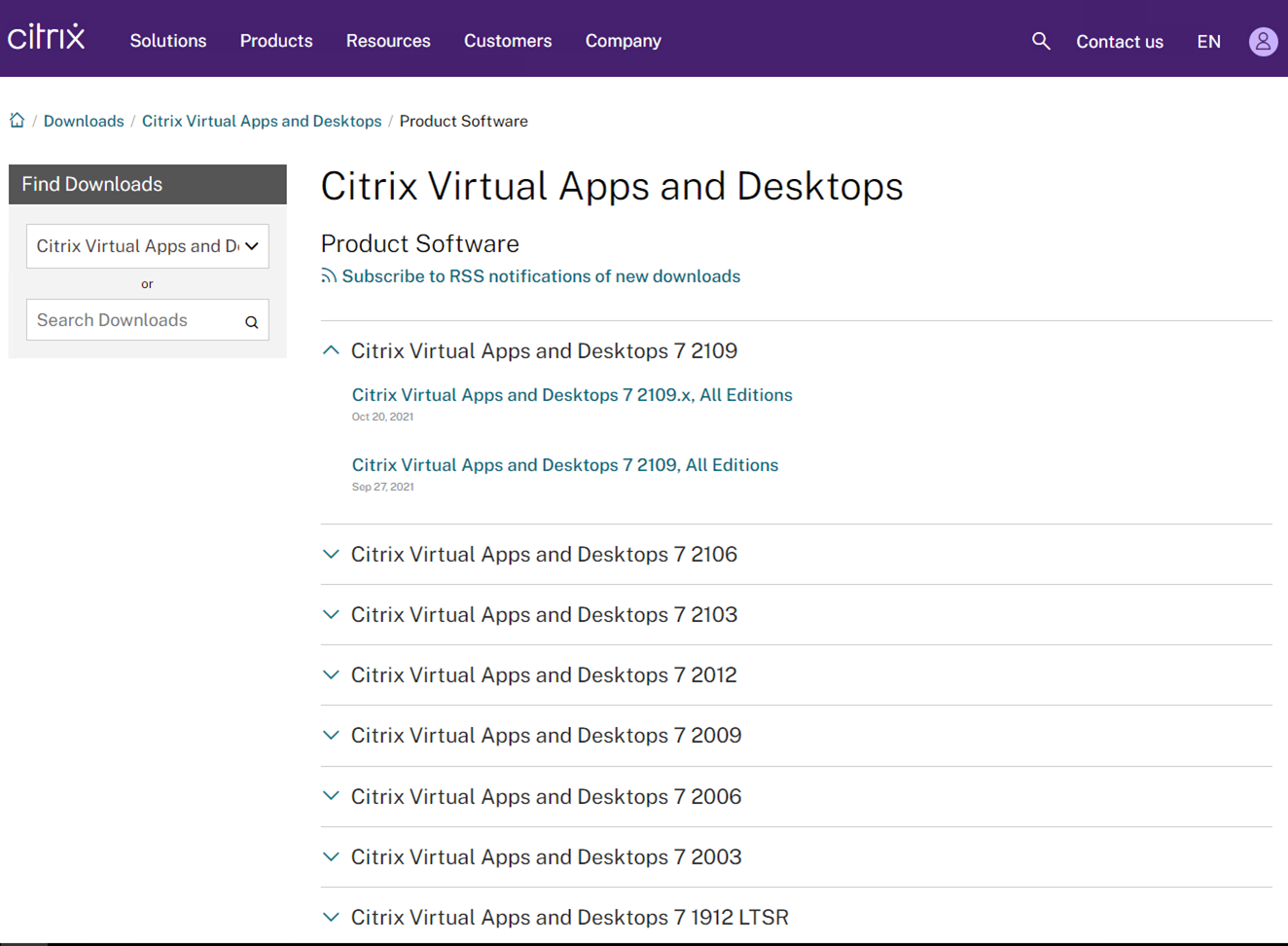

5. On Citrix Virtual Apps and Desktops (XenApp & XenDesktop) page, select Citrix Virtual Apps and Desktops 7 2109, select Product Software, click Citrix Virtual Apps and Desktops 7 2109, All Editions.

011422 2304 Howtoupgrad5 - How to upgrade to Citrix Virtual Apps 7 2109

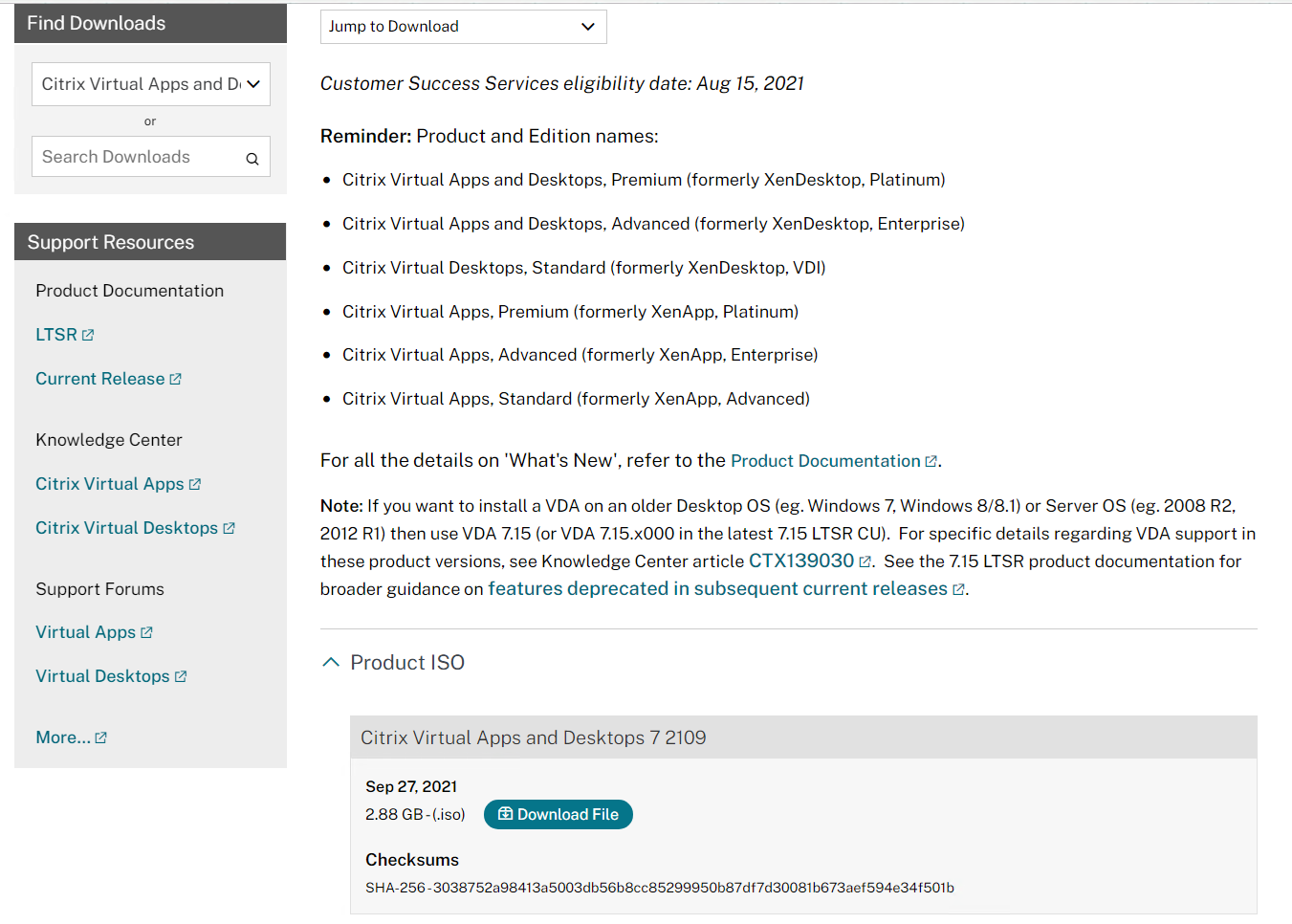

6.Click Download Rile.

011422 2304 Howtoupgrad6 - How to upgrade to Citrix Virtual Apps 7 2109

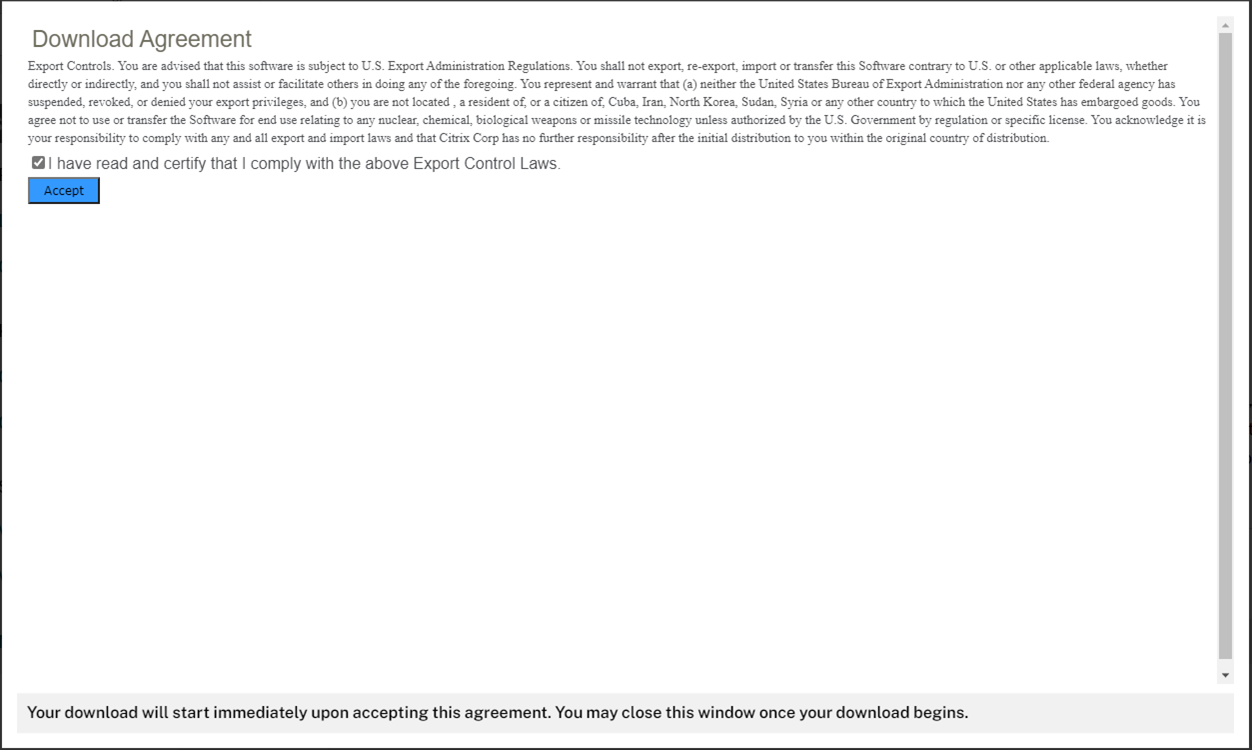

7. On the Download Agreement page, select I have read and certify that I comply with the above Export Control Laws, click Accept.

011422 2304 Howtoupgrad7 - How to upgrade to Citrix Virtual Apps 7 2109

8. Save the ISO file to Delivery Controller server and Virtual Delivery Agent Server.

9. Login to Delivery Controller server.

10. Mount the ISO image file.

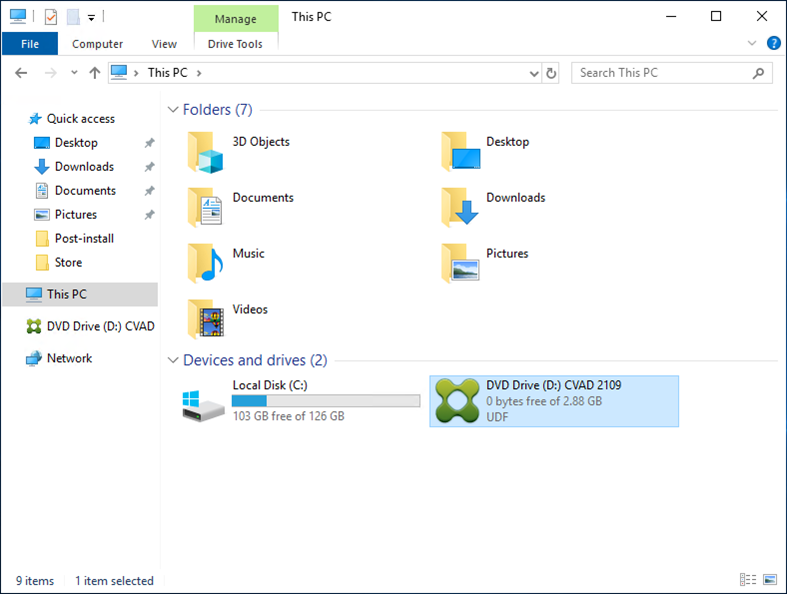

11.Double-click DVD Drive.

011422 2304 Howtoupgrad8 - How to upgrade to Citrix Virtual Apps 7 2109

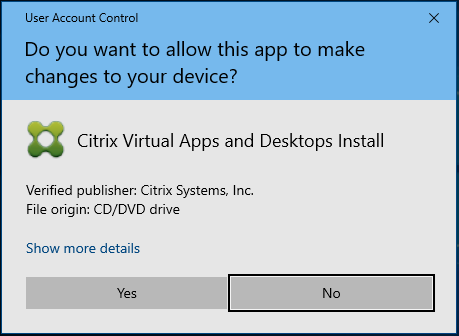

12.On the User Account Control page, click Yes.

011422 2304 Howtoupgrad9 - How to upgrade to Citrix Virtual Apps 7 2109

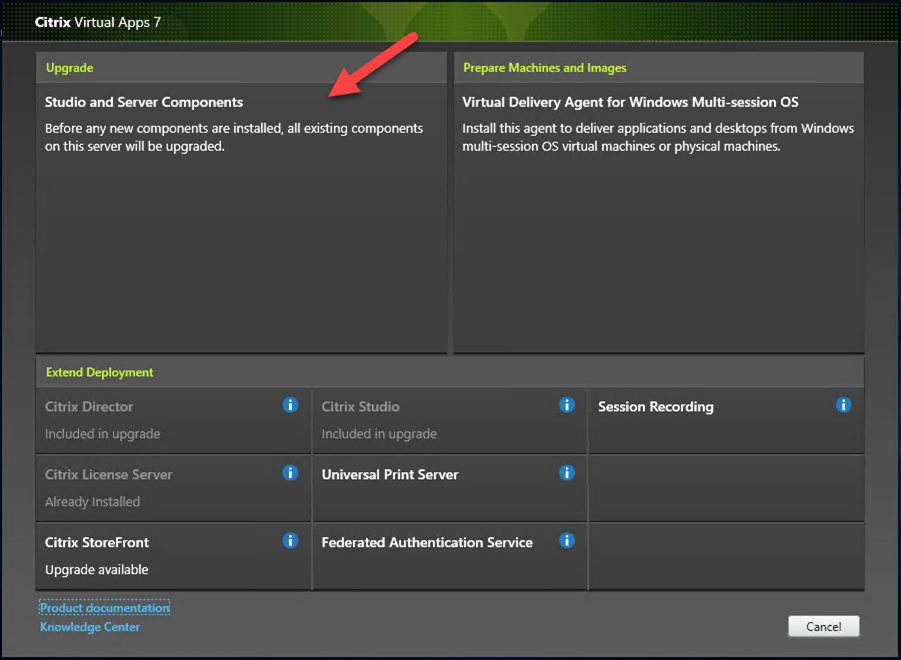

13. On the Citrix Virtual Apps 7 page, click Upgrade Studio and Server Components.

011422 2304 Howtoupgrad10 - How to upgrade to Citrix Virtual Apps 7 2109

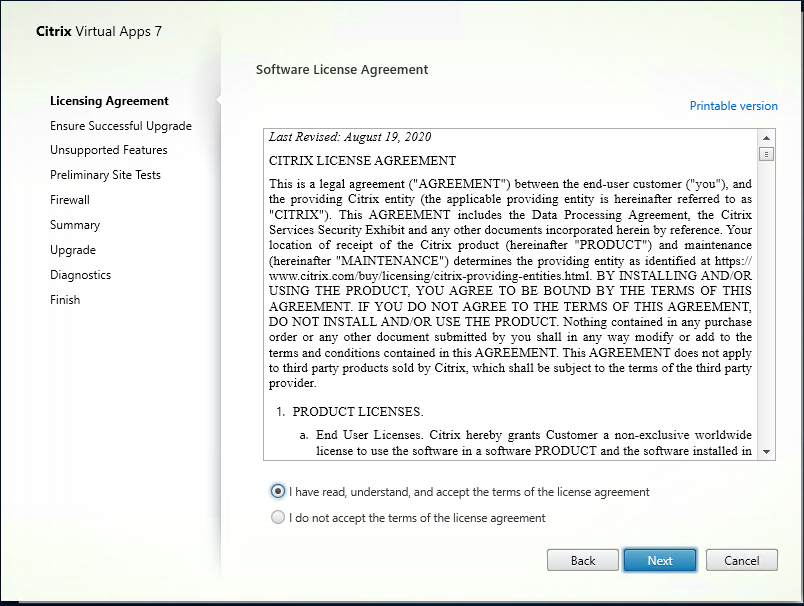

14. On the License Agreement page, select I have read, understand and accept the terms of the license agreement, click Next.

011422 2304 Howtoupgrad11 - How to upgrade to Citrix Virtual Apps 7 2109

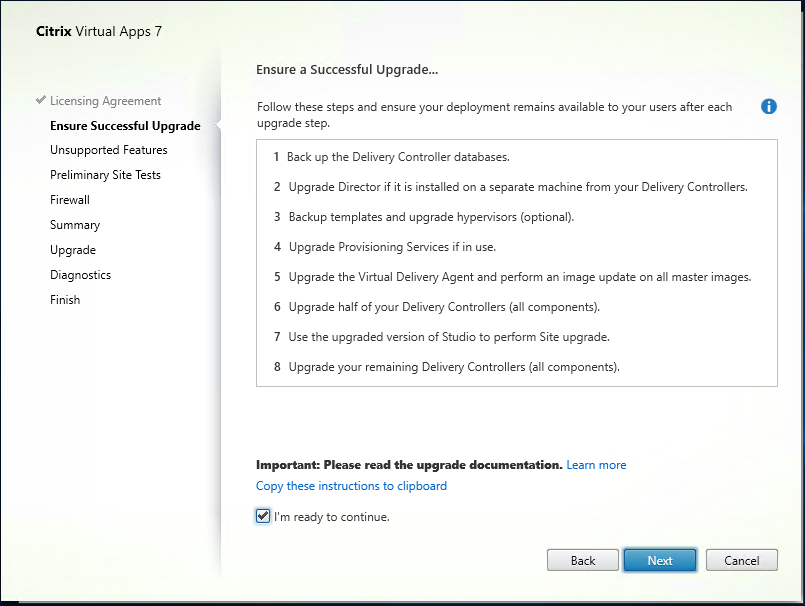

15. On the Ensure a Successful Upgrade page, select I’m ready to continue, click Next.

011422 2304 Howtoupgrad12 - How to upgrade to Citrix Virtual Apps 7 2109

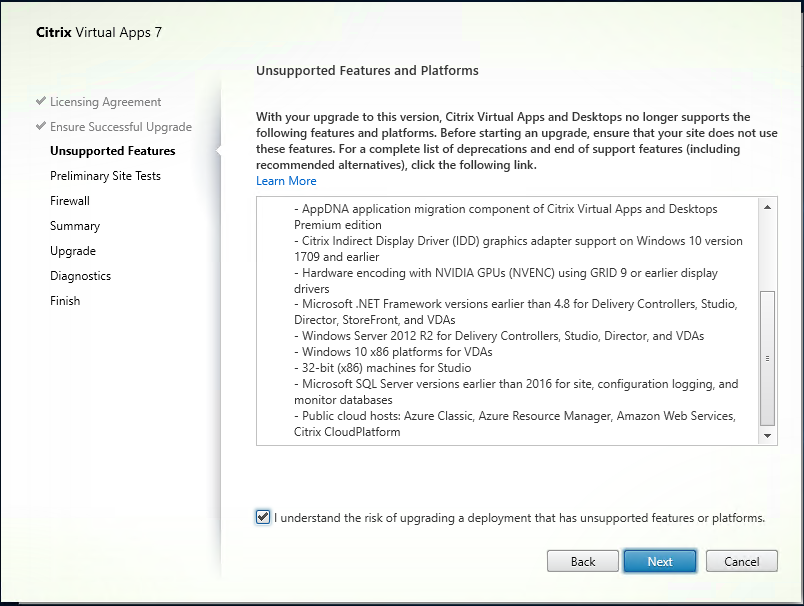

16.On the Unsupported Features and Platforms page, select I understand the risk of upgrading a deployment that has unsupported features or platforms, Click Next.

011422 2304 Howtoupgrad13 - How to upgrade to Citrix Virtual Apps 7 2109

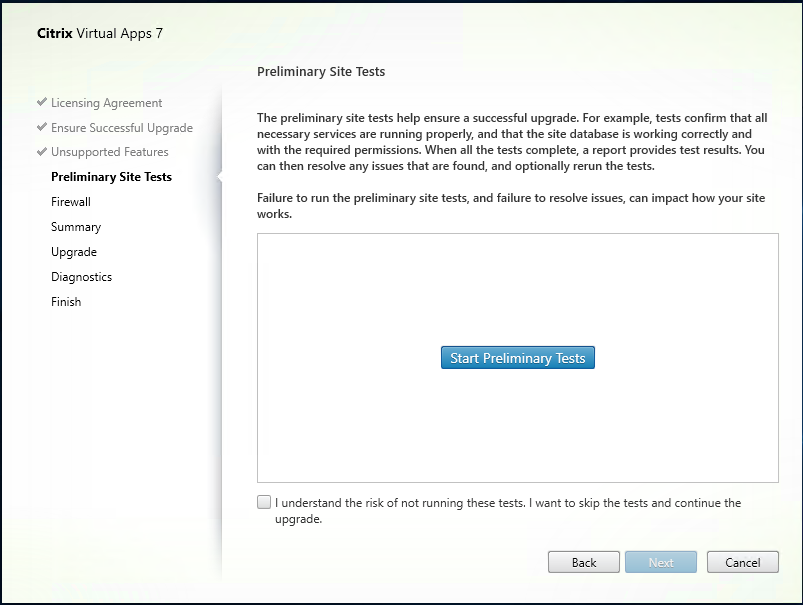

17. On the Preliminary Tests page, click Start Preliminary Tests.

011422 2304 Howtoupgrad14 - How to upgrade to Citrix Virtual Apps 7 2109

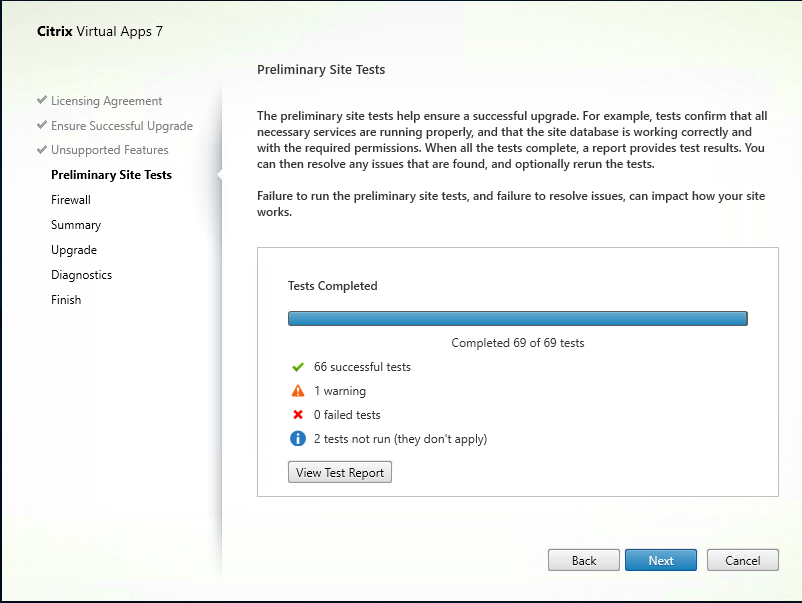

18. Click Next if there are no issues at Tests result.

011422 2304 Howtoupgrad15 - How to upgrade to Citrix Virtual Apps 7 2109

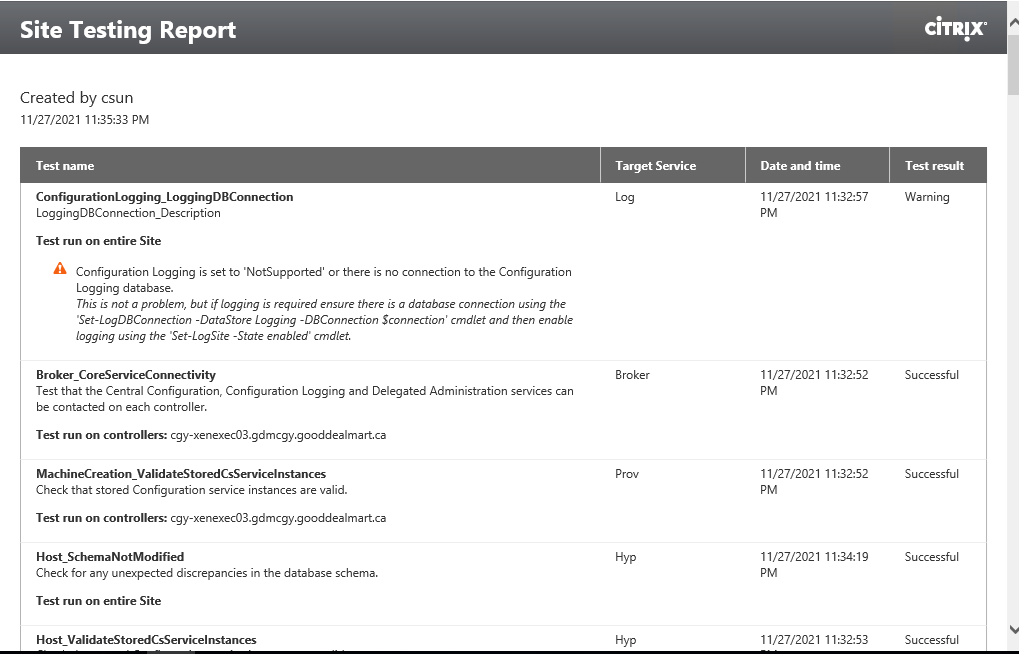

19.You can click View Test Report to verify the test results.

011422 2304 Howtoupgrad16 - How to upgrade to Citrix Virtual Apps 7 2109

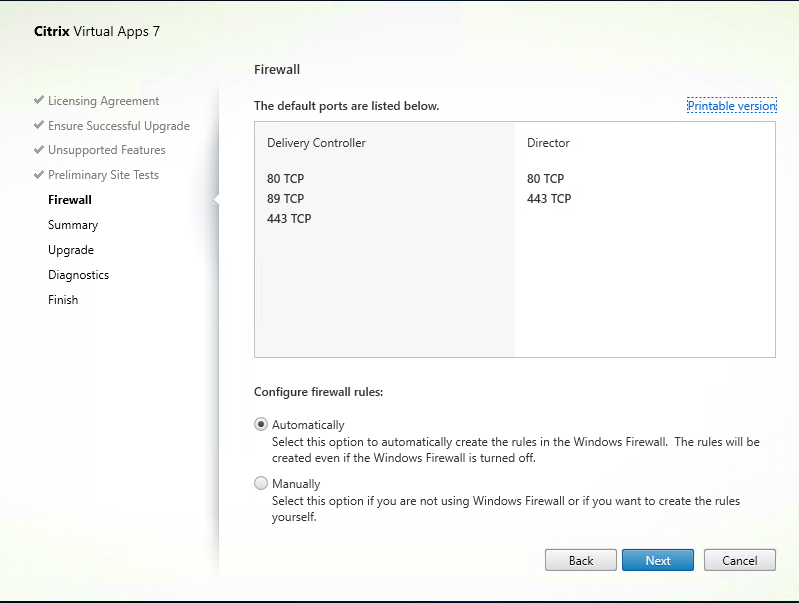

20. On the Firewall page, click Automatically configure firewall rules, click Next.

011422 2304 Howtoupgrad17 - How to upgrade to Citrix Virtual Apps 7 2109

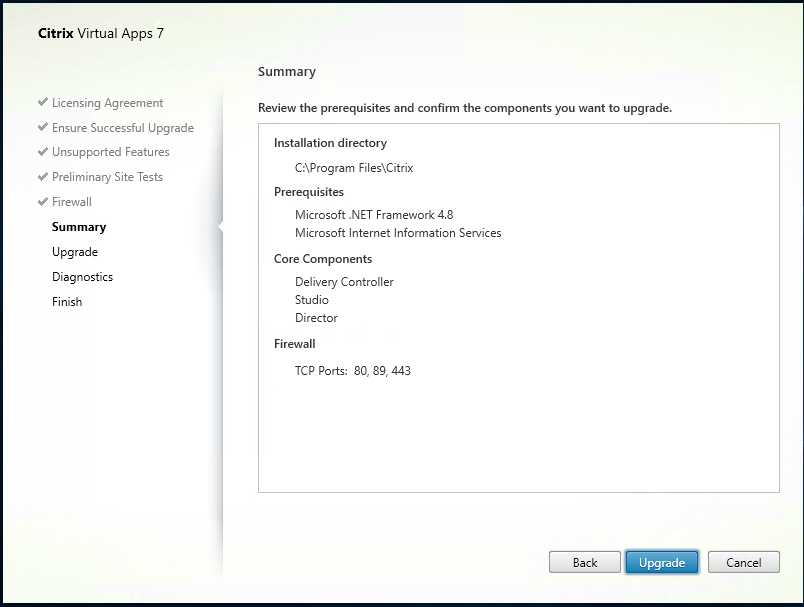

21. On the Summary page, click Upgrade.

011422 2304 Howtoupgrad18 - How to upgrade to Citrix Virtual Apps 7 2109

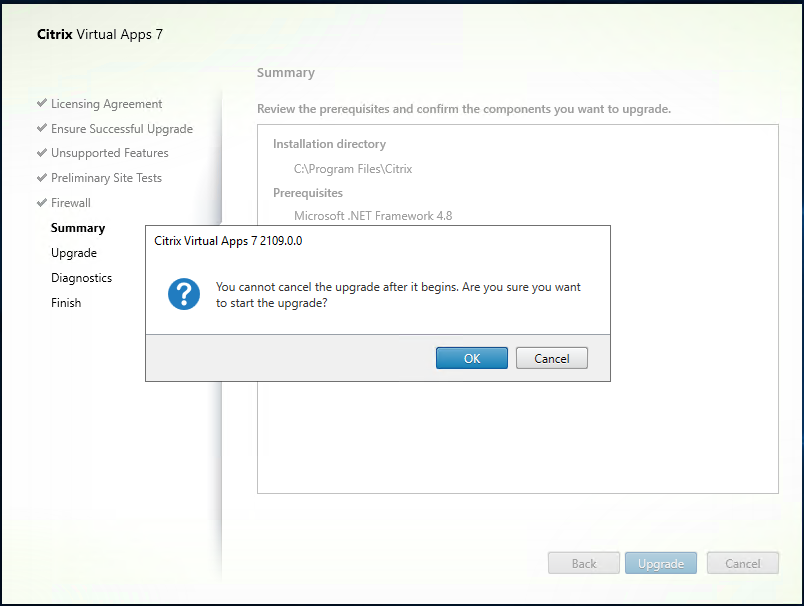

22. Click OK on the upgrade confirm page.

011422 2304 Howtoupgrad19 - How to upgrade to Citrix Virtual Apps 7 2109

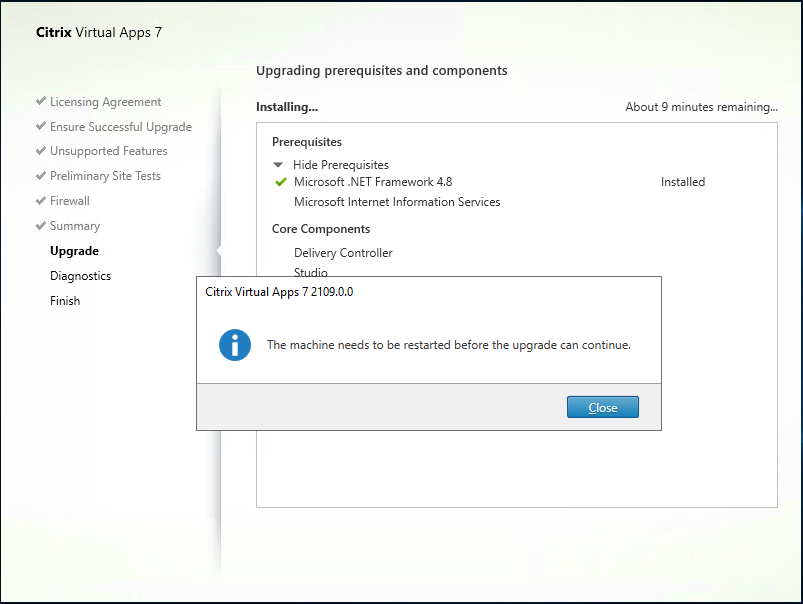

23. The server needs to restart at upgrade process.

011422 2304 Howtoupgrad20 - How to upgrade to Citrix Virtual Apps 7 2109

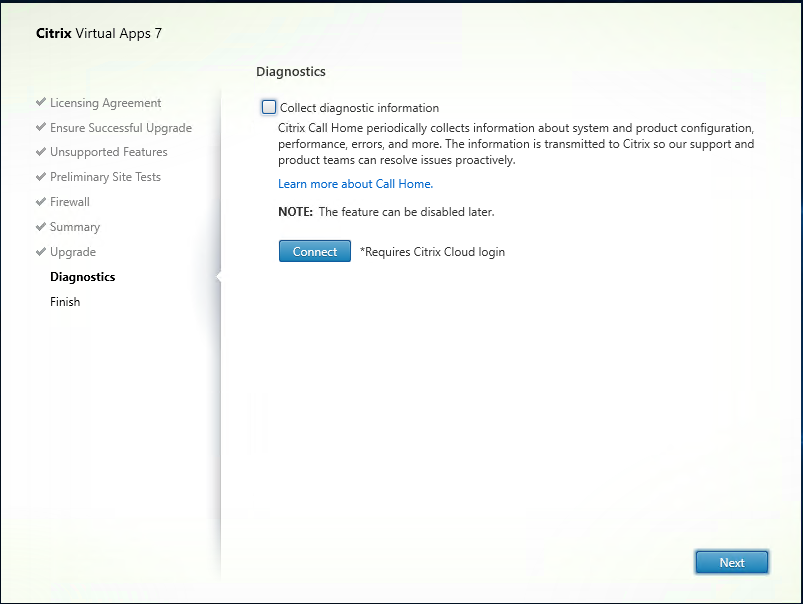

24. On the Diagnostics page, unselect Collect diagnostic information, click Next. You can participate later if need it.

011422 2304 Howtoupgrad21 - How to upgrade to Citrix Virtual Apps 7 2109

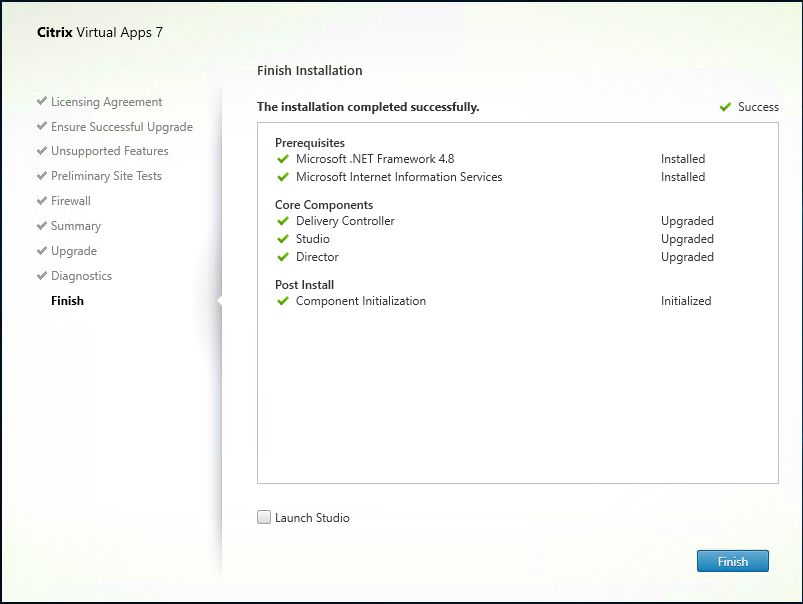

25. On the Finish Installation page, click Finish.

011422 2304 Howtoupgrad22 - How to upgrade to Citrix Virtual Apps 7 2109

26. Login to VDA server.

27. Mount iso image file.

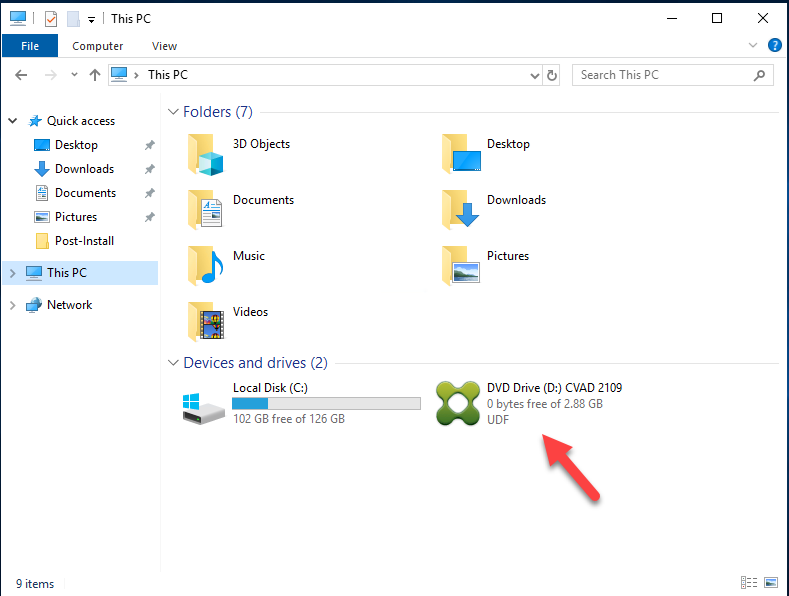

28. Double-click DVD Drive.

011422 2304 Howtoupgrad23 - How to upgrade to Citrix Virtual Apps 7 2109

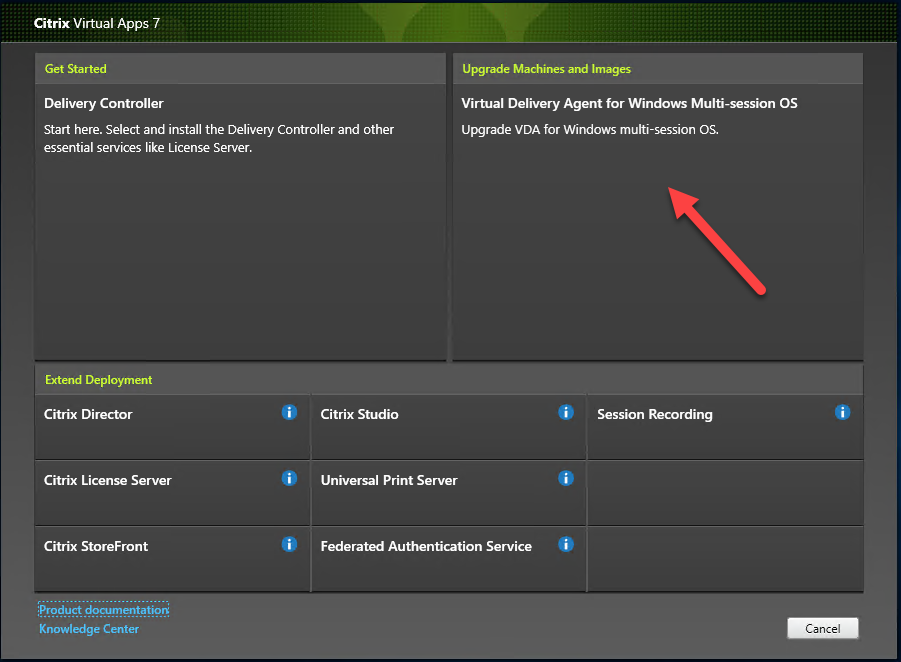

29. On the Citrix Virtual Apps 7 page, click Virtual Delivery Agent for Windows Multi-session OS Upgrade VDA for Windows multi-session OS.

011422 2304 Howtoupgrad24 - How to upgrade to Citrix Virtual Apps 7 2109

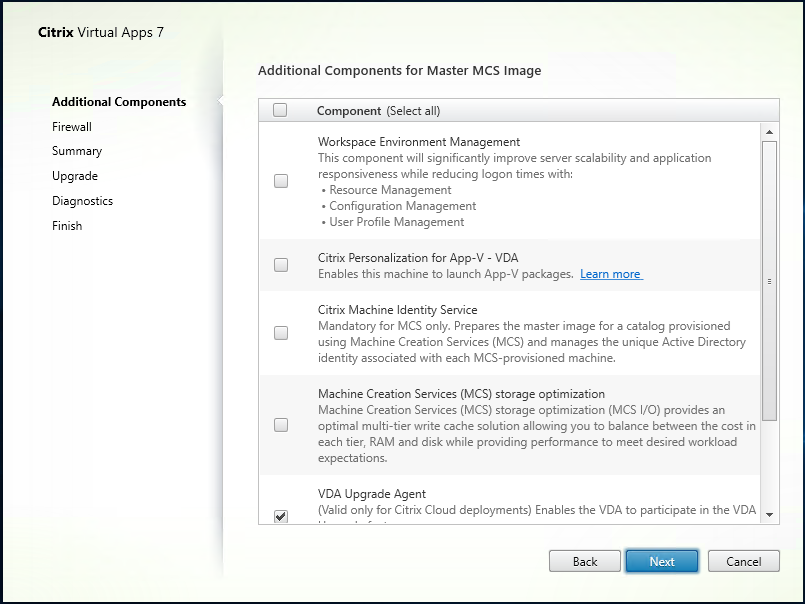

30.On the Additional Components for Master MCS Image, select the components that you would like to add, click Next. In my case, select VDA upgrade Agent.

011422 2304 Howtoupgrad25 - How to upgrade to Citrix Virtual Apps 7 2109

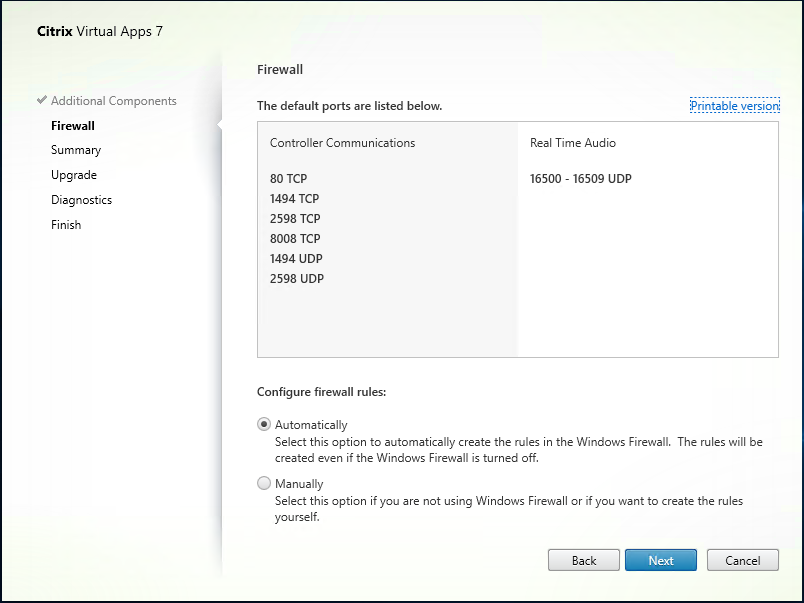

31. On the Firewall page, click Automatically configure firewall rules, click Next.

011422 2304 Howtoupgrad26 - How to upgrade to Citrix Virtual Apps 7 2109

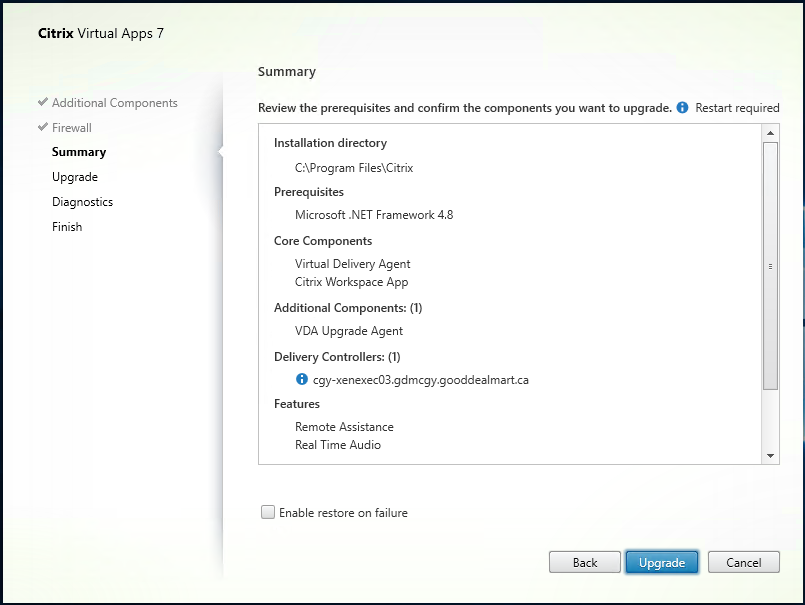

32.On the Summary page, click Upgrade.

011422 2304 Howtoupgrad27 - How to upgrade to Citrix Virtual Apps 7 2109

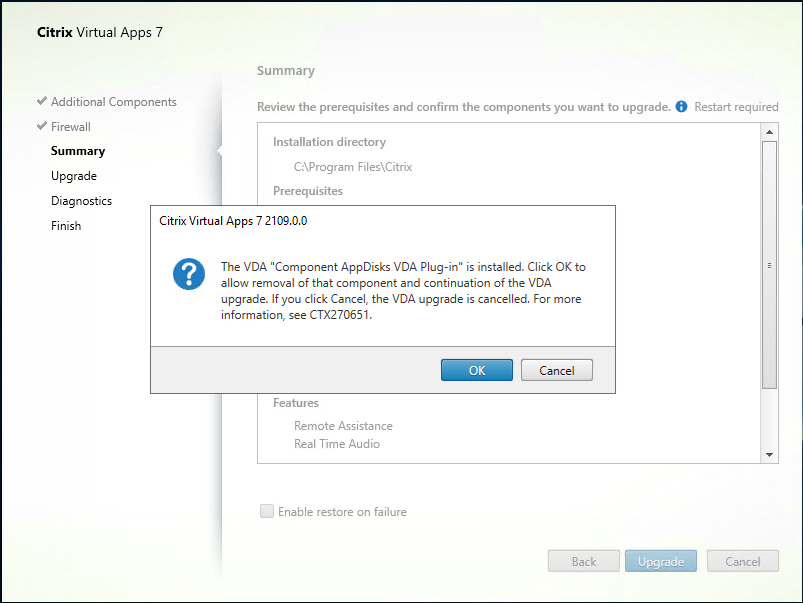

33.On the VDA “Component AppDisks Plug-in” is installed. Click OK to allow removal of that component and continuation of the VDA upgrade page, click OK.

011422 2304 Howtoupgrad28 - How to upgrade to Citrix Virtual Apps 7 2109

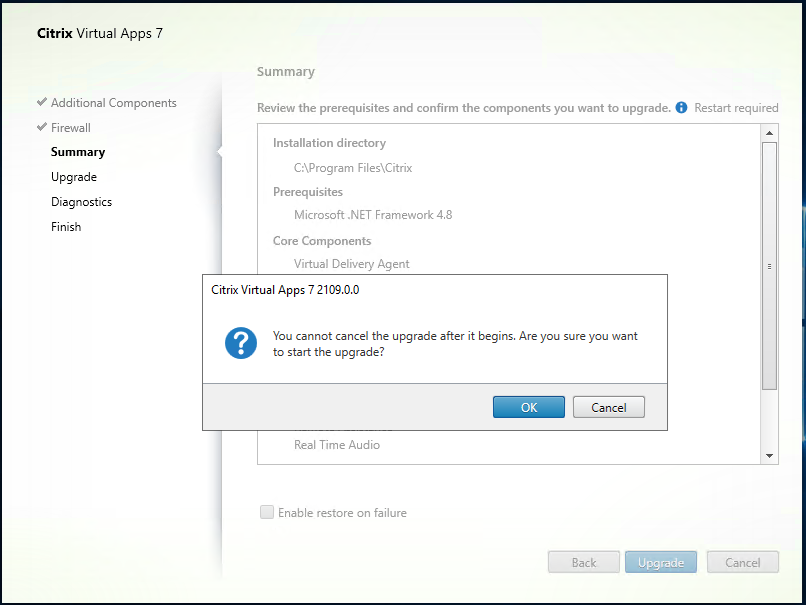

34. Click OK on the upgrade confirm page.

011422 2304 Howtoupgrad29 - How to upgrade to Citrix Virtual Apps 7 2109

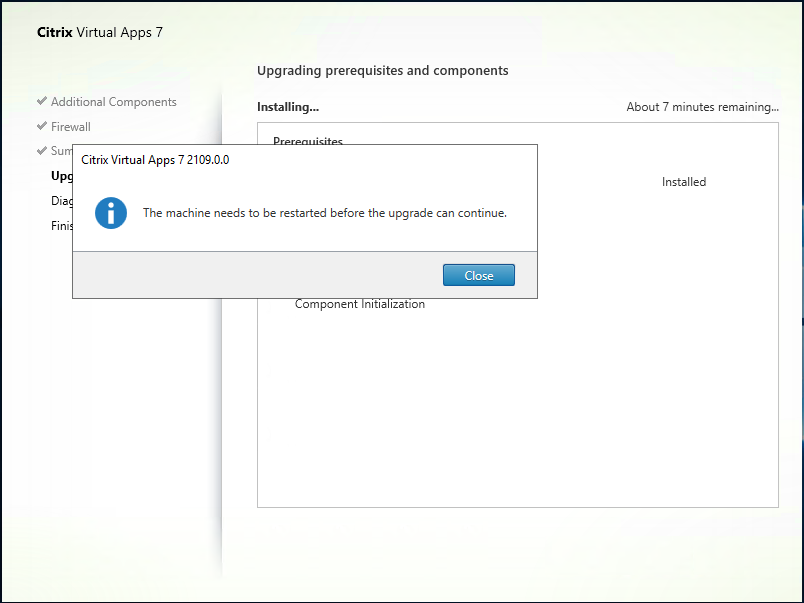

35. The server needs to restart at upgrade process.

011422 2304 Howtoupgrad30 - How to upgrade to Citrix Virtual Apps 7 2109

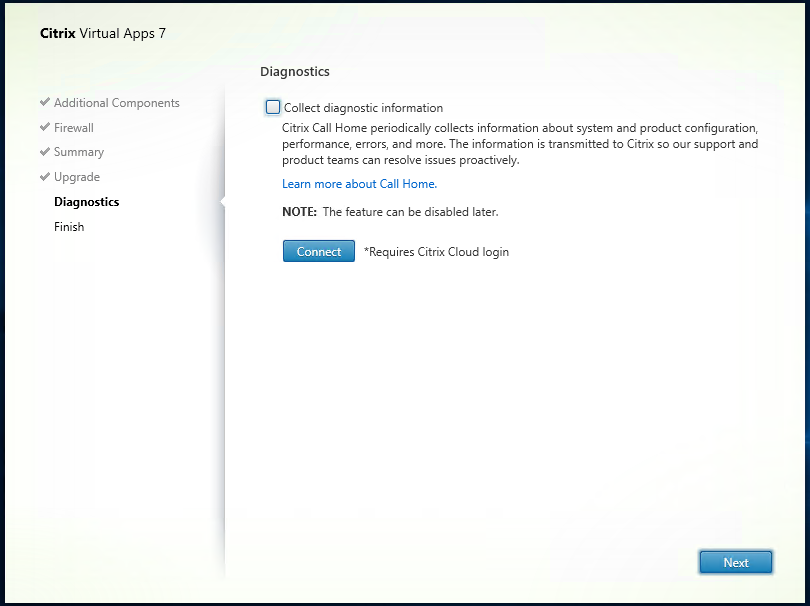

36. On the Diagnostics page, unselect Collect diagnostic information, click Next. You can participate later if need it.

011422 2304 Howtoupgrad31 - How to upgrade to Citrix Virtual Apps 7 2109

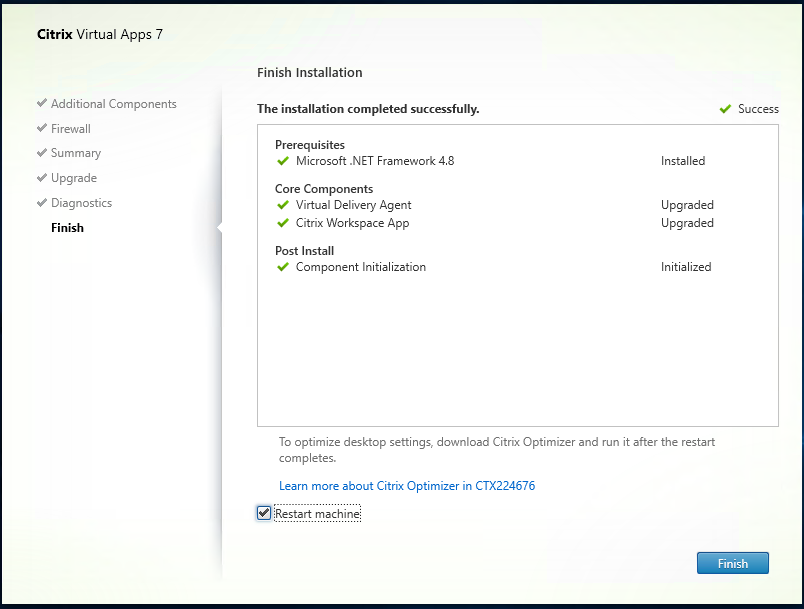

37.On the Finish page, select Restart machine, click Finish.

011422 2304 Howtoupgrad32 - How to upgrade to Citrix Virtual Apps 7 2109

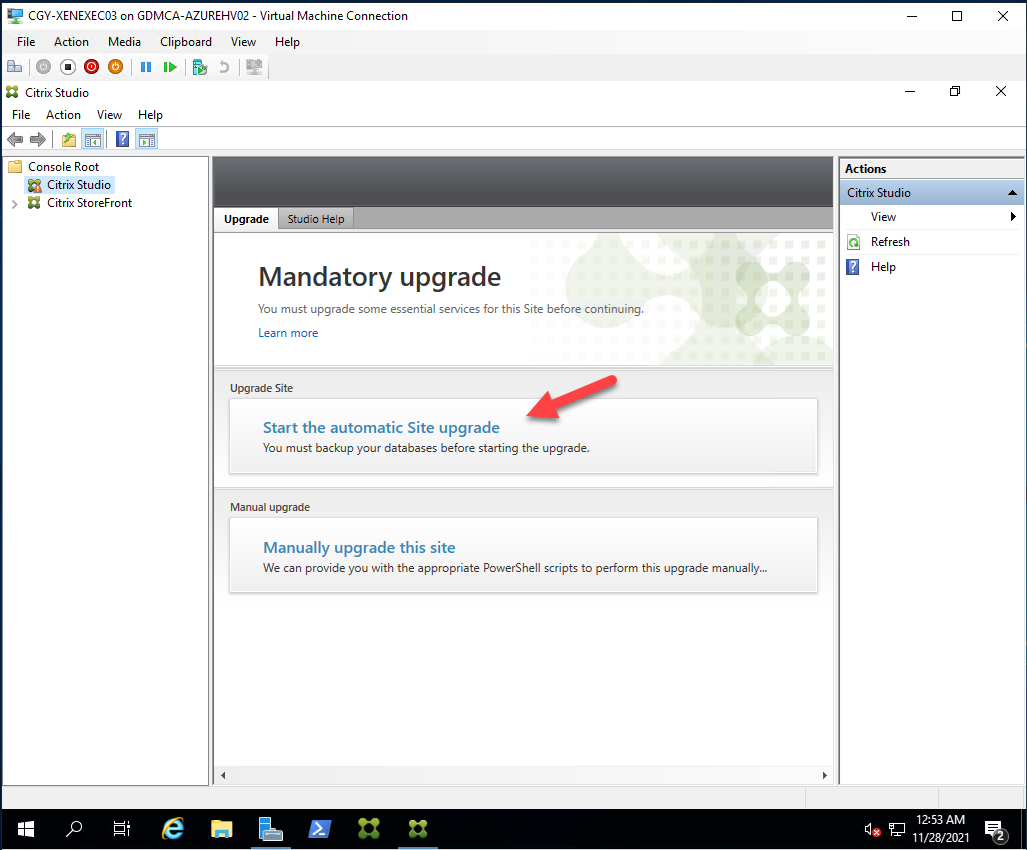

38.Login to Delivery Control server, open Citrix Studio, click Start the automatic Site Upgrade.

011422 2304 Howtoupgrad33 - How to upgrade to Citrix Virtual Apps 7 2109

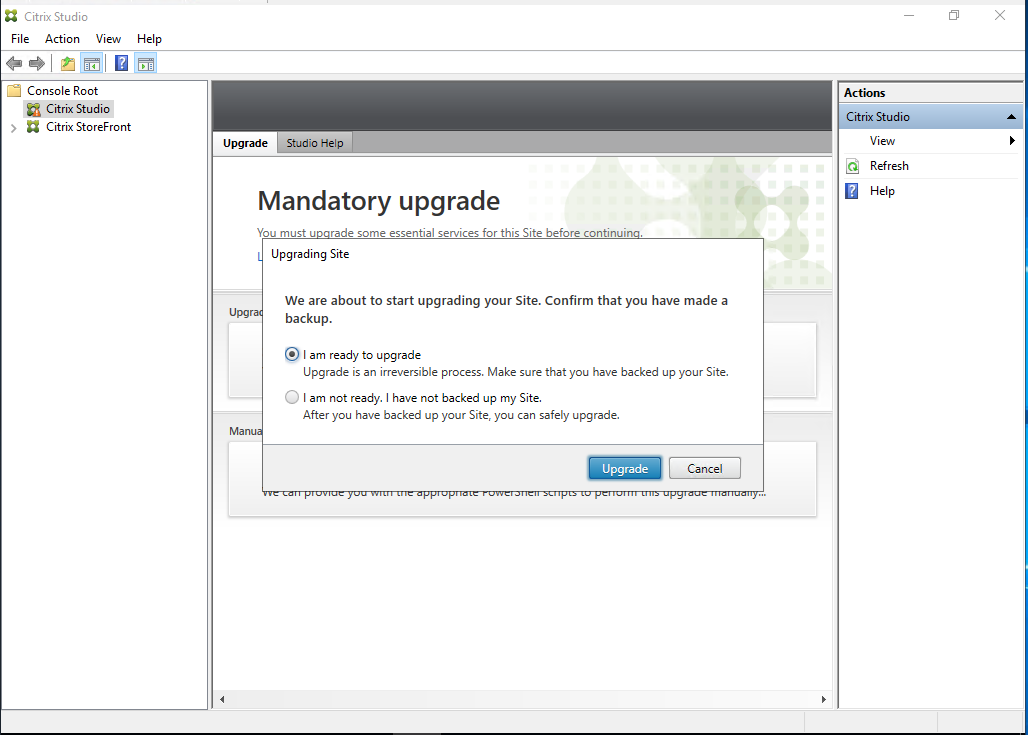

39. On the Upgrading Site page, select I am ready to upgrade, click Upgrade.

011422 2304 Howtoupgrad34 - How to upgrade to Citrix Virtual Apps 7 2109

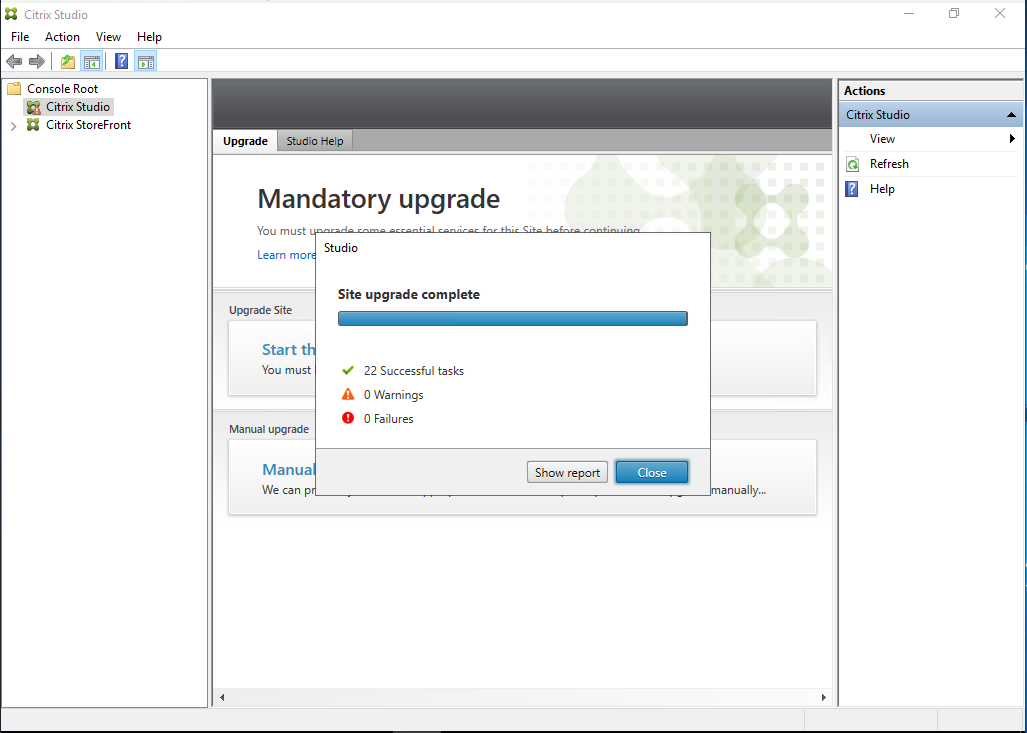

40. On the Studio page, make sure Site upgrade complete without issues, click Close.

011422 2304 Howtoupgrad35 - How to upgrade to Citrix Virtual Apps 7 2109

41. Reboot Both Citrix servers.

Hope you enjoy this post.
