100923 0635 RestoreVMFi7 - Restore VM Files at Veeam Backup and Replication v12
You can restore VM files (XML, VMCX, VMRS, VMGS, VHD, VHDX) if they become corrupted. This option is an excellent alternative to restoring the entire VM. You can only restore a single VM file.

You can restore VM files (XML, VMCX, VMRS, VMGS, VHD, VHDX) if they become corrupted. This option is an excellent alternative to restoring the entire VM. You can only restore a single VM file.

When you perform a VM file restore, the VM file is restored directly from regular image-level backups without de-staging VM images from backups first. VM files can be converted to either the original or a new location.

Note:

If you recover a VMCX file and import it to Microsoft Hyper-V, the VM will be registered under the Veeam Recovery Checkpoint-(<GUID>) name. After import, you can rename the VM if required.

1. Login to the Veeam Backup and replication manager server.

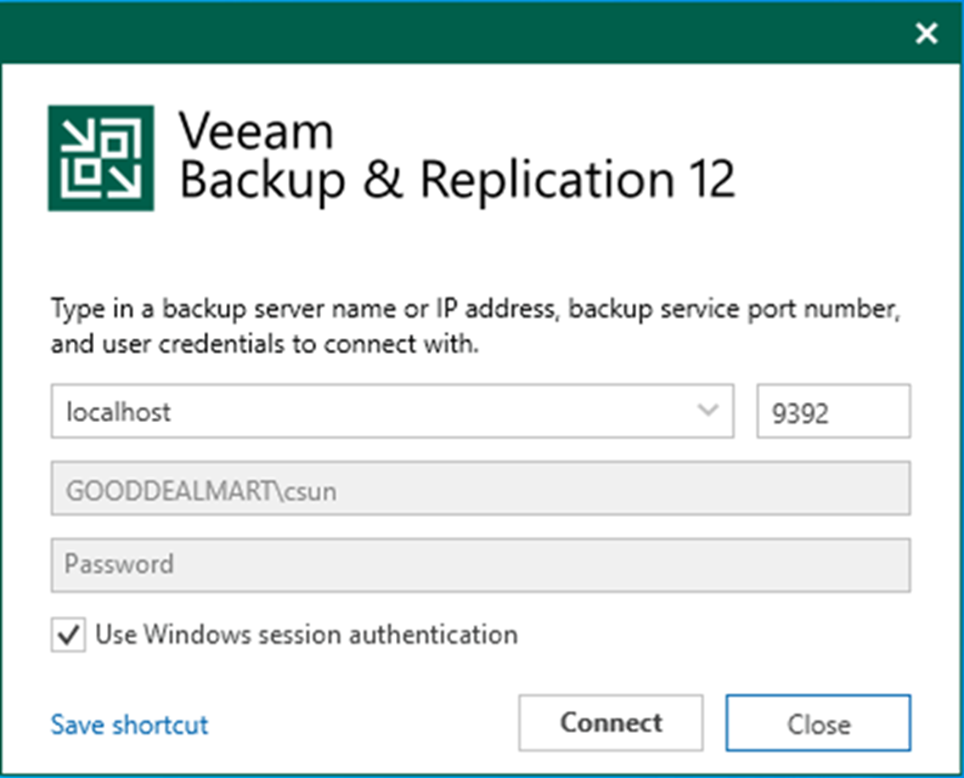

2. Open the Veeam Backup & Replication 12 Console and click Connect.

100923 0635 RestoreVMFi1 - Restore VM Files at Veeam Backup and Replication v12

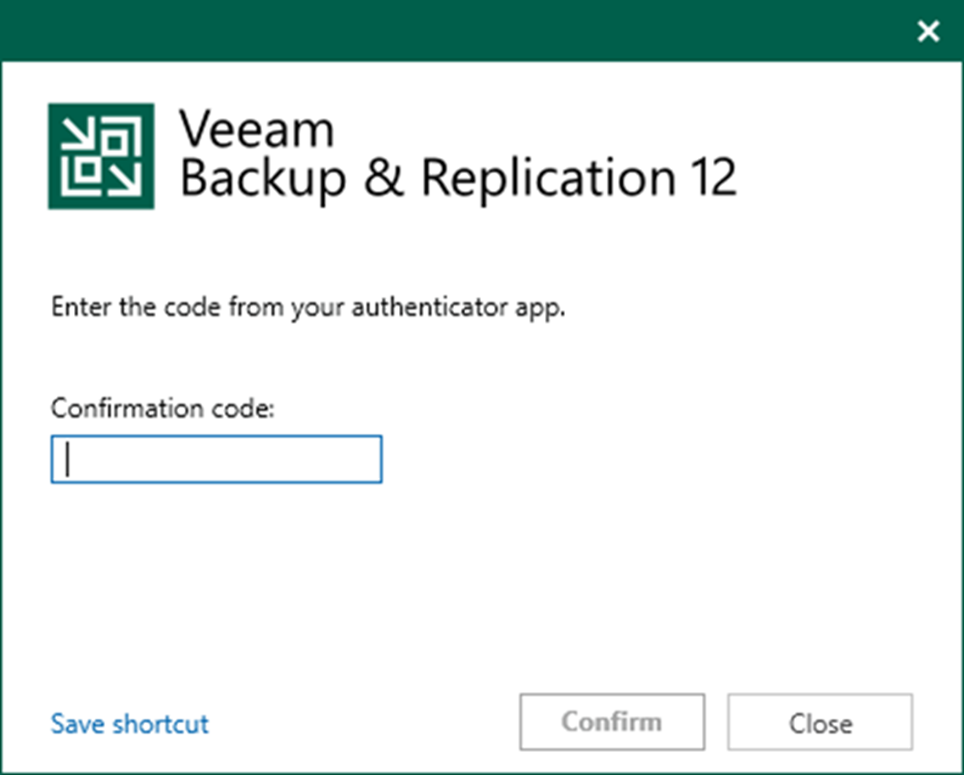

3. Enter the MFA Confirmation code and click Confirm.

100923 0635 RestoreVMFi2 - Restore VM Files at Veeam Backup and Replication v12

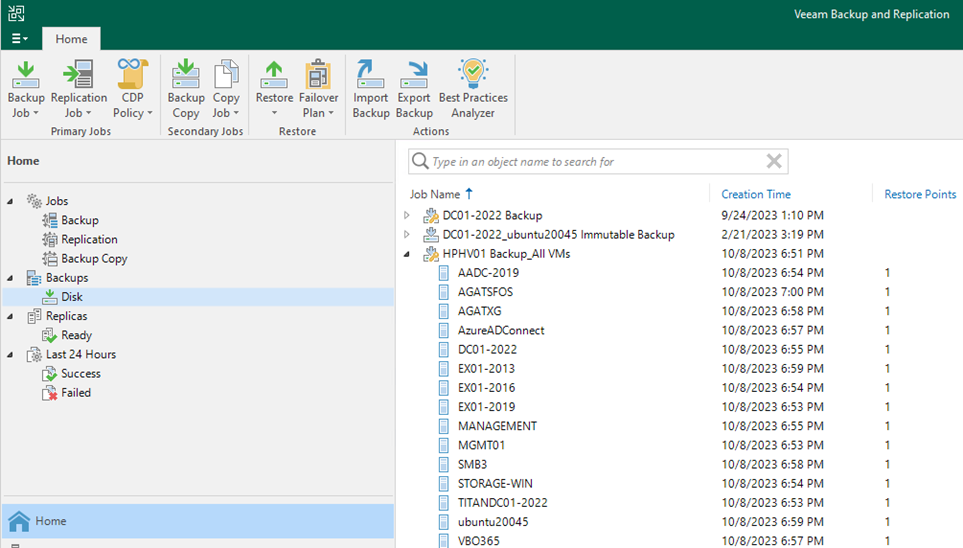

4. On the Home page, expand Backups.

5. Select the Disk and expand the backup job name.

100923 0635 RestoreVMFi3 - Restore VM Files at Veeam Backup and Replication v12

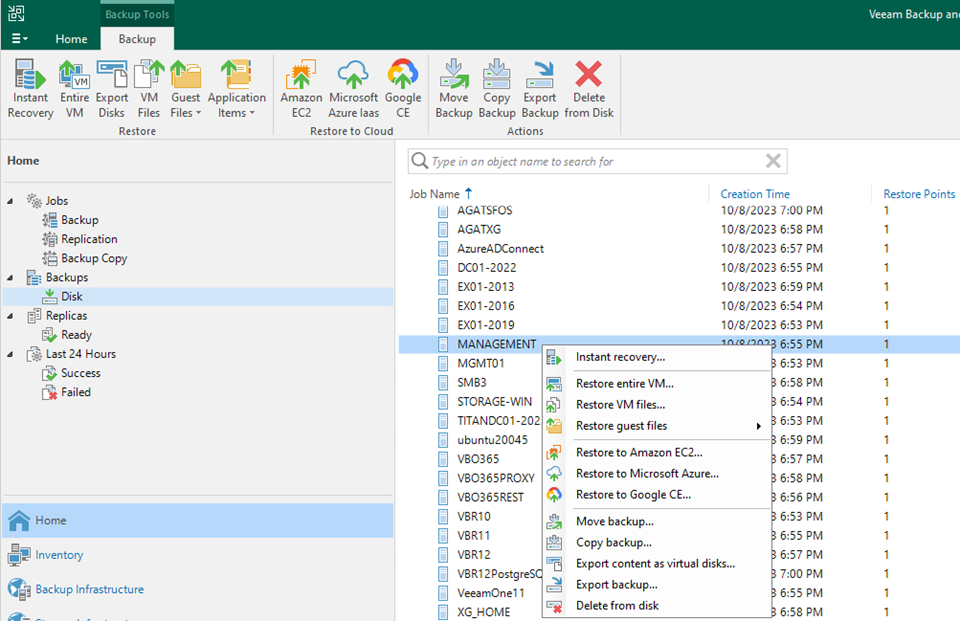

6. Right-click the virtual machine and select Restore VM files.

100923 0635 RestoreVMFi4 - Restore VM Files at Veeam Backup and Replication v12

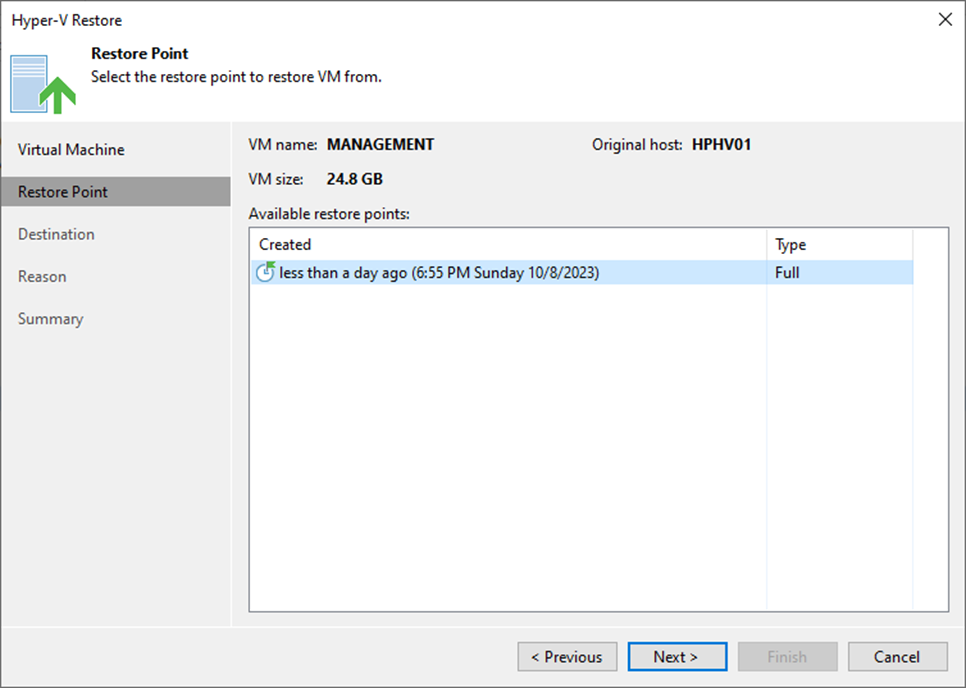

7. Select the restore point on the Restore Point page and click Next.

100923 0635 RestoreVMFi5 - Restore VM Files at Veeam Backup and Replication v12

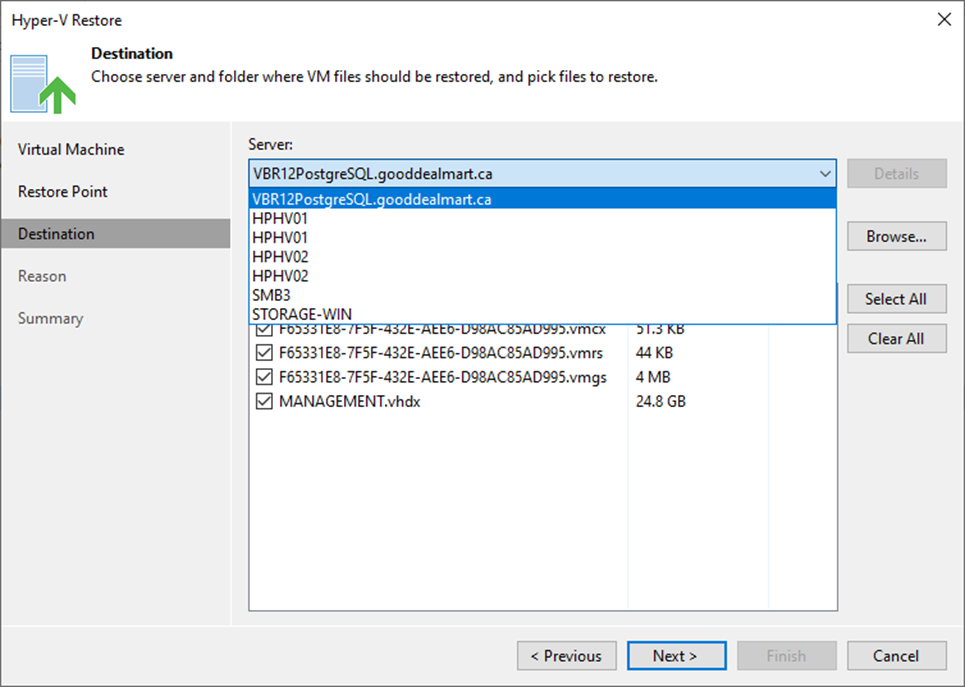

8. On the Destination page, select the server from the drop-down list.

100923 0635 RestoreVMFi6 - Restore VM Files at Veeam Backup and Replication v12

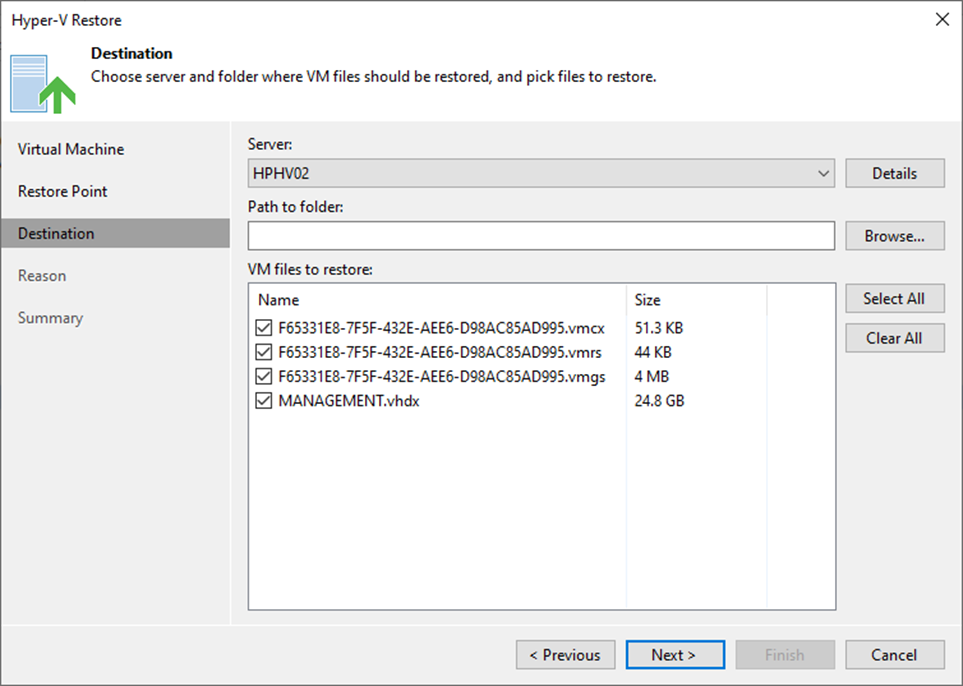

9. Click Browser in the path to folder session.

100923 0635 RestoreVMFi7 - Restore VM Files at Veeam Backup and Replication v12

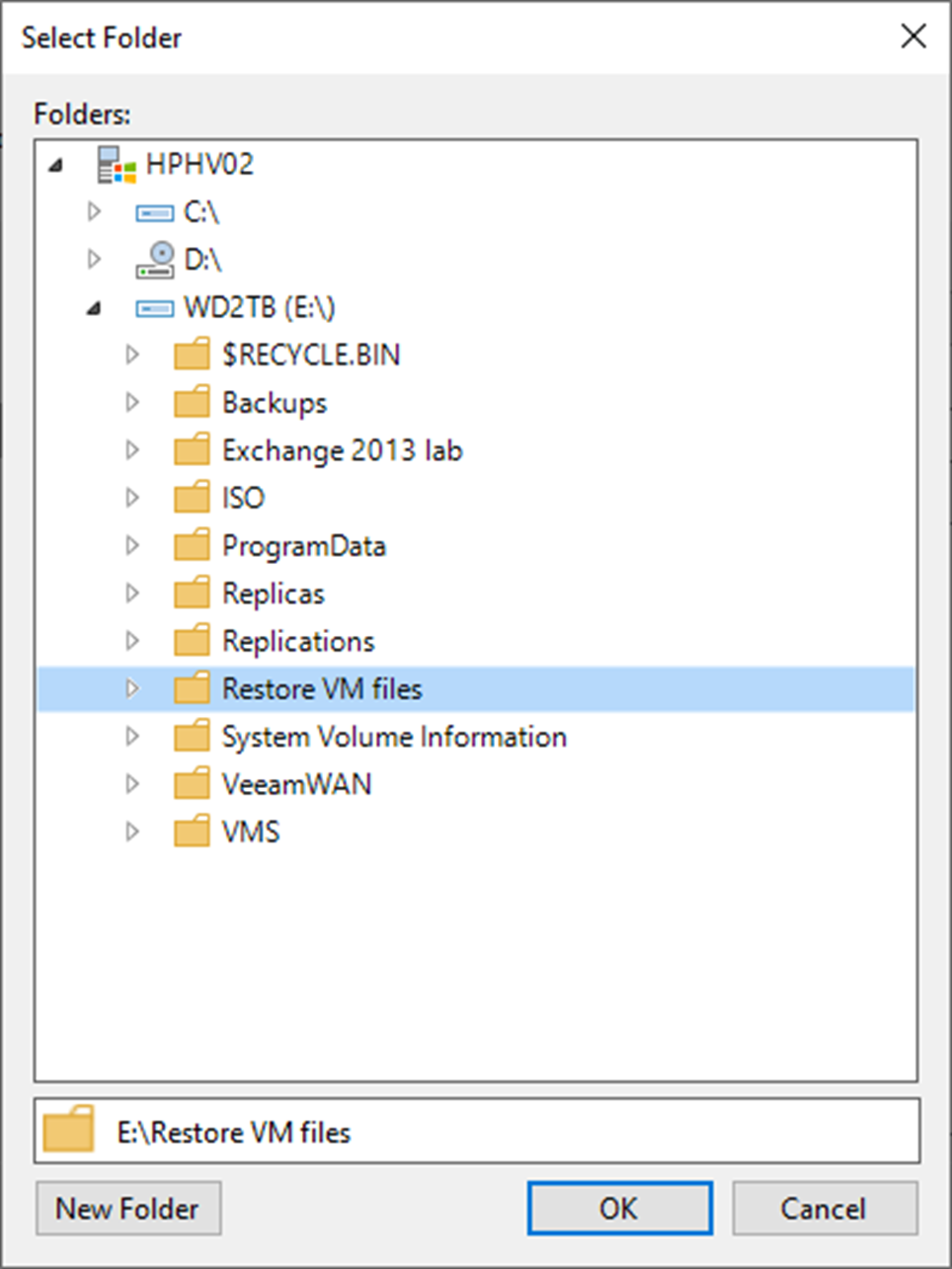

10. On the Select Folder page, select the target folder. Click OK.

100923 0635 RestoreVMFi8 - Restore VM Files at Veeam Backup and Replication v12

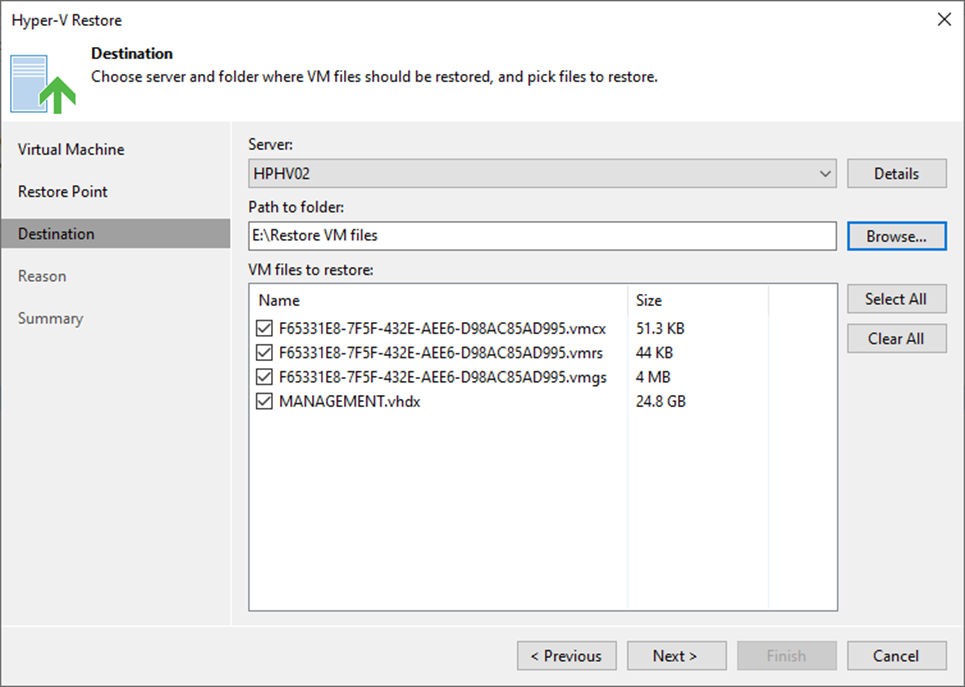

11. Select the files checkbox from the VM files to restore list and click Next.

100923 0635 RestoreVMFi9 - Restore VM Files at Veeam Backup and Replication v12

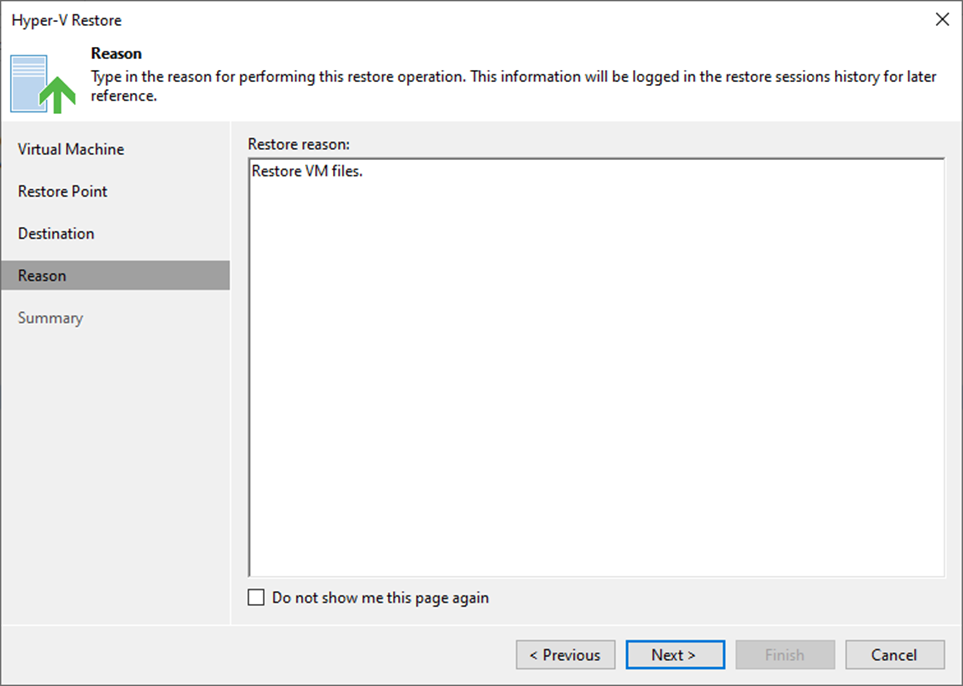

12. On the Reason page, enter the reason for restoring the selected VMs and click Next.

100923 0635 RestoreVMFi10 - Restore VM Files at Veeam Backup and Replication v12

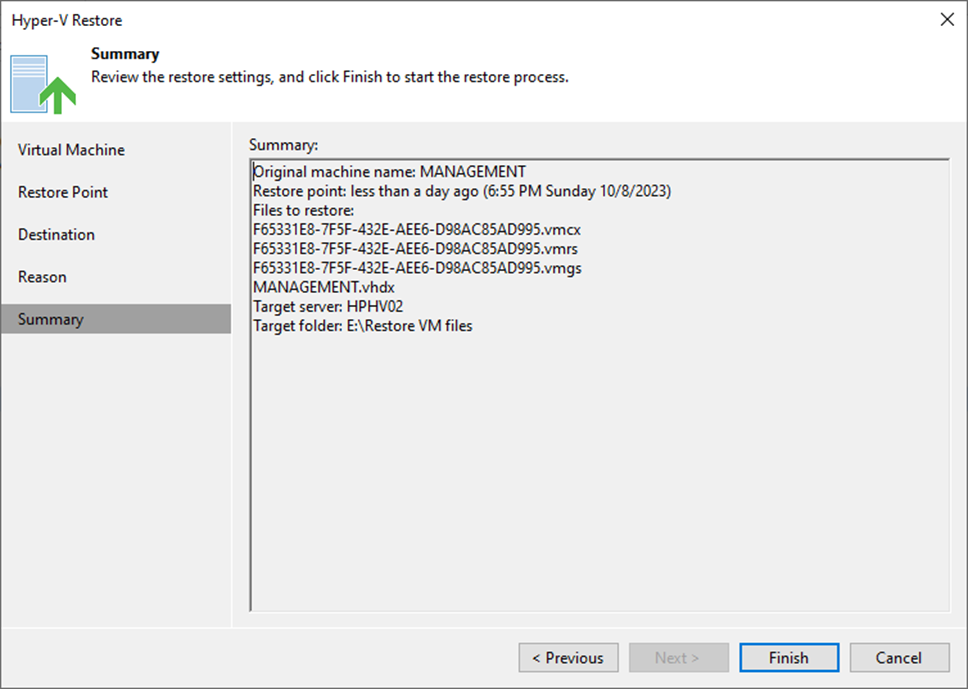

13. On the Summary page, click Finish.

100923 0635 RestoreVMFi11 - Restore VM Files at Veeam Backup and Replication v12

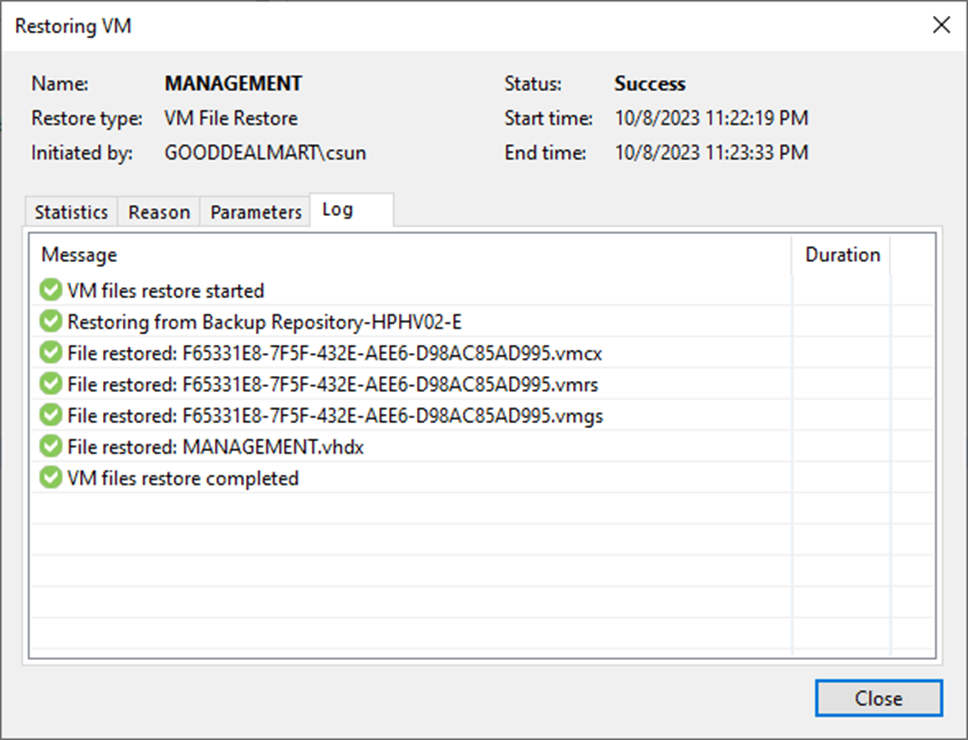

14. On the Restoring VM page, select log, ensure the restore VM files are completed successfully and click Closed.

100923 0635 RestoreVMFi12 - Restore VM Files at Veeam Backup and Replication v12

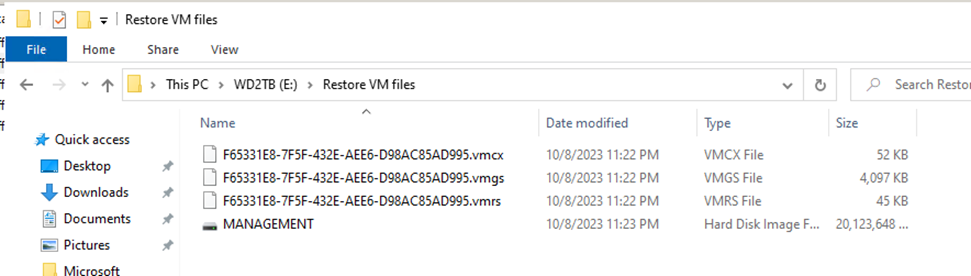

15. Verify restored VM files.

100923 0635 RestoreVMFi13 - Restore VM Files at Veeam Backup and Replication v12
