Veeam Backup for Microsoft 365 use backup proxy servers to leverage network when backup or restore data. The Veeam Backup for Microsoft 365 manager server is the default local backup proxy server.

Veeam Backup for Microsoft 365 use backup proxy servers to leverage network when backup or restore data. The Veeam Backup for Microsoft 365 manager server is the default local backup proxy server.

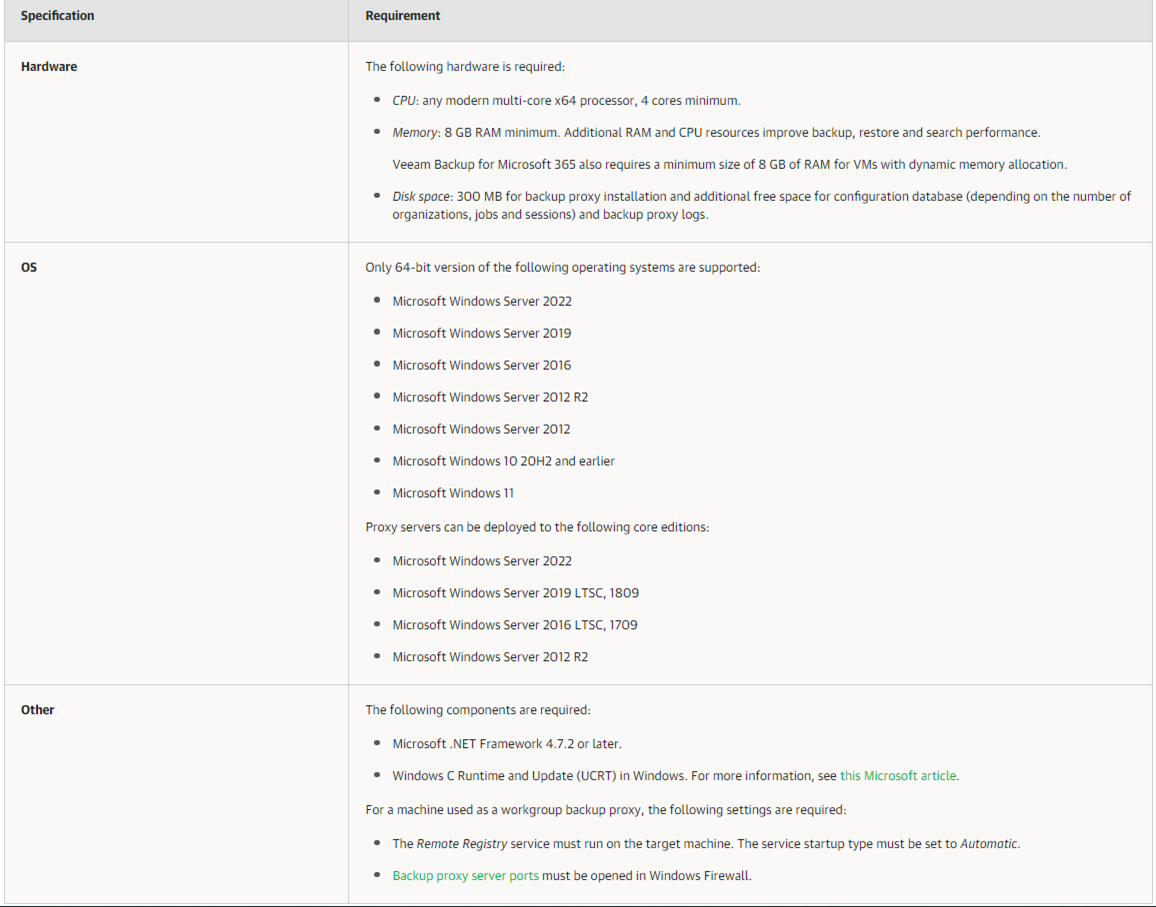

SYSTEM Requirements

050422 1647 HowtoaddBac1 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

The detail information as following link.

System Requirements – Veeam Backup for Microsoft 365 Guide

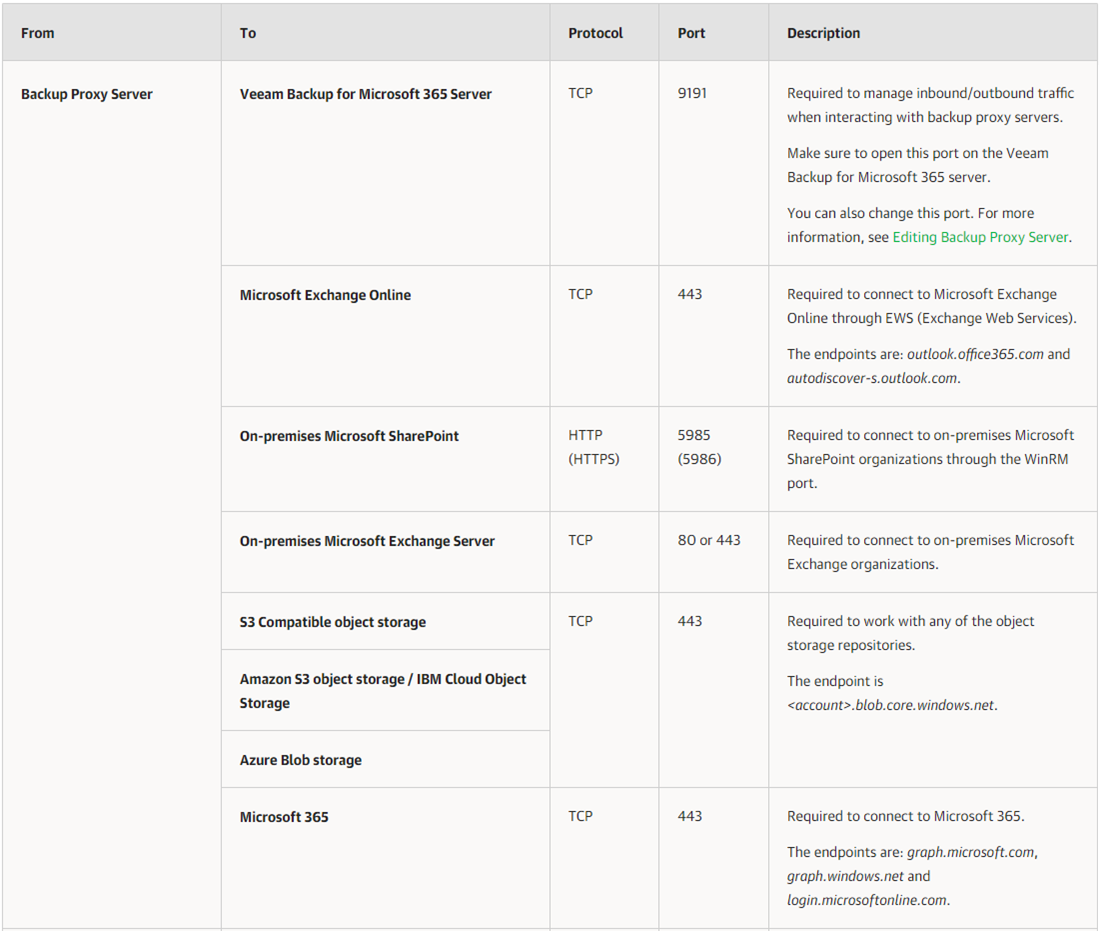

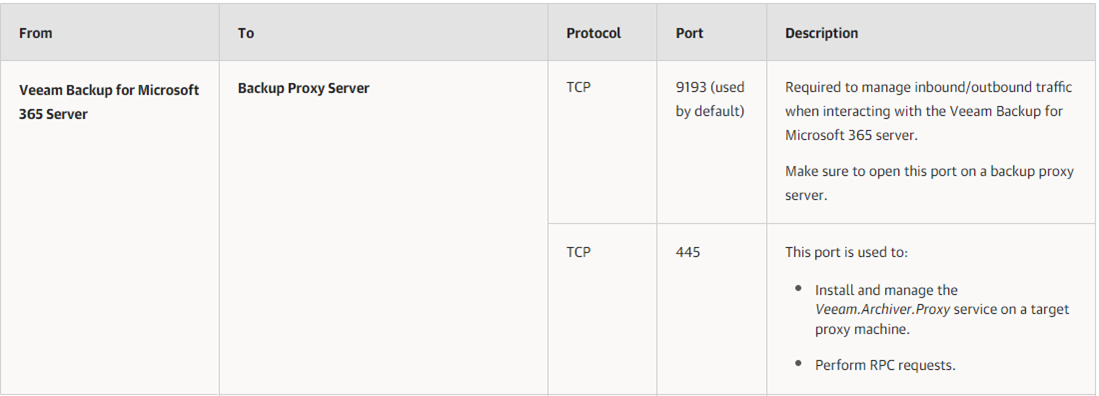

Firewall Open Ports Requirements

050422 1647 HowtoaddBac2 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

050422 1647 HowtoaddBac3 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

The detail information as following link.

Used Ports – Veeam Backup for Microsoft 365 Guide

1.Login to Veeam Backup for Microsoft 365 Manager server.

2.Open Veeam Backup for Microsoft Office 365 console.

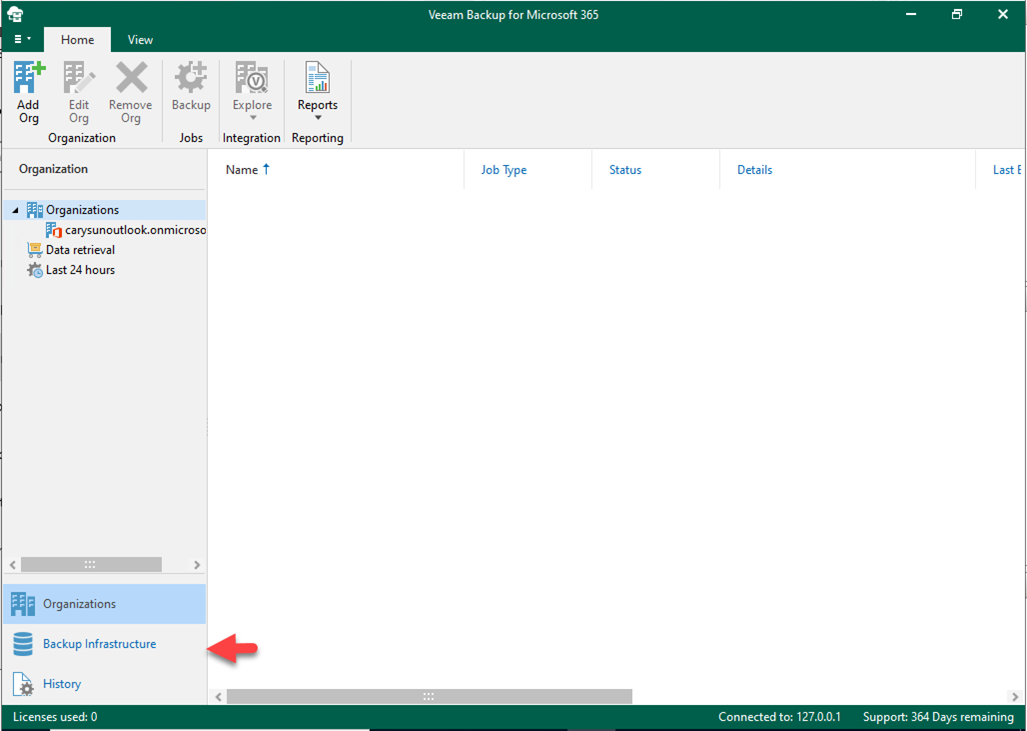

3.On the Veeam Backup for Microsoft Office 365 console page, select Backup Infrastructure.

050422 1647 HowtoaddBac4 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

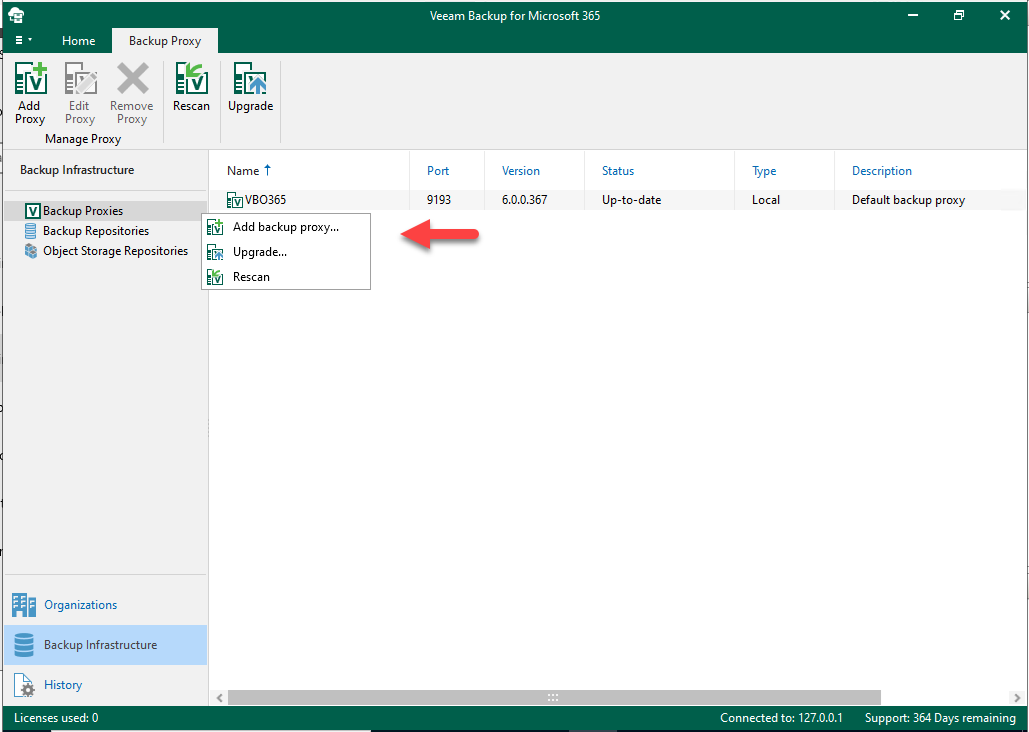

4.On the Backup Infrastructure page, right-click Backup Proxies, select Add backup proxy.

050422 1647 HowtoaddBac5 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

5.In the Host field, enter a DNS name or IP address of a computer that you want to use as a backup proxy server, select Use domain network, click Next.

050422 1647 HowtoaddBac6 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

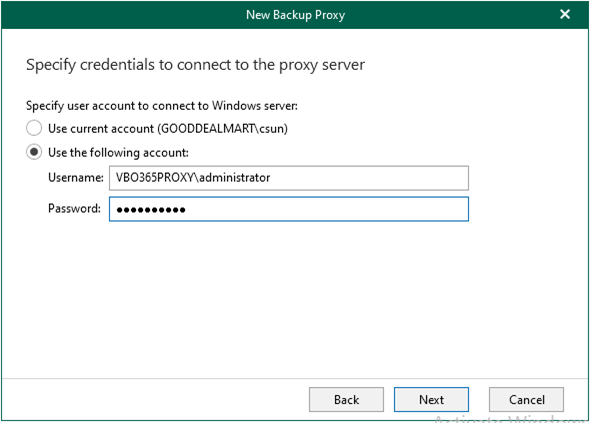

6.On the Specify credentials to connect to the proxy server page, select Use the following account, enter the user name and password, click Next. The account must be a member of the Local Administrator group.

050422 1647 HowtoaddBac7 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

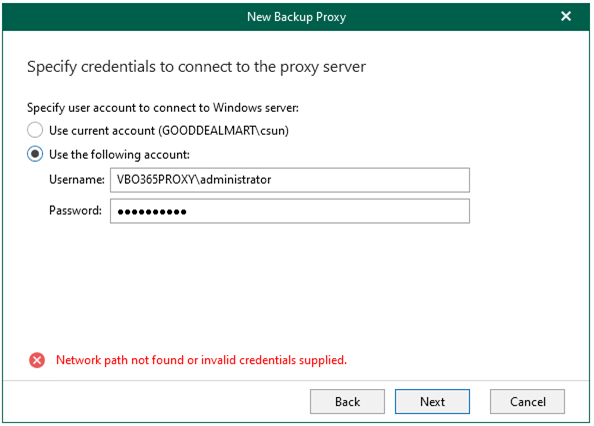

7.Please double check the Windows firewall settings for opening used ports requirements if it happened Network path not found or invalid credentials supplied error. The detail information as below link.

https://helpcenter.veeam.com/docs/vbo365/guide/vbo_used_ports.html?ver=60

050422 1647 HowtoaddBac8 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

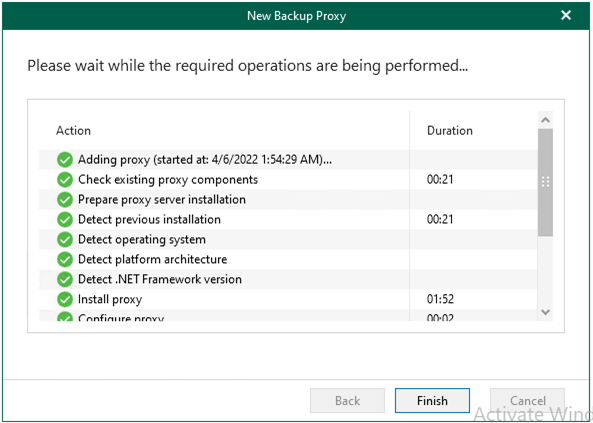

8.Click Finish.

050422 1647 HowtoaddBac9 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

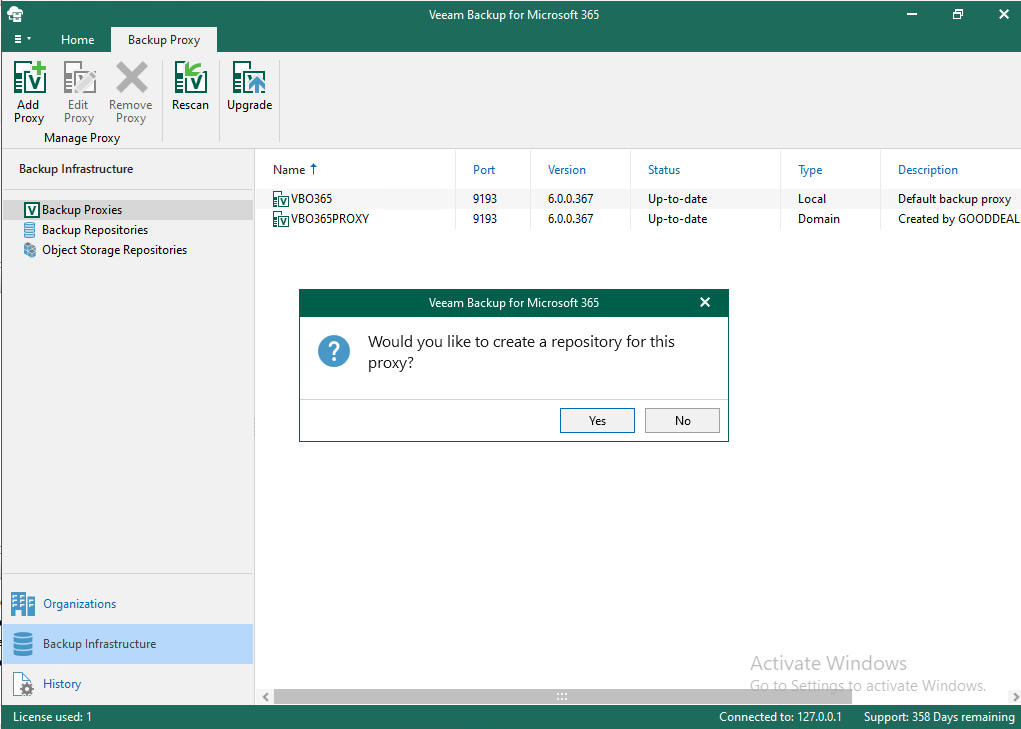

9.Click No on the create a repository for this proxy page.

050422 1647 HowtoaddBac10 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

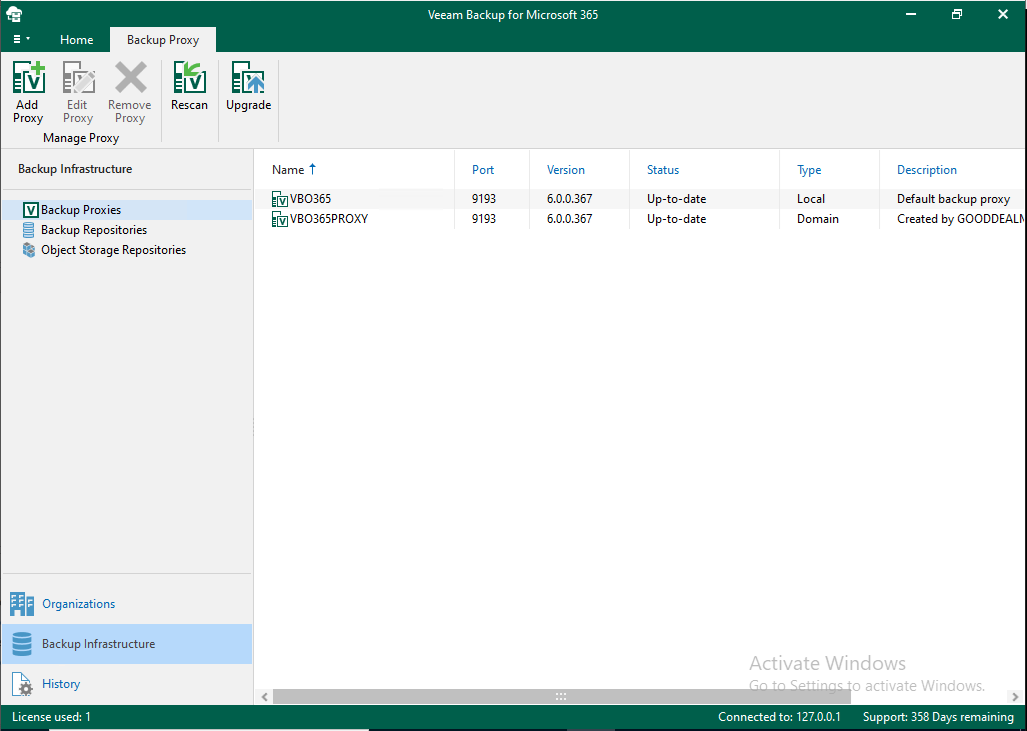

10.Verify the Backup proxy server had been added.

050422 1647 HowtoaddBac11 - How to add Backup Proxy Servers for Veeam Backup for Microsoft 365 v6

Hope you enjoy this post.
