082323 1936 HowtoaddOff3 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12
Off-Host Backup proxy servers will retrieve VM data from the source datastore, process it and transfer it to the destination. The off-host backup proxy removes unwanted overhead on the production Hyper-V host.

Off-Host Backup proxy servers will retrieve VM data from the source datastore, process it and transfer it to the destination. The off-host backup proxy removes unwanted overhead on the production Hyper-V host.

1. Login to the Veeam Backup and replication manager server.

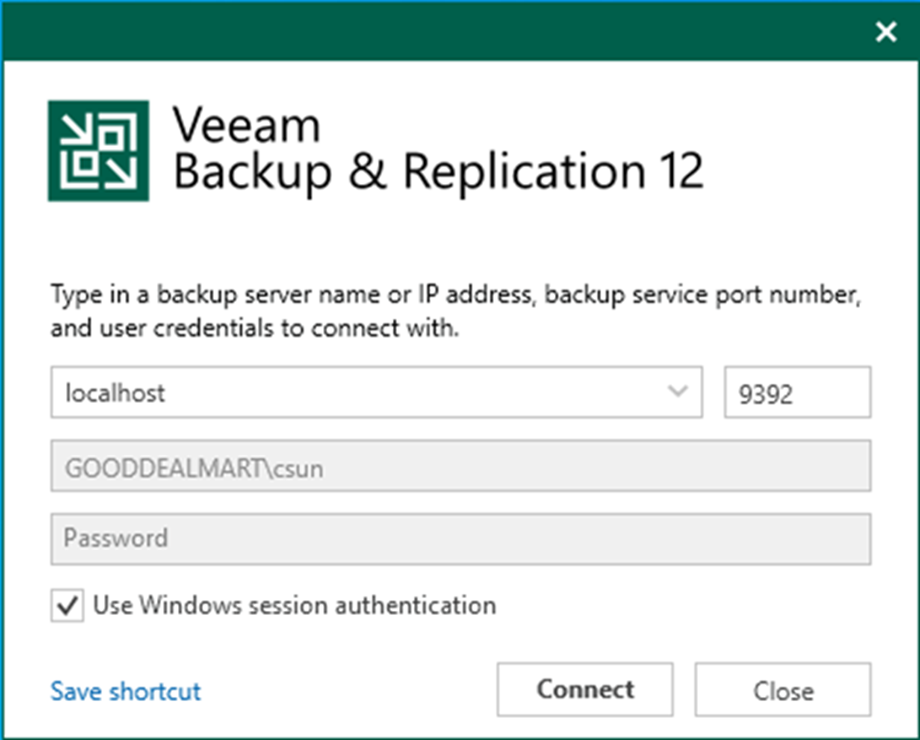

2. Open the Veeam Backup & Replication Console and click Connect.

082323 1936 HowtoaddOff1 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

3. On the Home page, select Backup Infrastructure.

4. On the Backup Infrastructure page, select Backup Proxies.

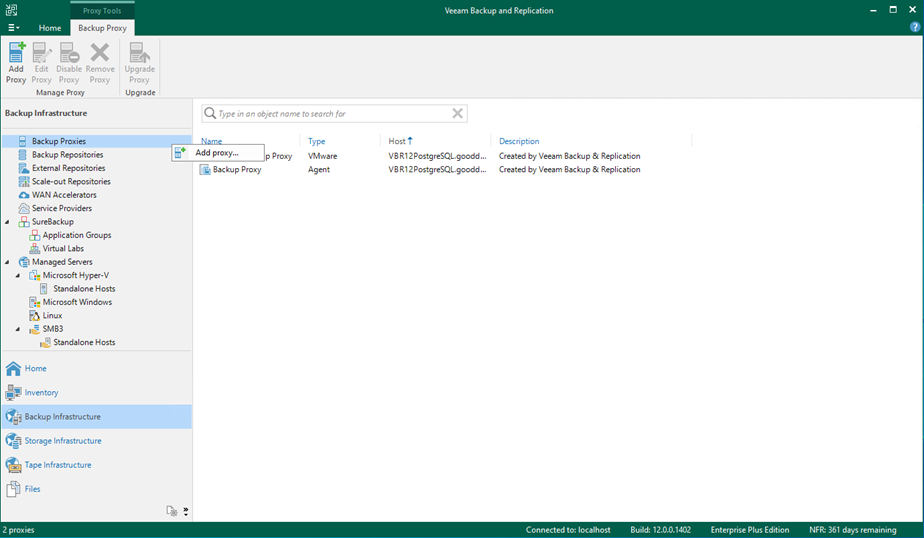

5. Right-click Backup Proxies and select Add proxy.

082323 1936 HowtoaddOff2 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

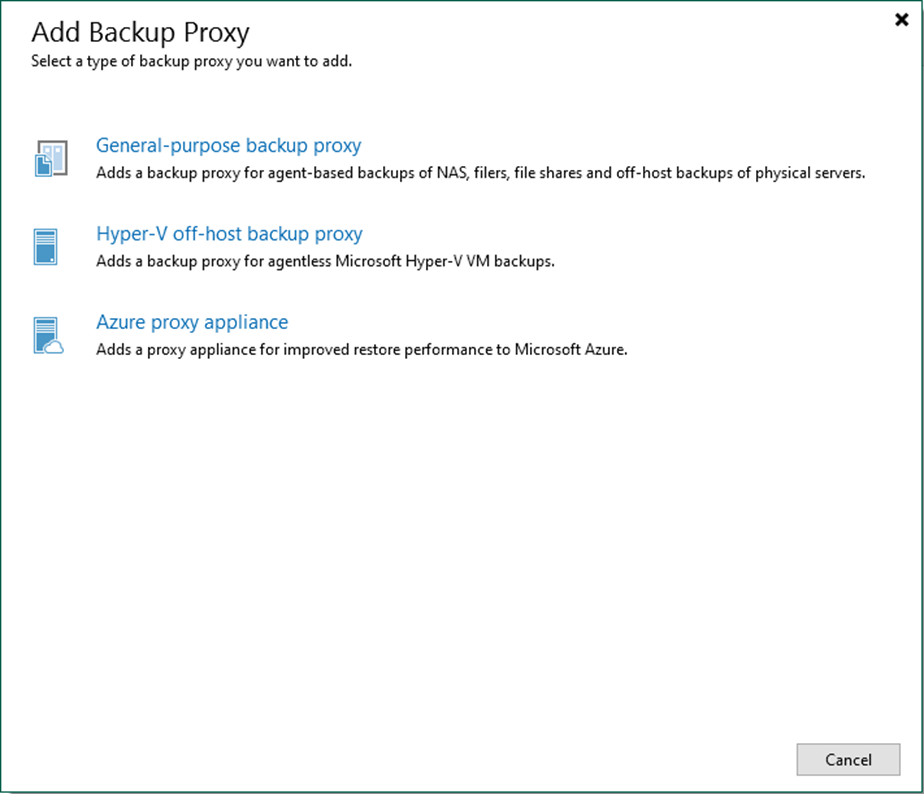

6. Select Hyper-V off-host backup proxy on the Add Backup Proxy page.

082323 1936 HowtoaddOff3 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

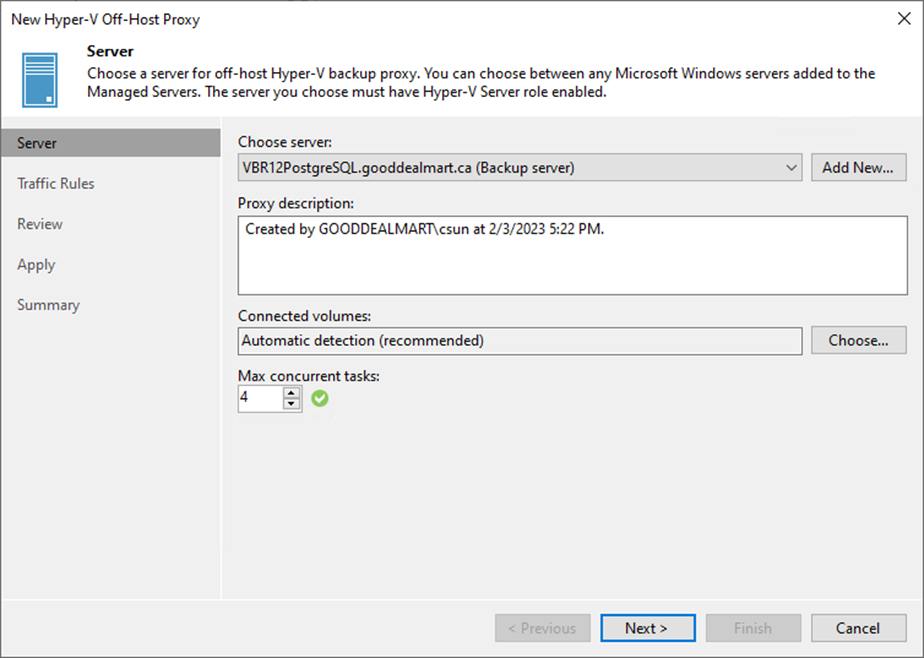

7. Click Add New in the Choose server field on the Server page.

082323 1936 HowtoaddOff4 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

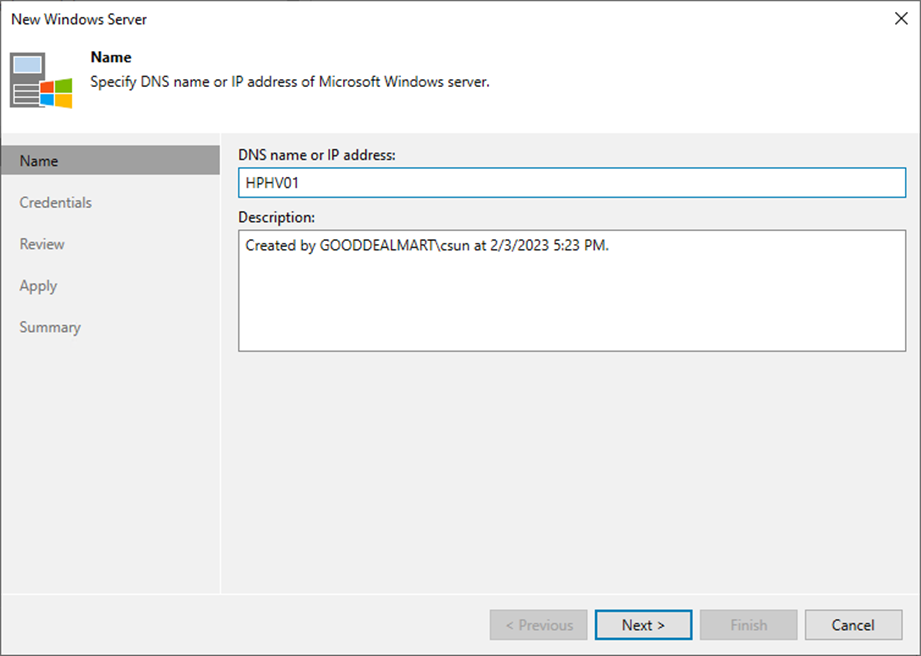

8. Enter the Microsoft Windows server’s full DNS name or IP address on the Name page.

9. Give a brief description in the Description field for future reference and click Next.

082323 1936 HowtoaddOff5 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

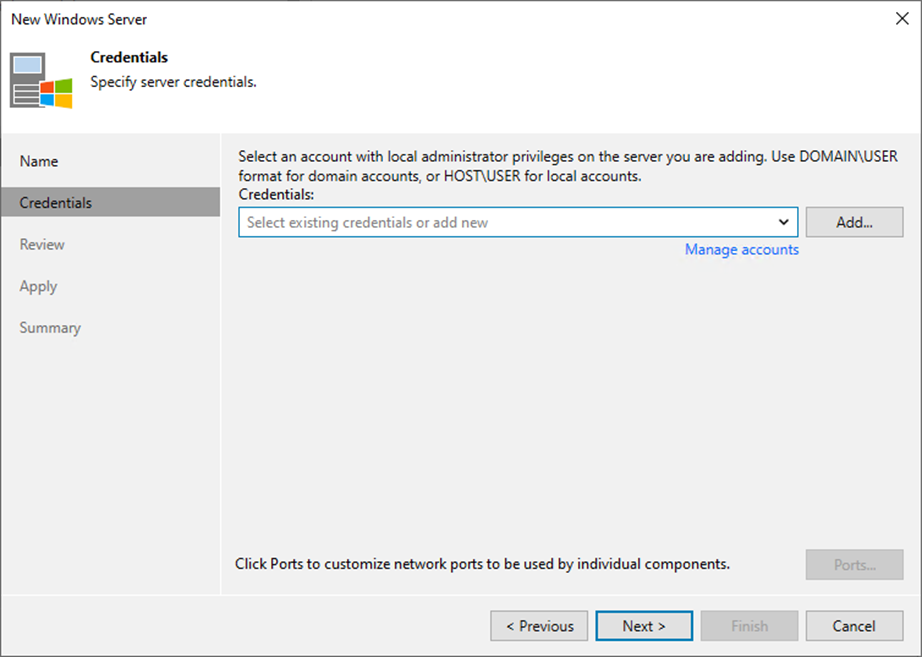

10. Select an account from the Credentials drop-down list on the Credentials page or click Add on the right to add the credentials.

082323 1936 HowtoaddOff6 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

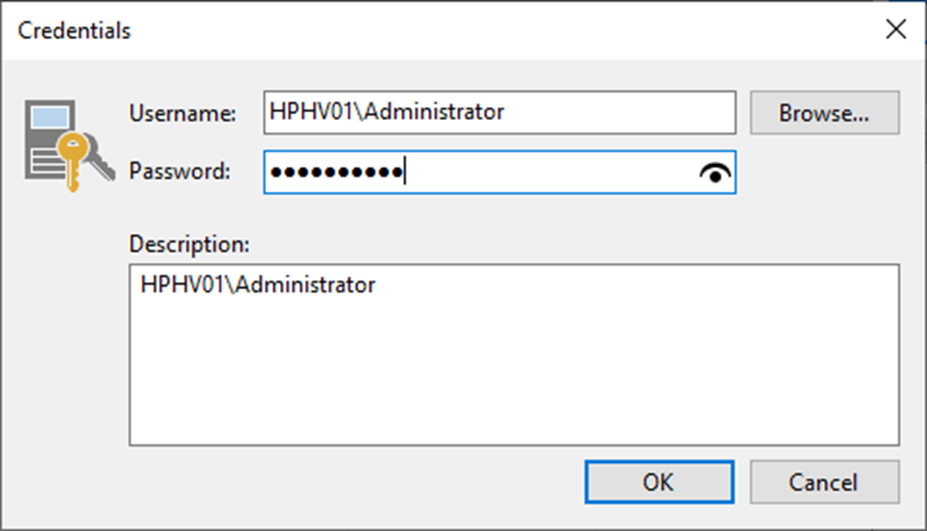

11. On the Credentials page, enter a username in the Username field. You also can click Browse to select an existing user account.

12. Enter the password In the Password field.

13. Give a brief description in the Description field for future reference and click OK.

082323 1936 HowtoaddOff7 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

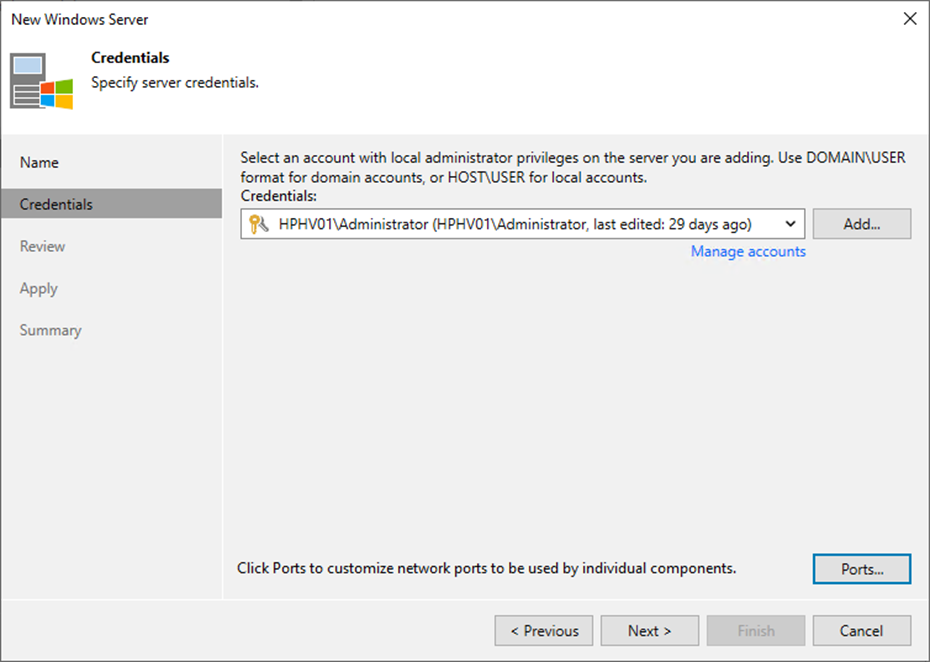

14. On the Credentials page, click Ports.

082323 1936 HowtoaddOff8 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

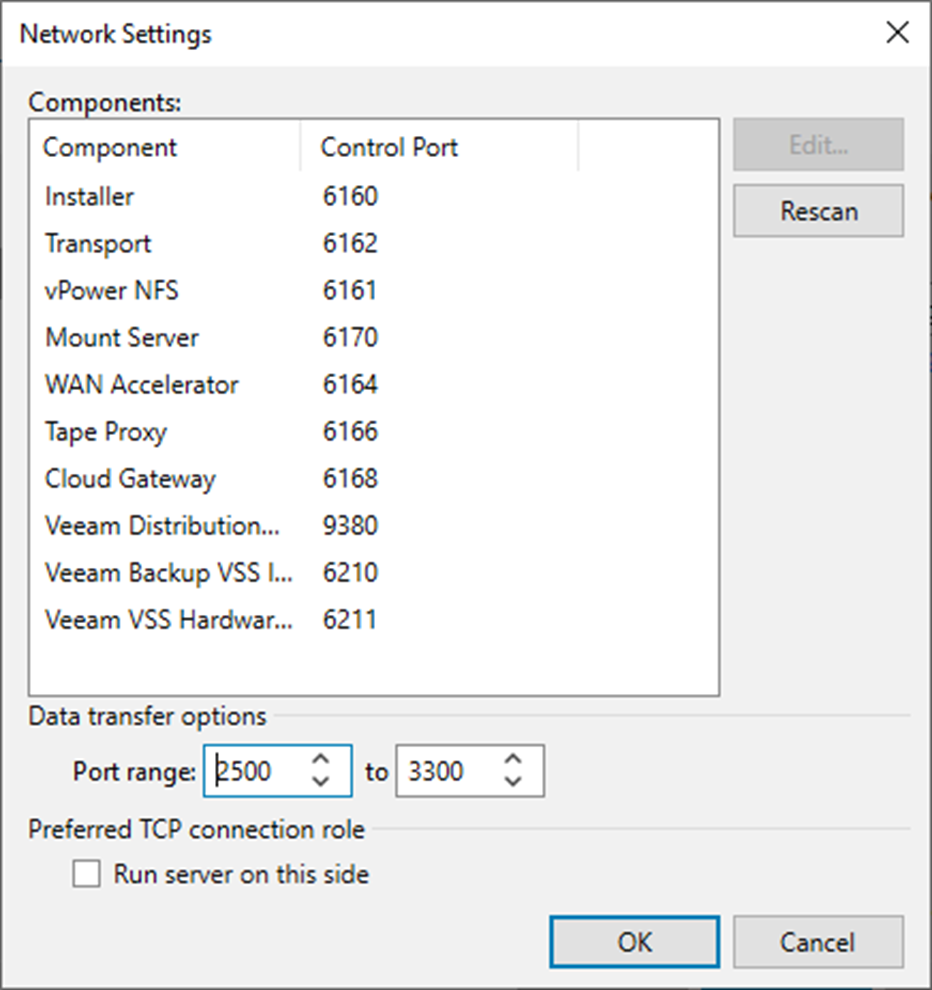

15. If necessary, change the network ports used by Veeam Backup & Replication components on the Network Settings page.

16. Configure connection settings for file copy operations in the Network Settings window’s Data transfer options section. Provide a set of ports for transmission channels between the source and target hosts (one port per task).

17. Select the Run server on this side checkbox in the Preferred TCP connection role section. The outside client cannot connect to the server on the NAT network in the NAT scenario. As a result, services that require external connection initiation may be disrupted.

18. Click OK.

082323 1936 HowtoaddOff9 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

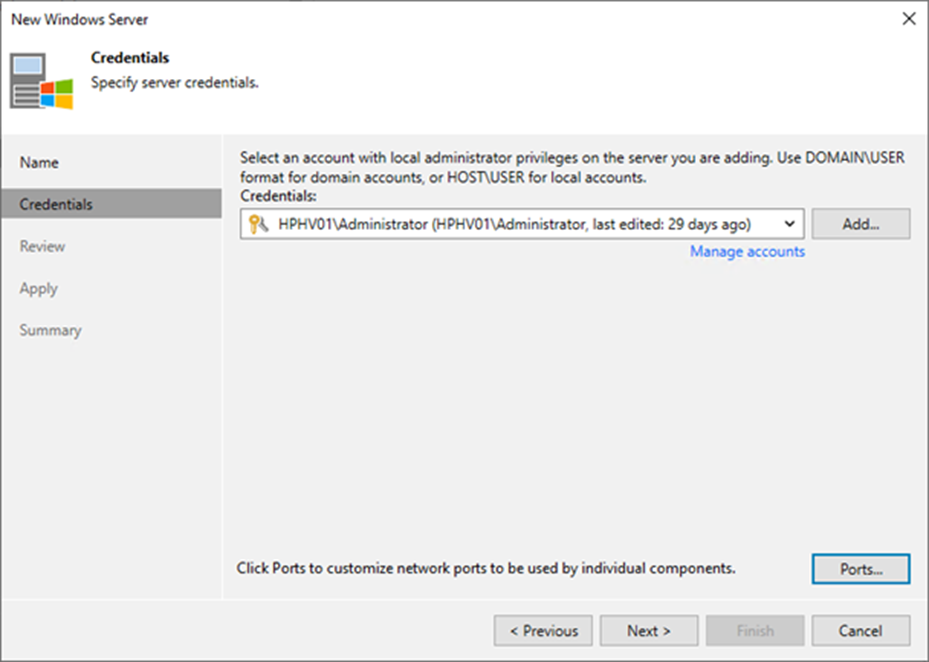

19. Click Next on the Credentials page.

082323 1936 HowtoaddOff10 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

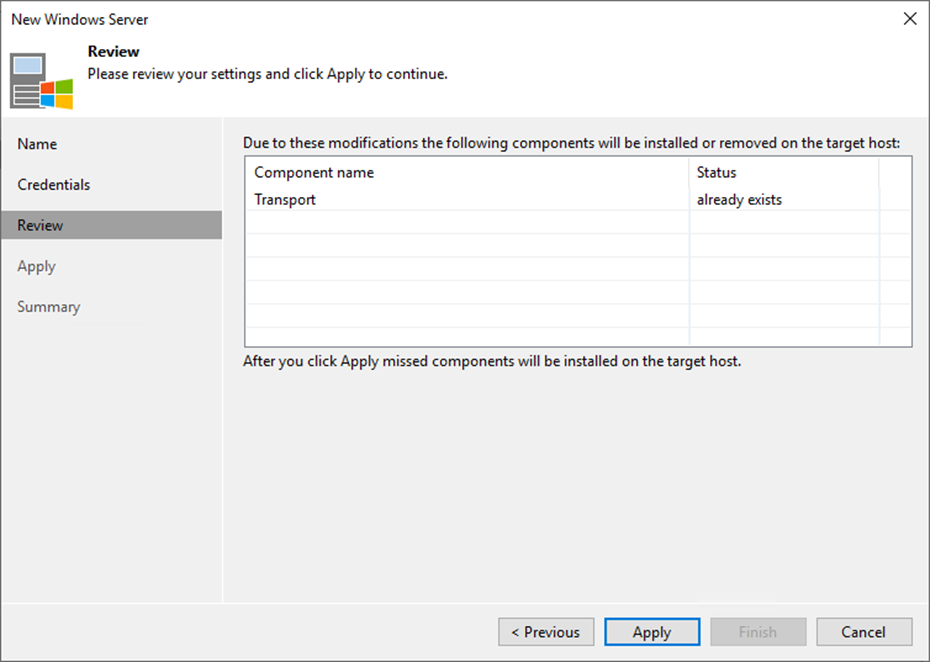

20. Click Apply on the Review page.

082323 1936 HowtoaddOff11 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

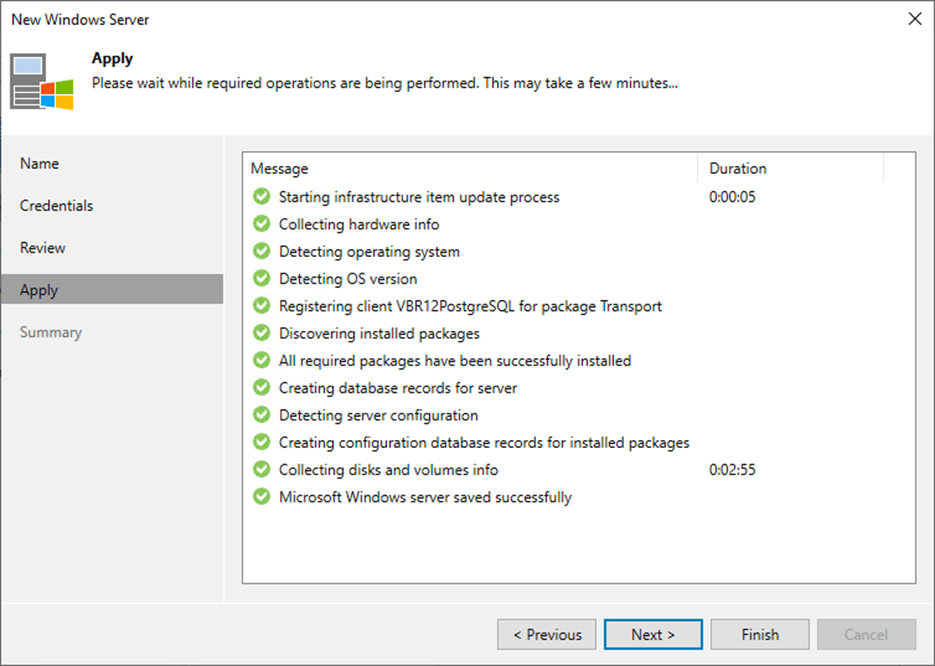

21. On the Apply page, click Next.

082323 1936 HowtoaddOff12 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

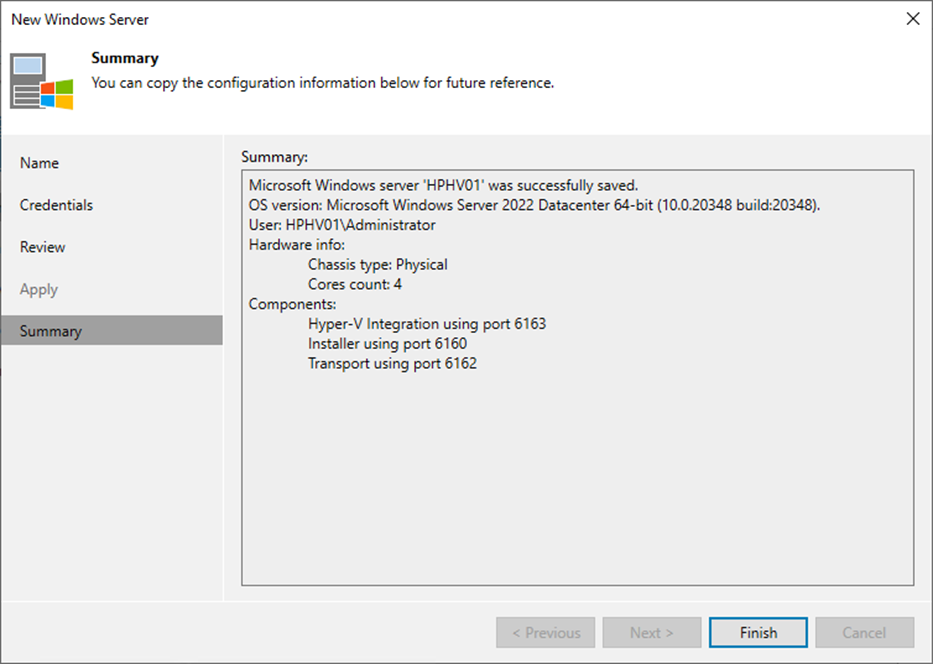

22. Click Finish on the Summary page.

082323 1936 HowtoaddOff13 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

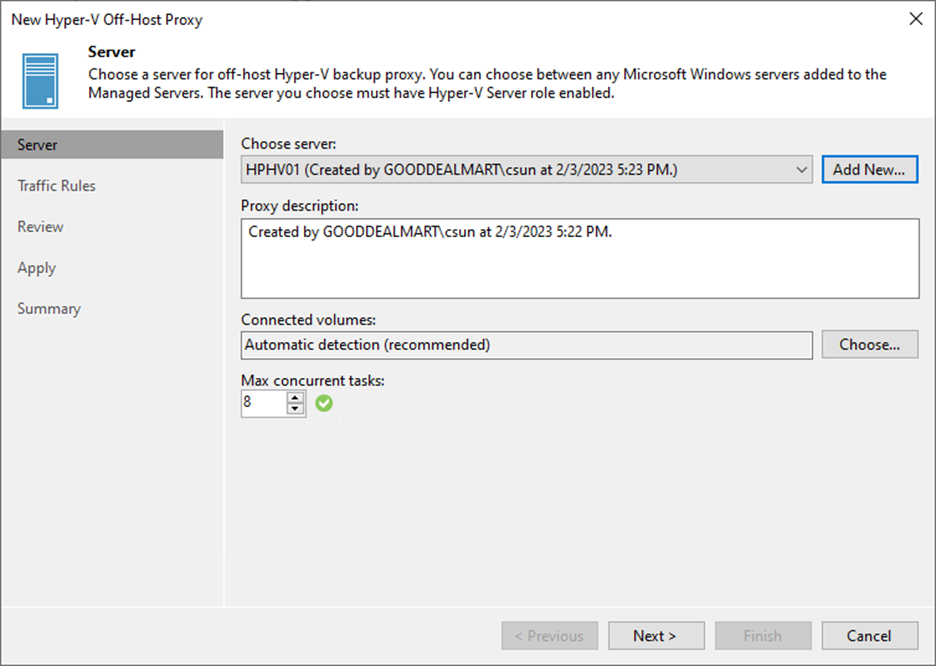

23. Give a brief description in the Proxy description field for future reference.

24. In the Connected volumes field, leave the default settings.

25. Enter the number of tasks the off-host backup proxy must handle concurrently in the Max concurrent tasks field.

26. Click Next.

082323 1936 HowtoaddOff14 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

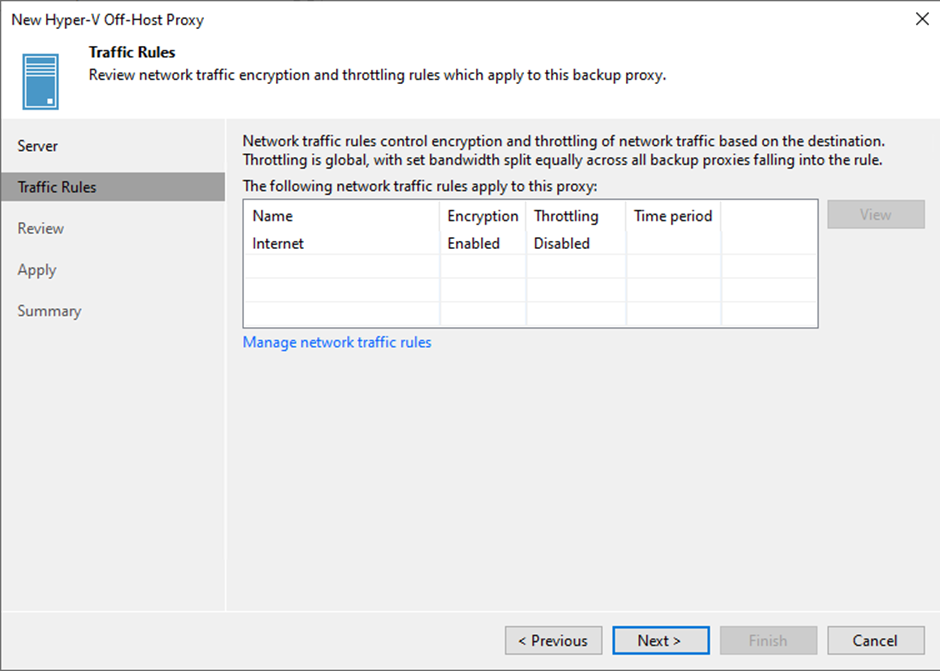

27. On the Traffic Rules page, click Next.

28. You can open global network traffic settings and modify them directly from the New Hyper-V Off-Host Proxy wizard. To do this, click the Manage network traffic rules link at the bottom of the wizard.

082323 1936 HowtoaddOff15 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

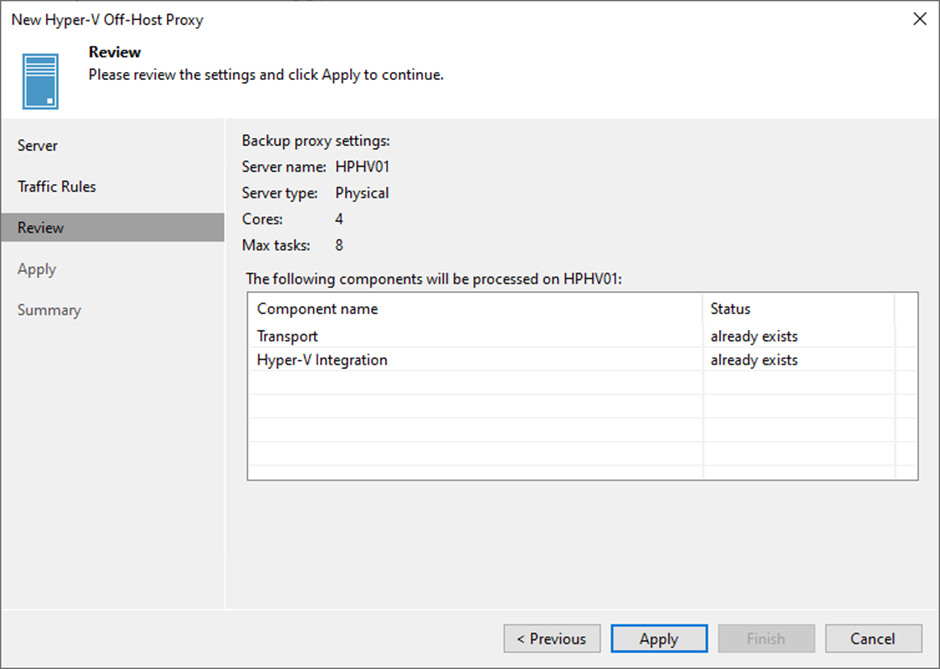

29. Click Apply on the Review page.

082323 1936 HowtoaddOff16 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

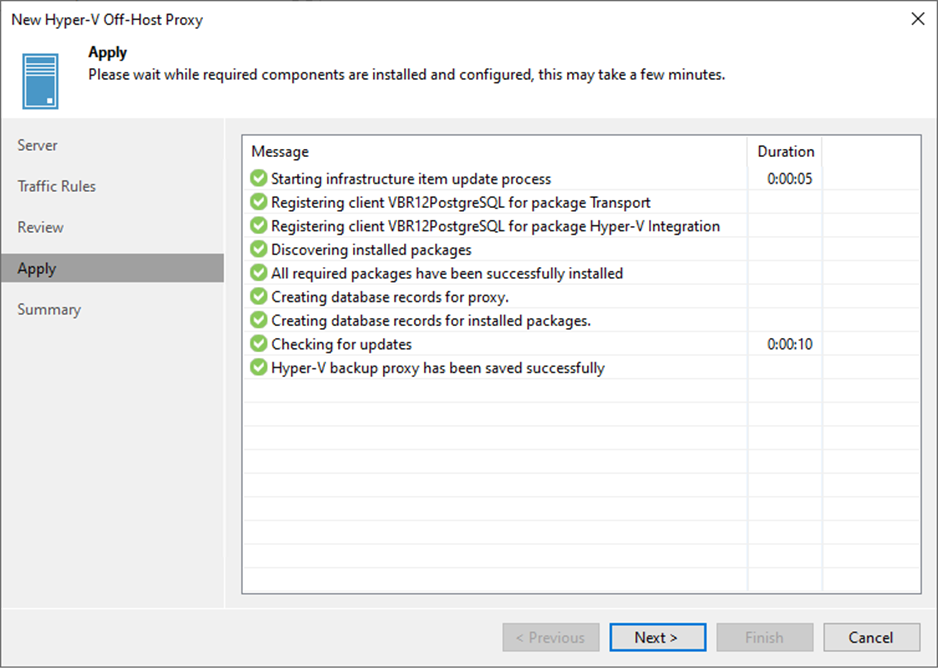

30. Click Next on the Apply page.

082323 1936 HowtoaddOff17 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

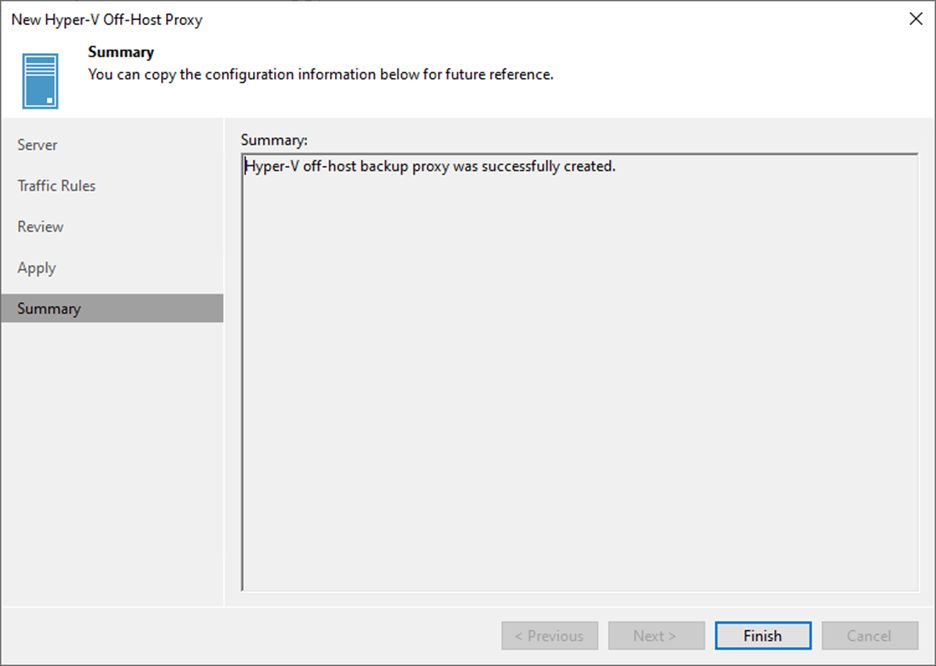

31. Click Finish on the Summary page.

082323 1936 HowtoaddOff18 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

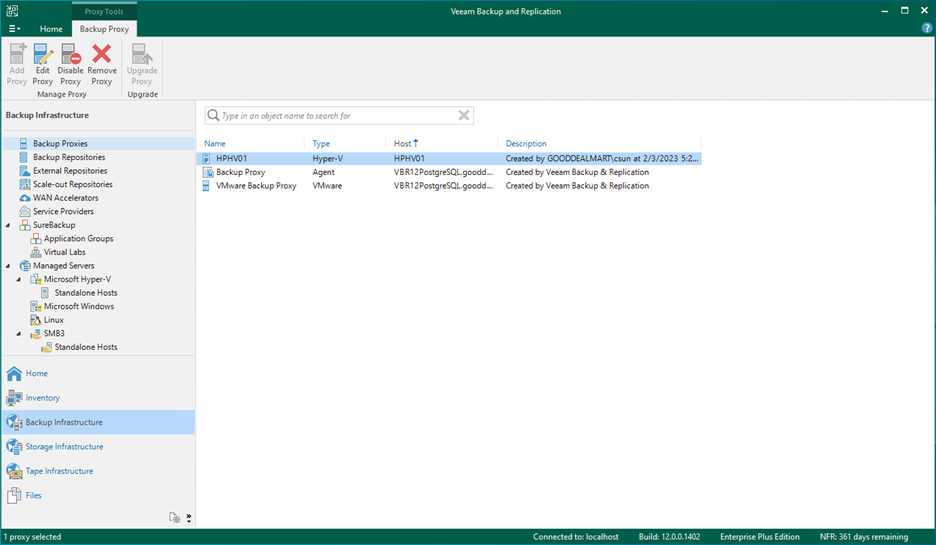

32. Ensure the new Off-Host Backup proxy server is added.

082323 1936 HowtoaddOff19 - How to add Off-Host Backup proxy servers to Veeam Backup and Replication v12

I hope you enjoy this post.
