Today, I am going to show you how to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account.

Today, I am going to show you how to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account.

1.Open web browser, type the Veeam Backup for Microsoft Azure URL, the URL consists of a public IPv4 address or DNS hostname of the Microsoft Azure VM where Veeam Backup for Microsoft Azure is installed, if you still not installed it, you can reference my previously post.

https://carysun.com/how-to-install-veeam-backup-for-microsoft-azure-1-0/

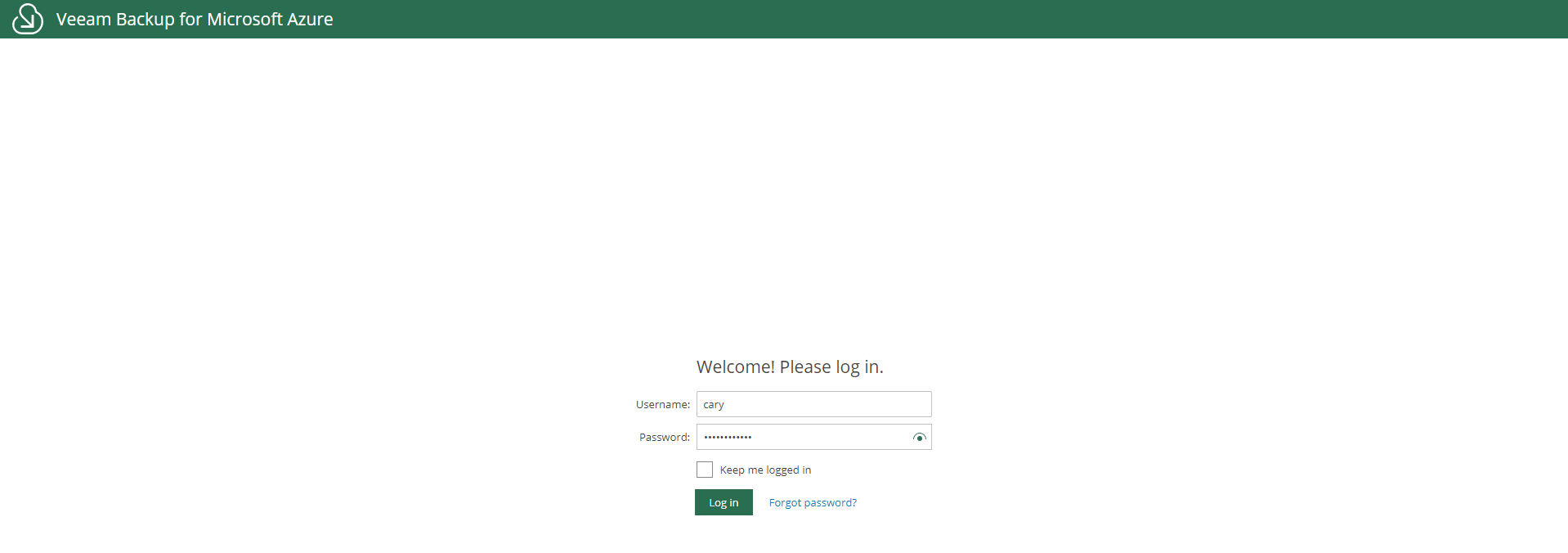

2.On the Veeam Backup for Microsoft Azure sign in page, type username and password, click Login.

102220 2115 HowtoConfig1 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

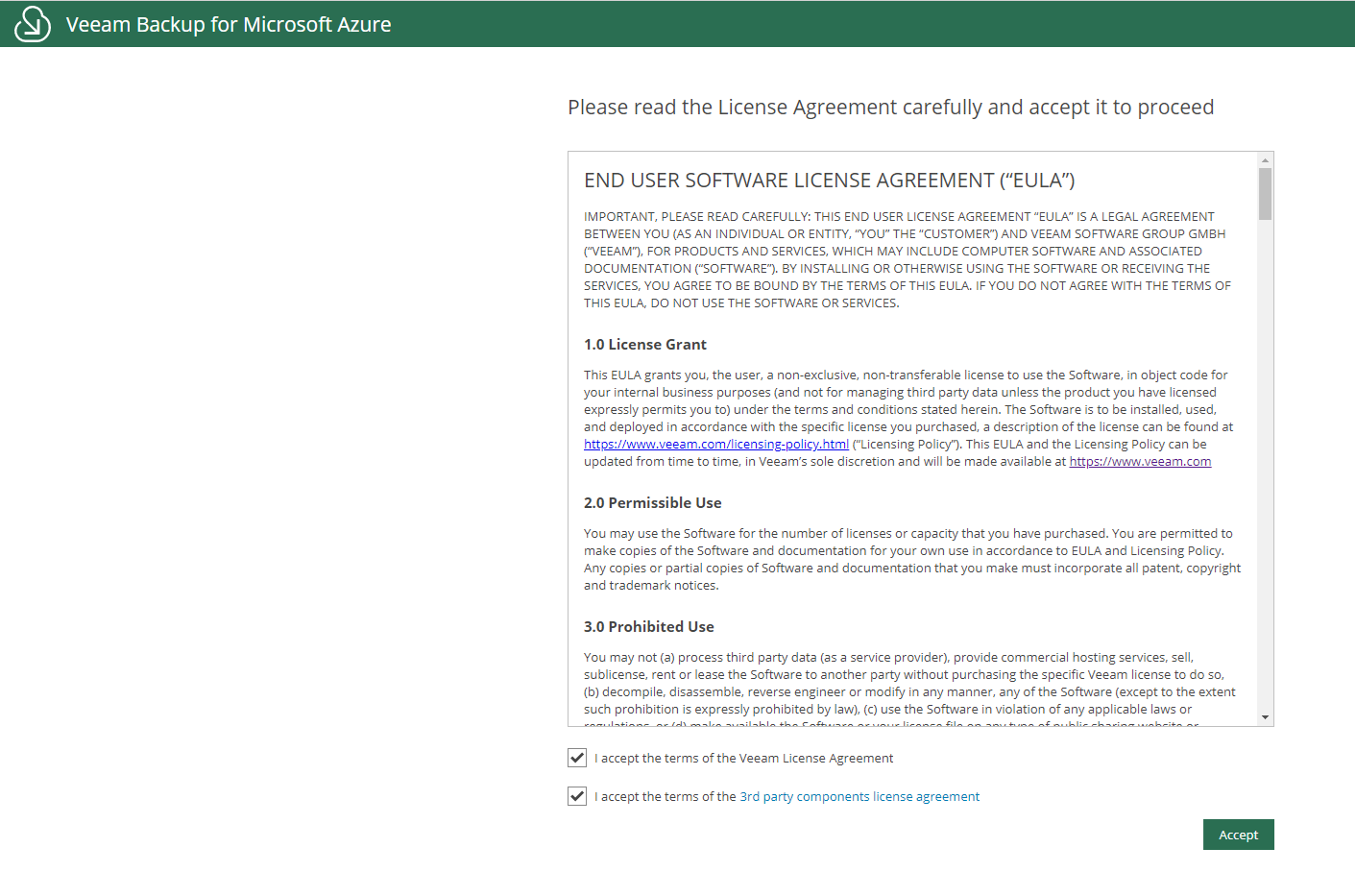

3.On the License Agreement page, select I accept the terms of the Veeam License Agreement and I accept the terms of the 3rd party components license agreement, click Accept.

102220 2115 HowtoConfig2 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

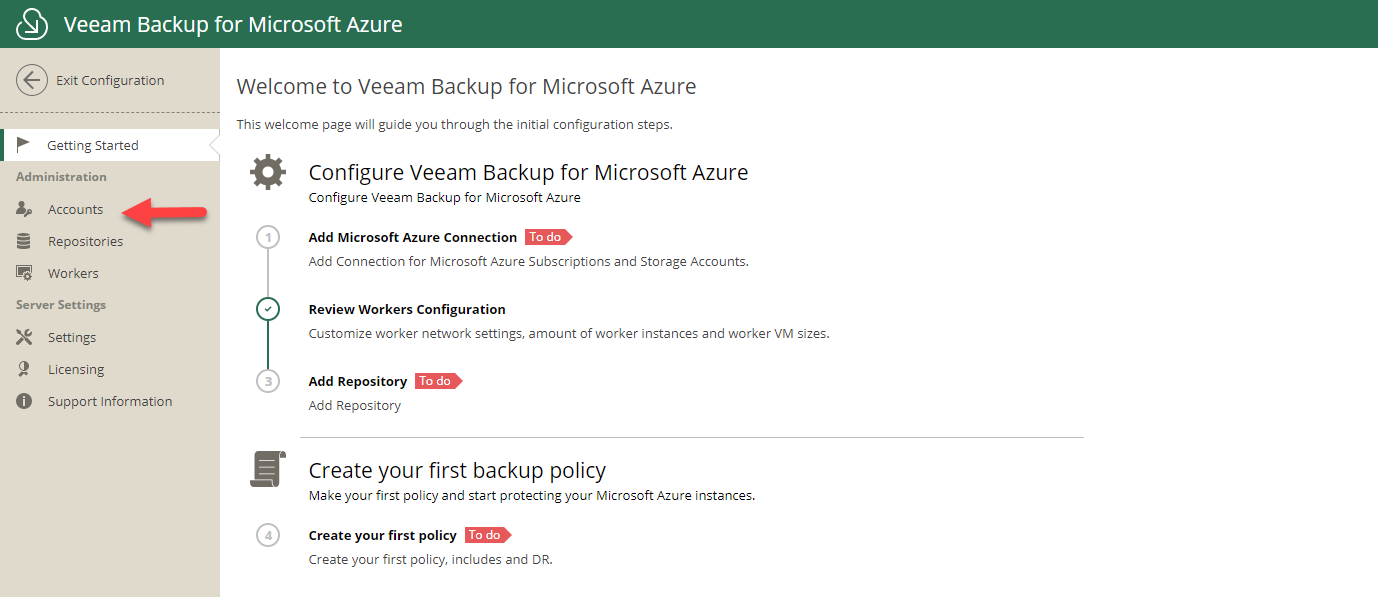

4.On the Welcome page, select Accounts.

102220 2115 HowtoConfig3 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

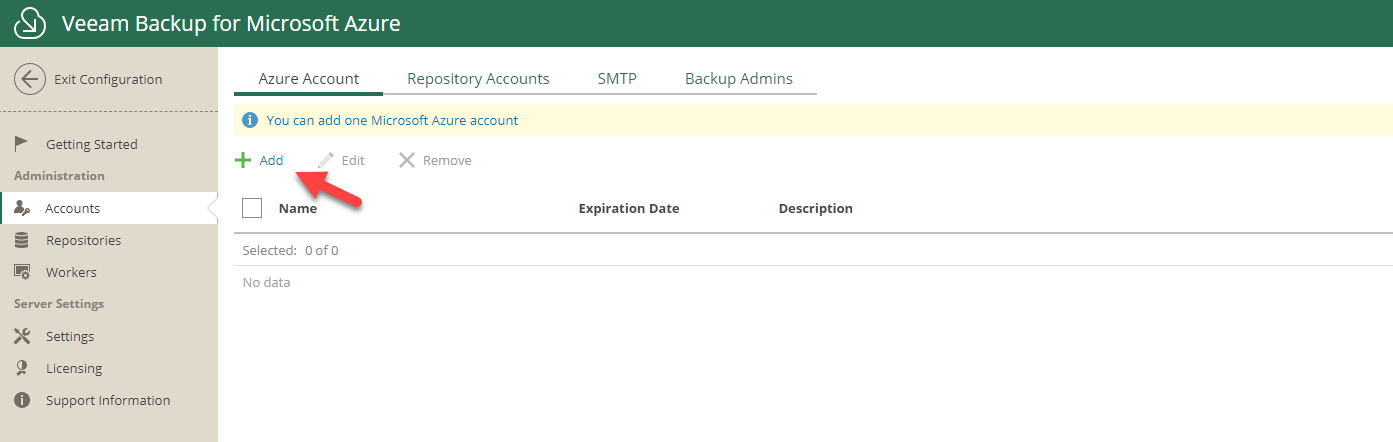

5.On the Azure Account page, click Add.

102220 2115 HowtoConfig4 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

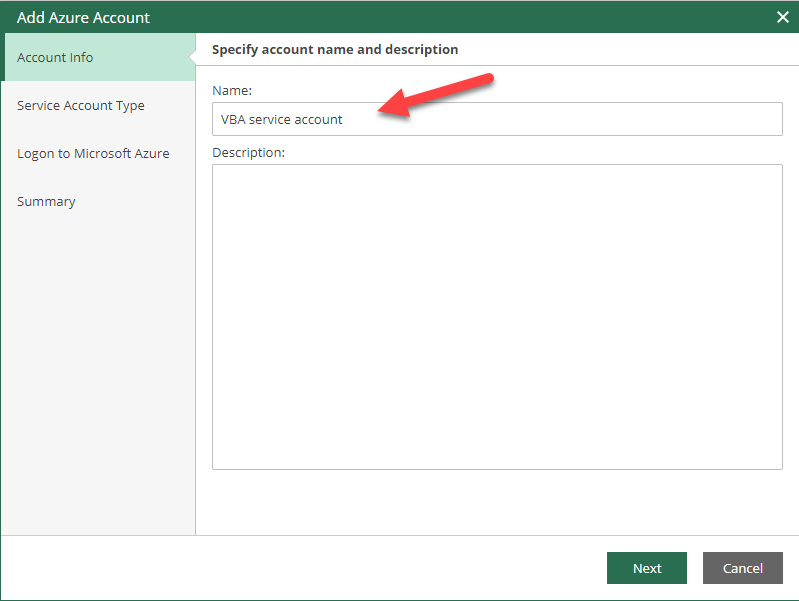

6.On the Account Info page, type the service account name in Name field, in my case is VBA service account, click Next.

102220 2115 HowtoConfig5 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

Veeam Backup for Microsoft Azure uses a Microsoft Azure service account to get access to Microsoft Azure resources such as subscriptions, resource groups, storage accounts, and so on configured in your Azure environment.

  • You can add only one Microsoft Azure service account to the Veeam Backup for Microsoft Azure backup infrastructure.
  • Due to technical limitations, a service account grants access to subscriptions from the default tenant only (that is, a tenant where the controller server is deployed). Subscriptions that are owned by other tenants will not be available. To use such subscriptions, you can use Azure LightHouse.

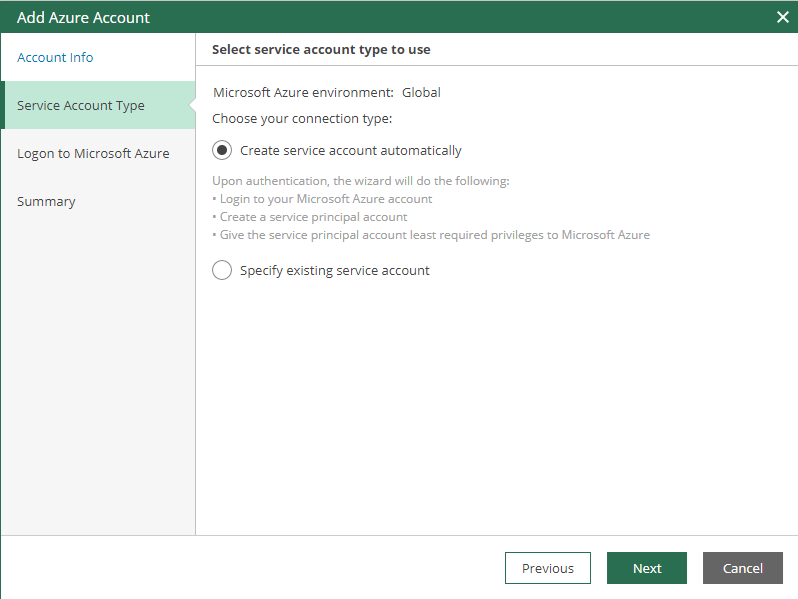

7.On the Service Account Type page, select Create service account automatically, click Next.

102220 2115 HowtoConfig6 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

If you would like to use Specify existing service account, please verify the required permissions as below link.

https://helpcenter.veeam.com/docs/vbazure/guide/required_permissions.html?ver=10

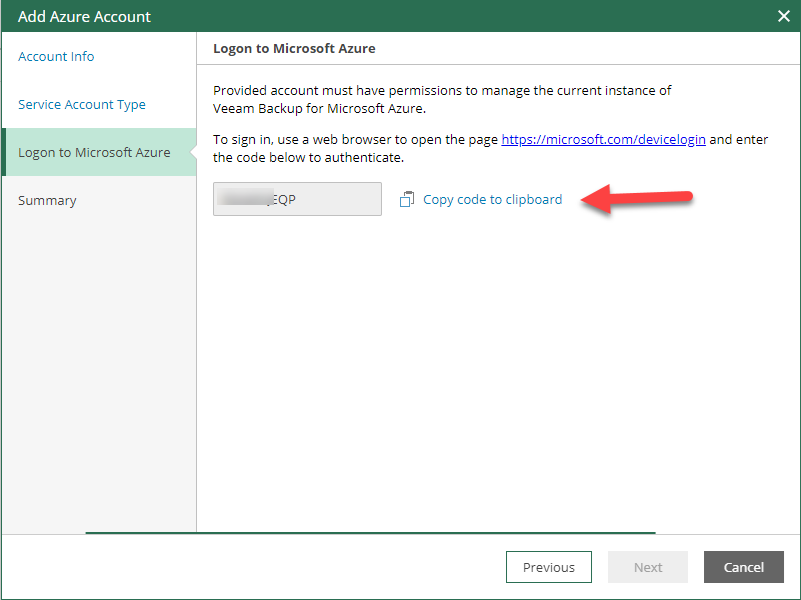

8.On the Logon to Microsoft Azure page, click Copy code to clipboard.

102220 2115 HowtoConfig7 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

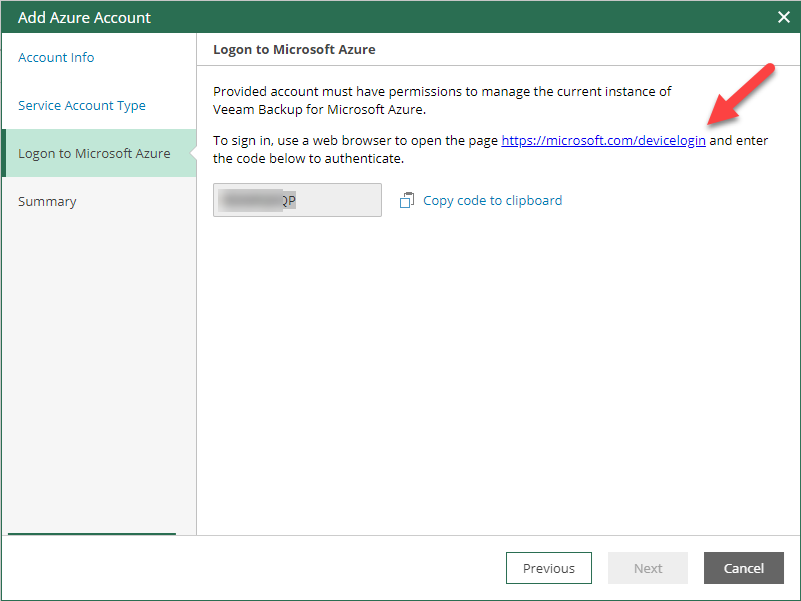

9.On the Logon to Microsoft Azure page, click https://microsoft.com/devicelogin

102220 2115 HowtoConfig8 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

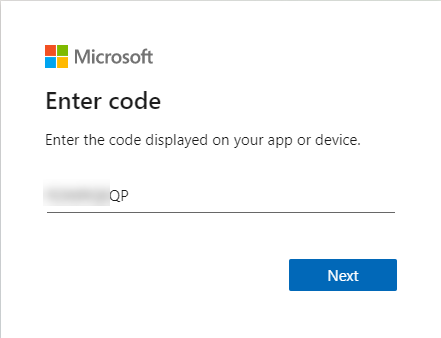

10.On the Microsoft Enter code page, paste the code, click Next.

102220 2115 HowtoConfig9 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

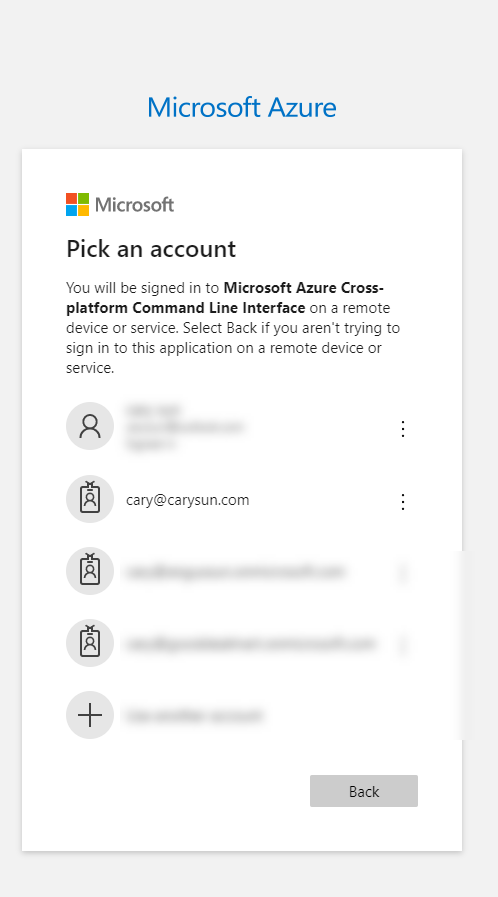

11.On the Pick an account page, select the Azure user account, the user account that you use to log in to the Azure portal has either the User Access Administrator or Owner role.

102220 2115 HowtoConfig10 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

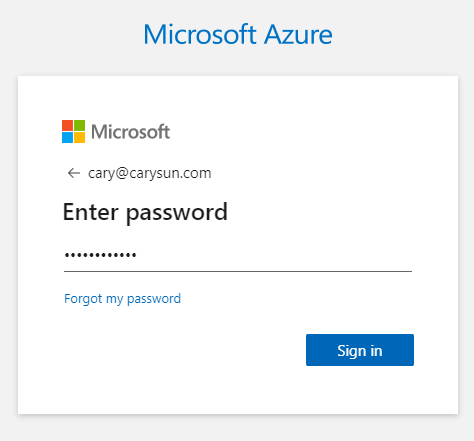

12.On the Enter password page, type the Azure user password, click Sign in.

102220 2115 HowtoConfig11 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

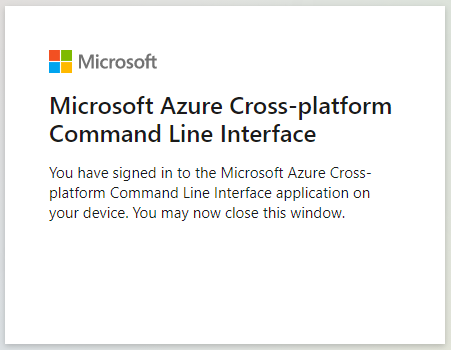

13.Verify you have signed in to the Microsoft Azure Cross-platform Command Line Interface application, close the window.

102220 2115 HowtoConfig12 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

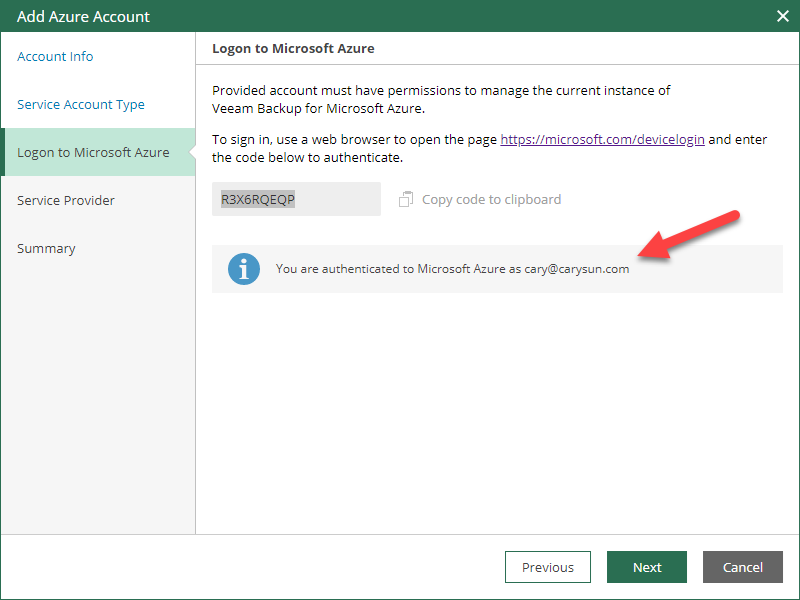

14.On the Logon to Microsoft Azure page, verify you are authenticated to Microsoft Azure as the Azure user, click Next.

102220 2115 HowtoConfig13 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

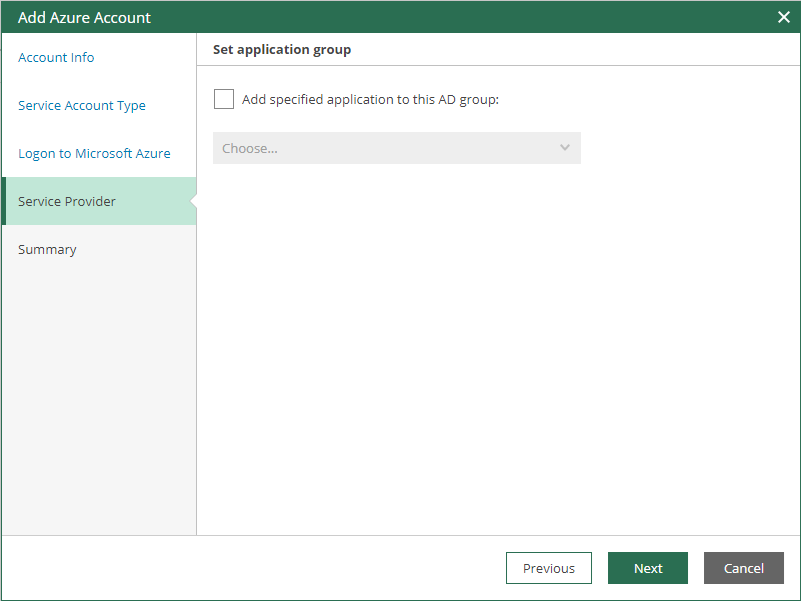

15.On the Service Provider page, if you are a service provider, you can add your Azure AD application to the selected Microsoft Azure Active Directory group. You may want to add an AD application to a group, in my case, I am not a service provider, keep the settings as default, click Next.

102220 2115 HowtoConfig14 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

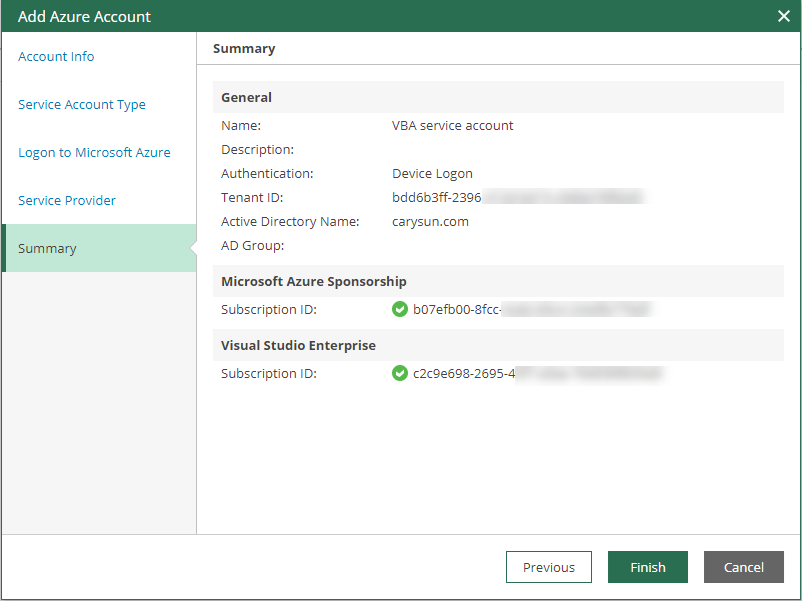

16.On the Summary page, verify the settings, click Finish.

102220 2115 HowtoConfig15 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

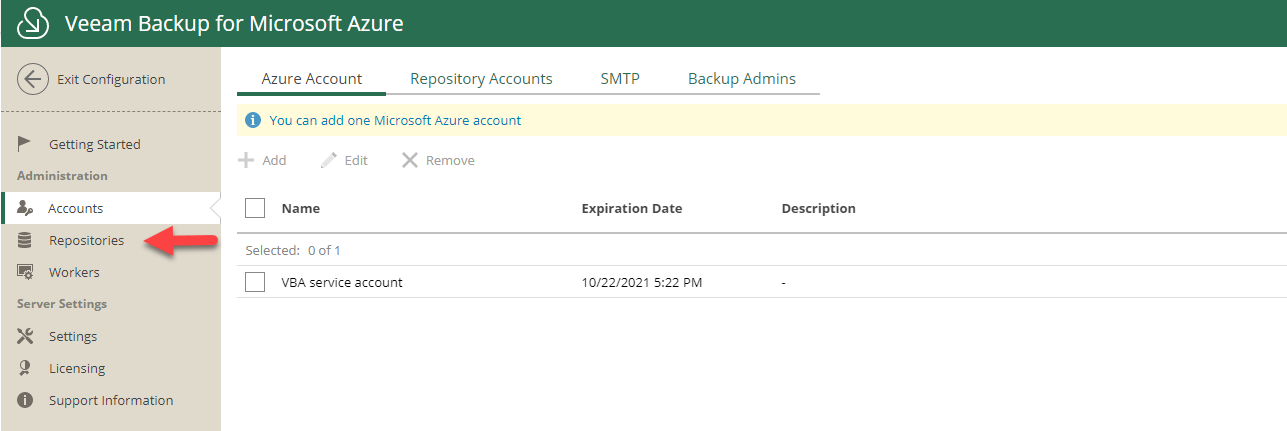

17.On the Veeam Backup for Microsoft Azure page, select Repositories.

102220 2115 HowtoConfig16 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

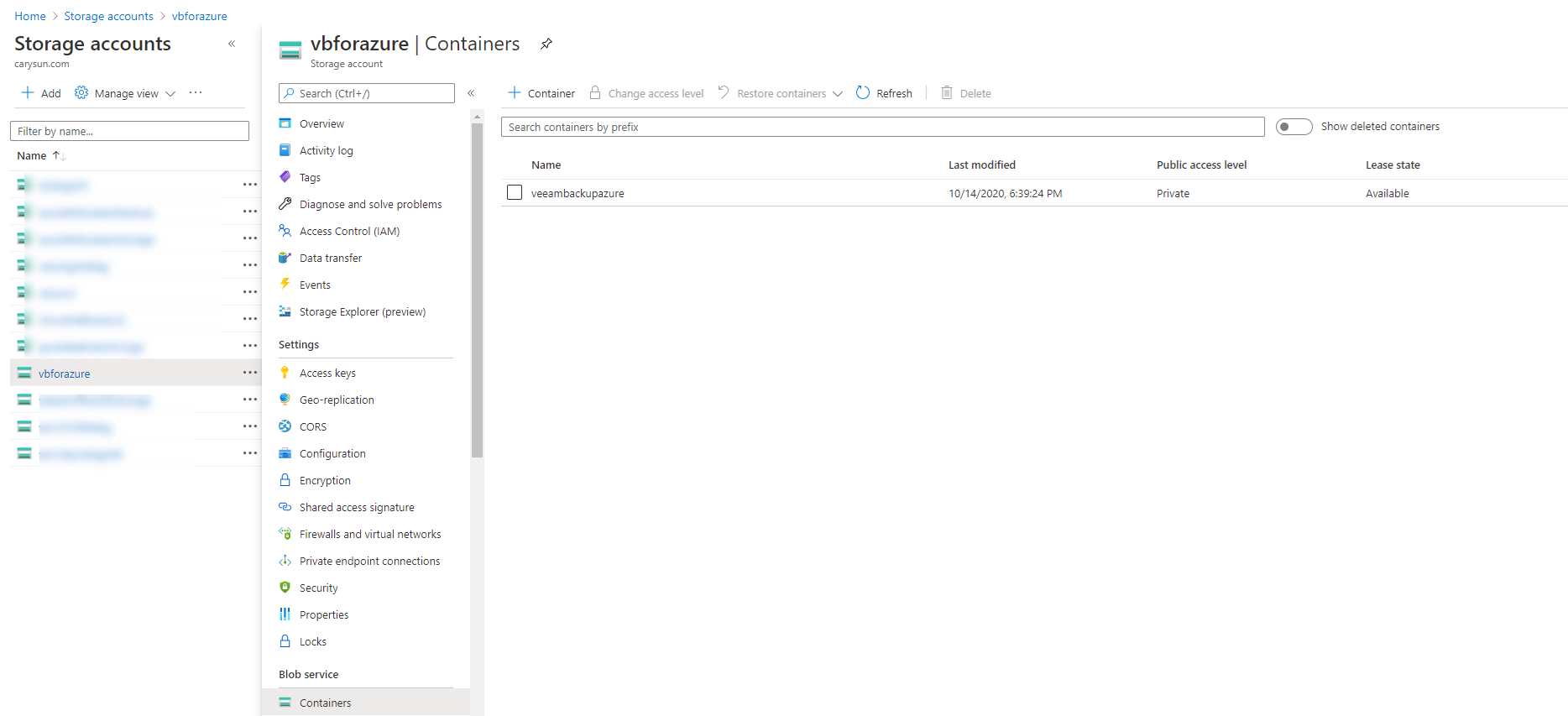

18.I created a storage account and container when I installed Veeam Backup for Microsoft Azure, if you didn’t create it, you can follow my previously post to create it. https://carysun.com/how-to-install-veeam-backup-for-microsoft-azure-1-0/

102220 2115 HowtoConfig17 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

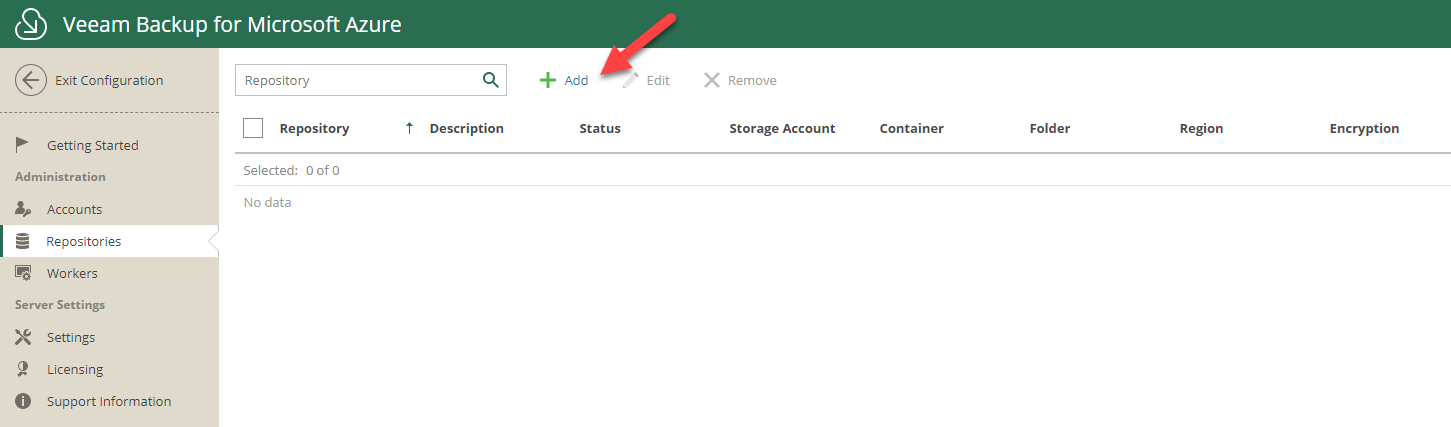

19.On the Repositories page, click Add.

102220 2115 HowtoConfig18 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

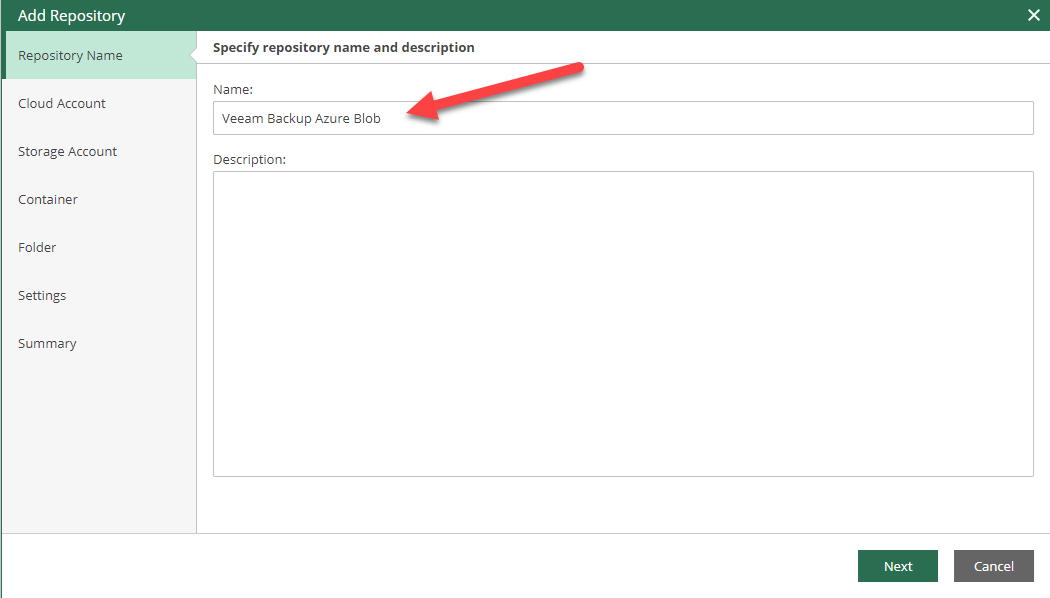

20.On the Repository Name page, type the repository name in Name field, in my case is Veeam Backup Azure Blob, click Next.

102220 2115 HowtoConfig19 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

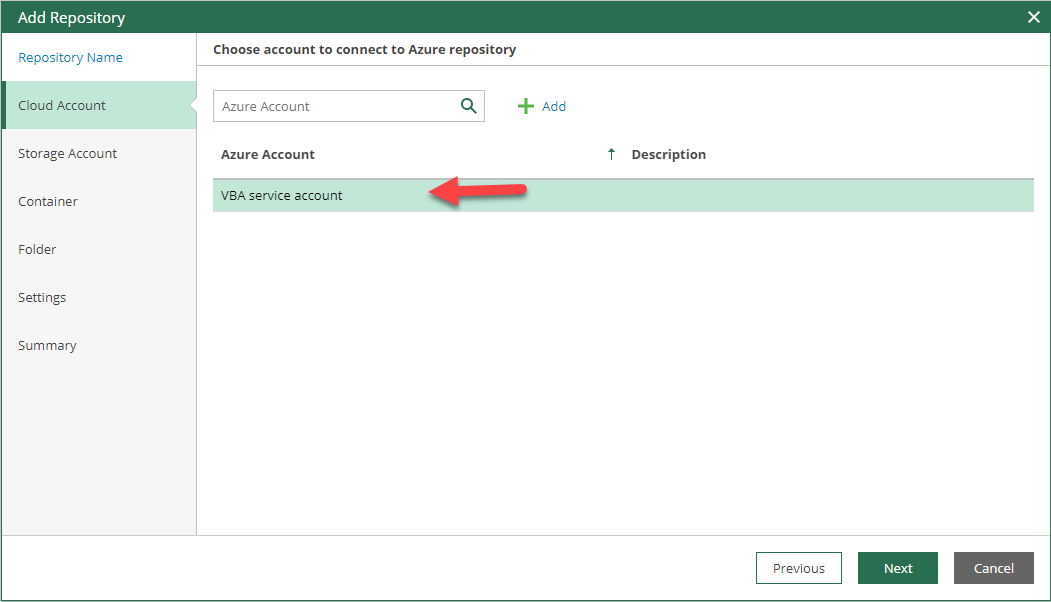

21.On the Cloud Account page, select the VBA service account as Azure account, click Next.

102220 2115 HowtoConfig20 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

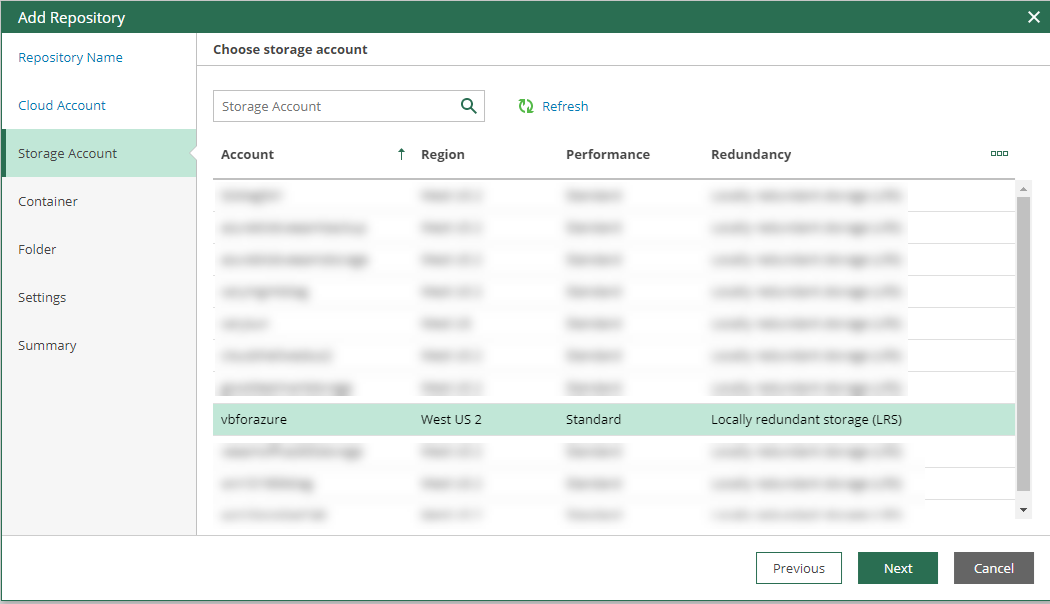

22.On the Storage Account page, select the storage account which I created for Veeam Backup for Microsoft Azure, click Next.

102220 2115 HowtoConfig21 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

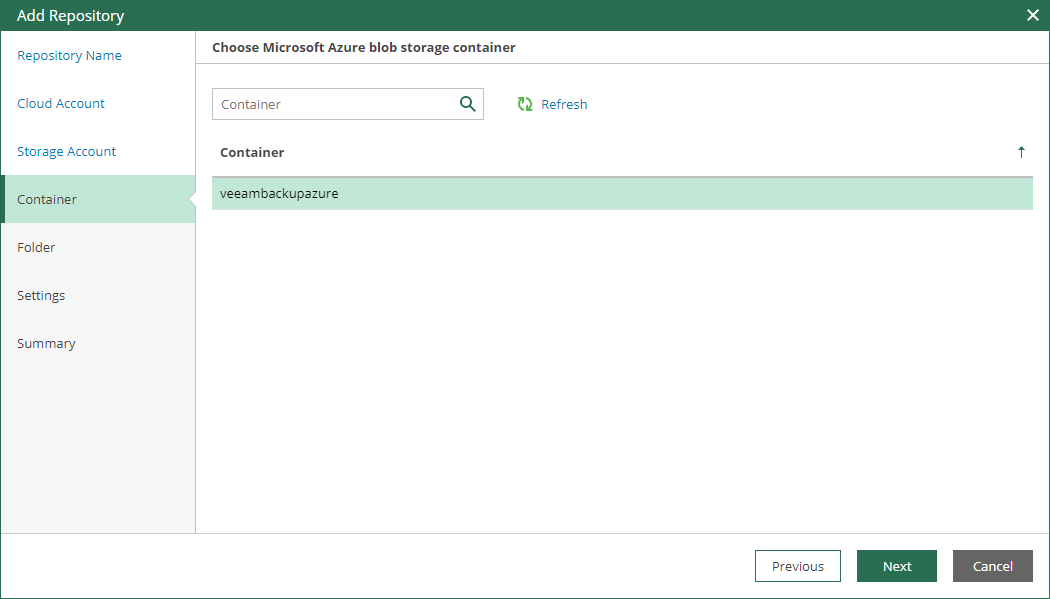

23.On the Container page, select the container which I created for Veeam Backup for Microsoft Azure, click Next.

102220 2115 HowtoConfig22 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

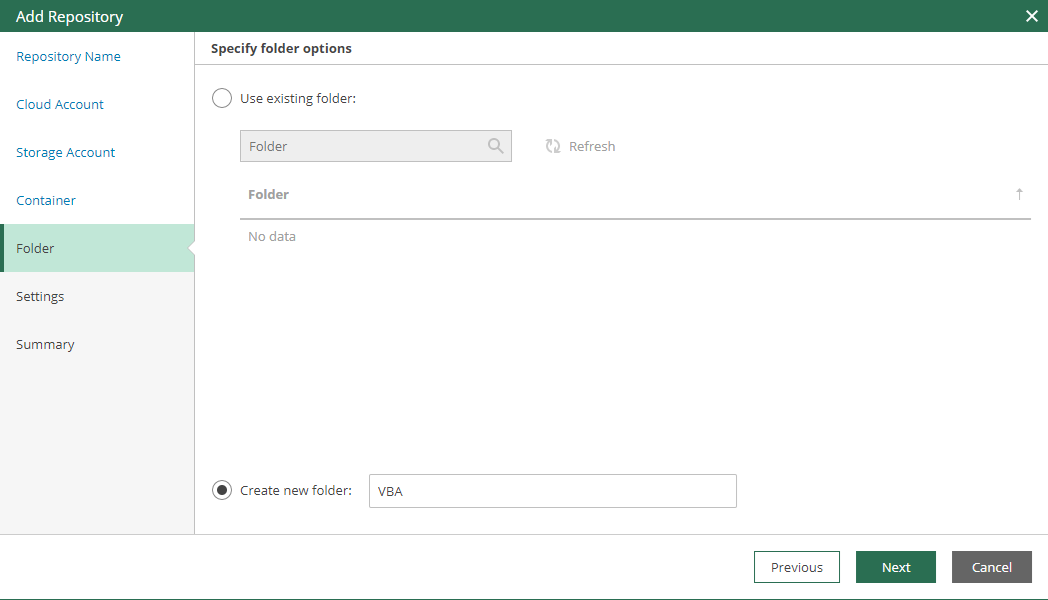

24.On the Folder page, select Create new folder, type the folder name in the field, in my case is VBA, click Next.

102220 2115 HowtoConfig23 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

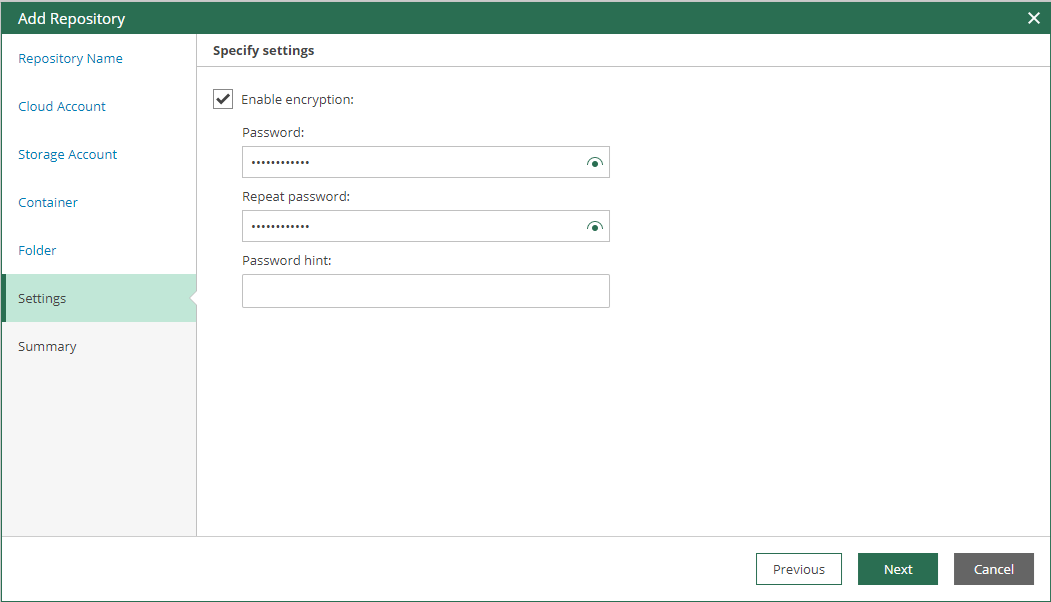

25.On the Settings page, select Enable encryption, type the password in Password field and Repeat password field, click Next.

102220 2115 HowtoConfig24 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

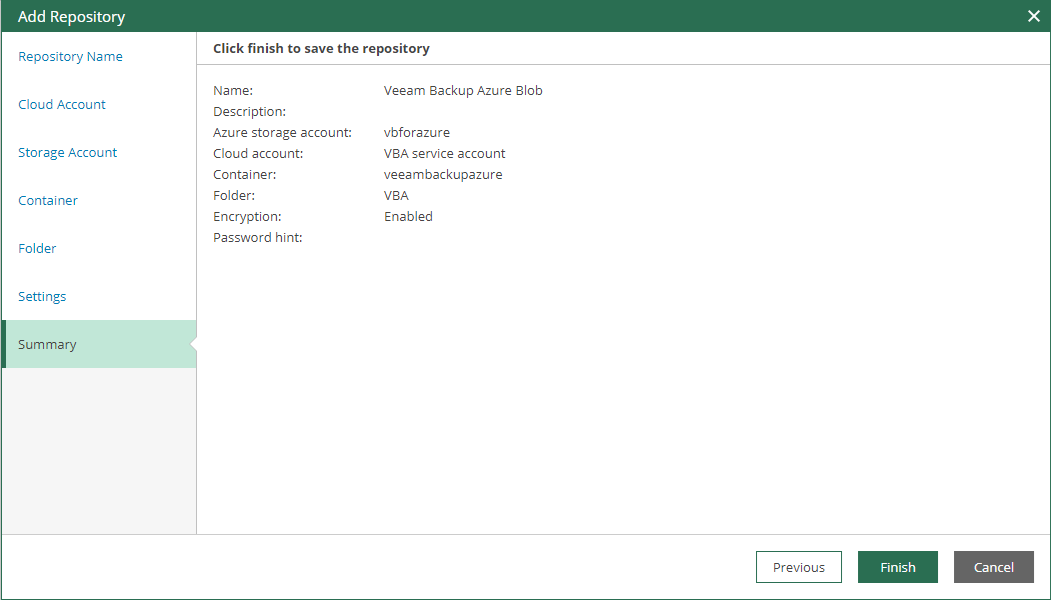

26.On the Summary page, verify settings, click Next.

102220 2115 HowtoConfig25 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

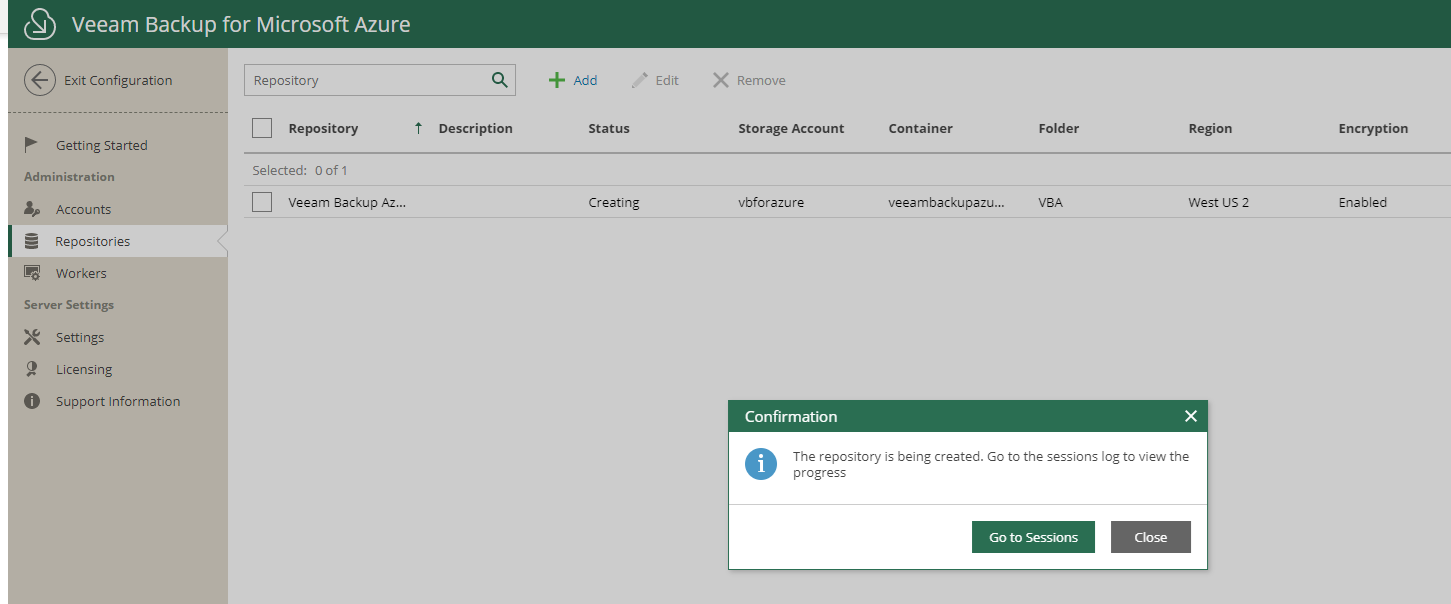

27.On the Confirmation page, click Go to Sessions.

102220 2115 HowtoConfig26 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

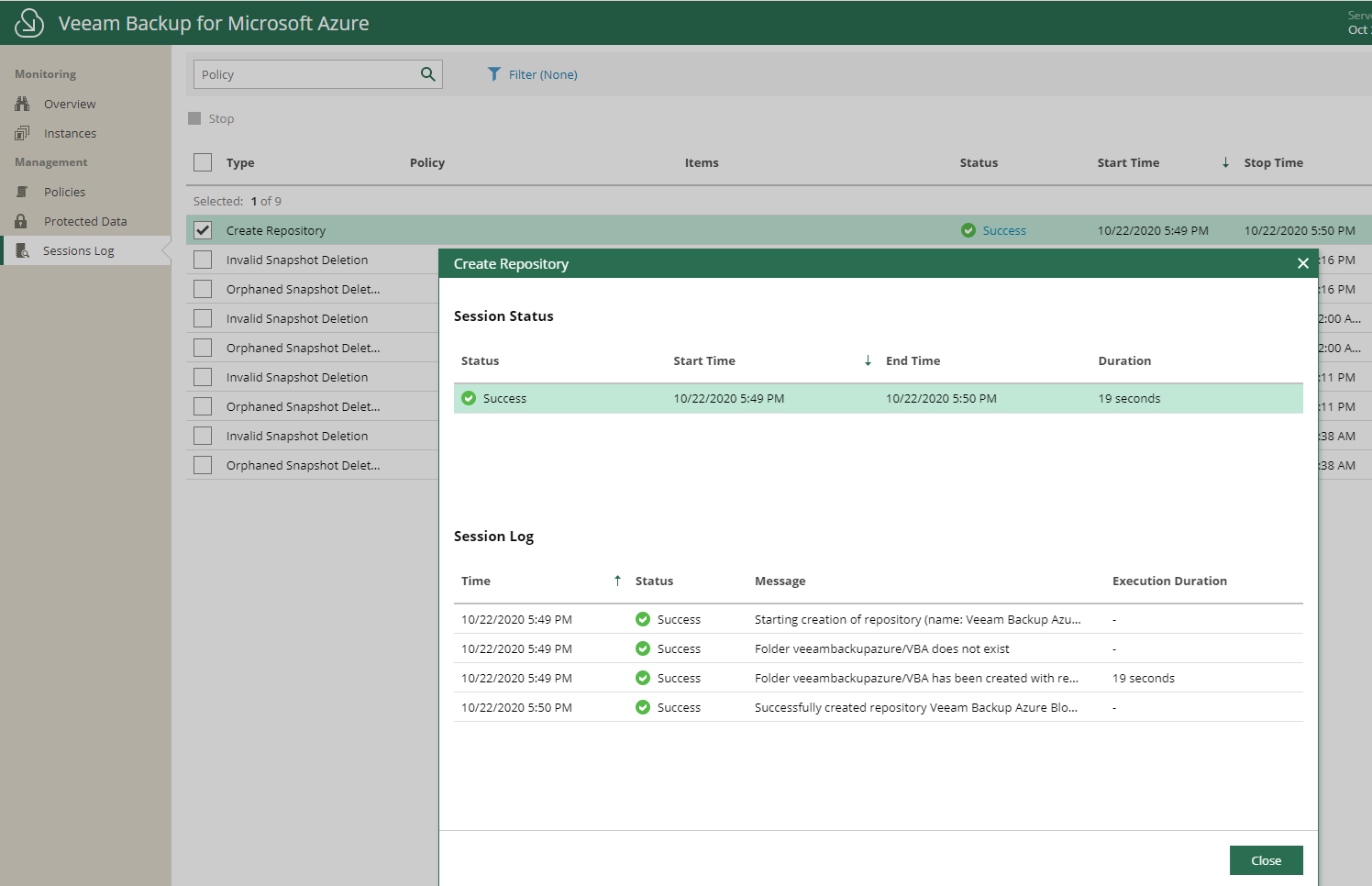

28.On the Session Log page, click Create Repository, verify the session status are success, click Close.

102220 2115 HowtoConfig27 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

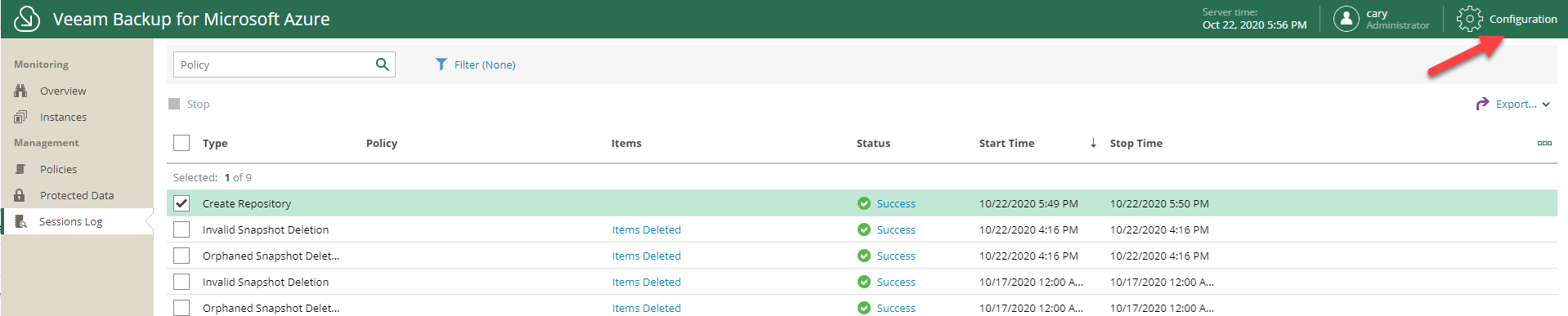

29.On the Veeam Backup for Microsoft Azure page, click Configuration.

102220 2115 HowtoConfig28 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

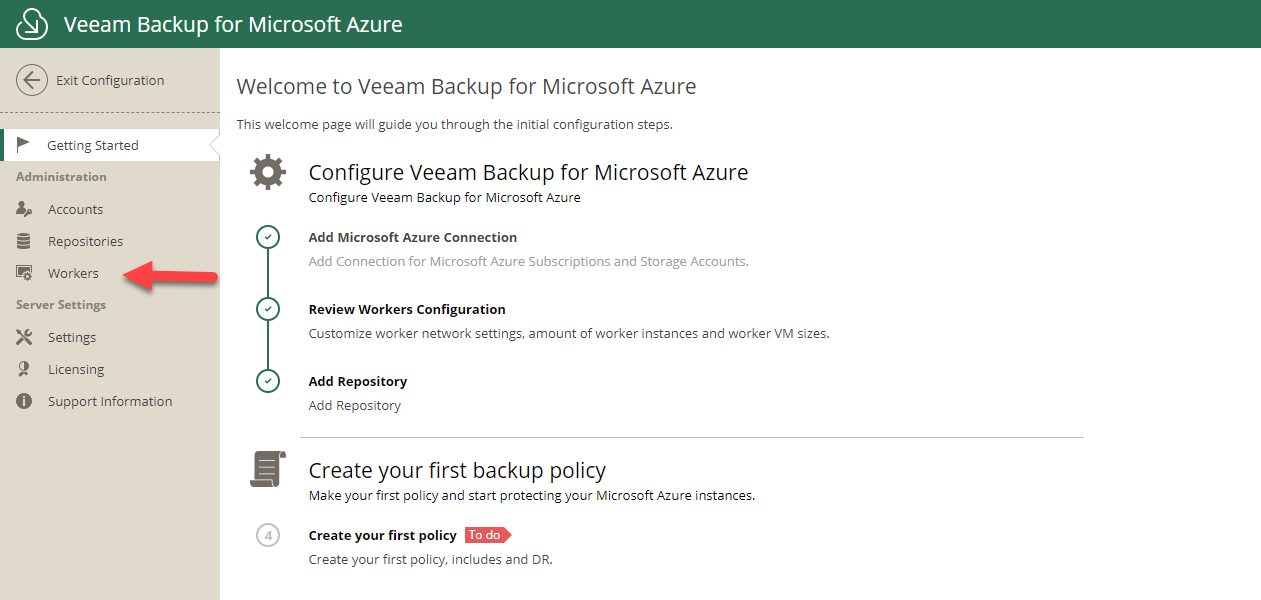

30.On the Configuration page, select Workers. Workers are auxiliary Linux-based machines deployed by Veeam Backup for Microsoft Azure for the scaling purposes and transfer fee reduction.

  • Each worker can process data of only one VM at a time. That said, if your backup policy contains 10 VMs, Veeam Backup for Microsoft Azure can deploy up to 10 additional workers; each worker will be responsible for processing data of a single VM.When using a default worker configuration which, by default, can have only up to 5 workers that can run concurrently, processing of only 5 VMs at a time is possible; other VMs (if any) will be queued.
  • Each worker has idle time (10 minutes) and after this time expires, Veeam Backup for Microsoft Azure automatically removes such a worker from the resource group.

102220 2115 HowtoConfig29 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

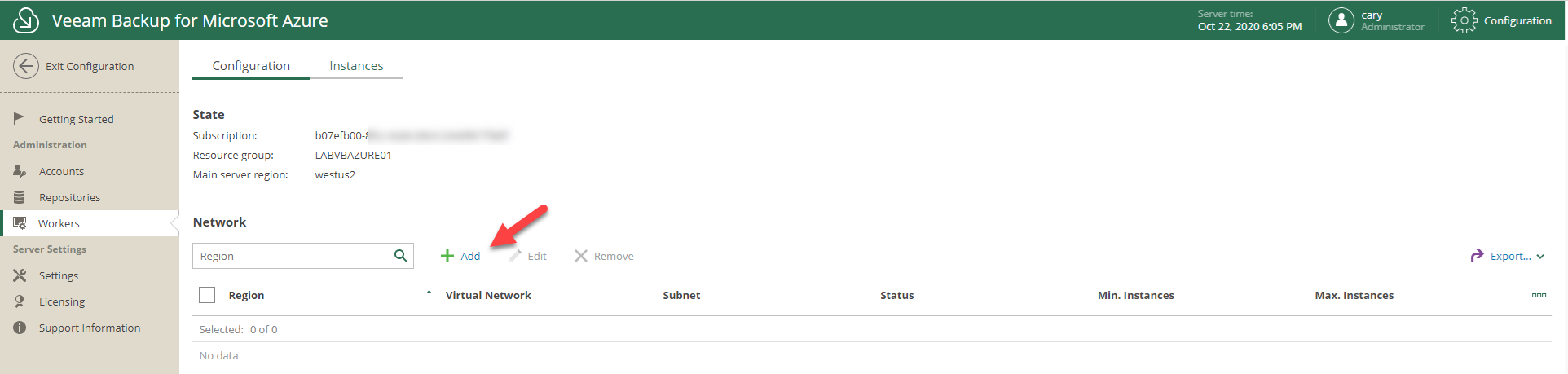

31.On the Workers Configuration page, click Add.

102220 2115 HowtoConfig30 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

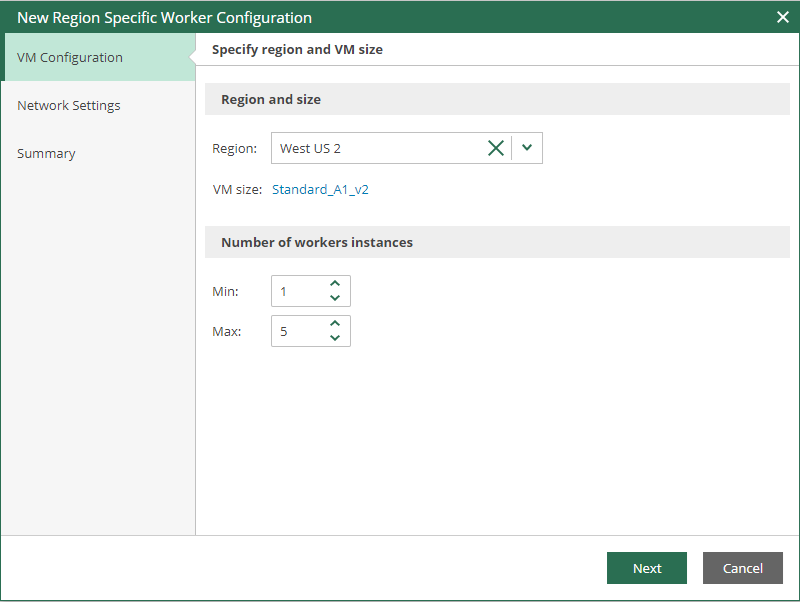

32.On the VM Configuration page, configure settings for the Region and size, Number of workers instance, click Next.

Region and size

  • Region: Select the Region which to deploy new workers, in my case is West US 2. Veeam Backup for Microsoft Azure can deploy workers to the region of the target Azure storage account only
  • VM Size: By default, Veeam Backup for Microsoft Azure selects the optimal VM size for workers.

Number of workers instances

  • Min: Specify the number of workers that Veeam Backup for Microsoft Azure must deploy in advance so backup and restore operations to/from backup repositories can be executed immediately, without waiting for a worker to be created, I will use the default value.
  • MAX: Specify the maximum allowed number of workers that Veeam Backup for Microsoft Azure can deploy and use concurrently during backup/restore to/from backup repositories. I will use the default value.

102220 2115 HowtoConfig31 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

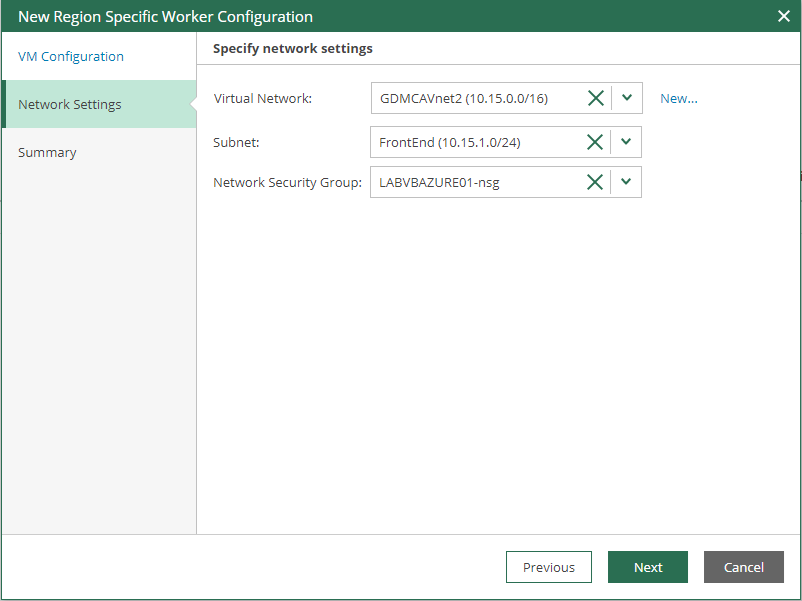

33.On the Network Settings page, configure settings as below, click Next.

  • Virtual Network: Select a network to which to deploy new workers. You can also create a new network, the virtual network must have peering relationships with the network in which Veeam Backup for Microsoft Azure is deployed. It is also recommended to configure a service endpoint (routing) to the Azure storage service. In my case is GDMCAVnet2.
  • Subnet: Select a subnet of the select network. In my case is FrontEnd.
  • Network Security Group: select a network security group. In my case is LABVBAURE01-NSG

If you don’t know how to create new Virtual Network at Azure, please follow my previously post to create it. https://carysun.com/configuring-cisco-meraki-to-azure-site-to-site-vpn-tunnels-ikev2-azure-cisco-meraki/

102220 2115 HowtoConfig32 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

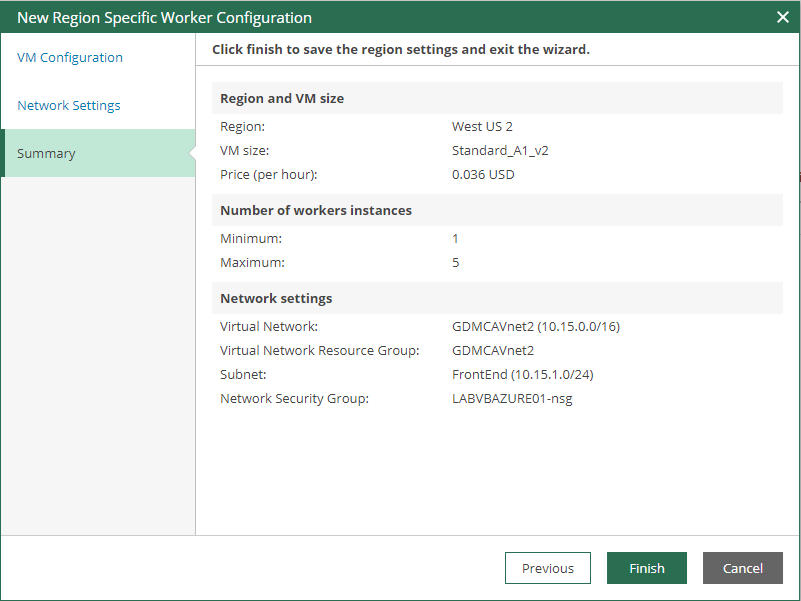

34.On the Summary page, verify settings, click Finish.

102220 2115 HowtoConfig33 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

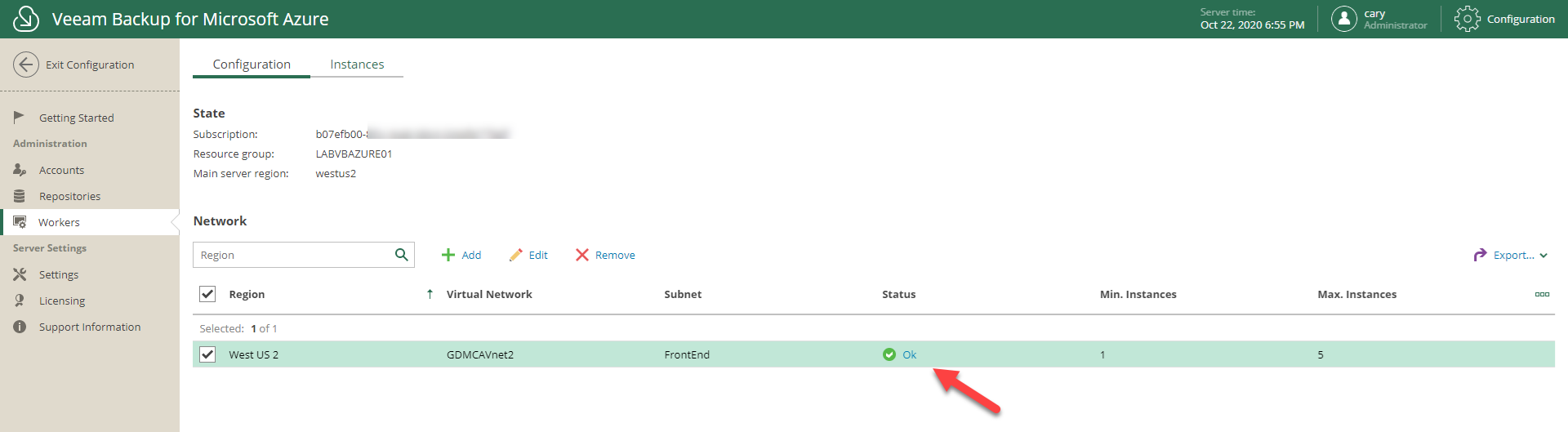

35.On the Workers Configuration page, verify status of the new Worker.

102220 2115 HowtoConfig34 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

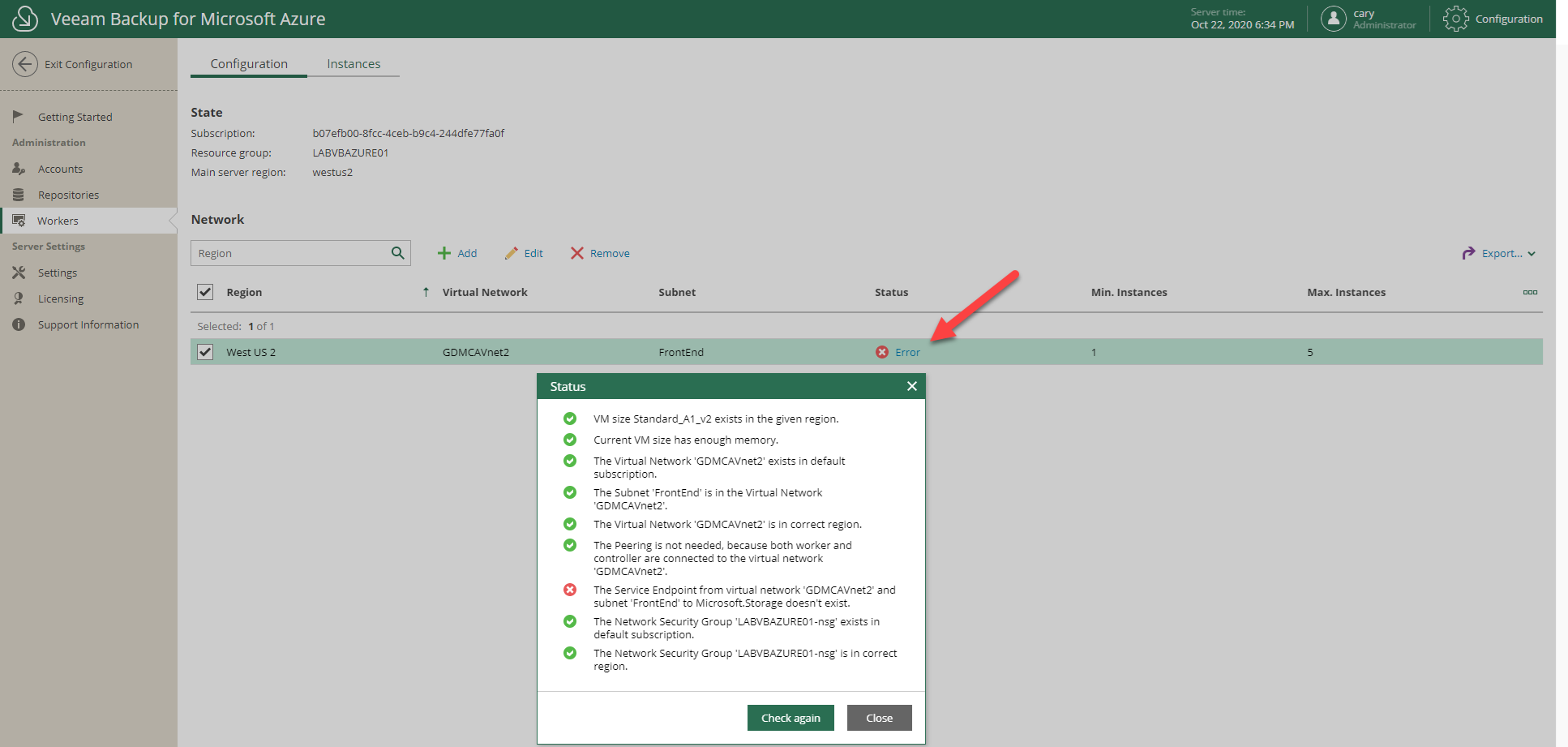

If it happened error, click the error and verify the status, click Check again after fix issues.

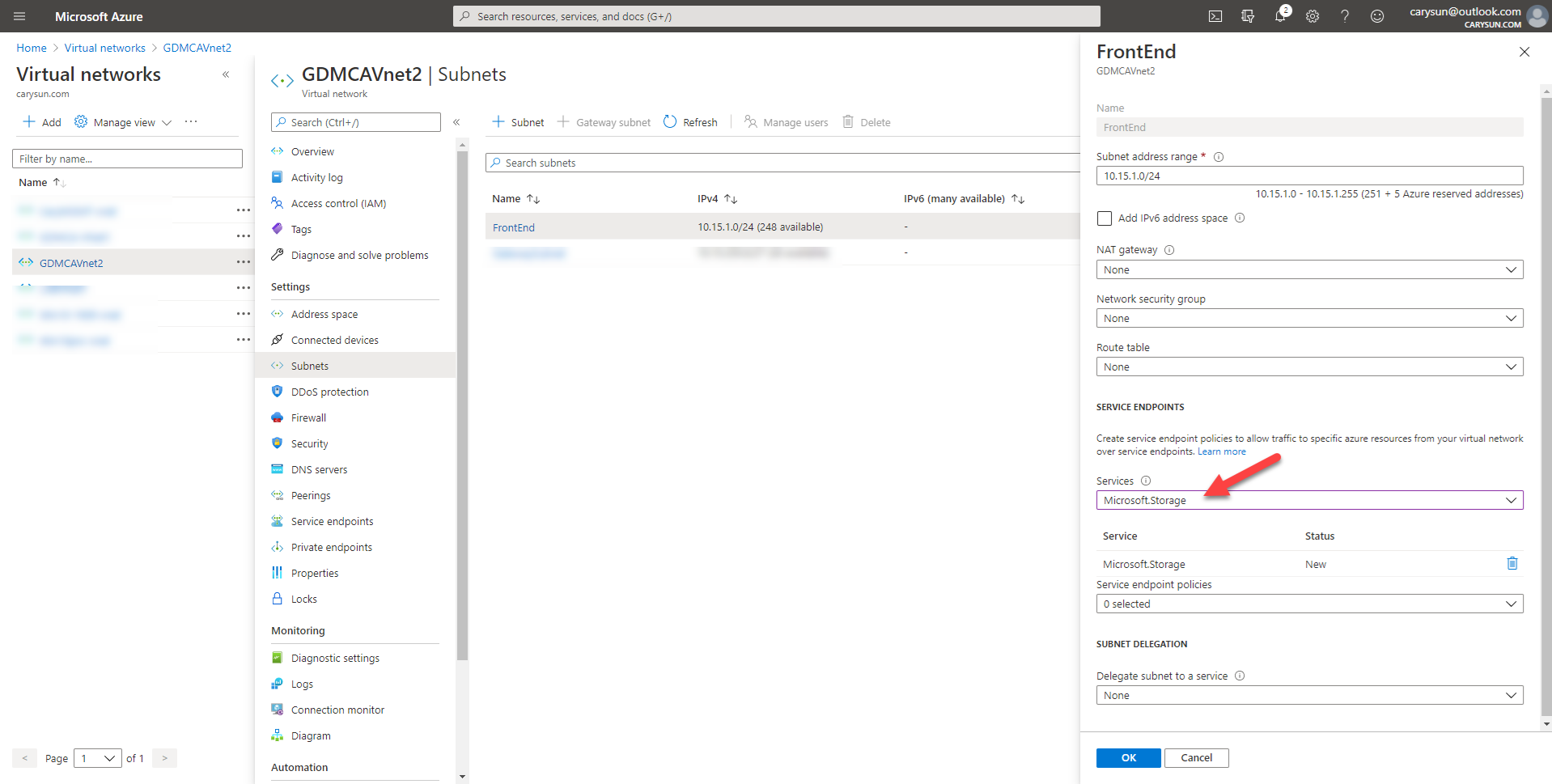

In my case, it happened the service Endpoint error because I didn’t add any Endpoint services when create the Virtual Network subnet at Azure, it fixed after I add Microsoft.Storage as service endpoint.

102220 2115 HowtoConfig35 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

102220 2115 HowtoConfig36 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

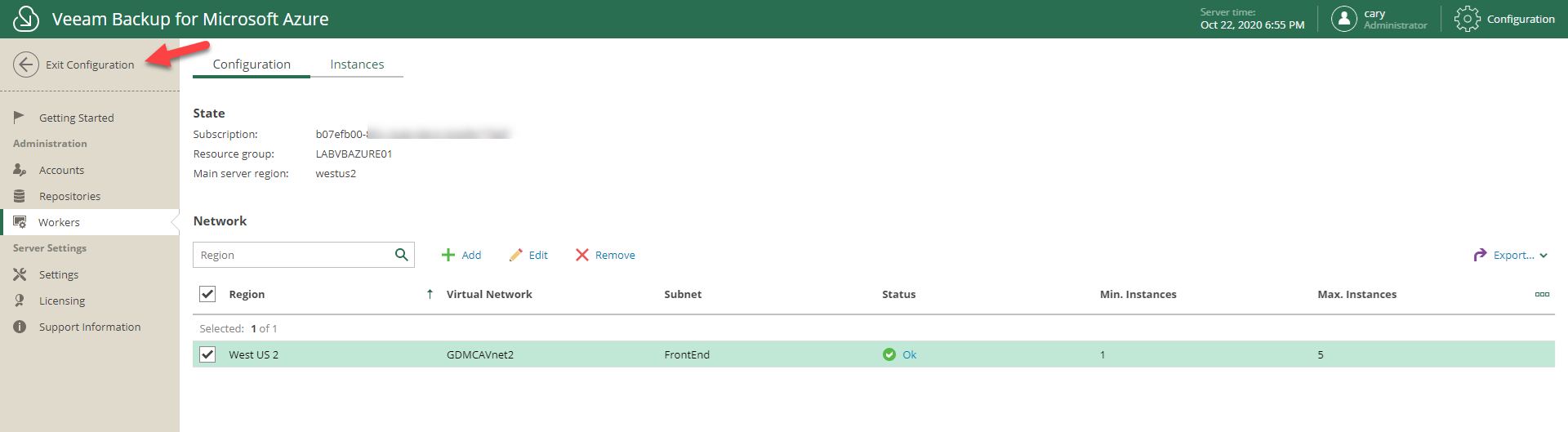

36.On the Workers page, click Exist Configuration.

102220 2115 HowtoConfig37 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

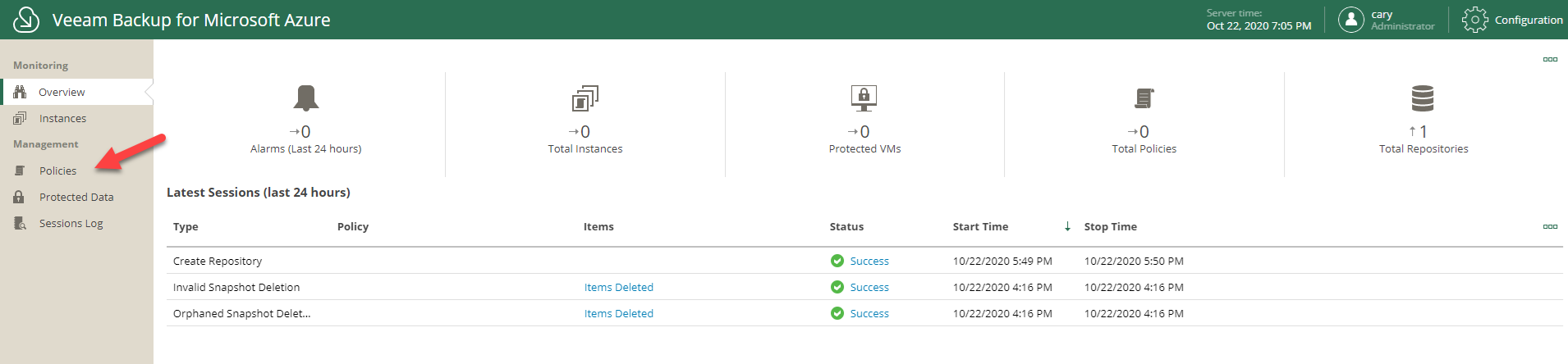

37.On the Veeam Backup for Microsoft Azure page, select Policies.

102220 2115 HowtoConfig38 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

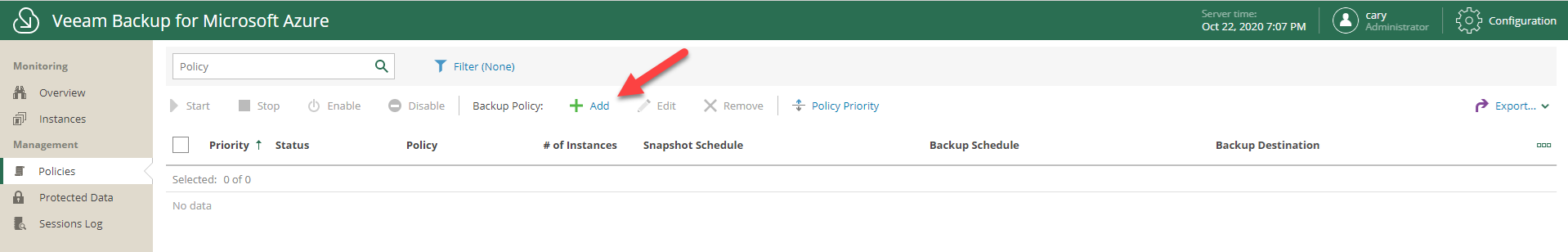

38.On the Policies page, click Add.

102220 2115 HowtoConfig39 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

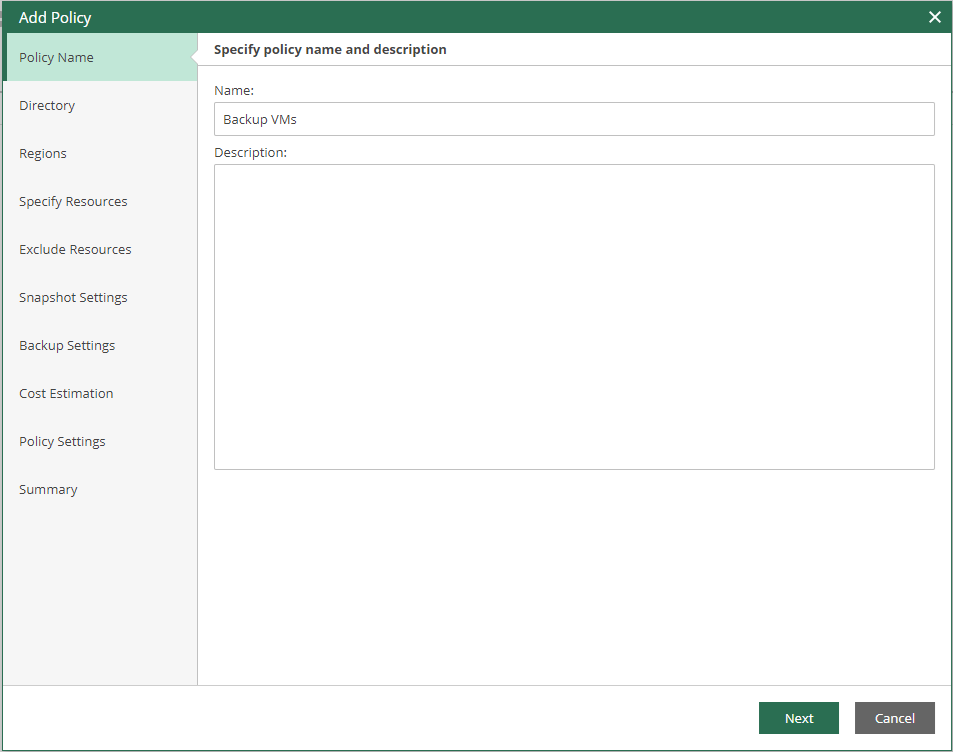

39.On the Policy Name, type Backup VMs in the Name field, click Next.

102220 2115 HowtoConfig40 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

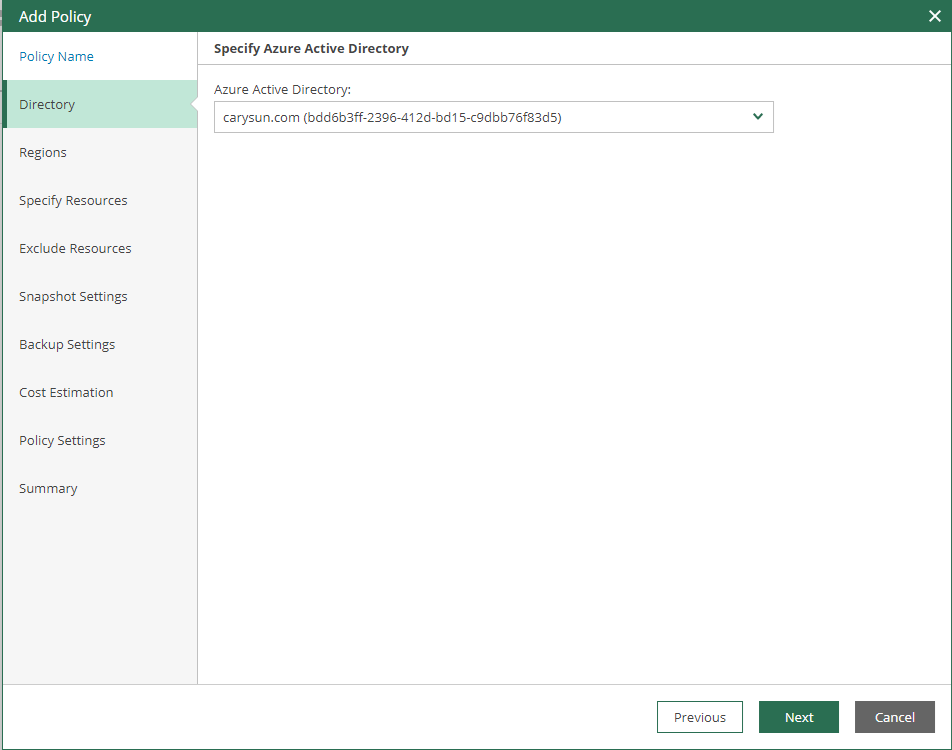

40.On the Directory page, select Azure Active Directory that contains resources that you can back up, click Next.

102220 2115 HowtoConfig41 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

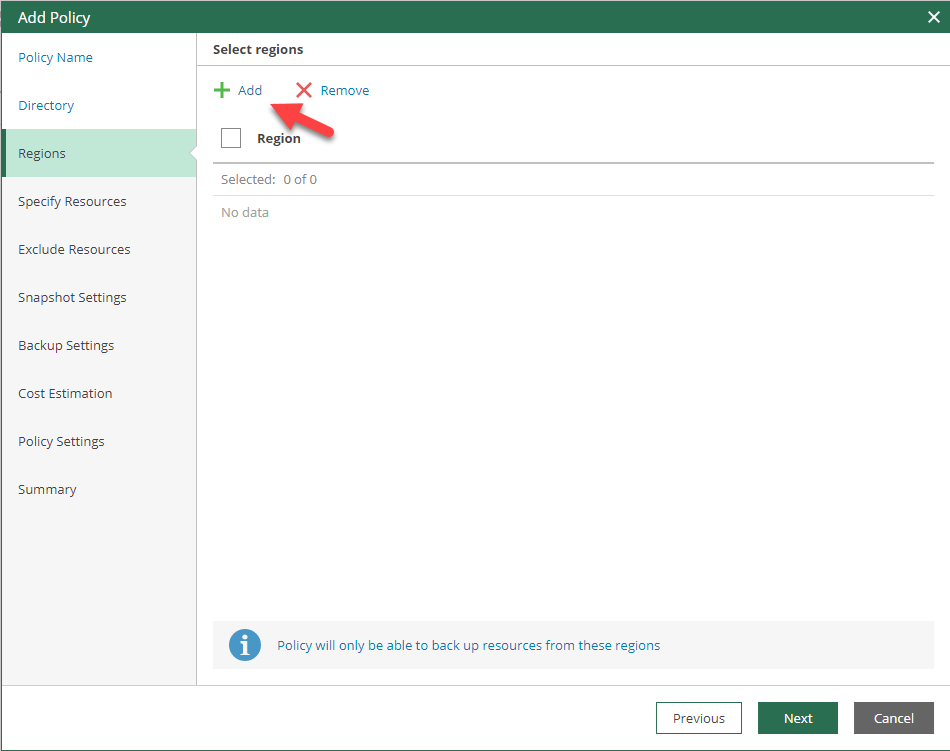

41.On the Regions page, click Add.

102220 2115 HowtoConfig42 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

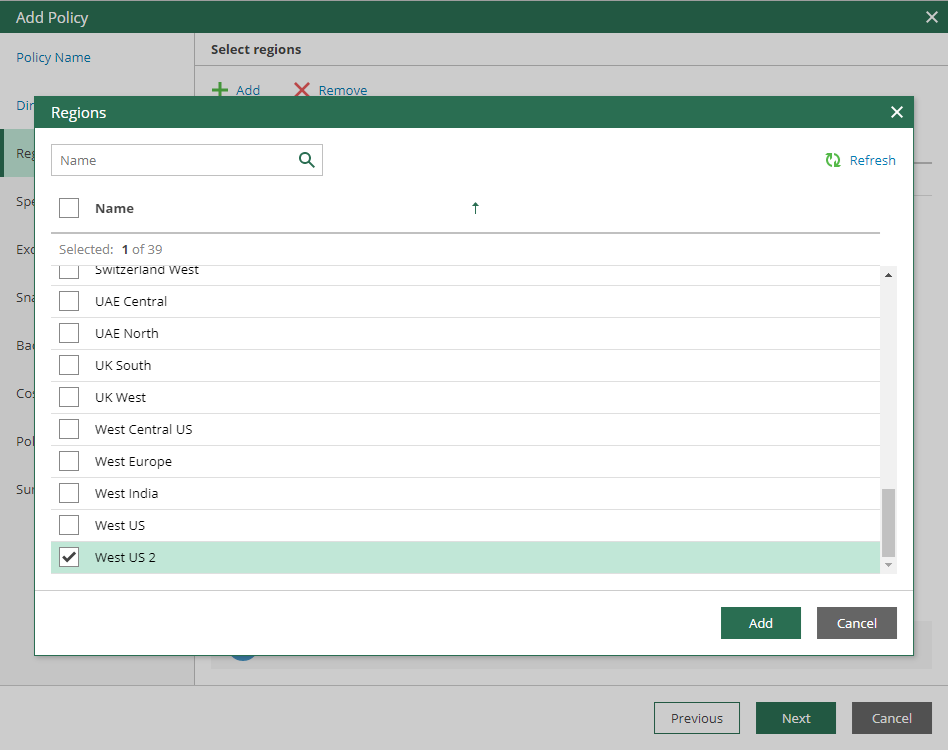

42.On the Regions page, select the Region(s), click Add.

102220 2115 HowtoConfig43 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

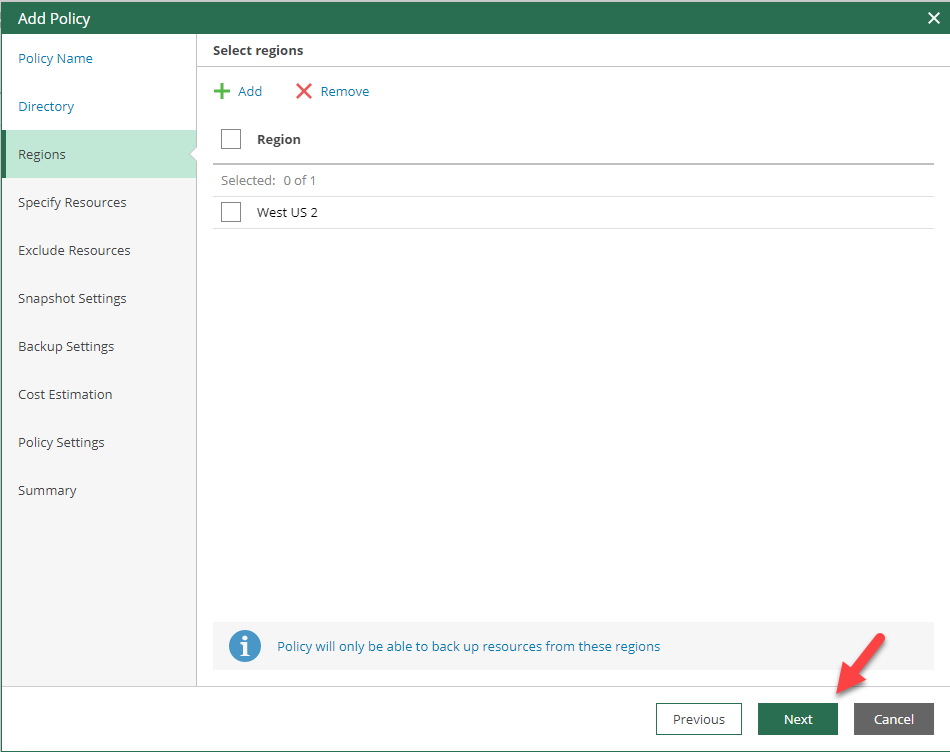

43.On the Regions page, click Next.

102220 2115 HowtoConfig44 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

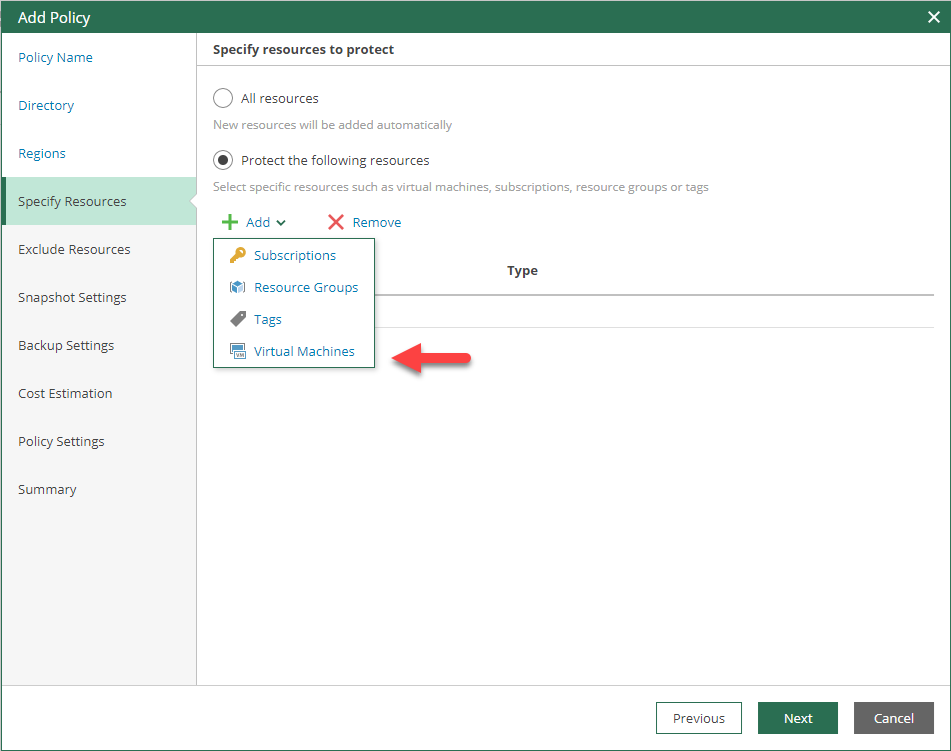

44.On the Specify Resources page, select Protect the following resources, click Add, select Virtual Machines.

102220 2115 HowtoConfig45 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

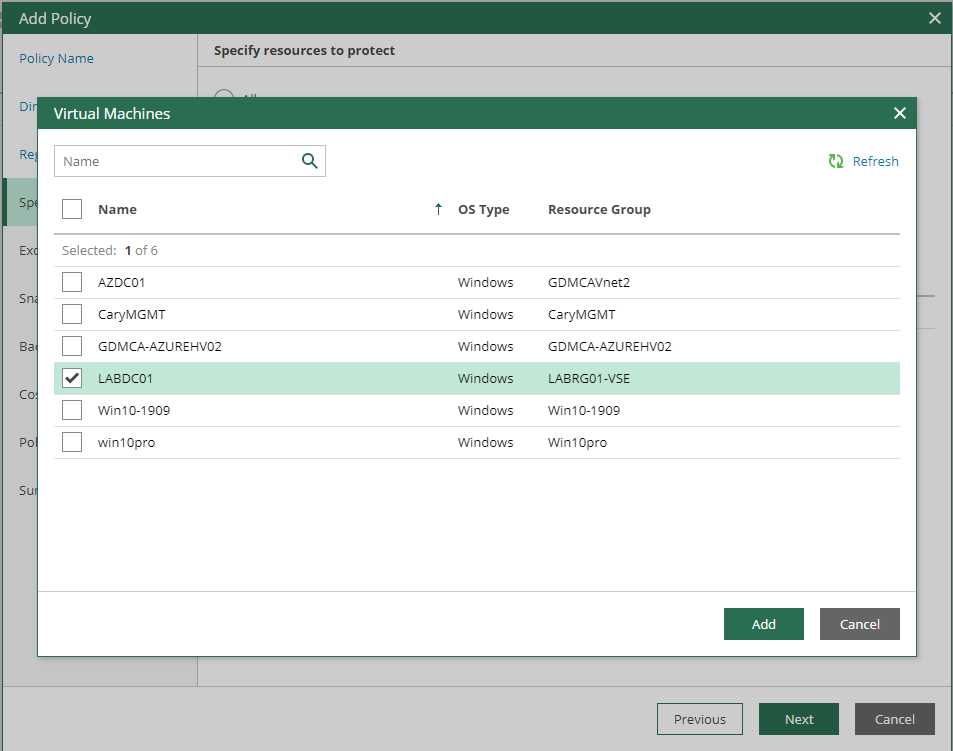

45.On the Virtual Machines page, select the virtual machine (s), click Add.

102220 2115 HowtoConfig46 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

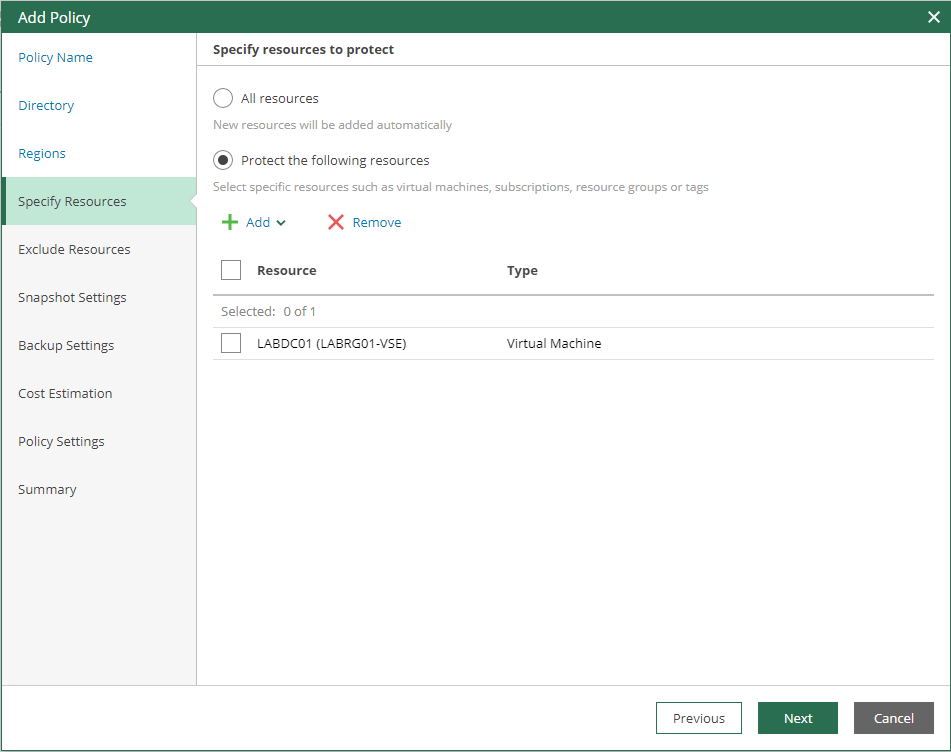

46.On the Specify Resources page, click Next.

102220 2115 HowtoConfig47 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

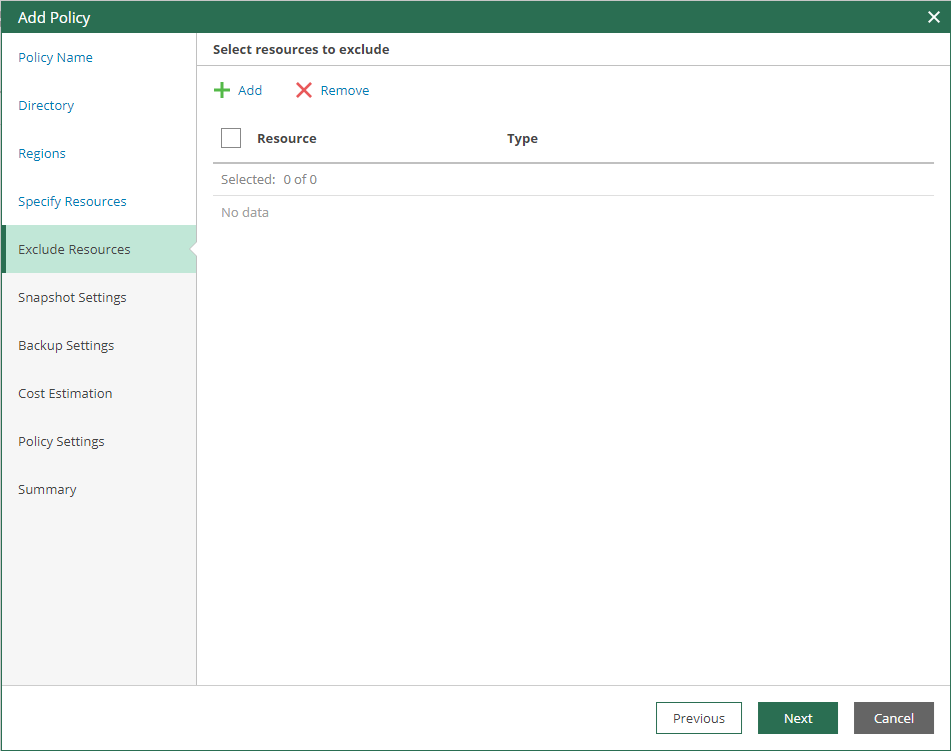

47.On the Exclude Resources page, click Next.

102220 2115 HowtoConfig48 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

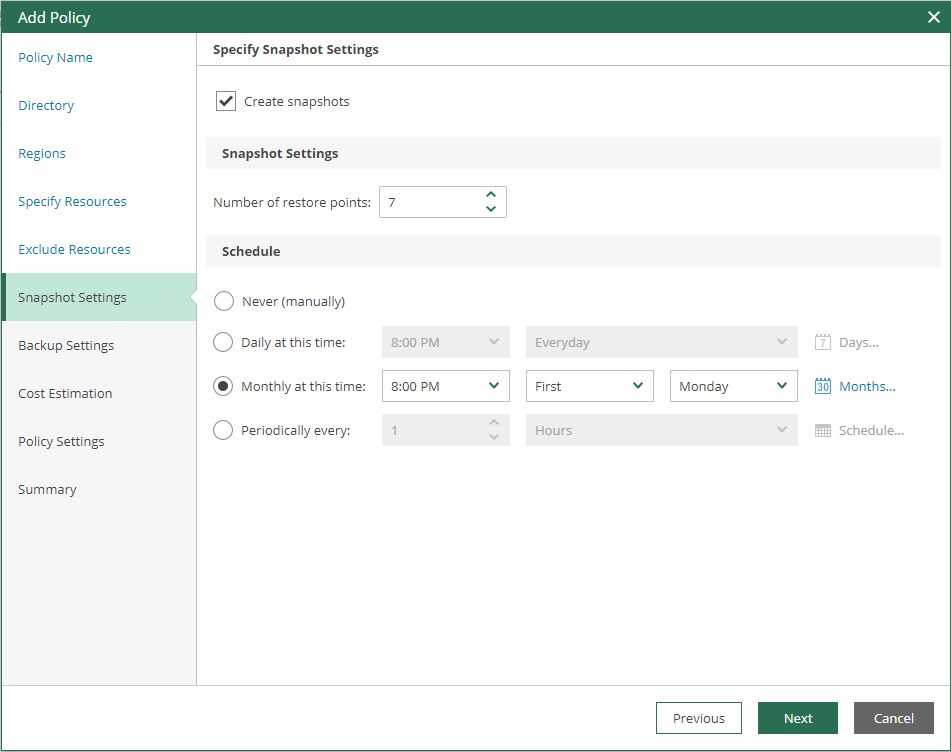

48.On the Snapshot Settings page, select Create snapshots, select your number of restore point and schedule, click Next. If you only want the policy to create image-level backups, leave this check box cleared and proceed to the next step of the wizard.

102220 2115 HowtoConfig49 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

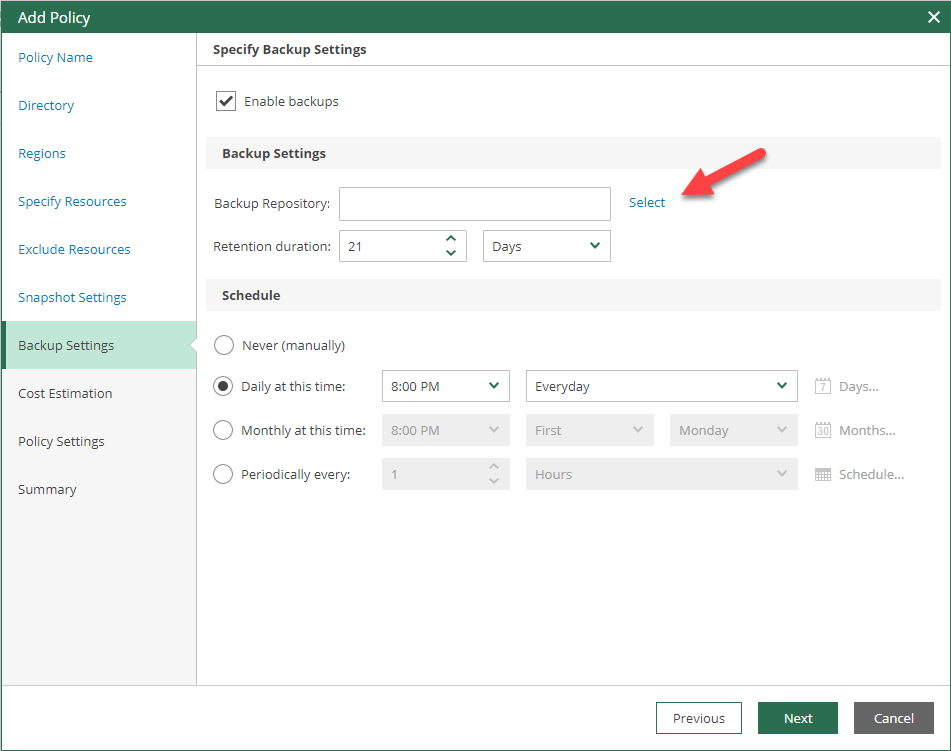

49.On the Backup Settings page, Select Enable Backups, click Select at Backup Repository.

102220 2115 HowtoConfig50 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

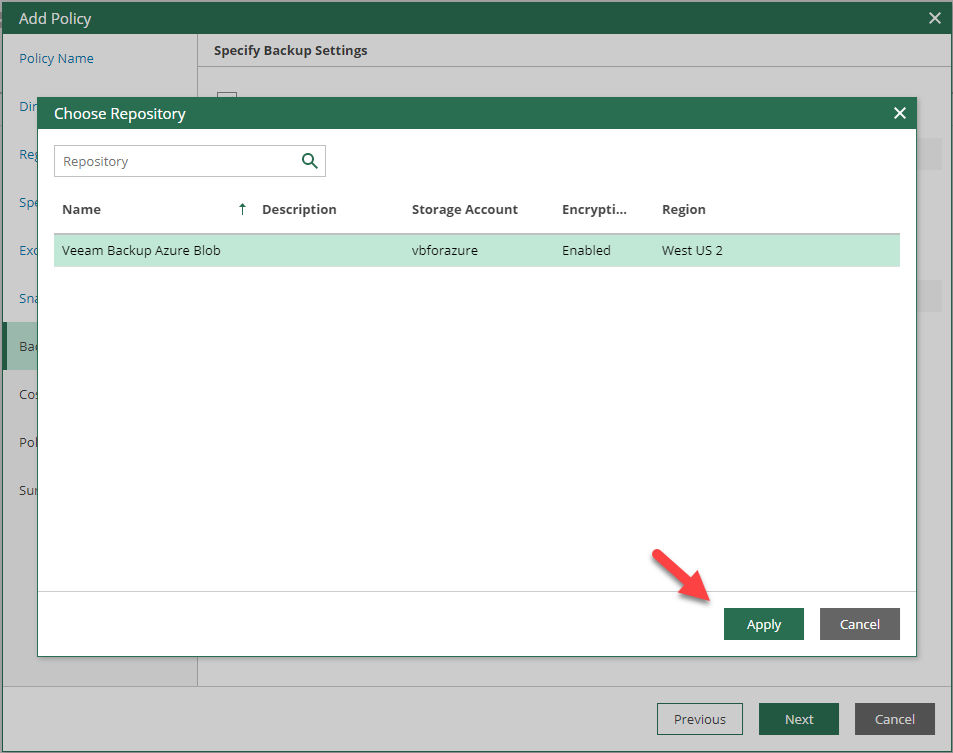

50.On the Choose Repository page, select the repository, click Apply.

102220 2115 HowtoConfig51 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

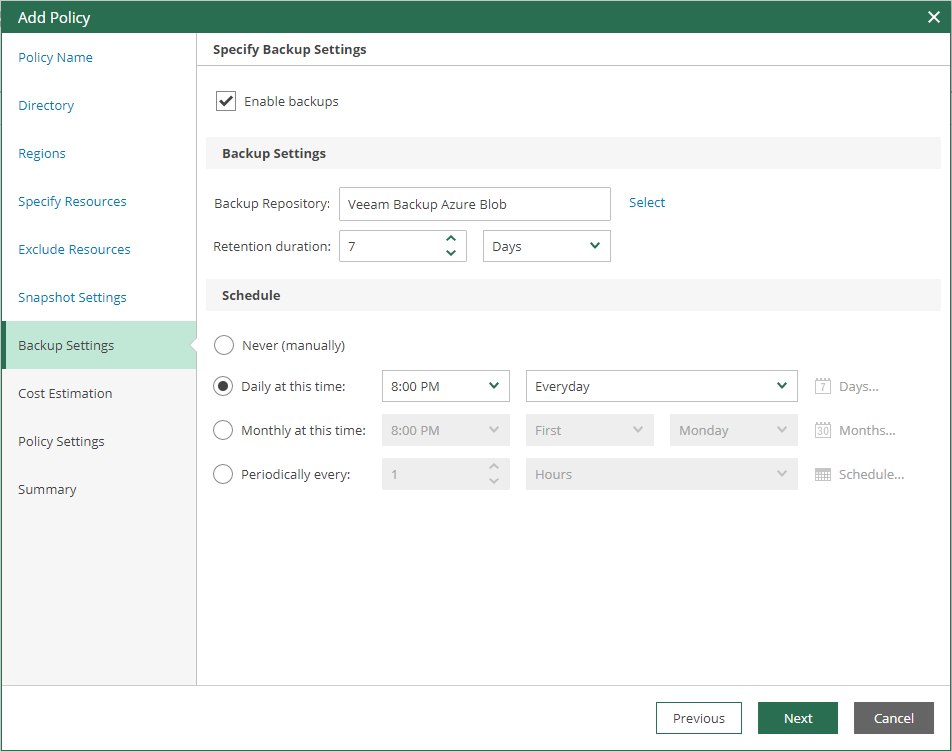

51.On the Backup Settings page, configure Retention duration and schedule, click Next.

  • Retention duration: Specify the number of days to store restore points in a backup chain. If a restore point is older than the specified limit, Veeam Backup for Microsoft Azure removes it from the backup chain.
  • Schedule: Configure a schedule to create backups automatically at the specified time.

102220 2115 HowtoConfig52 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

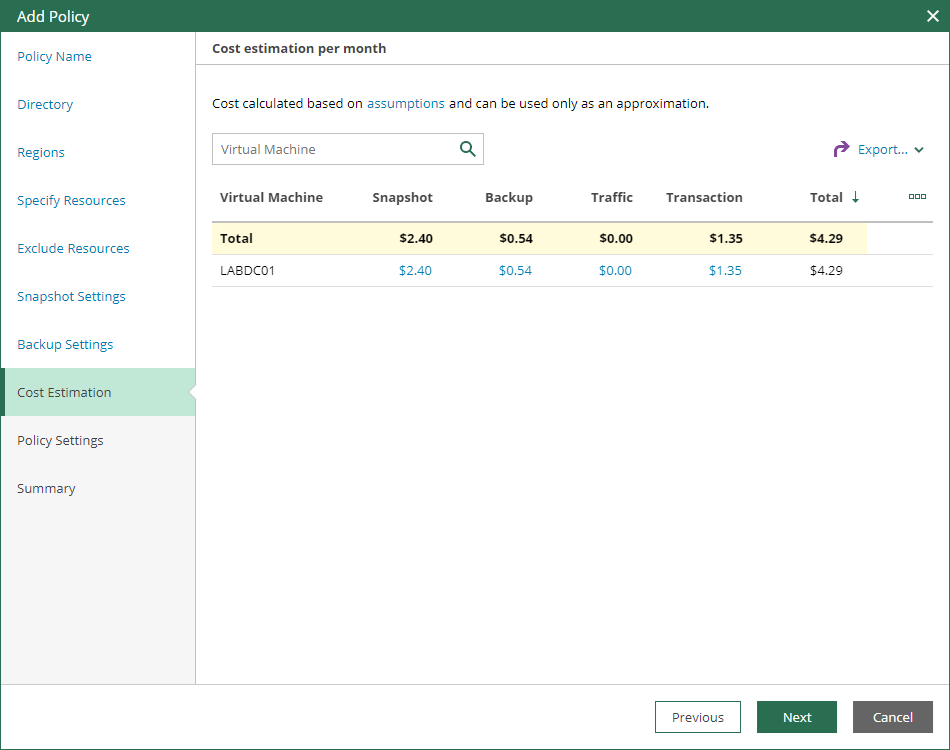

52.On the Cost Estimation page, verify the cost estimation per month, click Next.

102220 2115 HowtoConfig53 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

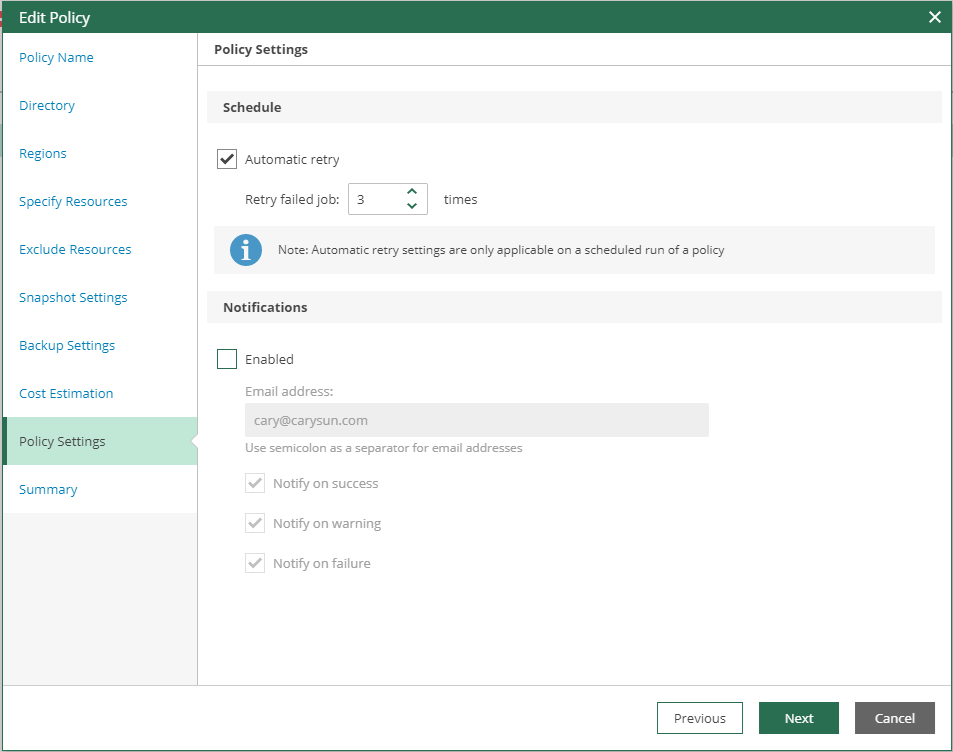

53.On the Policy Settings page, configure Schedule and Notifications settings, click Next.

Schedule

  • Select Automatic retry.
  • Retry failed job: Specify the maximum number of retry attempts.

102220 2115 HowtoConfig54 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

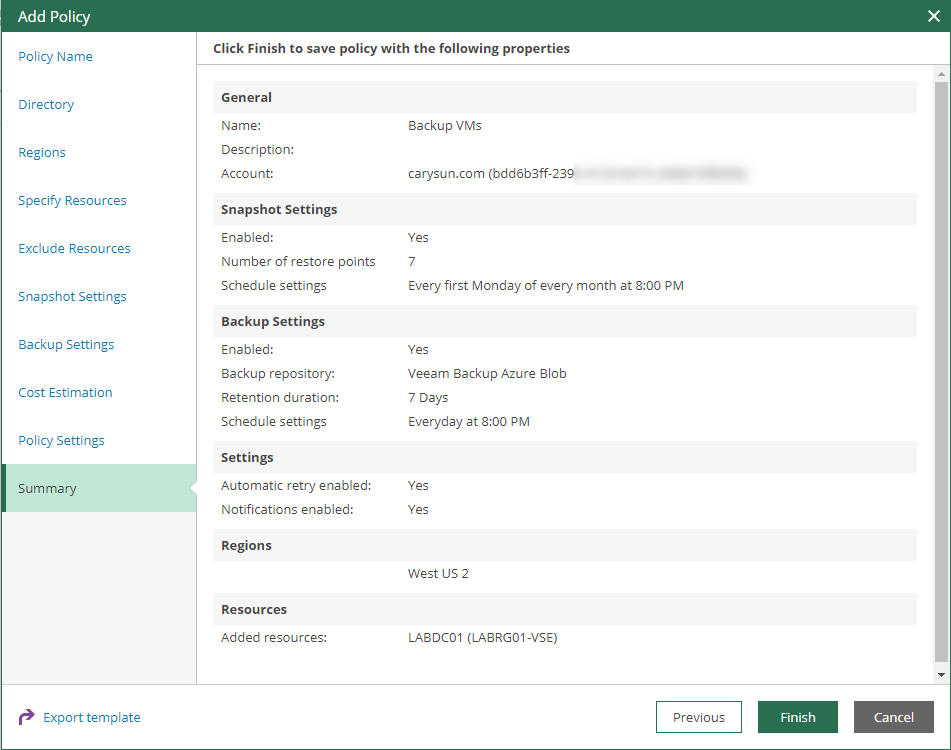

54.On the Summary page, verify settings, click Finish.

102220 2115 HowtoConfig55 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

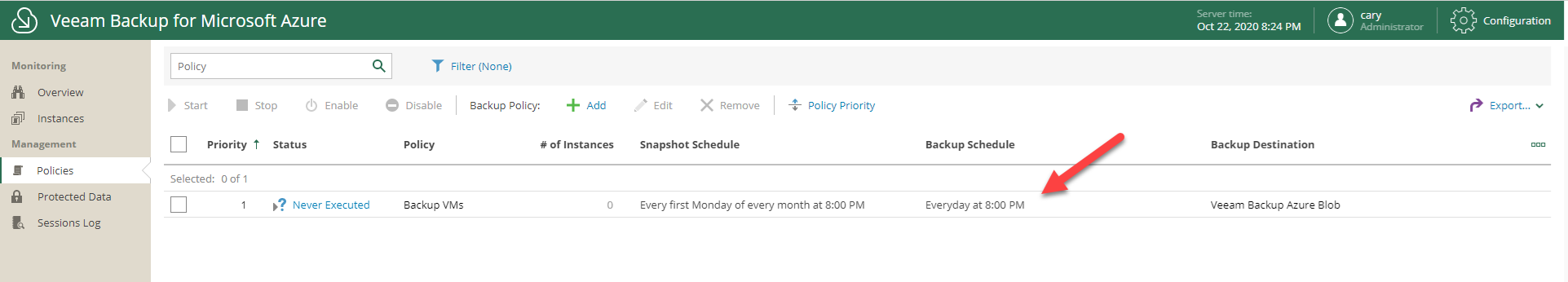

55.On the Policy page, verify the new Backup VMs policy created, it will run backup schedule as your settings.

102220 2115 HowtoConfig56 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

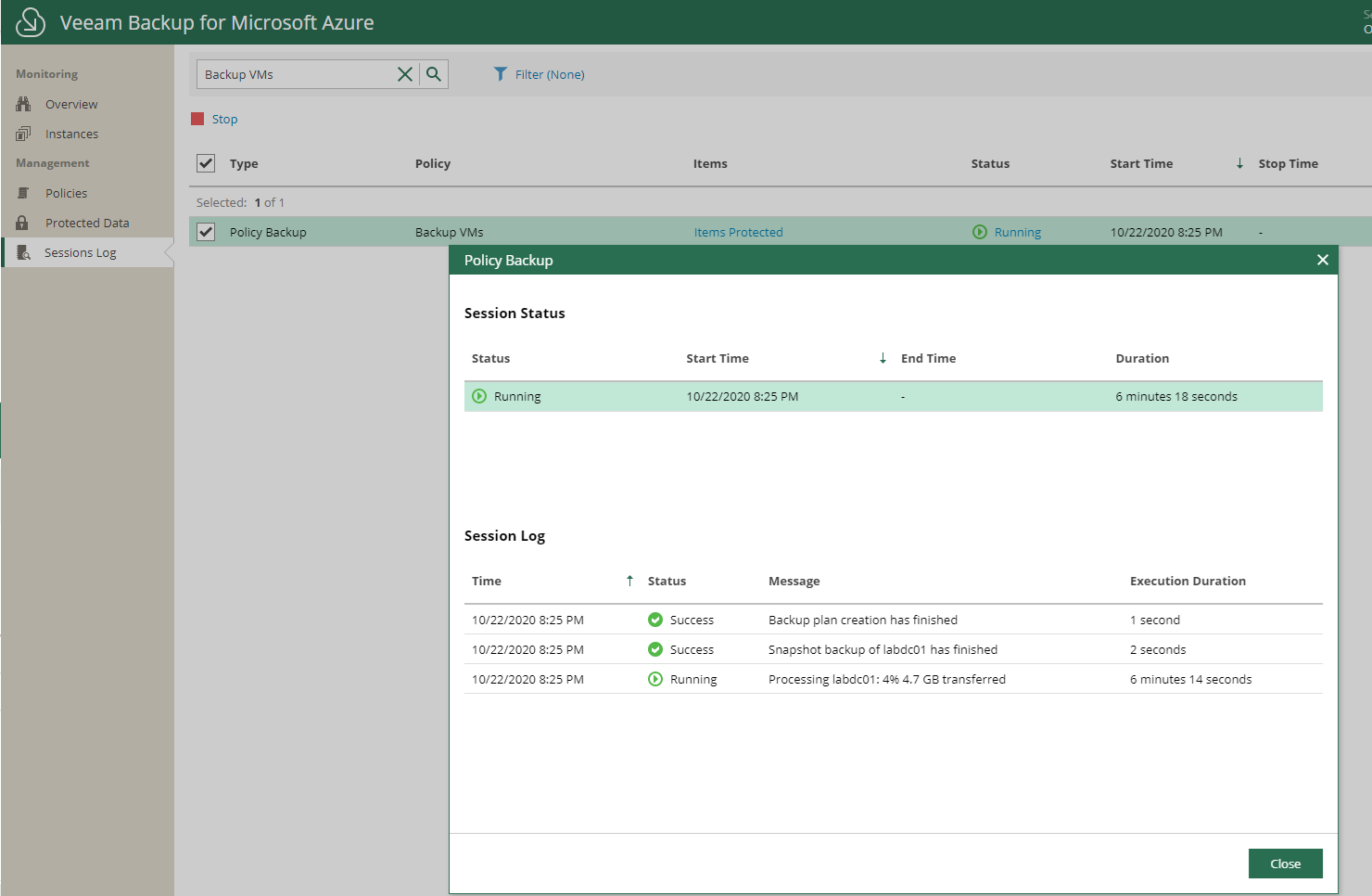

56.On the Session Log page, you can check the Policy Backup session status and log when it’s running.

102220 2115 HowtoConfig57 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

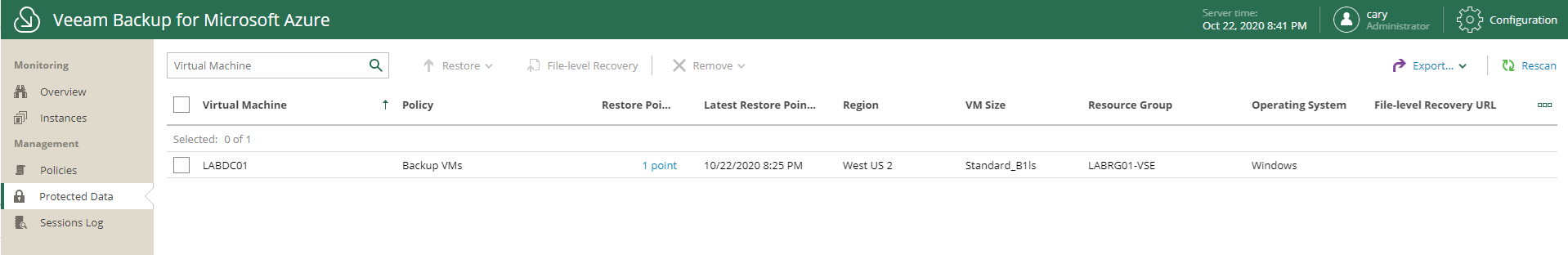

57.On the Protected Data page, verify the restore points after backup completed.

102220 2115 HowtoConfig58 - How to configure Veeam Backup for Microsoft Azure 1.0 with auto create service account

Hope you enjoy this post.
