With Veeam Backup & Replication you can easily backup and restore content of various NAS file shares. The solution can be flexibly scaled to reliably protect massive amounts of data, even for the largest of enterprise organizations. Today, I am going to show you how to configure it.

1.Login to Veeam Backup Server.

2. Open Veeam Backup and Replication console.

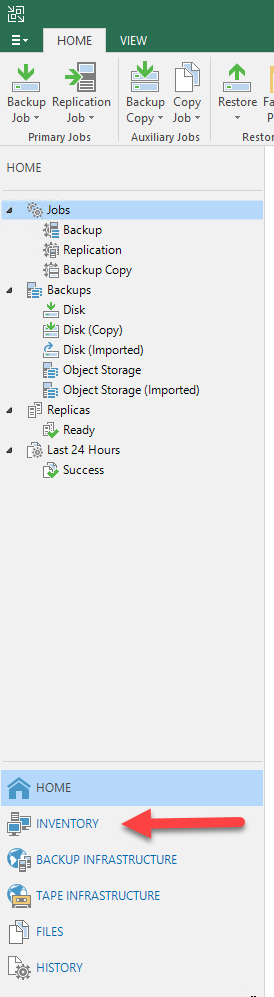

3. On the Home page, select INVENTORY.

120921 1947 Howtoconfig2 - How to configure Veeam File Share Backup

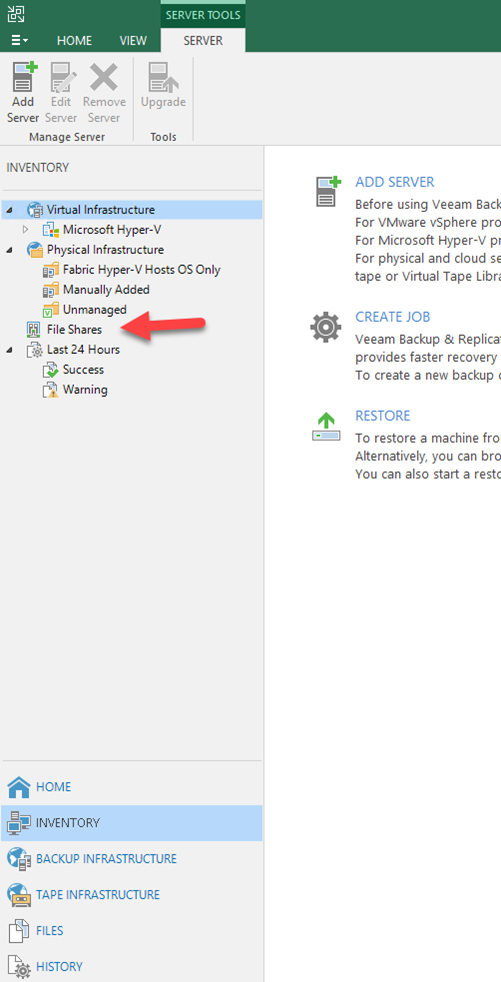

4. On the INVENTORY page, select File Shares.

120921 1947 Howtoconfig3 - How to configure Veeam File Share Backup

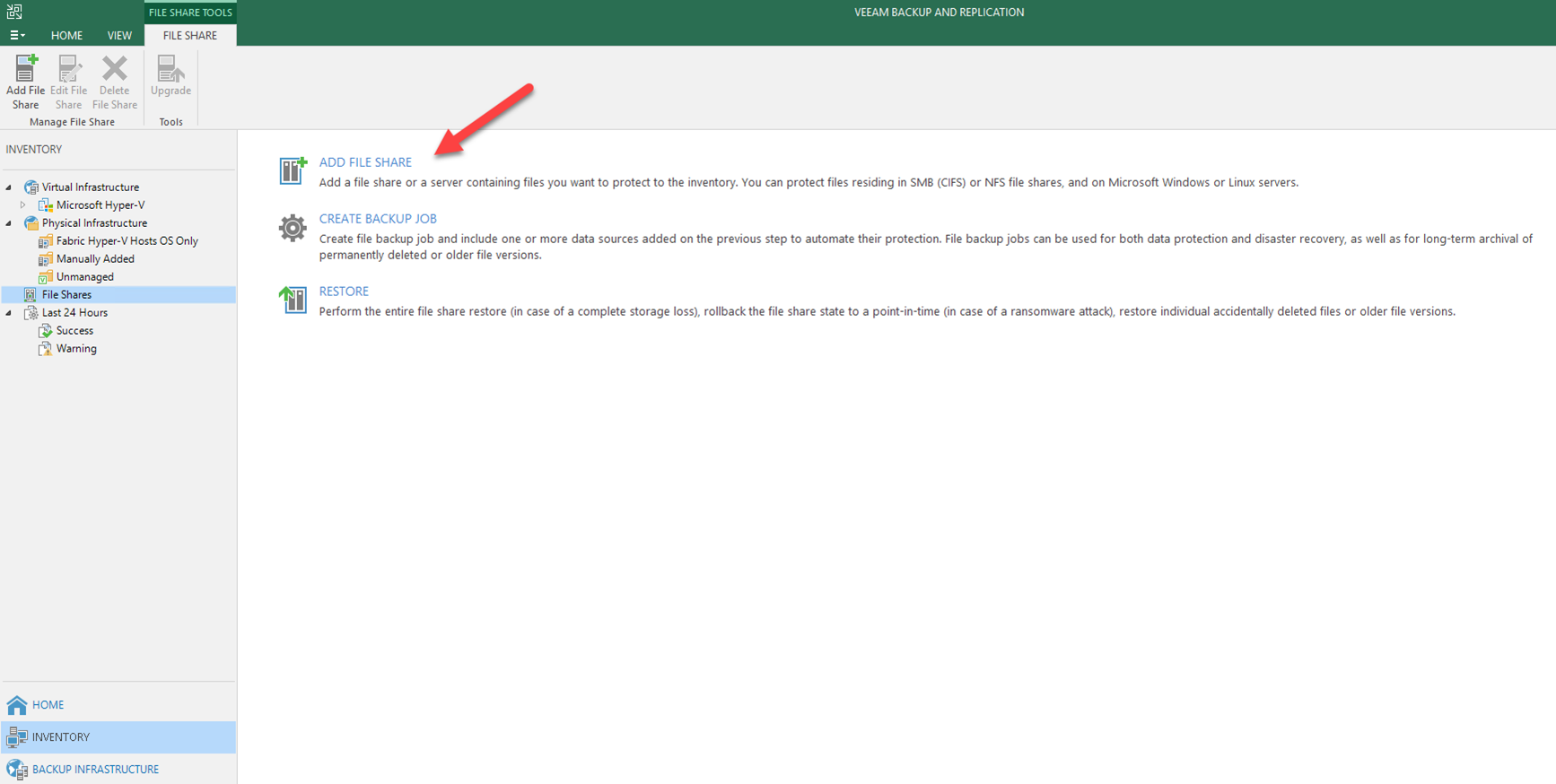

5. On the File Shares page, click ADD FILE SHAR.

120921 1947 Howtoconfig4 - How to configure Veeam File Share Backup

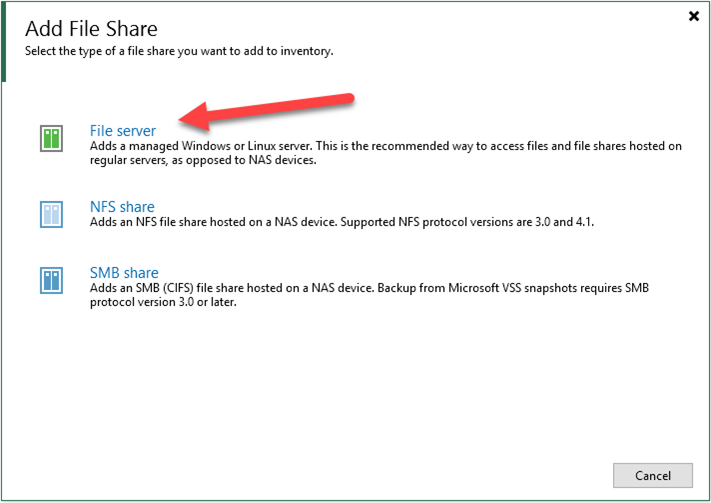

6. On the Add File Share page, click File server.

120921 1947 Howtoconfig5 - How to configure Veeam File Share Backup

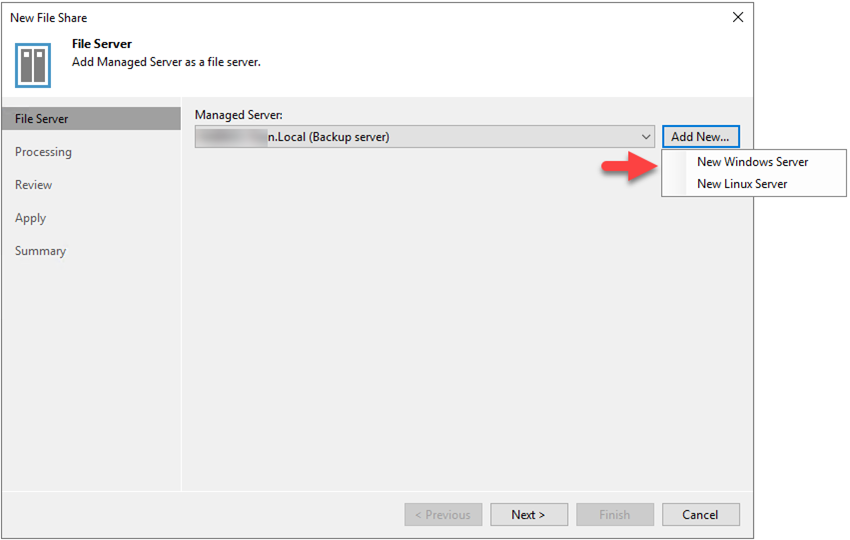

7. On the File Server page, click Add New, select New Windows Serve.

120921 1947 Howtoconfig6 - How to configure Veeam File Share Backup

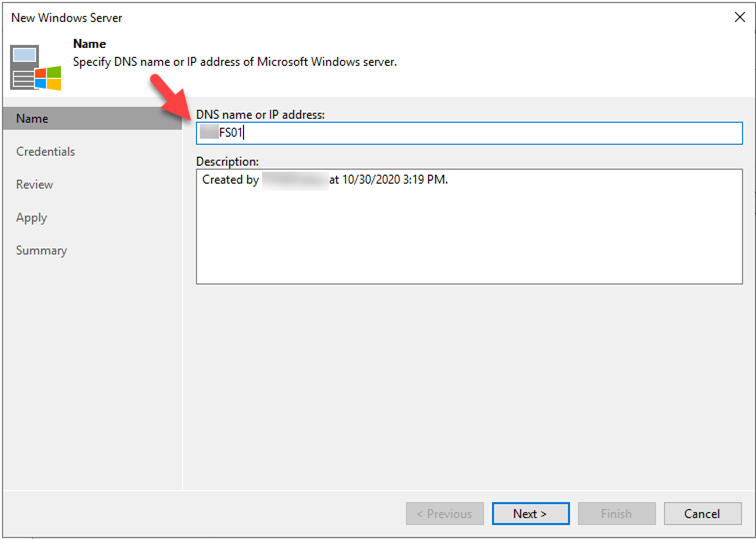

8. On the Name page, type the server’s name (or IP address), click Next.

120921 1947 Howtoconfig7 - How to configure Veeam File Share Backup

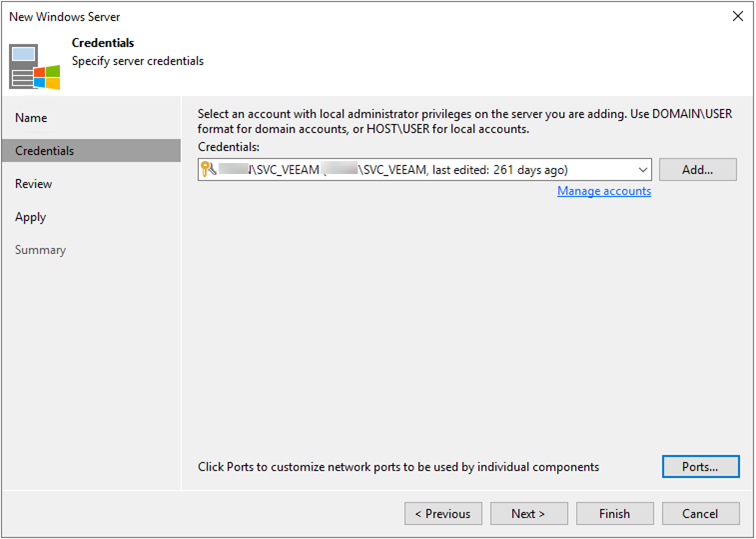

9. On the Credentials page, select the existing credential (or add new one), click Next.

120921 1947 Howtoconfig8 - How to configure Veeam File Share Backup

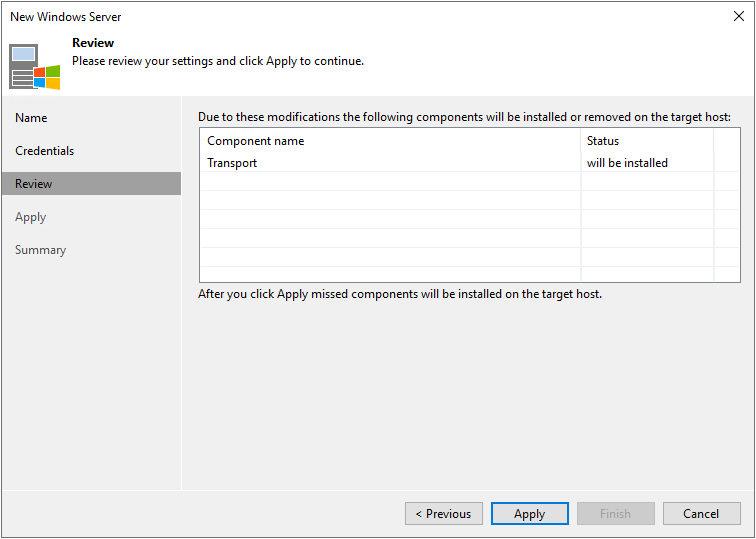

10.On the Review page, click Apply.

120921 1947 Howtoconfig9 - How to configure Veeam File Share Backup

11.On the Apply page, click Next.

120921 1947 Howtoconfig10 - How to configure Veeam File Share Backup

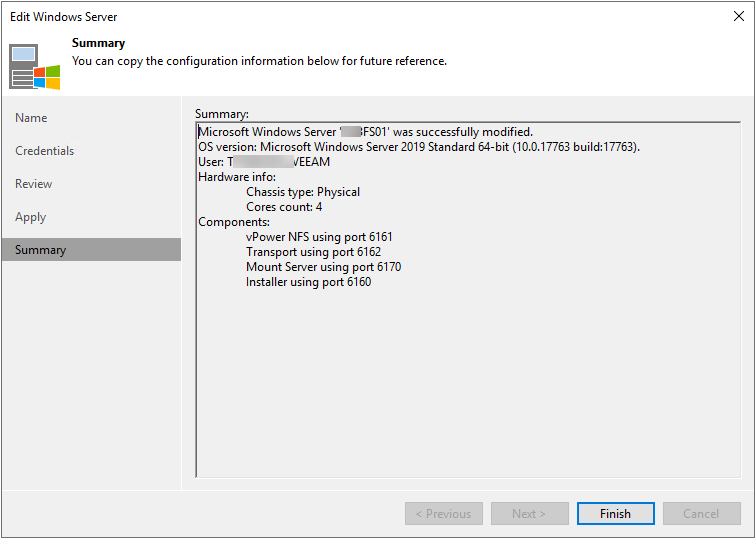

12.On the Summary page, click Finish.

120921 1947 Howtoconfig11 - How to configure Veeam File Share Backup

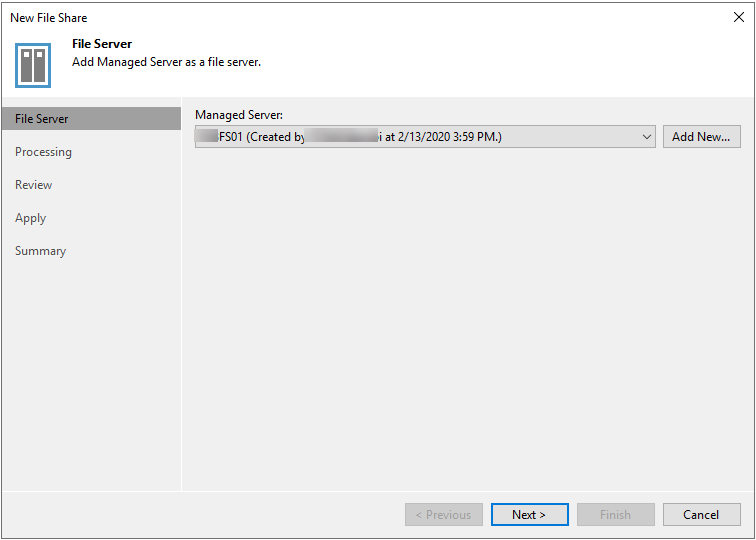

13.On the File Server page, click Next.

120921 1947 Howtoconfig12 - How to configure Veeam File Share Backup

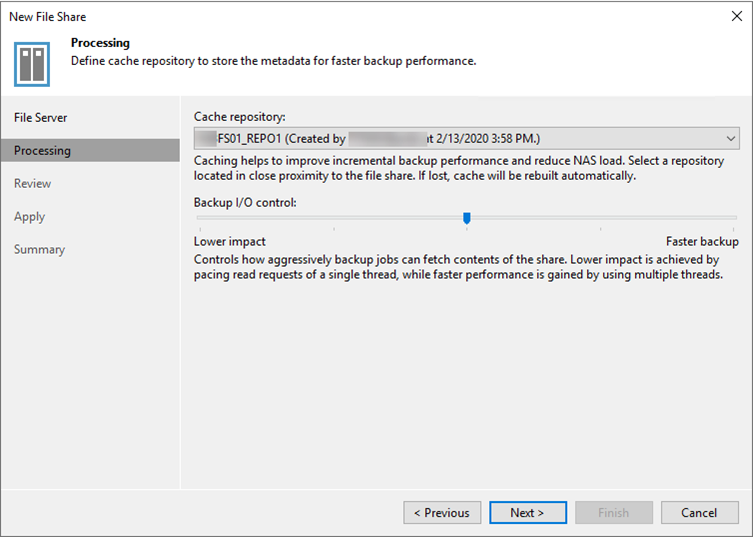

14.On the Processing page, select the repository located in close proximity to the file share, click Next.

120921 1947 Howtoconfig13 - How to configure Veeam File Share Backup

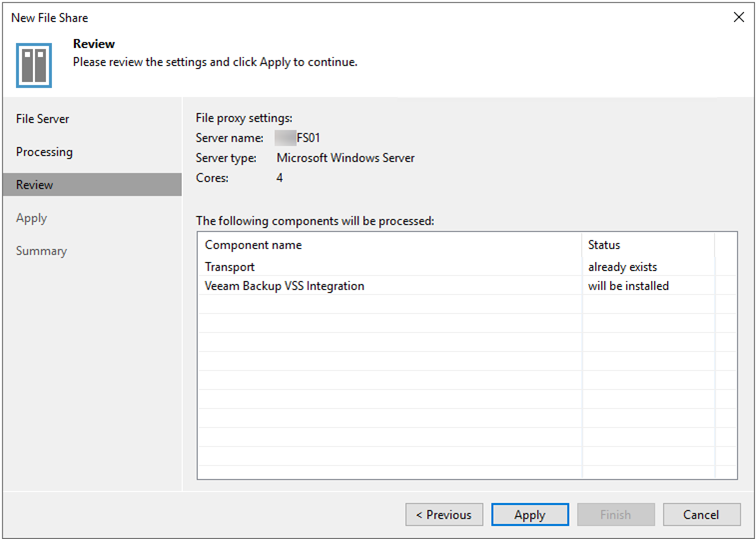

15.On the Review page, click Apply.

120921 1947 Howtoconfig14 - How to configure Veeam File Share Backup

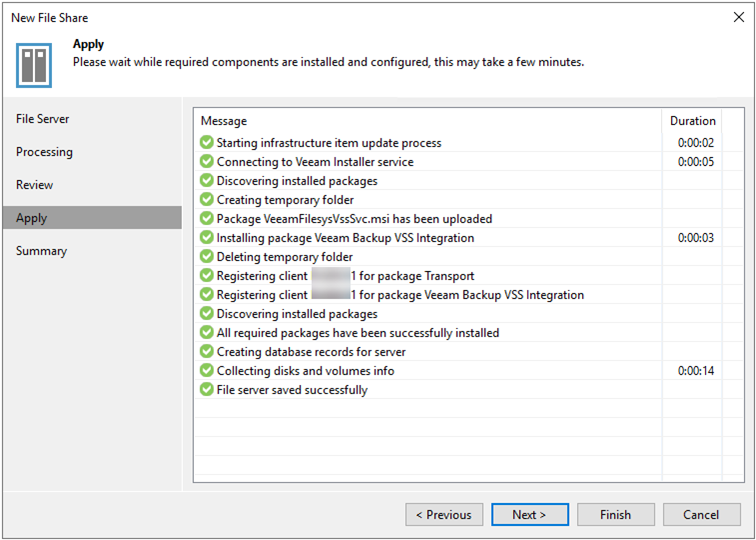

16.On the Apply page, click Next.

120921 1947 Howtoconfig15 - How to configure Veeam File Share Backup

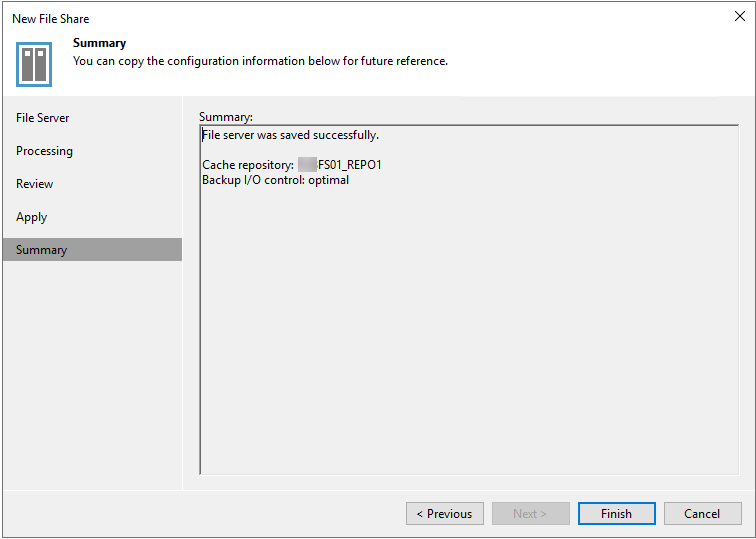

17.On the Summary page, click Finish.

120921 1947 Howtoconfig16 - How to configure Veeam File Share Backup

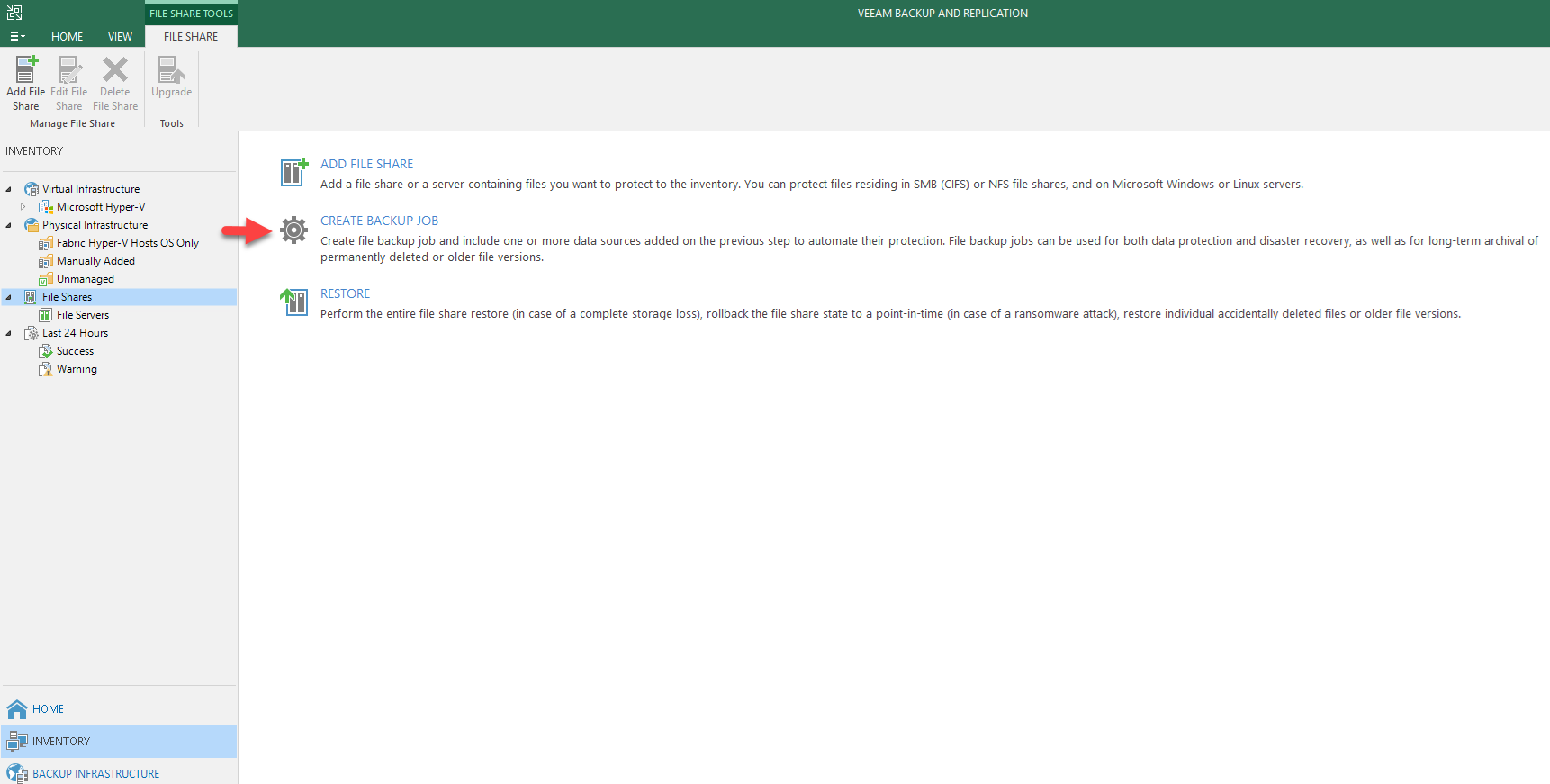

18.On the File Shares page, click CREATE BACKUP JOB.

120921 1947 Howtoconfig17 - How to configure Veeam File Share Backup

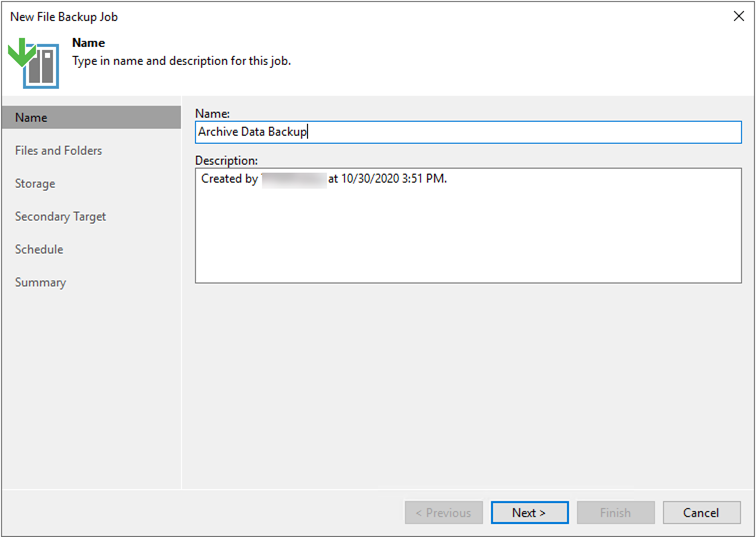

19.On the Name page, type the name for Backup Job, click Next.

120921 1947 Howtoconfig18 - How to configure Veeam File Share Backup

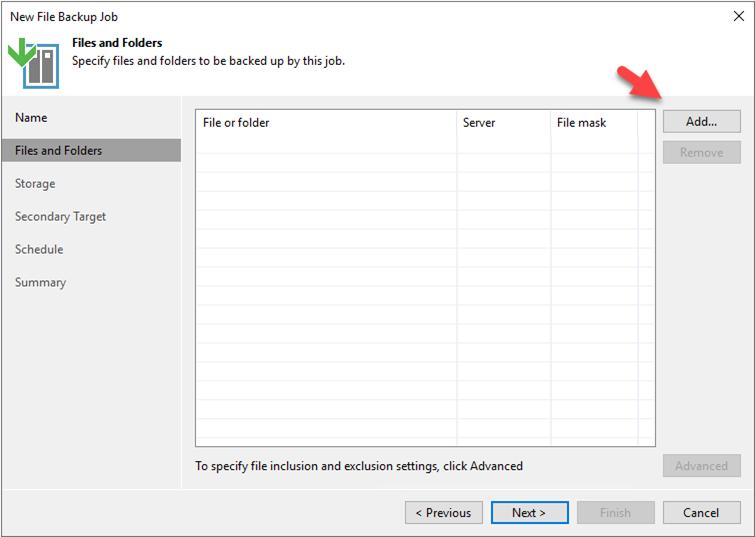

20.On the Files and Folders page, click Add.

120921 1947 Howtoconfig19 - How to configure Veeam File Share Backup

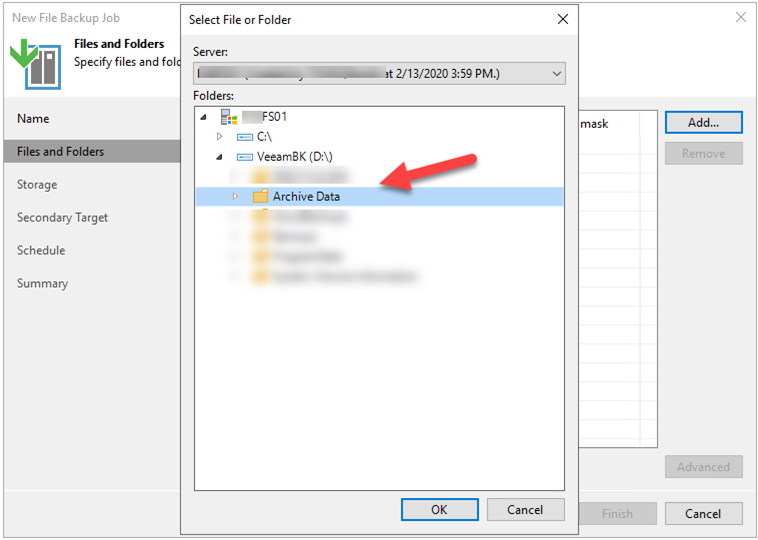

21.Select the Folders, click OK.

120921 1947 Howtoconfig20 - How to configure Veeam File Share Backup

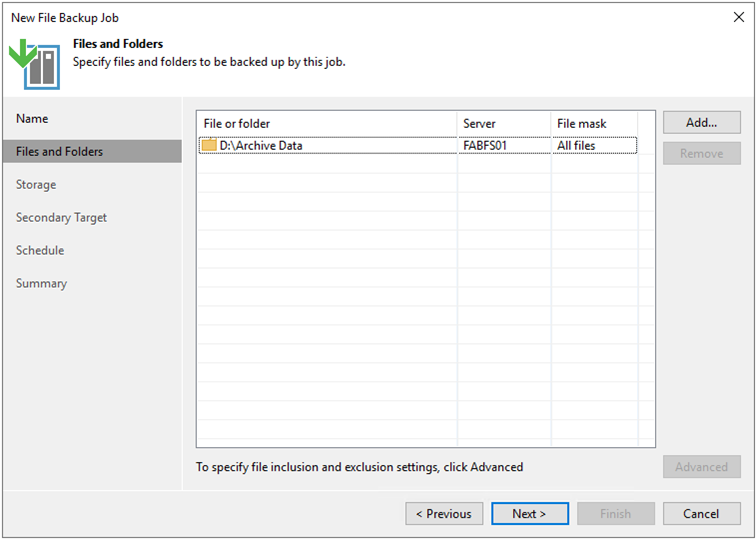

22.On the Files and Folders page, click Next.

120921 1947 Howtoconfig21 - How to configure Veeam File Share Backup

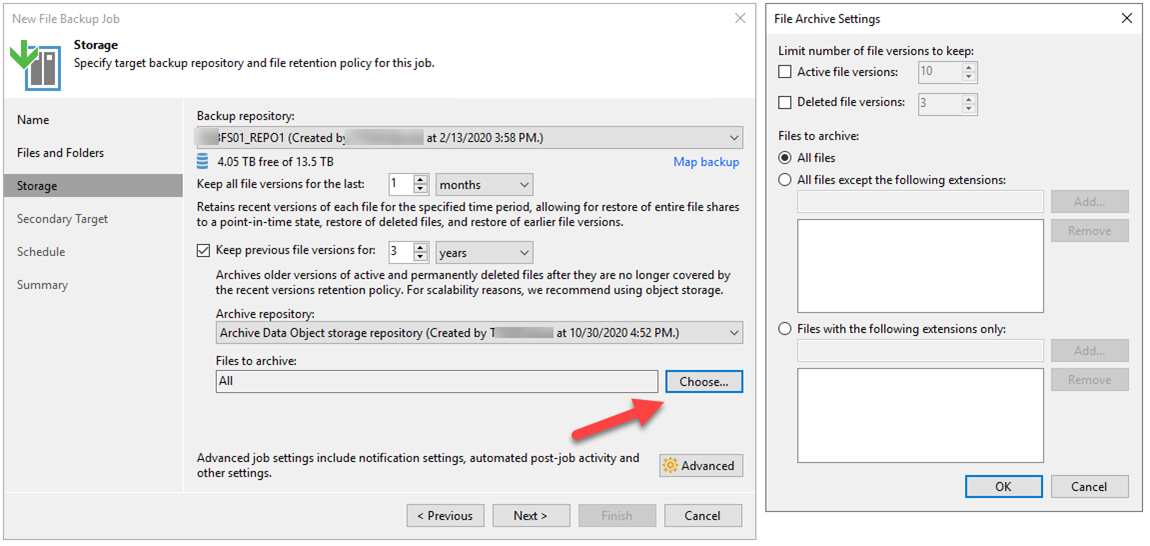

23.On the Storage page, configure below settings, click Next.

  • Backup repository: Select a repository where backup files must be stored
  • Keep all file version for the last: Specify how long copies of all recent file versions in the selected file share must be kept in the backup repository.
  • Keep previously file versions: Specify the number of months or years during which backup files must be retained.
  • Archive repository: Select the storage to be used as a repository to store archived files and folders.
  • File to Archive: By default, all files deleted from the backup repository will be moved to the archive repository. If you do not need all the files in the archive, you can choose what files to keep.

120921 1947 Howtoconfig22 - How to configure Veeam File Share Backup

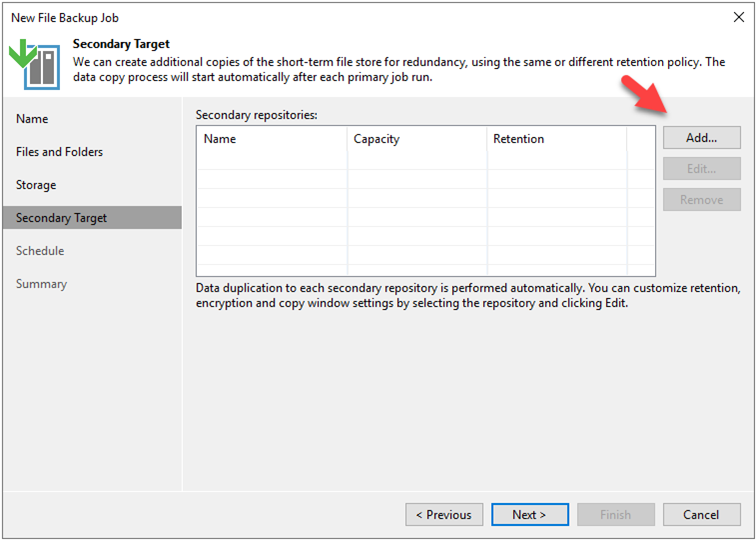

24.On the Secondary Target page, you can specify a secondary repository that will be used to store additional copies of backup files from the backup storage for redundancy. If you add a secondary repository, Veeam Backup & Replication will create a separate job for backup copy to it. The data copy process will start automatically after each primary job runs. Click Add.

120921 1947 Howtoconfig23 - How to configure Veeam File Share Backup

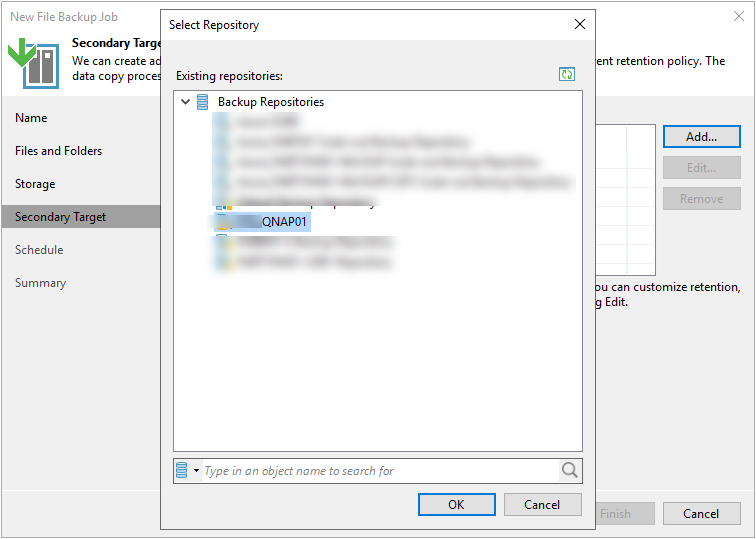

25.On the Select Repository page, select a repository as secondary target, click OK.

120921 1947 Howtoconfig24 - How to configure Veeam File Share Backup

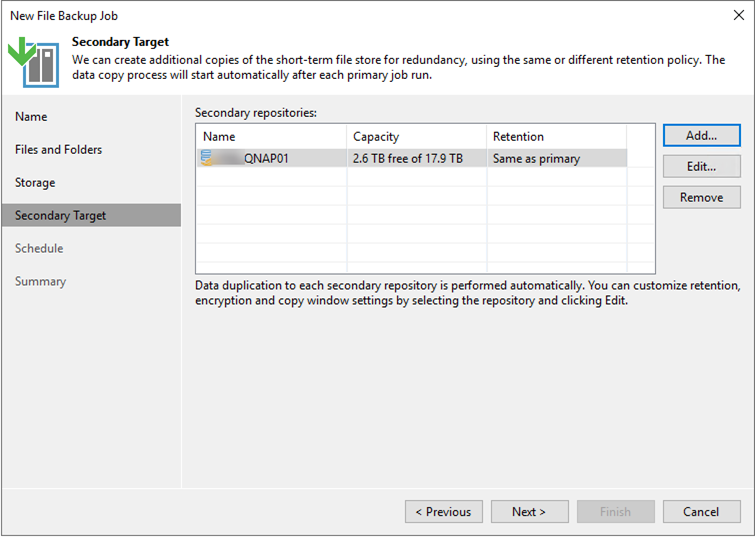

26.On the Secondary Target page, click Next.

120921 1947 Howtoconfig25 - How to configure Veeam File Share Backup

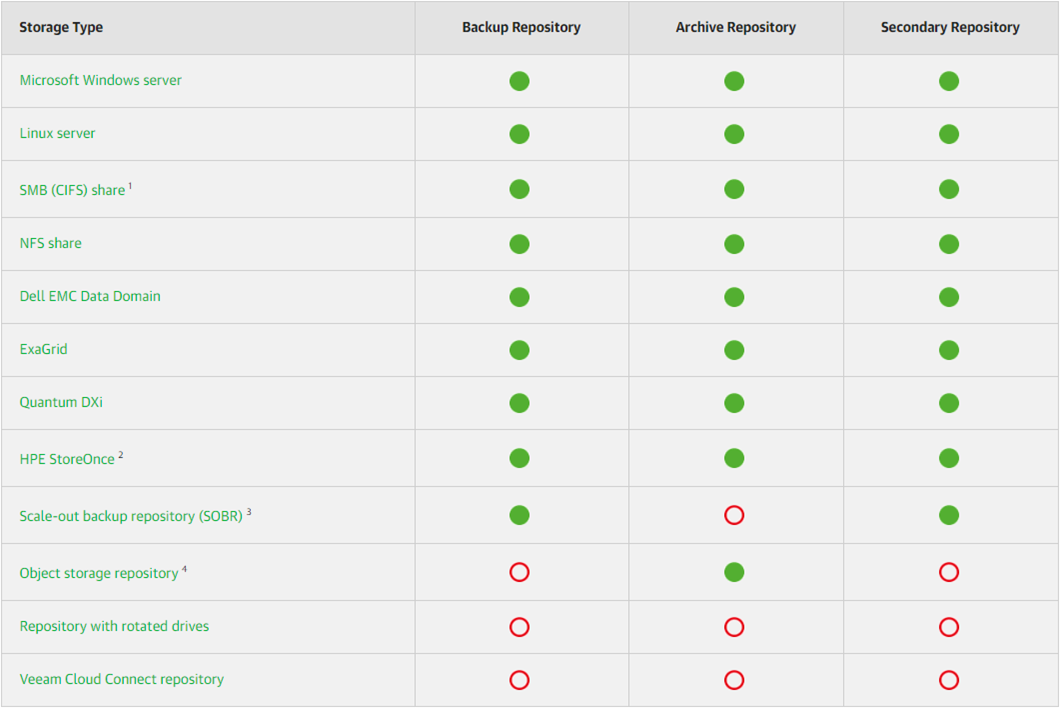

Note: The table below describes which roles can be assigned to the different storage types.

120921 1947 Howtoconfig26 - How to configure Veeam File Share Backup

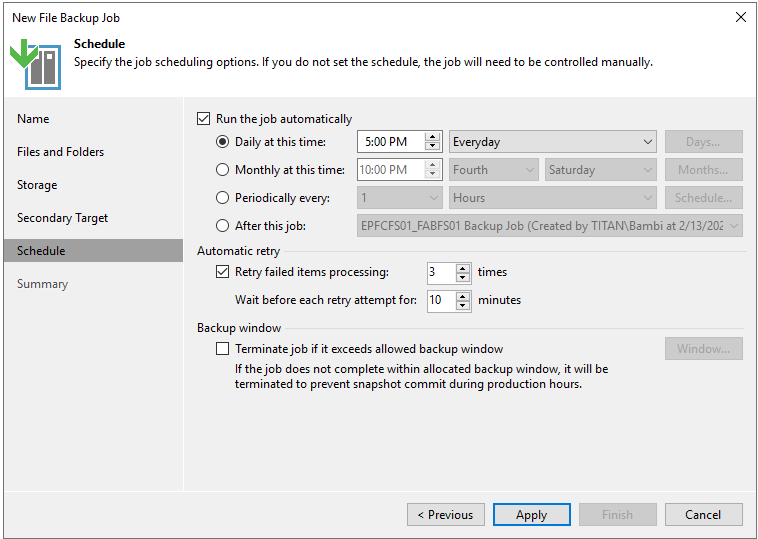

27.On the Schedule page, select the Run the job automatically and define scheduling settings for the job, click Apply.

120921 1947 Howtoconfig27 - How to configure Veeam File Share Backup

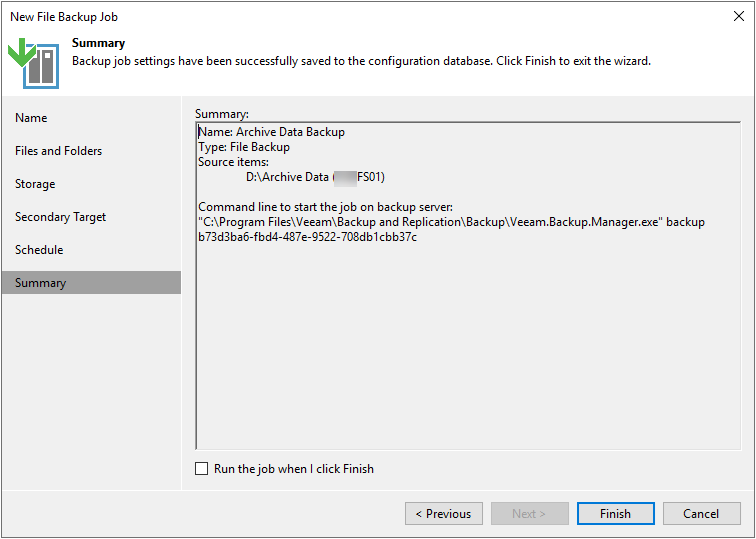

28.On the Summary page, click Finish.

120921 1947 Howtoconfig28 - How to configure Veeam File Share Backup

 Hope you enjoy this post.
