December 3, 2024
Because Veeam Backup & Replication only needs to transfer differences between the original/recovered VM and VM replica, the failback to the original virtual machine restored in a different location option helps reduce recovery time and network traffic.

Because Veeam Backup & Replication only needs to transfer differences between the original/recovered VM and VM replica, the failback to the original virtual machine restored in a different location option helps reduce recovery time and network traffic.

1. Login to the Veeam Backup and replication manager server.

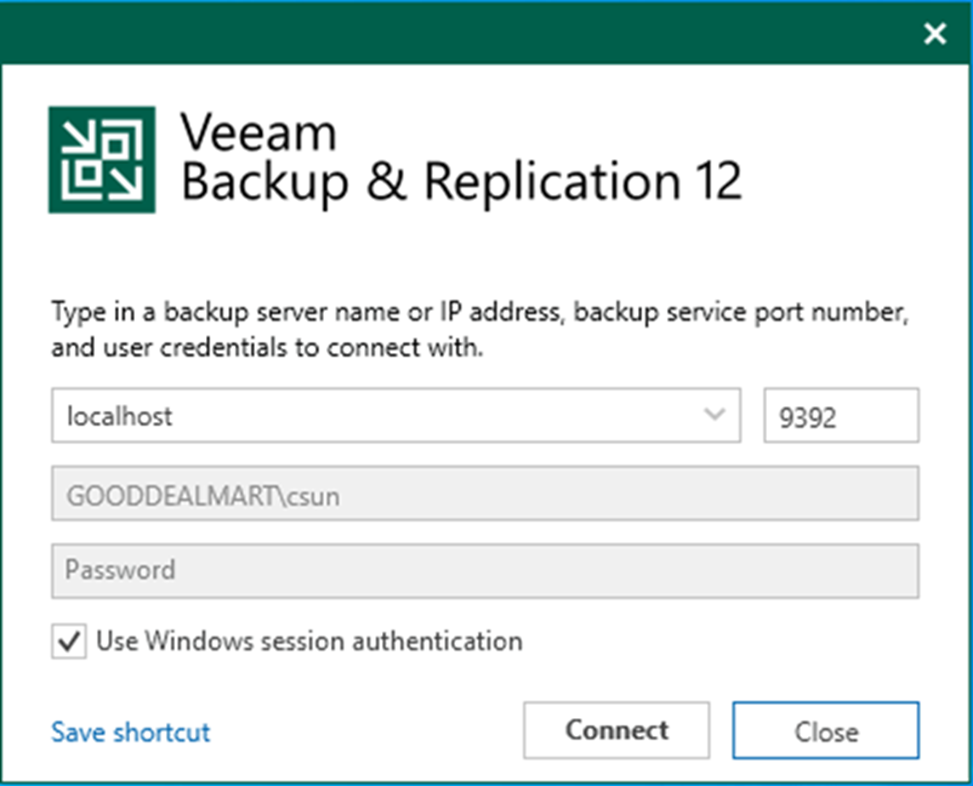

2. Open the Veeam Backup & Replication 12 Console and click Connect.

100123 0032 Howtofailba1 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

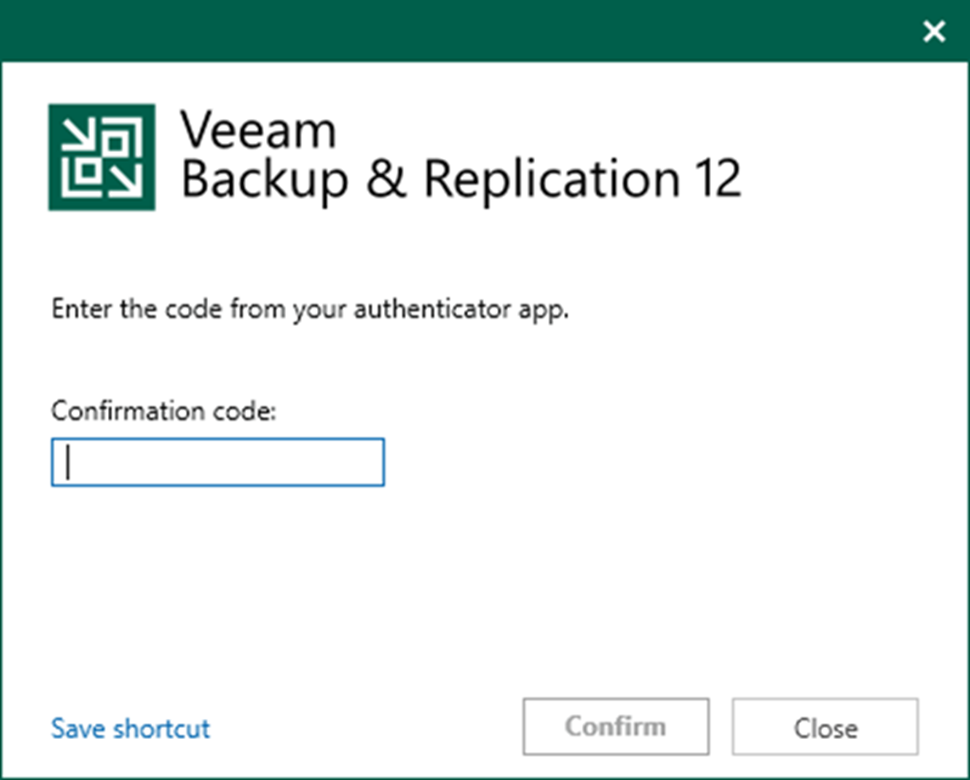

3. Enter the MFA Confirmation code and click Confirm.

100123 0032 Howtofailba2 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

4. On the Home page, expand Replicas. Select Active.

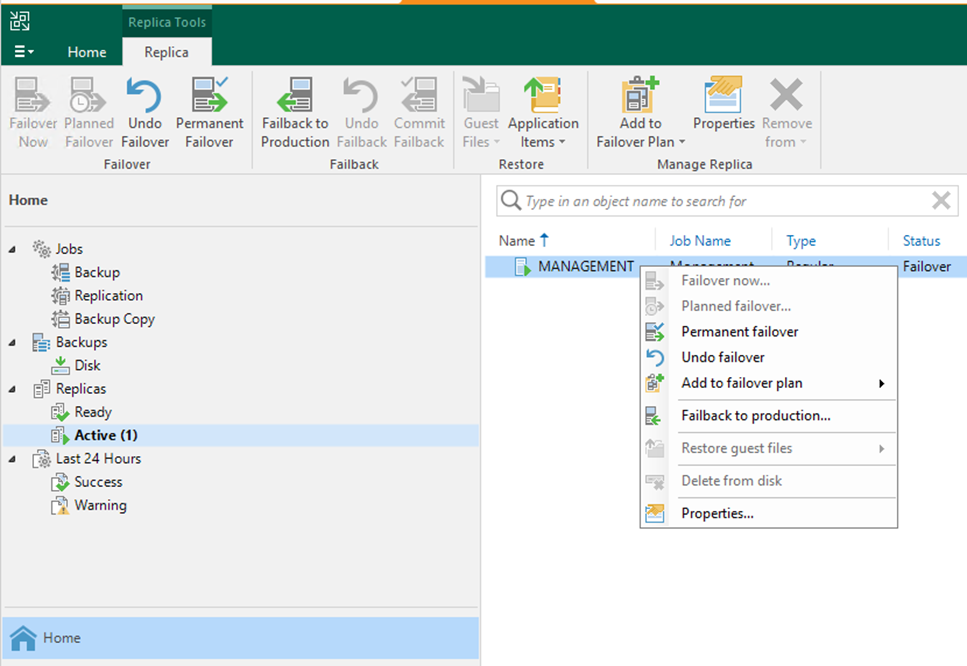

5. Right-click the virtual machine and select Failback to production.

100123 0032 Howtofailba3 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

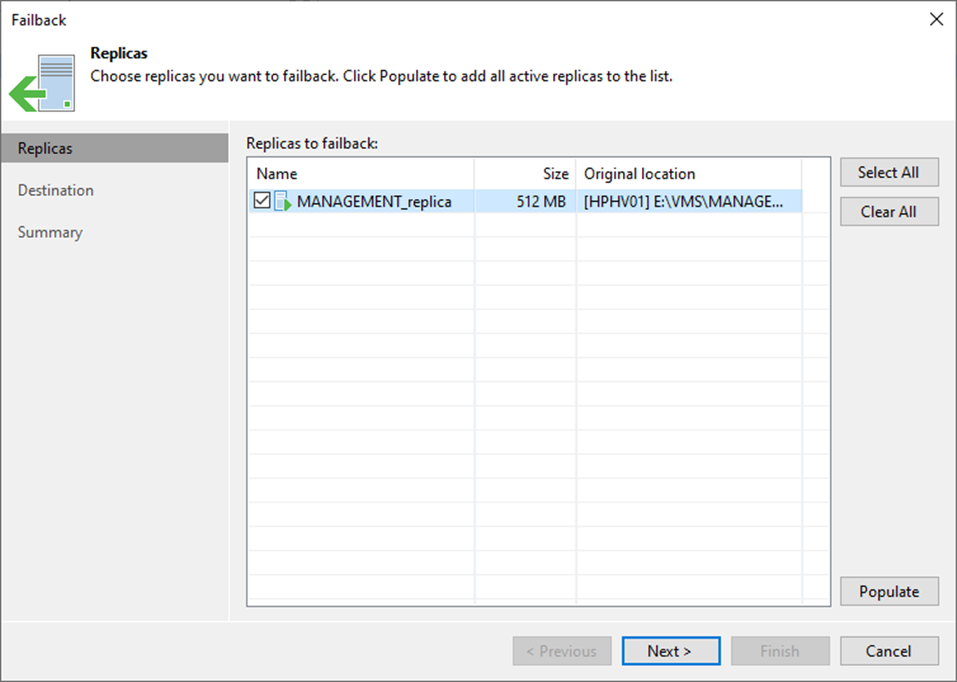

6. Click Populate on the Virtual Machine page to update the replicas ready for the failback list.

7. Select the replicas and click Next.

100123 0032 Howtofailba4 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

8. If the original VMs have already been recovered to a new location and you want to switch to the recovered VMs from their replicas.

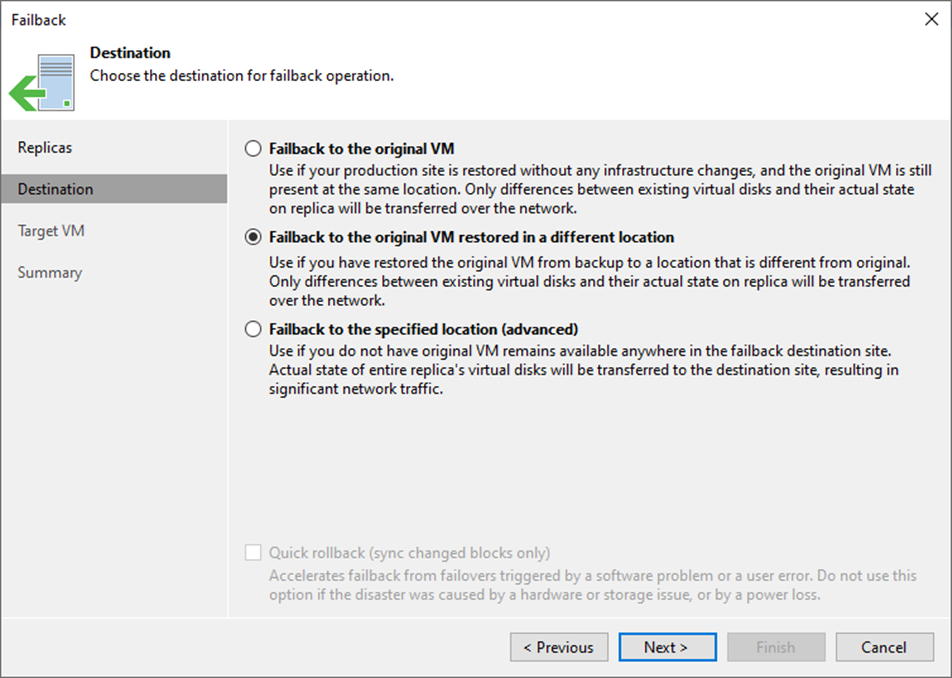

9. On the Destination page, select Failback to the original VM restored in a different location.

10. Click Next.

100123 0032 Howtofailba5 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

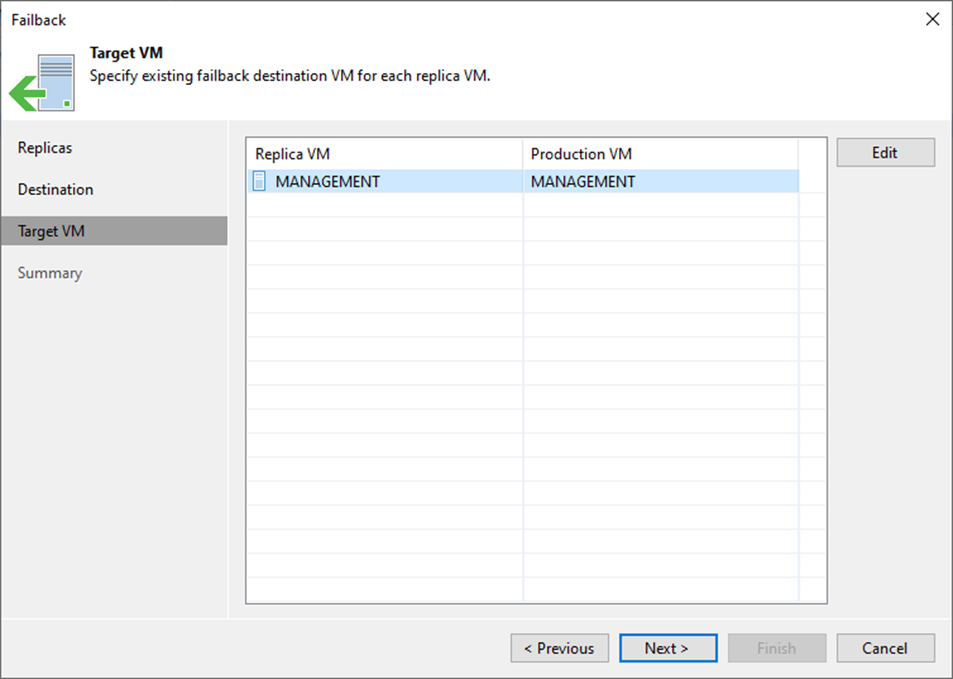

11. On the Target VM page, select the replica VM and click Edit.

100123 0032 Howtofailba6 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

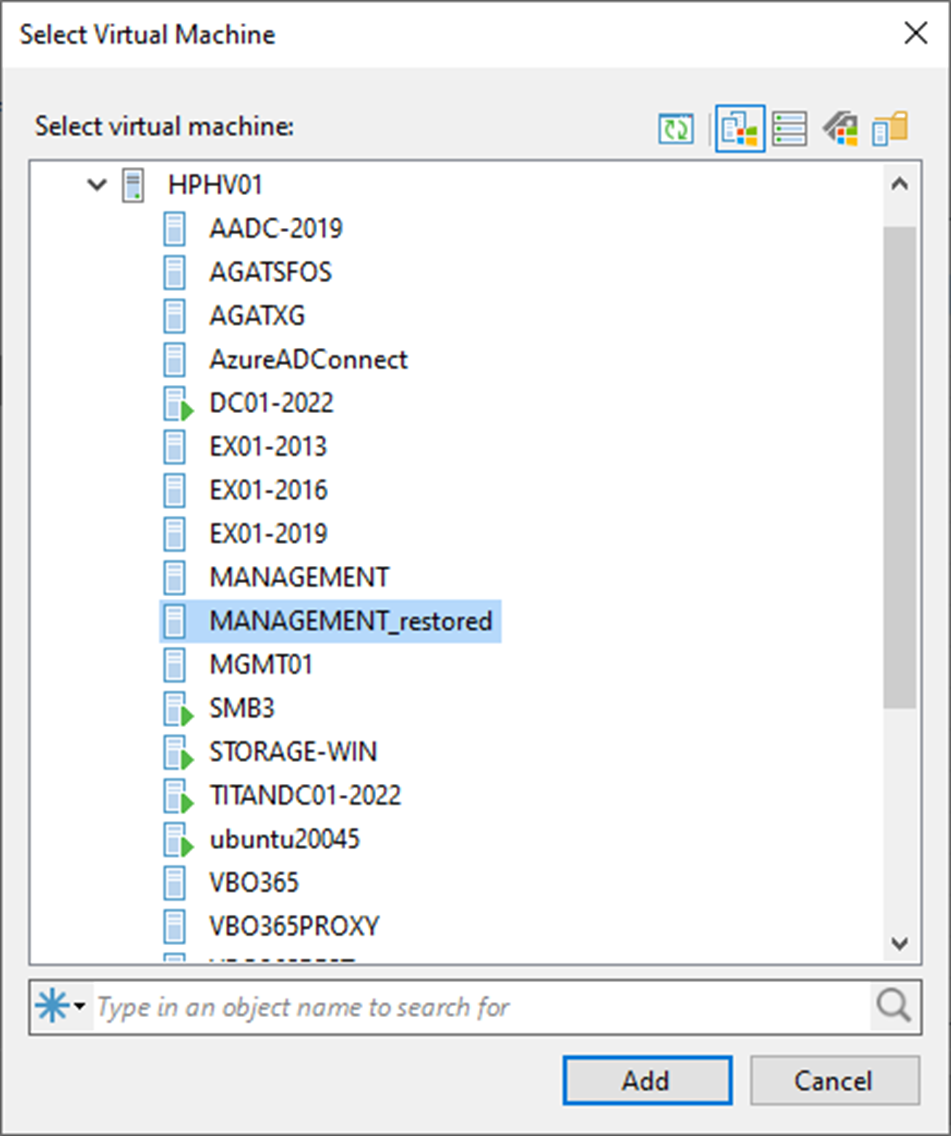

12. On the Select Virtual Machine page, select the recovered VM and click Add.

100123 0032 Howtofailba7 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

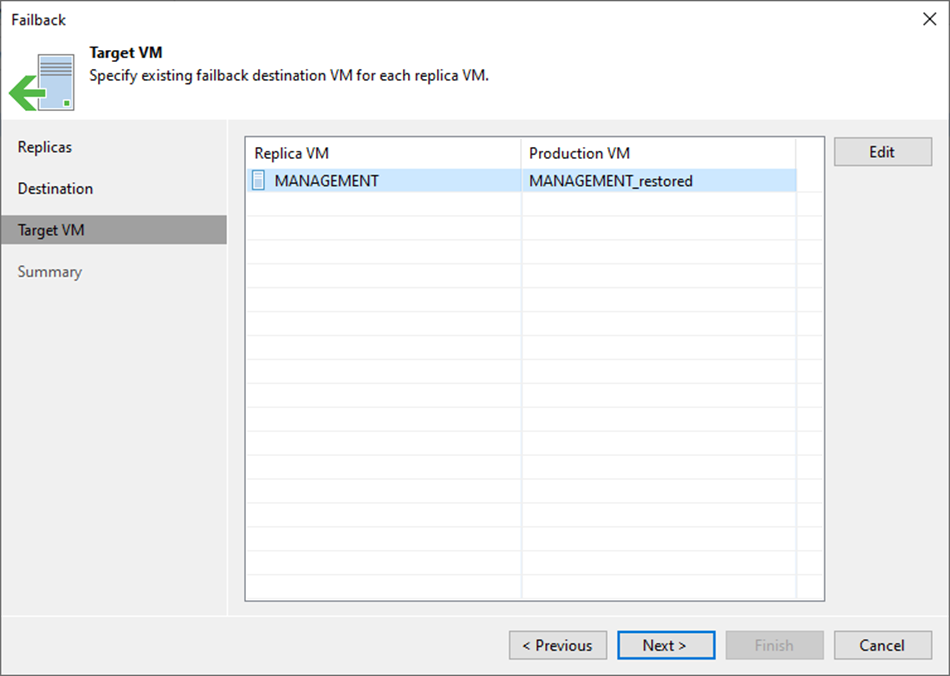

13. On the Target VM page, click Next.

100123 0032 Howtofailba8 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

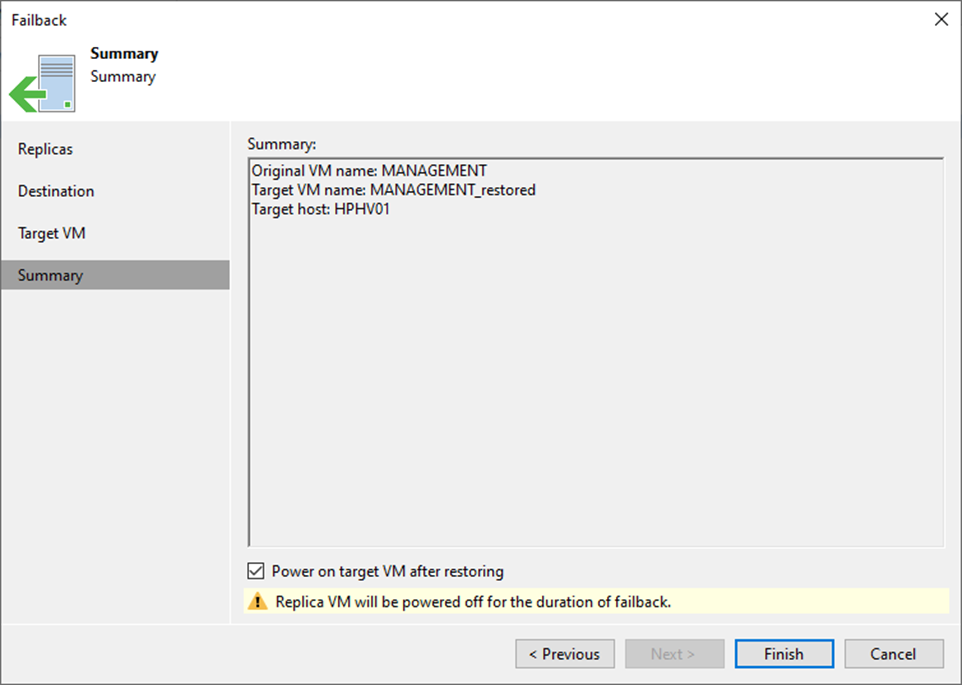

14. Select Power on the target VM after restoring and click Finish on the Summary page.

100123 0032 Howtofailba9 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

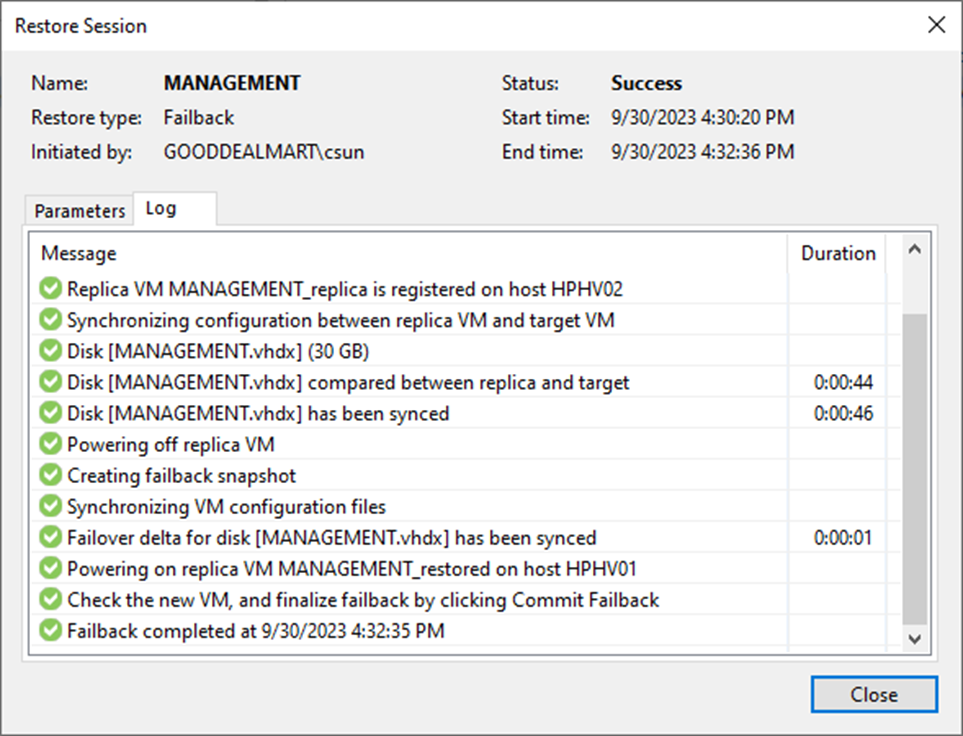

15. On the Restore Session page, select Log.

16. Ensure the failback is completed successfully and click Closed.

100123 0032 Howtofailba10 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

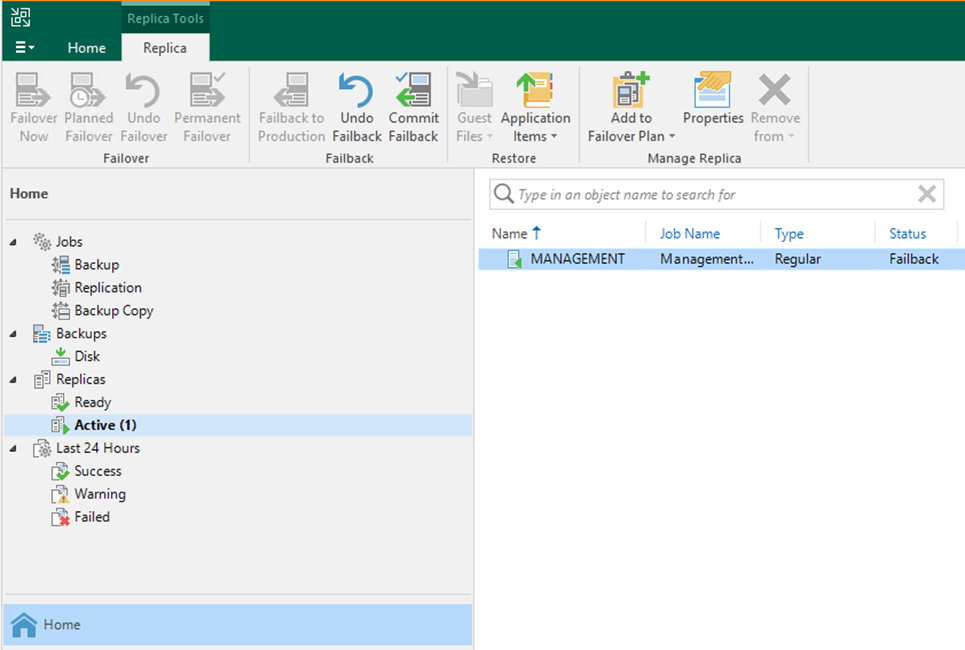

17. On the Home page, expend Replicas and select Active.

18. The VM status changed from Failover to Failback.

100123 0032 Howtofailba11 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

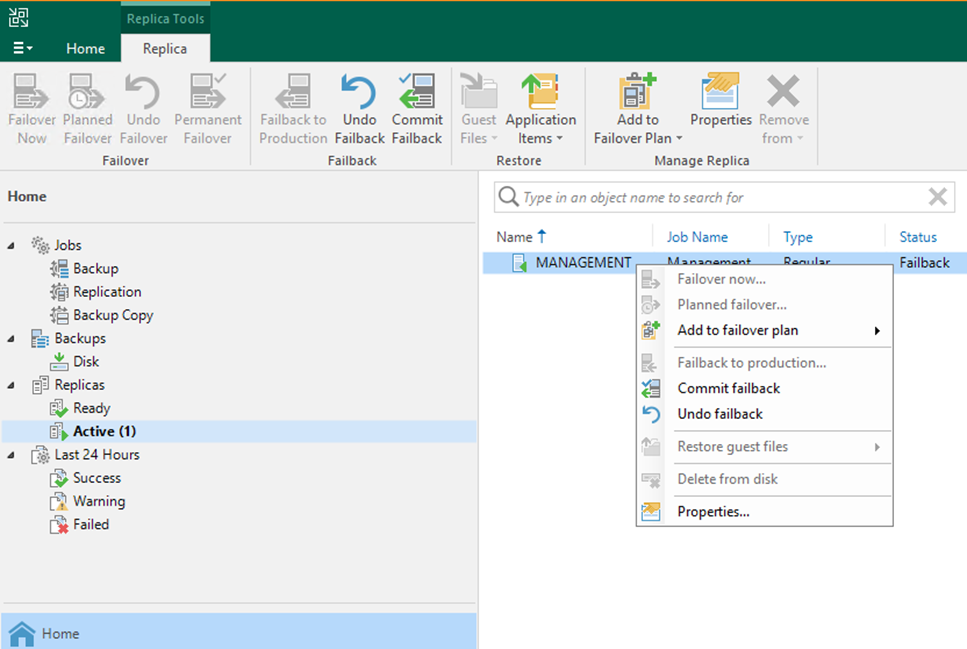

19. Right-click the VM and select Commit failback.

100123 0032 Howtofailba12 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

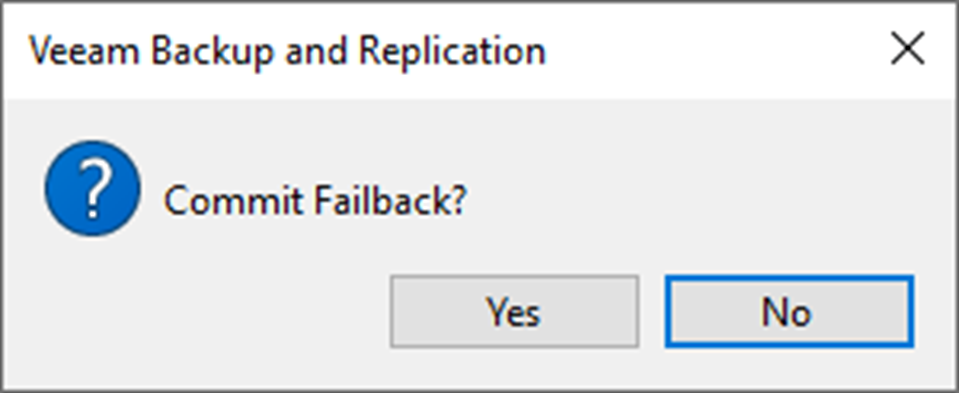

20. Click Yes in the Commit Failback display windows.

100123 0032 Howtofailba13 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

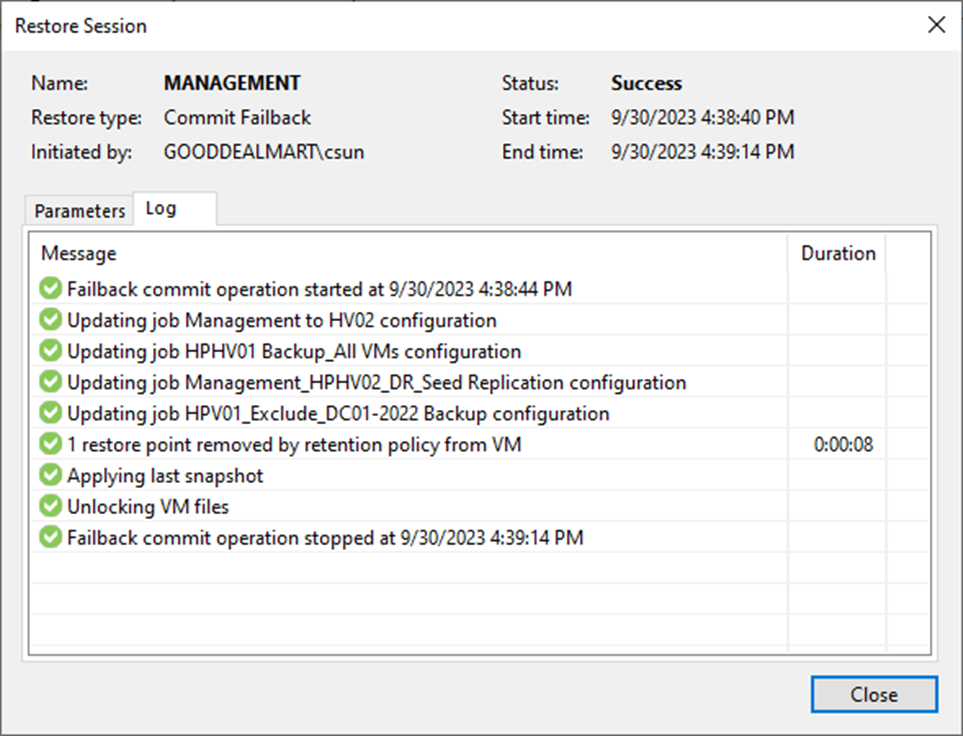

21. On the Restore Session page, select log.

22. Veeam Backup & Replication will synchronize the recovered VMs’ states with the current states of the VM replicas to apply any changes that occurred to the replicas while they were running in the DR site.

23. Ensure the Commit Failback is completed successfully, click Closed.

100123 0032 Howtofailba14 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12

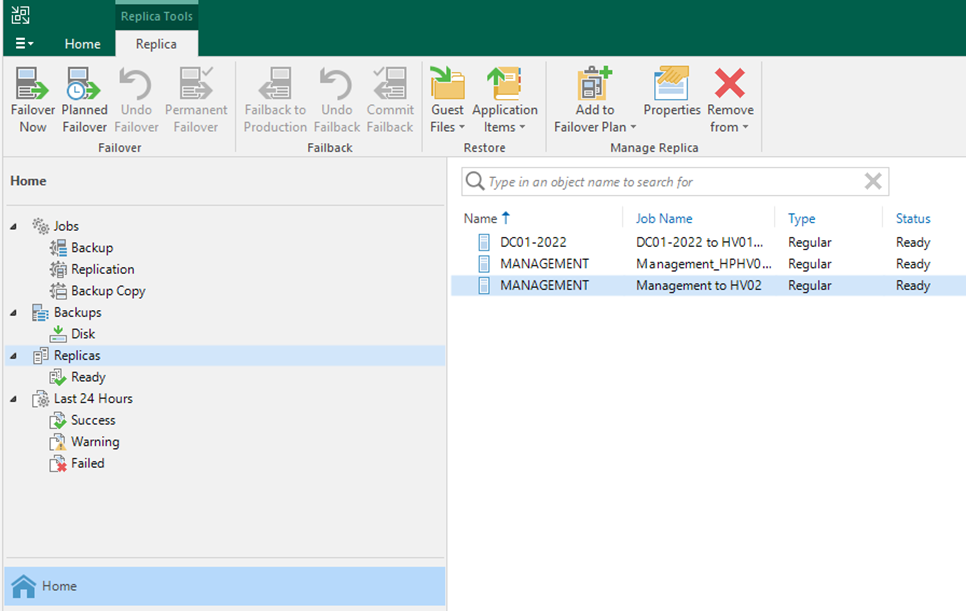

24. On the Home page, expand Replicas and the virtual machine back to regular type and Ready status.

100123 0032 Howtofailba15 - How to failback to the original virtual machine restored in a different location at Veeam Backup and Replication v12
