February 22, 2024
082223 2101 Howtomigrat15 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL
Microsoft SQL Server (or Express), either locally on the backup manager server or remotely.

Microsoft SQL Server (or Express), either locally on the backup manager server or remotely.

Microsoft SQL Server Express has a configuration data storage limit of 10 GB. The Express Edition is sufficient for the evaluation and small environments (500 VMs).

1. Log in to the existing Veeam Backup and replication manager server.

2. Open the Veeam Backup & Replication Console.

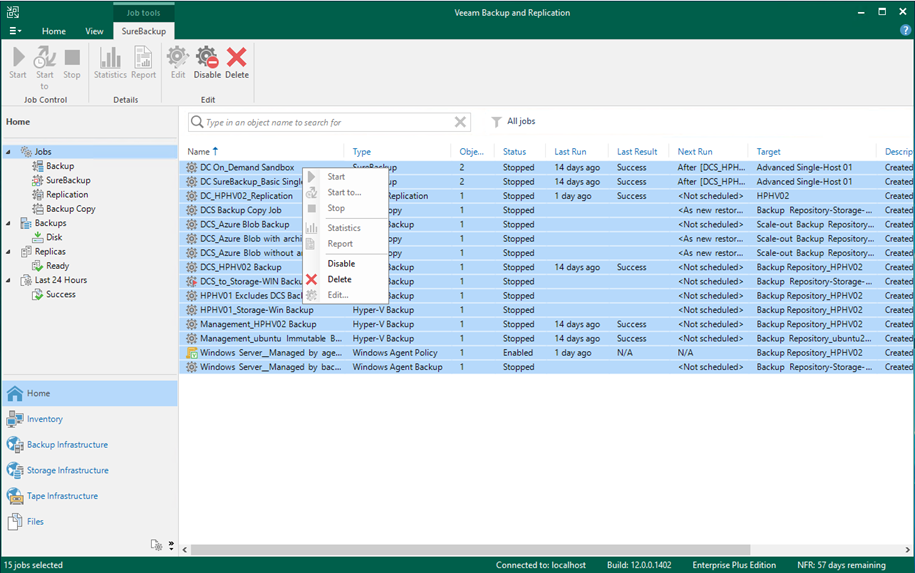

3. Select and right-click all jobs.

4. Select Disable.

082223 2101 Howtomigrat1 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

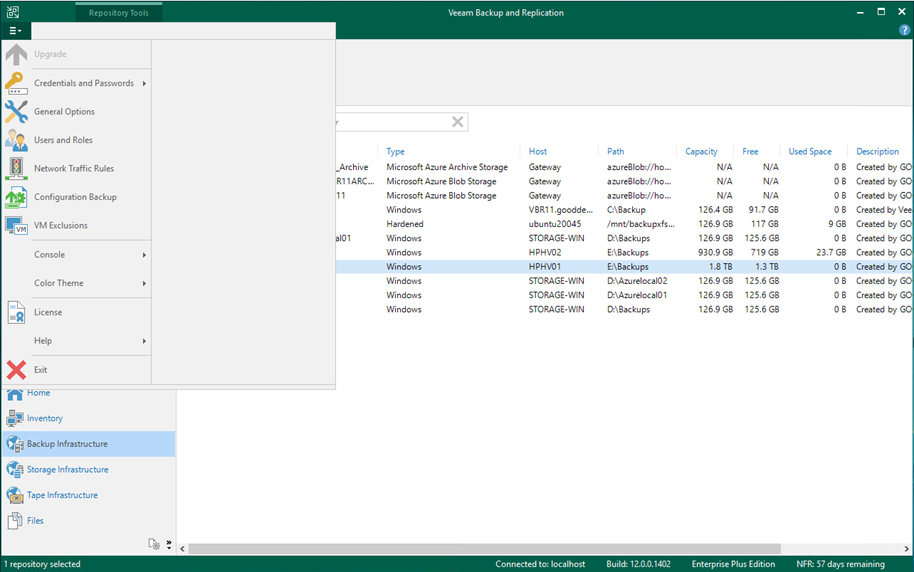

5. Drop down the main menu and select Configuration Backup.

082223 2101 Howtomigrat2 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

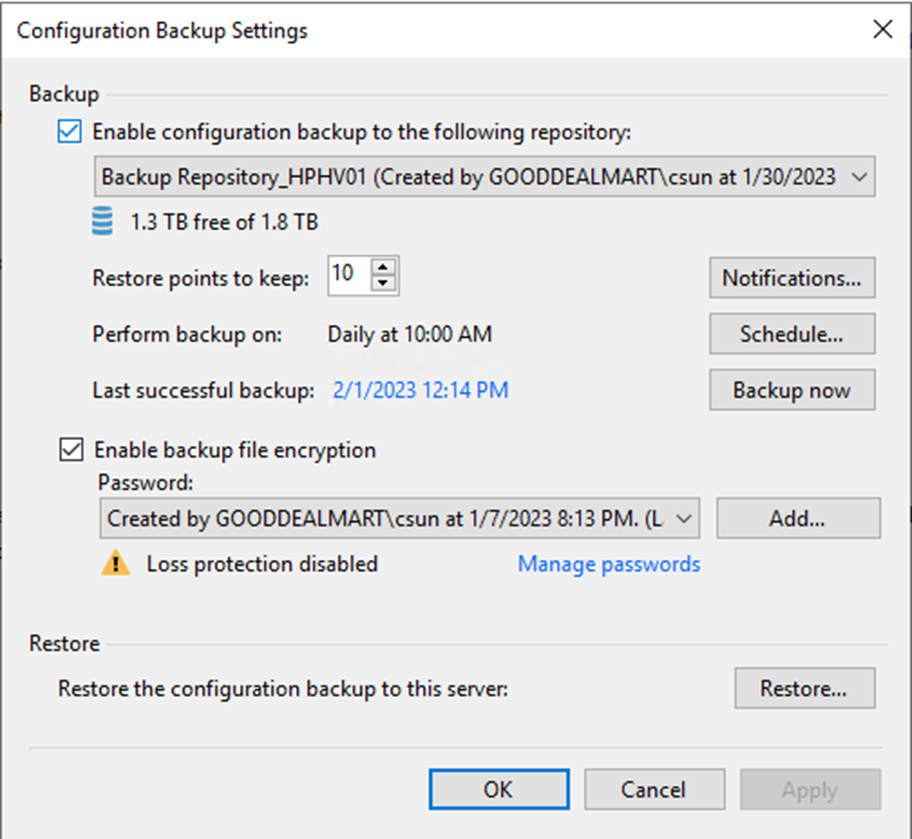

6. Click Backup now on the Configuration Backup Settings page.

082223 2101 Howtomigrat3 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

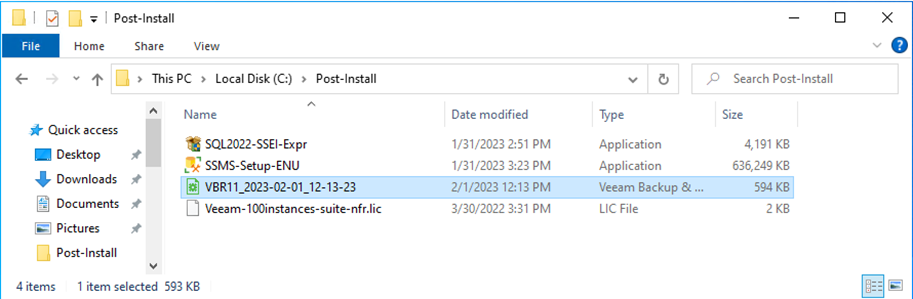

7. Copy the configuration file from the backup repository to the new Backup and Replication manager server.

082223 2101 Howtomigrat4 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

8. Log in to the new Veeam Backup and Replication manager server.

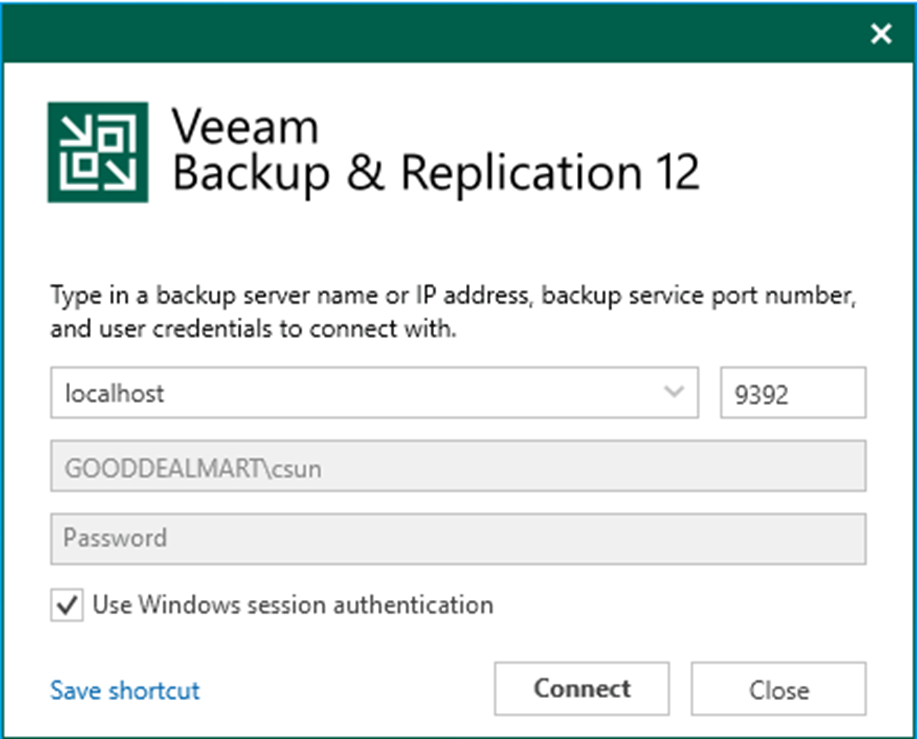

9. Open the Veeam Backup & Replication Console, and click Connect.

082223 2101 Howtomigrat5 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

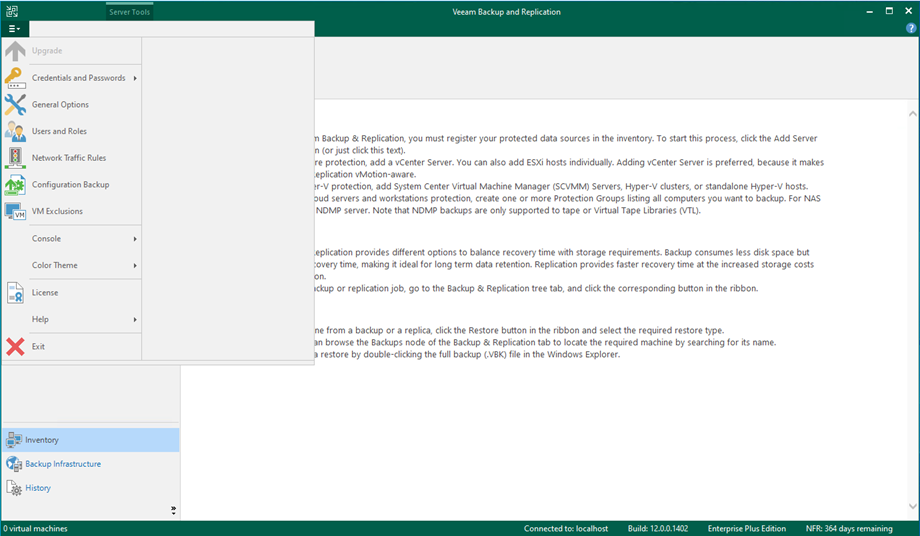

10. Drop down the main menu and select Configuration Backup.

082223 2101 Howtomigrat6 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

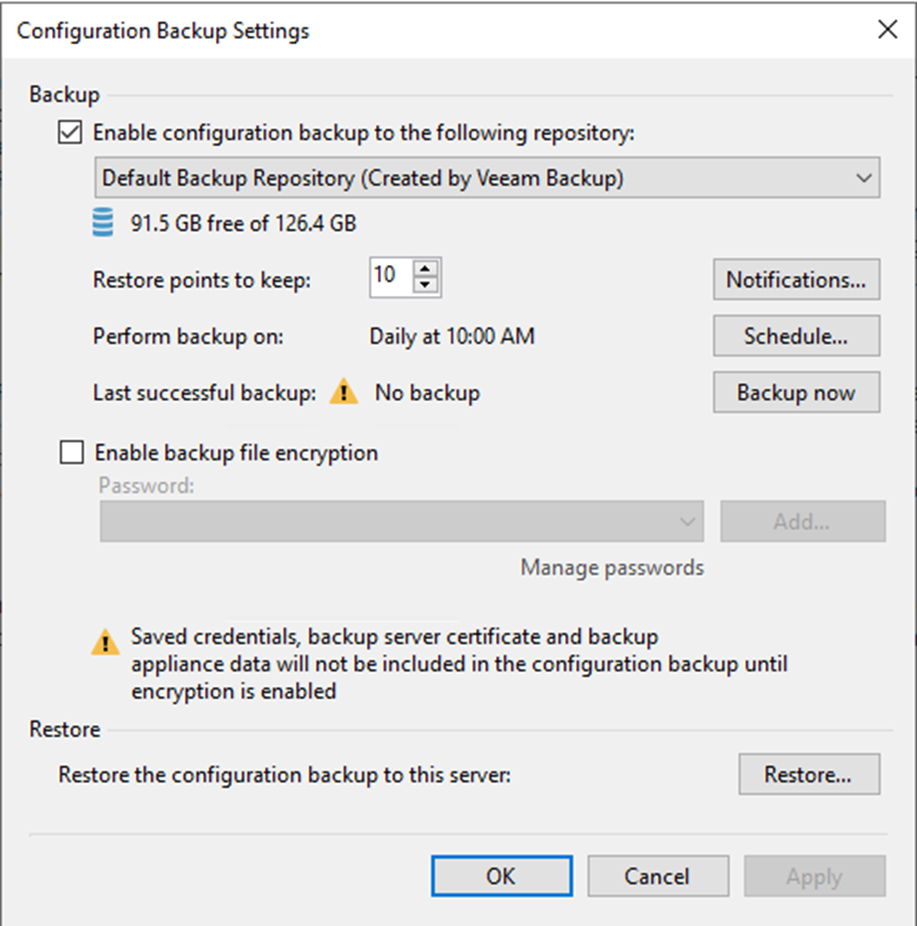

11. Click Restore on the Configuration Backup Settings page.

082223 2101 Howtomigrat7 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

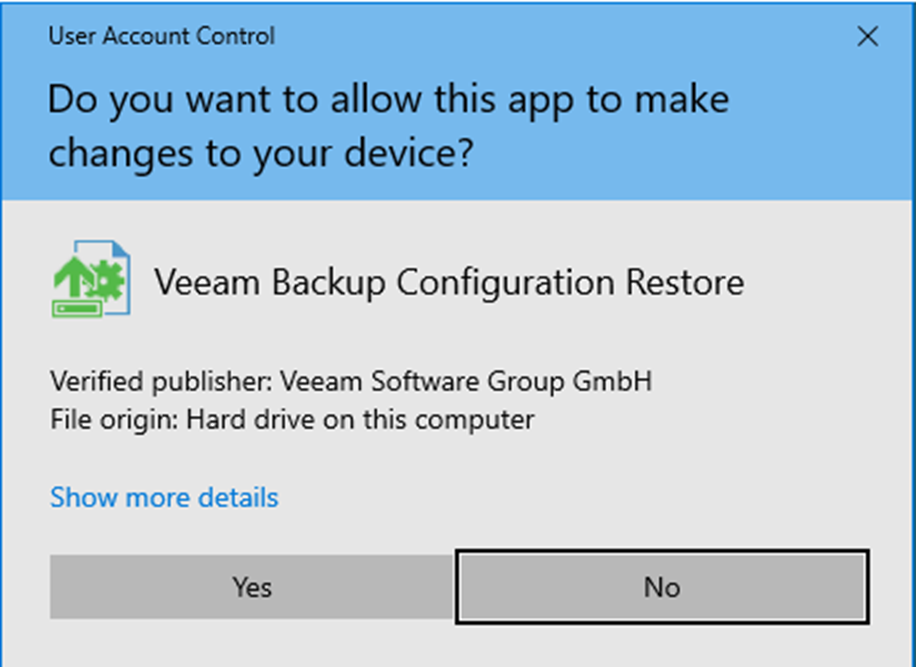

12. Click Yes on the User Account Control page.

082223 2101 Howtomigrat8 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

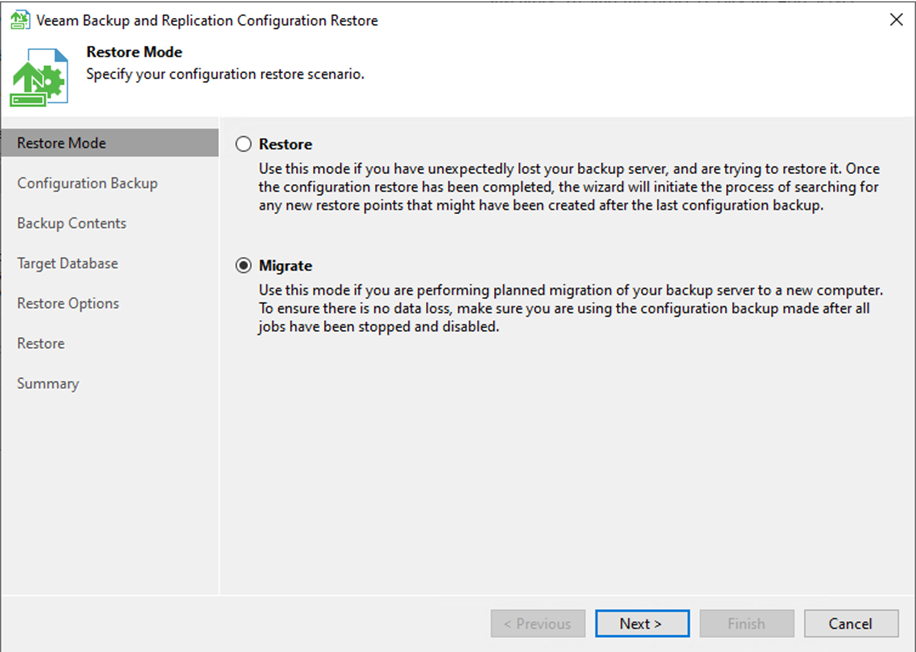

13. Select Migrate on the Restore Mode page.

082223 2101 Howtomigrat9 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

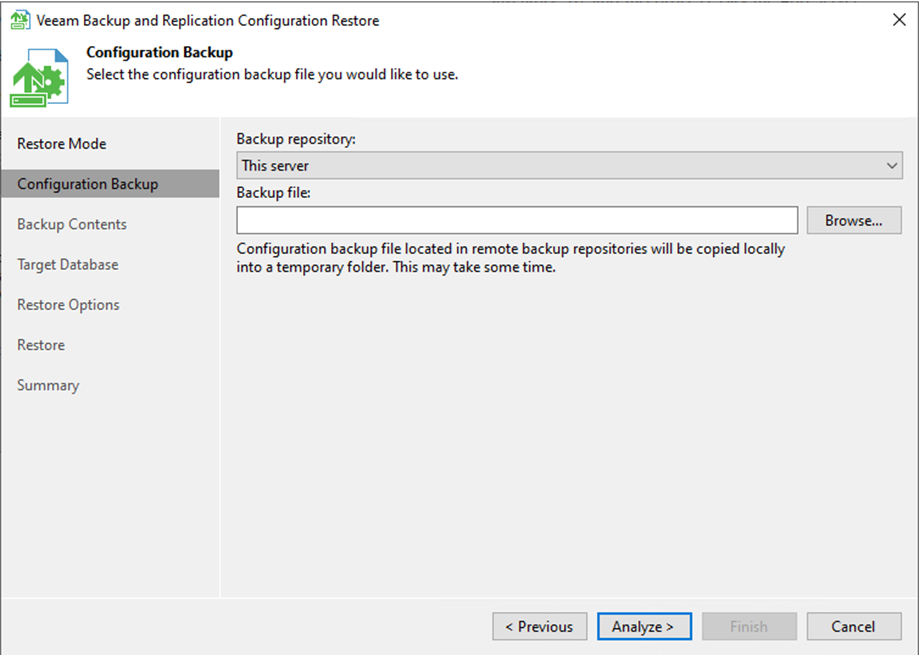

14. Select this server in the Backup repository field on the Configuration Backup page.

15. Click Browse in the Backup file field.

082223 2101 Howtomigrat10 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

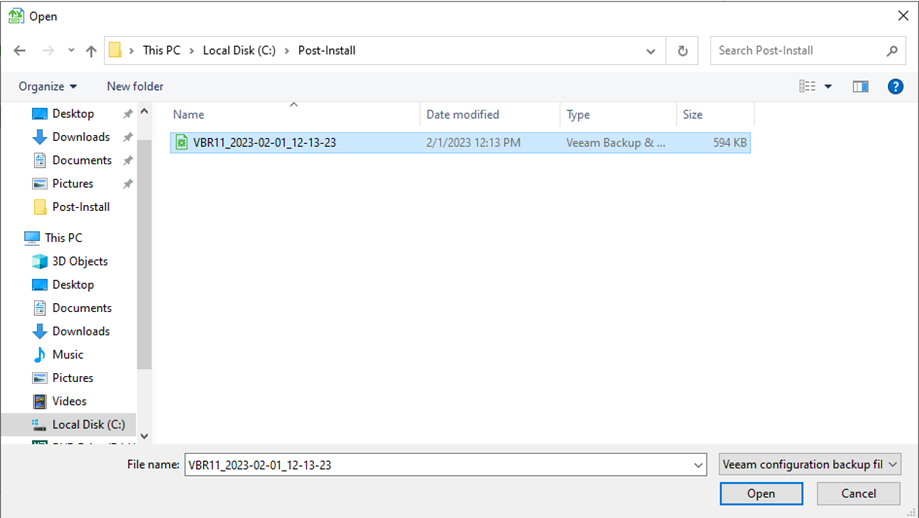

16. Select the backup configuration file and click Open.

082223 2101 Howtomigrat11 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

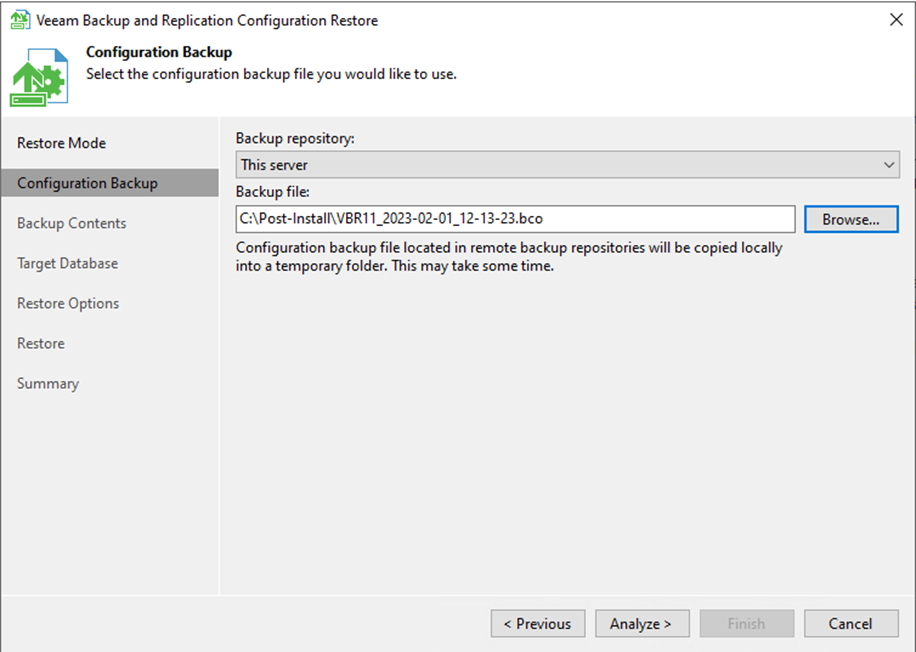

17. Click Analyze on the Configuration Backup page.

082223 2101 Howtomigrat12 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

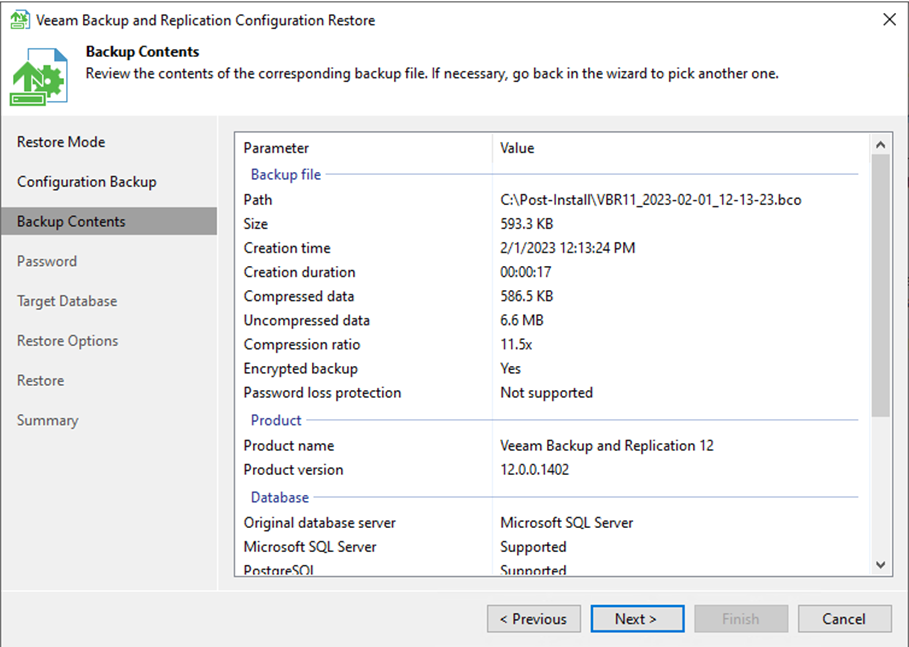

18. Click Next on the Backup Contents page.

082223 2101 Howtomigrat13 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

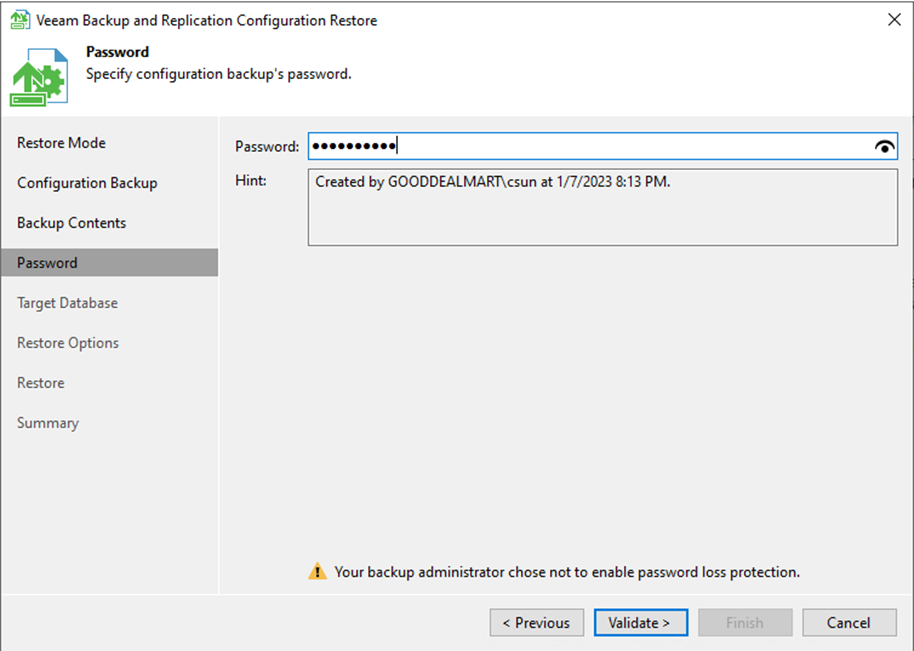

19. On the Password page, enter the password of the configuration file in the Password field.

20. Enter the description in the Hint field.

21. Click Validate.

082223 2101 Howtomigrat14 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

22. Select Microsoft SQL Server from the Database drop-down list on the Target Database page.

23. Enter the instance name and Database name in the Connection session.

24. Select Windows authentication using the service account credentials in the Authentication session.

082223 2101 Howtomigrat15 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

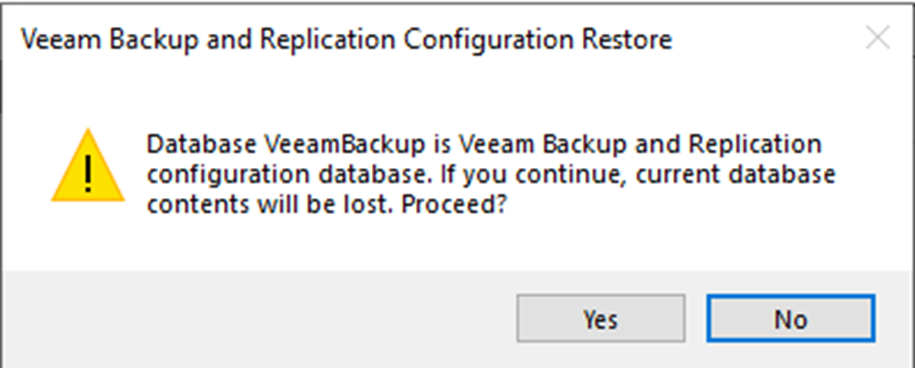

25. Click Yes on the warning message.

082223 2101 Howtomigrat16 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

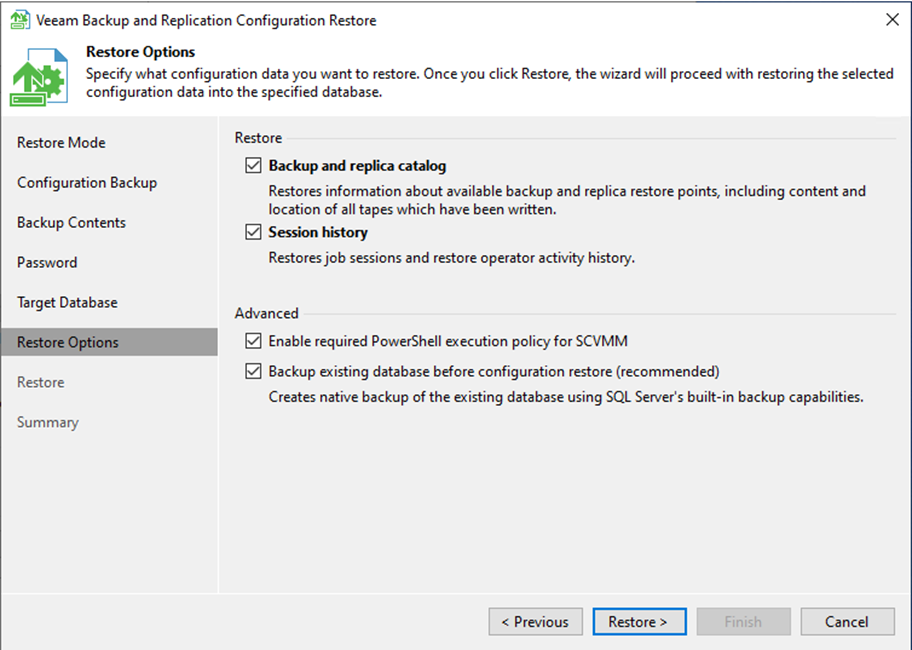

26. Select the Backup and replica catalog checkbox on the Restore Options page.

27. Select the Session history checkbox.

28. Select Enable required PowerShell execution policy for SCVMM checkbox.

29. Select Backup existing database before configuration restore (recommended).

30. Click Restore.

082223 2101 Howtomigrat17 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

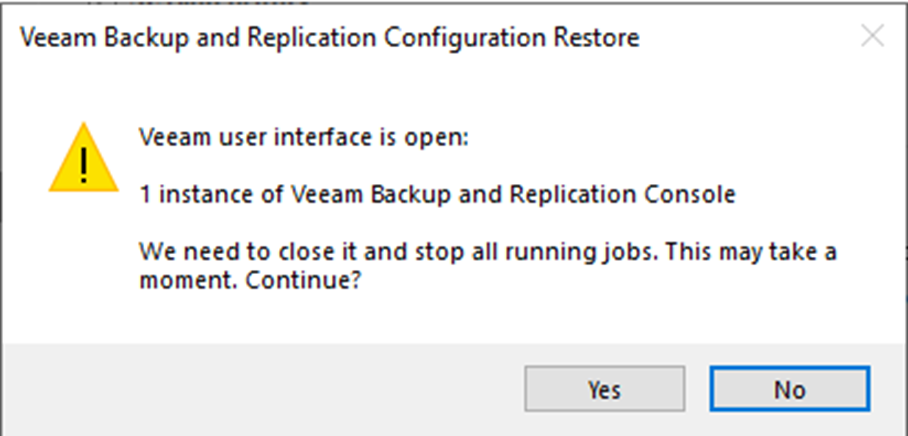

31. Click Yes on the warning message.

082223 2101 Howtomigrat18 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

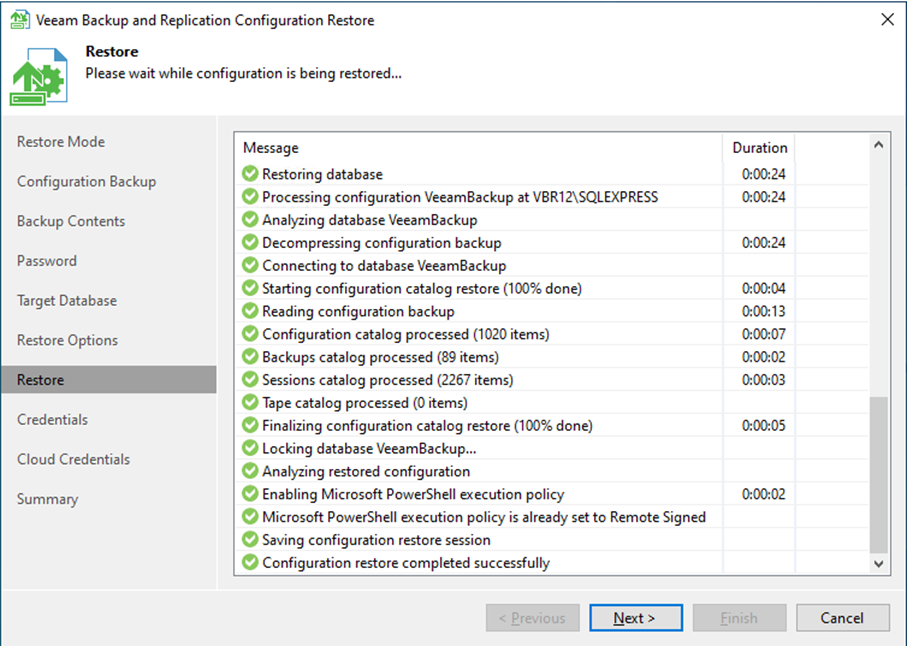

32. On the Restore page, ensure the Configuration restore is completed successfully and click Next.

082223 2101 Howtomigrat19 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

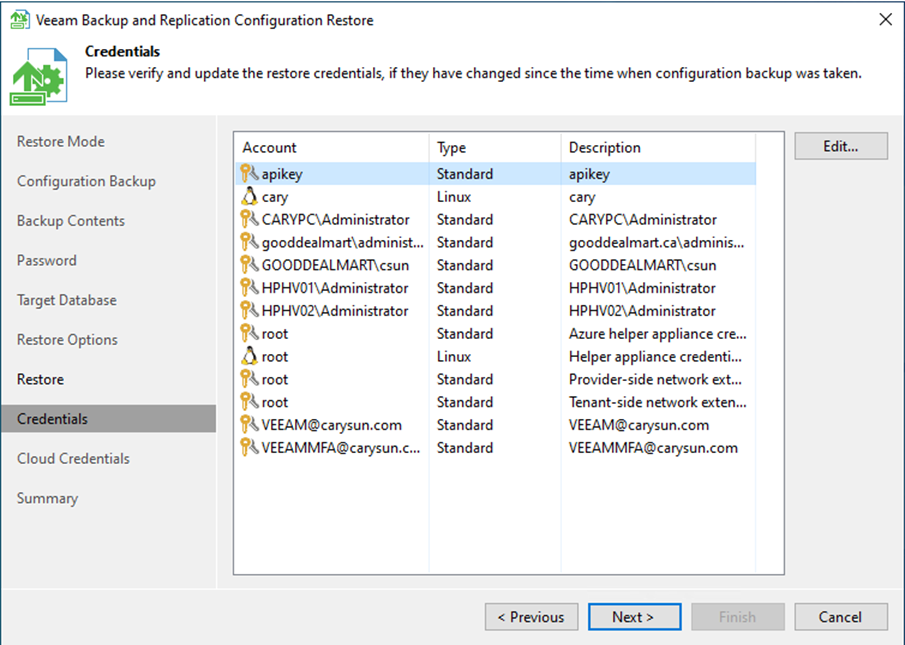

33. On the Credentials page, ensure all credentials are up-to-date and click Next.

082223 2101 Howtomigrat20 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

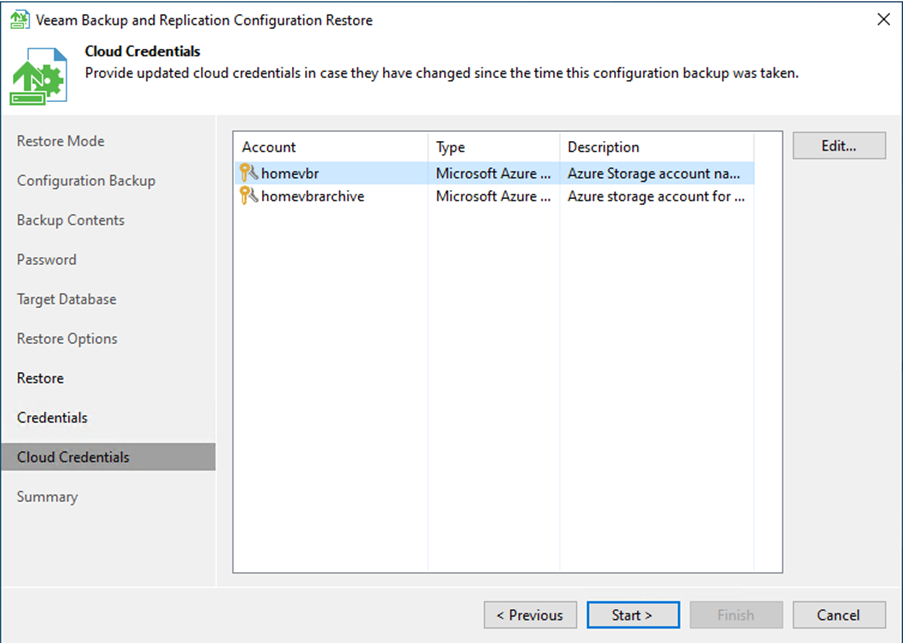

34. Ensure all credentials are up-to-date on the Cloud Credentials page and click Start.

082223 2101 Howtomigrat21 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

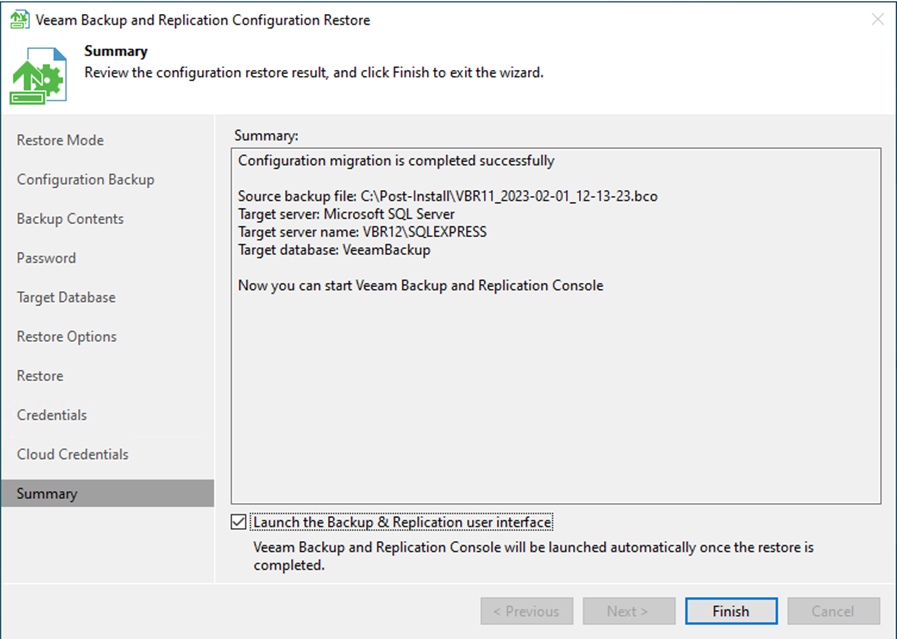

35. Click Finish on the Summary page.

082223 2101 Howtomigrat22 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

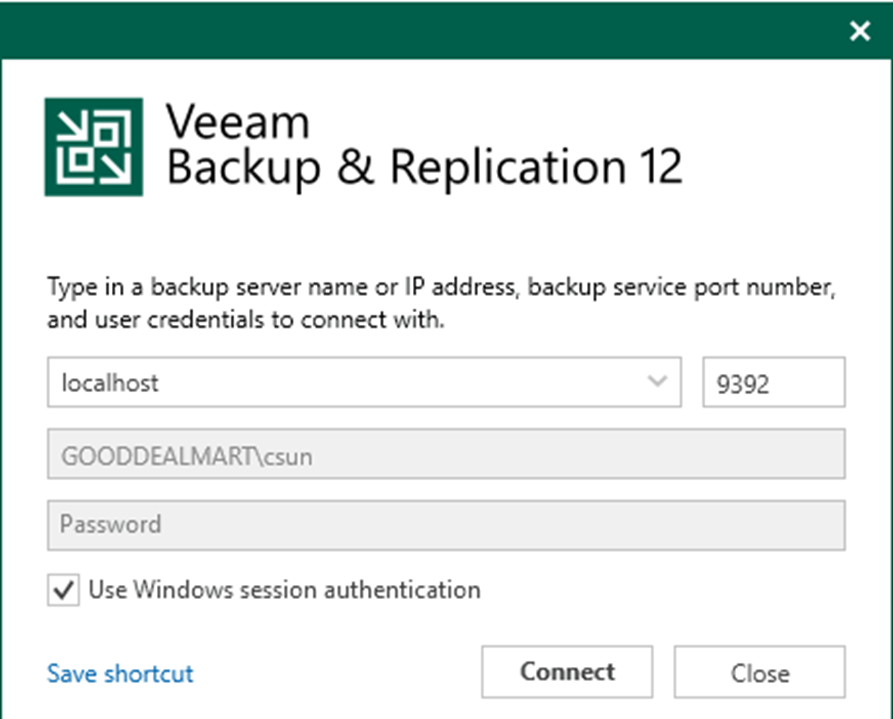

36. Open Veeam Backup & Replication console and click Connect.

082223 2101 Howtomigrat23 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

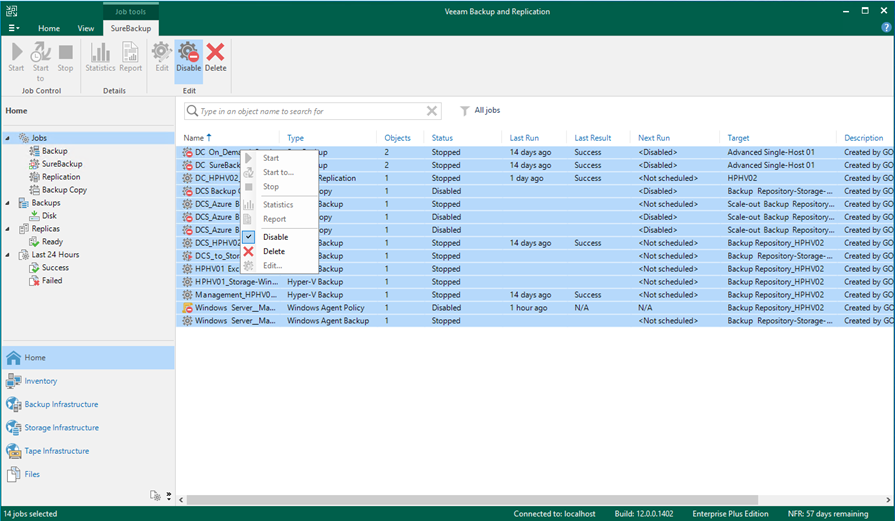

37. Select and right-click all jobs, and unselect Disable to enable all jobs.

082223 2101 Howtomigrat24 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL

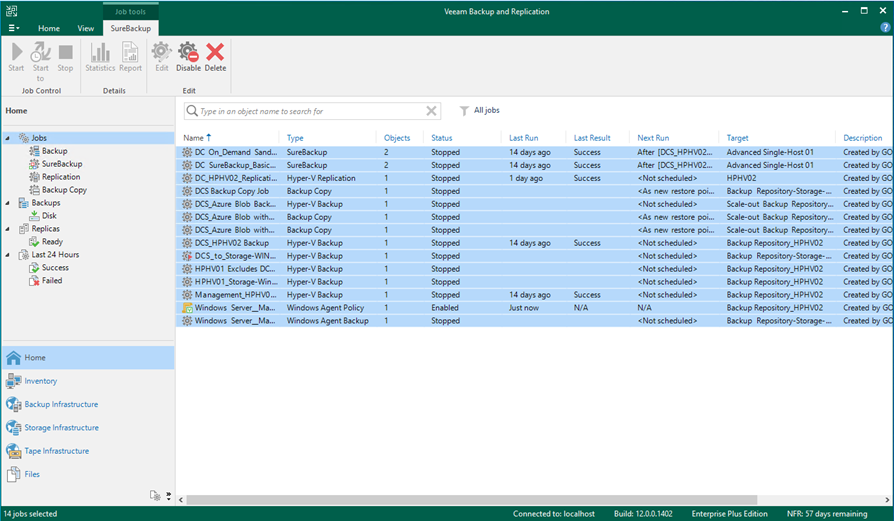

38. Ensure all jobs are re-enabled.

082223 2101 Howtomigrat25 - How to migrate the Existing Veeam Backup and Replication to the new server with Microsoft SQL
