Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

100120 0013 DeployaNewA1 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

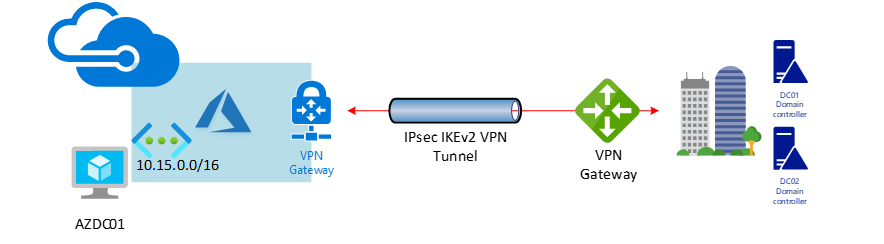

Today. I am going to show you how to deploy a domain controller server at Azure after deployment site to site VPN between On-Premise and Azure.

On-Premise Site (Calgary)

Create Active Directory Site for Azure Site

1.Logon to DC01 (On-Premise site).

2.Open Active Directory Sites and Services from Server Manager Tools.

100120 0013 DeployaNewA2 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

3.Right-click Sites, select New, click Site.

100120 0013 DeployaNewA3 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

4.on the New Object – Site page, type AzureDR01 in the Name field. Select the DEFAULTIPINTELINK site link, click OK.

100120 0013 DeployaNewA4 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

5. On the Active Directory Domain Services information page, click OK.

100120 0013 DeployaNewA5 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

6.Right-click Subnets, select New, click Subnet.

100120 0013 DeployaNewA6 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

7.On the New-Object – Subnet page, type 10.15.0.0/16 I the Prefix field, select the AzureDR01 in the Select a site object for this prefix filed, click OK.

100120 0013 DeployaNewA7 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

At Azure Site

Configure Static IP address and DNS for Azure VM

1.Signin to Azure Portal.

2.In Search resources, service, and docs (G+/), type virtual machines.

3.Select Virtual machines from Services.

100120 0013 DeployaNewA8 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

4.On the Virtual machines page, click the AZDC01 virtual machine, it’s the new VM at Azure, if you don’t know how to create a new Virtual Machine at Azure, you can check my previously blog.

https://carysun.com/how-to-receive-a-discount-on-azure-services-by-purchasing-reservations-azure/

100120 0013 DeployaNewA9 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

5.On the AZDC01 Virtual machine page, select Networking.

100120 0013 DeployaNewA10 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

6.On the Networking page, click Network Interface: azdc0101881.

100120 0013 DeployaNewA11 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

7.On the azdc01881 Network interface page, select IP configurations.

100120 0013 DeployaNewA12 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

8.On the IP configurations page, click ipconfig1.

100120 0013 DeployaNewA13 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

9.On the ipconfig1 page, change Assignment settings from Dynamic to Static, click Save.

100120 0013 DeployaNewA14 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

10.Go back to IP configurations page after successfully saved IP address changes for network interface, select DNS servers.

100120 0013 DeployaNewA15 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

11.On the DNS servers page, change DNS servers setting to Custom, and add on-premise DCs IP address, click Save. It will restart the VM if you ddid not shutdown VM.

100120 0013 DeployaNewA16 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

12.Logon AZDC01 server and make sure IP address and DNS servers settings are correct.

100120 0013 DeployaNewA17 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

Promo AZDC01 as Domain Controller server

1.Logon to AZDC01 server.

2.Open Server Manager and Select Local Server.

3.On the PROPERTIES page, click WORKGROUP.

100120 0013 DeployaNewA18 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

4.On the System Properties page, click Change.

100120 0013 DeployaNewA19 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

5.On the Computer Name/Domain Changes page, change Member of Domain and type corp.com in Domain field, click OK.

100120 0013 DeployaNewA20 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

6.On the Windows Security page, enter the domain admins username and password, Click OK.

100120 0013 DeployaNewA21 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

7.Click OK on the Welcome to the corp.com domain page.

100120 0013 DeployaNewA22 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

8.Click OK on the You must restart your computer to apply these changes page.

100120 0013 DeployaNewA23 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

9.On the System Properties page, click Close.

100120 0013 DeployaNewA24 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

10.Click Restart Now on the restart information pop up.

100120 0013 DeployaNewA25 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

11.Signin server with domain admins account after rebooting it.

100120 0013 DeployaNewA26 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

12.Open Server Manage, click Add roles and features in Dashboard.

100120 0013 DeployaNewA27 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

13.On the Before you begin page, click Next.

100120 0013 DeployaNewA28 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

14.On the Select installation type, select Role-based or feature-based installation, click Next.

100120 0013 DeployaNewA29 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

15.On the Select destination server page, select AZDC01, click Next.

100120 0013 DeployaNewA30 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

16.On the Select server roles page, select Active Directory Domain Services.

17.On the Add features that are required for Active Directory Domain Services page, click Add Features.

100120 0013 DeployaNewA31 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

18.On the Select server roles page, click Next.

100120 0013 DeployaNewA32 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

19.On the Select features page, click Next.

100120 0013 DeployaNewA33 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

20.On the Active Directory Domain Services page, Click Next.

100120 0013 DeployaNewA34 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

21.On the Confirm installation selections page, select Restart the destination server automatically if required, click Yes at restart warning message, click Install.

100120 0013 DeployaNewA35 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

22.On the Installation progress page, make sure installation succeeded, click Close and restart server.

100120 0013 DeployaNewA36 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

23.Signin server with domain admins account after reboot it.

24.Open Server Manage, click the flag warning message, click Promote this server to a domain controller.

100120 0013 DeployaNewA37 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

25.On the Deployment Configuration page, select Add a domain controller to an existing domain, type corp.com to Domain filed, click Next.

100120 0013 DeployaNewA38 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

26.On the Domain Controller Options page, select Domain Name System (DNS) server, and Global Catalog (GC), select AzureDR01 for the Site name, Type P@ssw0rd to password and Confirm password field, click Next.

100120 0013 DeployaNewA39 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

27.On the DNS Options page, click Next.

100120 0013 DeployaNewA40 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

28.On the Additional Options page, click Next.

100120 0013 DeployaNewA41 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

29.On the Paths page, click Next.

100120 0013 DeployaNewA42 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

30.On the Review Options page, click Next.

100120 0013 DeployaNewA43 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

31.On the Prerequisites Check, make sure All prerequisite checks passed successfully, Click Install. If you were following my previously blog to create VM, ignore the physical network adapter that does not have static IP address warning message,

because we configured it at Azure portal not Windows server IPv4 settings.

100120 0013 DeployaNewA44 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

32.the server will restart atomically after installation completed.

100120 0013 DeployaNewA45 - Deploy a New Active Directory Domain Controller Server at Azure #Azure #Active Directory #AD #mvphour #Windows server 2019

33.this server is a new domain controller at Azure after reboot.

Hope you enjoy this post.
