December 3, 2024
Veeam Backup & Replication can perform backup, replication, and file copy operations on Microsoft Hyper-V VMs whose discs are located on Microsoft SMB3 file shares.

Veeam Backup & Replication can perform backup, replication, and file copy operations on Microsoft Hyper-V VMs whose discs are located on Microsoft SMB3 file shares.

If a Microsoft SMB3 server or cluster is not added to the backup infrastructure, Veeam Backup & Replication cannot process such VMs using the changed block tracking mechanism.

If VMs with discs on SMB3 shared folders are registered on Microsoft Hyper-V Server 2016 or later, a Microsoft SMB3 server is not required. However, if the Microsoft SMB3 server is not added, you cannot specify the Max snapshots and latency control settings for SMB3 shared folders.

Note:

You cannot use Microsoft SMB3 shared folder as storage for VM replicas.

1. Log in to the Veeam Backup and replication manager server.

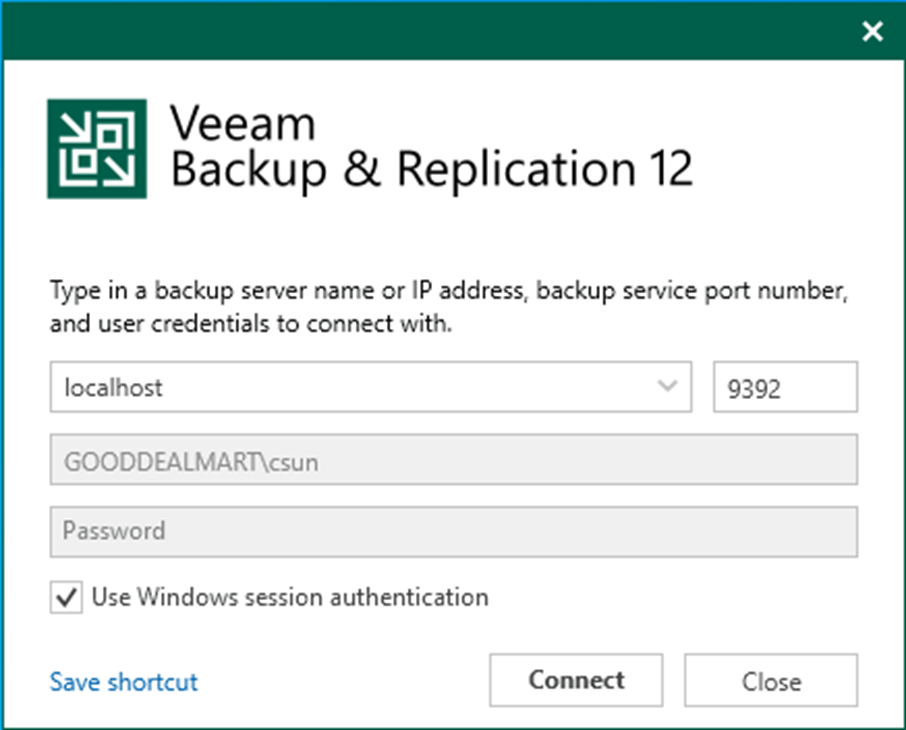

2. Open the Veeam Backup & Replication Console, and click Connect.

082323 1809 HowtoaddMic1 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

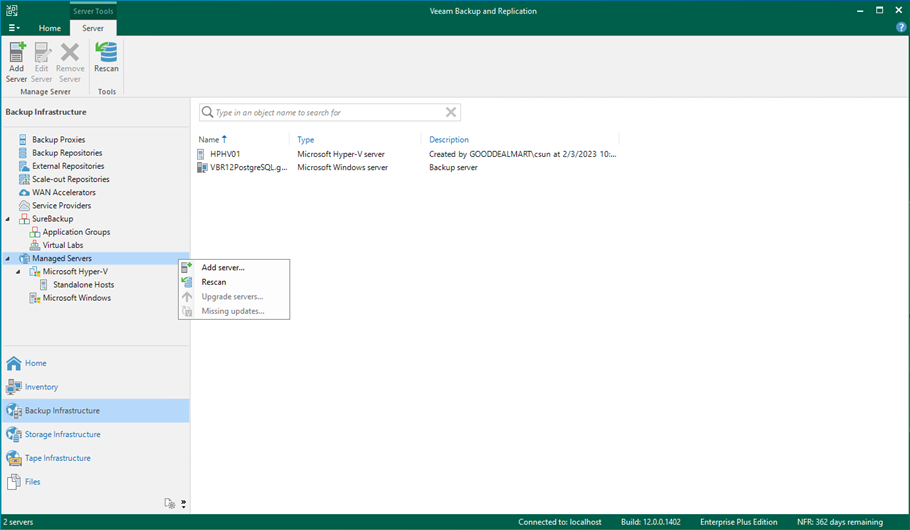

3. On the Home page, select Backup Infrastructure.

4. On the Backup Infrastructure page, select Managed Servers.

5. Right-click Managed Servers and select Add Server.

082323 1809 HowtoaddMic2 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

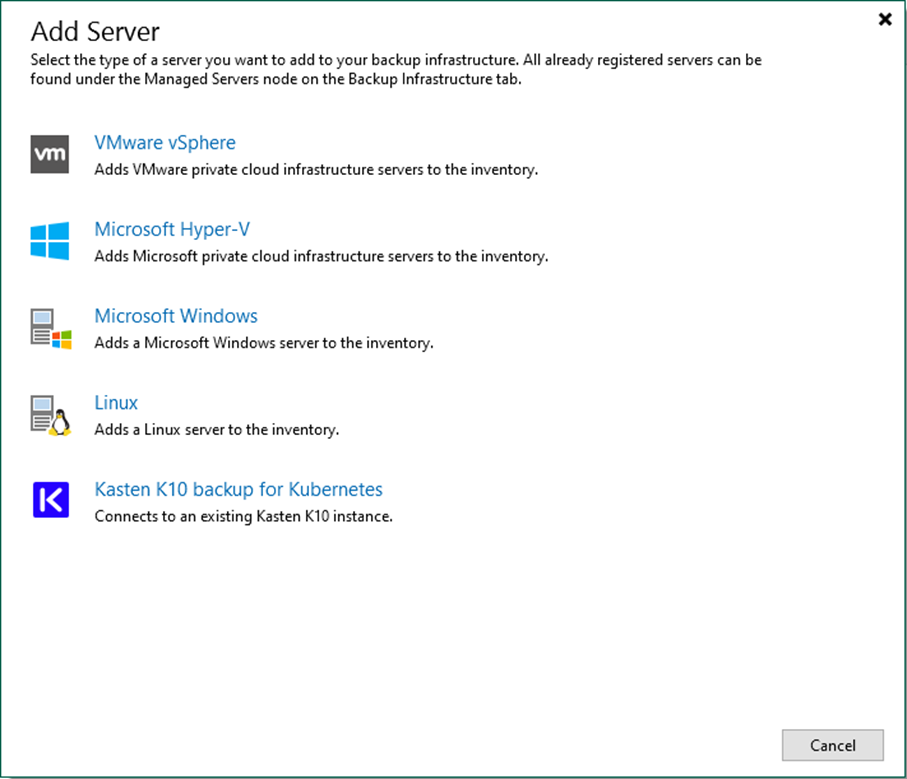

6. Select Microsoft Hyper-V on the Add Server Page.

082323 1809 HowtoaddMic3 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

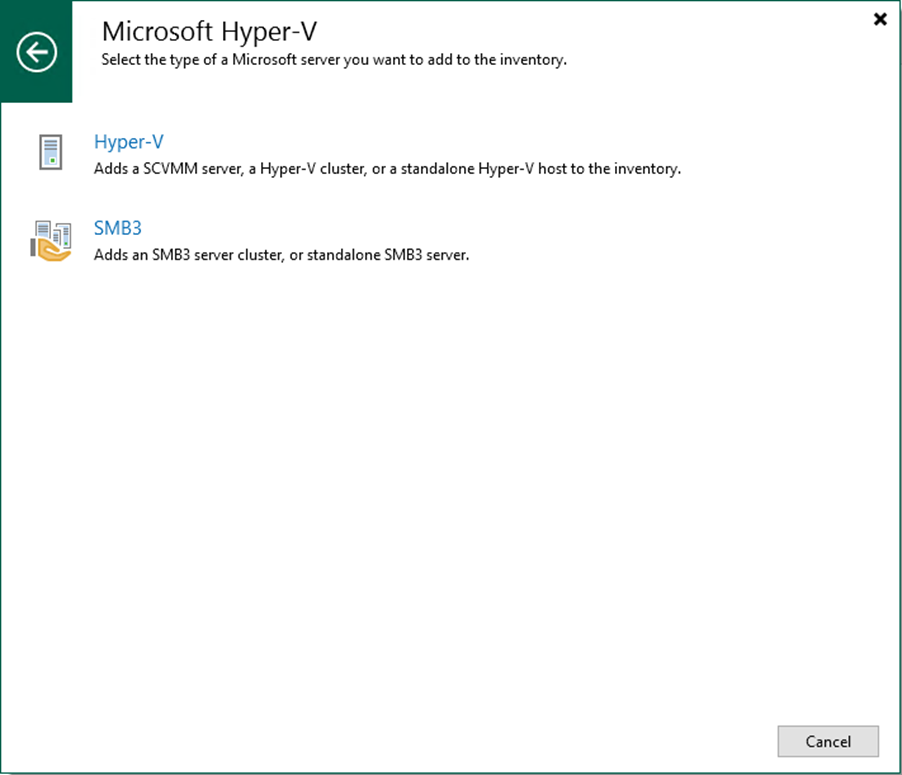

7. Select SMB3 on the Microsoft Hyper-V page.

082323 1809 HowtoaddMic4 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

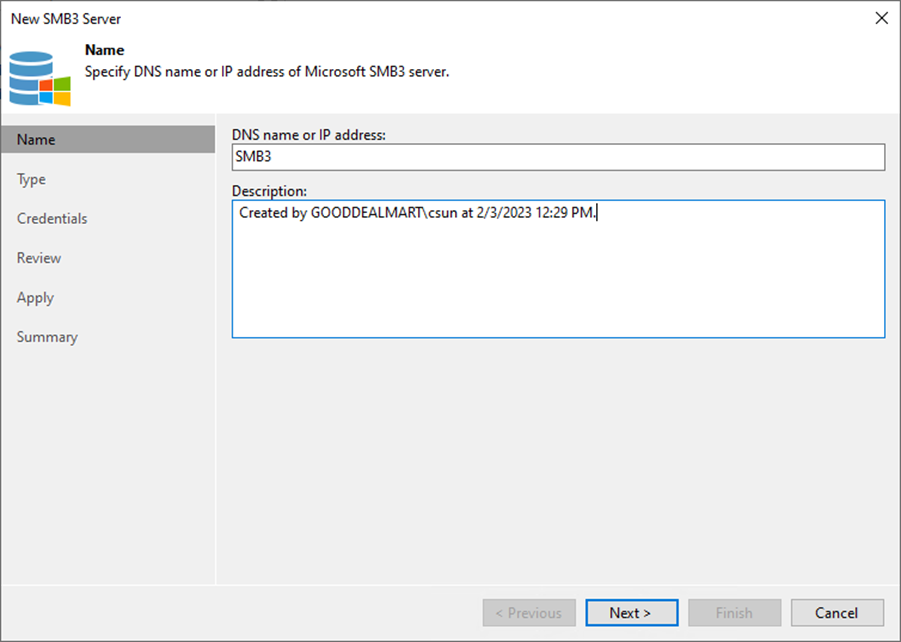

8. Enter the Microsoft SMB3 server’s full DNS name or IP address on the Name page.

9. Give a brief description in the Description field for future reference and click Next.

082323 1809 HowtoaddMic5 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

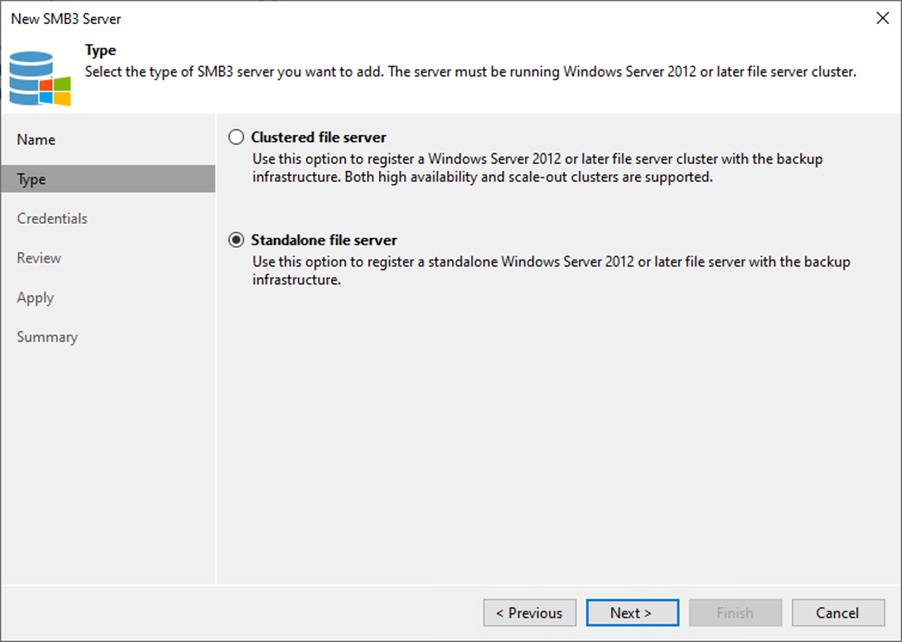

10. On the Type page, Choose the type of Microsoft SMB3 server you want to add and click Next.

082323 1809 HowtoaddMic6 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

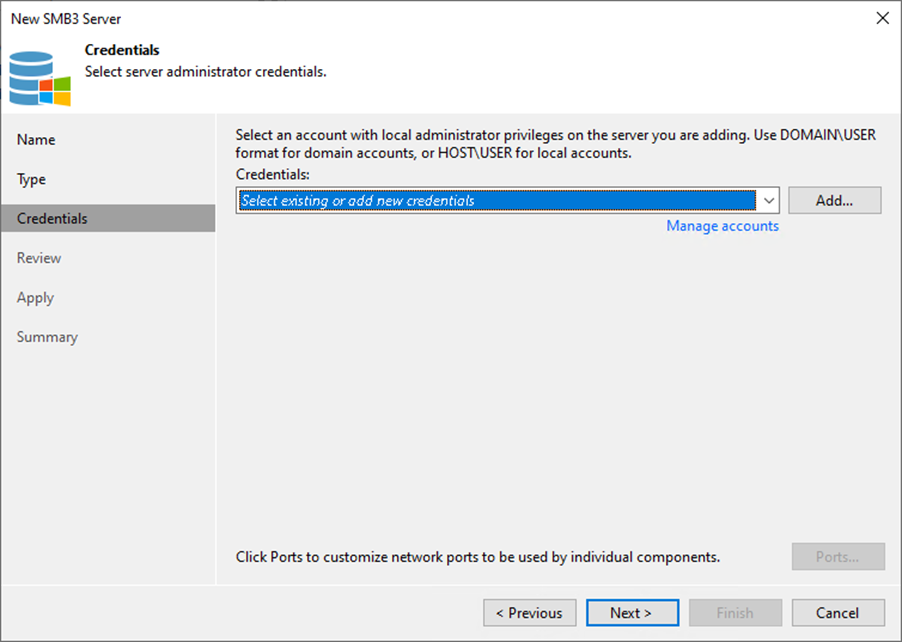

11. Select an account from the Credentials drop-down list on the Credentials page or click Add on the right to add the credentials.

082323 1809 HowtoaddMic7 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

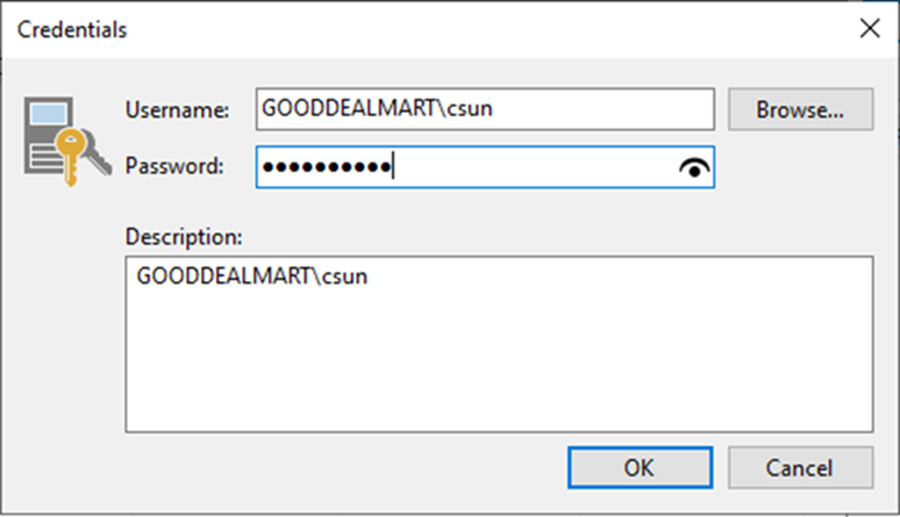

12. On the Credentials page, enter a user name in the Username field. You can also click Browse to select an existing user account.

13. Enter the password In the Password field.

14. Give a brief description in the Description field for future reference and click OK.

082323 1809 HowtoaddMic8 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

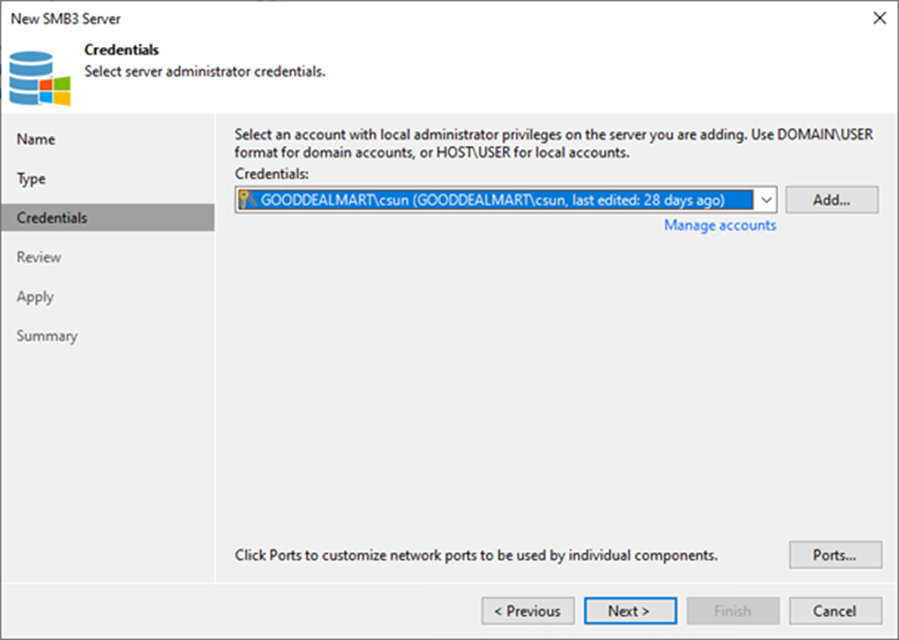

15. On the Credentials page, click Ports.

082323 1809 HowtoaddMic9 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

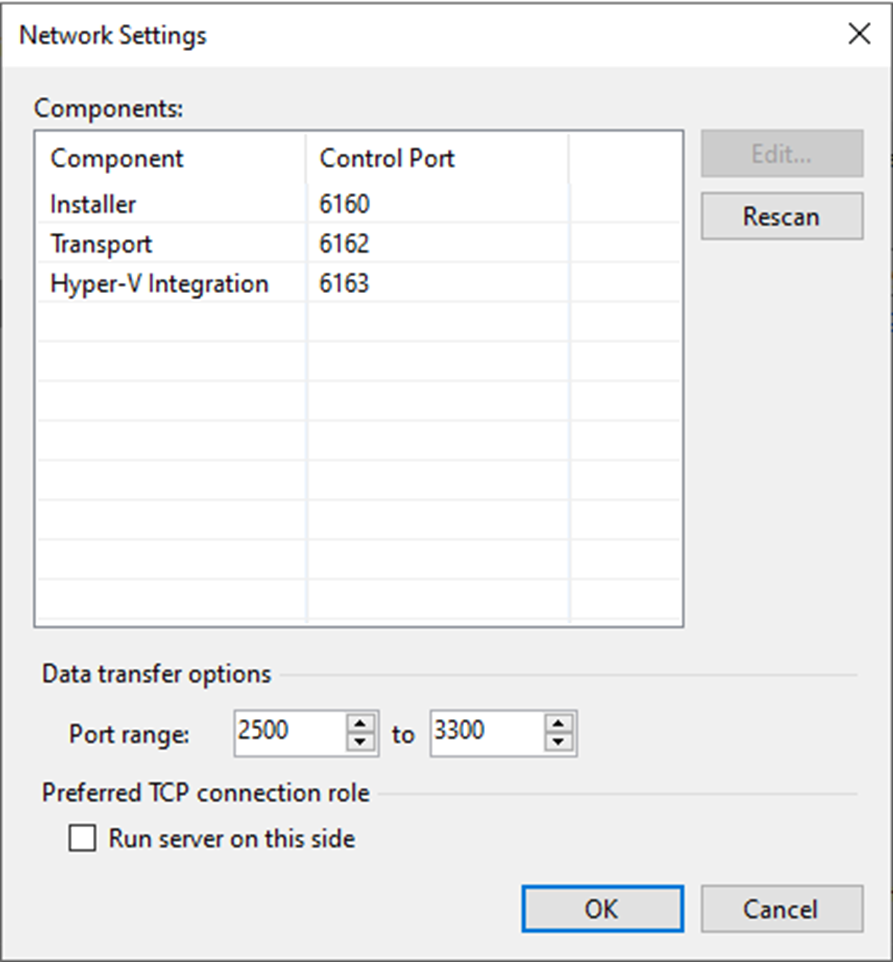

16. If necessary, change the network ports used by Veeam Backup & Replication components on the Network Settings page.

17. Configure connection settings for file copy operations in the Network Settings window’s Data transfer options section. Provide a set of ports for transmission channels between the source and target hosts (one port per task).

18. Select the Run server on this side checkbox in the Preferred TCP connection role section. The outside client cannot connect to the server on the NAT network in the NAT scenario. As a result, services that require external connection initiation may be disrupted.

19. Click OK.

082323 1809 HowtoaddMic10 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

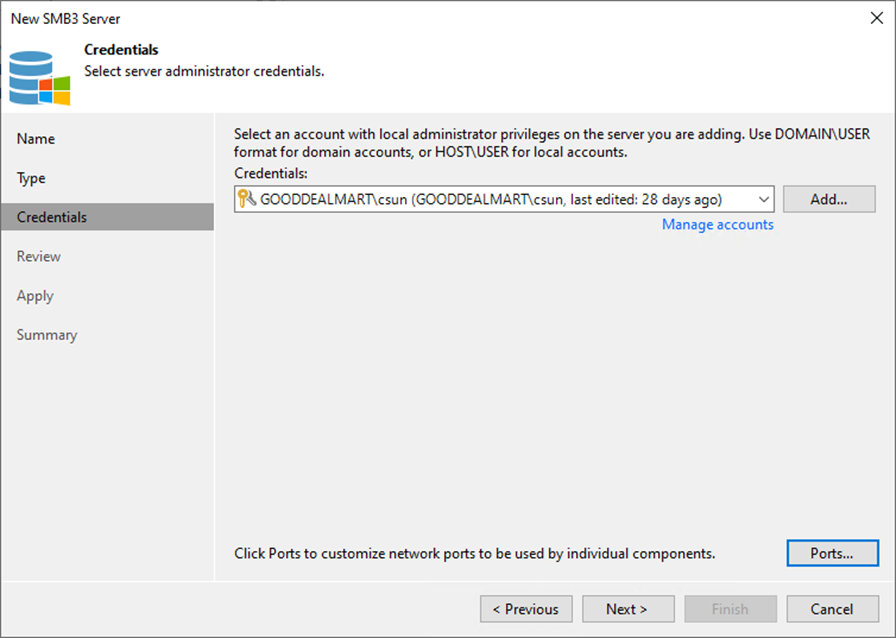

20. Click Next on the Credentials page.

082323 1809 HowtoaddMic11 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

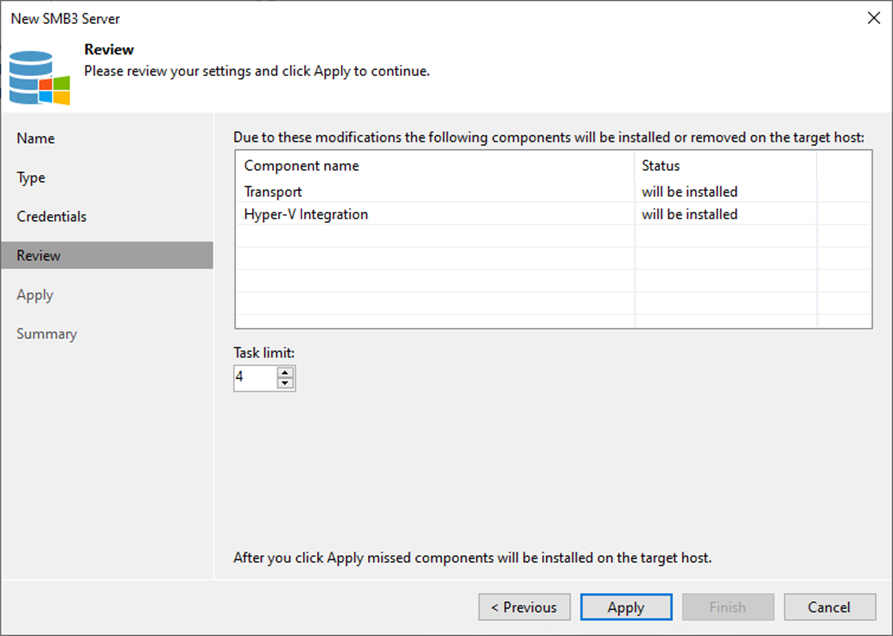

21. If you add a standalone Microsoft Hyper-V host on the Review page, specify the number of tasks the Microsoft Hyper-V host must handle concurrently in the Task limit field.

22. Click Apply.

082323 1809 HowtoaddMic12 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

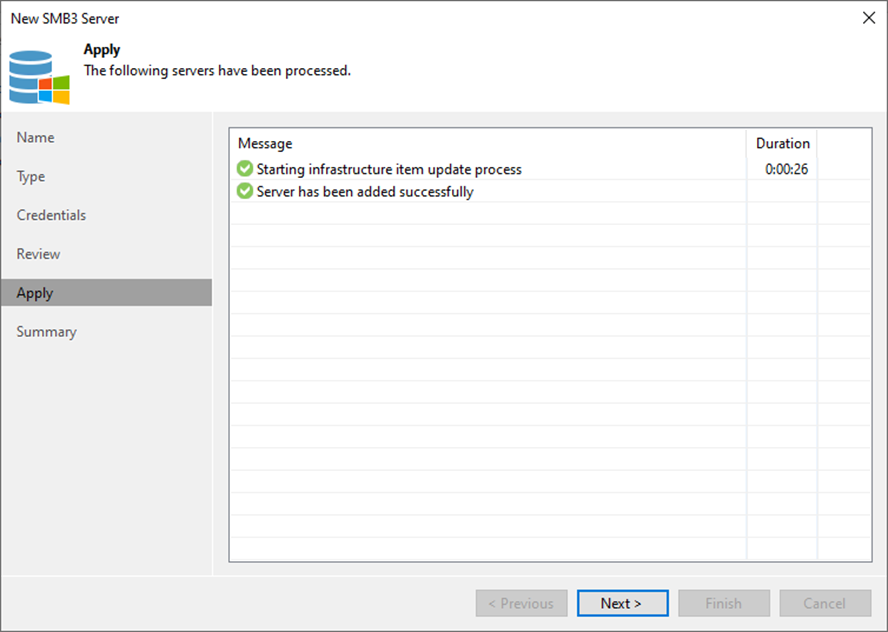

23. Click Next on the Apply page.

082323 1809 HowtoaddMic13 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

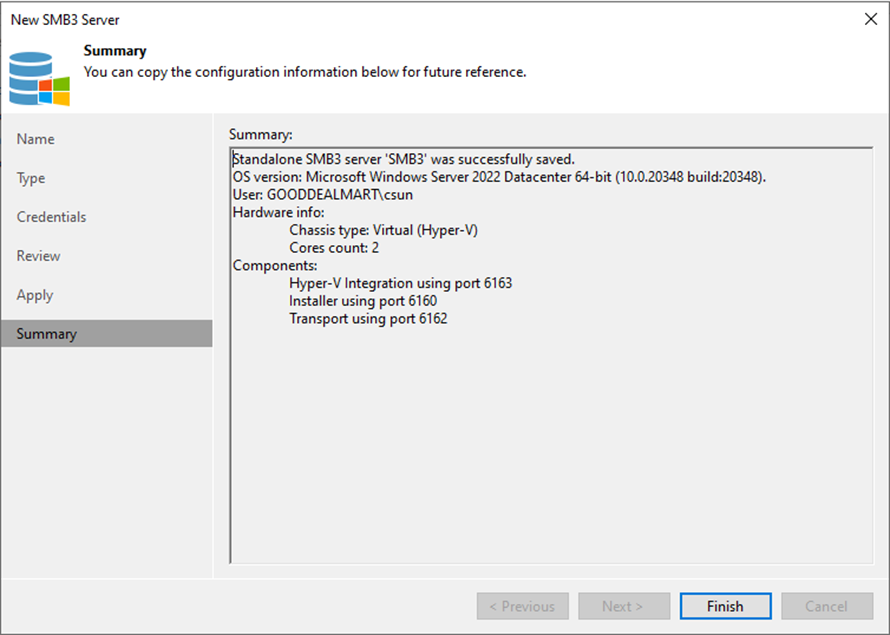

24. Click Finish on the Summary page.

082323 1809 HowtoaddMic14 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12

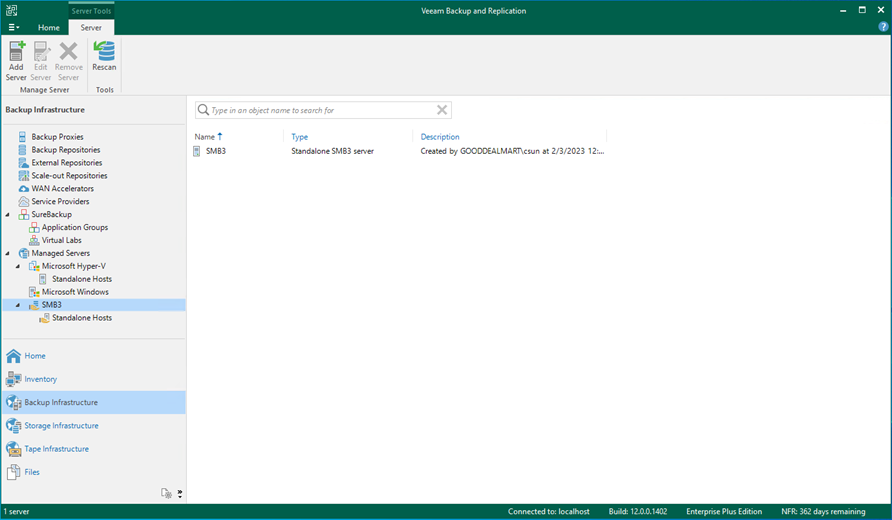

25. Ensure the new Microsoft SMB3 server is added.

082323 1809 HowtoaddMic15 - How to add Microsoft SMB3 Servers to Veeam Backup and Replication v12
