082323 1831 HowtoaddMic3 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12
Suppose you plan to use as backup infrastructure components and servers that you plan to use for various types of restore operations. In that case, you must add the Microsoft Windows servers to the backup infrastructure.

Suppose you plan to use as backup infrastructure components and servers that you plan to use for various types of restore operations. In that case, you must add the Microsoft Windows servers to the backup infrastructure.

1. Log in to the Veeam Backup and replication manager server.

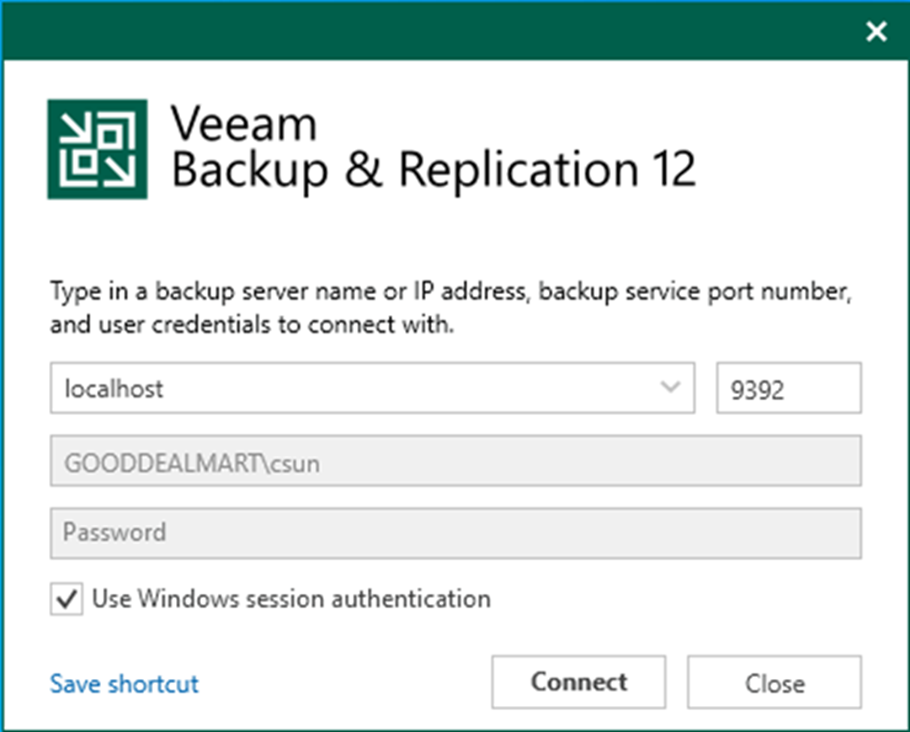

2. Open the Veeam Backup & Replication Console and click Connect.

082323 1831 HowtoaddMic1 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

3. On the Home page, select Backup Infrastructure.

4. On the Backup Infrastructure page, select Managed Servers.

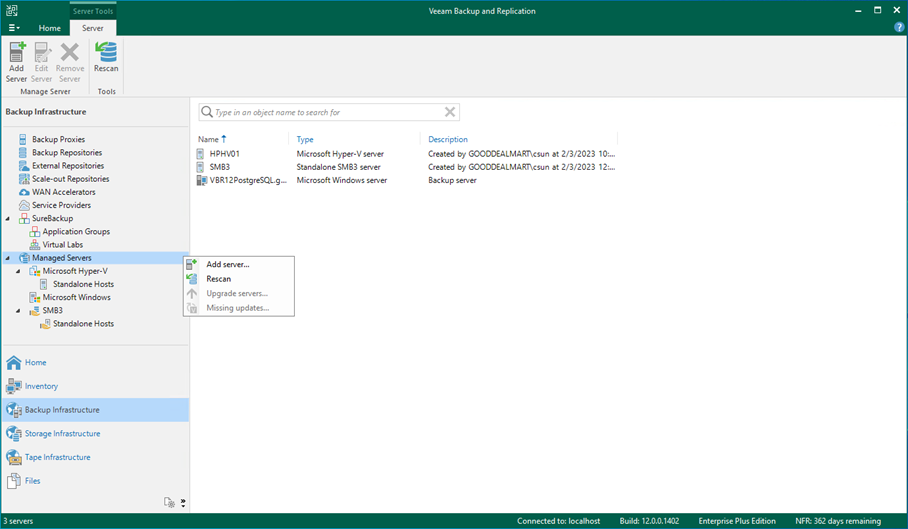

5. Right-click Managed Servers and select Add Server.

082323 1831 HowtoaddMic2 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

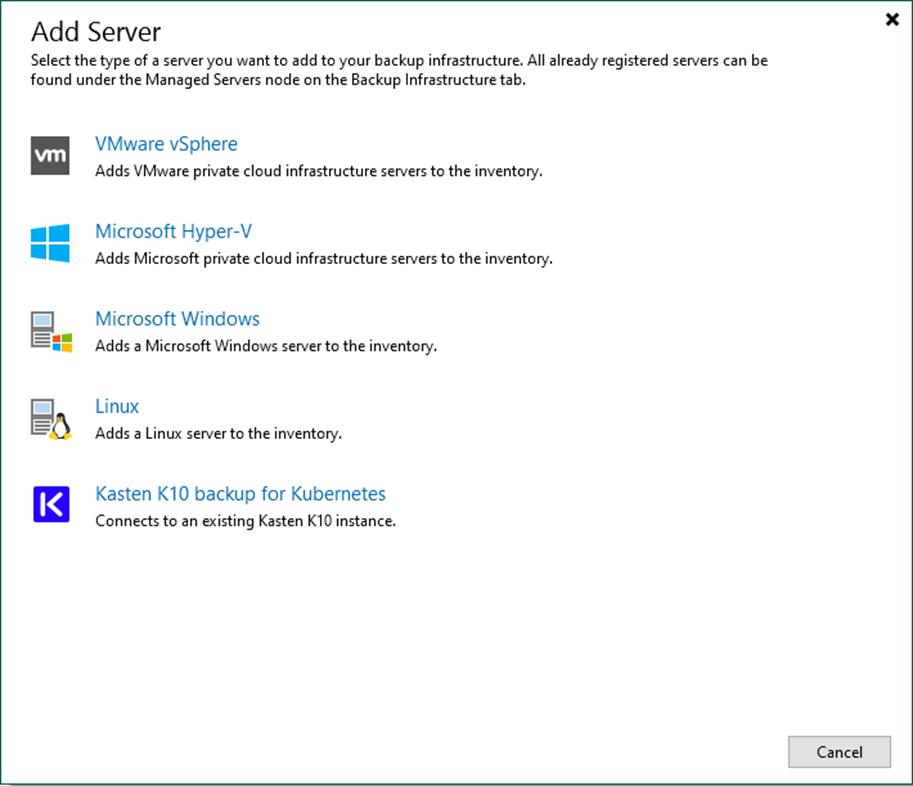

6. On the Add Server page, select Microsoft Windows.

082323 1831 HowtoaddMic3 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

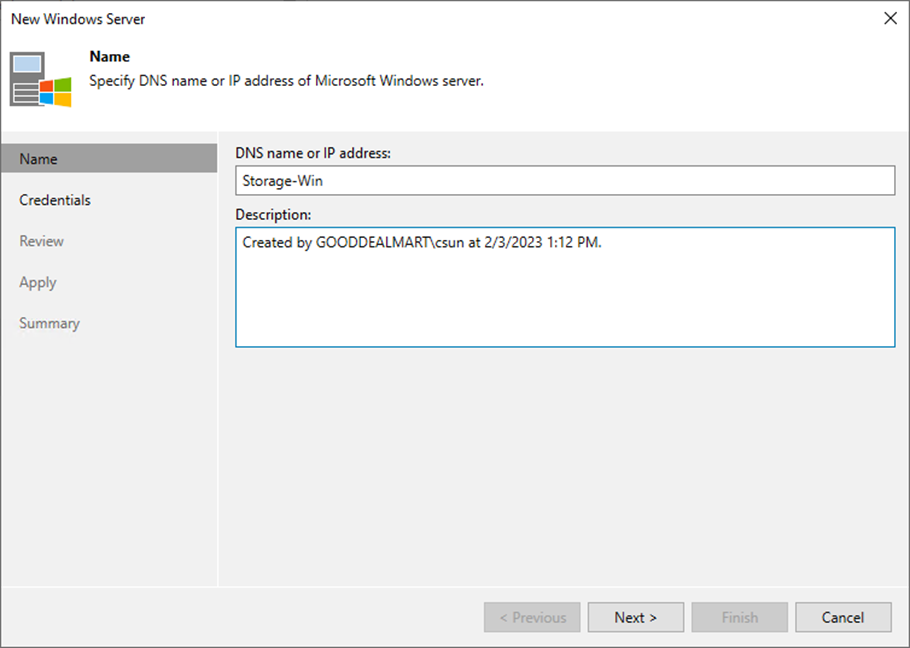

7. Enter the Microsoft Windows server’s full DNS name or IP address on the Name page.

8. Give a brief description in the Description field for future reference and click Next.

082323 1831 HowtoaddMic4 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

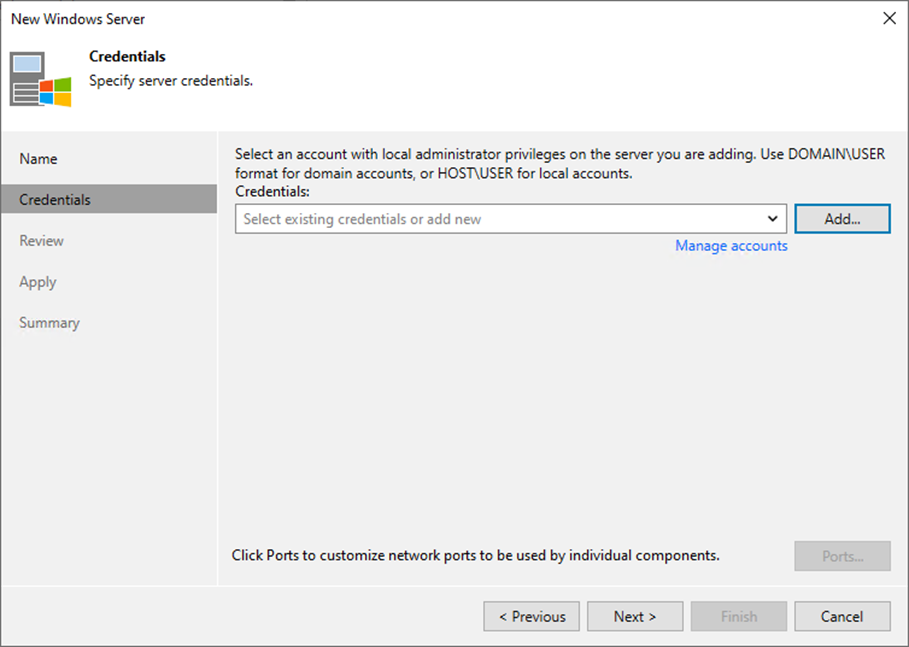

9. Select an account from the Credentials drop-down list on the Credentials page or click Add on the right to add the credentials.

082323 1831 HowtoaddMic5 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

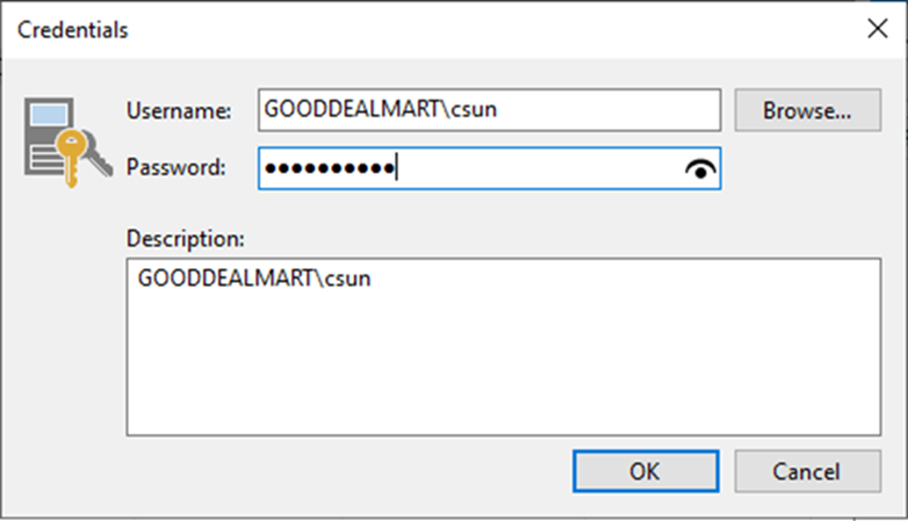

10. On the Credentials page, enter a username in the Username field. You also can click Browse to select an existing user account.

11. Enter the password In the Password field.

12. Give a brief description in the Description field for future reference and click OK.

082323 1831 HowtoaddMic6 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

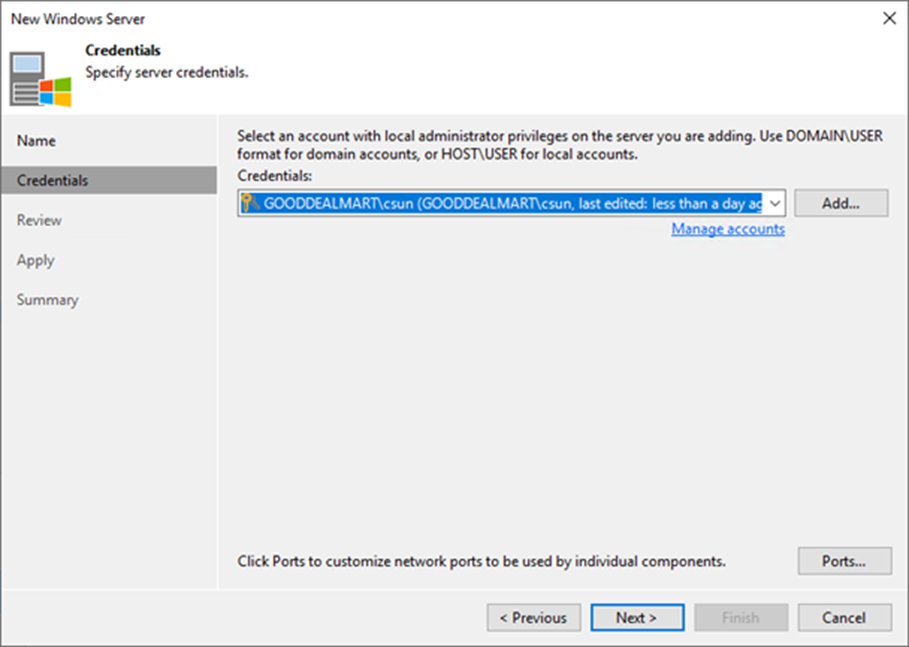

13. On the Credentials page, click Ports.

082323 1831 HowtoaddMic7 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

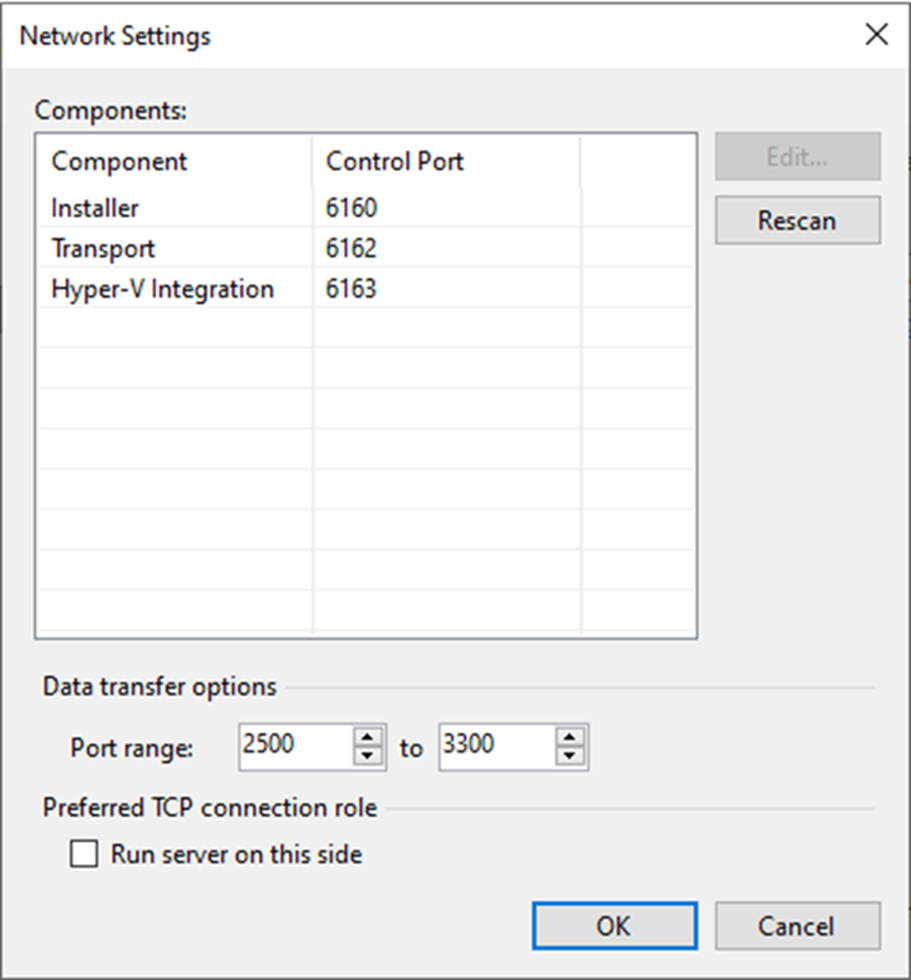

14. If necessary, change the network ports used by Veeam Backup & Replication components on the Network Settings page.

15. Configure connection settings for file copy operations in the Network Settings window’s Data transfer options section. Provide a set of ports for transmission channels between the source and target hosts (one port per task).

16. Select the Run server on this side checkbox in the Preferred TCP connection role section. The outside client cannot connect to the server on the NAT network in the NAT scenario. As a result, services that require external connection initiation may be disrupted.

17. Click OK.

082323 1831 HowtoaddMic8 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

18. On the Credentials page, click Next.

082323 1831 HowtoaddMic9 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

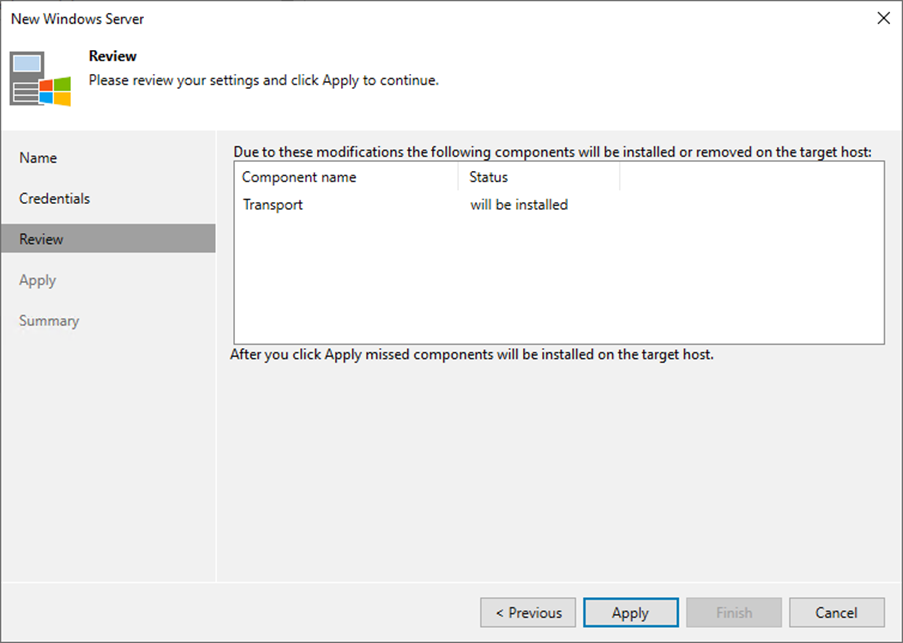

19. On the Review page, click Apply.

082323 1831 HowtoaddMic10 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

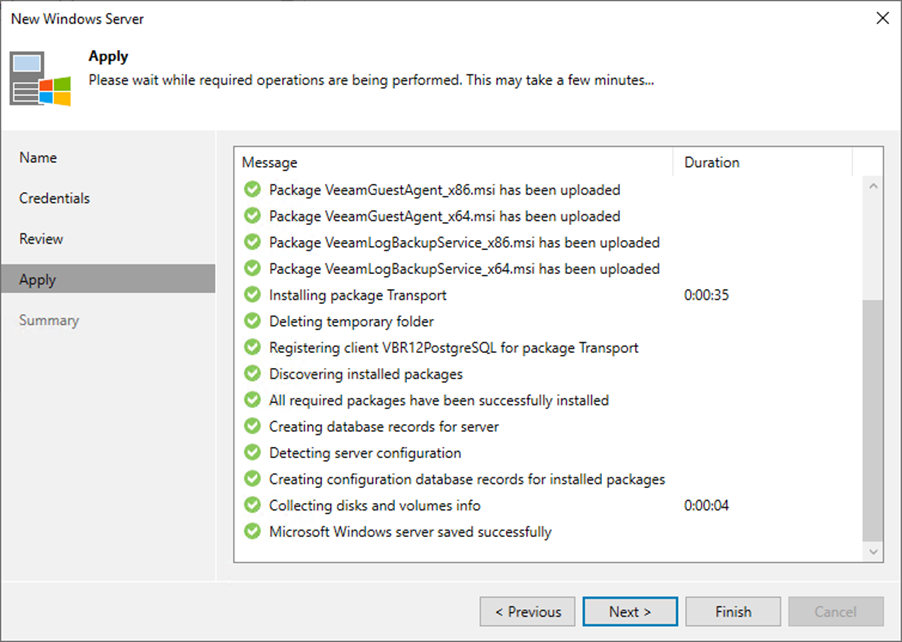

20. Click Next on the Apply page.

082323 1831 HowtoaddMic11 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

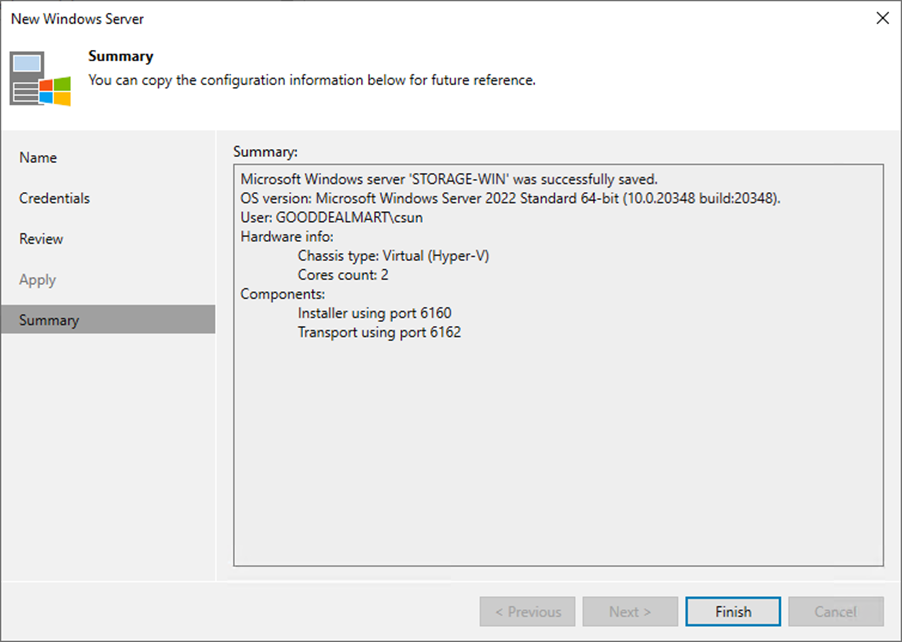

21. Click Finish on the Summary page.

082323 1831 HowtoaddMic12 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12

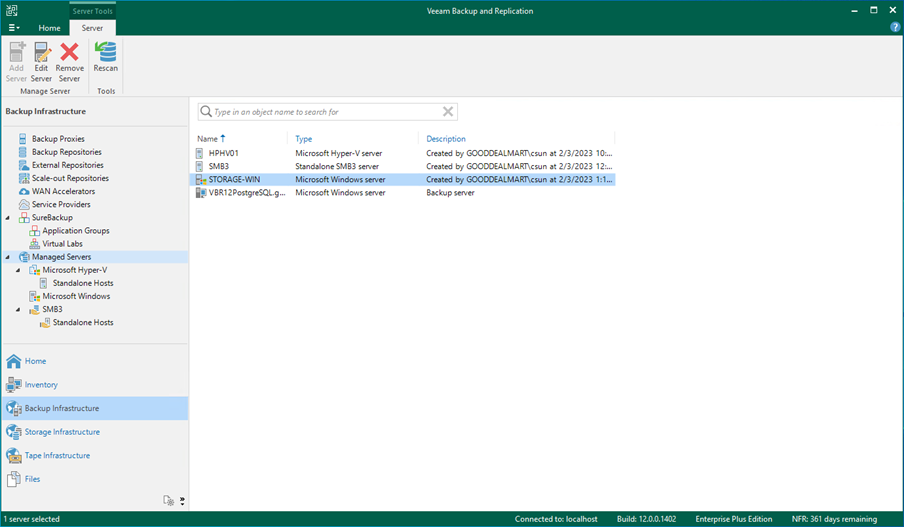

22. Ensure the new Microsoft Windows server is added.

082323 1831 HowtoaddMic13 - How to add Microsoft Windows Servers to Veeam Backup and Replication v12
