This procedure uses the managed by agent mode to create a backup job to back up the specific physical production machines.

This procedure uses the managed by agent mode to create a backup job to back up the specific physical production machines.

1. Login to the Veeam Backup and replication manager server.

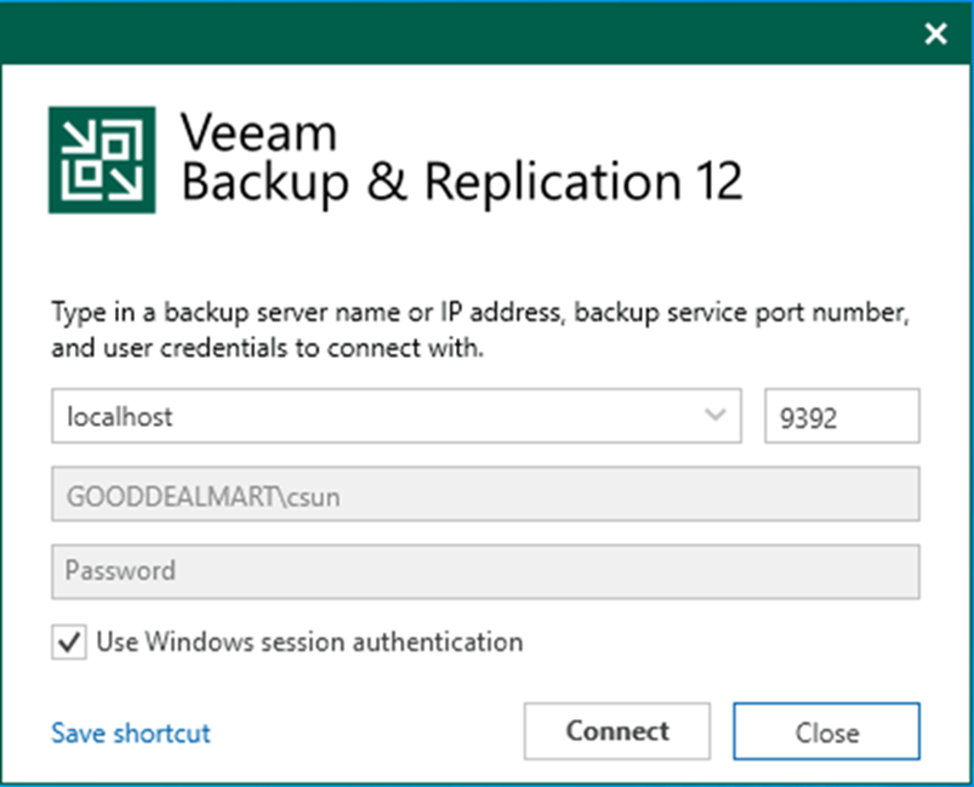

2. Open the Veeam Backup & Replication Console and click Connect.

090523 1917 Howtocreate1 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

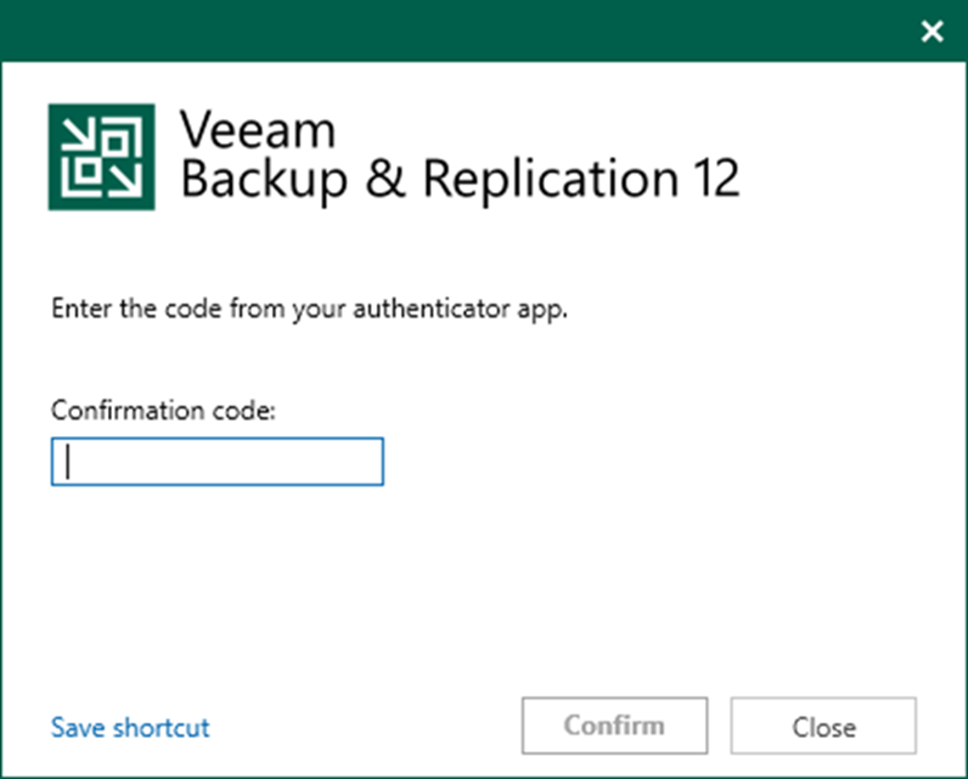

3. Enter the MFA Confirmation code and click Confirm.

090523 1917 Howtocreate2 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

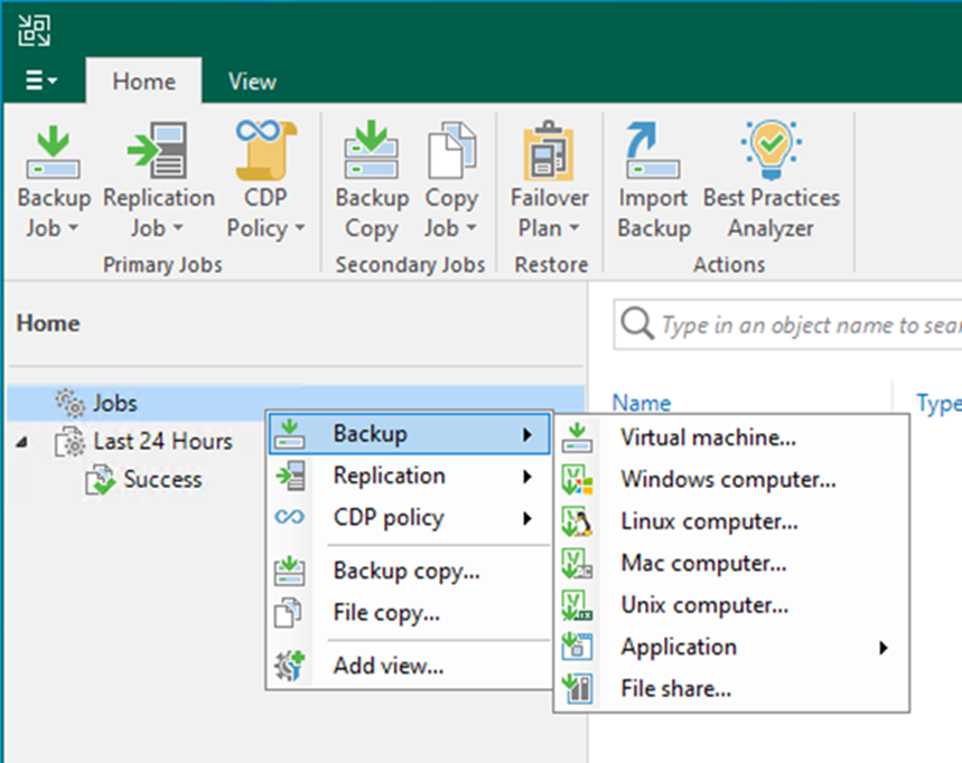

4. Select Jobs on the Home page and right-click Jobs.

5. Select Backup and click Windows computer.

090523 1917 Howtocreate3 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

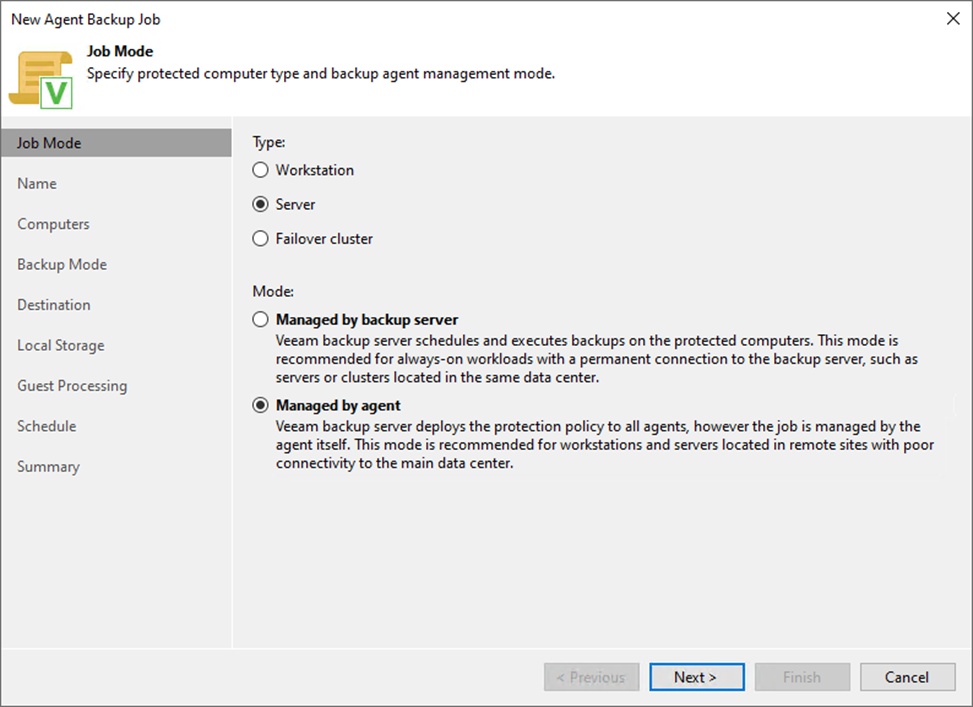

6. On the Job Mode page, select Managed by agent mode and click Next.

090523 1917 Howtocreate4 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

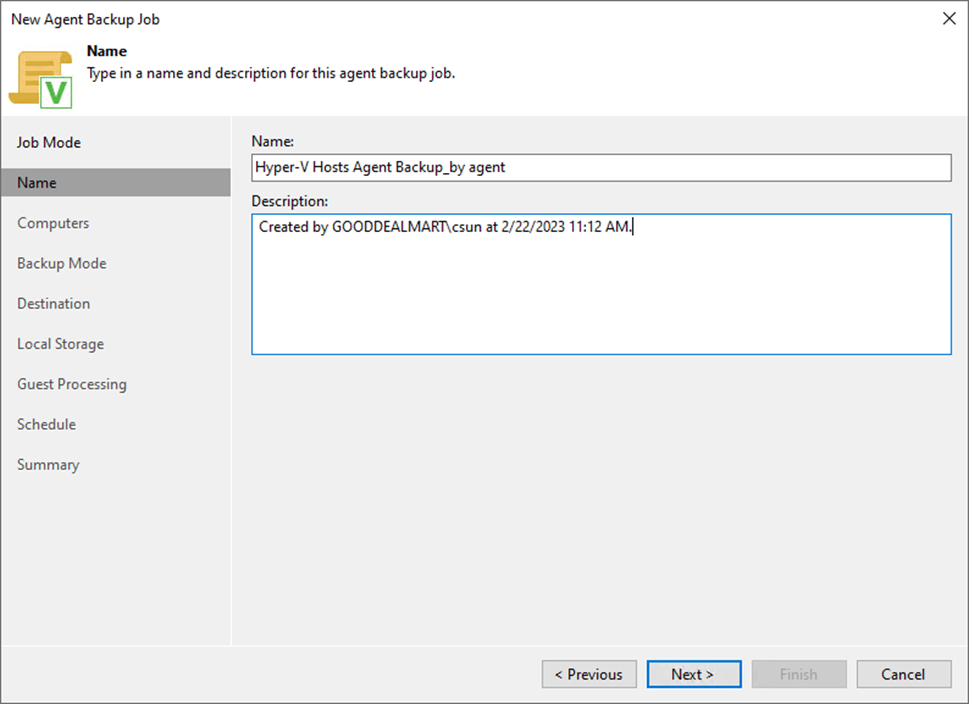

7. On the Name page, enter a name for the backup job in the Name field.

8. Give a brief description in the Description field for the future.

9. Click Next.

090523 1917 Howtocreate5 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

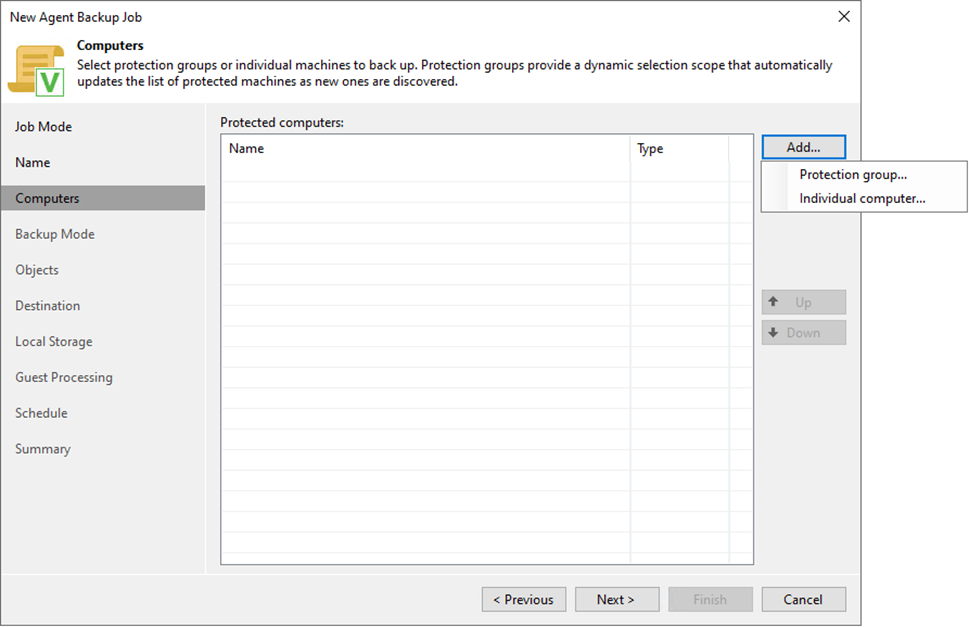

10. On the Computers page, click Add and select Protection group.

090523 1917 Howtocreate6 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

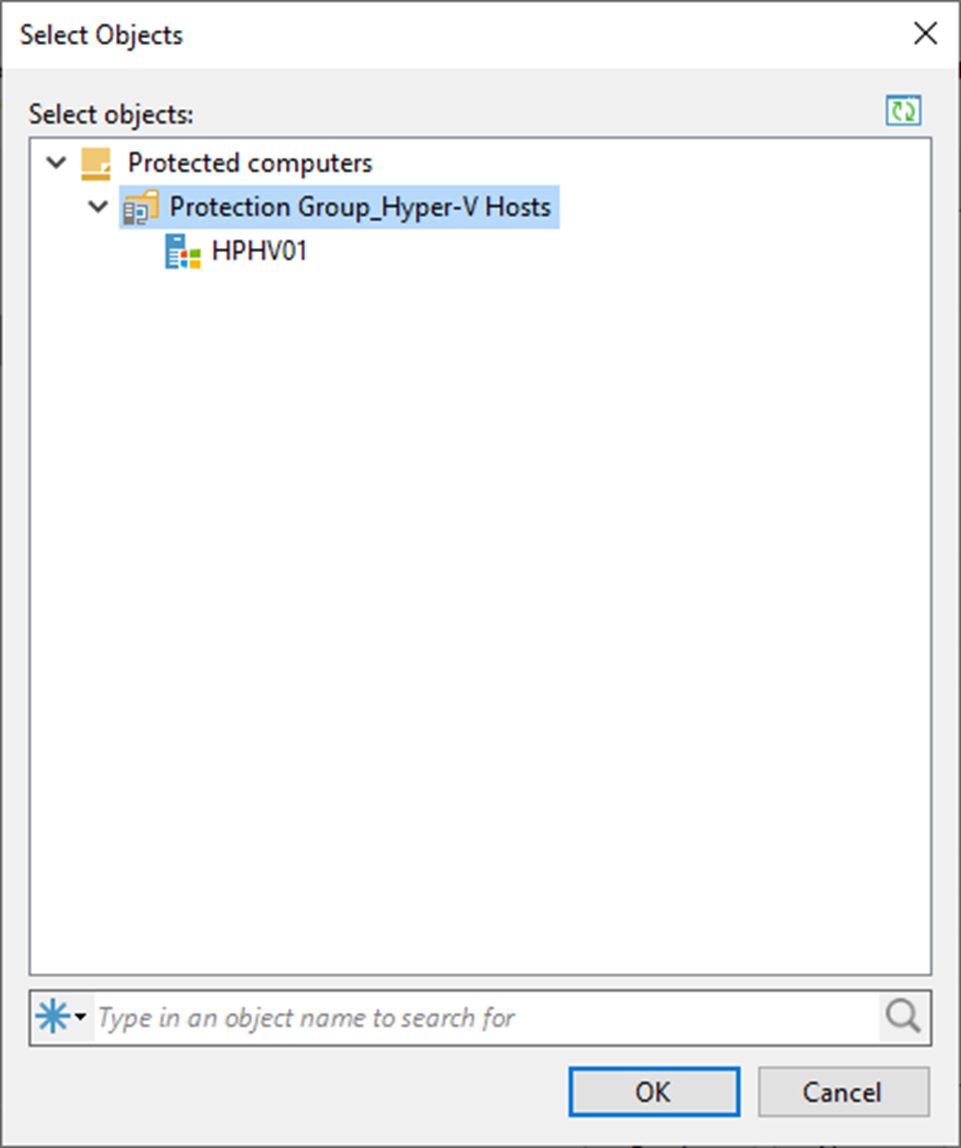

11. Select the protection group on the Select Objects page and click OK.

12. You can select multiple protection groups for the same backup job and repeat the step to add them.

090523 1917 Howtocreate7 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

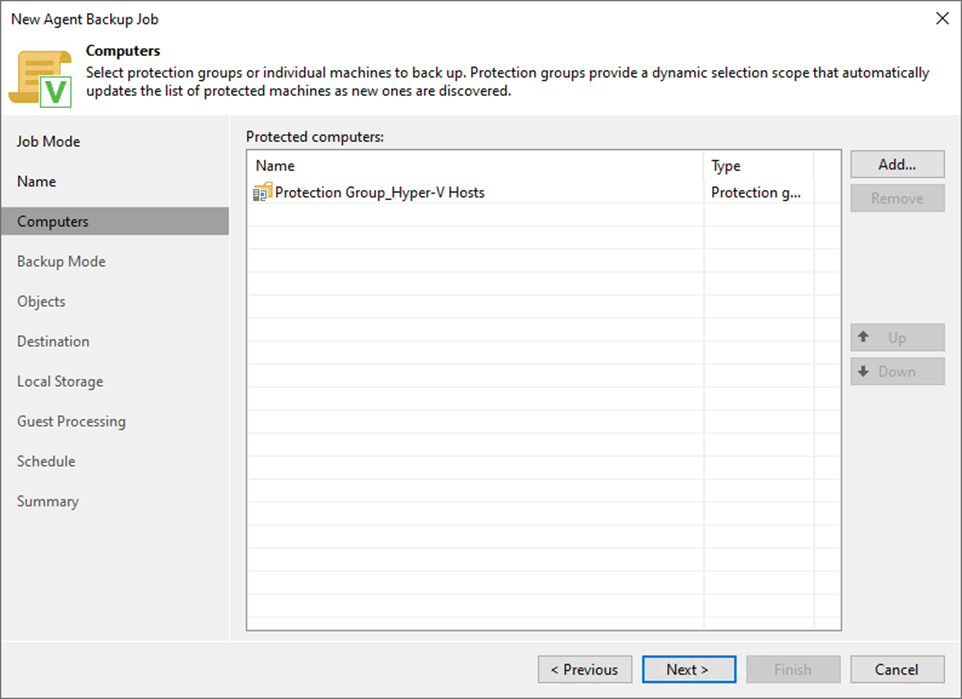

13. Click Next on the Computers page.

090523 1917 Howtocreate8 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

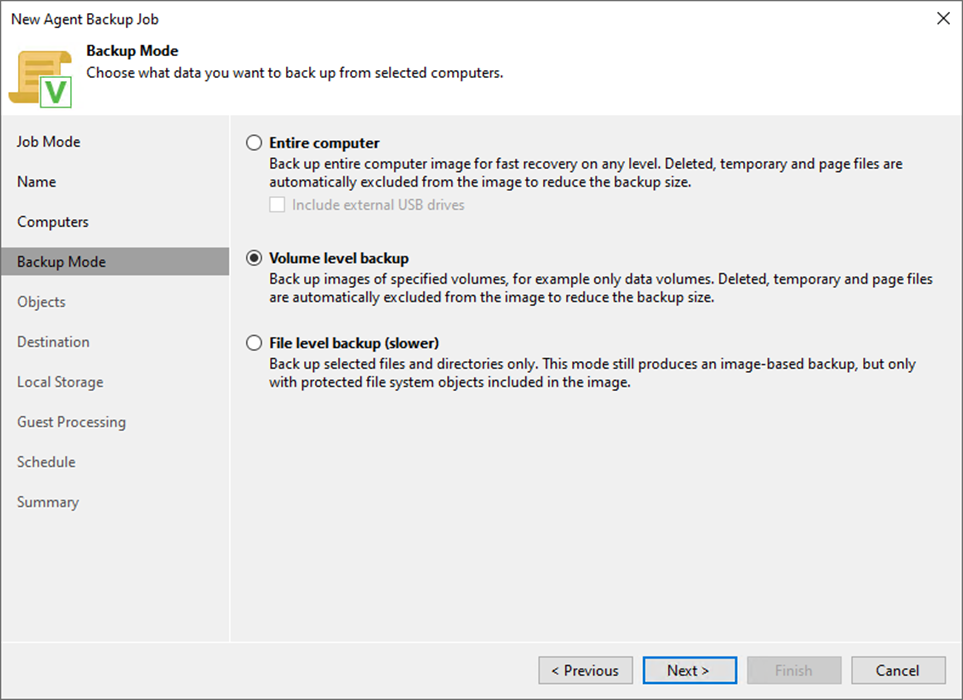

14. Select Volume level backup mode on the Backup Mode page to back up the specified computer volumes and click Next.

090523 1917 Howtocreate9 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

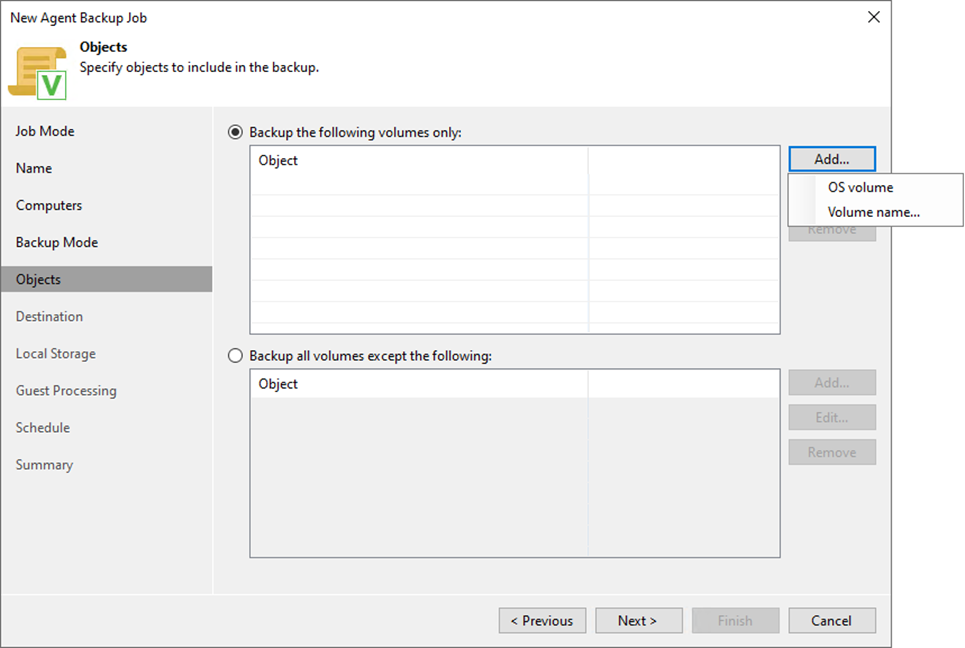

15. On the Objects page, select Backup the following volumes only.

16. Click Add and select OS volume.

17. Click Next.

090523 1917 Howtocreate10 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

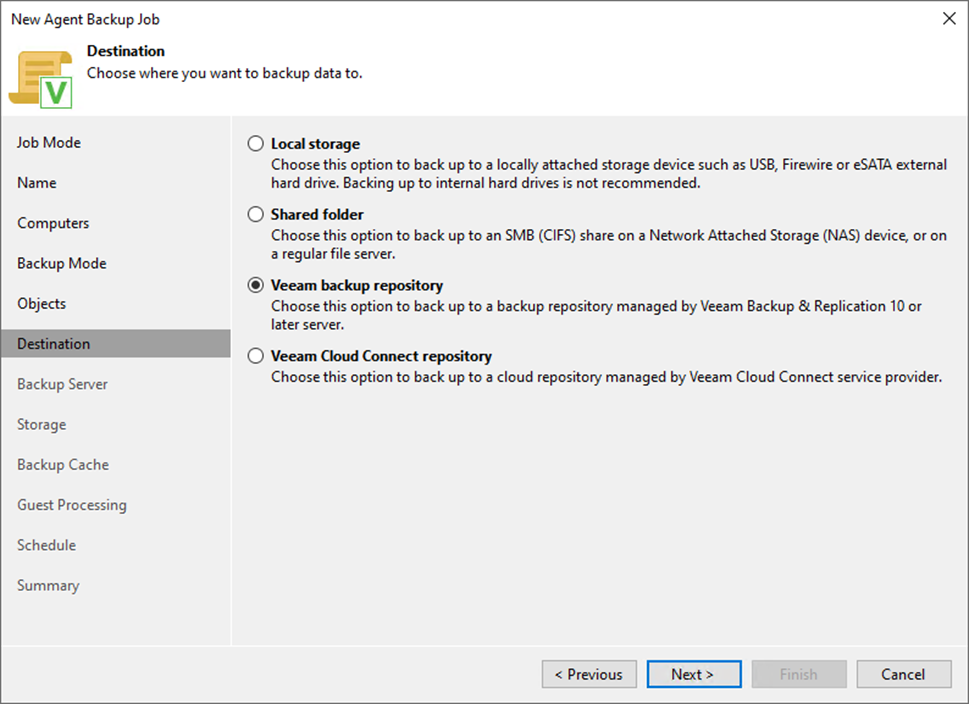

18. Select the Veeam backup repository and click Next.

090523 1917 Howtocreate11 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

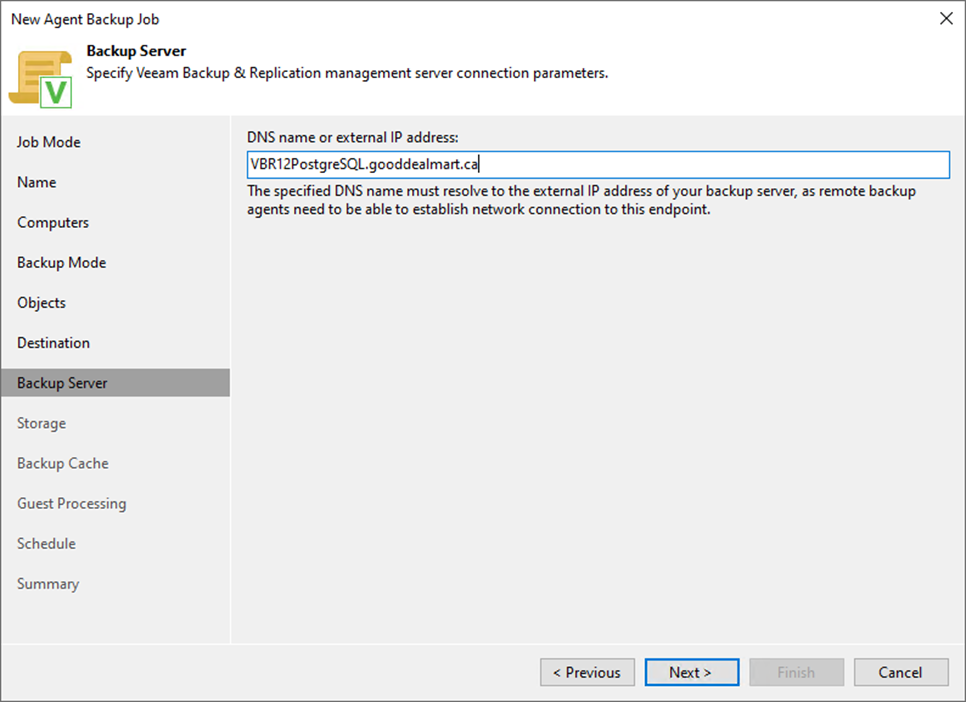

19. Enter the Veeam Backup and Replication manager server name or IP address in the DNS name or external IP address field on the Backup Server page.

090523 1917 Howtocreate12 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

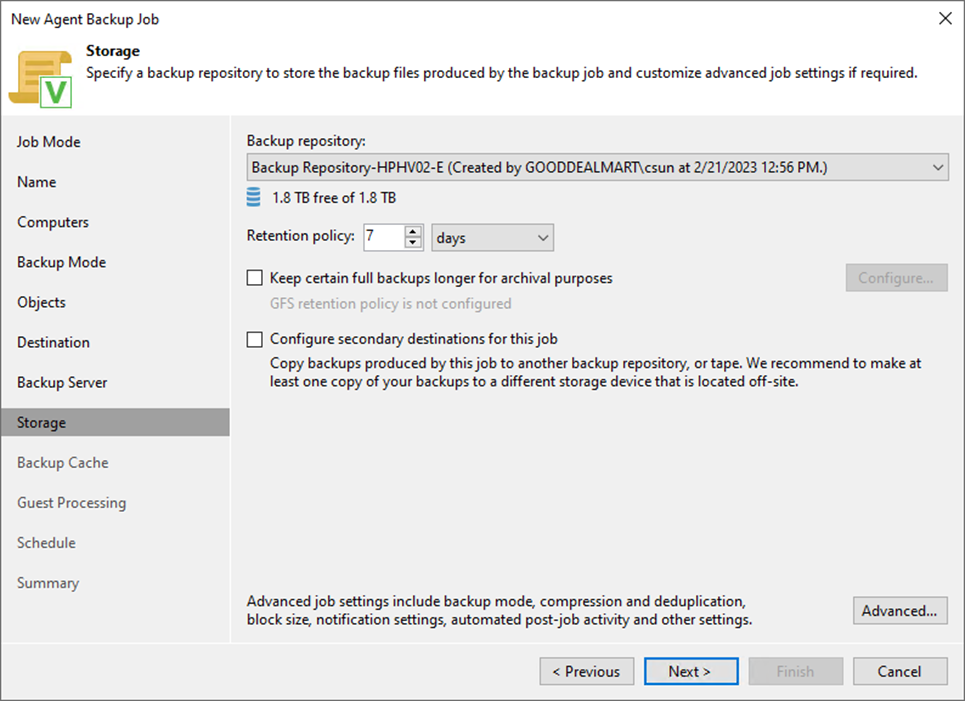

20. Select the backup repository from the Backup repository drop-down list on the Storage page.

090523 1917 Howtocreate13 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

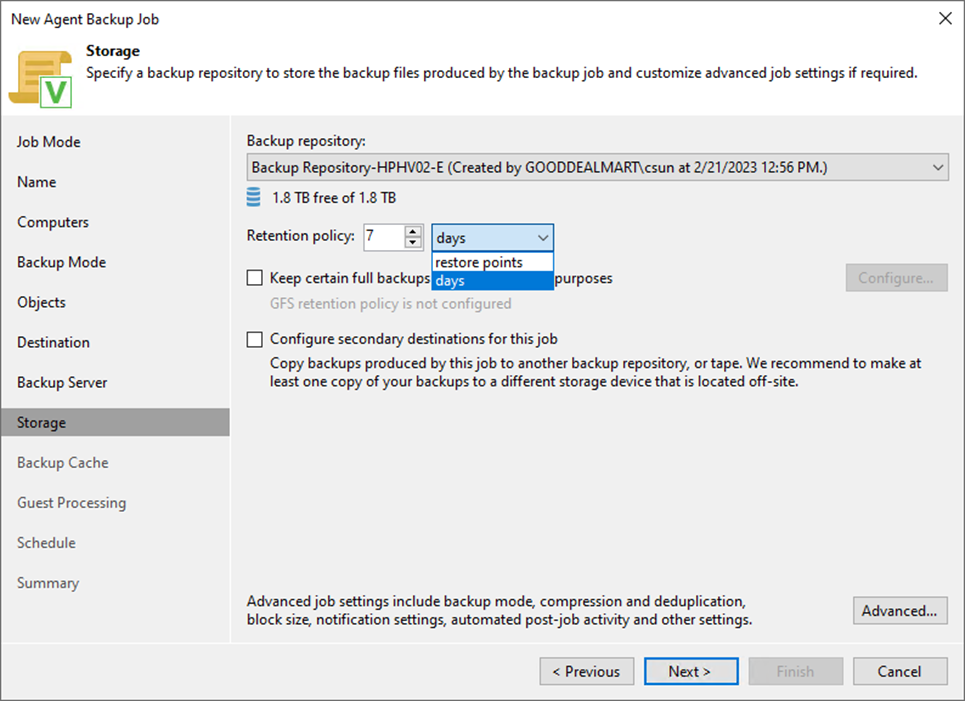

21. Set the retention policy settings for restore points in the Retention Policy field.

22. Select days or restore points from the drop-down list.

090523 1917 Howtocreate14 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

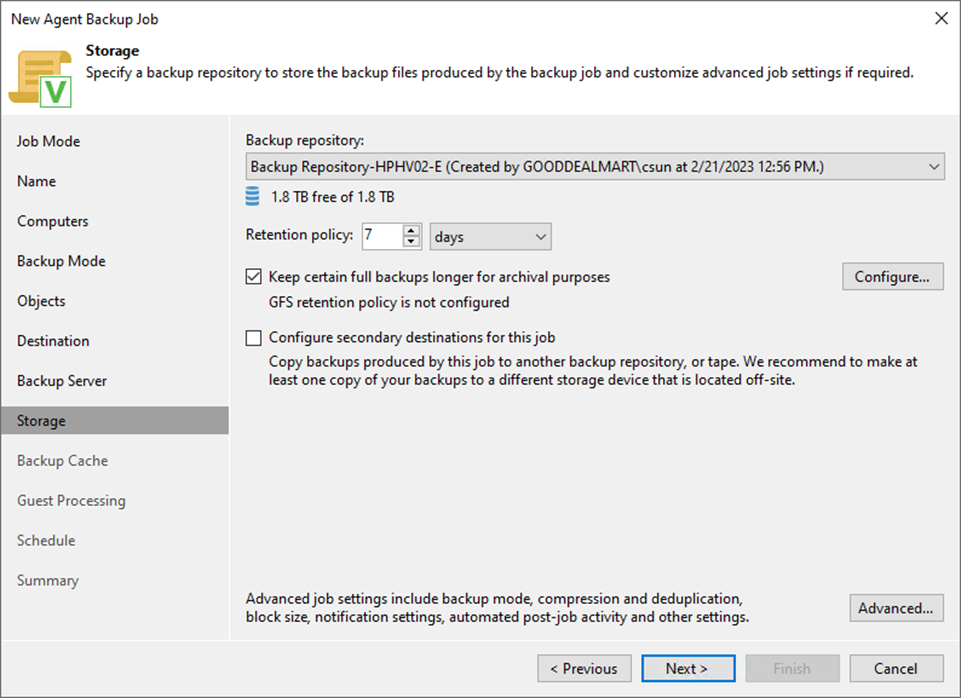

23. You can configure GFS retention policy settings for the backup job to ignore the short-term retention policy for some full backups and store them for long-term archiving.

24. Select the Keep certain full backups for longer for archival purposes. If you need it, click Configure.

090523 1917 Howtocreate15 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

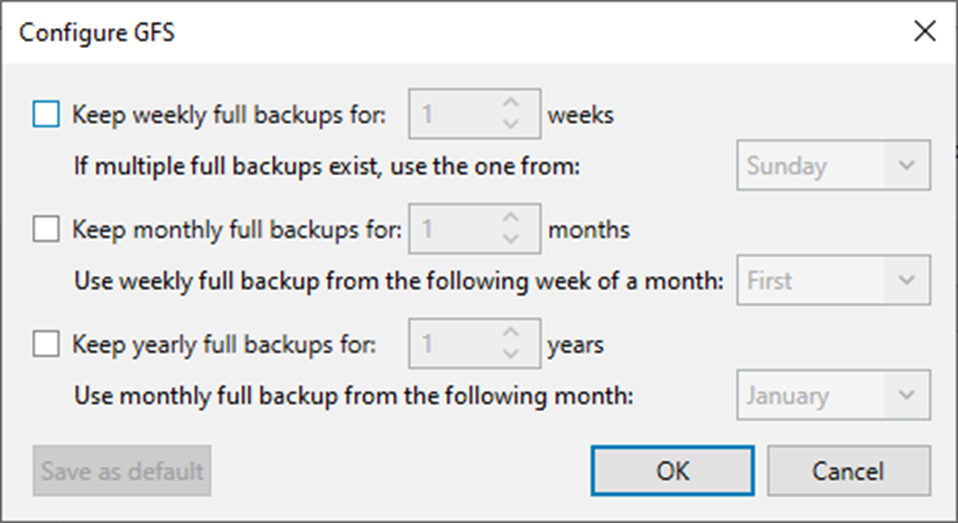

25. Select the Keep weekly full backups for checkbox and specify the number of weeks you want to prevent restore points from being modified and deleted.

26. Select the Keep monthly full backups for checkbox and specify the months you want to prevent restore points from being modified and deleted.

27. Select the Keep yearly full backups for checkbox and specify the years you want to prevent restore points from being modified and deleted.

28. Click OK.

090523 1917 Howtocreate16 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

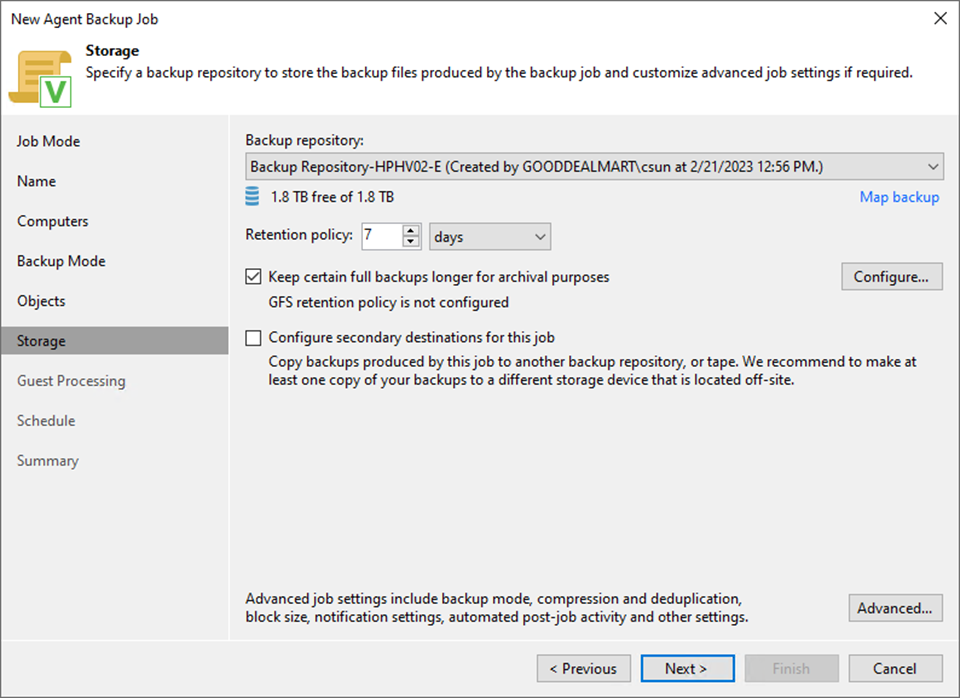

29. On the Storage page, click Advanced.

090523 1917 Howtocreate17 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

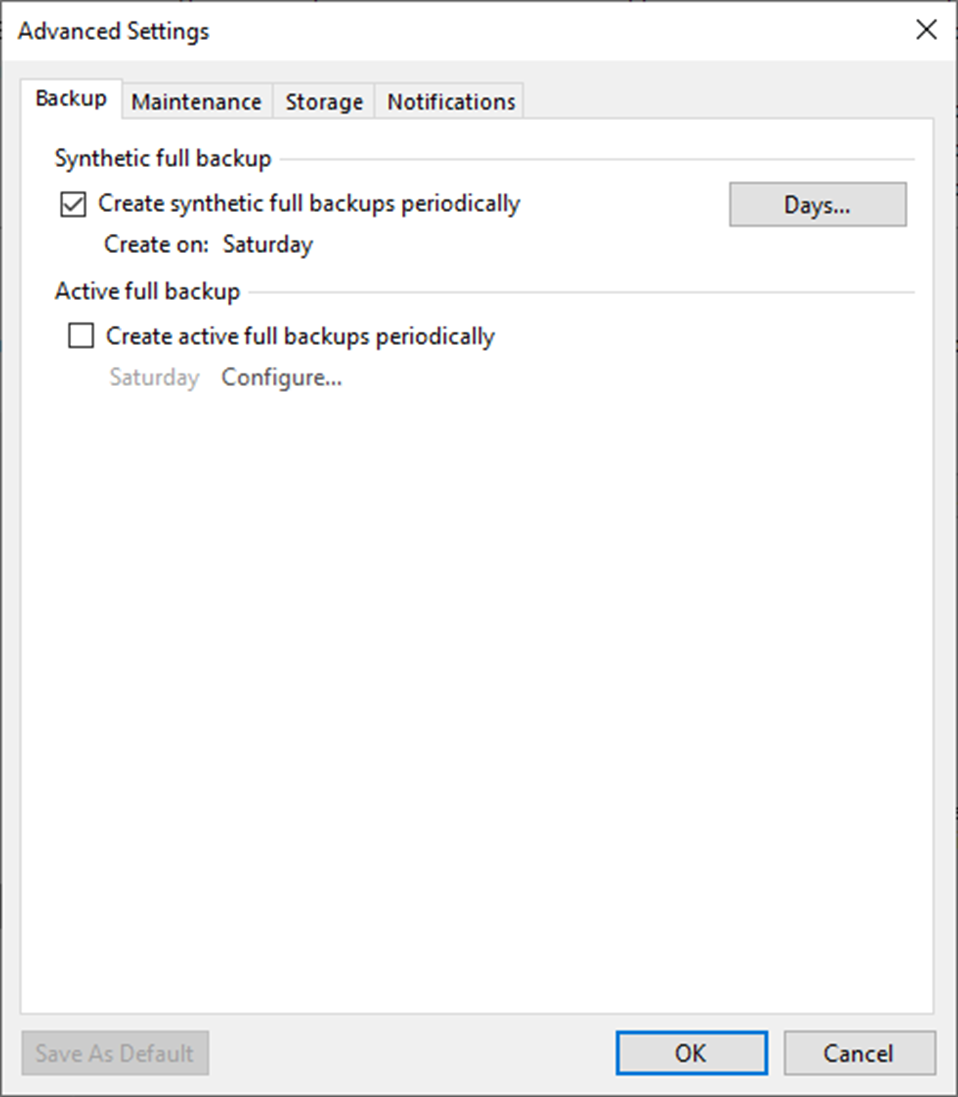

30. Select Create synthetic full backups or Active full backups periodically checkbox.

31. Schedule full backups periodically and click OK.

090523 1917 Howtocreate18 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

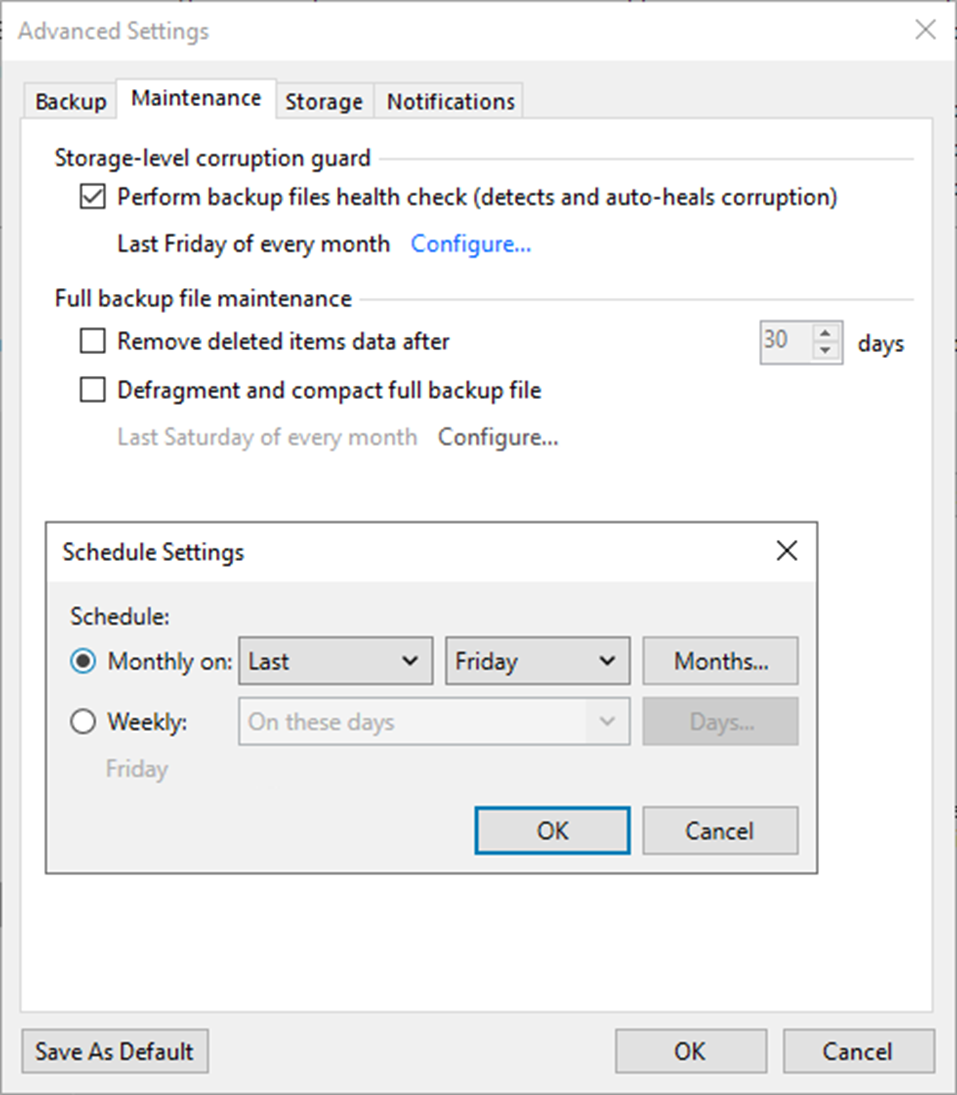

32. On the Advanced Settings, select Maintenance.

33. To regularly perform a health check on the backup chain’s most recent restore point, select the Perform backup files health check (detects and auto-heals corruption) checkbox in the Storage-level corruption guard section.

34. Click Configure to set a timetable for the health check.

090523 1917 Howtocreate19 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

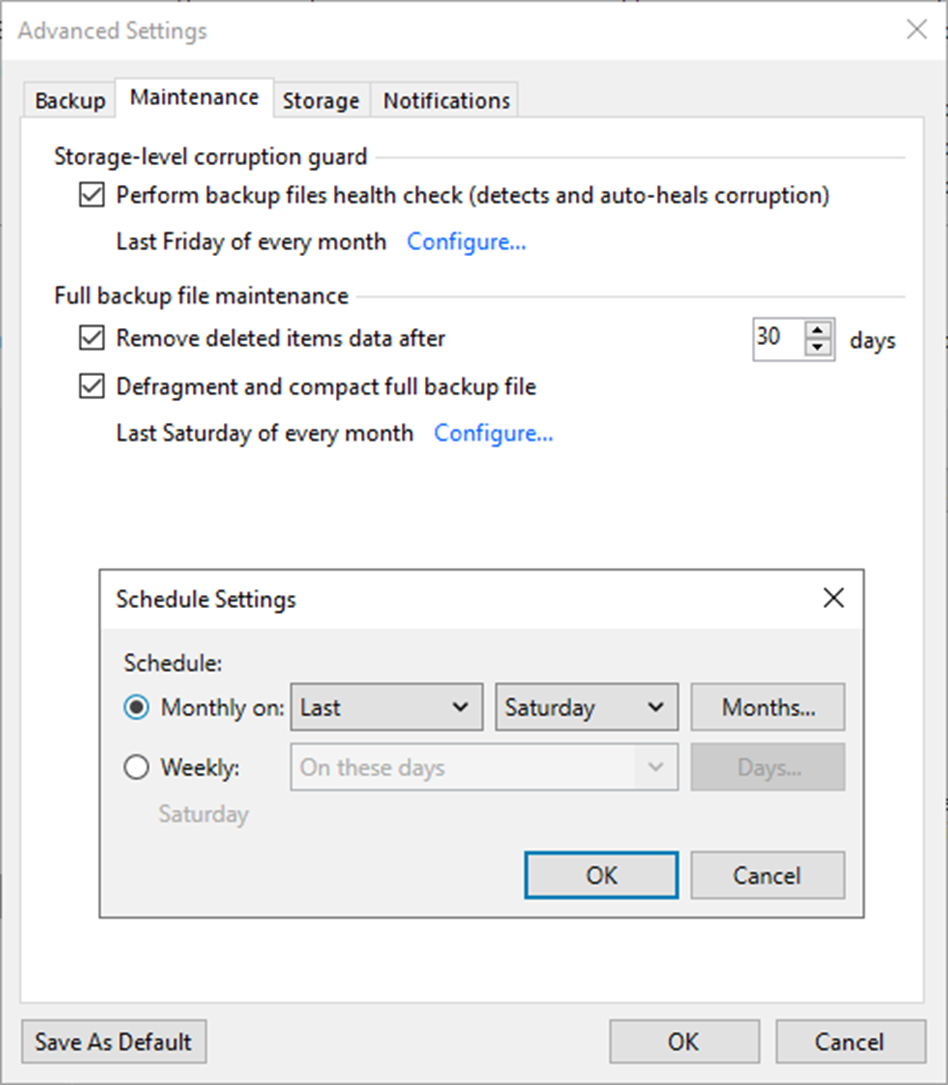

35. Select the Remove deleted items data after the checkbox and enter the few days you want backup data for deleted VMs to be kept.

36. Select the Defragment and compact full backup file checkbox and click Configure.

37. Set the schedule for the compact operation to compact a full backup periodically.

090523 1917 Howtocreate20 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

Note:

You don’t need to enable the defragment and compact functionality checkbox if GFS retention is enabled.

38. On Advanced Settings, select Storage.

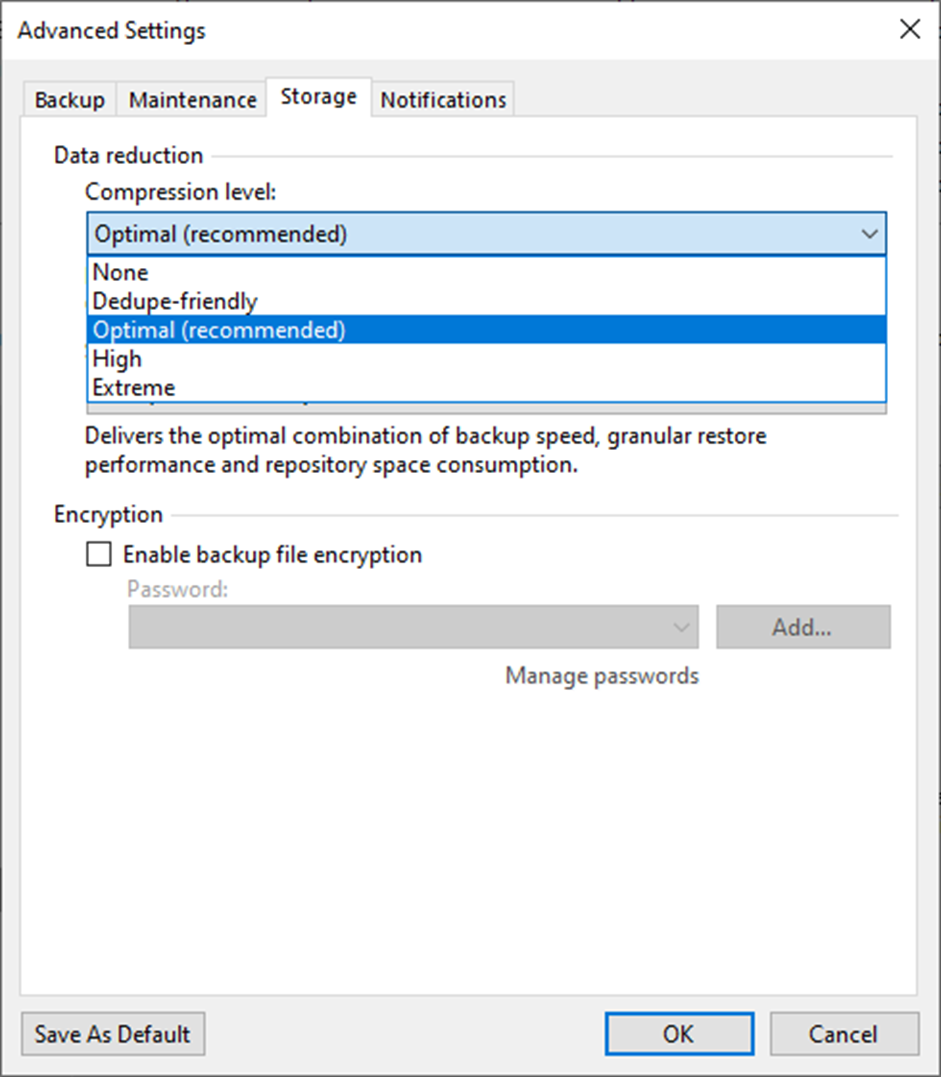

39. Select the Compression level from the drop-down list.

090523 1917 Howtocreate21 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

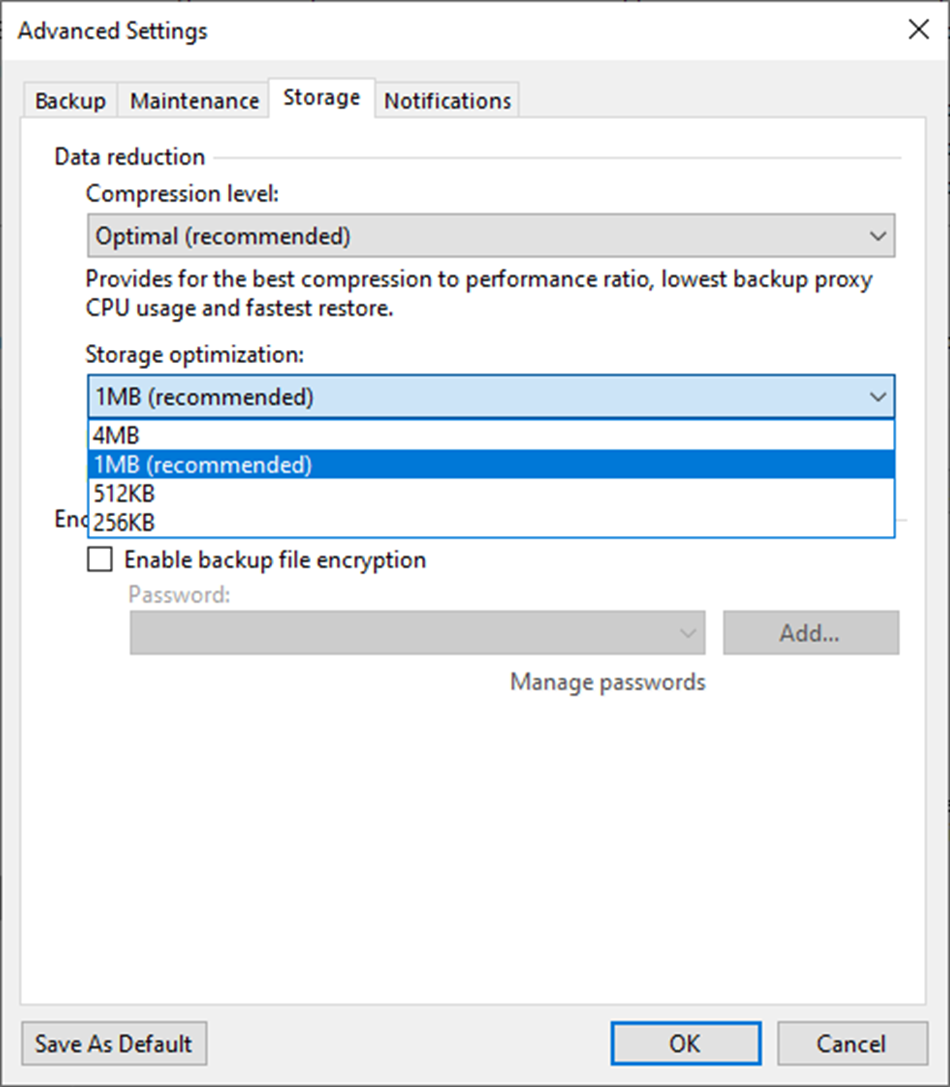

40. Select Storage optimization from the drop-down list.

090523 1917 Howtocreate22 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

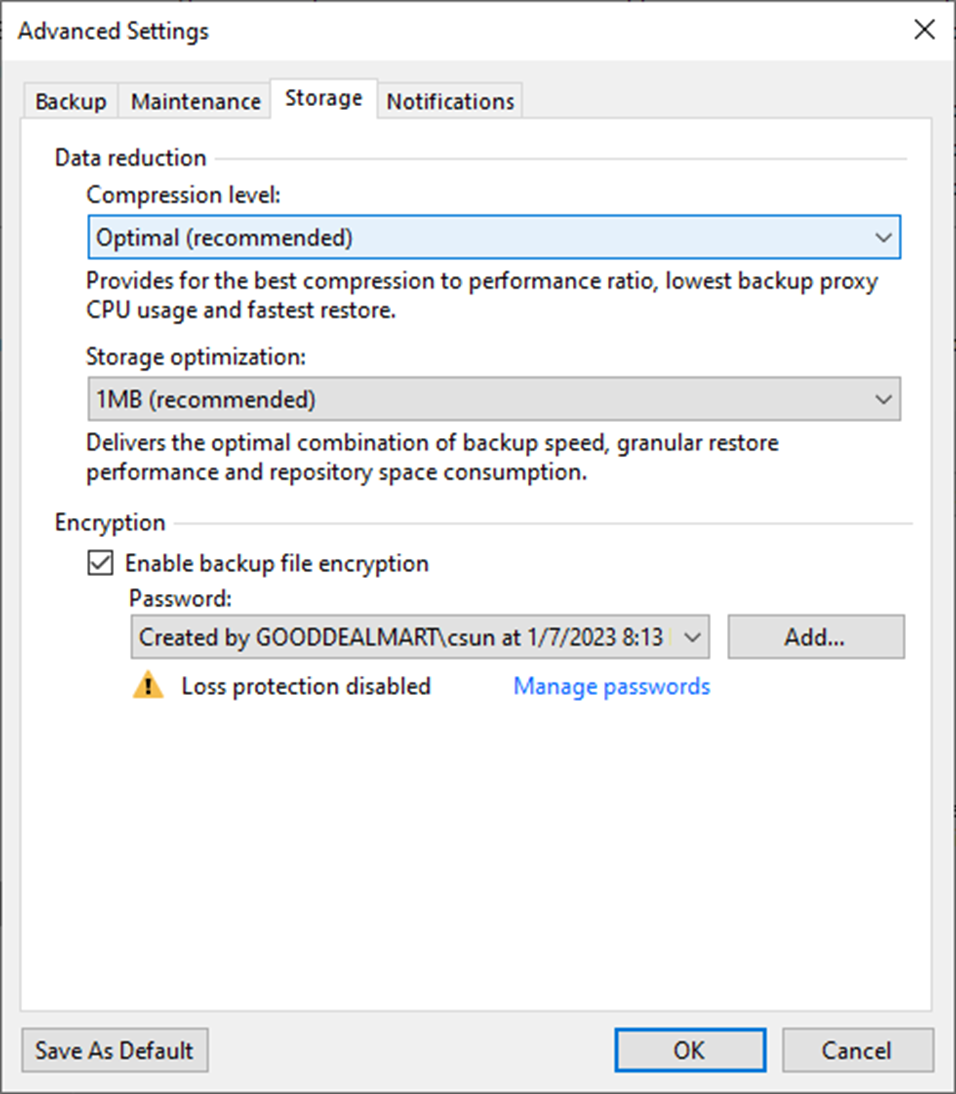

41. Select the Enable backup file encryption checkbox to encrypt the content of backup files.

42. Select a password from the drop-down list. If you still need to do, click Add or use the Manage passwords link to create a new password.

090523 1917 Howtocreate23 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

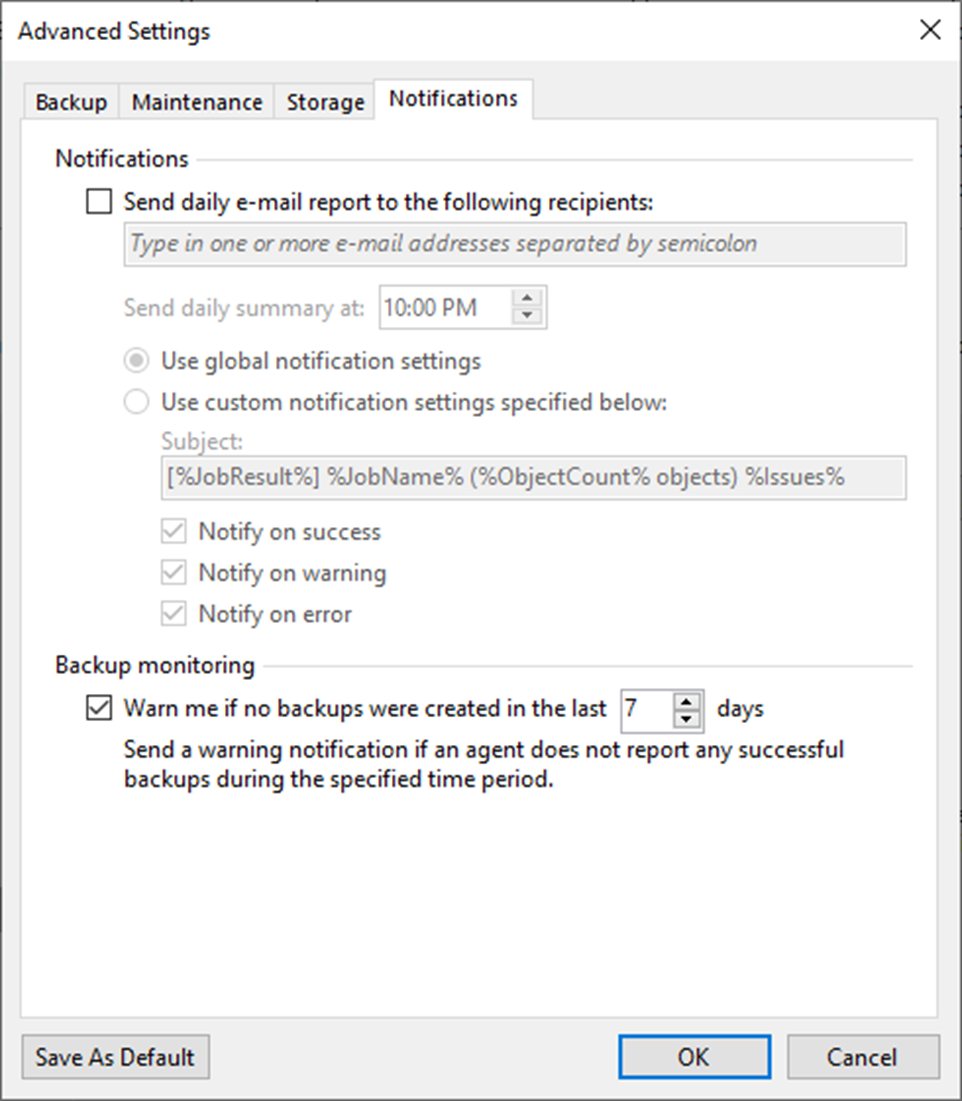

43. On the Advanced Settings, select Notifications.

44. Keep the default settings and click OK.

090523 1917 Howtocreate24 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

45. On the Storage page, click Next.

090523 1917 Howtocreate25 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

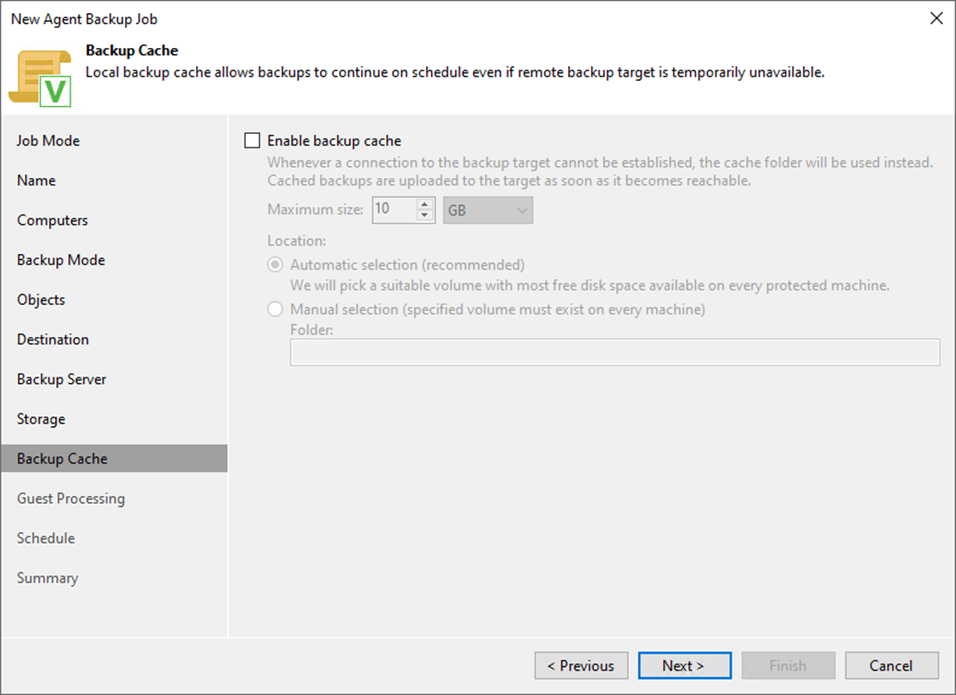

46. On the Backup Cache page, keep the default settings and click Next.

090523 1917 Howtocreate26 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

47. When you add Physical machines running VSS-aware applications to the backup job, you can enable application-aware processing to create a transactionally consistent backup. The transactionally consistent backup ensures that applications on VMs can be recovered without data loss.

48. Select the Enable application-aware processing checkbox on the Guest Processing page and click Applications.

090523 1917 Howtocreate27 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

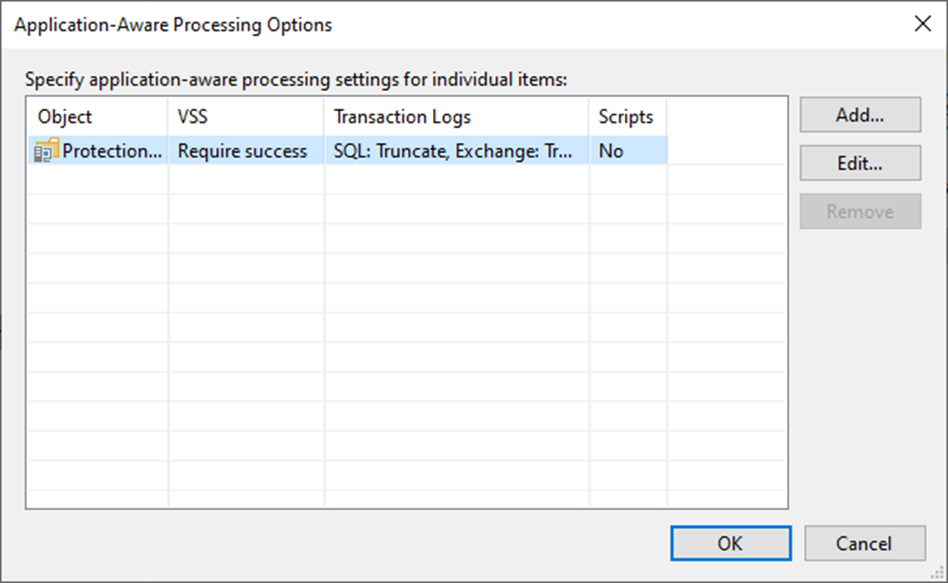

49. On the Application-Aware Processing Options page, select the Object and click Edit.

090523 1917 Howtocreate28 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

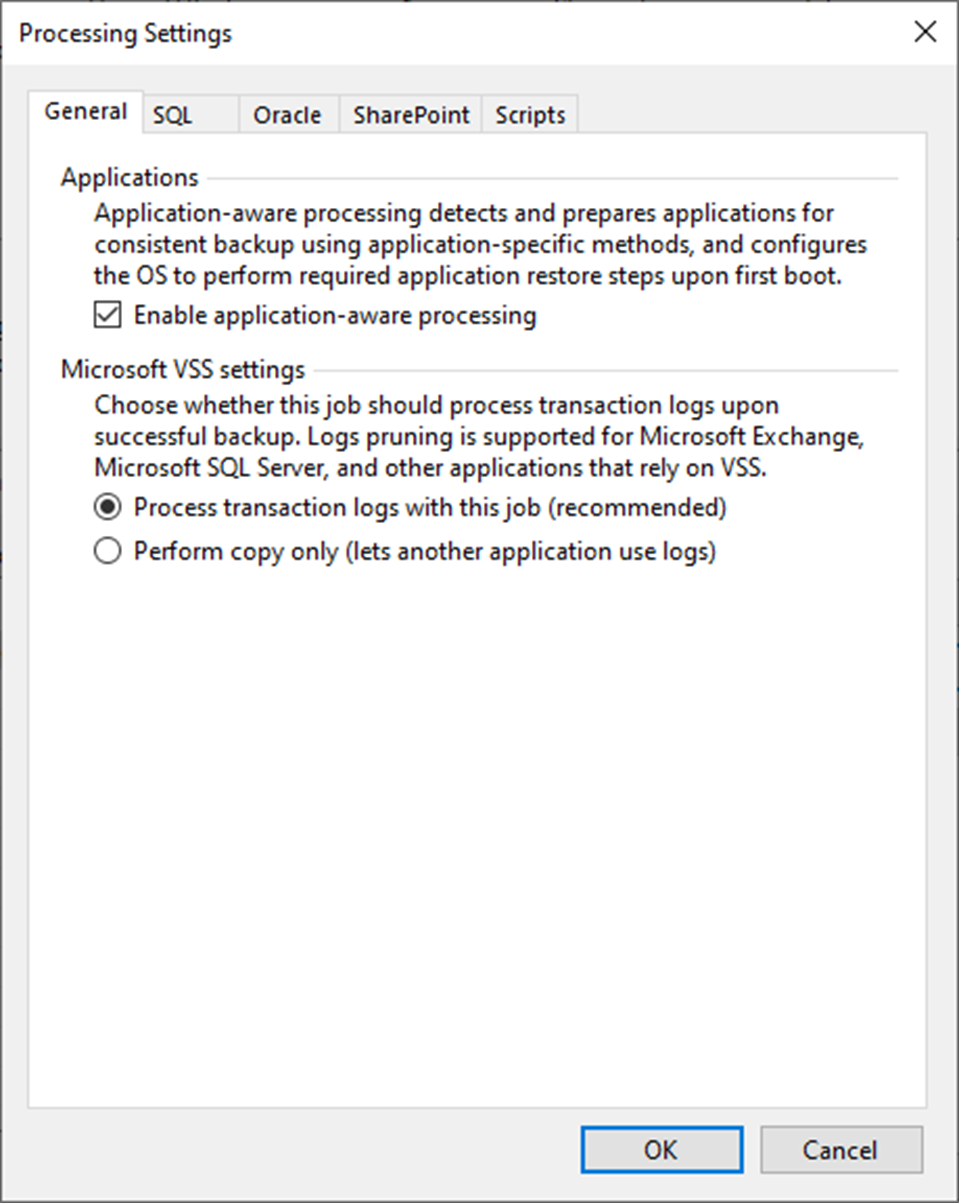

50. On the Processing Settings page, select General.

51. Select Enable application-aware processing checkbox.

52. Select Process transaction logs with this job (recommended).

090523 1917 Howtocreate29 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

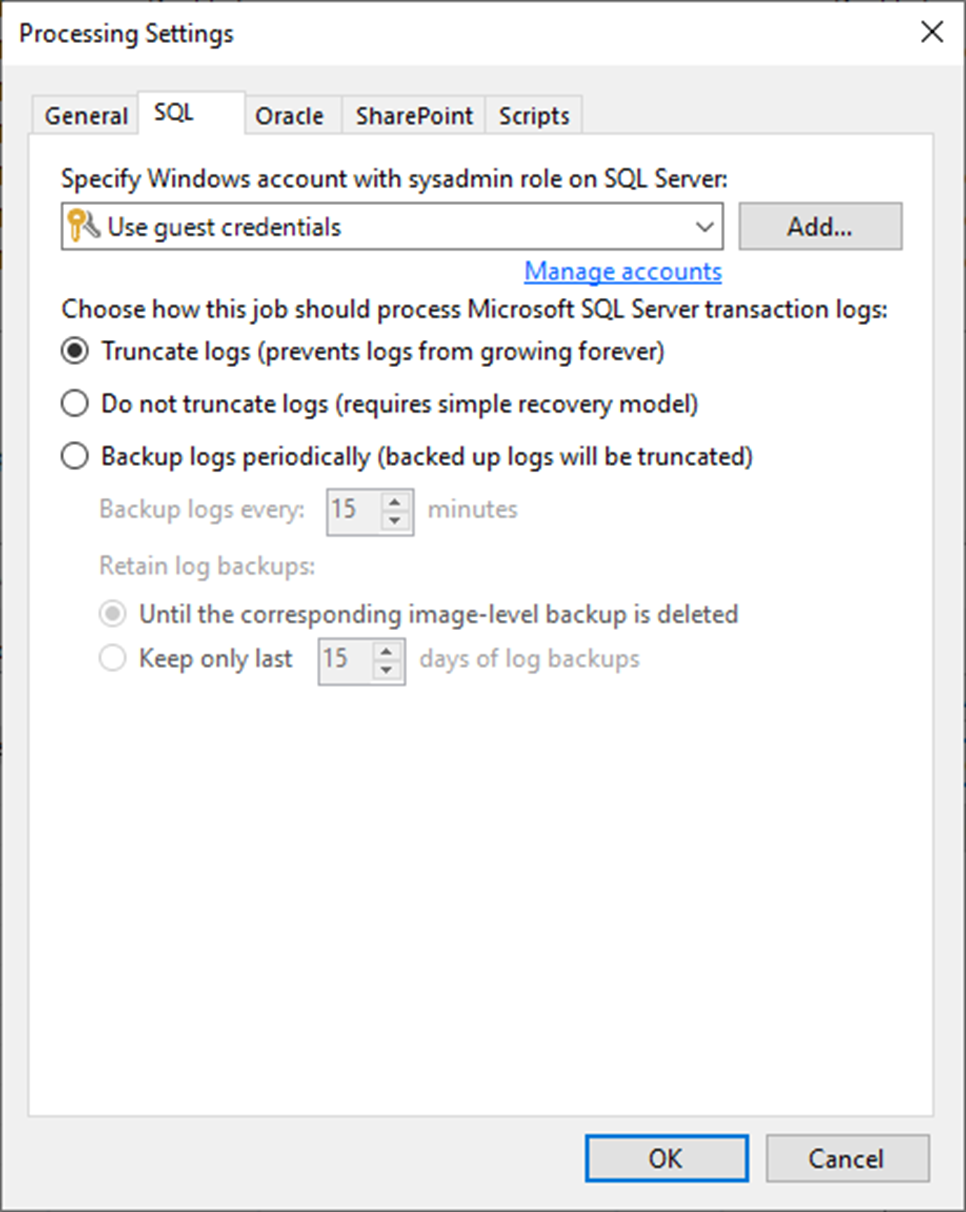

53. On the Processing Settings page, click SQL if the Physical Machine is a Microsoft SQL Server.

54. Select a user account from the drop-down list.

55. Select Truncate logs (Prevents logs from growing forever).

090523 1917 Howtocreate30 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

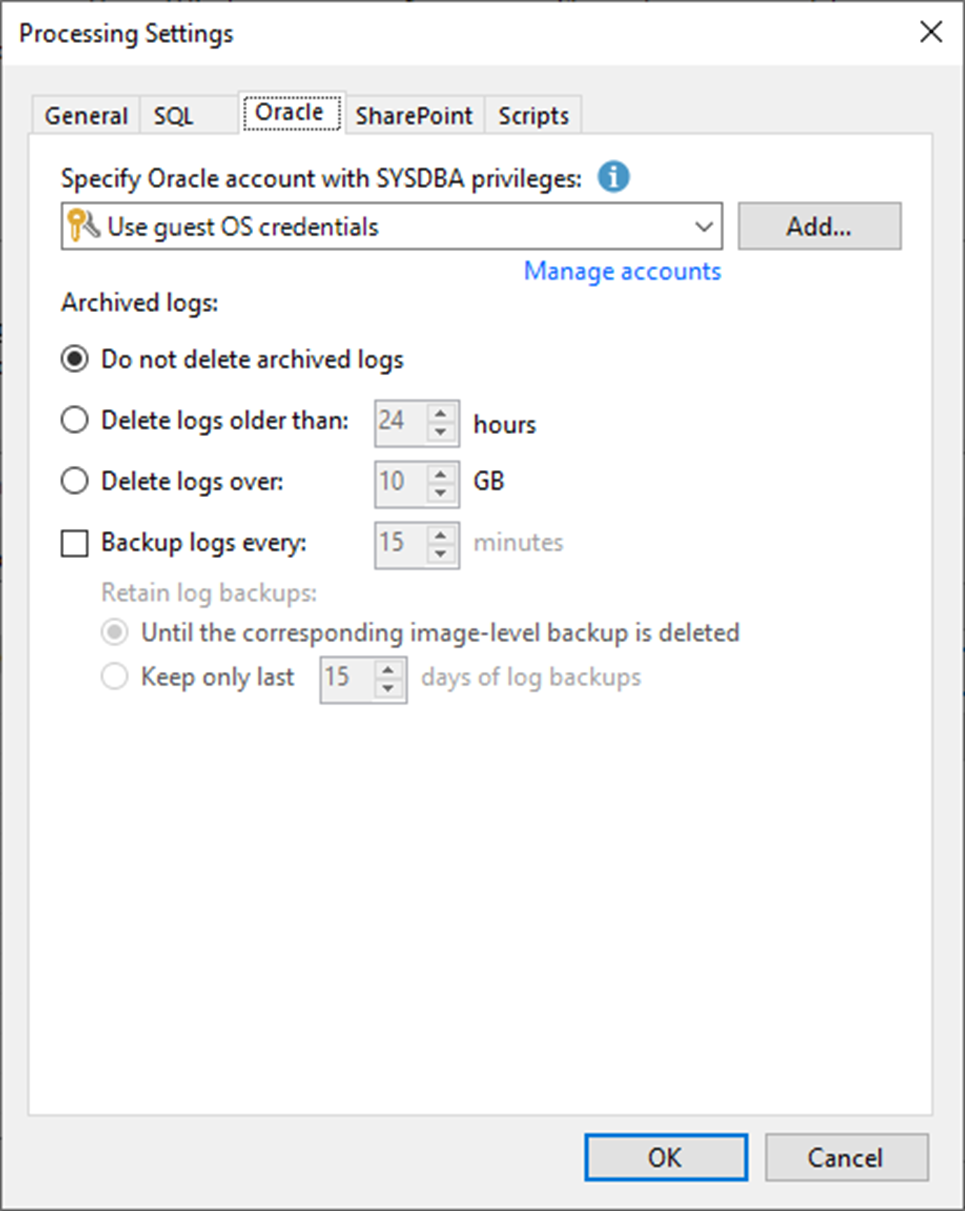

56. Select Oracle on the Processing Settings page if the Physical Machine is an Oracle Server.

57. Select a user account from the drop-down list.

58. Select Do not delete archived logs.

090523 1917 Howtocreate31 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

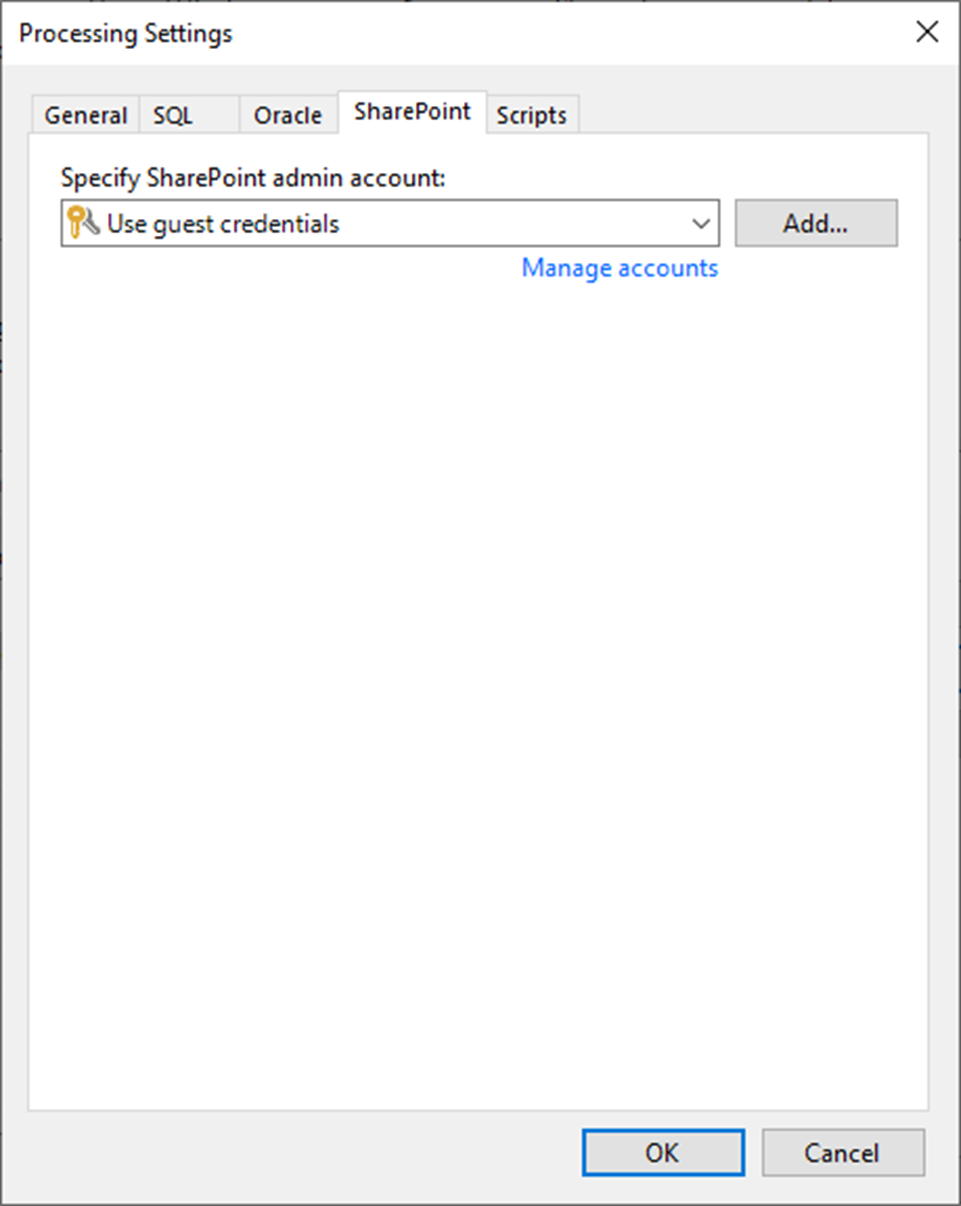

59. On the Processing Settings page, select SharePoint if the Physical Machine is a SharePoint Server.

60. Select a user account from the drop-down list.

090523 1917 Howtocreate32 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

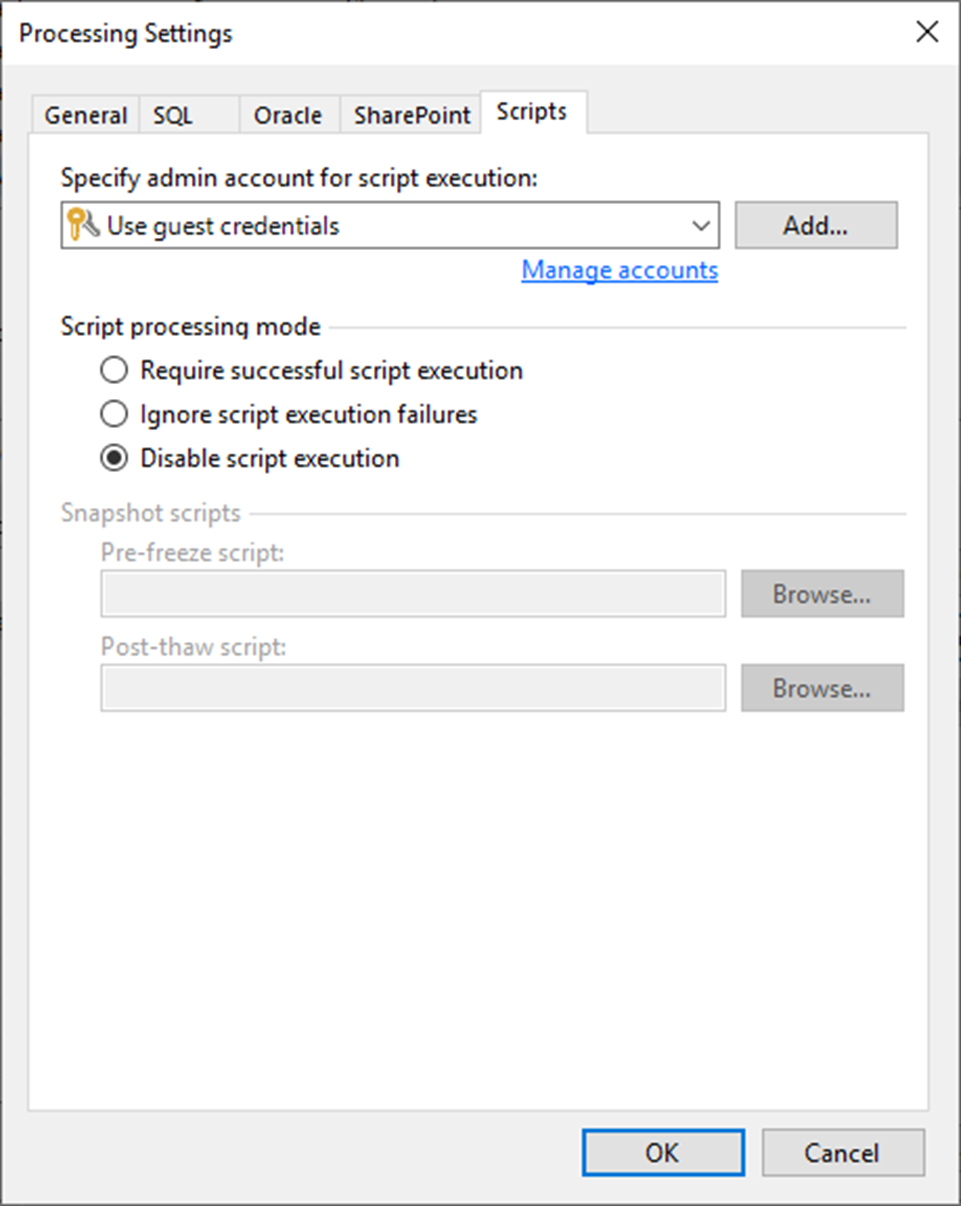

61. On the Processing Settings page, select Scripts.

62. Keep the default settings and click OK.

090523 1917 Howtocreate33 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

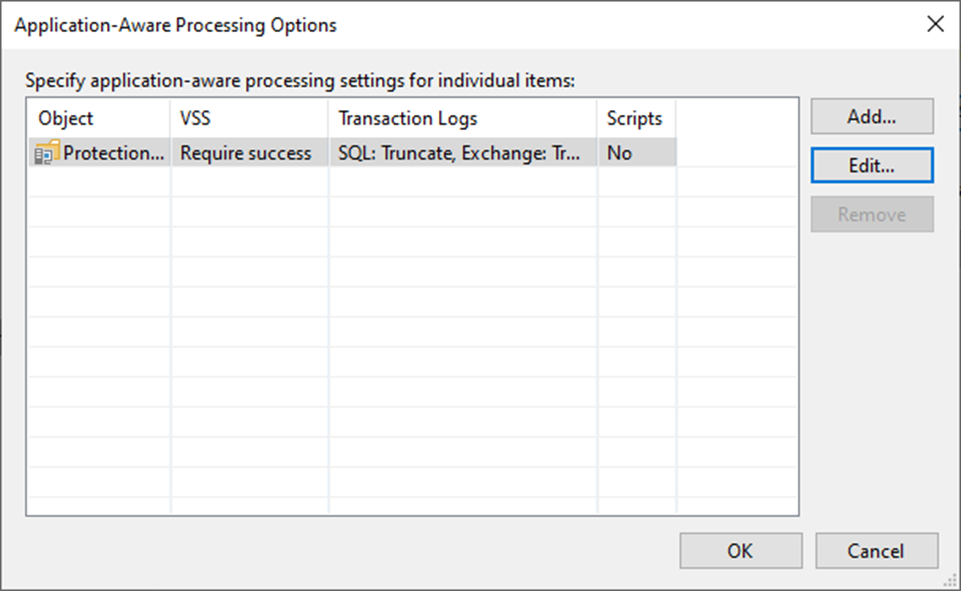

63. On the Application-Aware Processing Options page, click OK.

090523 1917 Howtocreate34 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

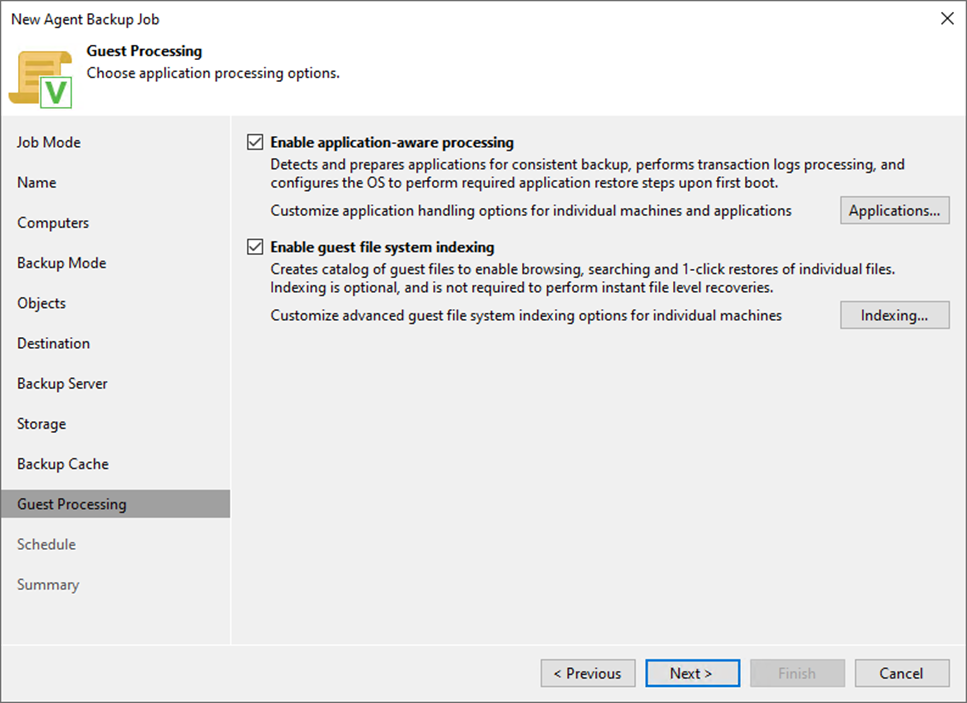

64. Select the Enable guest file system indexing checkbox and click Indexing.

090523 1917 Howtocreate35 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

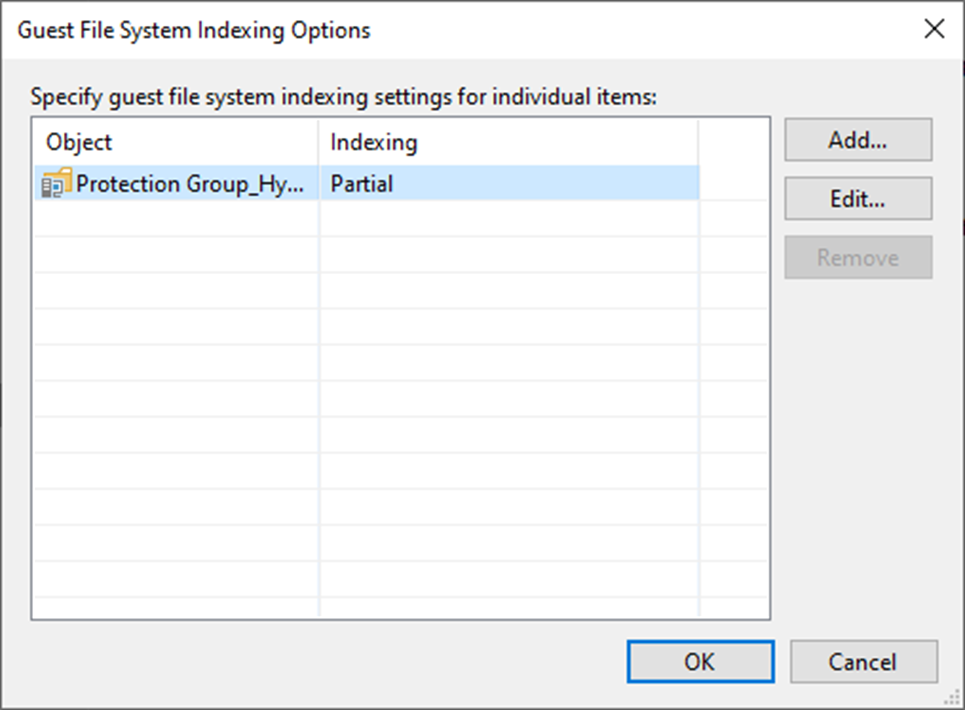

65. On the Guest File System Indexing Options page, select the Object, click Edit.

090523 1917 Howtocreate36 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

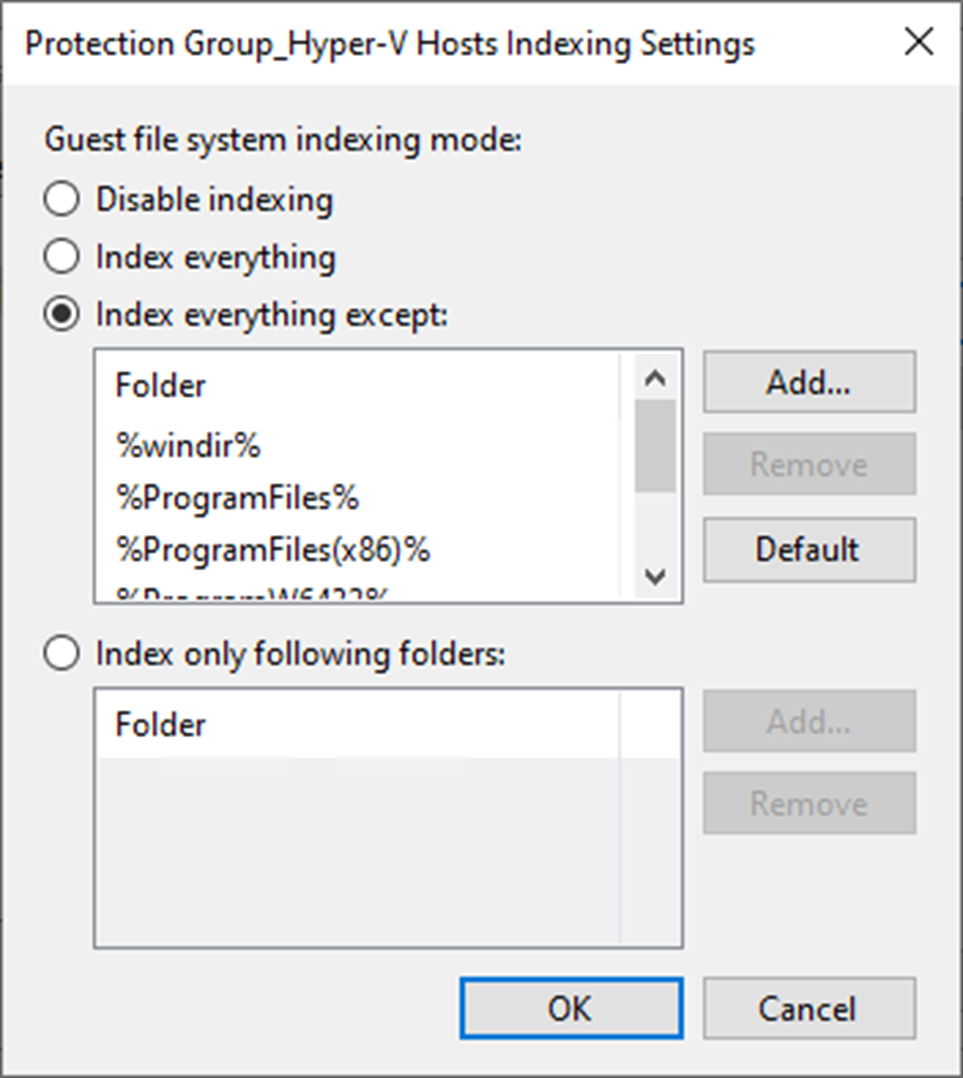

66. On the Guest file system indexing mode page, keep the default settings.

67. Click OK.

090523 1917 Howtocreate37 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

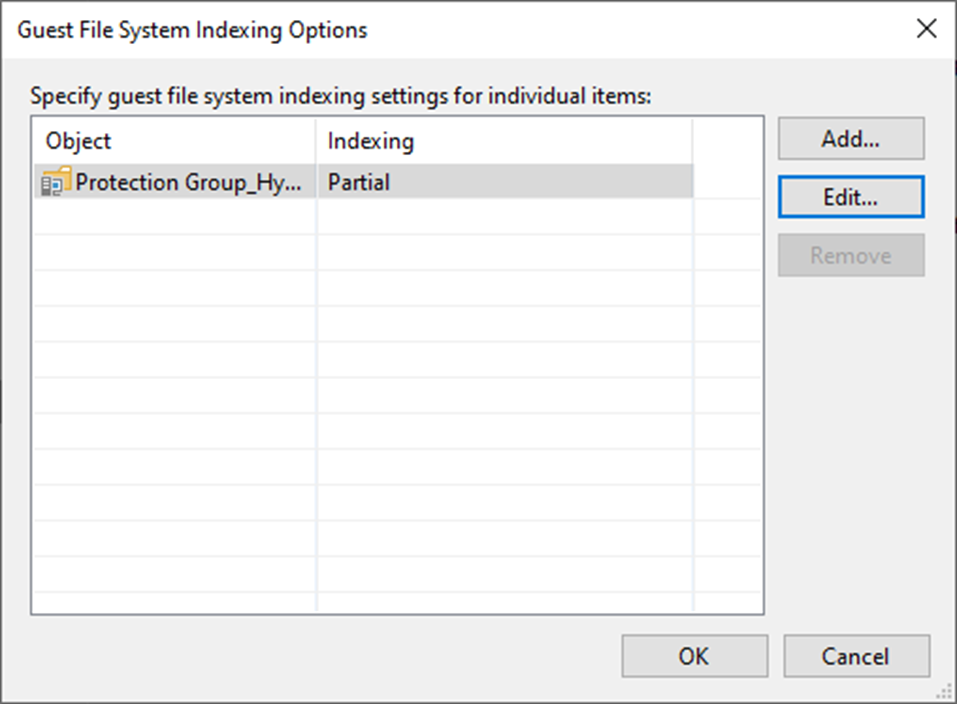

68. On the Guest File System Indexing Options page, click OK.

090523 1917 Howtocreate38 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

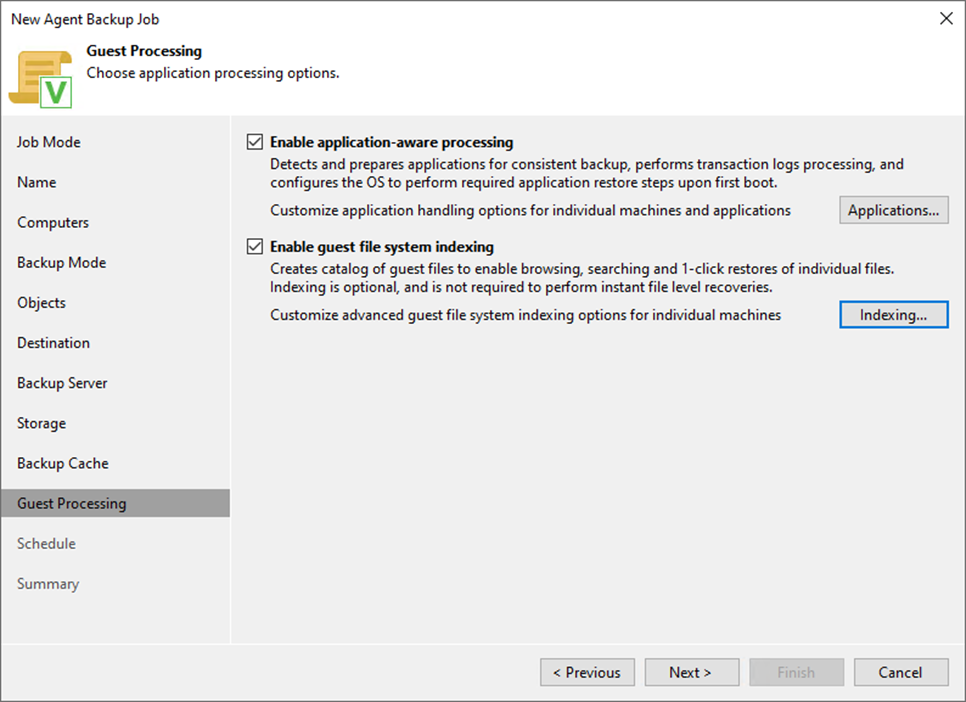

69. On the Guest Processing page, click Next.

090523 1917 Howtocreate39 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

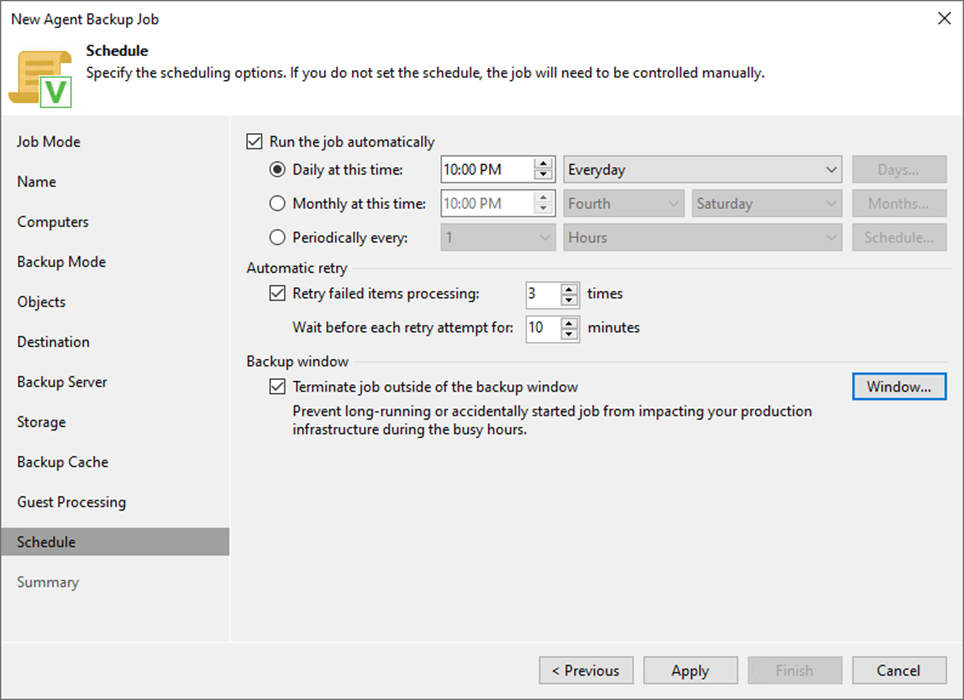

70. Select Run the job automatically checkbox on the Schedule page and select your specified schedule.

71. Define whether Veeam Backup & Replication should retry the backup job if it fails in the Automatic retry section.

72. Define the time interval the backup job must complete in the Backup window section. The backup window ensures that the job does not overlap with production hours and that there is no unnecessary overhead on the production environment.

73. Click Apply.

090523 1917 Howtocreate40 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

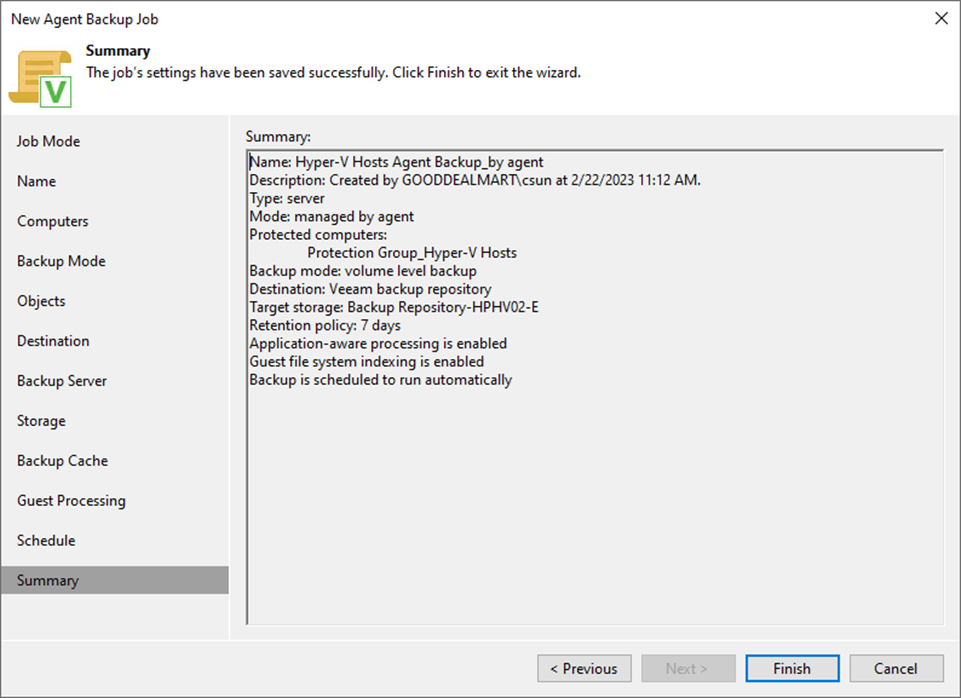

74. On the Summary page, click Finish.

090523 1917 Howtocreate41 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

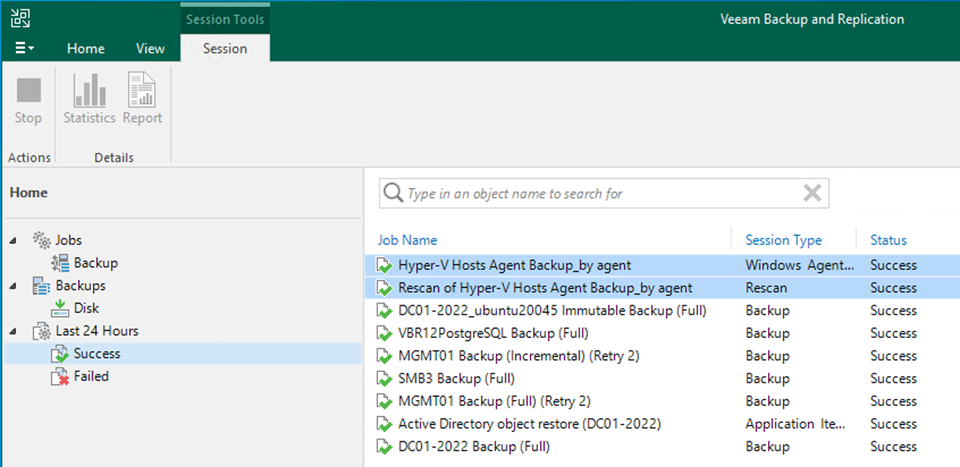

75. Verify that the Machine rescan, and Job configured are completed without issues.

090523 1917 Howtocreate42 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12

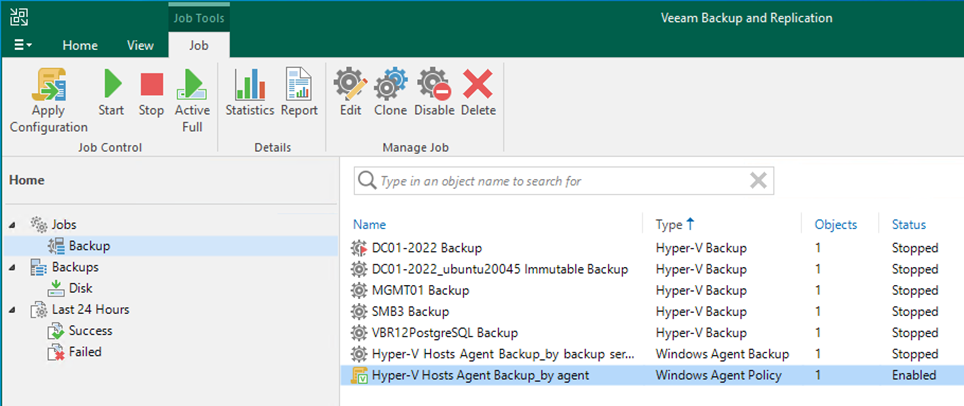

76. Verify that the backup job has been added.

090523 1917 Howtocreate43 - How to create a Backup job to backup the specified Physical Machines (Managed by Agent Mode) at Veeam Backup and Replication v12
