December 3, 2024
This procedure creates a backup job to back up all VMS of the production Hyper-V host. The new VMS will be backed up automatically after the backup job is created. You don't need to modify the backup job settings.

This procedure creates a backup job to back up all VMS of the production Hyper-V host. The new VMS will be backed up automatically after the backup job is created. You don’t need to modify the backup job settings.

1. Login to the Veeam Backup and replication manager server.

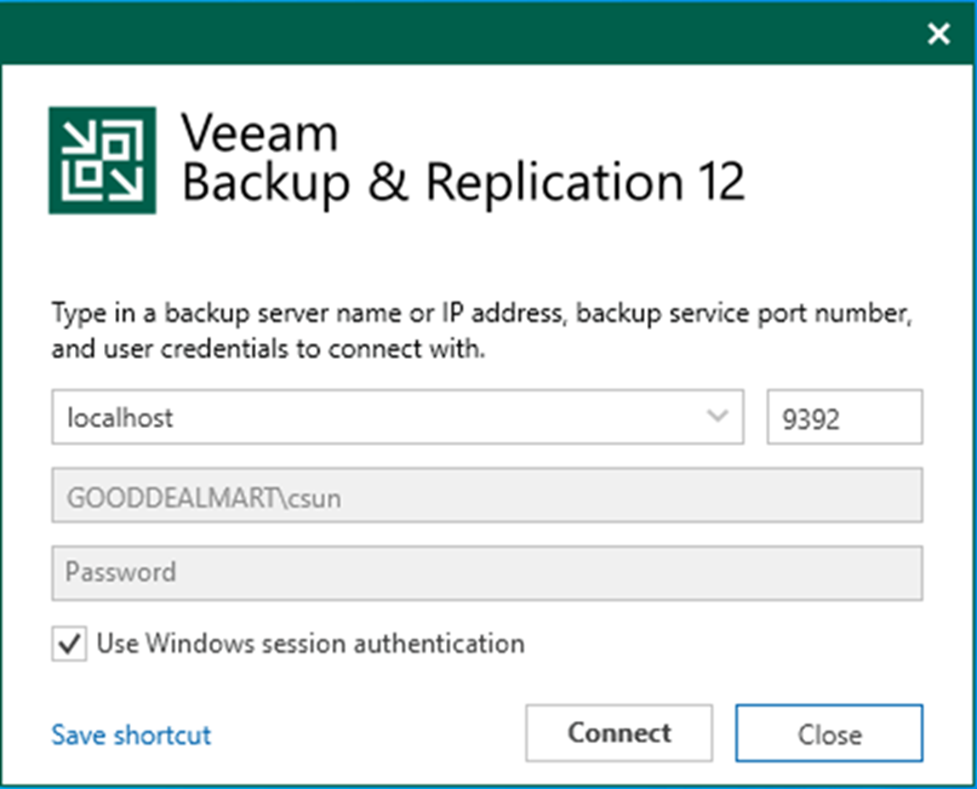

2. Open the Veeam Backup & Replication Console and click Connect.

091623 1807 Howtocreate1 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

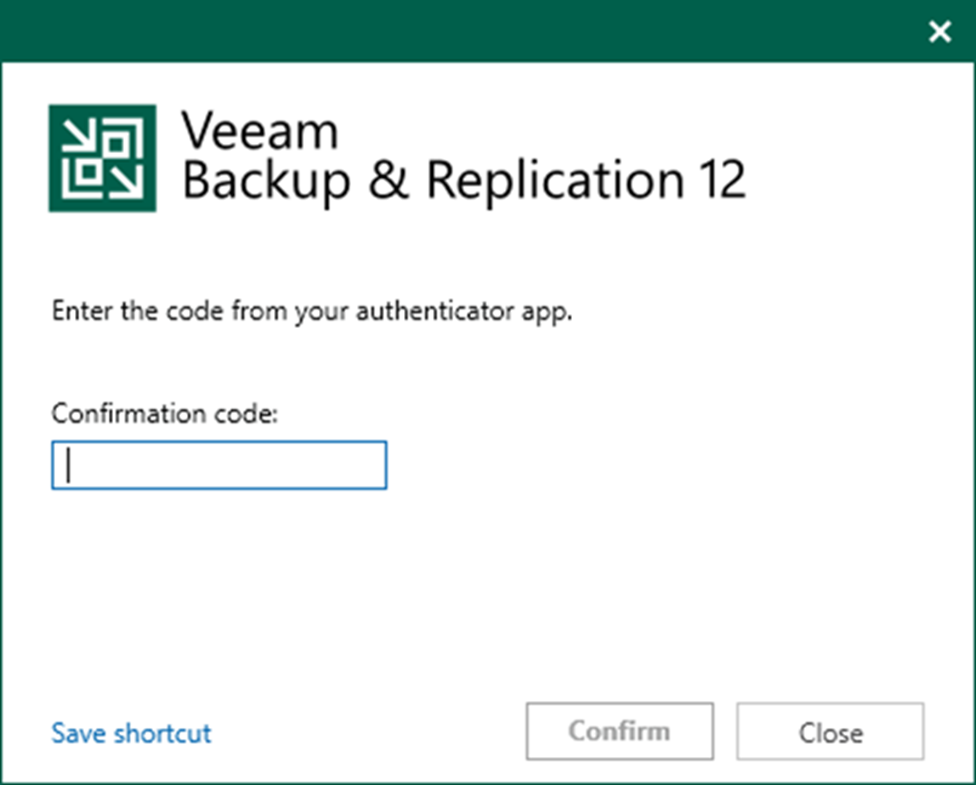

3. Enter the MFA Confirmation code and click Confirm.

091623 1807 Howtocreate2 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

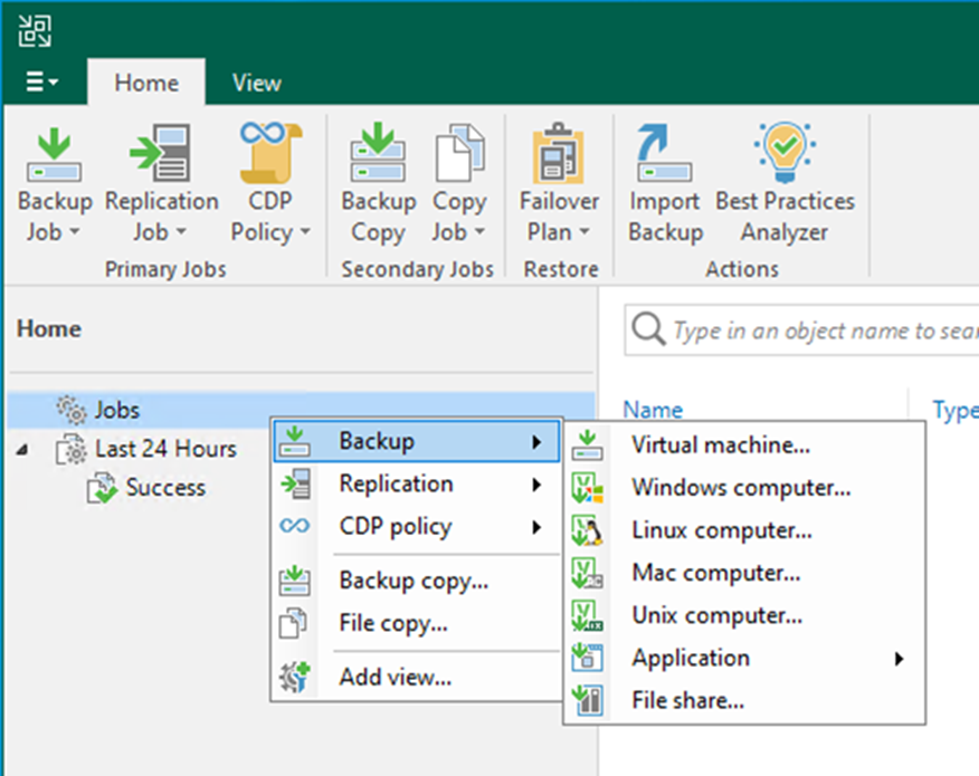

4. Select Jobs on the Home page and right-click Jobs.

5. Select Backup and click Virtual machine.

091623 1807 Howtocreate3 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

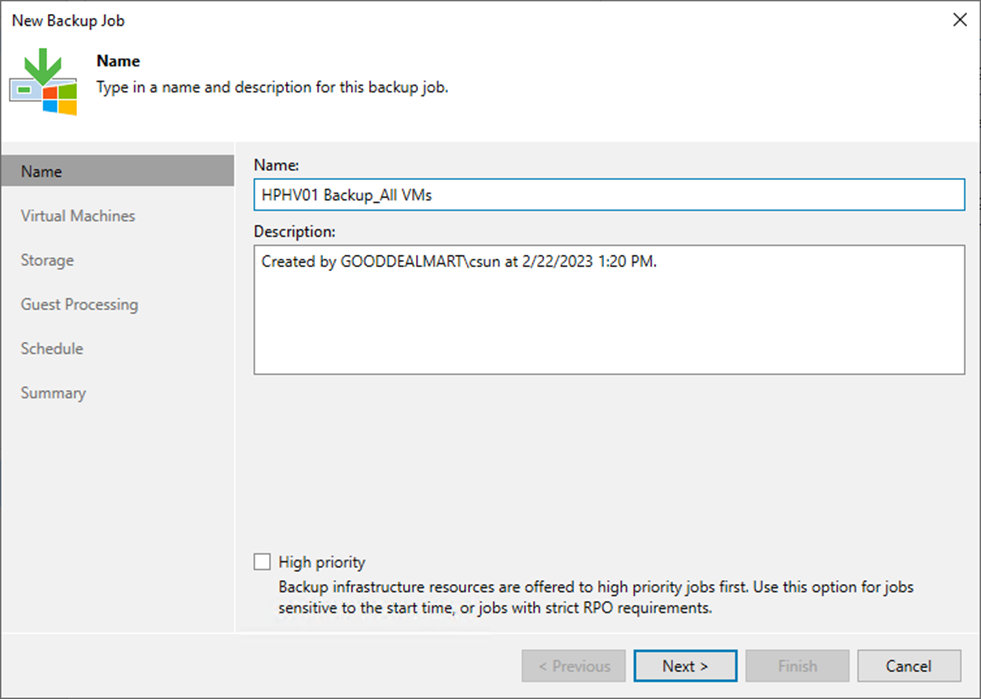

6. On the Name page, enter a name for the backup job in the Name field.

7. Give a brief description in the Description field for the future.

8. Select the High priority checkbox if you want this job to allocate resources in the first place.

9. Click Next.

091623 1807 Howtocreate4 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

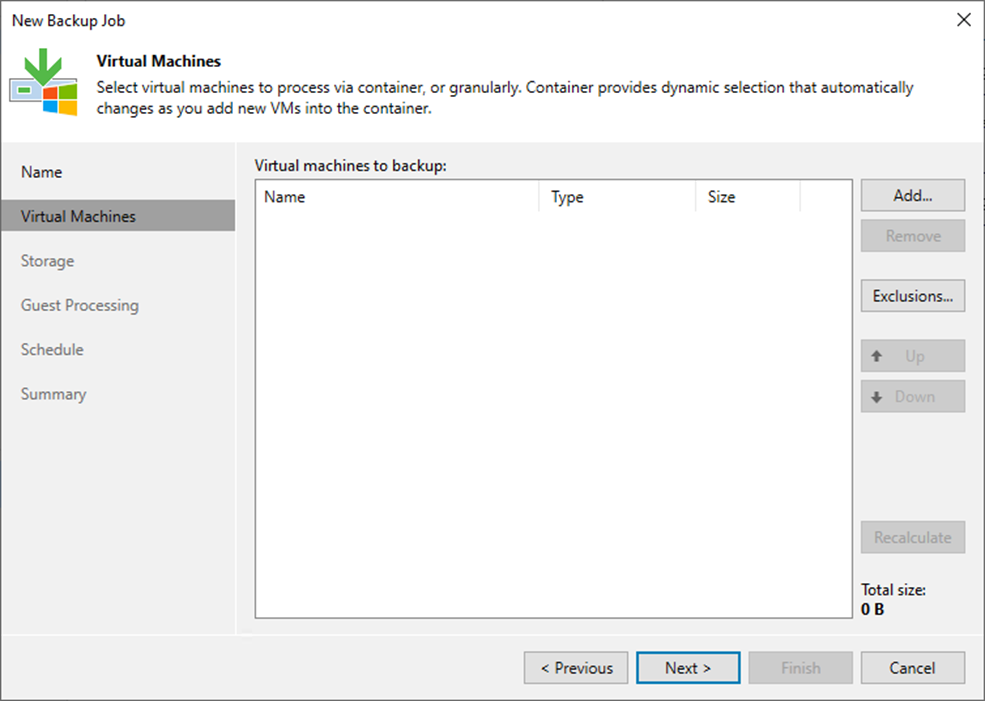

10. Click Add on the Virtual Machines page.

091623 1807 Howtocreate5 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

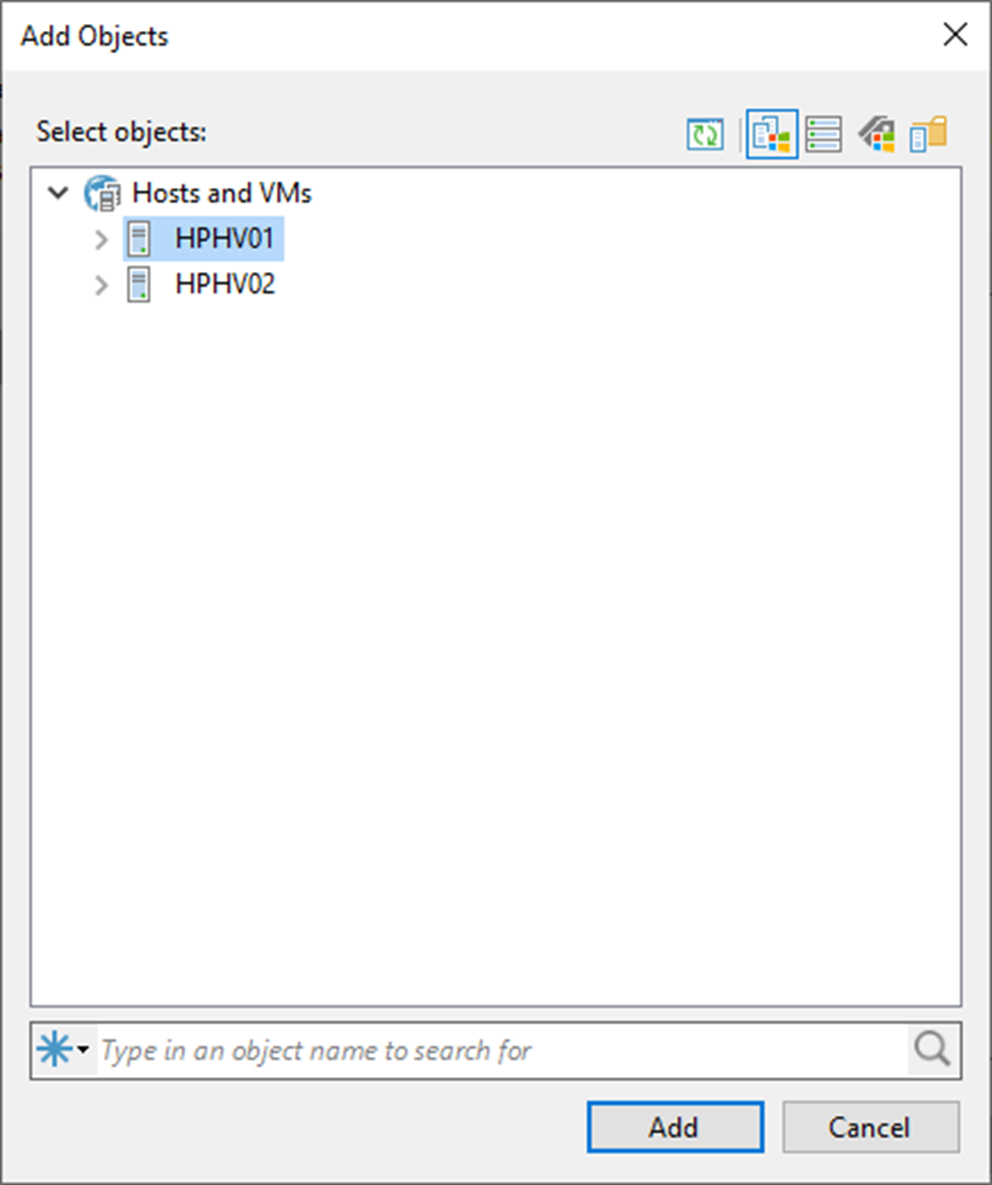

11. Select the Host from the Select objects list on the Add Objects page and click Add.

12. If you have multiple Hosts that need to back up in the same backup job, you can repeat the step to add them.

091623 1807 Howtocreate6 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

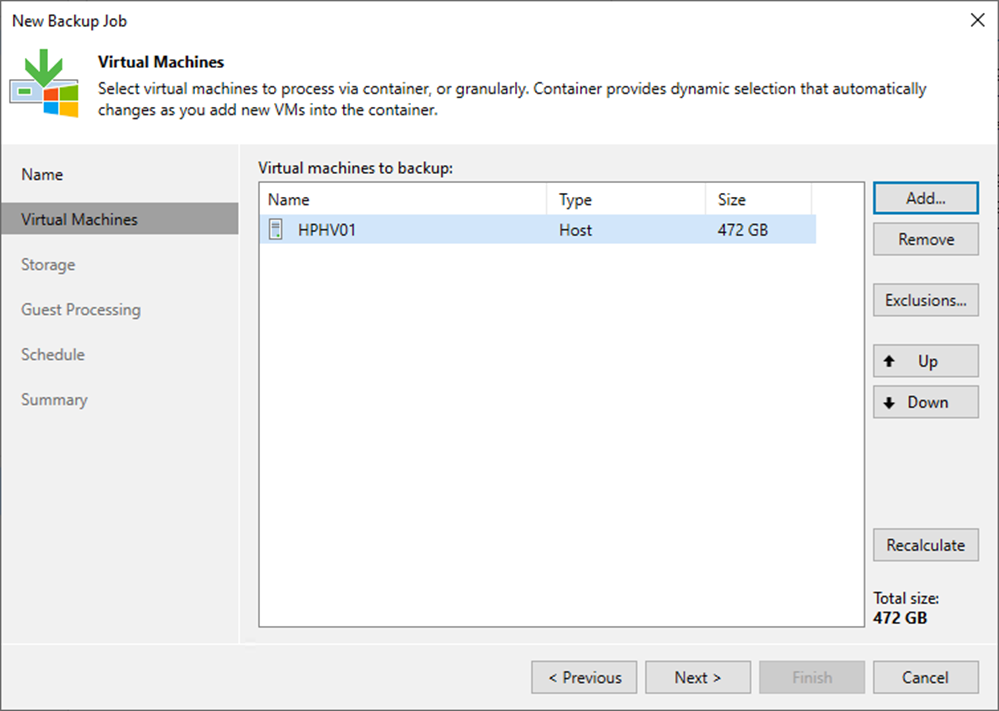

13. Click Next on the Virtual Machines page.

091623 1807 Howtocreate7 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

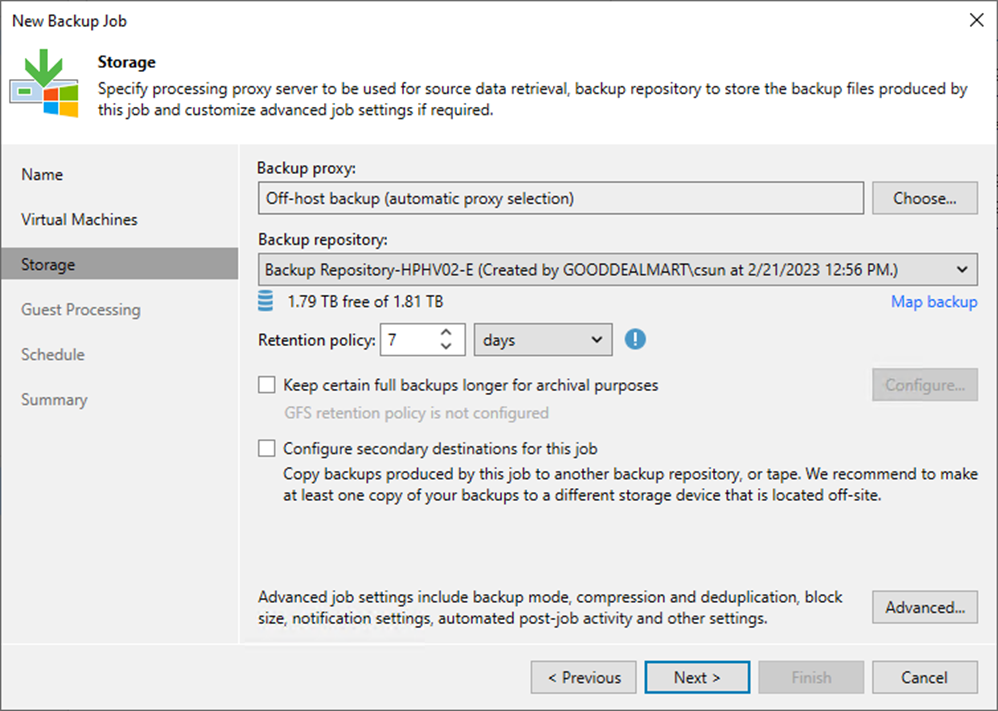

14. On the Storage page, click Choose to select a backup proxy if you don’t want to use the default Off-host backup (automatic proxy selection) setting.

091623 1807 Howtocreate8 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

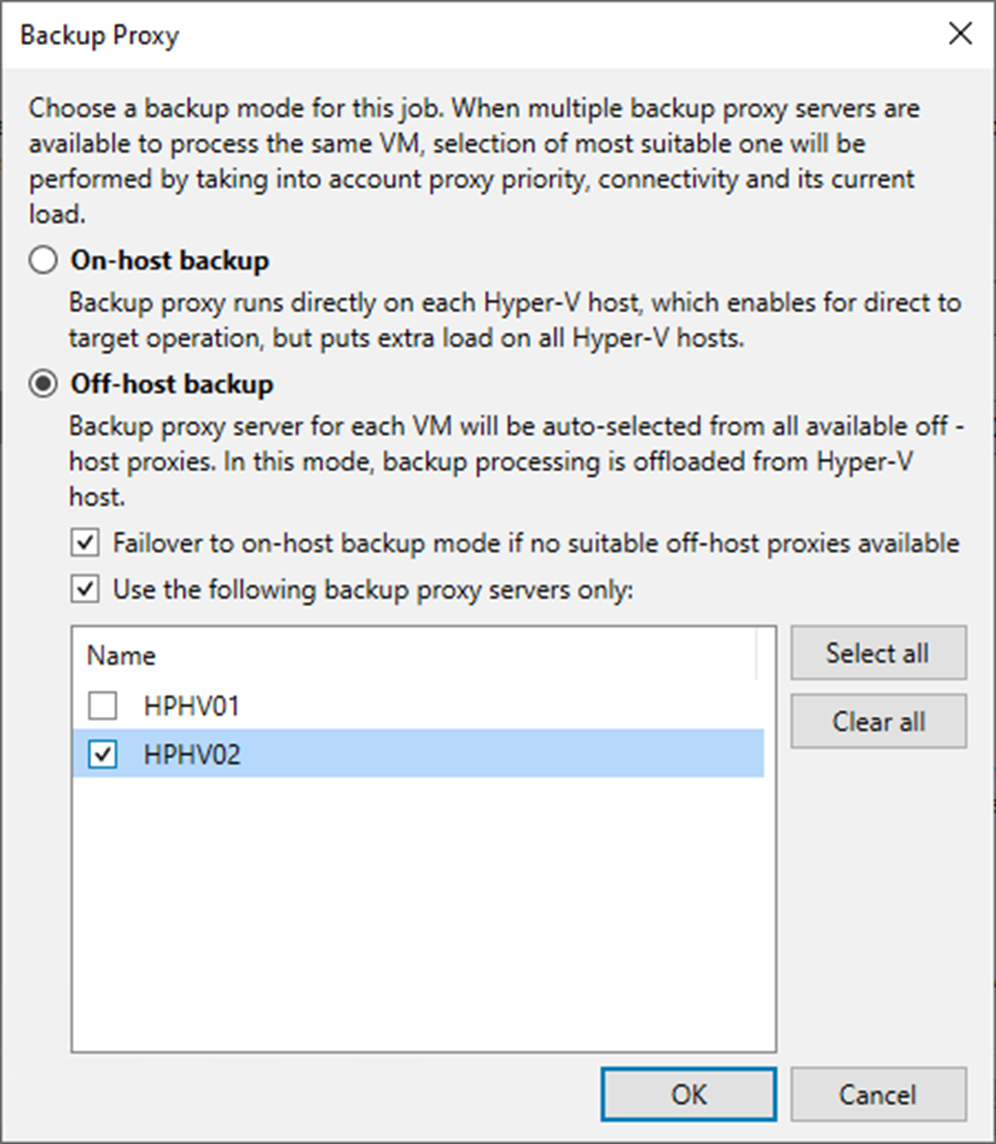

15. On the Backup Proxy page, if you select On-host backup mode, the source Microsoft Hyper-V host will serve as both the source host and the backup proxy. In this mode, Veeam Data Mover runs directly on the source host, which speeds up data retrieval but places additional strain on the host.

16. If you select Off-host backup mode, Veeam Data Mover will run on a dedicated off-host backup proxy. All backup processing operations from the source host are routed to the off-host backup proxy in this model.

17. If the off-host backup mode is selected for the job, but no off-host backup proxies are available when the job begins, Veeam Backup & Replication will transition to on-host backup mode.

18. You unselect the Failover to on-host backup mode if no suitable off-host proxies are available in the checkbox. Still, the job will fail to start if off-host backup proxies are unavailable or configured properly.

19. Click OK.

091623 1807 Howtocreate9 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

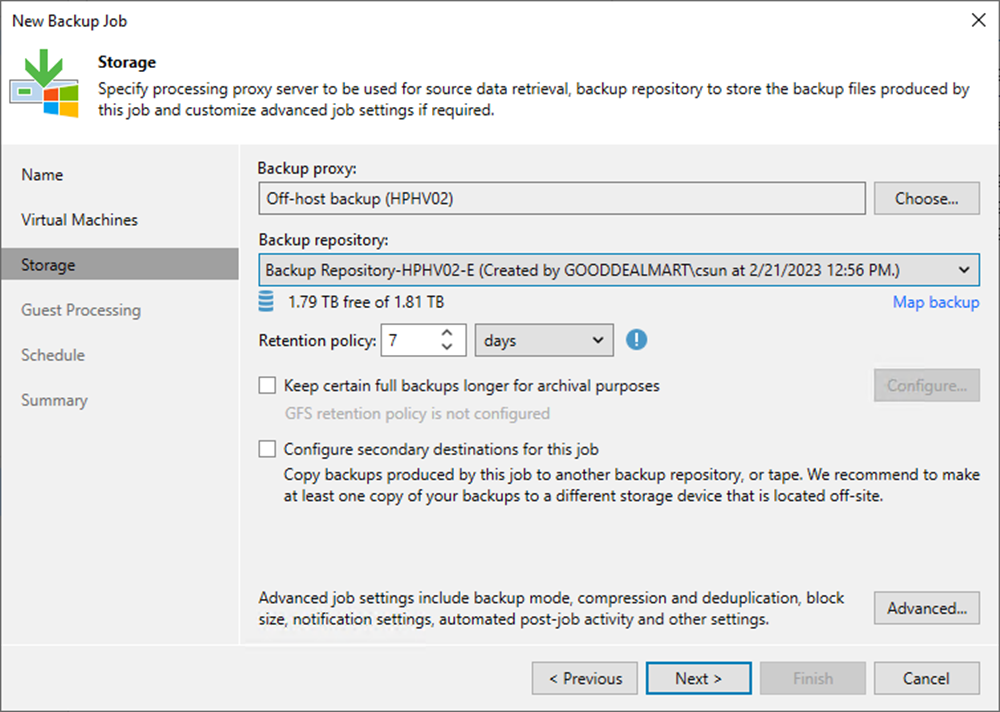

20. Select the backup repository from the Backup repository drop-down list where the created backup files must be saved.

091623 1807 Howtocreate10 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

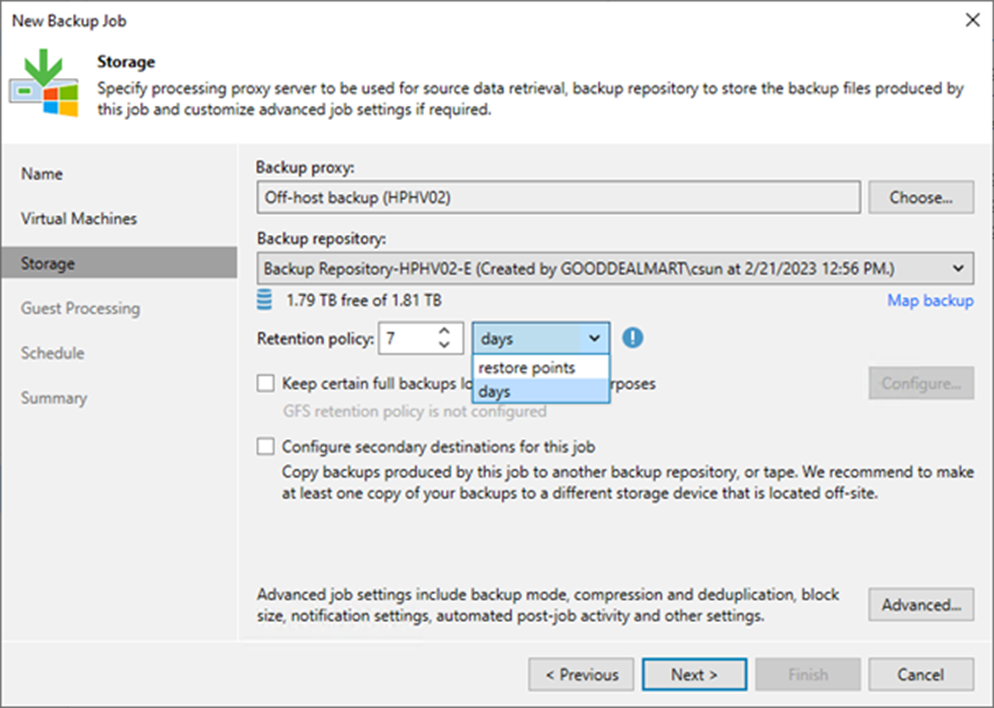

21. Set the retention policy settings for restore points in the Retention Policy field.

22. Select days or restore points from the drop-down list.

091623 1807 Howtocreate11 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

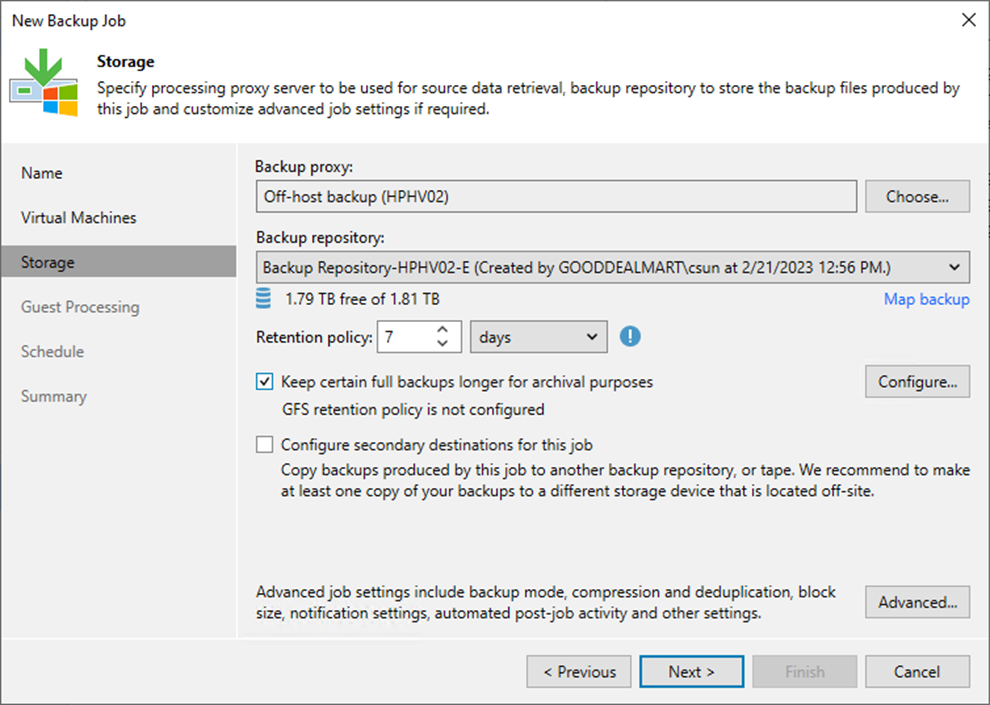

23. You can configure the backup job’s GFS retention policy settings to ignore the short-term retention policy for some full backups and store them for long-term archiving.

24. Select Keep certain full backups for longer for archival purposes and click Configure.

091623 1807 Howtocreate12 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

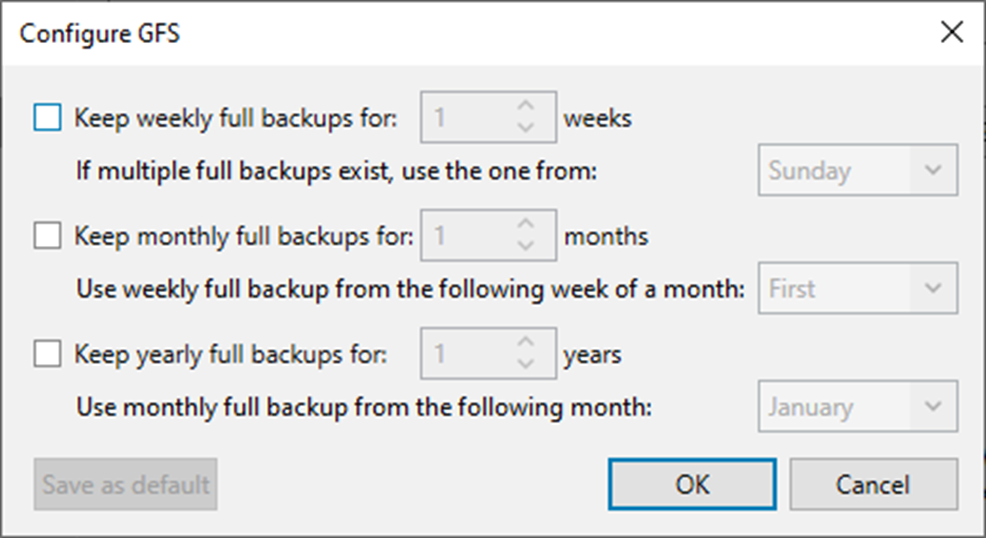

25. Select the Keep weekly full backups for checkbox and specify the number of weeks you want to prevent restore points from being modified and deleted.

26. Select the Keep monthly full backups for checkbox and specify the months you want to prevent restore points from being modified and deleted.

27. Select the Keep yearly full backups for checkbox and specify the years you want to prevent restore points from being modified and deleted.

28. Click OK.

091623 1807 Howtocreate13 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

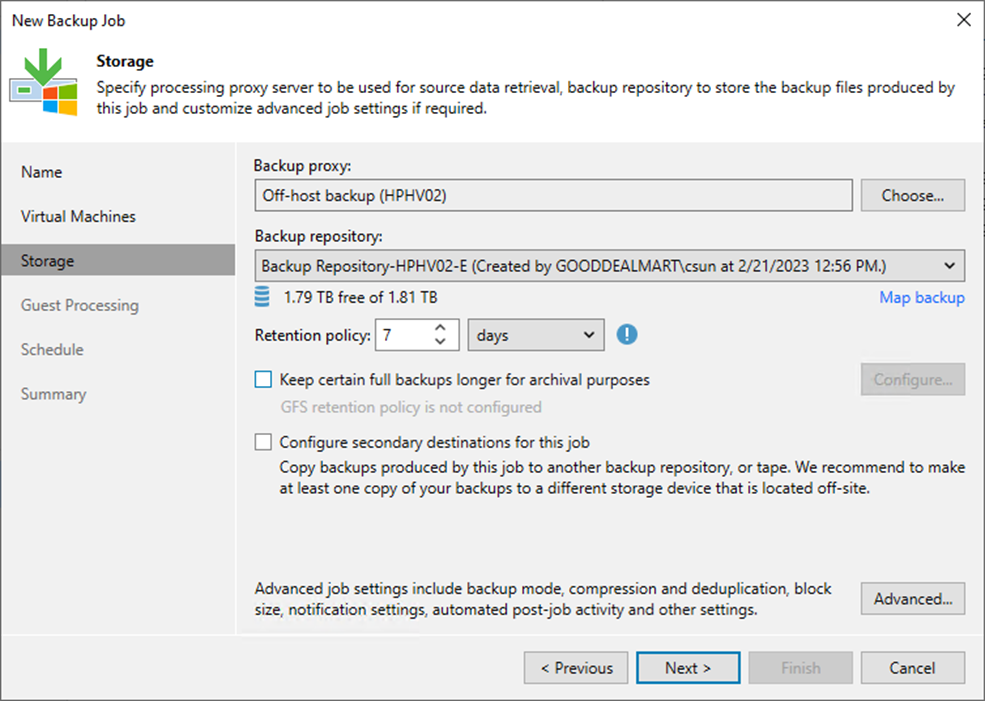

29. On the Storage page, click Advanced.

091623 1807 Howtocreate14 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

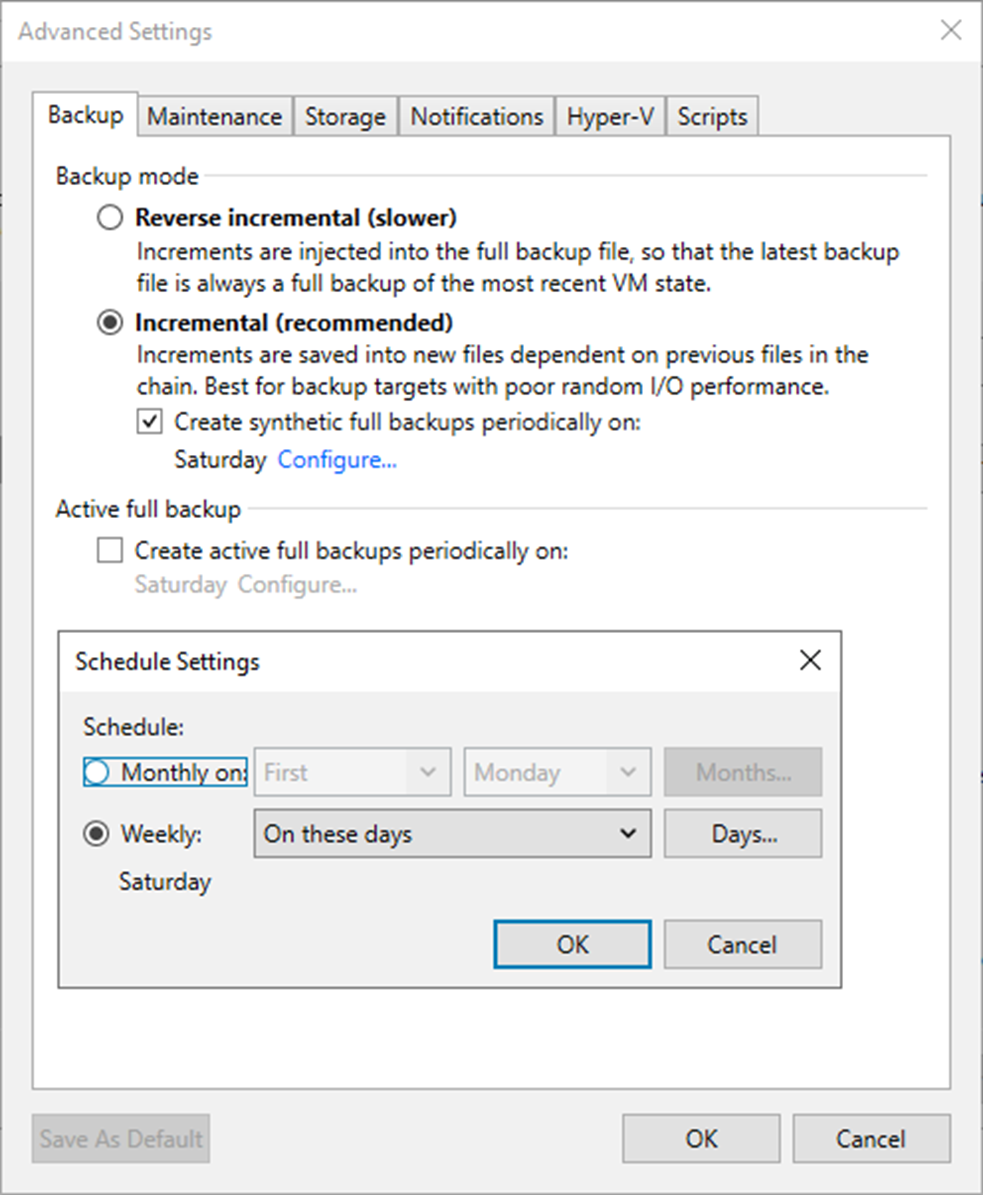

30. On the Backup page, select Incremental (recommended).

31. Select create synthetic full backups periodically or active full backups periodically checkbox.

32. Click Configure to schedule full backups periodically and click OK.

091623 1807 Howtocreate15 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

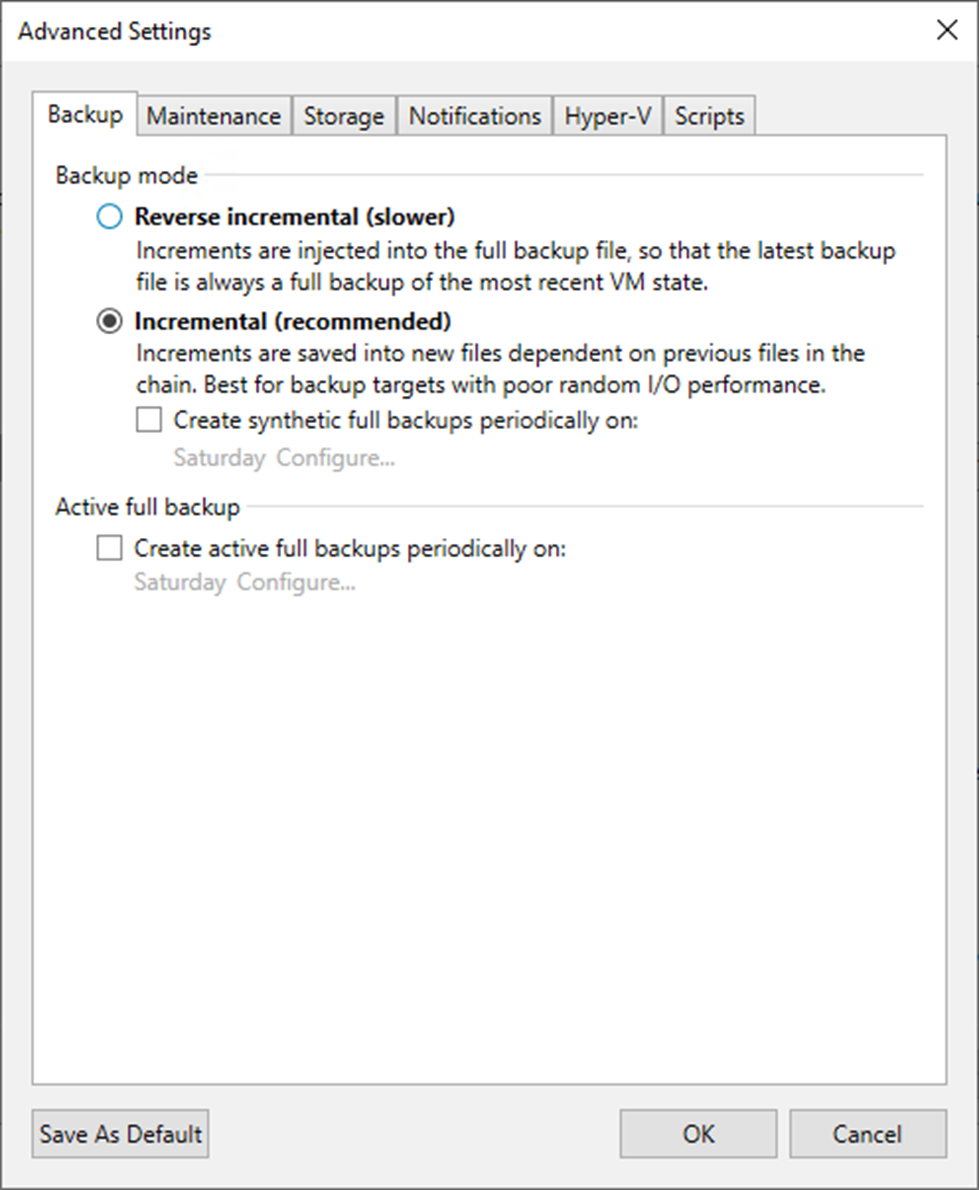

33. Select Incremental and disable synthetic full and active full backups to create a forever forward incremental backup chain.

091623 1807 Howtocreate16 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

34. On the Advanced Settings, Maintenance.

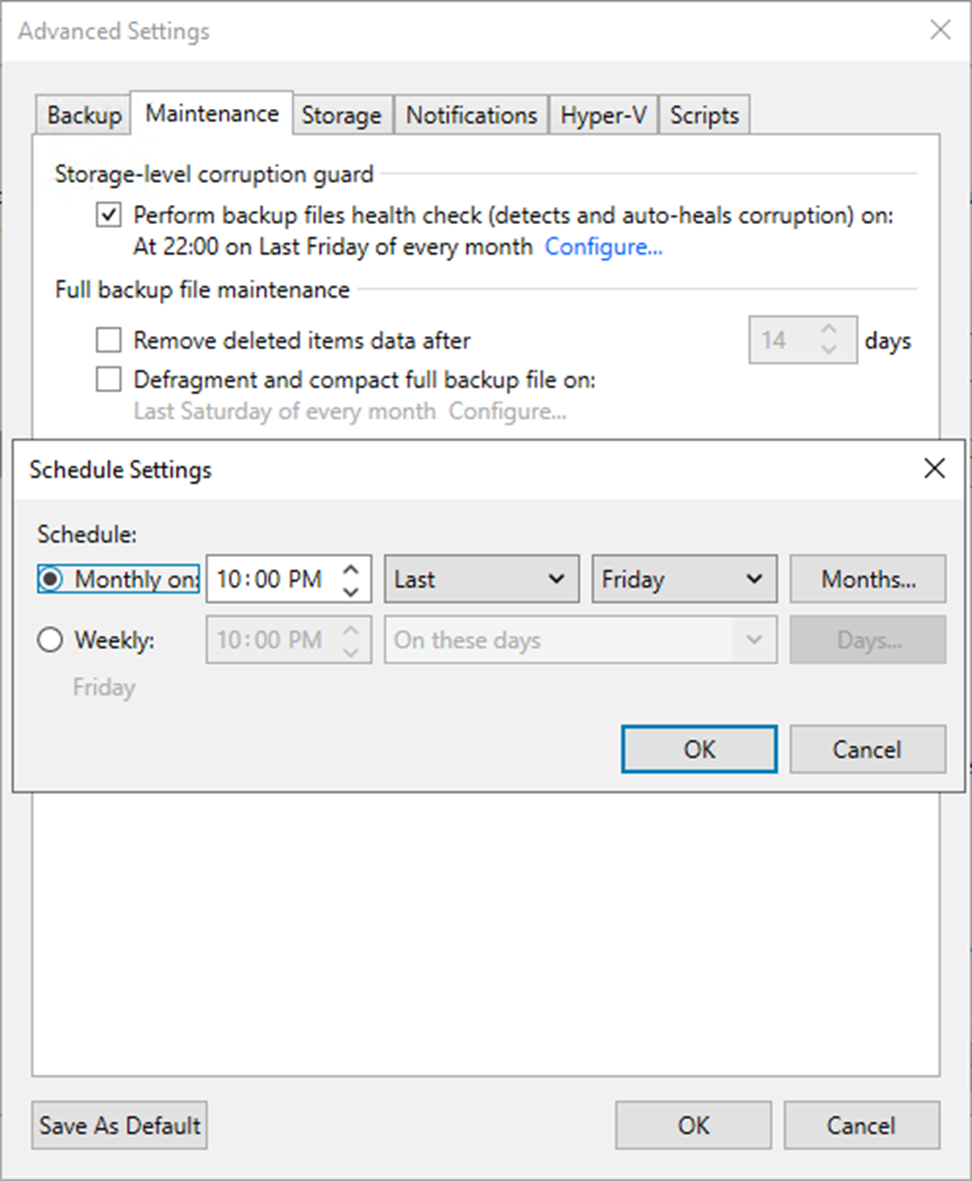

35. To regularly perform a health check on the backup chain’s most recent restore point, select the Perform backup files health check (detects and auto-heals corruption) checkbox in the Storage-level corruption guard section.

36. Click Configure to set a timetable for the health check.

091623 1807 Howtocreate17 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

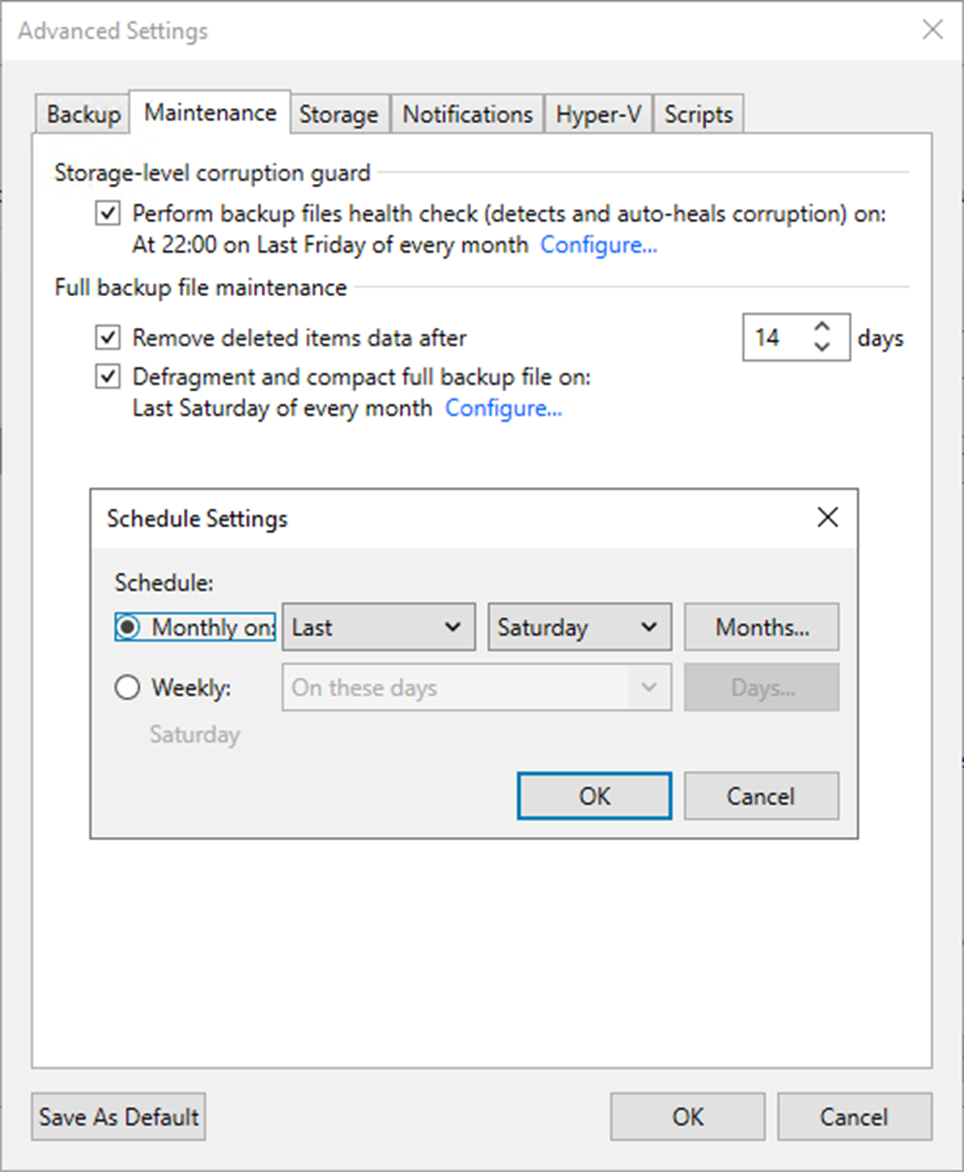

37. Select the Remove deleted items data after the checkbox and enter the few days you want backup data for deleted VMs to be kept.

38. Select the Defragment and compact full backup file checkbox and click Configure.

39. Set the schedule for the compact operation to compact a full backup periodically.

091623 1807 Howtocreate18 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

Note:

GFS retention is not compatible with defragment and compact functionality.

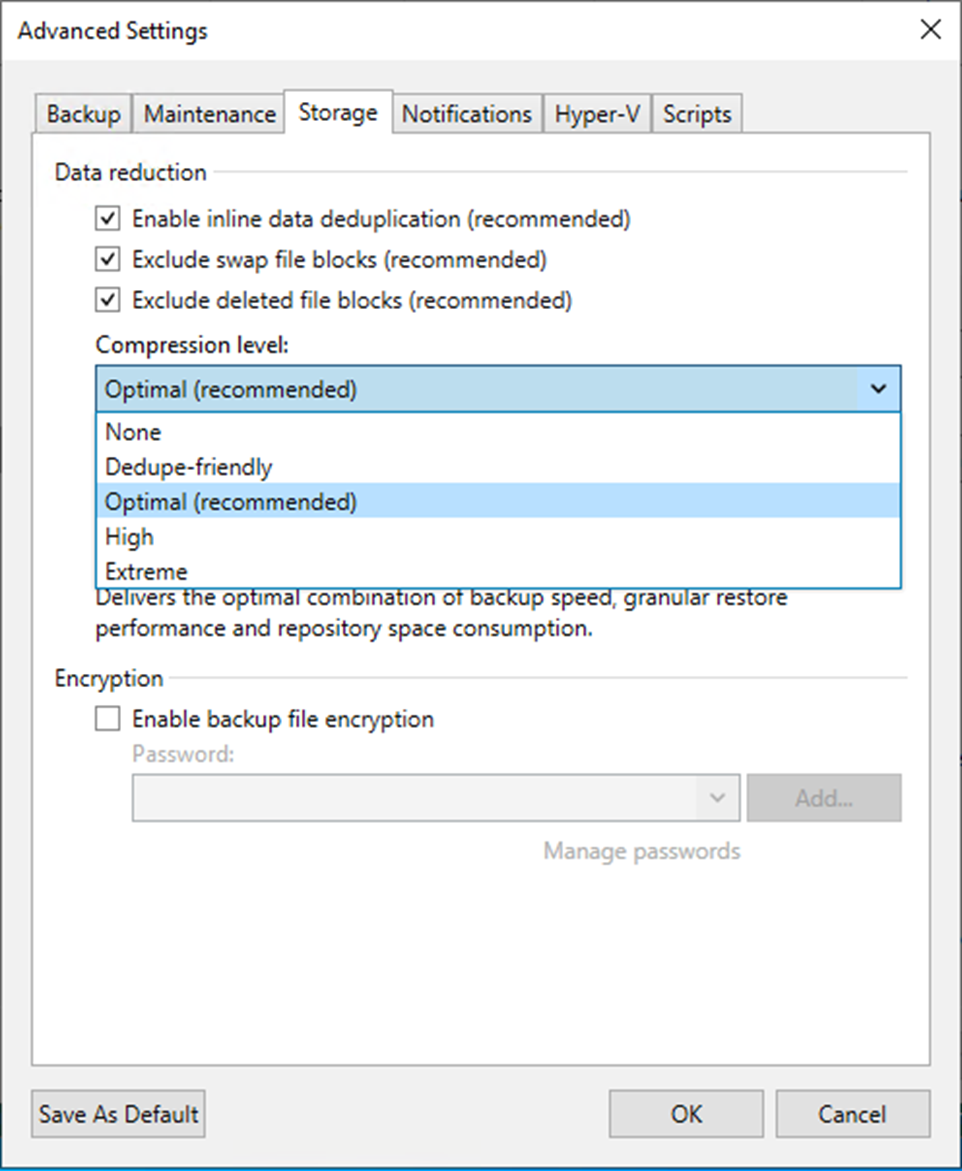

40. On Advanced Settings, select Storage.

41. Select the Enable inline data deduplication (recommended) checkbox.

42. Select the Exclude swap file blocks (recommended) checkbox.

43. Select the Exclude deleted file blocks (recommended) checkbox.

44. Select the compression level for the backup from the drop-down list.

091623 1807 Howtocreate19 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

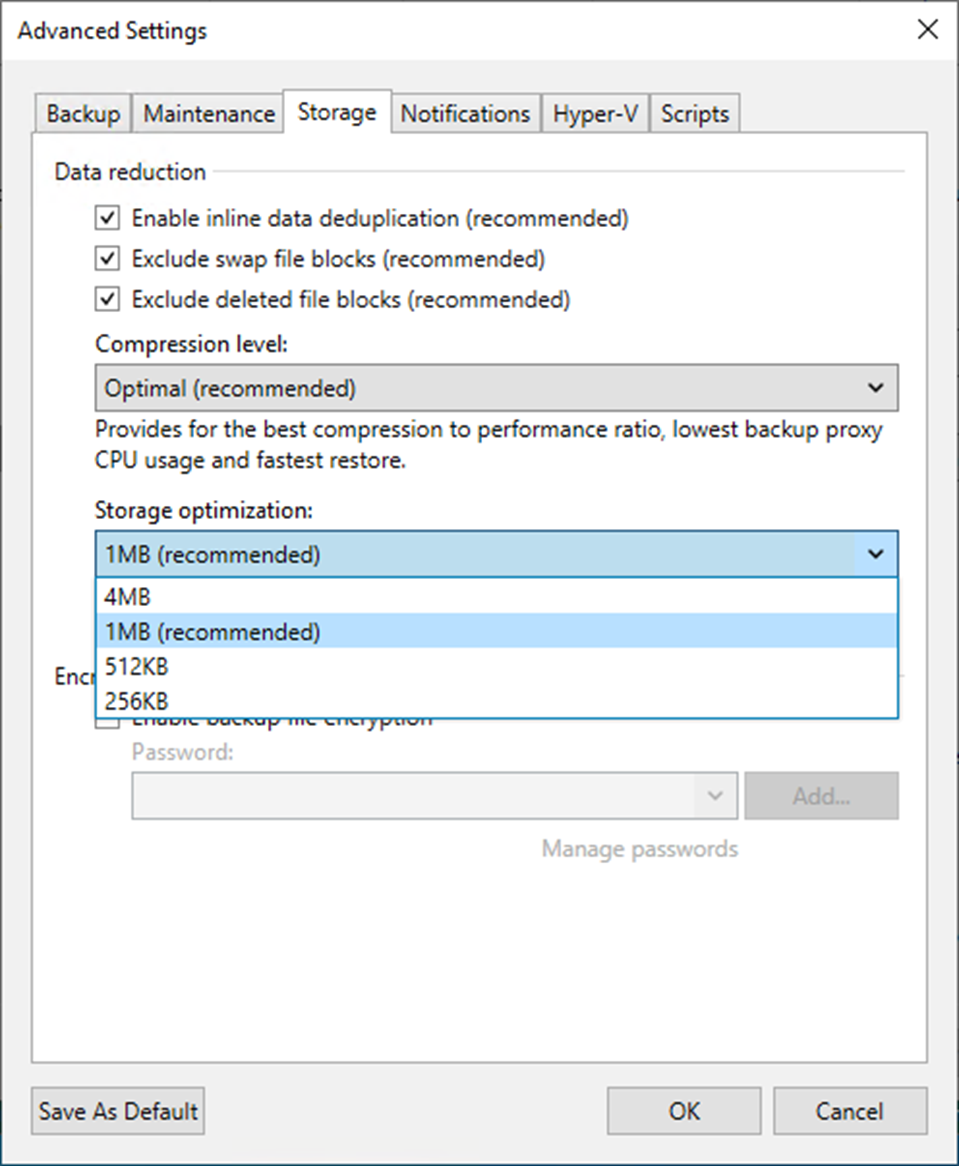

45. Select the Storage optimization for the backup from the drop-down list.

091623 1807 Howtocreate20 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

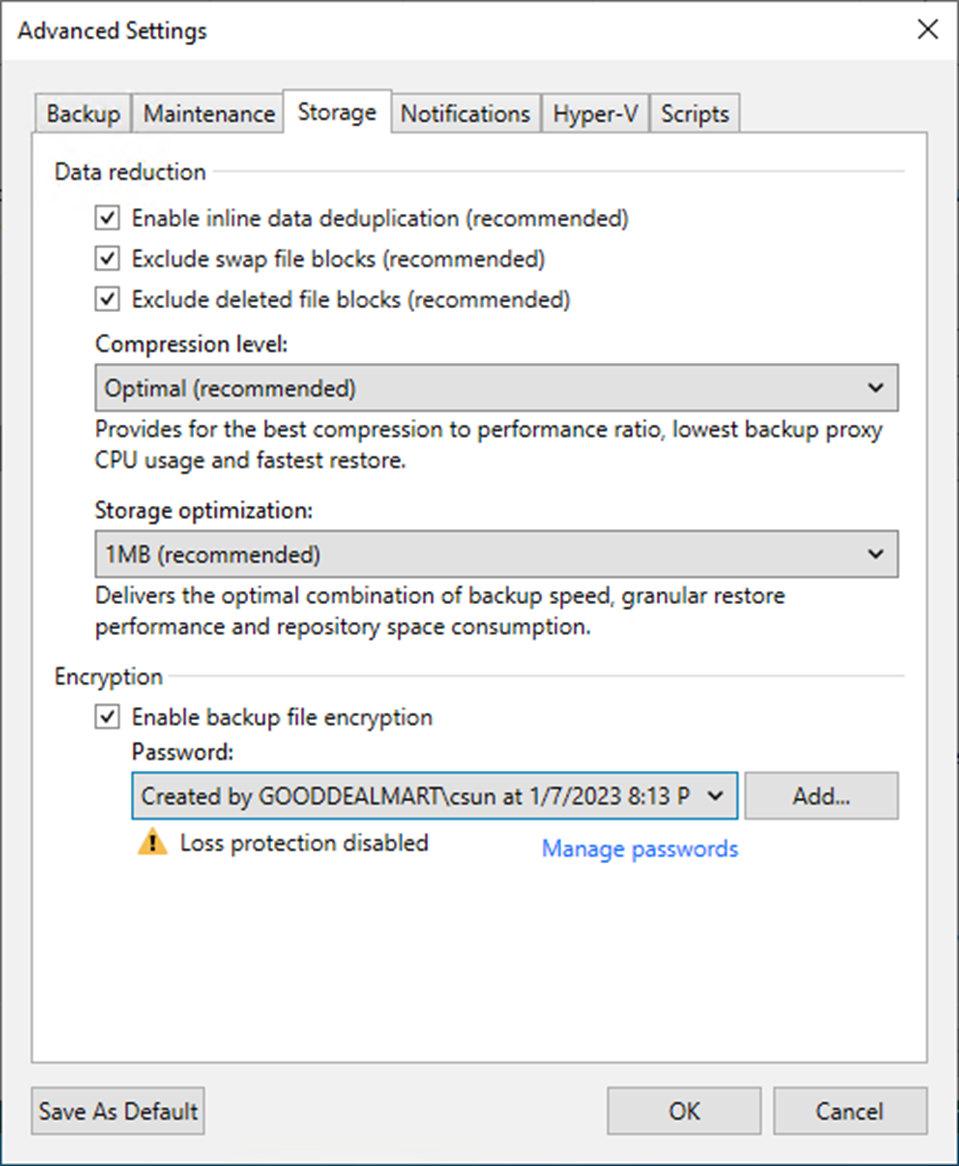

46. Select the Enable backup file encryption checkbox to encrypt the content of backup files.

47. Select a password from the drop-down list. If you still need to do, click Add or use the Manage passwords link to create a new password.

091623 1807 Howtocreate21 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

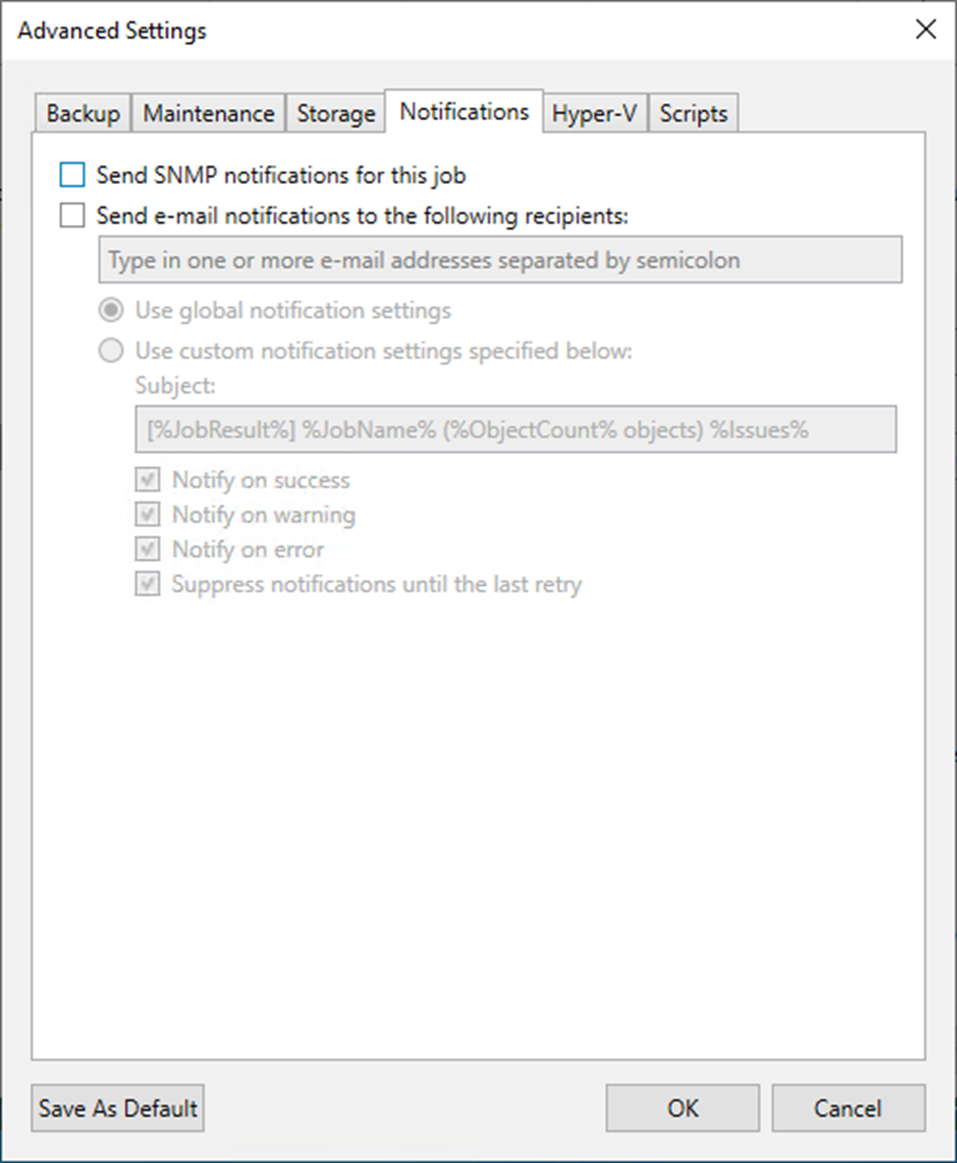

48. On the Advanced Settings, select Notifications.

49. Keep the default settings.

091623 1807 Howtocreate22 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

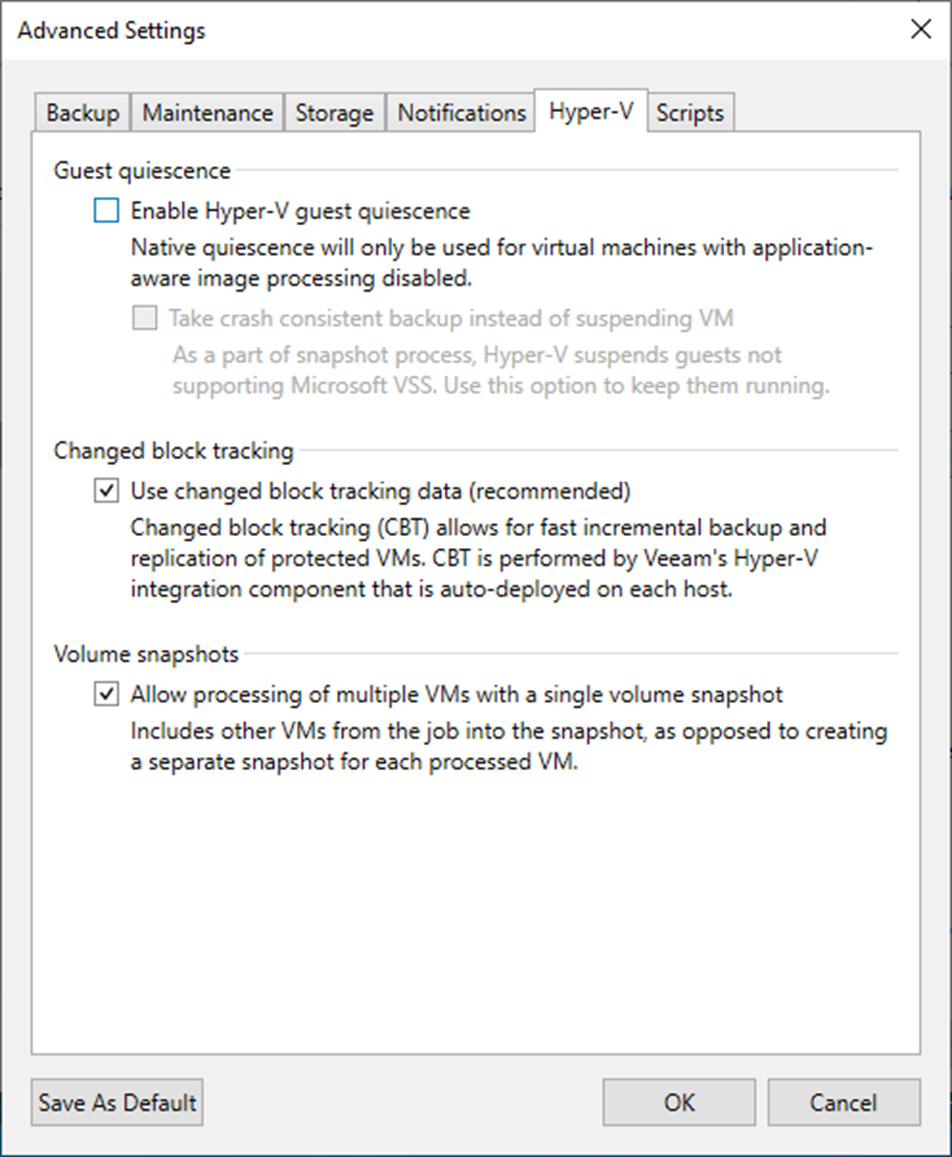

50. On the Advanced Settings, select Hyper-V.

51. Keep the default settings.

091623 1807 Howtocreate23 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

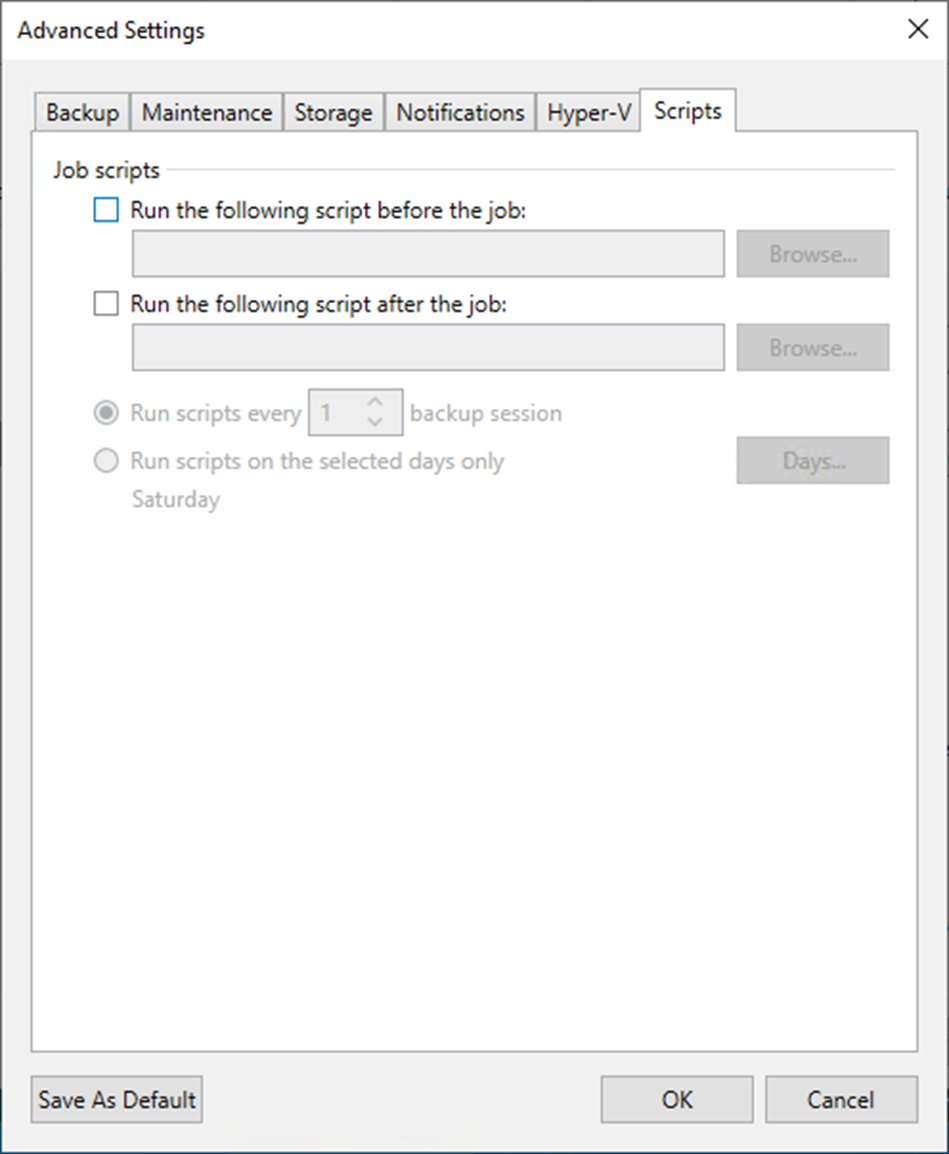

52. On the Advanced Settings page, click Scripts and keep the default settings.

53. Click OK.

091623 1807 Howtocreate24 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

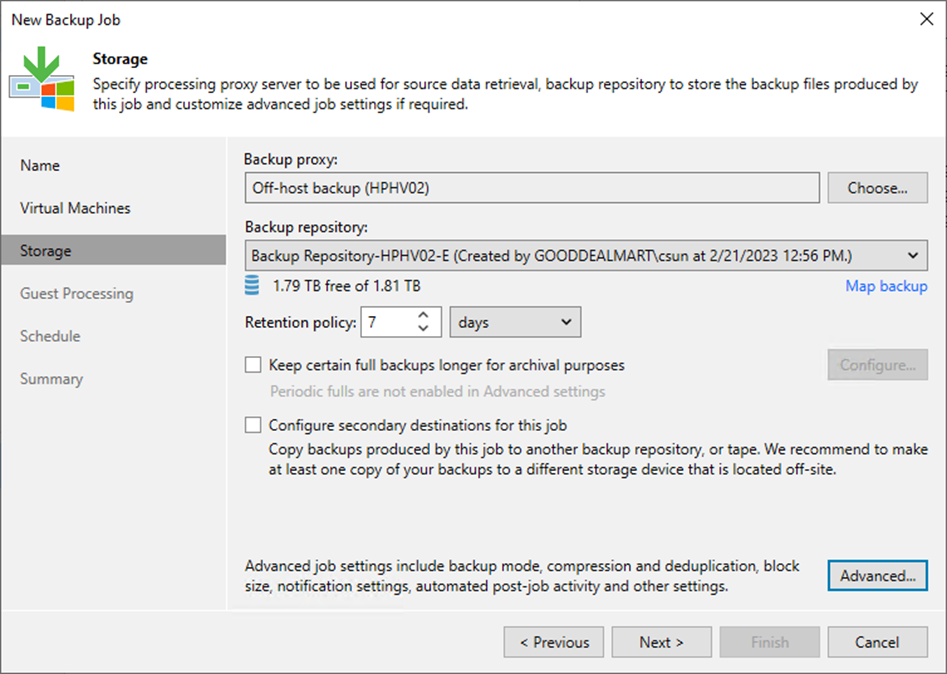

54. Click Next on the Storage page.

091623 1807 Howtocreate25 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

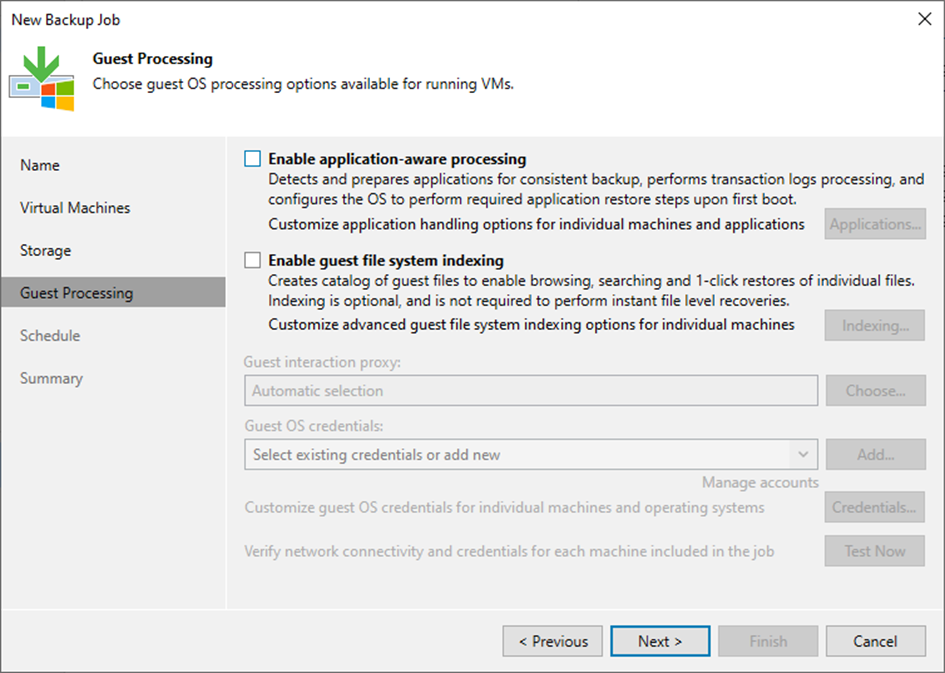

55. Click Next on the Guess Processing page.

091623 1807 Howtocreate26 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

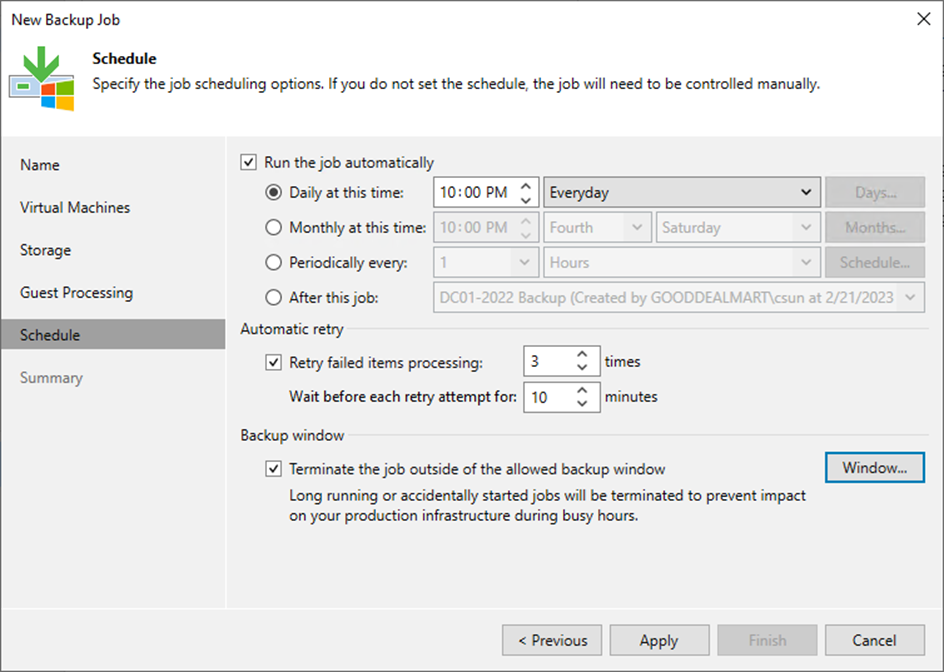

56. Select Run the job automatically checkbox on the Schedule page and select your specified schedule.

57. Define whether Veeam Backup & Replication should retry the backup job if it fails in the Automatic retry section.

58. Define the time interval the backup job must complete in the Backup window section. The backup window ensures that the job does not overlap with production hours and that there is no unnecessary overhead on the production environment.

59. Click Apply.

091623 1807 Howtocreate27 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

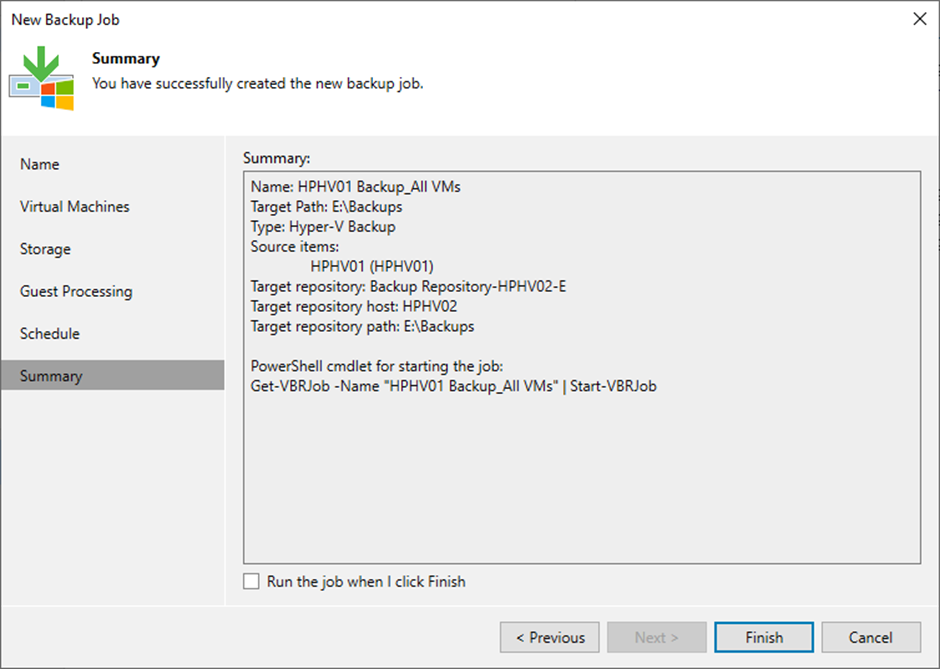

60. Click Finish on the Summary page.

091623 1807 Howtocreate28 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12

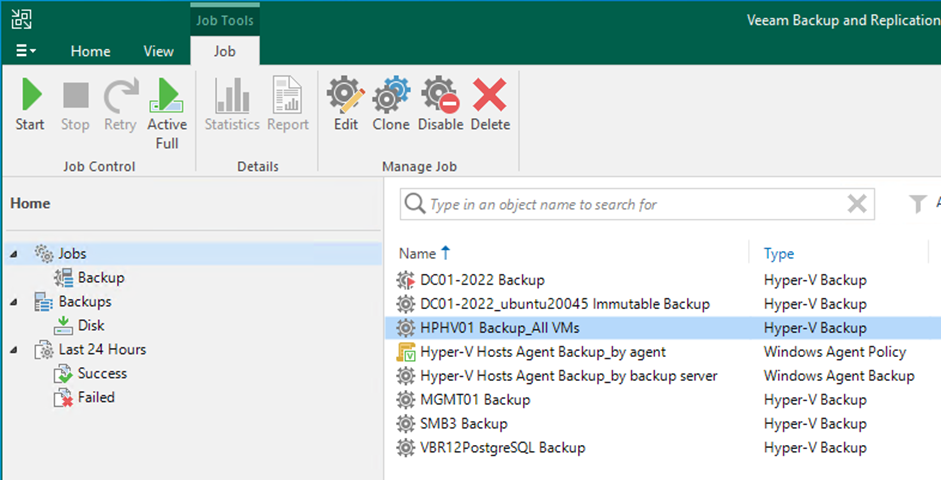

61. Verify that the backup job has been added.

091623 1807 Howtocreate29 - How to create a Backup job to backup all VMS of the Hyper-V Host at Veeam Backup and Replication v12
