May 28, 2024
090523 1817 Howtocreate4 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12
This procedure uses the managed backup server mode to create a backup job to back up the specific physical production machines.

This procedure uses the managed backup server mode to create a backup job to back up the specific physical production machines.

1. Login to the Veeam Backup and replication manager server.

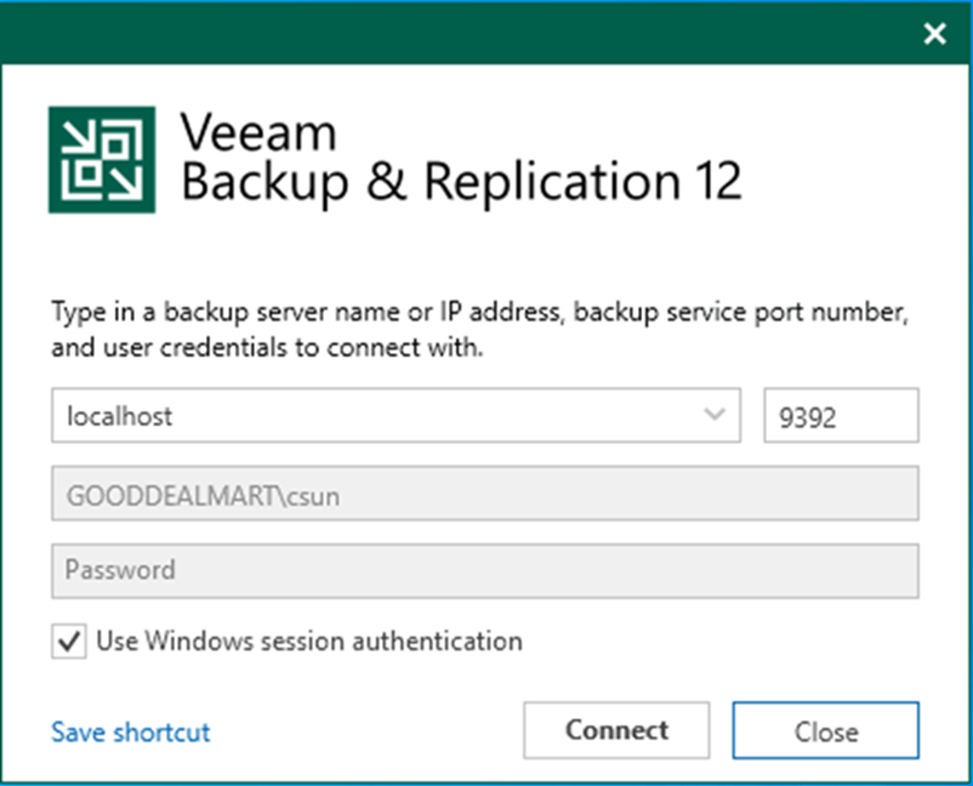

2. Open the Veeam Backup & Replication Console and click Connect.

090523 1817 Howtocreate1 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

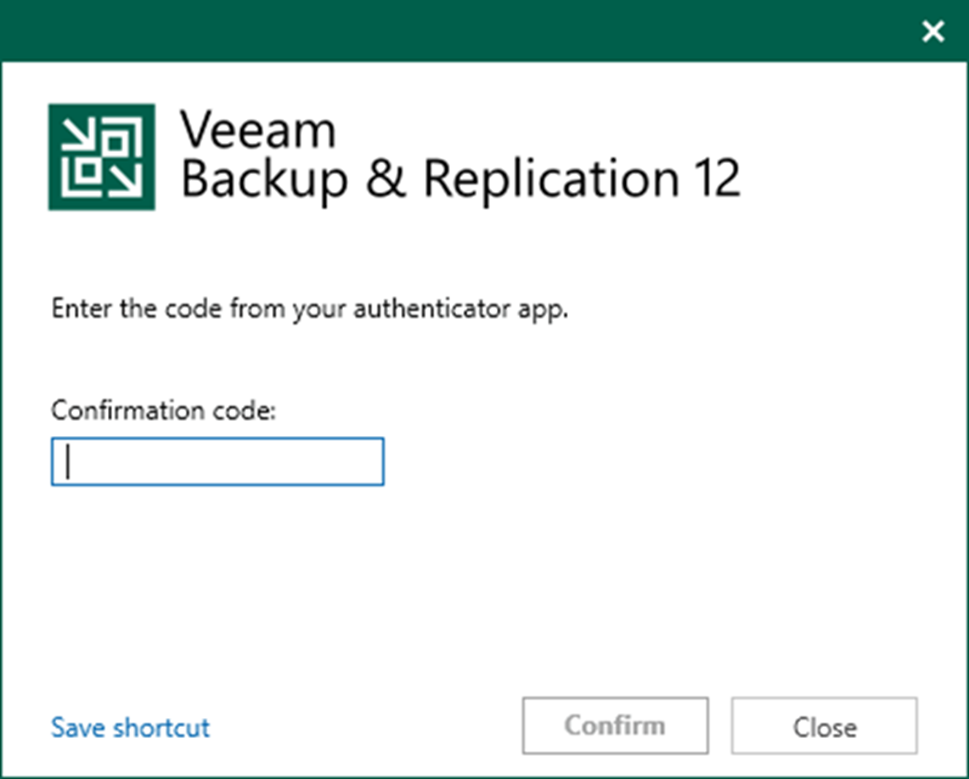

3. Enter the MFA Confirmation code and click Confirm.

090523 1817 Howtocreate2 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

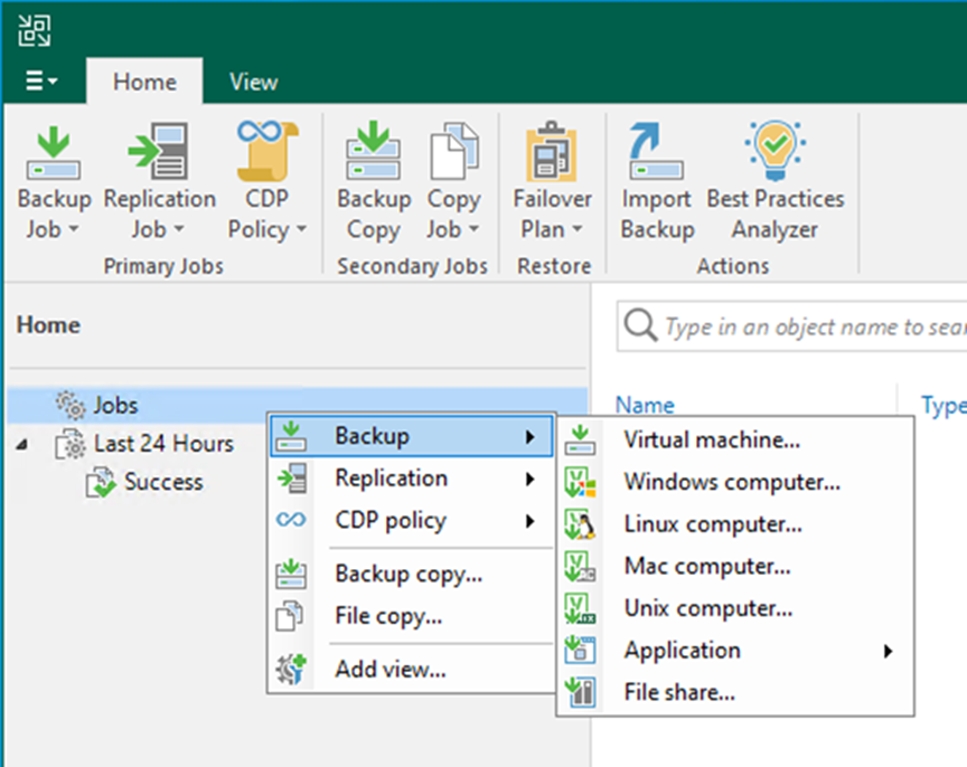

4. Select Jobs on the Home page and right-click Jobs.

5. Select Backup and click Windows computer.

090523 1817 Howtocreate3 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

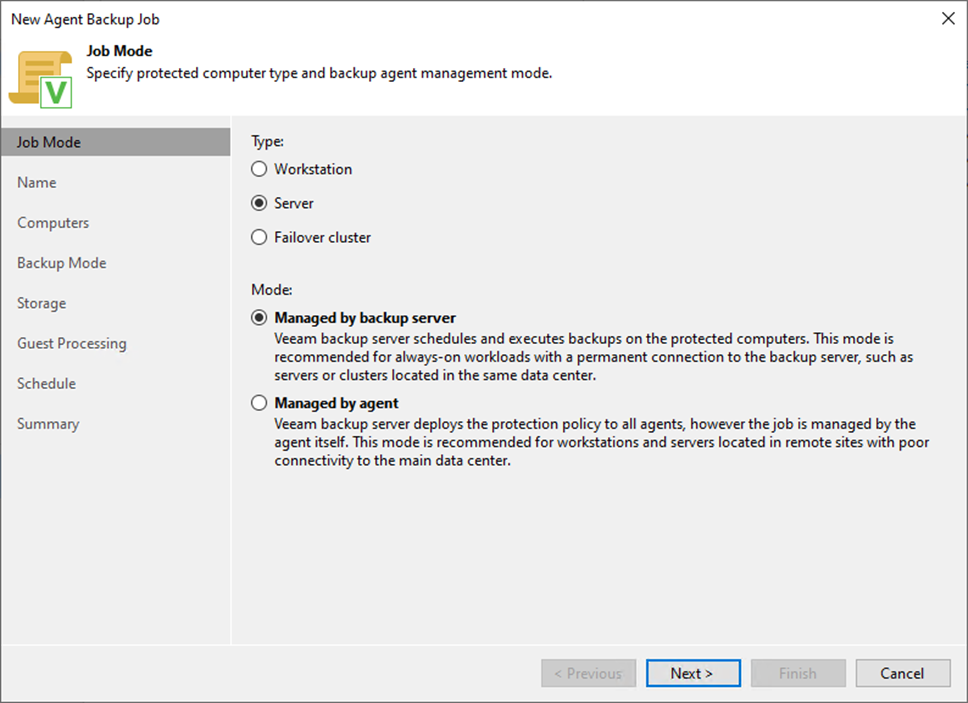

6. Select Managed by backup server mode on the Job Mode page and click Next.

090523 1817 Howtocreate4 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

7. On the Name page, enter a name for the backup job in the Name field.

8. Give a brief description in the Description field for the future.

9. Click Next.

090523 1817 Howtocreate5 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

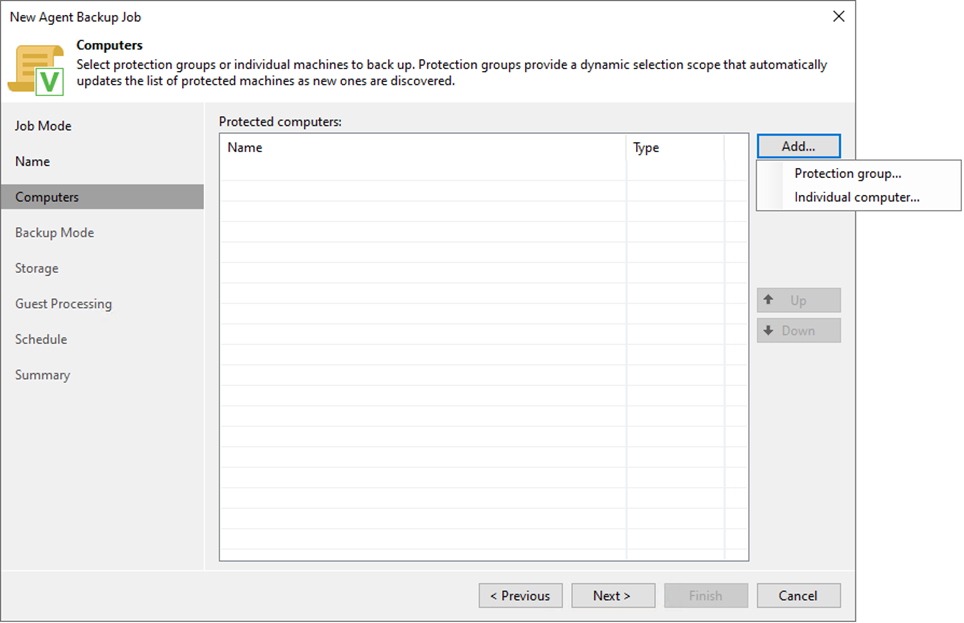

10. On the Computers page, click Add and select Protection group.

090523 1817 Howtocreate6 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

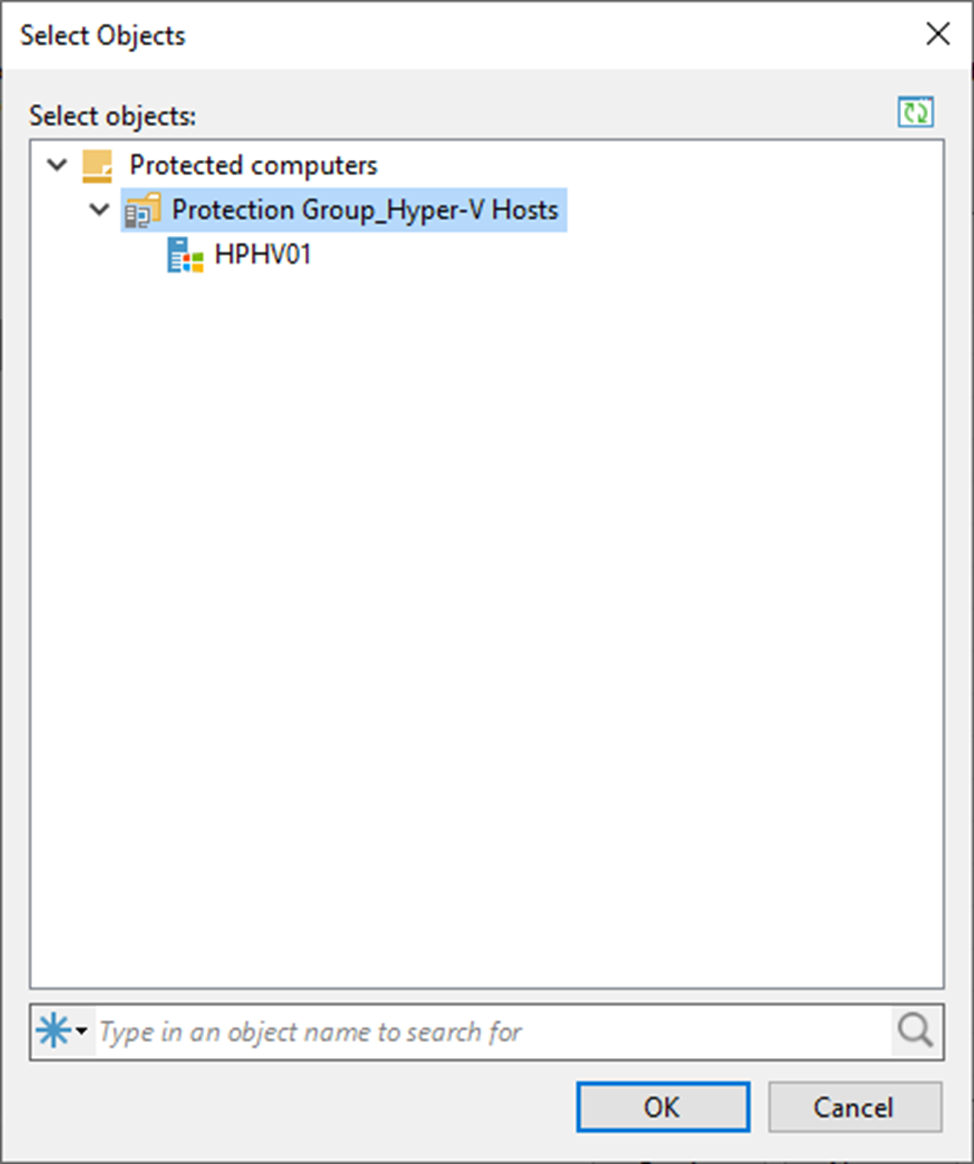

11. Select the protection group on the Select Objects page and click OK.

12. You can select multiple protection groups for the same backup job and repeat the step to add them.

090523 1817 Howtocreate7 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

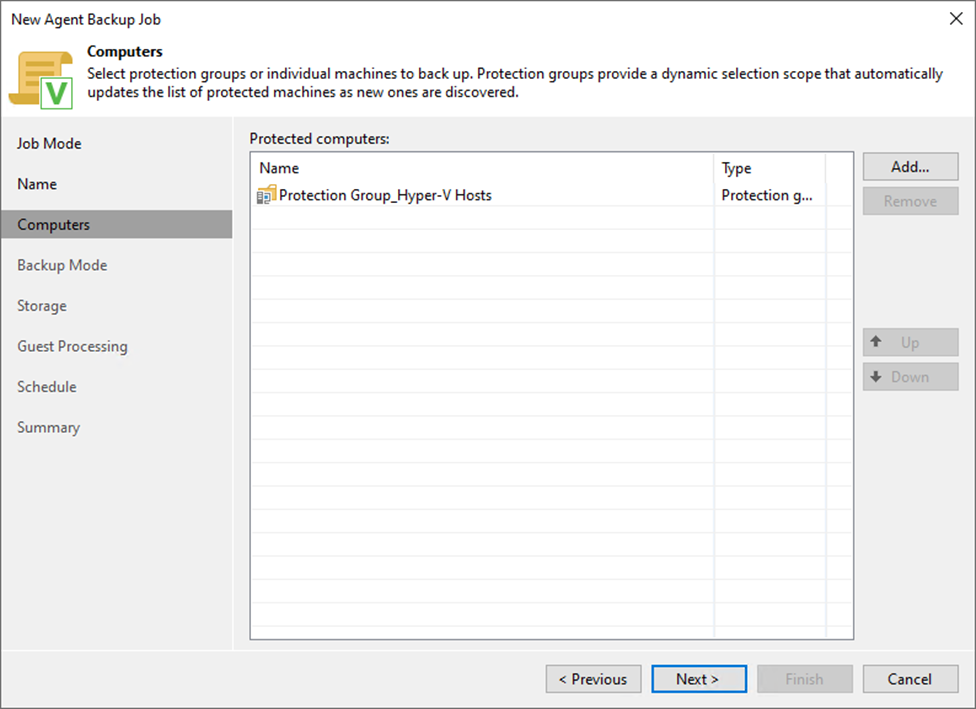

13. Click Next on the Computers page.

090523 1817 Howtocreate8 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

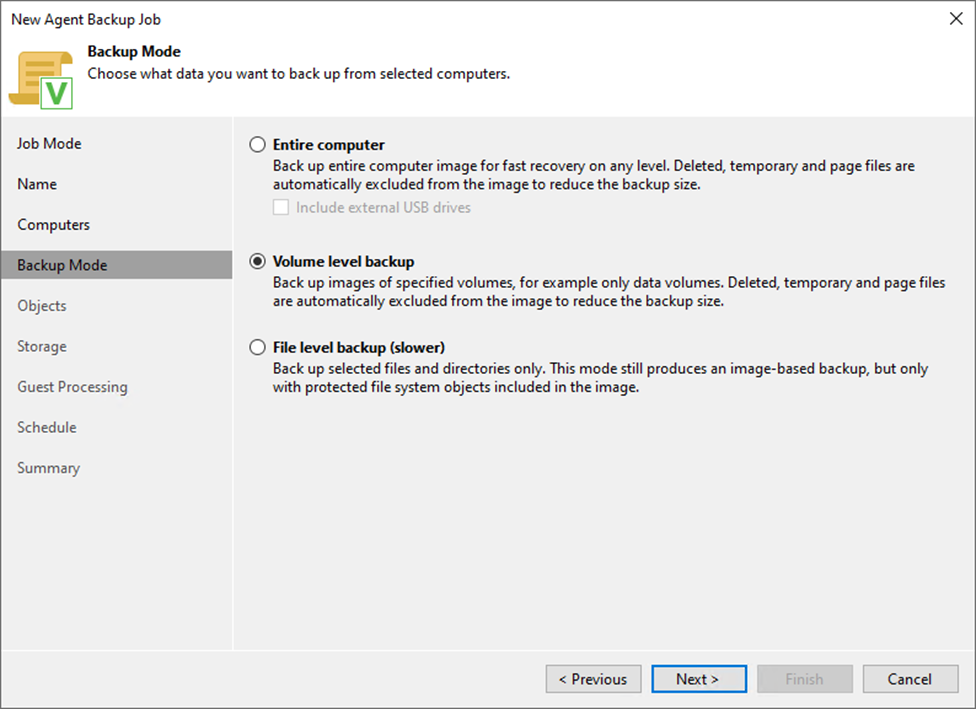

14. Select Volume level backup mode on the Backup Mode page to back up the specified computer volumes and click Next.

090523 1817 Howtocreate9 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

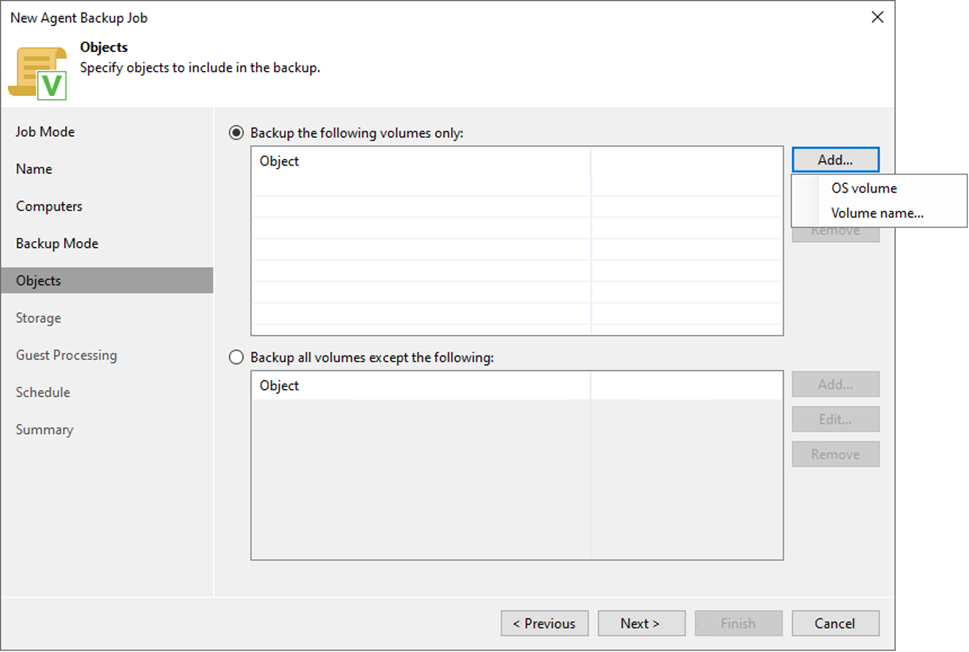

15. On the Objects page, select Backup the following volumes only.

16. Click Add and select OS volume.

17. Click Next.

090523 1817 Howtocreate10 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

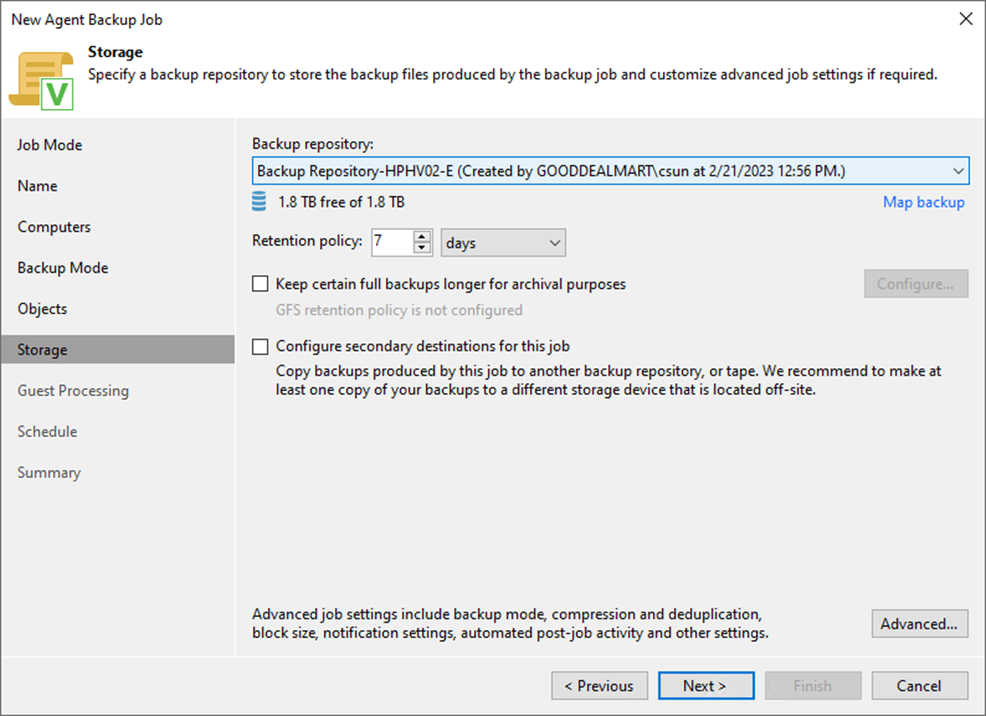

18. Select the backup repository from the Backup repository drop-down list on the Storage page.

090523 1817 Howtocreate11 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

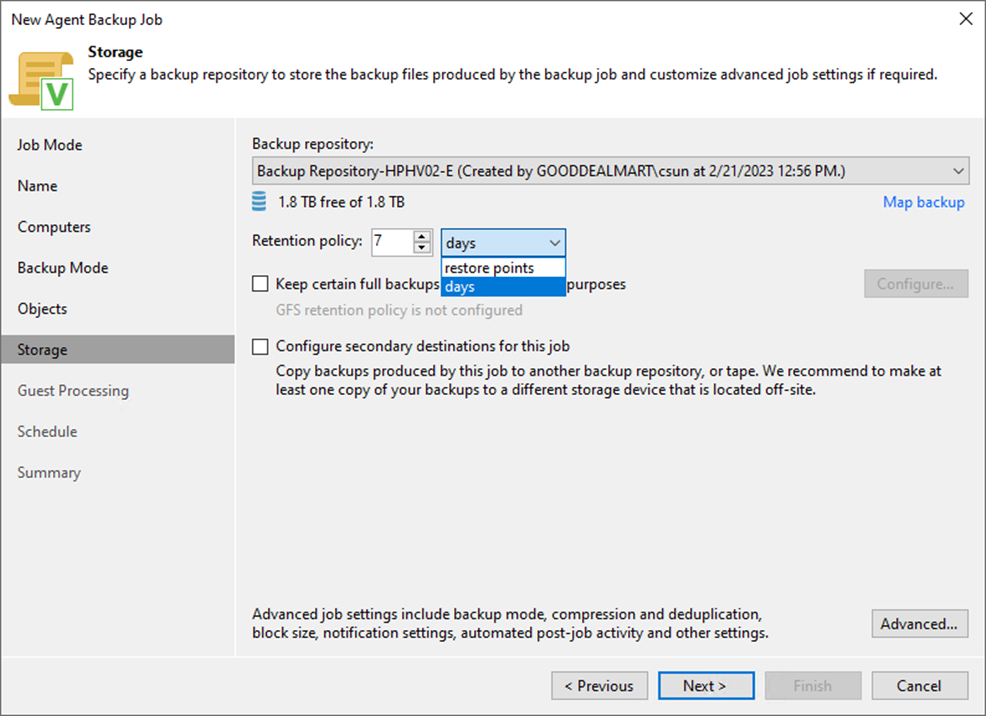

19. Set the retention policy settings for restore points in the Retention Policy field.

20. Select days or restore points from the drop-down list.

090523 1817 Howtocreate12 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

21. You can configure GFS retention policy settings for the backup job to ignore the short-term retention policy for some full backups and store them for long-term archiving.

22. Select the Keep certain full backups for longer for archival purposes. If you need it, click Configure.

090523 1817 Howtocreate13 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

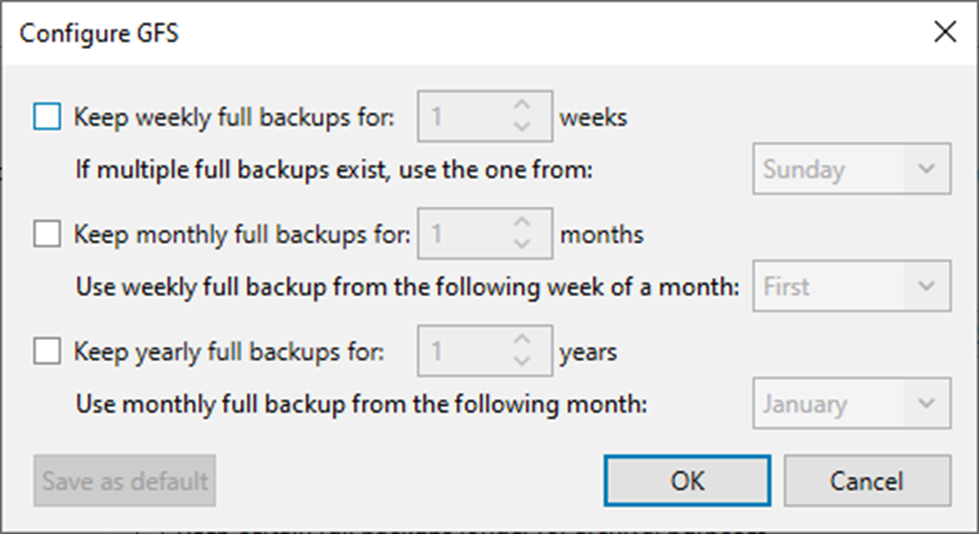

23. Select the Keep weekly full backups for checkbox and specify the number of weeks you want to prevent restore points from being modified and deleted.

24. Select the Keep monthly full backups for checkbox and specify the months you want to prevent restore points from being modified and deleted.

25. Select the Keep yearly full backups for checkbox and specify the years you want to prevent restore points from being modified and deleted.

26. Click OK.

090523 1817 Howtocreate14 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

27. On the Storage page, click Advanced.

090523 1817 Howtocreate15 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

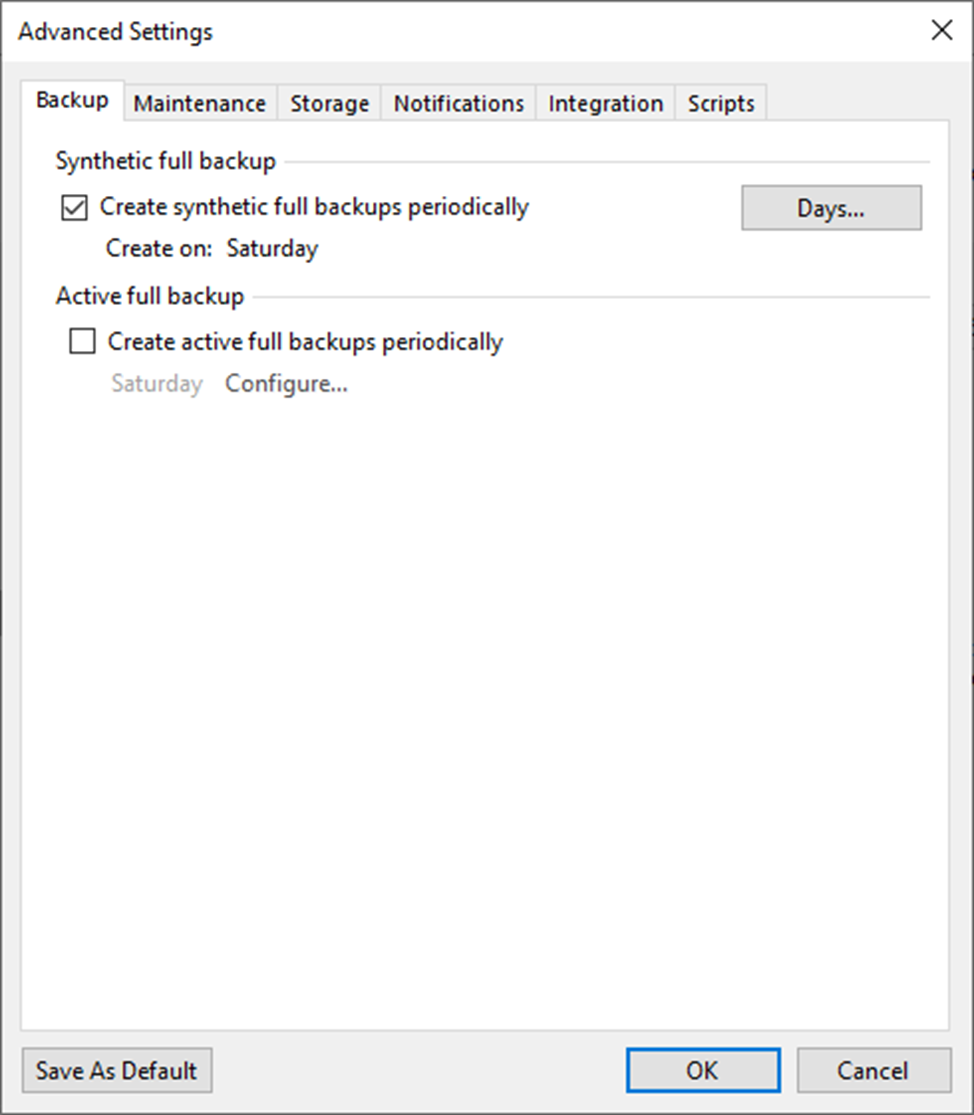

28. Select Create synthetic full backups or Active full backups periodically checkbox.

29. Schedule full backups periodically and click OK.

090523 1817 Howtocreate16 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

30. On the Advanced Settings, select Maintenance.

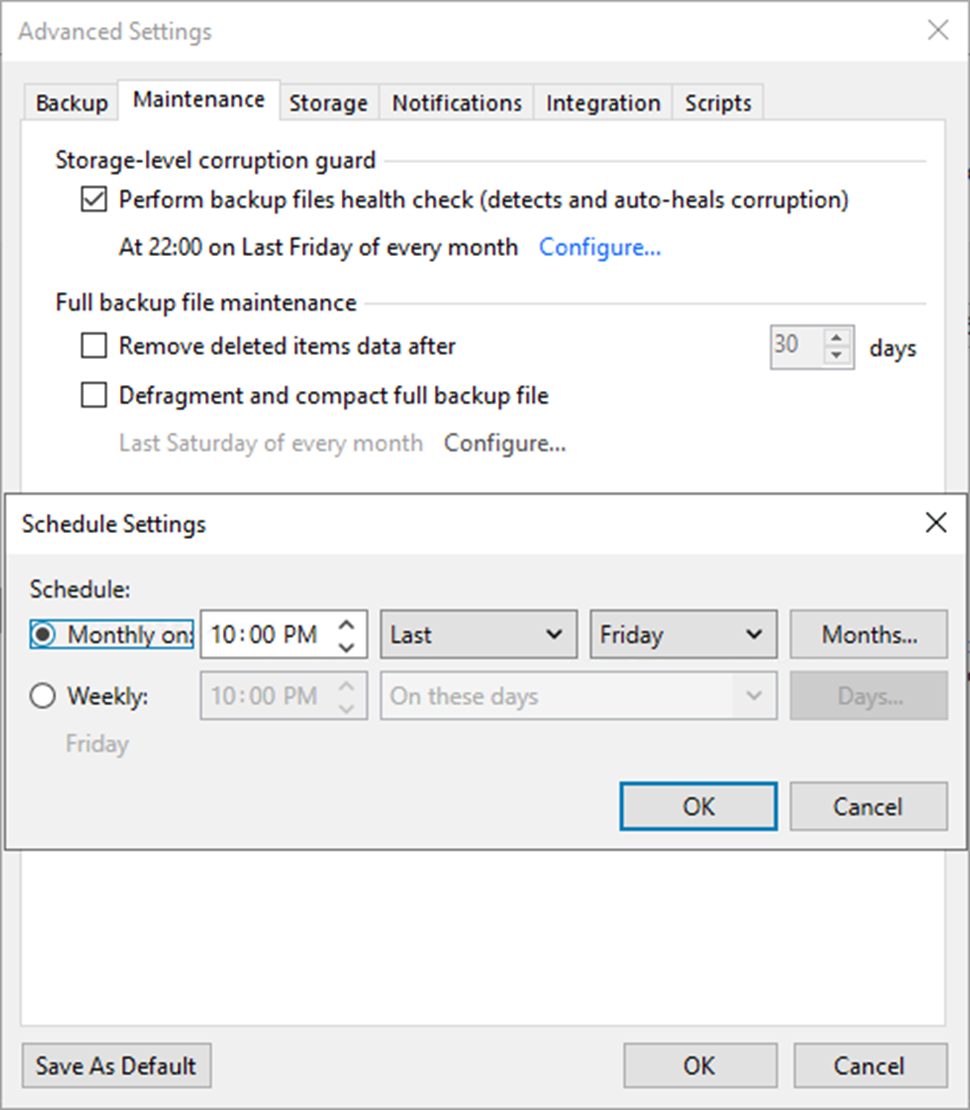

31. To regularly perform a health check on the backup chain’s most recent restore point, select the Perform backup files health check (detects and auto-heals corruption) checkbox in the Storage-level corruption guard section.

32. Click Configure to set a timetable for the health check.

090523 1817 Howtocreate17 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

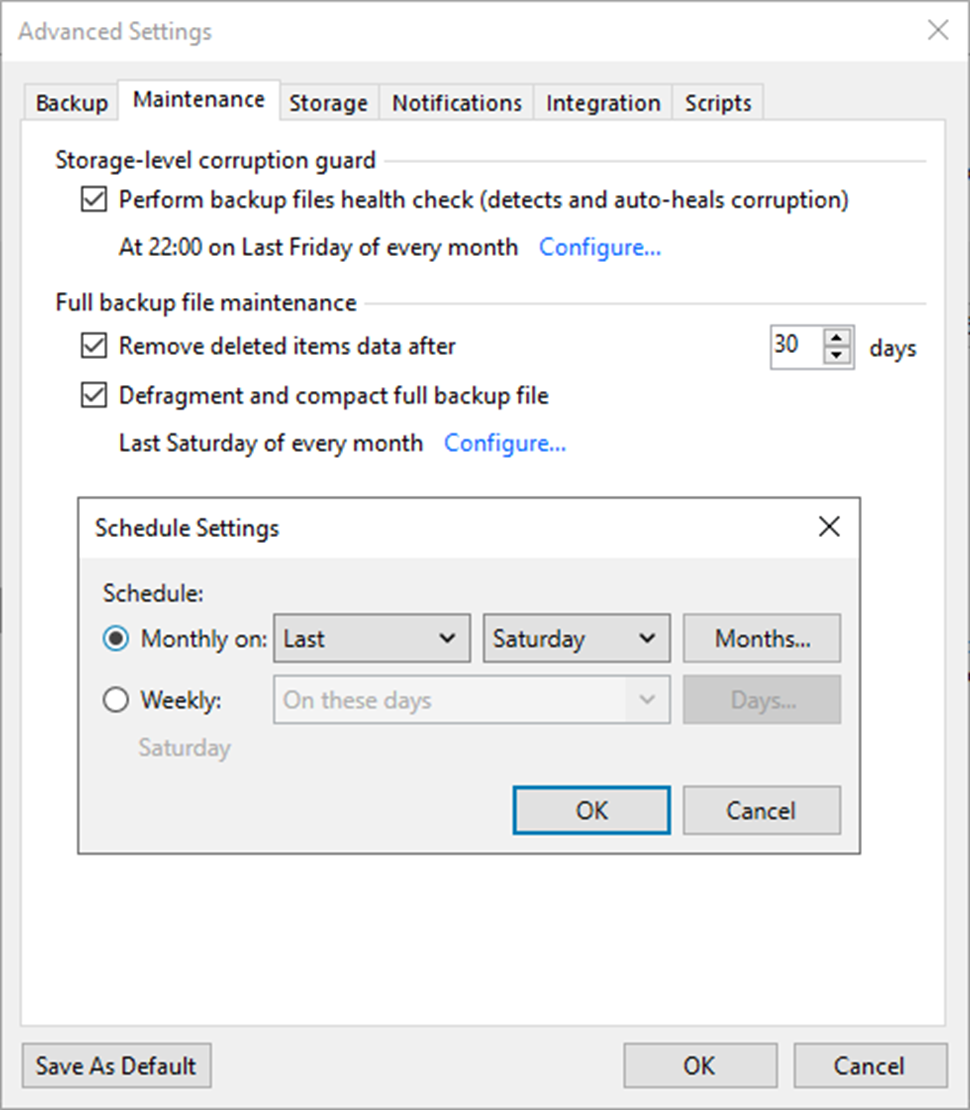

33. Select the Remove deleted items data after the checkbox and enter the few days you want backup data for deleted VMs to be kept.

34. Select the Defragment and compact full backup file checkbox and click Configure.

35. Set the schedule for the compact operation to compact a full backup periodically.

090523 1817 Howtocreate18 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

Note:

You don’t need to enable the defragment and compact functionality checkbox if GFS retention is enabled.

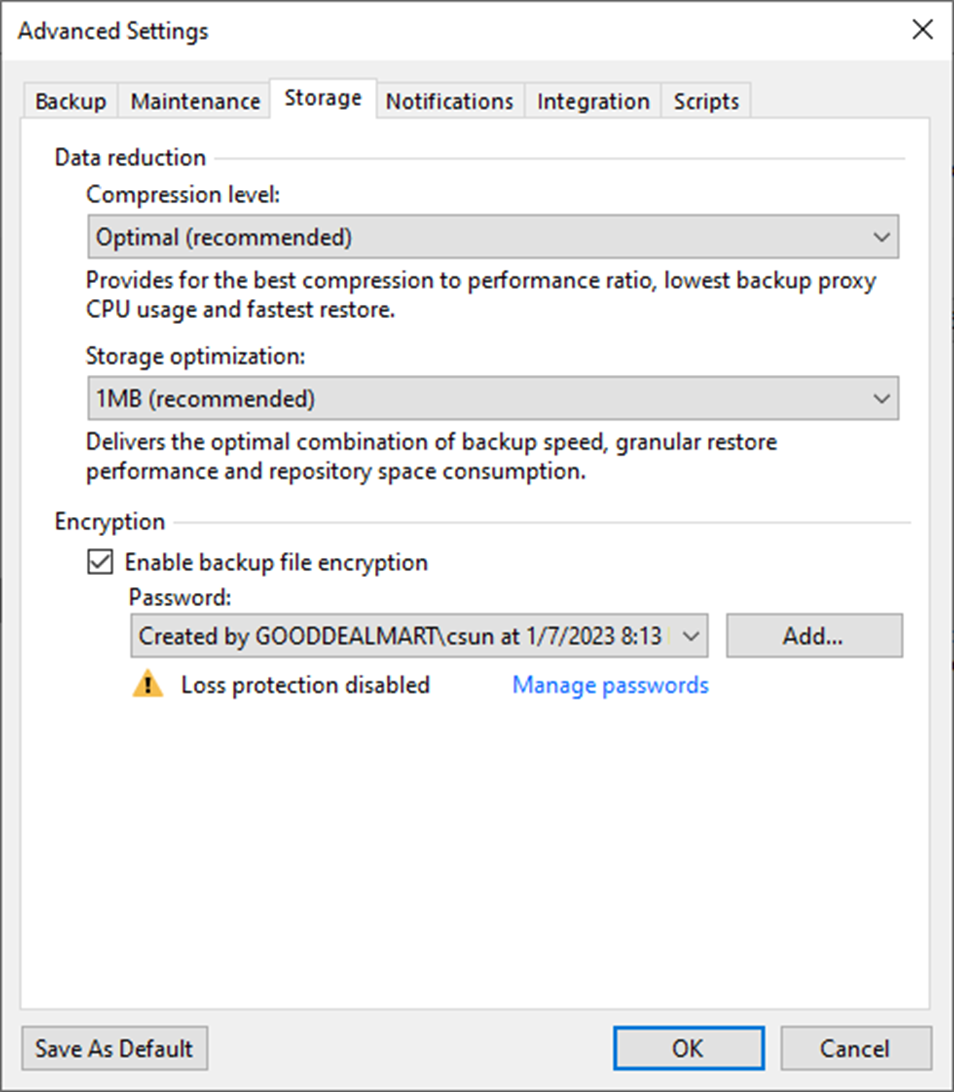

36. On Advanced Settings, select Storage.

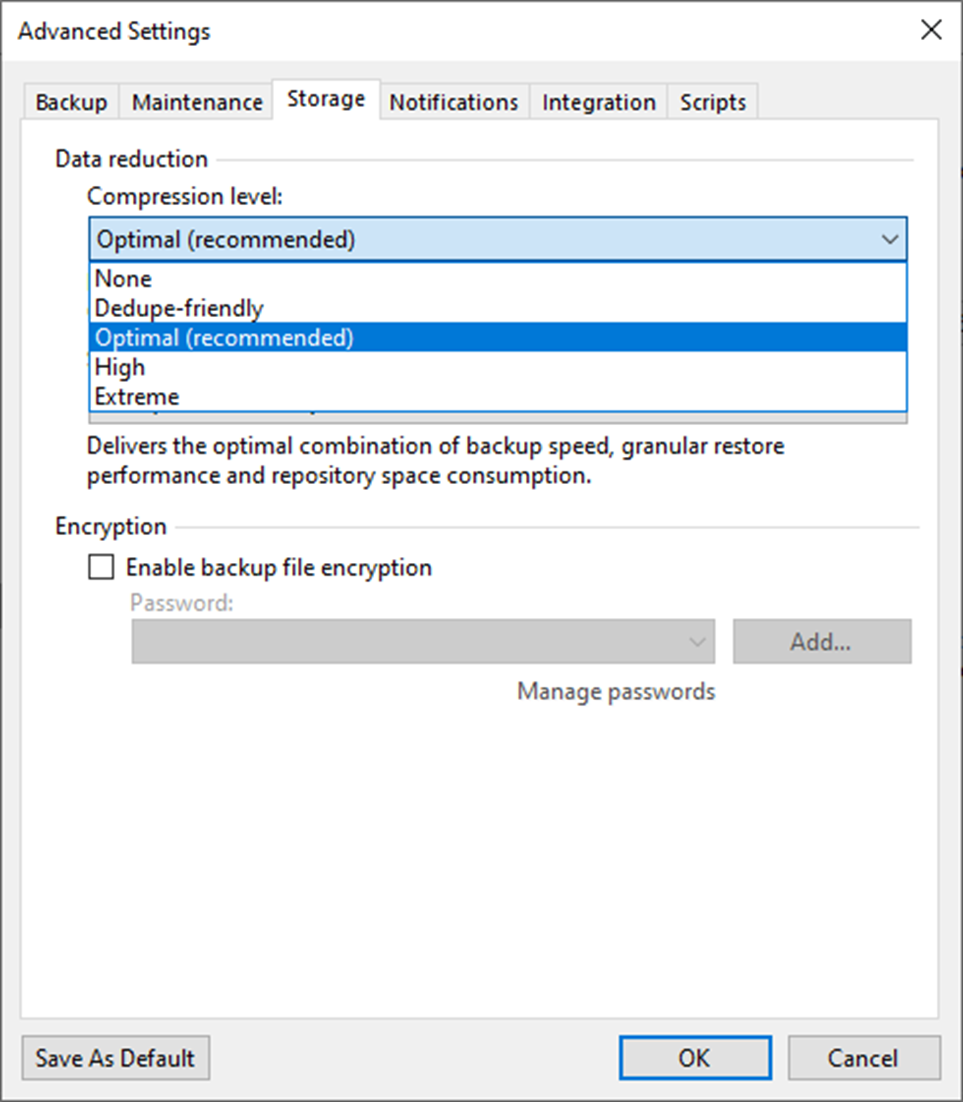

37. Select the Compression level from the drop-down list.

090523 1817 Howtocreate19 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

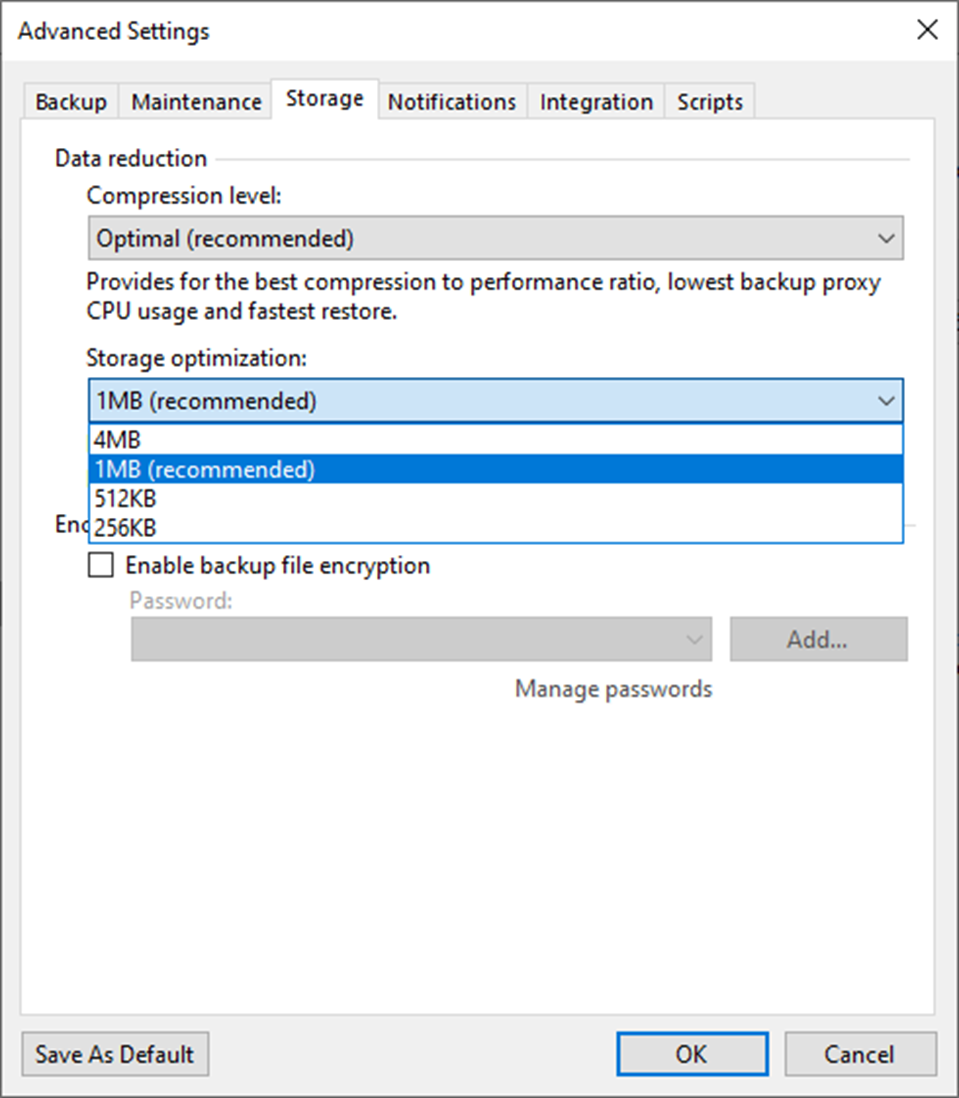

38. Select Storage optimization from the drop-down list.

090523 1817 Howtocreate20 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

39. Select the Enable backup file encryption checkbox to encrypt the content of backup files.

40. Select a password from the drop-down list. If you still need to do, click Add or use the Manage passwords link to create a new password.

090523 1817 Howtocreate21 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

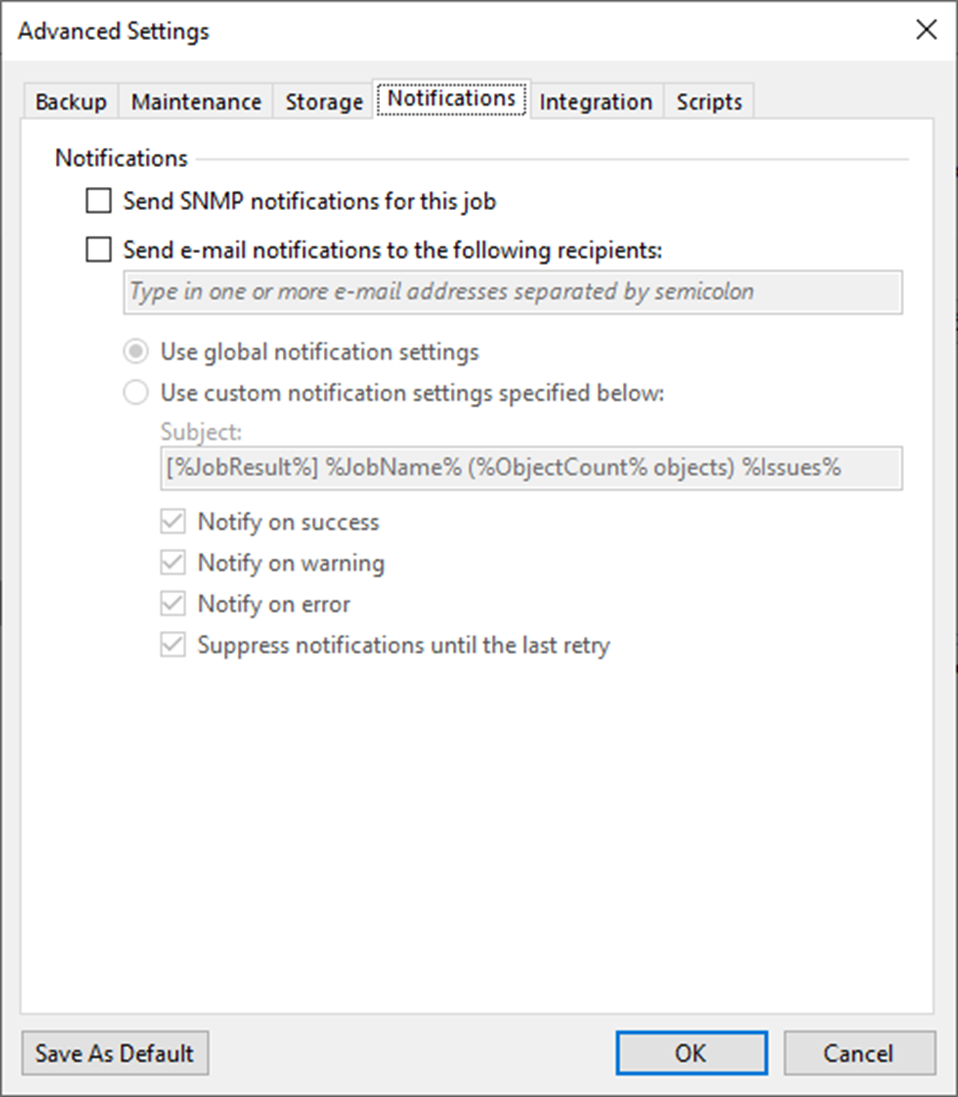

41. On the Advanced Settings, select Notifications.

42. Keep the default settings.

090523 1817 Howtocreate22 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

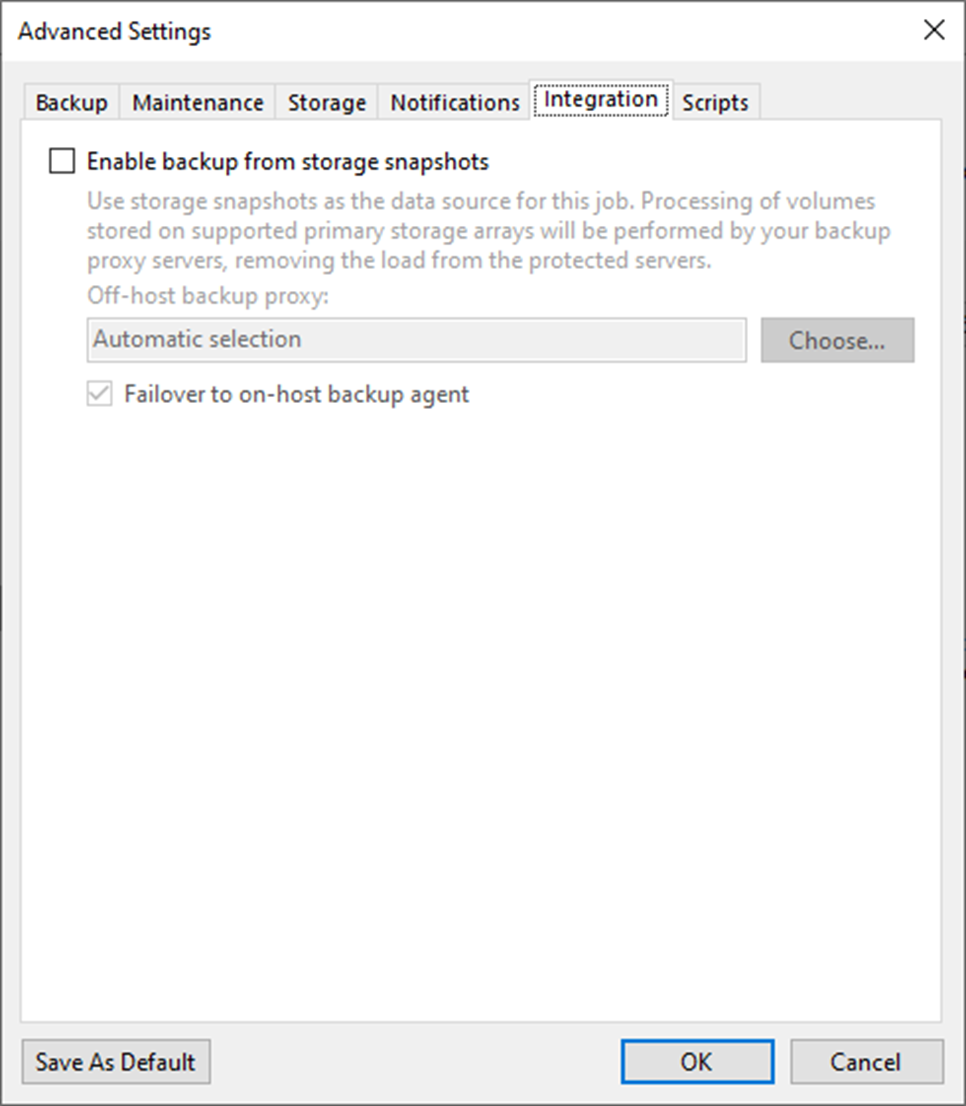

43. On the Advanced Settings, select Integration.

44. Keep the default settings.

090523 1817 Howtocreate23 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

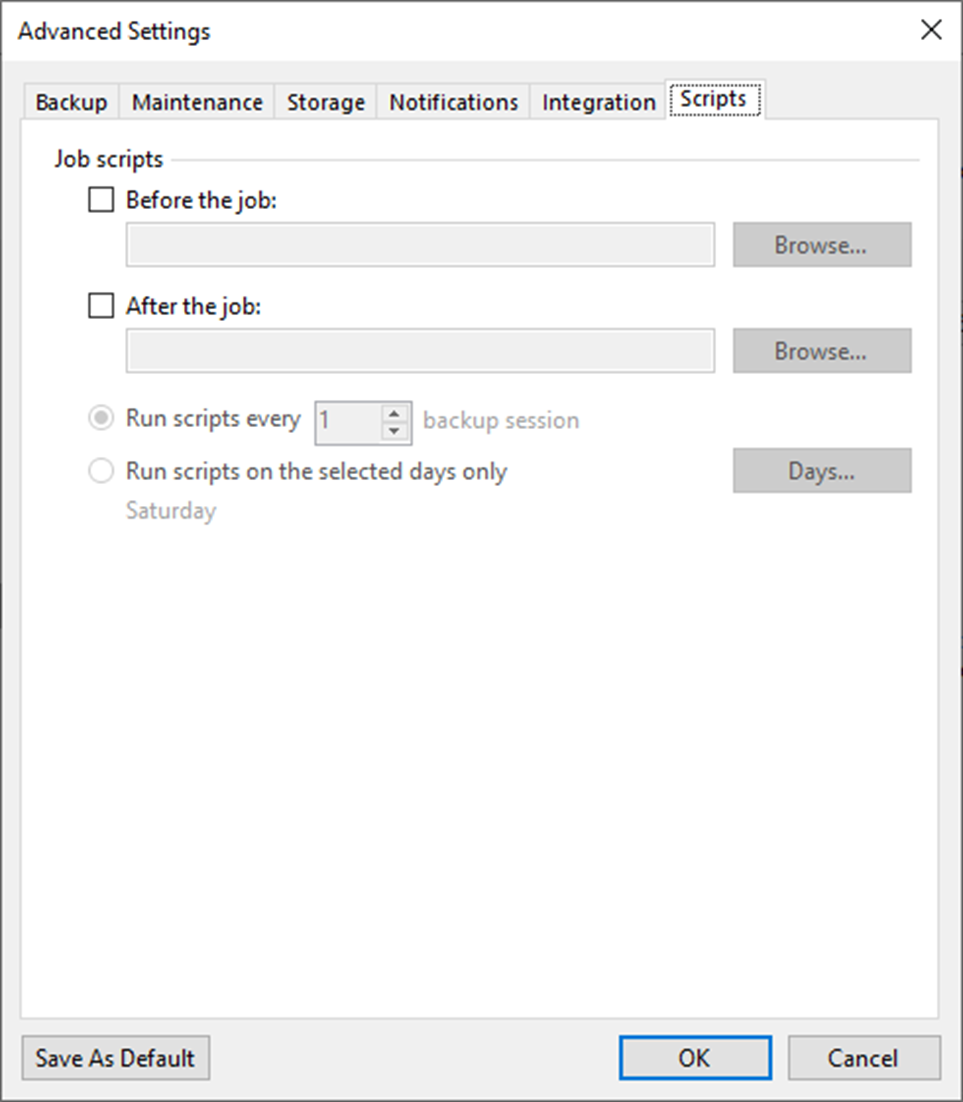

45. On the Advanced Settings page, select Scripts.

46. Keep the default settings and click OK.

090523 1817 Howtocreate24 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

47. On the Storage page, click Next.

090523 1817 Howtocreate25 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

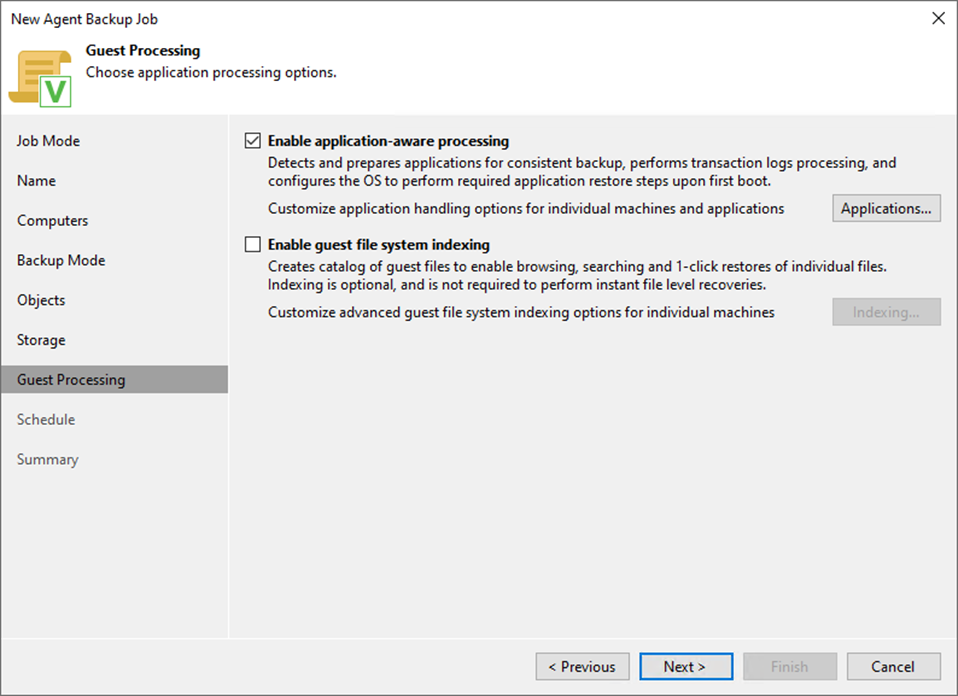

48. When you add Physical machines running VSS-aware applications to the backup job, you can enable application-aware processing to create a transactionally consistent backup. The transactionally consistent backup ensures that applications on VMs can be recovered without data loss.

49. Select the Enable application-aware processing checkbox on the Guest Processing page and click Applications.

090523 1817 Howtocreate26 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

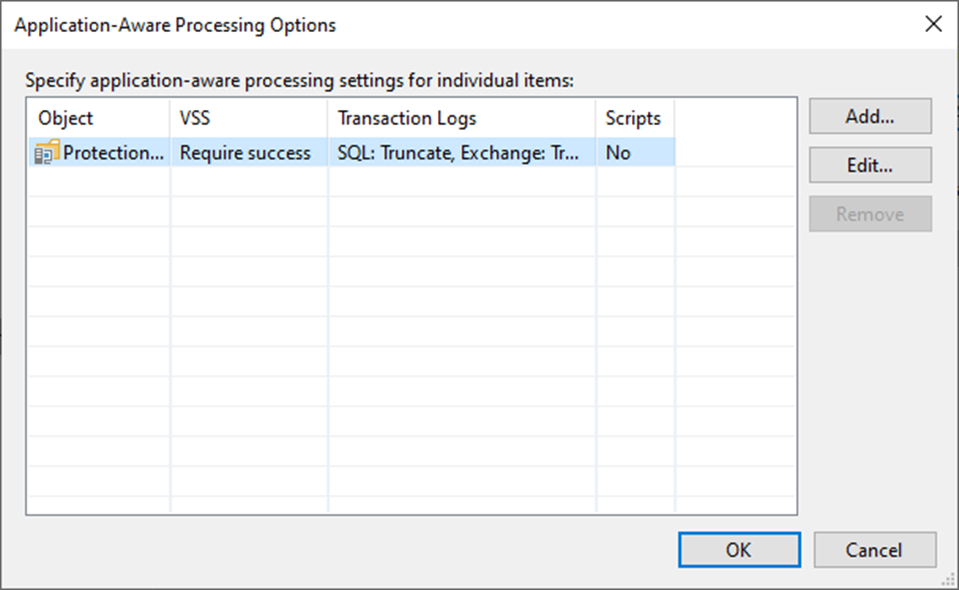

50. On the Application-Aware Processing Options page, select the Object and click Edit.

090523 1817 Howtocreate27 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

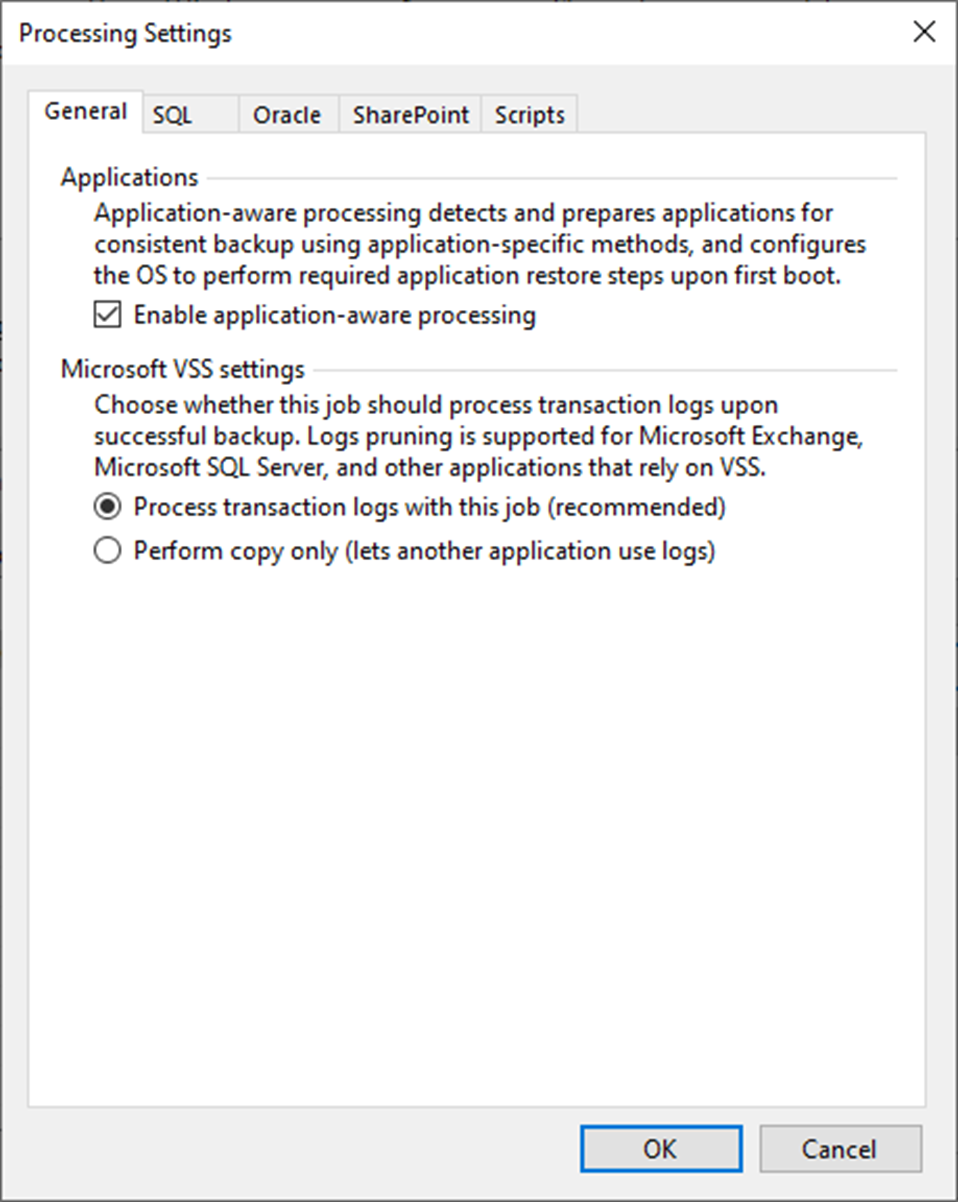

51. On the Processing Settings page, select General.

52. Select Enable application-aware processing checkbox.

53. Select Process transaction logs with this job (recommended).

090523 1817 Howtocreate28 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

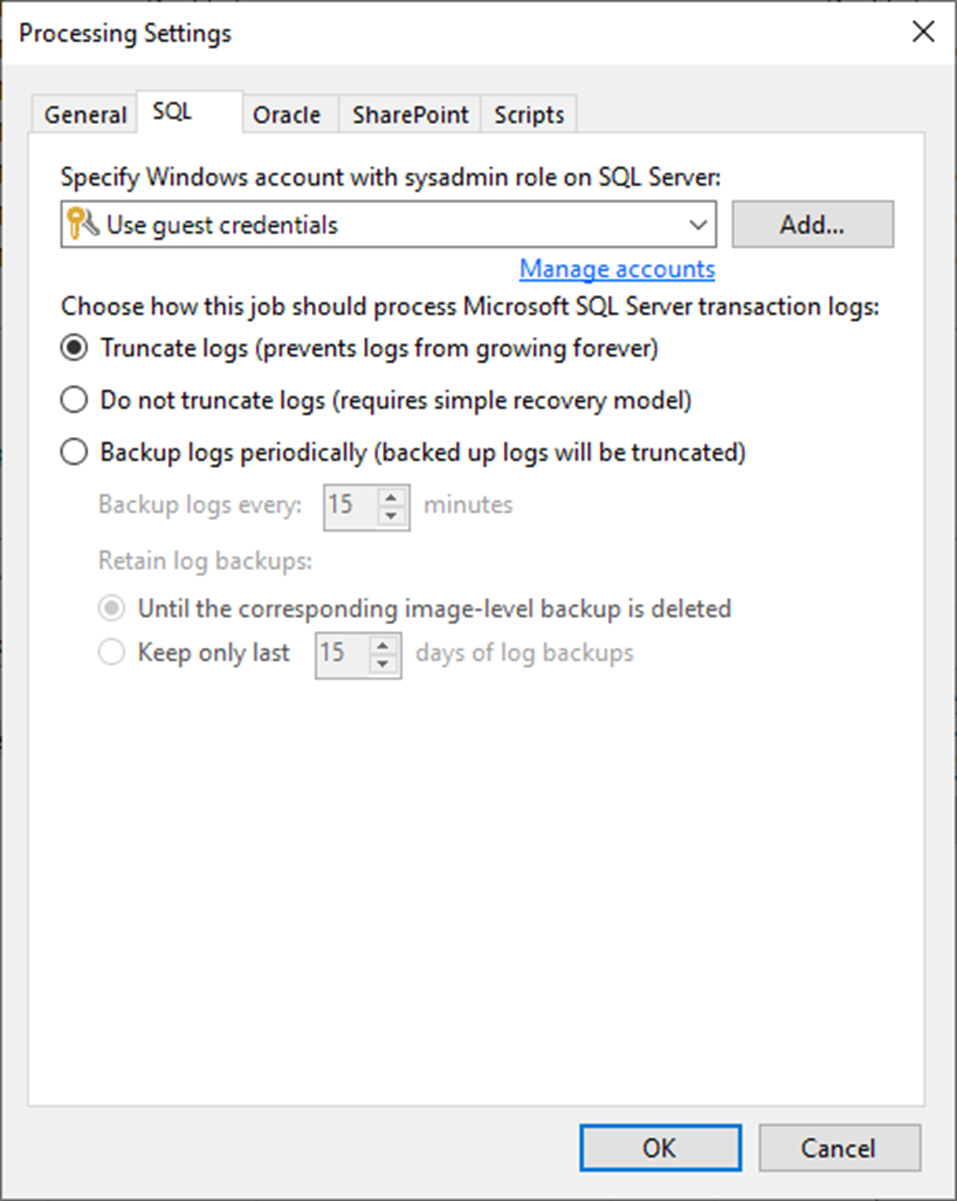

54. On the Processing Settings page, click SQL if the Physical Machine is a Microsoft SQL Server.

55. Select a user account from the drop-down list.

56. Select Truncate logs (Prevents logs from growing forever).

090523 1817 Howtocreate29 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

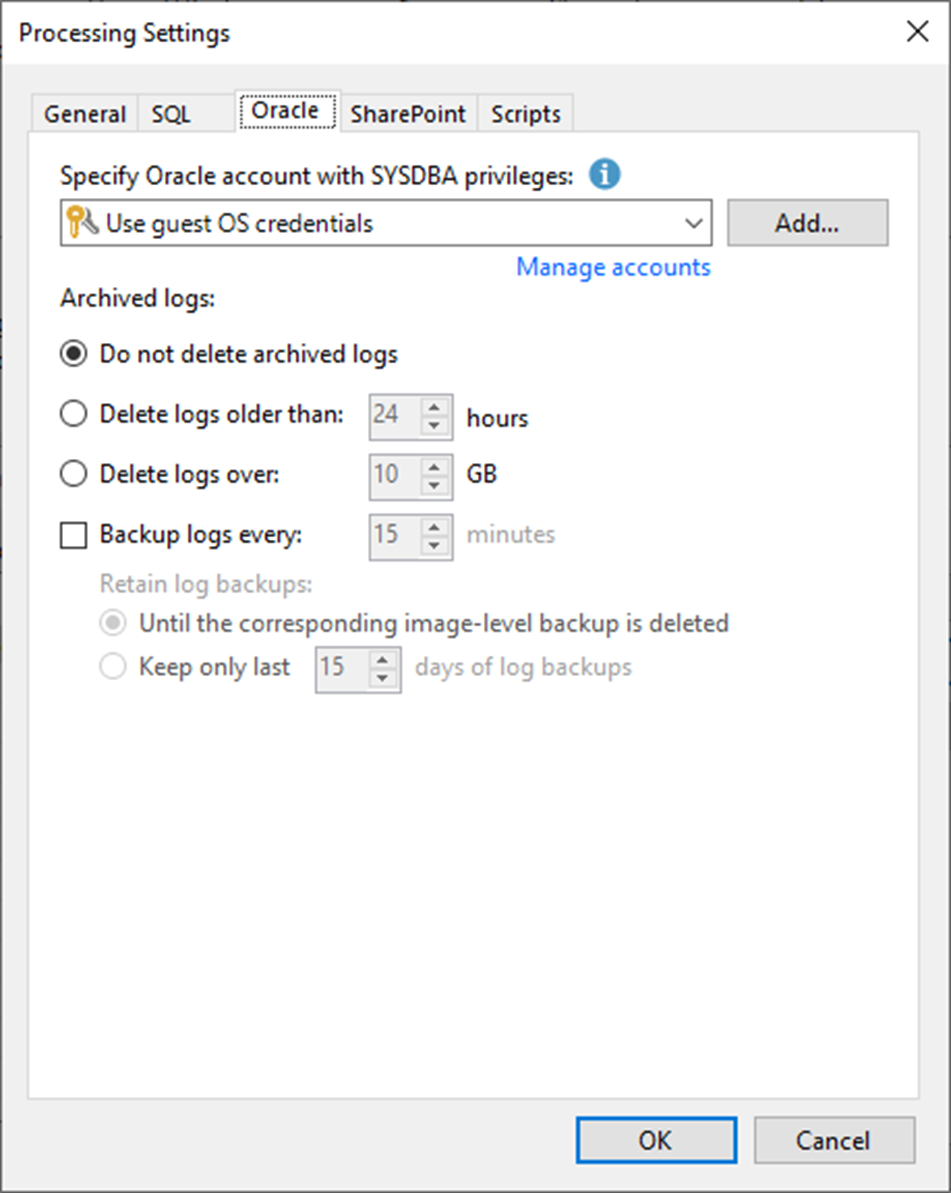

57. Select Oracle on the Processing Settings page if the Physical Machine is an Oracle Server.

58. Select a user account from the drop-down list.

59. Select Do not delete archived logs.

090523 1817 Howtocreate30 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

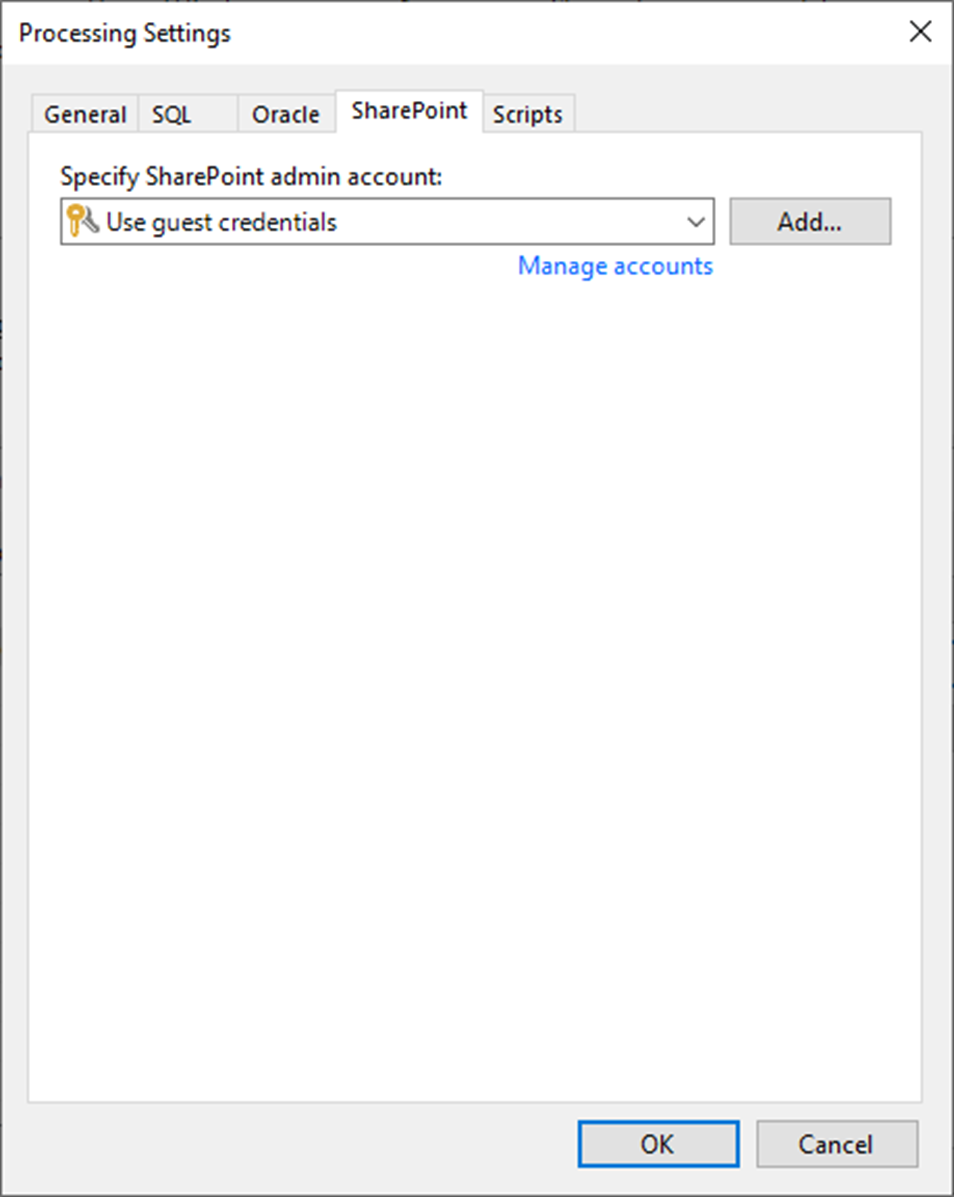

60. On the Processing Settings page, select SharePoint if the Physical Machine is a SharePoint Server.

61. Select a user account from the drop-down list.

090523 1817 Howtocreate31 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

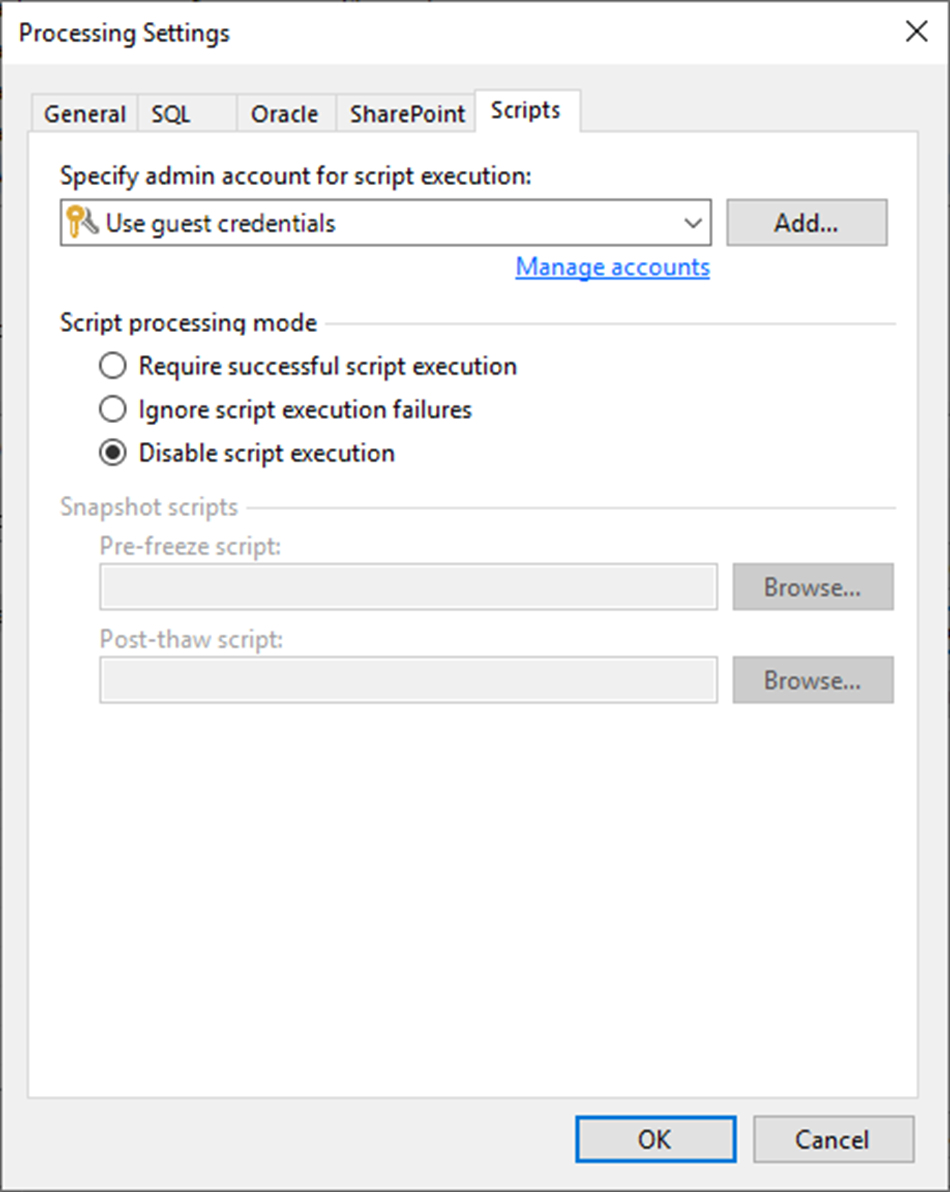

62. On the Processing Settings page, select Scripts.

63. Keep the default settings and click OK.

090523 1817 Howtocreate32 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

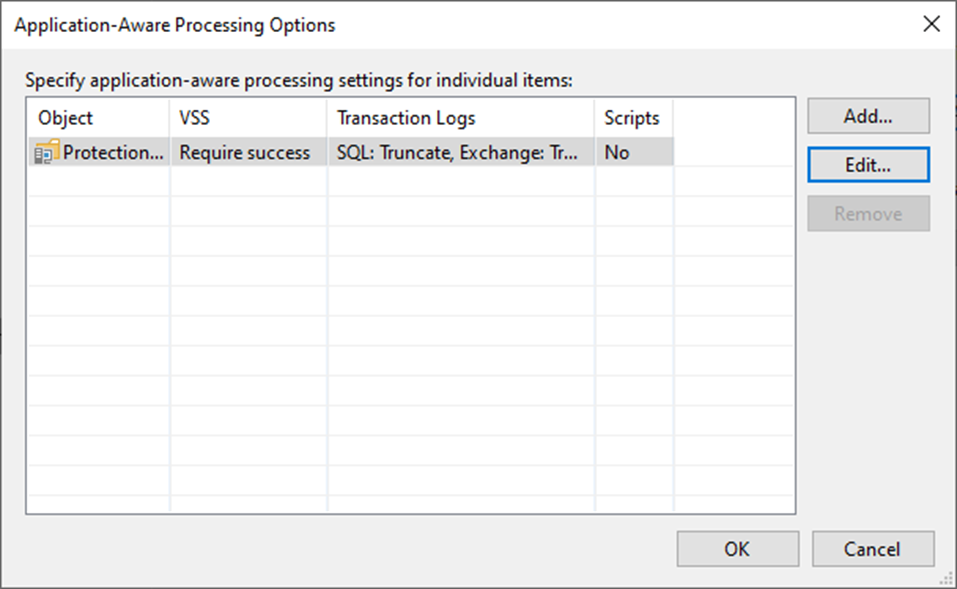

64. On the Application-Aware Processing Options page, click OK.

090523 1817 Howtocreate33 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

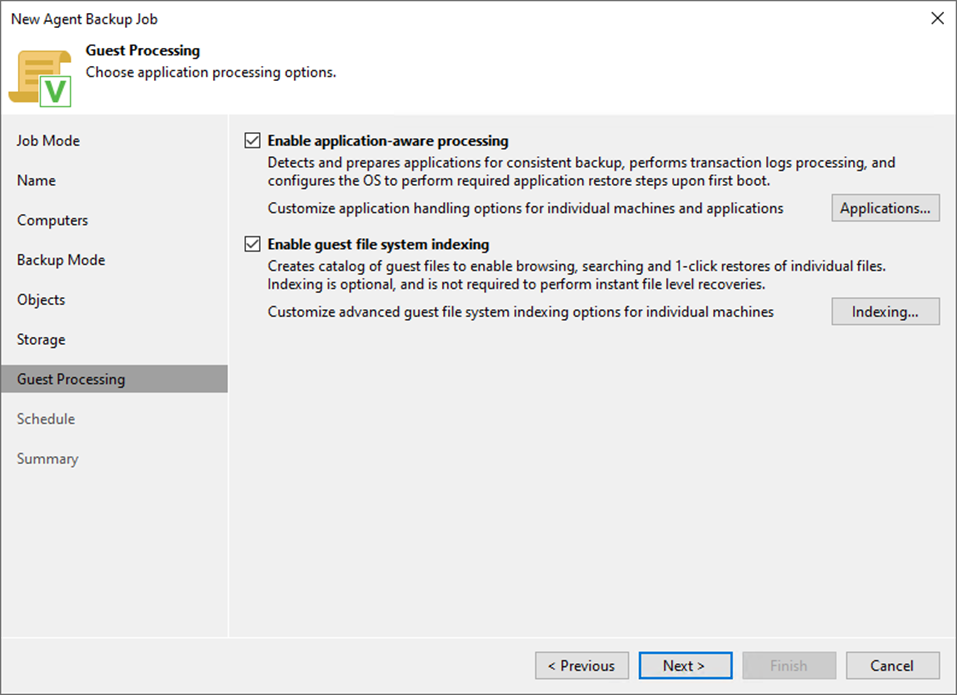

65. Select the Enable guest file system indexing checkbox and click Indexing.

090523 1817 Howtocreate34 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

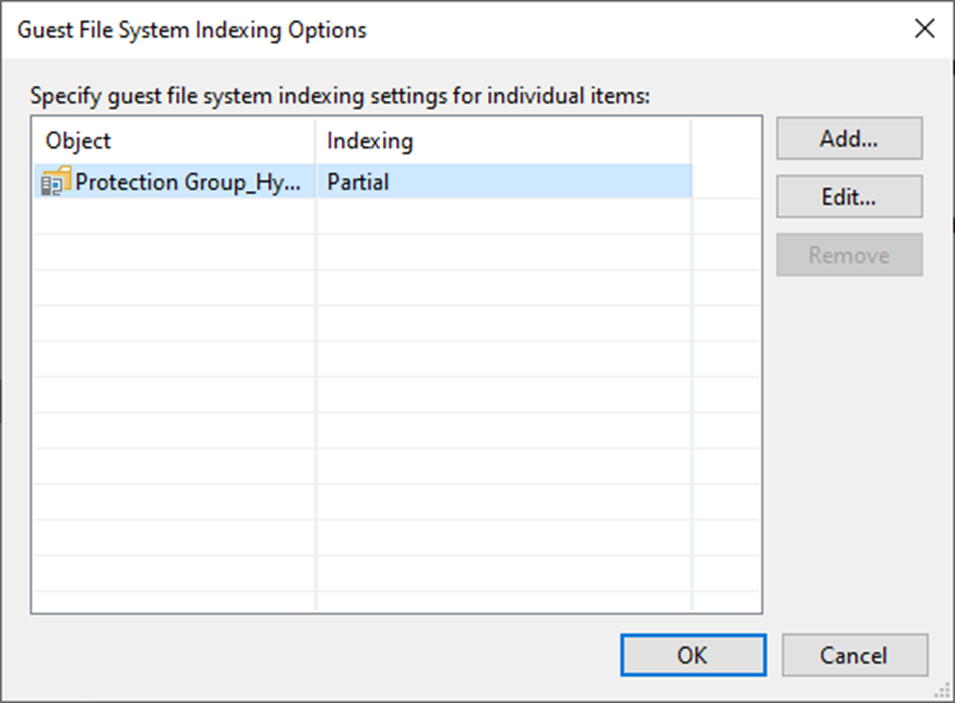

66. On the Guest File System Indexing Options page, select the Object, click Edit and.

090523 1817 Howtocreate35 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

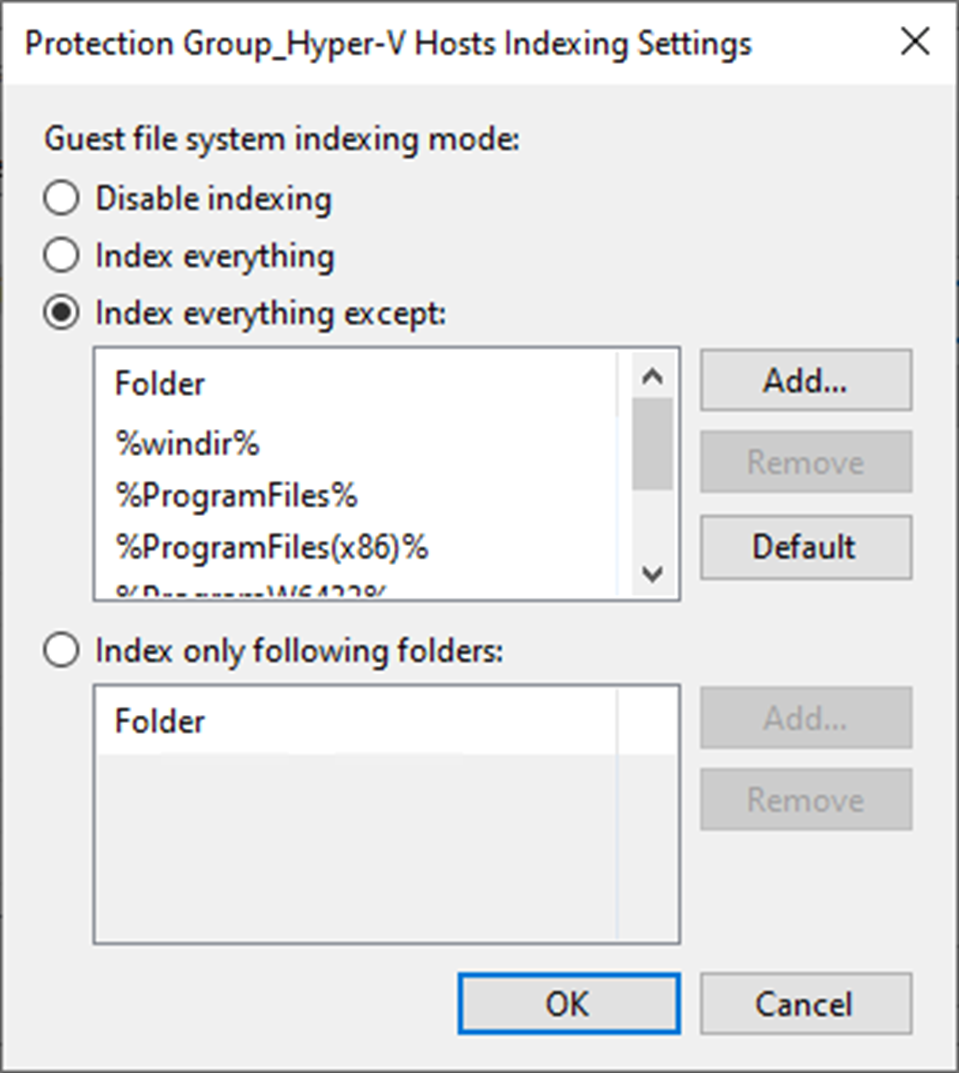

67. On the Guest file system indexing mode page, keep the default settings.

68. Click OK.

090523 1817 Howtocreate36 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

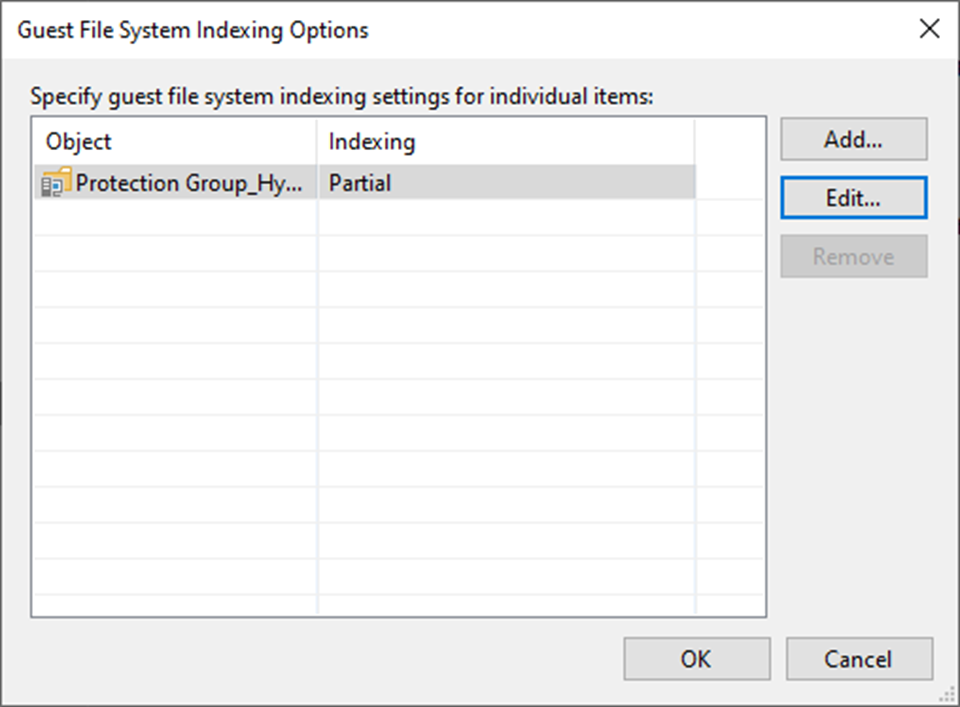

69. On the Guest File System Indexing Options page, click OK.

090523 1817 Howtocreate37 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

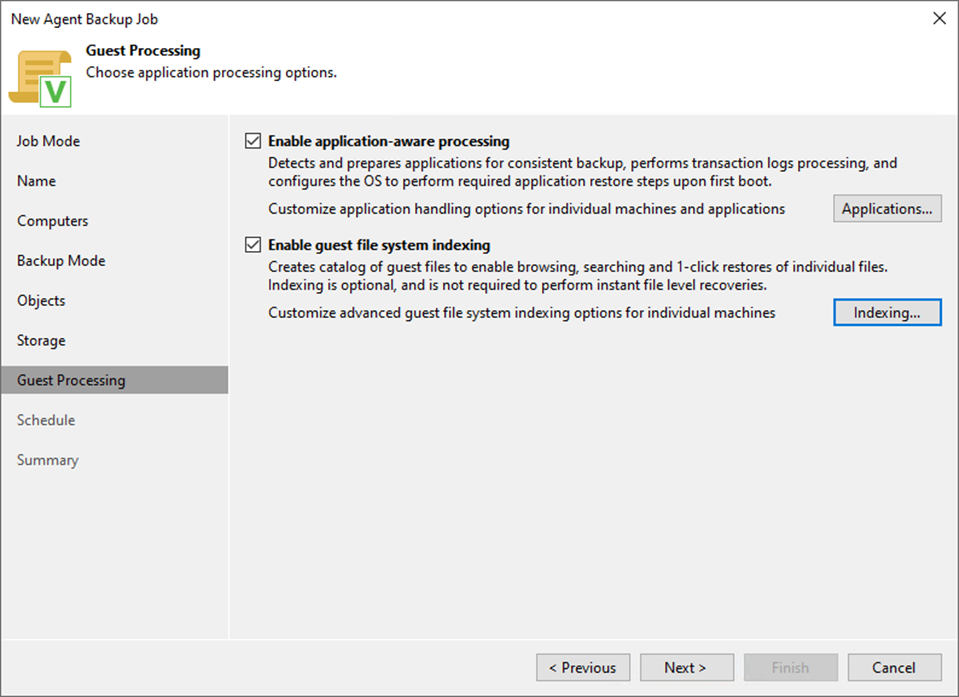

70. On the Guest Processing page, click Next.

090523 1817 Howtocreate38 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

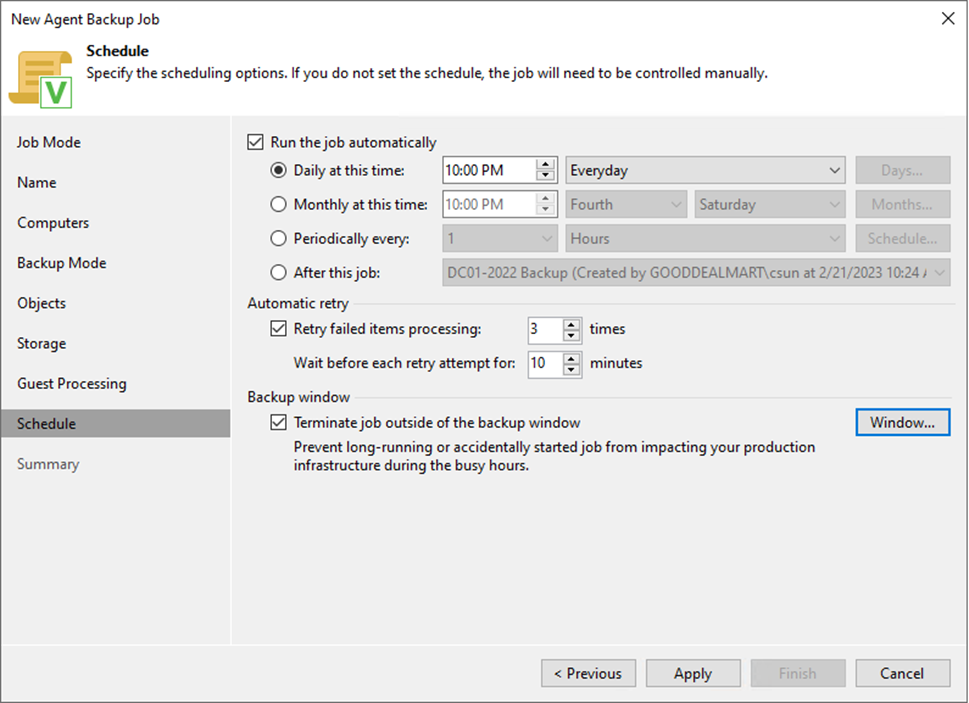

71. Select Run the job automatically checkbox on the Schedule page and select your specified schedule.

72. Define whether Veeam Backup & Replication should retry the backup job if it fails in the Automatic retry section.

73. Define the time interval the backup job must complete in the Backup window section. The backup window ensures that the job does not overlap with production hours and that there is no unnecessary overhead on the production environment.

74. Click Apply.

090523 1817 Howtocreate39 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

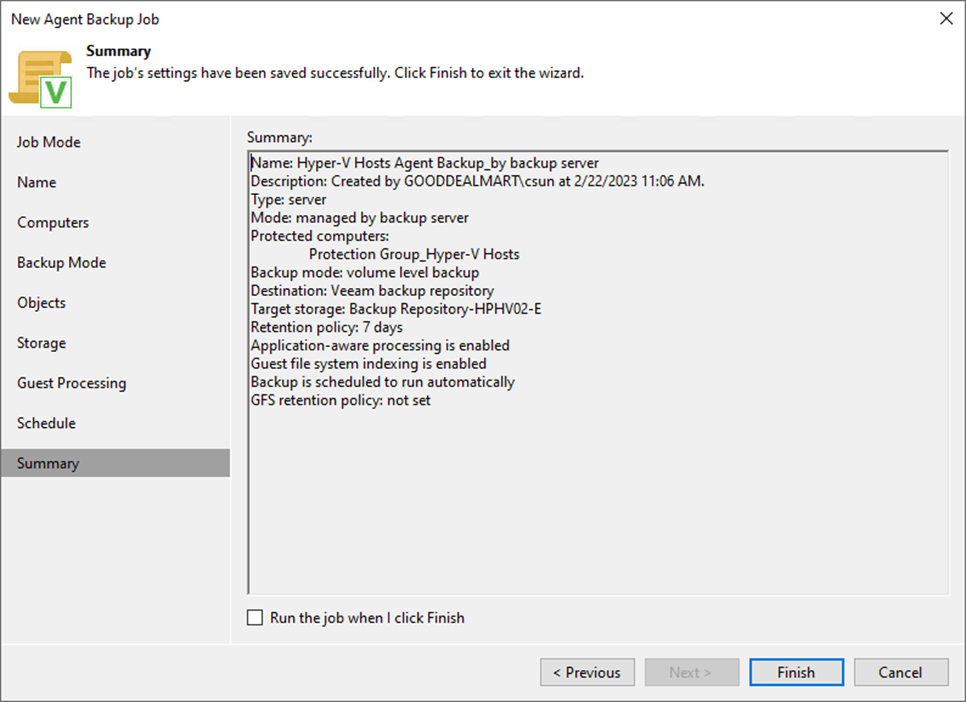

75. On the Summary page, click Finish.

090523 1817 Howtocreate40 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12

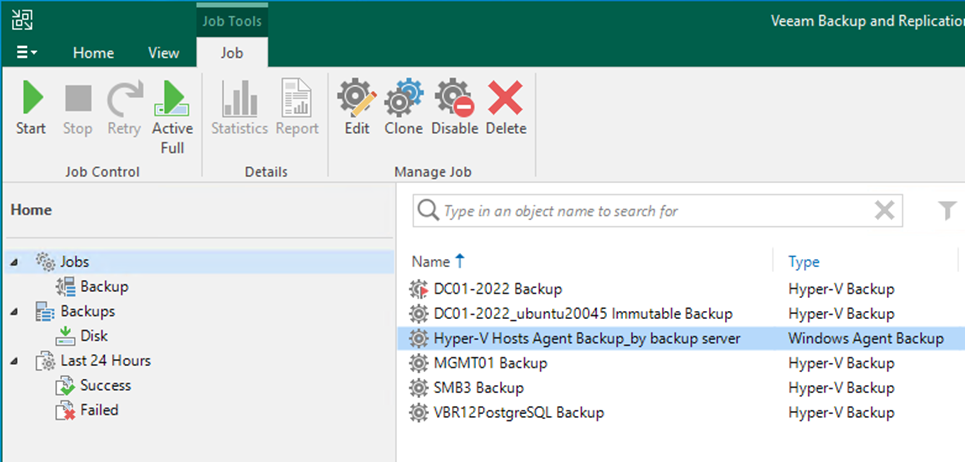

76. Verify that the backup job has been added.

090523 1817 Howtocreate41 - How to create a Backup job to backup the specified Physical Machines (Managed by Backup Server Mode) at Veeam Backup and Replication v12
