December 14, 2024
Immutable Backup is a Veeam Backup & Replication feature that protects against ransomware attacks by preventing malicious software from modifying or deleting backup data.

Immutable Backup is a Veeam Backup & Replication feature that protects against ransomware attacks by preventing malicious software from modifying or deleting backup data.

Immutable backup means that once data is written to a backup repository, it cannot be modified, overwritten, or deleted until a specified retention period has passed. This can prevent ransomware from corrupting or encrypting backup data because the malware cannot modify or delete the backup files.

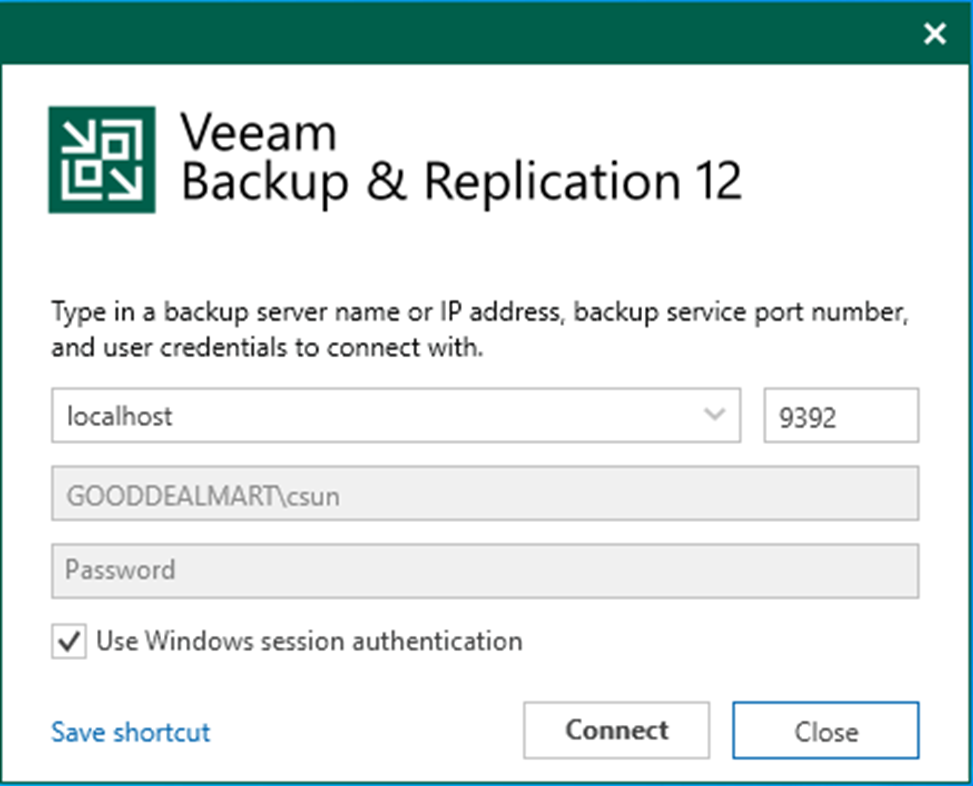

1. Login to the Veeam Backup and replication manager server.

2. Open the Veeam Backup & Replication Console and click Connect.

090323 1803 Howtocreate1 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

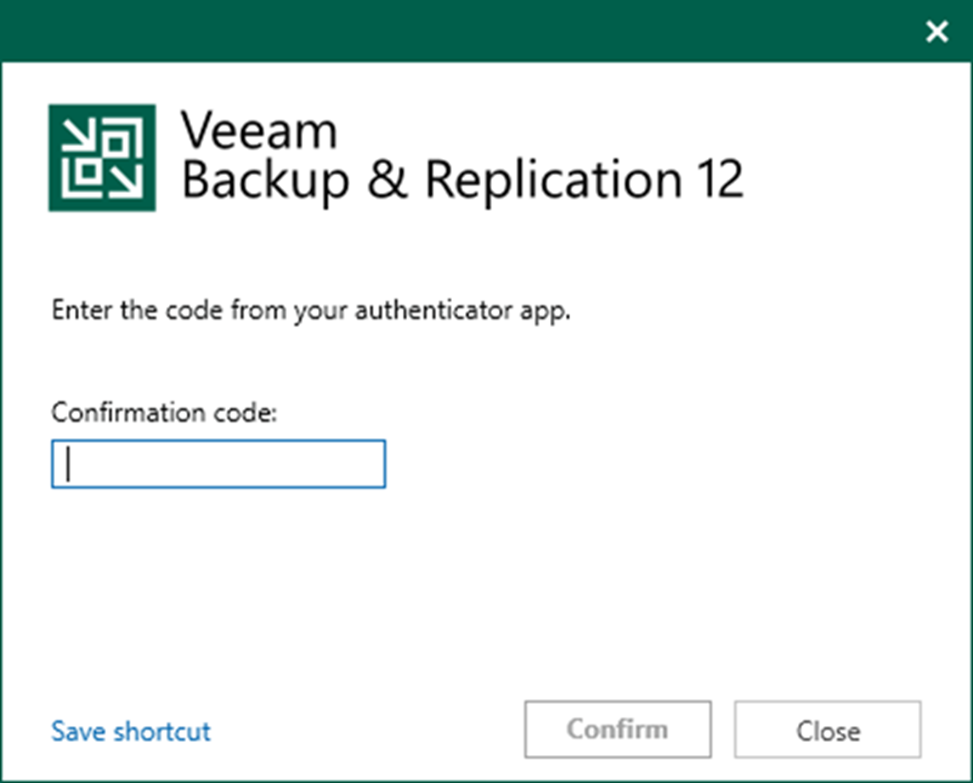

3. Enter the MFA Confirmation code and click Confirm.

090323 1803 Howtocreate2 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

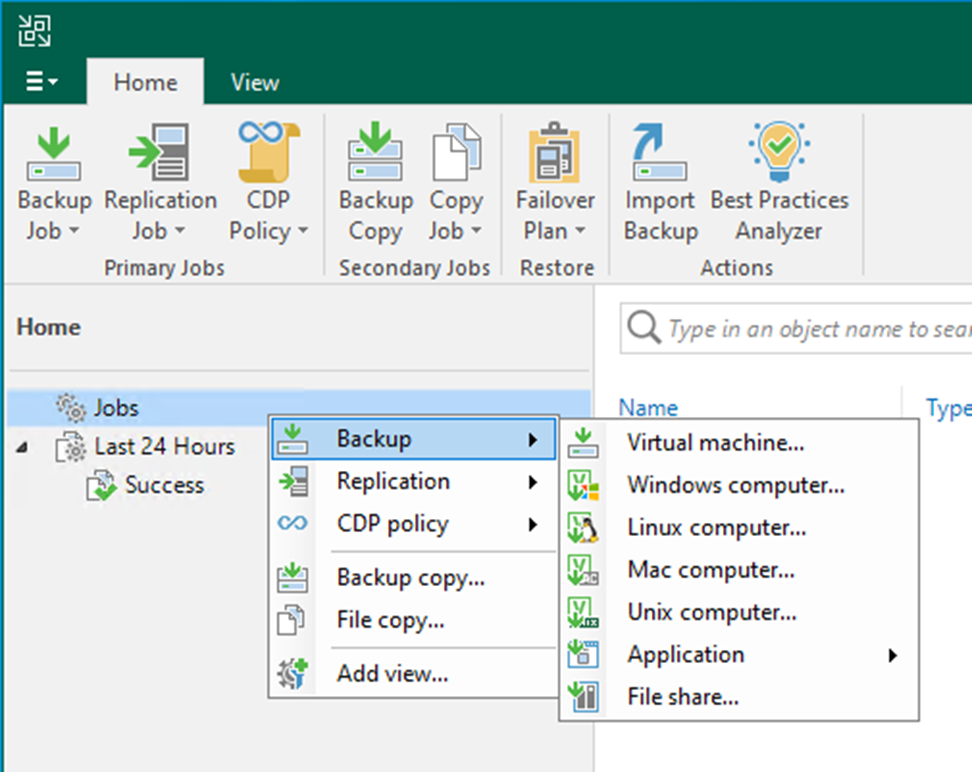

4. Select Jobs on the Home page and right-click Jobs.

5. Select Backup and click Virtual machine.

090323 1803 Howtocreate3 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

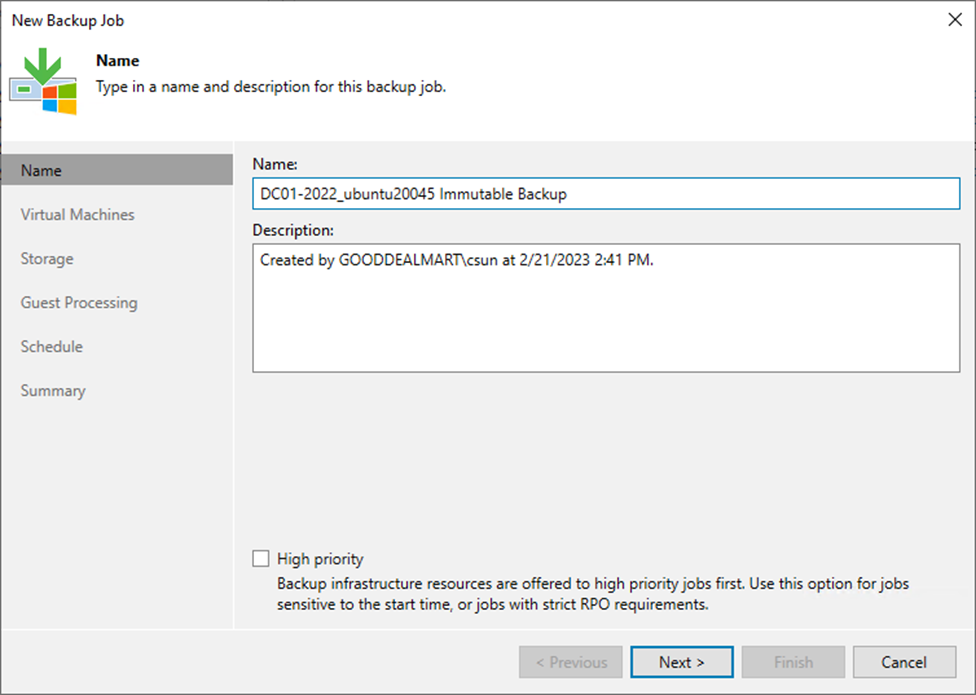

6. On the Name page, enter a name for the backup job in the Name field.

7. Give a brief description in the Description field for the future.

8. Click Next.

090323 1803 Howtocreate4 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

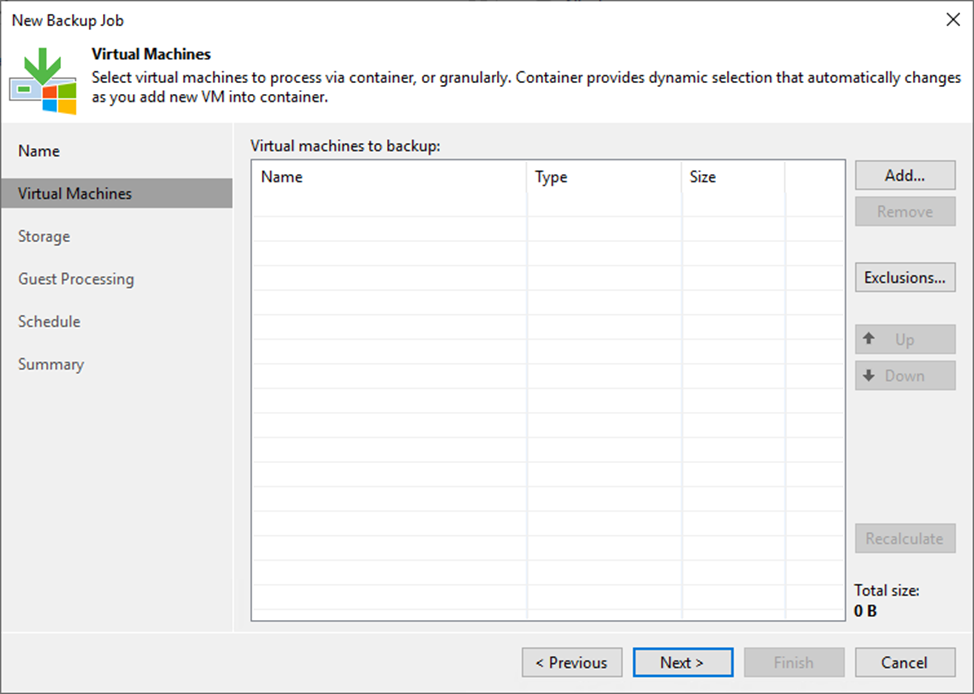

9. Click Add on the Virtual Machines page.

090323 1803 Howtocreate5 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

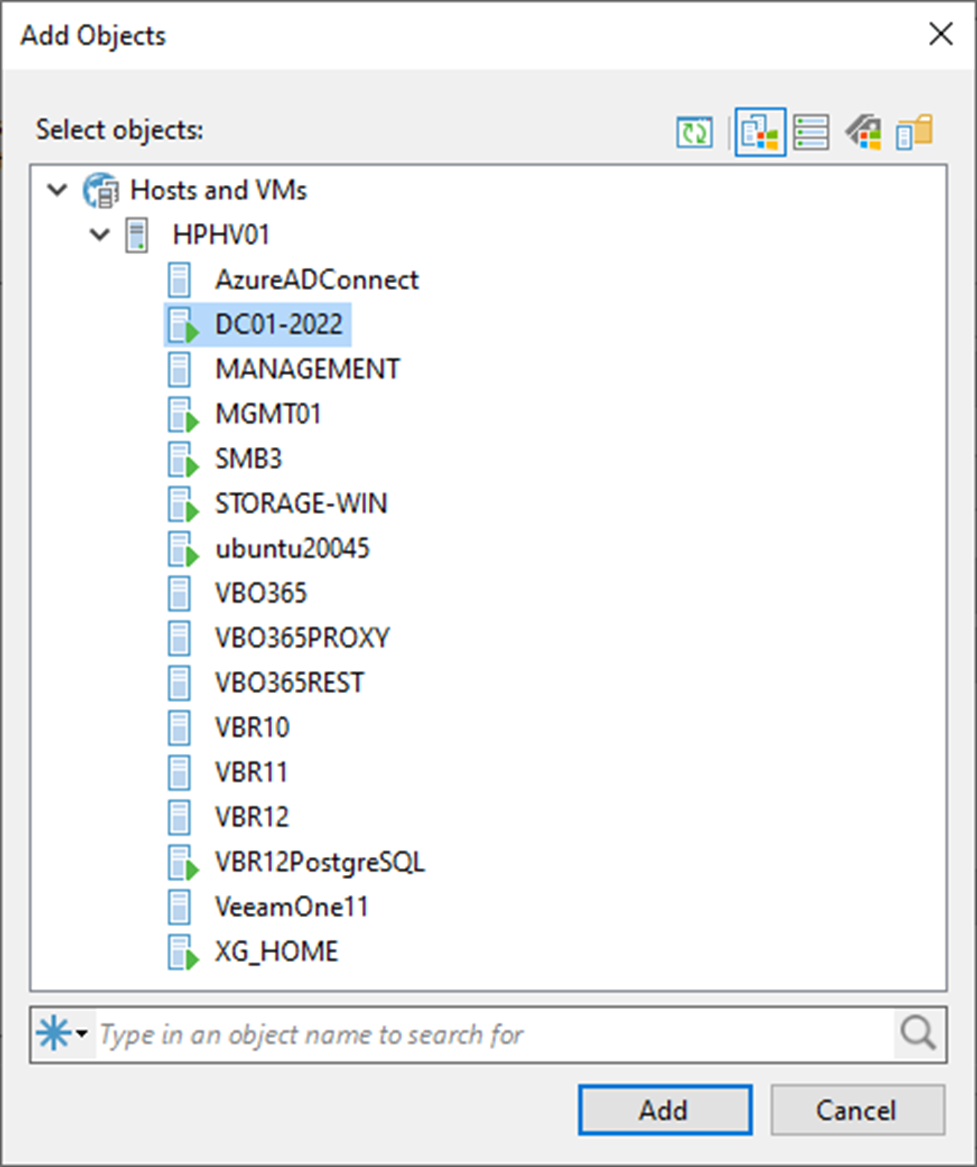

10. Select the VM from the Select objects list on the Add Objects page and click Add.

11. If you have multiple VMS that needs to back up in the same backup job, you can repeat the step to add them.

090323 1803 Howtocreate6 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

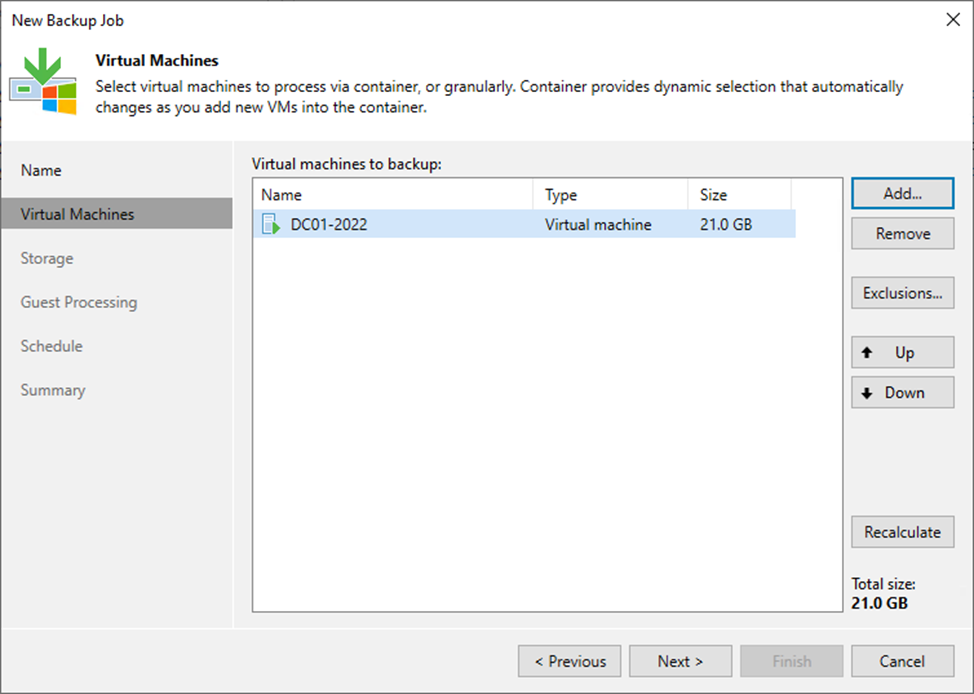

12. Click Next on the Virtual Machines page.

090323 1803 Howtocreate7 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

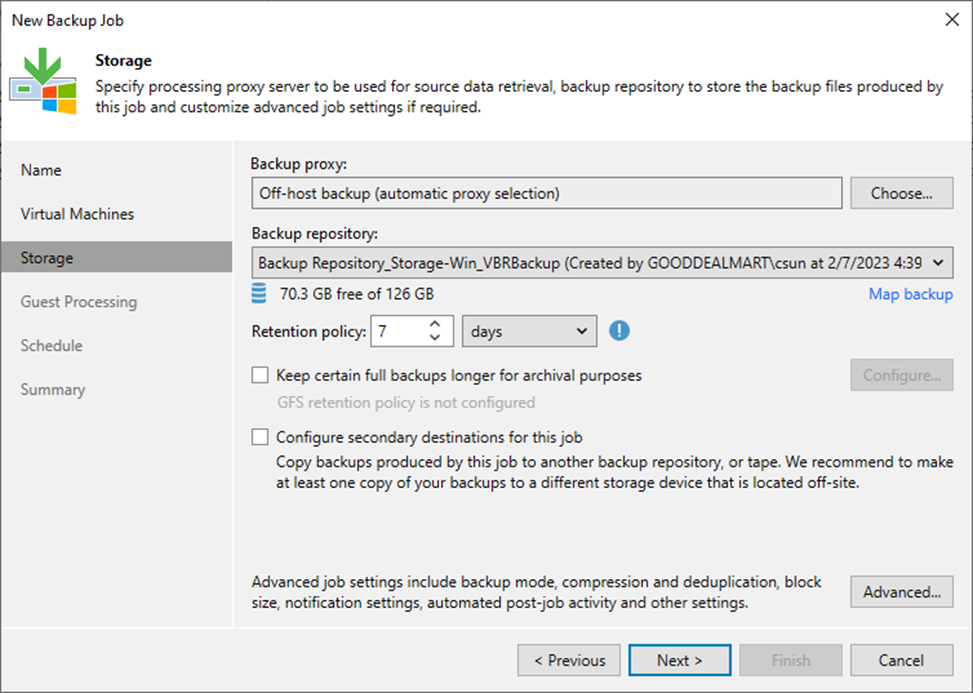

13. On the Storage page, click Choose to select a backup proxy if you don’t want to use the default Off-host backup (automatic proxy selection) setting.

090323 1803 Howtocreate8 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

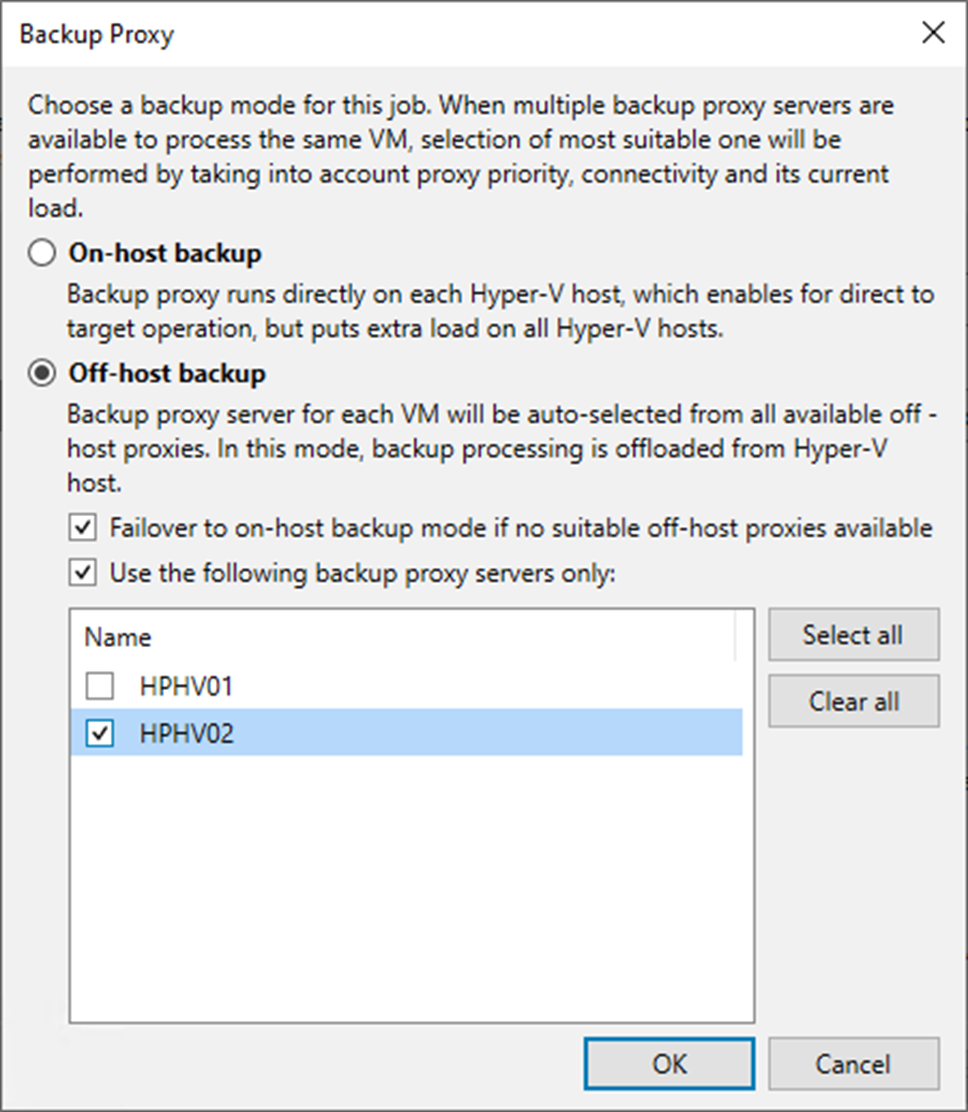

14. On the Backup Proxy page, if you select On-host backup mode, the source Microsoft Hyper-V host will serve as both the source host and the backup proxy. In this mode, Veeam Data Mover runs directly on the source host, which speeds up data retrieval but places additional strain on the host.

15. If you select Off-host backup mode, Veeam Data Mover will run on a dedicated off-host backup proxy. All backup processing operations from the source host are routed to the off-host backup proxy in this model.

16. If the off-host backup mode is selected for the job, but no off-host backup proxies are available when the job begins, Veeam Backup & Replication will transition to on-host backup mode.

17. You unselect the Failover to on-host backup mode if no suitable off-host proxies are available in the checkbox. Still, the job will fail to start if off-host backup proxies are unavailable or configured properly.

18. Click OK.

090323 1803 Howtocreate9 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

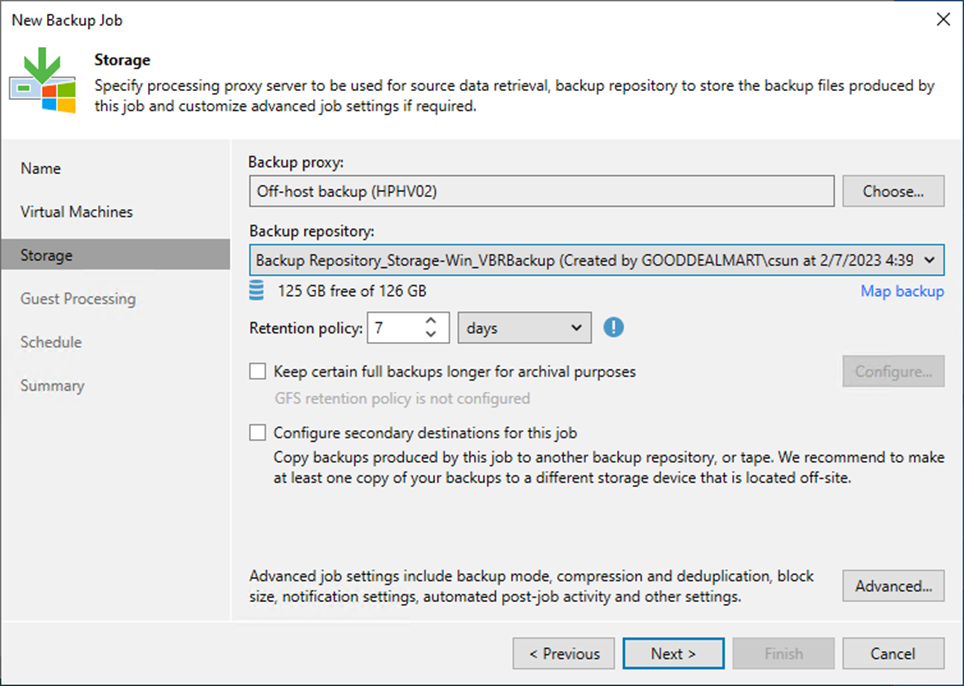

19. Select the Hardened backup repository from the Backup repository drop-down list.

090323 1803 Howtocreate10 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

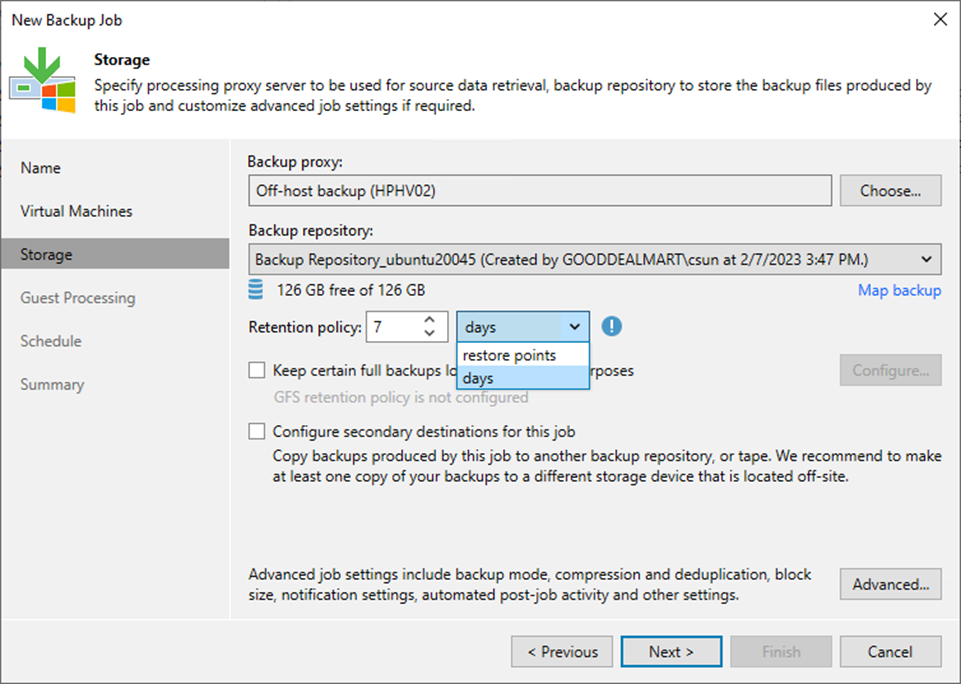

20. Set the retention policy settings for restore points in the Retention Policy field.

21. Select days or restore points from the drop-down list.

090323 1803 Howtocreate11 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

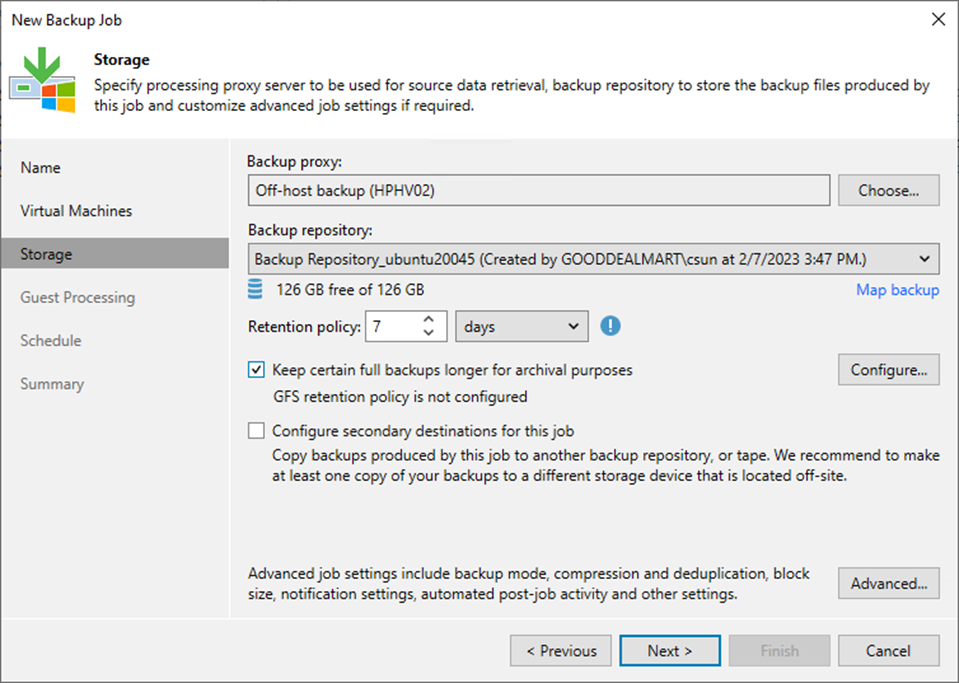

22. You can configure GFS retention policy settings for the backup job to ignore the short-term retention policy for some full backups and store them for long-term archiving.

23. Select the Keep certain full backups for longer for archival purposes checkbox and click Configure.

090323 1803 Howtocreate12 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

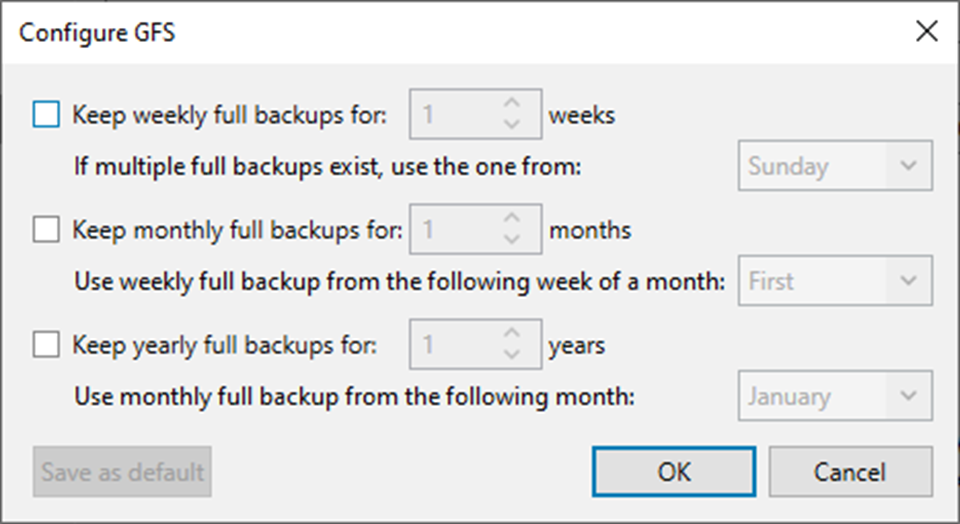

24. Select the Keep weekly full backups for checkbox and specify the number of weeks you want to prevent restore points from being modified and deleted.

25. Select the Keep monthly full backups for checkbox and specify the months you want to prevent restore points from being modified and deleted.

26. Select the Keep yearly full backups for checkbox and specify the years you want to prevent restore points from being modified and deleted.

27. Click OK.

090323 1803 Howtocreate13 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

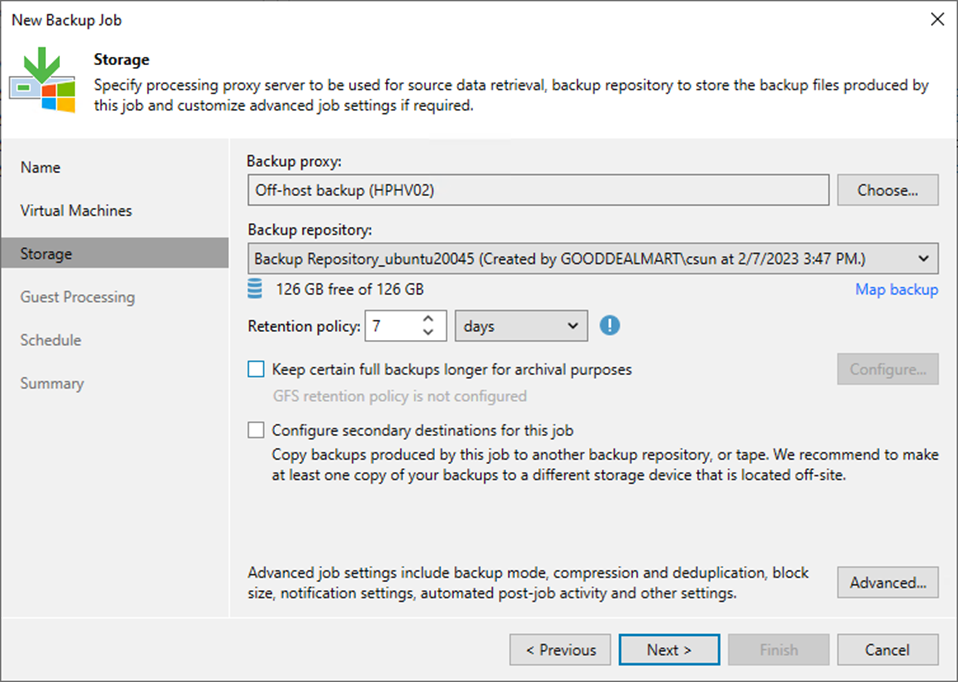

28. On the Storage page, click Advanced.

090323 1803 Howtocreate14 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

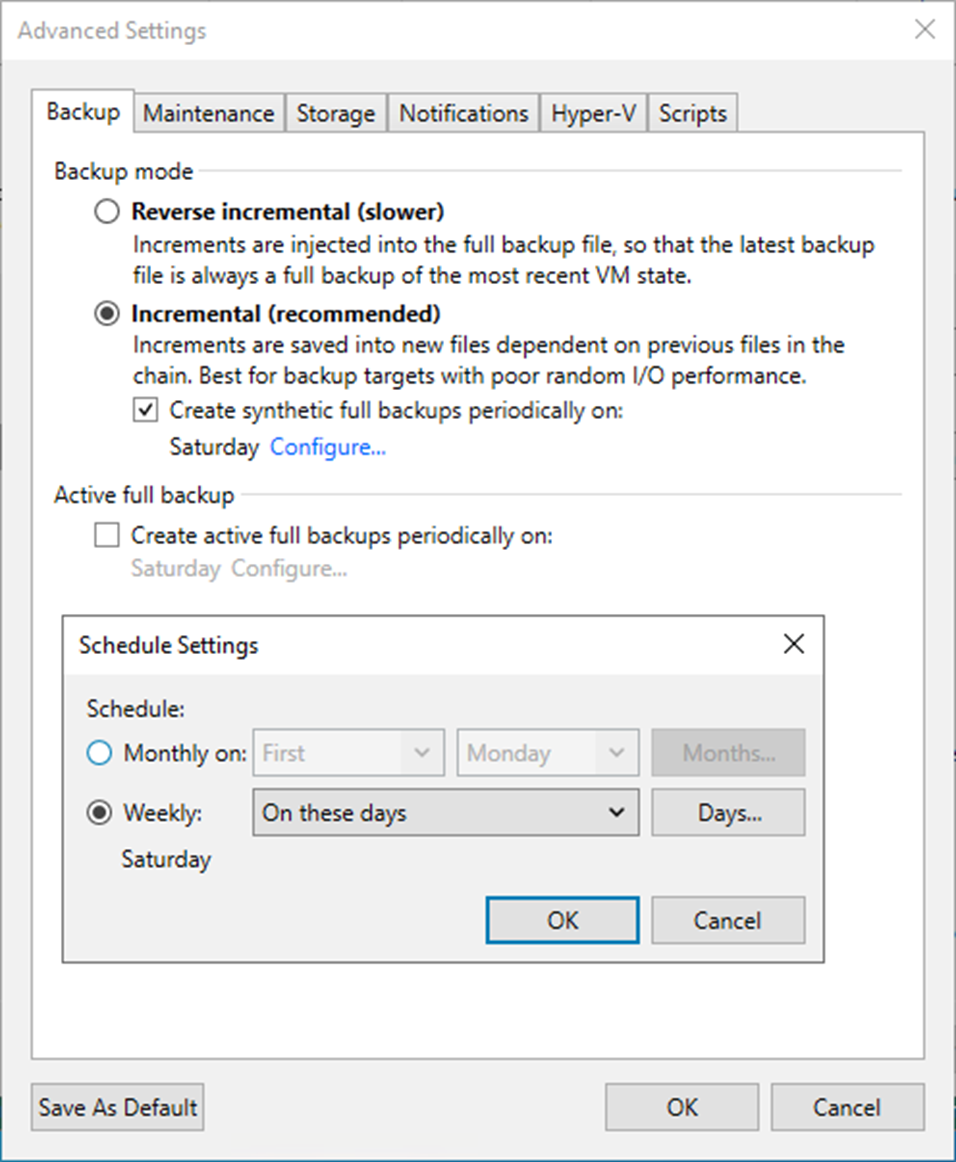

29. On the Backup page, select Incremental (recommended).

30. Select create synthetic full backups periodically or active full backups periodically checkbox.

31. Click Configure to schedule full backups periodically and click OK.

090323 1803 Howtocreate15 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

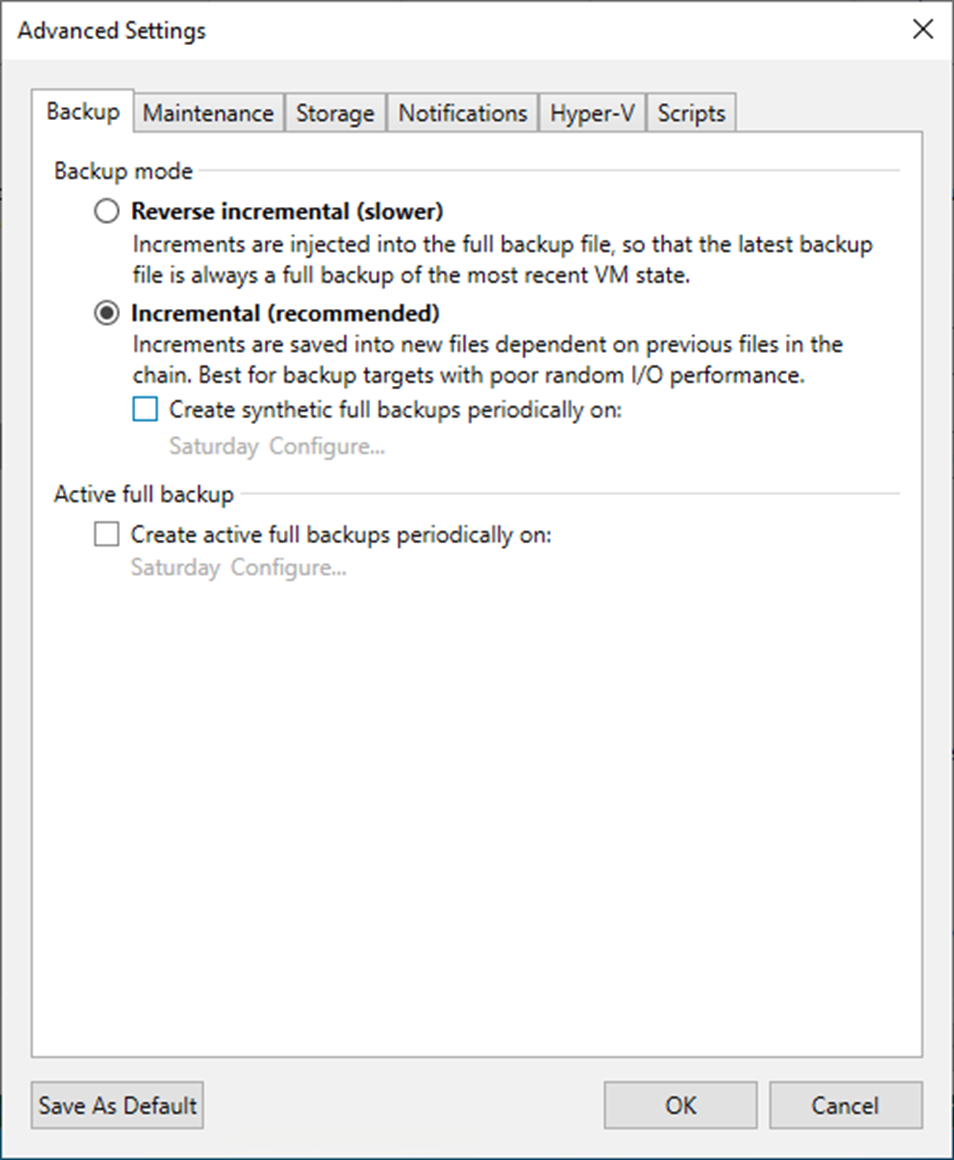

32. Select Incremental and disable synthetic full or active full backups to create a forever forward incremental backup chain if needed.

090323 1803 Howtocreate16 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

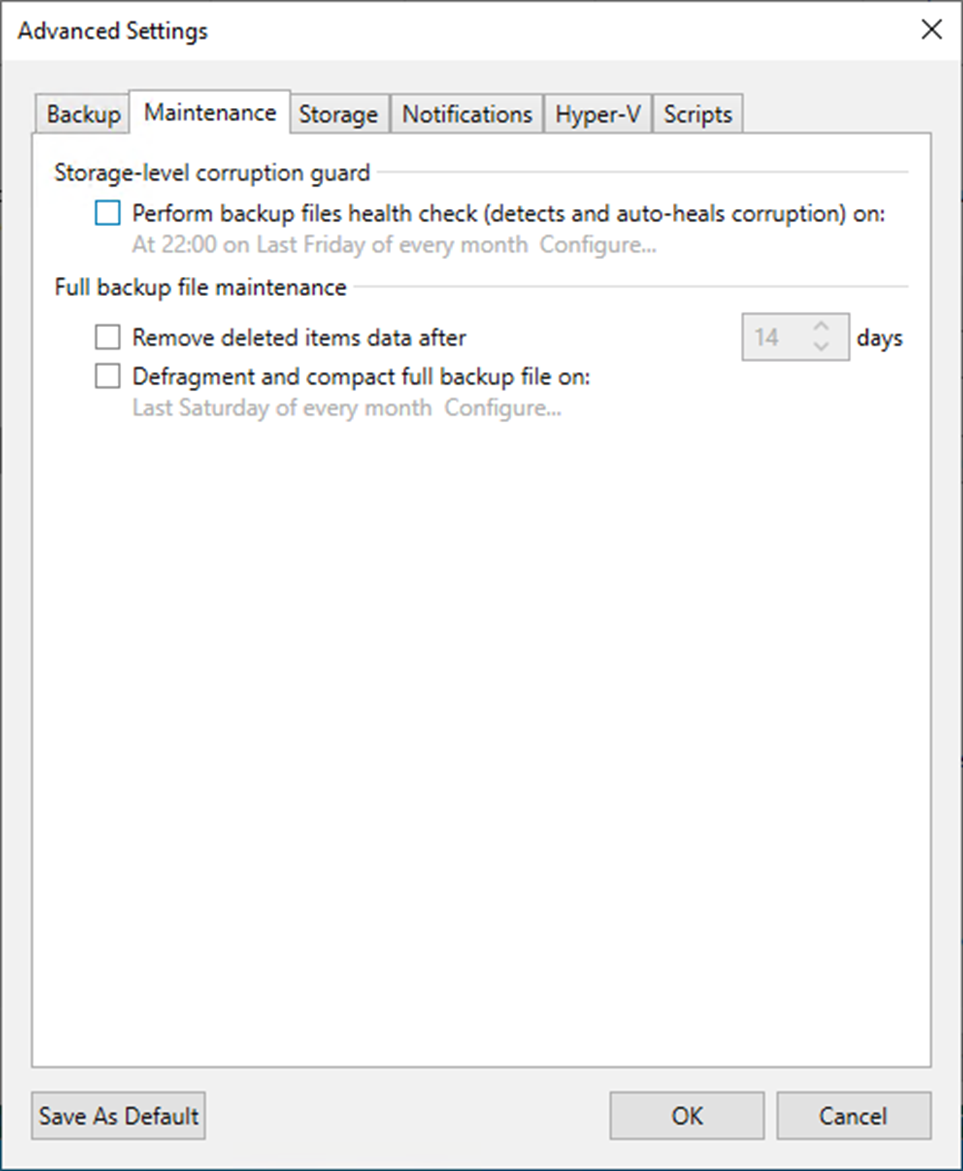

33. On the Advanced Settings, select Maintenance.

090323 1803 Howtocreate17 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

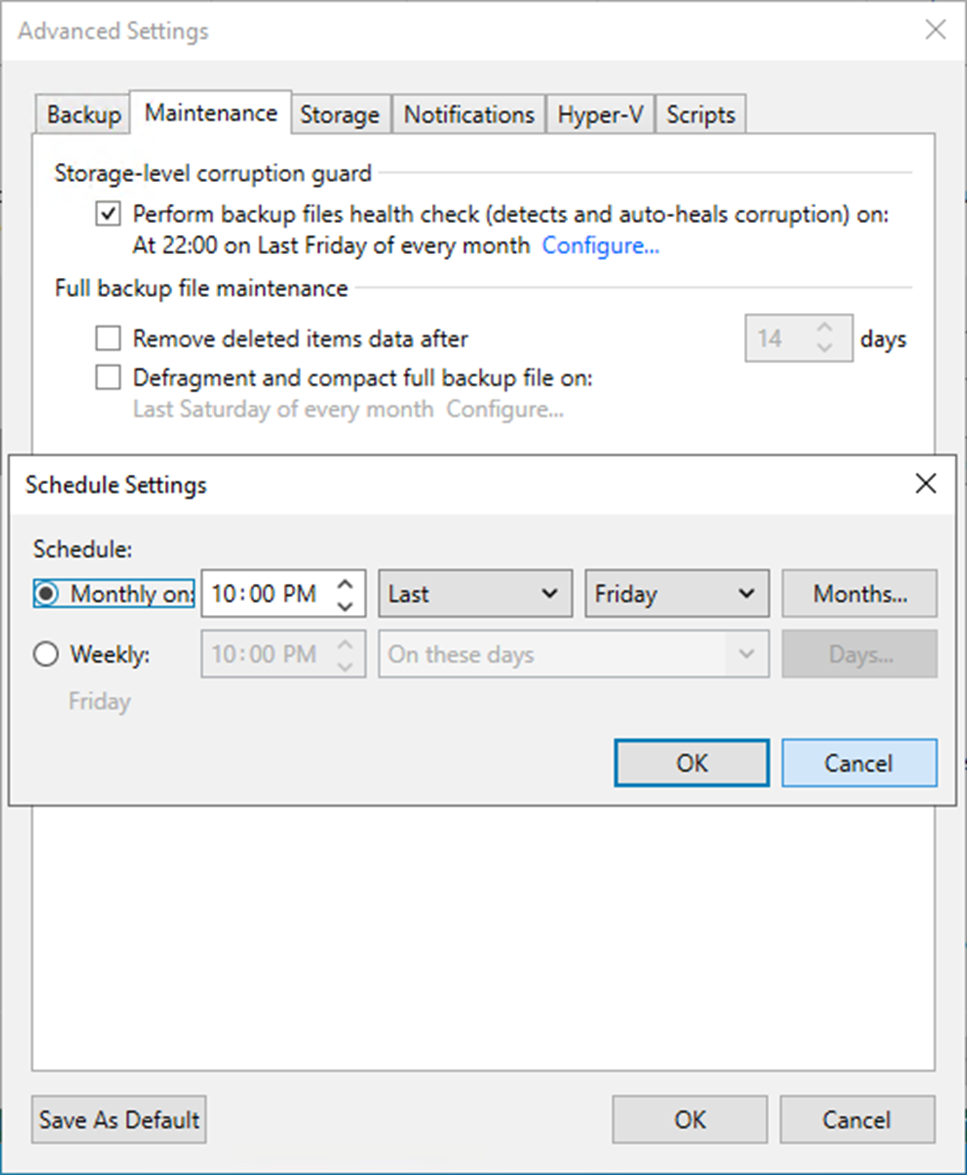

34. To regularly perform a health check on the backup chain’s most recent restore point, select the Perform backup files health check (detects and auto-heals corruption) checkbox in the Storage-level corruption guard section.

35. Click Configure to set a timetable for the health check.

090323 1803 Howtocreate18 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

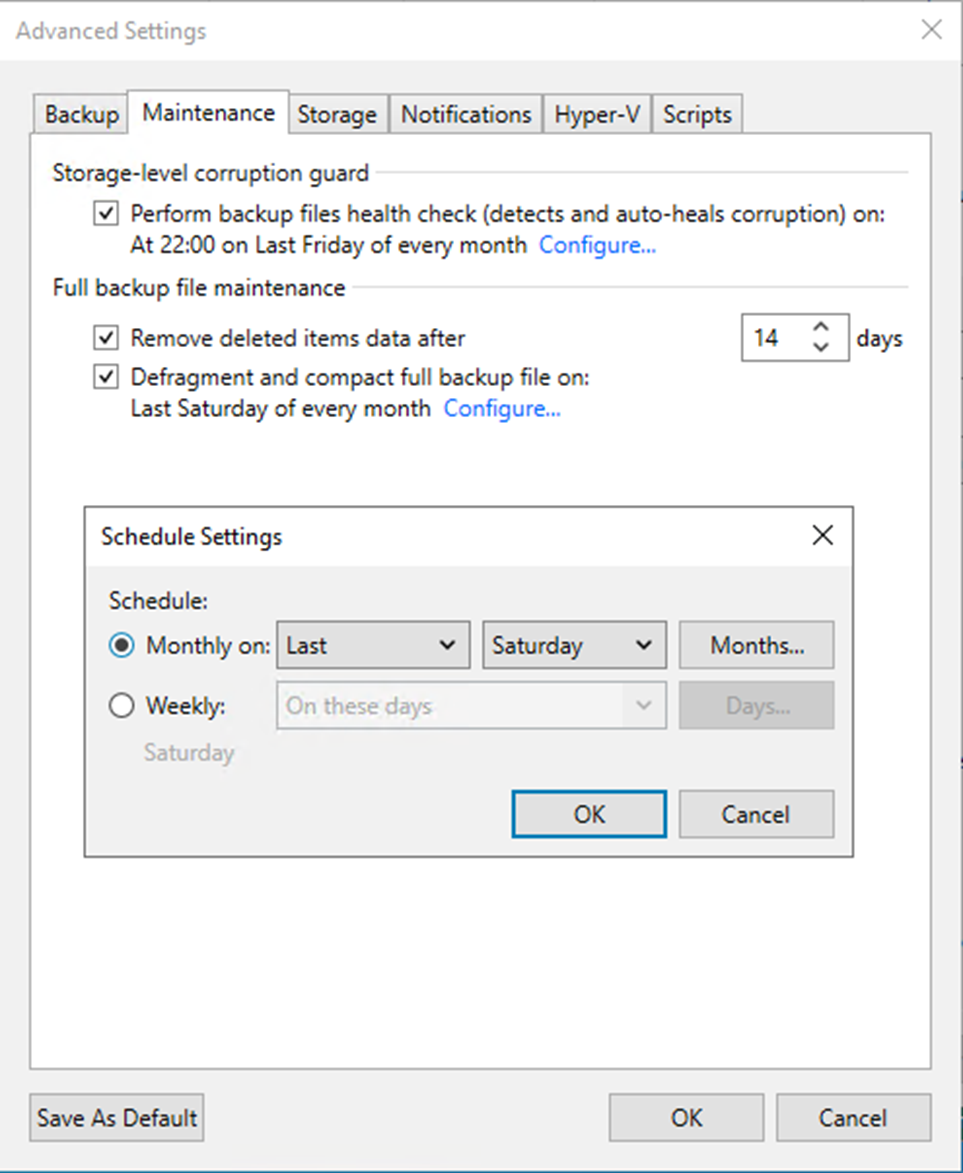

36. Select the Remove deleted items data after the checkbox and enter the few days you want backup data for deleted VMs to be kept.

37. Select the Defragment and compact full backup file checkbox and click Configure.

38. Set the schedule for the compact operation to compact a full backup periodically.

090323 1803 Howtocreate19 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

Note:

GFS retention is not compatible with defragment and compact functionality.

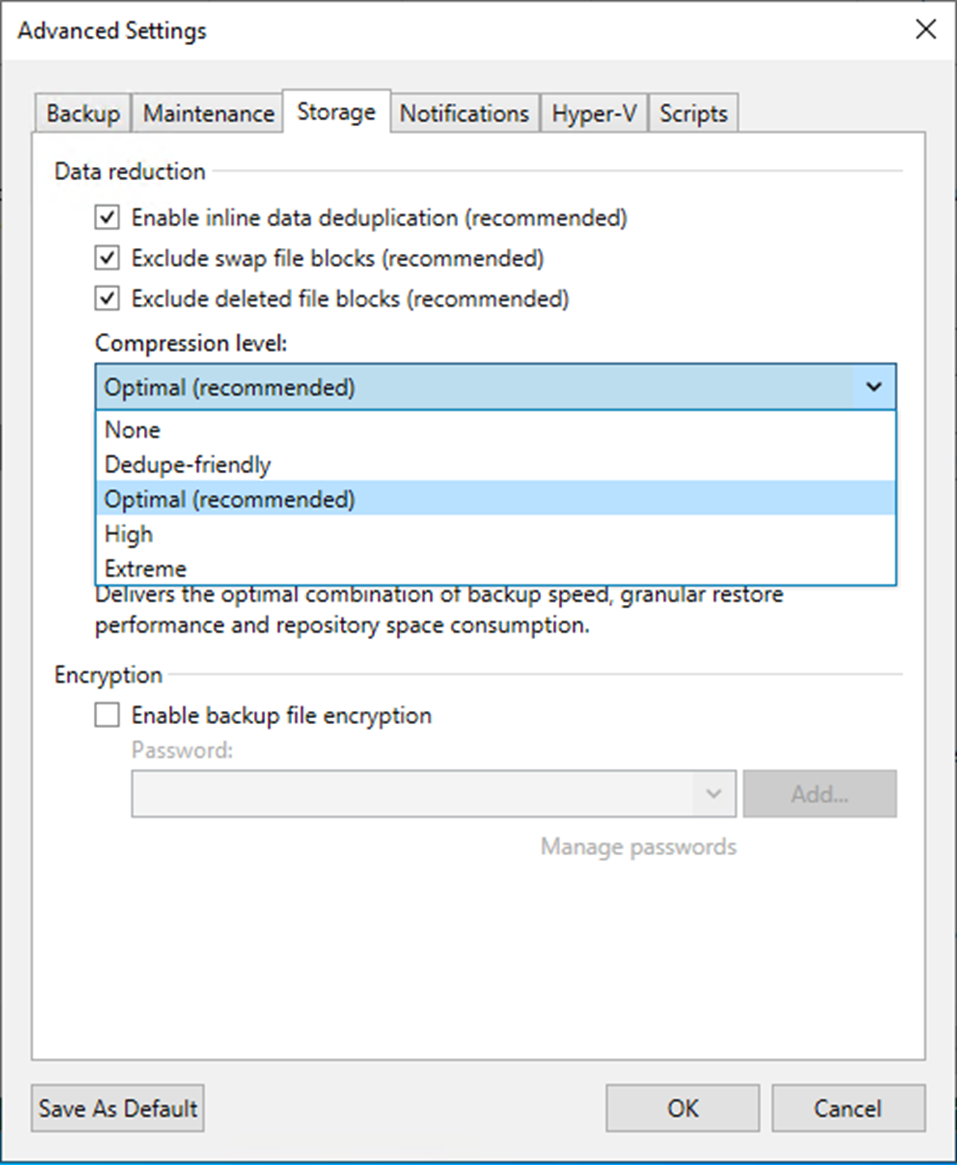

39. On Advanced Settings, select Storage.

40. Select the Enable inline data deduplication (recommended) checkbox.

41. Select the Exclude swap file blocks (recommended) checkbox.

42. Select the Exclude deleted file blocks (recommended) checkbox.

43. Select the compression level for the backup from the drop-down list.

090323 1803 Howtocreate20 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

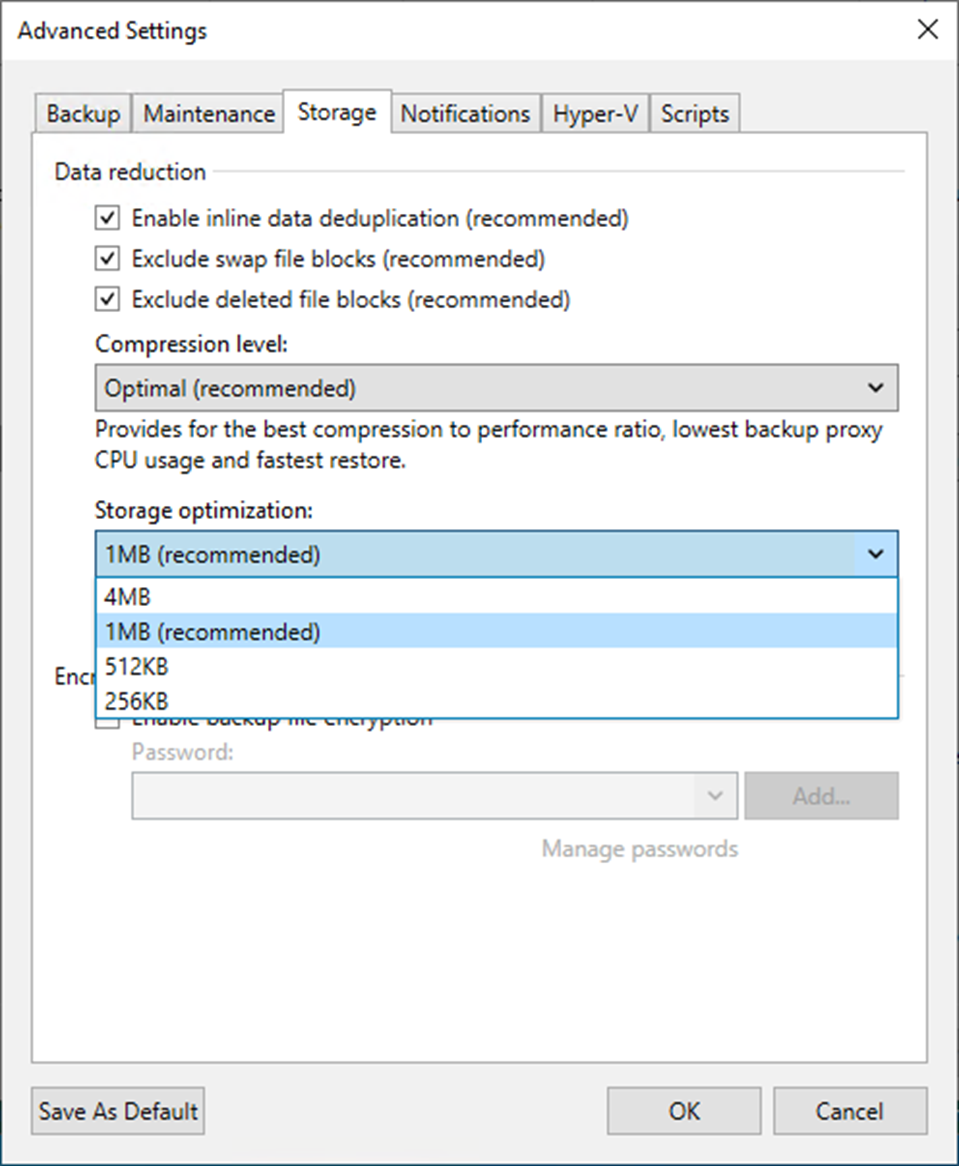

44. Select the Storage optimization for the backup from the drop-down list.

090323 1803 Howtocreate21 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

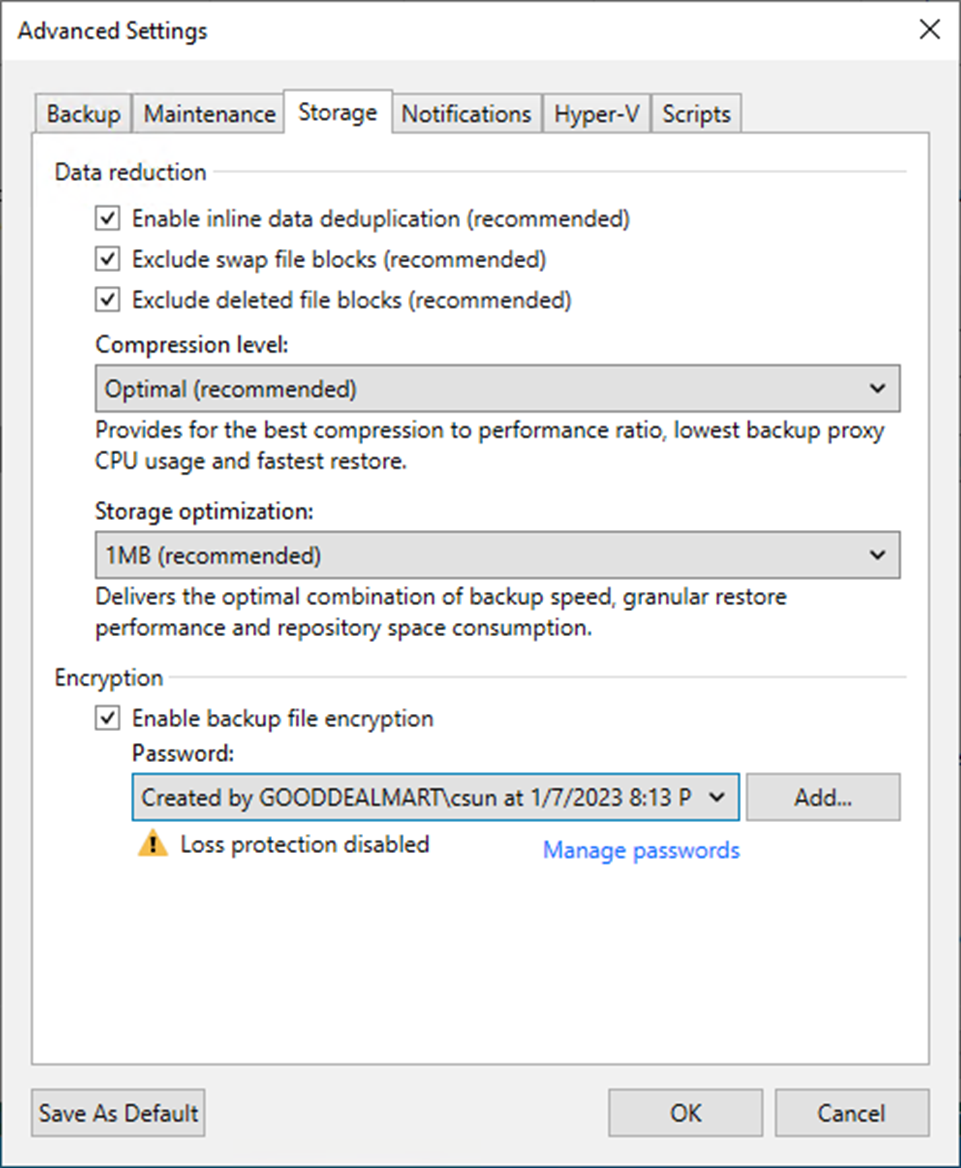

45. Select the Enable backup file encryption checkbox to encrypt the content of backup files.

46. Select a password from the drop-down list. If you still need to do, click Add or use the Manage passwords link to create a new password.

090323 1803 Howtocreate22 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

47. Select Notifications on the Advanced Settings.

48. Keep the default settings.

090323 1803 Howtocreate23 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

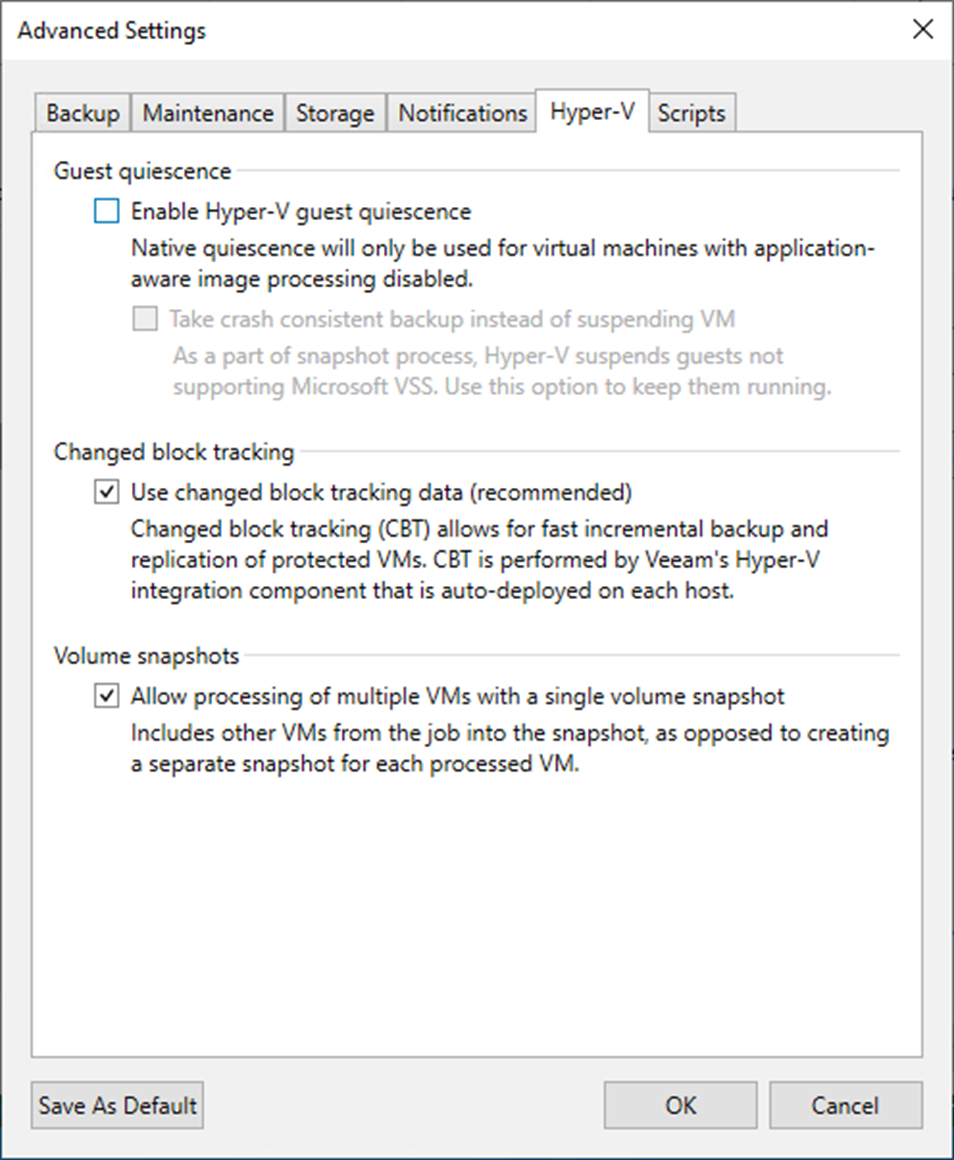

49. Select Hyper-V on the Advanced Settings.

50. Keep the default settings.

090323 1803 Howtocreate24 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

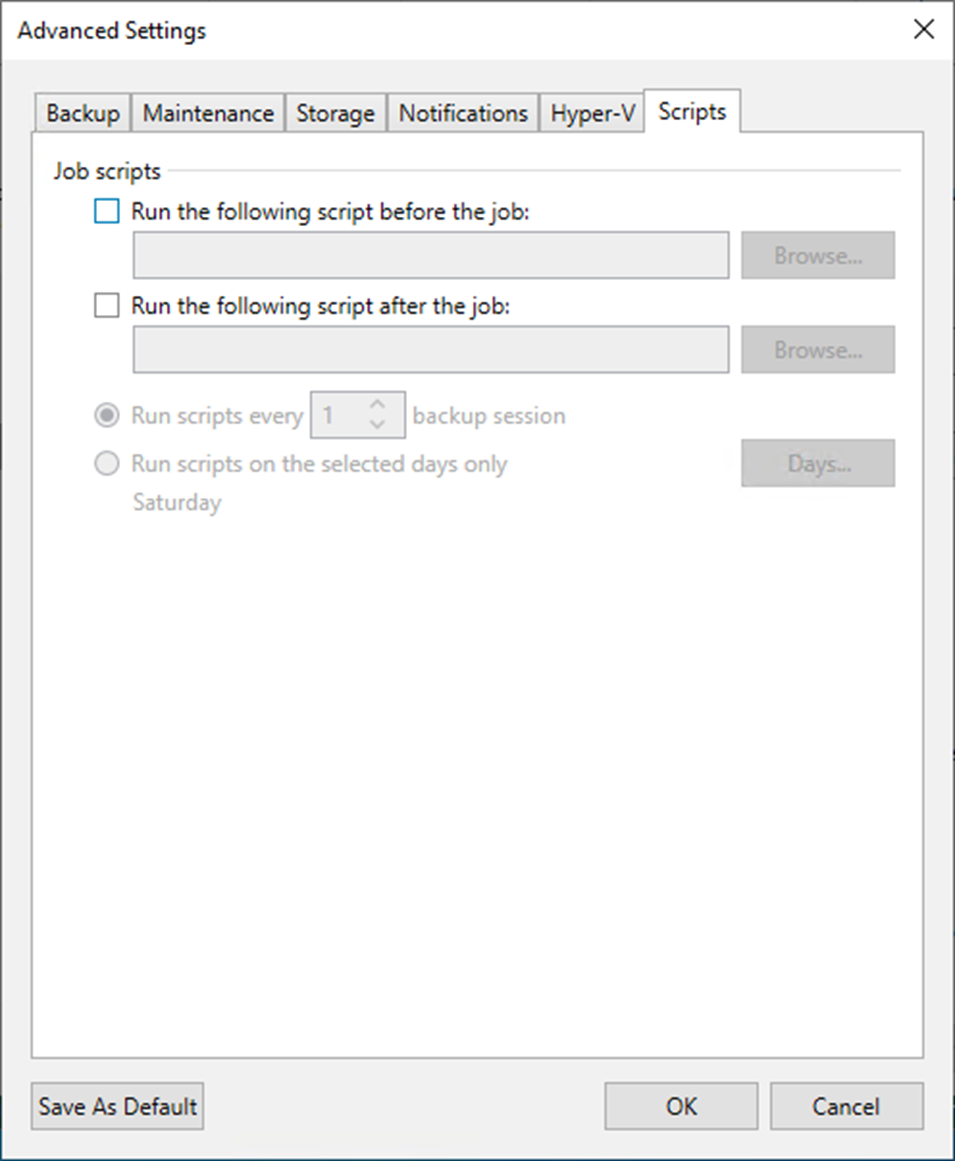

51. On the Advanced Settings page, select Scripts and keep the default settings.

52. Click OK.

090323 1803 Howtocreate25 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

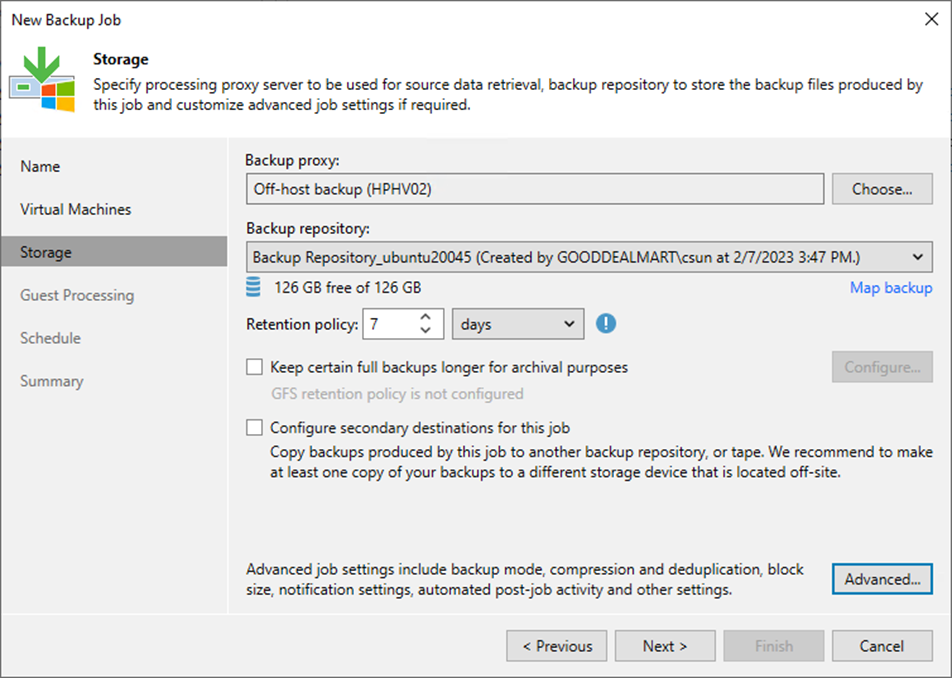

53. Click Next on the Storage page.

090323 1803 Howtocreate26 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

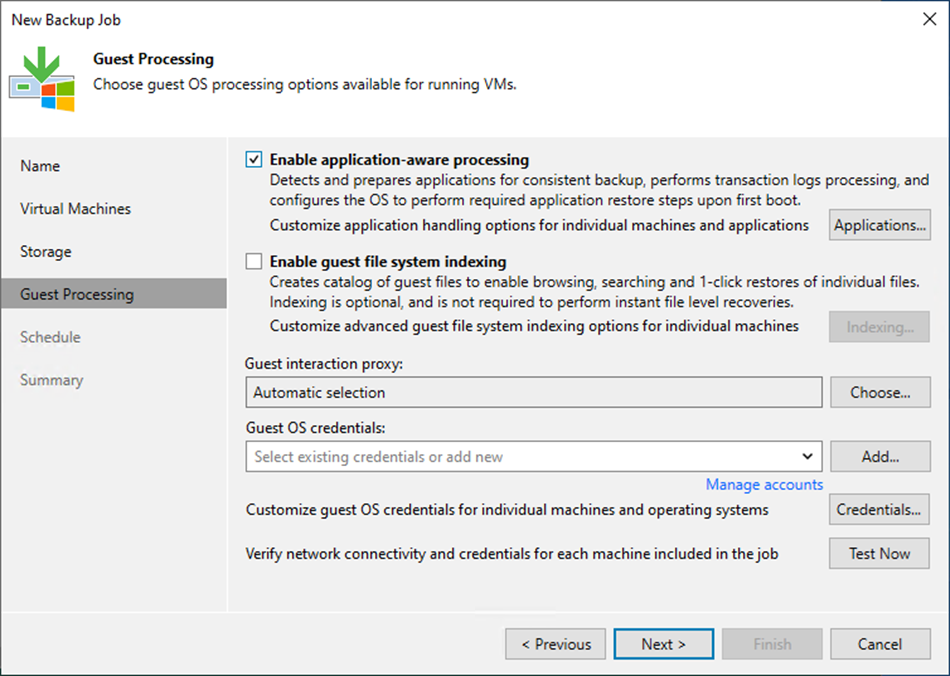

54. When you add VMs running VSS-aware applications to the backup job, you can enable application-aware processing to create a transactionally consistent backup. The transactionally consistent backup ensures that applications on VMs can be recovered without data loss.

55. Select the Enable application-aware processing checkbox on the Guest Processing page and click Applications.

090323 1803 Howtocreate27 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

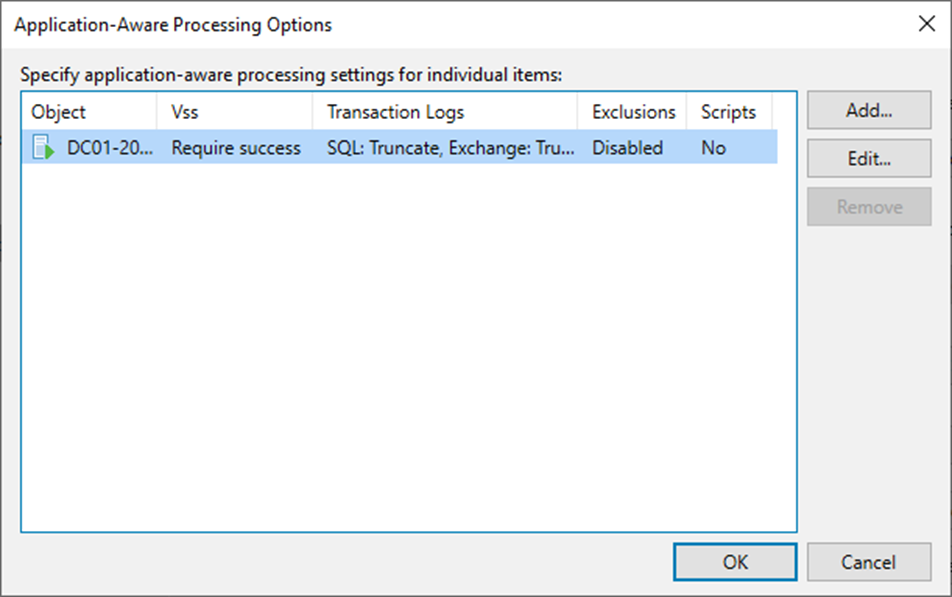

56. On the Application-Aware Processing Options page, select the VM and click Edit.

090323 1803 Howtocreate28 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

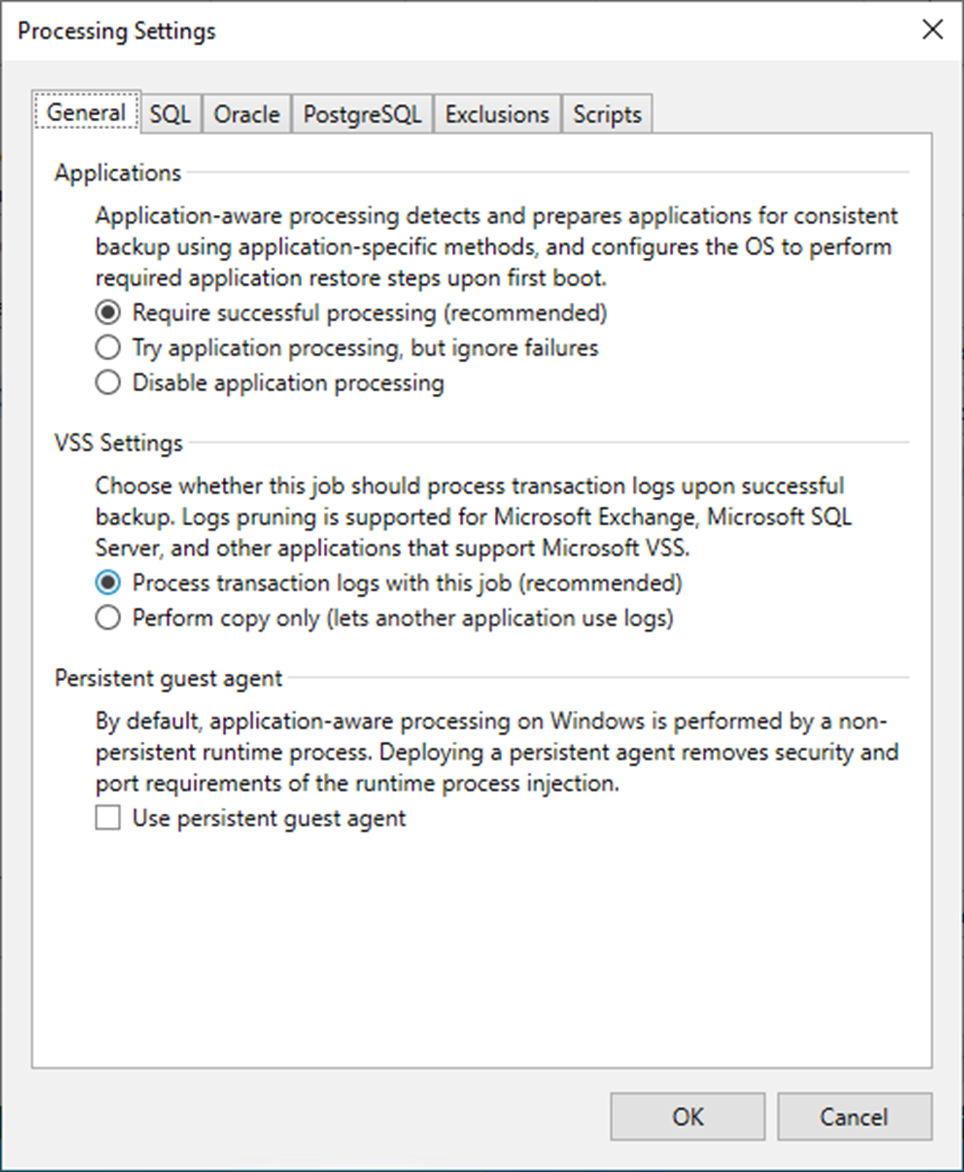

57. On the Processing Settings, click General.

58. Keep the default settings.

090323 1803 Howtocreate29 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

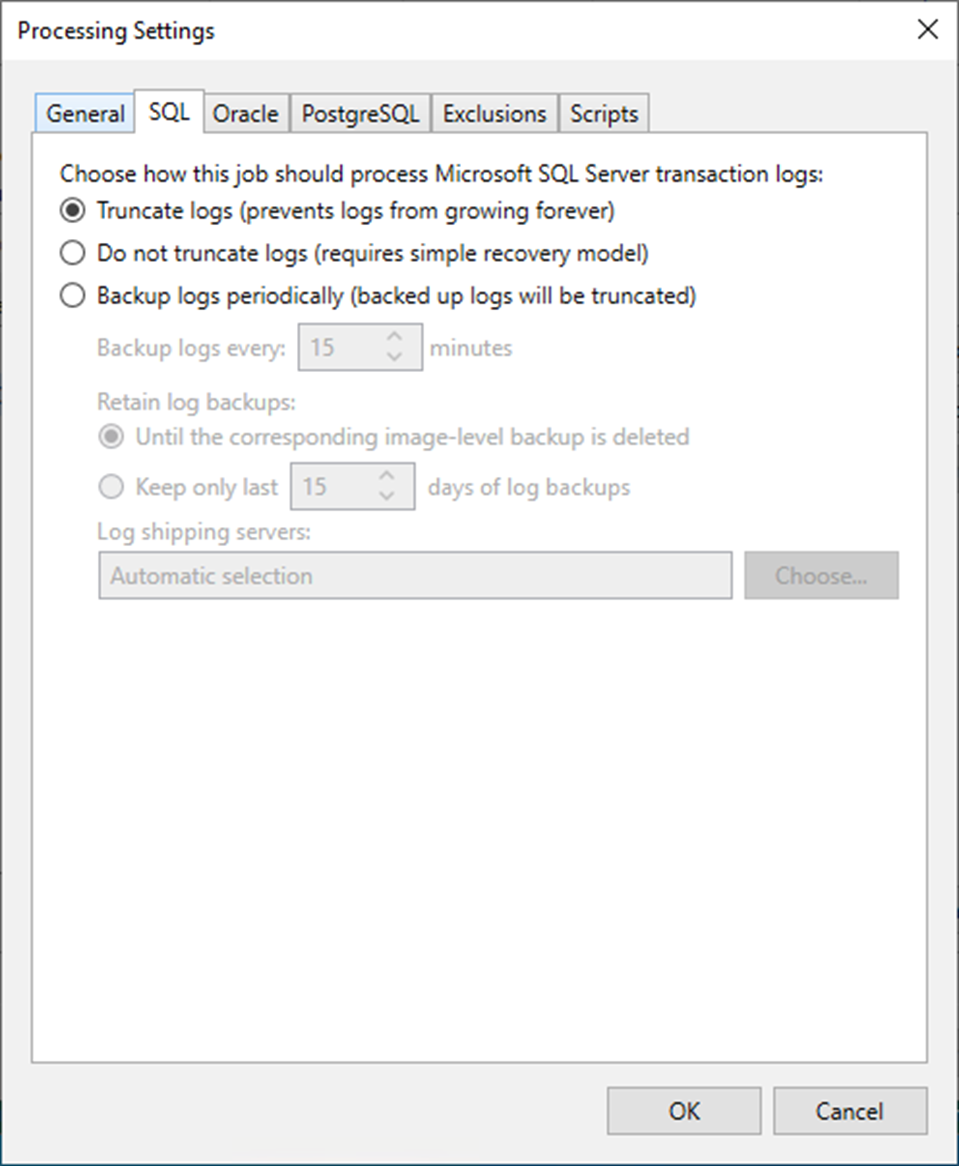

59. On the Processing Settings page, click SQL if the VM is a Microsoft SQL Server VM.

60. Select Truncate logs (Prevents logs from growing forever) to truncate transaction logs after a successful backup.

090323 1803 Howtocreate30 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

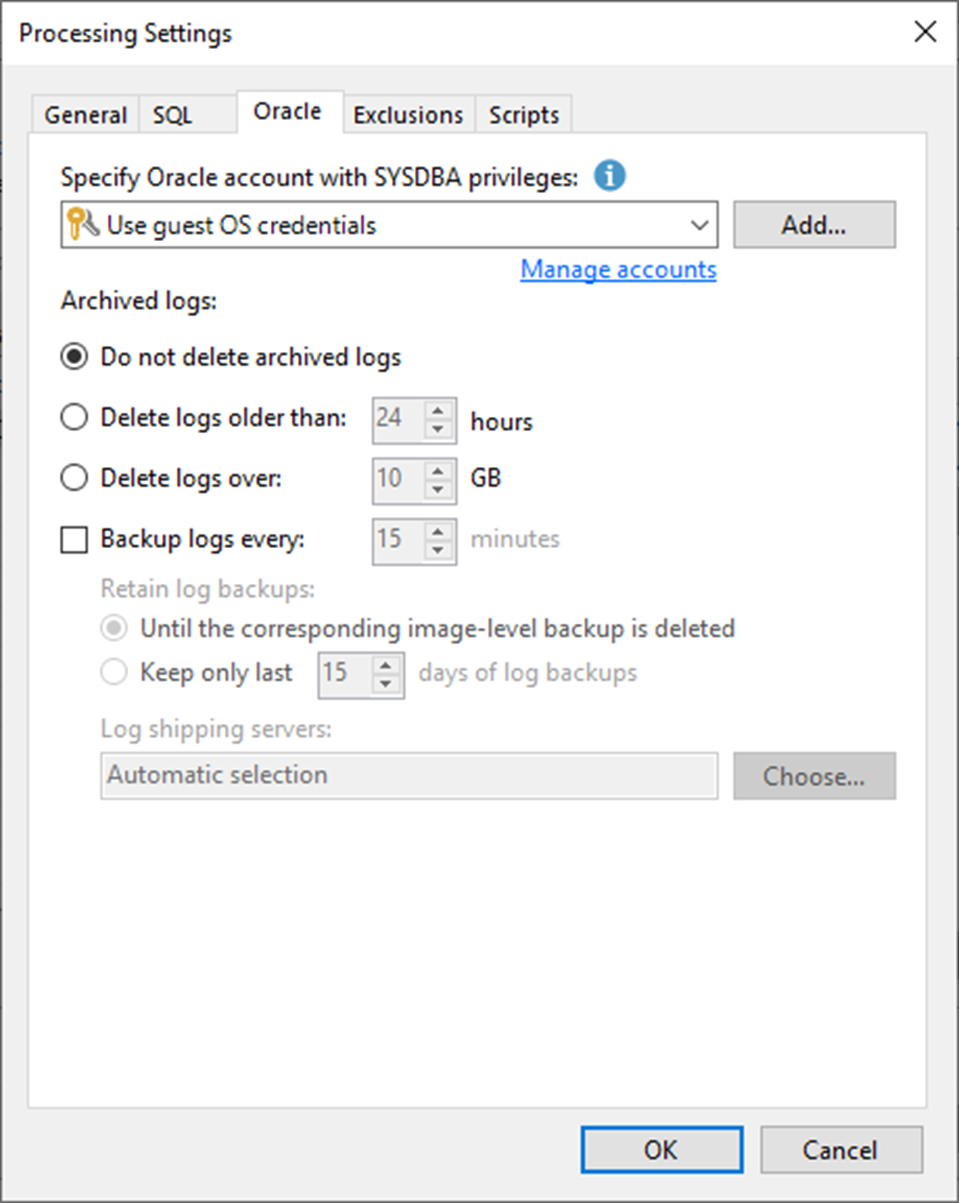

61. On the Processing Settings page, click Oracle if the VM is an Oracle Server.

62. Select a user account from the drop-down list.

63. Select Do not delete archived logs checkbox.

090323 1803 Howtocreate31 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

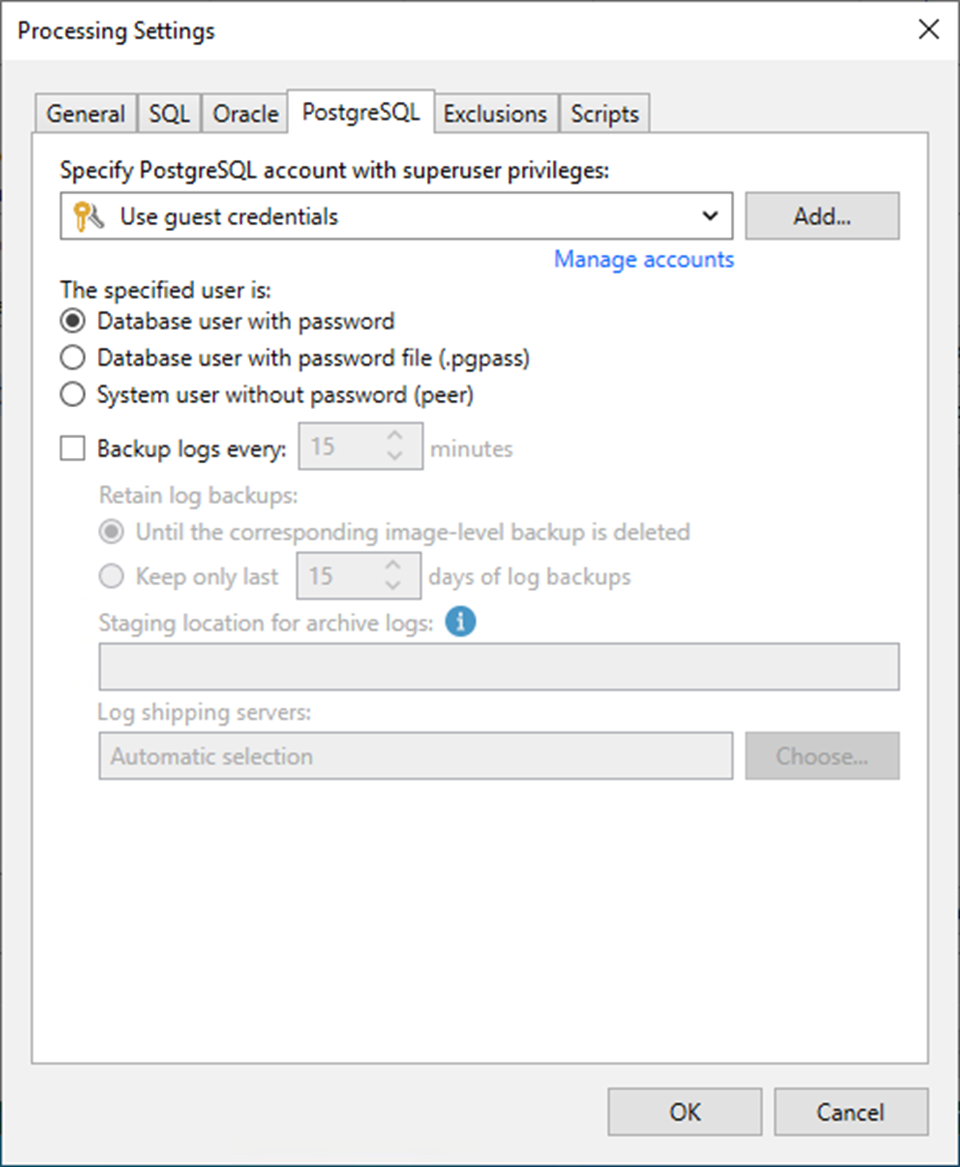

64. On the Processing Settings page, click PostgreSQL if the VM is a PostgreSQL Server VM.

65. Select a user account from the drop-down list.

66. Select Database user with password checkbox.

090323 1803 Howtocreate32 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

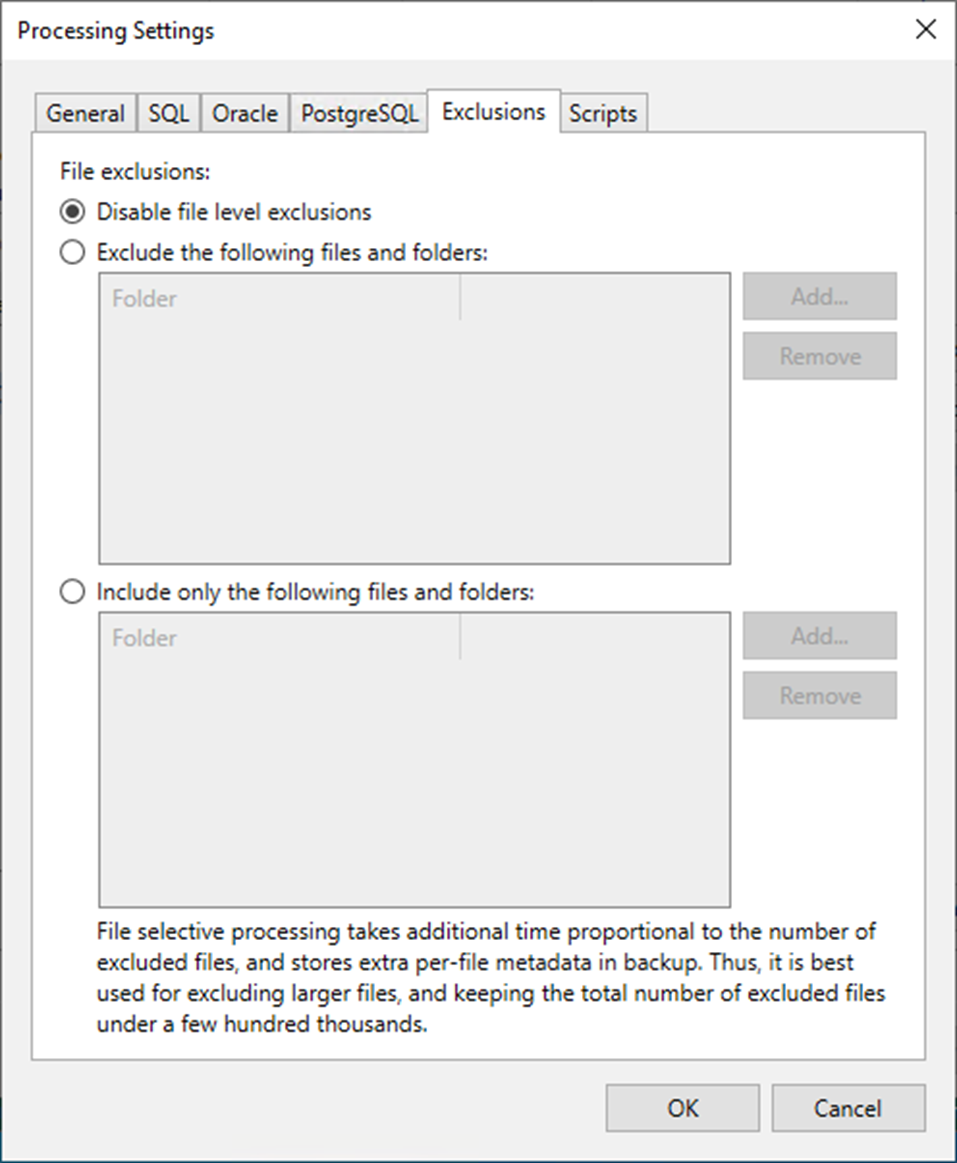

67. On the Processing Settings page, click Exclusions and keep the default settings.

090323 1803 Howtocreate33 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

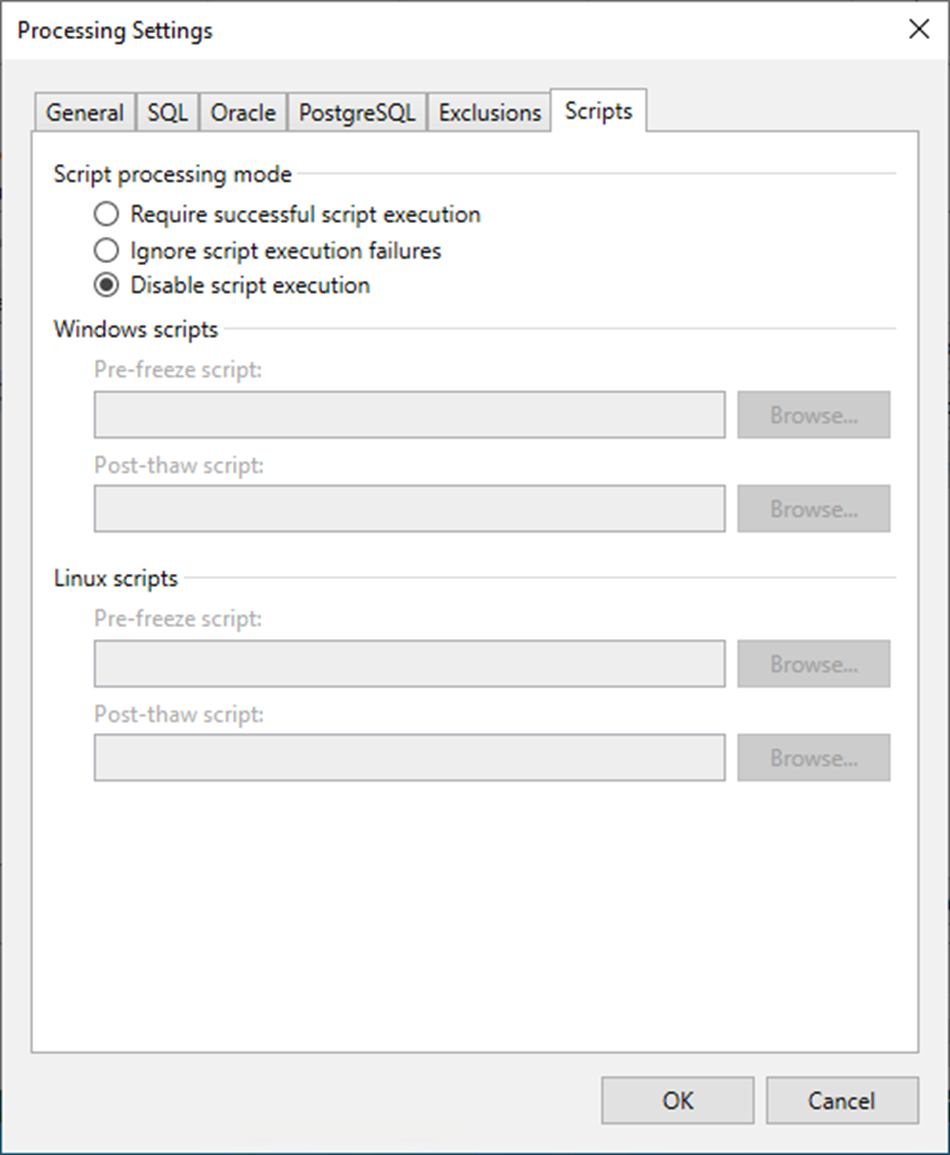

68. On the Processing Settings page, click Scripts and keep the default settings.

69. Click OK.

090323 1803 Howtocreate34 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

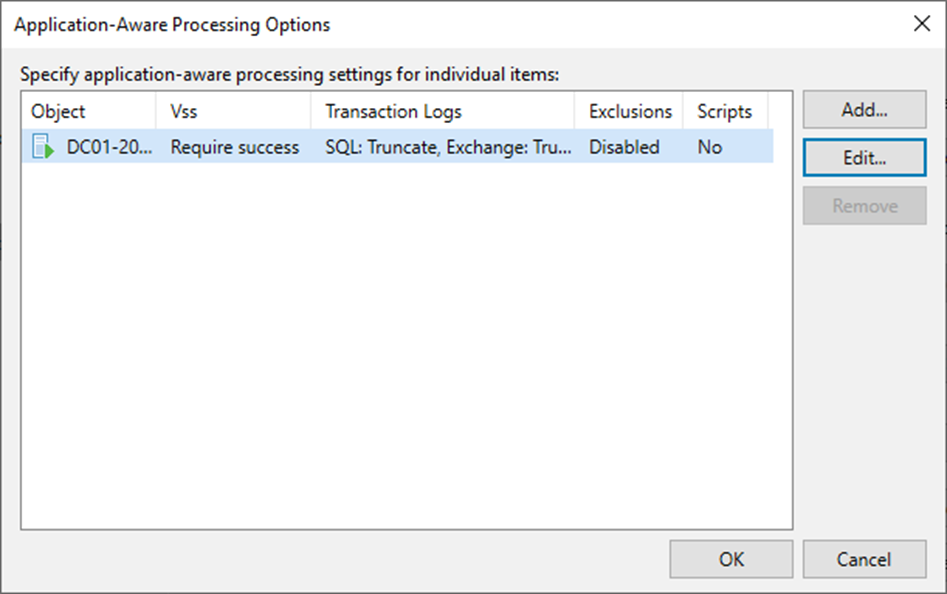

70. On the Application-Aware Processing Options page, click OK.

090323 1803 Howtocreate35 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

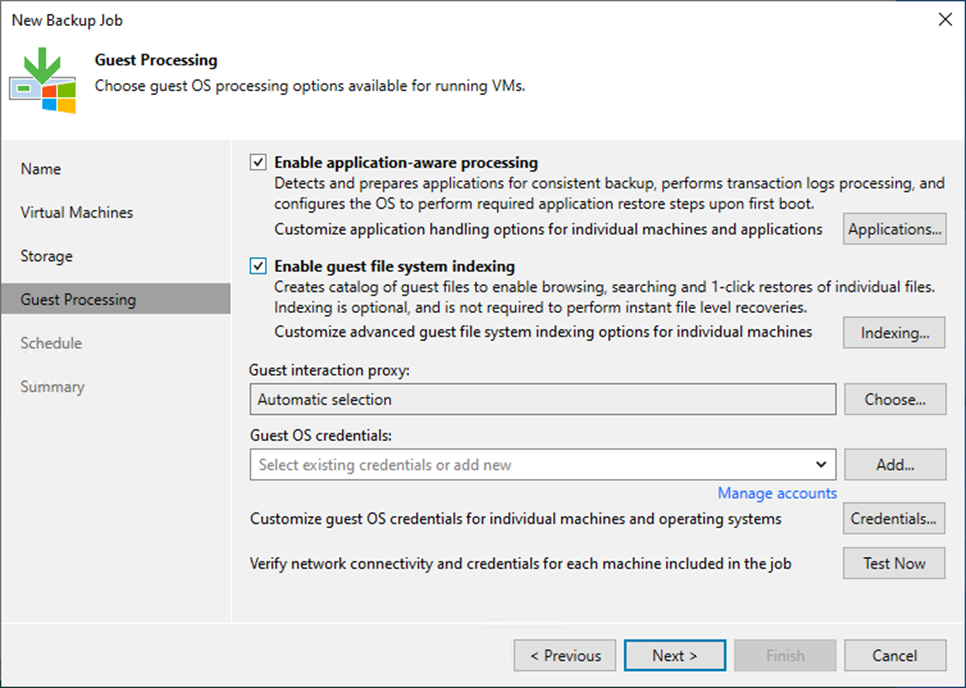

71. Select the Enable guest file system indexing checkbox and click Indexing.

090323 1803 Howtocreate36 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

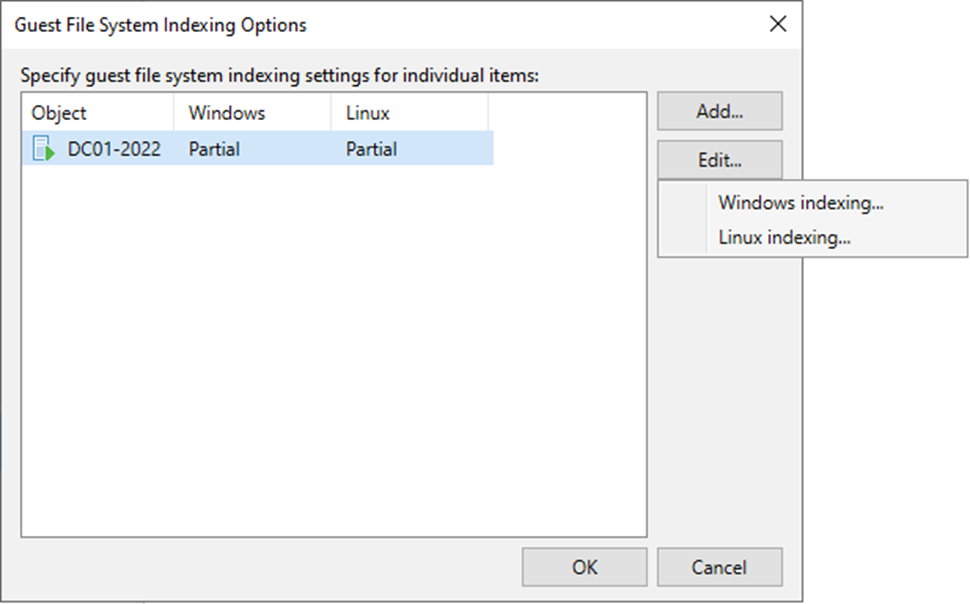

72. On the Guest File System Indexing Options page, select the VM, click Edit and select Windows indexing.

090323 1803 Howtocreate37 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

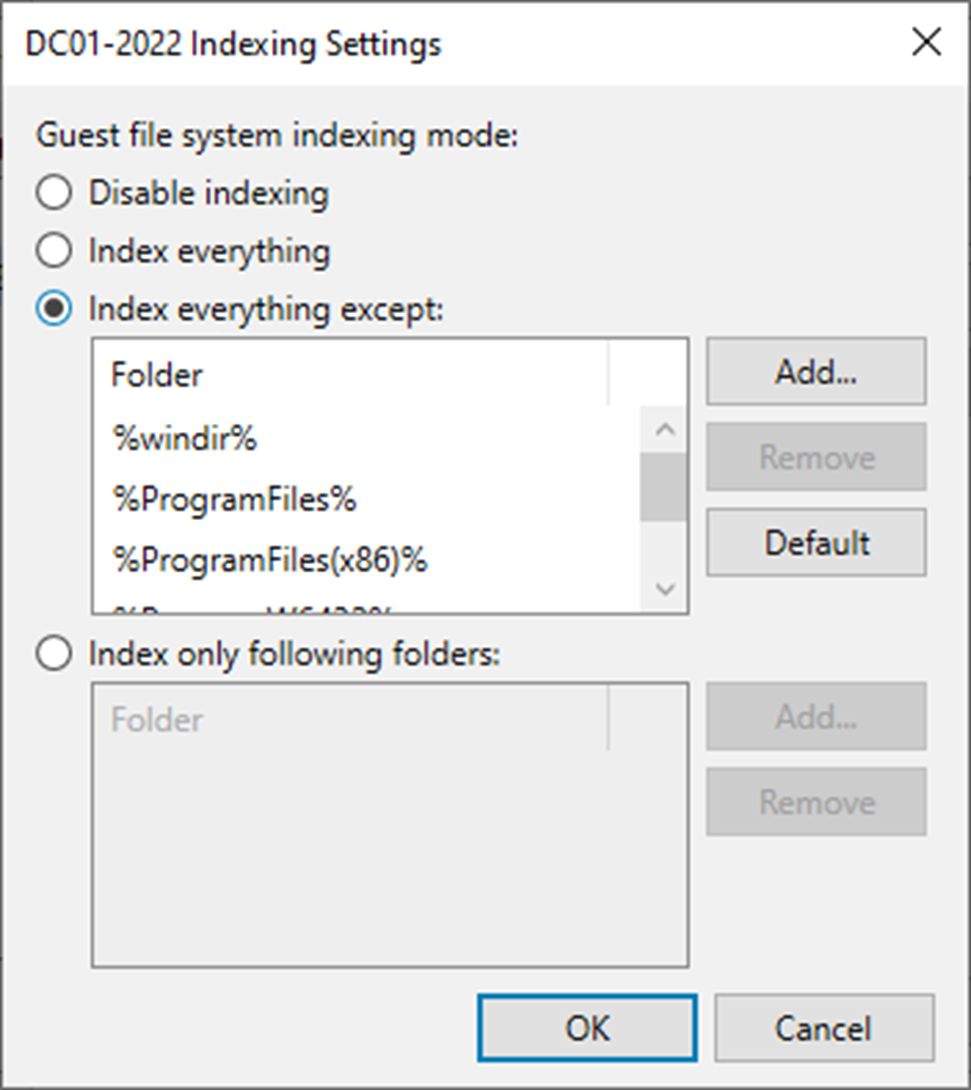

73. On the Guest file system indexing mode page, keep the default settings.

74. Click OK.

090323 1803 Howtocreate38 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

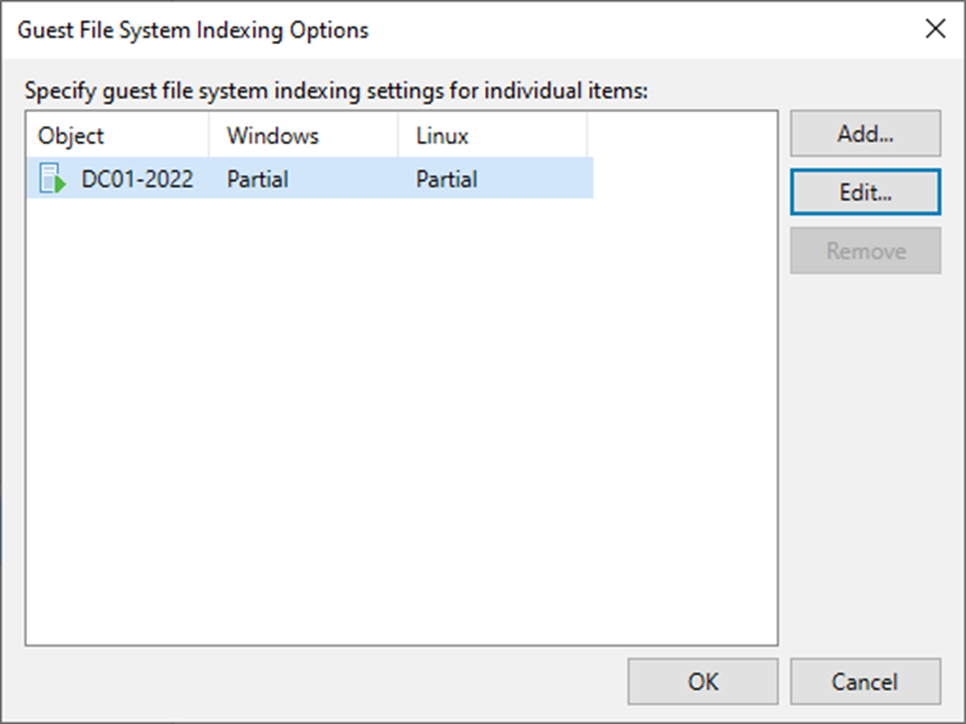

75. Click OK on the Guest file system indexing mode page.

090323 1803 Howtocreate39 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

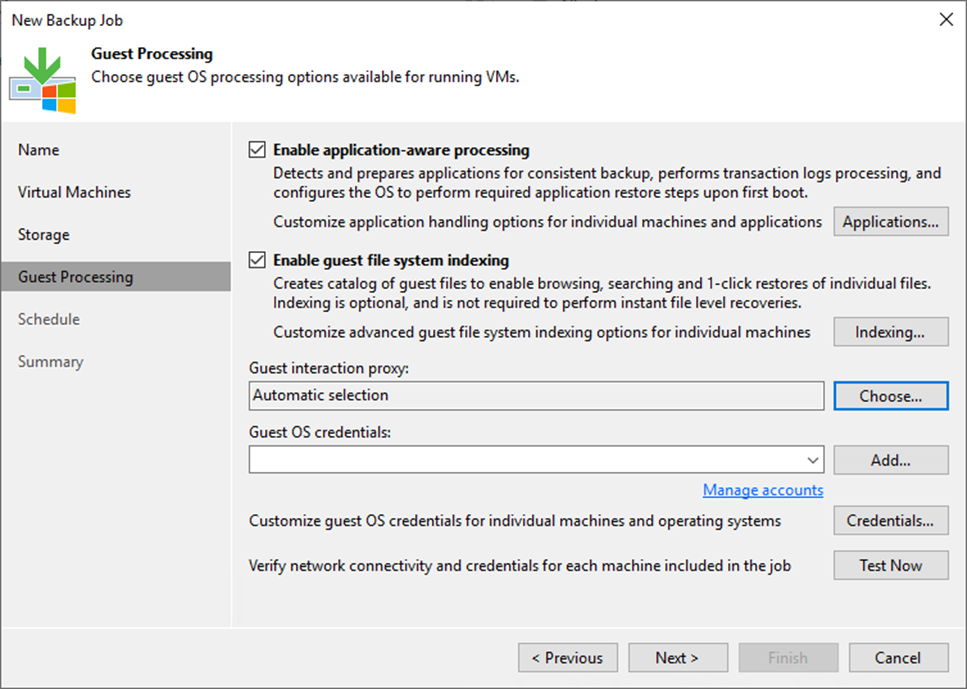

76. Keep the default Automatic selection setting in the Guest interaction proxy field.

090323 1803 Howtocreate40 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

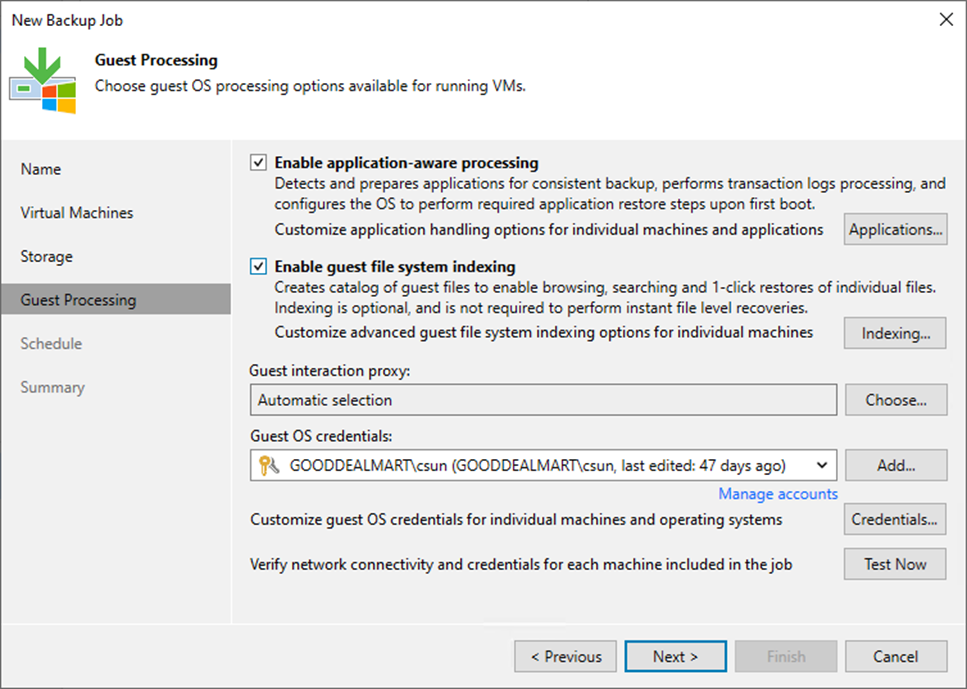

77. Choose a user account on the Guest Processing page with sufficient permissions from the Guest OS credentials drop-down list.

78. If you have multiple VMs at the same job, click Credentials to Customize guest OS credentials for individual machines and operating systems.

79. On the Guest Processing page, click Test Now to verify network connectivity and credentials for each machine included in the job.

090323 1803 Howtocreate41 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

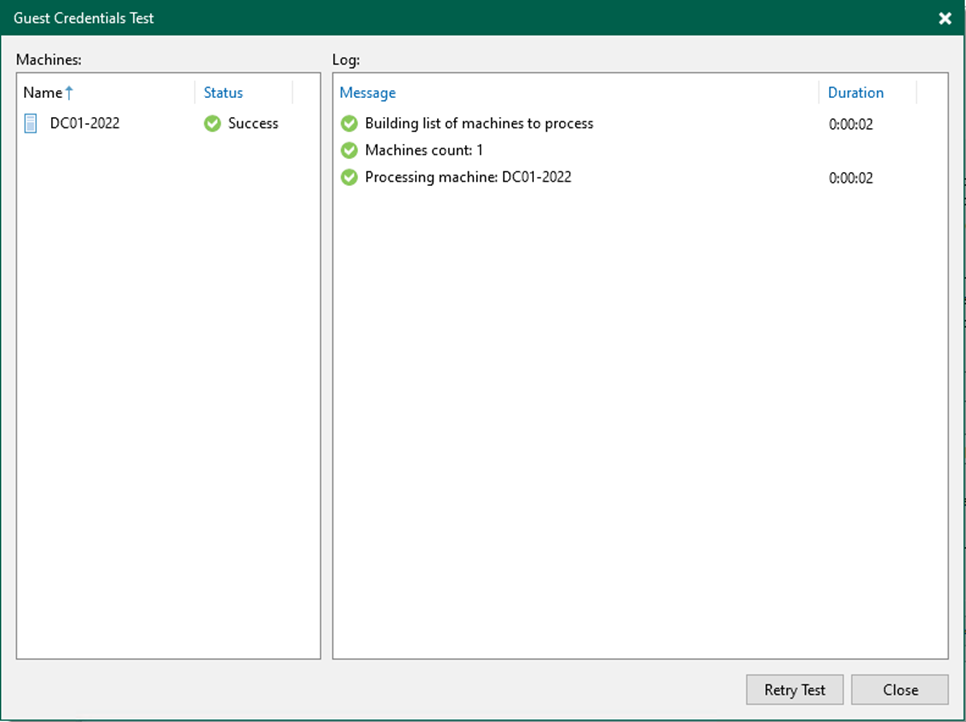

80. On the Guest Credentials Test page, ensure verification success for each machine.

81. Click Close.

090323 1803 Howtocreate42 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

82. Click Next on the Guest Processing page.

090323 1803 Howtocreate43 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

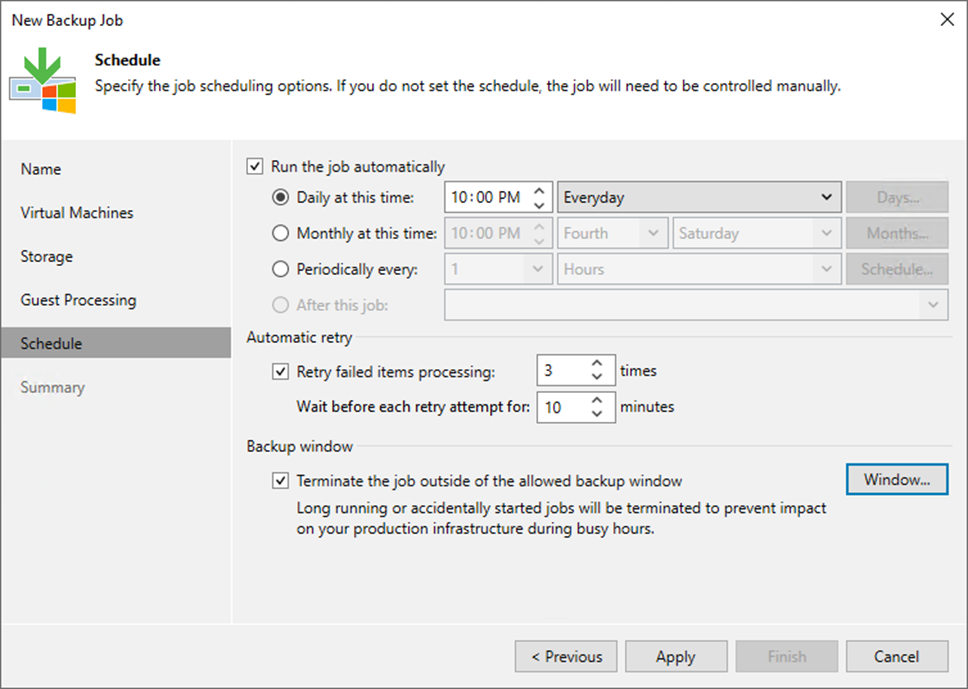

83. Select Run the job automatically checkbox on the Schedule page and select your specified schedule.

84. Define whether Veeam Backup & Replication should retry the backup job if it fails in the Automatic retry section.

85. Define the time interval the backup job must complete in the Backup window section. The backup window ensures that the job does not overlap with production hours and that there is no unnecessary overhead on the production environment.

86. Click Apply.

090323 1803 Howtocreate44 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

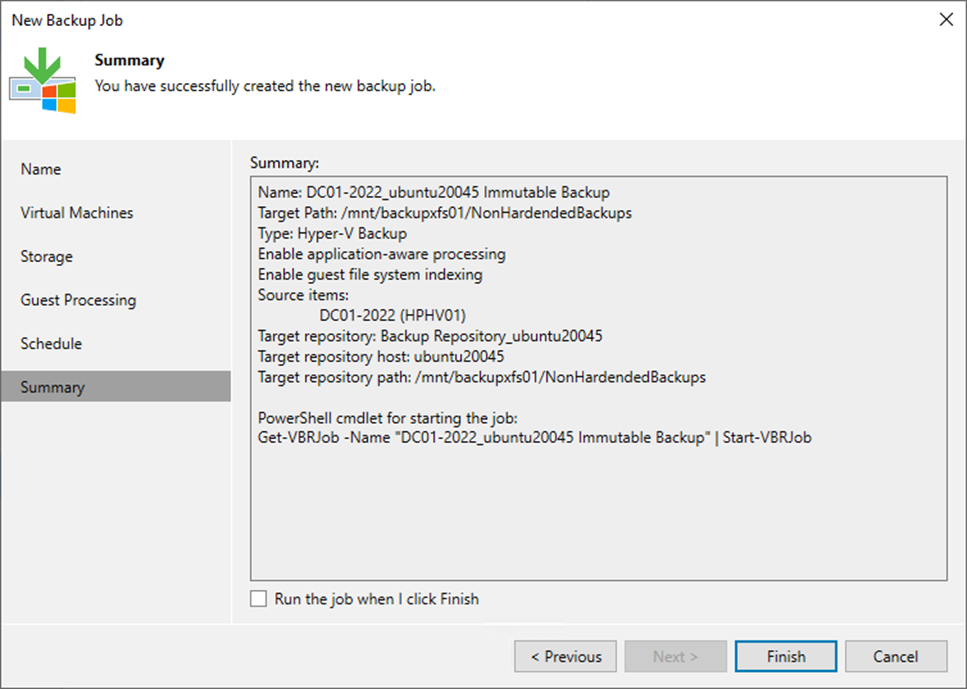

87. Click Finish on the Summary page.

090323 1803 Howtocreate45 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

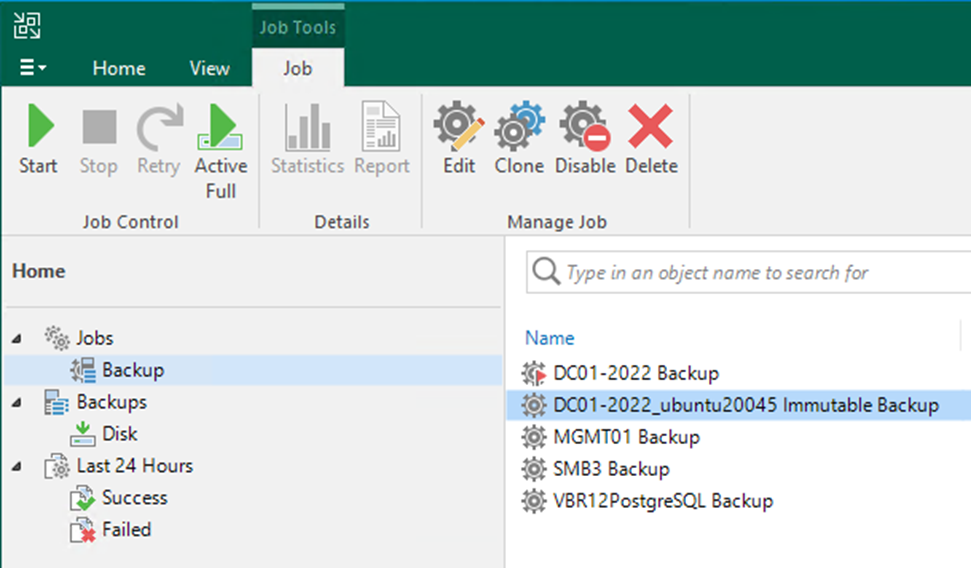

88. Verify that the backup job has been added.

090323 1803 Howtocreate46 - How to create an Immutable Backup job to backup the specified VMs at Veeam Backup and Replication v12

I hope you enjoy this post.
