This procedure creates a replication job to replicate the specified VMs to the disaster recovery site. If a disaster strikes and the production VM stops working properly, you can fail over to its replica.

This procedure creates a replication job to replicate the specified VMs to the disaster recovery site. If a disaster strikes and the production VM stops working properly, you can fail over to its replica.

1. Login to the Veeam Backup and replication manager server.

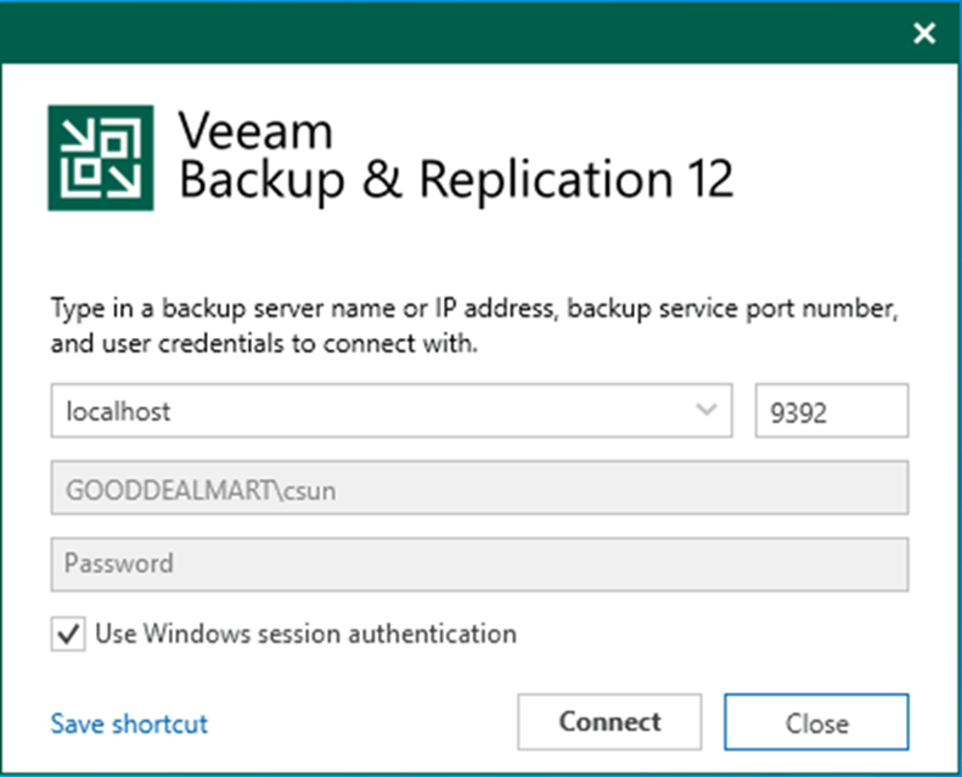

2. Open the Veeam Backup & Replication Console and click Connect.

092423 2153 Howtocreate1 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

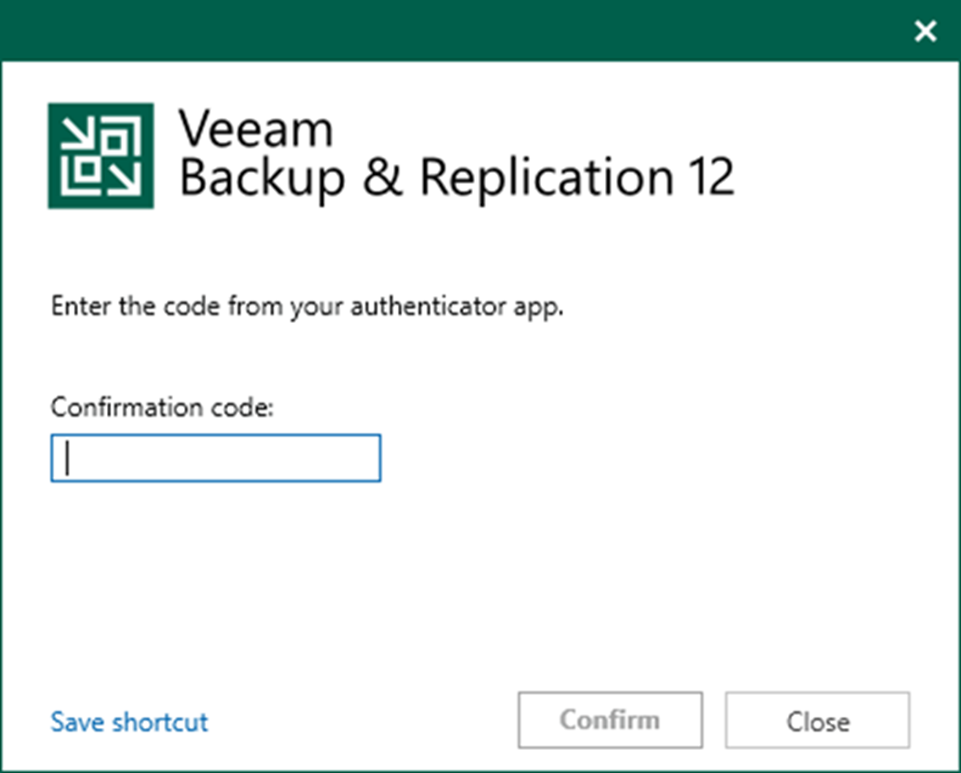

3. Enter the MFA Confirmation code and click Confirm.

092423 2153 Howtocreate2 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

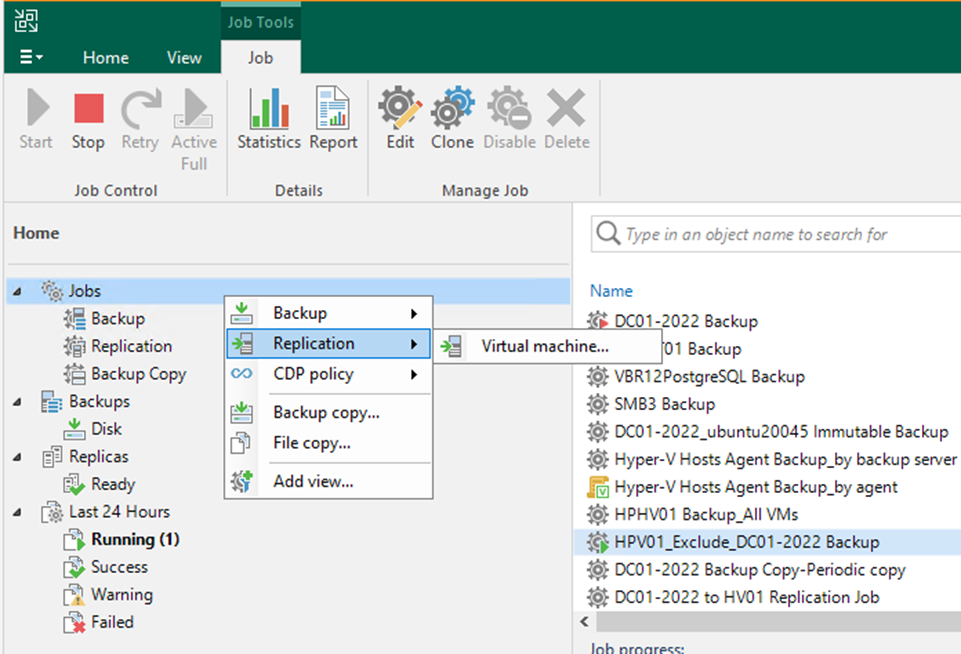

4. On the Home page, select Jobs, right-click Jobs, select Replication and click Virtual machine.

092423 2153 Howtocreate3 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

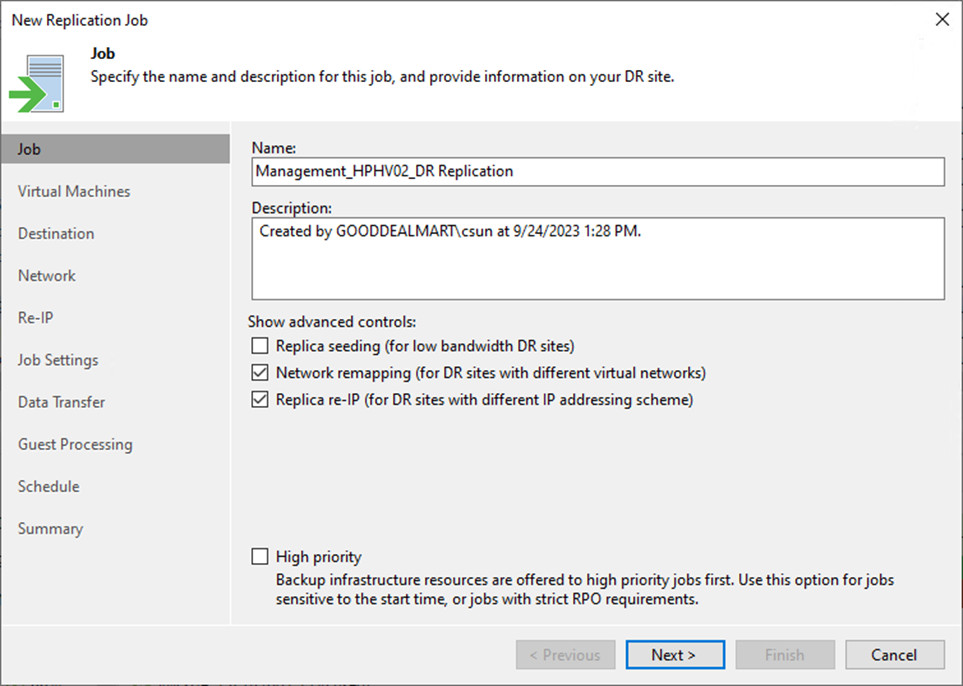

5. On the Job page, enter a name for the replication job in the Name field.

6. Describe the Description field.

7. Select Network remapping (for DR sites with different virtual networks).

8. Replica re-IP (for DR sites with different IP addressing schemes).

9. Select the High priority check box if required.

10. Click Next.

092423 2153 Howtocreate4 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

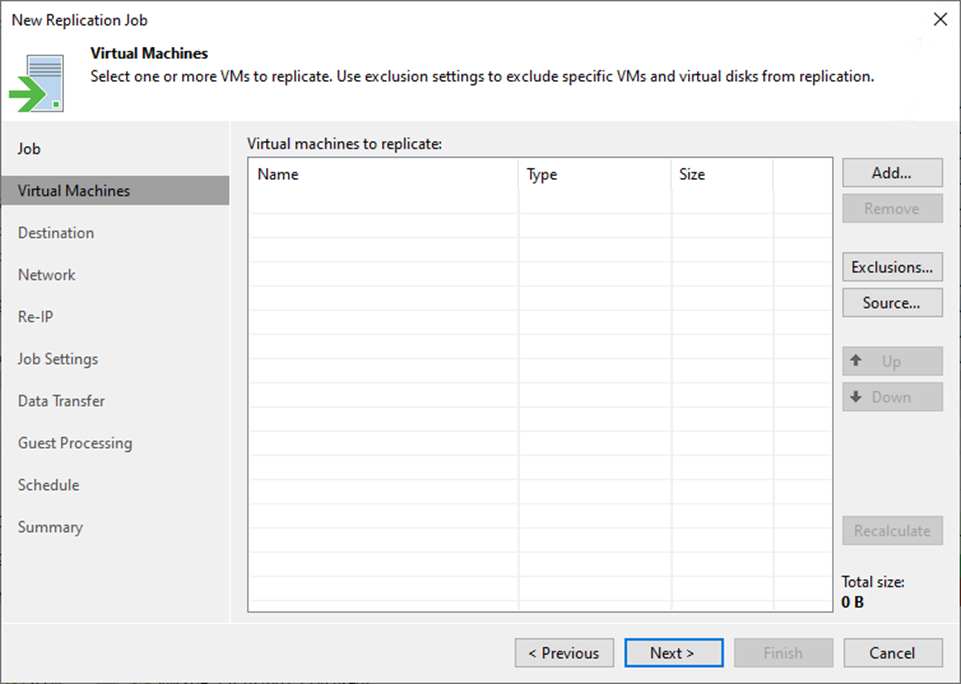

11. On the Virtual Machines page, click Add.

092423 2153 Howtocreate5 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

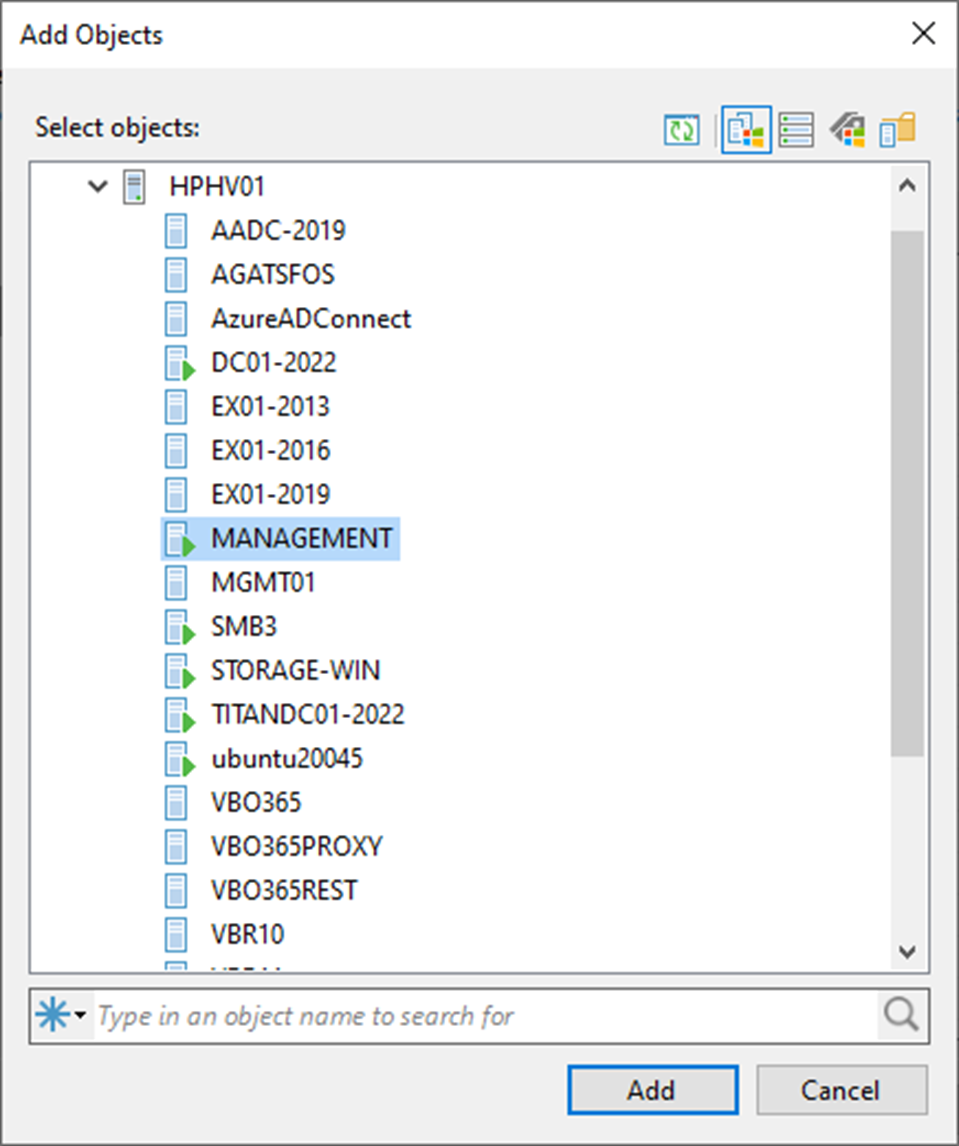

12. On the Add Objects page, Select the objects in the list and click Add.

092423 2153 Howtocreate6 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

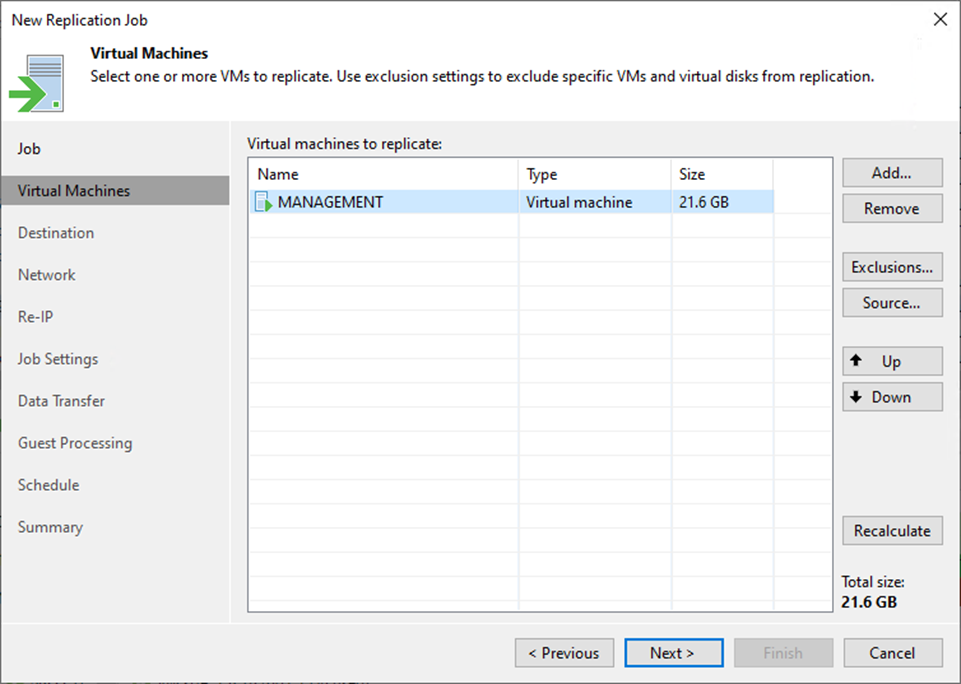

13. On the Virtual machines page, click Source.

092423 2153 Howtocreate7 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

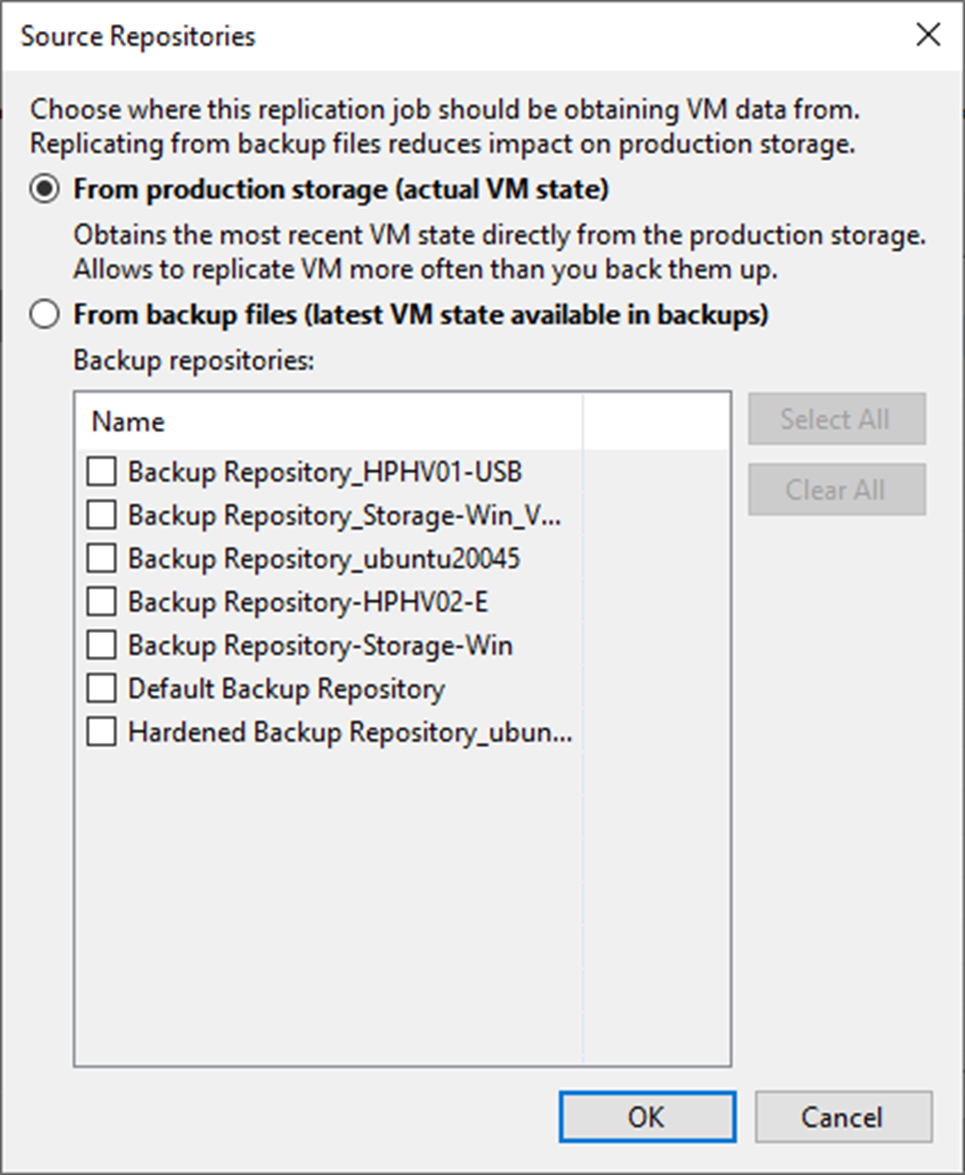

14. Select the From production storage (actual VM state) on the Source Repositories page. Veeam Replication will retrieve VM data from data stores connected to the source Microsoft Hyper-V host.

15. Or select From backup files (latest VM state available in backups) if required. Veeam Backup & Replication will read VM data from the backup chain already existing in the selected backup repository.

16. Click OK.

092423 2153 Howtocreate8 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

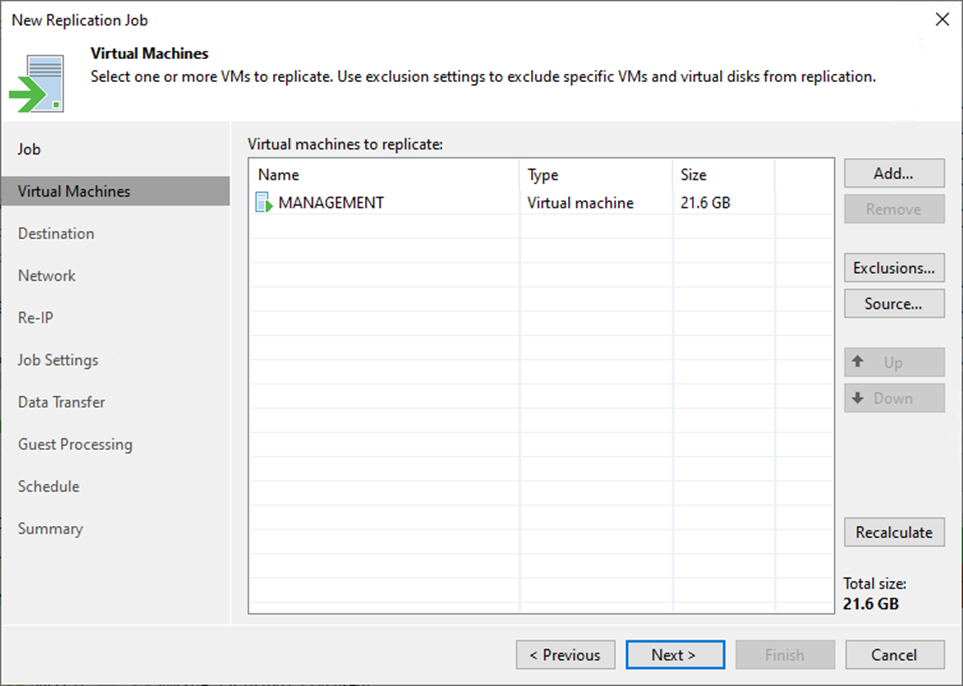

17. On the Virtual Machines page, click Next.

092423 2153 Howtocreate9 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

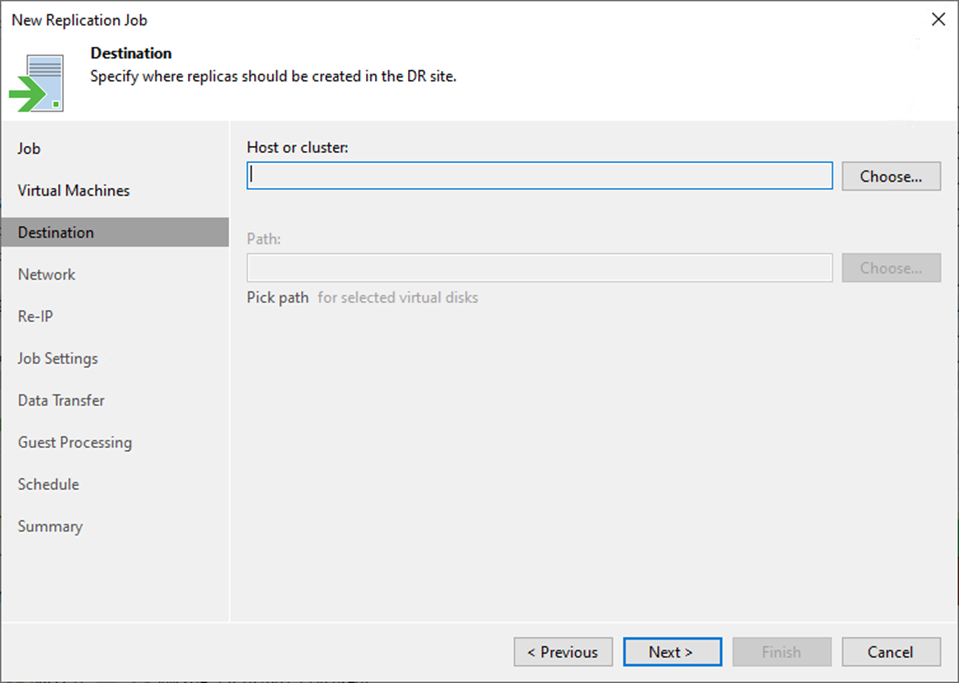

18. On the Destination page, click Choose in the Host or cluster session.

092423 2153 Howtocreate10 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

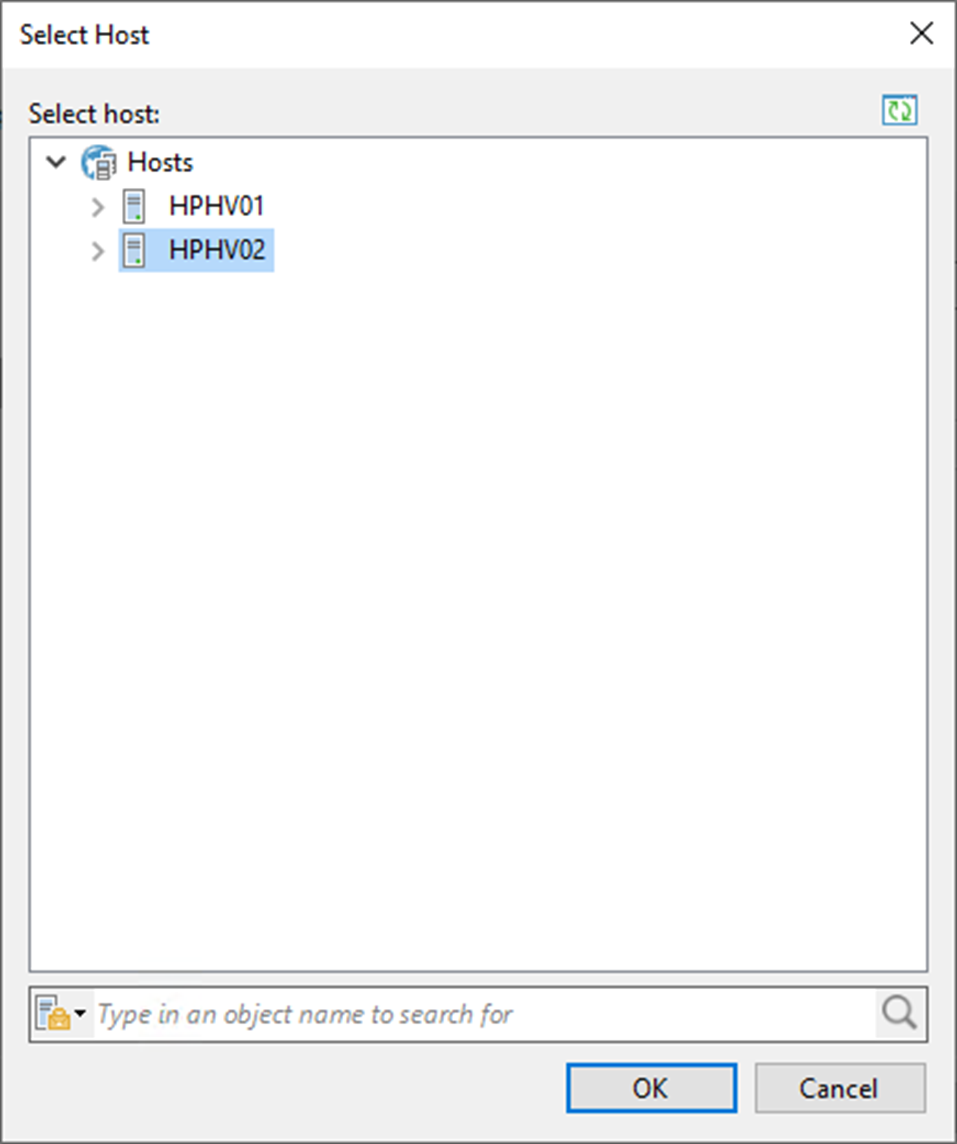

19. Select the destination host server on the Select Host page and click OK.

092423 2153 Howtocreate11 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

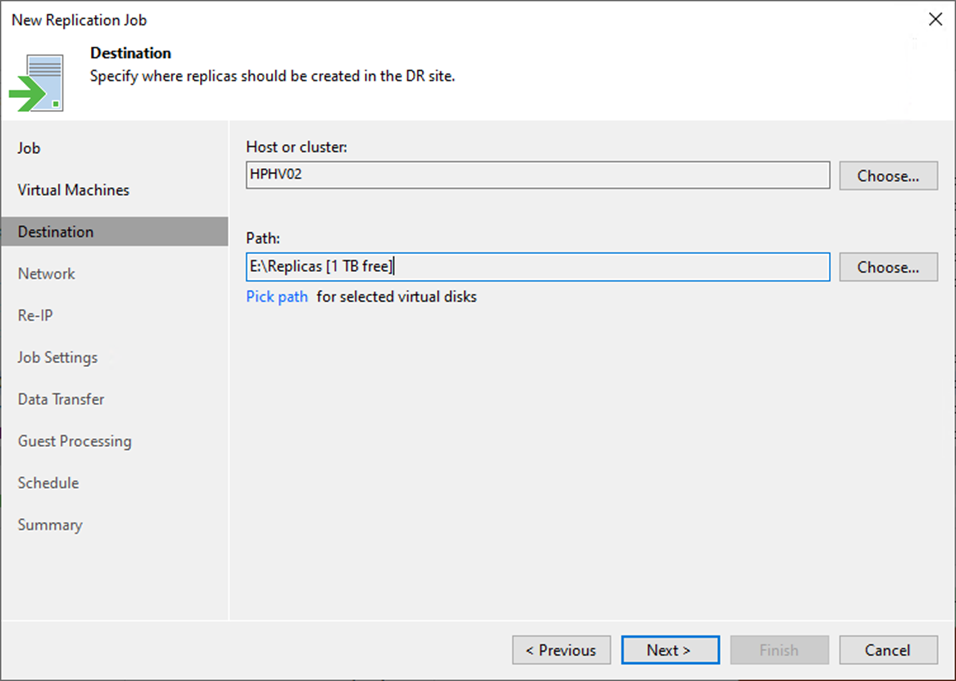

20. On the Destination page, click Choose in the Path session.

092423 2153 Howtocreate12 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

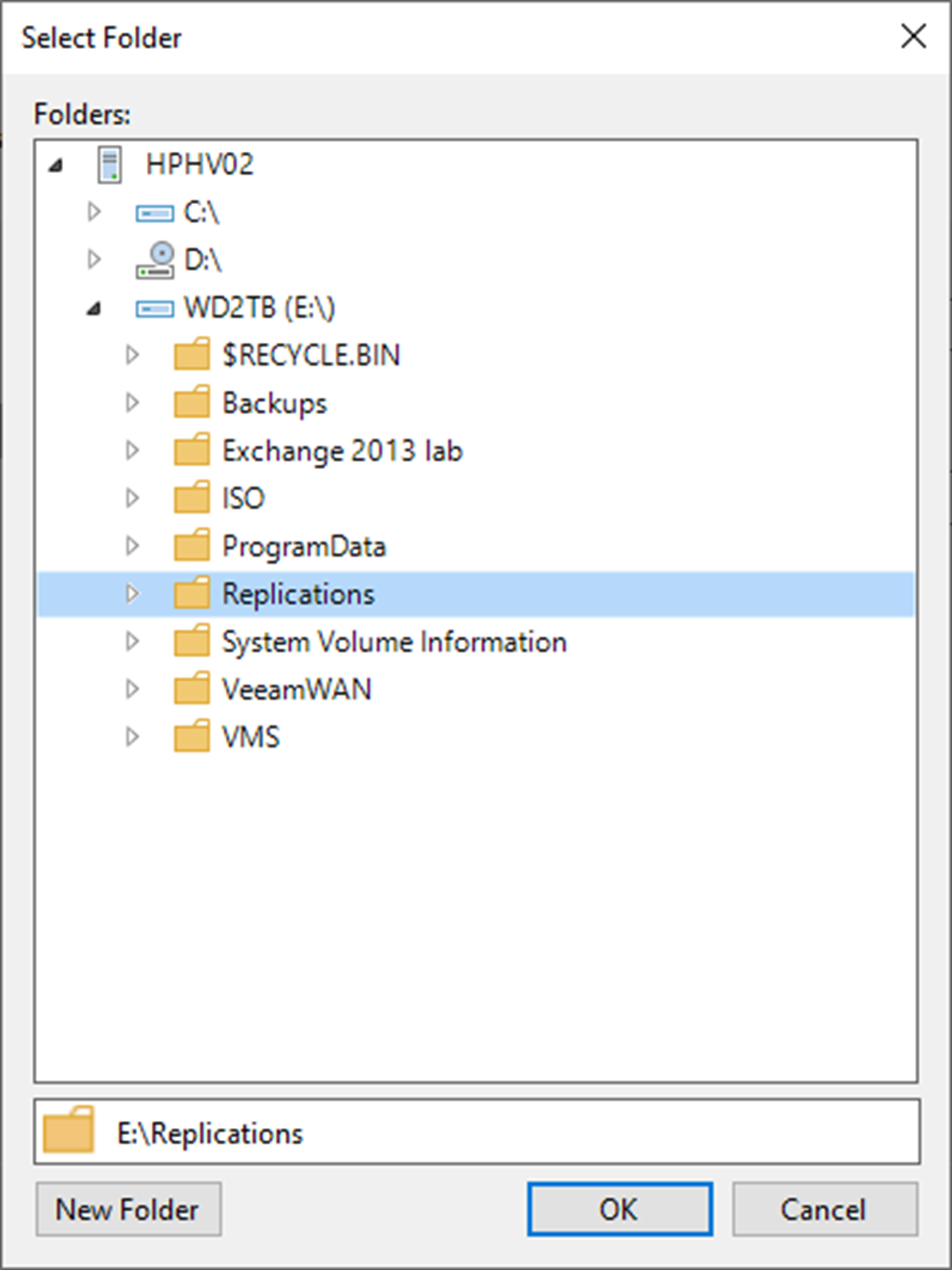

21. On the Folders page, specify a path to the folder where VM replica files must be stored, and click OK.

092423 2153 Howtocreate13 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

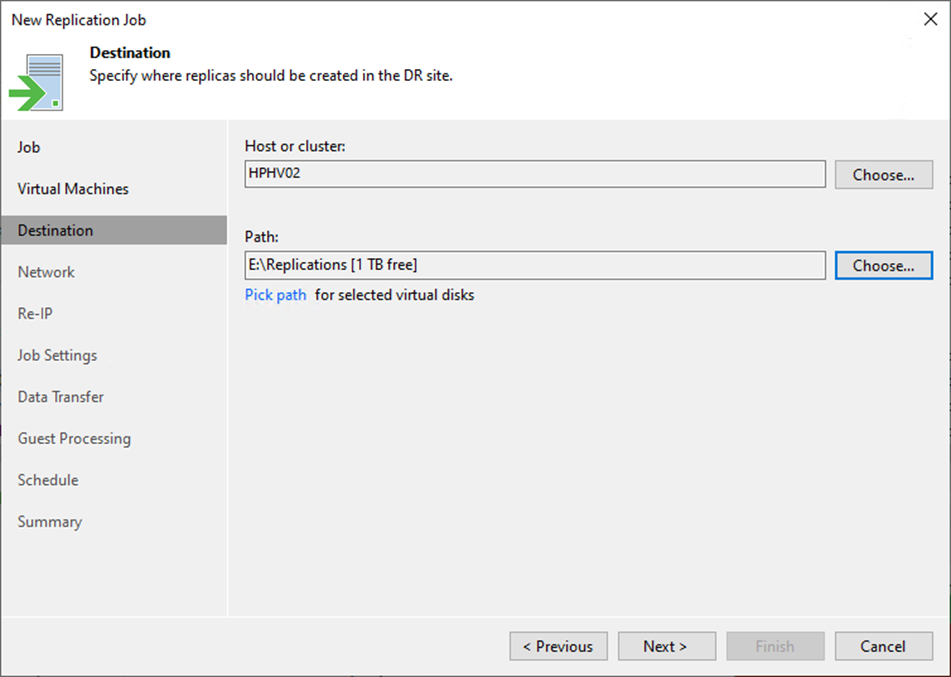

22. On the Destination page, click Next.

092423 2153 Howtocreate14 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

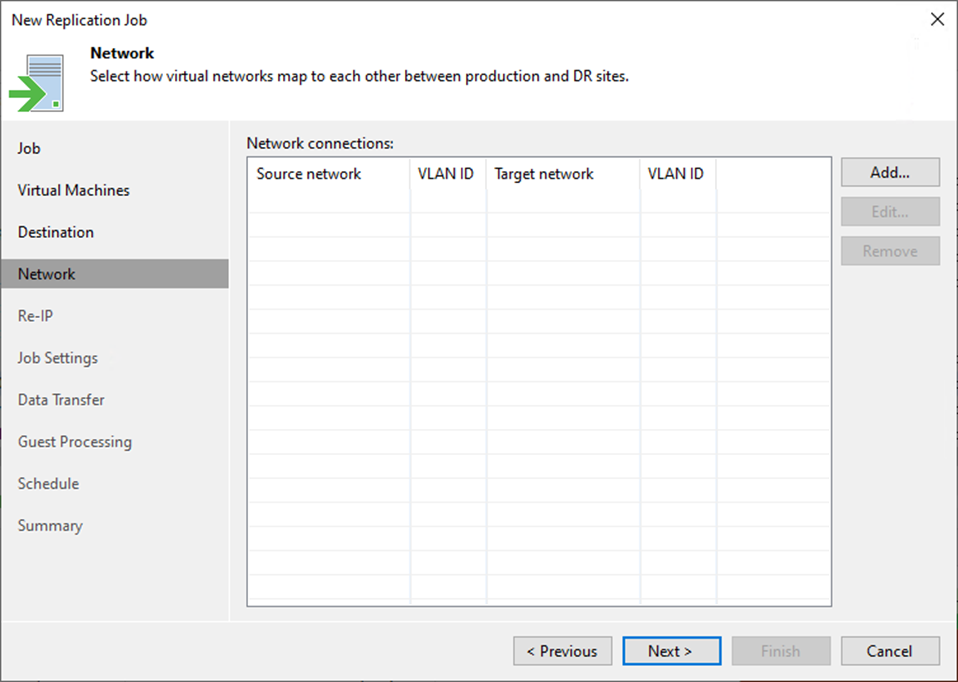

23. On the Network page, click Add.

092423 2153 Howtocreate15 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

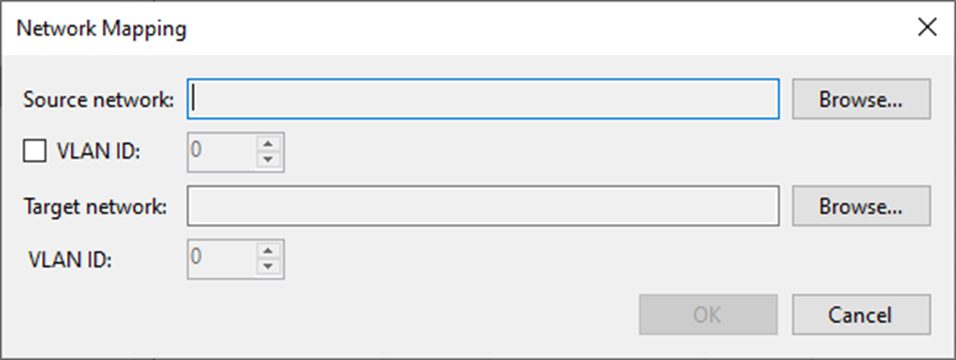

24. On the Network Mapping page, click Browse in the Source network session.

092423 2153 Howtocreate16 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

25. On the Select Network page, select the production network to which the original VMs are connected and click OK.

092423 2153 Howtocreate17 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

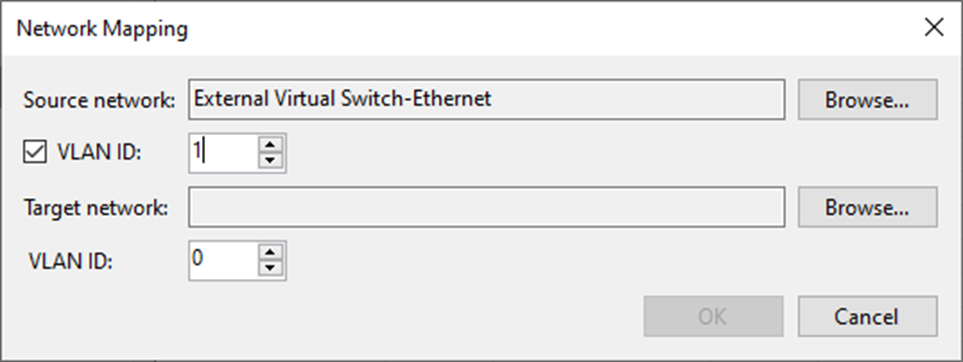

26. If you use VLAN IDs for networking, select the VLAN ID check box and enter the VLAN ID of the source network.

27. On the Network Mapping page, click Browse in the Target network session.

092423 2153 Howtocreate18 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

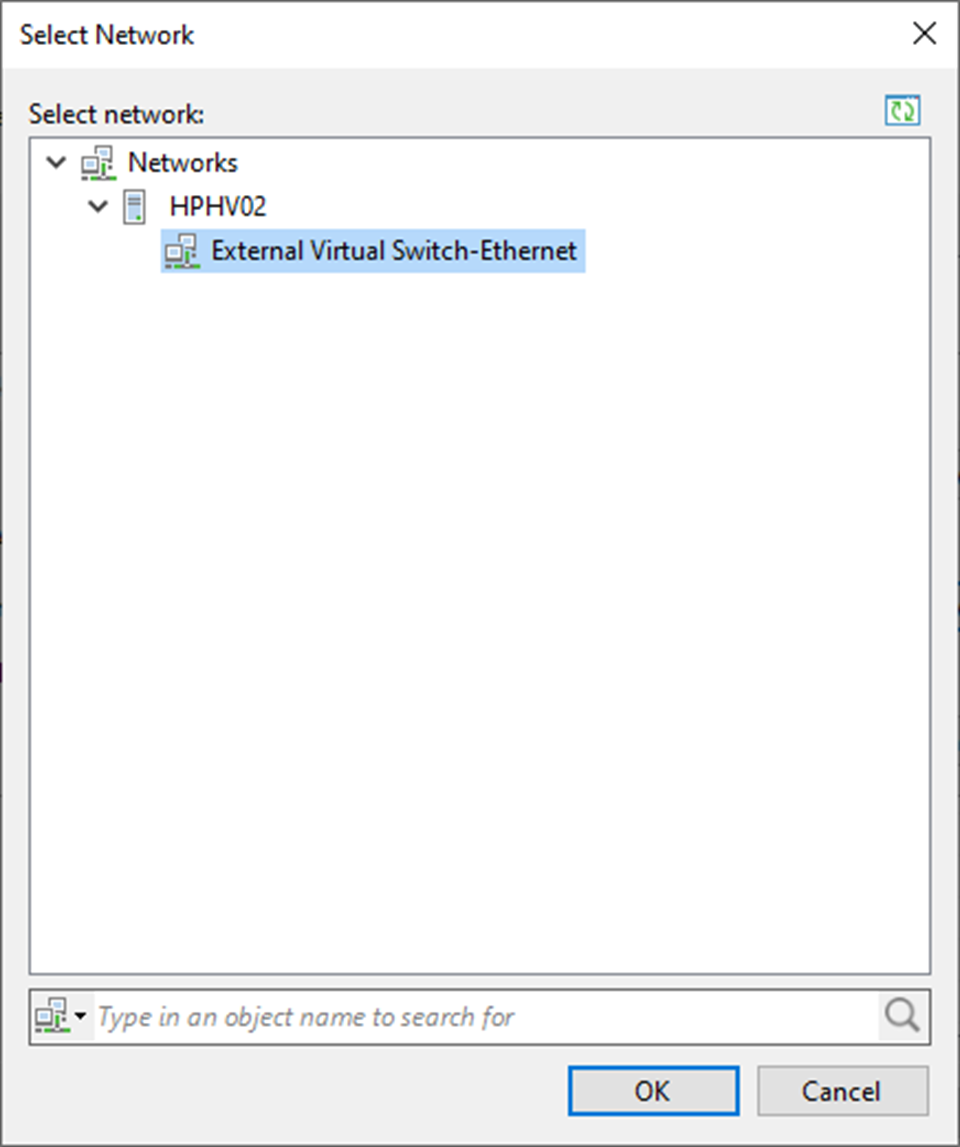

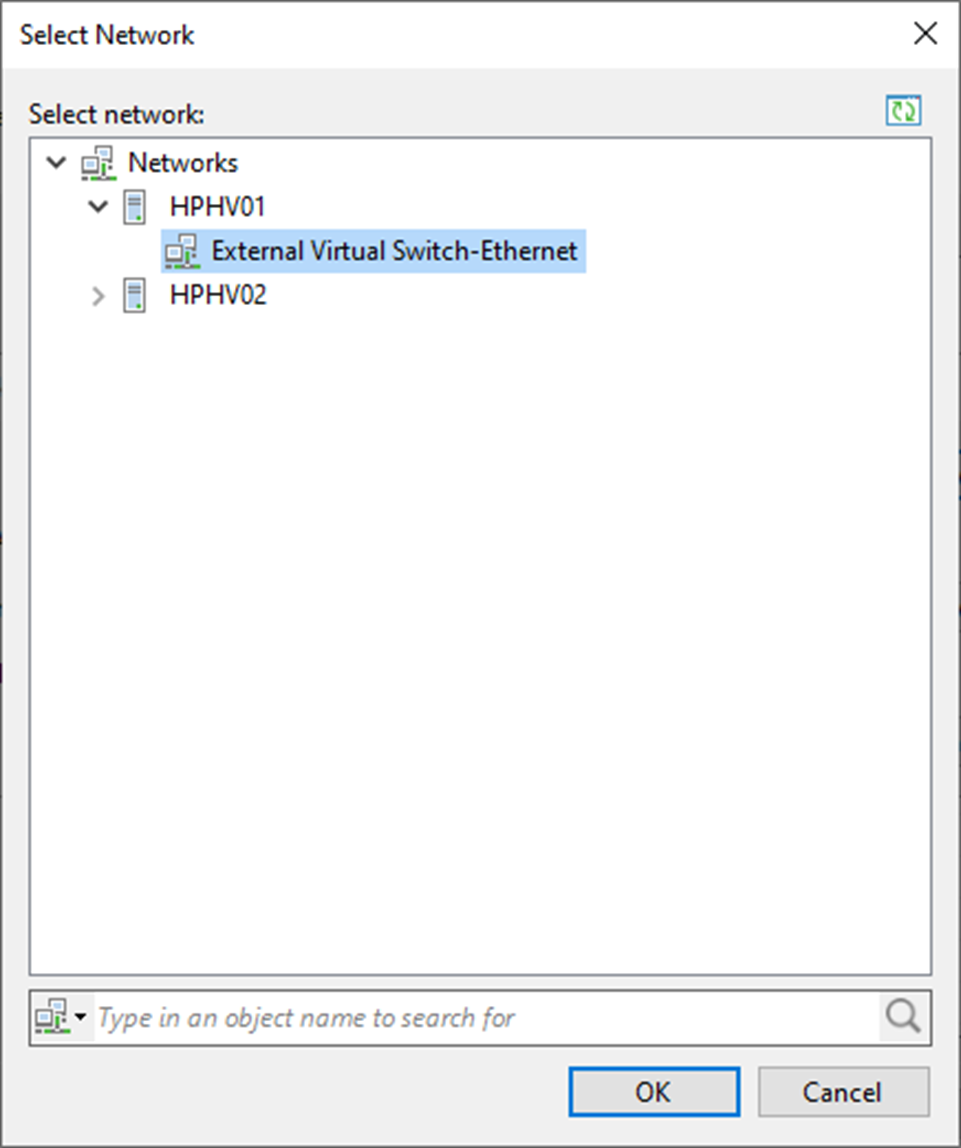

28. On the Select Network page, select the DR site network to which replicas will be connected and click OK.

092423 2153 Howtocreate19 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

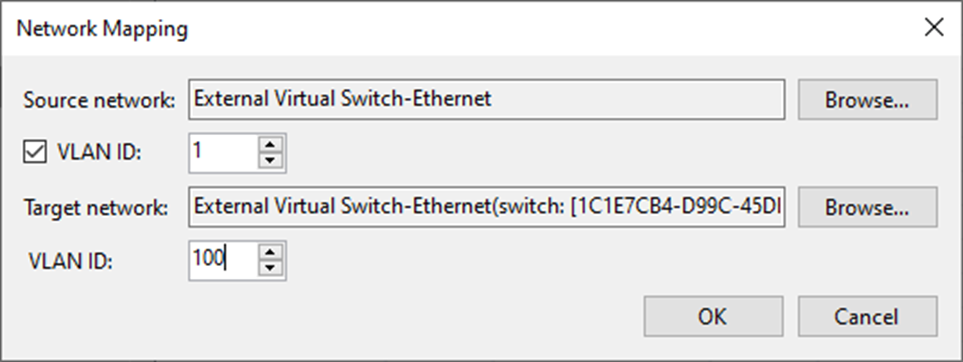

29. If you use VLAN IDs for networking, select the VLAN ID check box and enter the VLAN ID of the target network.

30. Click OK.

092423 2153 Howtocreate20 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

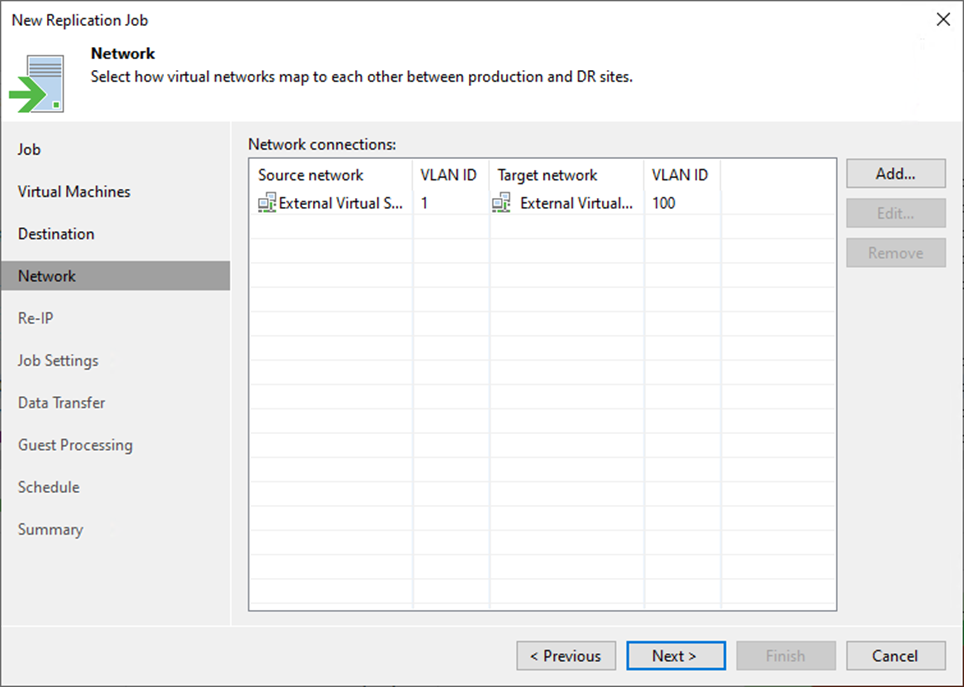

31. On the Network page, click Next.

092423 2153 Howtocreate21 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

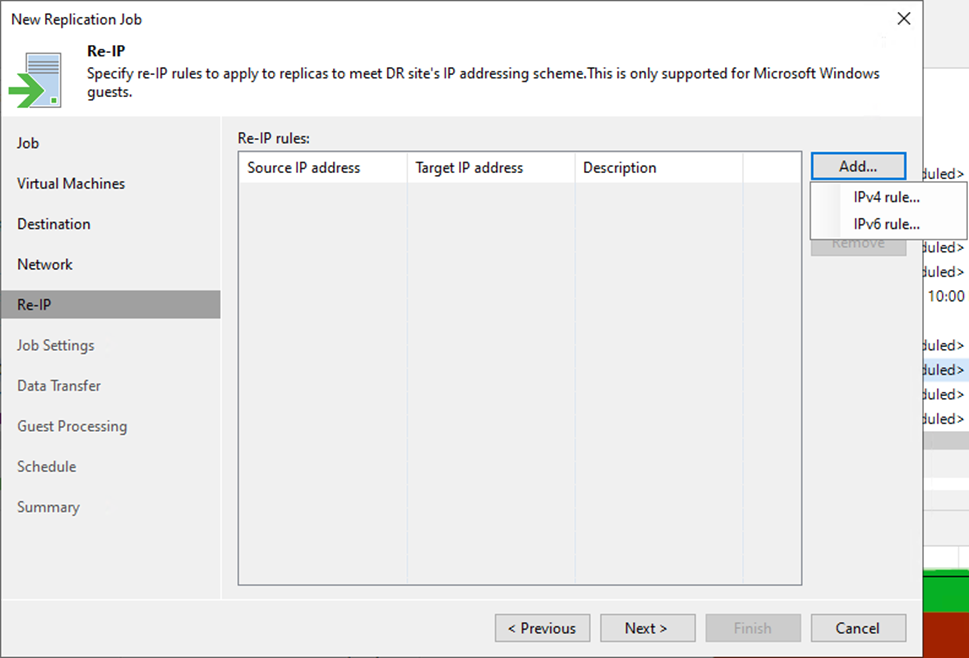

32. On the Re-IP page, click Add.

33. Select IPv4 rule.

092423 2153 Howtocreate22 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

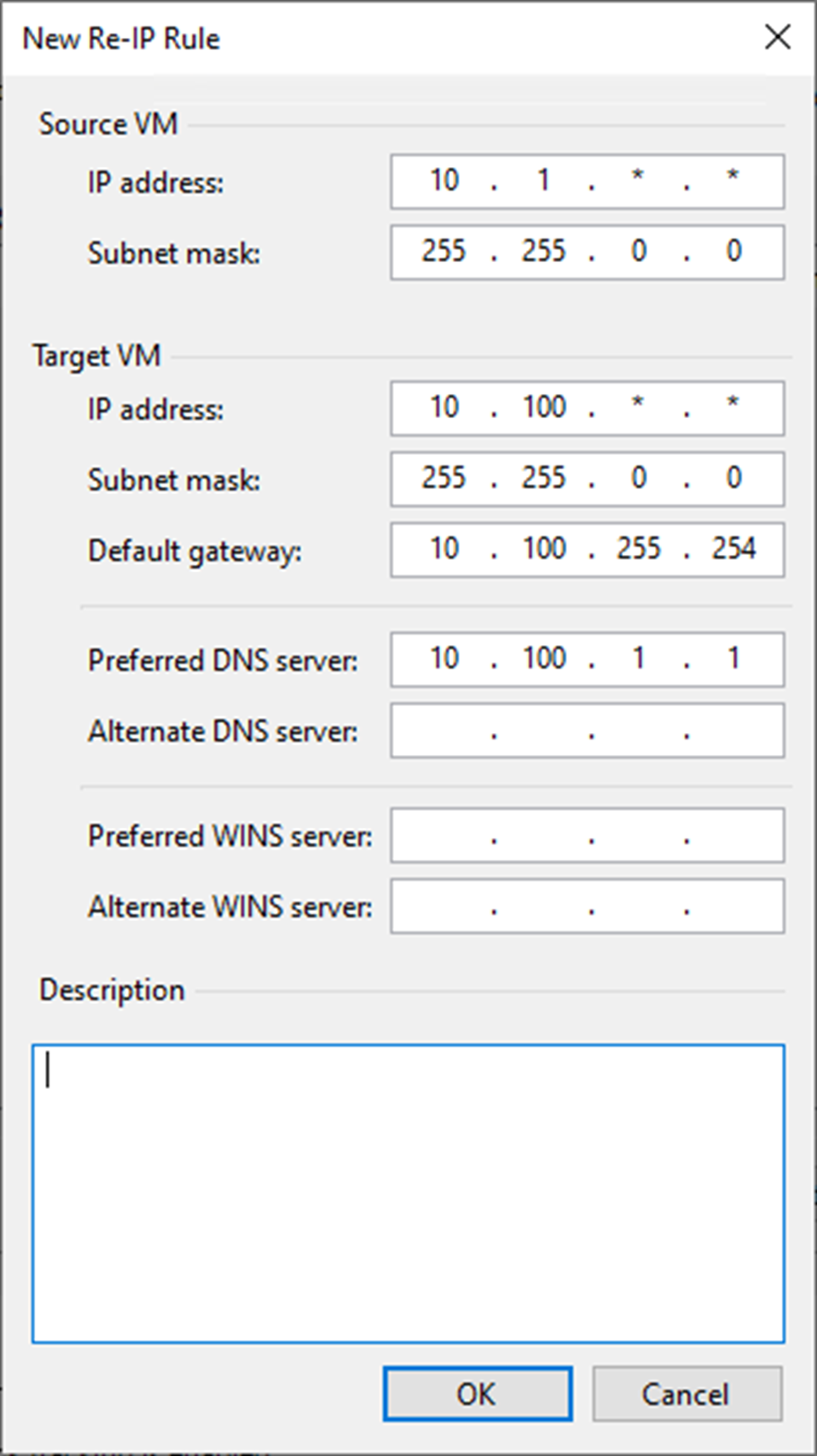

34. On the New Re-IP Rule page, Enter the IP numbering scheme used at the production site in the Source VM section.

35. Enter the IP numbering scheme used at the DR site in the Target VM section.

36. Describe the rule in the Description field.

37. Click OK.

092423 2153 Howtocreate23 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

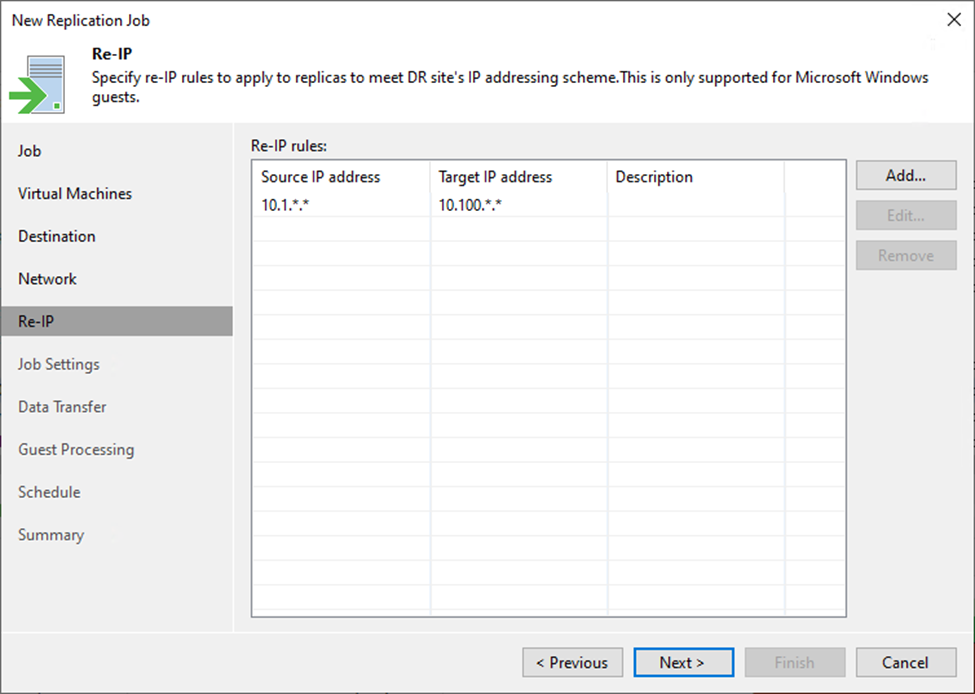

38. On the Re-IP page, click Next.

092423 2153 Howtocreate24 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

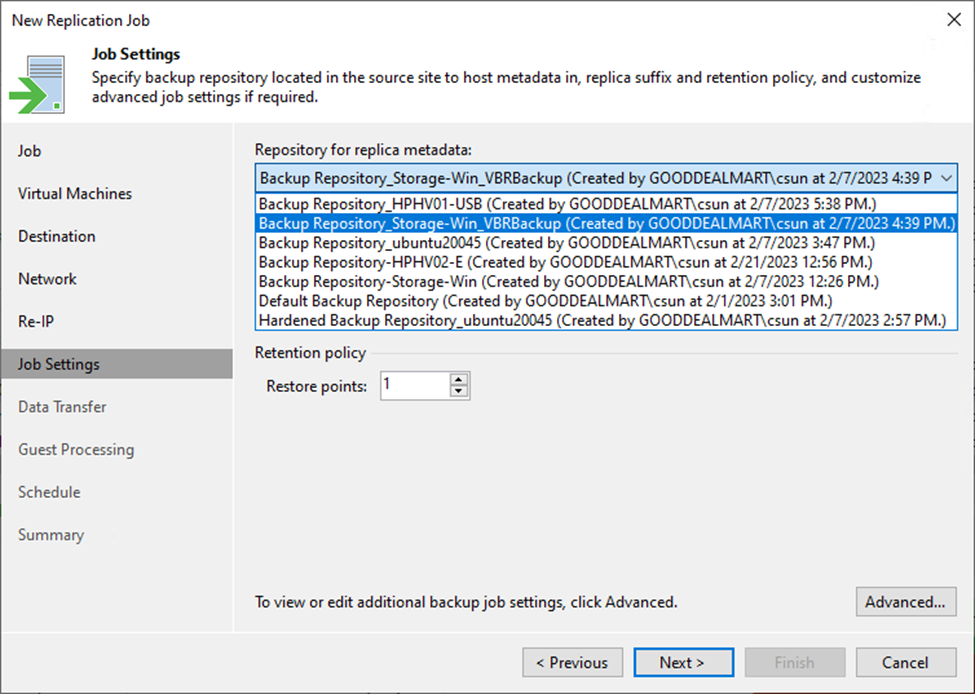

39. On the Job Settings page, select the Repository for replica metadata from the drop-down list.

092423 2153 Howtocreate25 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

Note:

  • This setting must be specified only for snapshot replicas. Legacy replicas do not use a backup repository for storing metadata.
  • You cannot store VM replica metadata on deduplicating storage appliances.
  • You cannot store replica metadata in a scale-out backup repository.

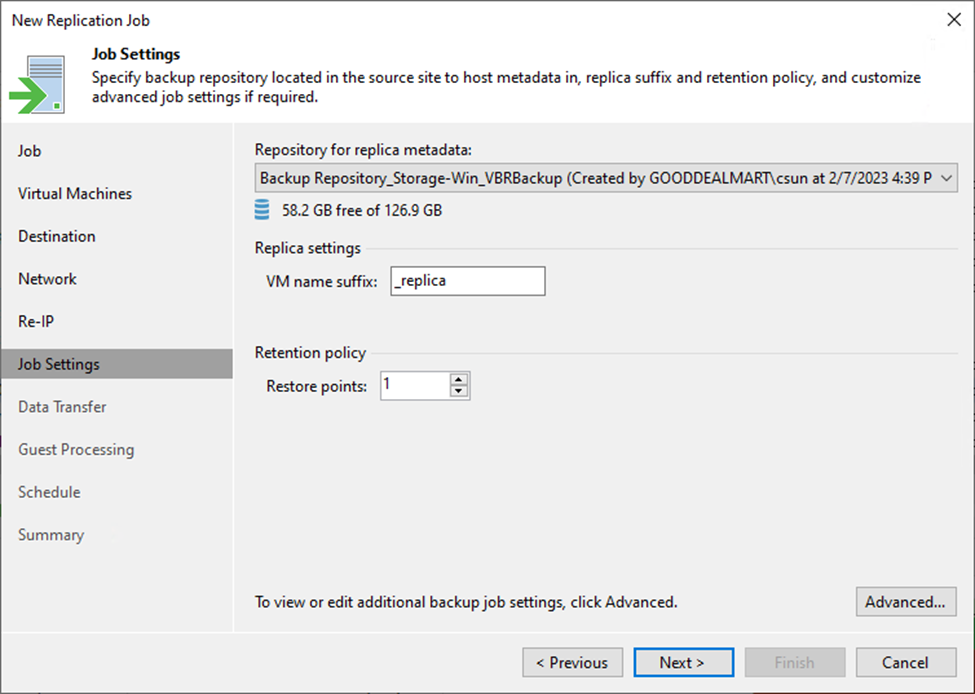

40. Enter a suffix that will be appended to the original VM names in the Replica name suffix field.

41. Enter the number of restore points in the field.

42. Click Advanced.

092423 2153 Howtocreate26 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

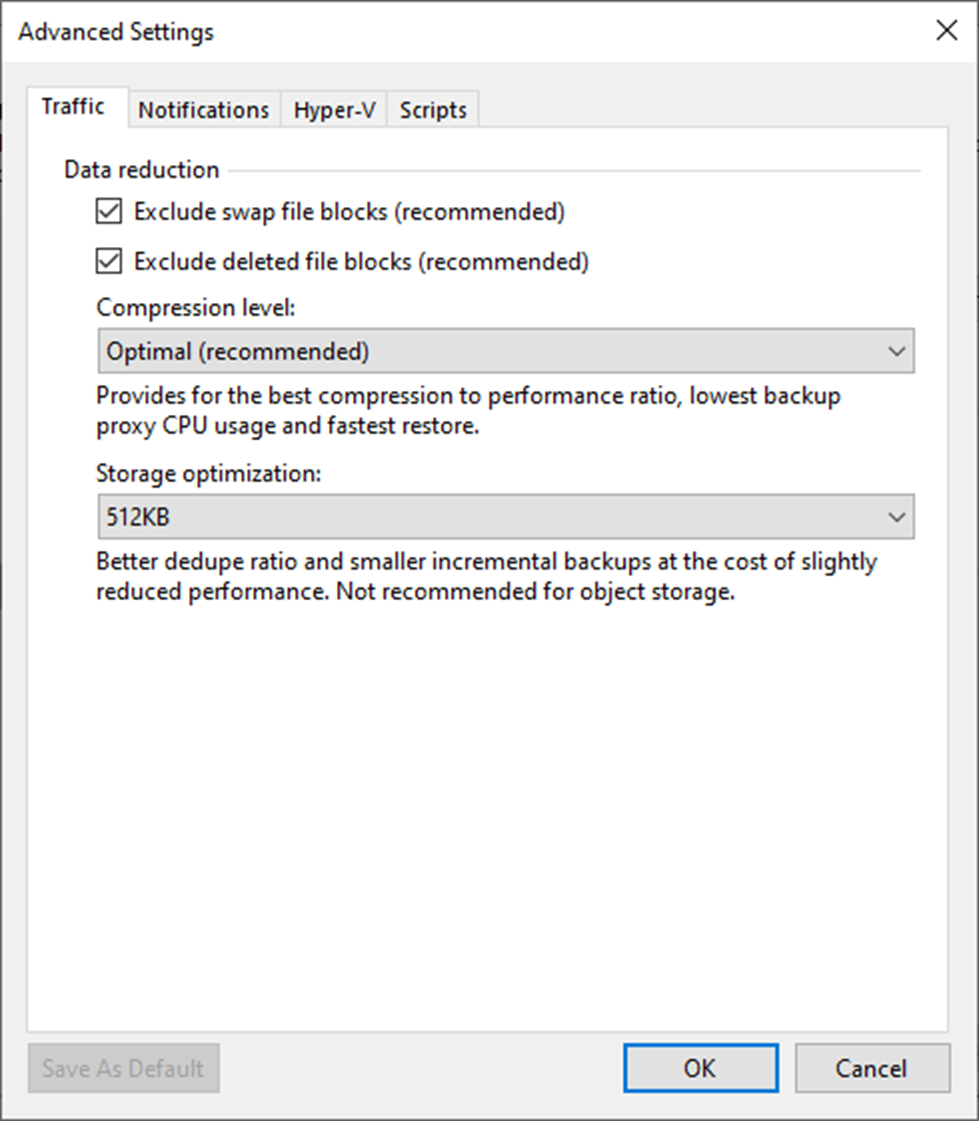

43. On Advanced Settings, click Traffic.

44. Select the Exclude swap file blocks (recommended) checkbox.

45. Select the Exclude deleted file blocks (recommended) checkbox.

092423 2153 Howtocreate27 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

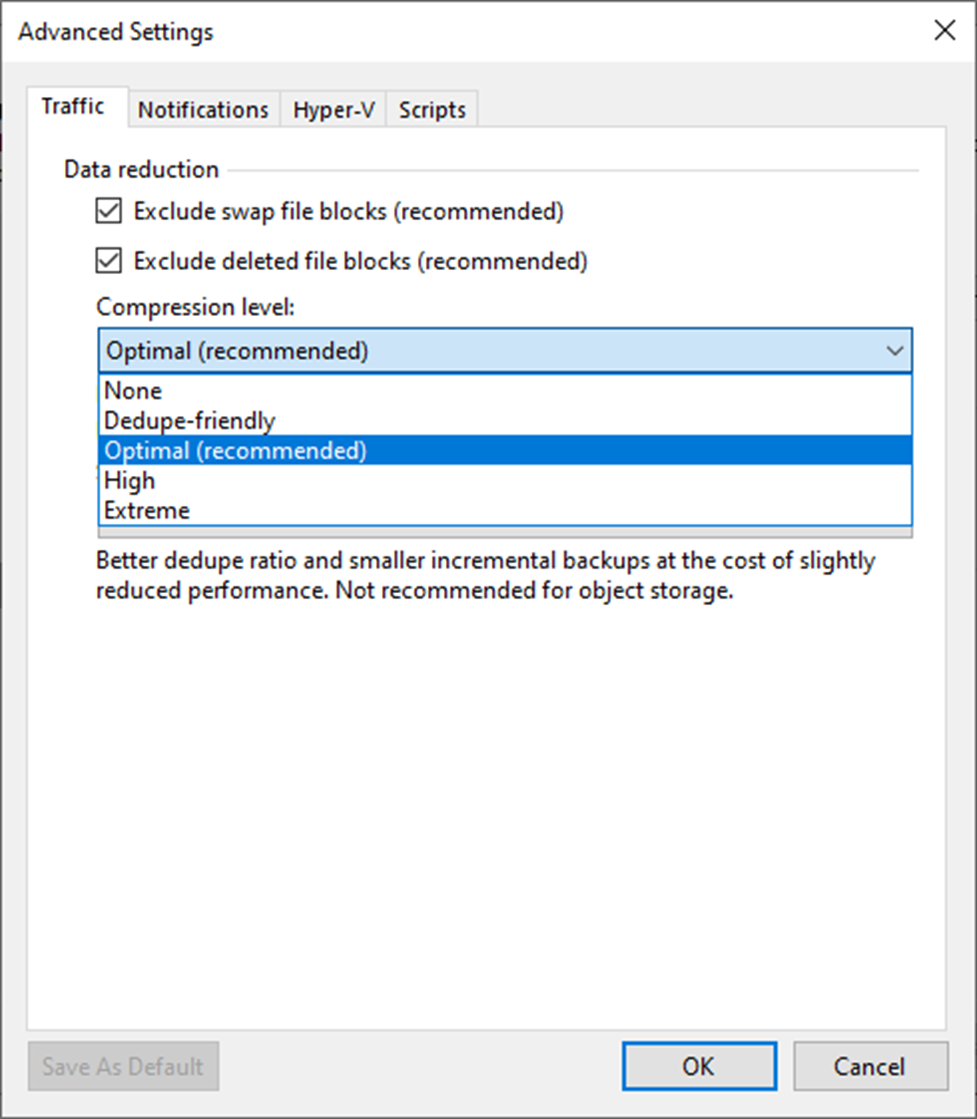

46. Select the compression level for replicas from the drop-down list.

092423 2153 Howtocreate28 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

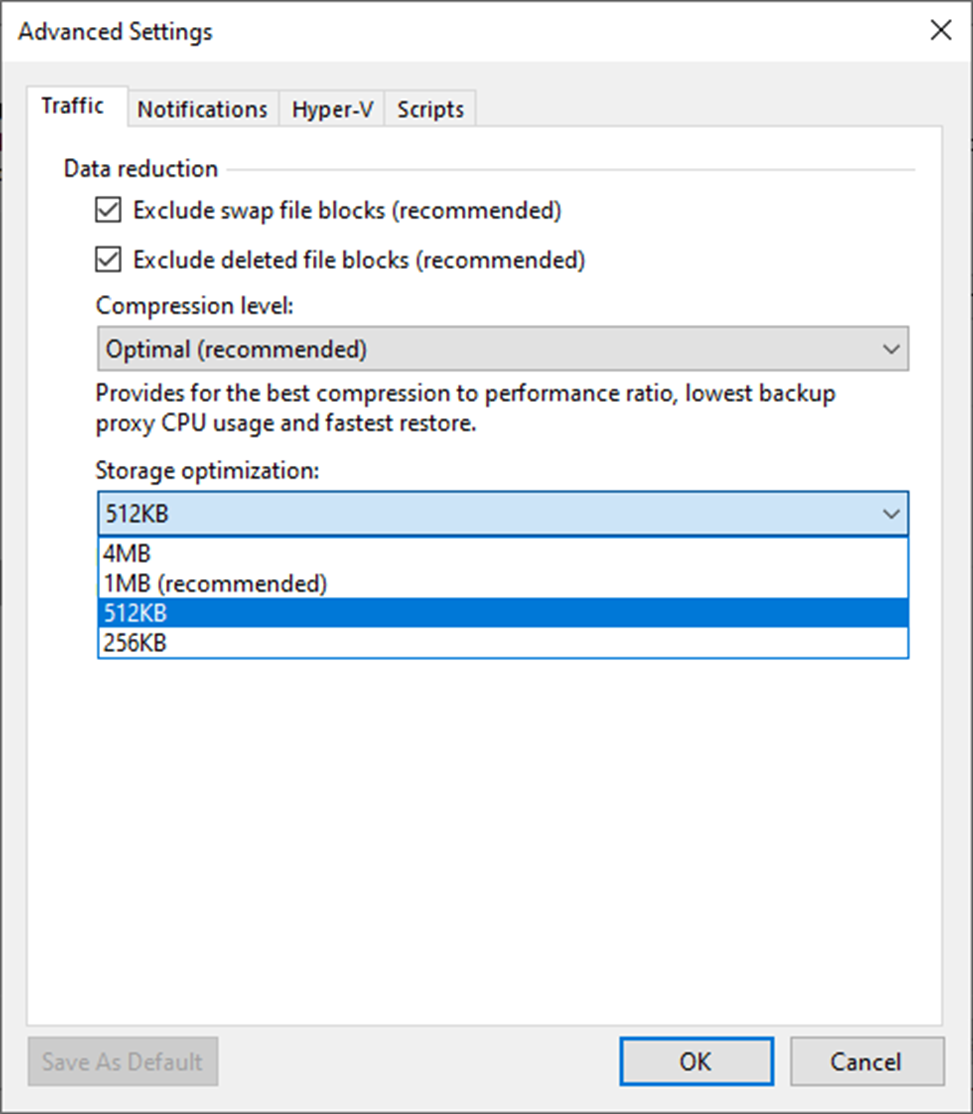

47. Select Storage optimization from the drop-down list.

092423 2153 Howtocreate29 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

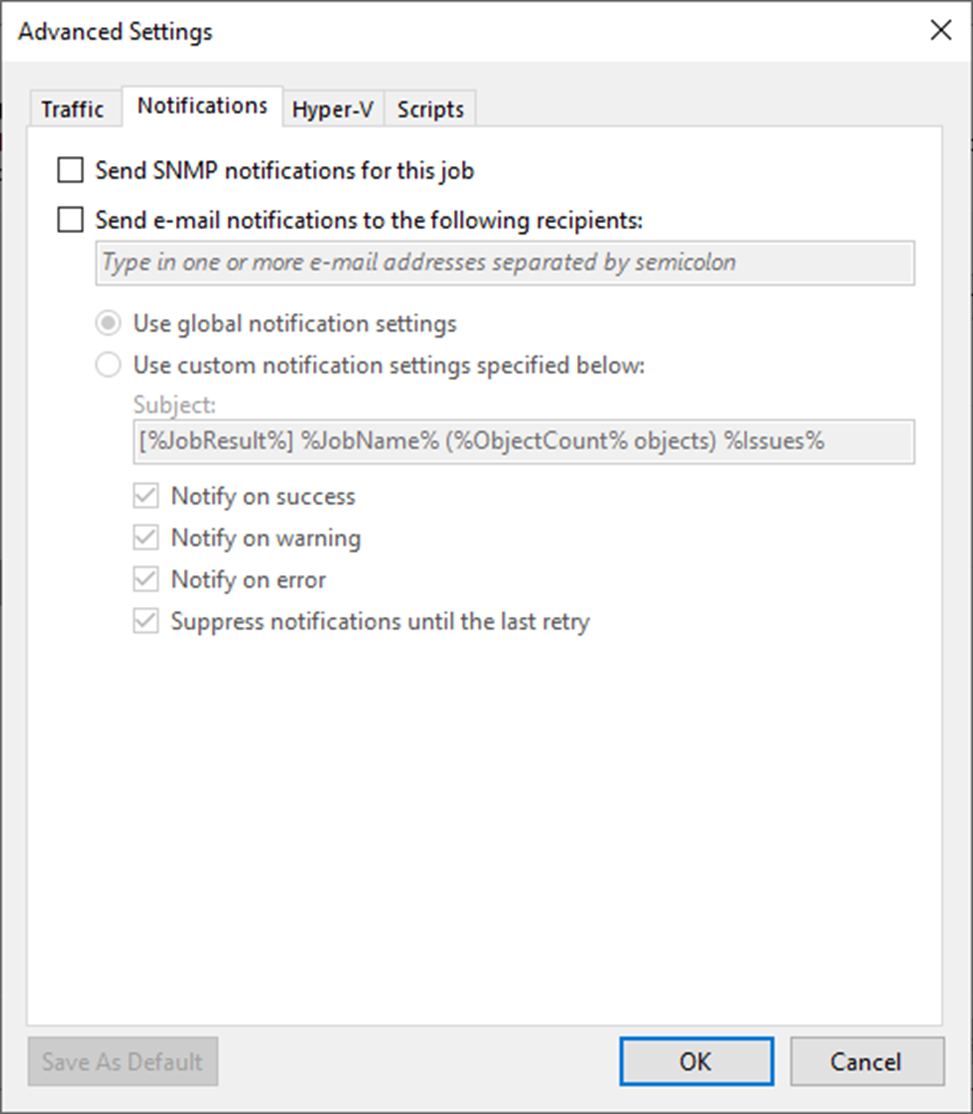

48. On the Advanced Settings, select Notifications.

49. Keep the default settings.

092423 2153 Howtocreate30 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

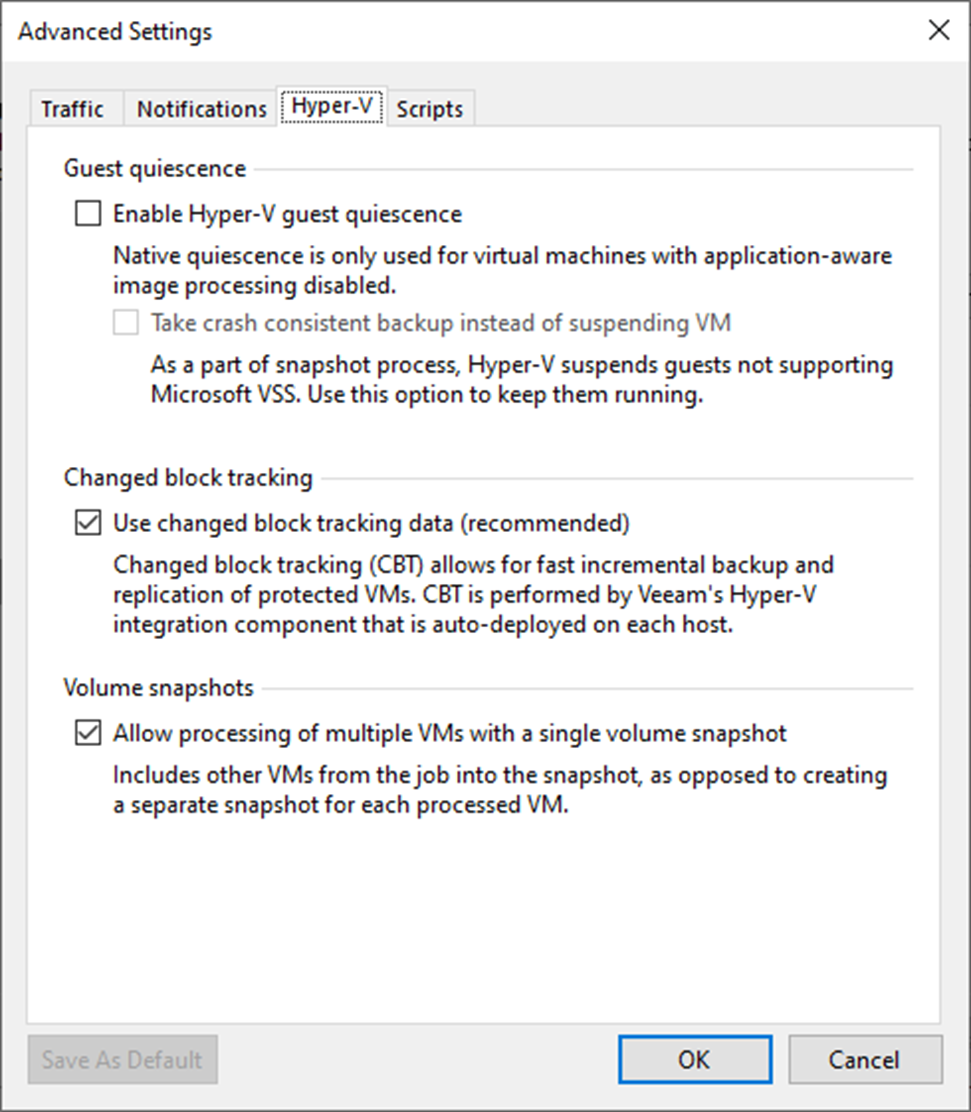

50. On the Advanced Settings, select Hyper-V.

51. Keep the default settings.

092423 2153 Howtocreate31 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

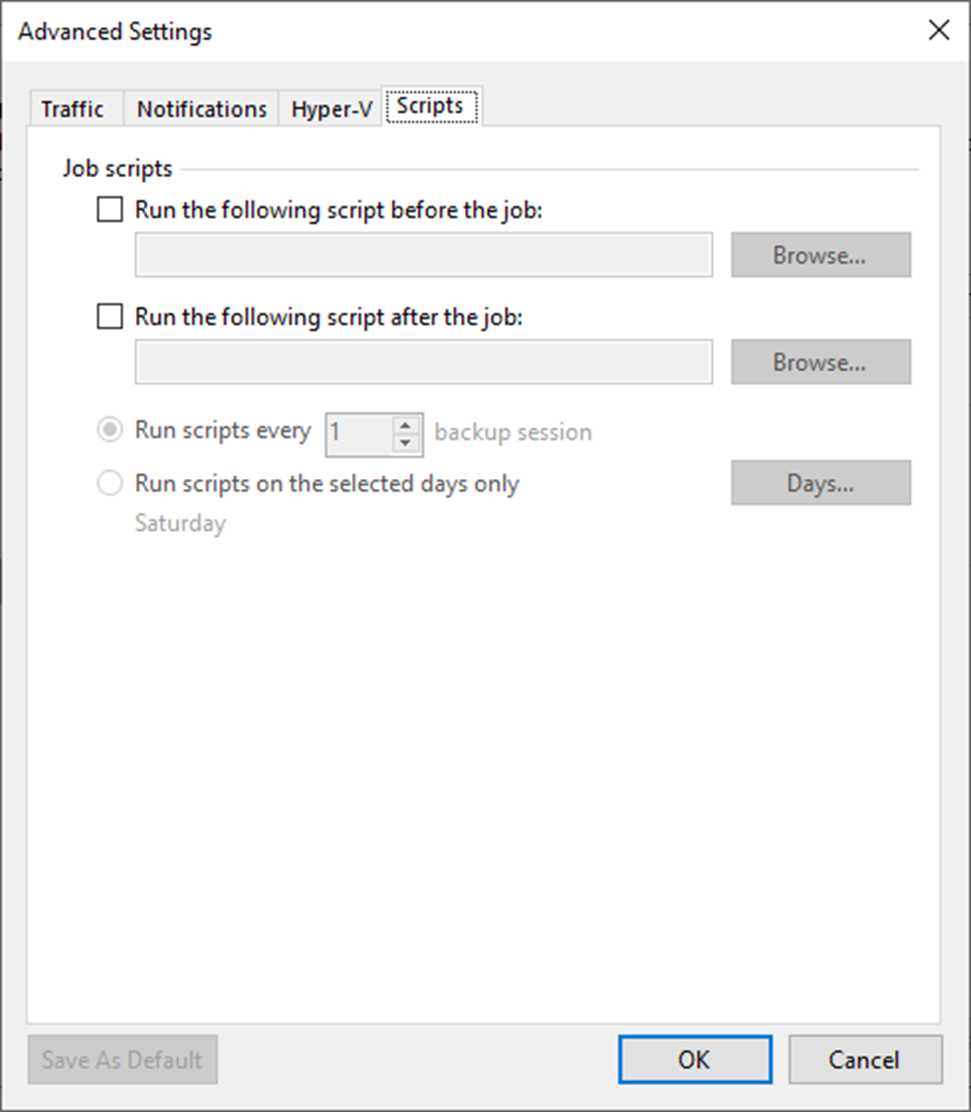

52. On the Advanced Settings page, click Scripts.

53. Keep the default settings and click OK.

092423 2153 Howtocreate32 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

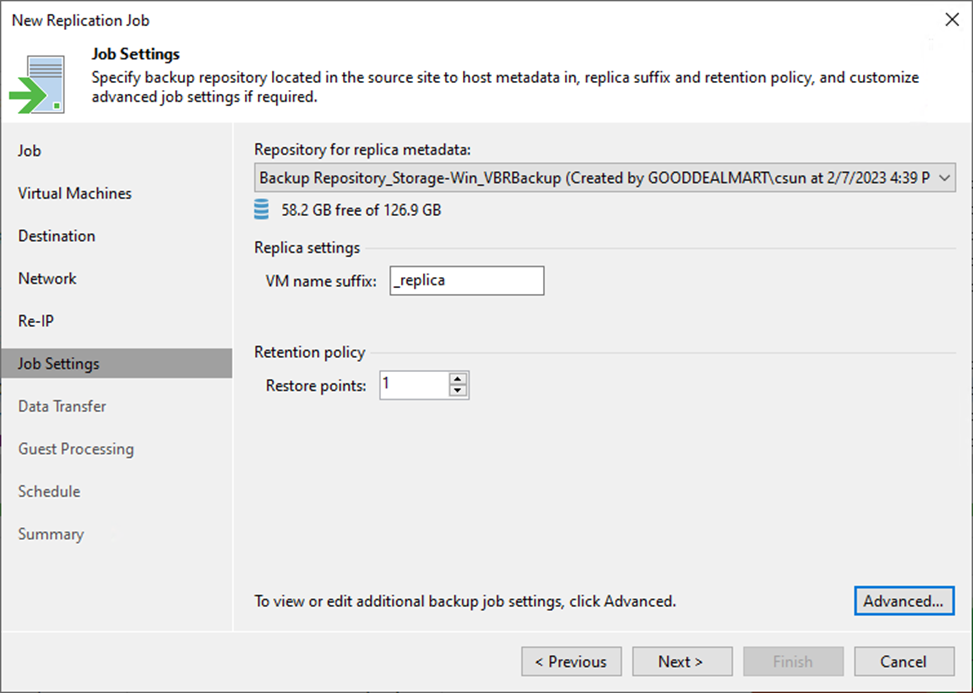

54. On the Job Settings page, click Next.

092423 2153 Howtocreate33 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

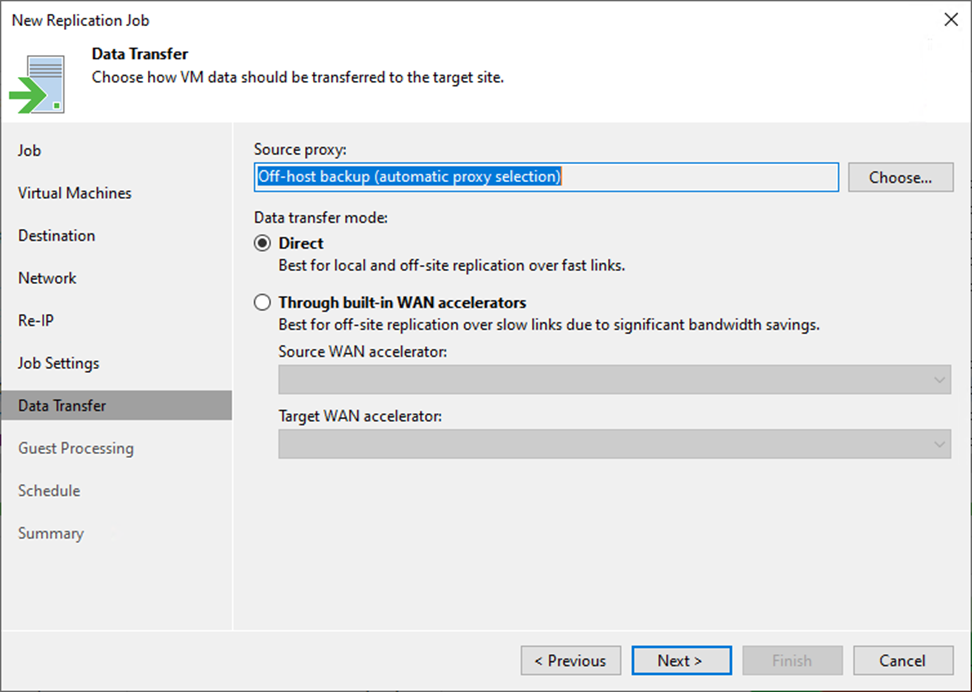

55. Click Choose to specify Source Proxy on the Data Transfer page.

092423 2153 Howtocreate34 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

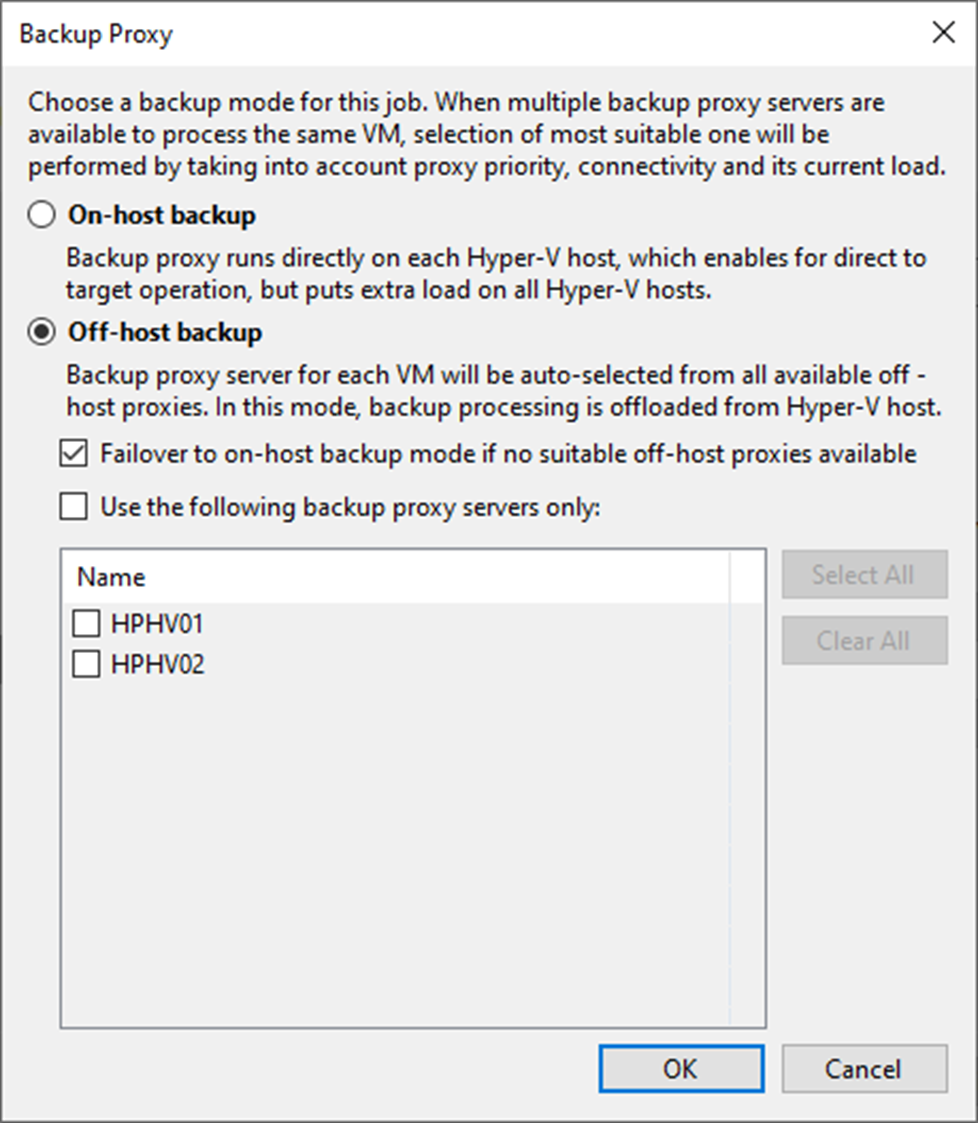

56. On the Backup Proxy page, keep the default settings.

57. Click OK.

092423 2153 Howtocreate35 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

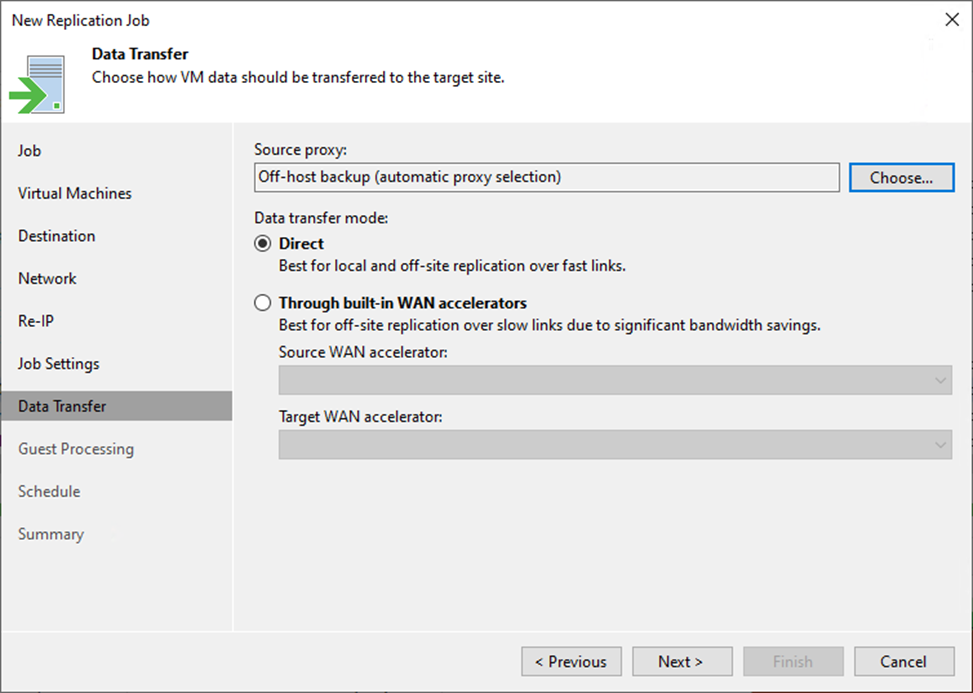

58. On the Data Transfer mode session, select Direct if you plan to copy backup files over high-speed connections.

092423 2153 Howtocreate36 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

59. On the Data Transfer mode session, select Direct if you plan to copy backup files over high-speed connections.

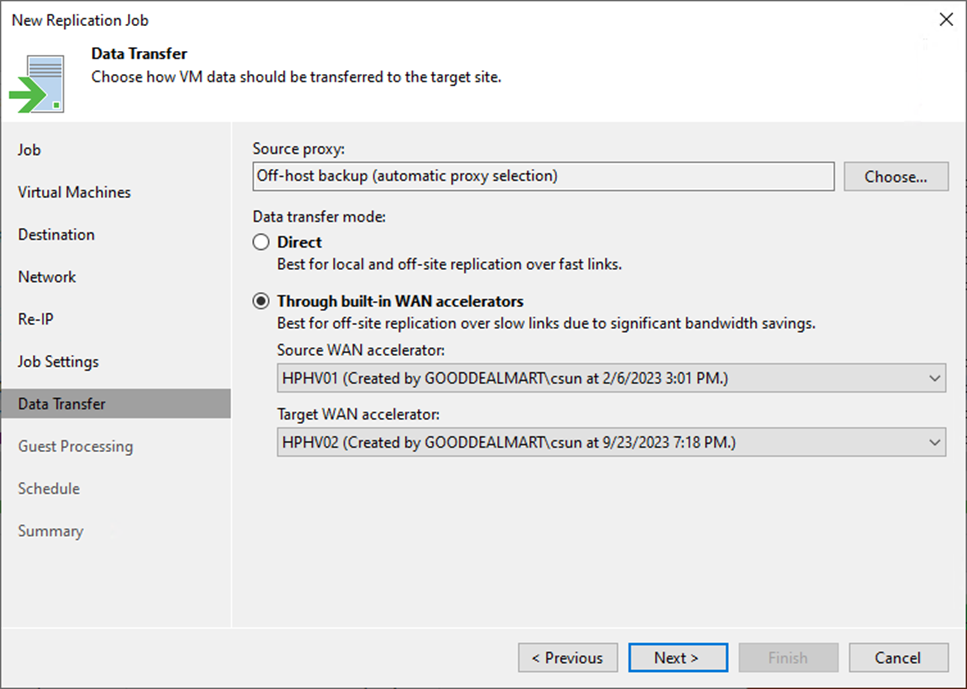

60. Select the Through built-in WAN accelerators if you transfer data over WAN or slow connections.

61. Select a WAN accelerator configured in the source site from the Source WAN accelerator drop-down list.

62. Select a WAN accelerator configured in the target site from the Target WAN accelerator drop-down list.

63. Click Next.

092423 2153 Howtocreate37 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

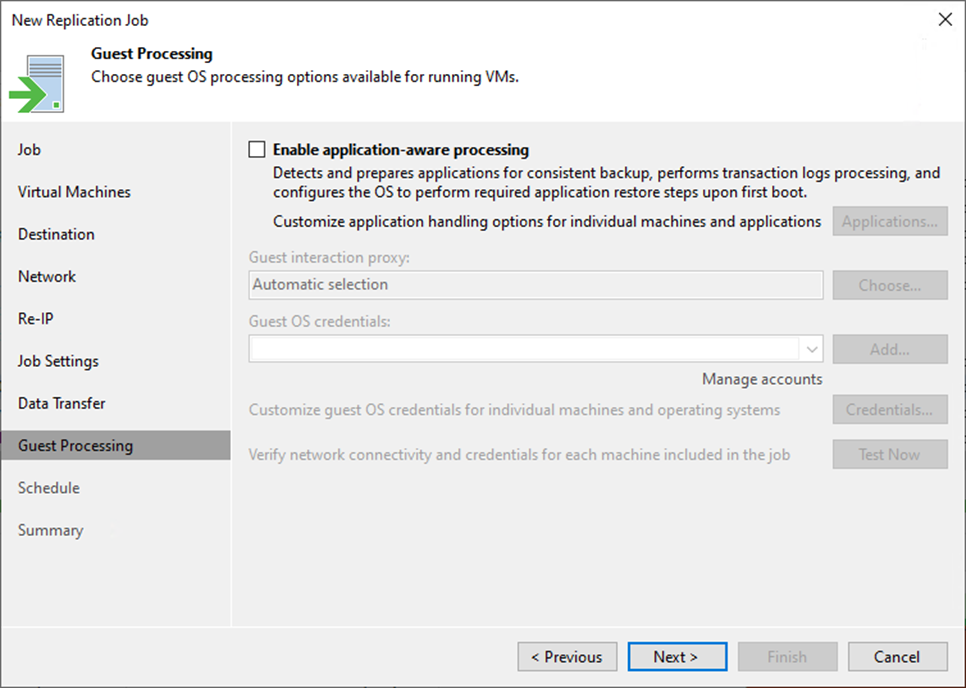

64. On the Guest Processing page, keep the default settings.

65. Click Next.

092423 2153 Howtocreate38 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

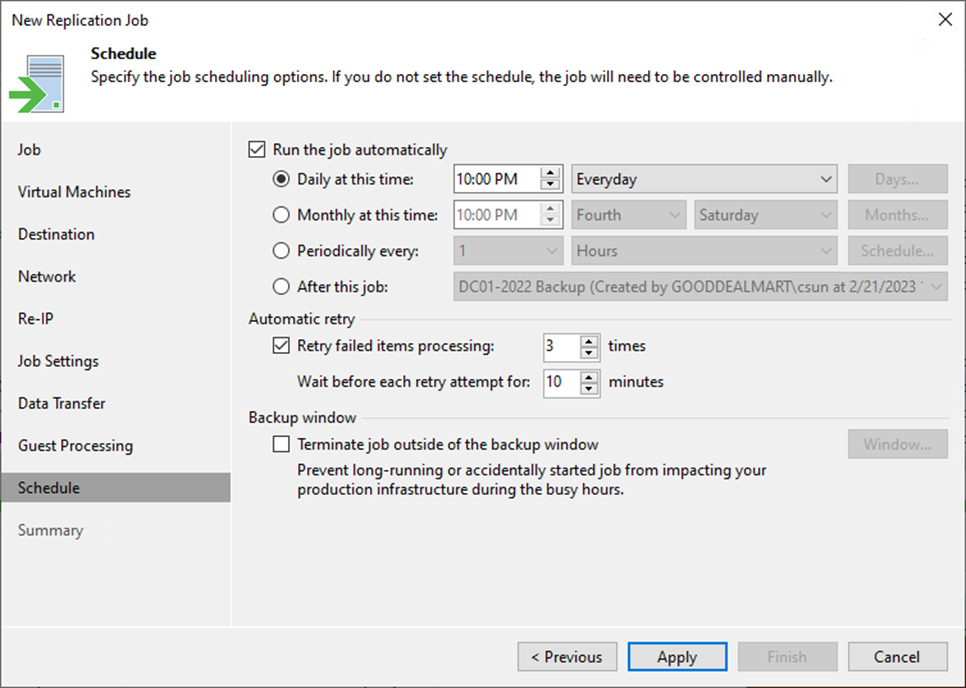

66. Select Run the job automatically on the Schedule page and select your specified schedule.

67. Define whether Veeam Backup & Replication should retry the backup job if it fails in the Automatic retry section.

68. Define the time interval the backup job must complete in the Backup window section. The backup window ensures that the job does not overlap with production hours and that there is no unnecessary overhead on the production environment.

69. Click Apply.

092423 2153 Howtocreate39 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

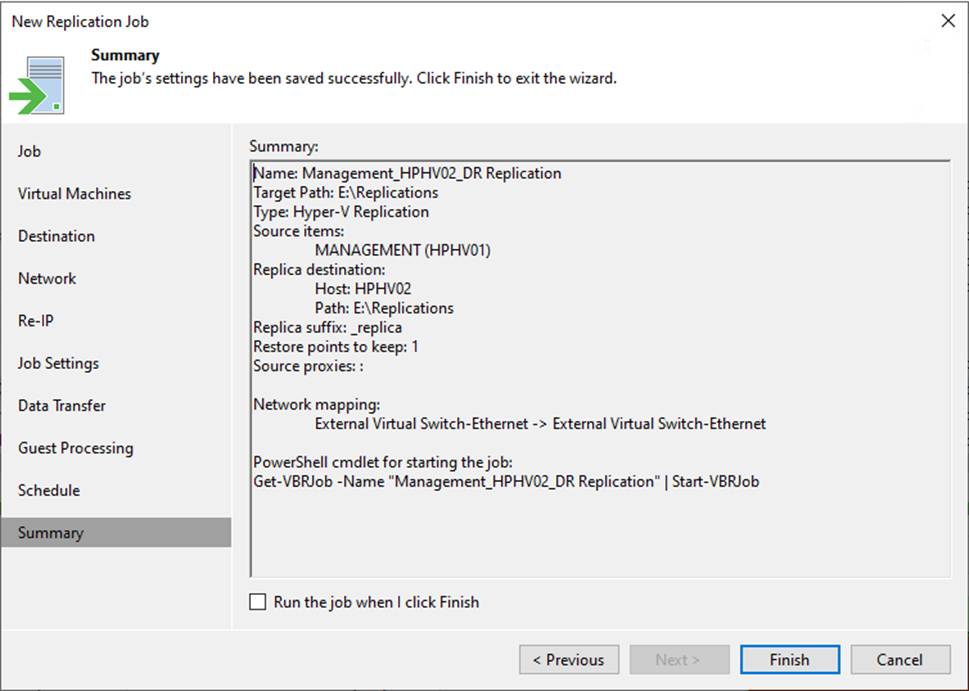

70. On the Summary page, click Finish.

092423 2153 Howtocreate40 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

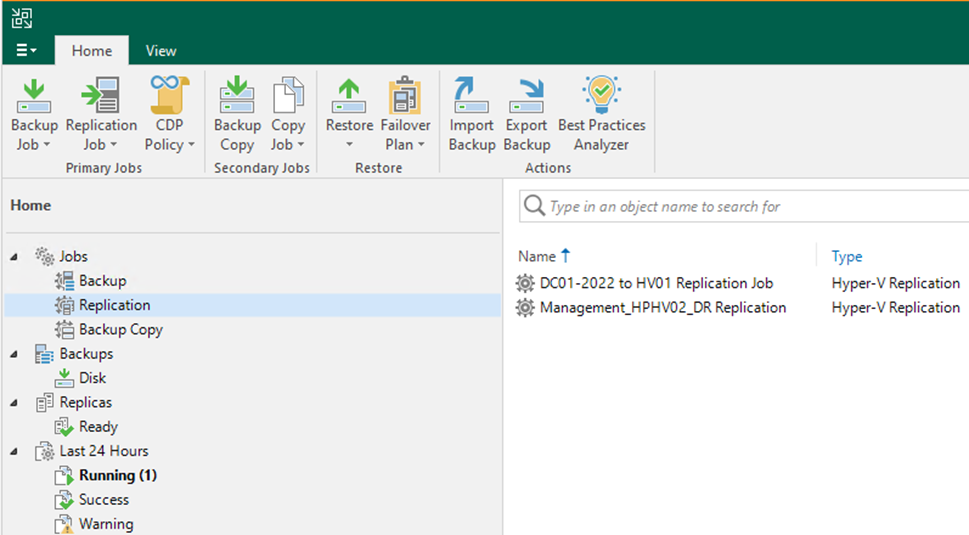

71. Verify the job has been added.

092423 2153 Howtocreate41 - How to create a Replication job to replicate the specified VMs to the Disaster Recovery Site at Veeam Backup and Replication v12

I hope you enjoy this post.
