Today, I am going to show you how to upgrade Citrix ADC to version 13.1.

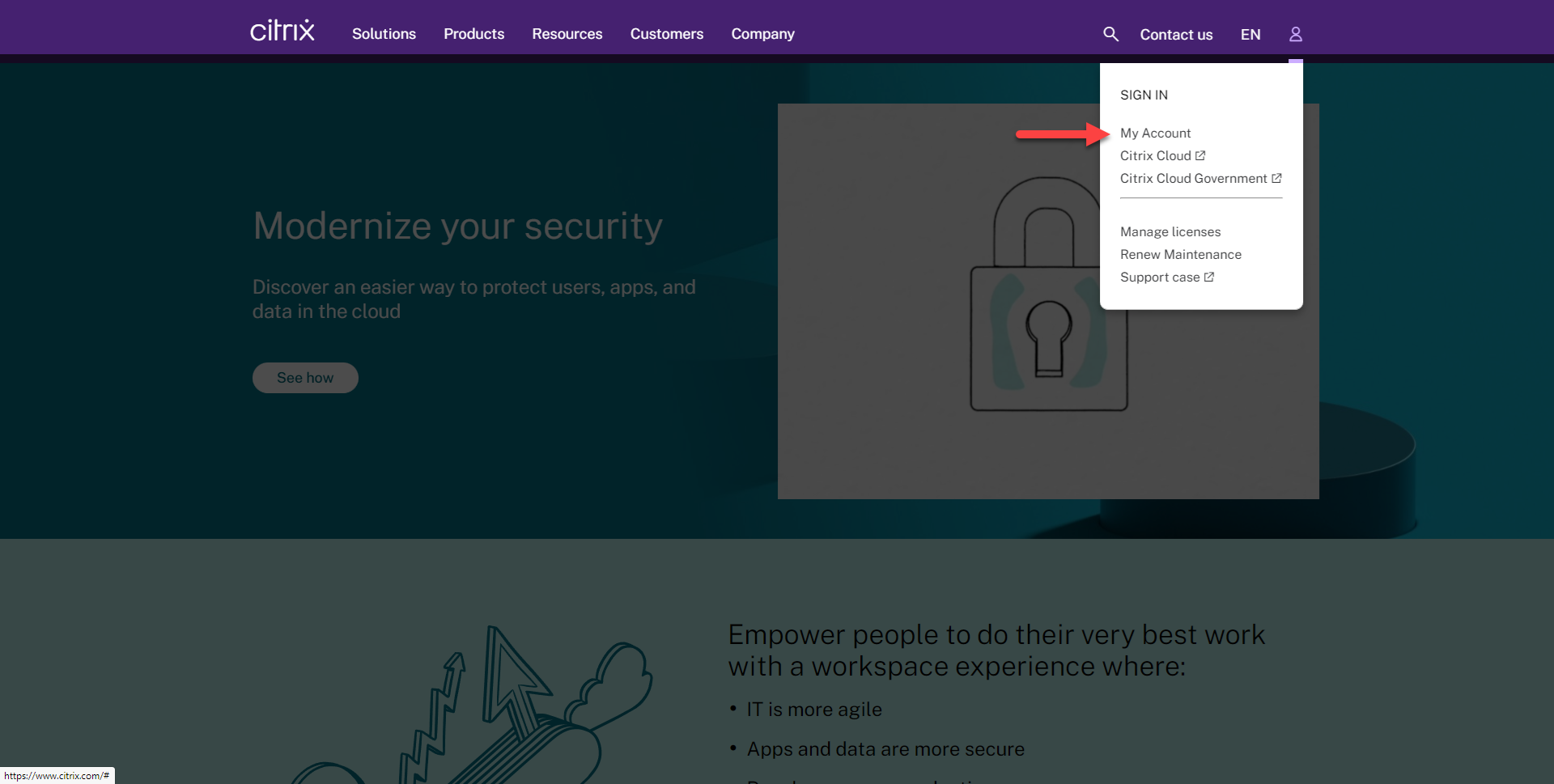

1.Sign in to Citrix.com portal My Account.

010122 2108 Howtoupgrad1 - How to upgrade Citrix ADC to 13.1

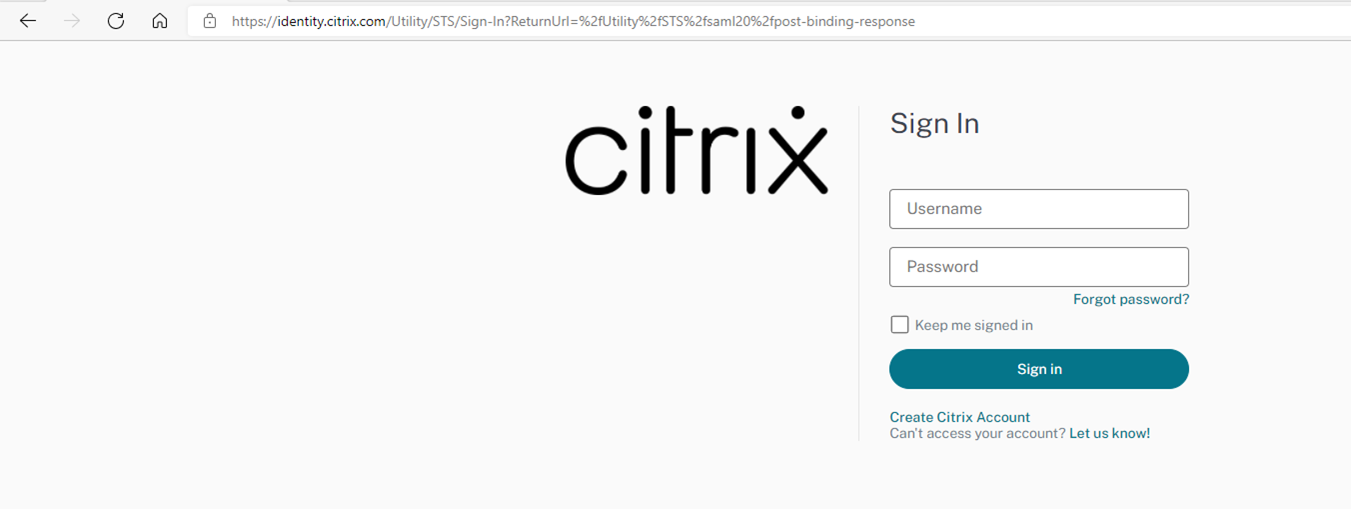

2.Enter your user name and password, click Sign in.

010122 2108 Howtoupgrad2 - How to upgrade Citrix ADC to 13.1

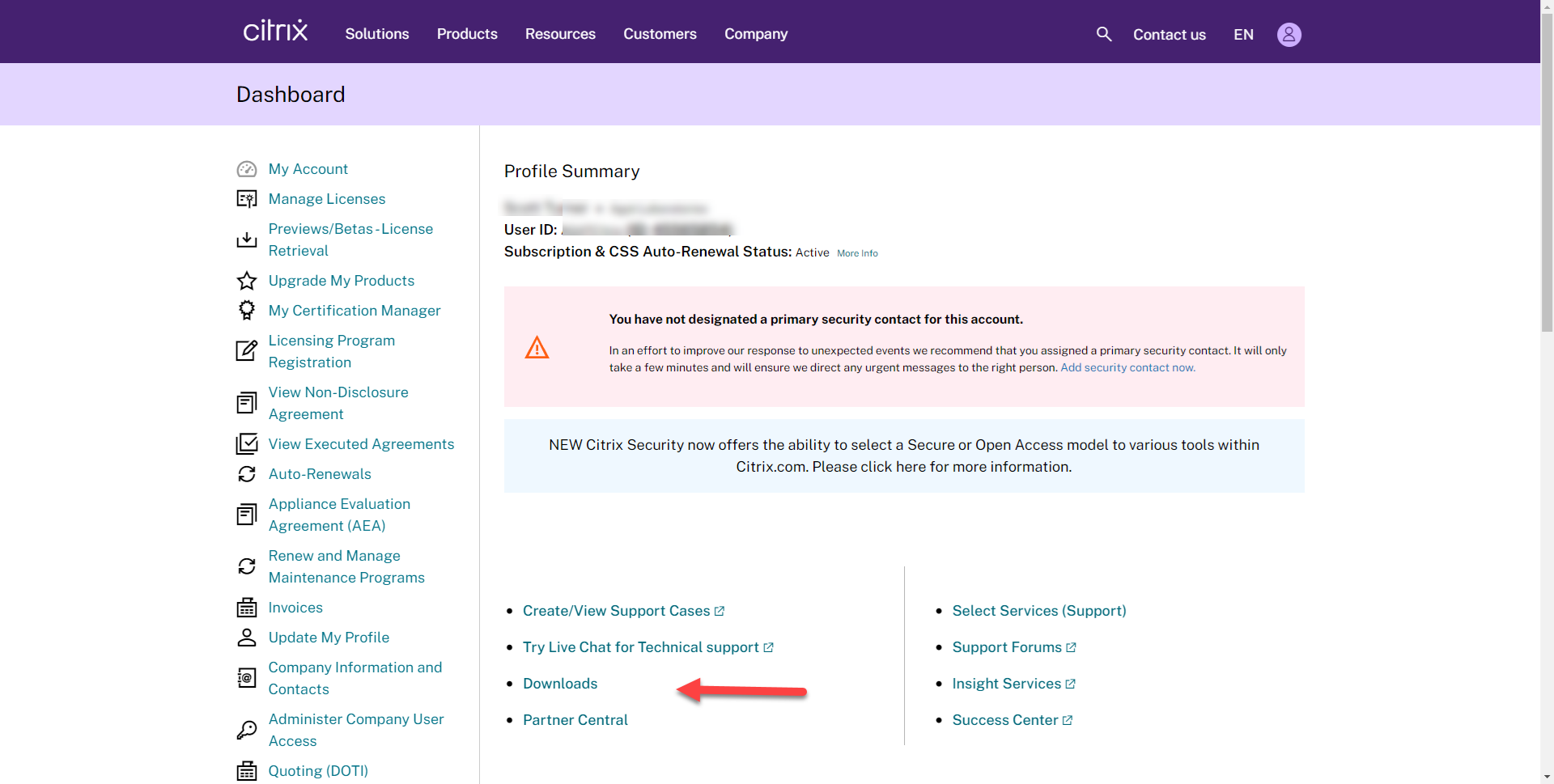

3.On the Dashboard page, select Downloads.

010122 2108 Howtoupgrad3 - How to upgrade Citrix ADC to 13.1

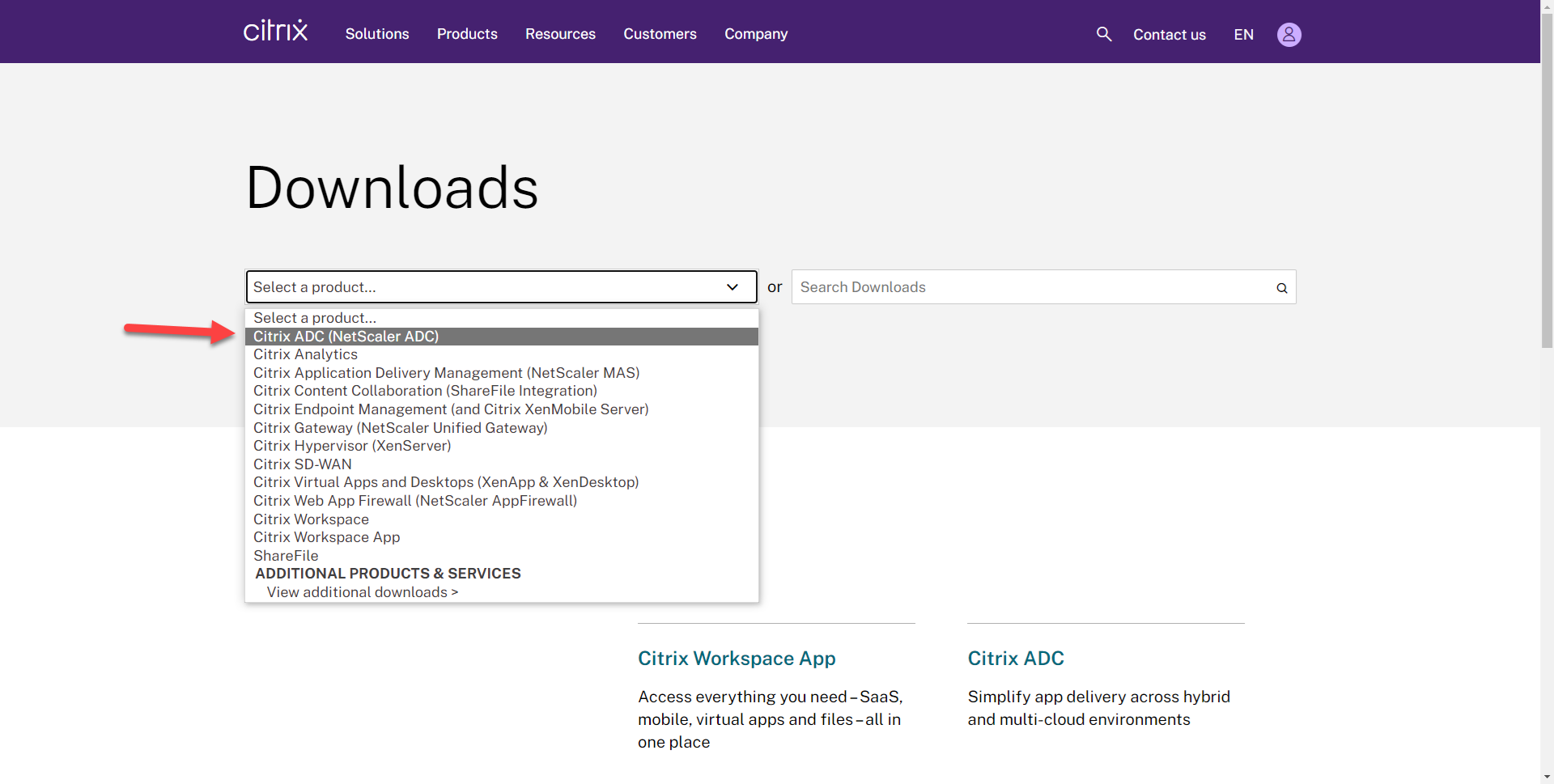

4.On the Download page, select Citrix ADC (NetScaler ADC).

010122 2108 Howtoupgrad4 - How to upgrade Citrix ADC to 13.1

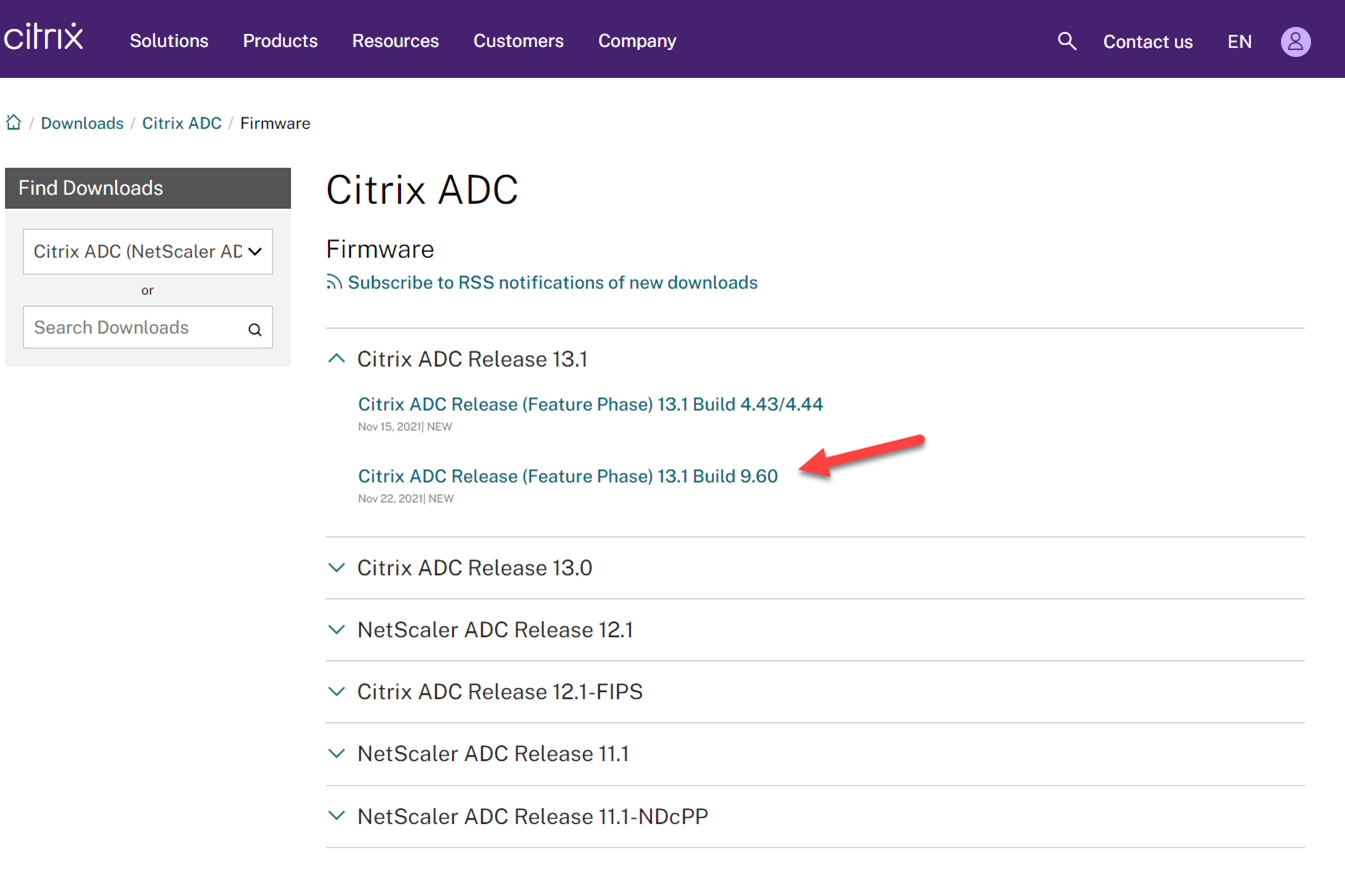

5.On the Citrix ADC page, select Citrix ADC Release 13.1, select Firmware, Click NetScaler Release (Feature Phase 13.1 Build xxxxx).

010122 2108 Howtoupgrad5 - How to upgrade Citrix ADC to 13.1

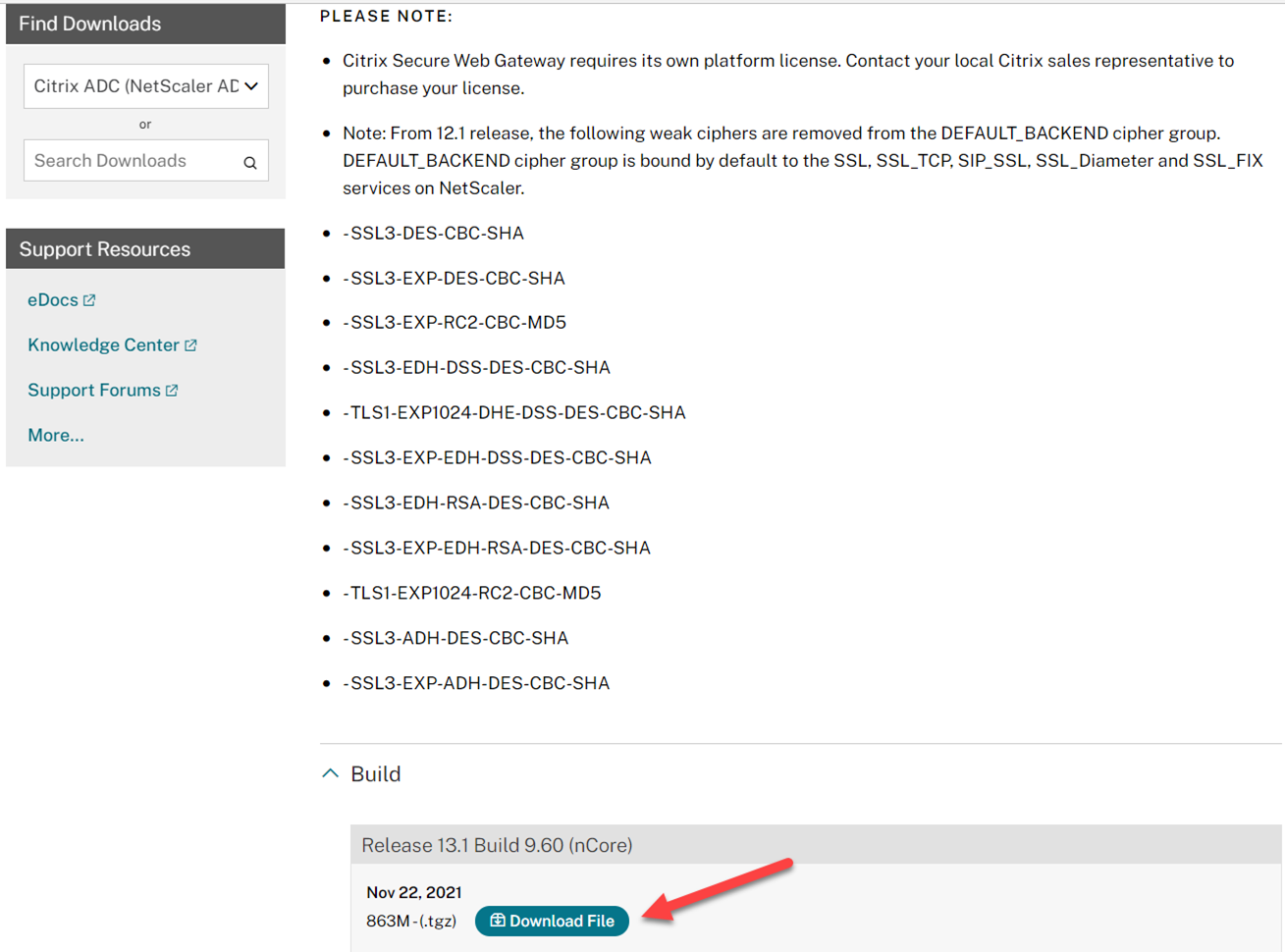

6.On the NetScaler Release (Feature Phase) 13.1 Build xxxxx page, select Build, click Download File.

010122 2108 Howtoupgrad6 - How to upgrade Citrix ADC to 13.1

Note: if this firmware addresses security vulnerabilities issues, you need to follow the CTX document for updates.

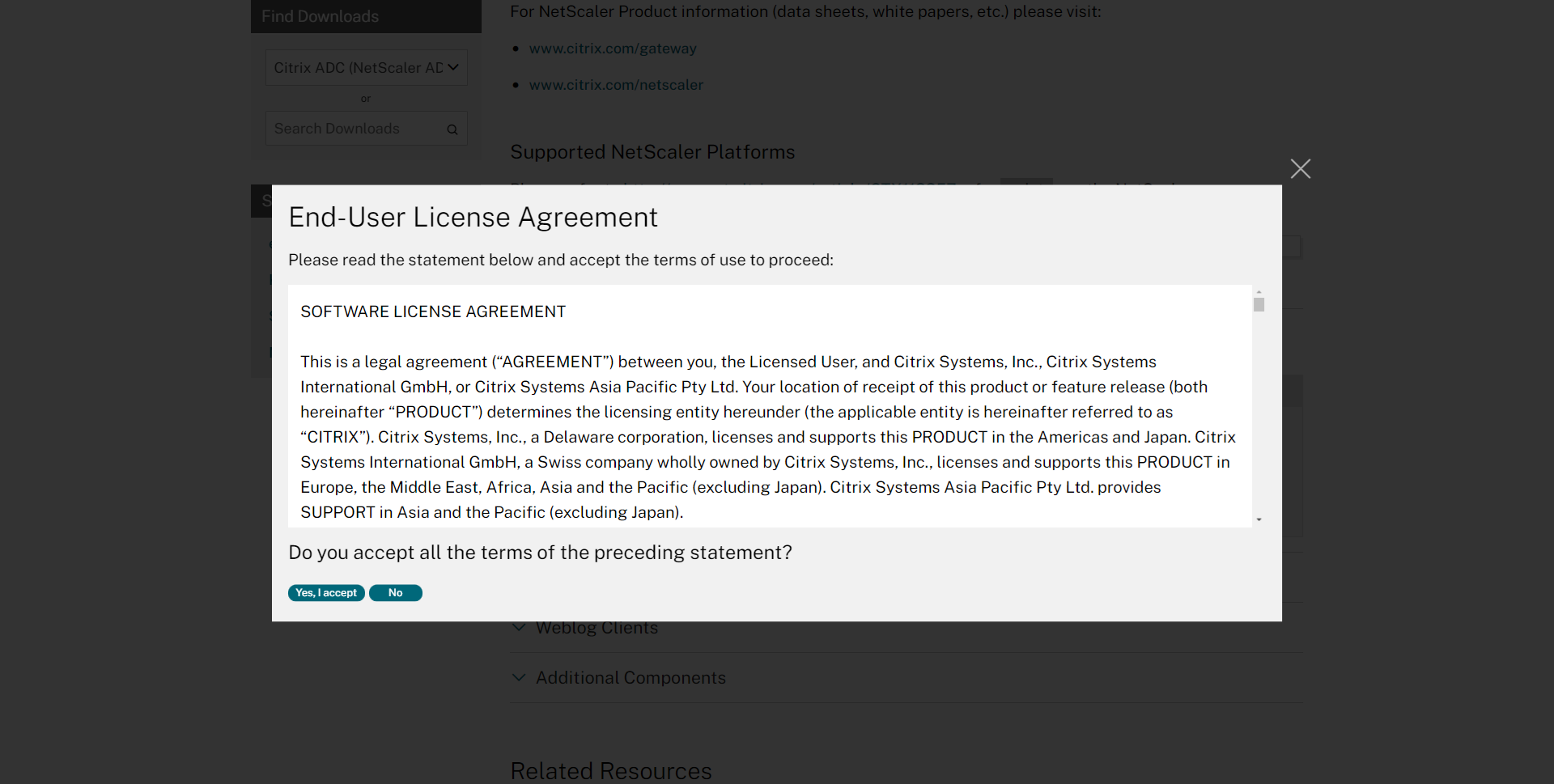

7.On the End-User License Agreement page, click Yes, I accept.

010122 2108 Howtoupgrad7 - How to upgrade Citrix ADC to 13.1

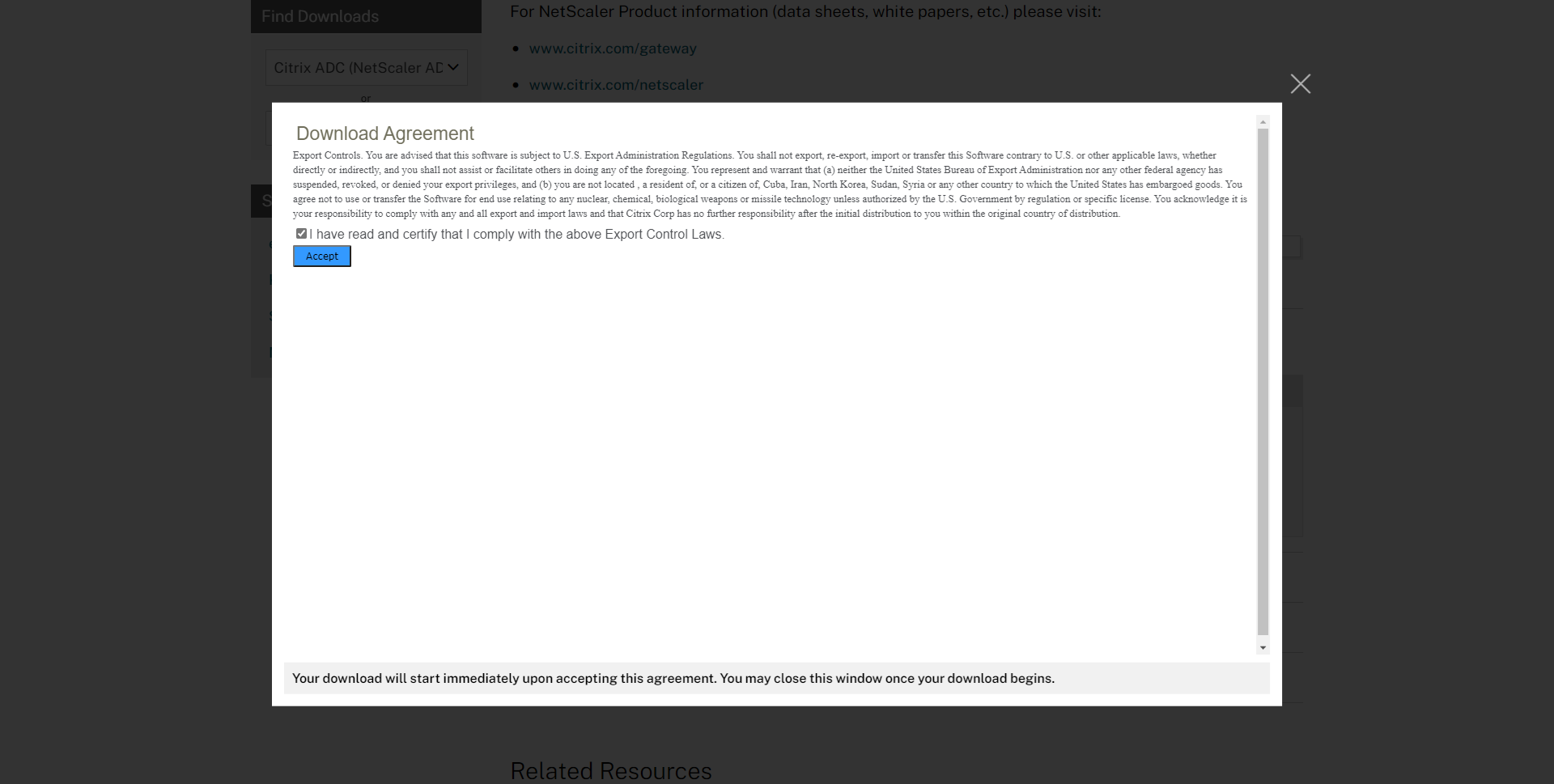

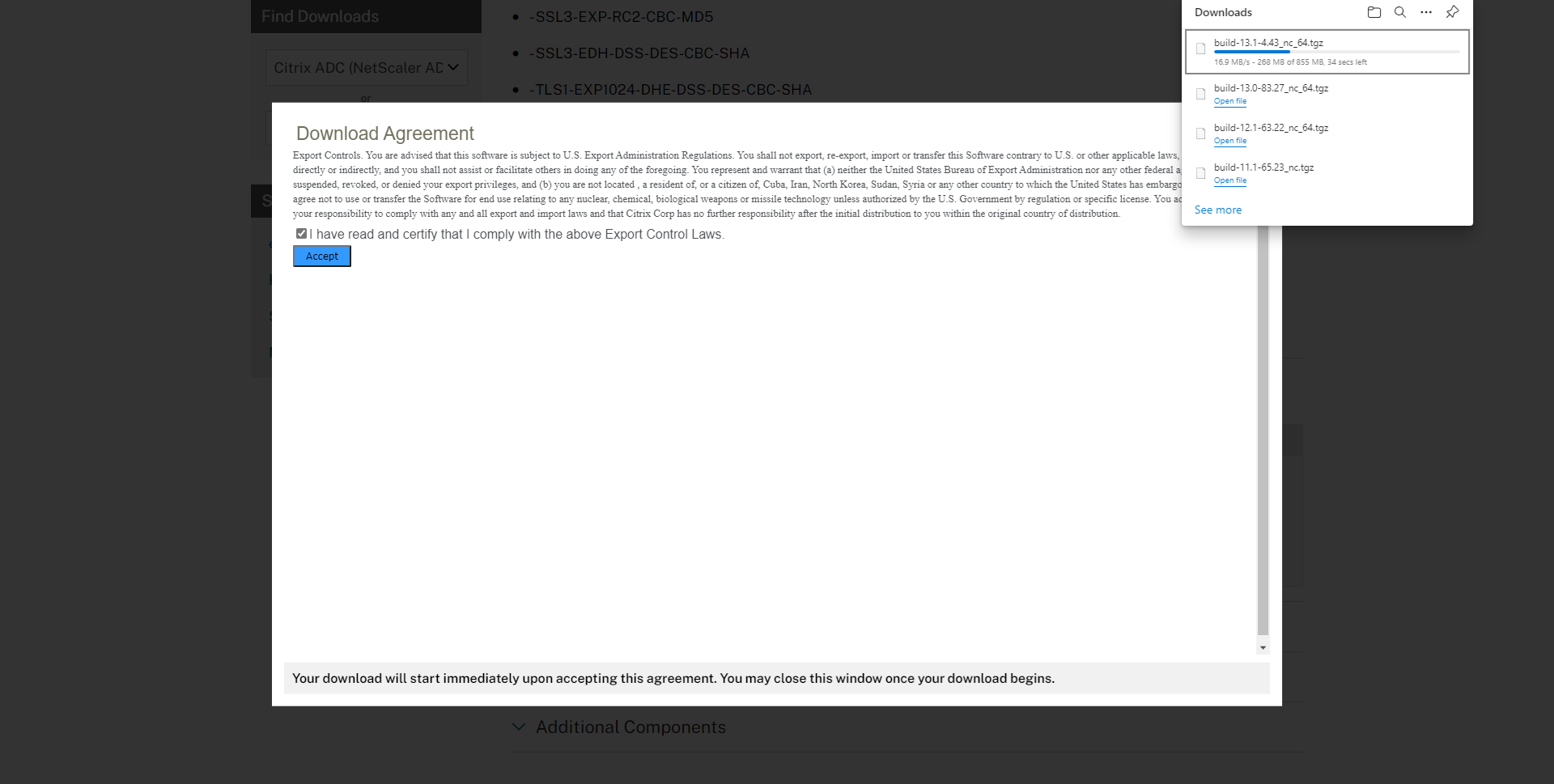

8.On the Download Agreement page, select I have read and certify that I comply with the above Export Control Laws, click Accept.

010122 2108 Howtoupgrad8 - How to upgrade Citrix ADC to 13.1

9.The .tgz file is starting to download.

010122 2108 Howtoupgrad9 - How to upgrade Citrix ADC to 13.1

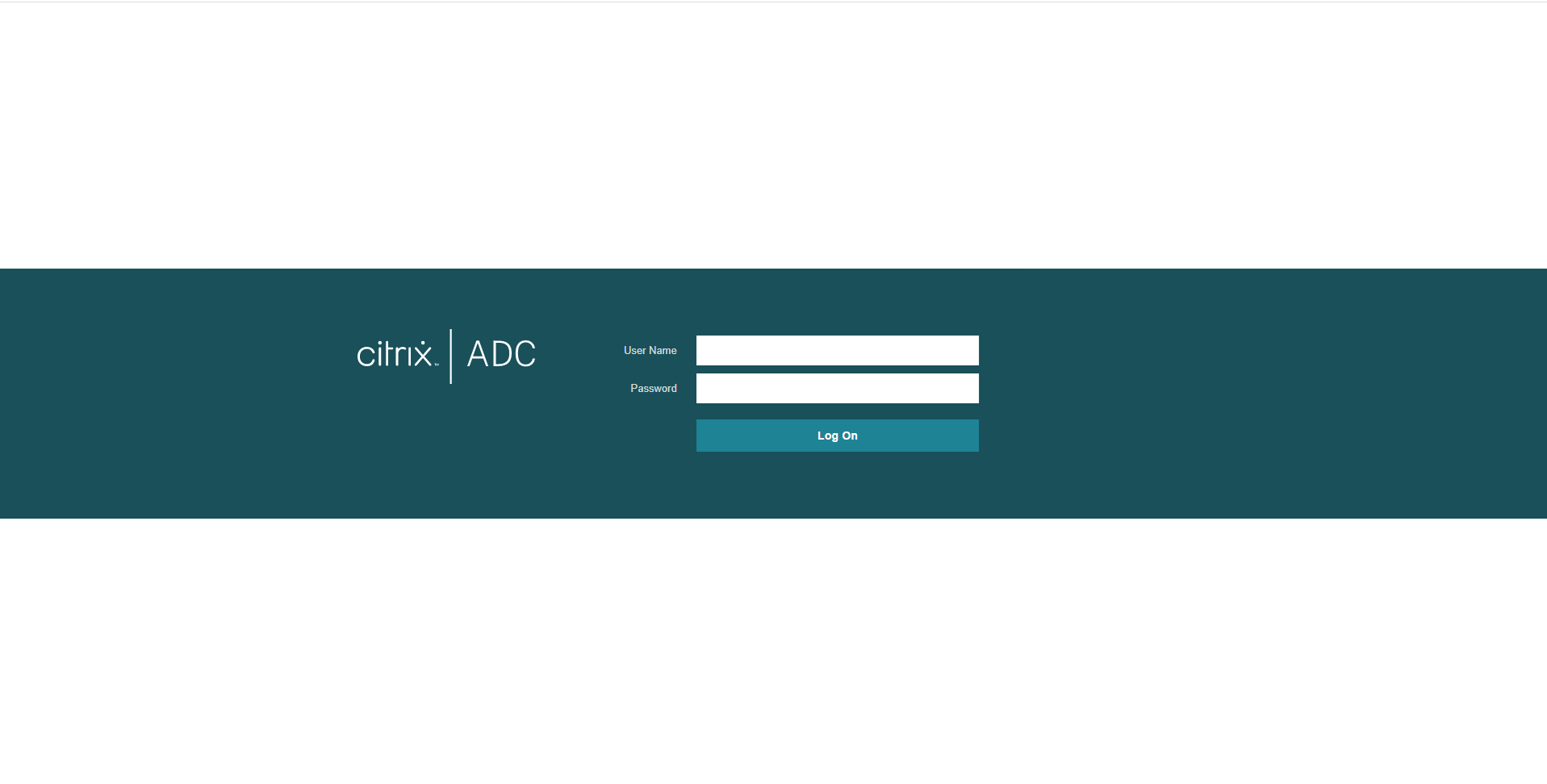

10.Open the Citrix NetScaler web console, enter user name and password.

010122 2108 Howtoupgrad10 - How to upgrade Citrix ADC to 13.1

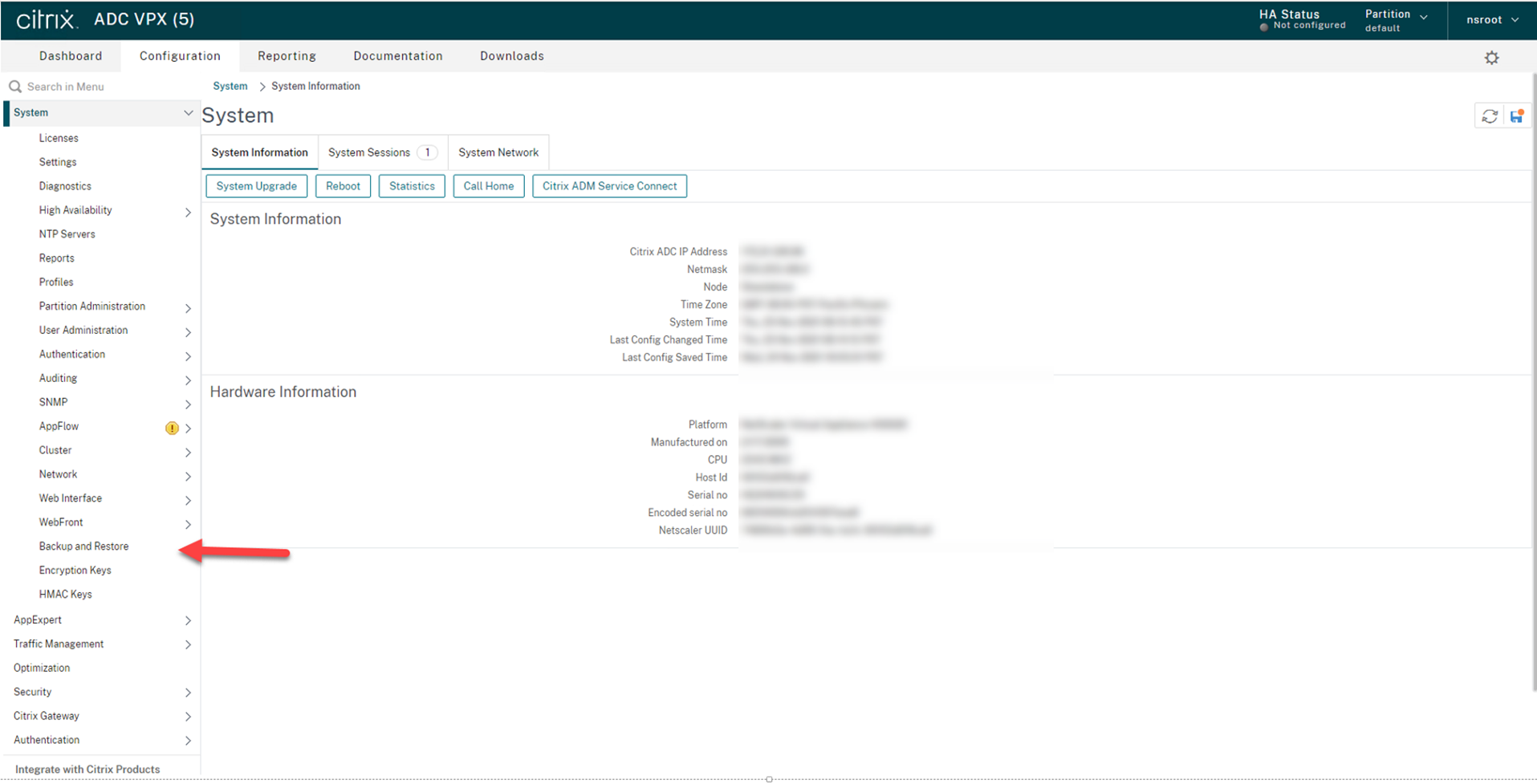

11.Expand System, select Backup and Restore.

010122 2108 Howtoupgrad11 - How to upgrade Citrix ADC to 13.1

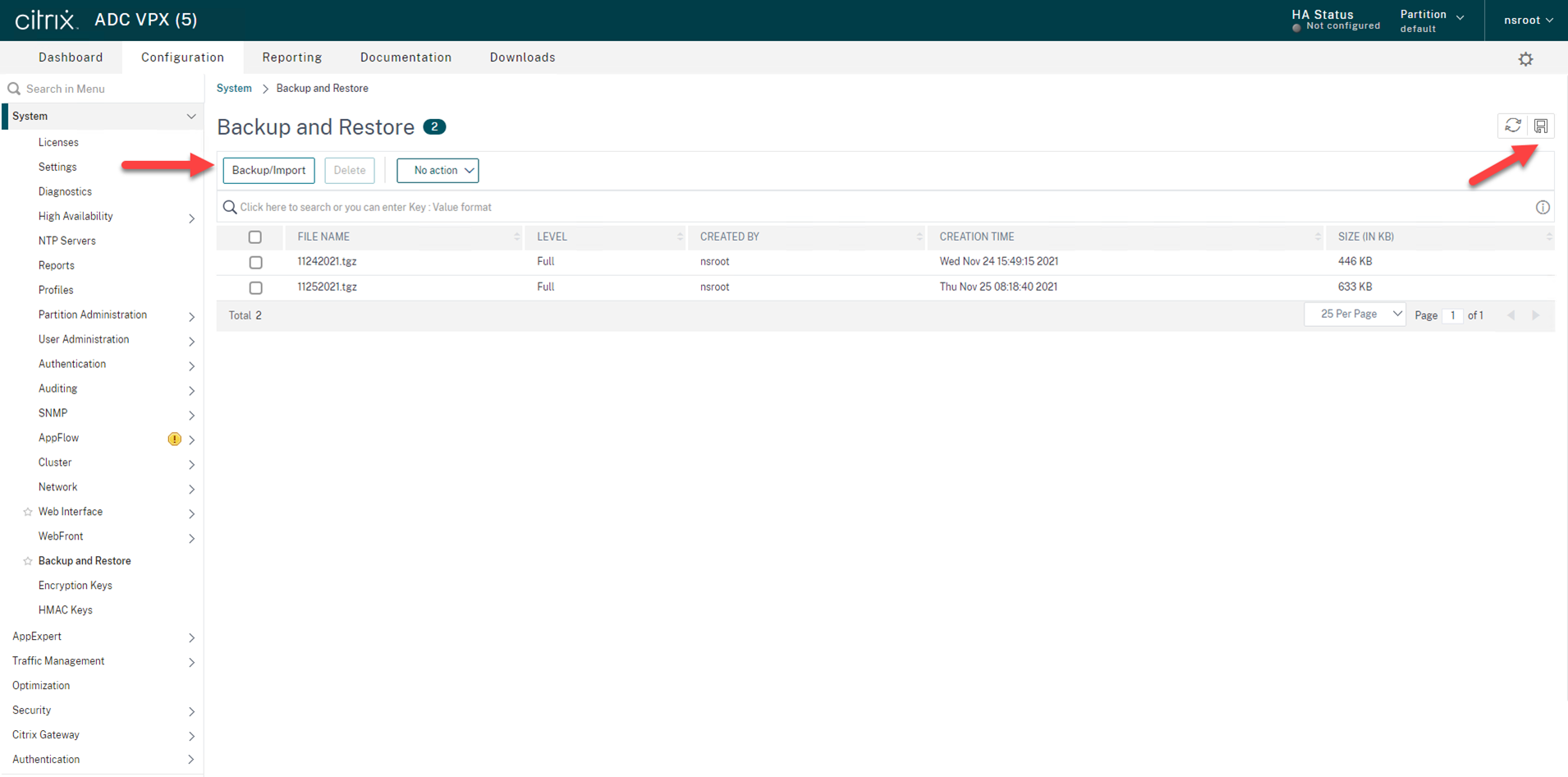

12.On the Backup and Restore page, click Backup/Import, make sure save configuration before Backup.

010122 2108 Howtoupgrad12 - How to upgrade Citrix ADC to 13.1

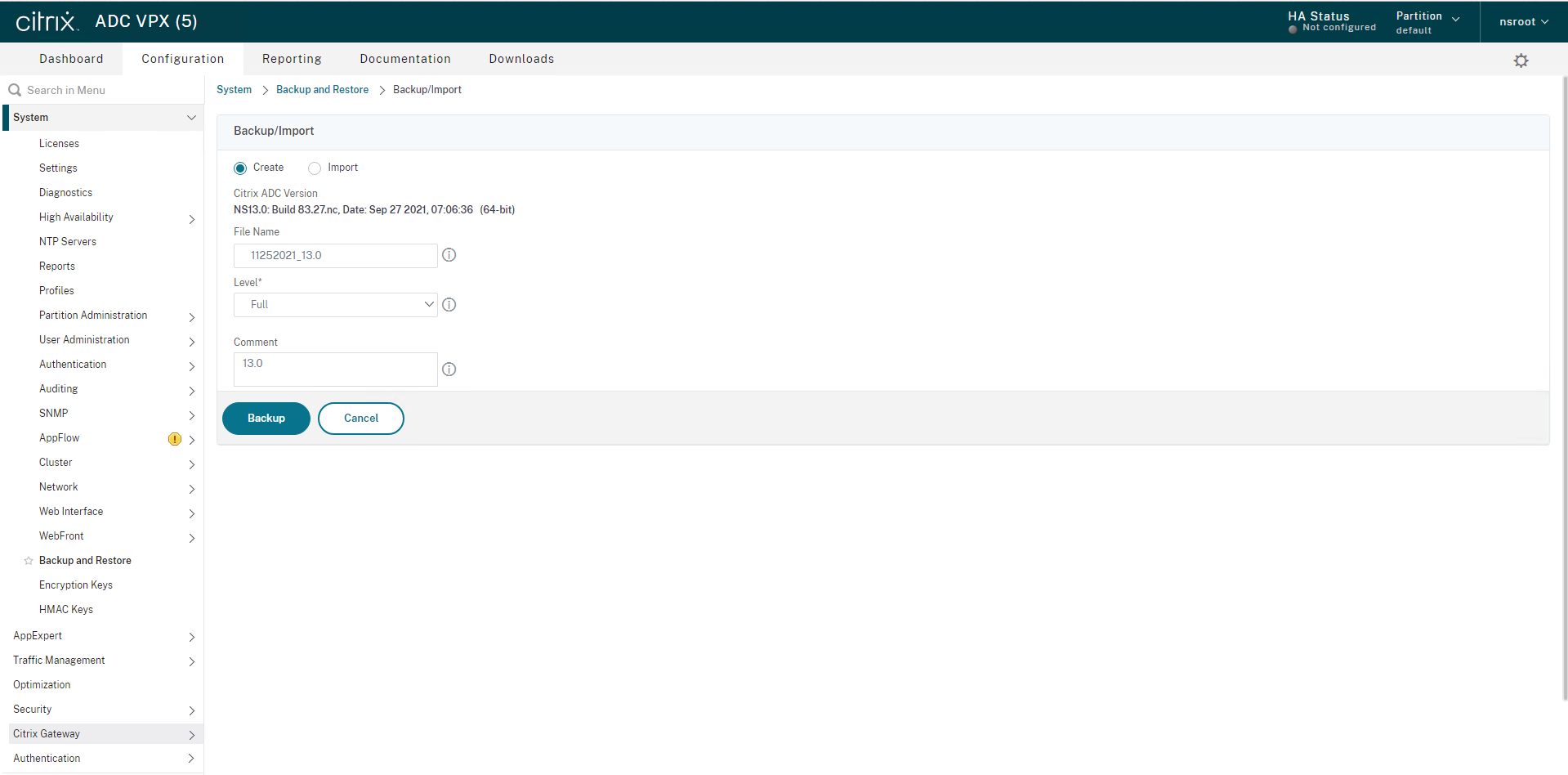

13.On the Backup page, select Create, type the file name and select full level, click Backup.

010122 2108 Howtoupgrad13 - How to upgrade Citrix ADC to 13.1

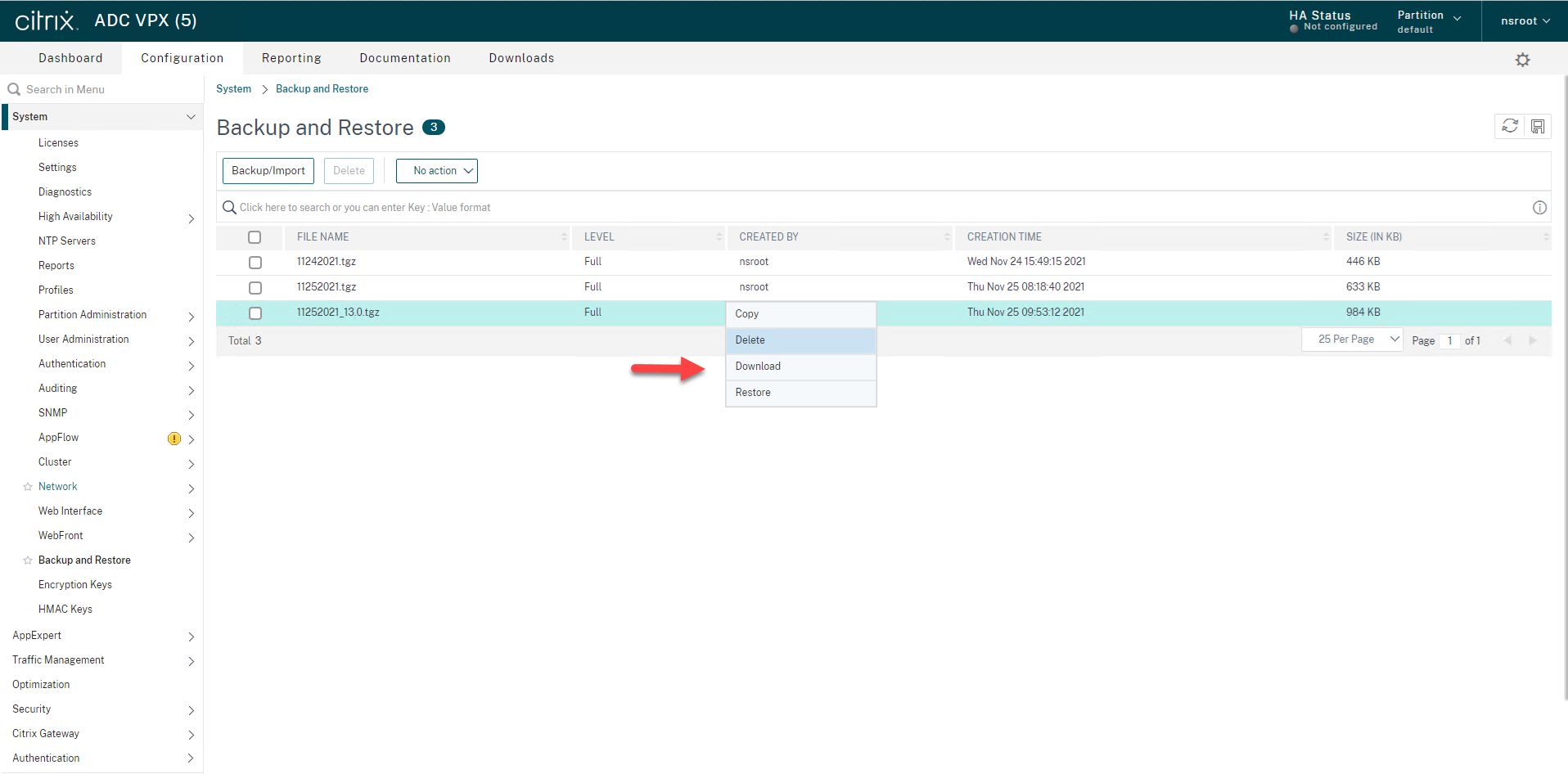

14.Righ-click the Backup file and select Download, if you need to save it to local machine.

010122 2108 Howtoupgrad14 - How to upgrade Citrix ADC to 13.1

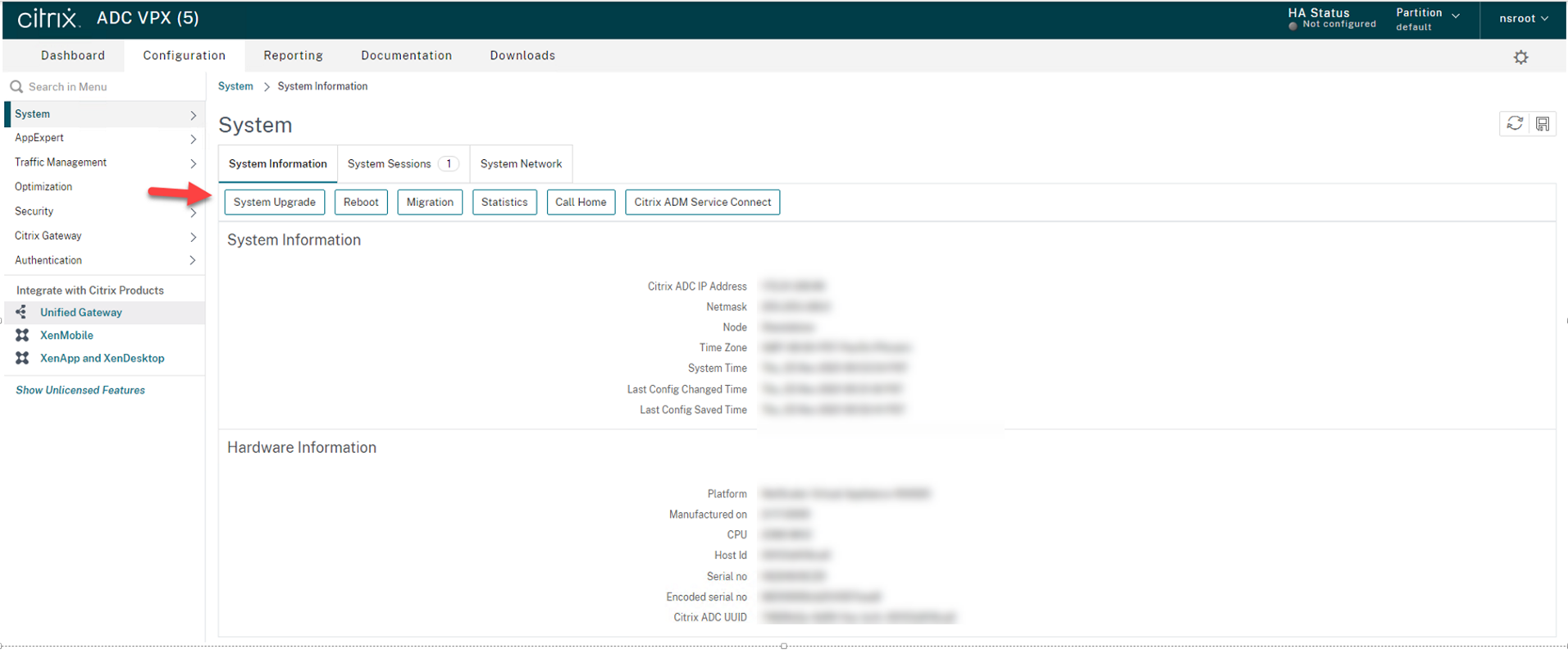

15.On the Configuration page, select System.

010122 2108 Howtoupgrad15 - How to upgrade Citrix ADC to 13.1

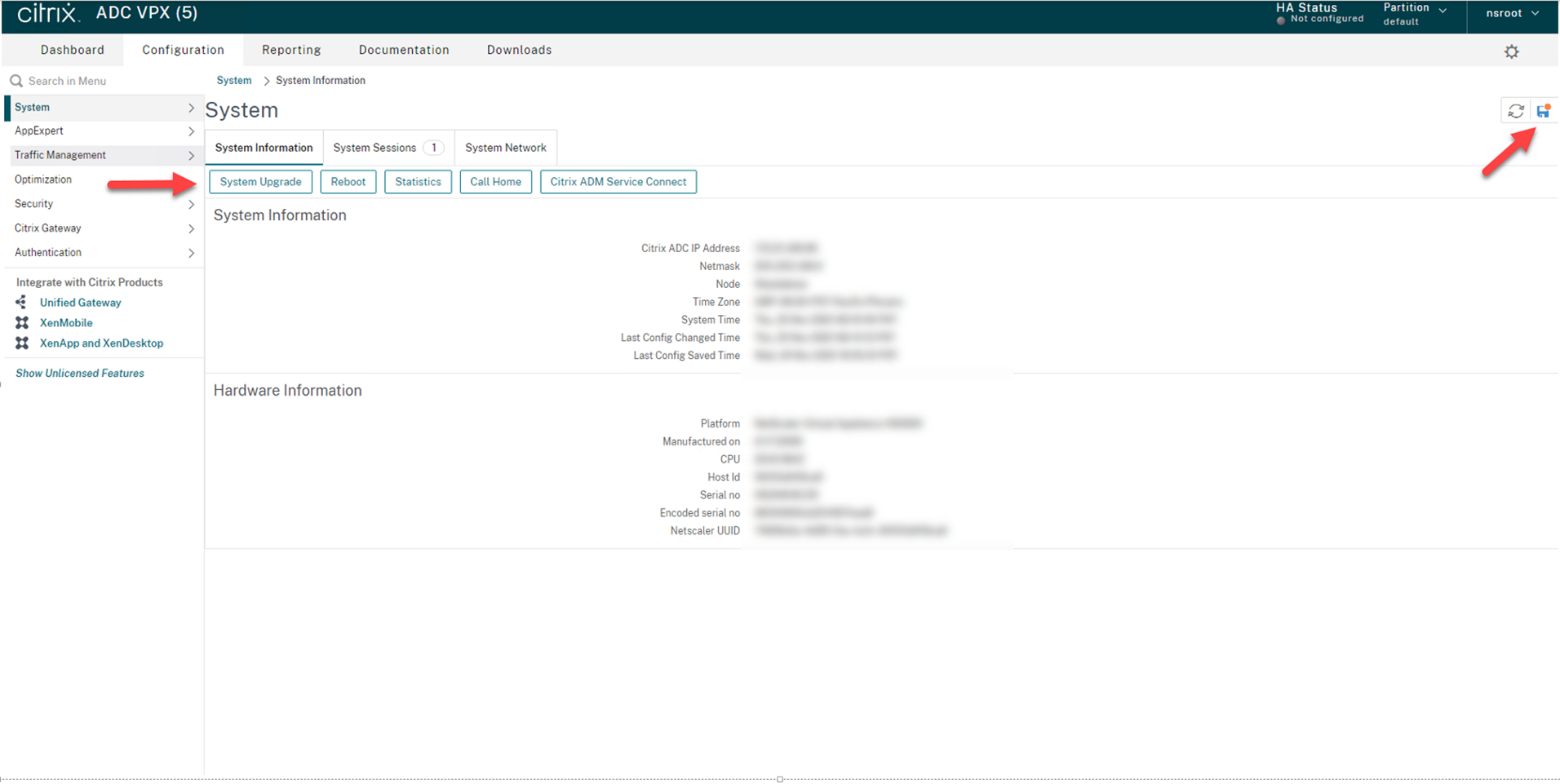

16.On the System Information page, select System Upgrade, I would recommend save configure before click System Upgrade.

010122 2108 Howtoupgrad16 - How to upgrade Citrix ADC to 13.1

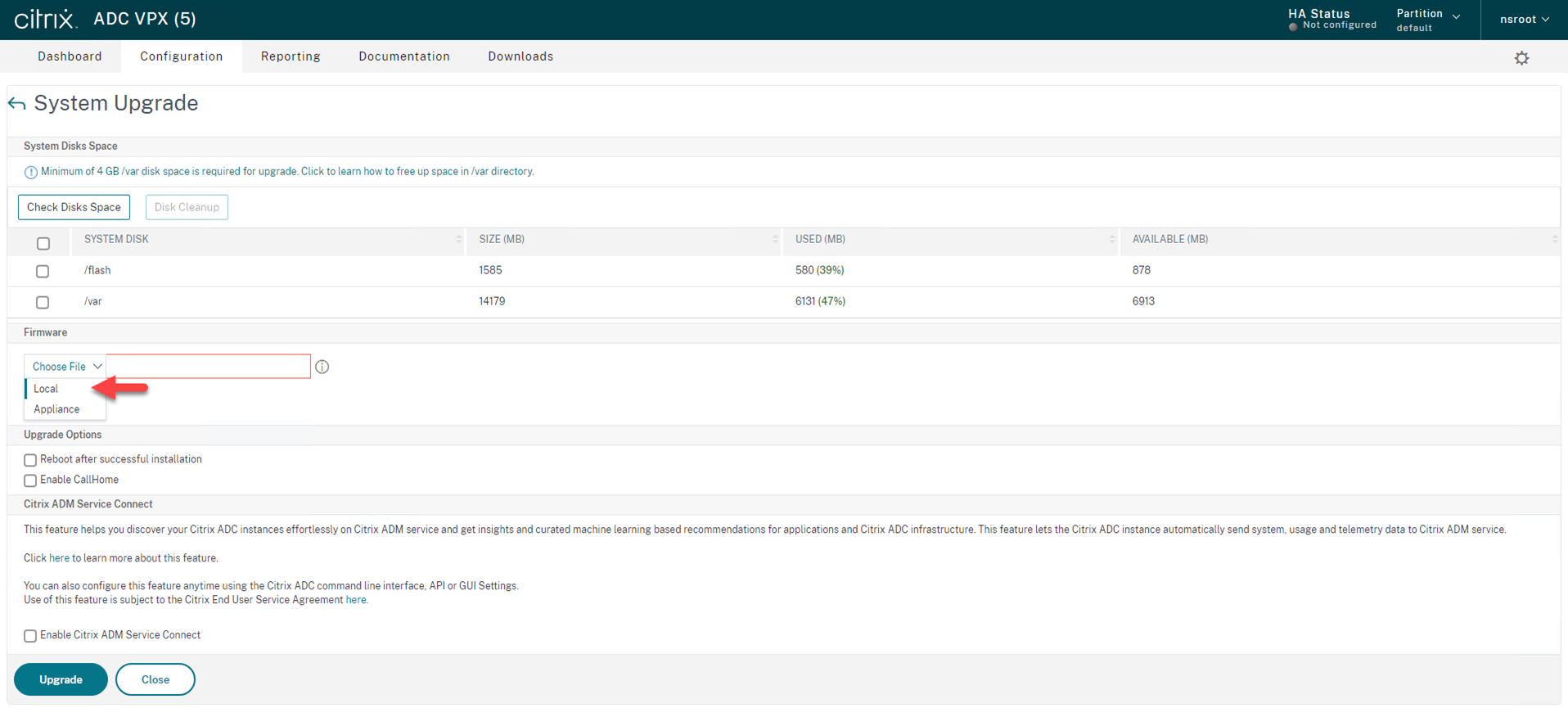

17.On the System Upgrade page, click Choose File, select Local.

010122 2108 Howtoupgrad17 - How to upgrade Citrix ADC to 13.1

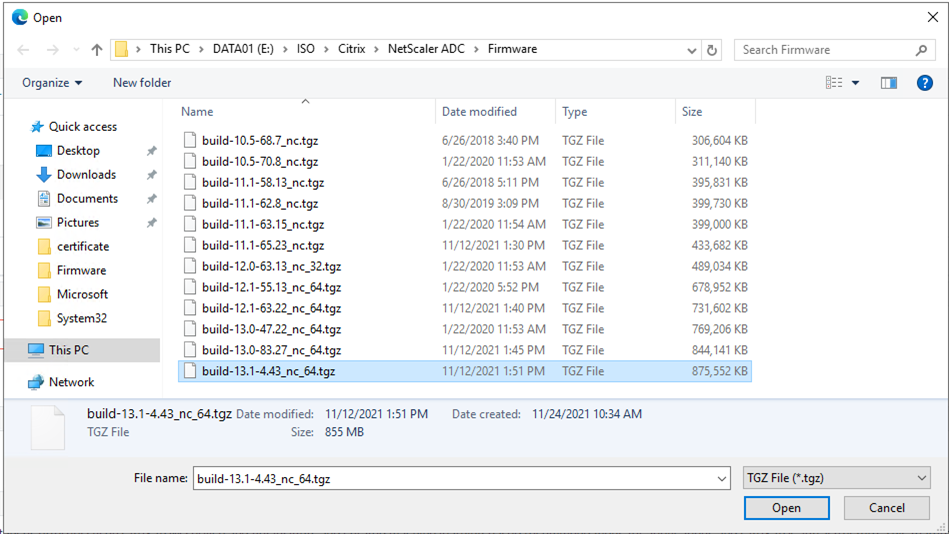

18.Select the new firmware, click Open.

010122 2108 Howtoupgrad18 - How to upgrade Citrix ADC to 13.1

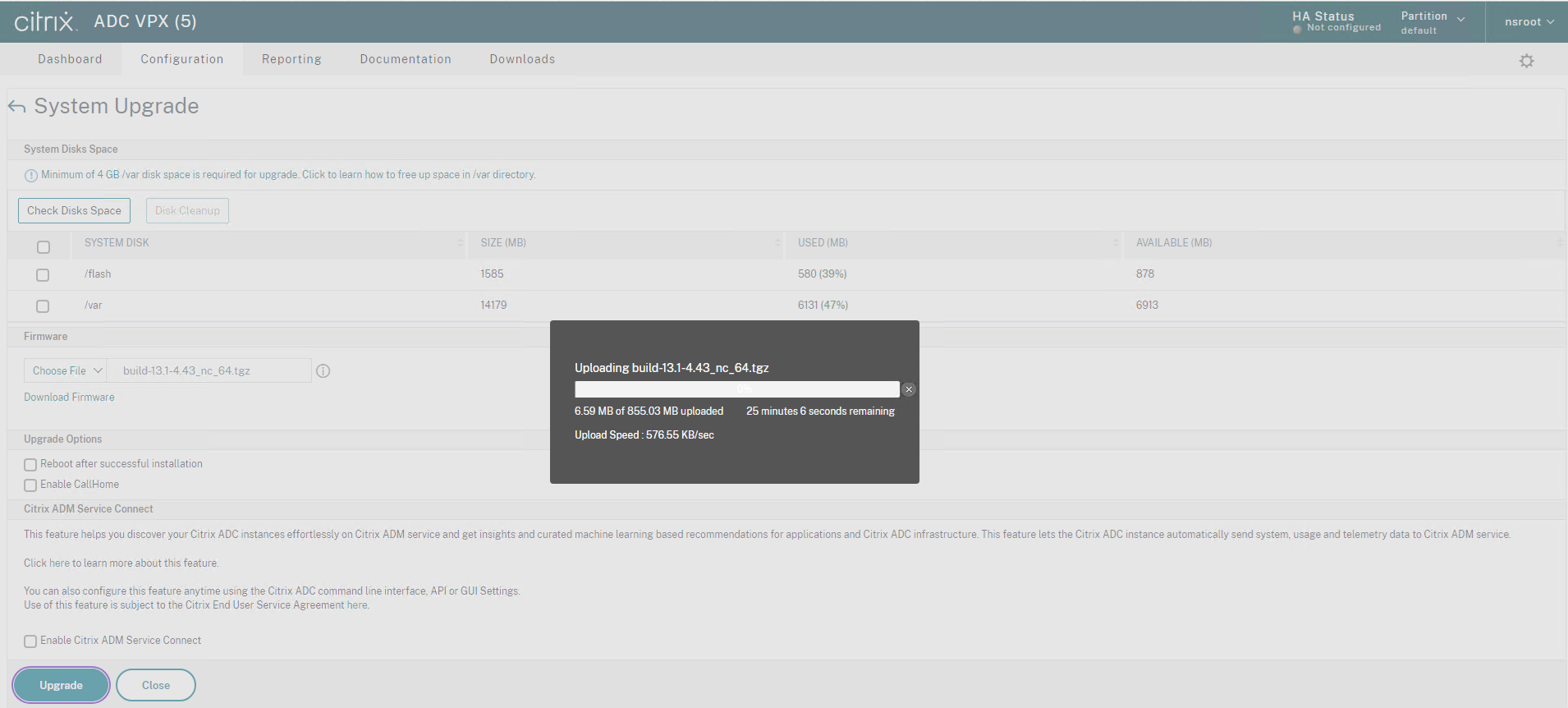

19. Click Upgrade.

010122 2108 Howtoupgrad19 - How to upgrade Citrix ADC to 13.1

010122 2108 Howtoupgrad20 - How to upgrade Citrix ADC to 13.1

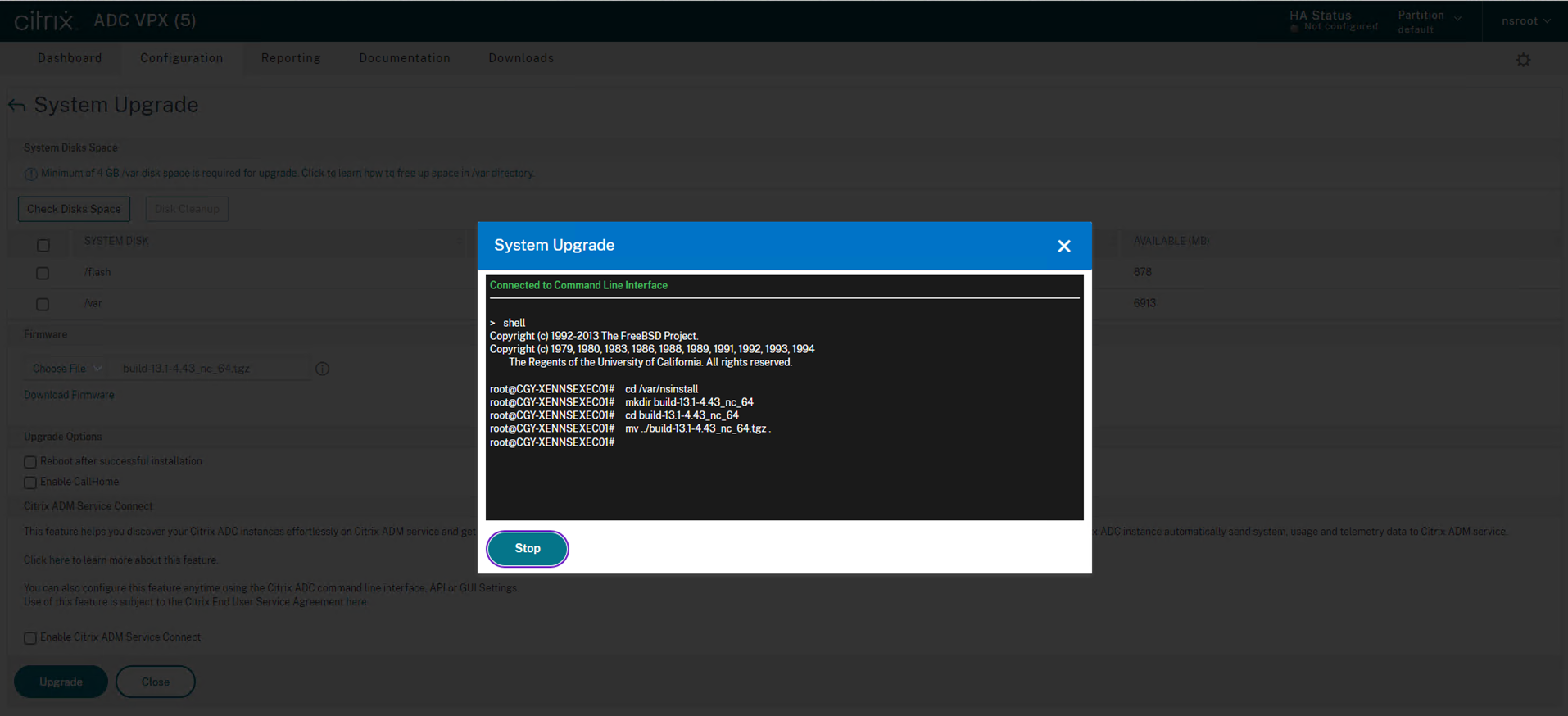

20.On the System Upgrade page, click Close after Installation completed.

010122 2108 Howtoupgrad21 - How to upgrade Citrix ADC to 13.1

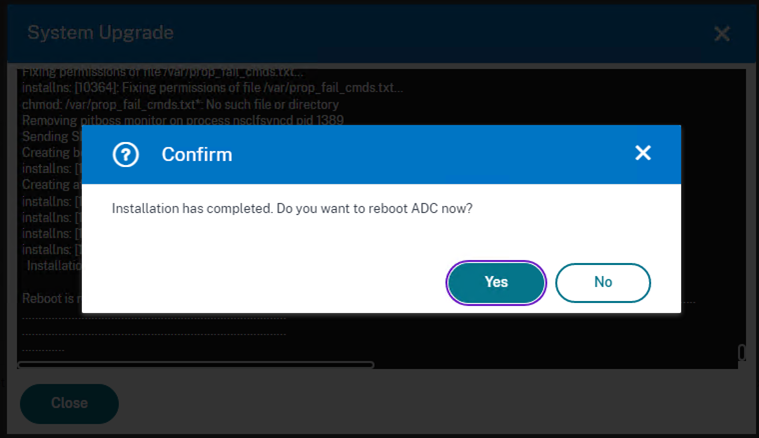

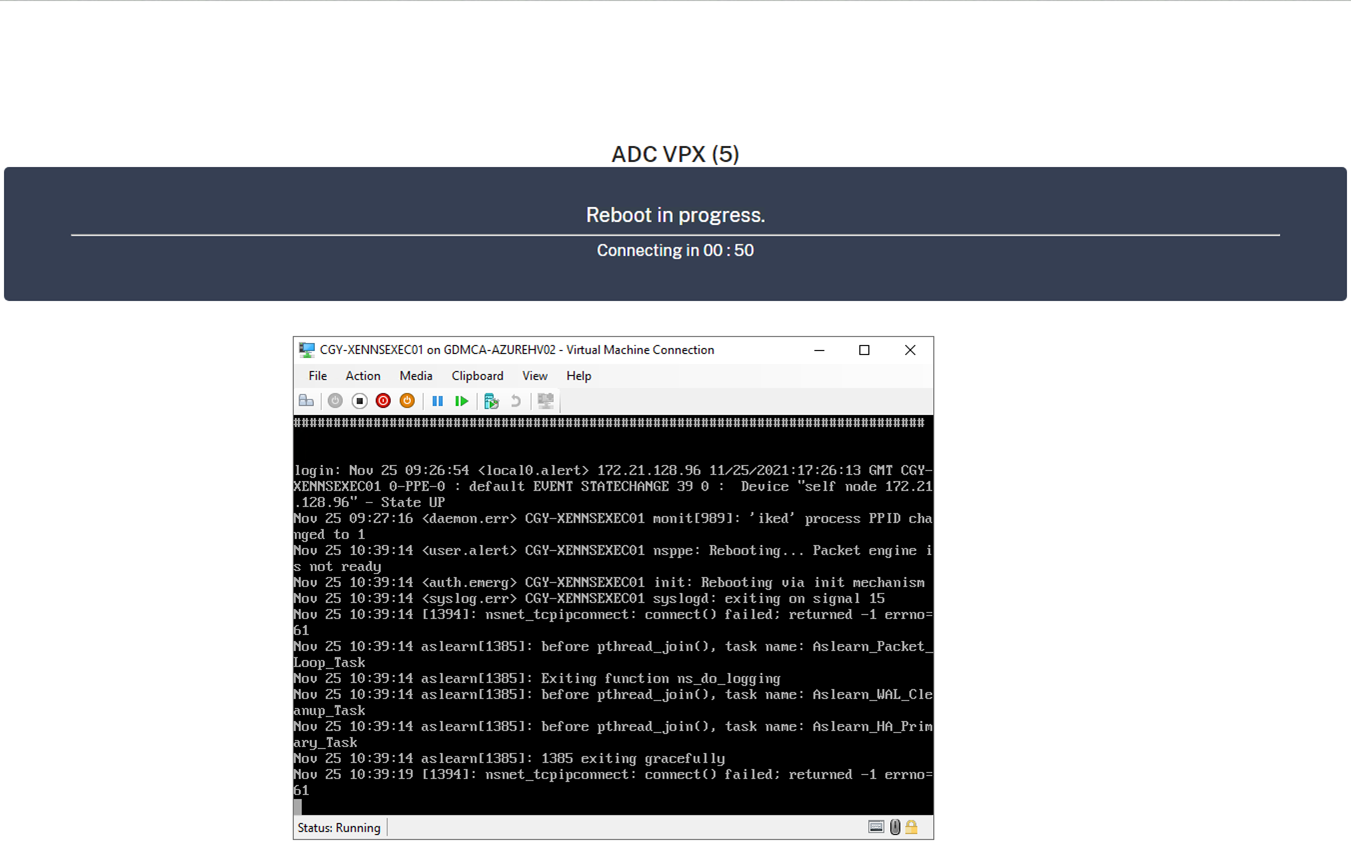

21.On the reboot confirm page, click Yes.

010122 2108 Howtoupgrad22 - How to upgrade Citrix ADC to 13.1

010122 2108 Howtoupgrad23 - How to upgrade Citrix ADC to 13.1

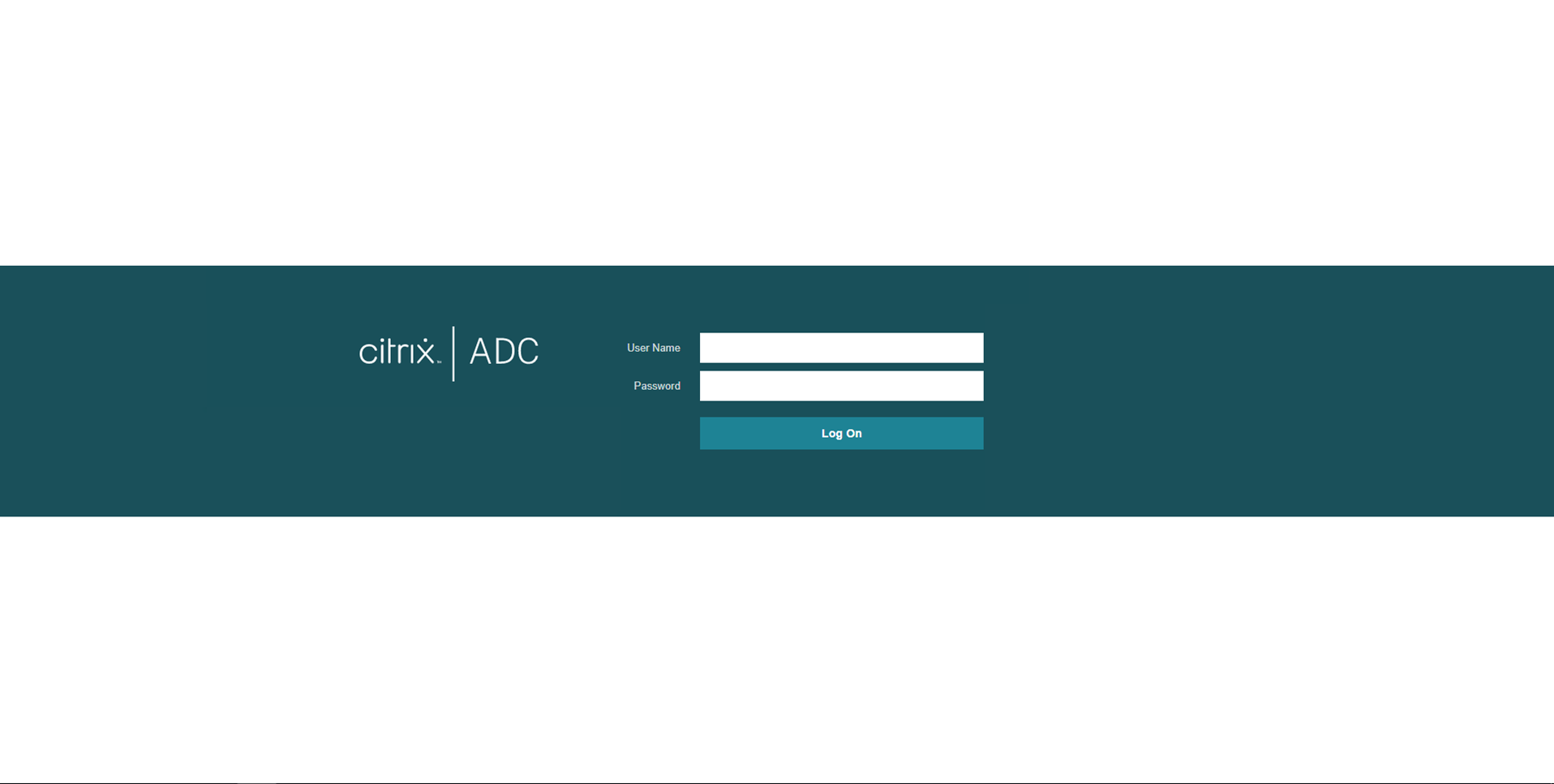

22.On the Citrix NetScaler web console, enter user name and password.

010122 2108 Howtoupgrad24 - How to upgrade Citrix ADC to 13.1

23.Check the Citrix ADC version.

010122 2108 Howtoupgrad25 - How to upgrade Citrix ADC to 13.1

Hope you enjoy this post.
