July 14, 2024
030823 2009 HowtoRebuil9 - How to Rebuild a Gridstore Host via Virtual Media
There are many ways to rebuild the Hyper-V host, but I will show you how to rebuild a Microsoft Hyper-V host via Virtual Media. These screens captured were for Windows Server 2019, but not for Windows Server 2019 only. You can use Windows Server 2022 ISO image file too.

There are many ways to rebuild the Hyper-V host, but I will show you how to rebuild a Microsoft Hyper-V host via Virtual Media. These screens captured were for Windows Server 2019, but not for Windows Server 2019 only. You can use Windows Server 2022 ISO image file too.

1. Log in to a domain member machine and download the OS ISO image file.

2. Access the Gridstore machine via IPMI.

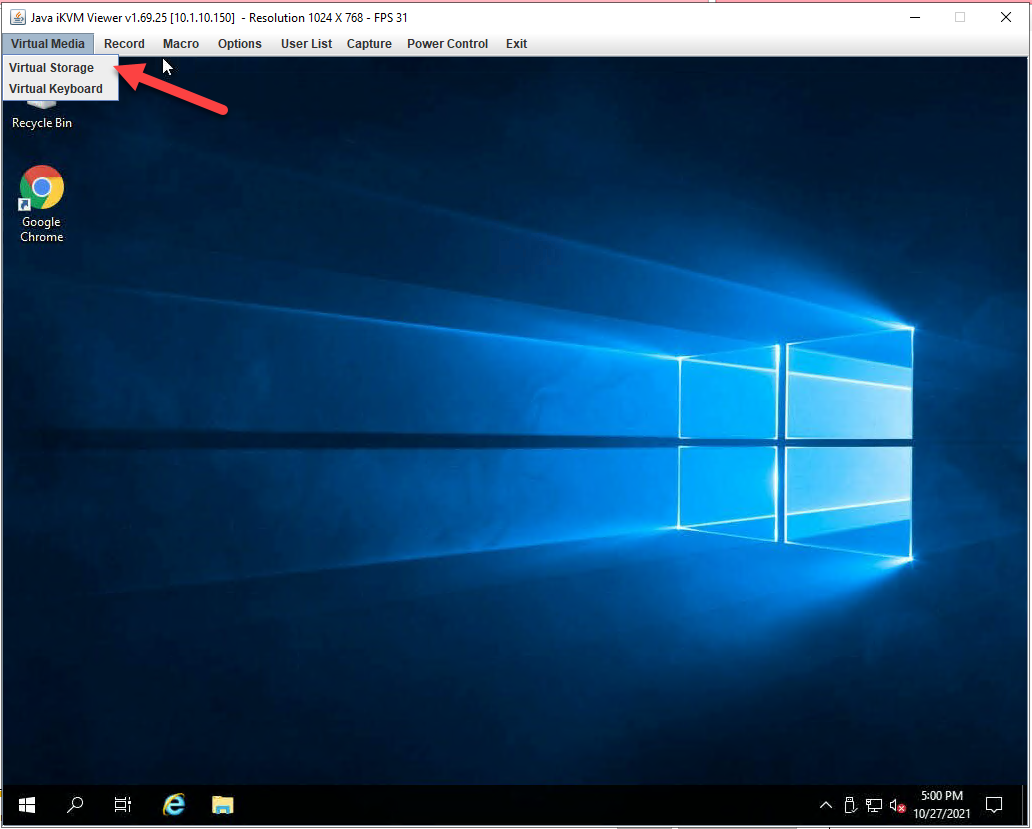

3. Select Virtual Storage from the Virtual Media drop-down list.

030823 2009 HowtoRebuil1 - How to Rebuild a Gridstore Host via Virtual Media

4. Select Device1 on the Virtual Storage page.

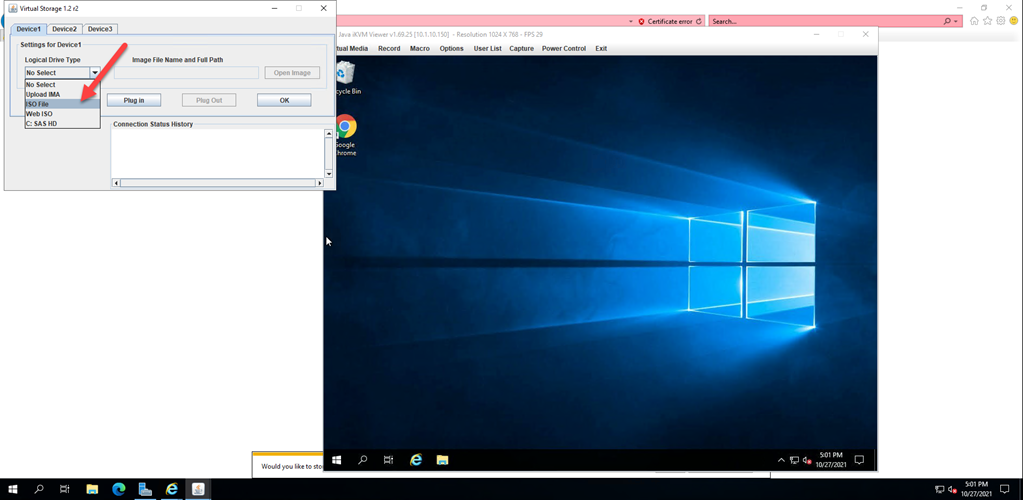

5. Select the ISO file from the Logical Drive Type drop-down list.

030823 2009 HowtoRebuil2 - How to Rebuild a Gridstore Host via Virtual Media

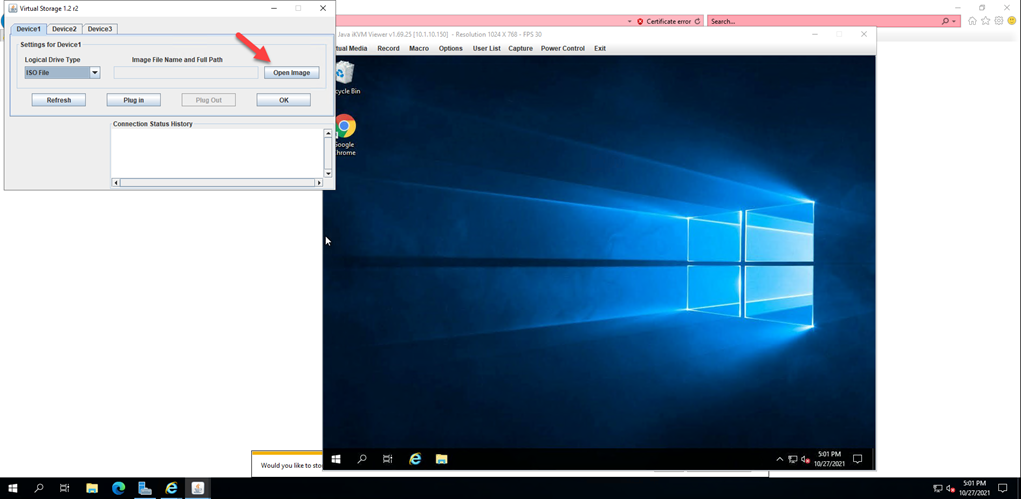

6. Click Open Image.

030823 2009 HowtoRebuil3 - How to Rebuild a Gridstore Host via Virtual Media

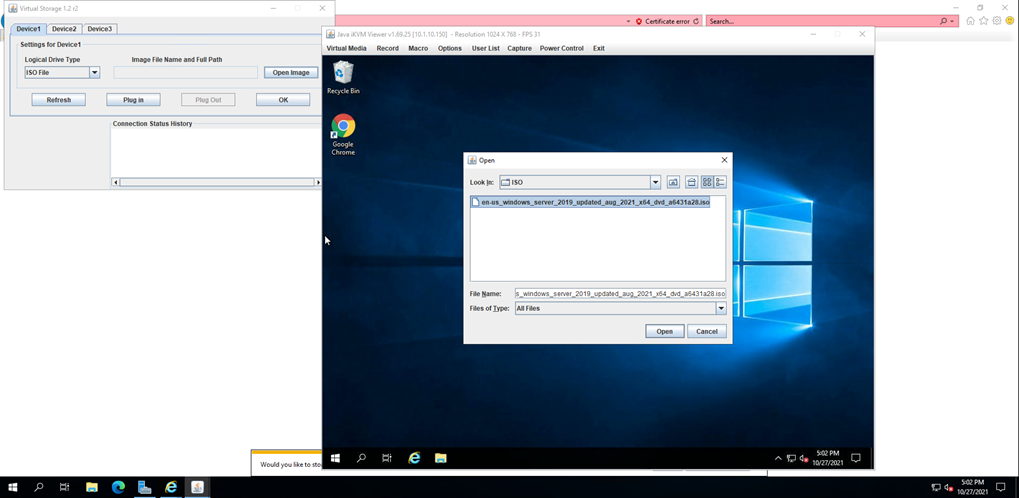

7. Select the ISO image file and click Open.

030823 2009 HowtoRebuil4 - How to Rebuild a Gridstore Host via Virtual Media

8. Click the Plug in on the Device 1 page.

030823 2009 HowtoRebuil5 - How to Rebuild a Gridstore Host via Virtual Media

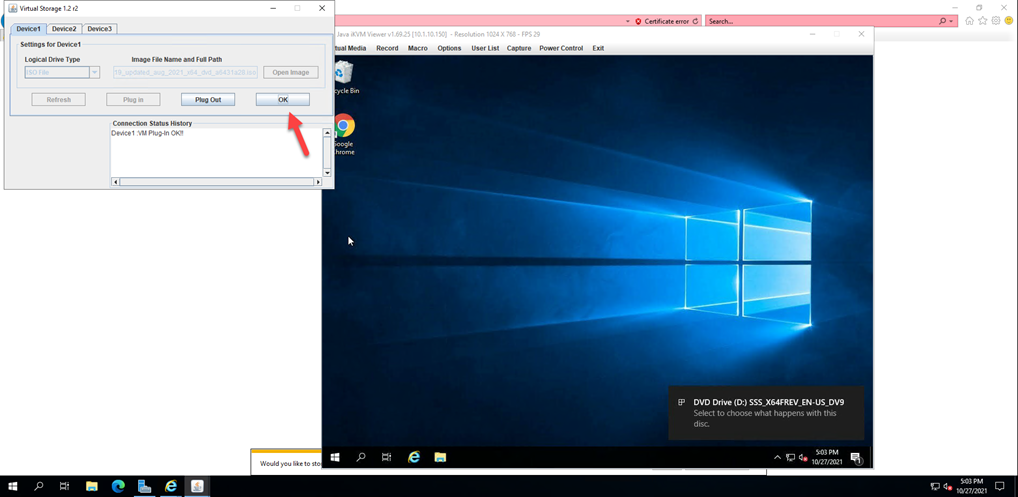

9. Click OK.

030823 2009 HowtoRebuil6 - How to Rebuild a Gridstore Host via Virtual Media

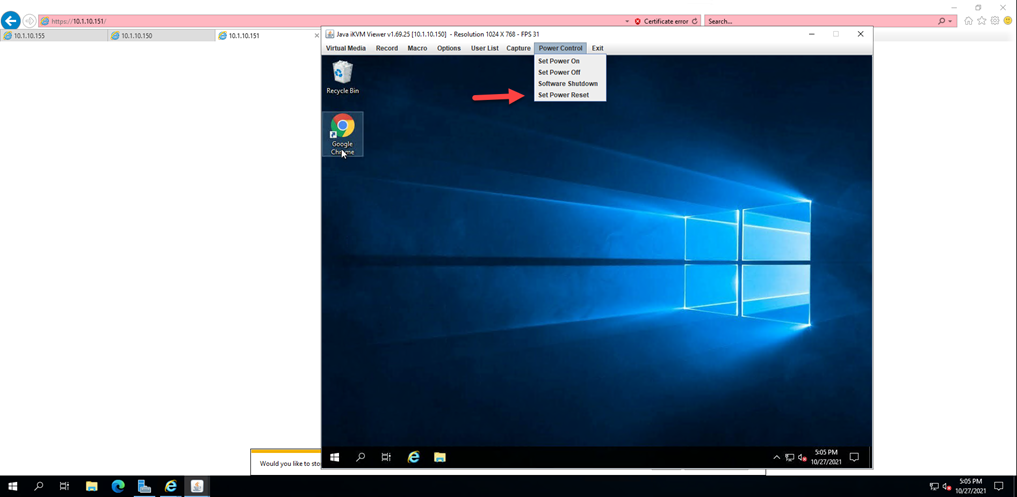

10. Select Set Power Reset from the Power Control drop-down list.

030823 2009 HowtoRebuil7 - How to Rebuild a Gridstore Host via Virtual Media

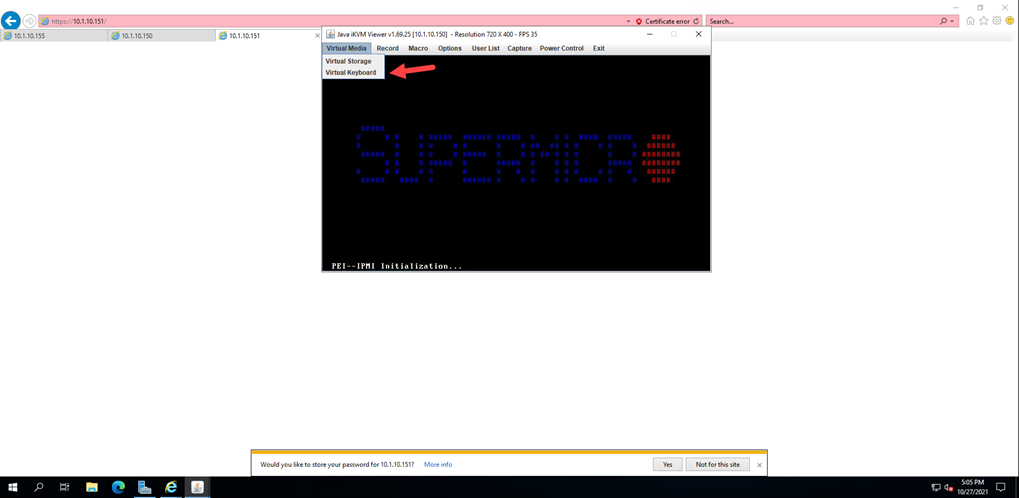

11. Select Virtual Keyboard from the Virtual Media drop-down list.

030823 2009 HowtoRebuil8 - How to Rebuild a Gridstore Host via Virtual Media

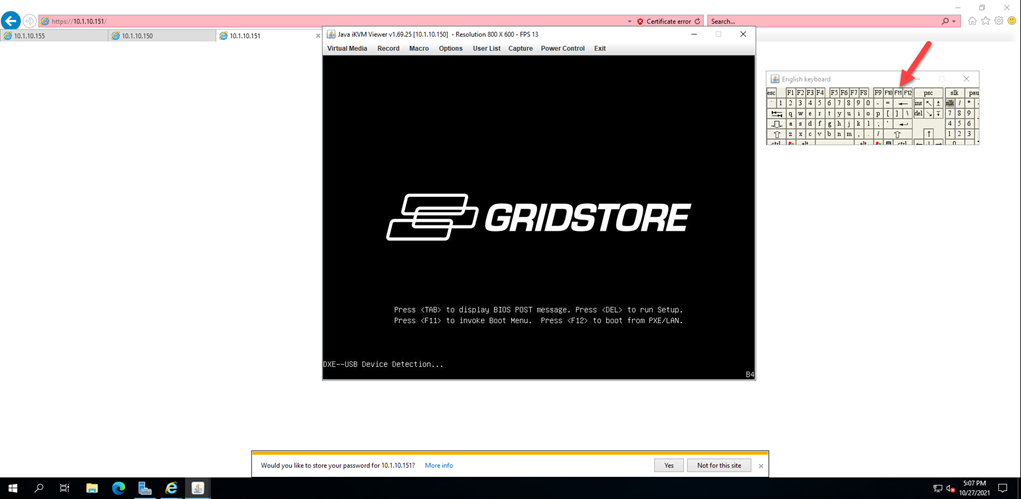

12. Press F11 on the Virtual Keyboard to invoke Boot Menu.

030823 2009 HowtoRebuil9 - How to Rebuild a Gridstore Host via Virtual Media

13. Select ATEN Virtual CDROM YS0J.

030823 2009 HowtoRebuil10 - How to Rebuild a Gridstore Host via Virtual Media

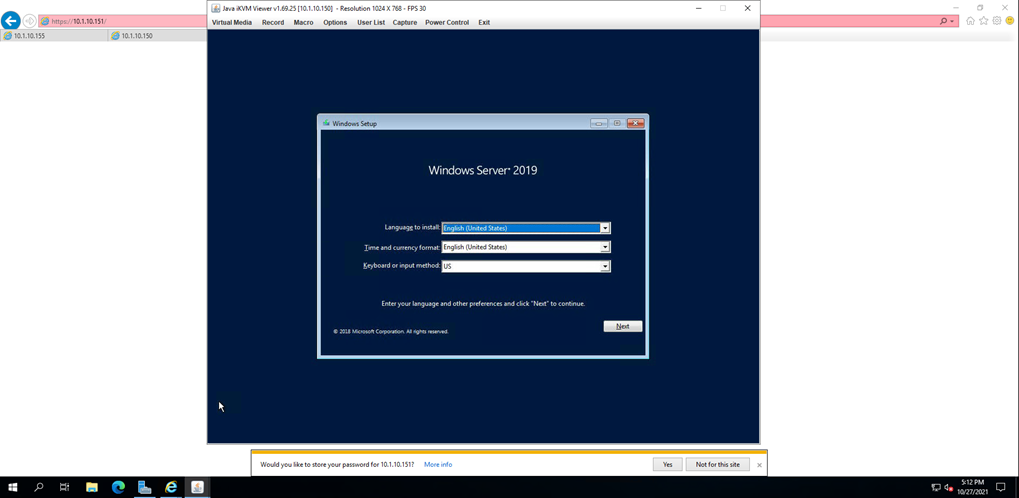

14. Click Next on the Windows Server Setup page.

030823 2009 HowtoRebuil11 - How to Rebuild a Gridstore Host via Virtual Media

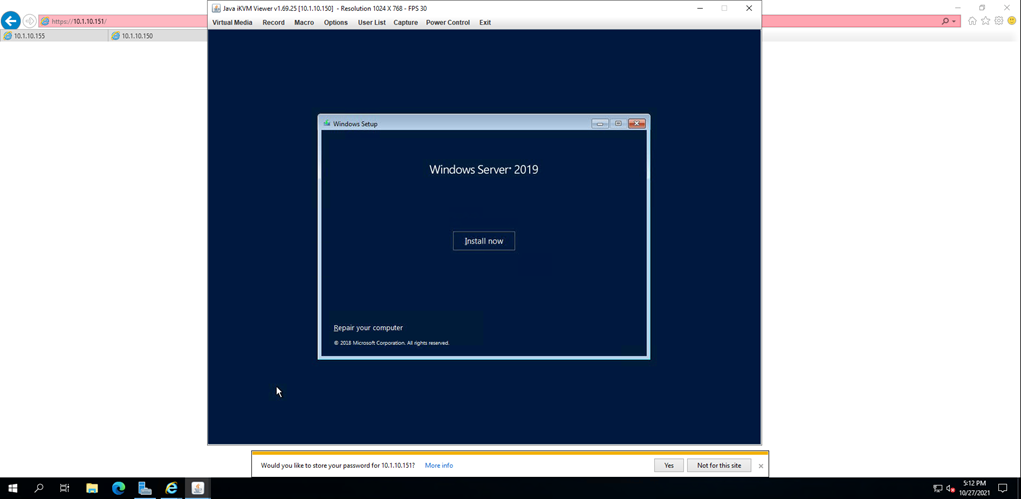

15. Click Install now on the Windows Setup page.

030823 2009 HowtoRebuil12 - How to Rebuild a Gridstore Host via Virtual Media

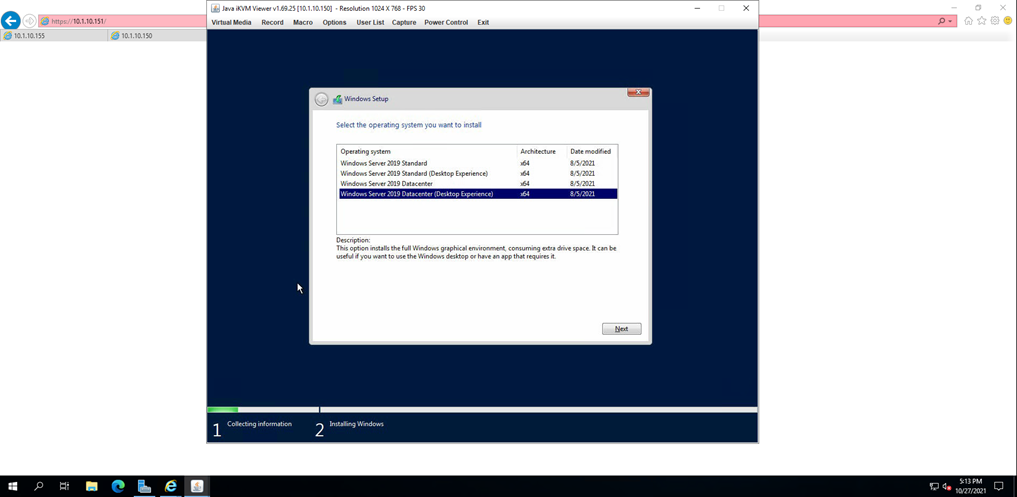

16. Select the Operating system on the Windows Setup page and click Next.

030823 2009 HowtoRebuil13 - How to Rebuild a Gridstore Host via Virtual Media

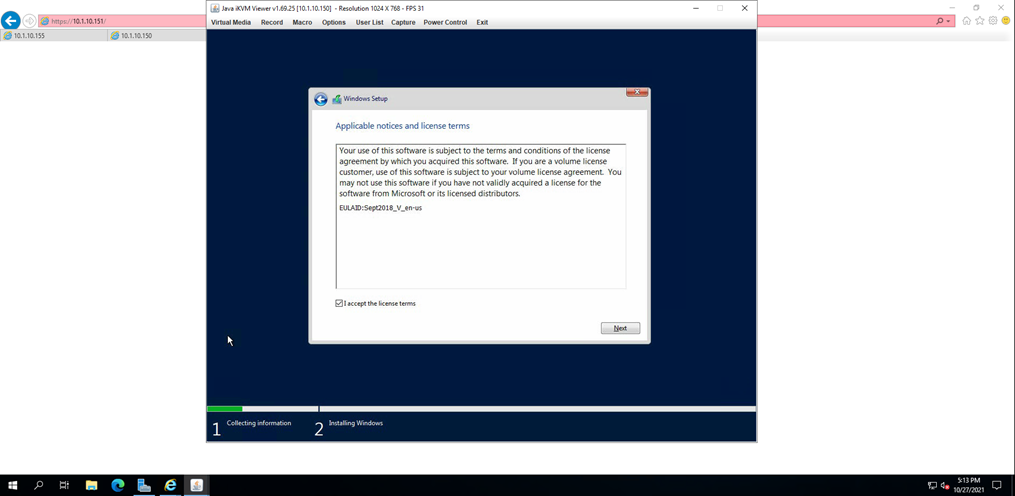

17. Select the I accept the license terms checkbox on the Application notices and license terms page and click Next.

030823 2009 HowtoRebuil14 - How to Rebuild a Gridstore Host via Virtual Media

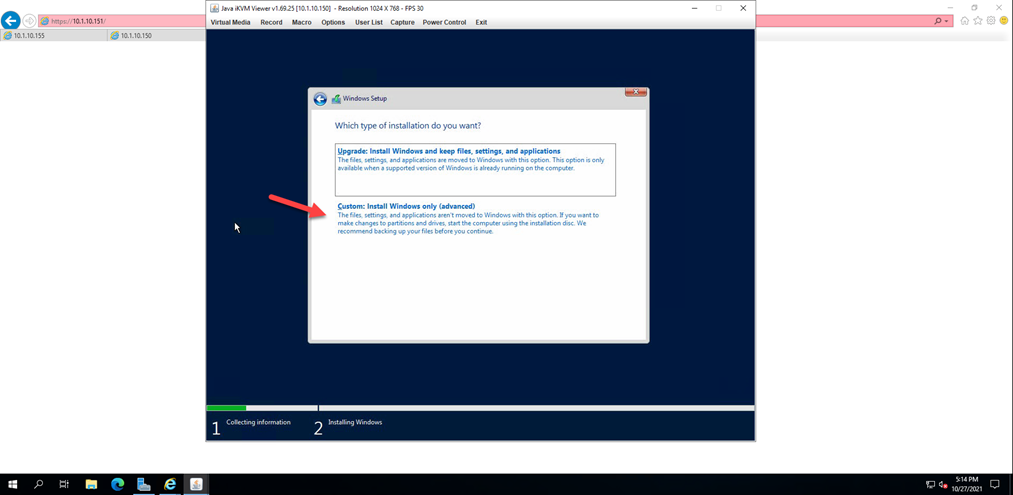

18. Select Custom Install Windows only (advanced).

030823 2009 HowtoRebuil15 - How to Rebuild a Gridstore Host via Virtual Media

19. Delete the existing partitions.

030823 2009 HowtoRebuil16 - How to Rebuild a Gridstore Host via Virtual Media

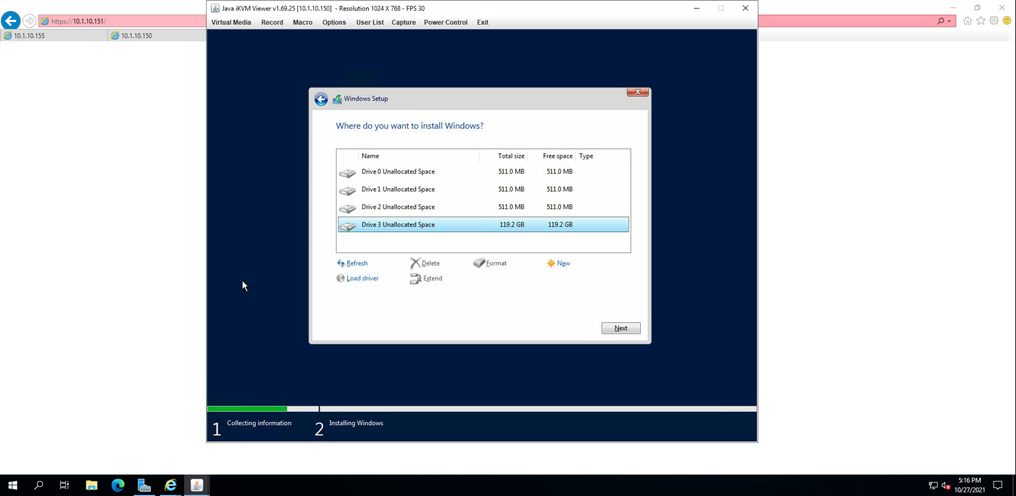

20. Select the Drive on the Windows Setup page and click Next.

030823 2009 HowtoRebuil17 - How to Rebuild a Gridstore Host via Virtual Media

21. Follow Installing Windows procedures to complete the installation.

I hope you enjoy this post.
