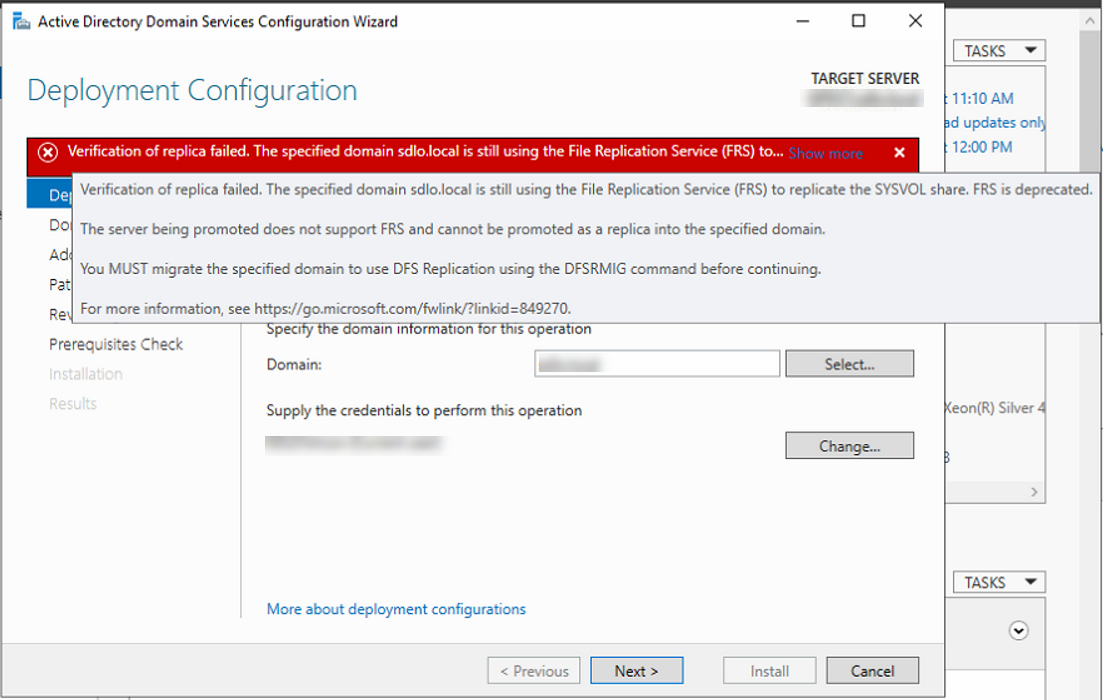

If you are trying to promo windows server 2019 as domain controller, it happened "Verification of replica failed. The specified domain {Domain-Name} is still using the File Replication Service (FRS) to replicate the SYSVOL share. FRS is depreciated." Error, this is because Windows Server version 1709 (or after version) can no longer be added as an Active Directory domain controller (DC) to an existing domain that is still using File Replication Service (FRS) for replication of the SYSVOL share.

010622 2136 HowtofixFRS1 - How to fix FRS is deprecated error

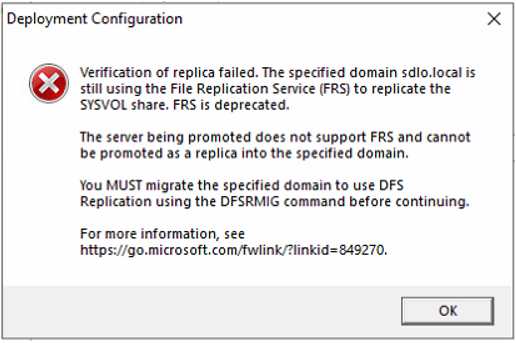

If you are trying to promo windows server 2019 as domain controller, it happened “Verification of replica failed. The specified domain {Domain-Name} is still using the File Replication Service (FRS) to replicate the SYSVOL share. FRS is depreciated.” Error, this is because Windows Server version 1709 (or after version) can no longer be added as an Active Directory domain controller (DC) to an existing domain that is still using File Replication Service (FRS) for replication of the SYSVOL share.

010622 2136 HowtofixFRS2 - How to fix FRS is deprecated error

Today, I am going to show you how to migrate the existing SYSVOL FRS replication to DFS replication.

010622 2136 HowtofixFRS3 - How to fix FRS is deprecated error

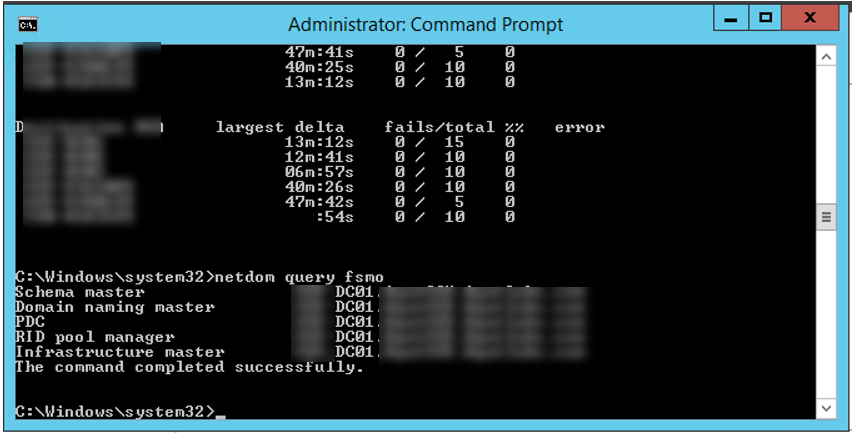

1.Login to PDC domain controller server. You can use below command to find it if you are not sure.


netdom query fsmo

010622 2136 HowtofixFRS4 - How to fix FRS is deprecated error

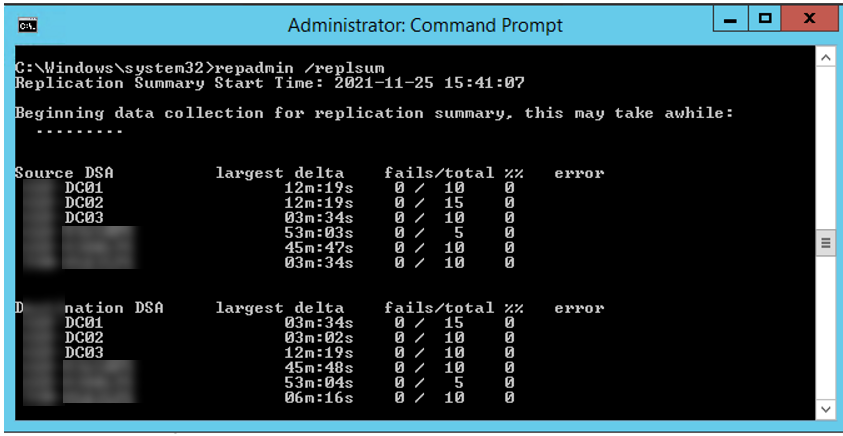

2.Run below command to make sure replication status without issues.


repadmin /replsum

010622 2136 HowtofixFRS5 - How to fix FRS is deprecated error

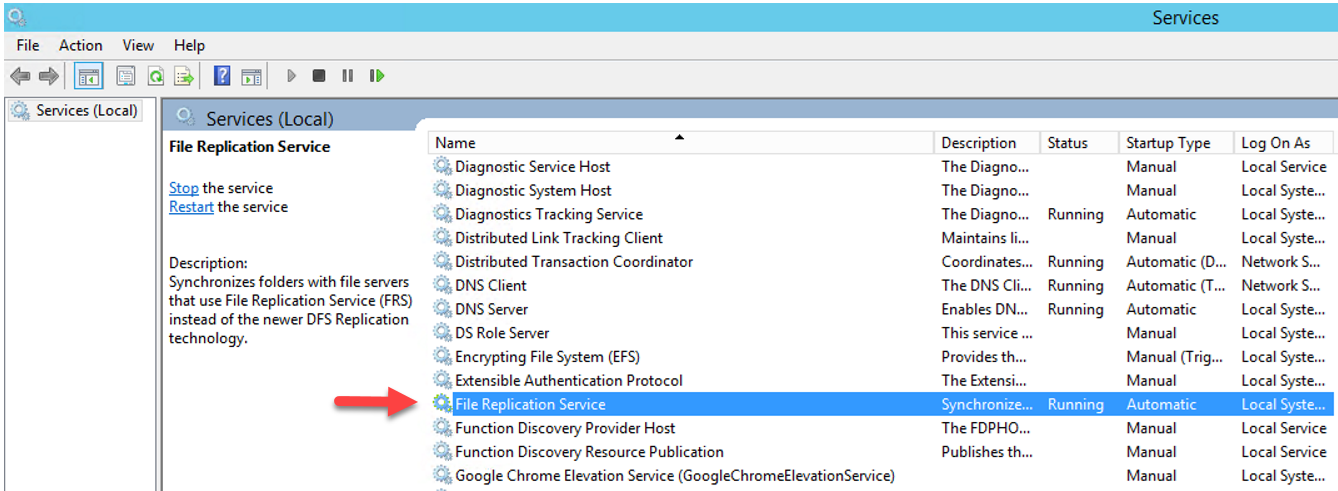

3.If you check the services status, you will see the File Replication Service is running.

010622 2136 HowtofixFRS6 - How to fix FRS is deprecated error

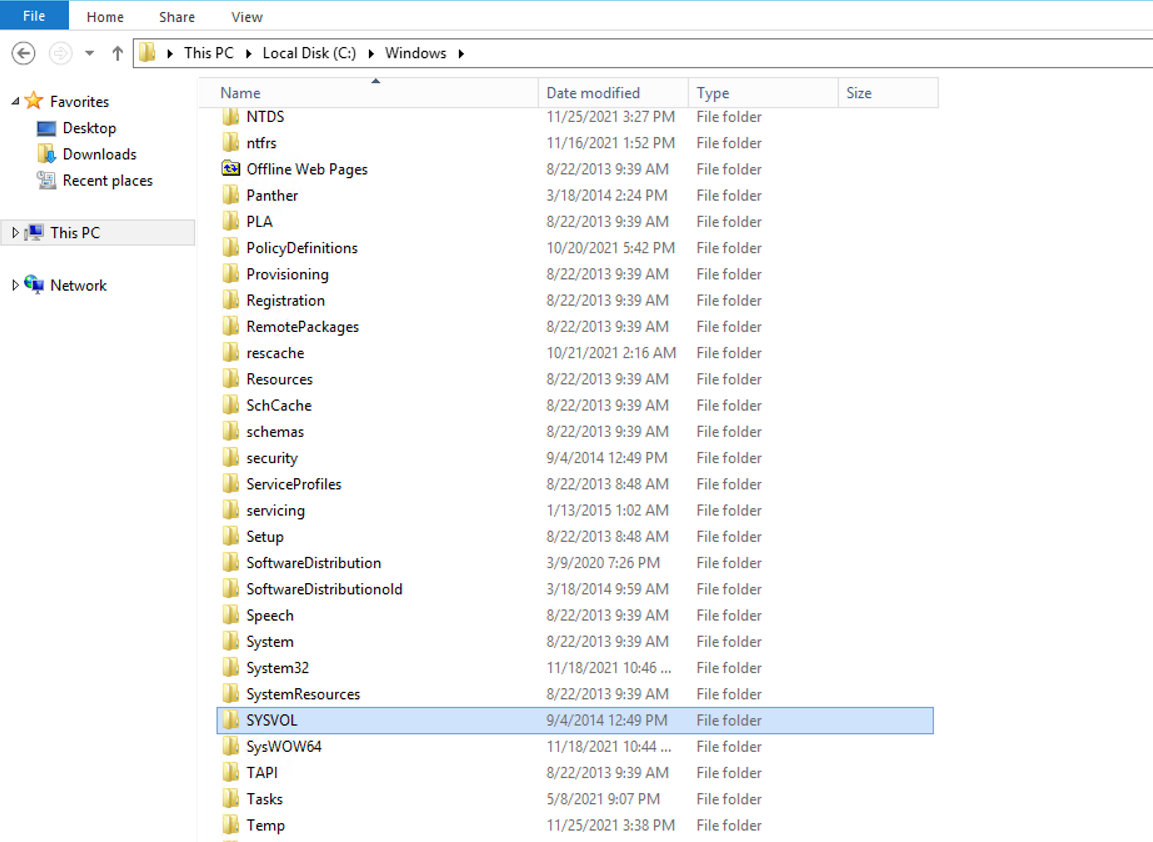

4.If you check the SYSVOL status, there is SYSVOL folder under C:\Windows.

010622 2136 HowtofixFRS7 - How to fix FRS is deprecated error

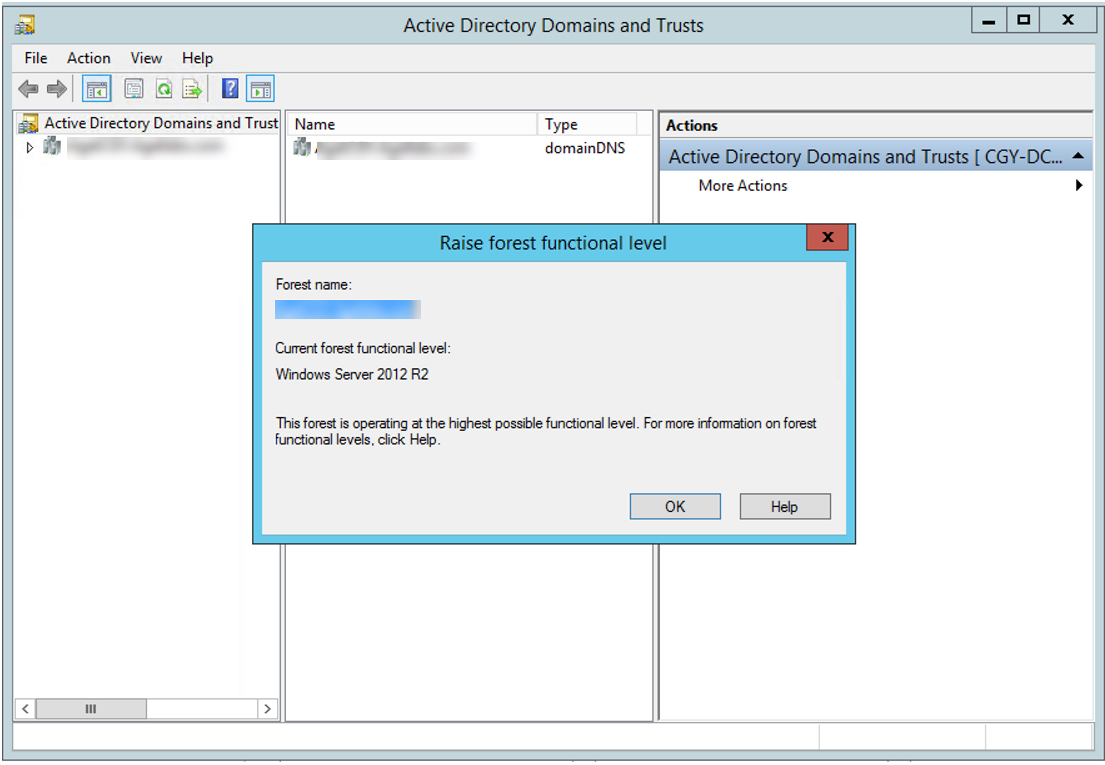

5.To make sure the forest function level is Windows Server 2008 or up.

010622 2136 HowtofixFRS8 - How to fix FRS is deprecated error

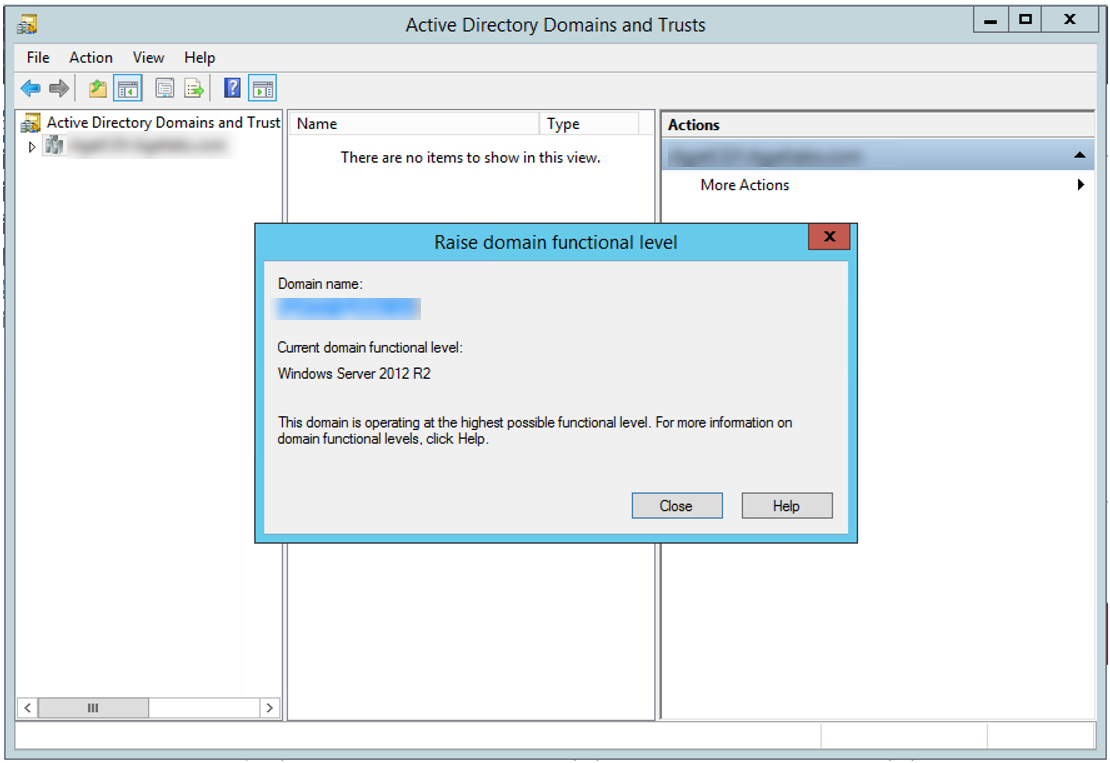

6.To make sure the domain function level is Windows Server 2008 or up.

010622 2136 HowtofixFRS9 - How to fix FRS is deprecated error

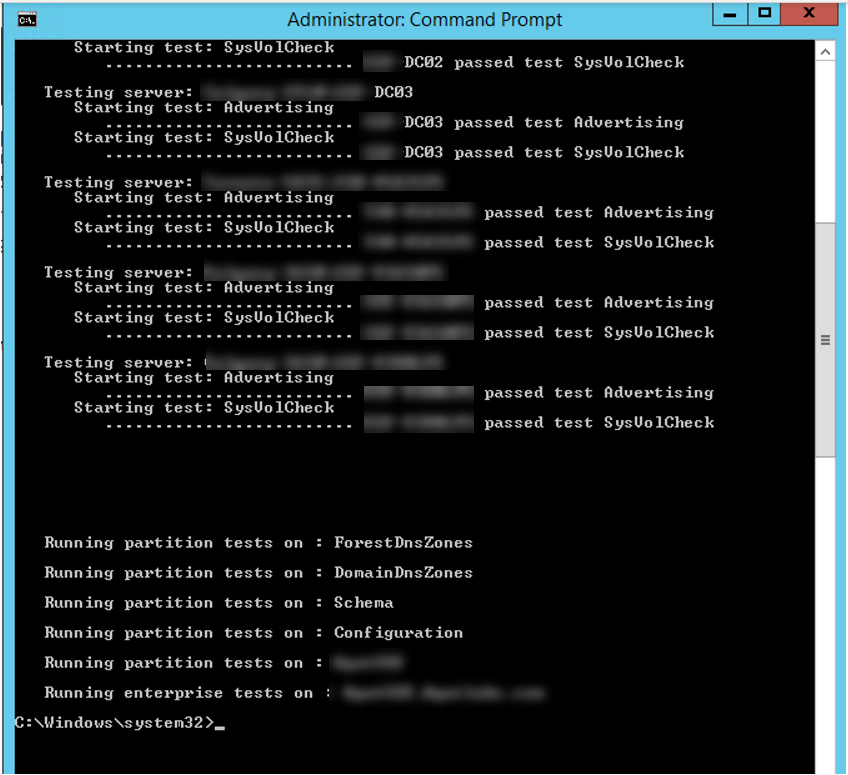

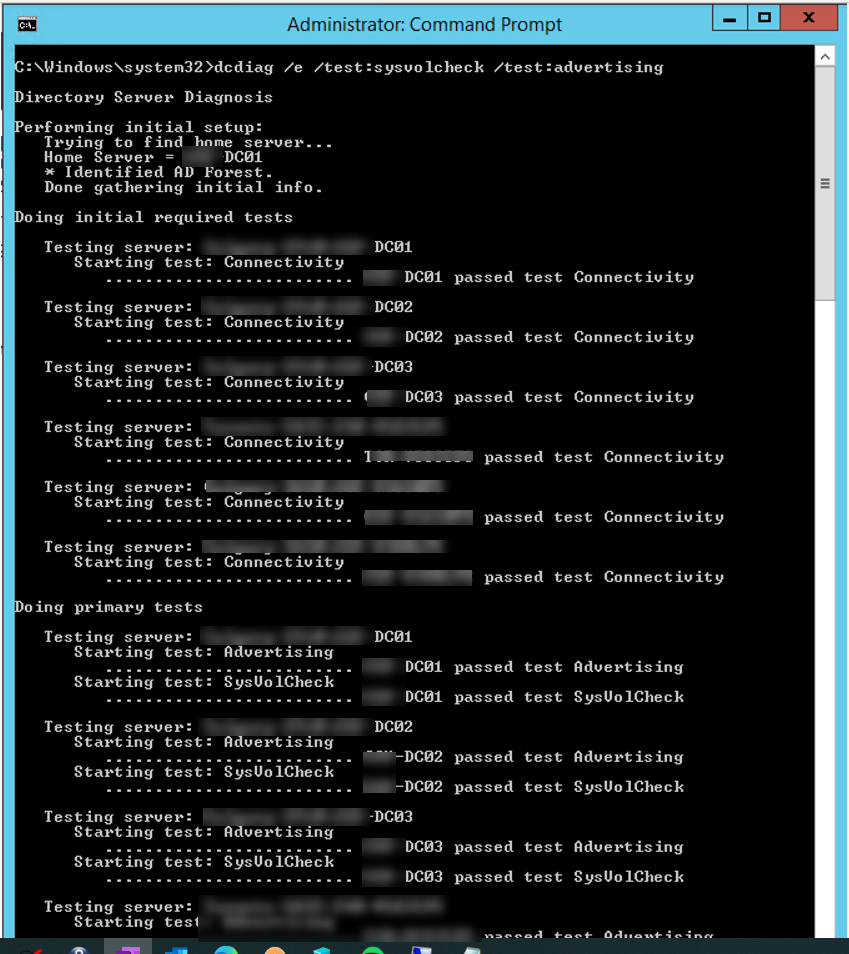

7.Run below command to make sure SYSVOL is health.


dcdiag /e /test:sysvolcheck /test:advertising

010622 2136 HowtofixFRS10 - How to fix FRS is deprecated error

010622 2136 HowtofixFRS11 - How to fix FRS is deprecated error

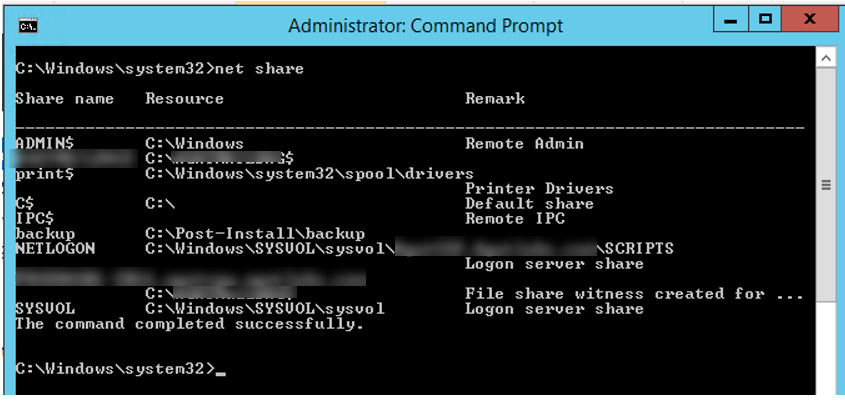

8.Run below to check Share status.


net share

010622 2136 HowtofixFRS12 - How to fix FRS is deprecated error

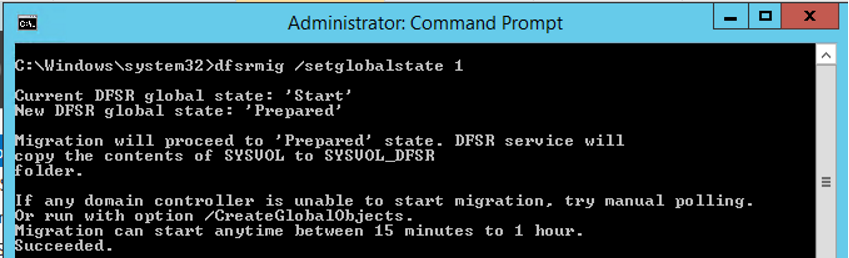

9.Run below command to start process migrate FRS replication to DFS replication. This command will migrate all domain controller to PREPARED state.


dfsrmig /setglobalstate 1

010622 2136 HowtofixFRS13 - How to fix FRS is deprecated error

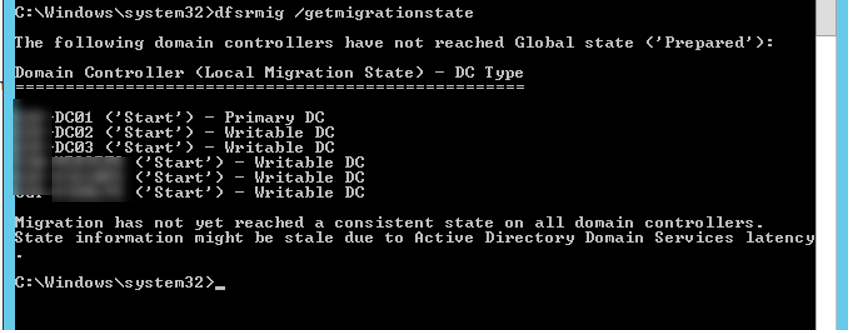

10.Run below command to check the migration status.


dfsrmig /getmigrationstate

010622 2136 HowtofixFRS14 - How to fix FRS is deprecated error

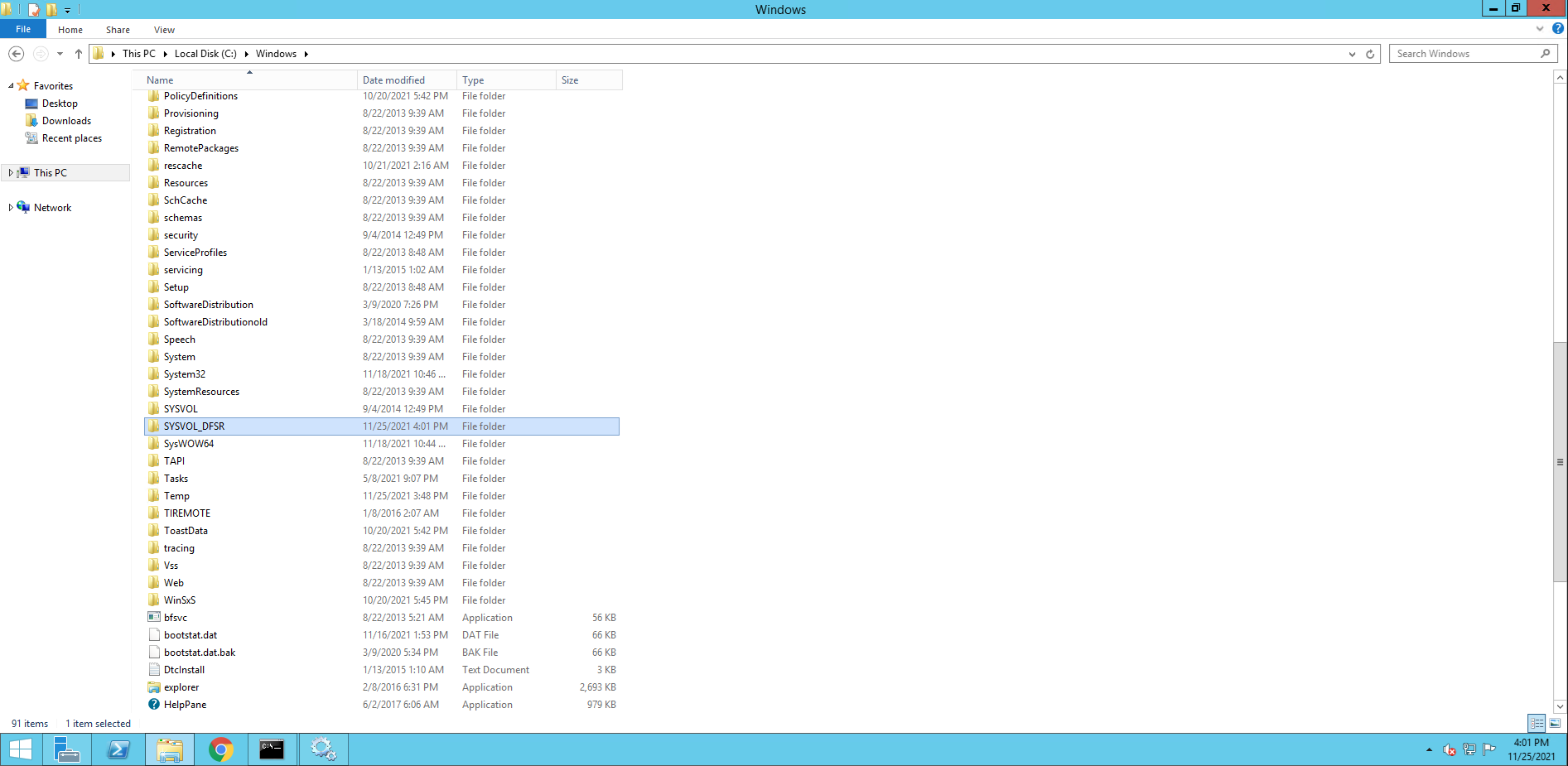

11.if you check the folders list at C:\Windows, you will see the new folder—SYSVOL_DFSR

010622 2136 HowtofixFRS15 - How to fix FRS is deprecated error

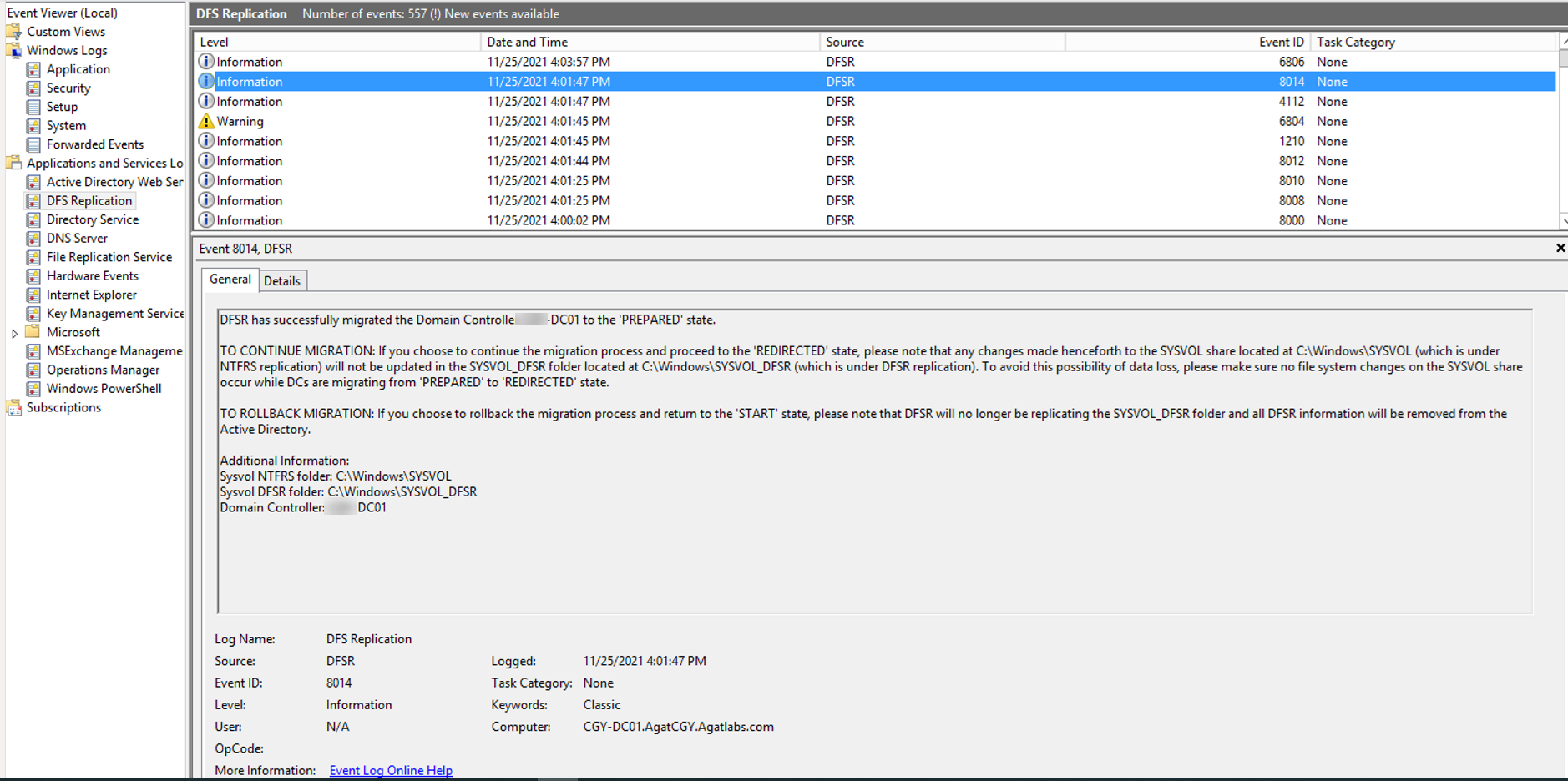

12.If you check the event logs, you will see the DFSR has successfully migrated the Domain Controller to the ‘PREPARED’ state.

010622 2136 HowtofixFRS16 - How to fix FRS is deprecated error

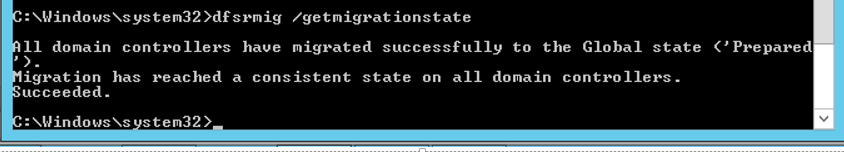

13.Repeat running below command to check the migration global state until all domain controller has migrated successfully to the Global state (‘Prepared’).

010622 2136 HowtofixFRS17 - How to fix FRS is deprecated error

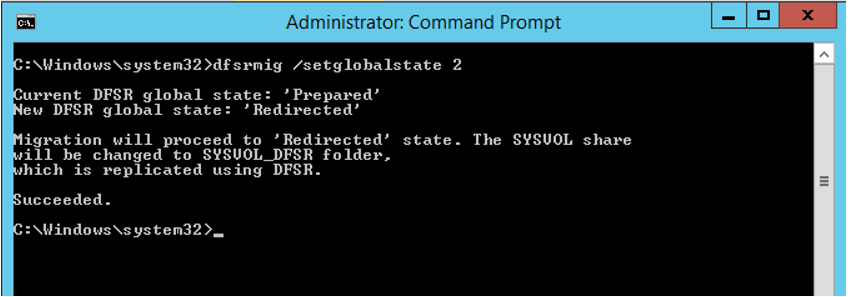

14. Run below command to migrate all domain controllers to REDIRECTED state.


dfsrmig /setglobalstate 2

010622 2136 HowtofixFRS18 - How to fix FRS is deprecated error

15. Run below command to check the migration status.


dfsrmig /getmigrationstate

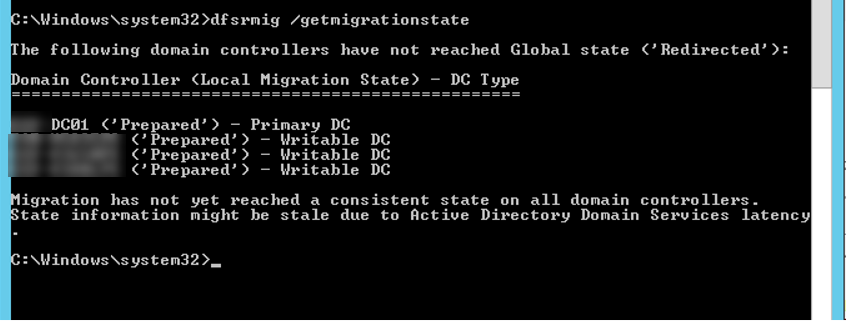

010622 2136 HowtofixFRS19 - How to fix FRS is deprecated error

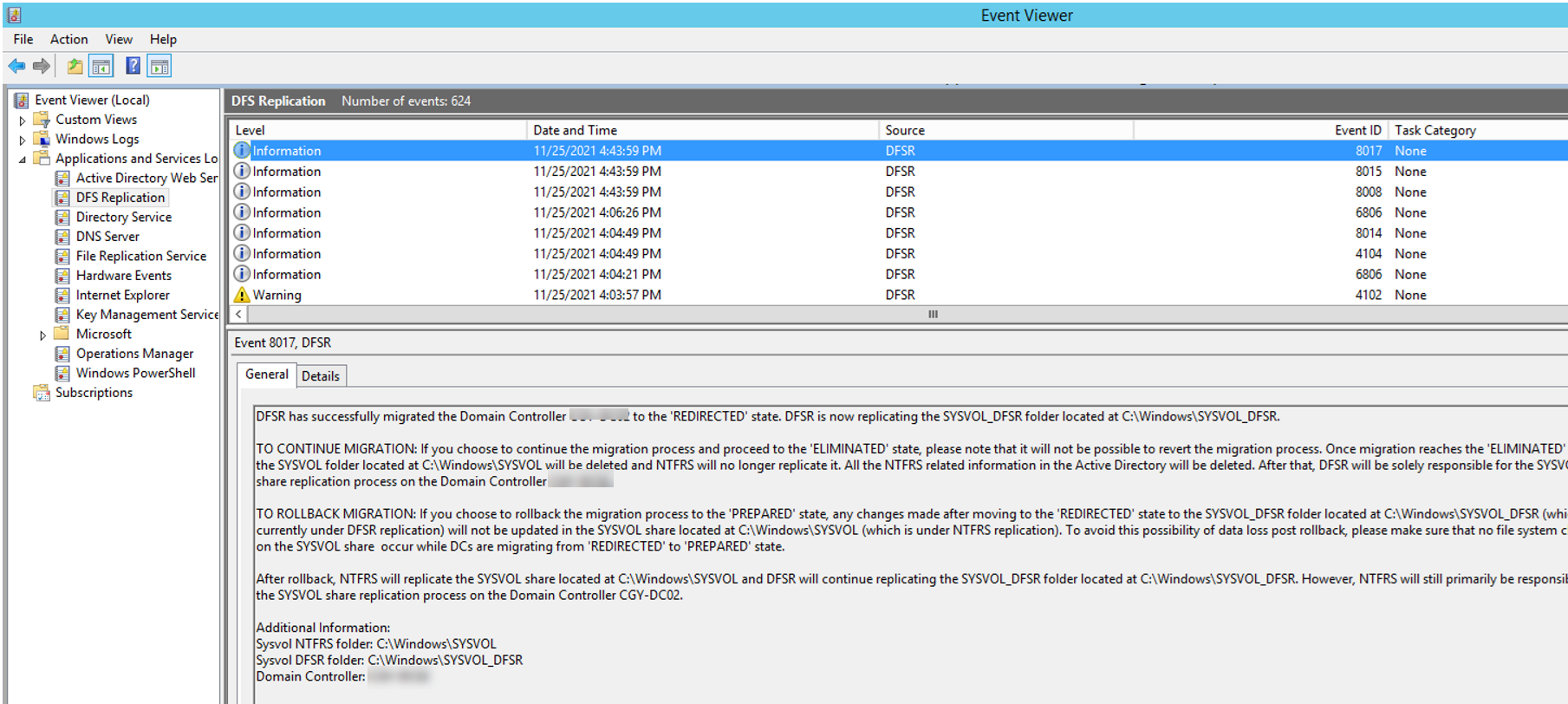

16. If you check the event logs, you will see the DFSR has successfully migrated the Domain Controller to the ‘REDIRECTED’ state.

010622 2136 HowtofixFRS20 - How to fix FRS is deprecated error

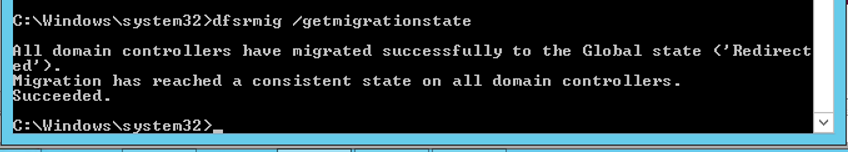

17. Repeat running below command to check the migration global state until all domain controller has migrated successfully to the Global state (‘Redirected’).

010622 2136 HowtofixFRS21 - How to fix FRS is deprecated error

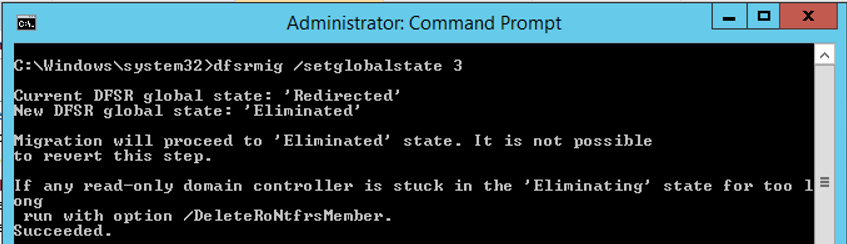

18. Run below command to migrate all domain controllers to ELIMINATED state.


dfsrmig /setglobalstate 3

010622 2136 HowtofixFRS22 - How to fix FRS is deprecated error

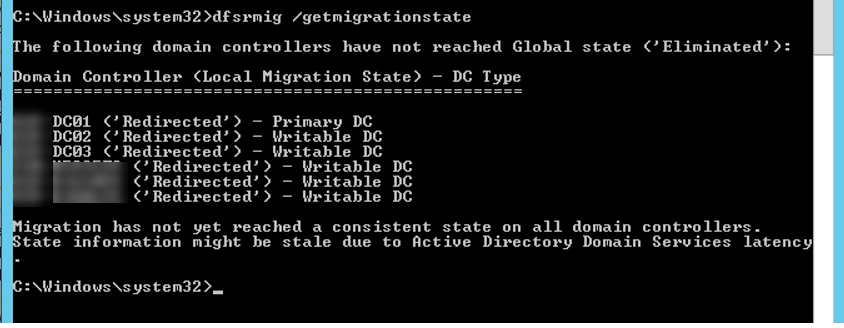

19. Run below command to check the migration status.


dfsrmig /getmigrationstate

010622 2136 HowtofixFRS23 - How to fix FRS is deprecated error

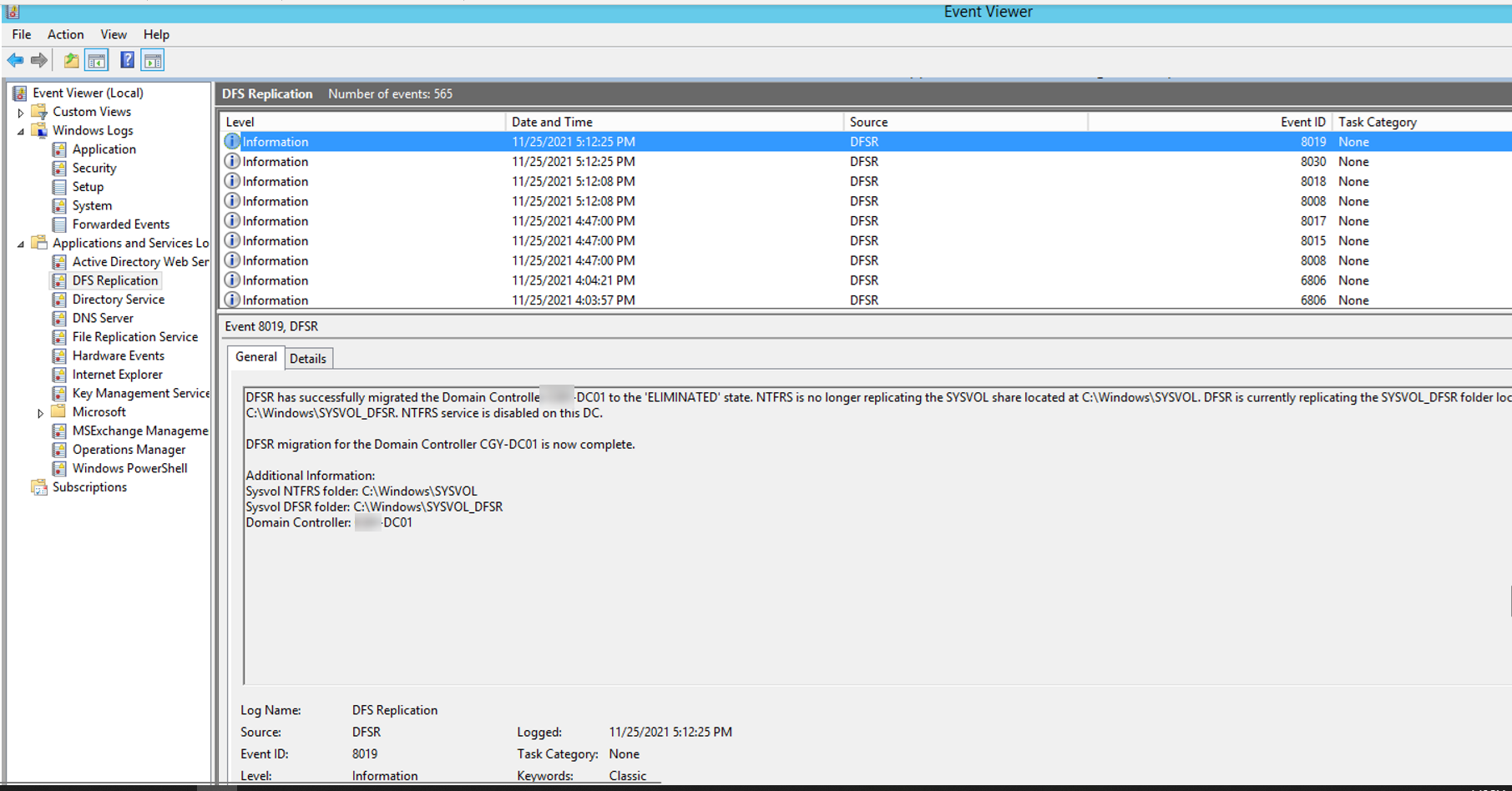

20.If you check the event logs, you will see the DFSR has successfully migrated the Domain Controller to the ‘ELIMINATED’ state.

010622 2136 HowtofixFRS24 - How to fix FRS is deprecated error

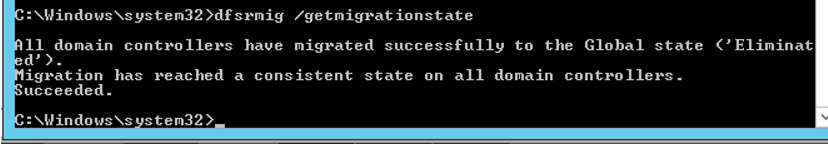

21. Repeat running below command to check the migration global state until all domain controller has migrated successfully to the Global state (‘Eliminated’).

010622 2136 HowtofixFRS25 - How to fix FRS is deprecated error

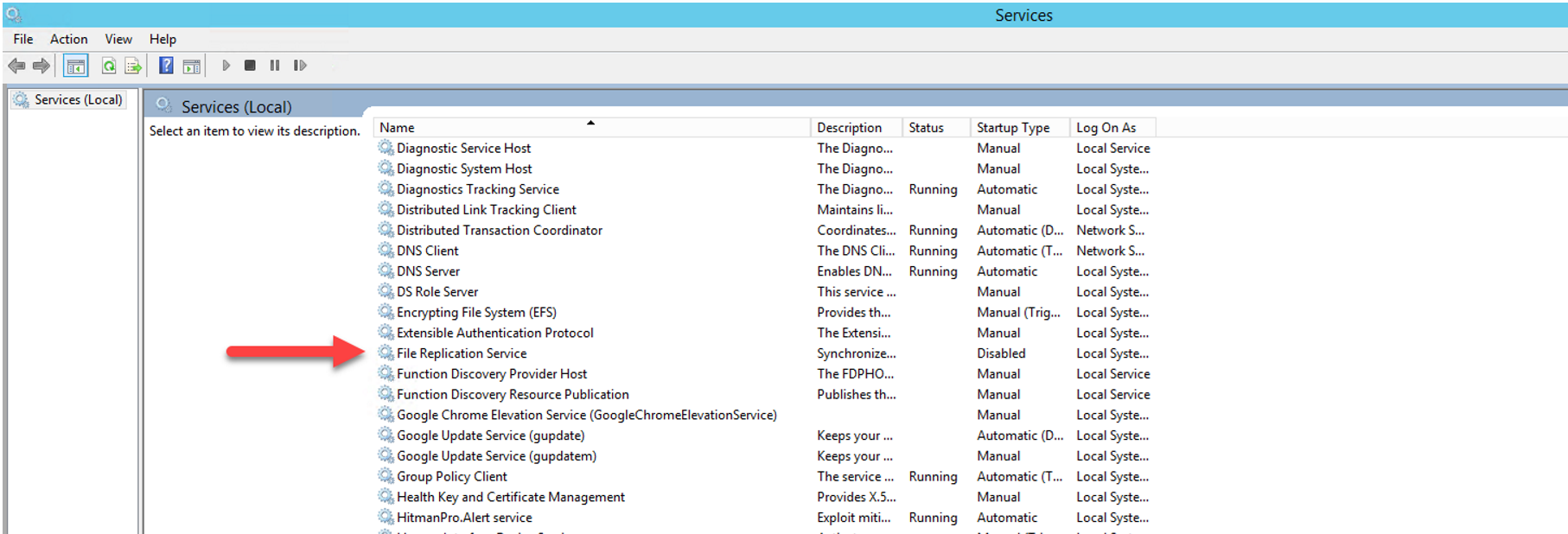

22. If you check the services status, you will see the File Replication Service is be disabled.

010622 2136 HowtofixFRS26 - How to fix FRS is deprecated error

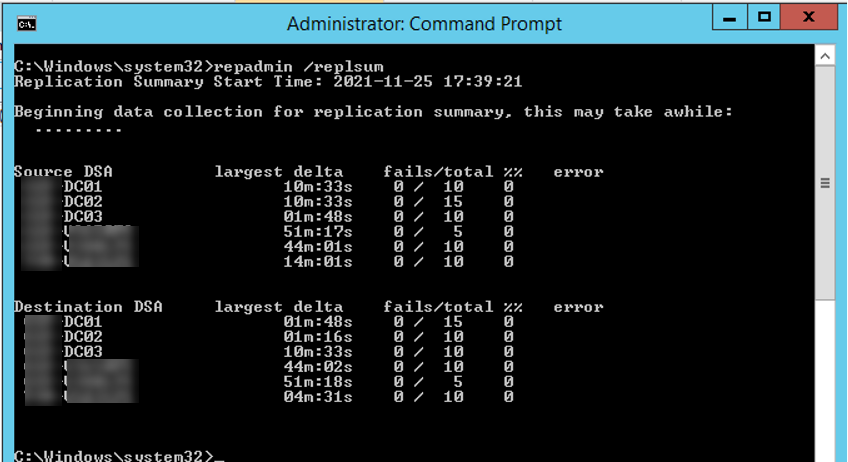

23. Run below command to make sure replication status without issues.


repadmin /replsum

010622 2136 HowtofixFRS27 - How to fix FRS is deprecated error

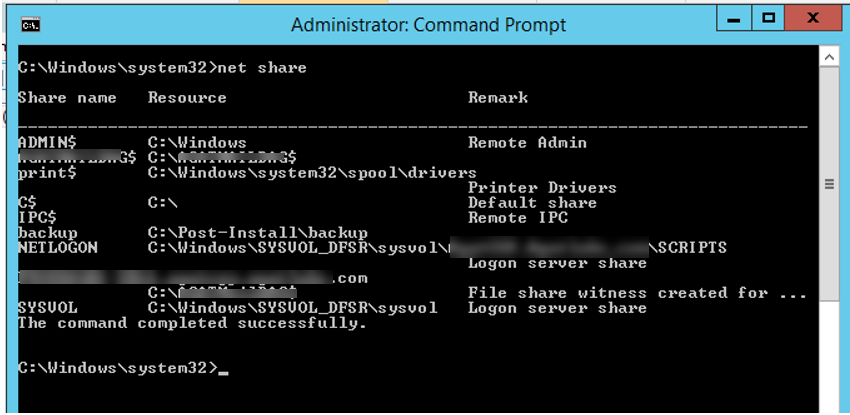

24. Run below to check Share status.


net share

010622 2136 HowtofixFRS28 - How to fix FRS is deprecated error

Hope you enjoy this post.
