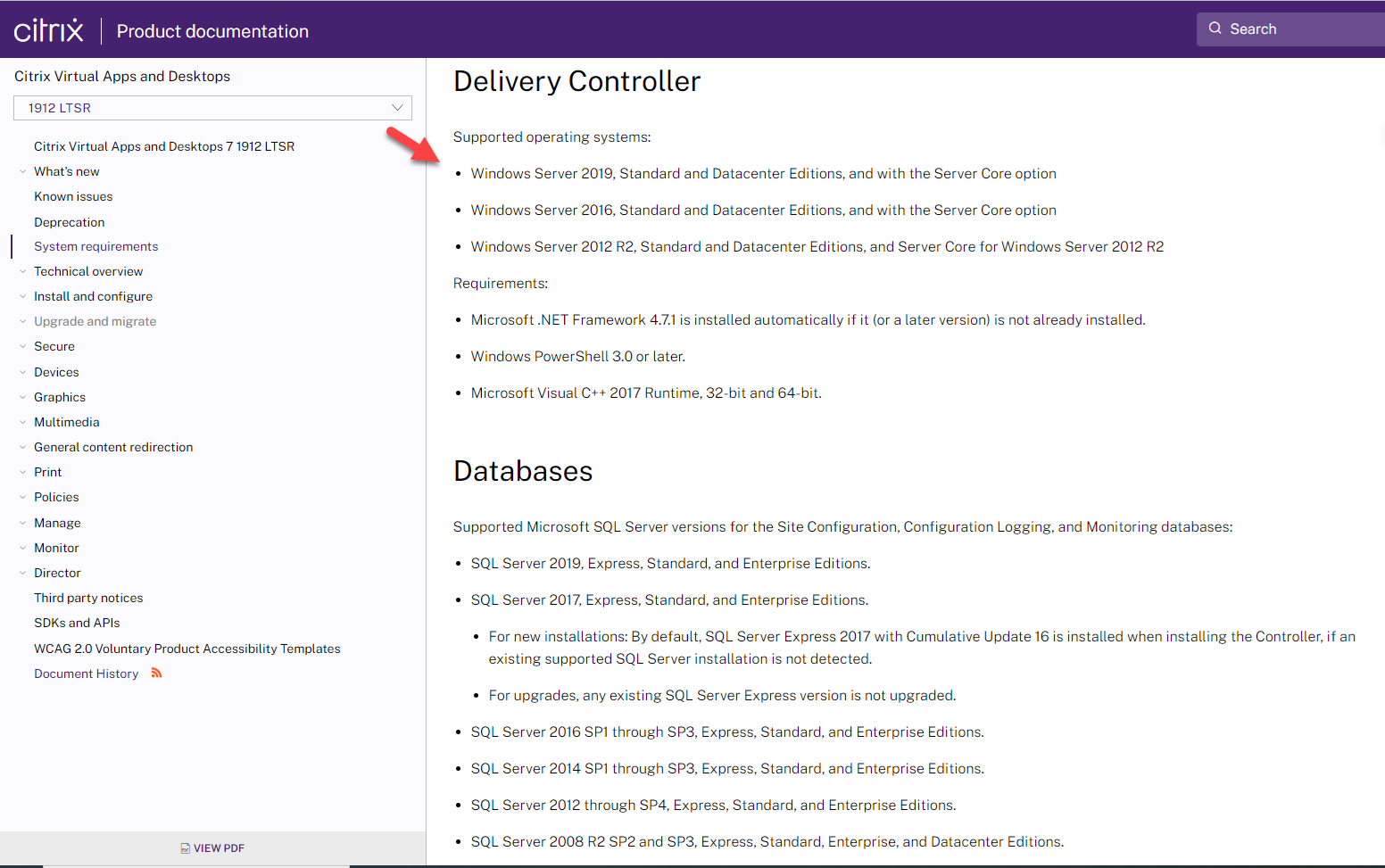

As you know the Citrix Virtual Apps 7 1912 LTSR supports Windows Server 2019, today, I am going to show you how to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019.

As you know the Citrix Virtual Apps 7 1912 LTSR supports Windows Server 2019, today, I am going to show you how to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019.

011022 1951 Howtoinplac1 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

1.Login to Citrix Virtual Apps Delivery Controller server.

2. Open a command prompt, go to c:\Windows\system32, and then type systeminfo.exe.

3. Copy, paste, and store the resulting system information somewhere off your device.

4. Type ipconfig /all into the command prompt, and then copy and paste the resulting configuration information into the same location as above.

5. Open the Registry Editor, go to the HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WindowsNT\CurrentVersion hive, and then copy and paste the Windows Server BuildLabEx (version) and EditionID (edition) into the same location as above.

6.Mount Windows Server 2019 ISO image file.

7.Click DVD Drive.

011022 1951 Howtoinplac2 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

8.On the User Account Control page, click Yes.

011022 1951 Howtoinplac3 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

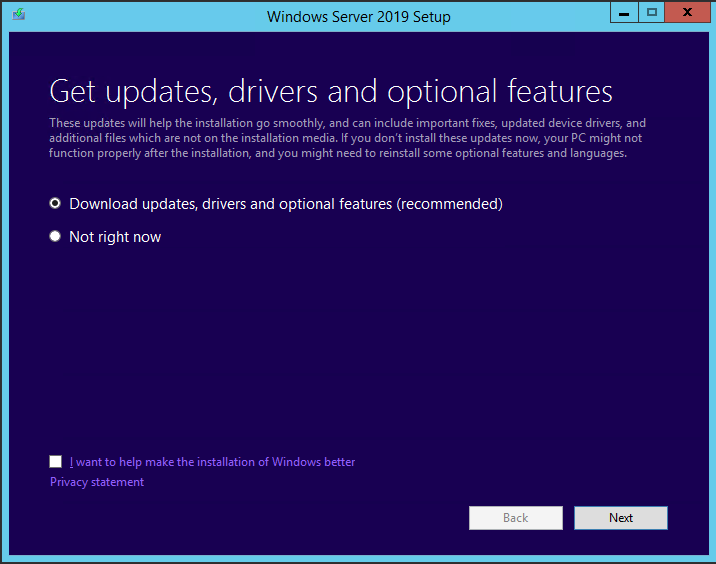

9.On the Get updates, drivers and optional features page, select download update, drivers and optional features (recommended), click Next.

011022 1951 Howtoinplac4 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

10.On the Select Image page, select as same operating version the existing Windows server 2012 R2.

011022 1951 Howtoinplac5 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

11.On the Applicable notices and license terms. Click Accept.

011022 1951 Howtoinplac6 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

12.On the Choose what to keep page, select Keep personal files and apps, click Next.

011022 1951 Howtoinplac7 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

13.If you chose not the same operating system version as the existing Windows server 2012 R2, the keep personal files and apps will grey out.

011022 1951 Howtoinplac8 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

14.On the Ready to install page, click Install.

011022 1951 Howtoinplac9 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

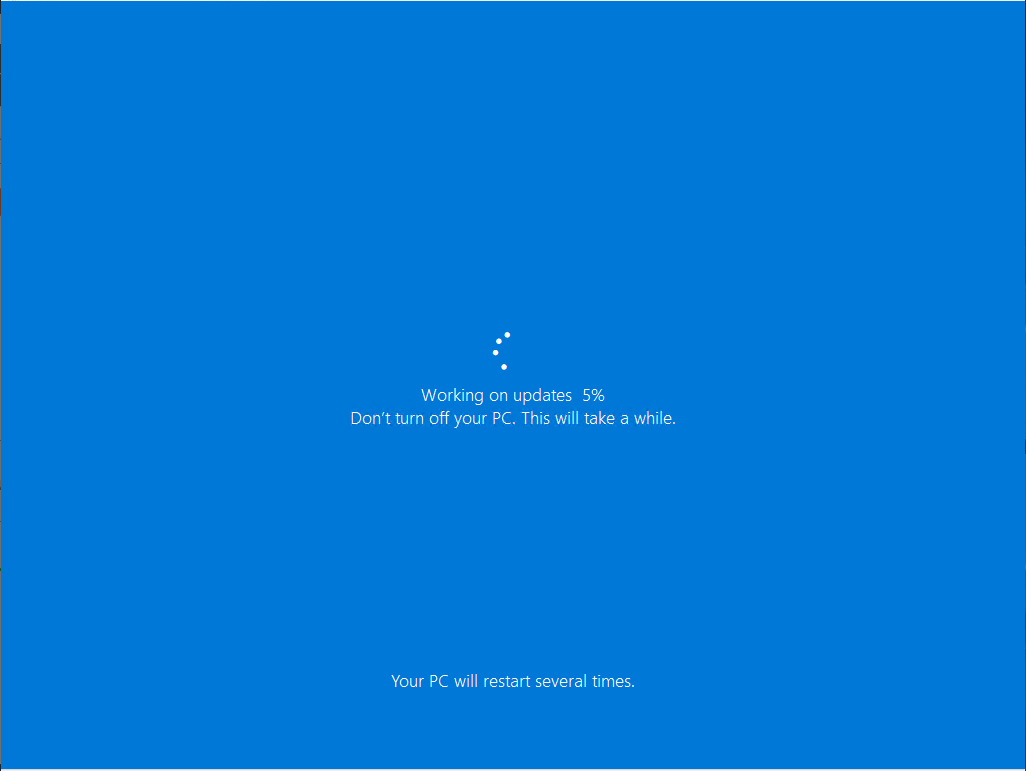

15.The installation might need to take some time and several reboot.

011022 1951 Howtoinplac10 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

011022 1951 Howtoinplac11 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

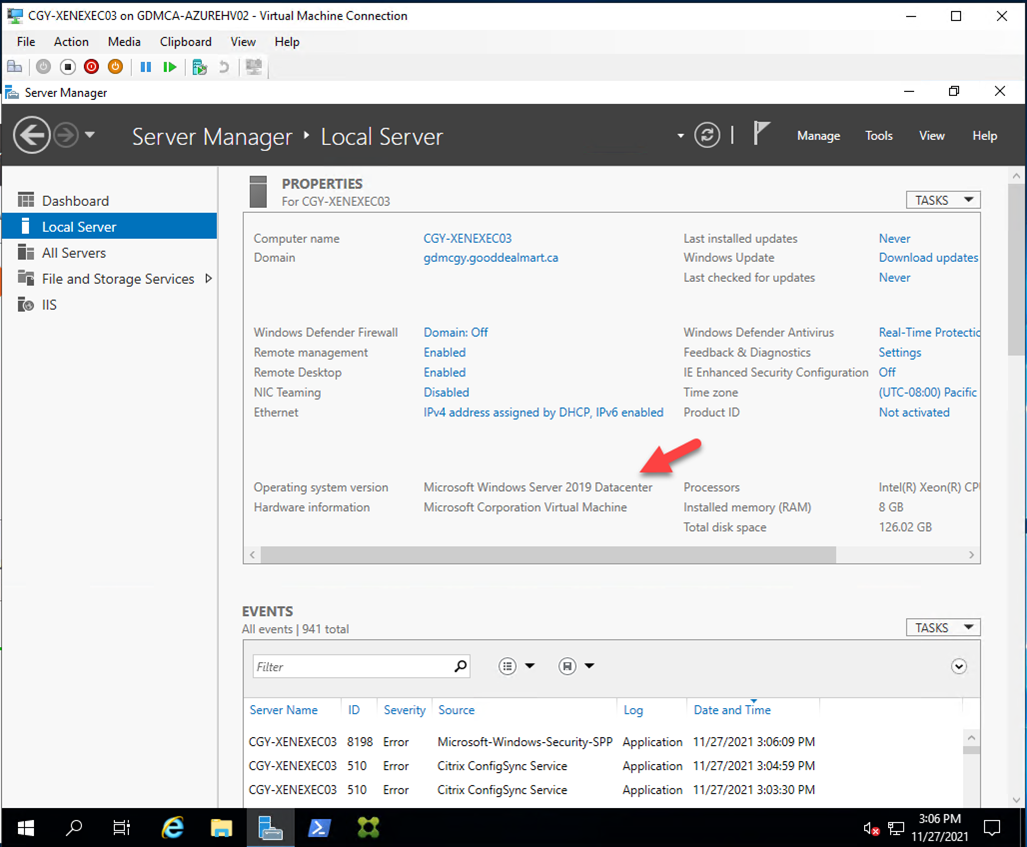

16.Open Server Manager and make sure the Operating system version shows Microsoft Windows Server 2019.

011022 1951 Howtoinplac12 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

17.Open Citrix Studio.

011022 1951 Howtoinplac13 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

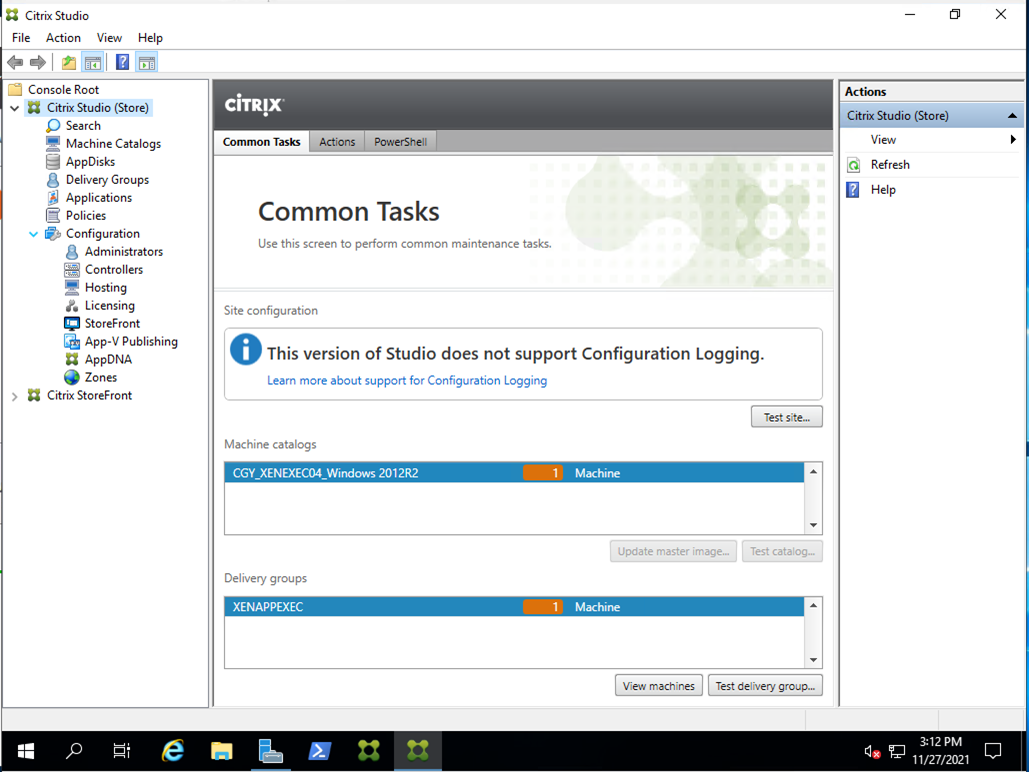

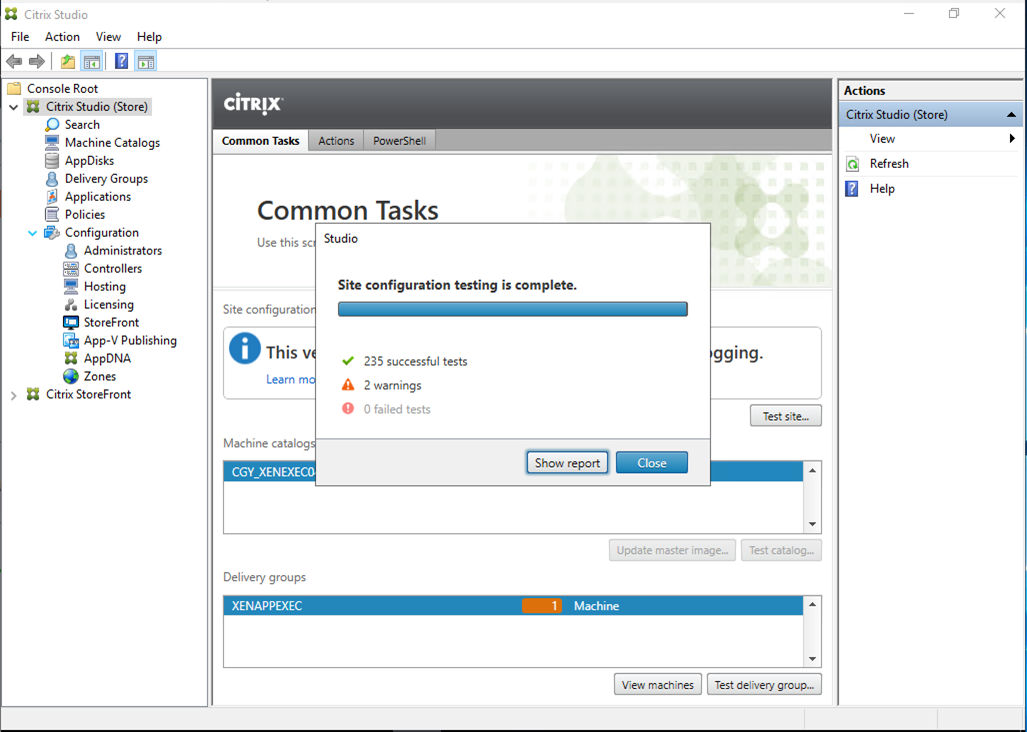

18.Click Test site, make sure everything looks good.

011022 1951 Howtoinplac14 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

19.Login Citrix VDA Server.

20. Mount Windows Server 2019 ISO image file.

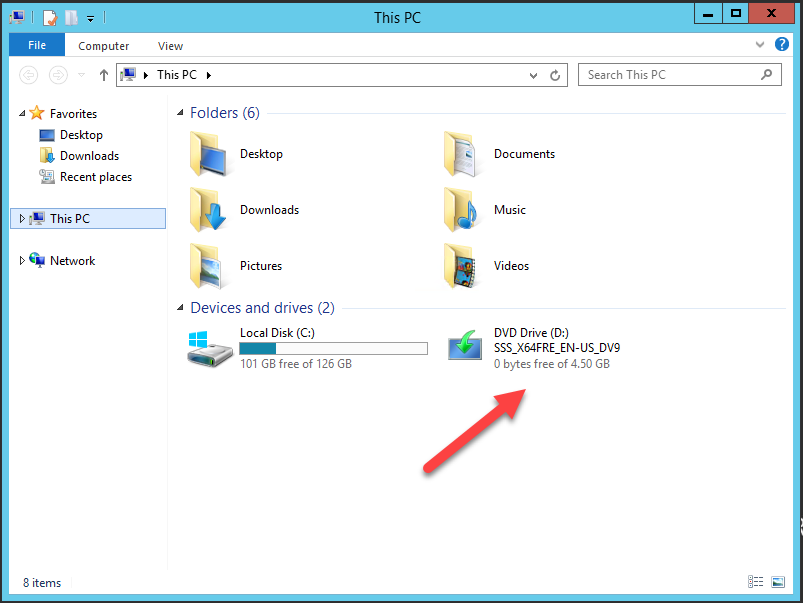

21. Click DVD Drive.

011022 1951 Howtoinplac15 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

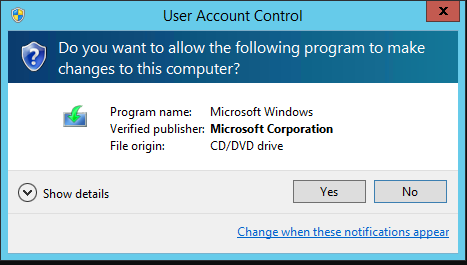

22. On the User Account Control page, click Yes.

011022 1951 Howtoinplac16 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

23.On the Get updates, drivers and optional features page, select download update, drivers and optional features (recommended), click Next.

011022 1951 Howtoinplac17 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

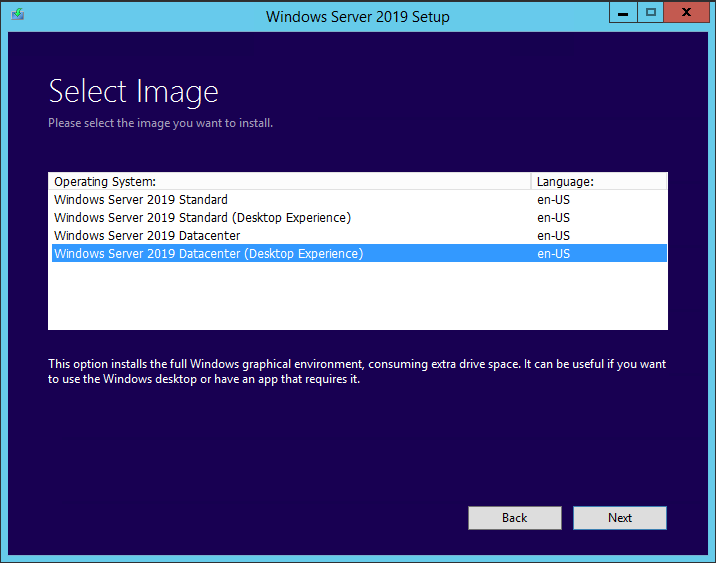

24.On the Select Image page, select as same operating version the existing Windows server 2012 R2.

011022 1951 Howtoinplac18 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

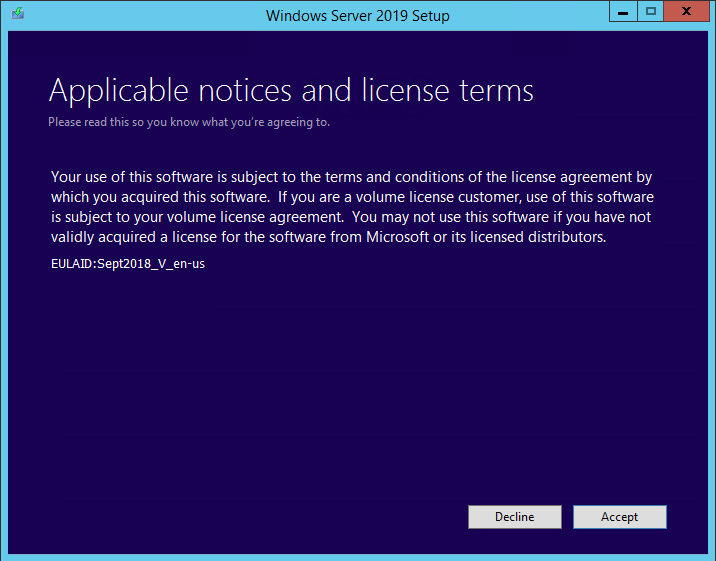

25.On the Applicable notices and license terms. Click Accept.

011022 1951 Howtoinplac19 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

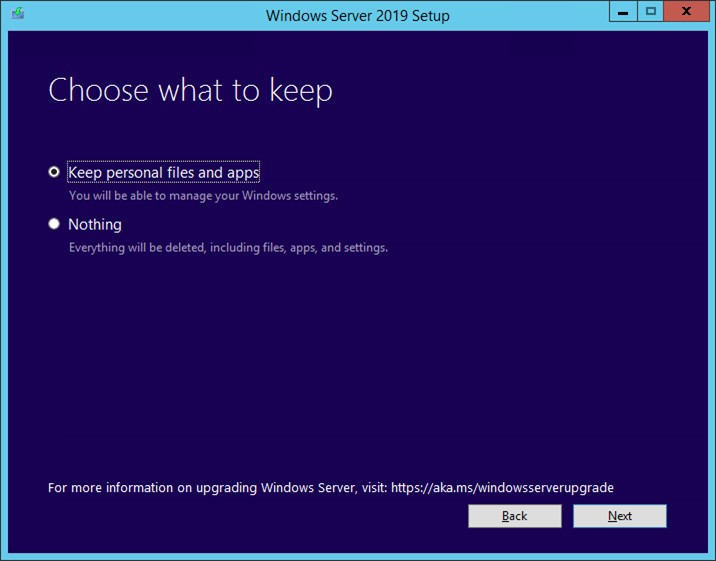

26.On the Choose what to keep page, select Keep personal files and apps, click Next.

011022 1951 Howtoinplac20 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

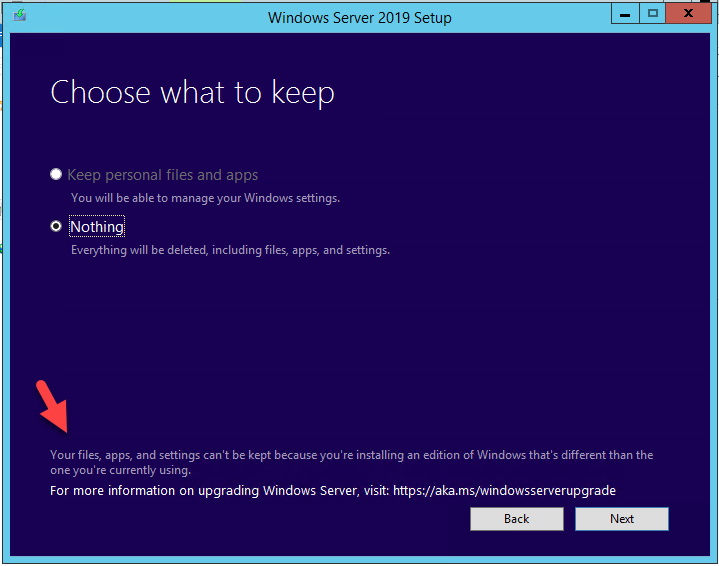

27.If you chose not the same operating system version as the existing Windows server 2012 R2, the keep personal files and apps will grey out.

011022 1951 Howtoinplac21 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

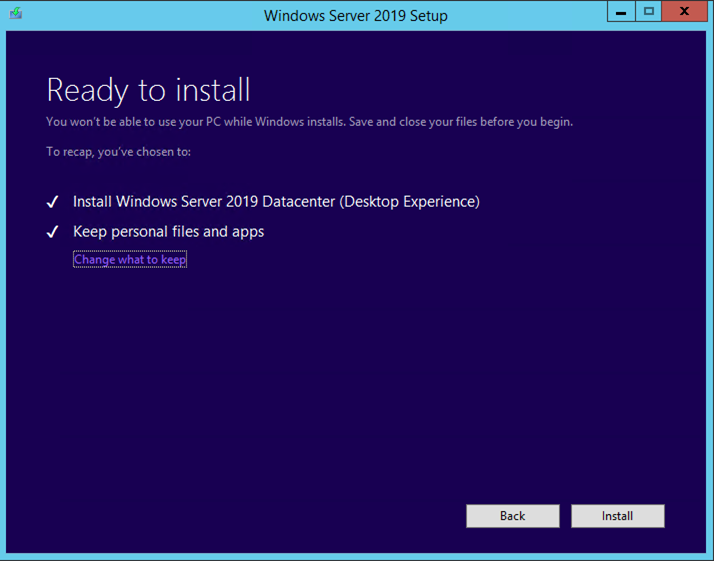

28.On the Ready to install page, click Install.

011022 1951 Howtoinplac22 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

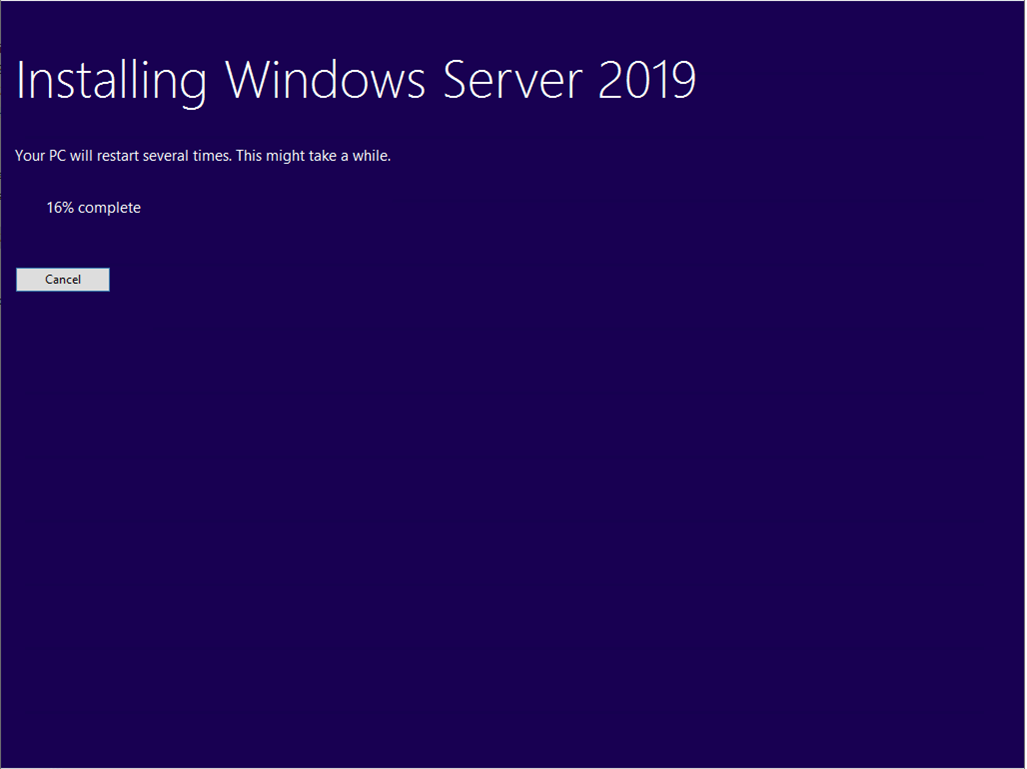

29.The installation might need to take some time and several reboot.

011022 1951 Howtoinplac23 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

011022 1951 Howtoinplac24 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

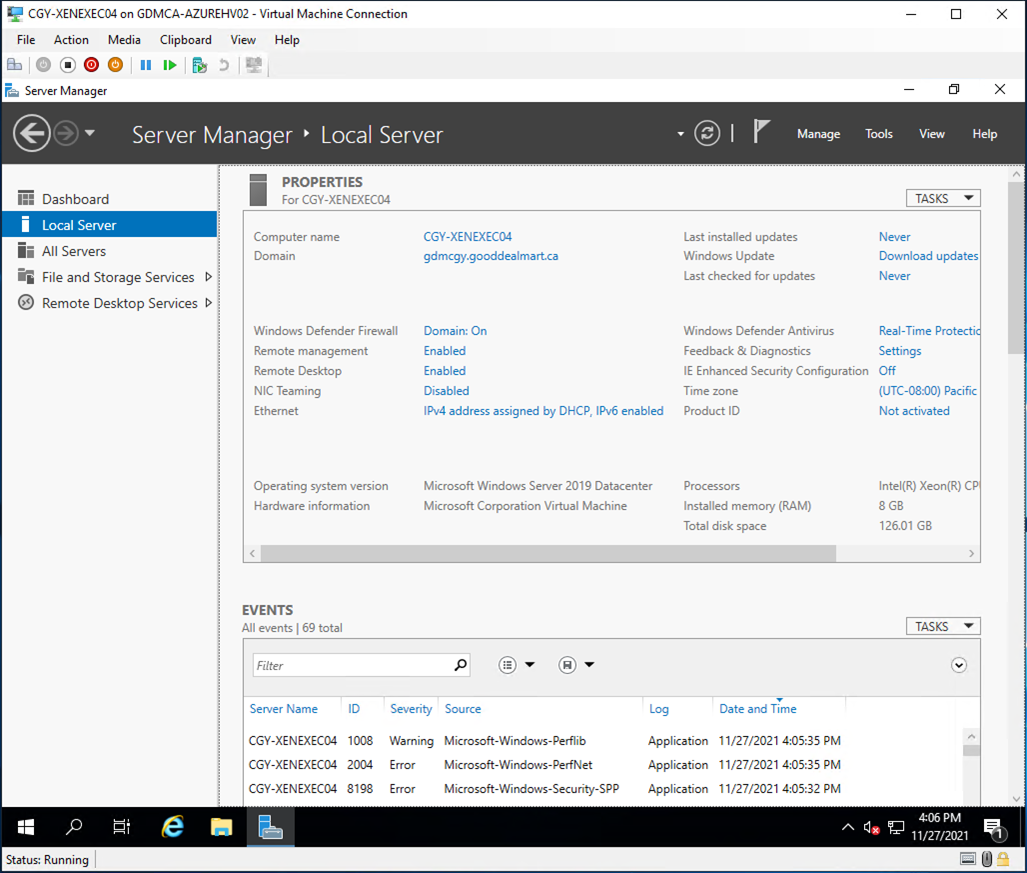

30.Open Server Manager and make sure the Operating system version shows Microsoft Windows Server 2019.

011022 1951 Howtoinplac25 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

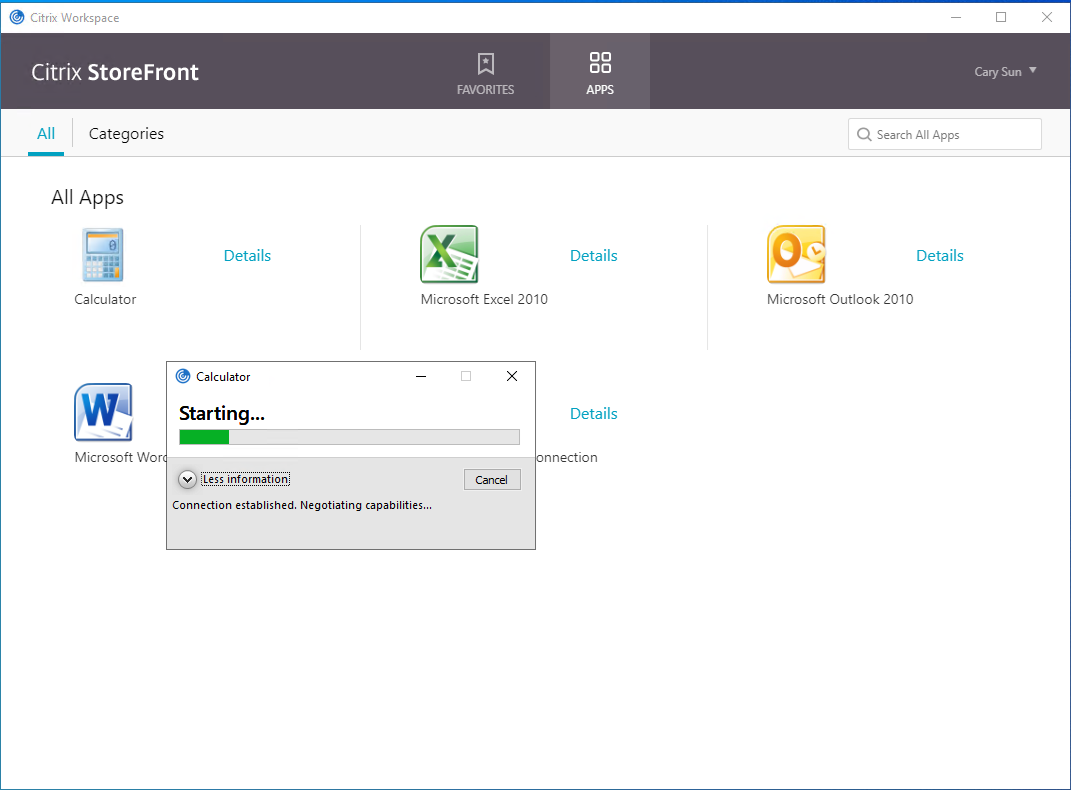

31.Login Citrix Workspace from Client and open Apps to make sure there is no issues.

011022 1951 Howtoinplac26 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

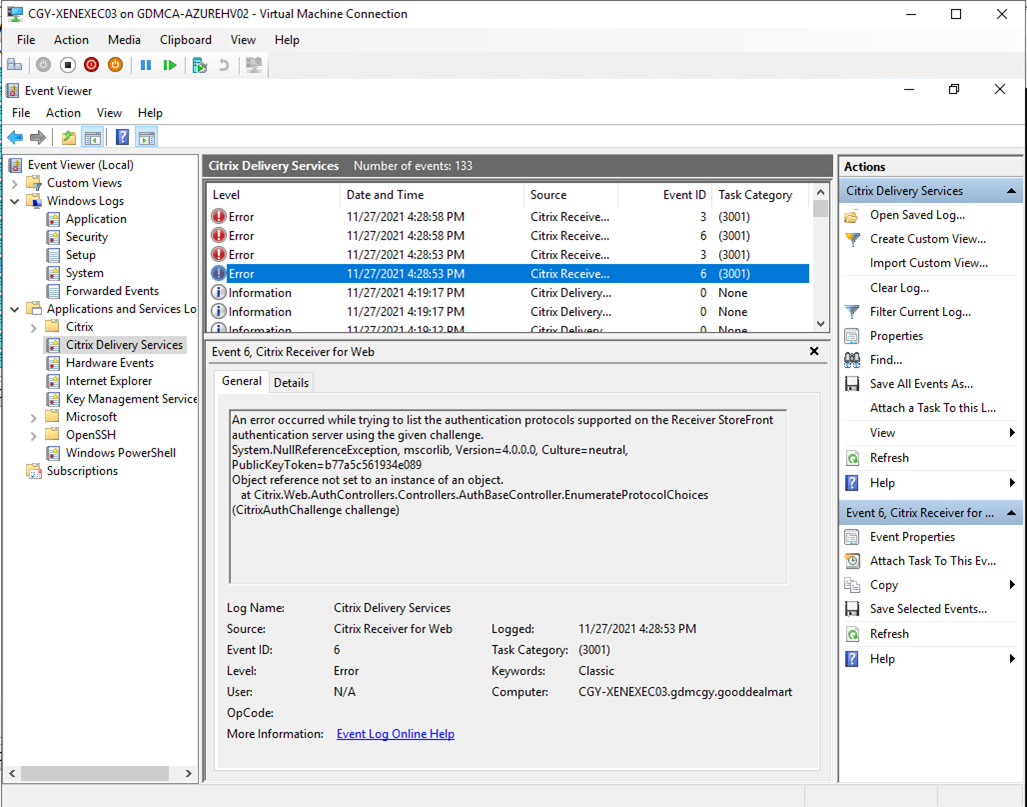

32.If you cannot get apps from the store on the Storefront, and notice there are event log error, you might need to reinstall Citrix Virtual Apps Virtual Delivery Agent at VDA Server.

011022 1951 Howtoinplac27 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

33.Login to Citrix VDA Server.

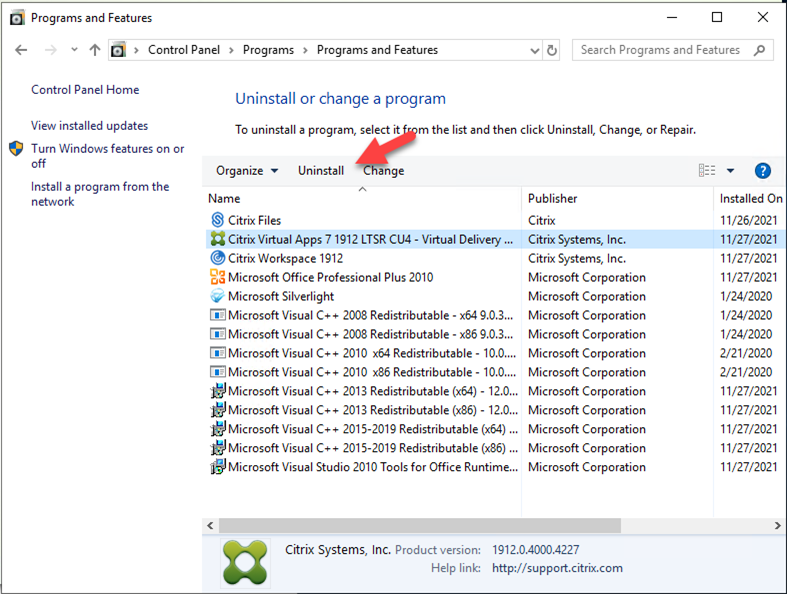

34. Open Programs and Features from Control Panel, right-click Virtual Delivery Agent and select Uninstall.

011022 1951 Howtoinplac28 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

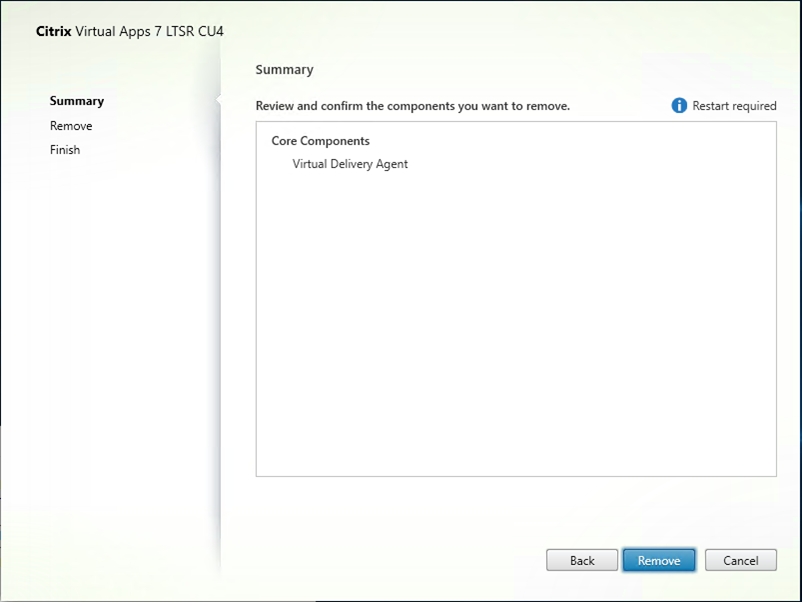

35.On the Summary page, click Remove.

011022 1951 Howtoinplac29 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

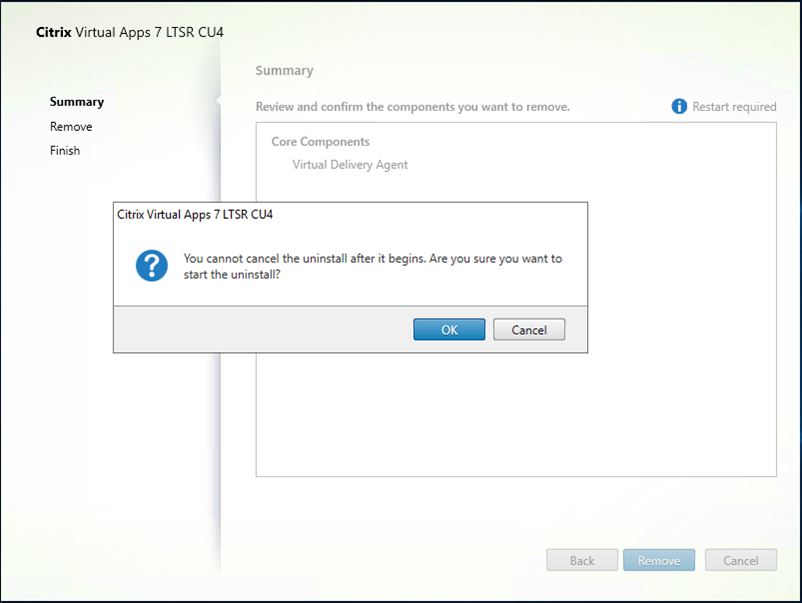

36.On the Uninstall confirm page, click OK.

011022 1951 Howtoinplac30 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

37.Restart Citrix VDA Server.

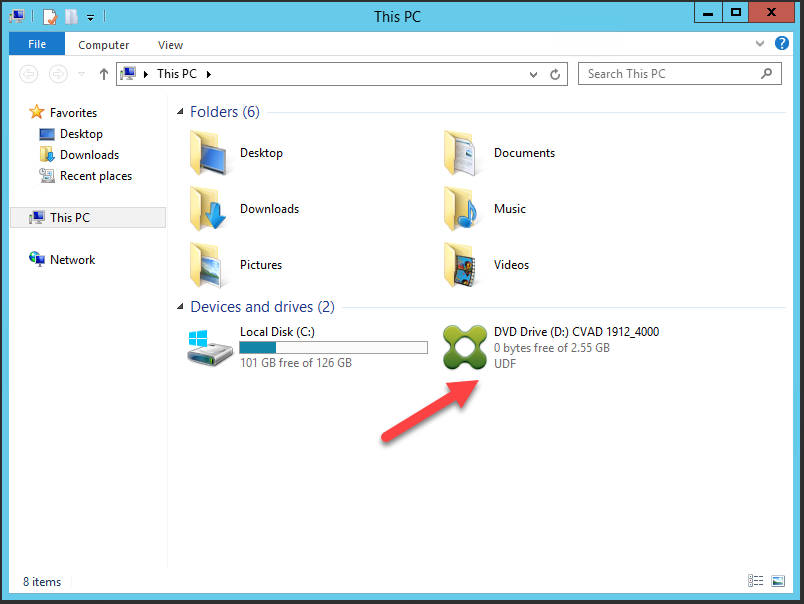

38.Click DVD Drive again.

011022 1951 Howtoinplac31 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

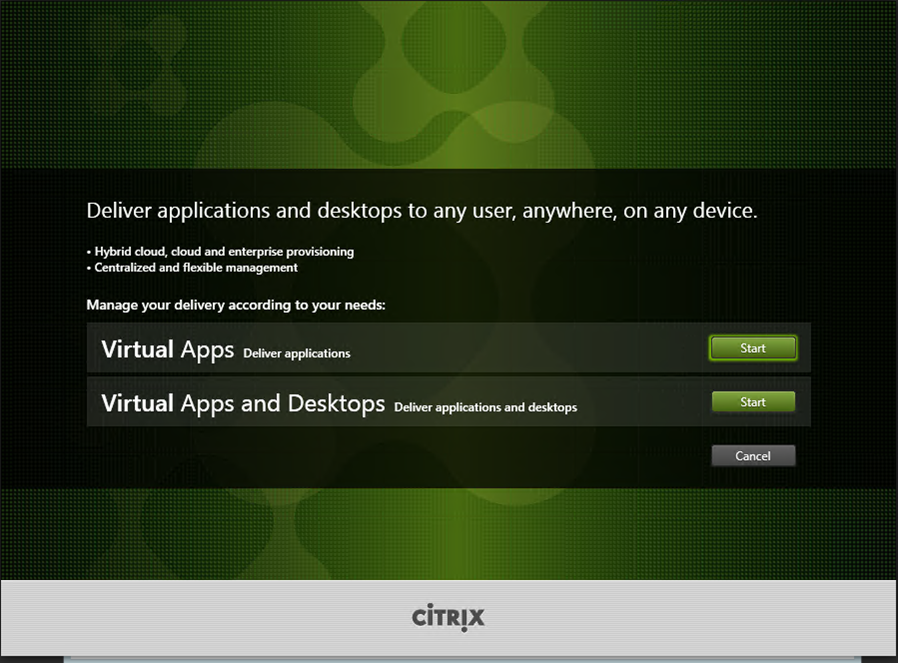

39.On the Deliver applications and desktops to any users, anywhere, on any device page, click Start at Virtual Apps Delivery application.

011022 1951 Howtoinplac32 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

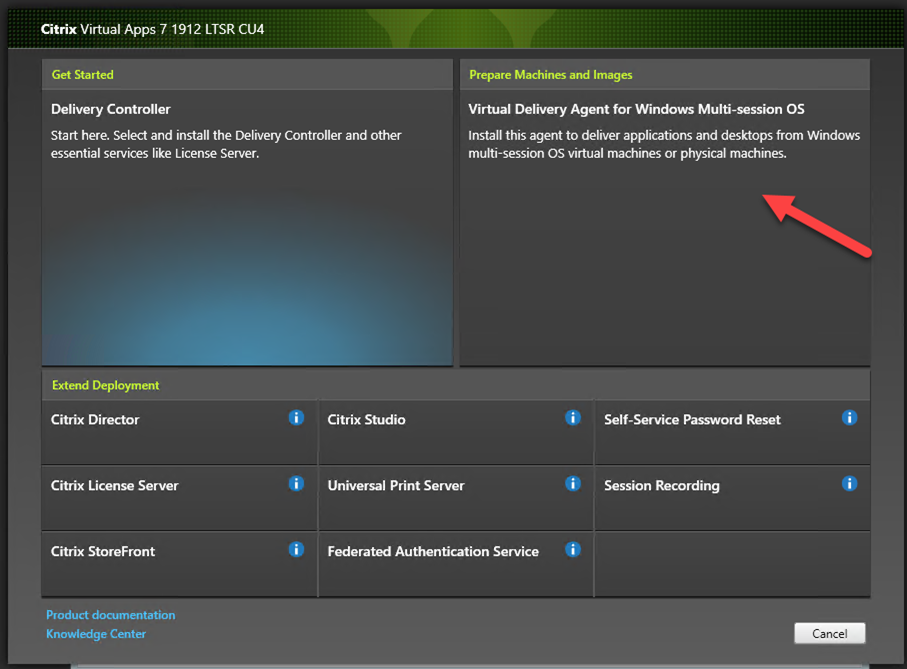

40. Select Virtual Delivery Agent for Windows Multi-session OS.

011022 1951 Howtoinplac33 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

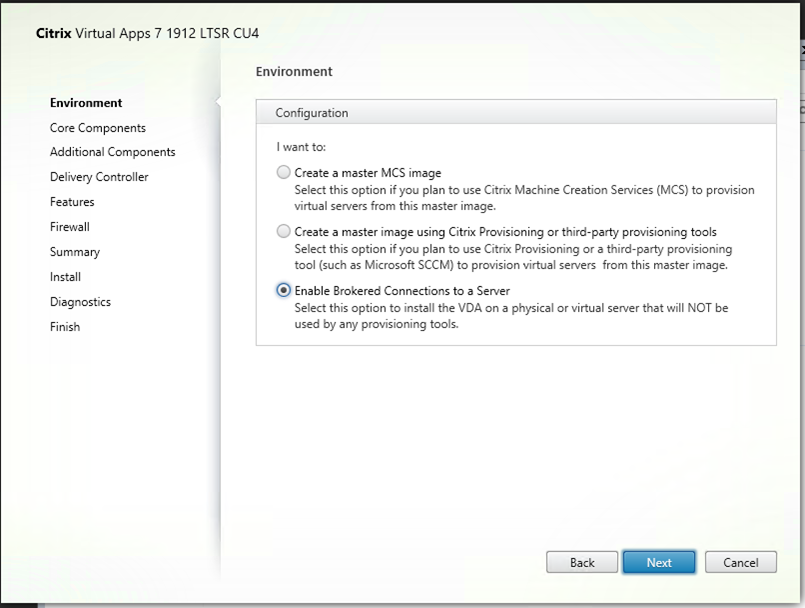

41. On the Environment page, select Enable Broker Connections to a Server, click Next.

011022 1951 Howtoinplac34 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

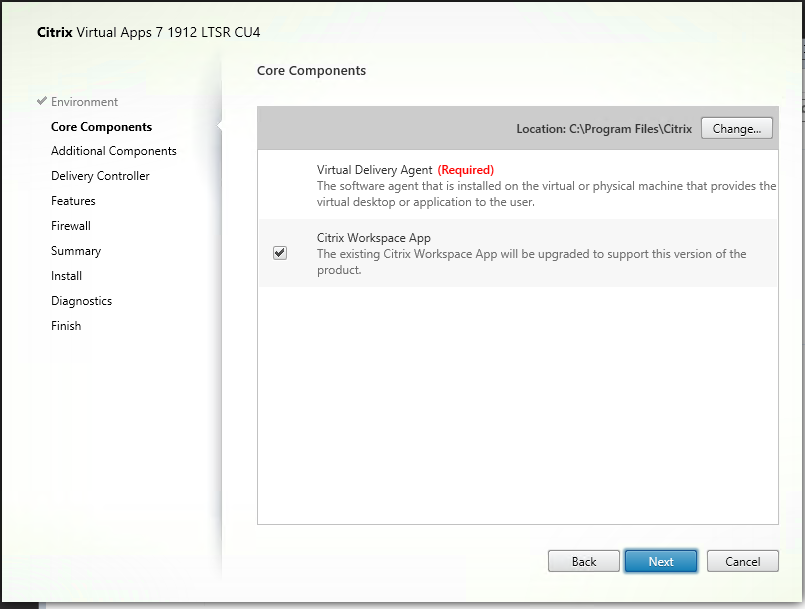

42. On the Core Components page, keep the default settings, click Next.

011022 1951 Howtoinplac35 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

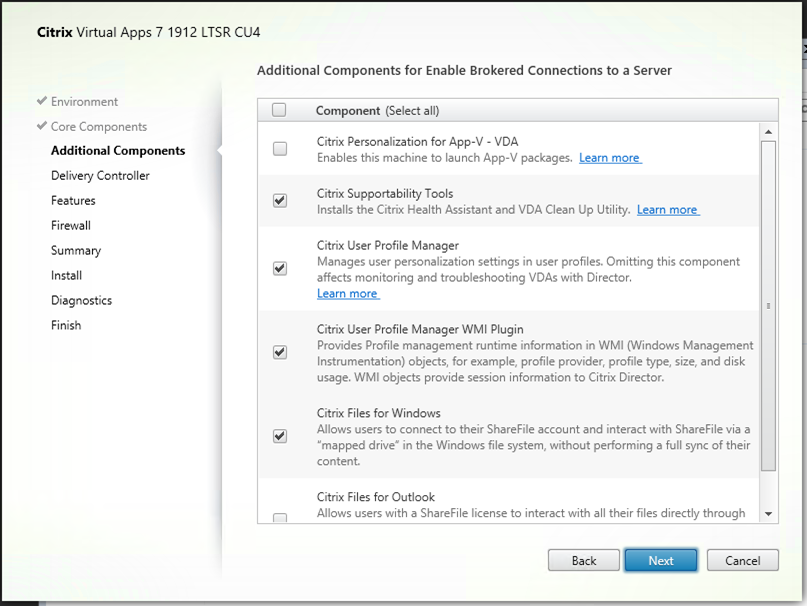

43. On the Additional Components for Enable Brokered Connections to a Server page, select Citrix Supportability Tools, Citrix User Profile Manager, Citrix User Profile Manager WMI Plugin and Citrix Files for Windows, click Next.

011022 1951 Howtoinplac36 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

44. On the Delivery Controller page, Select Do it manually at Configuration.

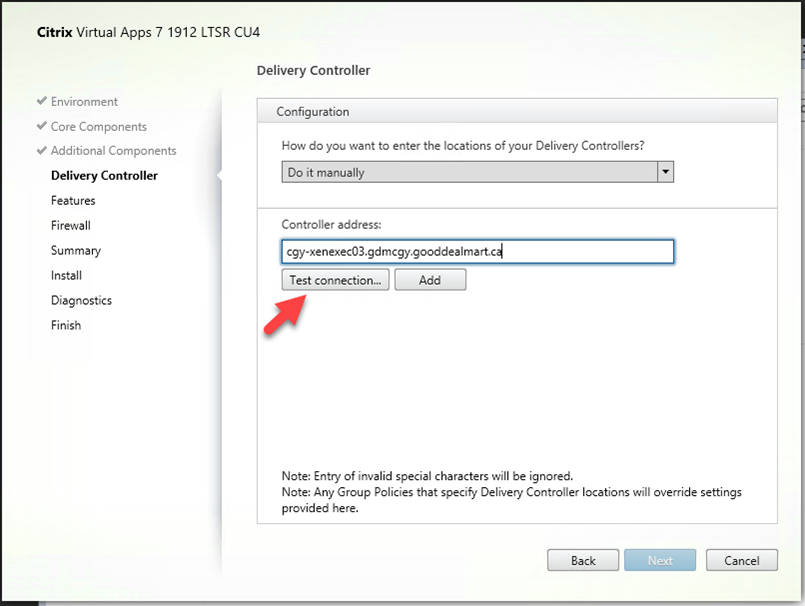

45. Enter the server FQDN at Controller address, click Test connection…. In my case, the Controller address is CGY-Xenexec03.gdmcgy.gooddealmart.ca.

011022 1951 Howtoinplac37 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

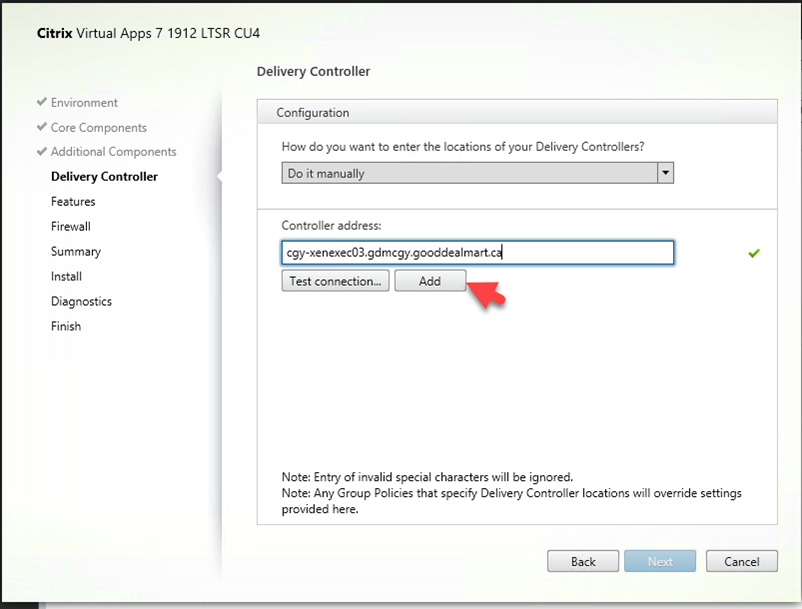

46. Make sure connection test without issues, click Add.

011022 1951 Howtoinplac38 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

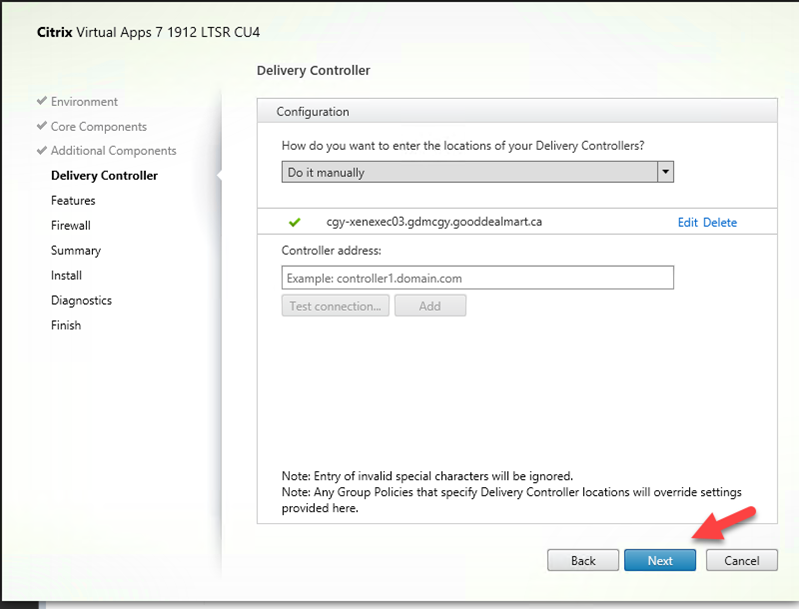

47. On the Delivery Controller page, click Next.

011022 1951 Howtoinplac39 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

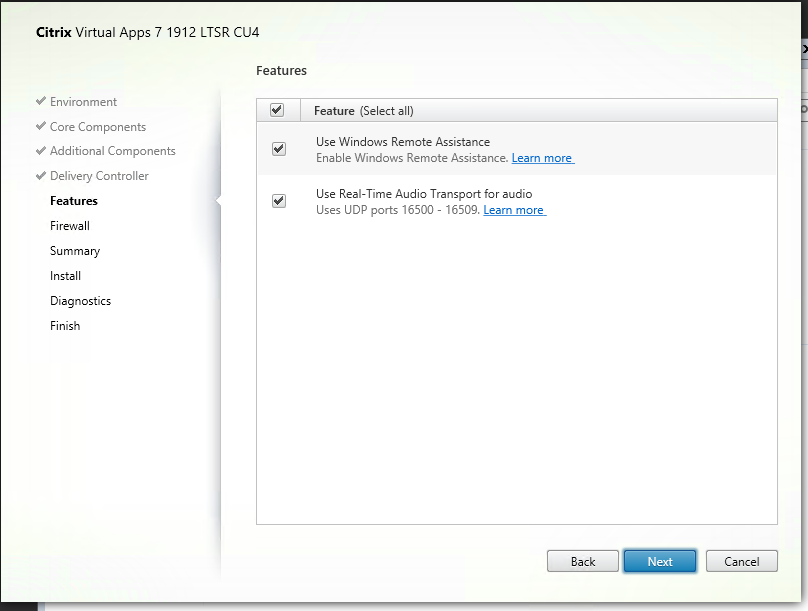

48. On the Features page, select all, click Next.

011022 1951 Howtoinplac40 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

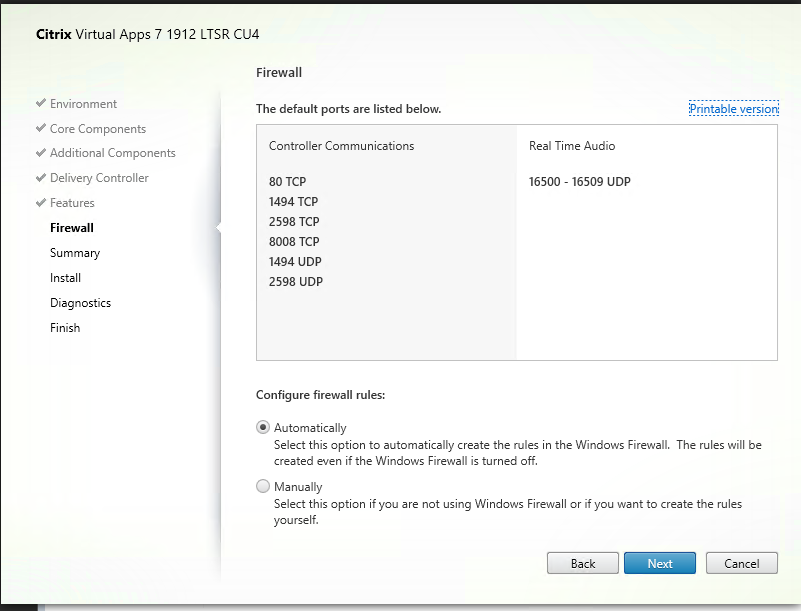

49. On the Firewall page, select Automatically to Configure firewall rules, click Next.

011022 1951 Howtoinplac41 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

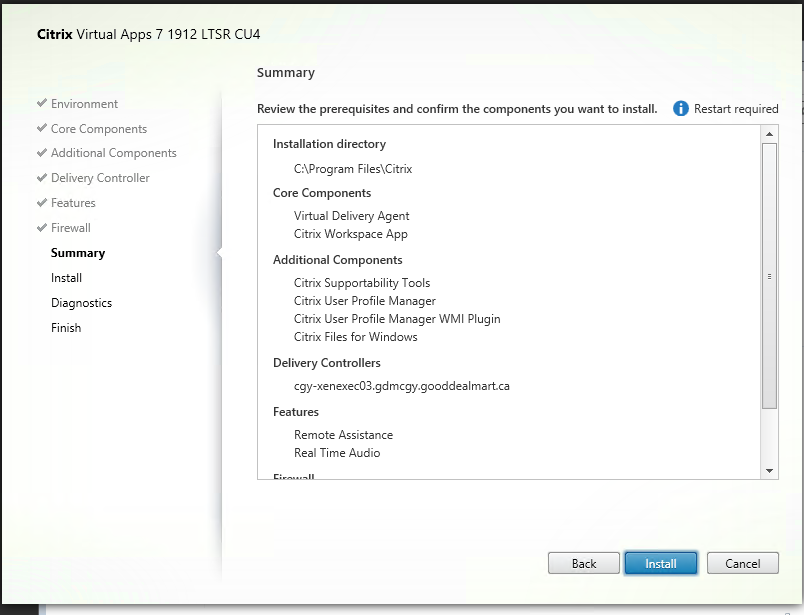

50. On the Summary page, click Install.

011022 1951 Howtoinplac42 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

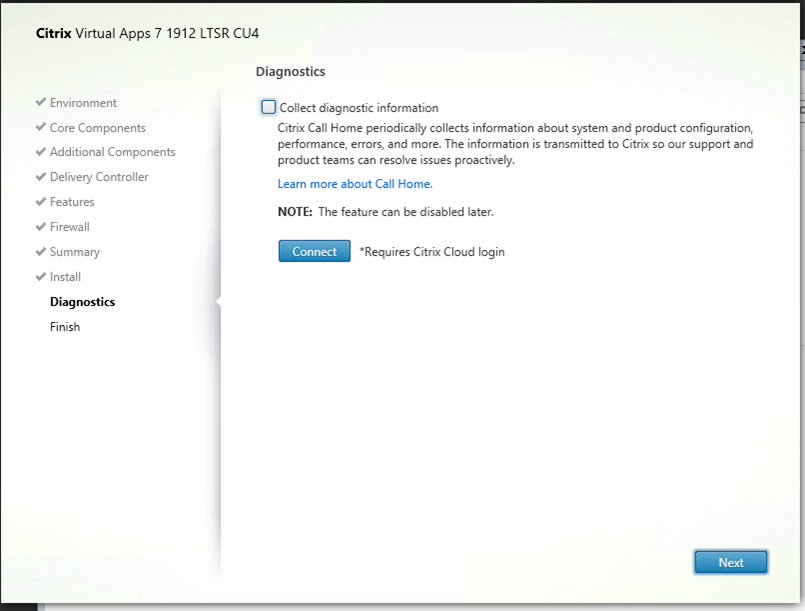

51. On the Diagnostics page, unselect Collect diagnostic information, click Next.

011022 1951 Howtoinplac43 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

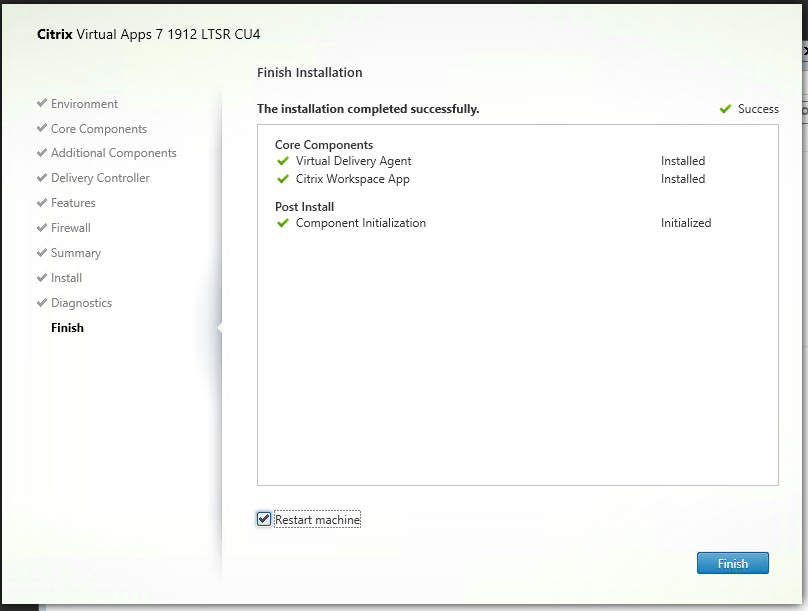

52. On the Finish Installation page, select Restart machine, click Finish.

011022 1951 Howtoinplac44 - How to in place upgrade Citrix Virtual Apps 7 1912 LTSR servers from Windows Server 2012 R2 to Windows Server 2019

53. Restart both Citrix servers.

Hope you enjoy this post.
