Veeam Backup Enterprise Manager is a centralized management and reporting tool designed by Veeam Software for overseeing Veeam Backup & Replication deployments. It allows administrators to control and monitor their backup infrastructure through a web-based interface, making it easier to manage large-scale environments.

Veeam Backup Enterprise Manager is a centralized management and reporting tool designed by Veeam Software for overseeing Veeam Backup & Replication deployments. It allows administrators to control and monitor their backup infrastructure through a web-based interface, making it easier to manage large-scale environments.

1.Login to the Veeam Backup and Replication Console machine.

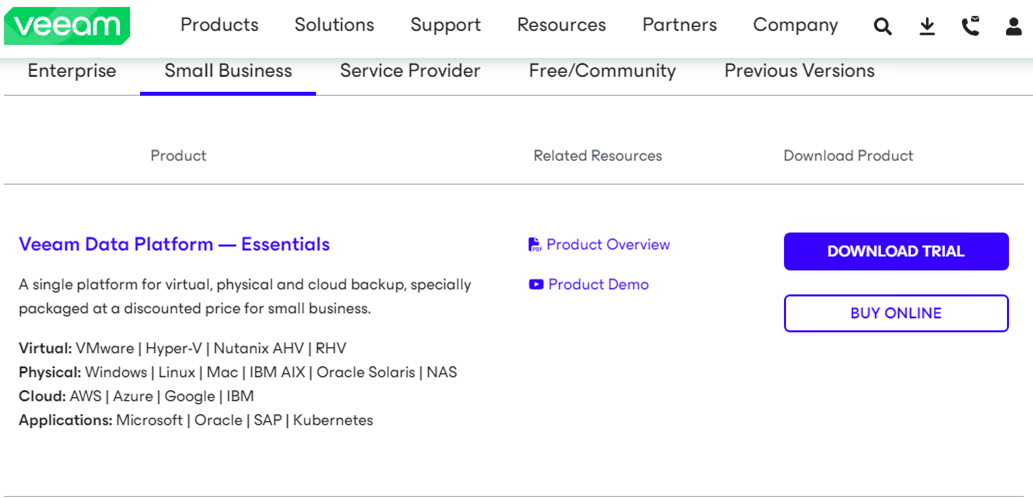

2.Sign in to your Veeam account and download the Veeam Backup and Replication v12.1 ISO image.

122523 2157 HowtoInstal1 - How to Install Veeam Backup Enterprise Manager 12.1

3.Mount Veeam Backup&Replication_12.1.0.2131_20231206.iso file.

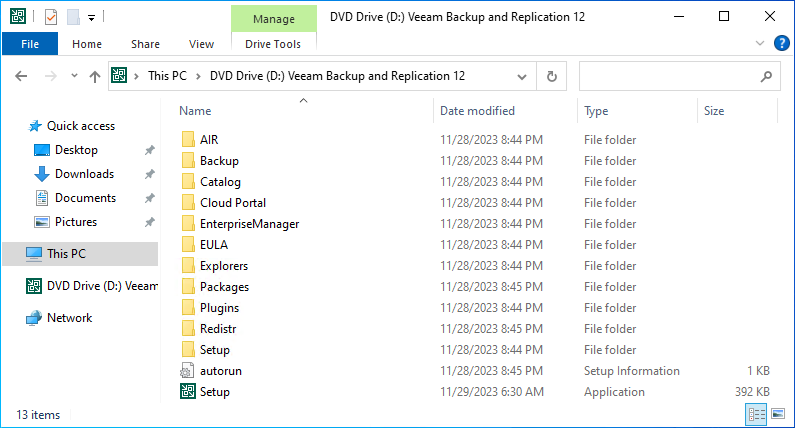

4.Run Setup.exe.

122523 2157 HowtoInstal2 - How to Install Veeam Backup Enterprise Manager 12.1

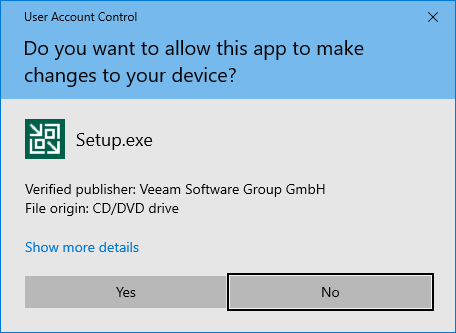

5.Click Yes on the User Account Control.

122523 2157 HowtoInstal3 - How to Install Veeam Backup Enterprise Manager 12.1

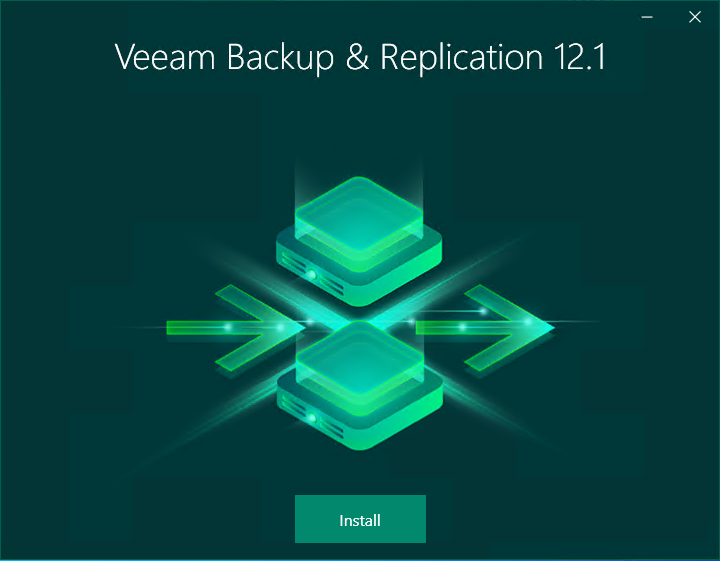

6.On the Veeam Backup & Replication 12.1 page, click Install.

122523 2157 HowtoInstal4 - How to Install Veeam Backup Enterprise Manager 12.1

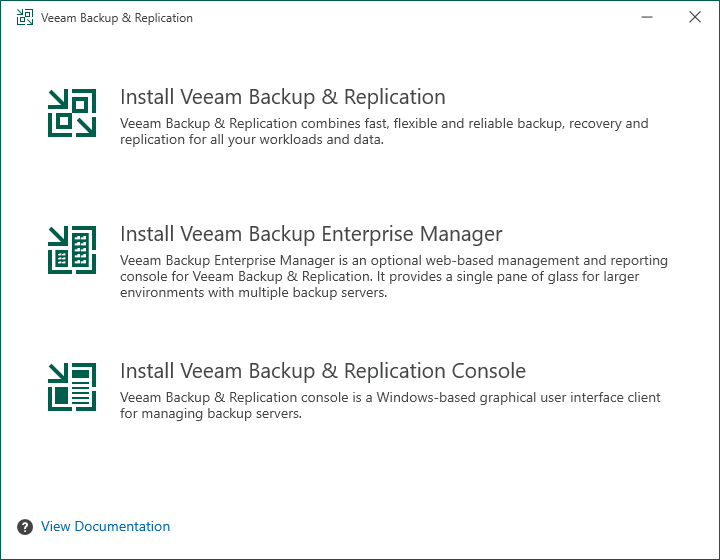

7.Select Install Veeam Backup Enterprise Manager on the Veeam Backup & Replication page.

122523 2157 HowtoInstal5 - How to Install Veeam Backup Enterprise Manager 12.1

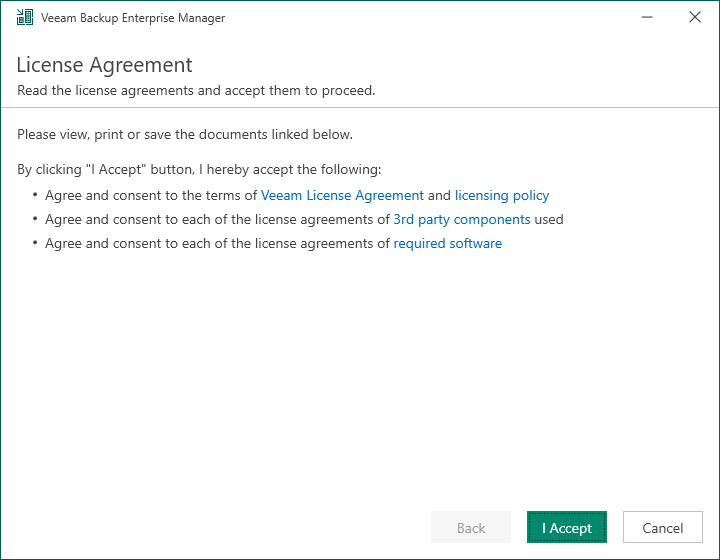

8.On the License Agreement page, click I Accept.

122523 2157 HowtoInstal6 - How to Install Veeam Backup Enterprise Manager 12.1

9.There are two options to install the license. To use license file in my case.

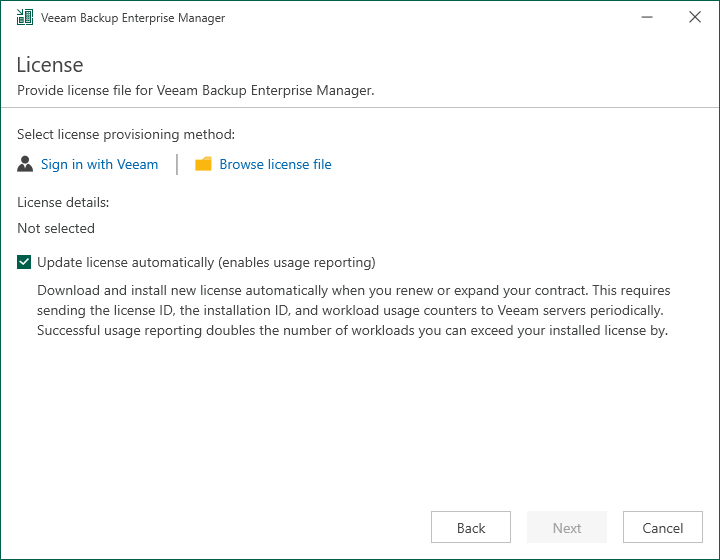

10.Select Browse license file on the License page.

122523 2157 HowtoInstal7 - How to Install Veeam Backup Enterprise Manager 12.1

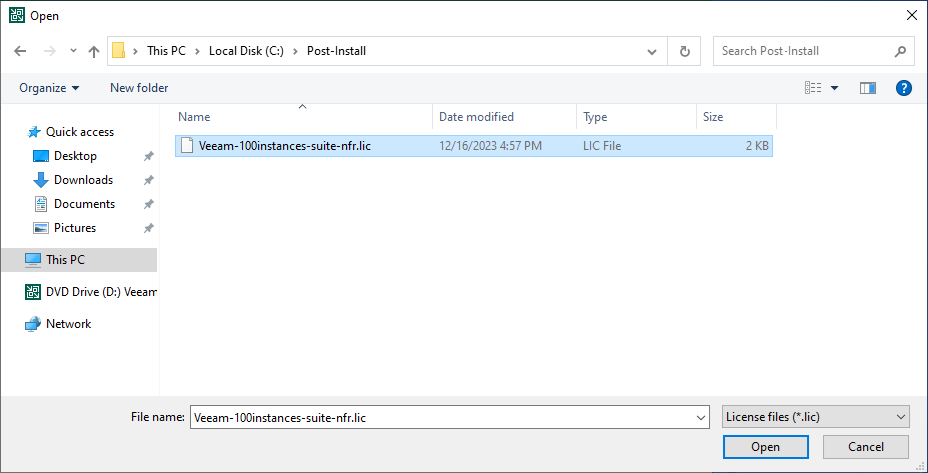

11.Select a valid Veeam Backup Enterprise Manager 12.1 license file and click Open.

122523 2157 HowtoInstal8 - How to Install Veeam Backup Enterprise Manager 12.1

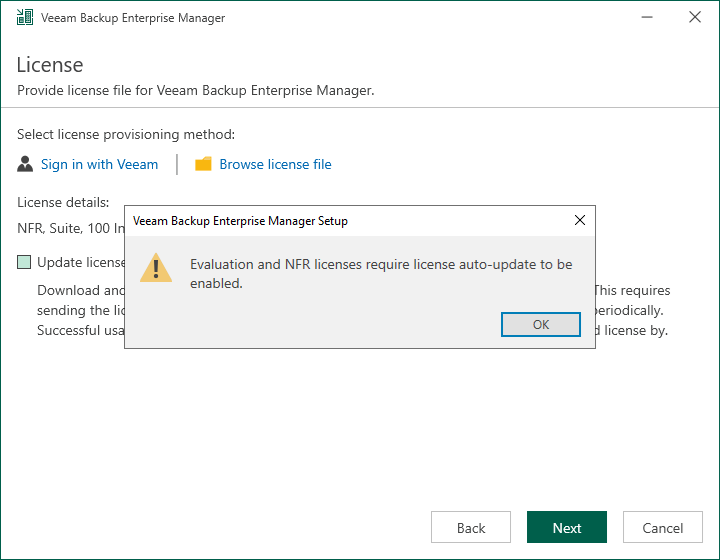

12.If you use Evaluation, Free and NFR licenses, select the Update license automatically (enables usage reporting) checkbox.

122523 2157 HowtoInstal9 - How to Install Veeam Backup Enterprise Manager 12.1

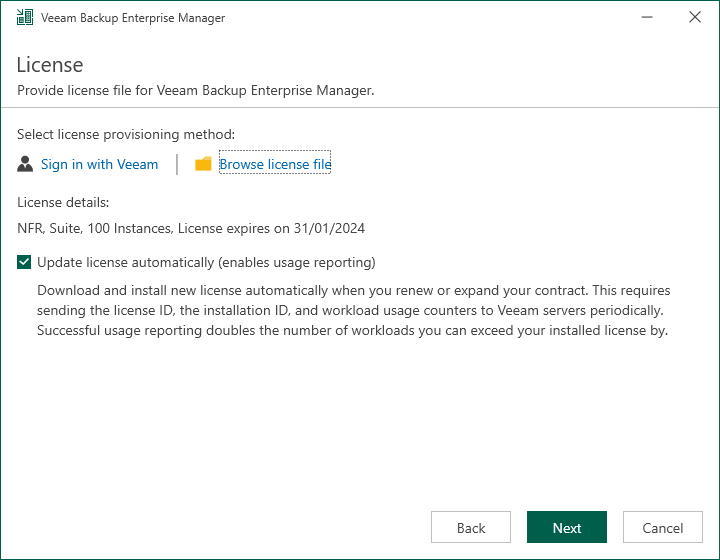

13.Click Next on the License page.

122523 2157 HowtoInstal10 - How to Install Veeam Backup Enterprise Manager 12.1

14. Click Install with the default settings on the Ready to Install page.

122523 2157 HowtoInstal11 - How to Install Veeam Backup Enterprise Manager 12.1

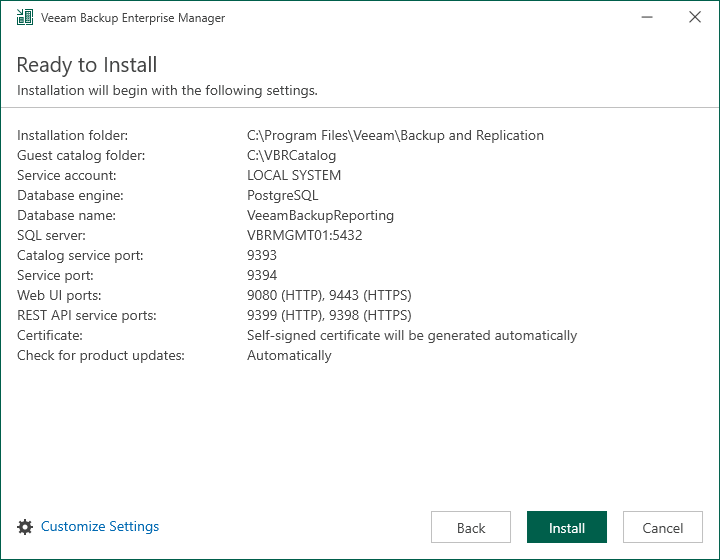

15.Click Customize Settings If you would like to specify custom installation settings.

122523 2157 HowtoInstal12 - How to Install Veeam Backup Enterprise Manager 12.1

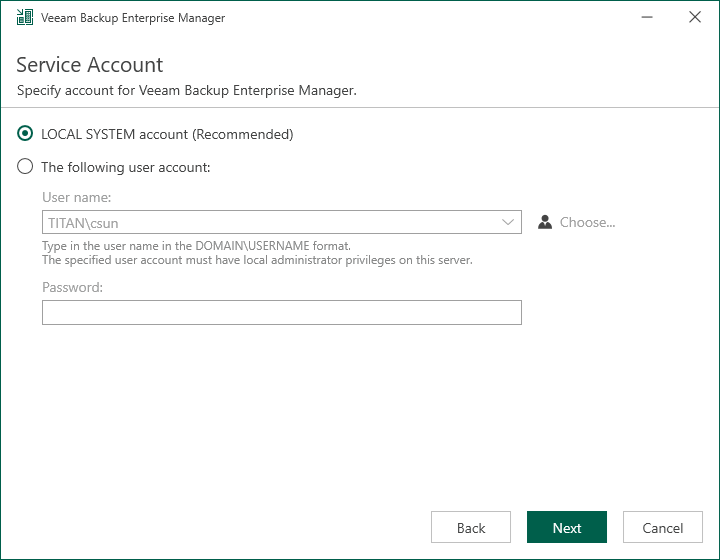

16.Select the LOCAL SYSTEM account (Recommended) or specify another user account on the Service Account page, and click Next.

122523 2157 HowtoInstal13 - How to Install Veeam Backup Enterprise Manager 12.1

Note:

The user account must have Veeam Backup Enterprise Manager service account permissions to run the Veeam Backup Enterprise Manager Service.

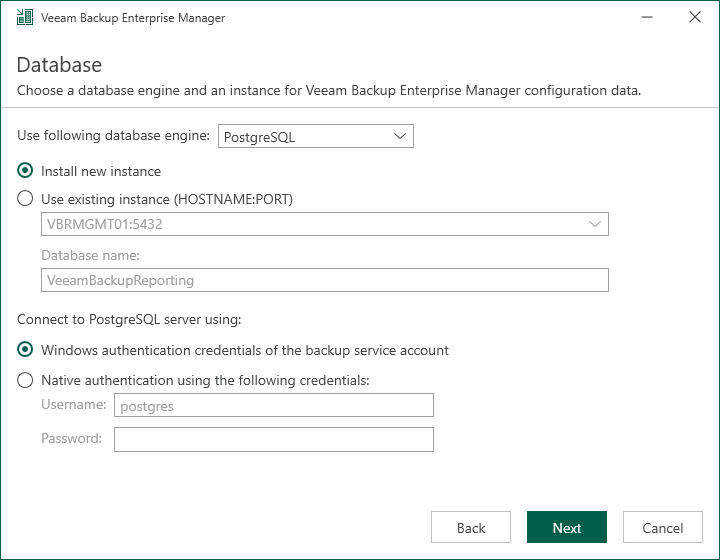

17.On the Database page, specify the database engine as PostgreSQL Server or Microsoft SQL Server.

18.If you select PostgreSQL Server and a PostgreSQL Server is not installed locally or remotely, select the Install a new instance of PostgreSQL Server.

122523 2157 HowtoInstal14 - How to Install Veeam Backup Enterprise Manager 12.1

19.If a PostgreSQL Server is installed locally or remotely, select the Use existing instance of PostgreSQL Server and enter the instance name in the HOSTNAME: Port number format. In the Database field, specify a name for the Veeam Backup Enterprise Manager Reporting database.

20.Select the Windows authentication to connect to the PostgreSQL server if you use the default settings to install a new instance.

21.If you use the existing instance, select the PostgreSQL Server authentication, enter the PostgreSQL Server account credentials and click Next.

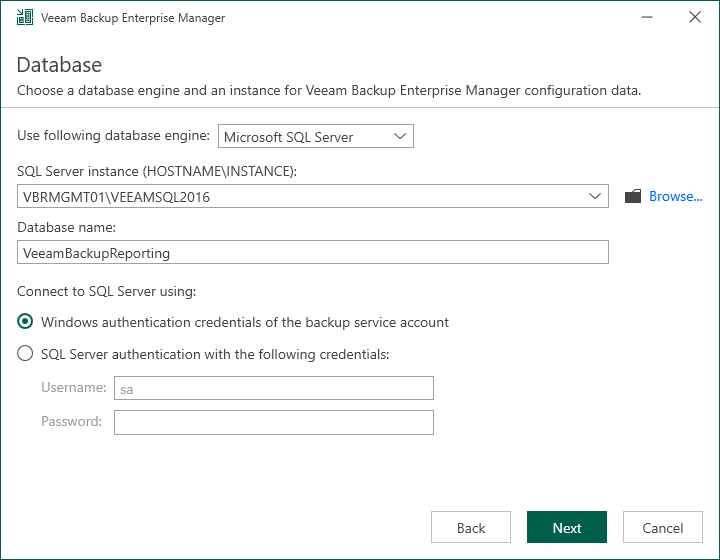

22.If you have a Microsoft SQL Server ready, select Microsoft SQL Server as the database engine on the Database page.

23.Enter the instance name in the HOSTNAME\INSTANCE format. In the Database name field, enter the name for the Veeam Backup Enterprise Manager Reporting database.

24.Select an authentication mode to connect to the Microsoft SQL Server instance: Microsoft Windows or SQL Server authentication. If you select the SQL Server authentication, enter the Microsoft SQL Server account credentials and click Next.

122523 2157 HowtoInstal15 - How to Install Veeam Backup Enterprise Manager 12.1

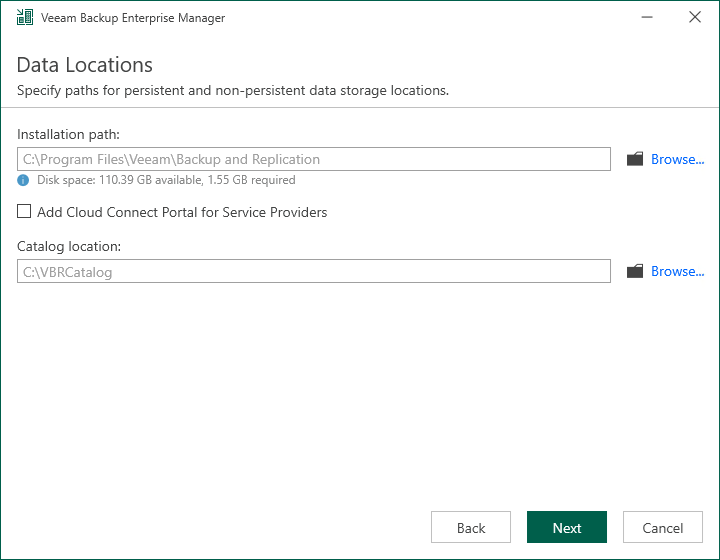

25. select the installation and Catalog path locations on the Data Locations page and click Next.

122523 2157 HowtoInstal16 - How to Install Veeam Backup Enterprise Manager 12.1

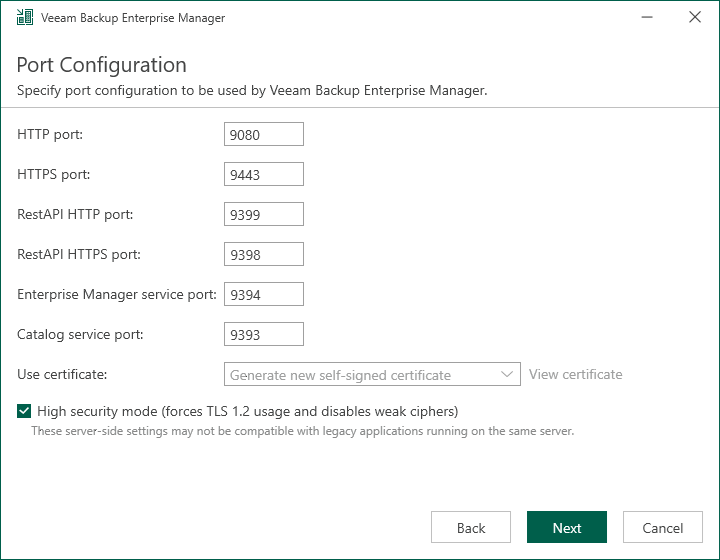

26.On the Port Configuration page, customize port number values that will be used for communication between backup infrastructure components.

27.Select High security mode (force TLS 1.2 usage and disables weak ciphers) and click Next.

122523 2157 HowtoInstal17 - How to Install Veeam Backup Enterprise Manager 12.1

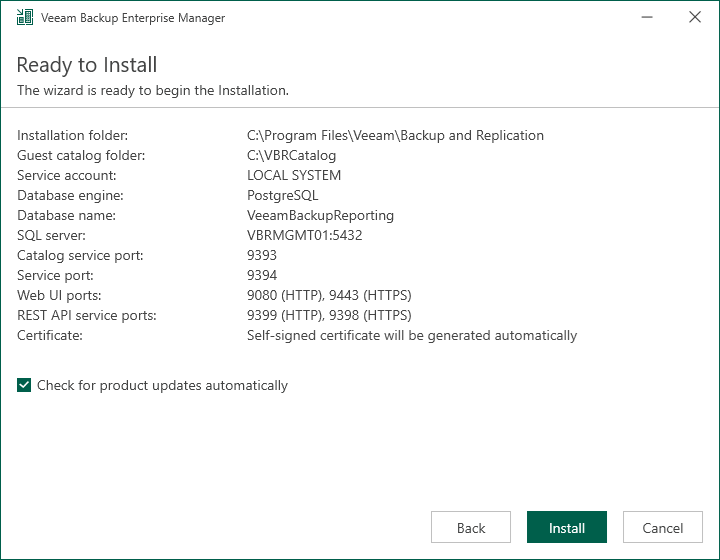

28.Select the Check for product updates automatically on the Ready to Install page and click Install.

122523 2157 HowtoInstal18 - How to Install Veeam Backup Enterprise Manager 12.1

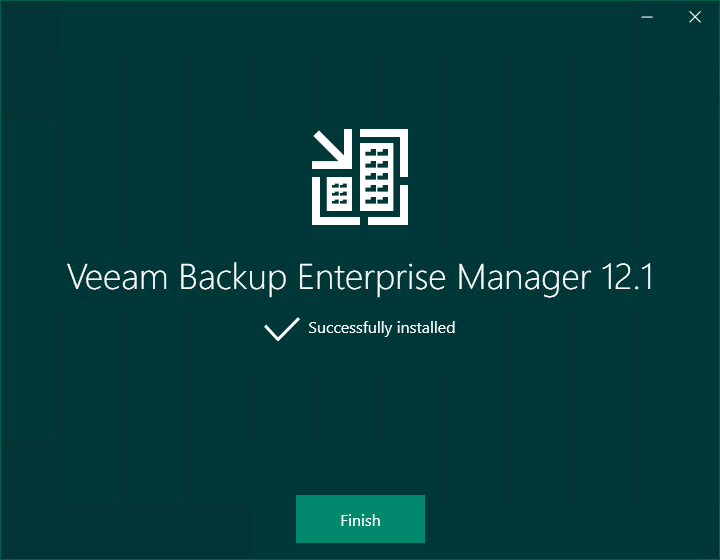

29.Click Finish on the Veeam Backup Enterprise Manager 12.1 Successfully installed page.

122523 2157 HowtoInstal19 - How to Install Veeam Backup Enterprise Manager 12.1
