There are many ways to rebuild the Hyper-V host, but I will show you how to rebuild a Microsoft Hyper-V host via PXE. This process is also can use for other vendors, not for the DataOn host only. It would be best to ask the host hardware vendor to send you the custom WIM image file before rebuilding it.

There are many ways to rebuild the Hyper-V host, but I will show you how to rebuild a Microsoft Hyper-V host via PXE. This process is also can use for other vendors, not for the DataOn host only. It would be best to ask the host hardware vendor to send you the custom WIM image file before rebuilding it.

1. Log in to a server (or create a new VM).

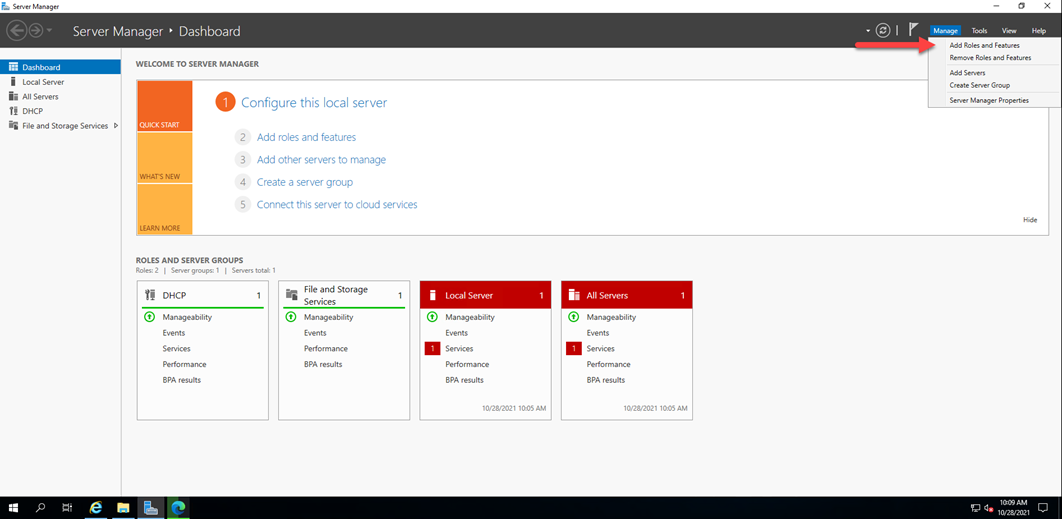

2. Select Add Roles and Features from the Manage drop-down list.

030523 2023 HowtoRebuil1 - How to Rebuild DataOn Host via PXE

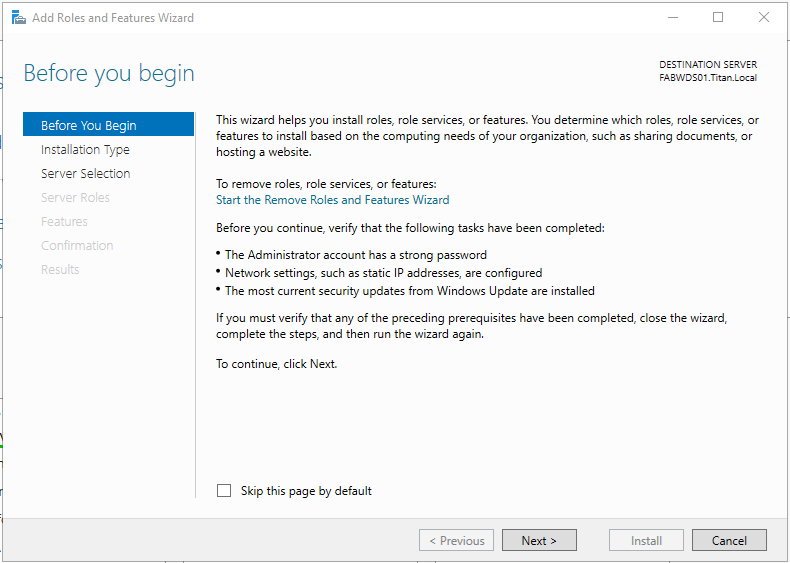

3. Click Next on the Before You Begin page.

030523 2023 HowtoRebuil2 - How to Rebuild DataOn Host via PXE

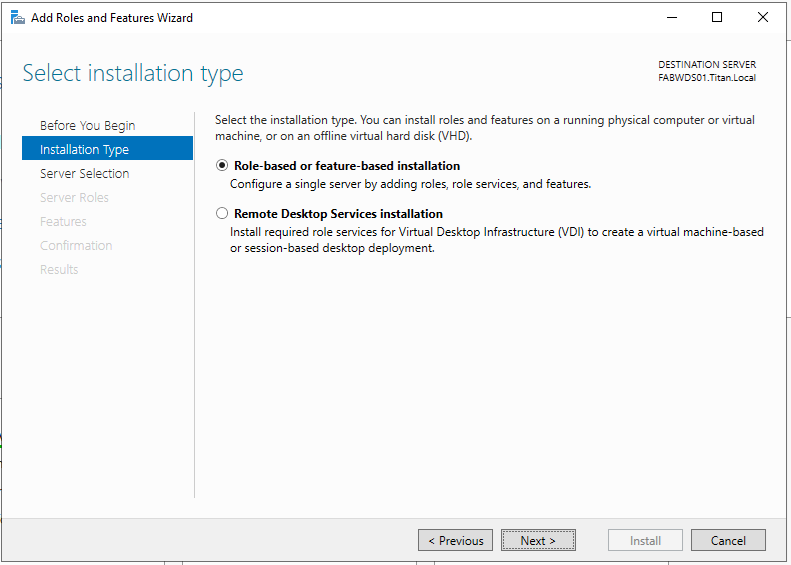

4. Select Role-based or feature-based installation on the Installation Type and click Next.

030523 2023 HowtoRebuil3 - How to Rebuild DataOn Host via PXE

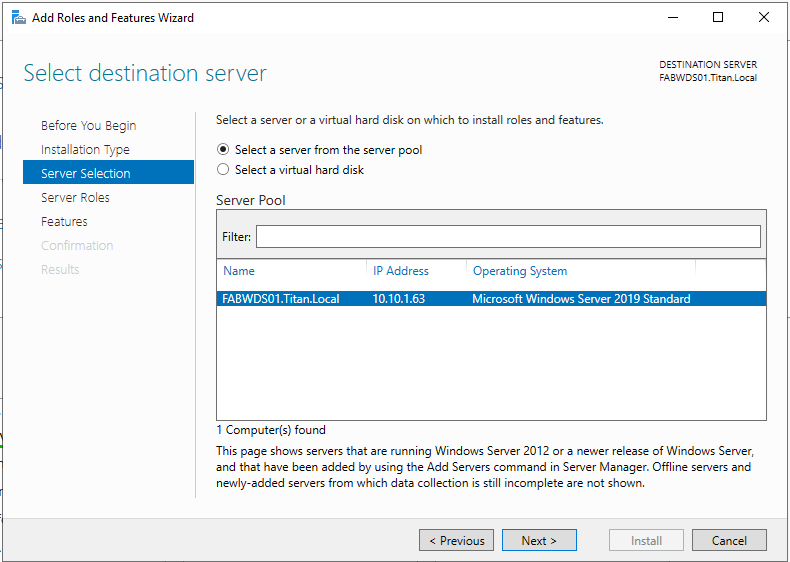

5. Click Next on the Server Selection page.

030523 2023 HowtoRebuil4 - How to Rebuild DataOn Host via PXE

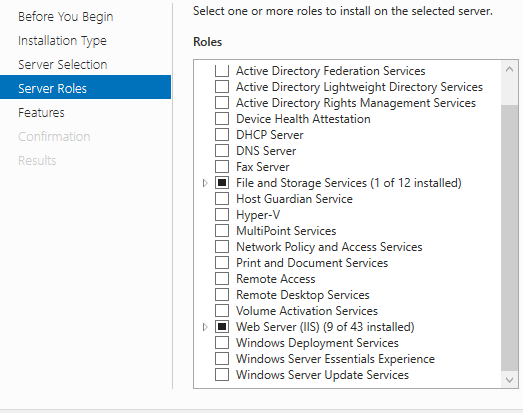

6. Select the Windows Deployment Service checkbox on the Server Roles page.

030523 2023 HowtoRebuil5 - How to Rebuild DataOn Host via PXE

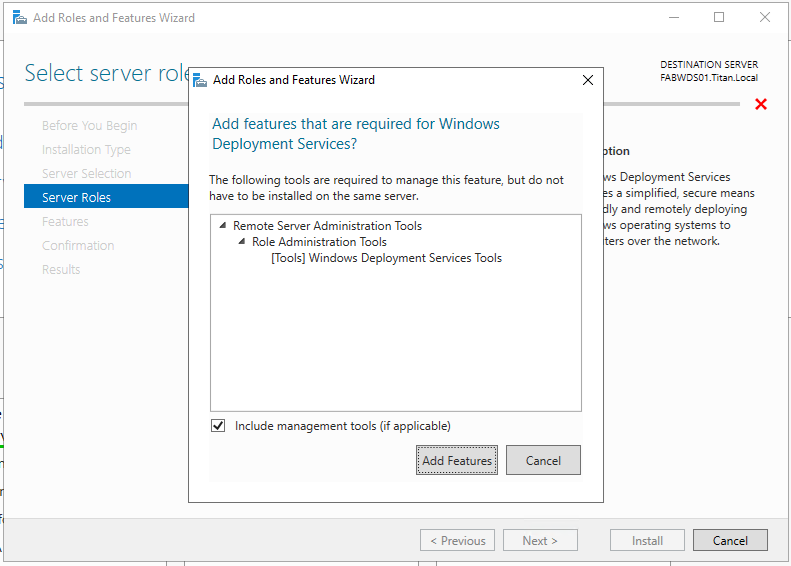

7. Click Add Features on the Add Features that are required for Windows Deployment Services? page.

030523 2023 HowtoRebuil6 - How to Rebuild DataOn Host via PXE

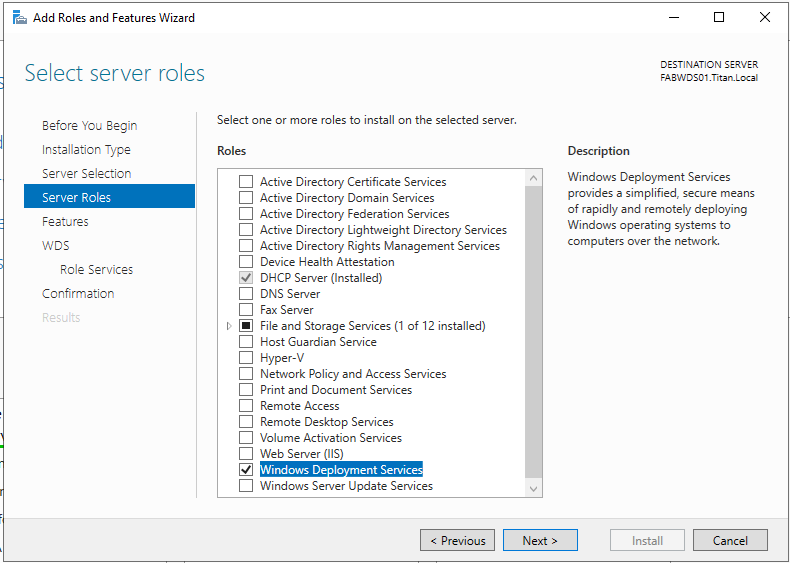

8. Click Next On the Server Roles page.

030523 2023 HowtoRebuil7 - How to Rebuild DataOn Host via PXE

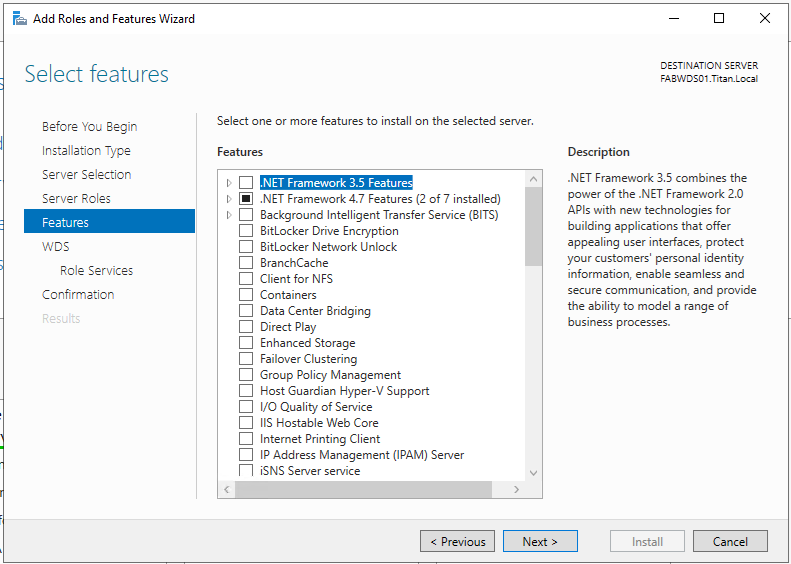

9. Click Next On the Features page.

030523 2023 HowtoRebuil8 - How to Rebuild DataOn Host via PXE

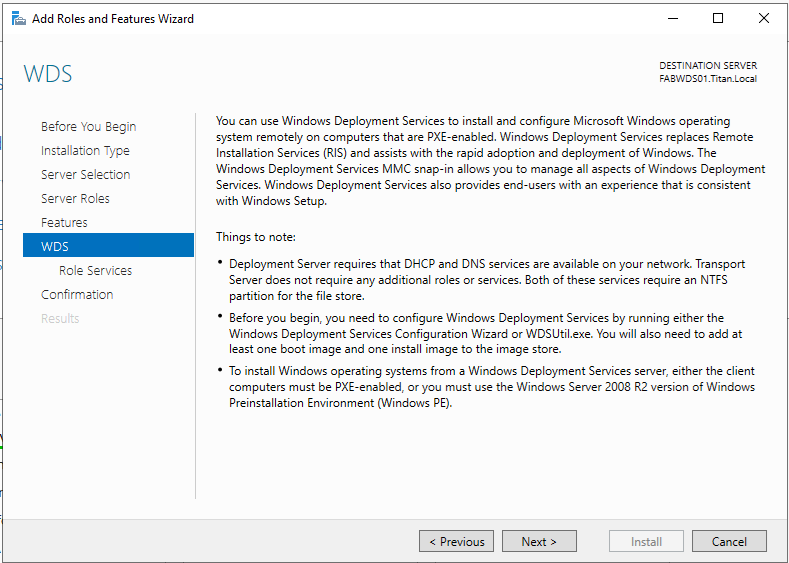

10. Click Next on the WDS page.

030523 2023 HowtoRebuil9 - How to Rebuild DataOn Host via PXE

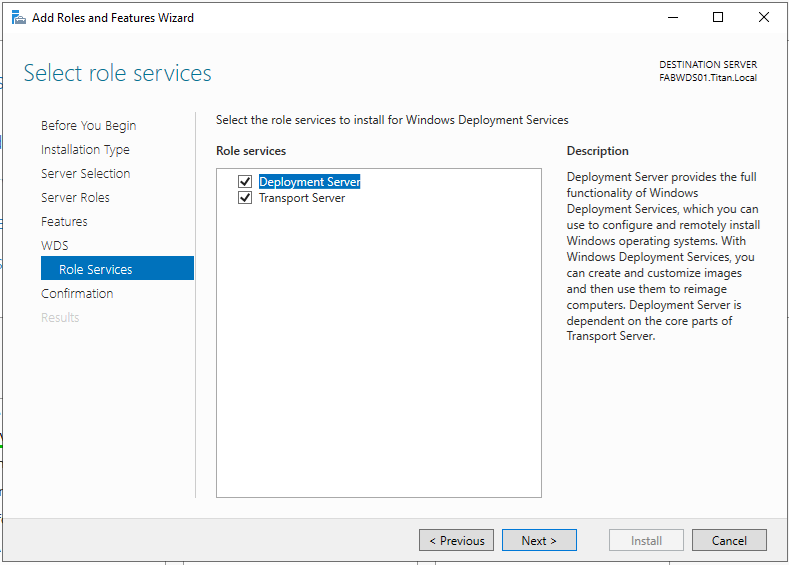

11. Select the Deployment and Transport Server checkboxes on the Role Services page and click Next.

030523 2023 HowtoRebuil10 - How to Rebuild DataOn Host via PXE

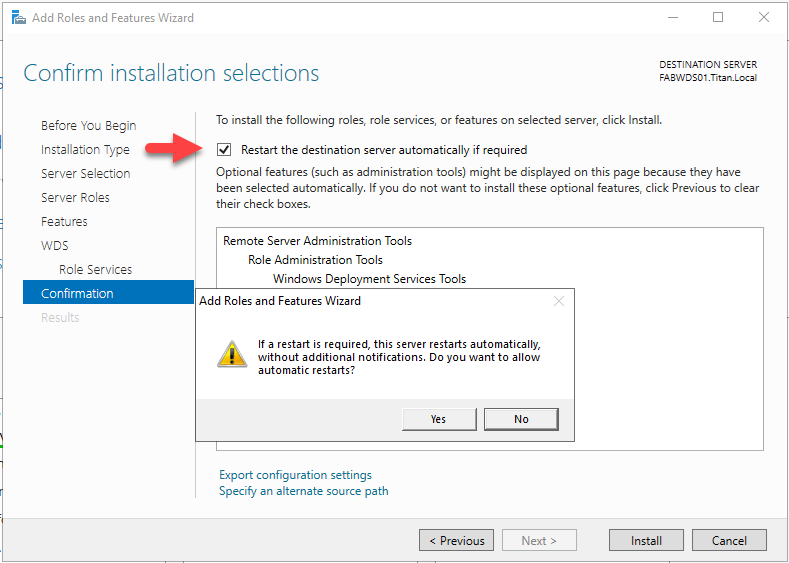

12. Select Restart the destination server automatically if required checkbox on the Confirmation page.

13. Click Yes on the Warning message.

030523 2023 HowtoRebuil11 - How to Rebuild DataOn Host via PXE

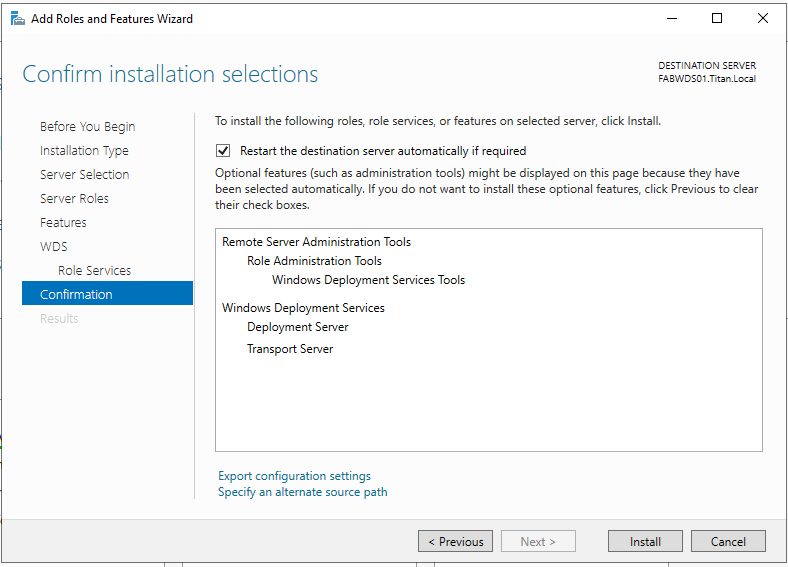

14. Click Next on the Confirmation page.

030523 2023 HowtoRebuil12 - How to Rebuild DataOn Host via PXE

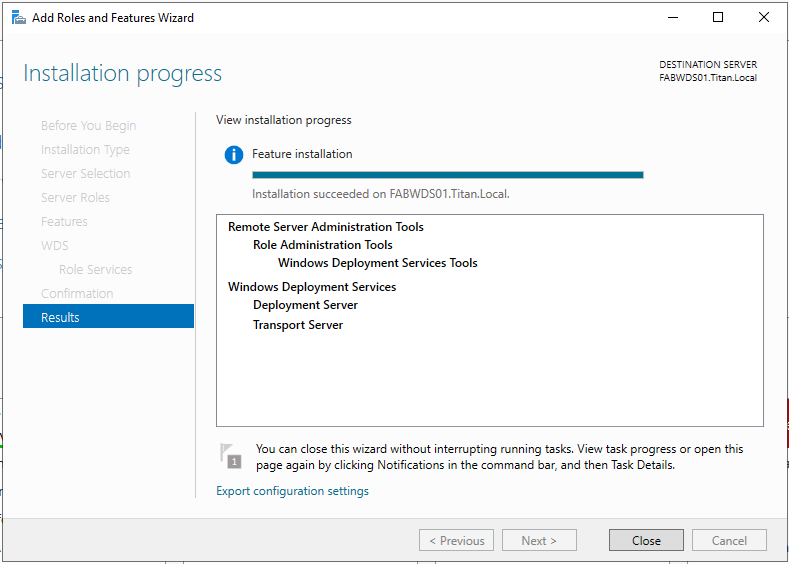

15. Click Close on the Results page.

030523 2023 HowtoRebuil13 - How to Rebuild DataOn Host via PXE

16. Log in to the server after reboot.

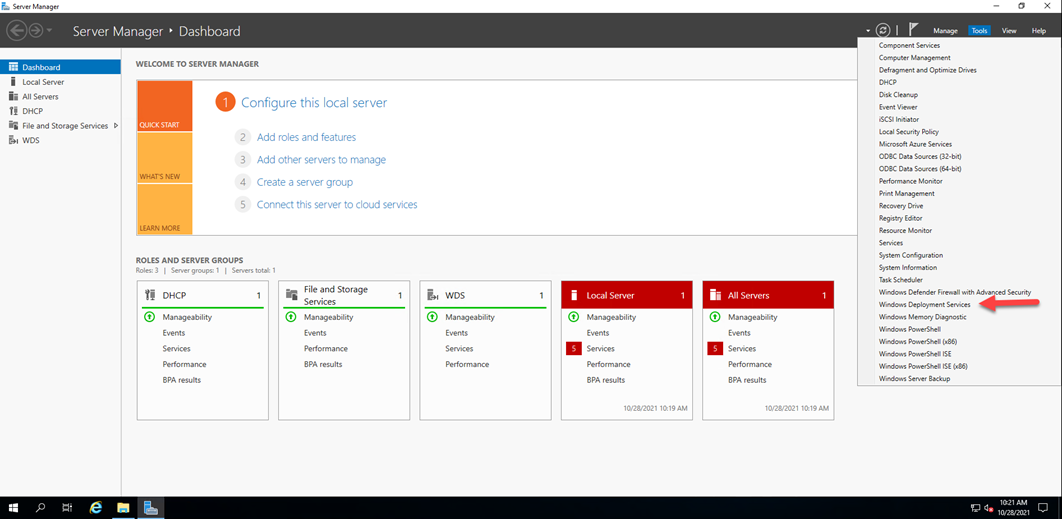

17. Select Windows Deployment Services from the Tools drop-down list.

030523 2023 HowtoRebuil14 - How to Rebuild DataOn Host via PXE

18. On the Windows Deployment Services page, expand Servers.

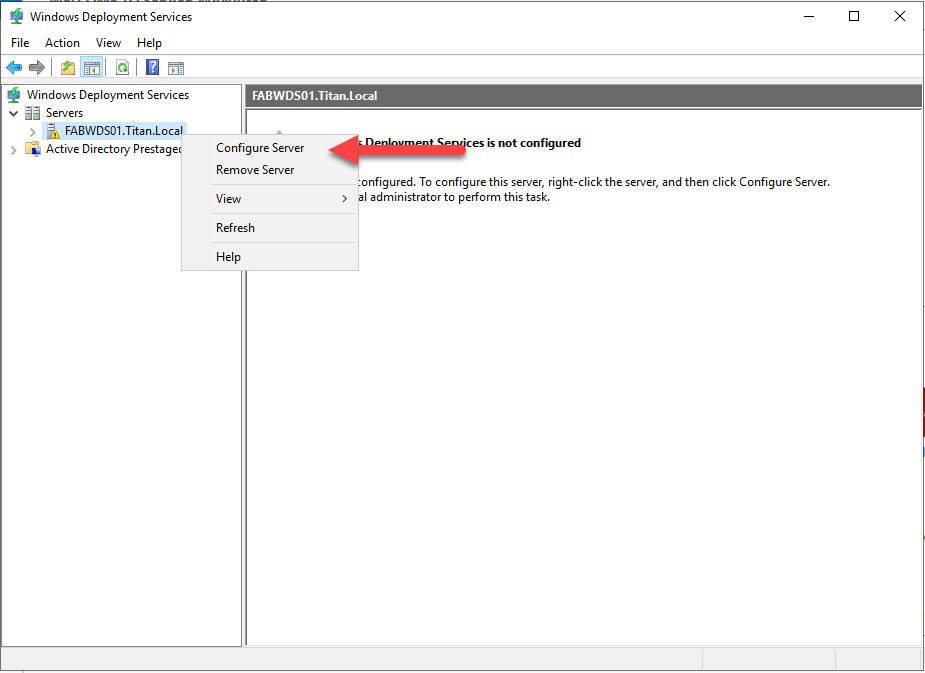

19. Right-click the WDS server and select Configure Server.

030523 2023 HowtoRebuil15 - How to Rebuild DataOn Host via PXE

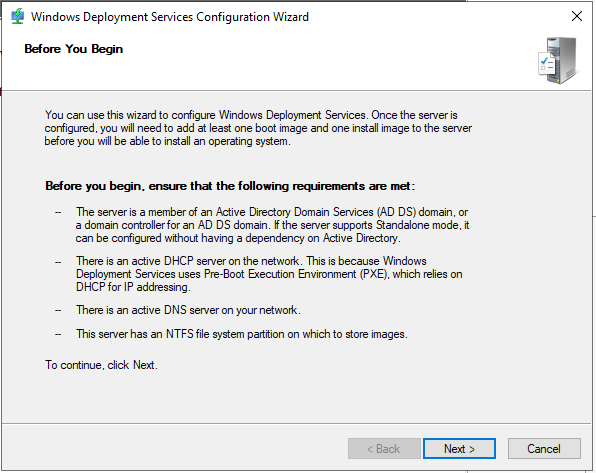

20. Click Next on the Before You Begin page.

030523 2023 HowtoRebuil16 - How to Rebuild DataOn Host via PXE

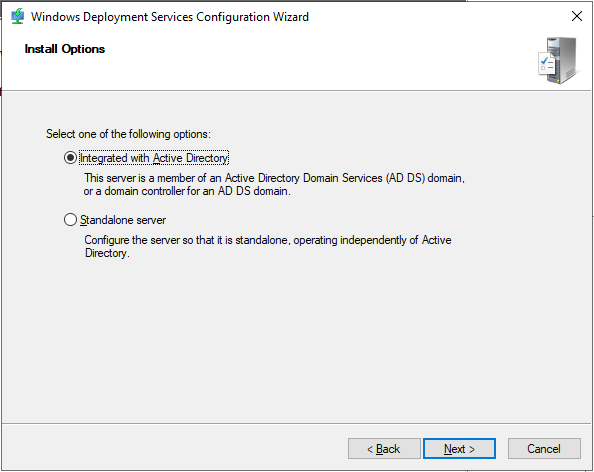

21. Select Integrated with Active Directory on the Install Options page and click Next.

030523 2023 HowtoRebuil17 - How to Rebuild DataOn Host via PXE

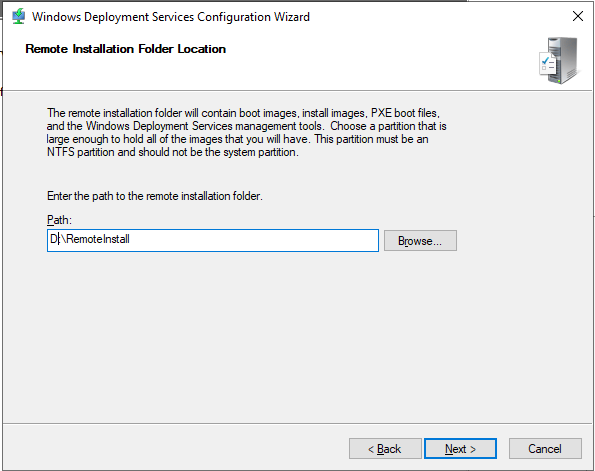

22. Click Browse on the Remote Installation Folder Location page.

23. Select the folder path and click Next.

030523 2023 HowtoRebuil18 - How to Rebuild DataOn Host via PXE

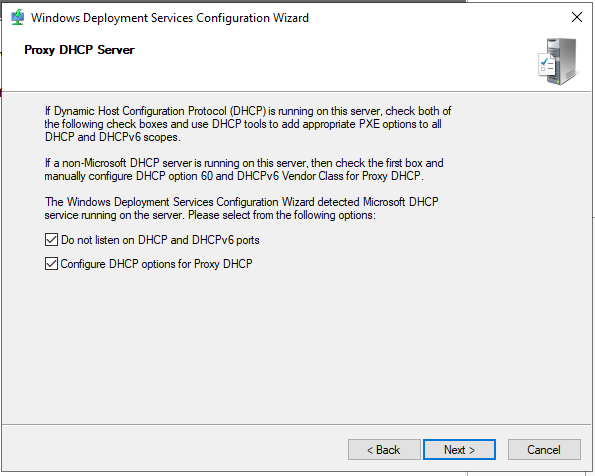

24. On the Proxy DHCP Server page, select the Do not listen on DHCP and DHCPv6 ports checkbox.

25. Select the Configure DHCP options for Proxy DHCP checkbox and click Next.

030523 2023 HowtoRebuil19 - How to Rebuild DataOn Host via PXE

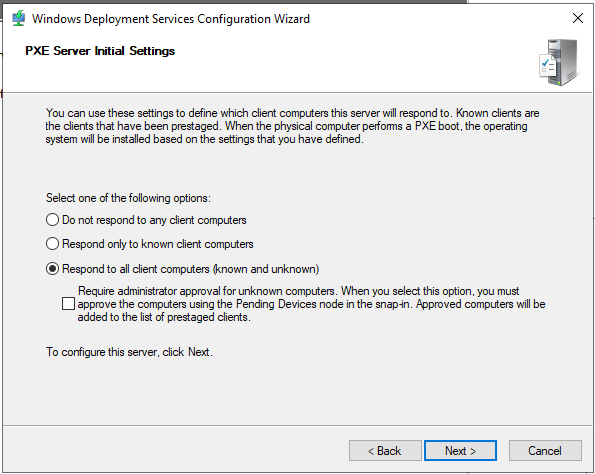

26. Select Respond to all client computers (known and unknown) and click Next.

030523 2023 HowtoRebuil20 - How to Rebuild DataOn Host via PXE

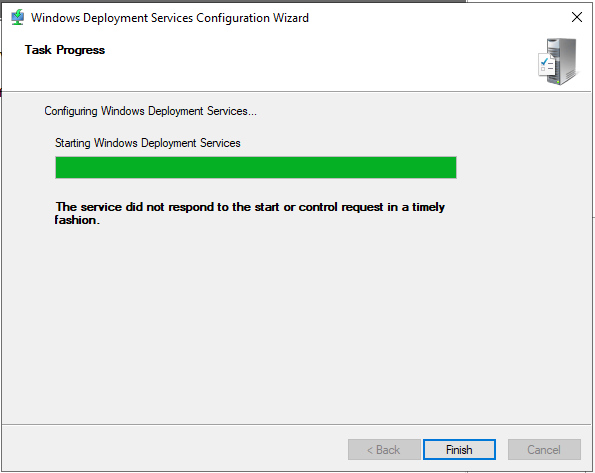

27. Click Finish on the Task Progress page.

030523 2023 HowtoRebuil21 - How to Rebuild DataOn Host via PXE

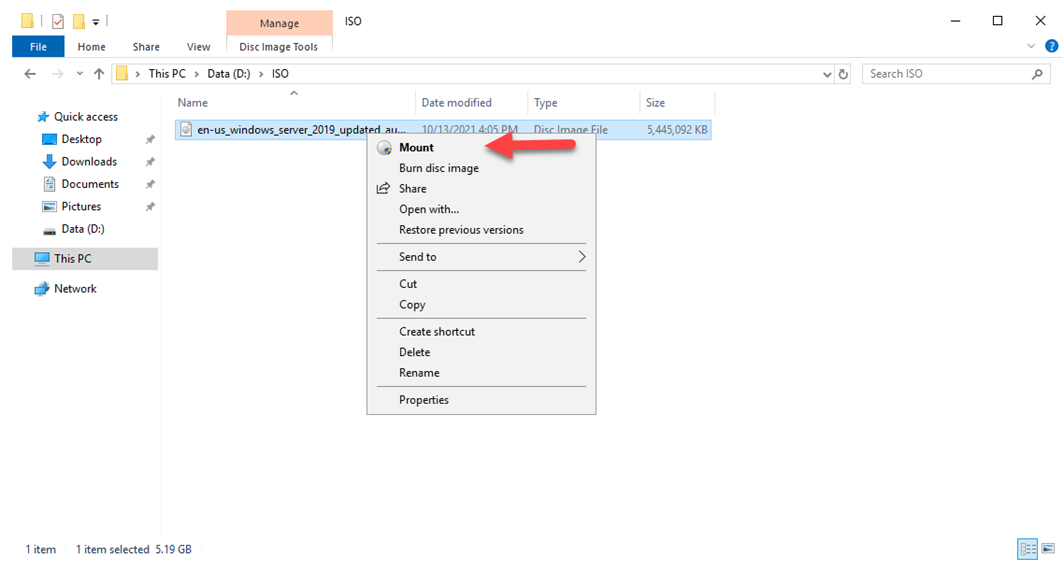

28. Mount the Windows OS iso image file.

030523 2023 HowtoRebuil22 - How to Rebuild DataOn Host via PXE

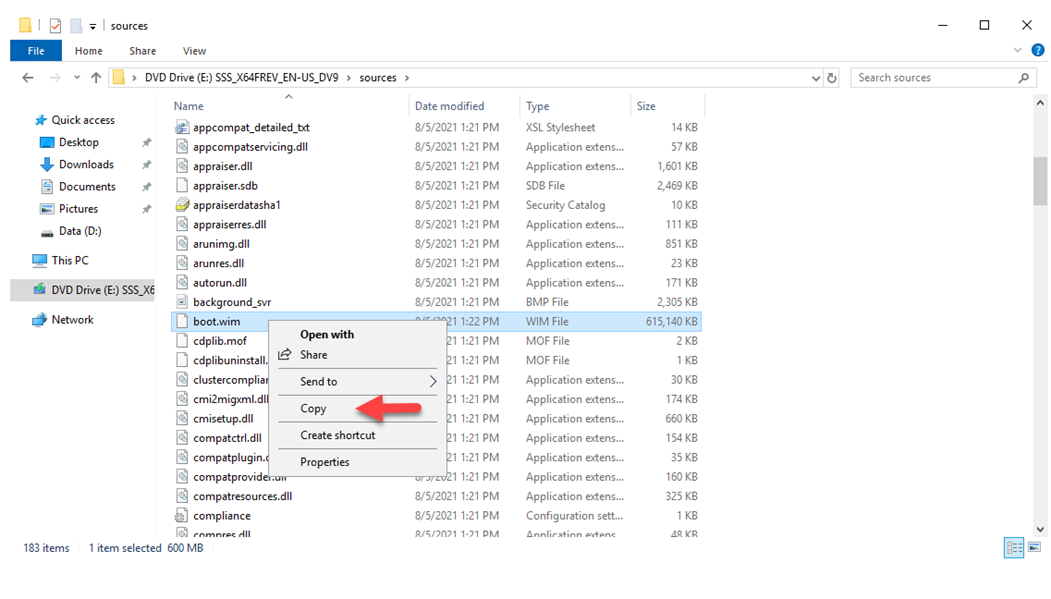

29. Copy the boot.wim file.

030523 2023 HowtoRebuil23 - How to Rebuild DataOn Host via PXE

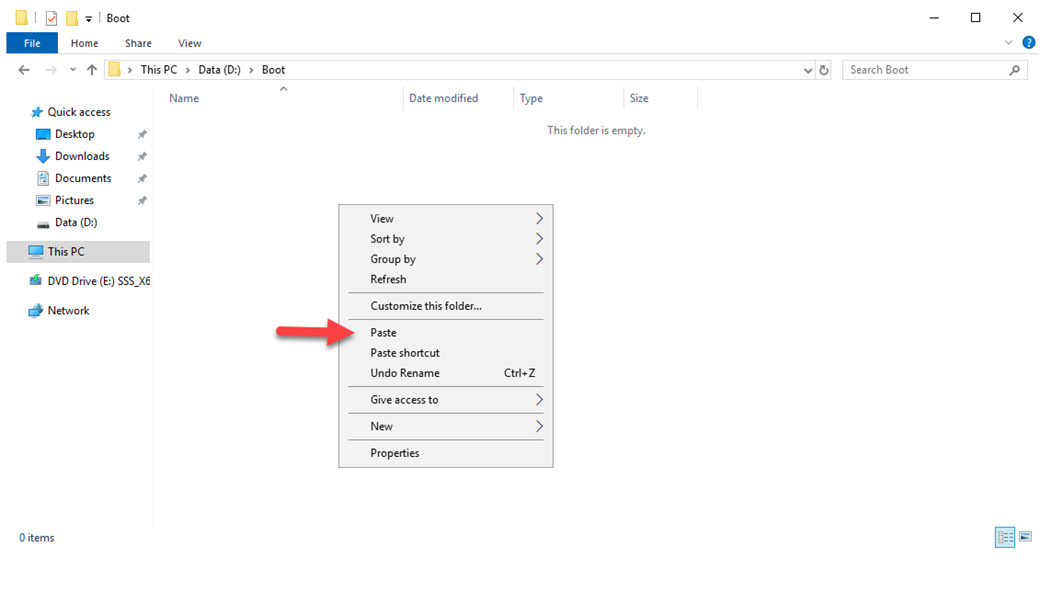

30. Paste the boot.wim file to the Boot folder.

030523 2023 HowtoRebuil24 - How to Rebuild DataOn Host via PXE

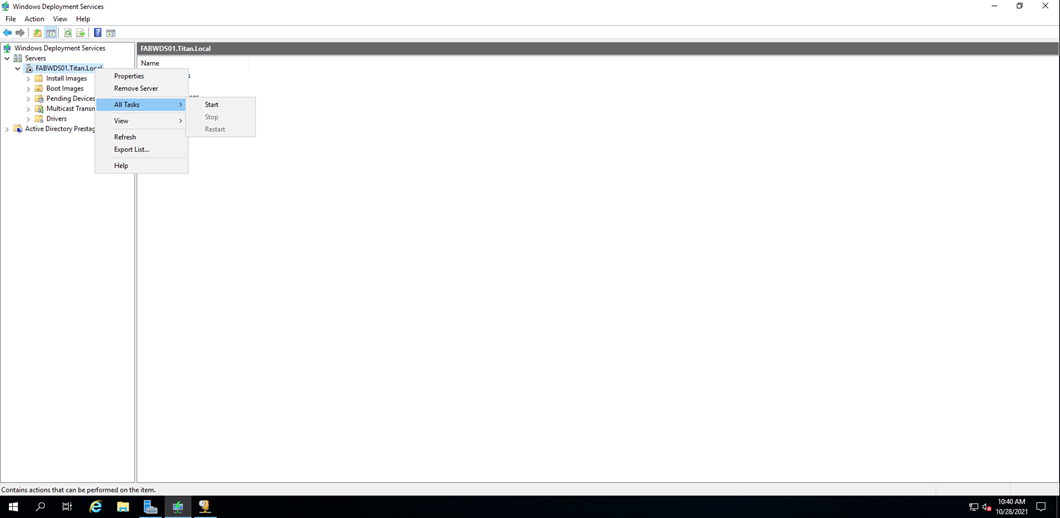

31. On the Windows Deployment Services page, right-click the WDS server.

32. Select All Tasks and click Start.

030523 2023 HowtoRebuil25 - How to Rebuild DataOn Host via PXE

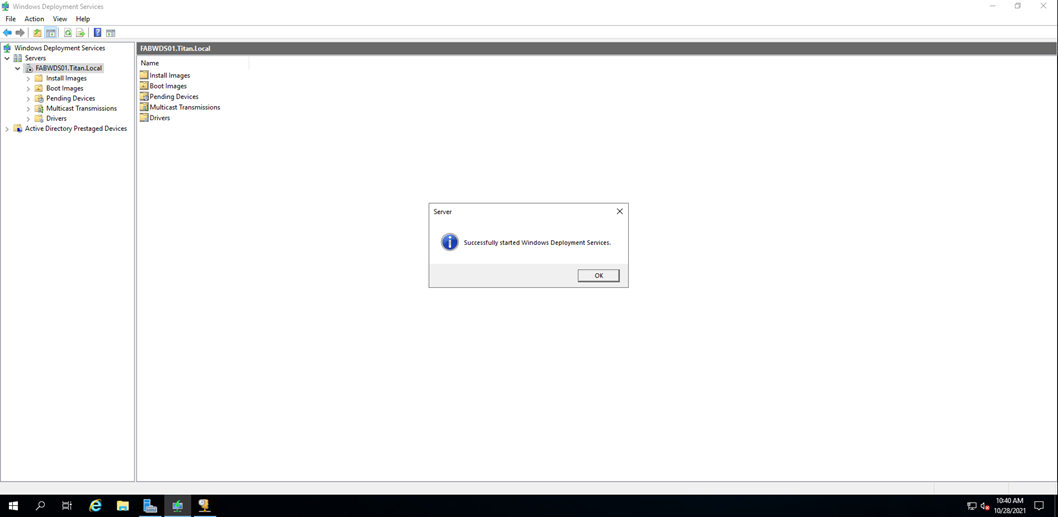

33. Click OK on the Successfully started Windows Deployment Services information message.

030523 2023 HowtoRebuil26 - How to Rebuild DataOn Host via PXE

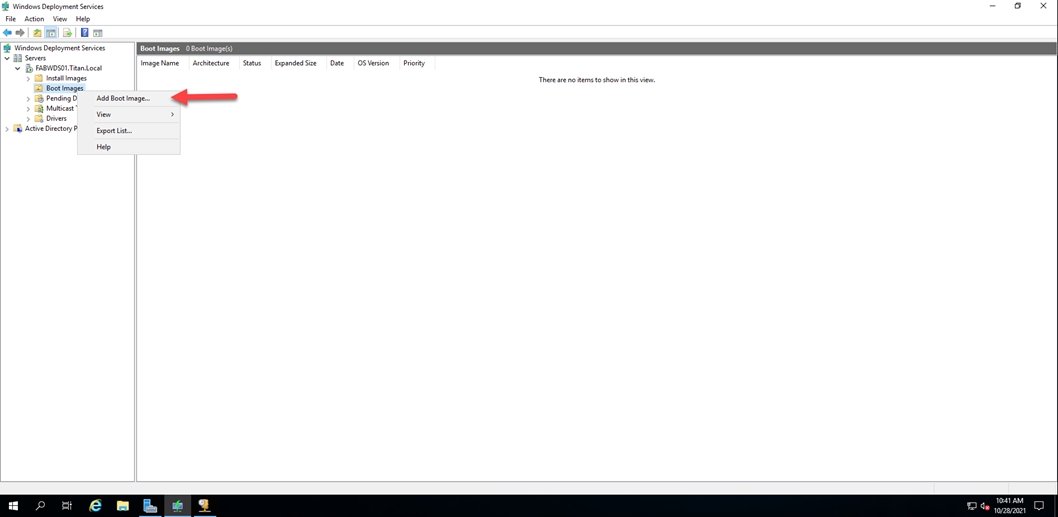

34. Expand the WDS server, right-click Add Boot Images and click Add Boot Image.

030523 2023 HowtoRebuil27 - How to Rebuild DataOn Host via PXE

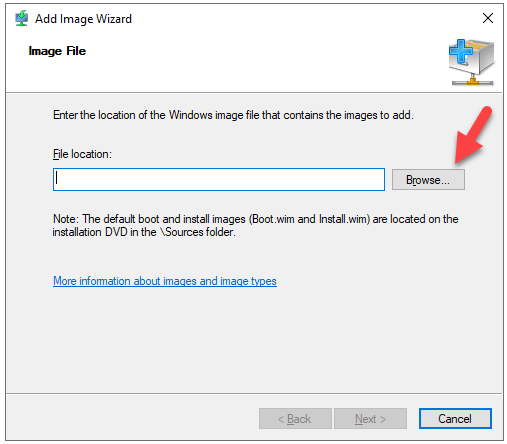

35. Click Browse on the Image file page.

030523 2023 HowtoRebuil28 - How to Rebuild DataOn Host via PXE

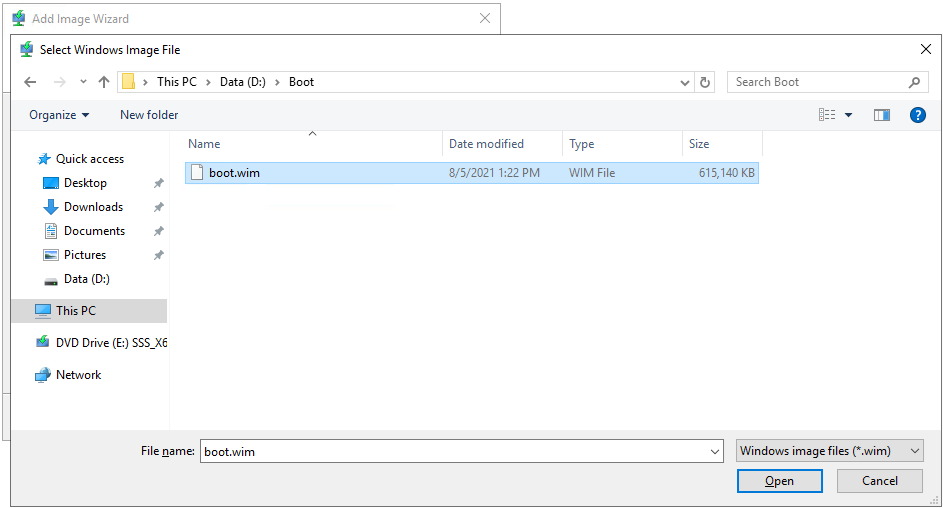

36. Select the boot.wim file and click Open.

030523 2023 HowtoRebuil29 - How to Rebuild DataOn Host via PXE

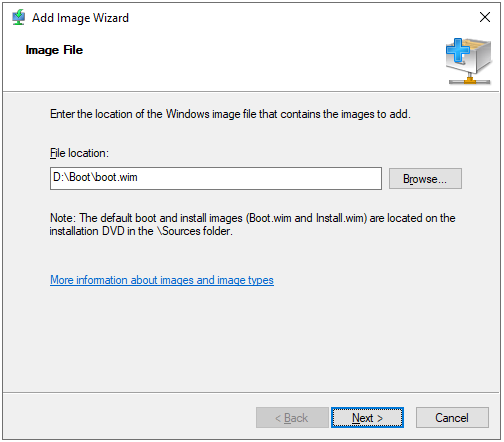

37. Click Next on the Image File page.

030523 2023 HowtoRebuil30 - How to Rebuild DataOn Host via PXE

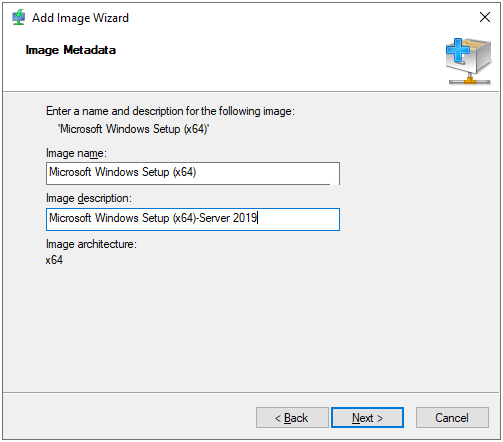

38. enter the image’s description in the description field and click Next.

030523 2023 HowtoRebuil31 - How to Rebuild DataOn Host via PXE

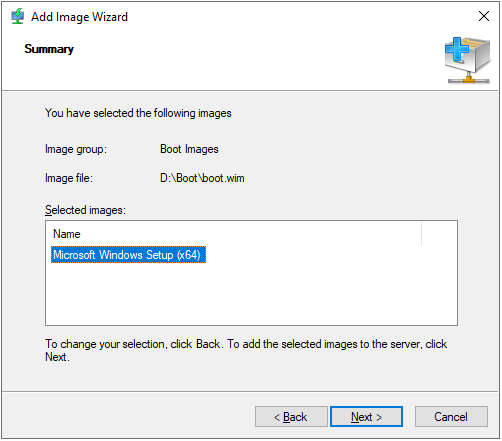

39. Click Next on the Summary page.

030523 2023 HowtoRebuil32 - How to Rebuild DataOn Host via PXE

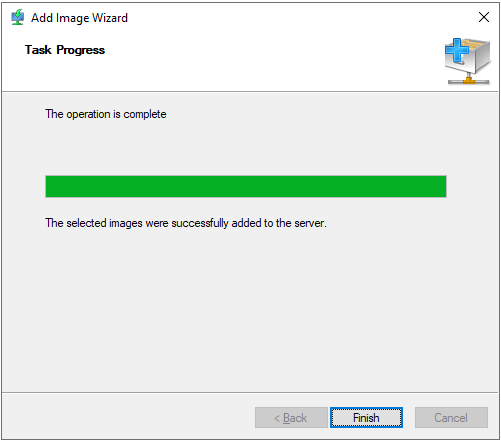

40. Click Finish on the Task Progress page.

030523 2023 HowtoRebuil33 - How to Rebuild DataOn Host via PXE

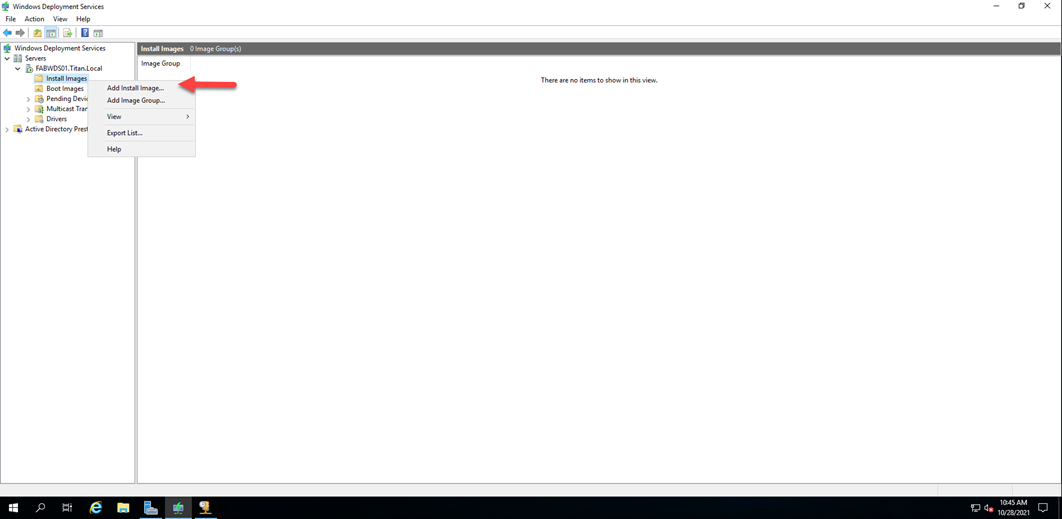

41. Expand the WDS server, right-click Install Images and click Add Install Image.

030523 2023 HowtoRebuil34 - How to Rebuild DataOn Host via PXE

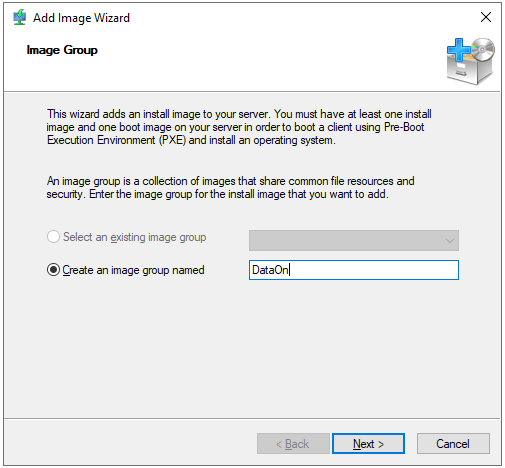

42. Select Create an image group named on the Image Group page.

43. Enter a name in the field and click Next.

030523 2023 HowtoRebuil35 - How to Rebuild DataOn Host via PXE

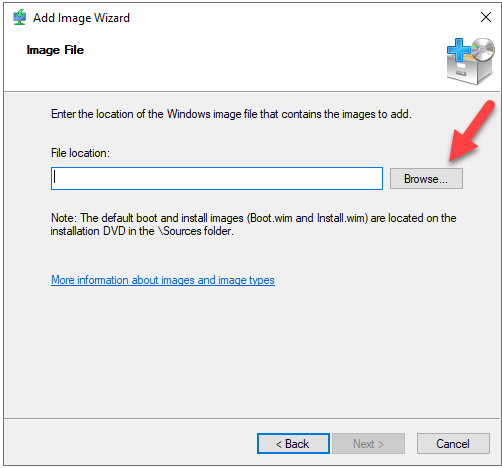

44. Click Browse on the Image File page.

030523 2023 HowtoRebuil36 - How to Rebuild DataOn Host via PXE

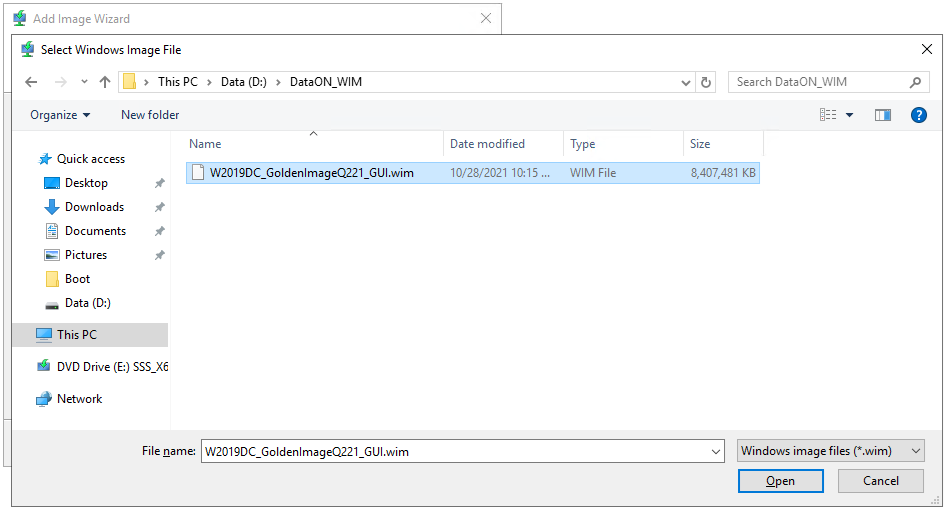

45. Select the DataOn custom WIM image file and click Open.

030523 2023 HowtoRebuil37 - How to Rebuild DataOn Host via PXE

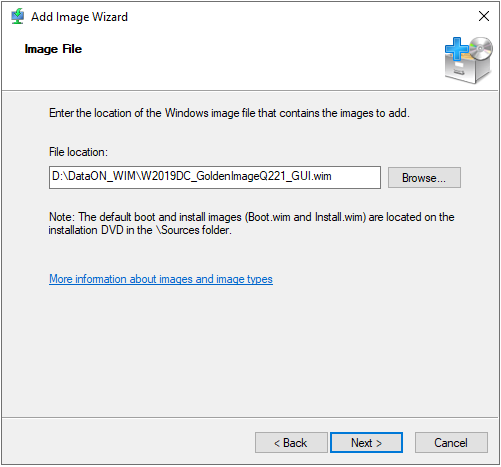

46. Click Next on the Image File page.

030523 2023 HowtoRebuil38 - How to Rebuild DataOn Host via PXE

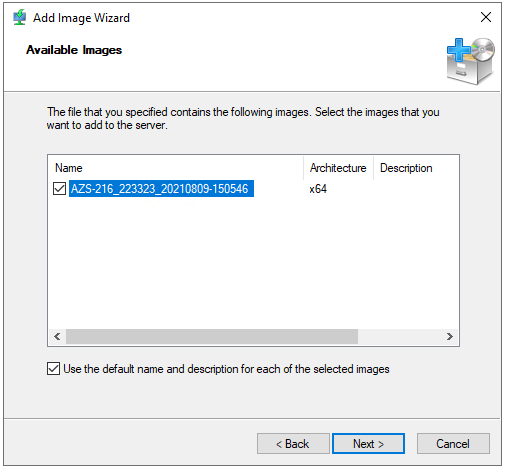

47. Select the image checkbox from the list on the Available images page.

48. Select Use the default name and description for each of the selected images checkbox and click Next.

030523 2023 HowtoRebuil39 - How to Rebuild DataOn Host via PXE

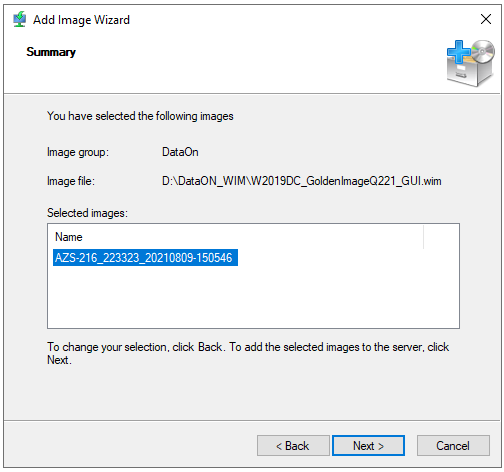

49. Click Next on the Summary page.

030523 2023 HowtoRebuil40 - How to Rebuild DataOn Host via PXE

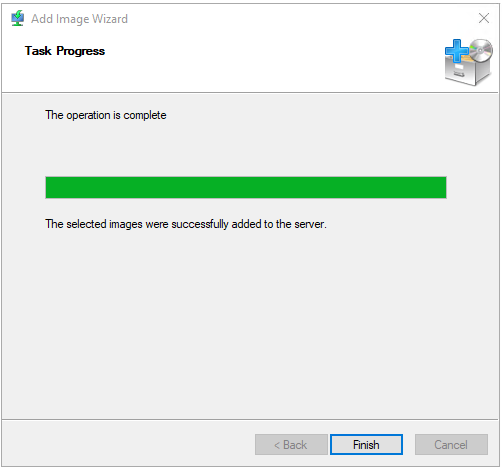

50. Click Finish on the Task Progress page.

030523 2023 HowtoRebuil41 - How to Rebuild DataOn Host via PXE

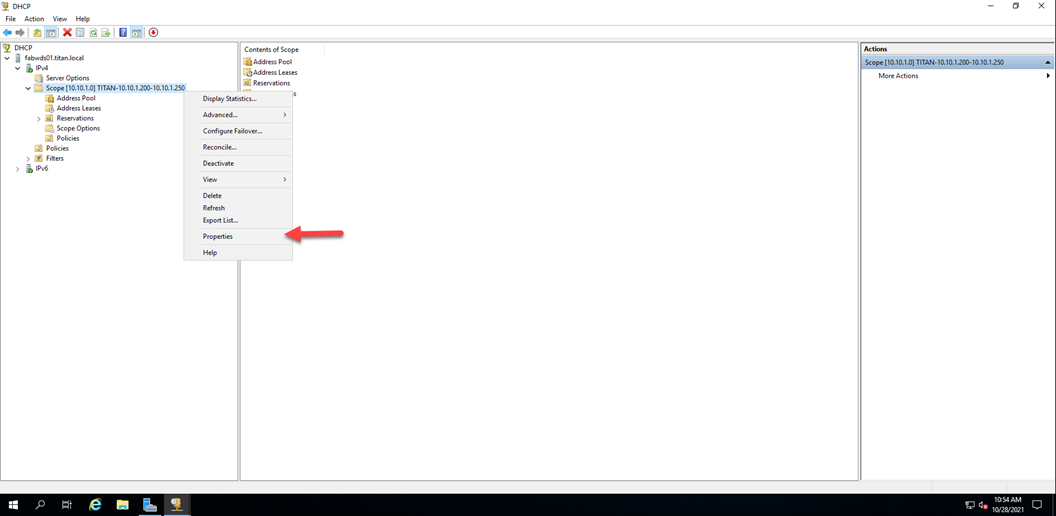

51. Open the DHCP manager tool, right-click Scope and select Properties.

030523 2023 HowtoRebuil42 - How to Rebuild DataOn Host via PXE

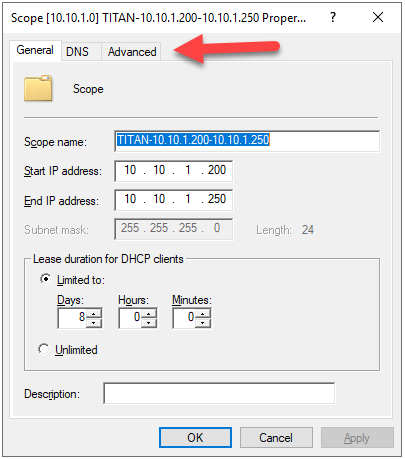

52. Select Advance on the Scope page.

030523 2023 HowtoRebuil43 - How to Rebuild DataOn Host via PXE

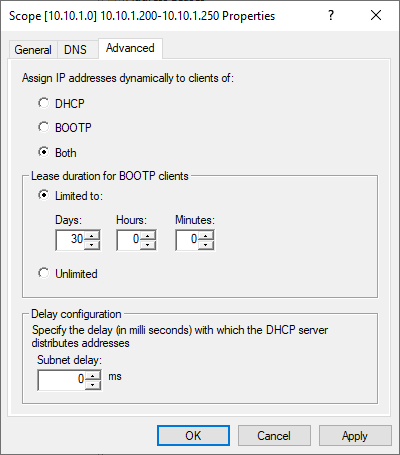

53. Ensure to enable BOOTP and click OK.

030523 2023 HowtoRebuil44 - How to Rebuild DataOn Host via PXE

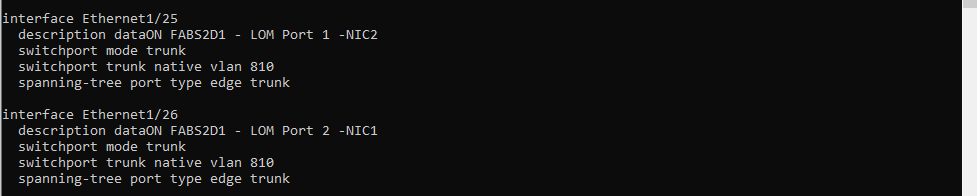

54. Ensure the network settings are correct.

030523 2023 HowtoRebuil45 - How to Rebuild DataOn Host via PXE

030523 2023 HowtoRebuil46 - How to Rebuild DataOn Host via PXE

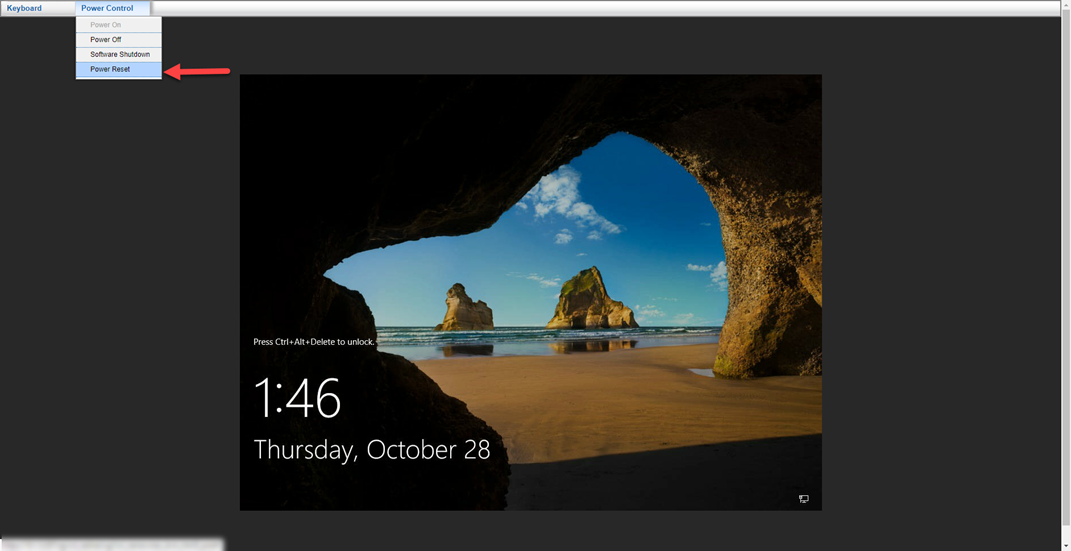

55. Open IPMI and select Power Resr from the Power Control drop-down list.

030523 2023 HowtoRebuil47 - How to Rebuild DataOn Host via PXE

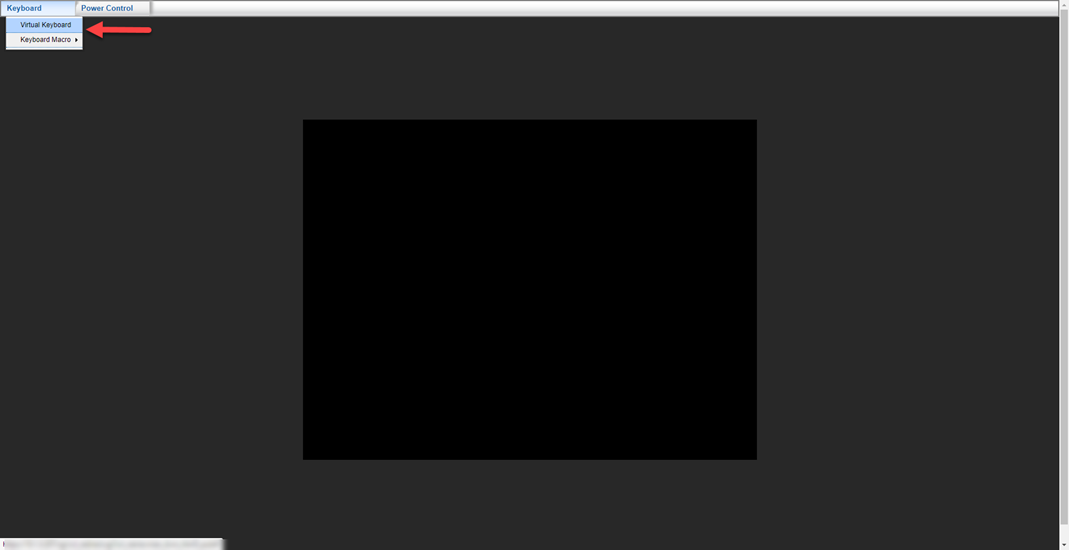

56. Select Virtual Keyboard from the Kepboard drop-down list.

030523 2023 HowtoRebuil48 - How to Rebuild DataOn Host via PXE

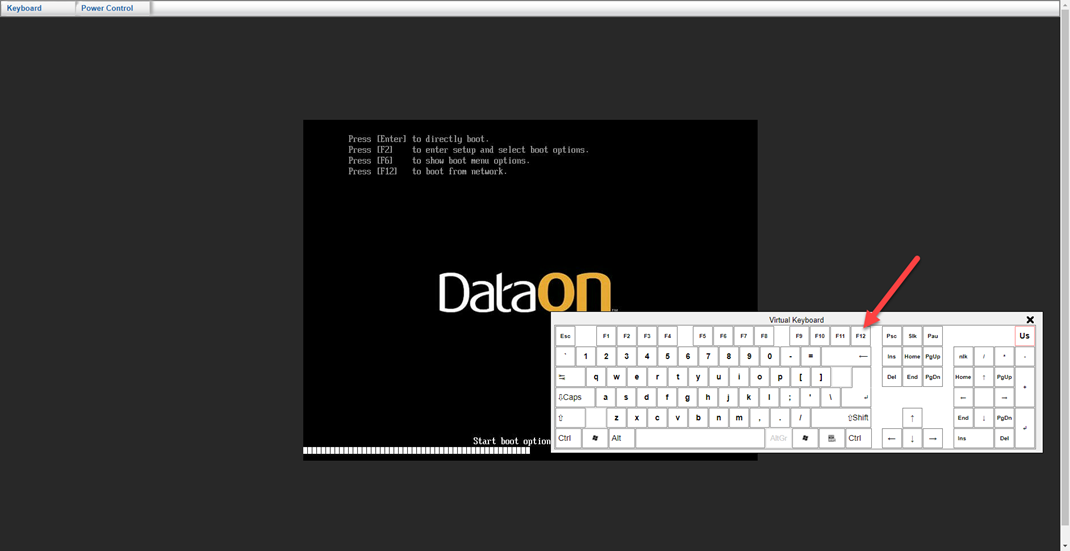

57. Click F12 on the Virtual Keyboard to boot from network.

030523 2023 HowtoRebuil49 - How to Rebuild DataOn Host via PXE

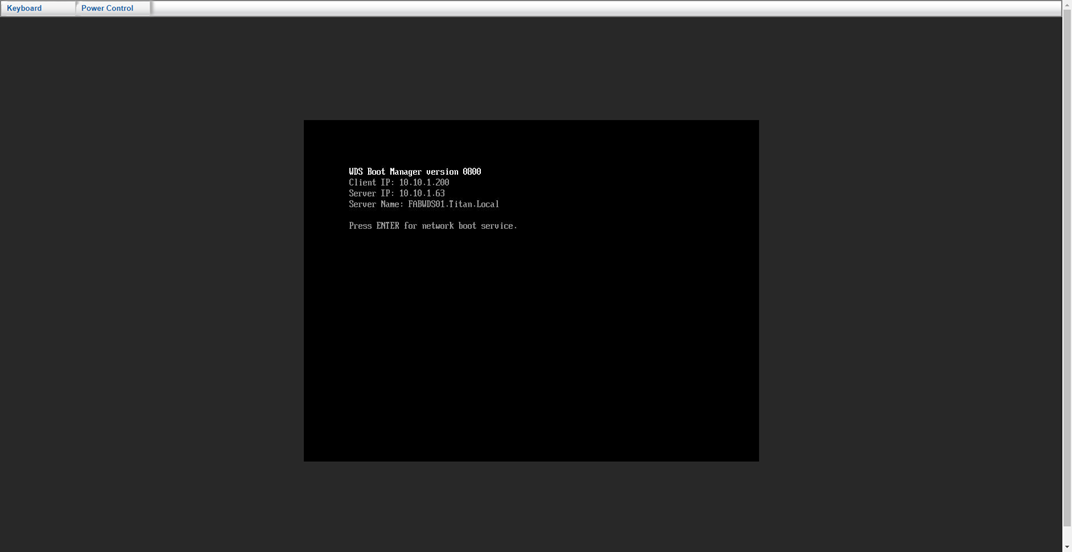

58. Press Enter key for network boot services.

030523 2023 HowtoRebuil50 - How to Rebuild DataOn Host via PXE

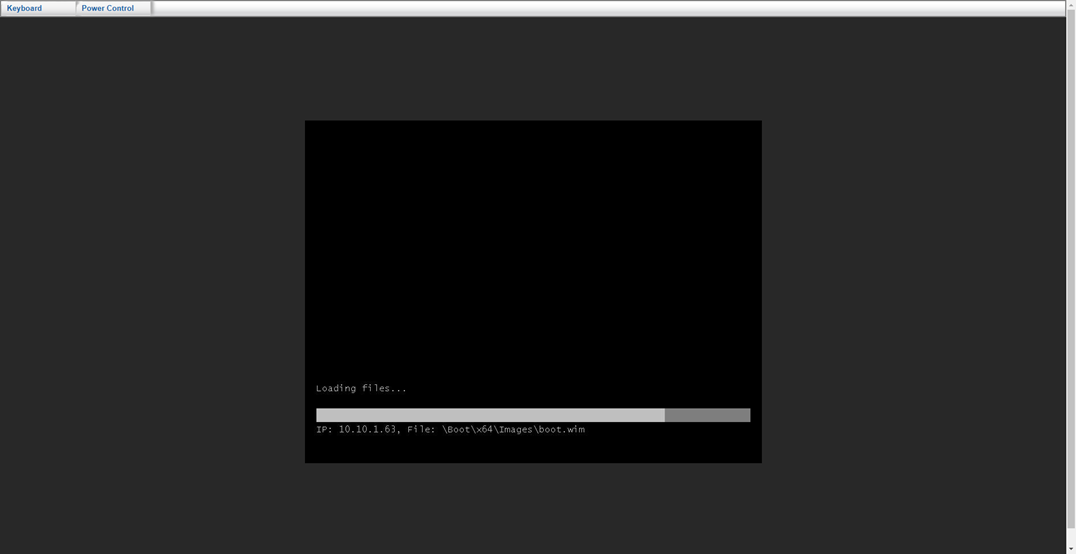

59. Ensure the DataOn host boot from the boot.wim image.

030523 2023 HowtoRebuil51 - How to Rebuild DataOn Host via PXE

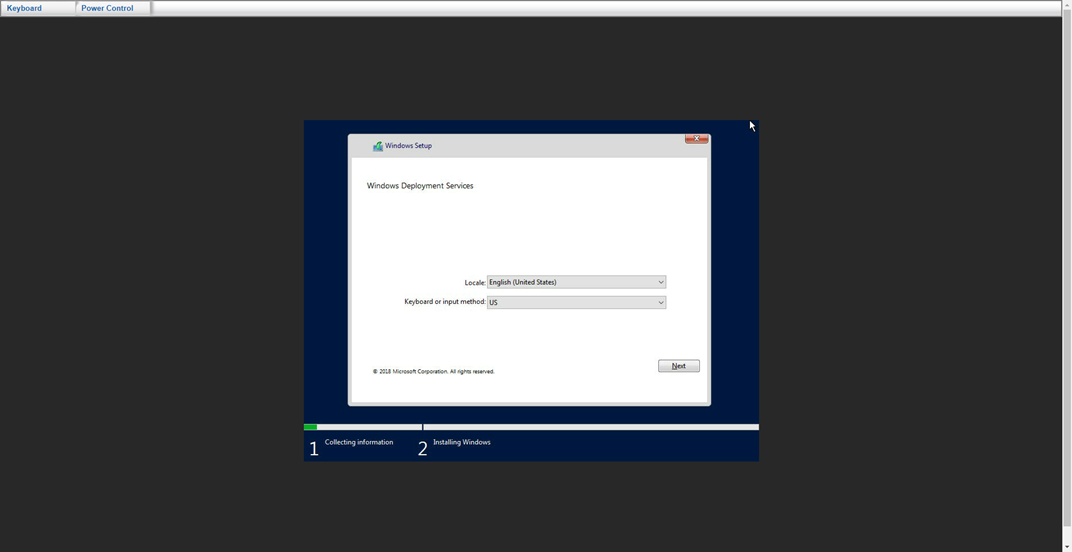

60. Click Next on the Windows Deployment Services page.

030523 2023 HowtoRebuil52 - How to Rebuild DataOn Host via PXE

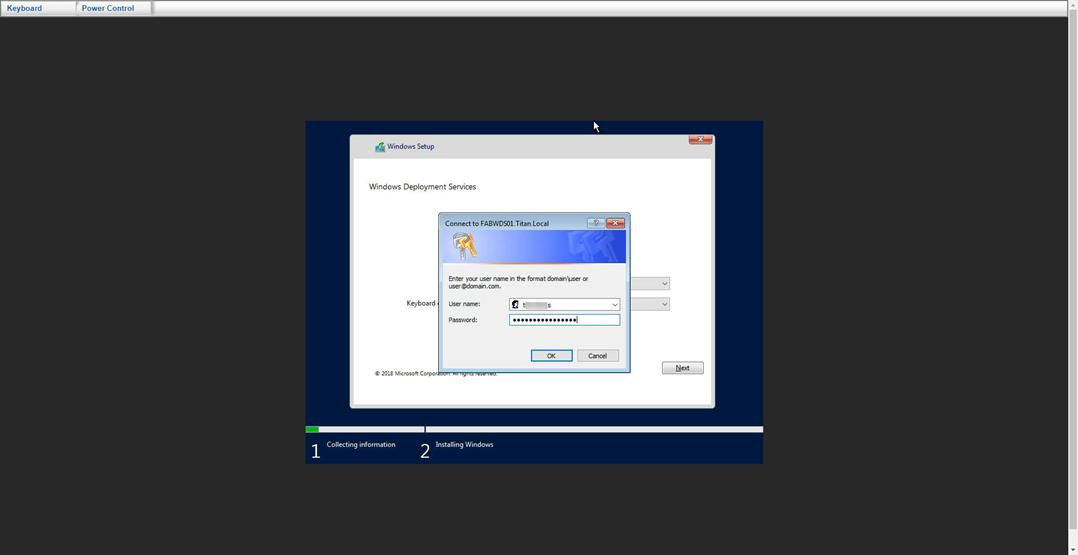

61. Enter a domain username and password, and click OK.

030523 2023 HowtoRebuil53 - How to Rebuild DataOn Host via PXE

62. Select the custom Operating system image and click Next.

030523 2023 HowtoRebuil54 - How to Rebuild DataOn Host via PXE

63. Following the installation steps to complete the installation Windows Operating system.
