030623 1927 HowtoRebuil13 - How to Rebuild a dataOn Host via Virtual Media Wizard
There are many ways to rebuild the Hyper-V host, but I will show you how to rebuild a Microsoft Hyper-V host via Virtual Media Wizard. This process is also can use for other vendors' machines, not for the dataOn host only.

There are many ways to rebuild the Hyper-V host, but I will show you how to rebuild a Microsoft Hyper-V host via Virtual Media Wizard. This process is also can use for other vendors’ machines, not for the dataOn host only.

1. Log in to a domain member machine and download the OS ISO image.

2. Access the dataON machine via IPMI.

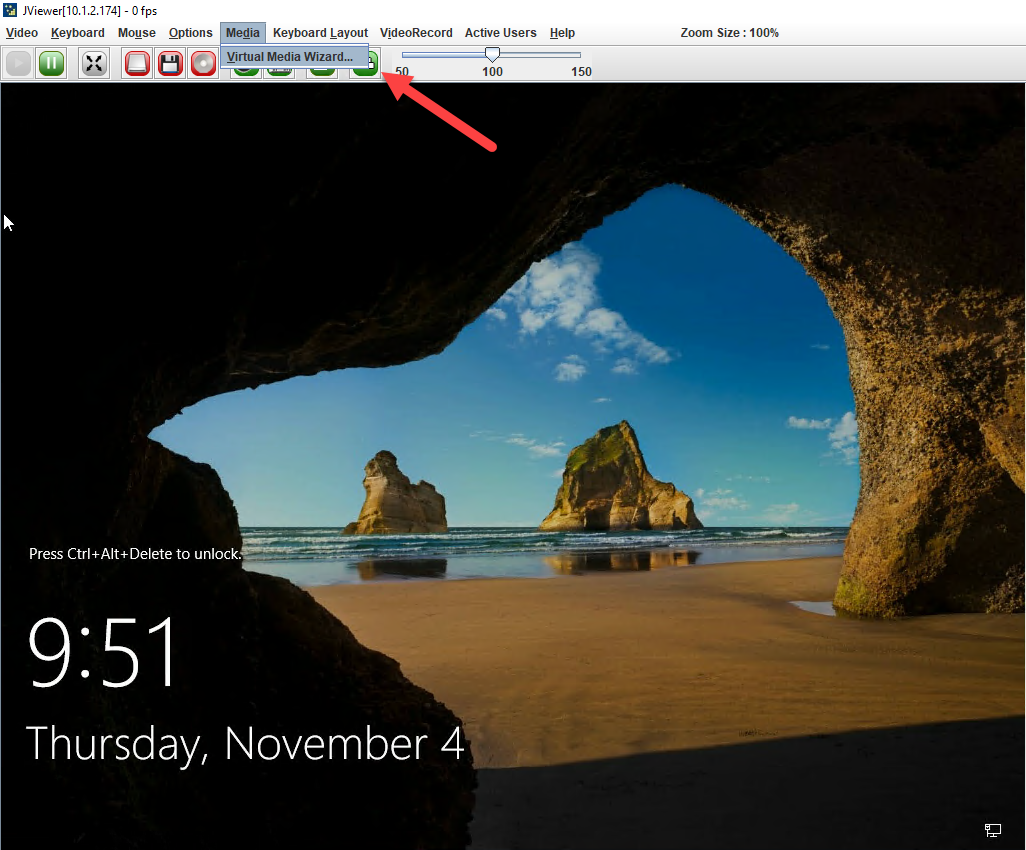

3. Select the Virtual Media Wizard from the Media drop-down list.

030623 1927 HowtoRebuil1 - How to Rebuild a dataOn Host via Virtual Media Wizard

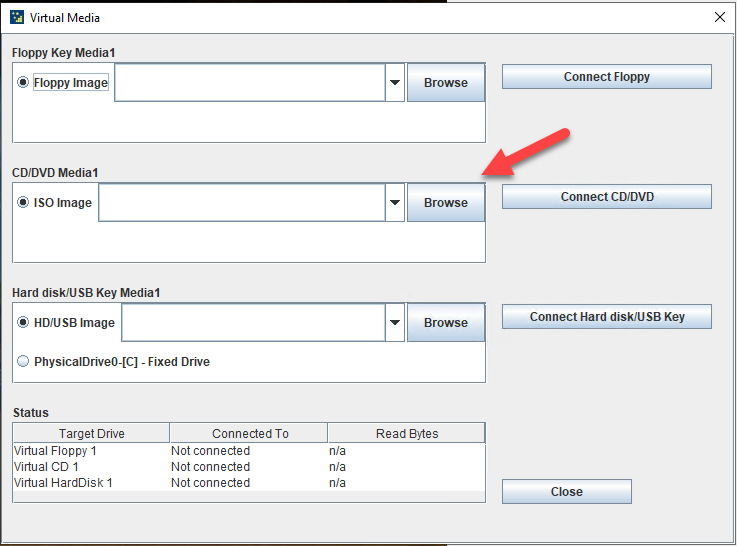

4. Select ISO image on the Virtual Media and click Browse.

030623 1927 HowtoRebuil2 - How to Rebuild a dataOn Host via Virtual Media Wizard

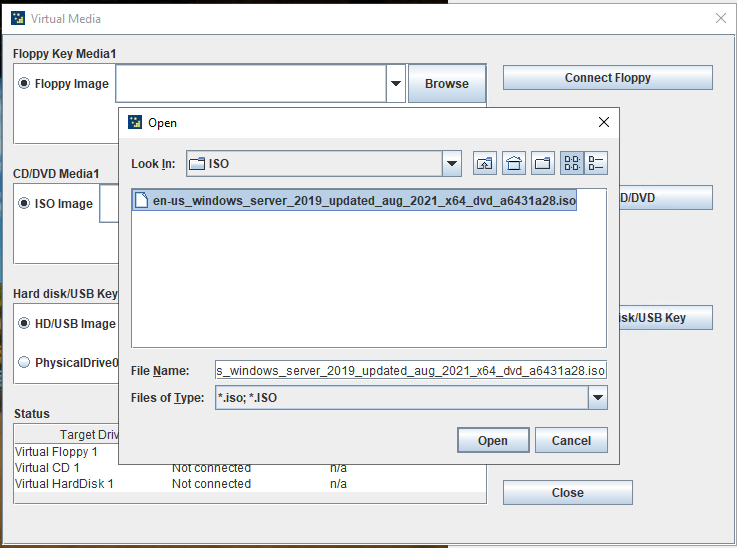

5. Select the OS ISO image file and click Open.

030623 1927 HowtoRebuil3 - How to Rebuild a dataOn Host via Virtual Media Wizard

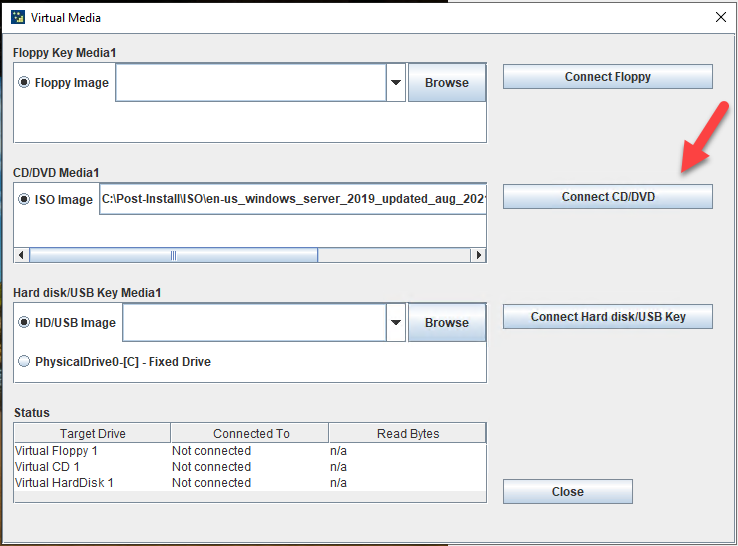

6. Click Connect CD/DVD on the Virtual Media page.

030623 1927 HowtoRebuil4 - How to Rebuild a dataOn Host via Virtual Media Wizard

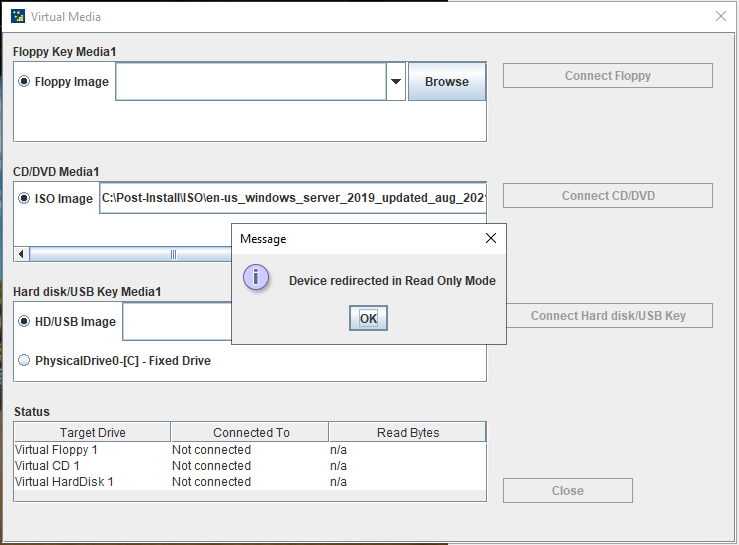

7. Click OK on the Device redirected in Read Only Mode message page.

030623 1927 HowtoRebuil5 - How to Rebuild a dataOn Host via Virtual Media Wizard

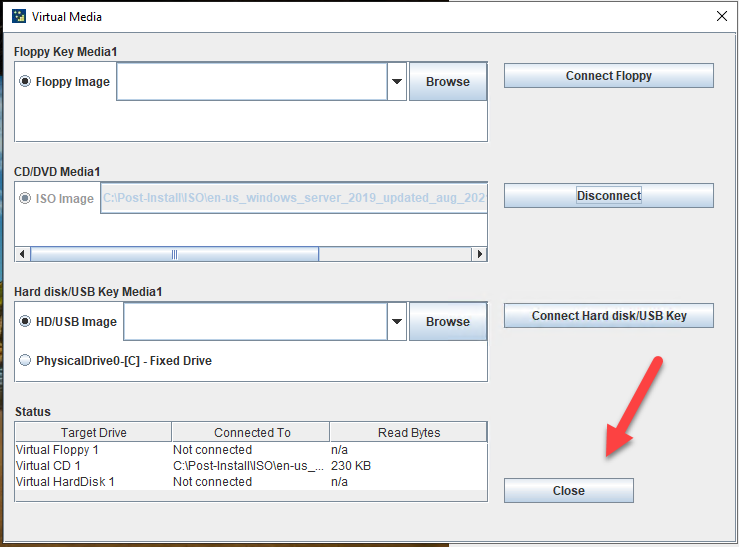

8. Click Close on the Virtual Media page.

030623 1927 HowtoRebuil6 - How to Rebuild a dataOn Host via Virtual Media Wizard

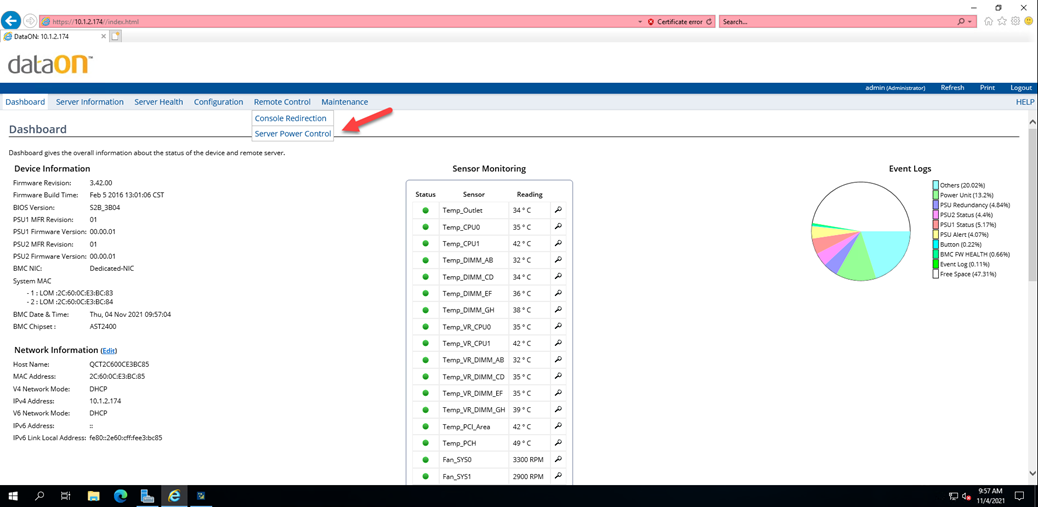

9. Select Server Power Control from the Remote Control drop-down list.

030623 1927 HowtoRebuil7 - How to Rebuild a dataOn Host via Virtual Media Wizard

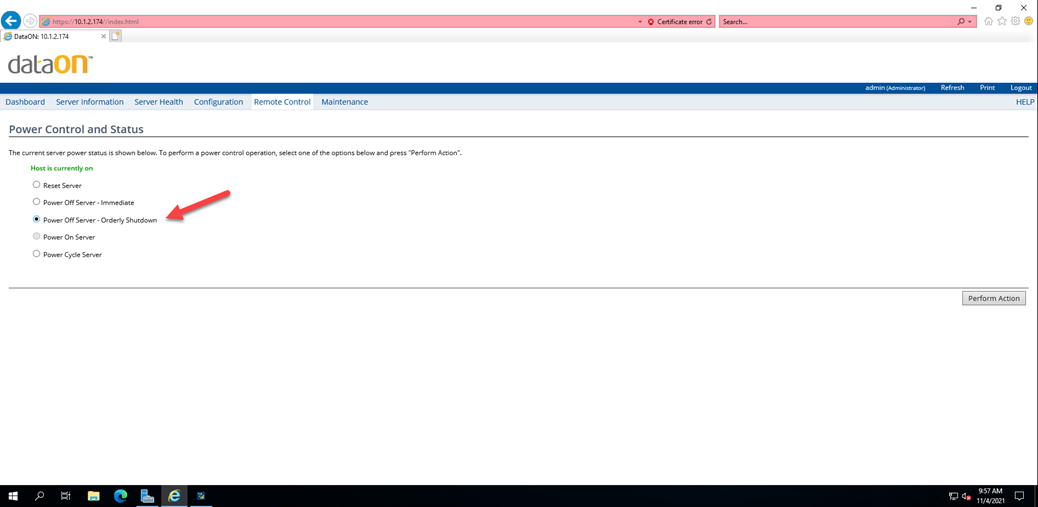

10. Select Power Off Server – Orderly Shutdown on the Power Control and Status page, and click Perform Action.

030623 1927 HowtoRebuil8 - How to Rebuild a dataOn Host via Virtual Media Wizard

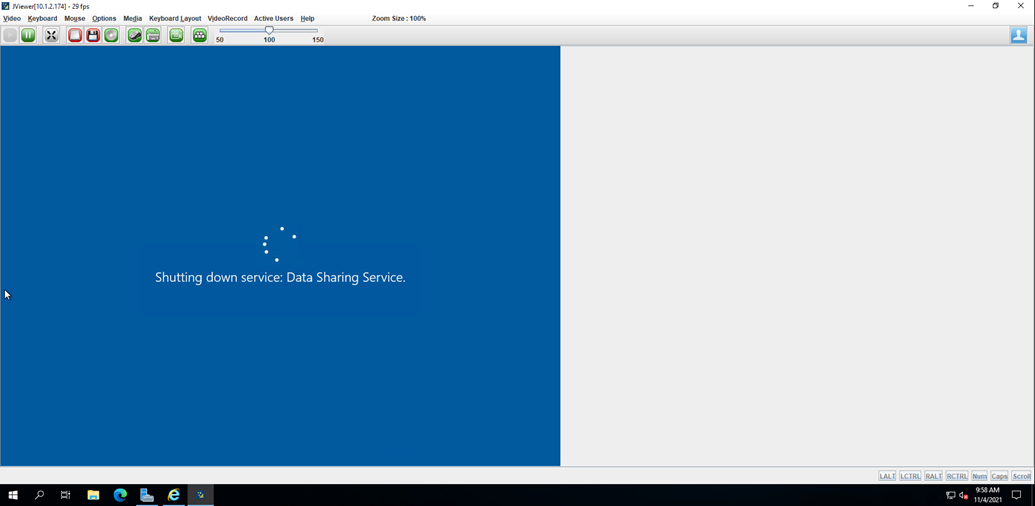

11. Ensure the machine shutdown is completed.

030623 1927 HowtoRebuil9 - How to Rebuild a dataOn Host via Virtual Media Wizard

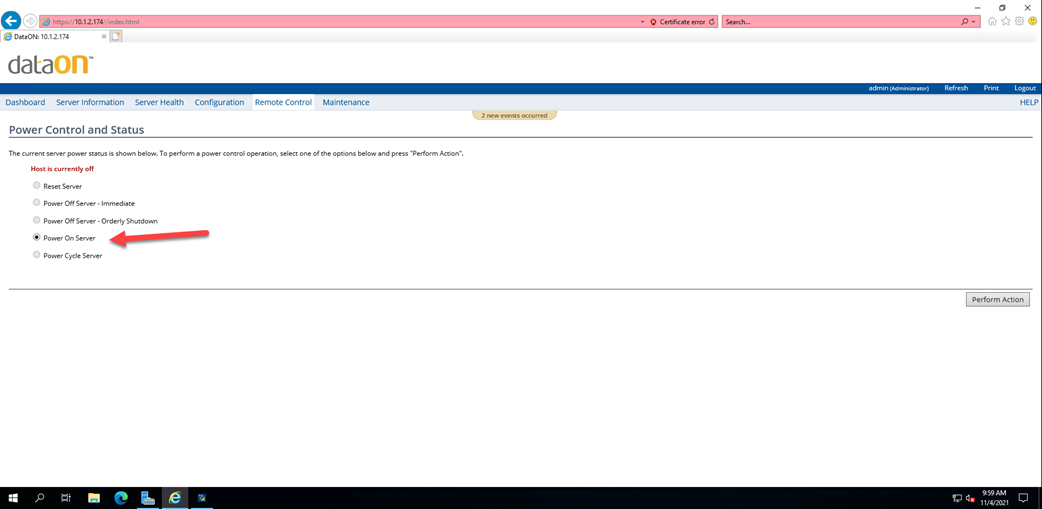

12. Select Power On Server on the Power Control and Status page, and click Perform Action.

030623 1927 HowtoRebuil10 - How to Rebuild a dataOn Host via Virtual Media Wizard

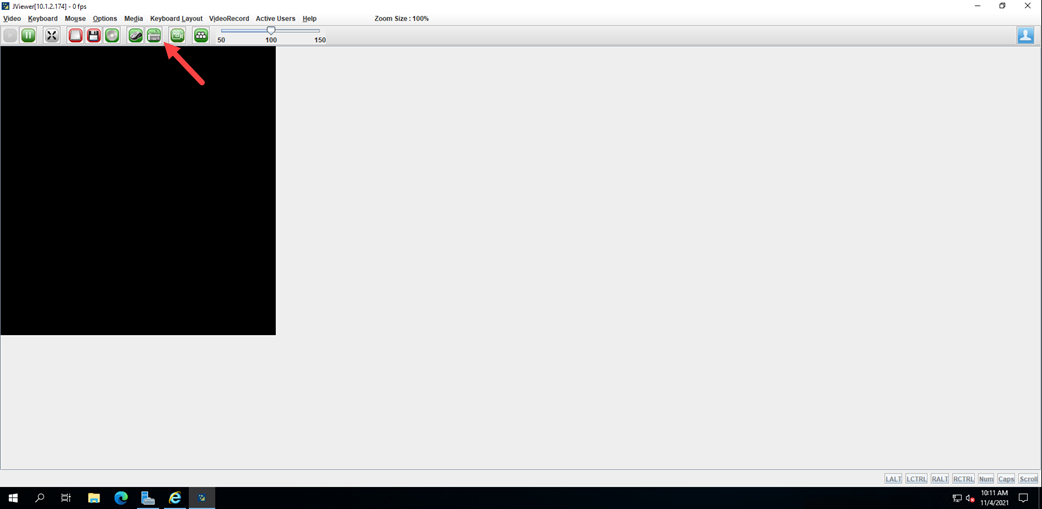

13. Select the Virtual Keyboard on the IPMI.

030623 1927 HowtoRebuil11 - How to Rebuild a dataOn Host via Virtual Media Wizard

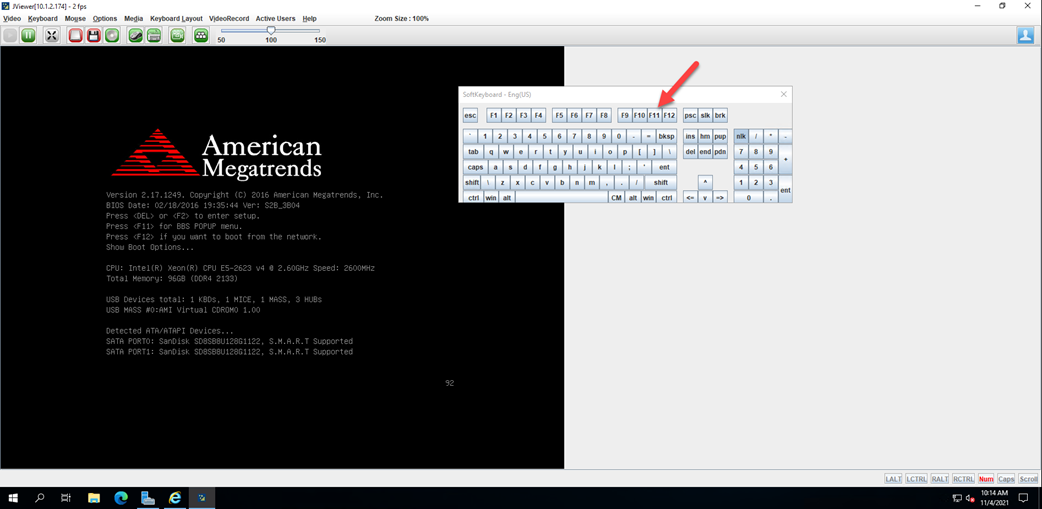

14. Click F11 at the boot procedure.

030623 1927 HowtoRebuil12 - How to Rebuild a dataOn Host via Virtual Media Wizard

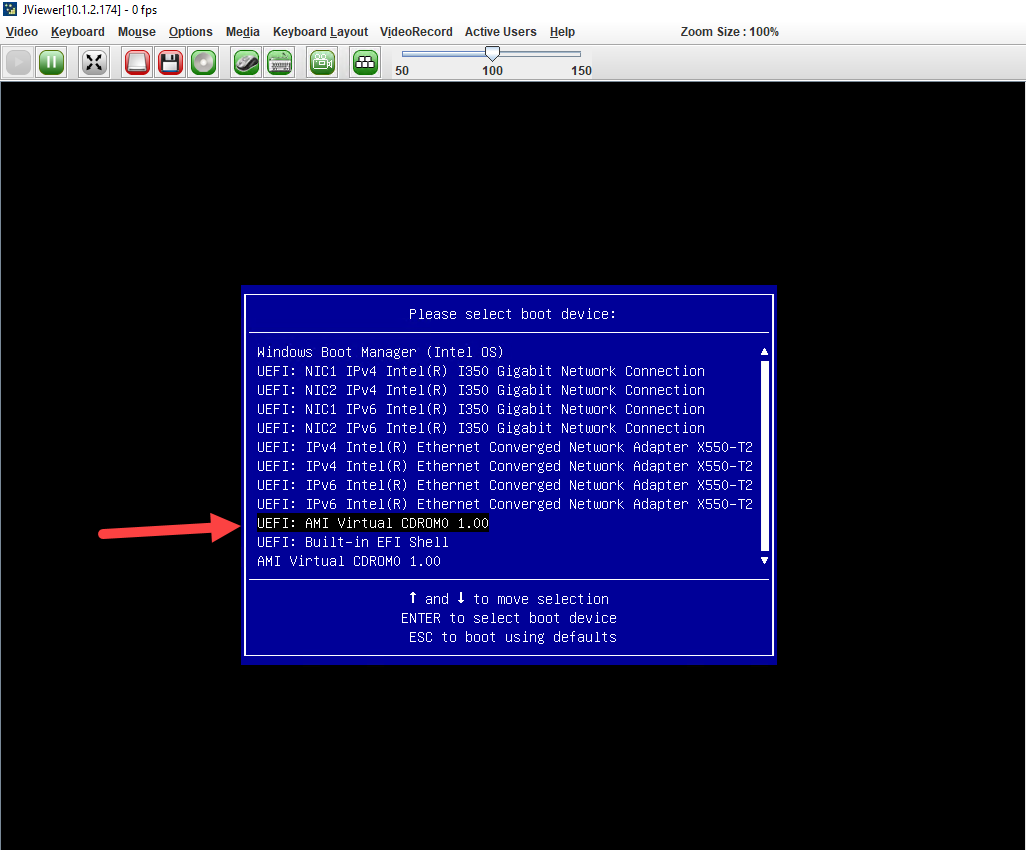

15. Select UEFI: AMI Virtual CDROM0 1.00 on the Windows Boot Manager (Intel OS) drop-down list.

030623 1927 HowtoRebuil13 - How to Rebuild a dataOn Host via Virtual Media Wizard

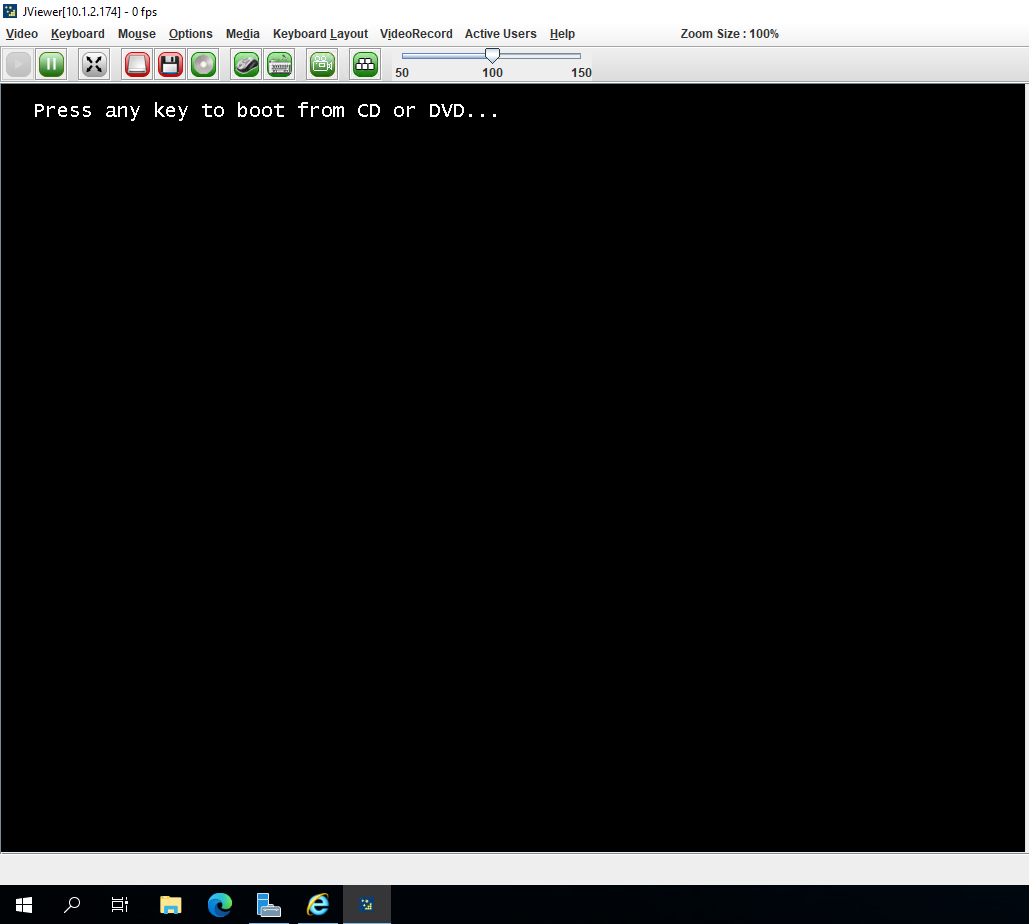

16. Press the Enter key to boot from the DVD.

030623 1927 HowtoRebuil14 - How to Rebuild a dataOn Host via Virtual Media Wizard

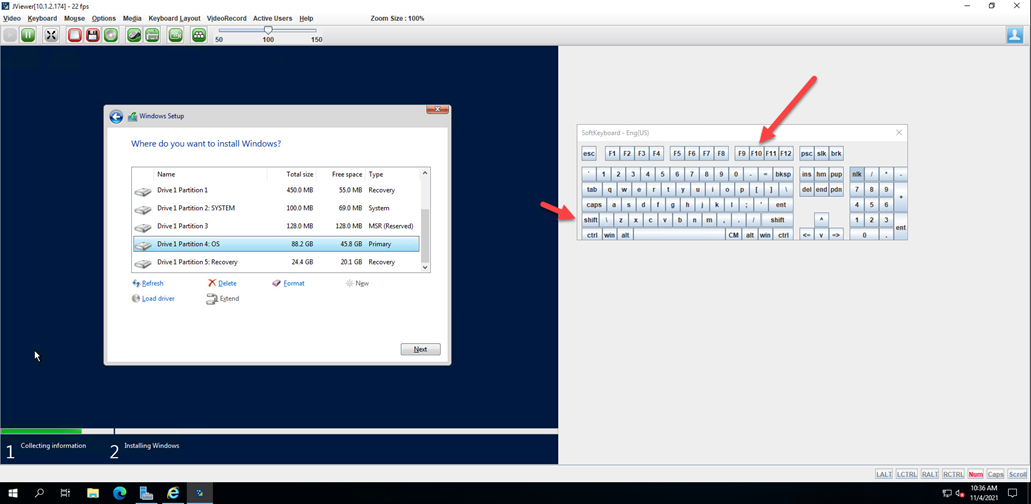

17. Click shift + F10 on the Where do you want to install Windows page.

030623 1927 HowtoRebuil15 - How to Rebuild a dataOn Host via Virtual Media Wizard

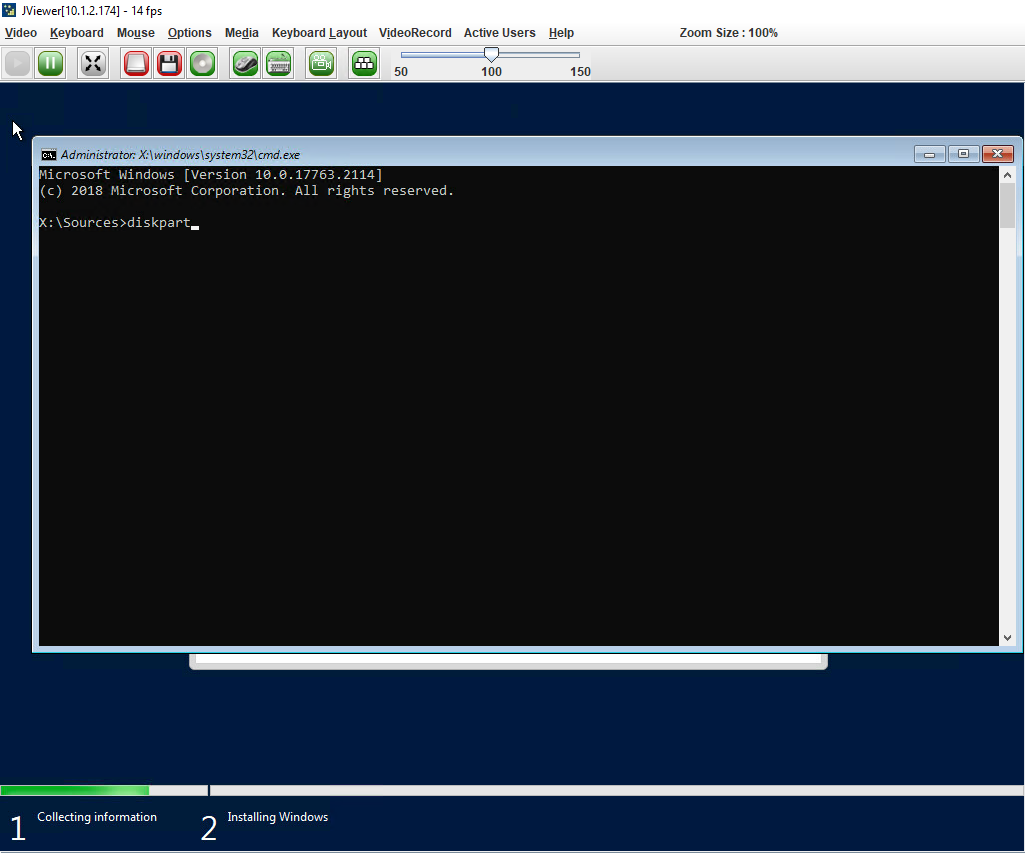

18. type diskpart on the command prompt.

030623 1927 HowtoRebuil16 - How to Rebuild a dataOn Host via Virtual Media Wizard

19. Type list disk on the command prompt.

030623 1927 HowtoRebuil17 - How to Rebuild a dataOn Host via Virtual Media Wizard

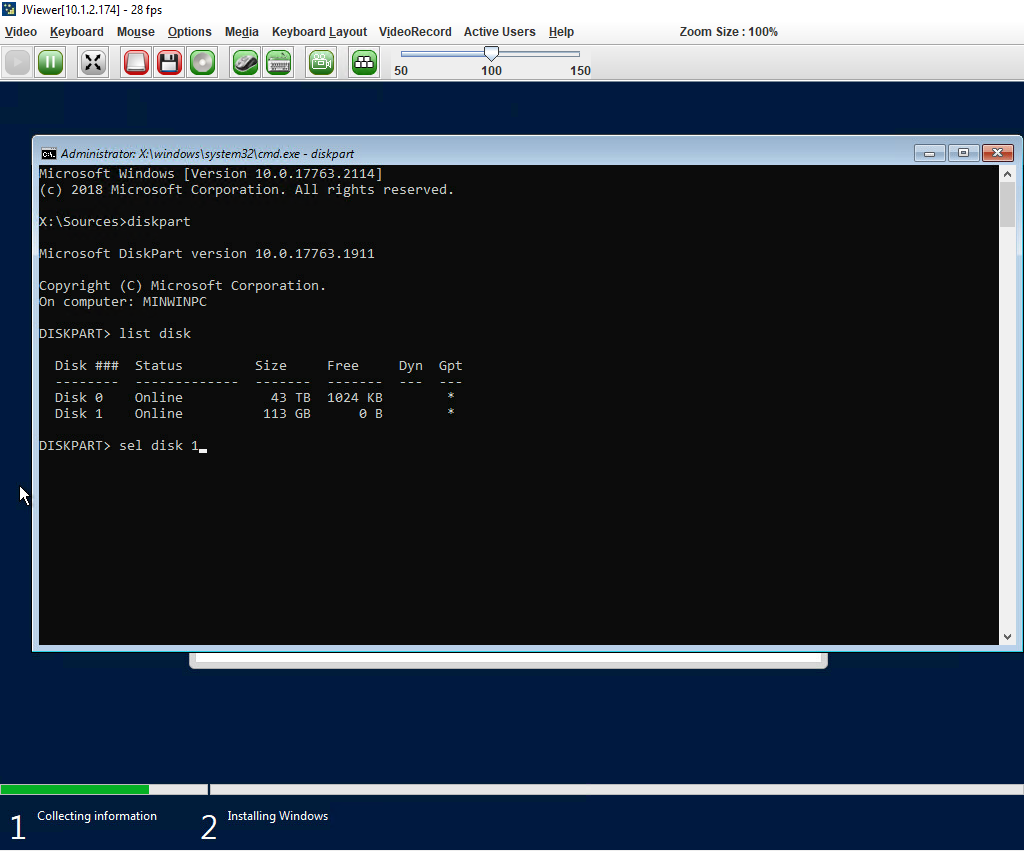

20. type select disk 1 on the command prompt.

030623 1927 HowtoRebuil18 - How to Rebuild a dataOn Host via Virtual Media Wizard

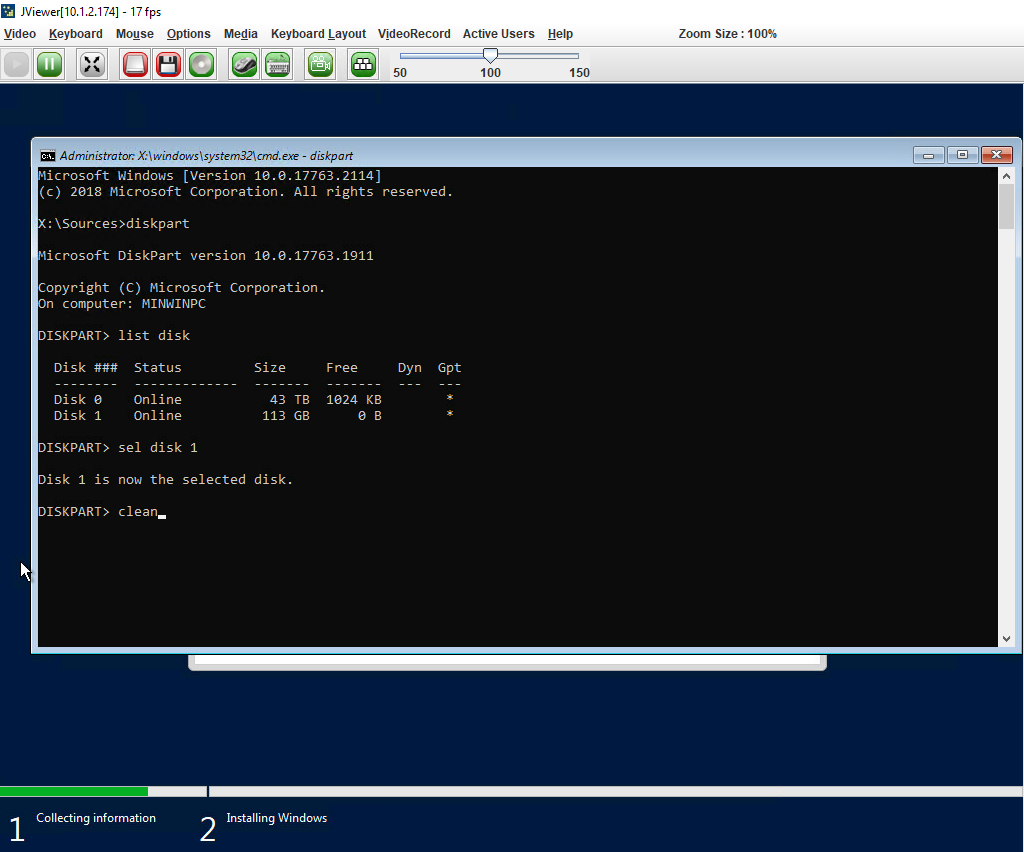

21. Type clean on the command prompt.

030623 1927 HowtoRebuil19 - How to Rebuild a dataOn Host via Virtual Media Wizard

22. Type exit on the command prompt.

030623 1927 HowtoRebuil20 - How to Rebuild a dataOn Host via Virtual Media Wizard

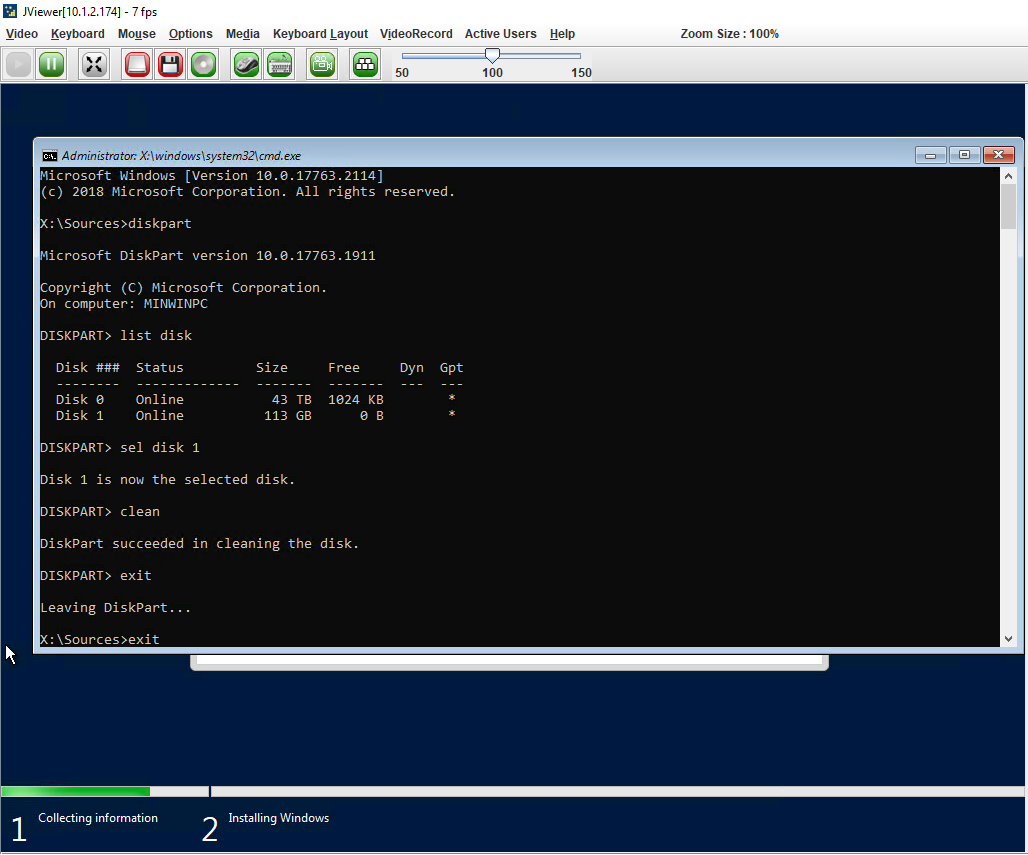

23. Type exit to leave Diskpart.

030623 1927 HowtoRebuil21 - How to Rebuild a dataOn Host via Virtual Media Wizard

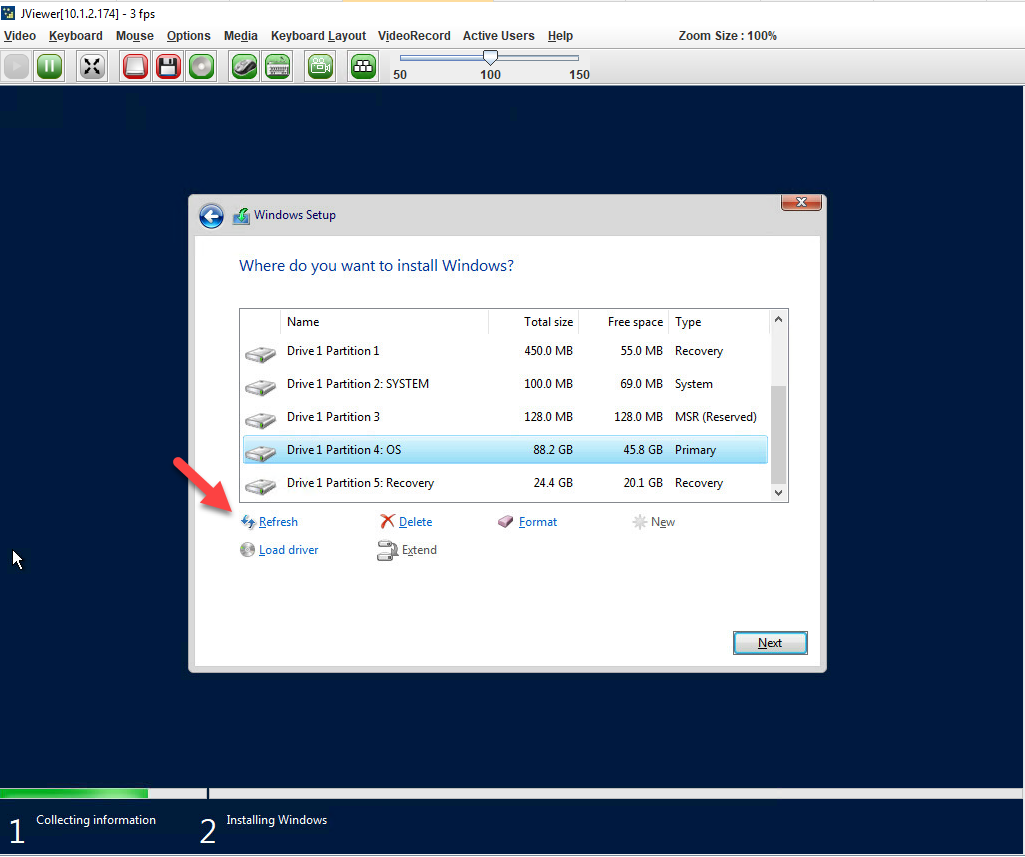

24. Select Refresh on the Where do you want to install Windows page.

030623 1927 HowtoRebuil22 - How to Rebuild a dataOn Host via Virtual Media Wizard

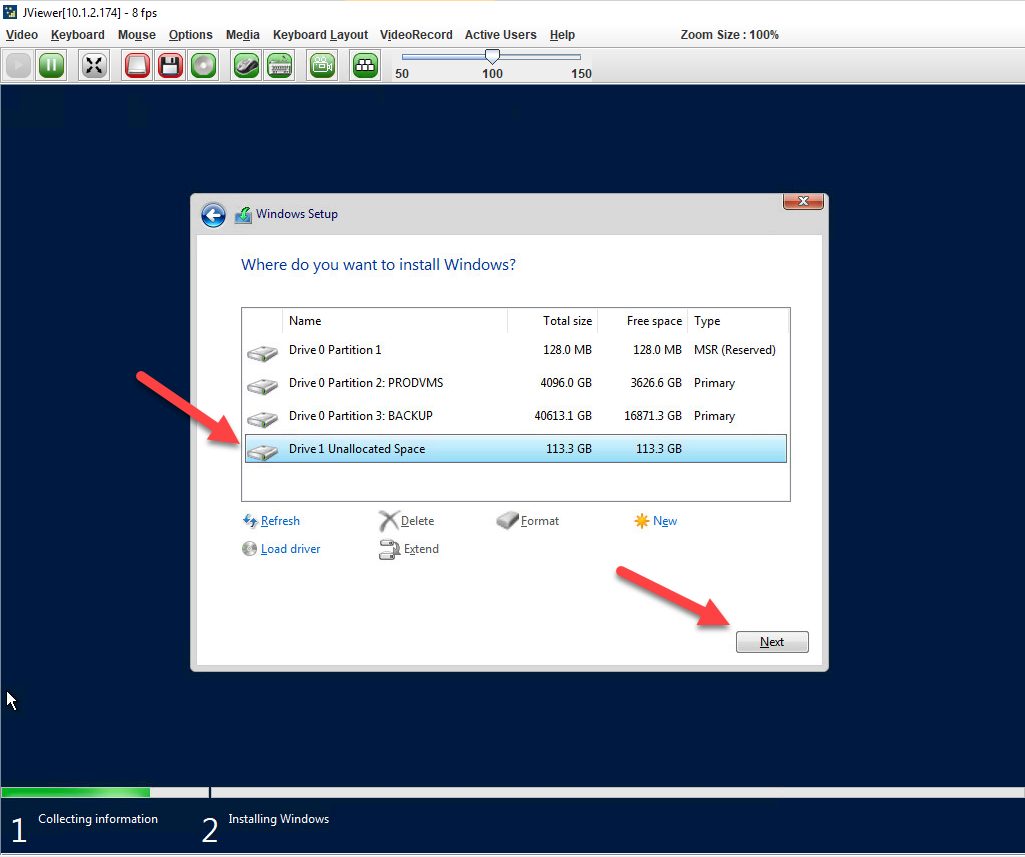

25. Select Drive 1 Unallocated Space and click Next.

030623 1927 HowtoRebuil23 - How to Rebuild a dataOn Host via Virtual Media Wizard

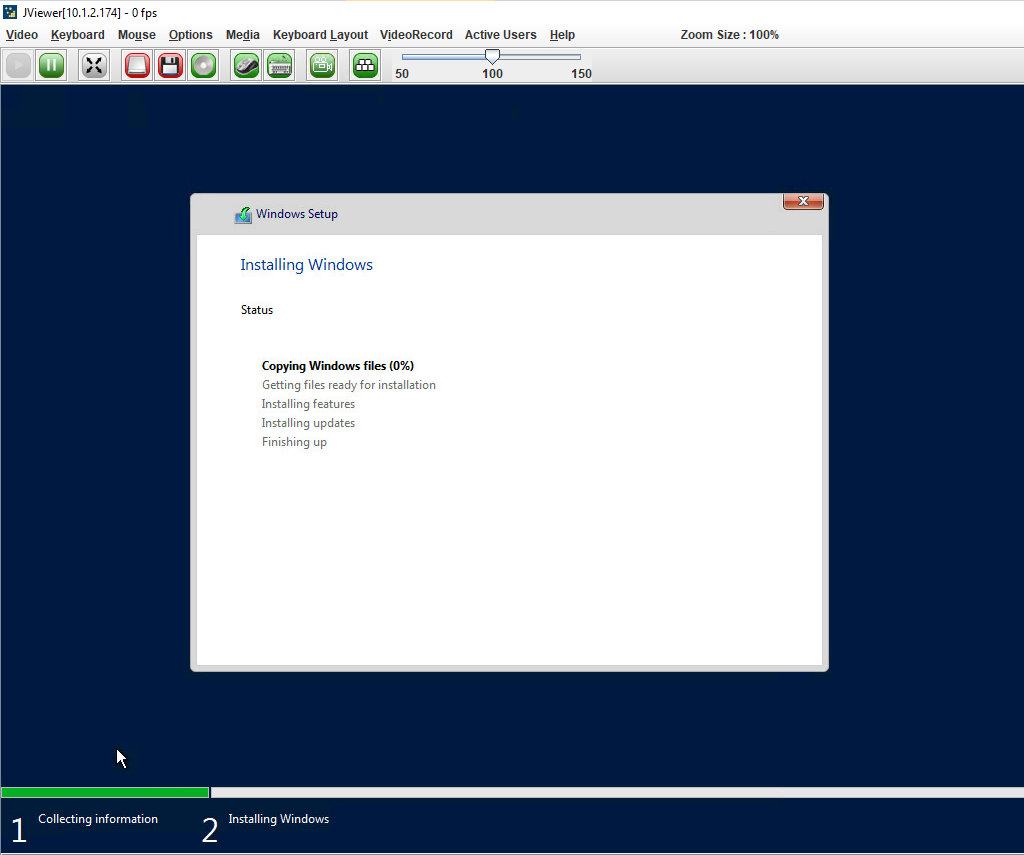

26. Follow Installing Windows procedures to complete the installation.

030623 1927 HowtoRebuil24 - How to Rebuild a dataOn Host via Virtual Media Wizard

I hope you enjoy this post.
