How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

      Comments Off on How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

Today, I am going to show you how to upgrade Citrix XenApp from 7.15 LTSR to Virtual Apps 7 1912 LTSR.

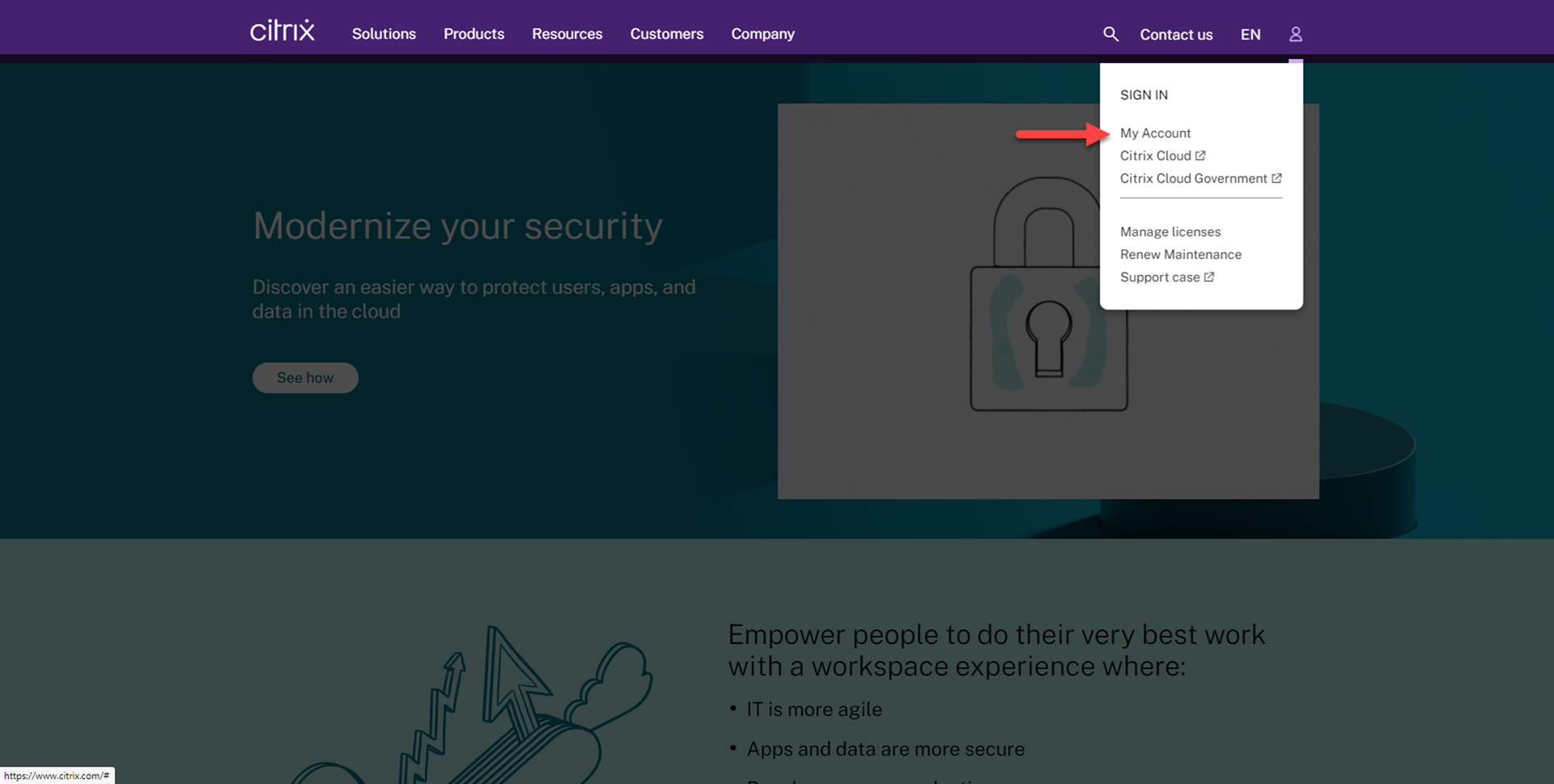

1.Sign in your Citrix account from citrix.com.

010922 2014 Howtoupgrad1 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

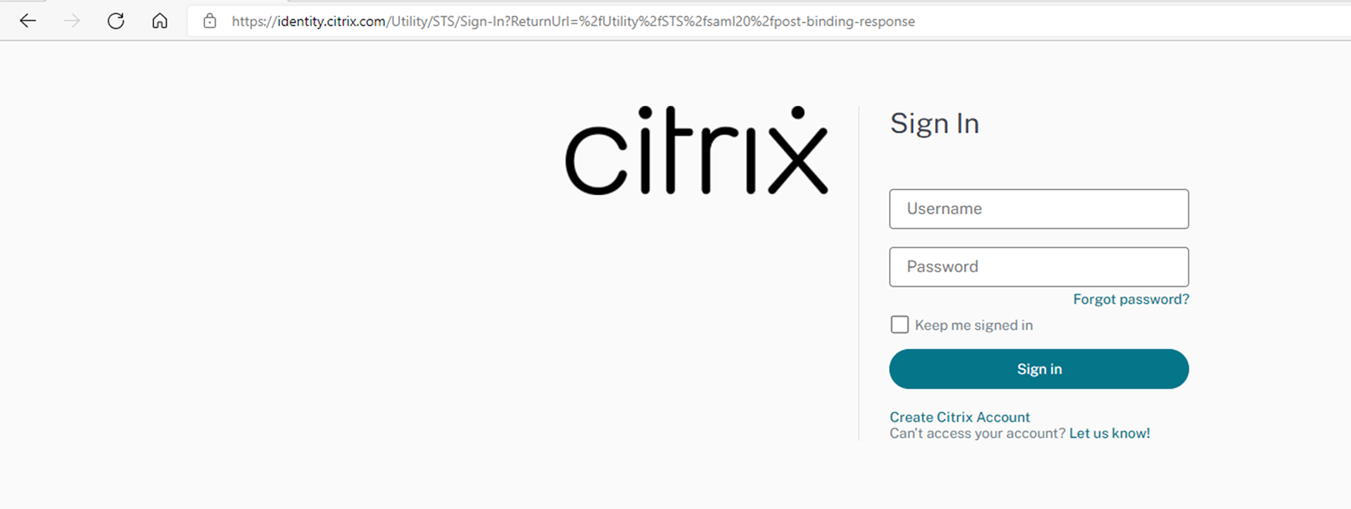

2. Enter your user name and password, click Sign in.

010922 2014 Howtoupgrad2 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

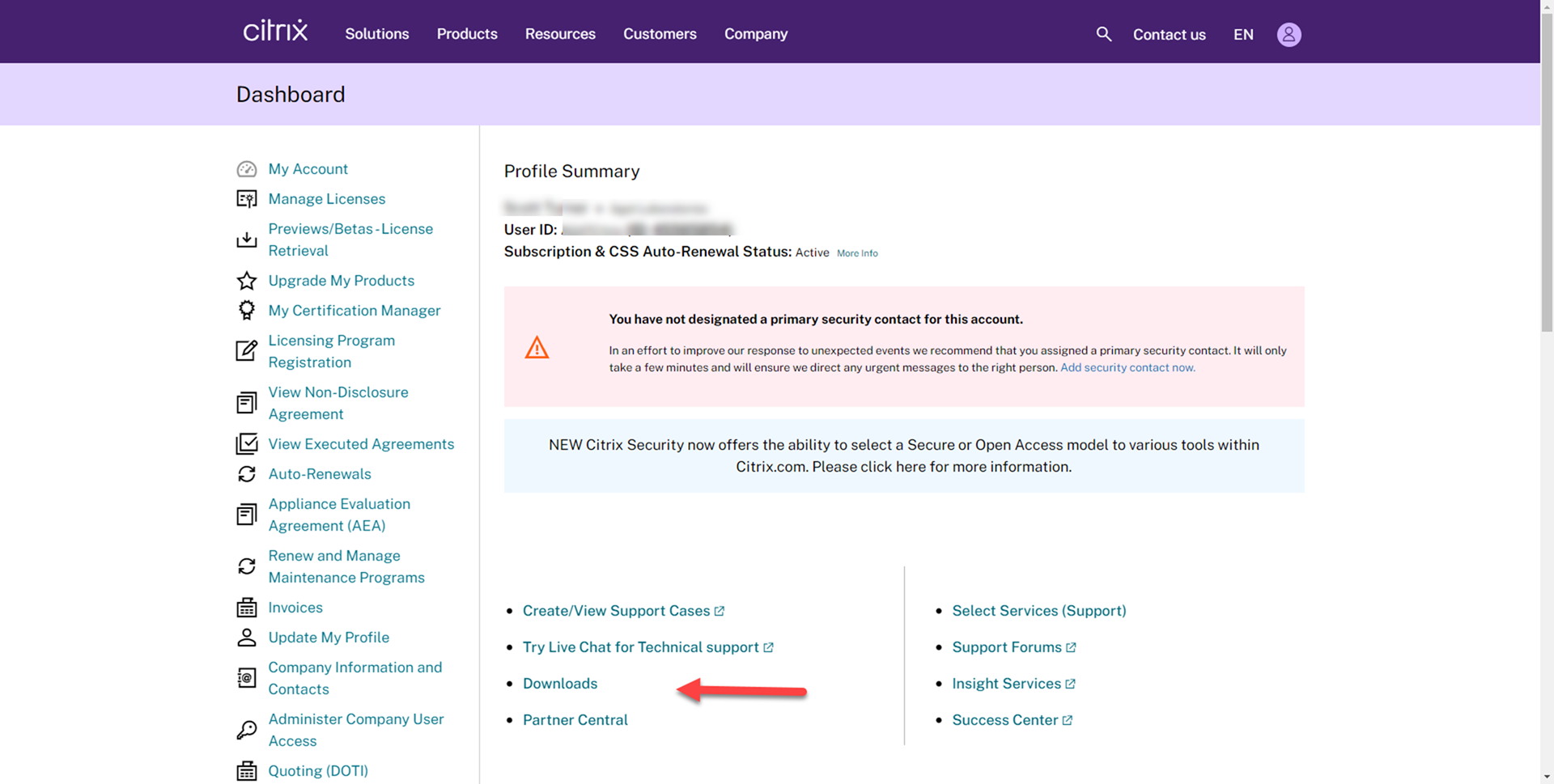

3. On the Dashboard page, select Downloads.

010922 2014 Howtoupgrad3 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

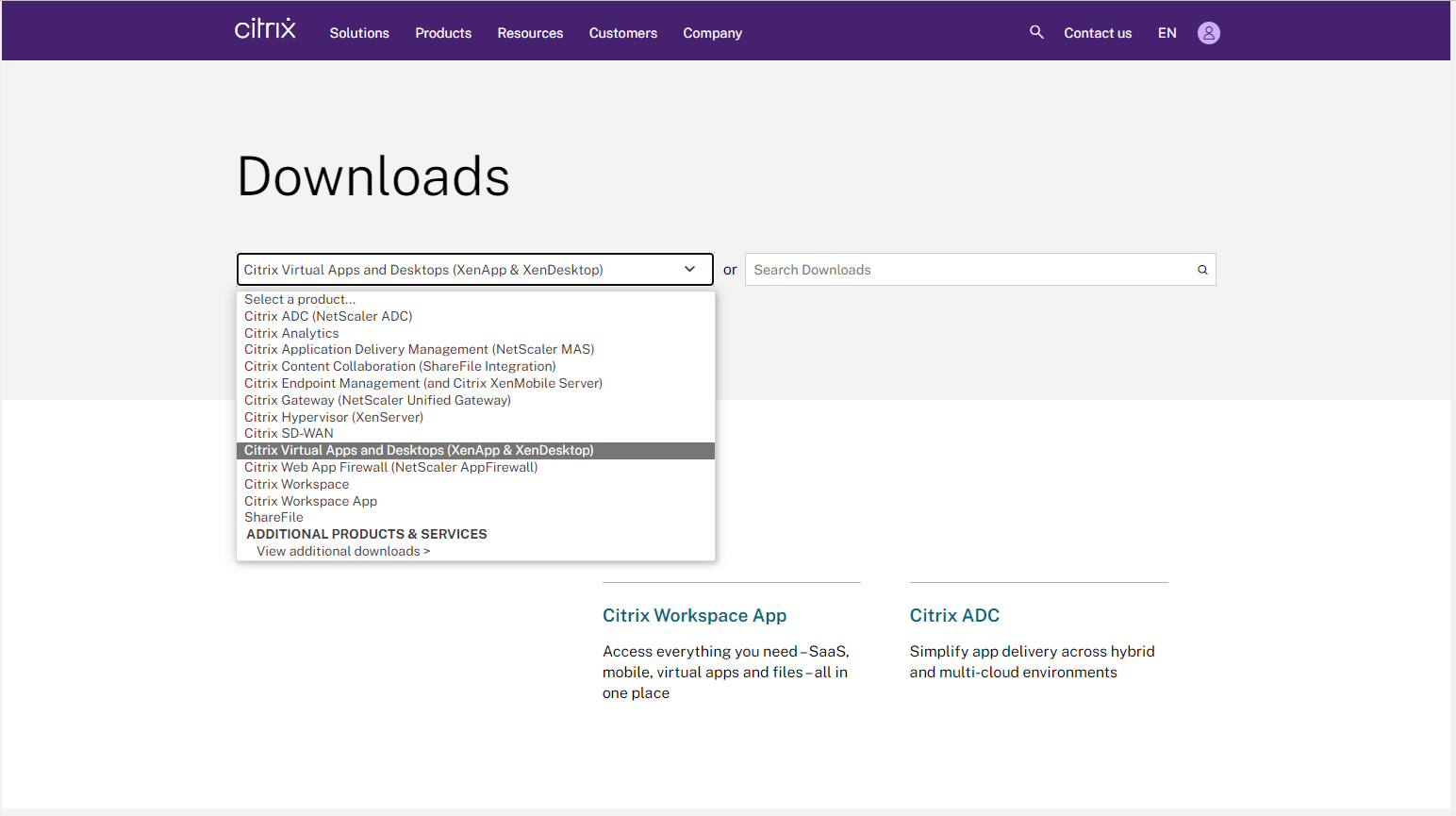

4. On the Download page, select Citrix Virtual Apps and Desktops (XenApp & XenDesktop).

010922 2014 Howtoupgrad4 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

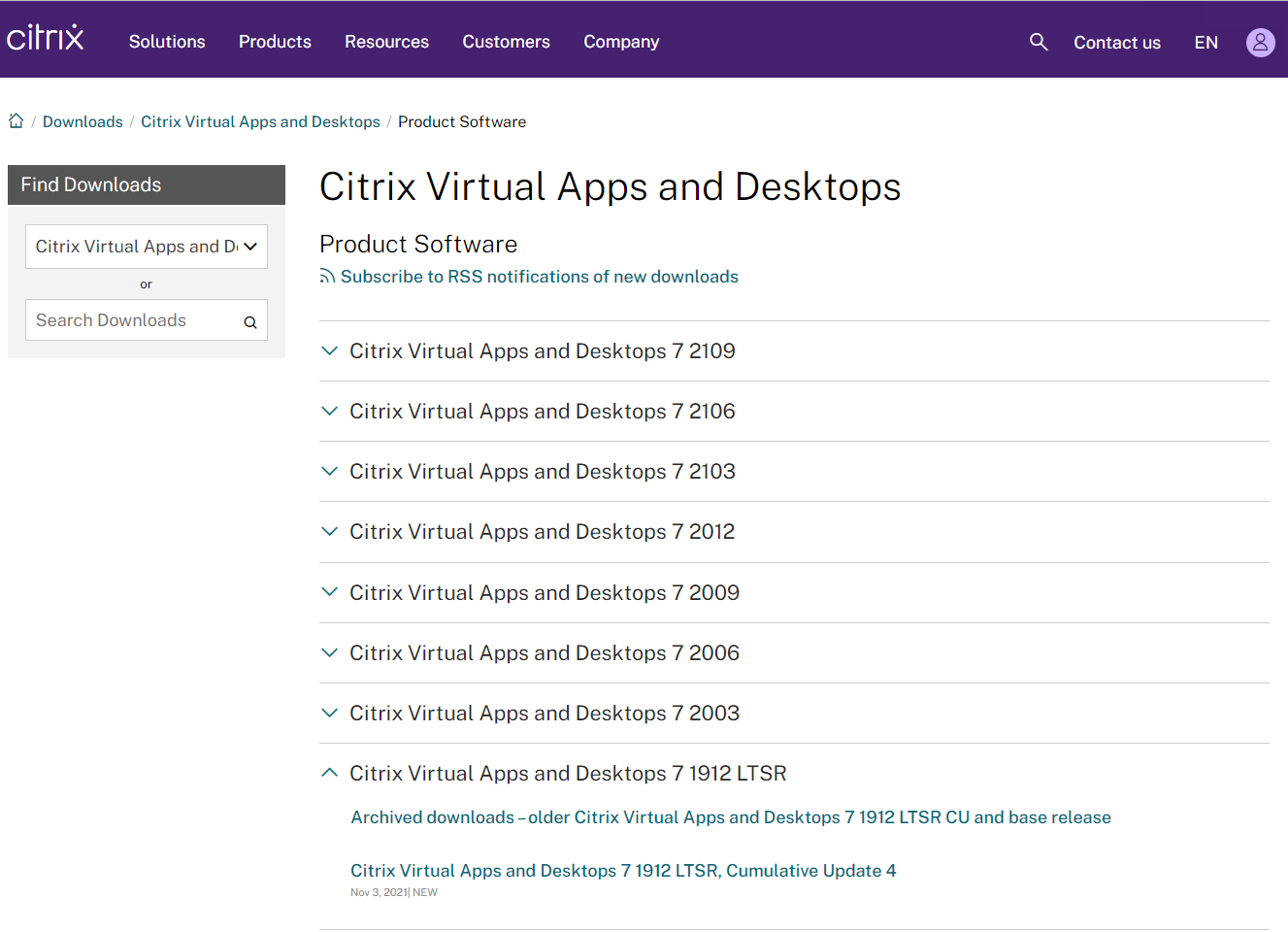

5. On Citrix Virtual Apps and Desktops (XenApp & XenDesktop) page, select Citrix Virtual Apps and Desktops 7 1912 LTSR, select Product Software, click Citrix Virtual Apps and Desktops 7 1912 LTSR, Cumulative Update 4.

010922 2014 Howtoupgrad5 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

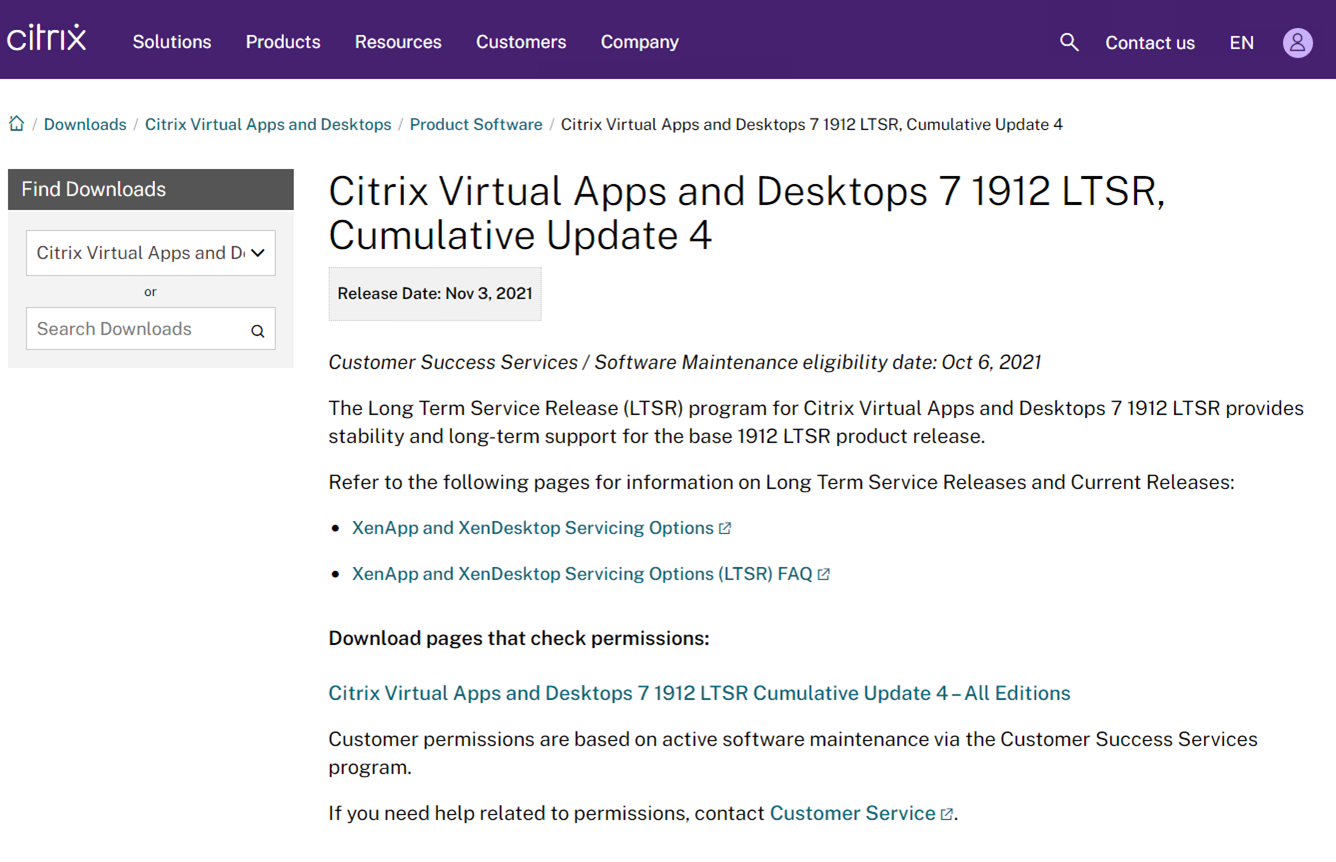

6. On the Citrix Virtual Apps and Desktops 7 1912 LTSR, Cumulative Update 4 page, click Citrix Virtual Apps and Desktops 7 1912 LTSR, Cumulative Update 4-All Editions.

010922 2014 Howtoupgrad6 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

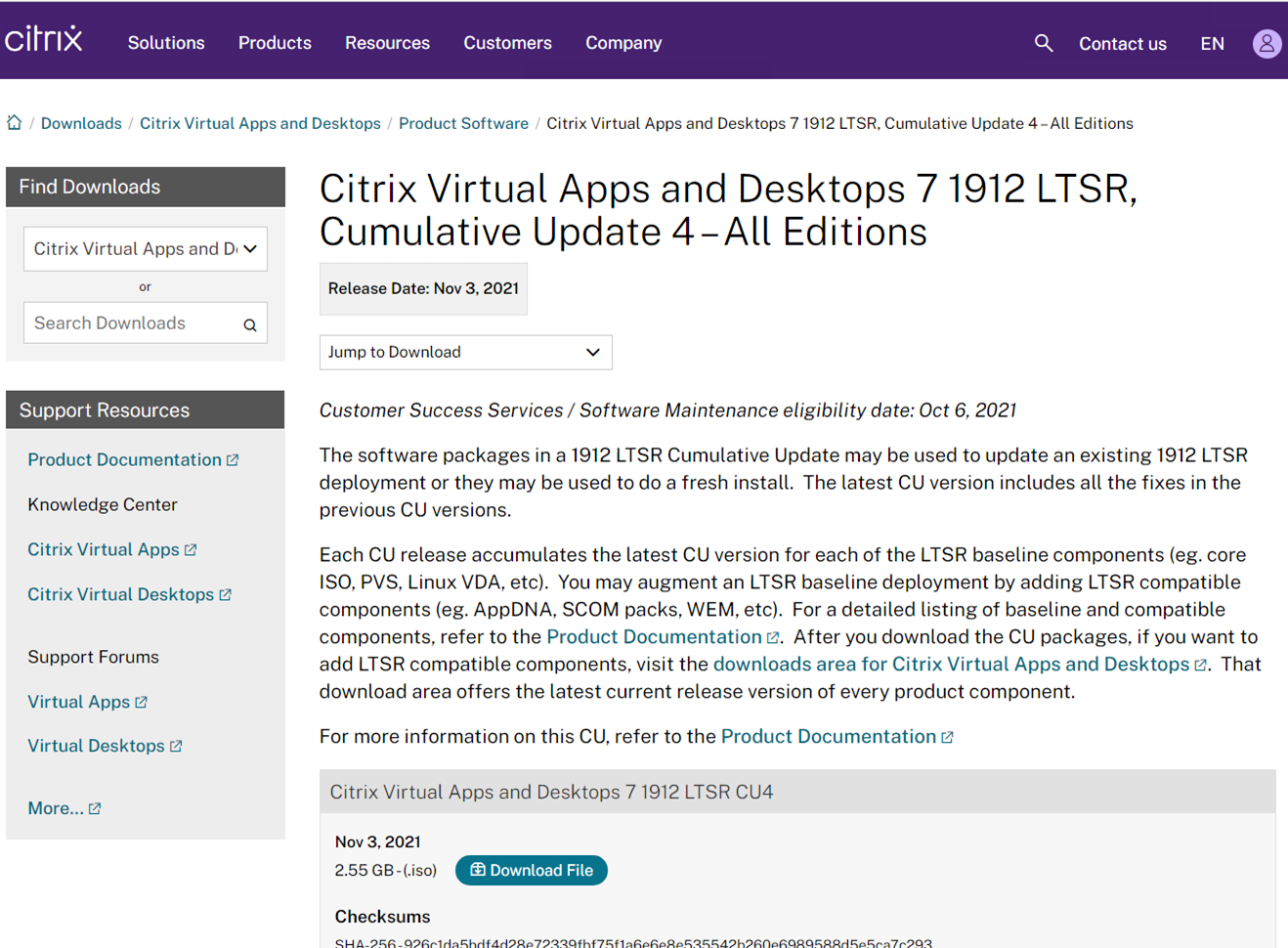

7. On the Citrix Virtual Apps and Desktops 7 1912 LTSR, Cumulative Update 4-All Editions page, , click Download File.

010922 2014 Howtoupgrad7 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

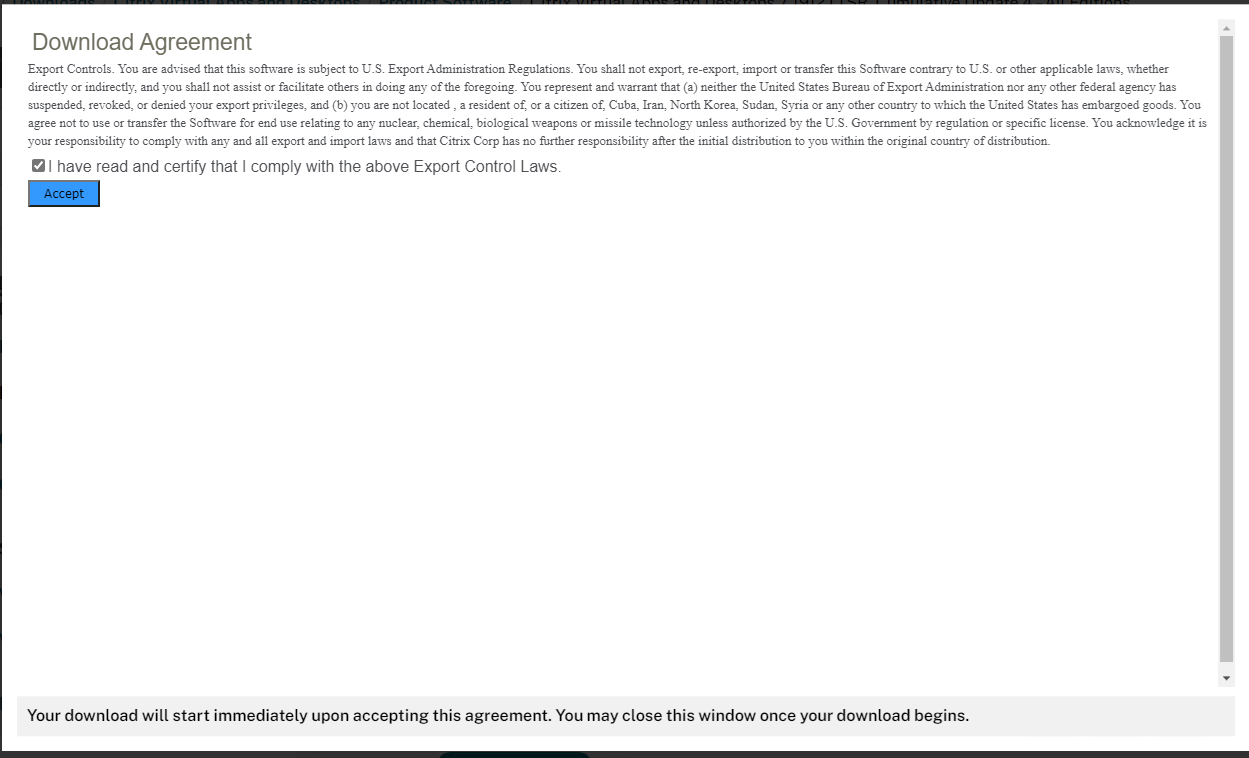

8. On the Download Agreement page, select I have read and certify that I comply with the above Export Control Laws, click Accept.

010922 2014 Howtoupgrad8 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

9. Save the ISO file to XenApp Delivery Controller server and Virtual Delivery Agent Server.

10. Login to XenApp Delivery Controller server.

11.Mout the ISO image file.

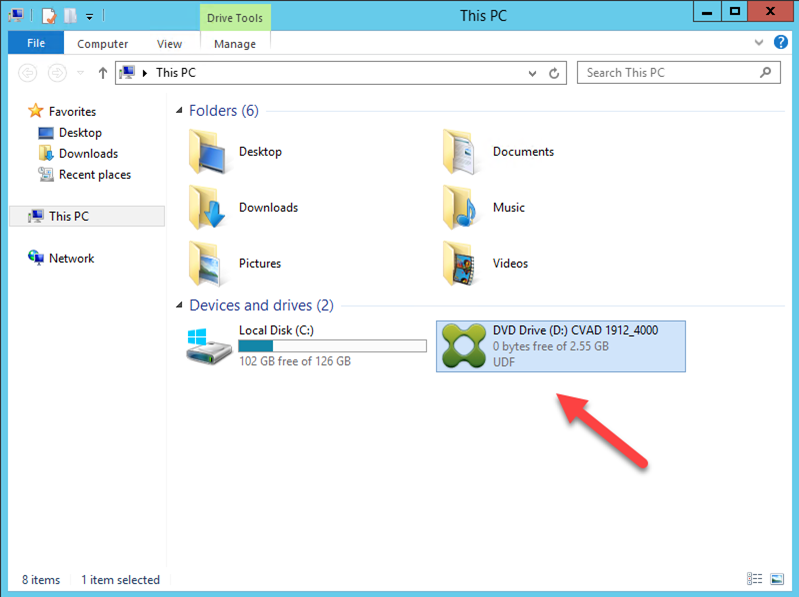

12.Double-click DVD Drive.

010922 2014 Howtoupgrad9 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

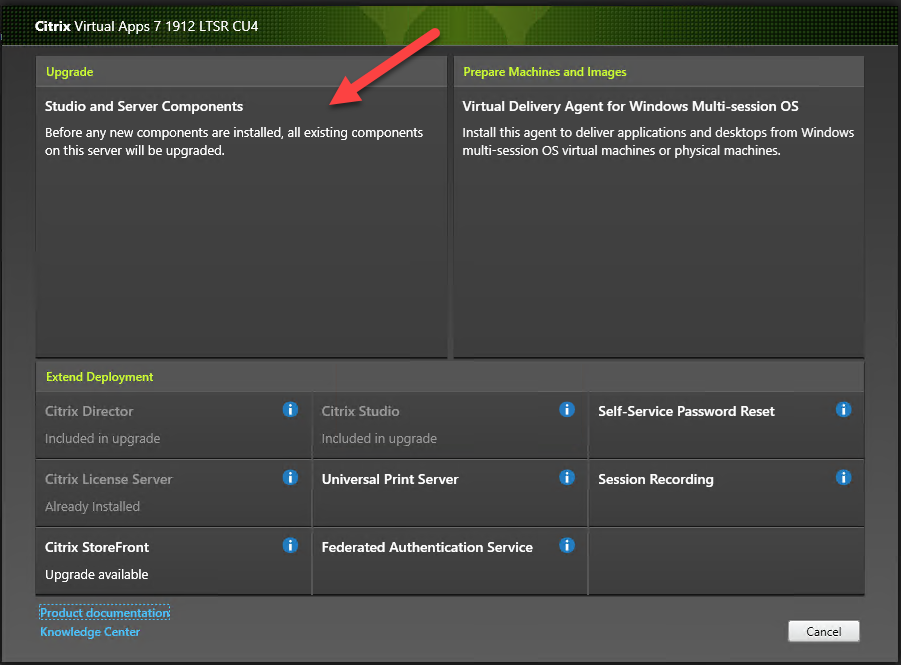

13.On the Citrix Virtual Apps 7 1912 LTSR CU4 page, click Upgrade.

010922 2014 Howtoupgrad10 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

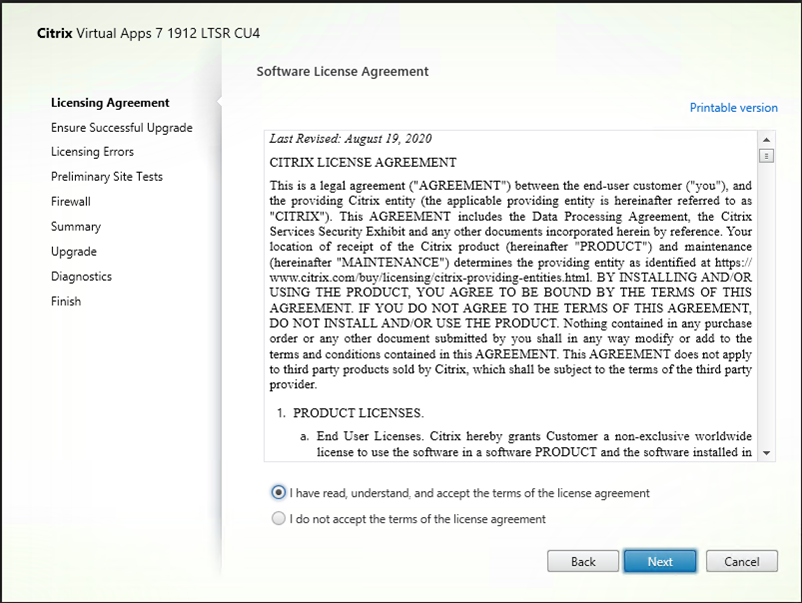

14. On the License Agreement page, select I have read, understand and accept the terms of the license agreement, click Next.

010922 2014 Howtoupgrad11 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

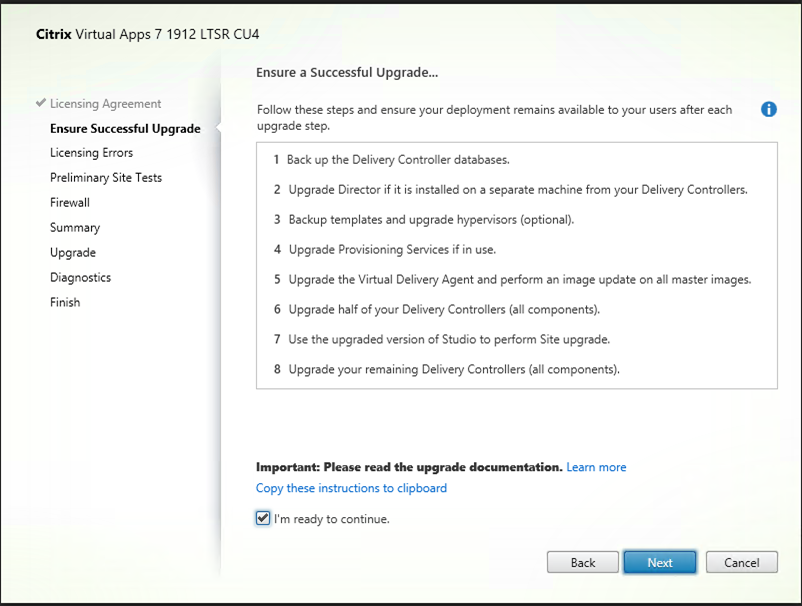

15.On the Ensure a Successful Upgrade page, select I’m ready to continue, click Next.

010922 2014 Howtoupgrad12 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

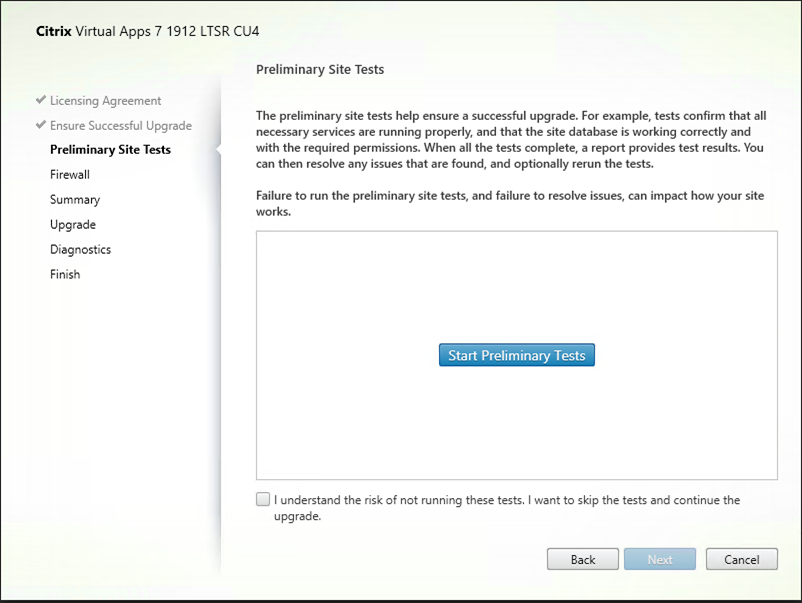

16.On the Preliminary Tests page, click Start Preliminary Tests.

010922 2014 Howtoupgrad13 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

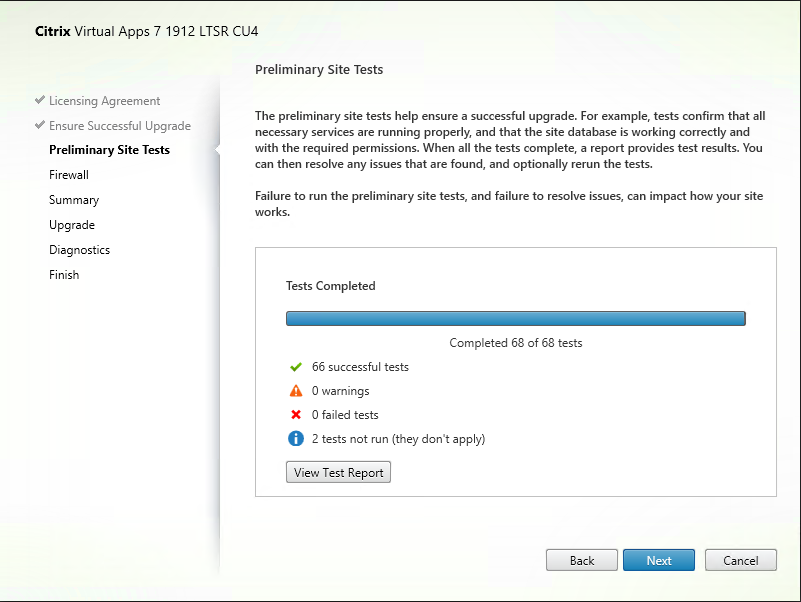

17. Click Next if there are no issues at Tests result.

010922 2014 Howtoupgrad14 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

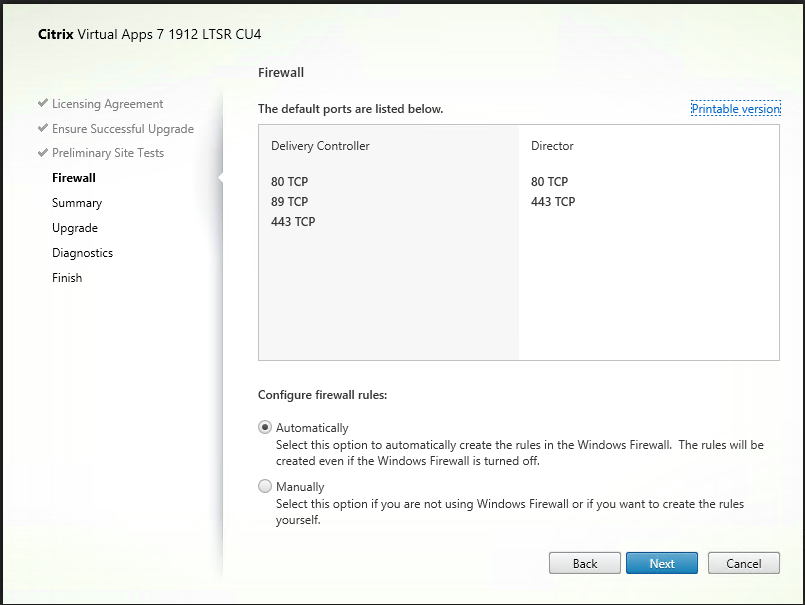

18.On the Firewall page, click Automatically configure firewall rules, click Next.

010922 2014 Howtoupgrad15 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

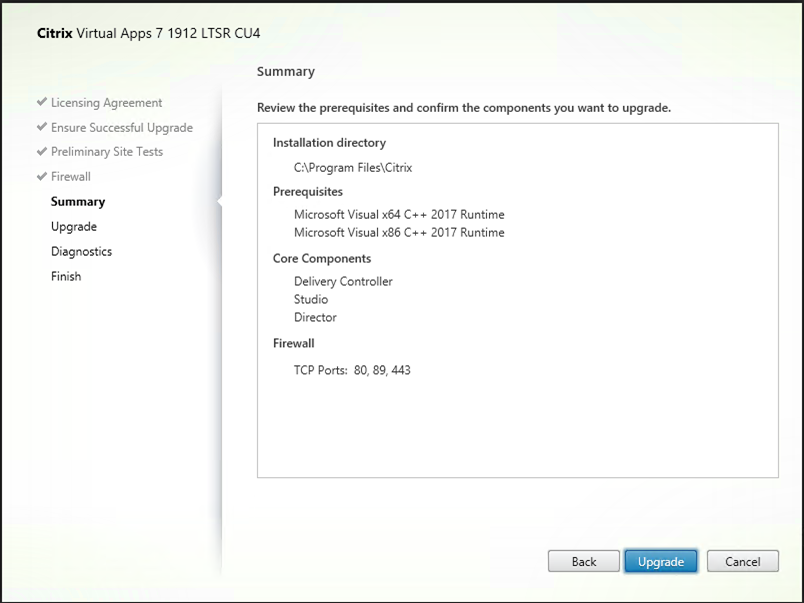

19.On the Summary page, click Upgrade.

010922 2014 Howtoupgrad16 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

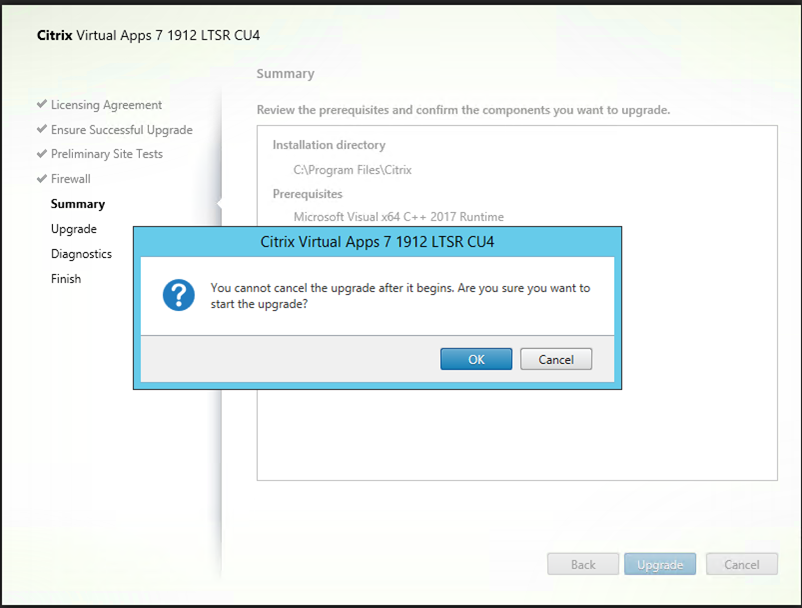

20.Click OK on the upgrade confirm page.

010922 2014 Howtoupgrad17 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

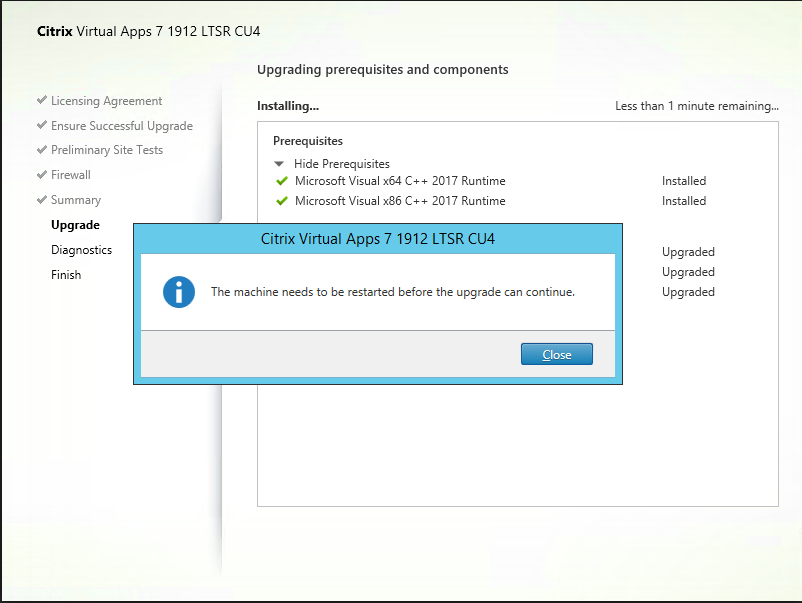

21.The server needs to restart at upgrade process.

010922 2014 Howtoupgrad18 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

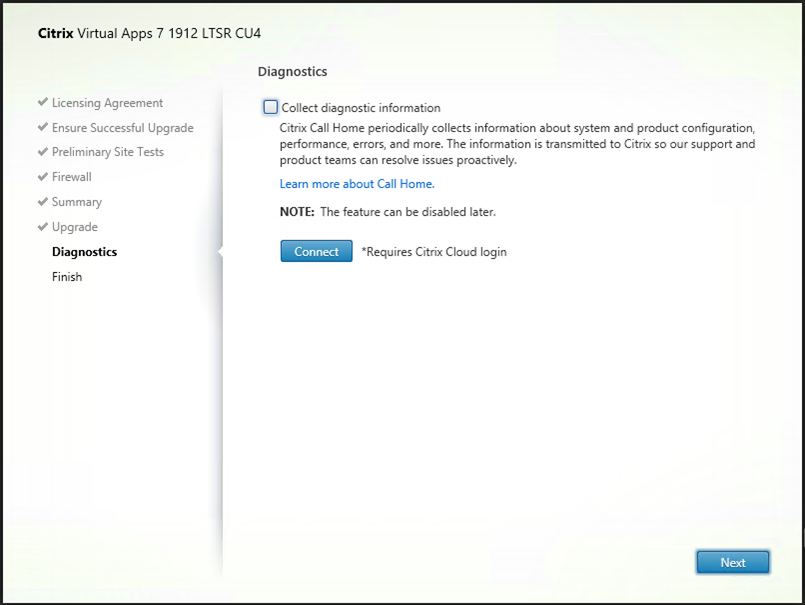

22.On the Call Home page, select I do not wat to participate in Call Home, click Next. You can participate later if need it.

010922 2014 Howtoupgrad19 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

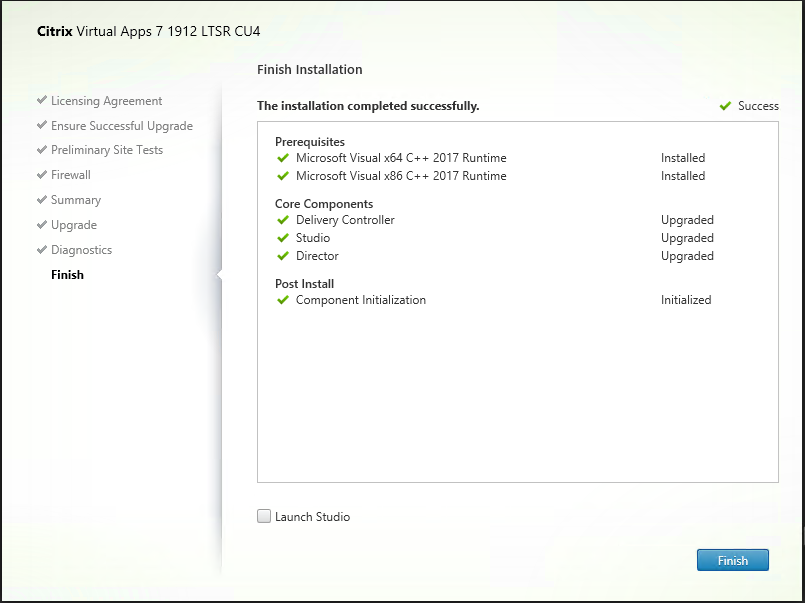

23.On the Finish Installation page, click Finish.

010922 2014 Howtoupgrad20 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

24.Login to XenApp VDA server.

25.Mount iso image file.

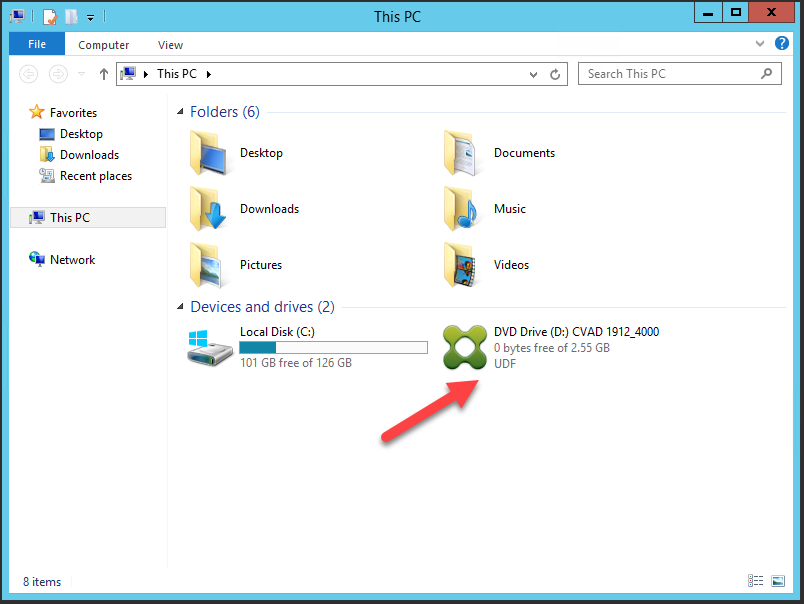

26.Double-click DVD Drive.

010922 2014 Howtoupgrad21 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

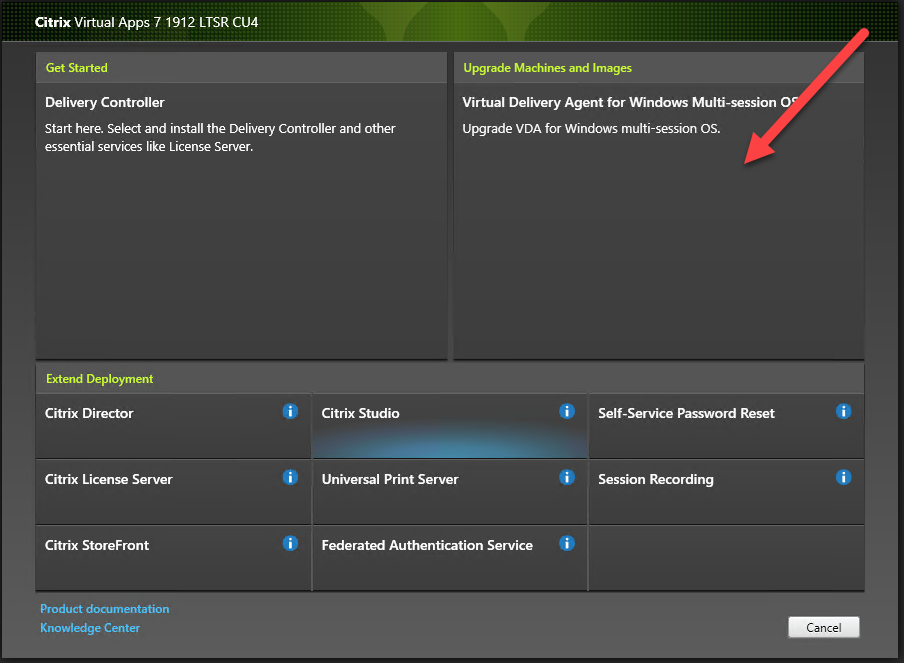

27.On the Citrix Virtual Apps 7 1912 LTSR CU4 page, click Upgrade Machines and Images.

010922 2014 Howtoupgrad22 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

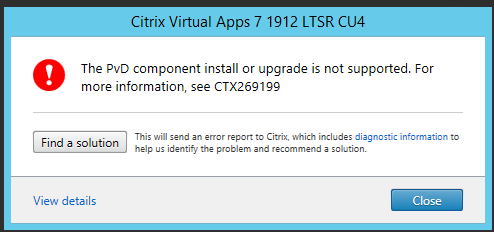

28. If the Personal vDisk (PvD) component was ever installed on a VDA, that VDA cannot be upgraded to version 1912 LTSR or later. (This applies even if you installed PvD but never used it.) To upgrade to the new VDA version, you must manually uninstall the existing VDA and then install the new VDA.

010922 2014 Howtoupgrad23 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

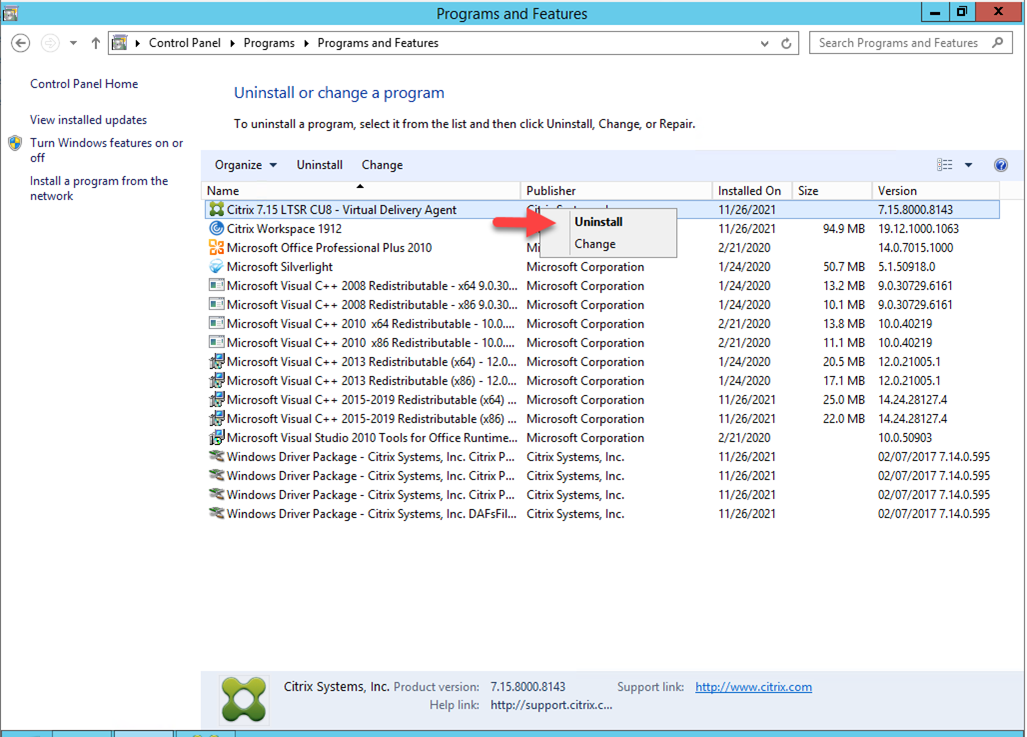

29.Open Programs and Features from Control Panel, right-click Virtual Delivery Agent and select Uninstall.

010922 2014 Howtoupgrad24 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

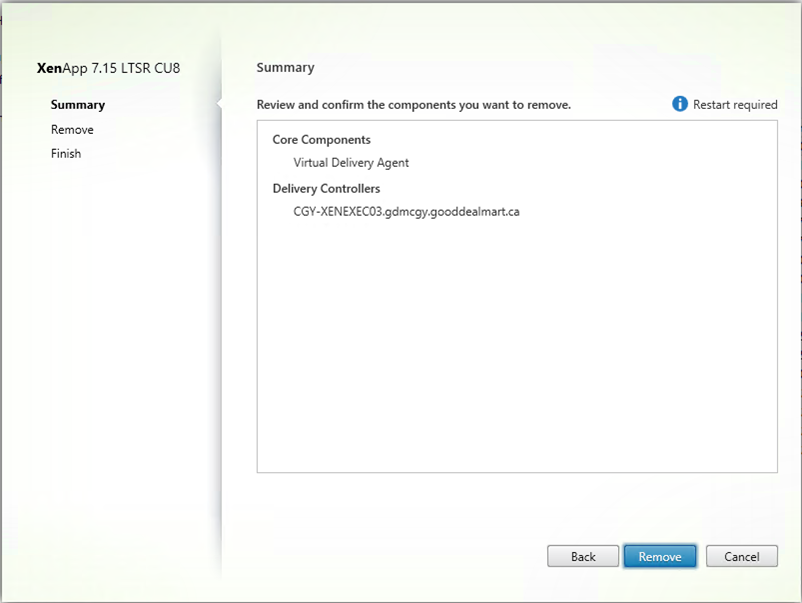

30.On the Summary page, click Remove.

010922 2014 Howtoupgrad25 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

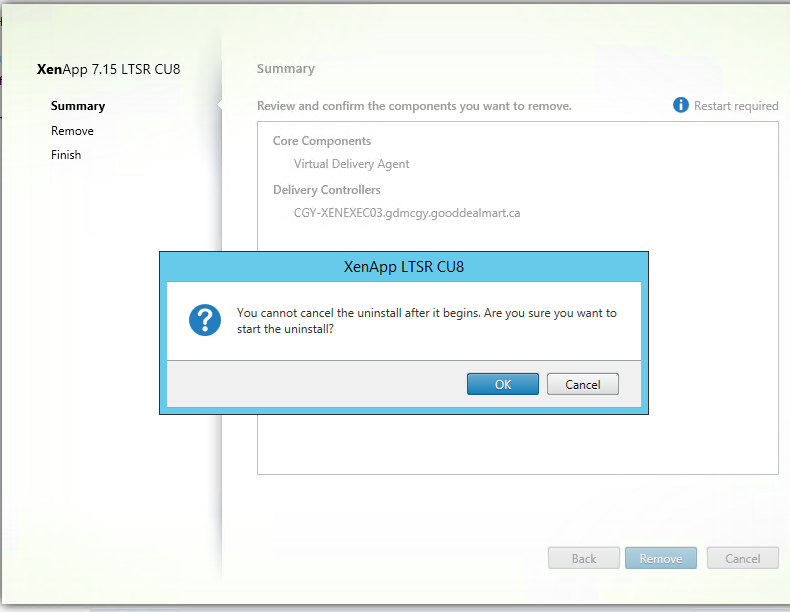

31. Click OK on the uninstall confirm page.

010922 2014 Howtoupgrad26 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

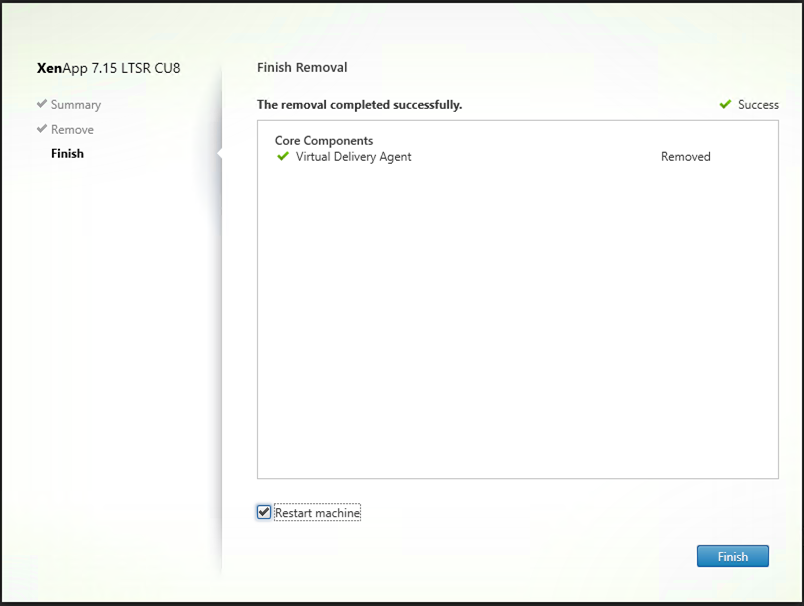

32.On the Finish Removal page, select Restart machine, click Finish.

010922 2014 Howtoupgrad27 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

33.Click DVD Drive again.

010922 2014 Howtoupgrad28 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

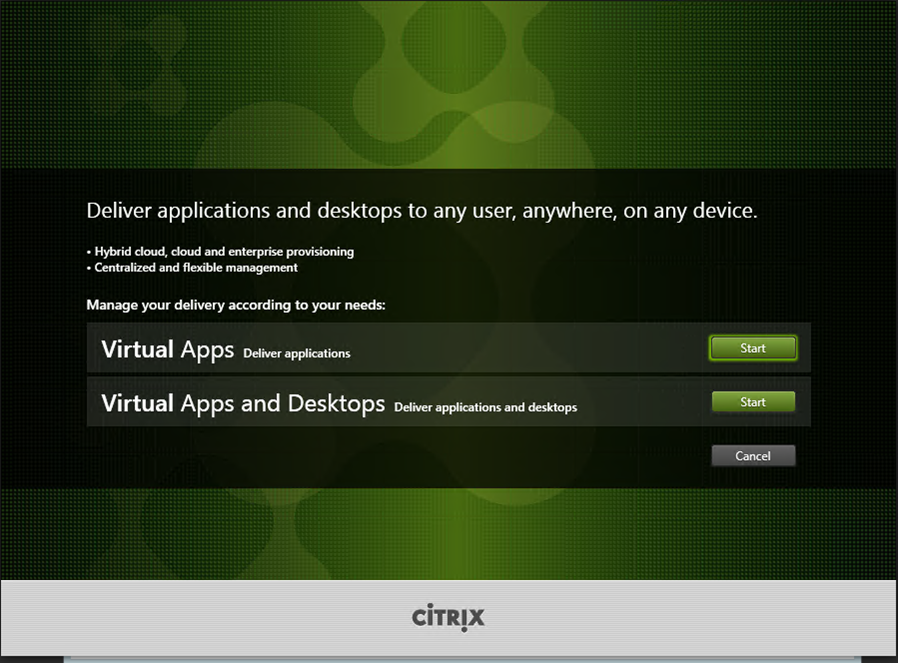

34. On the Deliver applications and desktops to any users, anywhere, on any device page, click Start at Virtual Apps Delivery application.

010922 2014 Howtoupgrad29 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

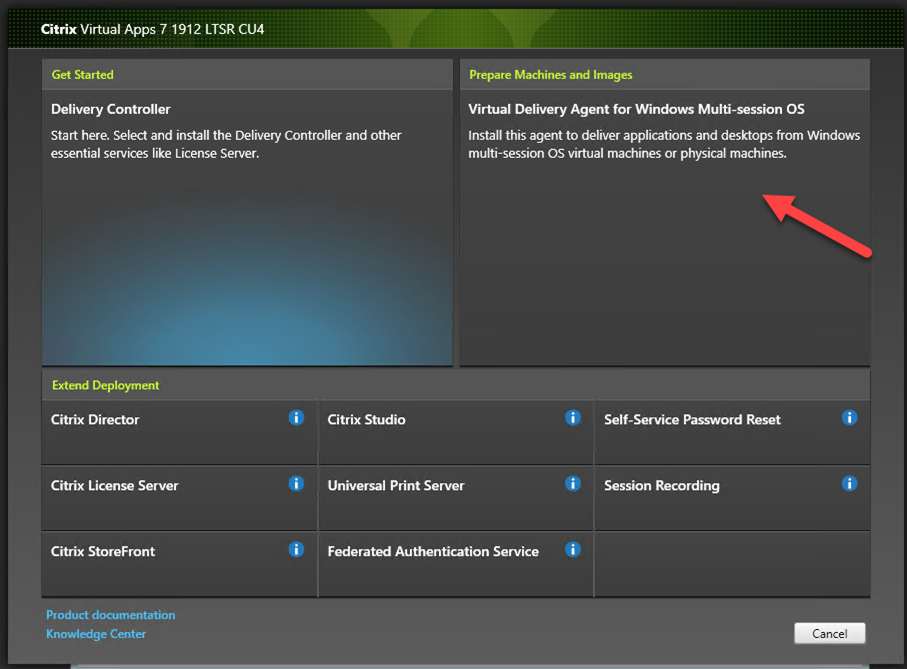

35. Select Virtual Delivery Agent for Windows Multi-session OS.

010922 2014 Howtoupgrad30 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

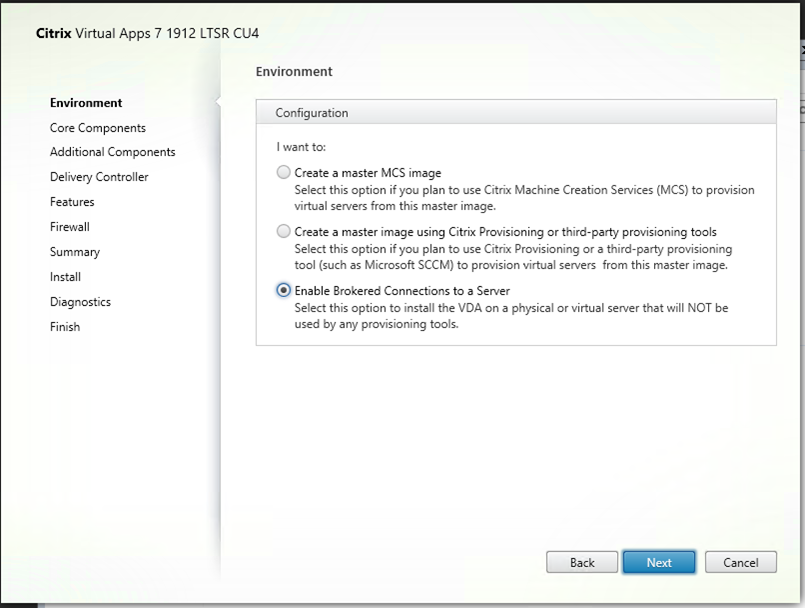

36. On the Environment page, select Enable Broker Connections to a Server, click Next.

010922 2014 Howtoupgrad31 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

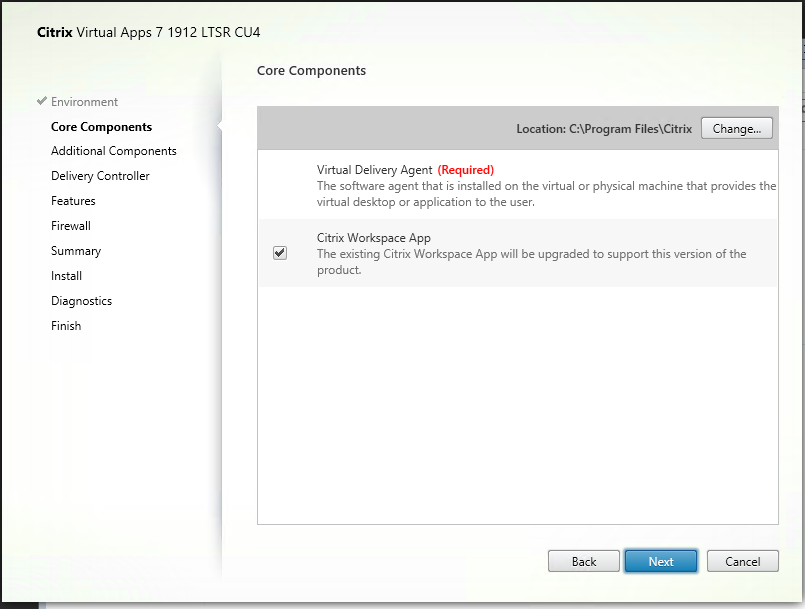

37. On the Core Components page, keep the default settings, click Next.

010922 2014 Howtoupgrad32 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

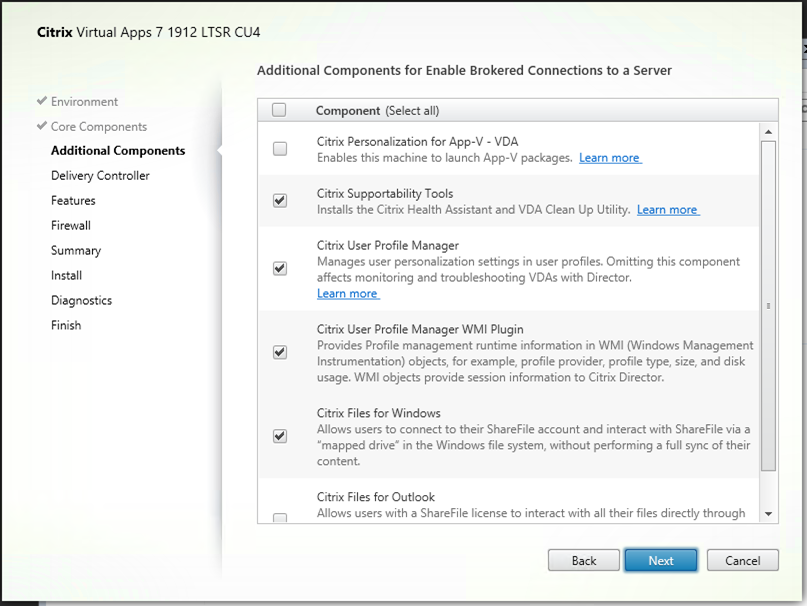

38. On the Additional Components for Enable Brokered Connections to a Server page, select Citrix Supportability Tools, Citrix User Profile Manager, Citrix User Profile Manager WMI Plugin and Citrix Files for Windows, click Next.

010922 2014 Howtoupgrad33 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

39. On the Delivery Controller page, Select Do it manually at Configuration.

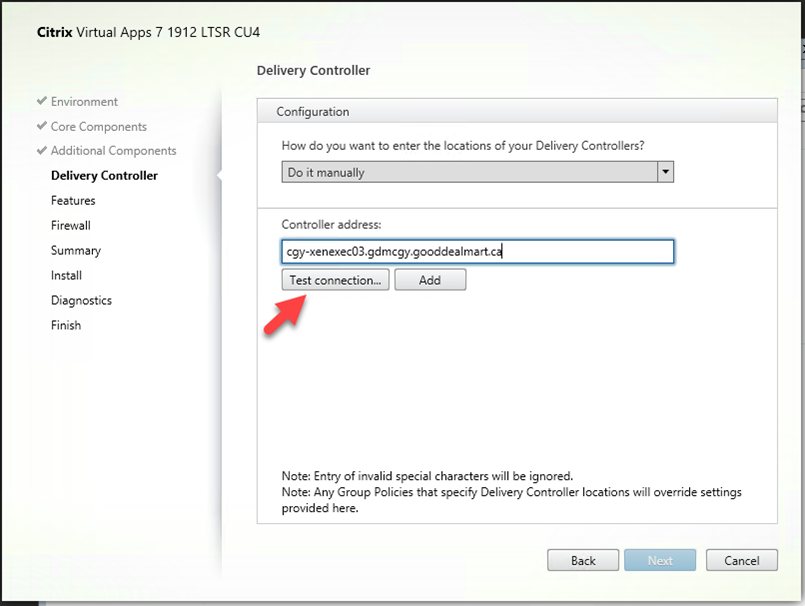

40. Enter the server FQDN at Controller address, click Test connection…. In my case, the Controller address is CGY-Xenexec03.gdmcgy.gooddealmart.ca.

010922 2014 Howtoupgrad34 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

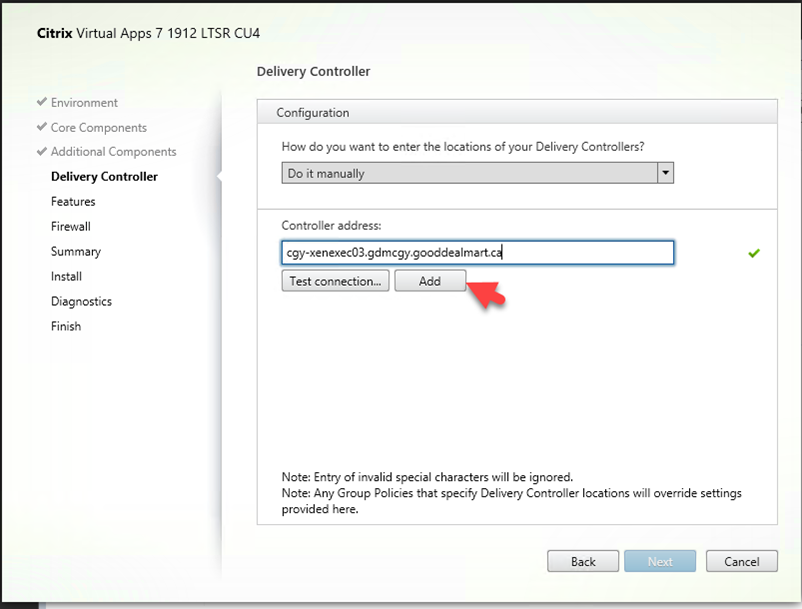

41. Make sure connection test without issues, click Add.

010922 2014 Howtoupgrad35 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

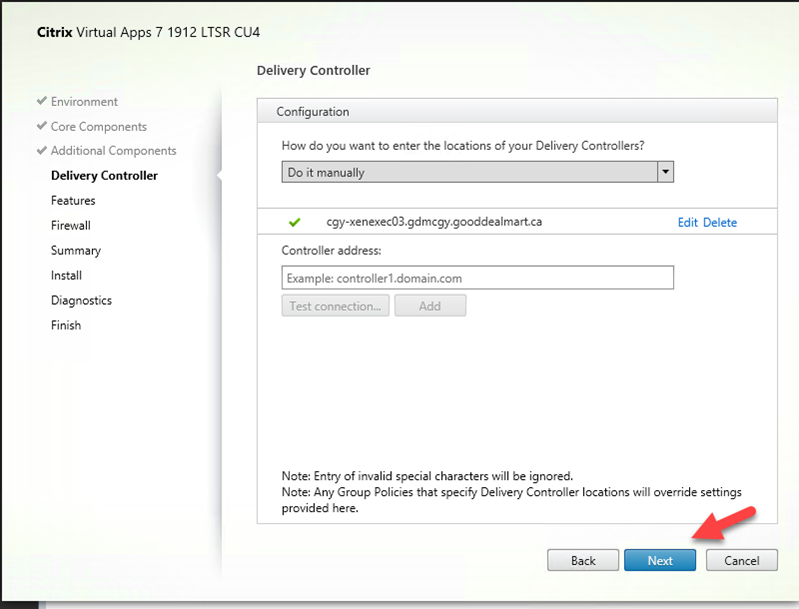

42. On the Delivery Controller page, click Next.

010922 2014 Howtoupgrad36 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

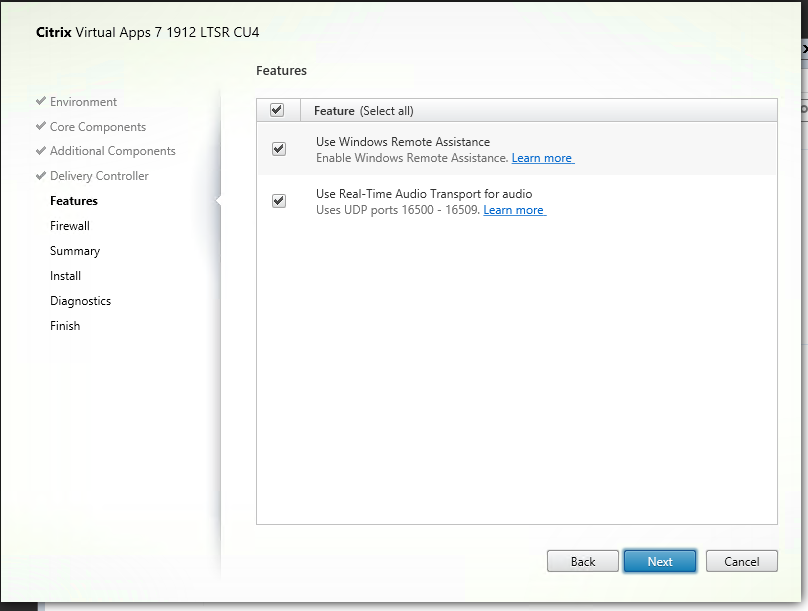

43. On the Features page, select all, click Next.

010922 2014 Howtoupgrad37 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

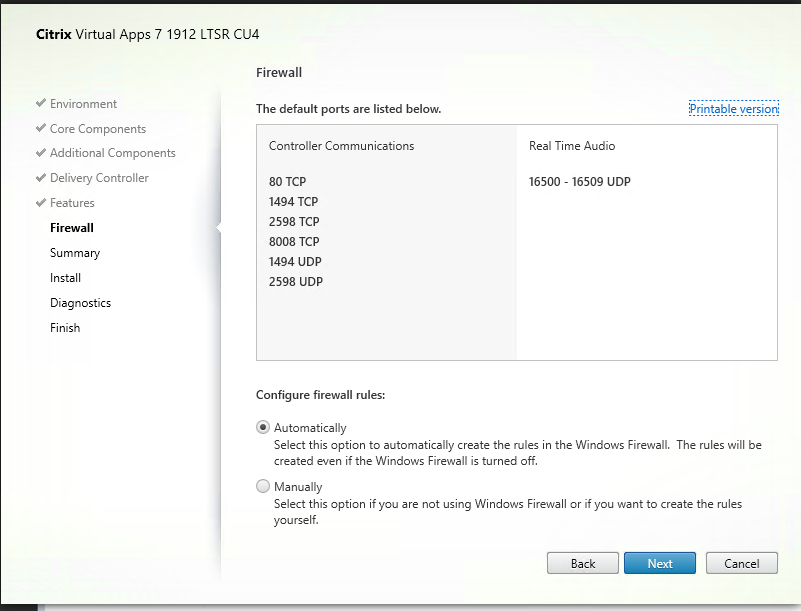

44. On the Firewall page, select Automatically to Configure firewall rules, click Next.

010922 2014 Howtoupgrad38 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

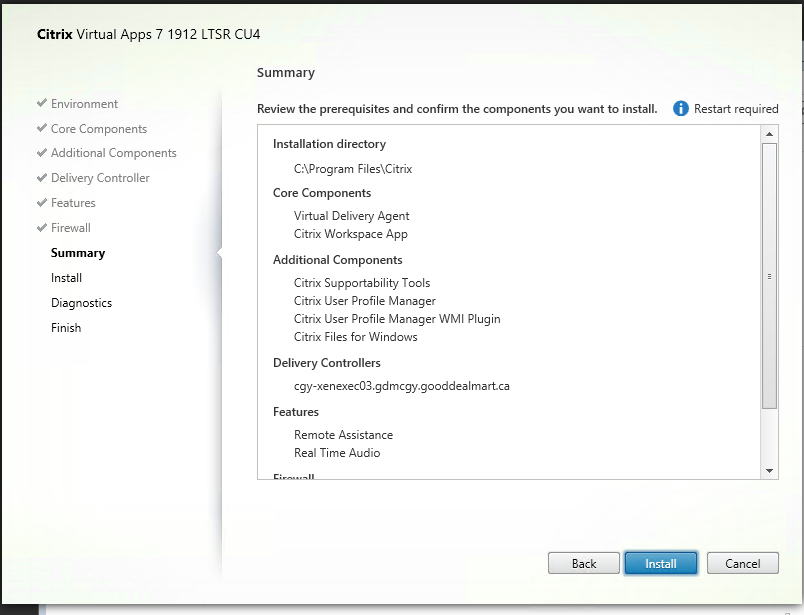

45. On the Summary page, click Install.

010922 2014 Howtoupgrad39 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

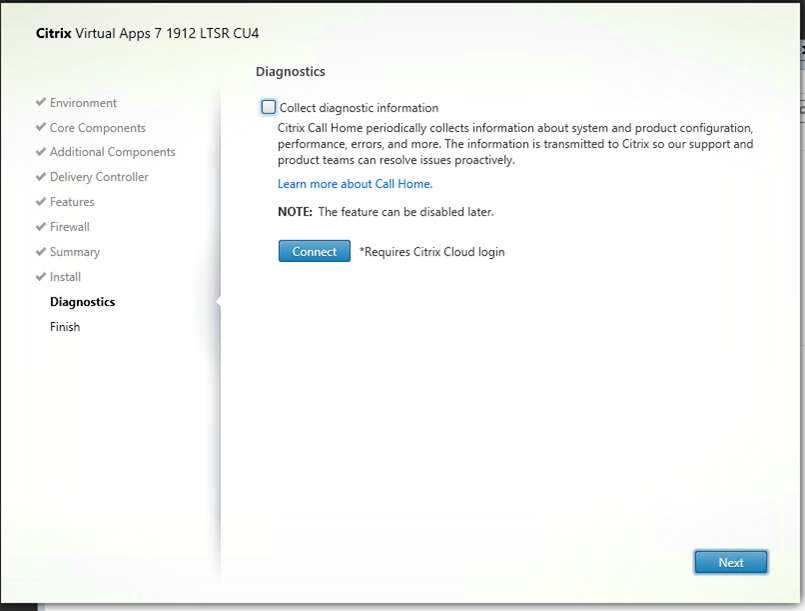

46. On the Diagnostics page, unselect Collect diagnostic information, click Next.

010922 2014 Howtoupgrad40 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

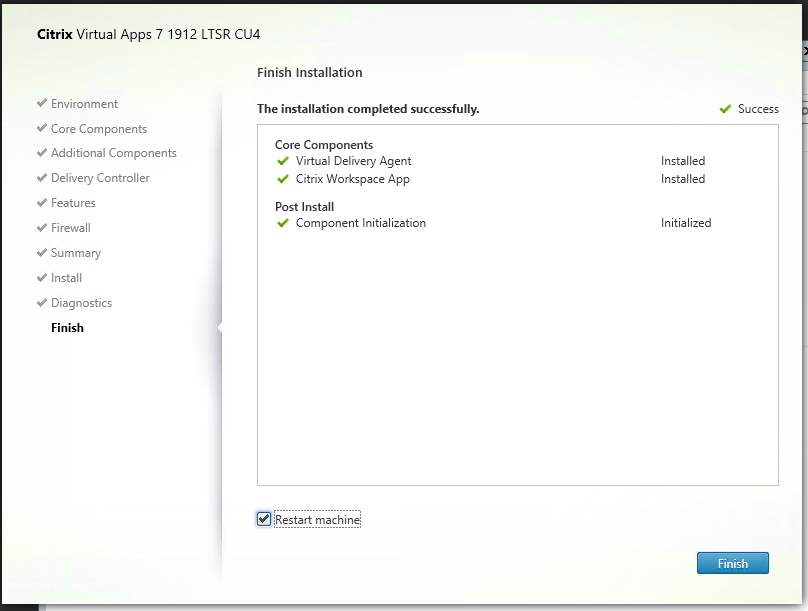

47. On the Finish Installation page, select Restart machine, click Finish.

010922 2014 Howtoupgrad41 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

48. Login to Citrix Virtual Apps Delivery Controller server.

49. Open Citrix Studio.

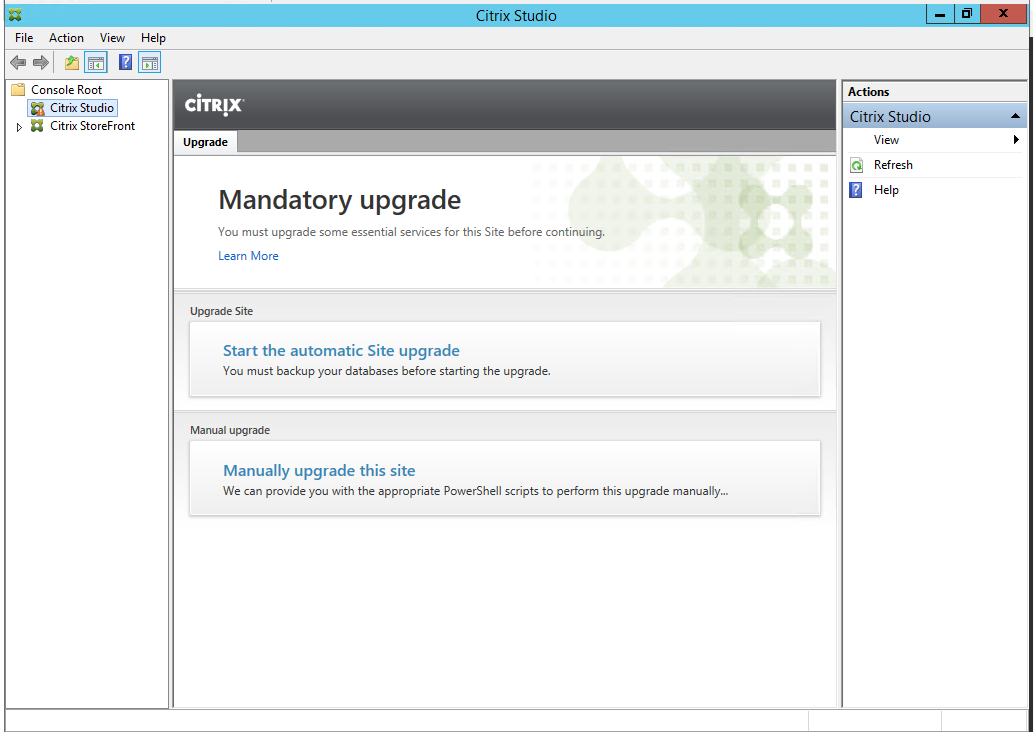

50. On the Citrix Studio, select Start the automatic Site upgrade.

010922 2014 Howtoupgrad42 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

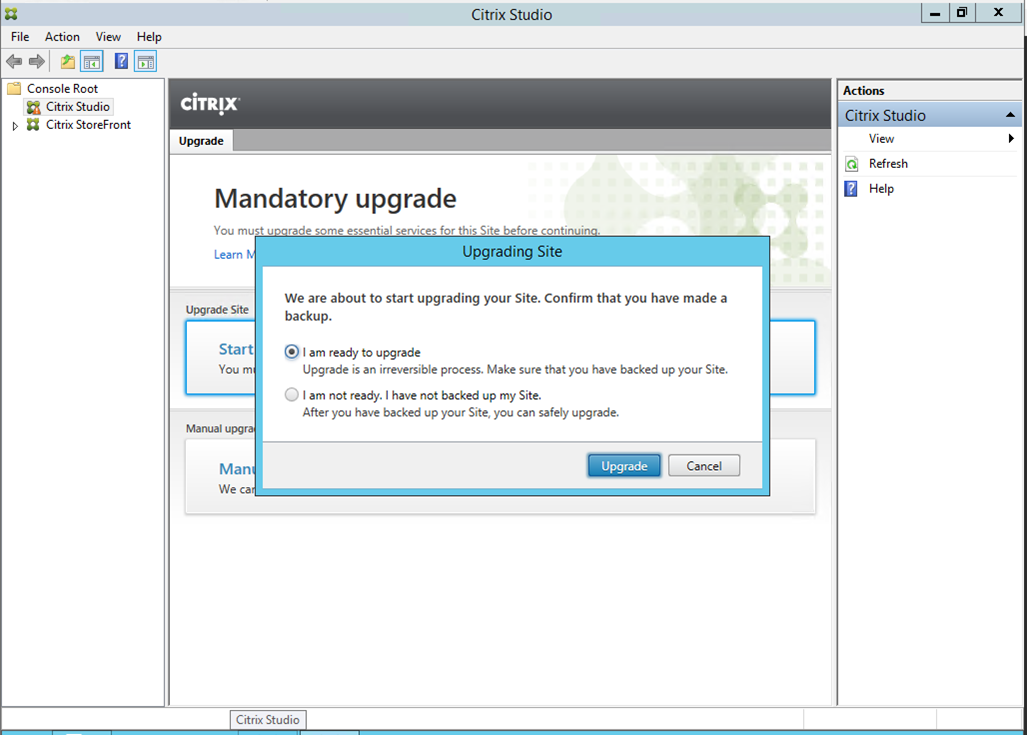

51. On the Upgrading Site page, select I am ready to upgrade, click Upgrade.

010922 2014 Howtoupgrad43 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

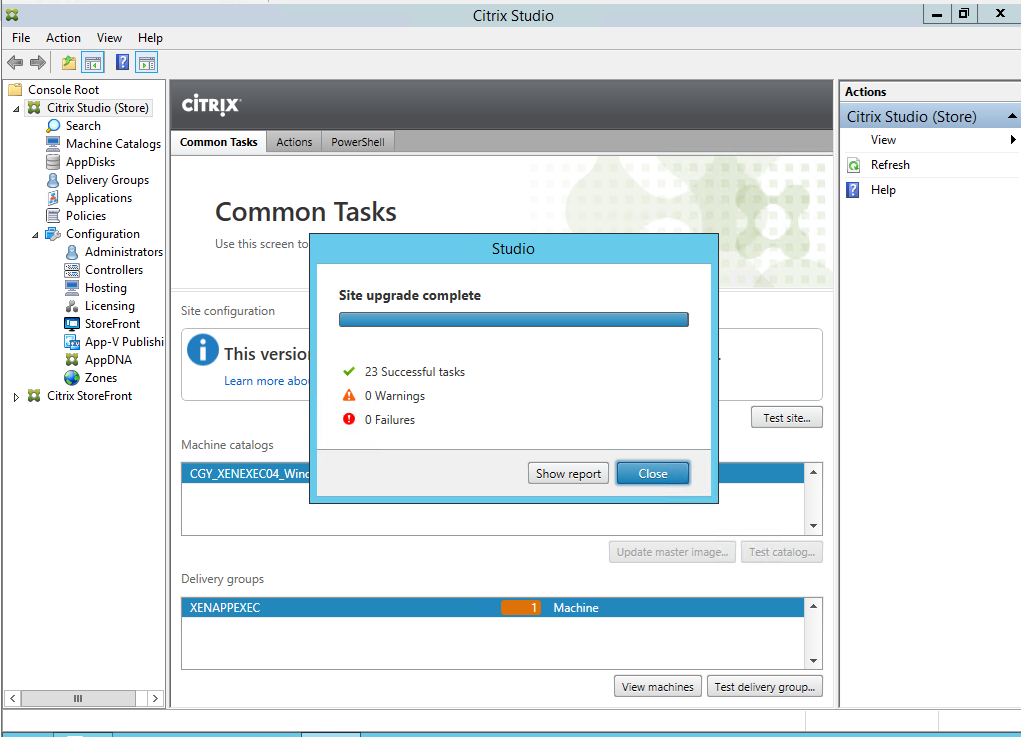

52. On the Studio page, make sure Site upgrade complete without issues, click Close.

010922 2014 Howtoupgrad44 - How to upgrade Citrix XenApp 7.15 LTSR to Virtual Apps 7 1912 LTSR

53.Reboot Both Citrix servers.

Hope you enjoy this post.
